Article

The Mitogenomic Characterization and Phylogenetic Analysis of the Plant Pathogen Phyllosticta yuccae

by
Hui Xu
1,2,3,
Ziyi Zhu
1,2,3,
Zeyuan Tian
2,3,4,
Cuiyuan Wei
1,2,3,
Qi Fan
2,3,4,
Yuanbing Wang
2,3,
Shikang Shen
5,
Gang Deng
1,* and
Mingliang Ding
2,3,6,7,*
1
School of Agriculture, Yunnan University, Kunming 650091, China
2
Yunnan Key Laboratory for Fungal Diversity and Green Development, Kunming Institute of Botany, Chinese Academy of Sciences, Kunming 650201, China
3
CAS Key Laboratory for Plant Diversity and Biogeography of East Asia, Kunming Institute of Botany, Chinese Academy of Sciences, Kunming 650201, China
4
College of Life Science and Technology, Guangxi University, Nanning 530004, China
5
School of Ecology and Environmental Science, Yunnan University, Kunming 650091, China
6
Food Crops Research Institute, Yunnan Academy of Agriculture Sciences, Kunming 650200, China
7
Department of Plant Pathology, College of Plant Protection, China Agricultural University, Beijing 100083, China
*
Authors to whom correspondence should be addressed.
Genes 2024, 15(1), 111; https://doi.org/10.3390/genes15010111
Submission received: 6 December 2023 / Revised: 11 January 2024 / Accepted: 16 January 2024 / Published: 17 January 2024
(This article belongs to the Special Issue Advanced Research on Mitochondrial Genome)
Browse Figures
Versions Notes

Abstract

:
Phyllosticta yuccae is an important plant pathogen causing leaf spot disease in Yucca gigantea Lem. It is imperative to note that the amount of information available about the mitogenome of this subject is severely limited. This must be addressed immediately, as it is crucial to our understanding and progress in this field. To better understand the mitogenomic characteristics of P. yuccae, we conducted its sequencing by MGISEQ. Afterwards, the mitogenome was assembled and annotated. The mitogenomic characteristics and phylogenetic placement of the P. yuccae strain KUMCC 6213 were analyzed. The study revealed that the mitogenome of P. yuccae is a circular DNA molecule, consisting of 178,540 base pairs. It contains a total of 64 genes, including 14 protein-coding genes (PCGs), 26 transfer RNA genes (tRNA), 2 ribosomal RNA genes (rRNA), and 22 open reading frame genes (ORF), accounting for 80.98% of the total size. Repetitive sequences accounted for 15.42% of the mitogenome. The analysis of codon usage indicated that the codon UUA was the most commonly utilized, whereas the amino acid Leu was the most frequently employed. A comparative analysis of mitogenomes between P. yuccae and Macrophomina phaseolina (Tassi) Goid. showed notable variations in the position and size of gene clusters, with cox1, nad4, and nad4L genes exhibiting relatively low conservation. Phylogenetic analysis based on the 14 PCGs revealed that P. yuccae has the closest genetic relationship with M. phaseolina (Botryosphaeriaceae, Botryosphaeriales). This study first reports the mitogenome of P. yuccae and validates its phylogenetic placement. The findings enhance the knowledge of mitogenomes in Botryosphaeriales, offering novel perspectives on the genetics and evolution of the plant pathogen P. yuccae. This is crucial for the accurate prevention and management of leaf spot disease in Y. gigantea.

1. Introduction

Mitochondria, which are essential organelles in most eukaryotic cells, play a major role in generating cellular energy, and serve as the primary sites for aerobic respiration [1]. They perform crucial functions in important biological processes, such as cellular senescence and apoptosis [2]. The mitochondrial genome is an effective tool for accurately identifying species across different biological taxa in molecular systematics and evolutionary biology, due to its small size and matrilineal mode of inheritance [3,4]. Currently, mitogenomes are widely used in molecular systematics and evolutionary biology [5,6,7]. However, due to the limited data on fungal mitogenomes, applications in fungi have been restricted [8]. Nevertheless, with the increasing availability of data, the use of mitogenomes in fungi is gradually expanding. These applications currently encompass not only the identification and classification of species, but also the research of disease-causing potential, studies on resistance to drugs, and the advancement of tools for diagnosing fungal infections [9,10].
The mitogenomes of eukaryotes exhibit great diversity in organizations, gene contents, and structures. Animal mitogenomes are typically small and compact in structure, with highly conserved genes, whereas plant mitogenomes are large and contain large intergenic repetitions. Fungal mitogenomes are intermediate in size, generally consist of 14 conserved core protein-coding genes (PCGs), two ribosomal RNA genes, and multiple tRNA genes. They are characterized by variable gene contents, abundant self-splicing introns, and unique mechanisms of replication and transcription [11,12]. Fungal mitogenomes vary in size, gene structure, and arrangement. Typically, their size is highly correlated with the number of repeats and introns [13,14,15]. Therefore, understanding the structural characteristics of fungal mitogenomes and the variations between homologous species can aid in the analysis of molecular evolutionary and phylogenetic patterns [16]. The study by Fonseca et al. analyzed numerous fungal mitogenomes and revealed significant variations in their size and composition, thus offering novel insights into the diversity and evolutionary trajectories of fungal mitogenomes [8].
In recent years, the development of high-throughput sequencing technology has led to a significant increase in the number of fungal mitochondrial genome databases. This has greatly facilitated research into the phylogeny and evolution of fungi [17]. To date, 1242 fungal mitochondrial genomes data have been released from NCBI Organelle database (https://www.ncbi.nlm.nih.gov/genome/browse#!/organelles/, accessed on 12 April 2023), including 38 species of Dothideomycetes. However, mitogenomes of Phyllosticaceae species have not been reported yet.
P. yuccae Bissett. belongs to the family Phyllosticaceae (Dothideomycetes, Botryosphaeriales), and is a significant plant pathogen. This pathogen causes leaf spot disease in Y. gigantea, which can harm the plant’s appearance, growth, and survival. The Canadian Department of Agriculture reported the pathogen on Y. gigantea leaves in 1979 [18]. In a pivotal study in 2013, Wikee et al. adopted DNA data from the ITS, LSU, ACT, TEF, and GPDH genes to redefine the genus Phyllosticta, and determined that P. yuccae belonged to the family Phyllosticaceae [19]. In this study, we first assembled and annotated the mitogenome of P. yuccae, which belongs to the family Phyllosticaceae of Botryosphaeriales. The analysis included an examination of its mitogenome composition, the secondary structure of tRNA genes, and codon usage. Additionally, we conducted a comparative analysis of the mitogenome of P. yuccae and M. phaseolina, and constructed a phylogenetic tree using the 14 PCGs to determine the phylogenetic position of P. yuccae. Our research on the mitogenome of P. yuccae may offer new insights into the evolutionary biology and phylogeny of fungi that are harmful to plants.

2. Materials and Methods

2.1. Sampling, Library Preparation and Sequenceing

We collected samples of diseased leaves from Y. gigantea plants at Qingxiu Mountain, Nanning City, Guangxi Province, China, located at 108.37° E longitude and 22.79° N latitude. We took samples from infected leaves by cutting them into small 3–5 cm segments. To prepare the samples, we treated them with 1.5% sodium hypochlorite solution for two minutes, soaking them in 70% ethanol for two minutes, rinsed them three times with sterile distilled water, and then dried them with sterile filter paper [20]. We first sterilized some leaves and cut them into small pieces using sterile scissors and forceps. These slices were then placed on potato dextrose agar (PDA) medium that contained ampicillin and streptomycin. Each Petri dish had about five to six pieces and was kept in an incubator at a steady temperature of 20 °C. After 2 to 8 days, the strains were transferred to fresh PDA and again incubated at 20 °C until pure cultures were obtained. We followed the methods described by Wang et al. to extract DNA and amplify ITS sequences [21]. Through a phylogenetic tree analysis based on the ITS data (Supplemental Figure S1), we were able to identify the strain as P. yuccae. The ITS sequence has been submitted to GenBank and can be accessed under the accession number OQ608827. The fungal strain KUMCC 6213, isolated from Y. gigantea infected leaves, is currently preserved at the Kunming Institute of Botany Culture Collection (KUMCC), Chinese Academy of Sciences, China.
We sent mycelia cultured on PDA at 20 °C for 15 days to Wuhan Huada Co. (Wuhan, China) Genomic DNA was extracted using the MGIEasy Universal DNA Library Preparation Kit (MGI Tech Co., Ltd., Shenzhen, China). This DNA was fragmented using Covaris ultrasonication. After that, DNA libraries were created through several steps including end repair and A-tail modification, sequencing aptamer ligation, purification, and PCR amplification. The concentration of the libraries was assessed using Qubit 2.0, and the insert fragments were analyzed with the Agilent 2100 Bioan-alyzer. Finally, genome sequencing was performed on the MGISEQ-2000RS platform, utilizing 2 × 150 bp paired-end read sequencing technology [22].

2.2. Mitogenome Assembly and Annotation

The GetOrganelle v1.7.7.0 was used for the de novo assembly of the mitogenome, resulting in a circular mitogenome [23]. MITOS (http://mitos2.bioinf.uni-leipzig.de/index.py, accessed on 20 March 2023) and MFannot (https://megasun.bch.umontreal.ca/apps/mfannot/, accessed on 20 March 2023) were used for annotation, based on the mold mitogenome genetic code [24,25]. We utilized the annotation information of M. phaseolina (GenBank number: NC_060329) as a reference [26]. To obtain complete annotation information, we performed multiple rounds of manual correction. The annotated mitogenome of KUMCC 6213 has been submitted to GenBank under the accession number OQ621729. To map the mitogenome, we used the online tool Chloroplot (https://chlorobox.mpimp-golm.mpg.de/OGDraw.html, accessed on 25 March 2023) [27].

2.3. Mitogenome Characteristics Analysis

The mitogenome of P. yuccae was analyzed using Geneious v9.2.0. The GC shift was assessed using the formula GC skew = (G − C)/(G + C). Codon usage analysis was analyzed with MEGA v7. [28]. The tRNA genes’ secondary structure was predicted using tRNAscan-SE v2.0. [29]. We used Mauve v2.4.0 to compare the collinearity of mitogenomes between P. yuccae and M. phaseolina [30]. In order to detect repetitive sequences in the mitochondrial genome, we used multiple tools: REPuter (https://bibiserv.cebitec.uni-bielefeld.de/reputer, accessed on 23 April 2023) for predicting dispersed repeats [31], Tandem Repeats Finder (https://tandem.bu.edu/trf/trf.html, accessed on 23 April 2023) for tandem repeats [32], and MISA (https://webblast.ipk-gatersleben.de/misa/, accessed on 24 April 2023) for simple repeats [33]. Synonymous (KS) and non-synonymous (KA) substitutions in protein-coding genes were calculated using KaKs_Calculator 2.0 [34].

2.4. Phylogenetic Analysis

We analyzed the genetic makeup of P. yuccae using 14 PCGs from 28 species. We combined the mitogenomes of 27 species obtained from the NCBI Organelle database with the P. yuccae mitogenome created in this study. Trametes cingulata Berk. (GenBank number: NC_013933) and Lentinula edodes Shimomura et al. (GenBank number: NC_018365) both from Basidiomycota were used as outgroups. The 14 PCGs were extracted and concatenated using PhyloSuite v1.2.3., and missing data in the analysis were filled with ‘?’ characters during the analysis to maintain consistency [35]. Sequence alignment was performed using MAFFT v.7. [36]. The phylogenetic framework was established using two approaches: maximum likelihood (ML) and Bayesian inference (BI). ModelFinder was used to select the best-fit edge-unlinked partition models for both ML and BI, based on the Corrected Akaike Information Criterion (AIC) [37]. The best-fit edge-unlinked partition models chosen for each gene segment are listed in Supplemental Table S1. For this analysis, we ran four Markov chains simultaneously for a total of 2,000,000 generations. Data was sampled after every 100 generations and discarded the initial 25% of each run, which served as the burn-in period. We assumed that stationarity had been reached when the estimated sample size (ESS) exceeded 100 and the potential scale reduction factor (PSRF) approached 1.0. Subsequently, the remaining trees were used to compute the Bayesian posterior probabilities (BPP) in a 50% majority-rule consensus tree [38]. The IQ-TREE v. 2.1.3 software was used to perform maximum likelihood analysis with a best-fit edge-unlinked partition model, and we conducted 1000 ultrafast bootstrap [39]. The phylogenetic trees obtained from our analysis were initially visualized and meticulously refined using FigTree v. 1.4.4, and further edited for clarity and visual appeal using Adobe Illustrator CS6.0.

3. Results

3.1. The Characteristics of P. yuccae

The mitogenome of P. yuccae consists of a closed circular DNA molecule that measures 178,540 base pairs in length, with the coding region accounts for 80.98% of its total size (Figure 1). The G+C content of the mitogenome is 31.13%, while the A+T content is 68.87%, indicating a clear AT bias (Table 1). The mitochondrial genome contains a total of 64 genes, including 14 protein-coding genes (PCGs), 2 ribosomal RNA (rRNA) genes, 26 transfer RNA (tRNA) genes, and 22 open reading frames (ORFs). The mitogenome of P. yuccae is composed of repetitive sequences that make up 15.42% of its total size (Table 2, Supplemental Table S2). According to REPuter prediction, the dispersed repeat sequences had 310 repetitive units with a cumulative total length of 25,890 bp, which accounted for 14.77% of the entire mitogenome (Supplemental Table S3). There were 14 tandem repeat sequences, totaling 848 bp, which made up 0.47% of the entire mitogenome (Supplemental Table S4).

3.2. Protein-Coding Genes and Codon Usage

The mitogenome of P. yuccae comprises 14 PCGs, which cover 9.23% of the total length, including 13 conserved core PCGs and 1 ribosomal protein S3 gene (Table 2). These 13 genes are responsible for encoding different subunits of important cellular components such as the F0 portion of the ATP synthase complex (atp6 and atp9), three cytochrome oxidase enzymes (cox1, cox2, and cox3), seven subunits of Complex I of the electron transport chain (nad1, nad2, nad3, nad4, nad4L, nad5, and nad6), and one subunit of Complex III (cob). Ribosomal protein S3 (rps3) is a component of the translation-related 40S ribosomal subunit. Atp6, nad3, and rps3 use GTG as their initiation codon, while the remaining 10 PCGs use ATG. (Table 2). The analysis of codon usage in the 14 protein-coding genes (PCGs) of P. yuccae showed that 5492 codons were used, and the most frequently used codon was UUA, which was used 467 times. The relative synonymous codon usage (RSCU) analysis indicated that the order of the most frequently used codons was UUA (3.66), AGA (3.43), CCU (2.28), and GGU (2.06). Furthermore, the usage frequency of amino acids in the coded proteins of the P. yuccae mitogenome varied greatly, with Leu being the most frequently used at 13.95% (Figure 2; Supplemental Table S5).

3.3. Ribosomal and Transporter RNA Genes

Ribosomal RNA is an essential component of ribosomes that plays a vital role in protein synthesis. The mitogenome of P. yuccae contains two rRNA genes: the small-subunit ribosomal RNA (rns) and the large-subunit ribosomal RNA (rnl). Rns is 1608 bp long and contains two introns, while rnl is 1968 bp long and contains seven introns (Table 2).
P. yuccae contains 26 tRNAs encoding amino acids. All tRNAs have a typical cloverleaf secondary structure, except for one Tyr, two Leu, and two Ser tRNAs, in which 43 G–U mismatches were identified (Figure 3). The arrangement of most transfer RNAs (tRNAs) around the rnl region in this fungal mitogenome is similar to that observed in other fungal mitogenomes, as shown in Figure 1. The tRNA genes have a combined length of 1944 base pairs, which makes up about 1.09% of the total length of the mitogenome. The length of individual tRNAs ranges from 71 to 87 base pairs (Supplemental Table S1), which was mainly due to variations in the sizes of the extra arms. Arginine (Arg), Leucine (Leu), and Serine (Ser) are transfer RNAs (tRNAs) that are encoded by tRNA genes having two different anticodons. However, Phenylalanine (Phe) is encoded by two tRNA genes that have the same anticodon, and Methionine (Met) is encoded by three tRNA genes which also have the same anticodon (Supplemental Table S2).

3.4. A Comparative Analysis of the Mitogenomes of P. yuccae and M. phaseolina

The mitogenomes of P. yuccae and M. phaseolina, which were found to be the most closely related species based on published data, were analyzed for collinearity using Mauve. The analysis revealed notable differences in the location and size of gene clusters between the two species (Supplemental Figure S2). The 14 conserved protein-coding genes (PCGs) showed significant differences in their size, with cox1, nad4, and nad4L having larger sizes compared to the other PCGs. In M. phaseolina, the lengths of cox1, nad4, and nad4L were 1776 bp, 1464 bp, and 1434 bp, respectively. In contrast, in P. yuccae, cox1 was 936 bp, nad4 was 3633 bp, and nad4L was 489 bp long (Figure 4a). It appears that the lengths of the cox1, nad4, and nad4L genes are not well conserved. The GC content of the 14 PCGs ranges from 31.13% in P. yuccae to 29.8% in M. phaseolina. (Table 1). In addition, there were differences in the GC content of the individual protein-coding genes (PCGs) between the two species, with atp9 having the highest GC content in both species, as shown in Figure 4b. The analysis of the P. yuccae mitogenome revealed that most of the PCGs had a positive GC skew, except for cox3, which had a negative GC skew. Conversely, the atp6, cox3, nad2, and nad3 of M. phaseolina displayed a negative GC skew, as illustrated in Figure 4c. It was discovered that the substitution rates of different PCGs vary between P. yuccae and M. phaseolina. The genetic distance analysis revealed that the largest genetic distance can be found in cox1, followed by nad4L (as shown in Figure 4d). The atp9 gene exhibited the smallest genetic distance among all the PCGs, which is an interesting finding. Moreover, the Ka/Ks values of the 14 PCGs were all found to be below one, indicating strong negative selection (as depicted in Figure 4d).

3.5. Phylogenetic Relationships

In our study, we analyzed the mitogenomes of Ascomycota and conducted a phylogenetic analysis of P. yuccae, due to the limited information available on the mitogenomes of Phyllostictaceae family. We utilized Maximum Likelihood (ML) and Bayesian Inference (BI) methods. The results of the analysis showed that the machine learning (ML) and Bayesian inference (BI) trees were topologically consistent, with 14 species of Dothideomycetes forming a large clade. Within this clade, P. yuccae was identified as a sister taxon to M. phaseolina, suggesting a close evolutionary connection between them. The study found that the other 12 Ascomycota species could be grouped into four different clades, which represented four distinct classes: Leotiomycetes, Eurotiomycetes, Sordariomycetes, and Pezizomycetes. These findings not only show where P. yuccae fits within Ascomycota, but also highlight the diversity and evolutionary relationships within Dothideomycetes. The high bootstrap values in our ML tree and strong posterior probabilities in our BI tree confirm the reliability of the phylogenetic tree, providing compelling support for our conclusions. The results of our study are represented in a clear manner through Figure 5. Additionally, we have provided detailed mitochondrial genomic data in Supplemental Table S7 for further analysis and validation. These data can be utilized by future studies to explore the evolutionary relationships of other unclassified groups within Ascomycota. By doing so, we can gain a deeper understanding of the genetic diversity and evolutionary history of this clade.

4. Discussion

In this study, we present the complete mitogenome of the plant pathogen P. yuccae in the Phyllosticaceae. The mitogenome of P. yuccae is the largest in Botryosphaeriales, at 178,540 bp (Figure 1). The coding region of this organism’s mitogenome makes up 80.98% of the total and contains a total of 64 genes. Out of the 14 protein-coding genes (PCGs), atp6, nad3, and rps3 use GTG as the starting codon, whereas the other 10 PCGs start with the conventional ATG codon (Table 2). Although ATG is a typical starting codon in eukaryotes, alternative codons can also initiate protein synthesis [40,41,42]. Using a homologous codon for translation initiation may enhance coding potential or have regulatory functions [43]. Fungal mitogenomes have varying sizes; for example, Rozella allomycis has a mitogenome size of only 12 kb (GenBank number: NC_021611) [44], whereas the largest fungal mitogenome on record is that of Golovinomyces cichoracearum, which has a length of 332.125 kb (GenBank number: NC_056148) [45]. Previous studies suggest that repetitive sequences, intergenic regions, the number of ORFs, and horizontal gene transfer primarily influence fungal mitogenome size variation [46]. The mitogenome of P. yuccae is 178,540 bp, while that of its relative M. phaseolina is 101,198 bp. Repeats and intergenic regions in P. yuccae are approximately twice as long as those in M. phaseolina (Table 1). Thus, the primary factors contributing to the length variation of mitogenomes in Botryosphaeriales may be the lengths of repeats and intergenic regions. A comparison of mitochondrial gene arrangements can provide valuable insights into species evolutionary relationships [47,48]. In this study, significant rearrangements were observed in the mitogenomes of two Botryosphaeriales species, involving core PCGs, ORFs, tRNA genes, and rRNA genes. Among the eight gene clusters detected, seven showed changes in their locations (Supplemental Figure S2). Previous studies have shown that the accumulation of repetitive sequences in fungal mitogenomes is closely associated with mitochondrial gene rearrangements and gene loss [17,49]. In terms of repetitive sequences, P. yuccae’s mitogenome consists of 15.4%, while M. phaseolina’s mitogenome consists of 12.27% (Table 1). This suggests that during fungal evolution, while most mitochondrial genes have been transferred to the nuclear genome, fungi generally retain 14 key genes related to metabolic energy in their mitochondria. As a result, both species have undergone significant gene rearrangements [50]. During our comparison of the mitogenome of P. yuccae and M. phaseolina, we discovered that 13 PCGs in P. yuccae had a positive GC skew, except for cox3, which had a negative skew. On the other hand, in M. phaseolina, the GC skew of atp6, cox3, nad2, and nad3 was negative (Figure 4c). Some studies suggest that base bias may result from asymmetric base mutations and different selection pressures encountered during replication and transcription [51,52]. Additionally, the genetic distances of the 14 protein-coding genes (PCGs) are distinct, suggesting that different PCGs in Botryosphaeriales have varying evolutionary rates (Figure 4d). Botryosphaeriales exhibit high conservation in atp9, with all 14 PCGs evolving under purifying selection (Ka/Ks < 1) (Figure 4d).
Our phylogenetic analysis, based on 14 PCGs from mitogenomes of 28 species, yielded topological structures consistent with previous studies [19,26]. At the base of the phylogenetic tree is Basidiomycota, while a large clade includes 14 species of Dothideomycetes. Based on the analysis, it has been identified that P. yuccae and M. phaseolina are closely related to each other, with a high level of genetic similarity. The node that connects them has received a bootstrap support value of 100 from ML and a posterior probability of 1.0 from BI, providing strong evidence for their genetic relationship. Additionally, the remaining 12 Ascomycota species are categorized into four distinct clades: Leotiomycetes, Eurotiomycetes, Sordariomycetes, and Pezizomycetes (Figure 5; Supplemental Table S7). The analysis of the genetic similarity between P. yuccae and M. phaseolina shows that they have relatively short homologous regions and poor collinearity. This is likely due to the fact that they belong to two different families and are still genetically distant. These findings indicate that differences in homologous regions may be the primary cause of variations among fungal species. Currently, there is limited mitogenomic data available for the Botryosphaeriales order, which hinders our comprehensive understanding of species diversity within this order. Future research should expand the mitogenomic database for Botryosphaeriales by incorporating more species to enrich our phylogenetic framework and explore genetic variations. Such efforts will enhance our understanding of fungal differentiation and adaptation throughout their evolutionary history.

5. Conclusions

For the first time, this study marks the assembly and annotation of the mitogenome of P. yuccae. With a length of 178,450 bp, including 39 introns, 398 repeats, and 22 ORFs, it is the largest reported mitogenome among Botryosphaeriales thus far. Significant differences in gene size, arrangement, and collinearity between P. yuccae and M. phaseolina suggest that interspecies variations may be related to differences in homologous regions.
In addition, phylogenetic analysis indicates that P. yuccae clusters with M. phaseolina. This study provides new evidence for the phylogenetic placement of P. yuccae. The comparative mitogenome analysis of P. yuccae and M. phaseolina has also enriched the understanding of mitochondrial evolution in the order Botryosphaeriales.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/genes15010111/s1, Figure S1: Phylogenetic tree of 23 species within Phyllosticta based on Maximum likelihood analysis of ITS gene; Figure S2: Mitogenome comparative collinearity analysis between P. yuccae and M. phaseolina; Table S1: The best-fit edge-unlinked partition model; Table S2: tRNA feature and organization in the P. yuccae mitogenome; Table S3: Distribution of repeat loci in the mitogenome of P. yuccae and M. phaseolina as revealed by REPuter; Table S4: Tandem repeats detected in the mitogenomes of P. yuccae and M. phaseolina; Table S5: Codon usage analysis between P. yuccae and M. phaseolina; Table S6: Microsatellite DNA in P. yuccae and M. phaseolina; Table S7: Mitogenome information used for phylogenetic analyses in this study.

Author Contributions

Conceptualization, Y.W. and S.S.; writing—original draft preparation, H.X.; software, H.X., Z.Z. and C.W.; material, Z.T. and Q.F.; supervision, G.D. and M.D. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the Science and Technology Planning Project of Yunnan Province (202207AB110016), Science and technology project of Yunnan Forestry and Grass Bureau (2021SJ14X-08) and the High Level Talent Introduction Plan, Kunming Institute of Botany, CAS (No. E16N61).

Data Availability Statement

The genome sequence data that support the findings of this study are openly available in GenBank of NCBI under the accession number OQ621729. The associated BioProject, SRA, and Bio-Sample numbers are PRJNA950187, SRR24012831, and SAMN33977573, respectively.

Conflicts of Interest

The authors have stated that they have no conflicts of interest related to this study. Additionally, the funders did not contribute to the design of the study, data collection, data analysis, interpretation of the results, writing of the manuscript, or the decision to publish.

References

  1. Burger, G.; Gray, M.W.; Franz Lang, B. Mitochondrial genomes: Anything goes. Trends Genet. 2003, 19, 709–716. [Google Scholar] [CrossRef]
  2. Wai, T.; Langer, T. Mitochondrial dynamics and metabolic regulation. Trends Endocrinol. Metab. 2016, 27, 105–117. [Google Scholar]
  3. Abuduaini, A.; Wang, Y.B.; Zhou, H.Y.; Kang, R.P.; Ding, M.L.; Jiang, Y.; Suo, F.Y.; Huang, L.D. The complete mitochondrial genome of Ophiocordyceps gracilis and its comparison with related species. IMA Fungus 2021, 12, 31. [Google Scholar] [CrossRef]
  4. Ji, X.; Tian, Y.; Liu, W.; Lin, C.; He, F.; Yang, J.; Miao, W.; Li, Z. Mitochondrial characteristics of the powdery mildew genus Erysiphe revealed an extraordinary evolution in protein-coding genes. Int. J. Biol. Macromol. 2023, 230, 123153. [Google Scholar] [CrossRef]
  5. Pszczolkowska, A.; Androsiuk, P.; Jastrzębski, J.P.; Paukszto, L.; Okorski, A. Rps3 as a candidate mitochondrial gene for the molecular identification of species from the Colletotrichum acutatum species complex. Genes 2020, 11, 552. [Google Scholar]
  6. Zhang, C.; Mao, B.; Wang, H.; Dai, L.; Huang, Y.; Chen, Z.; Huang, J. The complete mitogenomes of three grasshopper species with special notes on the phylogenetic positions of some related genera. Insects 2023, 14, 85. [Google Scholar]
  7. Van de Sande, W.W. Phylogenetic analysis of the complete mitochondrial genome of Madurella mycetomatis confirms its taxonomic position within the order Sordariales. PLoS ONE 2012, 7, e38654. [Google Scholar] [CrossRef]
  8. Fonseca, P.L.C.; De-Paula, R.B.; Araújo, D.S.; Tomé, L.M.R.; Mendes-Pereira, T.; Rodrigues, W.F.C.; Del-Bem, L.E.; Aguiar, E.R.G.R.; Góes-Neto, A. Global Characterization of Fungal Mitogenomes: New Insights on Genomic Diversity and Dynamism of Coding Genes and Accessory Elements. Front. Microbiol. 2021, 12, 787283. [Google Scholar] [CrossRef]
  9. Kulik, T.; Bilska, K.; Żelechowski, M. Promising Perspectives for Detection, Identification, and Quantification of Plant Pathogenic Fungi and Oomycetes through Targeting Mitochondrial DNA. Int. J. Mol. Sci. 2020, 21, 2645. [Google Scholar] [CrossRef]
  10. Kulik, T.; Van Diepeningen, A.D.; Hausner, G. Editorial: The Significance of Mitogenomics in Mycology. Front. Microbiol. 2021, 11, 628579. [Google Scholar]
  11. Kouvelis, V.N.; Hausner, G. Editorial: Mitochondrial genomes and mitochondrion related gene insights to fungal evolution. Front. Microbiol. 2022, 13, 897981. [Google Scholar] [CrossRef]
  12. Zardoya, R. Recent advances in understanding mitochondrial genome diversity. F1000Research 2020, 9, F1000. [Google Scholar] [CrossRef]
  13. Li, Q.; Ren, Y.; Xiang, D.; Shi, X.; Zhao, J.; Peng, L.; Zhao, G. Comparative mitogenome analysis of two ectomycorrhizal fungi (Paxillus) reveals gene rearrangement, intron dynamics, and phylogeny of basidiomycetes. IMA Fungus 2020, 11, 12. [Google Scholar] [CrossRef]
  14. Kong, L.; Li, Y.; Kocot, K.M.; Yang, Y.; Qi, L.; Li, Q.; Halanych, K.M. Mitogenomics reveals phylogenetic relationships of Arcoida (Mollusca, Bivalvia) and multiple independent expansions and contractions in mitochondrial genome size. Mol. Phylogenet Evol. 2020, 150, 106857. [Google Scholar]
  15. Aguileta, G.; de Vienne, D.M.; Ross, O.N.; Hood, M.E.; Giraud, T.; Petit, E.; Gabaldón, T. High variability of mitochondrial gene order among fungi. Genome Biol. Evol. 2014, 6, 451–465. [Google Scholar] [CrossRef]
  16. Zhang, Y.; Zhang, S.; Zhang, G.; Liu, X.; Wang, C.; Xu, J. Comparison of mitochondrial genomes provides insights into intron dynamics and evolution in the caterpillar fungus Cordyceps militaris. Fungal Genet. Biol. 2015, 77, 95–107. [Google Scholar] [CrossRef]
  17. Liu, W.; Cai, Y.; Zhang, Q.; Chen, L.; Shu, F.; Ma, X.; Bian, Y. The mitochondrial genome of Morchella importuna (272.2 kb) is the largest among fungi and contains numerous introns, mitochondrial non-conserved open reading frames and repetitive sequences. Int. J. Biol. Macromol. 2020, 143, 373–381. [Google Scholar] [CrossRef]
  18. Bissett, J. Discochora yuccae sp. nov. with Phyllosticta and Leptodothiorella synanamorphs. Can. J. Bot. 1986, 64, 1720–1726. [Google Scholar] [CrossRef]
  19. Wikee, S.; Lombard, L.; Nakashima, C.; Motohashi, K.; Chukeatirote, E.; Cheewangkoon, R.; McKenzie, E.H.C.; Hyde, K.D.; Crous, P.W. A phylogenetic re-evaluation of Phyllosticta (Botryosphaeriales). Stud. Mycol. 2013, 76, 1–29. [Google Scholar] [CrossRef] [PubMed]
  20. Herron, D.A.; Wingfield, M.J.; Wingfield, B.D.; Rodas, C.A.; Marincowitz, S.; Steenkamp, E.T. Novel taxa in the Fusarium fujikuroi species complex from Pinus spp. Stud. Mycol. 2015, 80, 131–150. [Google Scholar] [CrossRef] [PubMed]
  21. Wang, Y.B.; Wang, Y.; Fang, Q.; Duan, D.E.; Zhang, G.D.; Dai, R.Q.; Dai, Y.D. Multigene phylogeny of the family Cordycipitaceae (Hypocreales): New taxa and the new systematic position of the Chinese cordycipitoid fungus Paecilomyces hepiali. Fungal Divers. 2020, 103, 1–46. [Google Scholar] [CrossRef]
  22. Zhang, H.; Fu, X.; Gong, X.; Wang, Y.; Zhang, H.; Zhao, Y.; Shen, Y. Systematic dissection of key factors governing recombination outcomes by GCE-SCRaMbLE. Nat. Commun. 2022, 13, 5836. [Google Scholar] [CrossRef] [PubMed]
  23. Jin, J.J.; Yu, W.B.; Yang, J.B.; Song, Y.; Depamphilis, C.W.; Yi, T.S.; Li, D.Z. GetOrganelle: A fast and versatile toolkit for accurate de novo assembly of organelle genomes. Genome Biol. 2020, 21, 241. [Google Scholar] [CrossRef] [PubMed]
  24. Bernt, M.; Donath, A.; Juhling, F.; Externbrink, F.; Florentz, C.; Fritzsch, G.; Putz, J.; Middendorf, M.; Stadler, P.F. MITOS: Improved de novo metazoan mitochondrial genome annotation. Mol. Phylogenet Evol. 2013, 69, 313–319. [Google Scholar] [CrossRef] [PubMed]
  25. Valach, M.; Burger, G.; Gray, M.W.; Lang, B.F. Widespread occurrence of organelle genome-encoded 5S rRNAs including permuted molecules. Nucleic Acids Res. 2014, 42, 13764–13777. [Google Scholar] [CrossRef]
  26. Yu, H.; Wang, L.; Yang, F.; He, Y.; Lv, M. Complete mitochondrial genome of the important phytopathogenic fungus Macrophomina phaseolina (Botryosphaeriales, Ascomycota). Mitochondrial DNA B 2021, 6, 2972–2974. [Google Scholar] [CrossRef]
  27. Lohse, M.; Drechsel, O.; Kahlau, S.; Bock, R. Organellar genome DRAW—A suite of tools for generating physical maps of plastid and mitochondrial genomes and visualizing expression data sets. Nucleic Acids Res. 2013, 41, W575–W581. [Google Scholar]
  28. Kumar, S.; Stecher, G.; Tamura, K. MEGA7: Molecular evolutionary genetics analysis version 7.0 for bigger datasets. Mol. Biol. Evol. 2016, 33, 1870–1874. [Google Scholar] [CrossRef]
  29. Lowe, T.M.; Chan, P.P. tRNAscan-SE On-line integrating search and context for analysis of transfer RNA genes. Nucleic Acids Res. 2016, 33, W54–W57. [Google Scholar] [CrossRef]
  30. Darling, A.C.E.; Mau, B.; Blattner, F.R.; Perna, N.T. Mauve: Multiple alignment of conserved genomic sequence with rearrangements. Genome Res. 2004, 14, 1394–1403. [Google Scholar]
  31. Kurtz, S. REPuter: The manifold applications of repeat analysis on a genomic scale. Nucleic Acids Res. 2001, 29, 4633–4642. [Google Scholar]
  32. Benson, G. Tandem repeats finder: A program to analyze DNA sequences. Nucleic Acids Res. 1999, 27, 573–580. [Google Scholar] [CrossRef]
  33. Beier, S.; Thiel, T.; Münch, T.; Scholz, U.; Mascher, M. MISA-web a web server for microsatellite prediction. Bioinformatics 2017, 33, 2583–2585. [Google Scholar] [CrossRef]
  34. Wang, D.; Zhang, Y.; Zhang, Z.; Zhu, J.; Yu, J. KaKs_Calculator 2.0 a toolkit incorporating γ-series methods and sliding window strategies. Genom. Proteom. Bioinf. 2010, 8, 77–80. [Google Scholar] [CrossRef]
  35. Zhang, D.; Gao, F.; Jakovlić, I.; Zou, H.; Zhang, J.; Li, W.X.; Wang, G.T. PhyloSuite: An integrated and scalable desktop platform for streamlined molecular sequence data management and evolutionary phylogenetics studies. Mol. Ecol. Resour. 2020, 20, 348–355. [Google Scholar] [CrossRef]
  36. Katoh, K.; Rozewicki, J.; Yamada, K.D. MAFFT online service: Multiple sequence alignment, interactive sequence choice and visualization. Brief. Bioinform. 2019, 20, 1160–1166. [Google Scholar] [CrossRef]
  37. Kalyaanamoorthy, S.; Minh, B.Q.; Wong, T.K.F.; von Haeseler, A.; Jermiin, L.S. ModelFinder: Fast model selection for accurate phylogenetic estimates. Nat. Methods 2017, 14, 587–589. [Google Scholar]
  38. Ronquist, F.; Teslenko, M.; van der Mark, P.; Ayres, D.L.; Darling, A.; Hohna, S.; Larget, B.; Liu, L.; Suchard, M.A.; Huelsenbeck, J.P. MrBayes 3.2: Efficient Bayesian phylogenetic inference and model choice across a large model space. Syst. Biol. 2012, 61, 539–542. [Google Scholar] [CrossRef]
  39. Nguyen, L.T.; Schmidt, H.A.; von Haeseler, A.; Minh, B.Q. IQ-TREE: A fast and effective stochastic algorithm for estimating maximum-likelihood phylogenies. Mol. Biol. Evol. 2015, 32, 268–274. [Google Scholar] [CrossRef]
  40. Clements, J.M.; Laz, T.M.; Sherman, F. Efficiency of translation initiation by non-AUG codons in Saccharomyces cerevisiae. Mol. Cell Biol. 1988, 8, 4533–4536. [Google Scholar]
  41. Ivanov, I.P.; Loughran, G.; Sachs, M.S.; Atkins, J.F. Initiation context modulates autoregulation of eukaryotic translation initiation factor 1 (elf1). Proc. Natl. Acad. Sci. USA 2010, 107, 18056–18060. [Google Scholar]
  42. Kolitz, S.E.; Takacs, J.E.; Lorsch, J.R. Kinetic and thermodynamic analysis of the role of start codon/anticodon base pairing during eukaryotic translation initiation. RNA 2009, 15, 138–152. [Google Scholar] [CrossRef]
  43. Wei, J.; Zhang, Y.; Ivanov, I.P.; Sachs, M.S. The stringency of start codon selection in the filamentous fungus Neurospora crassa. J. Biol. Chem. 2013, 288, 9549–9562. [Google Scholar]
  44. James, T.Y.; Pelin, A.; Bonen, L.; Ahrendt, S.; Sain, D.; Corradi, N.; Stajich, J.E. Shared signatures of parasitism and phylogenomics unite Cryptomycota and Microsporidia. Curr. Biol. 2013, 23, 1548–1553. [Google Scholar]
  45. Zaccaron, A.Z.; Stergiopoulos, I. Characterization of the mitochondrial genomes of three powdery mildew pathogens reveals remarkable variation in size and nucleotide composition. Microbiol. Genomics 2021, 7, 000720. [Google Scholar]
  46. Li, Q.; Wu, P.; Li, L.; Feng, H.; Tu, W.; Bao, Z.; Xiong, C.; Gui, M.; Huang, W. The first eleven mitochondrial genomes from the ectomycorrhizal fungal genus (Boletus) reveal intron loss and gene rearrangement. Int. J. Biol. Macromol. 2021, 172, 560–572. [Google Scholar]
  47. Zhong, L.; Wang, M.; Li, D.; Tang, S.; Zhang, T.; Bian, W.; Chen, X. Complete mitochondrial genome of Odontobutis haifengensis (Perciformes, Odontobutiae): A unique rearrangement of tRNAs and additional non-coding regions identified in the genus Odontobutis. Genomics 2018, 110, 382–388. [Google Scholar] [CrossRef]
  48. Zhang, Y.; Sun, J.; Rouse, G.W.; Wiklund, H.; Pleijel, F.; Watanabe, H.K.; Chen, C.; Qian, P.Y.; Qiu, J.W. Phylogeny, evolution and mitochondrial gene order rearrangement in scale worms (Aphroditiformia, Annelida). Mol. Phylogenet Evol. 2018, 125, 220–231. [Google Scholar] [CrossRef]
  49. Li, Q.; Yang, L.; Xiang, D.; Wan, Y.; Wu, Q.; Huang, W.; Zhao, G. The complete mitochondrial genomes of two model ectomycorrhizal fungi (Laccaria): Features, intron dynamics and phylogenetic implications. Int. J. Biol. Macromol. 2020, 145, 974–984. [Google Scholar]
  50. Johnston, I.G.; Williams, B.P. Evolutionary inference across eukaryotes identifies specific pressures favoring mitochondrial gene retention. Cell Syst. 2016, 2, 101–111. [Google Scholar] [CrossRef]
  51. Bogenhagen, D.F.; Clayton, D.A. The mitochondrial DNA replication bubble has not burst. Trends Biochem. Sci. 2003, 28, 357–360. [Google Scholar] [CrossRef] [PubMed]
  52. Brown, T.A.; Cecconi, C.; Tkachuk, A.N.; Bustamante, C.; Clayton, D.A. Replication of mitochondrial DNA occurs by strand displacement with alternative light-strand origins, not via a strand-coupled mechanism. Genes Dev. 2005, 19, 2466–2476. [Google Scholar] [CrossRef] [PubMed]
Genes 15 00111 g001
Figure 1. Circular map of the mitogenome of P. yuccae. Genes are represented by different colored blocks, as shown in the legend at the bottom left of the map.
Figure 1. Circular map of the mitogenome of P. yuccae. Genes are represented by different colored blocks, as shown in the legend at the bottom left of the map.
Genes 15 00111 g001
Genes 15 00111 g002

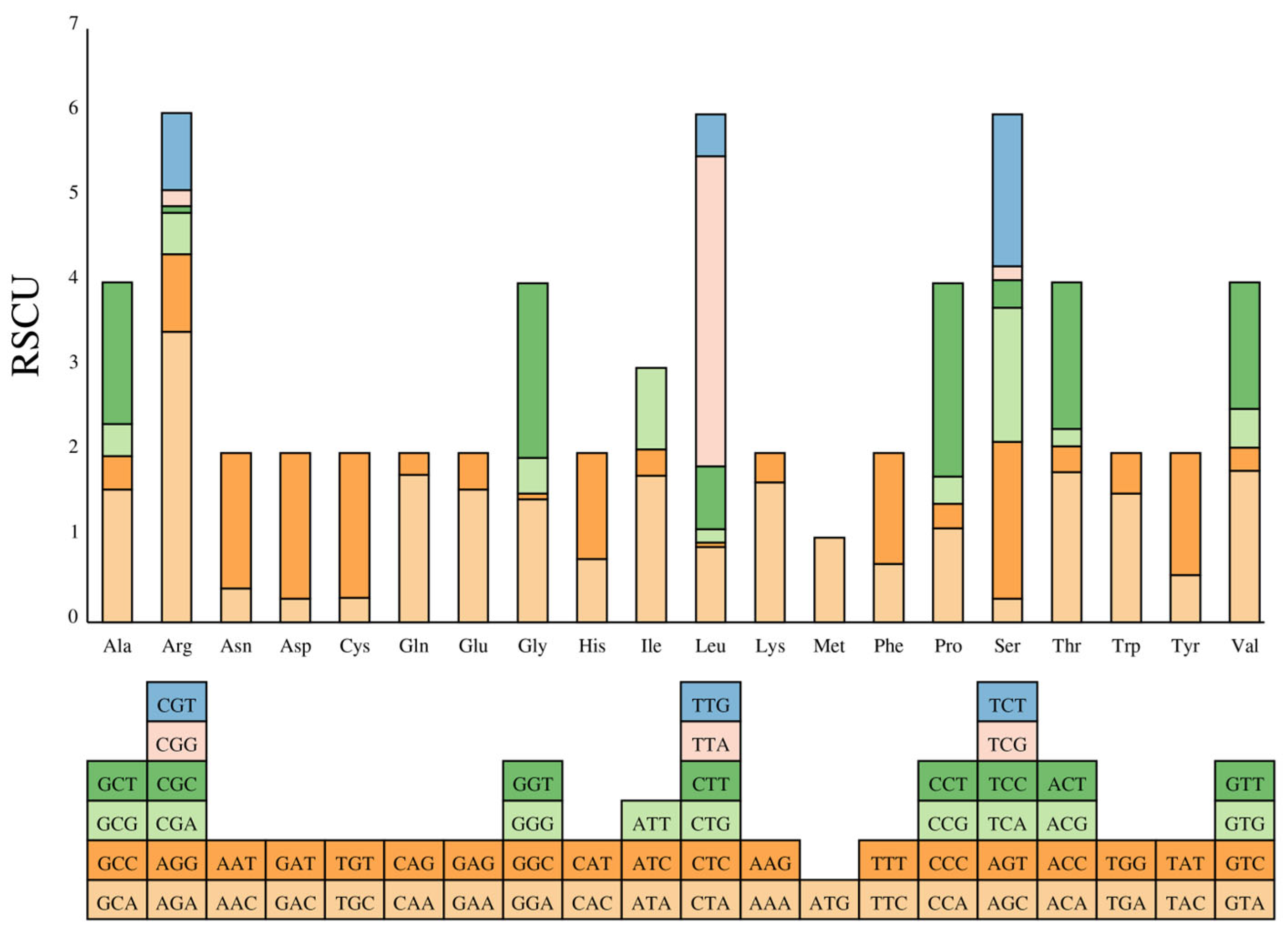

Figure 2. Codon usage in the mitogenome of P. yuccae. Codon families are indicated below the x-axis. RSCU is plotted on the y-axis. Different colors within each bar represent the different codons that encode the same amino acid.
Figure 2. Codon usage in the mitogenome of P. yuccae. Codon families are indicated below the x-axis. RSCU is plotted on the y-axis. Different colors within each bar represent the different codons that encode the same amino acid.
Genes 15 00111 g002
Genes 15 00111 g003

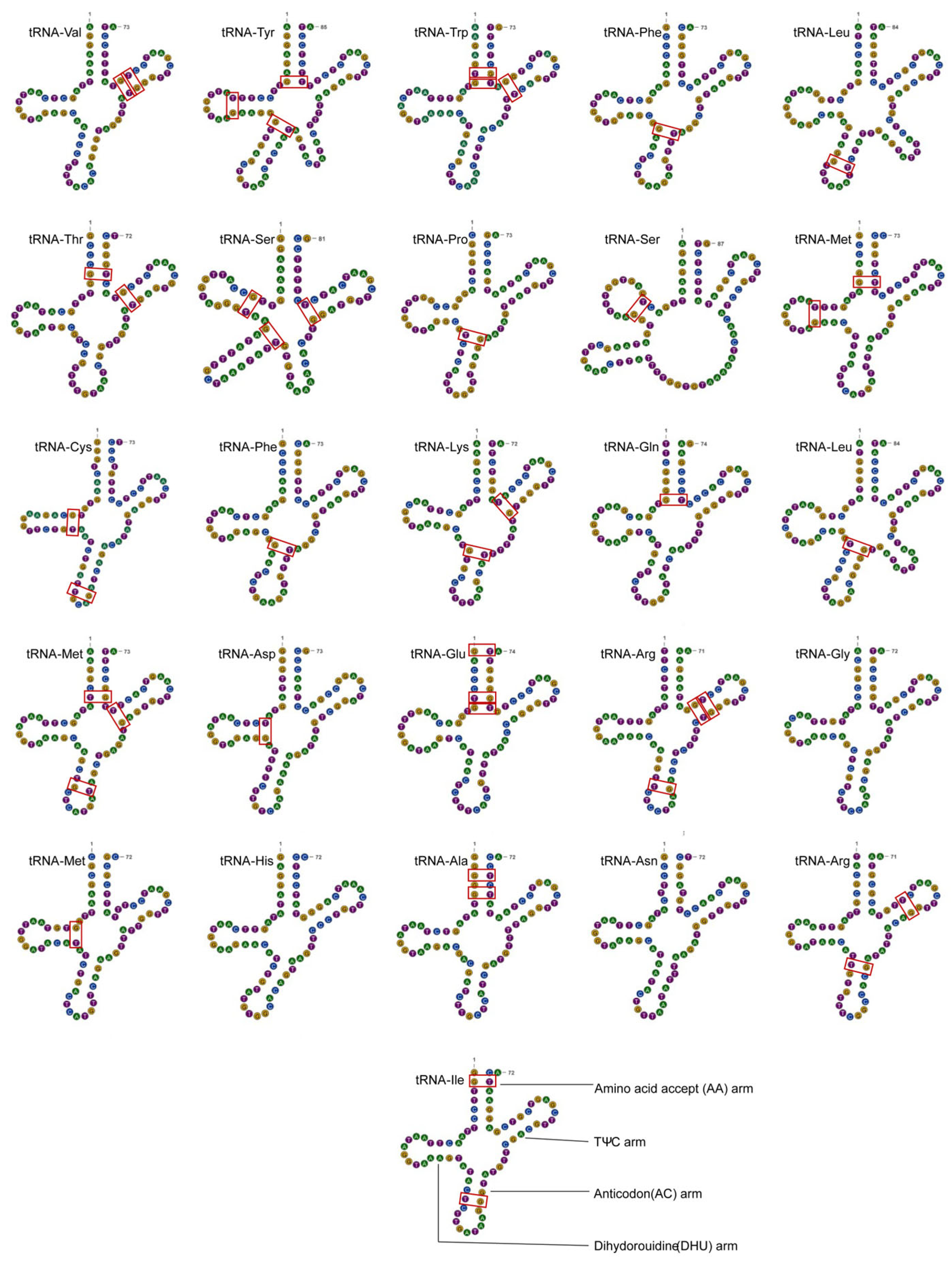

Figure 3. Putative secondary structures of the 26 tRNA genes identified in the mitogenome of P. yuccae. The red boxes represent the locations of G-U mismatches in the structure.
Figure 3. Putative secondary structures of the 26 tRNA genes identified in the mitogenome of P. yuccae. The red boxes represent the locations of G-U mismatches in the structure.
Genes 15 00111 g003
Genes 15 00111 g004
Figure 4. Gene analysis of 14 protein-coding genes (PCGs) in P. yuccae and M. phaseolina mitogenomes. (a) Length variation; (b) GC content; (c) GC skew; (d) genetic distance and Ka/Ks.
Figure 4. Gene analysis of 14 protein-coding genes (PCGs) in P. yuccae and M. phaseolina mitogenomes. (a) Length variation; (b) GC content; (c) GC skew; (d) genetic distance and Ka/Ks.
Genes 15 00111 g004
Genes 15 00111 g005

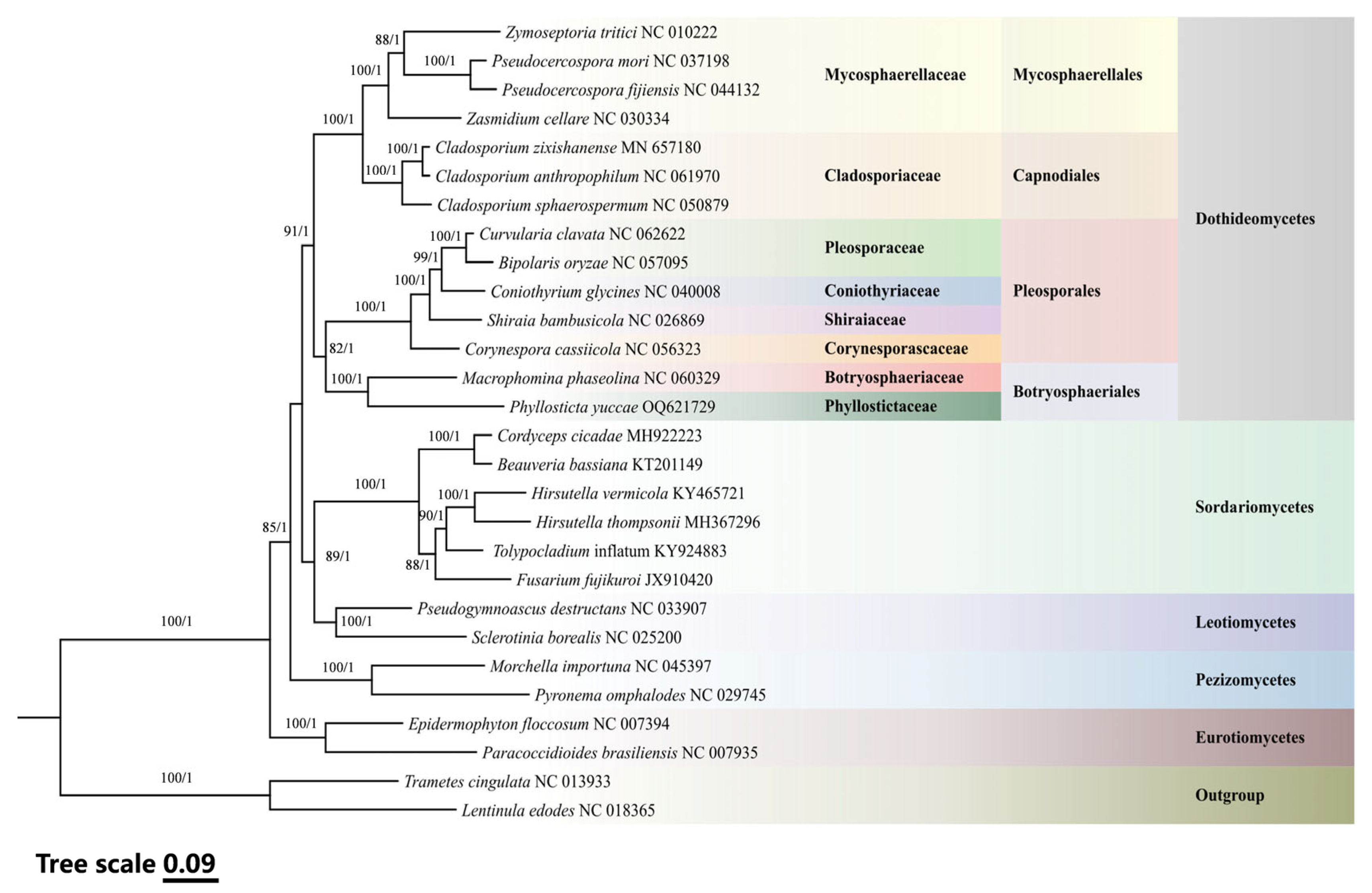

Figure 5. Integrated phylogenetic analysis of 28 fungal species based on Maximum Likelihood and Bayesian Inference from 14 protein-coding genes. The nodes are annotated with bootstrap support values from Maximum Likelihood analysis and posterior probabilities from Bayesian Inference analysis. Species and NCBI accession numbers for mitogenomes used in the phylogenetic analysis are provided in Supplemental Table S7.
Figure 5. Integrated phylogenetic analysis of 28 fungal species based on Maximum Likelihood and Bayesian Inference from 14 protein-coding genes. The nodes are annotated with bootstrap support values from Maximum Likelihood analysis and posterior probabilities from Bayesian Inference analysis. Species and NCBI accession numbers for mitogenomes used in the phylogenetic analysis are provided in Supplemental Table S7.
Genes 15 00111 g005
Table 1. Comparison between P. yuccae and M. phaseolina mitogenomes.
Table 1. Comparison between P. yuccae and M. phaseolina mitogenomes.
SpeciesM. phaseolinaP. yuccae
Accession No.NC_060329OQ621729
Genome size (bp)101,198178,540
GC content (%)29.8%31.13%
PCGsNumber1414
Length (bp)15,74116,476
Ratio (%)15.55%9.23%
tRNANumber2626
Length (bp)19401944
Ratio (%)1.92%1.09%
rRNANumber22
Length (bp)43303576
Ratio (%)4.28%2.00%
ORFNumber3822
Length (bp)37,68324,168
Ratio (%)37.24%13.54%
IntronNumber2139
Length (bp)33,788120,240
Ratio (%)33.39%64.35%
SSRNumber3474
Length (bp)427789
Ratio (%)0.42%0.44%
TandemNumber1614
Length (bp)778848
Ratio (%)0.77%0.47%
InterspersedNumber157310
Length (bp)11,21025,890
Ratio (%)11.08%14.75%
Intergenic regionsLength (bp)25,86333,964
Ratio (%)25.5619.02
Table 2. PCGs and rRNA genes composition of P. yuccae mitogenome.
Table 2. PCGs and rRNA genes composition of P. yuccae mitogenome.
Gene NameTypePositionLengthCodonsIntron NumberIntrons LengthStrand
FromToStartStop
atp6CDS13268765GTGTAG12503+
nad3CDS57076210504GTGTAA--+
rnsrRNA703214,3661608--25727+
nad6CDS19,37219,947576ATGTAA--+
rnlrRNA23,68039,0331968--713,386+
cox3CDS48,05562,352810ATGTAG713,488+
atp9CDS63,24463,468225ATGTAA--+
cox1CDS65,32096,273936ATGTAG530,018+
cox2CDS96,83097,8371008ATGTAG--+
nad4LCDS99,943100,431489ATGTAA--+
nad5CDS101,949118,7882139ATGTAA614,701+
rps3CDS109,790111,1961407GTGTAA--+
nad2CDS123,965135,7501896ATGTAG49890+
nad4CDS138,561143,8233633ATGTAG11630+
nad1CDS144,594150,2251095ATGTAA24537+
cobCDS151,541176,893993ATGTAA424,360+
