1. Introduction
Protein folding and quality control processes within the endoplasmic reticulum (ER) are vital for maintaining proteostasis and overall cellular health. Disruptions in these processes may lead to the accumulation of misfolded proteins, which is associated with various diseases, including cancer and neurodegenerative disorders [
1,
2]. To counteract these fluctuations in unfolded proteins, the regulation of chaperone proteins is essential for promoting cellular homeostasis. Within this context, AMPylation helps adjust the activity of chaperones, enabling them to respond effectively to the varying levels of unfolded proteins [
3,
4]. AMPylation relies on the molecular function of Fic (filamentation induced by cAMP) domains, originally identified in the
E.
coli fic-1 gene, which is essential for cAMP-induced filamentation [
5]. As widely documented, genes that contain the Fic domain exhibit a high degree of conservation across eukaryotic genomes [
6,
7,
8]. This conservation underscores the evolutionary importance of Fic-domain-containing proteins in various biological processes, particularly in the regulation of protein activity through modifications such as AMPylation [
8,
9].
Among the various genes associated with the AMPylation enzymatic reaction, FICD is particularly notable due to its essential role. This gene encodes the FIC domain protein adenyltransferase, a bifunctional enzyme capable of both AMPylation and deAMPylation activities. AMPylation is a post-translational modification that involves the transfer of adenosine monophosphate (AMP) from adenosine triphosphate (ATP) to target proteins. Similar to phosphorylation, AMPylation serves as a key regulatory mechanism, modulating the activity of the modified protein. Currently, FICD is recognized as the only enzyme with AMPylation activity in humans [
10].
AMPylation is a modification that inactivates proteins, specifically adjusting the activity of BiP, the primary chaperone in the endoplasmic reticulum, to cope with the presence of unfolded proteins. FICD (HYPE), a single ER-localized Fic protein, is responsible for both adding (AMPylation) and removing (deAMPylation) AMP groups from BiP. However, the mechanism that determines when FICD switches between these two activities remains unclear [
11]. As previously outlined, the AMPylation activity involving FICD exerts an essential role in neurogenesis processes [
12]. The eukaryotic deAMPylation mechanism reveals that the conserved Fic domain residue Glu234 acts as a gatekeeper, inhibiting AMPylation while promoting deAMPylation catalyzed by dimeric FICD. Monomerization increases Glu234 flexibility, switching FICD between its opposing activities, even though both unmodified and AMPylated BiP substrates engage similarly [
11]. As documented by various studies and annotated in the OMIM database,
FICD was associated with Autosomal recessive spastic paraplegia-92 (SPG92) [
13] and a MIM phenotype number was already assigned (MIM #620911). Specifically, the previously mentioned study was conducted on consanguineous families, describing the variant inheritance pattern as autosomal recessive (AR). Furthermore, an in vivo Drosophila model of FICD was developed to investigate hereditary spastic paraplegia (HSP). The findings highlighted that loss of Fic function leads to locomotor impairment, reduced levels of the molecular chaperone BIP, and increased reactive oxygen species (ROS) [
14]. In addition, it was recently outlined employing murine models that the loss of FicD results in the alteration of unfolded protein response (UPR) signaling and metabolism regulation in the fasting and feeding liver [
15].
In the current manuscript, a genetic variant was identified within the FICD gene in a subject exhibiting a broad spectrum of symptoms, encompassing acanthosis, abdominal muscle hypotonia, anxiety, depression, obesity, hypotonia, and optic nerve subatrophy. This study aims to explore the potential association between the patient’s symptoms and the FICD gene, which has previously been linked to hereditary spastic paraplegia (HSP). By investigating this relationship, we hope to shed light on the broader implications of FICD gene mutations and their role in diverse phenotypic presentations.
3. Results
3.1. Clinical Report
The patient examined in the present study is a girl, born of non-consanguineous parents. She presents a negative family history of intellectual disabilities. She was born at 39 weeks of gestation via cesarean section due to intrauterine growth restriction and placental aging, with a birth weight of 2.25 kg. The pregnancy was complicated by threatened miscarriage starting from the first trimester, treated pharmacologically. At birth, no asphyxia or cyanosis was reported. At 1.5 months of age, she was hospitalized for an episode of bronchiolitis. Subsequently, recurrent episodes of upper respiratory tract infections, gastroesophageal reflux, aspiration pneumonia, and pericarditis were reported. Psychomotor developmental milestones were achieved with slight delays (first steps at 18 months, sphincter control around 3 years, babbling at 12 months).
The clinical phenotype includes a flat occiput, horizontally oriented palpebral fissures, telecanthus, broad nasal bridge, anteverted nostrils, low-set ears, a flat philtrum, an inverted “V” upper lip, short neck, Dubois’ sign, bilateral webbing of the hands, and flat feet.
At the age of 4 years, a normal female karyotype was noted (46, XX) and an analysis of subtelomeric regions was reported as normal. Investigations including ECG, EMG, ENG, and EEG were normal; brain MRI revealed no evidence of parenchymal damage or malformations. Ventricles and sulci were within normal limits. The midline structures and posterior cranial fossa appeared normal. The optic nerves were moderately reduced in thickness in the intermediate orbital segment; the chiasm was within normal limits. CGH array analysis: Technology: Human Genome CGH 60K Oligo Microarray kit (AMADID 21924, Agilent Technology, Santa Clara, CA, USA), Spatial resolution: Median of 41.5 Kb, Criterion applied: at least four consecutive significantly unbalanced probes, genomic imbalances not reported in the Database of Genomic Variants (
http://projects.tcag.ca/variation/index.html) (accessed on 25 September 2024) or in apparently healthy individuals analyzed in the laboratory were noted. The reference DNA was NA15510. No genomic imbalances with a likely pathogenic role were detected.
The patient was previously admitted to our Institute (Associazione IRCCS Oasi Maria SS, Troina, Italy) and discharged with a diagnosis of borderline intellectual functioning (BIF), mixed anxiety–depressive syndrome, subatrophy of the left optic nerve, accentuated lumbar lordosis, abdominal muscle hypotonia, and obesity, and is currently undergoing treatment with paroxetine. Clinical conditions have improved since starting the medication, with reduced irritability and improved mood. However, the patient struggles to get up and sometimes rises as late as 2 p.m. When seated on the couch, she frequently falls asleep. According to her mother, she spends most of her time at home, either in bed or on the couch. The patient also reports irregular menstrual cycles. She weighs 83.7 kg, is 157 cm tall, and has a BMI of 34, with waist and hip circumferences both at 107 cm. Physical examination revealed acanthosis on the neck and underarms, along with striae rubrae on the abdomen. An MRI was performed using T1- and T2-weighted TSE sequences, FLAIR, SWI, and DWI in multiple planes. No significant signal alterations were detected in the cerebral or cerebellar parenchyma, nor in the brainstem. The ventricular system is aligned and not dilated, and no diffusion restriction was observed. The subarachnoid spaces at the base and convexity are within normal limits, with minor signs of chronic sinusitis. Autorefractometry indicated myopic astigmatism in both eyes, with corrected vision measured at 4/10 in the right eye and 2/10 in the left eye. The examined individual is characterized by broad nasal tips with anteverted nostrils, up-slanted palpebral fissures, wide philtrum, strabismus, OS optic subatrophy, dysmorphic ears (small with hypoplastic lobule attached to the face), accentuation of lumbar lordosis, and hypotonia of the abdominal muscles. Cardiac and thoracic examinations were apparently normal. No diabetes was detected. Neurological examination was normal. The anterior eye segment was normal, though the fundus examination revealed myopic choroidosis in both eyes. Primary corneal reflexes appeared centered, motility was normal, and a mild exophoria was noted. In terms of gynecological history, menarche occurred around age 12, but menstrual cycles are irregular (oligomenorrhea). A transabdominal pelvic ultrasound revealed an anteverted uterus of normal size and structure, and both ovaries were of normal size with a multifollicular appearance. Hormonal tests have been recommended, and a gynecological examination noted hypoplasia of the labia minora. The patient currently presents with a diagnosis of borderline intellectual functioning and a mixed anxiety–depressive disorder with phobic features. During the early stages of development, she exhibited mild psychomotor delay, borderline intellectual functioning, and selective mutism. At present, the clinical picture is complex and characterized by mood alterations, relational and behavioral difficulties, and some functional deficits: mood alterations and irritability, sudden shifts from calmness to severe irritability, with intolerance to rules and unavoidable environmental stimuli, leading to episodes of verbal and, less frequently, physical aggression. Relational difficulties such as feelings of inadequacy compared to peers and inability to take initiative due to fear of rejection are noted, as well as the presence of apathy and anhedonia.
3.2. NGS Analysis
Before the WES analysis, the patient underwent Array-CGH and MLPA (
PAX7), both of which yielded normal results. WES analysis did not identify genetic variants in known genes associated with the patient’s phenotype. The analysis unveiled a de novo genetic variant within the

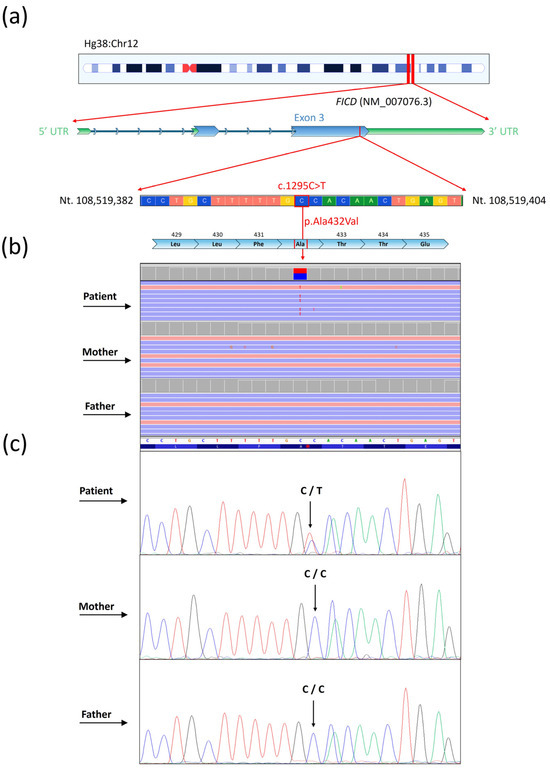

FICD (NM_007076) gene (
Figure 1) in a heterozygous condition.
As indicated by DOMINO and OMIM databases, the
FICD gene displays a very likely autosomal recessive inheritance pattern (DOMINO score of 0.132). The variant was localized within the exon 3, at position c.1295C>T. This variant caused the missense mutation p.Ala432Val within the protein FICD. The variant was described as likely pathogenic according to the ACMG criteria while the allele frequency was not found in the GnomAD database. The conservation parameter PhyloP, exhibited a score of 7.905, indicating the high conservation of the specific site of the genetic variant, across the genome of 99 vertebrates. Specifically, the identified mutation was localized within the luminal region (aa 45–458) and in the linear peptidic epitope “TLLFATTEY” (aa 428–436), highly conserved (
Figure 2).
3.3. Protein Structure Prediction

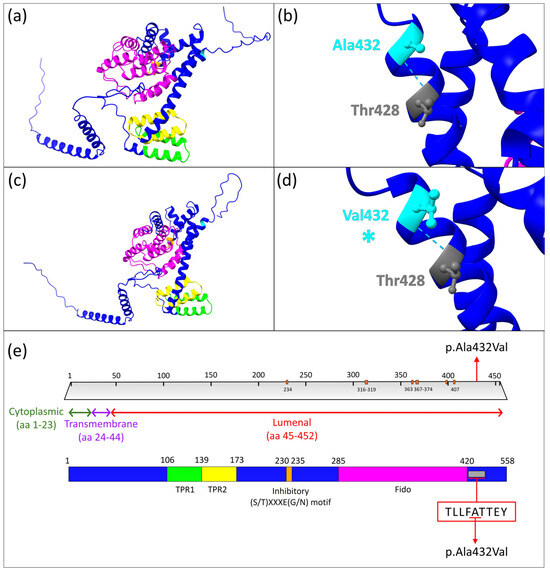

The structure prediction analysis carried out using the AlphaFold algorithm unveiled notable differences within the FICD protein structure. As predicted, the wild-type protein showed a total number of 392 hydrogen bonds. Conversely, the mutated protein accounted for a total number of 401 hydrogen bonds within the protein structure. It is worth mentioning that there were no predicted differences in the hydrogen bond number and patterns for the mutated residue (Val432) in comparison to the wild type one (Ala432) (as clearly evidenced in
Figure 2). In the wild-type FICD protein, several key hydrogen bonds contribute to its structure and function. For instance, Ser8 forms a hydrogen bond with Val9, while Lys16 interacts with Glu14. Leu42 also establishes a bond with Ala39, an interaction unique to the wild-type protein. Additionally, Thr73 interacts with Ala72, and Ser79 forms a bond with Ser77. Lys97 engages with Glu49, and Arg118 forms two hydrogen bonds (with Leu114 and Glu115), while Arg182 forms three bonds with Val178, Asn179, and Glu151. Arg244 participates in two interactions (with Glu221 and Leu240), and Glu259 interacts with Ser257. In the wild-type form, Gln261 establishes two bonds (with Lys256 and Ser257), Asn339 forms three bonds (with Val285, Val335, and Gln336), and Ser340 forms three bonds (with Glu342 and Trp337). In contrast, the mutated FICD protein exhibits different bonding patterns. Notably, Trp21 forms a hydrogen bond with Trp17, which is absent in the wild-type. Leu44 and Glu49 interact with Leu42 and Ala46, respectively, in the mutated form, while Gln50 forms two bonds (with Ala46 and Val47) compared to the single bond with Ala46 in the wild type. The mutated protein shows only one interaction between Cys51 and Val47, whereas the wild type has two. Ser63 uniquely interacts with Leu61 in the mutant, and Leu82 forms a bond with Thr80, which is absent in the wild type. The mutant Arg118 forms an additional bond with Glu115, bringing the total to three bonds (two with Glu115 and one with Leu114). However, mutated Arg182 only forms one bond with Val178. Arg244 in the mutant version forms four bonds (three with Glu221 and one with Leu240), compared to only two in the wild type. Gln261 in the mutated form shows an additional bond with Val253, Lys256, and Ser257. Mutated Asn339 forms four hydrogen bonds (with Val285, Val335, and Gln336), while Ser340 forms only two bonds with Trp337. Lastly, Arg371 in the mutant forms a bond with Asp367, and both Glu435 and Asn446 interact with Phe431 and Gln444, respectively, which are interactions absent in the wild type. As indicated by the DOMINO and OMIM databases, the
FICD gene displays a very likely autosomal recessive inheritance pattern (DOMINO score of 0.132). The variant was localized within exon 3, at position c.1295C>T.
3.4. Protein–Protein Interactions

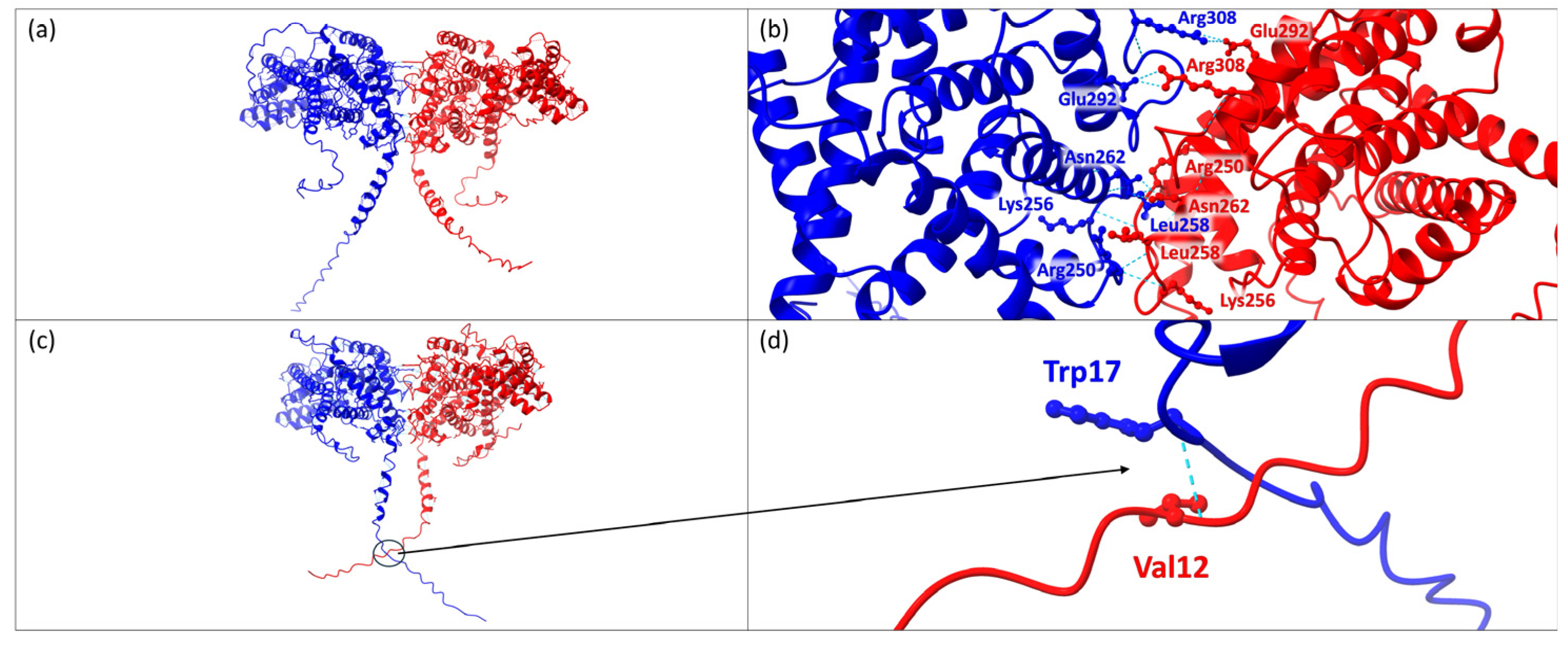

Protein–protein interaction analysis using the AlphaFold algorithm predicts that the wild-type FICD forms multiple hydrogen bonds during homodimerization. Key interactions include Ala252 and Lys256 (with bond distances of 3.060 Å and 3.061 Å), Leu258 and Arg250 (2.931 Å and 2.940 Å), and Asn262 with itself (2.904 Å and 2.907 Å) (
Figure 3).
Additionally, each FICD in the homodimer forms two hydrogen bonds between Arg308 and Glu292, with bond distances of 3.118 Å, 3.215 Å, 3.085 Å, and 3.189 Å. The interaction between FICD carrying the p.Ala432Val mutation and wild-type FICD exhibits the same hydrogen bond pattern as the wild-type homodimer. The only difference is an additional hydrogen bond predicted between Trp17 of the mutated protein and Val12 of the corresponding FICD dimer, with a bond distance of 2.602 Å.

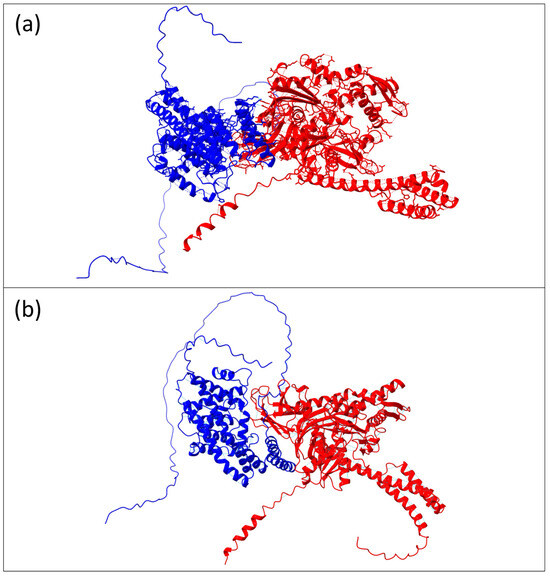

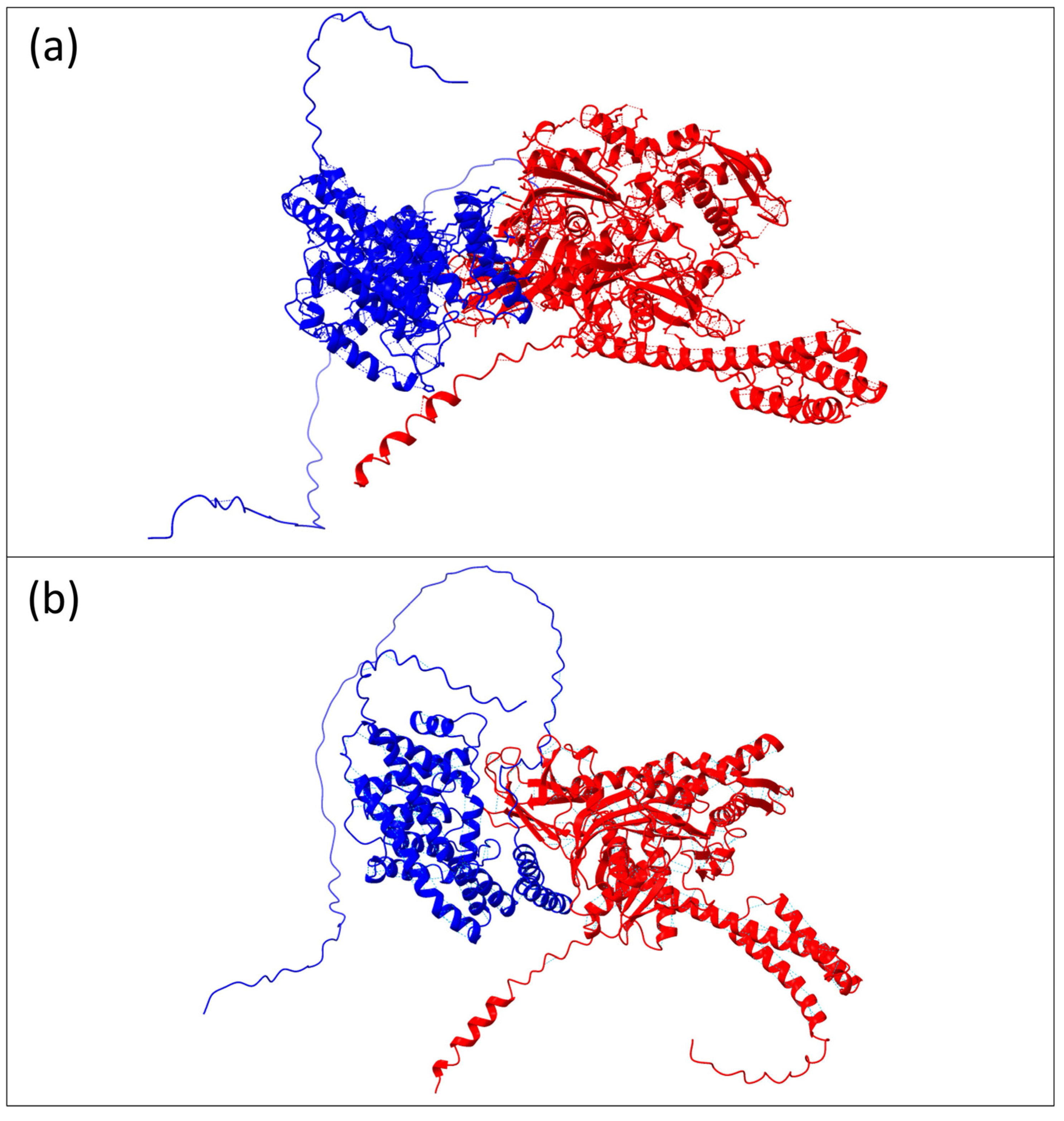

In addition, the protein–protein structure prediction was also conducted to assess the variation between the interaction involving both the wild-type and mutated FICD protein and BiP. In particular, the analysis reveals both conserved and distinct hydrogen bond interactions between BiP and the wild-type or mutated FICD proteins, highlighting potential structural and functional implications (
Figure 4).
Key hydrogen bonds, such as those involving Thr80 and Thr462, Ser83 and Ser452, and Asn111 and Asp413, are consistently observed in both wild-type and mutant forms, with slight variations in bond distances (
Table 1 and
Table 2).
However, unique interactions emerged in the mutated FICD, including a novel bond between Ser79 and Ser455 (2.791 Å) and a more robust interaction between Gln496 of BiP and Ala232 of the mutant FICD (3.409 Å), replacing the wild-type interaction with Ile233. Notably, bonds present in the wild type, such as Arg396 and Gln496 (2.562 Å), were absent in the mutant, while the Lys521–Gly317 interaction disappeared entirely.
4. Discussion
The current study aimed to expand the phenotypic spectrum associated with the
FICD gene, which has previously been linked to hereditary spastic paraplegia (HSP) with the MIM phenotype number 620911. The subject examined in this study presents a clinical profile that also includes borderline intellectual functioning (BIF), obesity, abdominal muscle hypotonia, anxiety, depression, acanthosis, and optic nerve subatrophy. In this context, NGS analysis did not identify mutations in known genes related to the patient’s phenotype. The known genes associated with the patient’s phenotype (as defined by the HPO terms) have been listed in the
Supplementary Files. It is worth noting that no potential causative variants were identified within this set of genes as a result of the WES data analysis. However, we cannot rule out the possibility that genetic variants in intronic regions not covered by WES, or epigenetic mechanisms, may contribute to the patient’s complex phenotype. Given its complexity, a multifactorial origin of the condition cannot be excluded. Chromosomal anomalies, such as duplications and deletions, have been ruled out, as Array-CGH analysis displayed normal results. Additionally, MLPA analysis of the
PAX7 gene, which encodes a transcription factor involved in muscle stem cell proliferation and myogenesis and is associated with skeletal muscle disorders, was also performed [
24]. The result of the previously mentioned MLPA analysis was normal. The identified variant is a de novo mutation, described as uncertain significance, with no reported frequency in the GnomAD database. Moreover, the variant is located in a highly conserved region (PhyloP = 7.905). Furthermore, the mutation described is located within the epitope “TLLFATTEY”, as documented in the IEDB database (epitope ID 1590047) (amino acids 423–436). The FICD gene is annotated in the OMIM database for spastic paraplegia 92 (MIM phenotype entry code #620911), with an autosomal recessive (AR) inheritance pattern. Nevertheless, to date, according to HGMD and LOVD databases, only a few variants have been described as causative. Furthermore, according to the ClinVar database, no pathogenic variants have been detected. Our WES analysis did not identify any additional mutations, including those with a minor allele frequency (MAF) > 1%, within the coding regions or splice sites analyzed. However, while unlikely, it remains plausible that a variant located in a region not covered by WES could contribute to the presumed compound heterozygosity. Given the clinical presentation described in this study, we propose the possibility of an autosomal dominant inheritance pattern for the
FICD gene associated with the phenotypic condition of the individual examined in this study. Furthermore, we cannot draw definitive conclusions regarding the gene’s expressivity, as heterozygous variants in
FICD have been previously reported without any established clinical manifestations. We speculate that the mutation identified in the current study alters the interaction between FICD and BiP. Notably, the mutation identified in this study is located in a different position than the previously reported mutations, suggesting that an unknown molecular mechanism could be involved.
In a previous study involving three consanguineous families, the homozygous c.1121G>A (Arg374His) variant within the FICD gene was identified in four individuals [
13]. It is worth mentioning that the residue Arg374 was described as a hot spot for variants. The individuals described in the previously mentioned study exhibited a broad spectrum of symptoms similar to those reported in the case presented in this study.
Table 3 provides a comprehensive comparison of the phenotype described in this study with those of other individuals carrying variants in the
FICD gene, either in homozygous or compound heterozygous conditions.
However, unlike the previously documented individuals, our subject has not yet developed motor peripheral neuropathy. Nonetheless, we cannot rule out the possibility of a late-onset manifestation of this condition. Notably, the individual examined experienced mild motor delays in early childhood, taking her first steps at 18 months, although she currently shows no difficulties with walking.
As documented by the HPA database, FICD shows a ubiquitarian expression pattern, involving several human tissues. The gene has been associated with a broad and heterogeneous spectrum of phenotypes. In addition to hereditary spastic paraplegia (HSP) and motor neuron deficits [
13,
14], the gene has been linked to photoreception defects [
26], mild cognitive impairments, including deficits in verbal and nonverbal memory, visuomotor coordination, and processing speed [
13], infancy-onset diabetes [
13,
25], as well as alterations in fasting and feeding liver metabolism [
15]. Moreover, alterations in FICD enzymatic activity were implicated in a slow progressive motor neuron disease characterized by spasticity and muscle weakness, primarily affecting the lower limbs. This condition results in walking difficulties, including toe-walking, frequent falls, and an unsteady gait [
14]. It is important to note that hereditary spastic paraplegia (HSP) encompasses a group of rare genetic disorders characterized by progressive spasticity and weakness in the lower limbs due to corticospinal tract degeneration [
27]. Typically, HSP has an adult onset, though in rare cases, it can manifest during childhood [
28]. Common neurological comorbidities in HSP include developmental delay, autism, epilepsy, and attention-deficit/hyperactivity disorder [
29]. As previously described, the patient examined in this study currently does not exhibit any motor problems, but these might develop with a late onset. The patient also exhibits metabolic disturbances, as evidenced by a high BMI of 34, indicative of a predisposition to obesity. Moreover, recent studies using murine models have demonstrated that the loss of FicD leads to disruptions in unfolded protein response (UPR) signaling and metabolic regulation in both fasting and feeding states in the liver [
15]. In this context, it is well established that dysregulation of UPR signaling can result in significant imbalances in fatty acid metabolism [
30]. As previously noted, reversible BiP AMPylation plays a crucial role in protecting the Drosophila visual system under constant light-induced stress. Fic mutant flies exhibit synaptic dysfunction and rhabdomere disintegration after prolonged light exposure, with even heterozygous fic30C null mutants showing heightened susceptibility, similar to homozygous mutants [
31]. In this context, the patient in our study presents with optic nerve subatrophy. Interestingly, in a fic heterozygous background, eye-specific expression of the constitutively active AMPylating mutant FicE247G results only in a mildly rough eye phenotype, underscoring the importance of the FICD gene in photoreception [
31].
As extensively documented, the AMPylation activity carried out by FICD plays an essential role in neurogenesis [
12]. The role of AMPylation in neurodevelopment was evaluated by manipulating the expression of the AMPylating enzyme FICD in cerebral organoids (COs). Downregulation maintained cells in a proliferative progenitor state, while overexpression promoted neurogenesis, suggesting AMPylation as a novel post-translational modification regulating neurogenesis [
32].
According to QuickGO annotations, FICD is involved in several molecular functions, including protein binding (GO:0005515), ATP binding (GO:0005524), nucleotidyltransferase activity (GO:0016779), hydrolase activity (GO:0016787), Hsp70 protein binding (GO:0030544), identical protein binding (GO:0042802), protein homodimerization activity (GO:0042803), protein adenylylhydrolase activity (GO:0044603), protein-folding chaperone binding (GO:0051087), and AMPylase activity (GO:0070733). Additionally, FICD plays a role in key biological processes such as the response to unfolded protein (GO:0006986), protein adenylylation (GO:0018117), negative regulation of GTPase activity (GO:0034260), response to endoplasmic reticulum stress (GO:0034976), protein deadenylylation (GO:0044602), and regulation of the IRE1-mediated unfolded protein response (GO:1903894). The enzyme is primarily located in the endoplasmic reticulum (GO:0005783), the endoplasmic reticulum membrane (GO:0005789), and general membranes (GO:0016020).
The Fido domain, known to mediate adenylyltransferase activity [
33], displays several structural differences in the FICD protein (residues 285–420) due to the mutation, as predicted by in silico protein structure analysis. In the wild type, Asn339 forms three hydrogen bonds (with Val285, Val335, and Gln336), while Ser340 establishes three bonds (with Glu342 and Trp337), and Arg371 does not interact with Asp367. Ala432, a key residue, forms a hydrogen bond with Thr428. In the mutated FICD protein, Asn339 gains an additional hydrogen bond, bringing the total to four, while Ser340 shows a reduction to two bonds (both with Trp337). The mutated Arg371 forms a new bond with Asp367, absent in the wild type, and Val432 (mutated from Ala432) retains the same interaction with Thr428. Despite these changes, no difference in the hydrogen bond pattern for the mutated Val432 compared to wild-type Ala432 was predicted, yet overall, the mutated FICD protein shows an increase in hydrogen bonds within the Fido domain.
According to the Rhea Database, FICD is classified as an adenylyltransferase enzyme (EC 2.7.7.108). Notably, alterations in adenylyltransferase activity have often been linked to neurological disorders, as this enzyme plays a critical role in axonal protection and maintaining neuronal structural integrity [
34,
35]. In this context, FICD has been documented to catalyze the reactions annotated as Rhea 55932 and Rhea 54292. As is well known, the dual enzymatic activity of Fic is partially regulated by its dimerization, with the loss of this dimerization leading to increased AMPylation and reduced deAMPylation of BiP [
26]. Therefore, the dimerization process appears to play a crucial role in modulating BiP deAMPylation. We propose that the alteration we identified, potentially in conjunction with an additional undetected mutation, may impair the dimerization process, thereby affecting the enzyme’s overall activity. Within this context, the structural prediction carried out using the AlphaFold algorithm displayed an additional hydrogen bond predicted between Trp17 of the mutated protein and Val12 of the corresponding FICD dimer, with a bond distance of 2.602 Å (
Figure 3).
As previously highlighted and supported by multiple studies and the STRING database, FICD exhibits a strong protein–protein interaction with Endoplasmic Reticulum Chaperone HSPA5 (also known as BiP). The HSPA5 gene encodes Binding Immunoglobulin Protein (BiP), a member of the Hsp70 family of chaperones localized in the ER lumen. As a highly conserved molecular chaperone, BiP plays a crucial role in various protein folding processes through its two functional domains: the nucleotide-binding domain (NBD) (aa 125–280) and the substrate-binding domain (aa 420–500) (SBD) (Wang et al., 2017). In line with data from Cytoscape and INDRA GO, FICD and HSPA5 are both involved in key pathways such as regulation of IRE1-mediated unfolded protein response (GO:1903894), IRE1-mediated unfolded protein response (GO:0036498), regulation of endoplasmic reticulum unfolded protein response (GO:1900101), endoplasmic reticulum unfolded protein response (GO:0030968), regulation of response to endoplasmic reticulum stress (GO:1905897), cellular response to unfolded protein (GO:0034620), cellular response to topologically incorrect protein (GO:0035967), and response to unfolded protein (GO:0006986). Given this context, we propose that structural variations in the FICD enzyme may impair both the formation of the homodimer and its interaction with HSPA5, potentially disrupting these critical pathways. In fact, the structure prediction analysis related to the interaction between FICD and BiP revealed some important differences. In the mutated FICD, unique interactions emerge, including a novel hydrogen bond between Ser79 and Ser455 (2.791 Å). Notably, some interactions present in the wild type are lost in the mutant, such as the bond between Arg396 and Gln496 (2.562 Å). Additionally, the Lys521-Gly317 interaction is entirely absent in the mutant form.
Functional studies in in vivo models are essential to validate the pathogenicity of the variant in both homozygous and heterozygous states. Furthermore, additional research is crucial to better understand the role of FICD in psychiatric and neuropathic disorders, particularly in light of its potential involvement in metabolic regulation and photoreception.
