CD33 and SHP-1/PTPN6 Interaction in Alzheimer’s Disease

by
Lien Beckers
1,†,
Mamunur Rashid
1,2,3,†,
Annie J. Lee
1,4,5,‡,
Zena K. Chatila
1,2,3,‡,
Kirstin A. Tamucci
1,2,3,
Ryan C. Talcoff
1,2,3,
Jennifer L. Hall
1,2,3,
David A. Bennett
6,
Badri N. Vardarajan
1,4,5 and
Elizabeth M. Bradshaw
1,2,3,5,*
1
Department of Neurology, Columbia University Irving Medical Center, New York, NY 10032, USA
2
Division of Translational Neurobiology, Department of Neurology, Columbia University Irving Medical Center, New York, NY 10032, USA
3
The Carol and Gene Ludwig Center for Research on Neurodegeneration, Columbia University Irving Medical Center, New York, NY 10032, USA
4
Gertrude H. Sergievsky Center, College of Physicians and Surgeons, Columbia University, New York, NY 10032, USA
5
The Taub Institute for Research on Alzheimer’s Disease and the Aging Brain, New York, NY 10032, USA
6
Rush Alzheimer Disease Center, Rush University Medical Center, Chicago, IL 60612, USA
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
‡
These authors also contributed equally to this work.
Genes 2024, 15(9), 1204; https://doi.org/10.3390/genes15091204
Submission received: 1 July 2024 / Revised: 4 September 2024 / Accepted: 11 September 2024 / Published: 13 September 2024
(This article belongs to the Special Issue Genetic Basis of Neurodegenerative Disorders)
Browse Figures
Versions Notes

Abstract

:
Large-scale genetic studies have identified numerous genetic risk factors that suggest a central role for innate immune cells in susceptibility to Alzheimer’s disease (AD). CD33, an immunomodulatory transmembrane sialic acid binding protein expressed on myeloid cells, was identified as one such genetic risk factor associated with Alzheimer’s disease. Several studies explored the molecular outcomes of genetic variation at the CD33 locus. It has been determined that the risk variant associated with AD increases the expression of the large isoform of CD33 (CD33M) in innate immune cells and alters its biological functions. CD33 is thought to signal via the interaction of its ITIM motif and the protein tyrosine phosphatase, SHP-1. Here, we utilize different molecular and computational approaches to investigate how AD-associated genetic variation in CD33 affects its interaction with SHP-1 in human microglia and microglia-like cells. Our findings demonstrate a genotype-dependent interaction between CD33 and SHP-1, which may functionally contribute to the AD risk associated with this CD33 variant. We also found that CD33-PTPN6 (SHP-1) gene–gene interactions impact AD-related traits, while CD33-PTPN11 (SHP-2) interactions do not.

1. Introduction

Alzheimer’s disease (AD) is an age-related neurodegenerative disease and the most common form of dementia, characterized initially by short-term memory loss and disorientation, followed by progressive memory loss and cognitive decline [1]. Classical neuropathological features of AD include presymptomatic accumulation of extracellular amyloid β (Aβ) aggregates, which form senile plaques, intracellular aggregation of hyperphosphorylated tau protein, causing neurofibrillary tangles (NFTs), and extensive neuronal loss [2,3]. AD has become an urgent global health problem, with an enormous socioeconomic burden. The prevention and treatment of cognitive decline due to AD is a public health priority. However, AD has vast heterogeneity clinically, cellularly, and molecularly, illustrated by resilience to neuropathology, the presence of comorbidities, and genetic background, complicating therapeutic efforts [4]. Thus, there is a pressing need for therapeutics that modify the disease course and reverse the underlying pathology with a more personalized medicine approach. Genetics is one tool we can use to develop personalized targeted therapies.
With the discovery and validation of AD susceptibility loci, we now have more than 70 AD risk factors that give insights into the earliest steps in the pathophysiological processes leading to AD [5,6]. These genome-wide association and sequencing studies have identified and validated several genes, including CD33, that are associated with AD susceptibility and have implicated the innate immune system in disease onset [7,8,9,10,11,12,13]. In the case of CD33, the CD33 rs3865444C risk allele results in increased surface density of full-length CD33 protein on myeloid cells (monocytes and microglia), as well as a reduced ability to phagocytose amyloid β, leading to accumulation of neuritic amyloid plaques [14]. Further, we have demonstrated that this risk allele leads to greater accumulation of amyloid both in asymptomatic individuals using in vivo amyloid imaging and in post-mortem brain tissue using a detailed quantitation of amyloid pathology [14].
CD33 is also known as Siglec-3 and is a 67 KDa transmembrane glycoprotein expressed on the surface of myeloid cells. It functions as a sialic acid binding receptor and is an inhibitory signaling molecule: its intracellular component contains putative immunoreceptor tyrosine-based inhibitory motifs (ITIMs) that are implicated in the inhibition of cellular activity. The CD33 risk variant leads to decreased splicing of exon 2, which contains the sialic acid binding domain. This splicing suggests that the function of CD33 binding to sialic acid and bringing signaling receptors into close proximity to dampen the function of these receptors is critical for AD risk [15]. Understanding how CD33 exerts its downstream effect on signaling proteins in microglia is crucial for our long-term goal of determining whether CD33 or its binding partners are tractable therapeutic targets for AD.
SHP-1 (encoded by PTPN6) is a protein tyrosine phosphatase that has been functionally linked to the inhibitory effects of CD33 signaling; it was found to bind to the ITIM motif of CD33 in both the THP1 and U937 myeloid cell lines after pervanadate treatment, which inhibits tyrosine phosphatases [16]. SHP-2 (encoded by PTPN11) is a homolog of SHP-1 and shares significant structural and functional similarities with SHP-1, including CD33 binding. While both SHP-1 and SHP-2 can bind to ITIM motifs and regulate signaling pathways, SHP-1 is thought to have a higher affinity for CD33 [16,17]. CD33 knockdown and/or SHP-1 reduction resulted in a shared phenotype of increased SYK phosphorylation and ERK1/2 signaling, inflammatory gene transcription, and phagocytosis of amyloid β in the human macrophage THP1 cell line and human iPSC microglia [18]. These findings have identified SHP-1 as a potential target to modulate immune activation in AD. However, the influence of the CD33/SHP-1 interaction on the association between CD33 and AD has yet to be explored.
We hypothesize that CD33 and SHP-1 are binding partners and that their interaction in microglia participates in AD risk. In this work, we demonstrate that CD33 and SHP-1 are binding partners in human microglia-like cells in vitro and in human microglia in situ in post-mortem brain tissue. This interaction is increased in a phosphorylation-state and genotype-specific manner in microglia-like cells of the CD33 AD risk variant rs3865444CC. We further demonstrate that there are interactions between CD33 gene expression and PTPN6 gene expression on amyloid, tangles, pathologic AD, and global AD pathology burden.

2. Materials and Methods

2.1. Isolation and Differentiation of Human Monocytes into Monocyte-Derived Microglia-like Cells (MDMi)

Peripheral blood mononuclear cells (PBMCs) were extracted from blood samples from the New York Blood Center (NYBC) cohort using a standard Ficoll protocol (Ficoll-Paque TM PLUS) with Lymphoprep gradient centrifugation (StemCell Technologies, Vancouver, BC, Canada). PBMCs were frozen at a concentration of 1 × 107 to 3 × 107 cells/mL in 10% dimethyl sulfoxide (DMSO; Sigma-Aldrich, St. Louis, MO, USA) and 90% (v/v) fetal bovine serum (FBS; Corning, Tarboro, NC, USA). Frozen PBMCs were thawed and washed in 10 mL of phosphate-buffered saline (PBS). CD14+ monocytes were purified from whole PBMCs using anti-CD14+ microbeads (Miltenyi Biotec, Gaithersburg, MD, USA) and plated at 1.5 × 105 cells in a 96-well plate. To induce the differentiation of MDMi, monocytes were cultured in RPMI-1640 Glutamax (Life Technologies, Greencastle, PA, USA) supplemented with 1% P/S (Lonza, Basel, Switzerland), Fungizone (2.5 μg/mL; Life Technologies), and a mixture of the following human recombinant cytokines: macrophage colony-stimulating factor (M-CSF; 10 ng/mL; BioLegend, San Diego, CA, USA, 574806), granulocyte-macrophage colony-stimulating factor (GM-CSF; 10 ng/mL; R&D Systems, Minneapolis, MN, USA, 215-GM-010/CF), nerve growth factor–β (NGF-β; 10 ng/mL; R&D Systems, 256-GF-100), chemokine ligand 2 (CCL2; 100 ng/mL; BioLegend, San Diego, CA, USA. 571404), and Interleukin-34 (IL-34; 100 ng/mL; R&D Systems, 5265-IL-010/CF) under standard humidified culture conditions (37 °C, 5% CO2) for 10 days [19]. Since our initial publication, this model has been adopted by many groups and has been consistently shown to be a valid model of human microglia to study neurodegenerative disease [20,21,22,23].

2.2. Tyrosine Phosphatase Inhibitor Treatment

MDMi were treated with the protein tyrosine phosphatase inhibitor sodium orthovanadate (pervanadate) immediately before performing proximity ligation assays as described below. A stock solution of 1 mM sodium orthovanadate was freshly made with 3% hydrogen peroxide (H2O2) in water. After catalase was added, 100 μM sodium orthovanadate in media was added to the cells and incubated for 15 min at 37 °C. The untreated control cells were incubated with media without pervanadate.

2.3. Proximity Ligation Assay of MDMi and Human Brain Tissue

MDMi and frozen tissue sections were prepared as described below and incubated with the following primary antibodies: Primary antibodies used were mouse anti-SHP-1 (Thermo Fisher, Fair Lawn, NJ, USA, Cat# MA5-11669) and rabbit anti-CD33 (Sigma, St. Louis, MO, USA, Cat# HPA035832).
MDMi (cells): MDMi were stained in flat-bottom 96-well plates (corning costar #3603). After 10 days of incubation in RPMI-1640 Glutamax supplemented with 1% P/S, Fungizone (2.5 μg/mL), and a mixture of human cytokines (described above), MDMi were centrifuged at 1200 rpm for 5 min. Cells were blocked with Fc receptor blocking solution (Human TruStain FcX, Biolegend, San Diego, CA, USA, 1:20) for 10 min on ice. After centrifugation at 1200 rpm for 5 min, MDMi were fixed using BD Cytofix/CytoPerm (Thermo Fisher, Fair Lawn, NJ, USA,) for 20 min on ice. Cells were then washed with BD Perm/Wash (Thermo Fisher, Fair Lawn, NJ, USA,) and blocked with PBS containing 5% normal goat serum (Thermo Fisher, Fair Lawn, NJ, USA, 31872), and 2% bovine serum albumin (BSA) in PBS. Cells were then incubated with primary antibodies overnight.
Human tissues: Frozen sections of human prefrontal cortex were fixed in 100% ethanol for 15 min at −20 °C after thawing them for 10 min. Slides were washed three times with 1× PBS. The sections were then blocked with 3% BSA in 1× PBS containing 0.1% Triton-X for 1 h at room temperature. Tissues were then incubated with primary antibodies overnight.
Following overnight incubation with primary antibodies, a humid chamber with water was heated to 37 °C. All procedures were performed at 37 °C. The cells or tissue sections were washed three times with PBS and subsequently incubated with a plus and minus probe (Sigma, St. Louis, MO, USA; Probe Duolink PLA rabbit PLUS, DUO92002; Probe Duolink PLA mouse MINUS, DUO92004; Probe Duolink PLA mouse PLUS, DUO92001; Probe Duolink PLA goat MINUS, DUO92006; 150 µL/tissue section, 80 µL/well for cells) dissolved in 1× Antibody Diluent buffer (Sigma, St. Louis, MO, USA, provided with kit) for 1.5 h (tissue sections) or on a shaker (60 rpm) for 1 h (cells). After one (tissue) or two (cells) washes for 5 min with Duolink In Situ Wash Buffer A (Sigma, St. Louis, MO, USA, DUO82049), Duolink Ligation mixture (Sigma, St. Louis, MO, USA, DUO92008) was added for 1.5 h (tissue, 150 µL/section) or 30–40 min on rotor (cells, 80 µL/well). Samples were washed once (tissue) or twice (cells) for 2 min with Wash Buffer A, and then incubated with Duolink Amplification mixture (Sigma, St. Louis, MO, USA, DUO92008) for 1.5 h in dark (tissue, 150 µL/section; cells, 80 µL/well, on 60 rpm rotator). Then, samples were washed with Duolink In Situ Wash Buffer B (Sigma, St. Louis, MO, USA, DUO82049) for 2 min once (tissue) or twice (cells). Subsequently, Duolink mounting medium with DAPI (Sigma, St. Louis, MO, USA, DUO82040) was added to cells (80 µL/well). After washing with Wash Buffer B, tissue sections were covered with 0.3% Sudan Black for 10 min at room temperature, then washed with PBS, and finally mounted with two drops of Duolink mounting medium with DAPI.
Fluorescence was acquired with a confocal laser scanning microscope (LSM 700, Zeiss, Oberkochen, Germany) and a Zeiss Axio Observer Z1 fluorescence microscope, running Zen 2012 SP2 software (Zeiss, Oberkochen, Germany). Images were exported to and quantified by using Image J2 software (Version 2.14.0/1.54f, NIH, Bethesda, MD, USA). PLA interactions were quantified as PLA dots per live DAPI+ nucleated cell.

2.4. Genotyping

For genotyping of the blood or brain samples, DNA was isolated with the PureLink Mini Kit (Thermo Fisher, Fair Lawn, NJ, USA,) and quantified by nanodrop. Once the DNA was isolated, it was diluted to 25 ng/µL. Genotyping for the CD33 SNP rs3865444 was performed with the C_1487395_40 assay (Thermo Fisher, Fair Lawn, NJ, USA,).

2.5. Statistical Analysis

Data are presented as the mean ± SEM. A comparison of two groups was performed using an unpaired t-test. For multiple-group comparisons, analysis of variance (ANOVA) with post hoc Tukey correction was applied. Statistical analyses were performed using GraphPad Prism 5.0 (GraphPad Software Inc., San Diego, CA, USA). A p-value of <0.05 was considered significant.

2.6. Gene–Gene Interactions

Gene–gene interactions were investigated using the ROSMAP RNA-sequencing and GWAS data that have been previously described to examine the interplay between CD33 and PTPN6 using three models [24,25]. All ROSMAP participants were enrolled without known dementia and agreed to detailed clinical evaluation and brain donation at death [26]. Clinical and pathologic methods have been previously described [27,28,29,30,31,32]. Linear regression models for quantitative traits and logistic regression models for binary traits were used to test the association of CD33 gene expression with PTPN6 levels in the dorsolateral prefrontal cortex (DLPFC) with (a) neuropathological LOAD status, (b) β-amyloid levels, (c) neurofibrillary tangle (NFT) burden, (d) global measure of pathology based on the scaled scores of 5 brain regions, (e) estimated slope of global cognition using longitudinal measurements, (f) hippocampal sclerosis, (g) TDP43 pathology and (h) clinical dementia diagnosis antemortem. The gene expression levels were adjusted for age, sex, RIN score, post-mortem interval, and other technical covariates for RNA-sequencing and the residual expression values were used for interaction testing. A quantitative trait loci approach was used to test whether genetic variation in PTPN6 regulates CD33 expression levels and vice versa. Common SNPs (MAF > 0.01) were tested for association with residual gene expression levels in a linear regression model adjusting for age, sex, and population substructure variables. Lastly, the R mediation package was used to test whether the association of CD33 expression with clinical AD, AD neuropathology and cognition is mediated by PTPN6 levels. This package was also used to test mediation in the other direction (CD33 mediates PTPN6 association with traits) to establish causality. This modeling was repeated to examine the interplay between CD33 and PTPN11 (gene for SHP-2).

3. Results

3.1. CD33 and SHP-1 Interact in Human Microglia-like Cells in a CD33 Genotype-Sensitive Manner

To investigate the interaction between CD33 and SHP-1, proximity ligation assay (PLA) was performed on primary monocyte-derived microglia-like (MDMi) cell cultures from individuals genotyped for the CD33 AD-associated variant, rs3865444. As PLA detects protein–protein interactions in situ at a distance <40 nm, we used this assay to measure the number of interactions per cell [33]. The CD33 AD-associated risk variant, rs3865444CC, increases CD33 surface expression on human monocytes, microglia, and MDMi [14,19]. We confirm that CD33 protein expression is increased in MDMi from rs3865444CC individuals, and we found no genotype effect on SHP-1 protein expression (Supplemental Figure S1). Here, we demonstrate that CD33 and SHP-1 interact in the PLA assay (Figure 1). However, the number of PLA dots, which represent singular interactions, does not differ between genotypes at the baseline level. As SHP-1 is a phosphatase, we next investigated whether this interaction is sensitive to the phosphorylation state. We treated MDMi with pervanadate, which inhibits phosphatase activity, resulting in globally increased phosphorylation [34]. PLA demonstrated increased CD33-SHP-1 interaction in the context of pervanadate but only in MDMi from individuals homozygous for the risk allele, suggesting that this interaction is both sensitive to the phosphorylation state and to the genetic background of the individual. In the presence of pervanadate, there was a significant increase in the number of CD33-SHP-1 interactions in MDMi from individuals homozygous for the risk variant, rs3865444CC, compared to MDMi from individuals homozygous for the protective variant, rs3865444AA (Figure 1).

3.2. Genotype-Specific CD33-SHP-1 Interactions in Post-Mortem Human Brain Tissue

We next tested whether SHP-1 colocalizes with CD33-positive cells in human prefrontal cortex. By utilizing an immunofluorescence technique in frozen human brain coupled with confocal microscopy, we found colocalization of SHP-1 and CD33, suggesting these proteins have the potential to interact (Supplemental Figure S2). To confirm whether the CD33 and SHP-1 positive cells also express IBA1, we performed triple staining with CD33, SHP-1, and IBA1 in formalin fixed paraffin embedded tissue. We found that many of the CD33-positive cells also express IBA1, and that there are triple-positive cells (Supplemental Figure S3). To determine whether CD33 and SHP-1 interact, we performed in situ PLA in frozen post-mortem human brain tissues (prefrontal cortex) from five donors (Supplemental Table S1). We found 18.4 times more PLA signal in the rs3865444CC group compared to the rs3865444AA group (Figure 2), mirroring our genotype-specific findings observed in MDMi. This finding suggests that not only are CD33 and SHP-1 within the same biological complex of <40 nm and interacting to signal downstream functions, but their interaction is dictated by genotype in situ. The increased interaction in situ, even without pervanadate treatment, may be due to a modified activation state of SHP-1 in the brain of individuals with the rs3865444CC genotype, suggesting the importance of molecular changes throughout the AD brain on microglial signaling.

3.3. CD33 and PTPN6 Gene-Expression Interaction Impacts the Risk for Clinical and Pathological Features of AD

To examine the implications of the interaction between CD33 and SHP-1 on disease, we examined gene–gene, SNP–gene, and mediation interactions in a transcriptomics dataset of frontal cortex from the ROSMAP cohort, a longitudinal cohort of aging [26]. To understand the biological significance of this interaction in the context of Alzheimer’s disease, we leveraged existing ROSMAP dorsolateral prefrontal cortex (DLPFC) transcriptomic and genetic datasets and investigated whether the interactions between CD33 and PTPN6 gene expression influence AD clinical and pathological traits. After adjustment for multiple testing correction for testing eight traits, CD33-PTPN6 interaction was significantly associated with amyloid burden, tangles, pathological diagnosis of AD, and global burden of AD pathology. Their interaction was also nominally significant with an antemortem diagnosis of clinical AD (Table 1). This is supportive of the idea that CD33 requires SHP-1 to signal in immune cells. We repeated the interaction analysis for CD33 and PTPN11, which codes for SHP-2, another protein tyrosine phosphatase that has been shown to bind to the ITIM motif of CD33 [16]. Interestingly, the CD33 and PTPN11 interaction was not associated with any of the eight traits (Supplemental Table S2).
To examine SNP–gene interactions, we performed trans-expression quantitative trait loci (eQTL) analysis. We tested the influence of six SNPs in the PTPN6 locus on CD33 expression and 57 SNPs in the CD33 locus and found no trans-eQTLs of gene expression in either gene (Supplemental Tables S3 and S4). Additionally, PTPN11 variants do not regulate the expression of CD33 and vice versa (Supplemental Tables S5 and S6).
We then performed causal mediation analysis to test whether PTPN6 gene expression mediates the association between CD33 gene expression and AD-related traits, or vice versa. PTPN6 gene expression did not mediate any associations between CD33 and any traits (Supplemental Table S7). However, CD33 gene expression was found to mediate the association between PTPN6 gene expression and clinical AD dementia. These findings suggest that PTPN6 gene expression affects CD33 gene expression, and, in turn, the CD33 gene expression affects AD dementia (p = 0.008), while PTPN6 gene expression is not directly associated with AD dementia (Supplemental Table S8). To examine this further, we used mediation analysis to determine that CD33 gene expression mediated the association of PTPN6 gene expression on AD dementia (Table 2). The causal mediation analysis with CD33 and PTPN11 found no significant mediation effect of either gene with any AD traits (Supplemental Tables S9 and S10). This finding supports the idea that the mediation of PTPN6 by CD33 is specific to PTPN6 in terms of CD33 signaling.

4. Discussion

In this study, we showed that genotype-dependent interactions between CD33 and SHP-1 in human microglia and microglia-like cells provide novel insights into the molecular mechanisms underlying Alzheimer’s disease (AD) susceptibility. The data demonstrate that the AD-associated CD33 rs3865444CC risk allele modulates the interaction between CD33 and SHP-1 in a phosphorylation-sensitive manner, potentially contributing to altered microglial function in AD. Additionally, we found a significant interaction between CD33 and PTPN6 (the gene encoding SHP-1) gene expression that influences various AD-related traits, suggesting a complex molecular interplay impacting AD pathology.
Recent literature supports the critical role of innate immune cells in AD susceptibility, with CD33 as a prominent genetic risk factor [14,35,36,37,38,39,40,41]. The CD33 risk allele rs3865444C increases full-length CD33 protein expression, leading to impaired microglial internalization of amyloid-β and ultimately amyloid plaque accumulation [14,15]. Our findings show that the CD33-SHP-1 interaction is phosphorylation sensitive and genotype influenced, suggesting that genotype-specific therapeutic strategies may be a relevant approach. Because the risk variant increases the expression of CD33 on the surface of immune cells (but not SHP-1 levels; Supplemental Figure S1) [14,19], the inability of pervanadate to increase CD33-SHP-1 binding in MDMi from individuals with the rs3865444AA genotype suggests that, when CD33 is limited, there is high baseline occupancy of the ITIM motif with SHP-1. However, in the case of rs3865444CC MDMi, there is an excess of CD33, and stimulation, especially with a protein tyrosine phosphatase inhibitor, can increase the occupancy of the ITIM motif with SHP-1 (Figure 3). Higher CD33-SHP-1 interaction in the brain with the CD33 risk allele may result from chronic activation of CD33, maintaining SHP-1 in an active state and facilitating its downstream signaling, ultimately contributing to AD pathology.
Additionally, utilizing a large transcriptomic dataset, we were able to demonstrate that there are multiple pathological outcomes influenced by the gene–gene interaction of CD33 and PTPN6. Specifically, we find that the interaction of CD33 and PTPN6 modulates the association with amyloid burden, tangles, pathological diagnosis of AD, and global burden of AD pathology. This demonstrates that CD33 and SHP-1/PTPN6 are critical partners of a shared molecular pathway. Despite this strong association with pathology, the gene–gene interaction between CD33 and PTPN6 did not influence cognitive decline, TDP43, hippocampal sclerosis, and clinical diagnosis of AD, supporting the complexity of AD and microglial genes, as well as the concept that AD pathology is more than the buildup of amyloid plaques and tau tangles. Remarkably, when we performed the same analysis with PTPN11 and CD33, we found no association with any of the traits. Since CD33 has been shown to be able to bind both SHP-1 and SHP-2, this suggests that there are in vivo binding affinity differences or that only the SHP-1 binding is linked to AD pathology.
Another interesting contrast between our protein and gene expression findings in regard to CD33-SHP-1 interaction is the role of genotype. Genetic variation at the CD33 locus does not influence PTPN6 gene expression, and genetic variation at the PTPN6 locus does not influence CD33 expression. However, the AD-associated genetic variation at the CD33 locus does influence the interaction of CD33 and SHP-1 at the protein level.
Our study provides important insights, although there are a few limitations to consider. The sample size for the in situ analysis of post-mortem brain tissues was limited to five donors, so expanding the cohort in future studies would help validate our findings and enhance their generalizability. Additionally, while CD33 and IBA1 (the most commonly used immunohistochemical marker for microglia) often are found in the same cell, we did identify cells with microglial morphology expressing CD33 and not IBA1 and vice versa (Supplemental Figure S3). This is consistent with prior publications and suggests there is still much to explore about CD33′s expression in microglia, including the possibility of new microglial subpopulations or distinct activation states influenced by the local brain environment or disease context [38,42]. In our flow cytometry analysis of MDMi, we also see heterogeneity of CD33 protein expression with the majority having high expression and a smaller population having low CD33 expression, but consistent SHP-1 expression (Supplemental Figure S1).
Our study primarily focused on the phosphorylation state of SHP-1 and its interaction with CD33. Other post-translational modifications of SHP-1 or CD33, which might also influence their interaction, were not explored. Comprehensive studies considering various protein modifications are needed. While we demonstrated an interaction between CD33 and SHP-1, the functional consequences of this interaction in the context of microglial activity and AD progression were not fully elucidated. Further studies are needed to link these molecular interactions to specific cellular and pathological outcomes.
Given the genotype-dependent nature of the CD33-SHP-1 protein interaction, developing targeted therapies that modulate this interaction may be beneficial. Small molecule inhibitors or biologics that disrupt CD33-SHP-1 signaling in a controlled manner might be a novel therapeutic avenue. Expanding the scope of genetic interactions to include other innate immune receptors and their signaling partners could provide a more comprehensive understanding of the immune dysregulation in AD. Integrating multi-omic data from large cohorts could further elucidate these complex networks. Longitudinal studies tracking the progression of AD in relation to CD33 and SHP-1 interaction dynamics could provide valuable insights into how these interactions evolve with disease progression and influence clinical outcomes.
In conclusion, our study underscores the critical role of understanding the interaction partners and signaling pathways in microglia of genetically associated proteins, contributing significantly to the genetic risk of Alzheimer’s disease. These findings provide valuable insights into the molecular mechanisms underlying AD and suggest potential genotype-specific therapeutic strategies targeting the CD33-SHP-1 pathway. Future research should focus on further elucidating these interactions and exploring therapeutic interventions that can effectively modulate this pathway to mitigate AD progression. Continued investigation in this area holds promise for developing more effective treatments for this devastating disease.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/genes15091204/s1, Supplemental Methods [19,43,44]; Figure S1: Most MDMi cells express both CD33 and SHP-1; Figure S2: A representative image of frozen human brain (prefrontal cortex) immunostained with CD33 and SHP-1; Figure S3: Representative images of the mid-frontal cortex immunostained with CD33, SHP-1, and IBA1; Table S1: Diagnosis and rs3865444 genotype of samples used in Figure 2; Table S2: Test for the interaction between CD33 gene expression and PTPN11 gene expression on trait; Table S3: Test for the effect of PTPN6 SNPs on CD33 gene expression; Table S4: Test for the effect of CD33 SNPs on PTPN6 gene expression; Table S5: Test for the effect of PTPN11 SNPs on CD33 gene expression; Table S6: Test for the effect of CD33 SNPs on PTPN11 gene expression; Table S7: Causal Mediation Analysis. Test whether PTPN6 gene expression mediates the association between CD33 gene expression and a trait; Table S8: Causal Mediation Analysis. Test whether CD33 gene expression mediates the association between PTPN6 gene expression and trait; Table S9: Causal Mediation Analysis. Test whether PTPN11 gene expression mediates the association between CD33 gene expression and trait; Table S10: Causal Mediation Analysis. Test whether CD33 gene expression mediates the association between PTPN11 gene expression and trait.

Author Contributions

Conceptualization, L.B., M.R., Z.K.C. and E.M.B.; methodology, L.B., A.J.L., B.N.V. and E.M.B.; software, L.B., M.R., A.J.L. and B.N.V.; validation, L.B., M.R., J.L.H., R.C.T., K.A.T. and Z.K.C.; formal analysis, L.B., M.R. and A.J.L.; investigation, L.B. and E.M.B.; resources, D.A.B. and E.M.B.; data curation, L.B., M.R. and A.J.L.; writing—original draft preparation, L.B., M.R., Z.K.C., A.J.L., B.N.V. and E.M.B.; writing—review and editing, all authors; visualization, L.B., M.R., R.C.T., J.L.H., K.A.T. and A.J.L.; supervision, B.N.V. and E.M.B.; project administration, E.M.B. and D.A.B.; funding acquisition, E.M.B., M.R., Z.K.C., J.L.H. and D.A.B.; L.B., M.R. and A.J.L. contributed equally to this work. All authors have read and agreed to the published version of the manuscript.

Funding

The authors are grateful to the participants of the NYBC and NYBB for the time and specimens that they contributed. We thank the Columbia University Alzheimer’s Disease Research Center, funded by NIH grant P30AG066462 to S.A. Small (P.I.), and A. Teich for providing biological samples and associated information. This work was supported by the US National Institutes of Health grants RF1AG058852, R01AG043617, F30AG074618, F31AG079613, and T32AI148099. The content is solely the responsibility of the authors and does not necessarily represent the official views of the National Institutes of Health. ROSMAP is supported by P30AG10161, P30AG72975, R01AG15819, R01AG17917, U01AG46152, and U01AG61356. AJL, BNV, and EMB are all current Ludwig Scholars in the Carol and Gene Ludwig Center for Research in Neurodegeneration. Flow cytometry and cell sorting experiments were performed in the Columbia Stem Cell Initiative Flow Cytometry core facility at Columbia University Irving Medical Center under the leadership of Michael Kissner.

Institutional Review Board Statement

Both studies, ROS and MAP, were approved by an Institutional Review Board of Rush University Medical Center (ROS IRB# L91020181, MAP IRB# L86121802). Both studies were conducted according to the principles expressed in the Declaration of Helsinki. Each participant signed an informed consent, Anatomic Gift Act, and an RADC Repository consent (IRB# L99032481) allowing data and biospecimens to be repurposed.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

ROSMAP resources can be requested at https://www.radc.rush.edu and www.synpase.org, accessed on 11 September 2024.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sperling, R.A.; Aisen, P.S.; Beckett, L.A.; Bennett, D.A.; Craft, S.; Fagan, A.M.; Iwatsubo, T.; Jack, C.R.; Kaye, J.; Montine, T.J.; et al. Toward defining the preclinical stages of Alzheimer’s disease: Recommendations from the National Institute on Aging-Alzheimer’s Association workgroups on diagnostic guidelines for Alzheimer’s disease. Alzheimers Dement. 2011, 7, 280–292. [Google Scholar] [CrossRef] [PubMed]
  2. Huang, H.C.; Jiang, Z.F. Accumulated amyloid-beta peptide and hyperphosphorylated tau protein: Relationship and links in Alzheimer’s disease. J. Alzheimers Dis. 2009, 16, 15–27. [Google Scholar] [CrossRef] [PubMed]
  3. Bloom, G.S. Amyloid-beta and tau: The trigger and bullet in Alzheimer disease pathogenesis. JAMA Neurol. 2014, 71, 505–508. [Google Scholar] [CrossRef] [PubMed]
  4. Duara, R.; Barker, W. Heterogeneity in Alzheimer’s Disease Diagnosis and Progression Rates: Implications for Therapeutic Trials. Neurotherapeutics 2022, 19, 8–25. [Google Scholar] [CrossRef]
  5. Hollingworth, P.; Harold, D.; Jones, L.; Owen, M.J.; Williams, J. Alzheimer’s disease genetics: Current knowledge and future challenges. Int. J. Geriatr. Psychiatry 2011, 26, 793–802. [Google Scholar] [CrossRef]
  6. Karch, C.M.; Goate, A.M. Alzheimer’s disease risk genes and mechanisms of disease pathogenesis. Biol. Psychiatry 2015, 77, 43–51. [Google Scholar] [CrossRef]
  7. Harold, D.; Abraham, R.; Hollingworth, P.; Sims, R.; Gerrish, A.; Hamshere, M.L.; Pahwa, J.S.; Moskvina, V.; Dowzell, K.; Williams, A.; et al. Genome-wide association study identifies variants at CLU and PICALM associated with Alzheimer’s disease. Nat. Genet. 2009, 41, 1088–1093. [Google Scholar] [CrossRef]
  8. Lambert, J.C.; Heath, S.; Even, G.; Campion, D.; Sleegers, K.; Hiltunen, M.; Combarros, O.; Zelenika, D.; Bullido, M.J.; Tavernier, B.; et al. Genome-wide association study identifies variants at CLU and CR1 associated with Alzheimer’s disease. Nat. Genet. 2009, 41, 1094–1099. [Google Scholar] [CrossRef]
  9. Seshadri, S.; Fitzpatrick, A.L.; Ikram, M.A.; DeStefano, A.L.; Gudnason, V.; Boada, M.; Bis, J.C.; Smith, A.V.; Carassquillo, M.M.; Lambert, J.C.; et al. Genome-wide analysis of genetic loci associated with Alzheimer disease. JAMA 2010, 303, 1832–1840. [Google Scholar] [CrossRef]
  10. Naj, A.C.; Jun, G.; Beecham, G.W.; Wang, L.S.; Vardarajan, B.N.; Buros, J.; Gallins, P.J.; Buxbaum, J.D.; Jarvik, G.P.; Crane, P.K.; et al. Common variants at MS4A4/MS4A6E, CD2AP, CD33 and EPHA1 are associated with late-onset Alzheimer’s disease. Nat. Genet. 2011, 43, 436–441. [Google Scholar] [CrossRef]
  11. Guerreiro, R.; Wojtas, A.; Bras, J.; Carrasquillo, M.; Rogaeva, E.; Majounie, E.; Cruchaga, C.; Sassi, C.; Kauwe, J.S.; Younkin, S.; et al. TREM2 variants in Alzheimer’s disease. N. Engl. J. Med. 2013, 368, 117–127. [Google Scholar] [CrossRef] [PubMed]
  12. Jin, S.C.; Benitez, B.A.; Karch, C.M.; Cooper, B.; Skorupa, T.; Carrell, D.; Norton, J.B.; Hsu, S.; Harari, O.; Cai, Y.; et al. Coding variants in TREM2 increase risk for Alzheimer’s disease. Hum. Mol. Genet. 2014, 23, 5838–5846. [Google Scholar] [CrossRef] [PubMed]
  13. Hollingworth, P.; Harold, D.; Sims, R.; Gerrish, A.; Lambert, J.C.; Carrasquillo, M.M.; Abraham, R.; Hamshere, M.L.; Pahwa, J.S.; Moskvina, V.; et al. Common variants at ABCA7, MS4A6A/MS4A4E, EPHA1, CD33 and CD2AP are associated with Alzheimer’s disease. Nat. Genet. 2011, 43, 429–435. [Google Scholar] [CrossRef] [PubMed]
  14. Bradshaw, E.M.; Chibnik, L.B.; Keenan, B.T.; Ottoboni, L.; Raj, T.; Tang, A.; Rosenkrantz, L.L.; Imboywa, S.; Lee, M.; Von Korff, A.; et al. CD33 Alzheimer’s disease locus: Altered monocyte function and amyloid biology. Nat. Neurosci. 2013, 16, 848–850. [Google Scholar] [CrossRef]
  15. Raj, T.; Ryan, K.J.; Replogle, J.M.; Chibnik, L.B.; Rosenkrantz, L.; Tang, A.; Rothamel, K.; Stranger, B.E.; Bennett, D.A.; Evans, D.A.; et al. CD33: Increased inclusion of exon 2 implicates the Ig V-set domain in Alzheimer’s disease susceptibility. Hum. Mol. Genet. 2014, 23, 2729–2736. [Google Scholar] [CrossRef]
  16. Taylor, V.C.; Buckley, C.D.; Douglas, M.; Cody, A.J.; Simmons, D.L.; Freeman, S.D. The myeloid-specific sialic acid-binding receptor, CD33, associates with the protein-tyrosine phosphatases, SHP-1 and SHP-2. J. Biol. Chem. 1999, 274, 11505–11512. [Google Scholar] [CrossRef]
  17. Paul, S.P.; Taylor, L.S.; Stansbury, E.K.; McVicar, D.W. Myeloid specific human CD33 is an inhibitory receptor with differential ITIM function in recruiting the phosphatases SHP-1 and SHP-2. Blood 2000, 96, 483–490. [Google Scholar] [CrossRef]
  18. Wissfeld, J.; Nozaki, I.; Mathews, M.; Raschka, T.; Ebeling, C.; Hornung, V.; Brustle, O.; Neumann, H. Deletion of Alzheimer’s disease-associated CD33 results in an inflammatory human microglia phenotype. Glia 2021, 69, 1393–1412. [Google Scholar] [CrossRef]
  19. Ryan, K.J.; White, C.C.; Patel, K.; Xu, J.; Olah, M.; Replogle, J.M.; Frangieh, M.; Cimpean, M.; Winn, P.; McHenry, A.; et al. A human microglia-like cellular model for assessing the effects of neurodegenerative disease gene variants. Sci. Transl. Med. 2017, 9, eaai7635. [Google Scholar] [CrossRef]
  20. Sargeant, T.J.; Fourrier, C. Human monocyte-derived microglia-like cell models: A review of the benefits, limitations and recommendations. Brain Behav. Immun. 2023, 107, 98–109. [Google Scholar] [CrossRef]
  21. Quek, H.; Cuní-López, C.; Stewart, R.; Colletti, T.; Notaro, A.; Nguyen, T.H.; Sun, Y.; Guo, C.C.; Lupton, M.K.; Roberts, T.L.; et al. ALS monocyte-derived microglia-like cells reveal cytoplasmic TDP-43 accumulation, DNA damage, and cell-specific impairment of phagocytosis associated with disease progression. J. Neuroinflamm. 2022, 19, 58. [Google Scholar] [CrossRef]
  22. Cuní-López, C.; Stewart, R.; Oikari, L.E.; Nguyen, T.H.; Roberts, T.L.; Sun, Y.; Guo, C.C.; Lupton, M.K.; White, A.R.; Quek, H. Advanced patient-specific microglia cell models for pre-clinical studies in Alzheimer’s disease. J. Neuroinflamm. 2024, 21, 50. [Google Scholar] [CrossRef] [PubMed]
  23. You, M.J.; Rim, C.; Bang, M.; Sung, S.; Kim, H.J.; Lee, S.H.; Kwon, M.S. A molecular characterization and clinical relevance of microglia-like cells derived from patients with panic disorder. Transl. Psychiatry 2023, 13, 48. [Google Scholar] [CrossRef] [PubMed]
  24. De Jager, P.L.; Ma, Y.; McCabe, C.; Xu, J.; Vardarajan, B.N.; Felsky, D.; Klein, H.U.; White, C.C.; Peters, M.A.; Lodgson, B.; et al. A multi-omic atlas of the human frontal cortex for aging and Alzheimer’s disease research. Sci. Data 2018, 5, 180142. [Google Scholar] [CrossRef] [PubMed]
  25. Ng, B.; White, C.C.; Klein, H.U.; Sieberts, S.K.; McCabe, C.; Patrick, E.; Xu, J.; Yu, L.; Gaiteri, C.; Bennett, D.A.; et al. An xQTL map integrates the genetic architecture of the human brain’s transcriptome and epigenome. Nat. Neurosci. 2017, 20, 1418–1426. [Google Scholar] [CrossRef]
  26. Bennett, D.A.; Buchman, A.S.; Boyle, P.A.; Barnes, L.L.; Wilson, R.S.; Schneider, J.A. Religious Orders Study and Rush Memory and Aging Project. J. Alzheimers Dis. 2018, 64, S161–S189. [Google Scholar] [CrossRef]
  27. Bennett, D.A.; Schneider, J.A.; Arvanitakis, Z.; Kelly, J.F.; Aggarwal, N.T.; Shah, R.C.; Wilson, R.S. Neuropathology of older persons without cognitive impairment from two community-based studies. Neurology 2006, 66, 1837–1844. [Google Scholar] [CrossRef]
  28. Bennett, D.A.; Wilson, R.S.; Schneider, J.A.; Evans, D.A.; Beckett, L.A.; Aggarwal, N.T.; Barnes, L.L.; Fox, J.H.; Bach, J. Natural history of mild cognitive impairment in older persons. Neurology 2002, 59, 198–205. [Google Scholar] [CrossRef]
  29. Bennett, D.A.; Schneider, J.A.; Aggarwal, N.T.; Arvanitakis, Z.; Shah, R.C.; Kelly, J.F.; Fox, J.H.; Cochran, E.J.; Arends, D.; Treinkman, A.D.; et al. Decision rules guiding the clinical diagnosis of Alzheimer’s disease in two community-based cohort studies compared to standard practice in a clinic-based cohort study. Neuroepidemiology 2006, 27, 169–176. [Google Scholar] [CrossRef]
  30. Oveisgharan, S.; Yang, J.; Yu, L.; Burba, D.; Bang, W.; Tasaki, S.; Grodstein, F.; Wang, Y.; Zhao, J.; De Jager, P.L.; et al. Estrogen Receptor Genes, Cognitive Decline, and Alzheimer Disease. Neurology 2023, 100, e1474–e1487. [Google Scholar] [CrossRef]
  31. Boyle, P.A.; Yu, L.; Leurgans, S.E.; Wilson, R.S.; Brookmeyer, R.; Schneider, J.A.; Bennett, D.A. Attributable risk of Alzheimer’s dementia attributed to age-related neuropathologies. Ann. Neurol. 2019, 85, 114–124. [Google Scholar] [CrossRef] [PubMed]
  32. Boyle, P.A.; Wang, T.; Yu, L.; Wilson, R.S.; Dawe, R.; Arfanakis, K.; Schneider, J.A.; Bennett, D.A. To what degree is late life cognitive decline driven by age-related neuropathologies? Brain 2021, 144, 2166–2175. [Google Scholar] [CrossRef] [PubMed]
  33. Fredriksson, S.; Gullberg, M.; Jarvius, J.; Olsson, C.; Pietras, K.; Gustafsdottir, S.M.; Ostman, A.; Landegren, U. Protein detection using proximity-dependent DNA ligation assays. Nat. Biotechnol. 2002, 20, 473–477. [Google Scholar] [CrossRef]
  34. Fantus, I.G.; Kadota, S.; Deragon, G.; Foster, B.; Posner, B.I. Pervanadate [peroxide(s) of vanadate] mimics insulin action in rat adipocytes via activation of the insulin receptor tyrosine kinase. Biochemistry 1989, 28, 8864–8871. [Google Scholar] [CrossRef] [PubMed]
  35. Chan, G.; White, C.C.; Winn, P.A.; Cimpean, M.; Replogle, J.M.; Glick, L.R.; Cuerdon, N.E.; Ryan, K.J.; Johnson, K.A.; Schneider, J.A.; et al. CD33 modulates TREM2: Convergence of Alzheimer loci. Nat. Neurosci. 2015, 18, 1556–1558. [Google Scholar] [CrossRef] [PubMed]
  36. Dos Santos, L.R.; Pimassoni, L.H.S.; Sena, G.G.S.; Camporez, D.; Belcavello, L.; Trancozo, M.; Morelato, R.L.; Errera, F.I.V.; Bueno, M.R.P.; de Paula, F. Validating GWAS Variants from Microglial Genes Implicated in Alzheimer’s Disease. J. Mol. Neurosci. 2017, 62, 215–221. [Google Scholar] [CrossRef]
  37. GNS, H.S.; Marise, V.L.P.; Satish, K.S.; Yergolkar, A.V.; Krishnamurthy, M.; Ganesan Rajalekshmi, S.; Radhika, K.; Burri, R.R. Untangling huge literature to disinter genetic underpinnings of Alzheimer’s Disease: A systematic review and meta-analysis. Ageing Res. Rev. 2021, 71, 101421. [Google Scholar] [CrossRef]
  38. Griciuc, A.; Serrano-Pozo, A.; Parrado, A.R.; Lesinski, A.N.; Asselin, C.N.; Mullin, K.; Hooli, B.; Choi, S.H.; Hyman, B.T.; Tanzi, R.E. Alzheimer’s disease risk gene CD33 inhibits microglial uptake of amyloid beta. Neuron 2013, 78, 631–643. [Google Scholar] [CrossRef]
  39. Gu, X.; Dou, M.; Cao, B.; Jiang, Z.; Chen, Y. Peripheral level of CD33 and Alzheimer’s disease: A bidirectional two-sample Mendelian randomization study. Transl. Psychiatry 2022, 12, 427. [Google Scholar] [CrossRef]
  40. Li, W.W.; Wang, Z.; Fan, D.Y.; Shen, Y.Y.; Chen, D.W.; Li, H.Y.; Li, L.; Yang, H.; Liu, Y.H.; Bu, X.L.; et al. Association of Polygenic Risk Score with Age at Onset and Cerebrospinal Fluid Biomarkers of Alzheimer’s Disease in a Chinese Cohort. Neurosci. Bull. 2020, 36, 696–704. [Google Scholar] [CrossRef]
  41. Malik, M.; Chiles, J.; Xi, H.S.; Medway, C.; Simpson, J.; Potluri, S.; Howard, D.; Liang, Y.; Paumi, C.M.; Mukherjee, S.; et al. Genetics of CD33 in Alzheimer’s disease and acute myeloid leukemia. Hum. Mol. Genet. 2015, 24, 3557–3570. [Google Scholar] [CrossRef] [PubMed]
  42. Malik, M.; Simpson, J.F.; Parikh, I.; Wilfred, B.R.; Fardo, D.W.; Nelson, P.T.; Estus, S. CD33 Alzheimer’s risk-altering polymorphism, CD33 expression, and exon 2 splicing. J. Neurosci. 2013, 33, 13320–13325. [Google Scholar] [CrossRef] [PubMed]
  43. Vonsattel, J.P.; Del Amaya, M.P.; Keller, C.E. Twenty-first century brain banking. Processing brains for research: The Columbia University methods. Acta Neuropathol. 2008, 115, 509–532. [Google Scholar] [CrossRef] [PubMed]
  44. Chatila, Z.K.; Yadav, A.; Mares, J.; Flowers, X.; Yun, T.D.; Rashid, M.; Talcoff, R.; Pelly, Z.; Zhang, Y.; De Jager, P.L.; et al. RNA- and ATAC-sequencing Reveals a Unique CD83+ Microglial Population Focally Depleted in Parkinson’s Disease. bioRxiv 2023. [Google Scholar] [CrossRef]
Genes 15 01204 g001

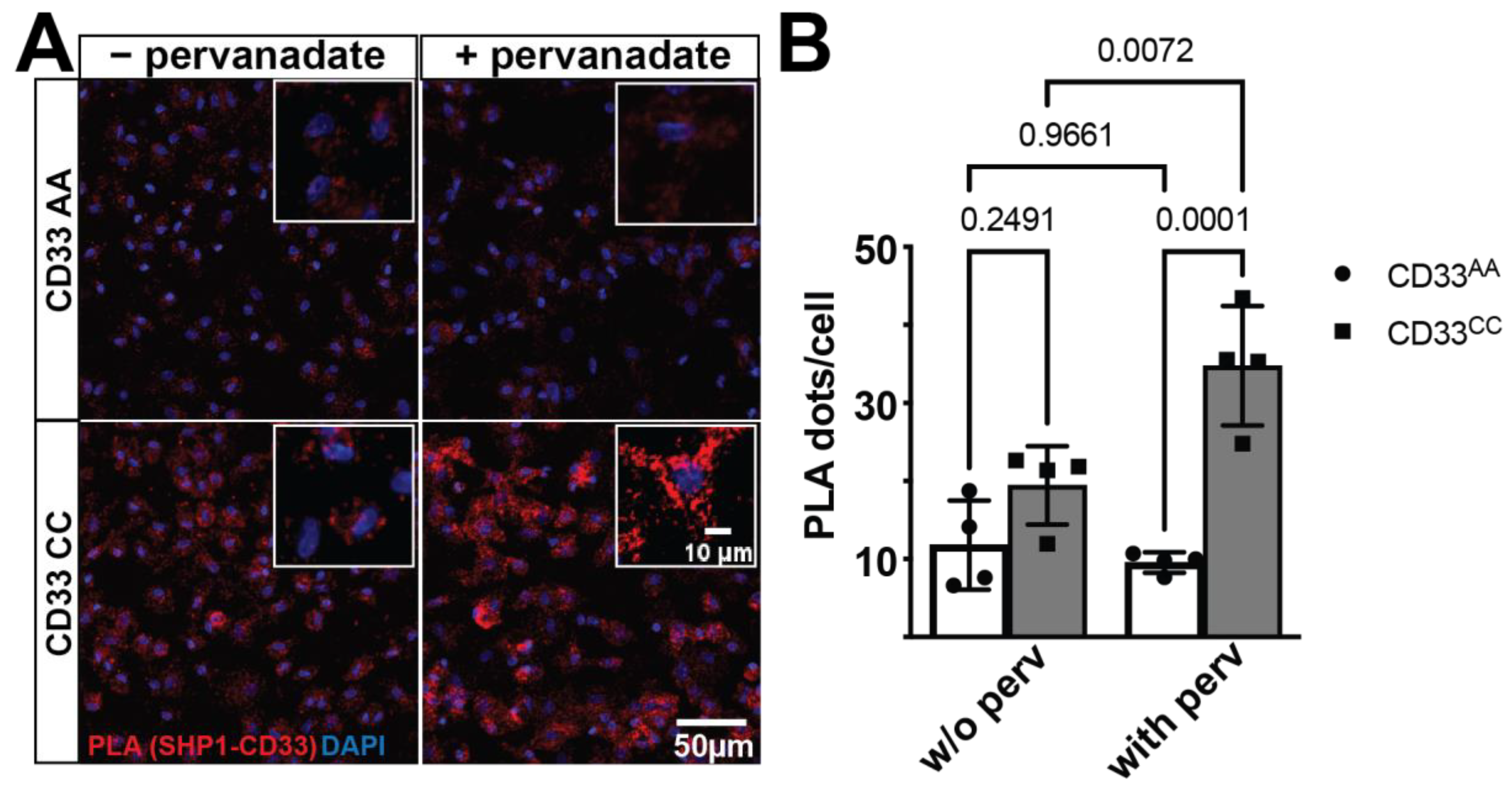

Figure 1. CD33 and SHP-1 interact in a genotype-dependent manner. (A) A representative confocal image of MDMi cells stained for proximity ligation assays (PLA). The proximity ligation puncta (red dots, zoomed in inset) represent the protein–protein interaction between CD33 and SHP-1. DAPI (blue) is used to counterstain the nucleus. (B) Quantification of the PLA dots shows a significant increase in the PLA counts in the CD33 CC group (n = 4) when the cells are treated with pervanadate compared to the CD33 AA group (n = 4). Data are represented as the mean ± SEM. Two-way ANOVA followed by Tukey’s multiple comparisons test. Scale bar: 50 μm; 10 μm inset.
Figure 1. CD33 and SHP-1 interact in a genotype-dependent manner. (A) A representative confocal image of MDMi cells stained for proximity ligation assays (PLA). The proximity ligation puncta (red dots, zoomed in inset) represent the protein–protein interaction between CD33 and SHP-1. DAPI (blue) is used to counterstain the nucleus. (B) Quantification of the PLA dots shows a significant increase in the PLA counts in the CD33 CC group (n = 4) when the cells are treated with pervanadate compared to the CD33 AA group (n = 4). Data are represented as the mean ± SEM. Two-way ANOVA followed by Tukey’s multiple comparisons test. Scale bar: 50 μm; 10 μm inset.
Genes 15 01204 g001
Genes 15 01204 g002

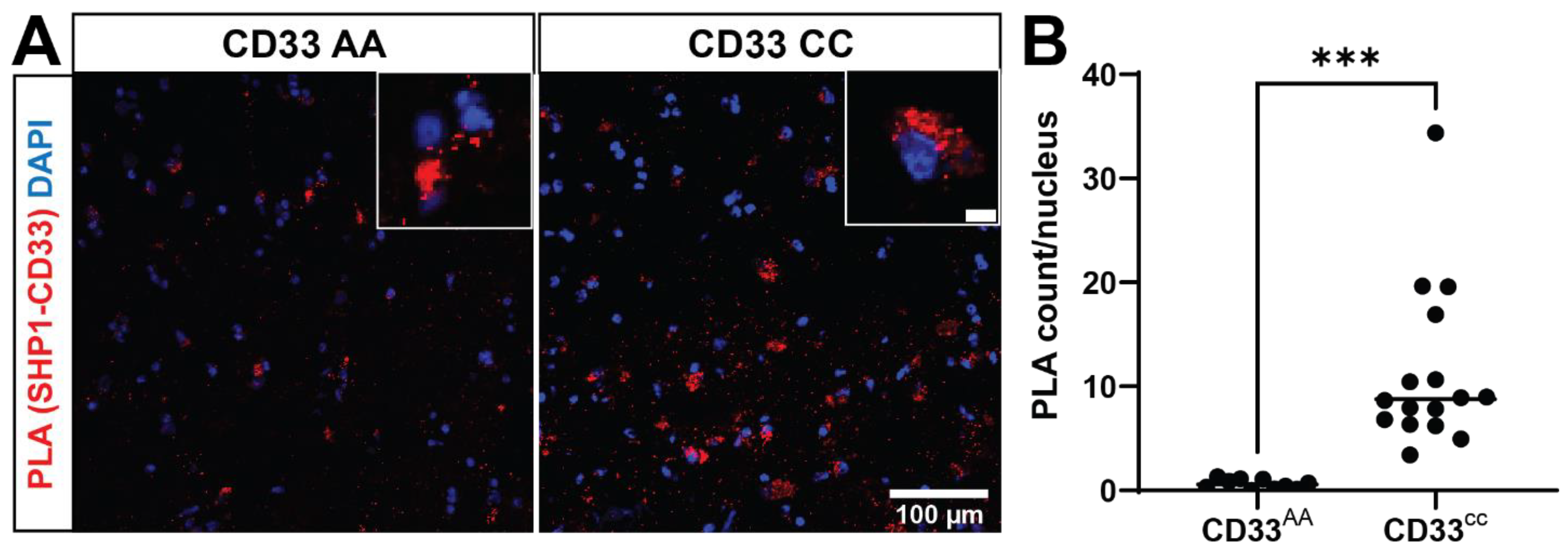

Figure 2. CD33 and SHP-1 interact in situ in a CD33 genotype-dependent manner. (A) A representative confocal image of post-mortem human prefrontal cortex stained for proximity ligation assays (PLA). The proximity ligation puncta (red dots, zoomed in inset) represent the protein–protein interaction between CD33 and SHP-1. DAPI (blue) is used to counterstain the nucleus. (B) Quantification of the PLA dots show a significant increase in the PLA counts in the CD33 CC group (n = 16 tissue sections, 11.36 ± 1.956) when compared to the CD33 AA groups (n = 10 tissue sections, 0.6185 ± 0.1482). Data represented as the mean ± SEM. *** p < 0.001, unpaired t-test. Scale bar: 100 μm; 10 μm inset.
Figure 2. CD33 and SHP-1 interact in situ in a CD33 genotype-dependent manner. (A) A representative confocal image of post-mortem human prefrontal cortex stained for proximity ligation assays (PLA). The proximity ligation puncta (red dots, zoomed in inset) represent the protein–protein interaction between CD33 and SHP-1. DAPI (blue) is used to counterstain the nucleus. (B) Quantification of the PLA dots show a significant increase in the PLA counts in the CD33 CC group (n = 16 tissue sections, 11.36 ± 1.956) when compared to the CD33 AA groups (n = 10 tissue sections, 0.6185 ± 0.1482). Data represented as the mean ± SEM. *** p < 0.001, unpaired t-test. Scale bar: 100 μm; 10 μm inset.
Genes 15 01204 g002
Genes 15 01204 g003

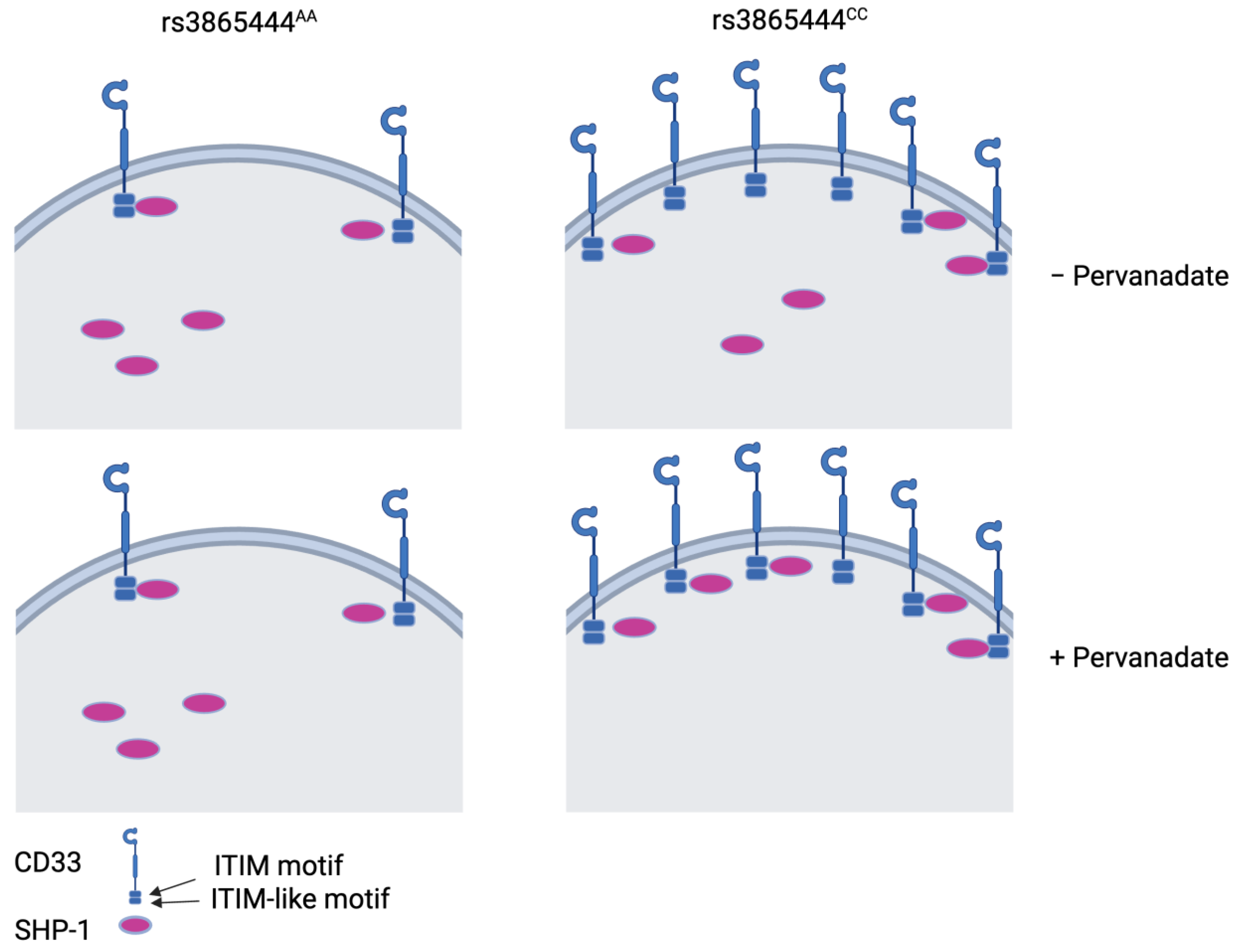

Figure 3. We hypothesize that microglia with the protective AA genotype have a limited number of CD33 ITIM motifs available for SHP-1 binding, while microglia from individuals with the risk CC genotype have a higher availability of ITIM motifs allowing for more SHP-1 recruitment during activation, as we observed with pervanadate treatment. This figure was made in BioRender.
Figure 3. We hypothesize that microglia with the protective AA genotype have a limited number of CD33 ITIM motifs available for SHP-1 binding, while microglia from individuals with the risk CC genotype have a higher availability of ITIM motifs allowing for more SHP-1 recruitment during activation, as we observed with pervanadate treatment. This figure was made in BioRender.
Genes 15 01204 g003
Table 1. Test for the interaction between CD33 gene expression (gx) and PTPN6 gene expression on trait.
Table 1. Test for the interaction between CD33 gene expression (gx) and PTPN6 gene expression on trait.
TraitVariableβsetp
AmyloidIntercept1.7420.03944.5461.45 × 10−246
CD33 gx0.0700.0561.2360.217
PTPN6 gx0.0220.0730.2970.766
CD33 gx:PTPN6 gx−0.2100.063−3.3498.39 × 10−4
TanglesIntercept2.3470.04749.8164.20 × 10−282
CD33 gx0.0770.0681.1370.256
PTPN6 gx−0.0340.088−0.3830.701
CD33 gx:PTPN6 gx−0.2470.076−3.2761.09 × 10−3
Pathologic ADIntercept0.6440.0728.8896.18 × 10−19
CD33 gx0.0990.1040.9580.338
PTPN6 gx0.0380.1350.2800.780
CD33 gx:PTPN6 gx−0.3590.114−3.1361.72 × 10−3
AD dementiaIntercept0.1630.0841.9450.052
CD33 gx0.2940.1252.3580.018
PTPN6 gx−0.2020.156−1.2890.197
CD33 gx:PTPN6 gx−0.2990.146−2.0540.040
Cognitive declineIntercept−0.0160.003−4.8041.78 × 10−6
CD33 gx−0.0070.005−1.4990.134
PTPN6 gx0.0010.0060.2170.828
CD33 gx:PTPN6 gx0.0030.0060.6120.541
TDP-43Intercept−0.7110.077−9.2592.05 × 10−20
CD33 gx0.1900.1131.6790.093
PTPN6 gx−0.0810.145−0.5620.574
CD33 gx:PTPN6 gx−0.2960.140−2.1130.035
Hippocampal sclerosisIntercept−2.2600.120−18.7781.1 × 410−78
CD33 gx0.3140.1831.7120.087
PTPN6 gx−0.2440.229−1.0670.286
CD33 gx:PTPN6 gx−0.2790.227−1.2300.219
Global AD pathology burdenIntercept0.7600.02135.8352.32 × 10−186
CD33 gx0.0190.0310.6370.525
PTPN6 gx0.0330.0400.8310.406
CD33 gx:PTPN6 gx−0.1230.034−3.6133.16 × 10−4
Table 2. Causal Mediation Analysis where the exposure is PTPN6 gene expression, the mediator is CD33 gene expression, and the outcome is AD dementia.
Table 2. Causal Mediation Analysis where the exposure is PTPN6 gene expression, the mediator is CD33 gene expression, and the outcome is AD dementia.
βLower 95% CIUpper 95% CIp-Value
Average Causal Mediation Effect (ACME)0.0550.0120.1000.008
Average Direct Effect (ADE)−0.042−0.1190.0400.278
Total Effect0.014−0.0450.0700.666
Proportion Mediated (PM)4.092−22.76827.1200.670
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Beckers, L.; Rashid, M.; Lee, A.J.; Chatila, Z.K.; Tamucci, K.A.; Talcoff, R.C.; Hall, J.L.; Bennett, D.A.; Vardarajan, B.N.; Bradshaw, E.M. CD33 and SHP-1/PTPN6 Interaction in Alzheimer’s Disease. Genes 2024, 15, 1204. https://doi.org/10.3390/genes15091204

AMA Style

Beckers L, Rashid M, Lee AJ, Chatila ZK, Tamucci KA, Talcoff RC, Hall JL, Bennett DA, Vardarajan BN, Bradshaw EM. CD33 and SHP-1/PTPN6 Interaction in Alzheimer’s Disease. Genes. 2024; 15(9):1204. https://doi.org/10.3390/genes15091204

Chicago/Turabian Style

Beckers, Lien, Mamunur Rashid, Annie J. Lee, Zena K. Chatila, Kirstin A. Tamucci, Ryan C. Talcoff, Jennifer L. Hall, David A. Bennett, Badri N. Vardarajan, and Elizabeth M. Bradshaw. 2024. "CD33 and SHP-1/PTPN6 Interaction in Alzheimer’s Disease" Genes 15, no. 9: 1204. https://doi.org/10.3390/genes15091204

APA Style

Beckers, L., Rashid, M., Lee, A. J., Chatila, Z. K., Tamucci, K. A., Talcoff, R. C., Hall, J. L., Bennett, D. A., Vardarajan, B. N., & Bradshaw, E. M. (2024). CD33 and SHP-1/PTPN6 Interaction in Alzheimer’s Disease. Genes, 15(9), 1204. https://doi.org/10.3390/genes15091204

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
