MafA Expression Preserves Immune Homeostasis in Human and Mouse Islets

Abstract

Type 1 (T1D) and type 2 (T2D) diabetes are triggered by a combination of environmental and/or genetic factors. Maf transcription factors regulate pancreatic beta (β)-cell function, and have also been implicated in the regulation of immunomodulatory cytokines like interferon-β (IFNβ1). In this study, we assessed MAFA and MAFB co-expression with pro-inflammatory cytokine signaling genes in RNA-seq data from human pancreatic islets. Interestingly, MAFA expression was strongly negatively correlated with cytokine-induced signaling (such as IFNAR1, DDX58) and T1D susceptibility genes (IFIH1), whereas correlation of these genes with MAFB was weaker. In order to evaluate if the loss of MafA altered the immune status of islets, MafA deficient mouse islets (MafA^−/−) were assessed for inherent anti-viral response and susceptibility to enterovirus infection. MafA deficient mouse islets had elevated basal levels of Ifnβ1, Rig1 (DDX58 in humans), and Mda5 (IFIH1) which resulted in reduced virus propagation in response to coxsackievirus B3 (CVB3) infection. Moreover, an acute knockdown of MafA in β-cell lines also enhanced Rig1 and Mda5 protein levels. Our results suggest that precise regulation of MAFA levels is critical for islet cell-specific cytokine production, which is a critical parameter for the inflammatory status of pancreatic islets.

1. Introduction

Investigations of complex disorders such as cancer, diabetes, and infectious diseases have identified a crucial role of the inflammatory microenvironment in driving immune responses against self-antigens [1,2]. Aberrant activation of the immune system can result in auto-inflammatory and/or autoimmune abnormalities as observed in the pathogenesis of Type 1 diabetes (T1D), but also during inflammatory processes in Type 2 diabetes (T2D) pancreata. Human islets express more than 50% of the known T1D susceptible genes [3], reflecting the importance of β cells, at least in part, for initiating or preventing T1D pathophysiology. One of the crucial factors in the early phase of T1D development is local cytokine signaling by interferons (IFNs) [2,4,5,6,7,8]. IFNs have strong anti-viral and immunomodulatory properties, as IFN signaling regulates the expression of target genes (>2000) known as IFN-induced/stimulated/regulated genes [9,10,11] including PRKR, MYD88, TRIM25, HIF1A, IFIT2, IFIH1, and DDX58, which participate in diverse downstream signaling pathways releasing cytokines which affect the overall immune homeostasis within the cell. The IFN signaling network plays a central role in mediating communication between β and immune cells. In a healthy cell, expression of these cytokines is tightly regulated and maintained at low levels, with enhanced expression being observed only as a part of protective cell defense mechanisms against infections or other stress stimuli [12,13,14,15]. Uncontrolled production of cytokines specifically belonging to class type 1 IFNs (IFN-1s) may result in the initiation of destructive autoimmune reactions, now classified as interferonopathies [16]. Hence, it is vital to identify local β-cell genetic factors that may disturb the cellular immune homeostasis by regulating IFN expression in healthy cells.

A previous report has suggested that the MAFB transcription factor plays a pivotal role in the transcriptional control of IFN-1 signaling [17] by proposing that MAFB disrupts formation of the IRF3 enhanceosome complex necessary for IFNβ1 transcription, thus preventing high levels of Ifnβ1 transcription. During an acute phase of viral infection, MAFB expression reportedly decreases which allows for IRF3-mediated activation of IFNβ1 transcription enhancing a pro-inflammatory status. However, if high MAFB protein levels were to be maintained, IFNβ1 transcription would not be sufficient resulting in an increased susceptibility to viral infection [17,18]. Previous publications have shown that human β cells express both MAFA and MAFB [17,19] and that MAFA expression levels are reduced upon β-cell dysfunction and oxidative stress [20]. Until now, the role of the β-cell-specific insulin activator MAFA, which is closely related to MAFB [21,22,23,24,25] in controlling the expression of IFN-1s, has not been evaluated. MAFA polymorphisms have been identified in T1D patients [26] indicating that changes in the expression of MAFA levels may act as an important T1D susceptibility factor by regulating the islet inflammatory microenvironment.

Our results show that MAFA expression is significantly negatively correlated with pro-inflammatory anti-viral response candidate genes in human islets such as IFIH1 (Mda5), DDX58 (Rig1), TRIM25, IFNAR1, and IFNAR2, which are generally induced upon virus sensing as well as through other immune triggers that aggravate IFN expression. Immunohistochemical analysis of T2D pancreata, which have low MAFA expression in islets, confirmed an upregulation of DDX58, IFNAR1, and IFIH1 further supporting a negative correlation between MAFA and interferon-induced signaling genes. To investigate if these correlations were caused by the reduction of MAFA expression, we evaluated Ifnβ1 as well as IFN-1-induced (IFI) gene expression in MafA deficient mouse islets. MafA deficient islets showed enhanced expression of both Ifnβ1 and Mda5 prior to and post CVB3 enterovirus infection, resulting in reduced virus propagation. Moreover, protein expression of Mda5 and Rig1 was significantly enhanced upon acute knockdown of MafA in a β-cell line. Our human islet gene correlation and mouse studies suggest a critical function of MAFA in the regulation of IFN expression which, if left uncontrolled, may lead to the development of autoreactive immune responses against β cells.

2. Materials and Methods

2.1. MAFA Co-Expression Correlations in RNA-Sequencing Data from Human Pancreatic Islets

Human islets from 191 cadaver donors of European ancestry were provided by the Nordic Islet Transplantation Program Uppsala under full ethical clearance (Uppsala Regional Ethics Board, Pro00001754) and the donor families written informed consent and processed for RNA-sequencing (RNA-seq) for Gene Expression Omnibus (GEO) accession code GSE50398 and GSE108072. RNA extraction, quality control, and sequencing were performed as described before [27,28]. Briefly, total RNA was isolated with the All Prep DNA/RNA Mini Kit according to the manufacturer’s instructions (Qiagen, Hilden, Germany). RNA quality and concentration were measured using an Agilent 2100 bioanalyzer and a NanoDrop ND-1000 (NanoDrop Technologies, Thermo Fisher Scientific, Waltham, MA, USA). RNA samples were prepared using the TruSeq RNA Sample Preparation Kit (Illumina, San Diego, CA, USA) and sequencing was performed on the Hi-Seq2000 platform. RNA-seq data were processed as previously described [27,28]. Briefly, raw counts were normalized using trimmed mean of M-values and log₂-transformed correlation coefficients. Spearman correlations (R) were calculated to assess correlation of MAFA and MAFB expression with genes expressed in the human pancreatic islets using R language programming.

2.2. Statistical Analysis on MAF Co-Expression Correlations

To determine whether the expression of subsets of genes belonging to IFN-1/IFN immune response/IFN-induced/anti-viral/cytokine signaling from the PathCards pathway unification database [29] was correlated with MAFA or MAFB expression, we compared these gene sets to all expression correlation coefficients (21,806) using a Kolmogorov–Smirnov test, the null hypothesis being that the correlation values from the subset under test and total correlations could be drawn from the same distribution; for example, the expression correlation of T1D genes to MAFA versus the correlations from all genes to MAFA. Those with a Bonferroni corrected p-value < 0.01 were considered significantly different. These biases were visualized using density plots using the density function in the R language, where the total correlations were shown in black and the subsets were shown as indicated.

2.3. Animals

MafA deficient (MafA^−/−) animals were generated by crossing MafA floxed [22] with Sox2-Cre [30] transgenic animals. All experimental procedures were approved by the Animal Welfare and Ethics committee in the Lund-Malmö region (Jordbruksverket; permit numbers: M 43-13, M 47-12, M 385-12). All experimental procedures were carried out in accordance with approved Swedish national guidelines.

2.4. Mouse Islet Isolation

Islets from 2–3-month-old and 6-month-old wild-type (WT) and MafA^−/− mice were collected for RNA isolation and virus infections. For islet isolation, mice were euthanized by cervical dislocation, following V-incision on the lower abdomen to expose the pancreas. The pancreatic bile duct was identified and clamped. A small incision was made at the junction of the main pancreatic duct connecting with the duodenum, to inject a fresh mixture of collagenase P (20 U/mL, Roche, Basel, Switzerland) dissolved in Hanks (Sigma-Aldrich, Merck, St. Louis, MO, USA) until the entire pancreas was filled with the solution. The pancreas was then digested at 37 °C for 10–12 min, followed by tissue disruption through manual shaking and several washes with cold Hanks buffer. Thereafter, islets were picked under an inverted bright-field microscope.

2.5. Coxsackievirus B3 Virus Islet Infection Assay

The coxsackievirus B3 (CVB3) strain used in this study was isolated from a patient with aseptic meningitis [31]. Virus stocks were prepared in green monkey kidney (GMK) cells containing Complete Eagle’s Minimum Essential Medium (SVA, Uppsala, Sweden) supplemented with 10% FBS (Biochrom AG, Berlin, Germany). All experiments were performed on 50 hand-picked 2–3-month WT and MafA mutant islets per well, and cultured in low-attachment plates in 3 mL RPMI (Gibco, Thermo Fisher Scientific, Waltham, MA, USA) containing 5.5 mM glucose (Sigma-Aldrich, Merck, St. Louis, Missouri, USA), supplemented with 10% FBS and 2 mM L-glutamine (Gibco, Thermo Fisher Scientific, Waltham, MA, USA). Free floating islets were infected with a 1000-cell culture infectious dose-50 (CCID50)/0.2 mL of CVB3 strain. Islets were examined each day in a light microscope for virus-induced morphological changes. Virus replication was determined using cytopathic effect (CPE) microtitration assays and expressed as 50% cell culture infective dose (CCID50) per milliliter (mL) according to the Kärber formula [32]. Briefly, 0.2 mL of 10-fold serial dilutions (1:10 to 1:108) of samples of the culture medium collected on day zero, and day three post infection, were added in triplicate to GMK cells cultured in 96-well plates. CPE was read on day five and CCID50 titer was calculated using the Kärber formula. The virus production extent was expressed as the difference between the CCID50 titer at day three and at day zero post infection (samples of culture medium collected directly after infection).

2.6. Assessment of Islet Cell Viability

Islets were dissociated using accutase (BD, Bioscience, East Rutherford, NJ, USA) at 37 °C. FBS was added to stop the process after 10 min. The accutase-dissociated islet cells were stained with 7-aminoactinomycin D (7-AAD; Sigma-Aldrich, Merck, St. Louis, MA, USA), which binds to DNA when cell membrane permeability is altered after cell death. Cell suspensions were examined using a CyAn ADP Flow Cytometer with Summit Software v4.3 (Beckman Coulter, Brea, CA, USA). Data were analyzed using the Kaluza software package (Beckman Coulter, Brea, CA, USA).

2.7. RNA Extraction from Mouse Islets

RNA from 6-month-old newly isolated WT and mutant islets was extracted using RNeasy mini kit (Qiagen), and treated with RNase free DNaseI (Qiagen). RNA from CVB3-infected islets was extracted using Trizol (Invitrogen, Carlsbad, CA, USA), RNA carrier (AmpTec, Hamburg, Germany), and RNeasy mini kit according to the supplier’s instructions (Qiagen, Hilden, Germany). RNA quality was analyzed with an Agilent 2100 bioanalyzer and samples with RIN (RNA integrity number) higher than seven were used for quantitative PCR. RNA concentrations were measured with a NanoDrop ND-1000 spectrophotometer, and concentrations were equalized for each round of complementary DNA (cDNA) synthesis.

2.8. Complementary DNA Synthesis and Quantitative PCR

Reverse transcription was performed using SuperScript III reverse transcriptase (RT) (Invitrogen) according to the manufacturer’s instructions, using at least 100 ng total RNA for cDNA synthesis. All assays were performed with Fast SYBR^® Green Master Mix on a StepOnePlusTM Real-Time PCR instrument (Applied Biosystems, Foster City, CA, USA).Primer sequences are listed in Table S1. PCR products were confirmed by agarose and melt curve analysis. For each experiment, RT negative control, real time PCR (q-PCR) negative control (blank), and several housekeeping genes were included. Gene expression data were normalized with delta C_T method against the geomean of the internal control genes hypoxanthine-guanine phosphoribosyltransferase (HPRT) and beta actin (β-actin) with the additional two housekeeping genes peptidylprolyl isomerase A (PPIA) and TATA box binding protein (TBP) for virus experiments. Data are represented as mean expression with standard error mean and were analyzed with multiple t-test/one-way/two-way analysis of variance (ANOVA) analysis, as indicated in the figure legends.

2.9. Cell Culture, Small Interfering RNA Transfection, and Protein Analysis

INS-1 832/13 cells were cultured in RPMI-1640 containing 11.1 mM D-glucose supplemented with 10% fetal bovine serum, 100 U/mL penicillin (Gibco), 100 μg/mL streptomycin (Gibco), 10 mM N-2 hydroxyethylpiperazine-N′-2-ethanesulfonic acid (HEPES), 2 mM glutamine, 1 mM sodium pyruvate, and 50 μM β-mercaptoethanol (Sigma-Aldrich) in a humidified atmosphere containing 95% air and 5% CO₂ at 37 °C. INS-1 832/13 cells were seeded 1 day prior to transfection. An amount of 30 nM RNA interference oligonucleotides or Negative Control #1 (Ambion, Thermo Fisher Scientific, Waltham, MA, USA) was applied together with Lipofectamine RNAiMAX (Invitrogen, Carlsbad, CA, USA) to silence MafA.

Cells were homogenized in ice cold RIPA buffer containing complete protease inhibitor (Roche, asel, Switzerland) 72 h after transfection. Extracted total protein content was measured by Pierce bicinchoninic acid assay protein assay kit (Thermo Fisher Scientific, Waltham, MA, USA), and 10–20 μg of protein was electrophoresed on 4–15% Stain-free sodium dodecyl sulfate–polyacrylamide gel electrophoresis (Bio- Rad, Hercules, CA, USA ). The separated proteins were then transferred onto a polyvinylidene difluoride membrane (Bio- Rad, Hercules, CA, USA), followed by blocking with 5.0% nonfat dry milk in TBST (Tris-buffered saline with Tween 20) (pH 7.4; 0.15M NaCl, 10 mM Tris-HCl, and 0.1% Tween 20) for 1 h at room temperature. The membrane was incubated overnight at 4 °C with anti-Rig1 (1:500, Sigma-Aldrich), Mda5 (1:250, Abcam, Cambridge, UK) and Ifnar1 (1:250, Sigma-Aldrich, Merck, St. Louis, MA, USA) antibodies followed by incubation with anti-rabbit IgG (1:2000, Cell Signaling Technology, Danvers, MA, USA) for 1 h at room temperature. Membranes were developed and analyzed using the Bio-Rad ChemiDocTM MP imaging system and Image Lab^TM software (6,0,1: Bio-Rad, Hercules, CA, USA). Normalization was carried out by the total protein blotting.

2.10. Immunohistochemistry

Pancreatic biopsies from normoglycemic and T2D donors were provided by the Nordic Network for Clinical Transplantation. Sections were processed for immunohistochemistry [33] Paraffin-embedded human and mouse pancreatic tissue sections were stained with the following antibodies: guinea pig α-insulin (1:1000, DAKO, Glostrup, Denmark), rabbit α-IFNAR1, rabbit α-IFIH1, rabbit α-DDX58 (1:50, Sigma-Aldrich, Merck, St. Louis, MA, USA). Heat-induced epitope retrieval was performed for all stainings. Cy2- and Cy3-conjugated α-guinea pig and α-rabbit secondary antibodies (1:500, Jackson Immuno Research Laboratories, West Grove, PA, USA) were used. Nuclear counter staining was performed using 4′,6-diamidino-2-phenylindole (DAPI, 1:6000, Invitrogen). Immunofluorescence images were captured using a Zeiss 780 confocal microscope using Zen black edition software (10,0,0,910: ZEISS, Oberkochen, Germany). Adobe Photoshop CC (2015.0.0 20150529.r.88 2015/05/29:23:59:59 CL 1024429 x64) and InDesign CC 2015 ( 11,0,1,105 x64: Adobe, San Jose, CA, USA) were used for image processing and preparation of figures.

3. Results

3.1. Expression of the β-Cell-Specific Transcription Factor MAFA Is Strongly Negatively Correlated with Pro-Inflammatory Cytokine-Induced Signaling Networks and T1D Susceptibility Genes

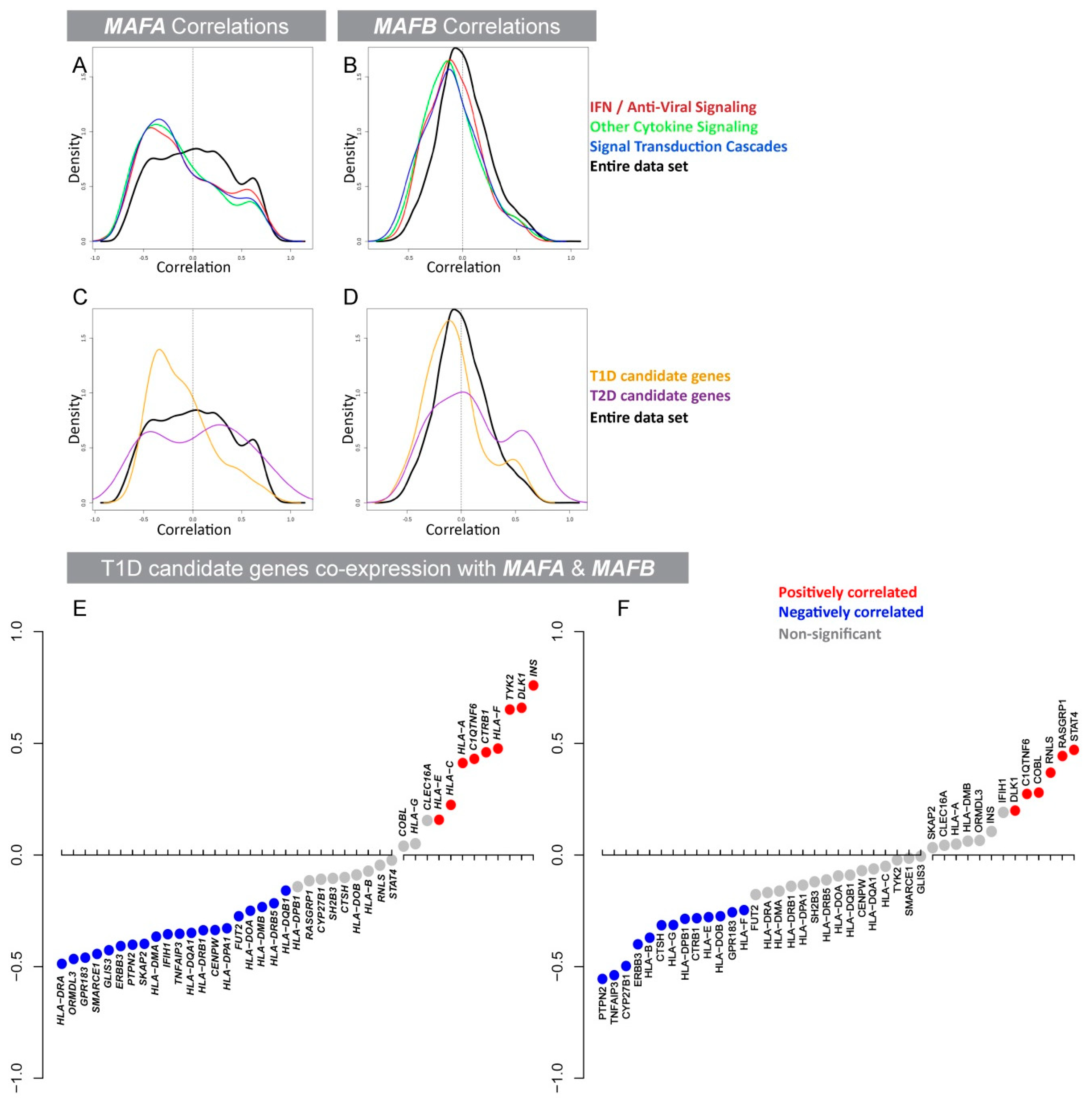

MAFA and MAFB are expressed in human β cells and are crucial for maintaining blood glucose levels in a cooperative and sequential manner [21,22,23,24]. MafB expression is vital for β-cell development [21,34,35] and has been implicated in the regulation of IFN-1s in other cell types [17,18]. In contrast, mouse studies identified the importance of MafA in the later stages of development and in adults promoting functional maturation of β cells [23,24,36]. MAFA expression is altered in response to pathological states such as oxidative stress and hyperglycemia in human islets [20,37], however its role in regulating cytokine signaling in the islet has not yet been studied. To establish if MAFA and/or MAFB expression was correlated with cytokine production in human islets, gene co-expression profiles from human islet RNA-seq were generated and analyzed. For this we selected the entire panel of genes listed under cytokine regulated pathways using keywords such as IFN-1/IFN immune response/IFN-induced/anti-viral/cytokine signaling from the PathCards pathway unification database [29]. This enabled us to generate an unbiased list of genes participating in inflammatory signaling pathways as well as in T1D and T2D susceptibility (Tables S2 and S3). Interestingly, expression of MAFA was strongly negatively correlated with pro-inflammatory signaling pathway genes, whereas MAFB expression correlations were only weakly associated (Figure 1A,B; Table S2A,C). Moreover, T1D susceptible/risk genes had a strong negative correlation distribution (p = 7.942 × 10⁻⁵) with MAFA, whereas MAFB was only weakly correlated (p = 0.01756, Figure 1C,D; yellow line; Table S3A). In contrast, MAFA and MAFB co-expression was predominantly positively correlated with T2D susceptibility genes (Figure 1C,D: purple line; Table S3B) supporting the known function of MAF transcription factors in activating glucose sensing and insulin secretion genes [22,24]. To dissect the co-expression correlation data further, all T1D susceptible genes, previously shown to be expressed in islets/β cells, as well as human leukocyte antigen [38] genes were selected and their respective correlation values with MAFA (Figure 1E) and MAFB (Figure 1F) were assessed. Interestingly, MAFA and MAFB showed opposing correlations for some T1D risk genes such as ORMDL3, HLA-DMB, HLA-E, CTRB1, and IFIH1. Overall, our analysis suggests that MAFA expression in β cells is critical for establishing a physiologically balanced immune microenvironment in human islets.

3.2. Interferon-Induced (IFI) Genes IFIH1 (Mda5) and DDX58 (Rig1) Were Negatively Correlated with MAFA Expression in Human Islets and Protein Expression Was Enhanced in Type 2 Diabetic Islets

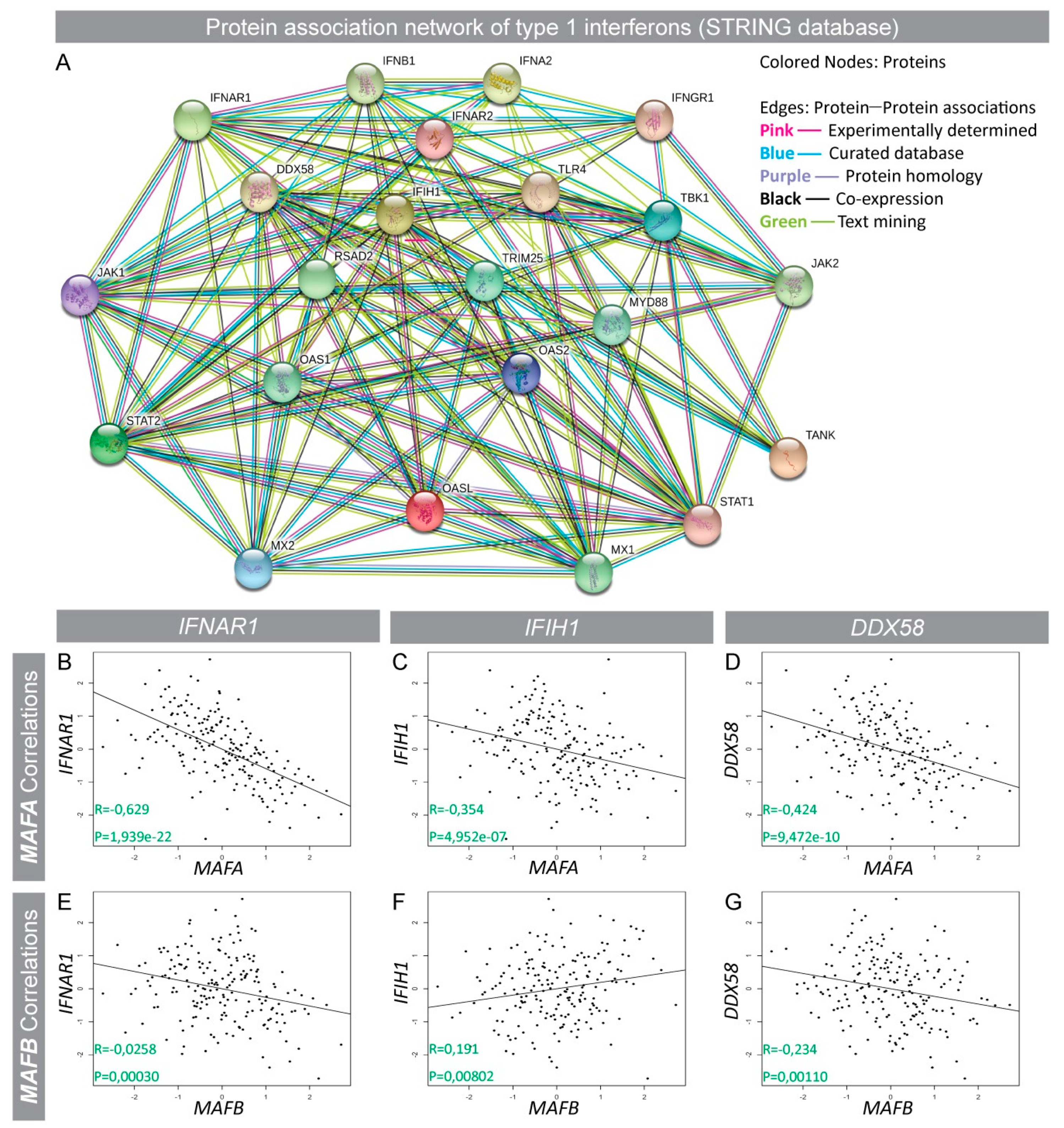

Human islet MAFA gene correlations and comparisons pointed to a significant role of MAFA (directly and/or indirectly) in regulating IFN signaling networks, including downstream signaling components like IFN-induced genes. In silico protein association network analysis using the STRING database [39] identified key IFN-1 signaling-induced targets (Figure 2A) which, if dysregulated, may alter the β-cell pro-inflammatory environment. Expression of IFI pro-inflammatory cytokines IFNα, IFNβ1 as well as anti-viral genes IFIH1 and DDX58 was assessed in human islets. IFN gene expression was not detected in human islet RNA-seq; however, IFN receptor IFNAR1, IFIH1, and DDX58 transcripts were present and showed a strong negative correlation with MAFA (Figure 2B–D), whereas these genes had weaker correlations with MAFB (Figure 2E–G). Similarly, other IFI genes such as IFNAR2 and TRIM25 were also negatively correlated with MAFA (Figure S1). Immunohistochemical analysis of pancreatic samples from normoglycemic and T2D donors was performed to assess if IFIH1, DDX58, and IFNAR1 were expressed in islets and if expression was increased in T2D islets which had lower MAFA expression [20]. Expression of IFNAR1, IFIH1, and DDX58 was detected in both exocrine and endocrine pancreas from normoglycemic donors, and expression appeared to be enhanced in T2D endocrine cells (Figure 3B,D,F). As expected, MAFA expression was drastically reduced in T2D compared to control β cells (Figure 3G,H) further supporting the notion that MAFA expression was negatively associated with IFI pro-inflammatory genes.

3.3. Acute and Long-Term Loss of MafA Enhances Mda5 and Rig1 Expression

Previous studies have shown that MAFB negatively regulates IFNβ1 transcription in human cell lines [17], thus we next wanted to investigate if MafA had a similar function in adult mouse β cells which lack MafB expression. Gene expression analysis of mouse MafA deficient islets (MafA^−/−) showed that Ifnβ1 transcription was significantly enhanced in MafA^−/− islets (Figure 4A). Additionally, expression of the IFI gene Mda5 but not Rig1 was significantly increased (Figure 4B,C) in MafA^−/− islets. Immunohistochemical analysis of WT and MafA^−/− pancreata confirmed that Mda5, Rig1, and Ifnar1 were present in the mouse pancreas and expression appeared to be specifically enhanced in MafA^−/− β cells (Figure 4D–I). To assess if acute loss of MafA had a similar effect on islet cytokine expression, INS-1 832/13 cells were treated with MafA-specific siRNAs. Acute loss of MafA resulted in a significant upregulation of Mda5 and Rig1 protein levels (Figure 4J) suggesting that MafA’s function in maintaining immune homeostasis is conserved in human and mouse β cells.

3.4. MafA Deficient Mouse Islets Have Reduced Virus Propagation after Coxsackievirus B3 Infection

In virus-infected cells, cumulative actions of IFNβ1, IFIH1, and DDX58 play a crucial role in mediating early host cellular defense mechanisms [9,10,11,15,40,41,42,43,44] to initiate anti-viral immune responses against infections. Previous studies have shown that CVB3 replicates in mouse islets [45] and that mouse islet cells express coxsackievirus and adenovirus receptor (CAR) which was readily detectable and unchanged between WT and MafA^−/− islets (Figure 5A). To evaluate if inherent higher expression of anti-viral response genes also restricted virus propagation, virus titer was assessed in WT and MafA^−/− islets infected with CVB3. The amount of newly synthesized virus particles in the culture supernatant was significantly reduced in MafA^−/− islets in comparison with CVB3-infected WT islets (Figure 5B). Remarkably, CVB3 infection did not alter cell viability in WT and mutant islets (Figure 3C) supporting the notion that mouse islet cells remained alive after CVB3 infection [46]. This suggested that the differences in CVB3 propagation were not a result of changes in CAR expression or viability of islets (Figure 3A,C) after infection. Expression analysis revealed that the infected MafA^−/− islets responded efficiently against CVB3 infection by inducing IFNs (Figure 3D,E) as well as other pro-inflammatory cytokines such as tumor necrosis factor (Tnf), interleukin 6 (Il6), and C-X-C motif chemokine 10 (Cxcl10) (Figure 5F–H), as well as IFN-1 anti-viral genes Mda5 and Rig1 (Figure 5I,J). These data show that MafA^−/− islets are more efficient in clearing CVB3 infections than WT islets, most likely due to enhanced basal expression of IFNs and anti-viral genes. Taken together, these results suggest that the loss of MafA in β cells altered the inflammatory microenvironment by producing an inability to restrict Ifnβ1 expression efficiently.

4. Discussion

Immunomodulatory signaling cytokines such as INF-1s orchestrate an intricate network of regulatory pathways that initiate innate and adaptive immune responses against invading pathogens, as a part of host cell defense mechanisms. In a healthy cell, the pro-inflammatory signature is tightly regulated to avoid any inappropriate immune activation, which may lead to the initiation of destructive autoimmune reactions against self-antigens. Enhanced IFN expression has been detected in T1D pancreatic tissue [7,47] as well as in the blood of children prior to clinical onset of T1D [6,48]. Several reports have also linked the development of T1D to IFN-1 therapy for the treatment of chronic diseases such as viral hepatitis and malignant tumors [8,49,50,51]. Moreover, T1D genetic associations with IFN-1 regulation and signaling pathways have been identified by genome wide association studies [52,53,54]. Thus, genetic abnormalities leading to inherent overproduction of IFN/cytokines may enhance the risk of developing interferonopathies and/or autoimmune disorders such as T1D [6,7,47,48] even in the absence of an antigen-mediated trigger. Therefore, in our present study, we evaluated and compared the relation of transcription factors MAFA and MAFB in controlling the immune equilibrium within human islets by regulating cytokine expression and identified a more prominent function of MAFA in maintaining a physiological immune status in the human islets, an observation that was confirmed in mouse MafA^−/− islets.

Human islet MAFA and MAFB co-expression analysis with genes involved in inflammatory/cytokine-induced signaling pathways showed a stronger negative correlation with MAFA than MAFB. This pointed toward an intriguing unknown function of MAFA in the regulation of cytokine expression. Therefore, we next investigated if MAFA co-expression was correlated with the expression of T1D risk genes. Interestingly, T1D susceptibility genes expressed in human islets were also strongly negatively correlated with MAFA in comparison to MAFB. In contrast, expression of genes known to be activated by MAFA (insulin) was positively correlated supporting the known role of MAFA as a regulator of β-cell function [24]. Moreover, individual T1D risk genes such as IFIH1 and CTRB1 showed opposite correlations to MAFA and MAFB, indicating different regulatory functions of MAFA and MAFB in human islets. We also showed that the human β-cell-specific gene DLK1 was significantly positively correlated with both MAFA and MAFB which had also been implicated in the progression of diabetes by impairing β-cell function [55,56]. These correlations from human islet co-expression analyses with MAFs highlight their different functions, by identifying distinct target genes in human islets.

We identified a category of genes induced by IFN-1s (IFI) through protein association network analysis (STRING) [39] and assessed if expression of these genes (IFIH1, DDX58) with anti-viral function was correlated with MAFA and MAFB. Expression of type 1 IFNs in human islets was not detected, which most likely reflected their extremely low basal gene expression, although the IFN-1 receptor IFNAR1 which is induced by high levels of IFNs had a strong negative correlation with MAFA expression. A similar negative correlation was observed for IFIH1 and DDX58, indicating that the presence of MAFA is required for the repression of IFNs and their downstream target genes. These results indicate that the reduction of MAFA levels in β cells may enhance the production of IFNs and possibly IFI genes which may further increase the production of pro-inflammatory cytokines in a positive feedback loop. A similar relation of MAFB with IFN-β1 was identified in human cell lines, where high MAFB expression inhibited IFN-1 production by the disruption of an enhanceosome complex, necessary for IFN-β transcription [17]. This study also suggested a role for MAFB in restricting unwarranted induction of IFN-1s in healthy cells, critical for preventing the unnecessary activation of the immune system [17]. Statistical analysis indicated a much weaker negative correlation of MAFB with IFNAR1 and DDX58 expression, whereas IFIH1 expression was even positively correlated with MAFB. Our gene correlation assessment suggests a critical immune regulatory function of MAFA by controlling IFN and IFI gene signature in human islets.

IFNs and intracellular viral recognition helicases Mda5 (IFIH1) and Rig1 (DDX58) are critical components of the cellular anti-viral response cascade, which mediates induction of IFN expression in a regulated manner [57]. However, overexpression of IFN-1 signaling components (through Mda5) may contribute to islet autoimmunity [54] as both Ifnβ1 and Mda5 overexpression have been implicated in pro-inflammatory responses [40]. Previous studies have shown that Mda5 has a dual role in cellular immune responses, because high Mda5 expression levels resulted in decreased susceptibility to viral infection, but also induced a chronic type 1 interferon signature which accelerated autoimmunity [40,58]. Moreover, a majority of polymorphisms in this gene were associated with elevated Mda5 expression and human T1D [40,59,60,61,62,63,64,65] and reduced expression has been shown to induce regulatory immune responses preventing autoimmune diabetes [66]. Our results showed that MafA negatively regulated Ifnβ1 and anti-viral response gene expression in mouse islets as MafA^−/− islets had significantly enhanced basal mRNA levels of Ifnβ1 and Mda5 and an acute knockdown of MafA enhanced Mda5 and Rig1 protein levels, which was in accordance with co-expression correlations in human islets and immunohistochemical analysis of type 2 diabetic islets which lacked MAFA expression. As expected, upon CVB3 infection in vitro, both WT and MafA^−/− islets responded by inducing Ifnβ1, Ifnα, Tnf, Il6, Cxcl10, Mda5, and Rig1 mRNA levels, indicating adequate virus recognition and anti-viral response generated through pattern recognition receptors. This finding indicated that both WT and MafA^−/− islets were infected, but MafA^−/− islets eradicated the virus more effectively than WT islets, probably due to their elevated inherent immune response. We also confirmed that the reduction in CVB3 virus titer was not due to apoptosis of islets cells in culture or alterations in CVB3 CAR receptor expression, as no differences among these were detected when compared to WT controls. These results supported the idea that the lower susceptibility of MafA^−/− islets to viral replication was not attributed to differences in virus recognition/entry or their ability to detect viral infection, but due to an inherent elevated immune status which restricted efficient virus propagation.

Previous studies have shown that MafA and MafB expression domains within islets of Langerhans differed significantly between species [19,22,36,67]. MAFB expression in β cells was only detected in primates but developmentally MAFB preceded MAFA expression [22,34,67], whereas MAFA was essential in the later stages of postnatal development and regulated glucose and autonomic nervous system-induced insulin secretion [23,24,33,36]. Human β cells expressed both MAFA and MAFB [17,19], whereas in adult murine islets MafA was specifically detected in β cells and MafB was restricted to α cells [22,34,68]. In this study, we report that MAFA co-expression correlations in human islets are much stronger and are associated with a higher number of genes within cytokine signaling and T1D genetic risk spectrum than MAFB, indicating that MAFA has a unique role in regulating the expression of these immune modulatory genes directly and indirectly through interferon-induced positive feedback loops. Additionally, the loss of β-cell function due to metabolic/oxidative stress also leads to reduced MafA levels [20,37] and may possibly elevate cytokine levels as observed in our human and mouse islet expression analysis, indicating that the loss of MAFA is the primary event leading to a disturbed islet microenvironment. It is highly likely that these cells, in a stressed environment, shed higher amounts of autoantigens as well as secrete pro-inflammatory mediators. Such changes may be recognized by tissue resident innate immune cells, initiating a cascade of destructive adaptive immune responses against β cells leading to the development of T1D and inflammatory processes in T2D. Cultured human islets have relatively high MAFB transcript levels, whereas MAFA expression was more difficult to detect [19]. This suggests that cultured islets, which are critical for scientific studies, but also commonly used for cell replacement therapy, are dysfunctional and have an altered cytokine expression profile. This is of clinical interest as alterations in cytokine expression may significantly affect the therapeutic success of islet transplantation by triggering graft rejection and poor graft cell survival. Thus, a thorough analysis of MAFA, MAFB, and cytokine expression levels may be a critical indicator of transplantation outcome.
