Iron Isotopes Constrain the Metal Sources of Skarn Deposits: A Case Study from the Han-Xing Fe Deposit, China

Abstract

Magmatic fluids and leaching of rocks are regarded as the two sources of magmatic hydrothermal deposits, but their relative contributions to the metals in the deposits are still unclear. In this study, we combine major elements and Fe isotopes in two sets of rocks from the Han-Xing iron skarn deposit in China to constrain the iron sources. The positive correlation between the δ⁵⁶Fe and ∑Fe₂O₃/TiO₂ of altered diorites (∑Fe₂O₃ refers to the total iron) demonstrates that heavy Fe isotopes are preferentially leached from diorites during hydrothermal alteration. However, except for the pyrite, all the rocks and minerals formed in the skarn deposit are enriched in the light Fe isotope relative to the fresh/less altered diorites. Therefore, besides the leaching of rocks, the Fe isotopically light magmatic fluid also provides a large quantity of iron for this deposit. Based on the mass balance calculation, we conclude that iron from magmatic fluid is almost 2.6 times as large as that from the leaching of rocks. This is the first study to estimate the relative proportions of iron sources for Fe deposits by using Fe isotopes. Here, we propose that the high δ⁵⁶Fe of magmatic intrusions combining the positive correlation between their ∑Fe₂O₃/TiO₂ and δ⁵⁶Fe could be taken as a fingerprint of exsolution or interaction with magmatic fluids, which contributes to the exploration of magmatic hydrothermal ore deposits.

1. Introduction

One of the main prerequisites for the genetic modeling and exploration strategies of metallic mineral deposits is the understanding of their metal source and the mechanism of concentration. Magmatic hydrothermal ore deposits are the most common metalliferous ore deposits and provide much of the Cu, Mo, Au, W and Fe for the needs of modern society [1]. However, there is still controversy over the metal sources of magmatic hydrothermal ore deposits, e.g., [2,3]. As early as the 1960s, light stable isotopes (e.g., H, C, O, N and S) had been used to constrain the origin of fluids in hydrothermal ore deposits, e.g., [4,5,6,7,8]. Since these elements are not ore-forming elements, it is difficult to decipher the metal source based on their isotopic compositions. For example, H and O isotopes of hydrothermal minerals and fluid inclusions in skarn deposits often display mixing between magmatic and meteoric water, whereas S isotopes often show the dominance of magmatic sulfur with minor sedimentary sulfur [9]. Therefore, none of these isotopes can provide direct and explicit information about the metal source. The emerging field of metal stable isotopes (e.g., Fe, Cu, Mg, Mo, Zn and Cr) provides a potential tool to constrain the metal sources directly through the application of isotopes of ore-forming elements, e.g., [10,11,12].

Metals leached from rocks on the fluid pathway have been regarded as the main metal sources of hydrothermal ore deposits, e.g., [13,14,15]. This viewpoint is well consistent with the field geological observation, which shows that altered wall rocks near the ore bodies commonly lack ore-forming elements. Moreover, many studies of H and O isotopes of hydrothermal minerals and fluid inclusions indicate that both magmatic water and meteoric water play important roles in a variety of types of hydrothermal ore deposits, e.g., [6,16], and chemical dissolution of rocks will be enhanced in the hot and acidic ore-forming fluid [2]. Therefore, a large school of thought emphasizes that metals can be largely scavenged from pre-existing rocks and enter into ore-forming fluid to form ore deposits, e.g., [13,14]. However, experimental studies have led to a different point of view that the extraction of metals from the silicate magma into magmatic fluids is a key stage in the evolution of the mineralized hydrothermal system [3], implying that magmatic fluids are the primary source of the major components in hydrothermal ore deposits. However, the extent to which magmas contribute water, metals and other components to hydrothermal systems remains debated [2].

The Han-Xing iron deposit is a typical iron skarn deposit in China and has been well documented by numerous studies, e.g., [15,17,18]. Albitization is extensively developed in the associated intrusive rock near the ore bodies and iron leaches from the wall rocks during this process [15]. Thus, the Han-Xing iron deposit is an ideal example to study iron isotope fractionation during leaching and to constrain the source of its iron. Based on the study of the Kuangshan (Wu’an district) skarn deposit, the authors found a large iron isotope fractionation during the skarn-type alteration and proposed that magmatic fluids might dominate the iron source of the Han-Xing iron deposits [12]. It is worth to note that the lithology of intrusive rocks in the Han-Xing iron skarn ore cluster is diverse (ranging from the intermediate-basic hornblende diorite to the intermediate-acidic quartz diorite). Whether these rocks have the same fractionation features during the skarn-type alteration is still unknown. In addition, more iron isotopic data are needed to calculate the relative contributions of the iron leached from the rock and that from the magmatic fluid. In this study, we analyzed two sets of rocks (different intrusive rocks) from the Han-Xing iron skarn ore cluster for their major elements and Fe isotopes to understand iron isotope fractionation and to evaluate the relative proportion of the two metal sources mentioned above. Each set includes intrusive rocks, skarn, ores and limestone, to cover a whole spectrum of rock types for skarn deposits.

2. Geological Setting

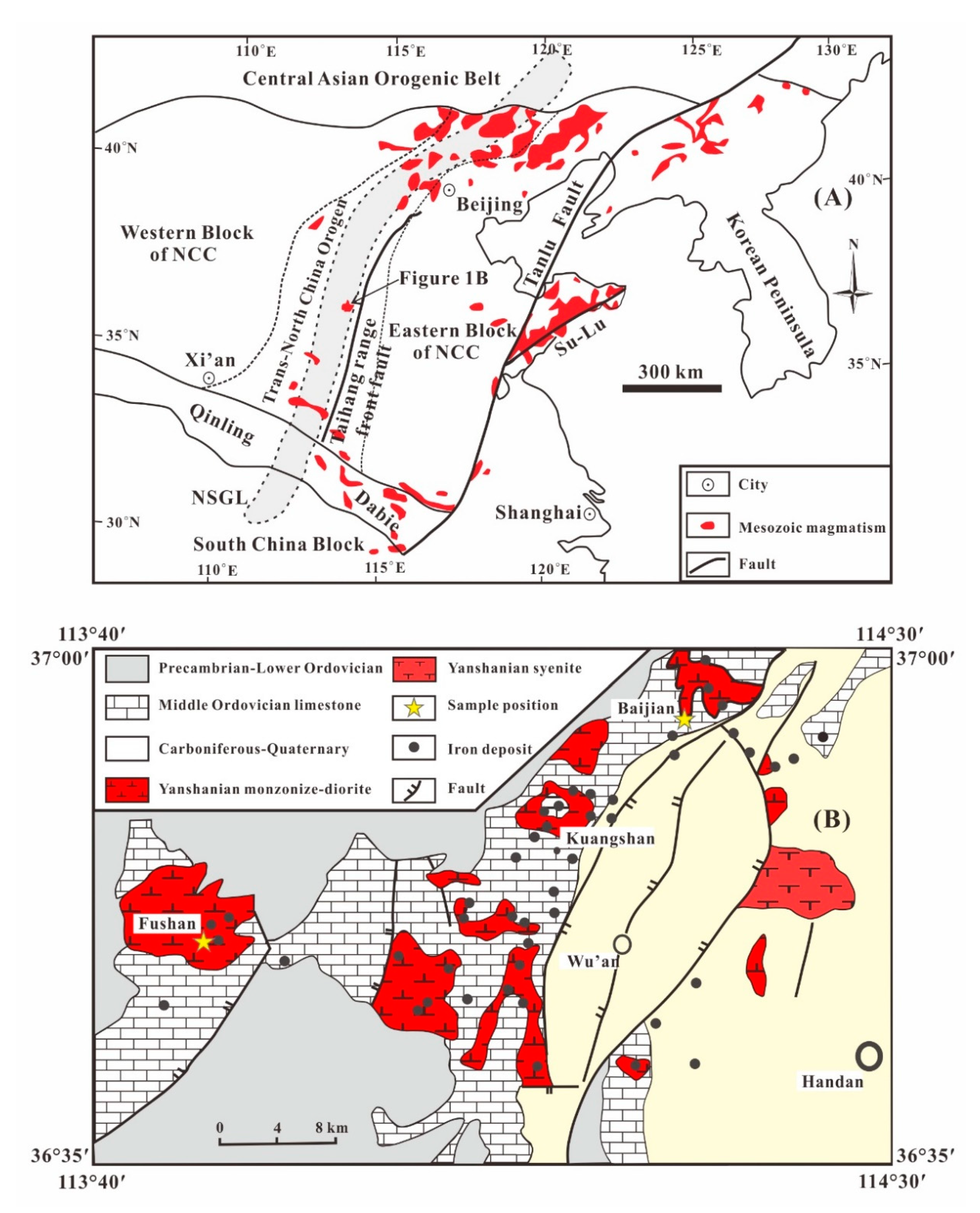

The Han-Xing iron skarn ore cluster is located in the central part of the North China Craton (NCC) (Figure 1A). The basement rocks in this region are mainly composed of tonalite-trondhjemite-granodiorite (TTG) gneisses and amphibolites, whose protoliths were formed during the Meso–Neoarchean and were metamorphosed during the late Paleoproterozoic coeval with the final cratonization of the NCC [19]. Regionally, the sedimentary rocks in this area are dominated by Cambrian–Ordovician carbonates in the western part and Carboniferous–Permian clastic rocks in the eastern part (Figure 1B). Mesozoic magmatic rocks intruded into the Precambrian basement as well as the sedimentary cover. Previous studies proposed that the source magmas of these intermediate intrusive rocks were generated by crust–mantle interactions with zircon SHRIMP U-Pb ages of 126–138 Ma [20].

The Han-Xing Fe ore cluster consists of 73 iron skarn deposits with a total reserve of 830 Mt tons of metallic iron (average 40% to 60%) [21]. It has been widely accepted as the product of contact metamorphism between Mesozoic plutons and surrounding Ordovician carbonate sedimentary strata [18]. The associated intrusive suites can be divided into two groups: Fushan gabbroic diorite in the west and Wu’an diorite-monzonite in the east (Figure 1B). The two sets of rocks analyzed in this study are collected from the two districts. Rocks from Fushan are outcrop samples, while rocks from Baijian (Wu’an district) are drill core samples.

3. Samples and Methods

The Fushan intrusive complex consists of hornblende diorite, diorite and quartz diorite and the Wu’an intrusive complex consists of monzodiorite and diorite (detailed descriptions of mineral composition are given in

Table 1. Sample description of typical hand specimens of altered diorites, skarn and ores from the Han-Xing iron deposit.

Type	Sample	Description
Igneous Rock	FS12-01	Fresh to less altered quartz diorite consists of medium-grained, black-green amphibole (10%), plagioclase (75%), quartz (10%) and K-feldspar (5%).
	FS12-02	Altered quartz diorite consists of medium-grained, green amphibole (5%), plagioclase (75%), K-feldspar (10%) and quartz (10%).
	FS12-03	Less altered diorite consists of medium-grained, euhedral black-green amphibole (20%), biotite (5%) and plagioclase (70%) with K-feldspar and quartz less than 5%.
	FS12-04	Altered diorite consists of medium-grained, green amphibole (15%), biotite (3%) and plagioclase (75%) with K-feldspar and quartz less than 7%.
	FS12-05	Fresh hornblende diorite consists of coarse-grained, euhedral black-green amphibole (40%) and plagioclase (55%) with pyroxene and quartz less than 5%.
	BJ0818-21	Intensively altered monzodiorite with porphyritic-like texture, consists of plagioclase (80%) and K-feldspar (10%) with quartz and pyroxene less 10%.
	BJ0818-23	Less altered monzodiorite with equigranular texture, consists of medium-grained, euhedral black-green amphibole (20%) and plagioclase (75%) with K-feldspar and quartz less than 5%.
	BJ0818-27	Most intensively altered monzodiorite with porphyritic-like texture, close to the skarn; consists of coarse-grained yellow-green epidote (10%) and plagioclase (80%) with quartz and pyroxene less than 10%.
Skarn	FS12-08	Skarn with taxitic structure mainly consists of coarse-grained garnet (80%) and fined-grained diopside (15%) with quartz and calcite less than 5%.
	FS12-09	Skarn with taxitic to massive structure mainly consists of medium-grained diopside (85%) and coarse-grained garnet (10%) with quartz and calcite less than 5%.
	BJ0818-28	Skarn with taxitic to massive structure mainly consists of medium-grained epidote (80%) and diopside (10%) with quartz and calcite less than 10%.
	BJ0818-30	Skarn with taxitic structure mainly consists of medium-grained epidote (70%) and garnet (20%) with biotite, quartz and calcite less than 10%.
Ores	FS12-13	Medium-fine-grained ore with dense disseminated structure, contains 45% magnetite; gangue minerals consist of diopside, garnet, epidote, calcite and minor sulfides.
	FS12-17	Medium-fine-grained ore with massive structure, contains 80% magnetite; gangue minerals consist of diopside, garnet, epidote, calcite and minor sulfides.
	BJ0818-36	Fine-grained ore with taxitic-massive structure, contains 60% magnetite; gangue minerals consist of epidote, diopside, calcite and minor sulfides.

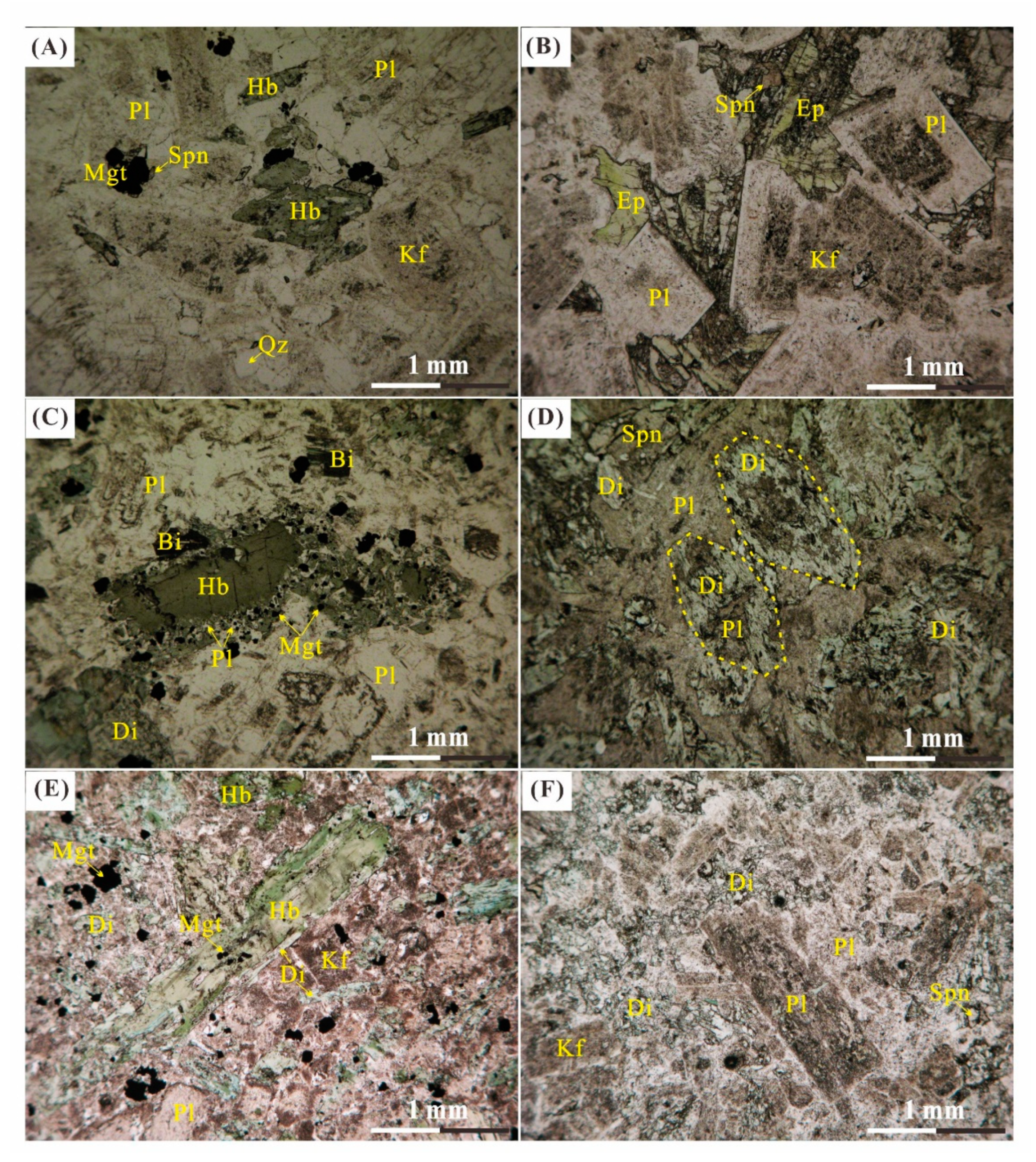

). Petrological observations indicate that most of these intrusive rocks (hereafter collectively referred to as “diorite”) underwent various degrees of hydrothermal alteration. In slightly altered diorites, hornblende was transformed into aggregates of diopside, biotite, albite and magnetite (Figure 2C,E). With the increase in intensity of hydrothermal alteration, the newly formed diopside and biotite were further transformed to albite or epidote accompanied by the dissolution of magnetite. Almost no magnetite remains in intensively altered diorites (Figure 2B,D,F). The skarn assemblage is mainly composed of garnet, diopside and epidote with taxitic and massive structures. Ores are composed of magnetite, skarn minerals and minor sulfides with dense disseminated, taxitic and massive structures. Magnetite in ores occurs as anhedral fine grains or euhedral medium to coarse grains. Sulfides are anhedral to euhedral fine to medium grains and predominantly occur between the magnetite and gangue minerals (dominance of diopside and epidote), suggesting that they formed after the magnetite and gangue minerals.

Whole rocks were powdered with an agate mill to 200 mesh and 0.5 g powders were mixed with 5 g of Li₂B₄O₇. A glass slice was prepared via fusion. Major elements were determined using a Phillips PW 2400 sequential X-ray fluorescence spectrometer at the Institute of Geology and Geophysics, Chinese Academy of Sciences (Beijing, China). The analytical precision and the accuracy are better than ±2% for major oxides. Loss on ignition was measured after heating to 1000 °C for 1.5 h. The FeO was determined by redox titration using KMnO₄ solution and the analytical precision is estimated to be <1%.

The chemical purification of iron was achieved in the Isotope Geochemistry Lab, China University of Geosciences, Beijing (CUGB). Typically, 2–30 mg whole rock powders or mineral separates were dissolved in a mixture of HF-HNO₃-HCl-HClO₄. After complete dissolution, iron was purified using the AG1-X8 (200–400 mesh chloride form, Bio-Rad, Hercules, CA, USA) resin in HCl medium. Matrix elements were removed by 8 mL 6 mol/L HCl, and iron was then collected by 9 mL 0.4 mol/L HCl. The same column procedure was repeated to ensure complete removal of the matrices. The final iron eluate was acidified with 0.1 mL HNO₃. The dried sample was then dissolved in 3% HNO₃ for isotope measurements [24].

Iron isotope measurements were conducted on a Thermo-Finnigan Neptune Plus MC-ICPMS in the Isotope Geochemistry Lab, CUGB under the “medium” high-mass resolution mode. The instrument mass bias was corrected by the sample–standard bracketing method. The standard–sample sequences were repeated a minimum of four times, and the reported isotopic composition is an average of repetitive analyses. Errors were preferentially reported as 2 s.e., 95% confidence interval after the reference [25]. The two USGS standards BCR-2 and GSP-2 were processed with the unknown samples and their analytical δ⁵⁶Fe {δ⁵⁶Fe = [(⁵⁶Fe/⁵⁴Fe) _sample/(⁵⁶Fe/⁵⁴Fe) _IRMM-014 − 1] × 1000} values (+0.110‰ and +0.151‰) were in good agreement with the recommended values [24,26].

4. Result

Eighteen whole rocks (including diorites, skarn, iron ores and limestone) were analyzed for their major elements. The results are listed in

Table 2. Major elements concentration of whole rocks from the Han-Xing iron skarn deposit.

Sample	Description	SiO2	TiO2	Al2O3	∑Fe2O3	MnO	MgO	CaO	Na2O	K2O	P2O5	LOI	TOTAL	FeO
Fushan district		%	%	%	%	%	%	%	%	%	%	%	%	%
FS12-01	Quartz Diorite	65.4	0.38	16.7	3.29	0.05	1.04	4.04	4.66	2.68	0.16	0.78	99.1	1.08
FS12-02	Altered Quartz Diorite	61.4	0.39	18.4	2.02	0.06	1.96	2.53	8.39	1.50	0.25	2.32	99.2	1.23
FS12-03	Less Altered Diorite	58.4	0.69	16.3	7.56	0.14	2.82	5.91	3.72	2.78	0.30	0.84	99.5	3.53
FS12-04	Altered Diorite	55.0	0.73	13.6	4.95	0.06	7.83	8.96	4.22	0.98	0.25	2.30	98.8	3.03
FS12-05	Hornblende Diorite	52.4	1.21	14.6	10.3	0.12	6.54	7.20	4.96	0.84	0.27	1.08	99.5	4.65
FS12-09	Gt-Di Skarn	40.2	0.92	12.3	8.99	0.23	16.8	13.3	1.73	0.94	0.41	3.14	98.9	3.99
Wu’an district
BJ0818-21	Altered Monzodiorite	60.3	0.55	16.9	2.54	0.07	3.03	6.05	8.28	0.22	0.22	2.16	100.3	1.67
BJ0818-22	Altered Monzodiorite	61.0	0.50	16.5	2.75	0.08	3.25	5.81	8.34	0.10	0.21	1.56	100.1	1.71
BJ0818-23	Less altered Monzodiorite	58.5	0.55	16.5	5.87	0.08	3.37	4.24	5.66	3.68	0.23	0.96	99.5	2.85
BJ0818-24	Altered Monzodiorite	60.1	0.56	16.4	2.59	0.07	2.86	5.95	5.86	3.64	0.25	1.08	99.3	1.45
BJ0818-25	Altered Monzodiorite	59.5	0.51	16.7	2.18	0.06	2.93	6.38	8.33	0.24	0.24	2.72	99.8	1.44
BJ0818-25P	Altered Monzodiorite	59.6	0.51	16.7	2.21	0.06	2.93	6.38	8.29	0.22	0.24	2.66	99.8	1.44
BJ0818-26	Altered Monzodiorite	61.3	0.53	16.4	2.28	0.06	2.95	6.20	8.34	0.34	0.25	1.84	100.5	1.50
BJ0818-27	Altered Monzodiorite	60.6	0.52	16.7	2.34	0.07	3.05	7.16	7.48	0.62	0.25	1.04	99.8	1.38
BJ0818-28	Epidote Skarn	51.8	0.42	4.56	5.97	0.13	11.9	18.6	0.67	2.76	0.43	2.04	99.3	3.90
BJ0818-30	Gt-Ep Skarn	46.3	0.07	2.46	4.34	0.07	16.0	19.1	0.18	1.37	0.48	9.43	99.7	3.11
BJ0818-36	Iron Ore	21.6	0.04	0.52	62.0	0.06	8.29	6.48	0.08	0.06	0.06	−1.02	98.1	na
BJ0818-50	Limestone	2.20	0.02	0.41	0.22	0.01	0.46	55.5	0.06	0.03	0.01	42.1	101.0	na
BJ0818-51	Limestone	2.50	0.04	0.80	0.42	0.02	2.27	52.2	0.20	0.09	0.02	42.1	100.7	na

Note: samples named by FS were collected from the outcrops, and samples named by BJ were collected from the drill cores. ∑Fe₂O₃ represents the total content of iron. FeO was determined by redox titration using KMnO₄ solution. BJ0818-25P represents the duplicate of sample BJ0818-25; “na” means not analyzed.

. Diorites have a large span of SiO₂ content (52.4–65.4 wt.%) for the different lithologies (hornblende diorite, monzodiorite and quartz diorite). Their LOI (loss on ignition) is relatively large, ranging from 0.78 to 2.69 wt.%. Skarn has lower SiO₂, Al₂O₃ and Na₂O but higher MgO, CaO and LOI contents than diorites. The ∑Fe₂O₃ content of the ore is more than 62%. Limestone has high CaO and low MgO, which indicates that they are mainly composed of calcite but not dolomite.

Twenty-four whole rocks (including diorites, skarn, iron ores and limestone) and twenty-five mineral separates from iron ores and skarns (including magnetite, skarn silicate minerals and sulfides) were analyzed for their Fe isotopes. The results are listed in

Table 3. Fe isotope composition of whole rocks and mineral separates from the Han-Xing iron skarn deposit.

Sample	Description	δ56Fe	2SE	δ57Fe	2SE	n
	Bulk Samples
BCR-2	Basalt Standard	0.110	0.028	0.144	0.062	4
GSP-2	Granodiorite Standard	0.151	0.034	0.223	0.040	4
FS12-01	Quartz Diorite	0.167	0.028	0.233	0.062	4
FS12-02	Altered Quartz Diorite	−0.026	0.028	0.007	0.065	4
FS12-03	Less Altered Diorite	0.082	0.028	0.161	0.065	4
FS12-04	Altered Diorite	0.051	0.028	0.097	0.062	4
FS12-05	Hornblende Diorite	0.172	0.028	0.246	0.062	4
FS12-06	Garnet Skarn	0.008	0.028	0.037	0.062	4
FS12-08	Di-Gt Skarn	−0.006	0.028	−0.018	0.062	4
FS12-09	Gt-Di Skarn	−0.203	0.028	−0.282	0.062	4
FS12-10	Ep-Gt Skarn	0.160	0.028	0.223	0.062	4
FS12-13	Iron Ore	−0.037	0.028	−0.007	0.062	4
FS12-15	Garnet Skarn	0.124	0.028	0.223	0.062	4
FS12-17	Iron Ore	0.167	0.028	0.223	0.062	4
BJ0818-21	Altered Monzodiorite	0.043	0.019	0.047	0.037	4
BJ0818-22	Altered Monzodiorite	0.048	0.019	0.055	0.037	4
BJ0818-23	Less altered Monzodiorite	0.166	0.019	0.261	0.037	4
BJ0818-24	Altered Monzodiorite	0.108	0.019	0.167	0.037	4
BJ0818-25	Altered Monzodiorite	0.054	0.019	0.103	0.037	4
BJ0818-26	Altered Monzodiorite	0.073	0.019	0.066	0.037	4
BJ0818-27	Altered Monzodiorite	0.086	0.019	0.126	0.037	4
BJ0818-28	Epidote Skarn	0.083	0.019	0.088	0.037	4
BJ0818-28P	Epidote Skarn	0.071	0.019	0.105	0.037	4
BJ0818-30	Gt-Ep Skarn	0.058	0.019	0.087	0.037	4
BJ0818-36	Iron Ore	0.145	0.019	0.223	0.037	4
BJ0818-50	Limestone	−0.157	0.019	−0.238	0.037	4
BJ0818-51	Limestone	0.042	0.019	0.063	0.037	4
	Mineral separates
FS12-12	Magnetite	0.088	0.023	0.131	0.053	6
FS12-13	Magnetite	0.052	0.023	0.097	0.053	6
FS12-14	Magnetite	0.091	0.023	0.145	0.053	6
FS12-14	Magnetite	0.071	0.028	0.055	0.065	4
FS12-16	Magnetite	0.105	0.028	0.149	0.065	4
FS12-17	Magnetite	0.147	0.028	0.209	0.065	4
FS12-06	Pyrite	0.359	0.023	0.542	0.053	6
FS12-13	Pyrite	0.293	0.023	0.441	0.053	6
FS12-14	Pyrite	0.293	0.028	0.423	0.065	4
FS12-16	Pyrite	0.222	0.028	0.326	0.065	4
FS12-05	Amphibole	0.094	0.023	0.140	0.053	6
FS12-06	Garnet	0.105	0.025	0.130	0.058	5
FS12-08	Garnet	0.152	0.023	0.222	0.053	6
FS12-10	Garnet	0.158	0.023	0.230	0.053	6
FS12-08	Diopside	−0.028	0.023	−0.032	0.053	6
FS12-09	Diopside	−0.210	0.023	−0.317	0.053	6
FS12-12	Diopside	−0.177	0.023	−0.262	0.053	6
FS12-08	Epidote	0.218	0.023	0.343	0.053	6
BJ0818-36	Magnetite	0.127	0.019	0.205	0.037	4
BJ0818-38	Magnetite	0.146	0.019	0.245	0.037	4
BJ0818-43	Magnetite	0.137	0.019	0.207	0.037	4
BJ0818-46	Magnetite	0.143	0.019	0.190	0.037	4
BJ0818-59	Magnetite	0.114	0.019	0.162	0.037	4
BJ0818-59	Pyrite	0.270	0.019	0.365	0.037	4
BJ0818-59P	Pyrite	0.273	0.025	0.408	0.065	4
BJ0818-59	Pyrrhotite	0.242	0.025	0.363	0.065	4

Note: BJ0818-28P represents the duplicate of sample BJ0818-28. “SE” is the standard error; “n” is the number of repeat.

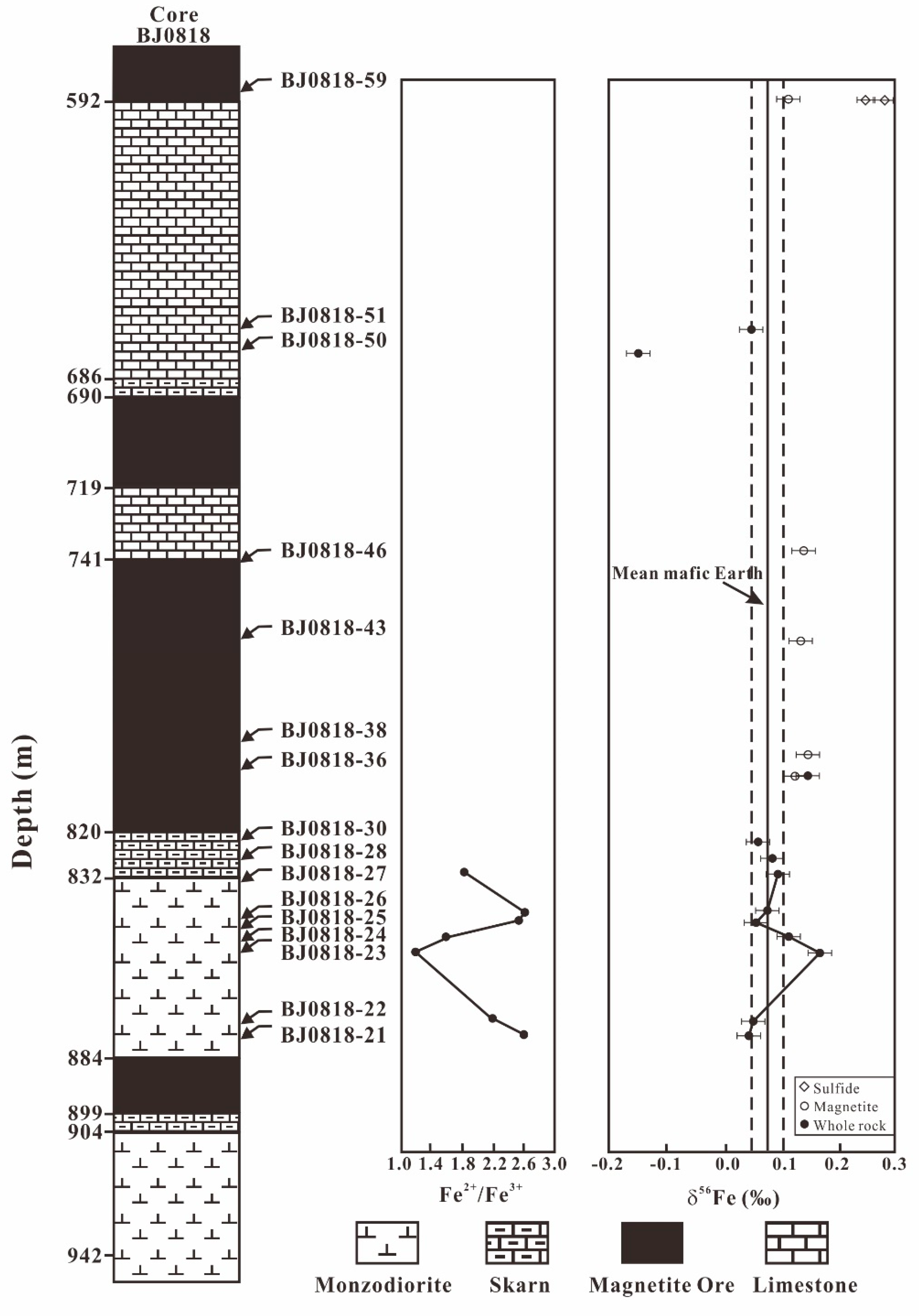

. The δ⁵⁶Fe values of whole rocks range from −0.203‰ to +0.172‰. Among them, limestone has a lower δ⁵⁶Fe than diorites. Skarn and ores have various δ⁵⁶Fe values which should be caused by their heterogeneous composition. The δ⁵⁶Fe values of mineral separates range from −0.210‰ to +0.359‰. Among them, sulfides host the highest δ⁵⁶Fe values. Magnetite has limited δ⁵⁶Fe variation (+0.052‰ to +0.147‰). Skarn silicates have various δ⁵⁶Fe values, which is consistent with the large variation of mineral compositions in skarn. In addition, an approximate sequence may exist, i.e., δ⁵⁶Fe_Ep > δ⁵⁶Fe_Gt > δ⁵⁶Fe_Di.

5. Discussion

5.1. Fe Leached from the Diorites during the Hydrothermal Alteration

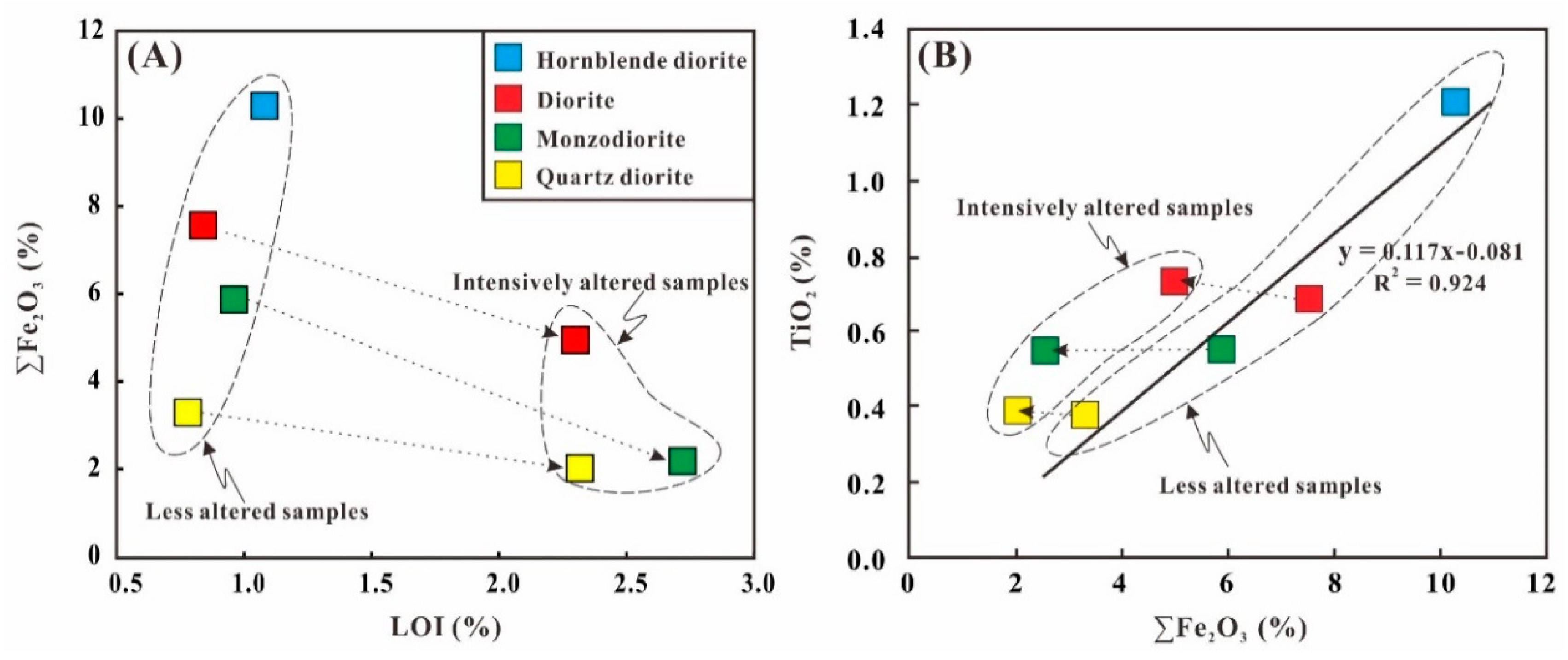

The large variation in LOI (0.78–2.69 wt.%) of diorites indicates that they underwent various degrees of hydrothermal alteration, consistent with the petrological observation mentioned above. As for the altered diorites with the same lithology, the more intensively altered samples (with higher LOI) are usually correlated with lower ∑Fe₂O₃ (∑Fe₂O₃ = Fe₂O₃ + 1.1 × FeO) contents (Figure 3A and Table 2), which indicates that iron has been leached from diorites during hydrothermal alteration. Fe³⁺ and Ti⁴⁺ have similar charges and ionic radii, so the iron content and titanium content generally show similar trends of variation in magmatic series [27]. In the ∑Fe₂O₃ vs. TiO₂ diagram (Figure 3B), there is a clear linear positive correlation (R² = 0.924) between ∑Fe₂O₃ and TiO₂ for the fresh or less altered intrusive rocks in different lithologies. However, during hydrothermal alteration, iron is more readily mobilized than titanium [28,29]. As showing in Figure 3B, the ∑Fe₂O₃ content of diorites decreased, while their TiO₂ contents were almost unchanged during the hydrothermal alteration (Figure 3B). Therefore, the ∑Fe₂O₃/TiO₂ ratio is a useful proxy for constraining the possible mobilization and transport of iron among different igneous rocks during the hydrothermal process [28,29]. Based on the petrological observations and major elements results, here diorites with LOI lower than 1.1 wt.% and ∑Fe₂O₃/TiO₂ ratios higher than 8.5 are regarded as fresh or less altered diorites or, conversely, regarded as intensively altered diorites. By comparing the ∑Fe₂O₃/TiO₂ ratios of fresh or less altered diorites with those of intensively altered diorites, as much as 60% iron can be extracted during the leaching process. This indicates that leaching of diorites could provide a large quantity of iron for the Han-Xing skarn deposit. Compared with the diorites, limestone has a very low ∑Fe₂O₃ content, so its contribution of iron is insignificant.

5.2. Fe Isotopic Variation of Whole Rocks and Mineral Separates

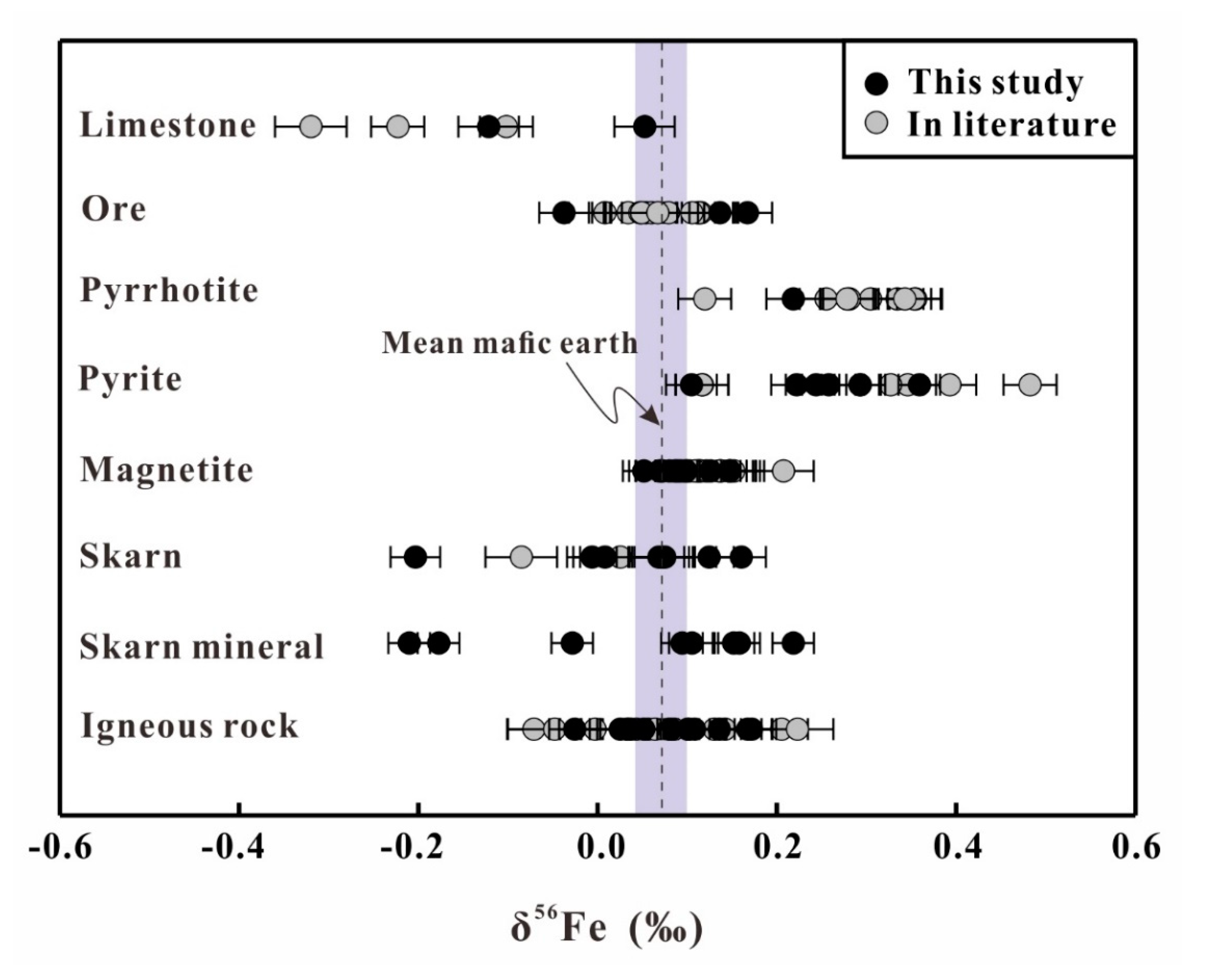

Overall, the δ⁵⁶Fe values of whole rocks and mineral separates from the Han-Xing iron skarn deposit vary from −0.210‰ to +0.359‰ (Figure 4 and Table 3). Diorites display a large range of variation in δ⁵⁶Fe values (−0.026‰ to +0.172‰), indicating Fe isotope fractionation during hydrothermal alteration. Among them, the fresh and less altered diorites host the heaviest Fe isotopic compositions, which are significantly heavier than the mean mafic earth defined in the reference [30] but consistent with the granitic rocks [31]. Limestone samples host the lightest Fe isotopic compositions. Skarn samples display a large variation in δ⁵⁶Fe values (−0.203‰ to +0.160‰) (Table 3), which can be ascribed to the complex mineral compositions and the heterogeneous distribution of minerals. In skarn minerals, diopside hosts the lowest δ⁵⁶Fe values (−0.210‰ to −0.028‰); garnet has moderate δ⁵⁶Fe values (+0.105‰ to +0.158‰); and epidote has the highest δ⁵⁶Fe value (+0.218‰). In metallic minerals, magnetite has a narrow range of δ⁵⁶Fe values (+0.052‰ to +0.147‰) (Table 3), which excludes the possibility of kinetic fractionation and indicates an Fe isotopic equilibrium between magnetite and the ore-forming fluid. Heavy Fe isotope enrichment is the most significant feature of sulfides (+0.222‰ to +0.359‰), which may be ascribed to the higher covalence of iron chemical bonds in pyrite than that in silicates or oxides [32,33].

Theoretical Fe isotopic fractionation between minerals is a function of temperature. That is to say, if isotopic equilibrium is achieved between minerals during precipitation, then any pair of minerals could be used to calculate the temperature of their formation. For skarn deposits, silicate minerals (e.g., garnet and diopside), iron oxides (e.g., magnetite and hematite) and sulfides (e.g., pyrite and pyrrhotite) are formed in different stages under different temperatures. Thus, it is not proper to use the mineral pairs chosen from different stages to calculate their forming temperature. Here, we tried to use the iron isotopes of pyrite and pyrrhotite to calculate their forming temperature, while the calculated result shows that the two minerals do not attain iron isotope equilibrium.

5.3. Fe Isotopes Fractionation of Diorites during the Hydrothermal Alteration

A good correlation between δ⁵⁶Fe and ∑Fe₂O₃/TiO₂ ratios of diorites from the Han-Xing deposit was observed (Figure 5A), which demonstrates that Fe isotopes fractionated during the hydrothermal alteration of diorites. The low ∑Fe₂O₃/TiO₂ ratio represents a high degree of alteration with a substantial loss of iron. Therefore, the positive correlation between δ⁵⁶Fe and ∑Fe₂O₃/TiO₂ indicates that Fe isotopes of diorites evolve towards to the light Fe isotope enrichment, i.e., heavy Fe isotopes are preferentially leached from diorites during hydrothermal alteration.

The δ⁵⁶Fe values of altered diorites decrease with their Fe²⁺/Fe³⁺ ratios (Figure 5B and Figure 6), especially for the diorites with the same lithology, which hints that valence states of iron should be the main factor controlling the Fe isotopic fractionation in this process. As noted before, during hydrothermal alteration, hornblende is replaced by the diopside, biotite, albite and magnetite (Figure 2C,E), followed by the dissolution of magnetite from the diorites (Figure 2B,D,F). Since hornblende and magnetite are enriched in Fe³⁺ while the altered residues (e.g., diopside and biotite) are enriched in Fe²⁺, the Fe²⁺/Fe³⁺ ratios of altered diorites increase with the intensity of the hydrothermal alteration (

Table 4. Selected major elements and Fe isotope composition of altered plutonic rocks from the Han-Xing iron skarn deposit.

Sample	Description	∑Fe2O3	FeO	TiO2	Fe2+/Fe3+	∑Fe2O3/TiO2	δ56Fe	2SE	LOI	F	αB-A	δ56FeLeached
FS12-01	Quartz Diorite	3.29	1.08	0.38	0.57	8.66	0.167	0.028	0.78	1.000
FS12-02	Altered Quartz Diorite	2.02	1.23	0.39	2.02	5.18	−0.026	0.028	2.32	0.598	1.00038	0.455
FS12-03	Less Altered Diorite	7.56	3.53	0.69	1.05	11.0	0.082	0.028	0.84	1.000
FS12-04	Altered Diorite	4.95	3.03	0.73	2.07	6.78	0.051	0.028	2.30	0.619	1.00006	0.131
FS12-05	Hornblende Diorite	10.3	4.65	1.21	0.99	8.50	0.172	0.028	1.08	1.000
BJ0818-21	Altered Monzodiorite	2.54	1.67	0.55	2.63	4.64	0.043	0.019	2.16	0.438	1.00015	0.262
BJ0818-22	Altered Monzodiorite	2.75	1.71	0.50	2.15	5.49	0.048	0.019	1.56	0.518	1.00018	0.293
BJ0818-23	Less altered Monzodiorite	5.87	2.85	0.55	1.15	10.6	0.166	0.019	0.96	1.000
BJ0818-24	Altered Monzodiorite	2.59	1.45	0.56	1.60	4.61	0.108	0.019	1.08	0.435	1.00007	0.210
BJ0818-25	Altered Monzodiorite	2.20	1.44	0.51	2.57	4.29	0.054	0.019	2.72	0.404	1.00012	0.242
BJ0818-26	Altered Monzodiorite	2.28	1.50	0.53	2.62	4.26	0.073	0.019	1.84	0.402	1.00010	0.228
BJ0818-27	Altered Monzodiorite	2.34	1.38	0.52	1.84	4.54	0.086	0.019	1.04	0.428	1.00009	0.226
WA12-07	Altered Monzodiorite	6.72	2.10	0.65	0.52	10.3	0.130	0.030	0.68	0.935	1.00112	1.285
WA12-08	Altered Monzodiorite	4.94	1.54	0.61	0.52	8.10	0.101	0.030	1.90	0.732	1.00033	0.489
WA12-13	Altered Monzodiorite	3.29	1.58	0.63	1.12	5.22	0.035	0.030	3.89	0.472	1.00023	0.357
WA12-14	Less altered Monzodiorite	5.86	1.77	0.53	0.50	11.1	0.205	0.030	1.08	1.000
WA12-23	Altered Monzodiorite	2.48	1.26	0.57	1.28	4.35	−0.071	0.030	2.98	0.394	1.00030	0.384
WA12-31	Altered Monzodiorite	4.72	1.12	0.60	0.35	7.80	0.056	0.030	1.92	0.706	1.00043	0.562

Note: A represents the iron in the residual altered diorite, and B represents the iron leached from the diorite, δ⁵⁶Fe_Leached represents the Fe isotopic composition of leached iron from diorite during hydrothermal alteration. Data named by WA are from the reference [12].

). Furthermore, Fe³⁺ compounds are usually enriched in heavy Fe isotopes than Fe²⁺-bearing species [32,35], which explains why the Fe isotopic composition of diorites became light during hydrothermal alteration.

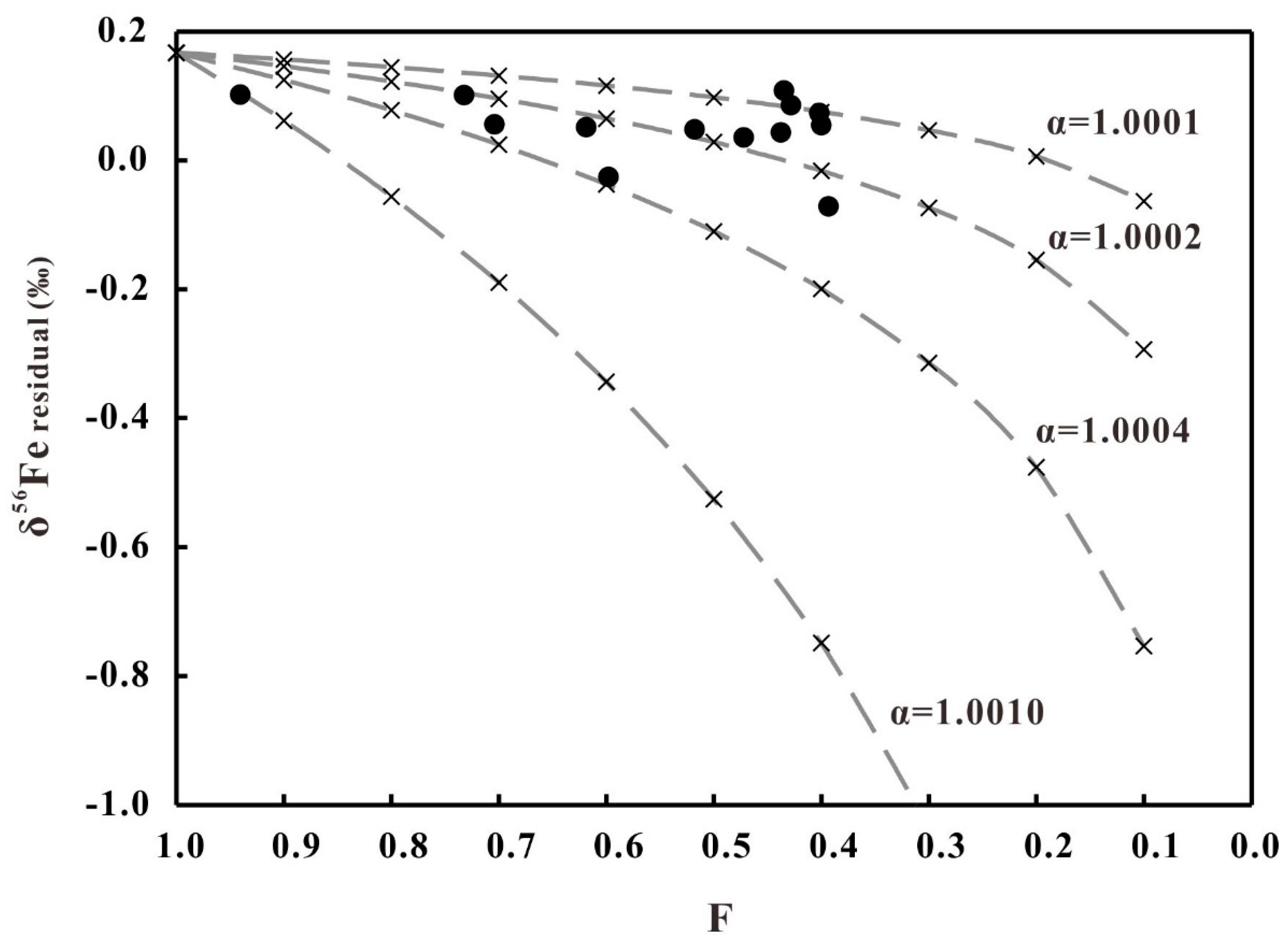

If we assume that iron was leached from diorites following Rayleigh fractionation, the equation (1000 + δ⁵⁶Fe_A)/(1000 + δ⁵⁶Fe_i) = F(α_B−A − 1) can be applied, where A refers to the altered diorite as the residual phase, B refers to the iron leached from the diorites, i refers to the initial δ⁵⁶Fe values and F (F = (∑Fe₂O₃/TiO₂)A/(∑Fe₂O₃/TiO₂)_i) refers to the proportion of iron in the altered diorites to the initial content. In this present case, i is represented by fresh or less altered diorites. The fractionation factor between leached iron and altered residues is calculated. α_B-A varies from 1.00006 to 1.00043 (Table 4 and Figure 7) (except one data of 1.00112) with an average of 1.00020, which is consistent with the iron isotope fractionation factor between magnetite and Fe silicates (0.2‰ to 0.25‰ at 700 °C) [36,37]. Thus, iron isotope fractionation during hydrothermal alteration may be dominantly controlled by the dissolution of magnetite from diorites.

However, the Fe³⁺ is highly insoluble in aqueous solutions, e.g., [38,39], so it cannot be easily ascribed to the leaching of Fe³⁺ from diorites. The simplest explanation is that reduced and isotopically light fluid derived from another source altered the diorites to varying degrees, causing the dissolution of magnetite and precipitation of isotopically light phases. During this process, the isotopically light fluid interacted with the isotopically heavy rocks, leading the heavy Fe isotopes to be preferentially leached from the diorites.

5.4. Iron Sources of the Han-Xing Fe Skarn Deposit

Major elements results demonstrate that plenty of iron can be leached from the diorites during hydrothermal alteration. As discussed above, heavy Fe isotopes are preferentially leached from diorites, which means that the leached iron should be Fe isotopically heavier than the fresh diorite. If the leached iron contributes to the main iron source of the ore-forming fluid, then the minerals formed from the ore-forming fluid should be characterized by a heavier Fe isotope than that of the fresh diorite (or less altered diorite). However, our data show that except for the pyrite, all the rocks and minerals formed in the skarn deposits are more enriched in light Fe isotopes relative to the fresh diorite (Figure 4 and Table 3). Therefore, other sources with light Fe isotope enrichment need to be involved to explain the light Fe isotopic compositions of ores and skarn.

Exsolution of magmatic fluids is a common phenomenon in cooling intrusive rocks [40]. Measurements of drilled fluid samples and fluid inclusions have proved that magmatic fluids can own as much as 9.3 wt.% iron [41]. Moreover, iron-bearing species in the magmatic fluids are dominated by Fe²⁺-chloride complexes (FeCl⁺ and FeCl₂), e.g., [38,39], therefore magmatic fluids have been speculated to be characterized by light Fe isotope enrichment relative to the host igneous rocks [36,42]. The Fe²⁺-rich magmatic fluid contributes to the formation of ferrous silicate minerals (e.g., diopside) and dissolution of magnetite, which result in an increase in Fe²⁺/Fe³⁺ ratios of diorites during hydrothermal alteration. More importantly, hydrogen and oxygen isotopes of fluid inclusions in diopside and garnet from the Han-Xing iron skarn deposit clearly indicate that magmatic fluid dominates the composition of ore-forming fluid [15]. Therefore, we consider magmatic fluid as the other important iron source of the Han-Xing iron skarn deposit.

5.5. Estimation of the Relative Proportions of Iron Sources for the Han-Xing Fe Skarn Deposit

For the Han-Xing iron skarn deposit, many researchers emphasize that the scale of altered diorite (albitization) is quite large. By using the mass balance of the iron element, their calculated content of leached iron is quite enough for forming the ore deposit (e.g., references [15,17]). However, it is hard to estimate accurately the scale of altered diorite, and the extent of alteration is not homogenous. Compared with the iron element, iron isotopes can contain more information of the iron source.

As we mentioned above, both leaching of diorites and the magmatic fluid provide the iron for the Han-Xing iron deposit. Here, we try to estimate their relative proportions for the Han-Xing iron skarn deposit using the mass balance equation of iron isotopes below:

δ⁵⁶Fe_{ore-forming fluid} = δ⁵⁶Fe_leached × f + δ⁵⁶Fe_{magmatic fluid} × (1 − f)

(1)

where f is the fraction of leached iron in the ore-forming fluid. In order to calculate factor f, we need to know the Fe isotopic compositions of the ore-forming fluid, leached iron and magmatic fluid.

At equilibrium, Fe isotopic fractionation between fluid and mineral is a function of temperature. Therefore, the Fe isotopic composition of the ore-forming fluid can be calculated by the δ⁵⁶Fe values of minerals which are equilibrated with the fluid at a specified temperature. Magnetite in ores has limited variation in δ⁵⁶Fe values (+0.052‰ to +0.147‰) and there is no difference between coarse-grained and fine-grained magnetite with regard to their Fe isotopic composition. Moreover, the coarse-grained magnetite has a perfect octahedral crystal shape without composition zoning [12]. Therefore, magnetite should attain isotopic equilibrium with the ore-forming fluid. Fluid inclusion work [43] in this deposit demonstrates that the average decrepitation temperature of magnetite is 416 °C. The Fe isotopic equilibrium fractionation factor between Fe (II) _aq and magnetite 10³ × lnα_{Fe (II) aq-magnetite} is −0.205‰ at 416 °C calculated by the formula given in the reference [44]. Thus, the δ⁵⁶Fe of magnetite will be 0.205‰ greater than the ore-forming fluid from which it precipitates. Magnetite in the Han-Xing iron deposit has a mean δ⁵⁶Fe of 0.111‰ (n = 11); therefore, the δ⁵⁶Fe of the ore-forming fluid should be near −0.094‰.

Using the mass balance equation: δ⁵⁶Fe_i ≈ δ⁵⁶Fe_{altered diorite} × F + δ⁵⁶Fe_leached × (1 − F), where δ⁵⁶Fe_i refers to initial δ⁵⁶Fe, i.e., the Fe isotopes of fresh diorite, and F (F = (∑Fe₂O₃/TiO₂) _{altered diorite}/(∑Fe₂O₃/TiO₂) _initial) refers to the fraction of iron that remained in the altered diorite. The δ⁵⁶Fe value of leached iron from the fresh quartz diorite FS-01 to the altered quartz diorite FS-02 is calculated, which is up to +0.455‰. Considering that the diorites have undergone different degrees of alteration, here we use the mean δ⁵⁶Fe value of leached iron (+0.320‰) (excluding the data of +1.285‰) to represent the average Fe isotopic composition of leached iron (Table 4).

Previous studies have proposed that exsolved fluids could remove isotopically light iron and result in heavy Fe isotopes enrichment in the silicate melt, e.g., [36,42,45]. The fresh and less altered diorites in the Han-Xing district show heavy Fe isotope enrichment, suggesting that isotopically light fluid had exsolved from the magma before the diorites formed. Considering that the δ⁵⁶Fe of the unaltered diorites is about 0.10‰ higher than that of the mean mafic earth, and a large quantity of iron would partition into the magmatic fluid as a potential source for the iron skarn deposit, e.g., [41,46], the δ⁵⁶Fe of the magmatic fluid could not be too low. Here, we assume that the magma has the same Fe isotopic composition as the mafic earth and 1/4 iron partitions into the exsolved fluid, taking the mean δ⁵⁶Fe values (0.177‰) of fresh or less altered diorite as the initial diorite, then the calculated δ⁵⁶Fe of magmatic fluid is −0.251‰. This value is well consistent with the δ⁵⁶Fe of the exsolved fluid (−0.30‰ to +0.04‰) calculated in the reference [36] and the mean δ⁵⁶Fe of hydrothermal fluids from the mid-ocean ridge (−0.29‰ and −0.23‰) reported in the references [47] and [48], respectively.

Bring the δ⁵⁶Fe values of the ore-forming fluid (−0.094‰), leached iron (+0.320‰) and magmatic fluid (−0.251‰) into Equation (1), the calculated “f” is 0.275. That is to say, iron provided by the magmatic fluid is about 2.6 times as large as the leached iron. The calculated results indicate that both the magmatic fluid and leaching rocks provide significant iron for the iron skarn deposit, while the contribution of magmatic fluid is much greater than that of the leaching process. Here, we must admit that the calculated result is based on the referred iron isotopic compositions of the three members from limited data, thus the exact ratio between the ore-forming fluid and leached iron may be in doubt.

Based on the discussion above, we propose a scenario for the origin of the Han-Xing iron skarn deposit as follows. During the late stage of magmatic evolution, Fe²⁺-rich magmatic fluid exsolved from the magma extracts the light Fe isotope from the melt. Subsequently, the magmatic fluid might mix with the meteoric water and groundwater but its Fe isotopic composition will not be changed because of the low iron content of these fluids (ppb level) [49]. During the hydrothermal alteration, ferrous iron-enriched and isotopically light magmatic fluid altered the diorites to various degrees, causing the dissolution of isotopically heavy phases (magnetite and amphibole) and precipitation of isotopically light phases (diopside), and leading the heavy Fe isotopes to be preferentially leached from the diorites. Since the quantity of iron from magmatic fluid is about 2.6 times as large as that from the leaching process, the Fe isotopic composition of the ore-forming fluid is dominated by the isotopically light magmatic fluid. With the changes of physicochemical conditions (such as the decrease in temperature or the increase in oxygen fugacity caused by the dissolution of gypsum in limestone), iron was deposited from the ore-forming fluid as skarn minerals and magnetite inheriting the light Fe isotopic composition.

6. Conclusions

Based on the observations and discussions above, the following conclusions can be drawn:

(1) Iron, especially for the heavy Fe isotopes, is preferentially leached from the dioritic rocks during the hydrothermal alteration in the formation of the Han-Xing Fe skarn deposit.

(2) Fe isotopically light magmatic fluid contributes the major iron budget for the iron skarn deposit (2.6 times of the leached iron, based on the mass balance calculation). This result supports the hypothesis that fluid exsolution from cooling and crystallizing intrusive rocks could lead to heavy Fe isotope enrichment. It is worth to note that, in our studies, the intrusive rocks are hornblende diorites, monzodiorite and quartz diorites which are not highly evolved granites. Thus, an important corollary to our study is that isotopically light fluids can be exsolved not only from highly differentiated granitic magmas but also from the intermediate magmas.

(3) High δ⁵⁶Fe values of magmatic intrusions combining the positive correlation between their ∑Fe₂O₃/TiO₂ and δ⁵⁶Fe could be taken as a fingerprint of exsolution or interaction with magmatic fluids, which contributes to the exploration of magmatic hydrothermal ore deposits. Actually, available data on Fe isotopes of hydrothermal ore deposits show that the associated magmatic intrusions are enriched in heavy Fe isotopes, e.g., [50,51].
