Magma Plumbing System of Emeishan Large Igneous Province at the End-Permian: Insights from Clinopyroxene Compositional Zoning and Thermobarometry

by
Jun-Hao Hu
1,*,†,
Jing-Wen Liu
2,3,*,†,
Tao Song
1 and
Bai-Shun Shi
4
1
College of Urban and Rural Planning and Architectural Engineering, Guiyang University, Guiyang 550005, China
2
Center for Lunar and Planetary Sciences, Institute of Geochemistry, Chinese Academy of Sciences, Guiyang 550081, China
3
College of Earth and Planetary Sciences, University of Chinese Academy of Sciences, Beijing 100049, China
4
College of Earth Sciences, Jilin University, Changchun 130061, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally.
Minerals 2020, 10(11), 979; https://doi.org/10.3390/min10110979
Submission received: 1 August 2020 / Revised: 21 October 2020 / Accepted: 28 October 2020 / Published: 2 November 2020
(This article belongs to the Section Mineral Deposits)
Browse Figures
Review Reports Versions Notes

Abstract

:
The end-Permian Emeishan Large Igneous Province (ELIP) in SW China is widely accepted to have formed by mantle plume activities, forming voluminous flood basalts and rare picrites. Although many studies were performed on the petrogenesis and tectonic setting, the detailed conditions and processes within the magma chamber(s) remain unsolved. In this study, we studied the sector-/oscillatory-zoned clinopyroxene (Cpx) phenocrysts and performed Cpx-liquid thermobarometric calculation to constrain the physicochemical processes within the magma chambers. The results show that Cpx phenocrysts from the high-Mg basalts were crystallized at 4–27 (average 17) km, whilst those from the low-Mg basalt were crystallized at 0–23 (average 9) km depth. The sector and oscillatory Cpx zoning in the high-Mg basalts show that the magma had experienced undercooling and multistage recharge events in the deep-staging chamber(s). The magma replenishments may have eventually led to the eruption of high-Mg basalts, and magma ascent to the upper crust for further fractionation to form the low-Mg basalts and mafic intrusions.

1. Introduction

The research on the large igneous provinces (LIPs) is key to understanding continental uplift and breakup, and the associated environmental change, mass extinction, and magmatic Cu-Ni-PGE and Fe-Ti-V metallogeny [1]. For the end-Permian Emeishan LIP in SW China, several studies have shown that the flood basalts and picrites are genetically link to the regional magmatic Cu-Ni-PGE and Fe-Ti-V metallogeny [2,3,4,5,6,7,8,9,10]. Although the depth of the staging magma chamber(s) has been constrained through studying the volcanic rocks [11], the deep-chamber processes are yet to be well understood. Therefore, it is necessary to establish the ELIP magma plumbing system and its metallogenic link.
Compositional and textural zoning of minerals are not only influenced by the magmatic physicochemical changes [12], but also by the microscopic crystal-scale kinetics [13,14,15]. Therefore, the zoning characters of igneous minerals have been used to track magma chamber processes [16,17,18,19,20,21,22]. Different minerals have a different textural and compositional response to the surrounding magmatic change, which is reflected in the formation or (partial) dissolution of the growth zones [14,23]. Clinopyroxene (Cpx) zoning has been widely documented in phenocrysts of mafic-intermediate volcanic rocks [24], and used to reveal the magma plumping system owning to the low lattice diffusion rate of the Cpx zoning [25,26,27,28,29,30,31,32]. Sector and oscillatory zoning of major and trace elements in pyroxenes, and their relations to magma evolution have been well established for synthetic and natural crystals [33,34,35,36,37,38,39,40,41,42,43]. Although the magma chamber conditions (e.g., pressure-temperature (P-T) and magma composition) also have strong effects on the formation of Cpx compositional zoning, sector zoning is closely related to the kinetic effects which may indicate the rate of magma ascent [14,34,37,44,45]. Meanwhile, Cpx oscillatory zoning can also reveal the physiochemical conditions and their changes/fluctuations during magma crystallization, including magma convection and replenishment, and crystal-melt interactions along the crystal boundary layer [18,38,39,46,47,48,49,50]. Moreover, the Cpx-liquid thermobarometer has relative advantages (e.g., the range of the application and precision in P-T calculation) in thermobarometric calculation compared to the olivine- or plagioclase-based ones [51]. Therefore, in this study, we investigate the compositional zoning of the Cpx phenocrysts from the ELIP high-Mg and low-Mg flood basalts. By using electron probe microanalysis (EPMA) and mapping of major elements, and Cpx-liquid thermobarometry, we established a reliable magma plumbing system for the ELIP staging chamber.

2. Geological Background

The ELIP exposed in southwestern China and northern Vietnam contains a wide variety of magmatic rocks including mafic-ultramafic intrusions, granitoids, flood basalts and picrites (Figure 1b) [52]. Geochemical studies suggested that the intrusive and extrusive rocks in the ELIP are genetically linked [53,54,55]. The volcanic succession overlies the Lower Permian Maokou Formation (Fm.) limestone, which in turn is overlain by the Upper Permian Xuanwei Fm. sandstone. Radiometric dating of mafic-ultramafic intrusions constrained the ELIP emplacement at ~260 Ma, coeval with the end-Guadalupian mass extinction [9,10,56,57,58].
The ELIP volcanic succession is exposed across an area of over 3 × 105 km2 [52,57]. Based on the whole-rock Ti/Y ratios, the ELIP volcanic rocks have been classified into the high-Ti and low-Ti series [52]. The high-Ti basalts (Ti/Y > 500) are widespread across the ELIP, whereas the low-Ti basalts (Ti/Y < 500) are largely confined in the ELIP central zone [59]. Picrites are locally exposed in the western (Dali, Lijiang, Binchuan, Yongsheng, Ertan, Muli) and southern (Jinping-Song Da) parts of the ELIP, where they (3–50 m thick) are found interbedded with basaltic flows [6,55,60,61]. The high-Ti picrites have higher Nb contents than their low-Ti counterparts [55,62]. The two major ore deposit types in the ELIP, i.e., magmatic Fe-Ti-V oxide and Ni-Cu-PGE sulfide, were suggested to be genetically related to the high-Ti and low-Ti magma series, respectively [5,61].

3. Sampling and Analytical Techniques

Ten samples were collected from Tanglanghe and Shiman along the Dali-Lijiang region of the ELIP (Figure 1c). Systematic sampling across the volcanic stratigraphy was not possible due to the poor exposure and severe weathering/alteration of the lava flows, yet the samples collected still retain clear and fresh Cpx phenocrysts. Whole-rock major element compositions were measured by an X-ray fluorescence spectrometer (XRF) at the ALS Laboratory (Guangzhou) using fused lithiumtetraborate glass pellets. Analytical precision determined on the standard SARM-45 is generally 1–5%. The equilibrium melt composition is critical for accurate mineral-melt thermobarometric P-T calculation. Therefore, the volcanic groundmass was separated and analyzed to represent the melt equilibrated with the phenocrysts. For the analysis, 2–3 kg of the least-altered rock sample was crushed into 40–60 mesh in an agate mortar, and the Cpx phenocrysts were carefully picked out under a binocular microscope. The separated groundmass (~5 g) was milled into 200 mesh. Major elements of the groundmass were measured by XRF on fused glass disk at the Institute of Geology and Geophysics, Chinese Academy of Sciences. Analytical uncertainties are 1–3% for elements of over 1 wt% and ~10% for elements of below 1 wt%. The trace element contents of the whole-rock were measured by solution inductively coupled plasma mass spectrometry (ICP-MS) using the technique of Qi et al. (2000) [63] at the Institute of Geochemistry, Chinese Academy of Sciences (IGCAS). The standard samples (e.g., BCR-2, BHVO-2) were used for analytical quality control, with precision for most elements analyzed better than 5%. The major element composition data for the whole-rock and groundmass samples were back-calculated to 100 wt% anhydrous values (Supplementary Tables S1 and S2).
Major element contents of the Cpx phenocrysts were analyzed with a JEOL JXA-8100 electron microprobe at the State Key Laboratory for Ore Deposits Geochemistry, IGCAS. The measurement was performed with a 15-kV acceleration voltage, 20 nA beam current, and 3 μm spot diameter. The detection limit for major elements is 0.01 wt%, and the analytical reproducibility is within 2%. EMPA results are listed in Supplementary Table S3. Quantitative wavelength-dispersive spectrometric (WDS) analysis for the zoned Cpx phenocryst was conducted using an accelerating voltage of 15 kV, a beam current of 20 nA, and a spot size of 1 μm.

4. Results

4.1. Petrography

The samples YY13-109, 111, 112, 113, and 123 are more porphyritic with 20–50% olivine phenocrysts and <5% Cpx phenocrysts. The olivine phenocrysts are 2–3 mm large and commonly serpentinized along its margin and micro-fractures. Some olivine crystals also contain small euhedral chromite inclusions (Figure 2a). The Cpx phenocrysts are usually euhedral and around 2 mm in size, and are generally fresher than the olivine phenocrysts (Figure 2b–d). The fine-grained groundmass is composed of pyroxene, plagioclase and minor Fe-Ti oxides, among which some pyroxene and plagioclase are partially altered to chlorite, talc, and clay minerals. The samples of YY13-2, 115, 120, 122, 125 are less porphyritic with <5% Cpx phenocrysts. The Cpx phenocrysts are euhedral and generally ~2 mm in size (Figure 2e–h). Some crystals show compositional zoning under the microscope (Figure 2f). Rare chromite inclusions were also identified in the Cpx phenocrysts (Figure 2h). The microcrystalline groundmass contains mainly pyroxene and plagioclase, and minor Fe-Ti oxides.

4.2. Whole-Rock Major and Trace Element Compositions

The major oxide contents of the analyzed samples are listed in Supplementary Table S1 and shown in Figure 3 and Supplementary Figure S1. We classified the samples into the high-Mg (MgO > 18 wt%) and low-Mg basalt (MgO < 18 wt%) groups using the standard suggested by Le Bas et al. (2000) [64]. Both groups are high-Ti basalt with Ti/Y > 500 (Supplementary Table S1). According to the TAS and Nb/Y vs. Zr/Ti diagrams (Figure 3), the samples are calc-alkaline to tholeiitic. The high-Mg basalts have higher MgO contents (18.12–24.82 wt%) and Mg# ((Mg/Mg + Fetotal) × 100 = 74 – 79) than the low-Mg basalts (MgO = 8.77–12.33 wt%; Mg# = 56–65) (Supplementary Table S1, Supplementary Figure S1). The TiO2 and Al2O3 contents correlate negatively with Mg#, while the Ni and Cr contents display positive correlations with Mg#, respectively (Supplementary Figure S1).
The high-/low-Mg basalt groups have distinctive incompatible element compositions. The high-Mg basalts are marked by lower REE concentrations than the low-Mg basalts (Supplementary Table S1). In the chondrite-normalized REE diagrams, all the basalts exhibit steeply right-sloping patterns with distinct LREE enrichment (Figure 4a). In the primitive mantle-normalized multi-element diagrams, both high-/low-Mg basalts show OIB-like patterns except for the LILE (e.g., Rb, Ba), and display a negative anomaly in Sr and positive anomaly in Ti (Figure 4b). The analyzed basalts have much higher Nb/U ratios (high-Mg basalt: 42.9–46.9; low-Mg basalt: 49.9–71.4) than that of the average bulk continental crust (12.09, [67]) (Supplementary Table S1). Moreover, the Th/Nb ratio of the basalt samples (0.07–0.10) is comparable to that of the average OIB (0.083, [68]) (Supplementary Table S1).

4.3. Clinopyroxene Phenocryst Compositions

The Cpx phenocrysts from all the basalt samples belong to the augite-diopside-solid solution series in the Wo-En-Fs diagram (Figure 5). The Cpx compositional variation is generally straightforward, as illustrated in the Mg#. The Cpx phenocrysts show positive Mg# vs. Cr2O3 trend, and negative trends between Mg# and TiO2, Al2O3 (Supplementary Figure S2). Moreover, the Cpx phenocrysts in high-Mg basalts have lower Al2O3 contents (0.51–2.29 wt%) than those in low-Mg basalts (Al2O3: 1.71–7.51 wt%) (Supplementary Figures S2 and S3).
The Cpx phenocrysts are mainly normal-zoned, which is characterized by decreasing Mg# and Cr from the core to rim, although rare reverse-zoned Cpx grains were also found (Supplementary Table S3). Clear oscillatory and sector zoning were observed in the Cpx phenocrysts from the high-Mg basalt samples (e.g., YY13-111 and 123). The Cpx phenocryst cut perpendicularly the c-axis and off the center, revealing clear zonation of Mg, Fe and Al contents (Figure 6b–d). The compositional profile (from A to B) of this Cpx phenocrysts shows positive correlations among the Al2O3, TiO2 and FeO contents, which are negatively correlated with the SiO2, MgO and Cr2O3 contents (Figure 6b–d and Figure 7). Especially, the {1 0 0} has relative high contents of Al2O3, TiO2 and FeO, and lower contents of SiO2 and MgO than those in {-1 1 1} (Figure 6b–d and Figure 7). In the sample YY13-123, the Cpx phenocrysts are cut perpendicularly to the b-axis and off the center. The hourglass sector ({-1 1 1}), which is located in the inner part of the crystal, has higher MgO and SiO2 contents but lower Al2O3, TiO2, and Cr2O3 contents than the prism sector ({0 1 0}) (Figure 6f–i and Figure 8). The outer part of this Cpx phenocryst show oscillatory zoning, in which the Cr2O3 content correlates positively with MgO but negatively with Al2O3 and TiO2 (Figure 6f–i and Figure 8; Supplementary Figure S3). Olivine phenocrysts only occur in the high-Mg basalts, and their compositions are given in Supplementary Table S3.

5. Discussion

5.1. Petrogenetic Implications from Zoned Clinopyroxene Phenocrysts

Different types of Cpx compositional zoning (e.g., sector, oscillatory, normal, reverse) have been studied in geological and synthetic samples [14,24,26,37]. Fractional crystallization in a closed system and usually forms euhedral normal-zoned phenocrysts, and hence complex zoning (e.g., sector and oscillatory) mainly reflect changes in the magmatic environment [18,49,70].
In terms of concentric compositional zoning, variation occurs radially from the crystal core in response to the evolution of magmatic conditions and/or melt compositions [12,71]. Sector zoning, in contrast, requires faces of the same crystal to grow in a common temperature, pressure, and melt environment, yet incorporating elements in different concentrations and forming an anisotropy of element partitioning among prominent crystal faces [15]. Crystallographic studies indicate that crystals may grow with rates along different crystallographic orientations, which could result in element enrichments in one set of a sector and depletions in another [33,72,73]. Experimental studies highlight the kinetic effects induced by undercooling on the formation of sector zoning [34,44]. In these experiments, under a low degree of undercooling (△T = 13–18 °C), the crystallization kinetics lead to the relative enrichment of incompatible cations (e.g., Al and Ti) in the {h k 0} sector compared to the {-1 1 1} sector. Under a higher degree of undercooling (△T > 25–45 °C), Al and Ti are concentrated in the {-1 1 1} sector, and the crystals usually develop hopper to dendritic morphology. The above phenomena have been documented in natural Cpx crystals [14,15]. In this study, sector zoning is found in the inner part of the Cpx phenocrysts, which exhibits Al and Ti enrichments (Si and Mg depletions) in the sectors of {1 0 0}, {1 1 0}, and {0 1 0}, and depletions (Si and Mg enrichments) in the {-1 1 1} sector (Figure 6, Figure 7 and Figure 8; Supplementary Figure S3). The reverse correlations between (Si, Mg) and (Al, Ti) in these sectors possibly reflect coupled substitution and/or charge balance compensation, which can be expressed as: [Si4+ + Mg2+]{-1 1 1} — [Al3+ + Ti4+]{h k 0}. These characters of sector zoning resemble those obtained from natural Cpx analyses and experimental studies [15,34]. The sector zoning infers that the crystal growth resulted from sluggish crystallization kinetics driven by mild undercooling during the early crystal growth stage.
The elements (e.g., Mg, Fe, Al, Ti, and Cr) in the outer part of the sector zone show oscillatory partition (Figure 6, Figure 7 and Figure 8; Supplementary Figure S3). Although the interplay of crystal growth and chemical diffusion within the boundary layer could form fine and flat oscillatory zoning (<15 μm thick) [24,46,47,48,74], it is inconsistent with our observation that the oscillatory zones are ~50 μm thick (Figure 6). The oscillatory zoning could be related to the magma convection in the chamber, which may have resulted from periodic degassing processes in shallow reservoirs [49,75]. However, such degassing was unlikely at the crystallization depths inferred from previously published [11] and our new barometry data. The Cr3+ shows oscillatory zoning through the whole crystals and is not portioned amongst sectors may be owning to the less ability to facilitate charge-balanced configurations as previously suggested [14] (Figure 7 and Figure 8). The intriguing behavior of Cr in the system deserves consideration due to its perfect oscillatory variations (Figure 6i, Figure 7e, and Figure 8e). No experimental studies had shown that low-Cr pyroxene can be crystallized from high-Cr magma, as Cr is strongly partitioned into Cpx regardless of variation in intensive parameters (e.g., temperature and pressure) [76,77]. Therefore, the distinct oscillatory Cr content variation from the core to the rim in the Cpx crystals possibly indicate magma compositional changes led by repeated magma replenishment [12,14,18,49,77]. In this study, the oscillatory zones in the Cpx phenocrysts display positive correlation of Cr with Mg#, but negative ones with Al and Ti (Figure 7c–f and Figure 8c–f; Supplementary Figure S3), The partition characters of these elements consist thermodynamic principles under near-equilibrium conditions. The geometrical perfection of crystal faces and distinct concentric zoning from core to rim (Figure 6), highlight the polyhedral crystallization under conditions approaching equilibrium [14,44]. Therefore, the sector and oscillatory zoning in the Cpx phenocrysts of high-Mg basalts indicate that the magma may have experienced a relatively low-degree undercooling during its early growth stage and eventually erupt due to the multistage magma replenishments.

5.2. Clinopyroxene-Melt Thermobarometry

Olivine and Cpx are the main phenocrysts in the high-Mg and low-Mg basalts, respectively. No reliable olivine–liquid geobarometry is currently available due to its strong temperature sensitivity limit [51]. Moreover, the Cpx-melt thermobarometer is more accurate in determining the P-T conditions for phenocryst crystallization and has been widely used to study the magma plumbing system of volcanic rocks [22,78,79,80,81]. Therefore, our Cpx P-T calculation has adopted the model developed by Putirka (2008) [22]. Equation (30) for pressure and Equation (33) for temperature were used, with the compositions of coexisting liquid and Cpx compositions used for the basaltic compositions. Equation (30) was calibrated with a wide experimental dataset, and the estimated standard errors are ±1.6 kbar. Equation (33) is developed based on global calibrations using experiments conducted at P < 70 kbar, and the standard estimated is ± 45 °C. The geobarometer developed by Nimis and Taylor (2000) [82] has relatively low-temperature errors (±30 °C) and is also used here for result comparison. Due to the absence of the mineral melt inclusion for calculating the H2O contents in the ELIP, we assumed that the H2O is 0.7% for basalts, similar to that of non-subduction-related plumes [11].
By using the KD(Fe-Mg)cpx-liq = 0.27 ± 0.03 [83] and Na-Ca-Al composition [45,84] for the basaltic system, respectively (Supplementary Figure S4). It is known that all the Cpx phenocrysts, including those with the highest Mg# in the high-Mg basalts, are not in equilibrium with their groundmass. This could be thought as that the Cpx phenocrysts in the high-Mg basalts were crystallized after most olivine, and the groundmass still had some residual olivine phenocrysts. To test whether it is possible to acquire a liquid in equilibrium with the observed Cpx, we removed the rare olivine from the groundmass until KD(Fe-Mg)cpx-liq = 0.27, and then check whether the amount of olivine removed is equal or less than the measured olivine content. We found that about 10–15% of the olivine was removed. This, plus the number of olivine phenocrysts picked out under the binocular microscope, are less than the observed modal amount of olivine in the whole-rock samples. Supplementary Figure S4b shows that most of the Cpx phenocryst rims of the high-Mg basalts are in equilibrium with the groundmass, in which extra olivine phenocrysts were removed. Therefore, only the data of Cpx rim plotted in the equilibrium field (Supplementary Figure S4) are considered in the P-T estimation.
Our P-T calculation results suggest that the crystallization of the Cpx rims in the low-Mg basalts occurred under 0.44 to 6.02 (3.16 ± 1.53) kbar and 1109.5 to 1141.8 (1121.93 ± 9.86) °C. The Cpx phenocryst crystallization in the high-Mg basalts occurred under higher pressure (2.91 to 7.55 (5.71 ± 1.46) kbar) and temperature (1181.79 to 1236.37 (1210.67 ± 16) °C) (Figure 9a; Supplementary Table S4). As the geobarometer suggested by Nimis and Talyor (2000) [82] is more applicable to the high-Mg rocks, the results suggest narrow temperature variation in the high-Mg basalts (1157.88 to 1210.34 (1196.43 ± 11) °C) (Figure 9b). Based on geophysical data, Jiang et al. (2012) [85] suggested that the upper, middle, and lower crustal boundaries in the western Yangtze craton are located at 16, 33, and 55 km deep, respectively. Taking the standard error of thermobarometry into consideration, the estimated Cpx crystallization depths for the high-Mg basalts are 4–27 (average 17) km, corresponding to the upper to middle Yangtze crust, whilst those for the low-Mg basalts are 0–23 (average in 9) km, corresponding to the upper Yangtze crust.

5.3. Magma Plumbing System in the ELIP

It is generally agreed that the ELIP was emplaced in a short duration [6,86]. Together with the published pressure data from the high-Ti volcanic rocks [11] (Figure 9b), we support that a series of magma chambers were present across the middle to upper crust. The fractures likely provided the conduits for the magma ascent and ponding for the fractional crystallization [78,87,88]. Previous studies also suggested that the regional fractures and density contrast (between the magma and wallrocks), have significant effects on forming the ELIP magma plumbing system. Meanwhile, magma replenishments have likely played key roles in generating the ELIP magma plumbing system and eventually led to volcanic eruptions [49]. The magma recharge events in the ELIP are supported by the presence of magmatic cycles and massive Fe-Ti oxide layers in the mafic-ultramafic intrusions (e.g., Panzhihua intrusion) [89].
As above-mentioned, the progressive Al2O3 increase with decreasing MgO indicates the lack of significant plagioclase fractionation from the high-Mg to low-Mg basalts (Supplementary Figure S1), the decrease in compatible elements (such as Cr and Ni) with fractionation indicates extensive pyroxene and olivine crystallization (Supplementary Figure S1). Varying degrees of crustal assimilation are common for mantle-derived magmas ascending through continental crust [90,91]. However, trace element compositions of the high-Mg and low-Mg basalts suggest that their compositions are mainly controlled by their mantle source, rather than by crustal contamination (Figure 4; Supplementary Table S1). The much lower Th/Nb (0.06–0.10) and higher Nb/U (42.76–71.44) ratios of the basalts studied than the average bulk continental crust (0.32 and 12.1, respectively; [67]) are inconsistent with extensive crustal contamination. Instead, the Th/Nb and Nb/U ratios of the basalts are similar to those of the average OIB (0.08 and 47.06, respectively). Minor crustal contamination is shown by the discrimination diagrams in which these Cpx phenocrysts have alkaline to tholeiitic and calc-alkaline transitional character (Figure 10a) [92]. Moreover, the magma also displays some relative oxidation state during its crystallization and interaction with the crust (Figure 10b) [93].
Therefore, based on the study of Tao et al. (2015) and Zhang et al. (2006) [11,55], we suggest that the primary mantle-derived magma may have ascended through the deep faults formed picrites, and reached the middle crust to form the high-Mg basalts. The oscillatory and sector zoning in the Cpx phenocrysts of the high-Mg basalts indicate that the crystals experienced complex magmatic processes during the magma ascent: At the early stage, the inner part of the zoned Cpx phenocryst infers that the magma had undergone low-degree undercooling inside a deep staging chamber, and the continuous growth of Cpx sectors is compromised by multiphase magma recharge events, which may be under near equilibrium condition. These features show that the magmas may have ascended slowly along the fractures and eventually ponded in a relatively stable magma reservoir at the upper-middle crustal level. Continuous magma replenishments may have eventually led to volcanic eruptions and formed the high-Mg basalts. Some of the fractionated high-Mg basalts may have ascended up to the upper-crust staging chamber for further fractionation with minor crustal contamination, and erupted to form the low-Mg basalts or cumulated to form the mafic intrusions. The magma replenishments and ascent rate have major effect on the formation of the ELIP magma plumbing system. A schematic model of our proposed ELIP magma plumbing system is illustrated in Figure 11.

6. Conclusions

(1)
Cpx-liquid thermobarometry suggests that the staging chamber(s) beneath the ELIP spread across the middle to upper crust. Cpx phenocryst crystallization for the high-Mg basalts took place mainly in the middle crust, and those for the low-Mg basalts happened in the upper crust.
(2)
Similar to the giant layered mafic-ultramafic intrusions (e.g., Panzhihua intrusion in ELIP), the high-Mg basalts experienced multistage magma replenishments in the deep-staging chamber(s). This suggests that magma replenishments played a key role in generating the ELIP magma pluming system.
(3)
Sector zoning of Cpx in the picrites indicate that the crystals had grown slowly under low-degree undercooling conditions. The compress growth of the crystals were also nearly-equilibrium conditions. This stable environment may induce prolonged fractionation of the high-Mg magmas to form the low-Mg basalts and/or mafic-ultramafic intrusions in the shallow staging magma chamber(s).

Supplementary Materials

The following are available online at https://www.mdpi.com/2075-163X/10/11/979/s1, Figure S1: Major and trace elements composition of the whole rock. (a) TiO2 versus MgO; (b) SiO2 versus MgO; (c) CaO versus MgO; (d) Al2O3 versus MgO; (e) Ni versus MgO; (f) Cr versus MgO; (g) Sr versus MgO; (h) V versus MgO. Figure S2: Major element composition of the Cpx phenocryst from high-Mg and low-Mg basalts. (a) TiO2 versus SiO2. (b) Al2O3 versus SiO2. (c) Cr2O3 versus SiO2. (d) ivAl versus Al2O3. (e) Si + Mg (pfu) versus Al (pfu). (f) Mg (pfu) versus Al (pfu), Figure S3: Elemental profles (C to D) for the zoned Cpx phenocryst of the high-Mg basalts (sample YY13-123). Profle analysis shows oscillatory zonings in the elements of Si, Mg, Cr, Ti and Al. The MgO and Cr2O3 show strong negative correction with the Al2O3, TiO2 and FeO. The {010} shows Al2O3, TiO2 FeO enrichment compared with the {100}. (a–h) Major elements variations along the line (from C to D), Figure S4: (a) Fe-Mg partitioning between Cpx phenocrysts and matrix. (b) Fe-Mg partitioning between Cpx phenocrysts and the matrix which extra olivine has been eliminated. (c–f) Measured and calculated values for Cpx phenocrysts components (mole fraction) from the picrite and basalt. (DiHd-diopside + hedenbergite, EnFs-enstatite + ferrosilite, CaTs-Ca-Tschermak, and Jd-jadeite. The equilibrium envelopes are marked by the standard error of estimate (SEE), which are for diopside-hedenbergite ± 0.06 SEE; enstatite-ferrosillite ± 0.05 1SEE from Mollo et al. (2013) [45]; Ca-Tshermack ± 0.08 2SEE and Jadeite ±0.04 2SEE from Putirka (1999) [84])., Table S1: The major and trace elements of the whole rocks, Table S2: The major elements of the matrix, Table S3: Major elements of the Cpx and Ol phenocrysts, Table S4: Results of the P-T calculations.

Author Contributions

Conceptualization, J.-H.H. and J.-W.L.; formal analysis, J.-H.H.; investigation, J.-H.H., J.-W.L., and B.-S.S.; resources, J.-H.H. and J.-W.L.; writing—original draft preparation, J.-H.H., J.-W.L.; writing—review and editing, J.-H.H. and T.S.; visualization, J.-H.H.; supervision, J.-W.L.; funding acquisition, J.-H.H. All authors have read and agreed to the published version of the manuscript.

Funding

This study was funded by the Talent start-up fund of Guiyang University (2019039510821)-Research on the magmatic process and its genesis mechanism of Tengchong volcanic rocks, and the Priority Research Program (B) of Chinese Academy of Sciences, Grant No. XDB18000000.

Acknowledgments

We gratefully acknowledge the senior engineer Wen-Qin Zheng and Xiang Li of the Institute of Geochemistry, Chinese Academy of Sciences for their guidance in EPMA analysis work. We thank Kai-Yuan Wang for their handling of the manuscript and editorial input. We would like to thank Sheng-Hua Zhou and Jian Kang for their assistance during fieldwork.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ernst, R.E.; Jowitt, S.M. Large igneous provinces (LIPs) and metallogeny. Soc. Econ. Geol. Spec. Publ. 2013, 17, 17–51. [Google Scholar]
  2. Bai, Z.-J.; Zhong, H.; Hu, R.-Z.; Zhu, W.-G.; Hu, W.-J. Composition of the Chilled Marginal Rocks of the Panzhihua Layered Intrusion, Emeishan Large Igneous Province, SW China: Implications for Parental Magma Compositions, Sulfide Saturation History and Fe–Ti Oxide Mineralization. J. Pet. 2019, 60, 619–648. [Google Scholar] [CrossRef]
  3. Chung, S.-L.; Jahn, B.-M. Plume-lithosphere interaction in generation of the Emeishan flood basalts at the Permian-Triassic boundary. Geology 1995, 23, 889–892. [Google Scholar] [CrossRef]
  4. Song, X.-Y.; Keays, R.R.; Xiao, L.; Qi, H.-W.; Ihlenfeld, C. Platinum-group element geochemistry of the continental flood basalts in the central Emeisihan Large Igneous Province, SW China. Chem. Geol. 2009, 262, 246–261. [Google Scholar] [CrossRef]
  5. Wang, C.Y.; Zhou, M.-F.; Qi, L. Permian flood basalts and mafic intrusions in the Jinping (SW China)–Song Da (northern Vietnam) district: Mantle sources, crustal contamination and sulfide segregation. Chem. Geol. 2007, 243, 317–343. [Google Scholar] [CrossRef]
  6. Yu, S.-Y.; Shen, N.-P.; Song, X.-Y.; Ripley, E.M.; Li, C.; Chen, L.-M. An integrated chemical and oxygen isotopic study of primitive olivine grains in picrites from the Emeishan Large Igneous Province, SW China: Evidence for oxygen isotope heterogeneity in mantle sources. Geochim. Cosmochim. Acta 2017, 215, 263–276. [Google Scholar] [CrossRef]
  7. Zhang, Y.; Mao, J.; Saunders, A.D.; Ai, Y.; Li, Y.; Zhao, L. Petrogenetic modeling of three mafic–ultramafic layered intrusions in the Emeishan large igneous province, SW China, based on isotopic and bulk chemical constraints. Lithos 2009, 113, 369–392. [Google Scholar] [CrossRef]
  8. Zhong, H.; Qi, L.; Hu, R.; Zhou, M.-F.; Gou, T.-Z.; Zhu, W.-G.; Liu, B.-G.; Chu, Z.-Y. Rhenium–osmium isotope and platinum-group elements in the Xinjie layered intrusion, SW China: Implications for source mantle composition, mantle evolution, PGE fractionation and mineralization. Geochim. Cosmochim. Acta 2011, 75, 1621–1641. [Google Scholar] [CrossRef]
  9. Zhou, M.-F.; Malpas, J.; Song, X.-Y.; Robinson, P.T.; Sun, M.; Kennedy, A.K.; Lesher, C.; Keays, R.R. A temporal link between the Emeishan large igneous province (SW China) and the end-Guadalupian mass extinction. Earth Planet. Sci. Lett. 2002, 196, 113–122. [Google Scholar] [CrossRef]
  10. Zhou, M.-F.; Yan, D.-P.; Kennedy, A.K.; Li, Y.; Ding, J. SHRIMP U–Pb zircon geochronological and geochemical evidence for Neoproterozoic arc-magmatism along the western margin of the Yangtze Block, South China. Earth Planet. Sci. Lett. 2002, 196, 51–67. [Google Scholar] [CrossRef]
  11. Yan, T.; Putirka, K.; Hu, R.; Li, C. The magma plumbing system of the Emeishan large igneous province and its role in basaltic magma differentiation in a continental setting. Am. Miner. 2015, 100, 2509–2517. [Google Scholar] [CrossRef]
  12. Streck, M.J. Mineral Textures and Zoning as Evidence for Open System Processes. Rev. Miner. Geochem. 2008, 69, 595–622. [Google Scholar] [CrossRef]
  13. Faure, F.; Schiano, P. Crystal morphologies in pillow basalts: Implications for mid-ocean ridge processes. Earth Planet. Sci. Lett. 2004, 220, 331–344. [Google Scholar] [CrossRef]
  14. Ubide, T.; Mollo, S.; Zhao, J.-X.; Nazzari, M.; Scarlato, P. Sector-zoned clinopyroxene as a recorder of magma history, eruption triggers, and ascent rates. Geochim. Cosmochim. Acta 2019, 251, 265–283. [Google Scholar] [CrossRef] [Green Version]
  15. Welsch, B.; Hammer, J.; Baronnet, A.; Jacob, S.; Hellebrand, E.; Sinton, J. Clinopyroxene in postshield Haleakala ankaramite: 2. Texture, compositional zoning and supersaturation in the magma. Contrib. Miner. Pet. 2015, 171, 1–19. [Google Scholar] [CrossRef]
  16. Ganne, J.; Bachmann, O.; Feng, X. Deep into magma plumbing systems: Interrogating the crystal cargo of volcanic deposits. Geology 2018, 46, 415–418. [Google Scholar] [CrossRef]
  17. Ginibre, C.; Wörner, G.; Kronz, A. Crystal Zoning as an Archive for Magma Evolution. Elements 2007, 3, 261–266. [Google Scholar] [CrossRef]
  18. Hu, J.-H.; Song, X.-Y.; He, H.-L.; Zheng, W.-Q.; Yu, S.-Y.; Chen, L.-M.; Lai, C. Constraints of texture and composition of clinopyroxene phenocrysts of Holocene volcanic rocks on a magmatic plumbing system beneath Tengchong, SW China. J. Asian Earth Sci. 2018, 154, 342–353. [Google Scholar] [CrossRef]
  19. Humphreys, M.C.S.; Blundy, J.; Sparks, R. Magma Evolution and Open-System Processes at Shiveluch Volcano: Insights from Phenocryst Zoning. J. Pet. 2006, 47, 2303–2334. [Google Scholar] [CrossRef] [Green Version]
  20. Kahl, M.; Chakraborty, S.; Costa, F.; Pompilio, M. Dynamic plumbing system beneath volcanoes revealed by kinetic modeling, and the connection to monitoring data: An example from Mt. Etna. Earth Planet. Sci. Lett. 2011, 308, 11–22. [Google Scholar] [CrossRef]
  21. Morgan, D.; Blake, S. Magmatic residence times of zoned phenocrysts: Introduction and application of the binary element diffusion modelling (BEDM) technique. Contrib. Miner. Pet. 2005, 151, 58–70. [Google Scholar] [CrossRef]
  22. Putirka, K.D. Thermometers and Barometers for Volcanic Systems. Rev. Miner. Geochem. 2008, 69, 61–120. [Google Scholar] [CrossRef]
  23. De Maisonneuve, C.B.; Costa, F.; Huber, C.; Vonlanthen, P.; Bachmann, O.; Dungan, M.A.; De Maisonneuve, C.B. How do olivines record magmatic events? Insights from major and trace element zoning. Contrib. Miner. Pet. 2016, 171. [Google Scholar] [CrossRef] [Green Version]
  24. Elardo, S.M.; Shearer, J.C.K. Magma chamber dynamics recorded by oscillatory zoning in pyroxene and olivine phenocrysts in basaltic lunar meteorite Northwest Africa 032. Am. Miner. 2014, 99, 355–368. [Google Scholar] [CrossRef]
  25. Costa, F. Time constraints from chemical equilibration in magmatic crystals. In Timescales of Magmatic Processes: From Core to Atmosphere; Dosseto, A., Turner, S.P., Van Orman, J.A., Eds.; Blackwell Publishing Ltd.: Hoboken, NJ, USA, 2011; pp. 125–159. [Google Scholar]
  26. Feng, W.; Zhu, Y. Magmatic plumbing system beneath a fossil continental arc volcano in western Tianshan (NW China): Constraints from clinopyroxene and thermodynamic modelling. Lithos 2019, 105221. [Google Scholar] [CrossRef]
  27. Giacomoni, P.P.; Coltorti, M.; Bryce, J.G.; Fahnestock, M.F.; Guitreau, M. Mt. Etna plumbing system revealed by combined textural, compositional, and thermobarometric studies in clinopyroxenes. Contrib. Miner. Pet. 2016, 171. [Google Scholar] [CrossRef]
  28. Müller, T.; Dohmen, R.; Becker, H.W.; Ter Heege, J.H.; Chakraborty, S. Fe–Mg interdiffusion rates in clinopyroxene: Experimental data and implications for Fe–Mg exchange geothermometers. Contrib. Miner. Pet. 2013, 166, 1563–1576. [Google Scholar] [CrossRef]
  29. Van Orman, J.A.; Grove, T.L.; Shimizu, N. Rare earth element diffusion in diopside: Influence of temperature, pressure, and ionic radius, and an elastic model for diffusion in silicates. Contrib. Miner. Pet. 2001, 141, 687–703. [Google Scholar] [CrossRef]
  30. Zhang, Y. Diffusion in Minerals and Melts: Theoretical Background. Rev. Miner. Geochem. 2010, 72, 5–59. [Google Scholar] [CrossRef] [Green Version]
  31. Cherniak, D.; Dimanov, A. Diffusion in Pyroxene, Mica and Amphibole. Rev. Miner. Geochem. 2010, 72, 641–690. [Google Scholar] [CrossRef]
  32. Cherniak, D.J.; Liang, Y. Ti diffusion in natural pyroxene. Geochim. Cosmochim. Acta 2012, 98, 31–47. [Google Scholar] [CrossRef]
  33. Downes, M.J. Sector and oscillatory zoning in calcic augites from M. Etna, Sicily. Contrib. Miner. Pet. 1974, 47, 187–196. [Google Scholar] [CrossRef]
  34. Kouchi, A.; Sugawara, Y.; Kashima, K.; Sunagawa, I. Laboratory growth of sector zoned clinopyroxenes in the system CaMgSi2O6-CaTiAl2O6. Contrib. Miner. Pet. 1983, 83, 177–184. [Google Scholar] [CrossRef]
  35. Lofgren, G.E.; Donaldson, C.H. Curved branching crystals and differentiation in comb-layered rocks. Contrib. Miner. Pet. 1975, 49, 309–319. [Google Scholar] [CrossRef]
  36. Mollo, S.; Hammer, J.E. Dynamic crystallization in magmas. EMU Notes Mineral. 2017, 16, 373–418. [Google Scholar]
  37. Schwandt, C.S.; McKay, G.A. Minor- and trace-element sector zoning in synthetic enstatite. Am. Miner. 2006, 91, 1607–1615. [Google Scholar] [CrossRef]
  38. Shearer, C.; Larsen, L. Sector-zoned aegirine from the Ilimaussaq alkaline intrusion, South Greenland: Implications for trace-element behavior in pyroxene. Am. Mineral. 1994, 79, 340–352. [Google Scholar]
  39. Shimizu, N. Trace element incorporation into growing augite phenocryst. Nat. Cell Biol. 1981, 289, 575–577. [Google Scholar] [CrossRef]
  40. Watson, E.B.; Liang, Y. A simple model for sector zoning in slowly grown crystals; implications for growth rate and lattice diffusion, with emphasis on accessory minerals in crustal rocks. Am. Miner. 1995, 80, 1179–1187. [Google Scholar] [CrossRef]
  41. McKay, G.; Wagstaff, J.; Yang, S.-R. Clinopyroxene REE distribution coefficients for shergottites: The REE content of the Shergotty melt. Geochim. Cosmochim. Acta 1986, 50, 927–937. [Google Scholar] [CrossRef]
  42. Stock, M.J.; Bagnardi, M.; Neave, D.A.; MacLennan, J.; Bernard, B.; Buisman, I.; Gleeson, M.; Geist, D. Integrated Petrological and Geophysical Constraints on Magma System Architecture in the Western Galápagos Archipelago: Insights From Wolf Volcano. Geochem. Geophys. Geosystems 2018, 19, 4722–4743. [Google Scholar] [CrossRef]
  43. Watson, E.B. Surface enrichment and trace-element uptake during crystal growth. Geochim. Cosmochim. Acta 1996, 60, 5013–5020. [Google Scholar] [CrossRef]
  44. Lofgren, G.E.; Huss, G.R.; Wasserburg, G.J. An experimental study of trace-element partitioning between Ti-Al-clinopyroxene and melt: Equilibrium and kinetic effects including sector zoning. Am. Miner. 2006, 91, 1596–1606. [Google Scholar] [CrossRef]
  45. Mollo, S.; Blundy, J.D.; Iezzi, G.; Scarlato, P.; Langone, A. The partitioning of trace elements between clinopyroxene and trachybasaltic melt during rapid cooling and crystal growth. Contrib. Miner. Pet. 2013, 166, 1633–1654. [Google Scholar] [CrossRef]
  46. Ginibre, C.; Kronz, A.; Wörner, G. High-resolution quantitative imaging of plagioclase composition using accumulated backscattered electron images: New constraints on oscillatory zoning. Contrib. Miner. Pet. 2002, 142, 436–448. [Google Scholar] [CrossRef]
  47. Ginibre, C.; Wörner, G.; Kronz, A. Minor- and trace-element zoning in plagioclase: Implications for magma chamber processes at Parinacota volcano, northern Chile. Contrib. Miner. Pet. 2002, 143, 300–315. [Google Scholar] [CrossRef]
  48. Pearce, T. Recent work on oscillatory zoning in plagioclase. In Feldspars and Their Reactions; Springer: Berlin, Germany, 1994; pp. 313–349. [Google Scholar]
  49. Stroncik, N.A.; Klügel, A.; Hansteen, T.H. The magmatic plumbing system beneath El Hierro (Canary Islands): Constraints from phenocrysts and naturally quenched basaltic glasses in submarine rocks. Contrib. Miner. Pet. 2008, 157, 593–607. [Google Scholar] [CrossRef]
  50. Shore, M.; Fowler, A.D. Oscillatory zoning in minerals; a common phenomenon. Can. Mineral. 1996, 34, 1111–1126. [Google Scholar]
  51. Keiding, J.K.; Sigmarsson, O. Geothermobarometry of the 2010 Eyjafjallajökull eruption: New constraints on Icelandic magma plumbing systems. J. Geophys. Res. Space Phys. 2012, 117, 117. [Google Scholar] [CrossRef]
  52. Xu, Y.; Chung, S.-L.; Jahn, B.-M.; Wu, G. Petrologic and geochemical constraints on the petrogenesis of Permian–Triassic Emeishan flood basalts in southwestern China. Lithos 2001, 58, 145–168. [Google Scholar] [CrossRef]
  53. Bai, Z.-J.; Zhong, H.; Li, C.; Zhu, W.-G.; He, D.-F.; Qi, L. Contrasting parental magma compositions for the Hongge and Panzhihua magmatic Fe-Ti-V oxide deposits, Emeishan large igneous province, SW China. Econ. Geol. 2014, 109, 1763–1785. [Google Scholar] [CrossRef]
  54. Kamenetsky, V.S.; Chung, S.-L.; Kamenetsky, M.B.; Kuzmin, D.V. Picrites from the Emeishan Large Igneous Province, SW China: A Compositional Continuum in Primitive Magmas and their Respective Mantle Sources. J. Pet. 2012, 53, 2095–2113. [Google Scholar] [CrossRef] [Green Version]
  55. Zhang, Z.; Mahoney, J.J.; Mao, J.; Wang, F. Geochemistry of Picritic and Associated Basalt Flows of the Western Emeishan Flood Basalt Province, China. J. Pet. 2006, 47, 1997–2019. [Google Scholar] [CrossRef] [Green Version]
  56. Ali, J.R.; Thompson, G.M.; Song, X.; Wang, Y. Emeishan Basalts (SW China) and the ‘end-Guadalupian’ crisis: Magnetobiostratigraphic constraints. J. Geol. Soc. 2002, 159, 21–29. [Google Scholar] [CrossRef] [Green Version]
  57. Song, X.-Y.; Zhou, M.-F.; Hou, Z.-Q.; Cao, Z.-M.; Wang, Y.-L.; Li, Y. Geochemical Constraints on the Mantle Source of the Upper Permian Emeishan Continental Flood Basalts, Southwestern China. Int. Geol. Rev. 2001, 43, 213–225. [Google Scholar] [CrossRef]
  58. Yang, J.; Cawood, P.A.; Du, Y.; Condon, D.J.; Yan, J.; Liu, J.; Huang, Y.; Yuan, D. Early Wuchiapingian cooling linked to Emeishan basaltic weathering? Earth Planet. Sci. Lett. 2018, 492, 102–111. [Google Scholar] [CrossRef]
  59. Xiao, L.; Xu, Y.; Mei, H.; Zheng, Y.; He, B.; Pirajno, F. Distinct mantle sources of low-Ti and high-Ti basalts from the western Emeishan large igneous province, SW China: Implications for plume–lithosphere interaction. Earth Planet. Sci. Lett. 2004, 228, 525–546. [Google Scholar] [CrossRef]
  60. Li, C.; Tao, Y.; Qi, L.; Ripley, E.M. Controls on PGE fractionation in the Emeishan picrites and basalts: Constraints from integrated lithophile–siderophile elements and Sr–Nd isotopes. Geochim. Cosmochim. Acta 2012, 90, 12–32. [Google Scholar] [CrossRef]
  61. Zhang, Z.; Zhi, X.; Chen, L.; Saunders, A.D.; Reichow, M.K. Re–Os isotopic compositions of picrites from the Emeishan flood basalt province, China. Earth Planet. Sci. Lett. 2008, 276, 30–39. [Google Scholar] [CrossRef]
  62. Hanski, E.; Kamenetsky, V.S.; Luo, Z.; Xu, Y.-G.; Kuzmin, D.V. Primitive magmas in the Emeishan Large Igneous Province, southwestern China and northern Vietnam. Lithos 2010, 119, 75–90. [Google Scholar] [CrossRef]
  63. Qi, L.; Hu, J.; Gregoire, D.C. Determination of trace elements in granites by inductively coupled plasma mass spectrometry. Talanta 2000, 51, 507–513. [Google Scholar]
  64. Le Bas, M.J. IUGS Reclassification of the High-Mg and Picritic Volcanic Rocks. J. Pet. 2000, 41, 1467–1470. [Google Scholar] [CrossRef] [Green Version]
  65. Le Maitre, R.W.; Streckeisen, A.; Zanettin, B.; Le Bas, M.J.; Bonin, B.; Bateman, P. Igneous Rocks: A Classification and Glossary of Terms: Recommendations of the International Union of Geological Sciences Subcommission on the Systematics of Igneous Rocks(Eds.), 2nd ed.; Cambridge University Press: Cambridge, UK, 2005; p. 256. [Google Scholar]
  66. Pearce, J.A. A user’s guide to basalt discrimination diagrams. Trace element geochemistry of volcanic rocks: Applications for massive sulphide exploration. Geol. Assoc. Can. Short Course Notes 1996, 12, 113. [Google Scholar]
  67. Taylor, S.R.; McLennan, S.M. The geochemical evolution of the continental crust. Rev. Geophys. 1995, 33, 241–265. [Google Scholar] [CrossRef]
  68. Sun, S.-S.; McDonough, W.F. Chemical and isotopic systematics of oceanic basalts: Implications for mantle composition and processes. Geol. Soc. Lond. Spéc. Publ. 1989, 42, 313–345. [Google Scholar] [CrossRef]
  69. Morimoto, N. Nomenclature of Pyroxenes. Miner. Pet. 1988, 39, 55–76. [Google Scholar] [CrossRef]
  70. Carracedo, J.C. Growth, structure, instability and collapse of Canarian volcanoes and comparisons with Hawaiian volcanoes. J. Volcanol. Geotherm. Res. 1999, 94, 1–19. [Google Scholar] [CrossRef]
  71. Pearce, T.H. The analysis of zoning in magmatic crystals with emphasis on olivine. Contrib. Miner. Pet. 1984, 86, 149–154. [Google Scholar] [CrossRef]
  72. Leung, I.S. Sector-zoned titanaugites: Morphology, crystal chemistry, and growth. Am. Mineral. 1974, 59, 127–138. [Google Scholar]
  73. Nakamura, Y. Origin of sector-zoning of igneous clinopyroxenes. Am. Mineral. 1973, 58, 986–990. [Google Scholar]
  74. Pearce, T.; Kolisnik, A. Observations of plagioclase zoning using interference imaging. Earth Sci. Rev. 1990, 29, 9–26. [Google Scholar] [CrossRef]
  75. Clague, D.A.; Dixon, J. Extrinsic controls on the evolution of Hawaiian ocean island volcanoes. Geochem. Geophys. Geosystems 2000, 1. [Google Scholar] [CrossRef]
  76. Arth, J.G. Behavior of trace elements during magmatic processes-a summary of theoretical models and their applications. J. Res. US Geol. Surv. 1976, 4, 41–47. [Google Scholar]
  77. Streck, M.J.; Dungan, M.A.; Malavassi, E.; Reagan, M.K.; Bussy, F. The role of basalt replenishment in the generation of basaltic andesites of the ongoing activity at Arenal volcano, Costa Rica: Evidence from clinopyroxene and spinel. Bull. Volcanol. 2002, 64, 316–327. [Google Scholar] [CrossRef]
  78. Putirka, K.; Condit, C.D. Cross section of a magma conduit system at the margin of the Colorado Plateau. Geology 2003, 31, 701. [Google Scholar] [CrossRef]
  79. Caprarelli, G.; Reidel, S.P. A clinopyroxene-basalt geothermobarometry perspective of Columbia Plateau (NW-USA) Miocene magmatism. Terra Nova 2005, 17, 265–277. [Google Scholar] [CrossRef]
  80. Barker, A.K.; Troll, V.R.; Carracedo, J.C.; Nicholls, P.A. The magma plumbing system for the 1971 Teneguía eruption on La Palma, Canary Islands. Contrib. Miner. Pet. 2015, 170, 1–21. [Google Scholar] [CrossRef]
  81. Hammer, J.; Jacob, S.; Welsch, B.; Hellebrand, E.; Sinton, J. Clinopyroxene in postshield Haleakala ankaramite: 1. Efficacy of thermobarometry. Contrib. Miner. Pet. 2015, 171, 1–23. [Google Scholar] [CrossRef]
  82. Nimis, P.; Taylor, W.R. Single clinopyroxene thermobarometry for garnet peridotites. Part I. Calibration and testing of a Cr-in-Cpx barometer and an enstatite-in-Cpx thermometer. Contrib. Miner. Pet. 2000, 139, 541–554. [Google Scholar] [CrossRef]
  83. Villiger, S.; Ulmer, P.; Müntener, O. Equilibrium and fractional crystallization experiments at 0• 7 GPa; the effect of pressure on phase relations and liquid compositions of tholeiitic magmas. J. Petrol. 2007, 48, 159–184. [Google Scholar] [CrossRef] [Green Version]
  84. Putirka, K. Clinopyroxene + liquid equilibria to 100 kbar and 2450 K. Contrib. Miner. Pet. 1999, 135, 151–163. [Google Scholar] [CrossRef]
  85. Jiang, W.; Zhang, J.; Tian, T.; Wang, X. Crustal structure of Chuan-Dian region derived from gravity data and its tectonic implications. Phys. Earth Planet. Inter. 2012, 76–87. [Google Scholar] [CrossRef]
  86. Shellnutt, J.G.; Pham, T.T.; Denyszyn, S.W.; Yeh, M.-W.; Tran, T.-A. Magmatic duration of the Emeishan large igneous province: Insight from northern Vietnam. Geology 2020, 48, 457–461. [Google Scholar] [CrossRef]
  87. Ferlito, C.; Coltorti, M.; Lanzafame, G.; Giacomoni, P.P. The volatile flushing triggers eruptions at open conduit volcanoes: Evidence from Mount Etna volcano (Italy). Lithos 2014, 184, 447–455. [Google Scholar] [CrossRef]
  88. Valentine, G.A.; Gregg, T.K.P. Continental basaltic volcanoes—Processes and problems. J. Volcanol. Geotherm. Res. 2008, 177, 857–873. [Google Scholar] [CrossRef]
  89. Song, X.-Y.; Qi, H.-W.; Hu, R.-Z.; Chen, L.-M.; Yu, S.-Y.; Zhang, J.-F. Formation of thick stratiform Fe-Ti oxide layers in layered intrusion and frequent replenishment of fractionated mafic magma: Evidence from the Panzhihua intrusion, SW China. Geochem. Geophys. Geosystems 2013, 14, 712–732. [Google Scholar] [CrossRef]
  90. Hergt, J.; Peate, D.; Hawkesworth, C. The petrogenesis of Mesozoic Gondwana low-Ti flood basalts. Earth Planet. Sci. Lett. 1991, 105, 134–148. [Google Scholar] [CrossRef]
  91. Mahoney, J.J.; Coffin, M.F. Large Igneous Provinces: Continental, Oceanic, and Planetary Flood Volcanism; American Geophysical Union: Washington, DC, USA, 1997; Volume 100. [Google Scholar]
  92. Leterrier, J.; Maury, R.C.; Thonon, P.; Girard, D.; Marchal, M. Clinopyroxene composition as a method of identification of the magmatic affinities of paleo-volcanic series. Earth Planet. Sci. Lett. 1982, 59, 139–154. [Google Scholar] [CrossRef]
  93. Schweitzer, E.; Papike, J.; Bence, A.E. Statistical analysis of clinopyroxenes from deep-sea basalts. Am. Mineral. 1979, 64, 501–513. [Google Scholar] [CrossRef]
Minerals 10 00979 g001 550

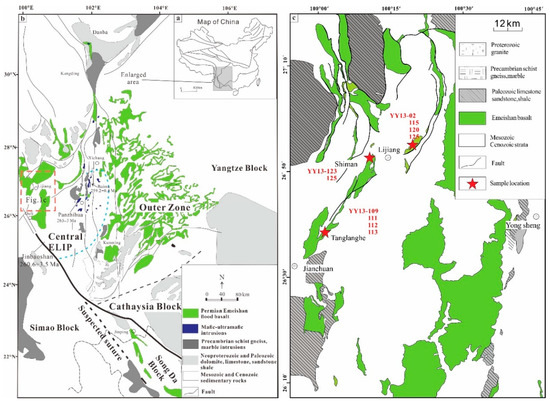

Figure 1. (a) Geologic map showing the simplified tectonic framework of China. (b) Distribution of the late-Permian Emeishan flood basalts and coeval mafic intrusions, modified after Yu et al. (2017) [6]. (c) Sample locations in this study.
Figure 1. (a) Geologic map showing the simplified tectonic framework of China. (b) Distribution of the late-Permian Emeishan flood basalts and coeval mafic intrusions, modified after Yu et al. (2017) [6]. (c) Sample locations in this study.
Minerals 10 00979 g001
Minerals 10 00979 g002 550

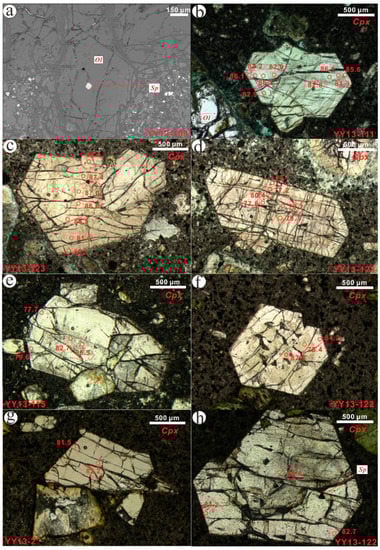

Figure 2. Representative BSE and microphotographs (plane-polarized light) of phenocrysts in studied samples. (a) Olivine phenocryst in high-Mg basalt. (b–d) Cpx phenocryst in high-Mg basalt. (e–h) Cpx phenocryst in low-Mg basalt. (The red square denotes the EPMA analytical spot for major elements. The number beside the red square represents the Mg# [MgO/(MgO + FeO)]. Ol = olivine, Cpx = clinopyroxene, Sp = spinel).
Figure 2. Representative BSE and microphotographs (plane-polarized light) of phenocrysts in studied samples. (a) Olivine phenocryst in high-Mg basalt. (b–d) Cpx phenocryst in high-Mg basalt. (e–h) Cpx phenocryst in low-Mg basalt. (The red square denotes the EPMA analytical spot for major elements. The number beside the red square represents the Mg# [MgO/(MgO + FeO)]. Ol = olivine, Cpx = clinopyroxene, Sp = spinel).
Minerals 10 00979 g002
Minerals 10 00979 g003 550

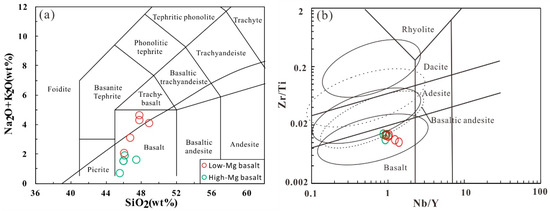

Figure 3. (a) Total alkali (Na2O + K2O) versus SiO2 (TAS); (b) Nb/Y versus Zr/Ti(after Le Maitre et al. [65]. The diagram for sub-alkaline rocks is from Pearce 1996 [66]).
Figure 3. (a) Total alkali (Na2O + K2O) versus SiO2 (TAS); (b) Nb/Y versus Zr/Ti(after Le Maitre et al. [65]. The diagram for sub-alkaline rocks is from Pearce 1996 [66]).
Minerals 10 00979 g003
Minerals 10 00979 g004 550
Figure 4. (a) Chondrite-normalized REE patterns of the low-Mg and high-Mg basalt. (b) Primitive mantle-normalized diagrams of incompatible elements for the low-Mg and high-Mg basalt. (The Chondrite and Primitive mantle values from Sun and McDonough (1989) [68]).
Figure 4. (a) Chondrite-normalized REE patterns of the low-Mg and high-Mg basalt. (b) Primitive mantle-normalized diagrams of incompatible elements for the low-Mg and high-Mg basalt. (The Chondrite and Primitive mantle values from Sun and McDonough (1989) [68]).
Minerals 10 00979 g004
Minerals 10 00979 g005 550

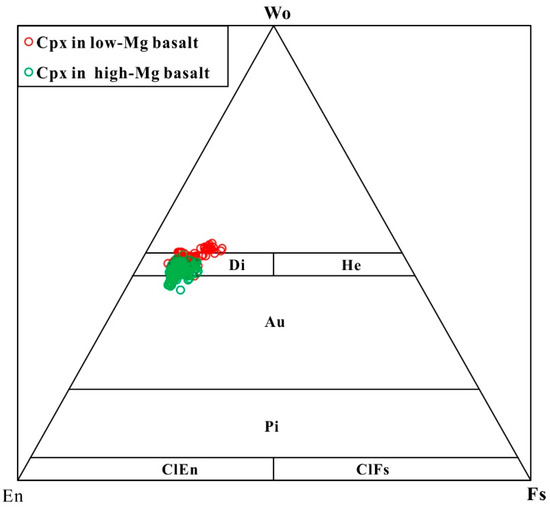

Figure 5. The pyroxene composition diagram (Di—diopside, Hehedenbergite, Au—Augite, Pi—Pigeonite, ClEn—clinoenstatite, ClFs—clinoferrosilite, Morimoto, 1988 [69]).
Figure 5. The pyroxene composition diagram (Di—diopside, Hehedenbergite, Au—Augite, Pi—Pigeonite, ClEn—clinoenstatite, ClFs—clinoferrosilite, Morimoto, 1988 [69]).
Minerals 10 00979 g005
Minerals 10 00979 g006 550

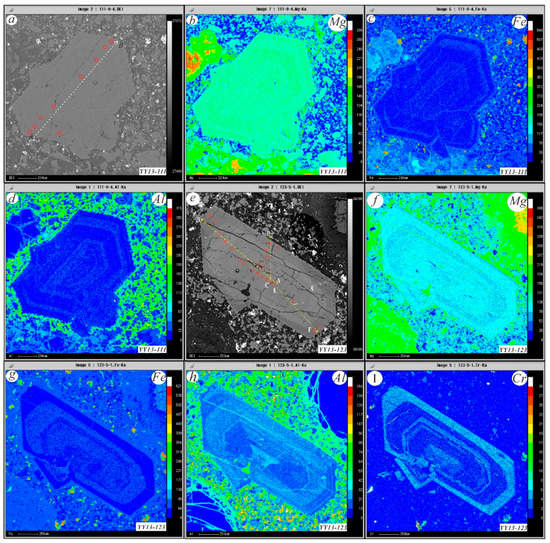

Figure 6. (a,e)The back-scattered electron images of the Cpx crystal from the high-Mg basalt sample YY13-111 and YY13-123, respectively, the detail data of the white dotted arrows from A to B are presented in Figure 7, Figure 8 and Supplements Figure S3. (b–d) and (f–i) qualitative WDS maps of Mg, Fe, Al and Cr.
Figure 6. (a,e)The back-scattered electron images of the Cpx crystal from the high-Mg basalt sample YY13-111 and YY13-123, respectively, the detail data of the white dotted arrows from A to B are presented in Figure 7, Figure 8 and Supplements Figure S3. (b–d) and (f–i) qualitative WDS maps of Mg, Fe, Al and Cr.
Minerals 10 00979 g006
Minerals 10 00979 g007 550

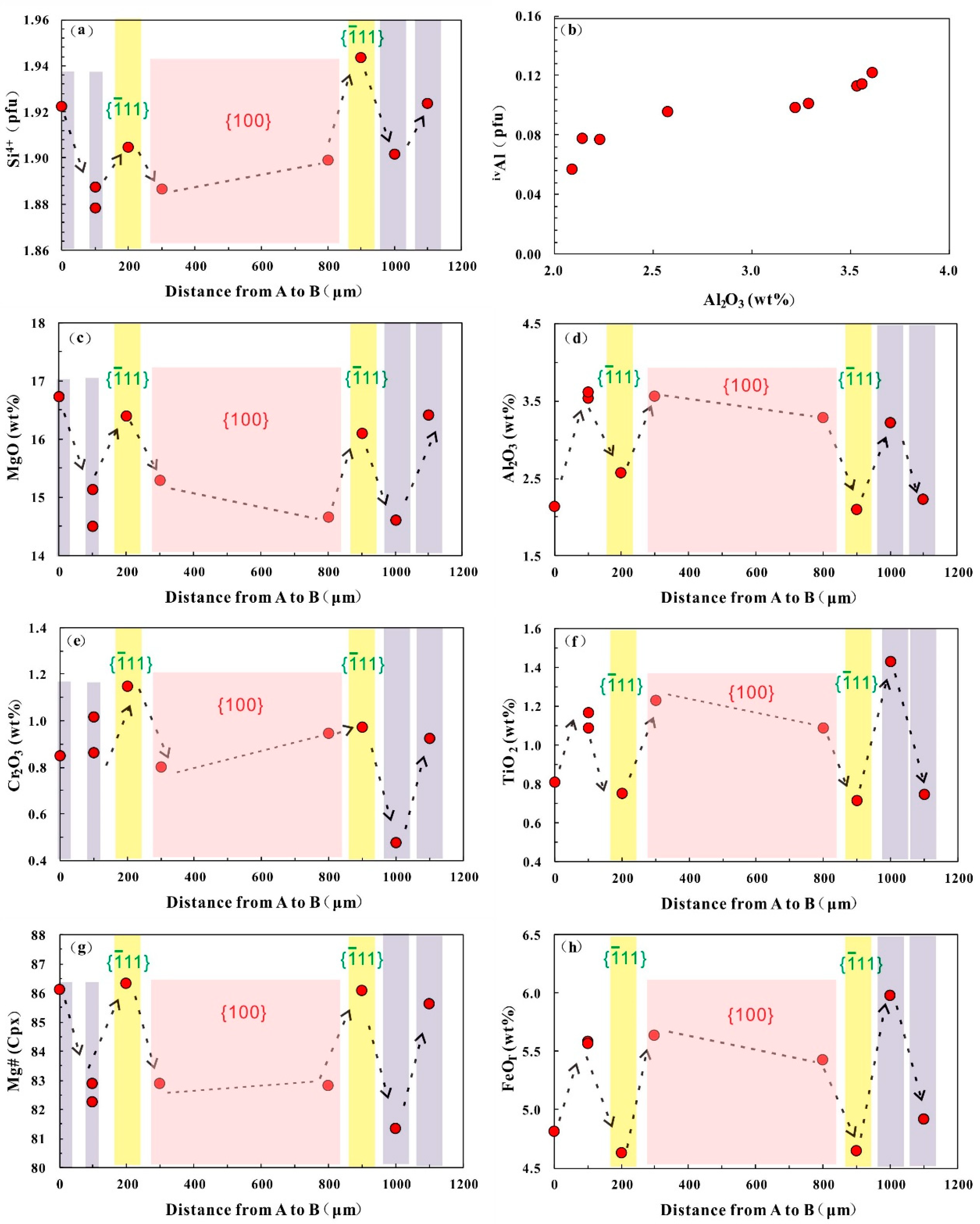

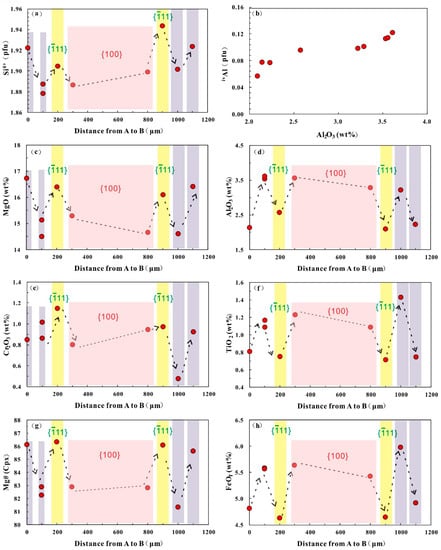

Figure 7. Elemental profiles (A to B) for the zoned Cpx phenocryst of the high-Mg basalt sample YY13-111. Profile analysis shows oscillatory zonings in the elements of Si, Mg, Cr, Ti and Al. The MgO and Cr2O3 show strong negative correction with the Al2O3, TiO2 and FeO. The {100} shows Al2O3, TiO2 FeO enrichment compared with the {-100}. (a–h) Major elements variations along the line (from A to B).
Figure 7. Elemental profiles (A to B) for the zoned Cpx phenocryst of the high-Mg basalt sample YY13-111. Profile analysis shows oscillatory zonings in the elements of Si, Mg, Cr, Ti and Al. The MgO and Cr2O3 show strong negative correction with the Al2O3, TiO2 and FeO. The {100} shows Al2O3, TiO2 FeO enrichment compared with the {-100}. (a–h) Major elements variations along the line (from A to B).
Minerals 10 00979 g007
Minerals 10 00979 g008 550

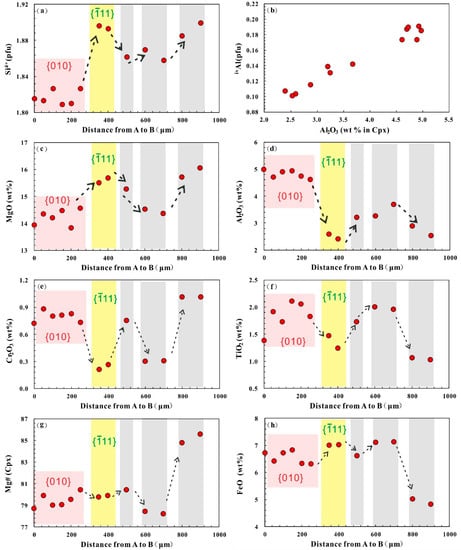

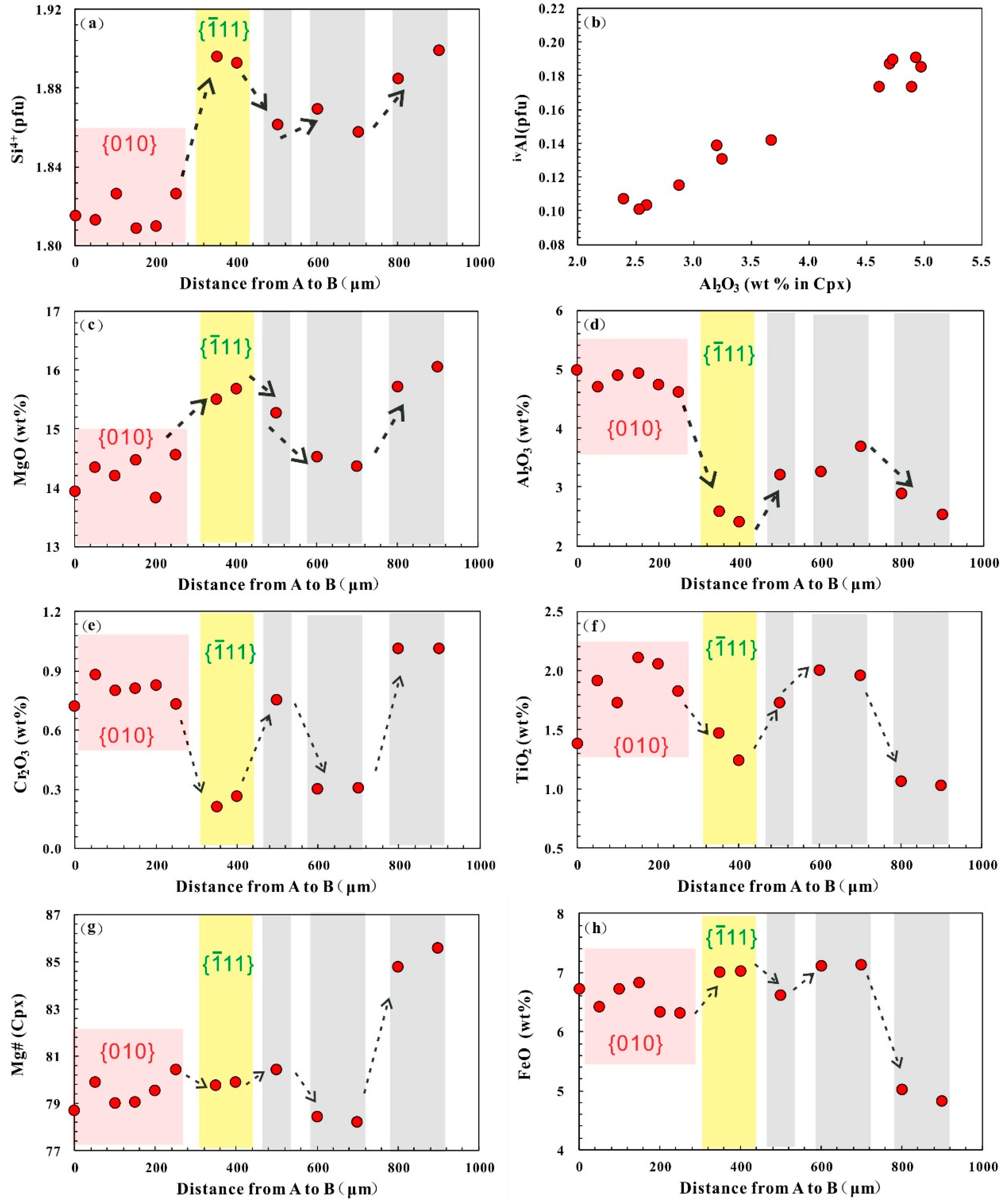

Figure 8. Elemental profles (A to B) for the zoned Cpx phenocryst of the high-Mg basalt sample YY13-123. Profle analysis shows oscillatory zonings in the elements of Si, Mg, Cr, Ti and Al. The MgO and Cr2O3 show strong negative correction with the Al2O3, TiO2 and FeO. The {010} shows Al2O3, TiO2 FeO enrichment compared with the {-100}. (a–h) Major elements variations along the line (from A to B).
Figure 8. Elemental profles (A to B) for the zoned Cpx phenocryst of the high-Mg basalt sample YY13-123. Profle analysis shows oscillatory zonings in the elements of Si, Mg, Cr, Ti and Al. The MgO and Cr2O3 show strong negative correction with the Al2O3, TiO2 and FeO. The {010} shows Al2O3, TiO2 FeO enrichment compared with the {-100}. (a–h) Major elements variations along the line (from A to B).
Minerals 10 00979 g008
Minerals 10 00979 g009 550

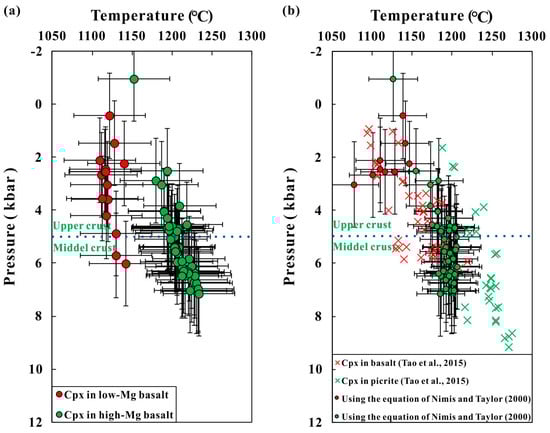

Figure 9. Cpx equilibrium pressures and temperatures calculated by chemical thermobarometry. Each sign denotes data point from Cpx phenocryst-matrix pair. (The error bars in a and b show the SEE of the geothermometer methods from Putirka, 2008 [22] and Nimis and Talyor (2000) [82], respectively). (a) P-T calculation based on the model of Putirka, 2008 [22]; (b) P-T calculation based on the model of Nimis and Talyor (2000) [82].
Figure 9. Cpx equilibrium pressures and temperatures calculated by chemical thermobarometry. Each sign denotes data point from Cpx phenocryst-matrix pair. (The error bars in a and b show the SEE of the geothermometer methods from Putirka, 2008 [22] and Nimis and Talyor (2000) [82], respectively). (a) P-T calculation based on the model of Putirka, 2008 [22]; (b) P-T calculation based on the model of Nimis and Talyor (2000) [82].
Minerals 10 00979 g009
Minerals 10 00979 g010 550

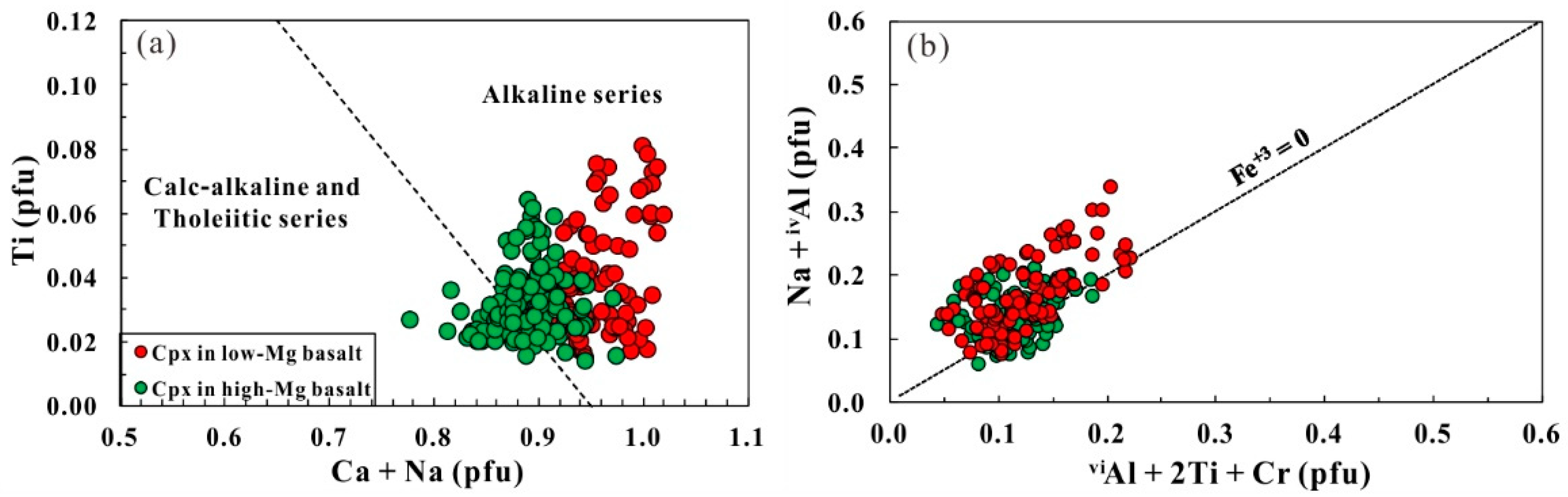

Figure 10. (a) Discrimination diagrams of (Ca+Na) vs. Ti (from Leterrier et al. (1982) [92]); (b) (Avi + Na) vs. (Alvi + 2Ti + Cr) (from Schweitzer et al. (1979) [93]).
Figure 10. (a) Discrimination diagrams of (Ca+Na) vs. Ti (from Leterrier et al. (1982) [92]); (b) (Avi + Na) vs. (Alvi + 2Ti + Cr) (from Schweitzer et al. (1979) [93]).
Minerals 10 00979 g010
Minerals 10 00979 g011 550

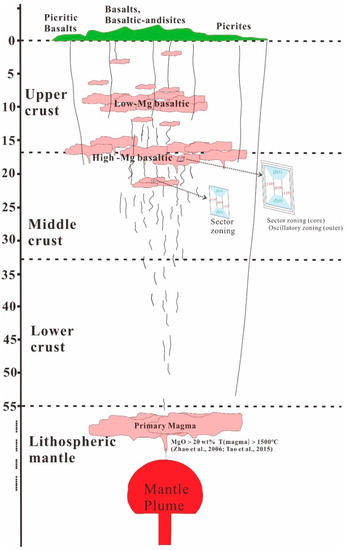

Figure 11. A schematic model of the magma plumbing system of the ELIP.
Figure 11. A schematic model of the magma plumbing system of the ELIP.
Minerals 10 00979 g011
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Hu, J.-H.; Liu, J.-W.; Song, T.; Shi, B.-S. Magma Plumbing System of Emeishan Large Igneous Province at the End-Permian: Insights from Clinopyroxene Compositional Zoning and Thermobarometry. Minerals 2020, 10, 979. https://doi.org/10.3390/min10110979

AMA Style

Hu J-H, Liu J-W, Song T, Shi B-S. Magma Plumbing System of Emeishan Large Igneous Province at the End-Permian: Insights from Clinopyroxene Compositional Zoning and Thermobarometry. Minerals. 2020; 10(11):979. https://doi.org/10.3390/min10110979

Chicago/Turabian Style

Hu, Jun-Hao, Jing-Wen Liu, Tao Song, and Bai-Shun Shi. 2020. "Magma Plumbing System of Emeishan Large Igneous Province at the End-Permian: Insights from Clinopyroxene Compositional Zoning and Thermobarometry" Minerals 10, no. 11: 979. https://doi.org/10.3390/min10110979

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
