A Review of In Situ Isotopic Studies of the Oklo and Bangombé Natural Fission Reactors Using Microbeam Analytical Techniques

Abstract

Isotopic analyses of elements in the natural reactor materials have often been performed to understand the distribution behaviors of the fission products and to evaluate the function of nuclear reactions since the first discovery of a natural reactor in 1972. Several types of unique microminerals, including significant amounts of fission products, have been found in and around the Oklo and the Bangombé natural reactors. In the past two decades, microbeam techniques using ion and laser probe facilities have been effectively applied for the in situ isotopic analyses of individual microminerals to investigate the migration behaviors of fissiogenic radioisotopes produced in the reactors. This paper presents a review of interpretations of the isotopic results of microminerals found in and around the natural reactors.

1. Introduction

The isotopic compositions of various elements in and around the Oklo and Bangombé natural reactors vary significantly because of the incorporation of fission products and the influence of nuclear reactions in the reactors. Isotopic analyses of the elements in the reactor materials provide useful information to understand the distribution behaviors of the fission products and to evaluate the function of nuclear reactions.

Before 2000, most isotopic studies were performed on bulk rock samples with chemical procedures. The samples were digested by acid and once turned to the solutions. Individual elements were then chemically separated for the isotopic analyses by thermal ionization mass spectrometry (TIMS) and/or inductively coupled plasma mass spectrometry (ICP-MS). In these conventional analyses, the results reveal the average information from the whole of the sample. However, the elements in the samples are heterogeneously distributed mainly in the individual minerals and/or specific microregions consisting of the samples. In the past two decades, in situ isotopic analyses using laser and ion probes have been widely applied in the geosciences research field. In situ isotopic instruments can analyze selected regions on a μm to nm scale, which is advantageous for analyses of fission products that are known to be heterogeneously distributed in uranium matrices. In fact, several kinds of microminerals consisting of fissiogenic isotopes were found in and around the natural reactors.

In this paper, I would like to review the isotopic results related to the Oklo and Bangombé reactors mainly based on my works using a sensitive high-resolution ion microprobe (SHRIMP) in the past two decades. The SHRIMP was originally designed at the Australian National University for the purpose of analyzing geological materials with a high spatial resolution and has been used particularly for in situ U–Pb analyses on individual zircon grains. As in other applications, the SHRIMP has been used for isotopic analyses of several elements of the natural reactor samples. My primary concern is to understand the long-term geochemical behaviors of fissiogenic isotopes produced in the reactors. Reactor samples generally consist of fissiogenic and nonfissiogenic components. The proportion of the two components can be identified from isotopic compositions of individual elements by mass spectrometric analyses. Variations in isotopic compositions resulting from the nuclear reactions can be used as tracers to understand the geochemical behavior of fission products in and around the reactors. Besides my work related to SHRIMP, two more topics, namely the use of a noble gas mass spectrometer with a laser probe and a secondary ion mass spectrometer (SIMS) combined with an accelerator mass spectrometer are covered in the latter part of this paper. Finally, I will introduce a unique isotopic approach to examine possible variations in fundamental constants, as one of the implications of the Oklo studies on particle physics.

The description of the samples treated in this paper and the related information are listed in

Table 1. Descriptions of the samples used for in situ isotopic analyses.

Reactor Zone	Location	Matrix	Minerals	Element	Reference
Oklo RZ10	D81-13	in RZ	uraninite	U, Pb, Nd, Sm, Gd	[1]
Oklo RZ13	SD37	in RZ	ε-particle	U, Zr, Ru, Mo	[2]
	SD37-10	sandstone	illite, calcite, quartz	U, Pb, Ba	[3]
	SD37-	in RZ	uraninite, phosphate	Kr, Xe	[4,5]
	SD37-	in RZ	uraninite	Ba, Cs, Eu	[6]
Bangombé	BAX03-1040	black shales	uraninite	U, Pb, Ce, Nd, Sm, Eu	[7]
	BAX03-1065	black shales	uraninite	U, Pb, Ce, Nd, Sm, Eu	[7]
	BAX03-1170	clay	coffinite, zircon, galena	U, Pb, Ce, Nd, Sm, Eu	[8]
	BAX03-1215	sandstone	uraninite	U, Pb	[9]
	BAX03-1225	sandstone	coffinite, françoisite	U, Pb, Ce, Nd, Sm, Eu	[9]
	BAX03-1240	sandstone	coffinite	U, Pb, Ce, Nd, Sm	[9]
	BAX03-1290	sandstone	uraninite, goethite	U, Pb, Ce, Nd, Sm	[9]

RZ, reactor zone.

.

2. SHRIMP Analyses

2.1. Selective Uptake of ²²⁶Ra in Clay Minerals Deduced from ²⁰⁶Pb Isotopic Excess

Radium has no stable isotopes. Radium-226, having the longest half-life (t_1/2 = 1600 years) among radium isotopes, exists as a precursor of decay product from ²³⁸U in nature and ultimately decays to ²⁰⁶Pb. It is of particular interest to recognize the environmental behavior of Ra from the viewpoint of the long-term safety of radioactive waste disposal. However, experimental approaches of Ra behavior in the natural environment has proven difficult due to its high radioactivity, and Ra is difficult to analyze by direct detection because of its extremely low level in nature. Isotopic evidence of Ra transportation and its selective uptake into clay minerals was found indirectly from Pb isotopic analyses of the clays in and around the Oklo reactor zone (RZ) [3].

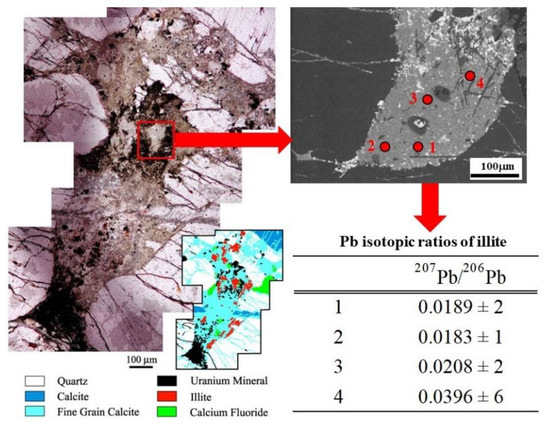

In a sandstone layer at underground drift SD37 close to RZ13, there are numerous calcite veins. It is considered that the calcite veins were formed in association with the hydrothermal effect related to a dolerite dyke intrusion that occurred 860 Ma ago about 15 m from RZ13. The sample collected from the sandstone layer at drift SD37 contains small illite grains (a few tens to 100 μm in size) found in fine calcite veins with a width of 0.1–0.2 mm in the quartz matrix (Figure 1). As the result of the systematic Pb isotopic study of this sample, the data on calcite and quartz coexisting with illite indicate the formation age of each component, 2.15 Ga and 0.88 Ga, respectively, while those of illite do not. It is worth noting that most Pb isotopic ratios in the illite grains show ²⁰⁷Pb/²⁰⁶Pb < 0.04604, which is less than a lower limit of natural radiogenic Pb isotopic ratio decayed from the secular equilibrium in the ²³⁵U- and ²³⁸U-decay systems.

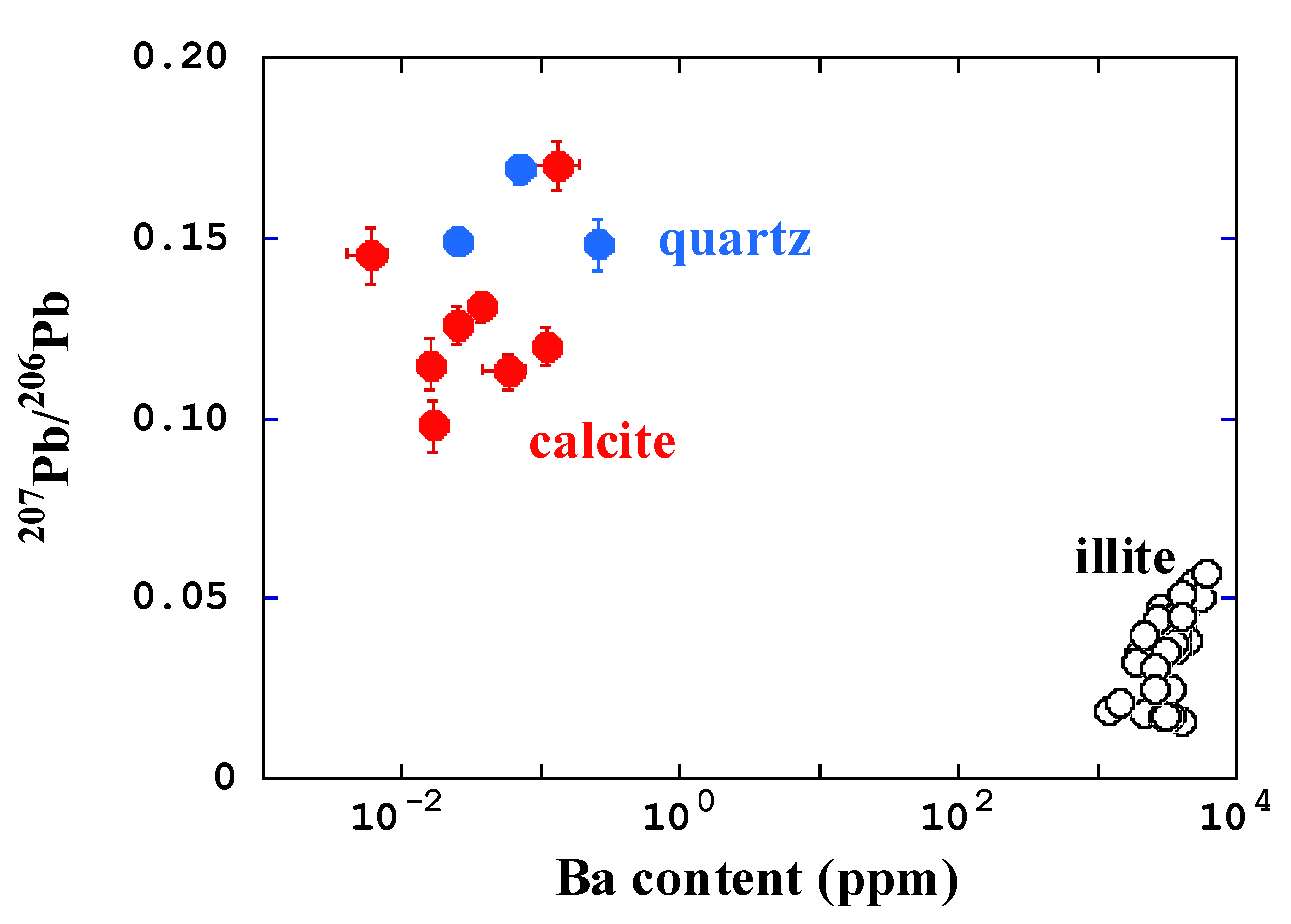

Two possible explanations are considered to produce the extremely low ²⁰⁷Pb/²⁰⁶Pb isotopic ratios in the illite grains: (1) Pb decayed from depleted U, or (2) enrichment of ²⁰⁶Pb in the natural system surrounding RZ13. Depleted U can indeed produce lower ²⁰⁷Pb/²⁰⁶Pb, however, an extremely high depletion of ²³⁵U (²³⁵U/²³⁸U < 0.00096) is necessary to produce low ²⁰⁷Pb/²⁰⁶Pb such as 0.0183 observed in the illite. Such a high depletion of ²³⁵U has not been reported even in the RZs. Uranium isotopic compositions in the illite show normal values (²³⁵U/²³⁸U = 0.00725) without depletion of ²³⁵U.

It is reasonable to consider that the enrichment of ²⁰⁶Pb results in low ²⁰⁷Pb/²⁰⁶Pb ratios from the selective uptake of ²²⁶Ra on the illite grains. The selective uptake of Ra on clay minerals such as bentonite, kaolinite, illite and montmorillonite has been reported in experimental sorption studies [10,11]. In most studies on the geochemical behavior of Ra, Ba has been often used as a chemical tracer of ²²⁶Ra because of the chemical similarities between Ba and Ra [12,13]. The illite grains from SD37 contain a greater abundance of Ba (up to ~5000 ppm) than other peripheral minerals such as calcite (0.006~0.13 ppm) and quartz (0.025~0.26 ppm). Figure 2 shows a diagram between Ba elemental abundances and Pb isotopic ratios in the illite, calcite and quartz of the sample from one of drifts, SD37, closely located at RZ13. The data points of illite with high Ba contents and low ²⁰⁷Pb/²⁰⁶Pb isotopic ratios are fairly isolated from the other data points of quartz and calcite in the figure. The following scenario is reasonable to produce abnormally low ²⁰⁷Pb/²⁰⁶Pb isotopic ratios in the illite: (1) CO₂-rich groundwater fills veins in the basement rocks near the U-deposit; (2) Ra leaches from a chemically weathered U-deposit, and as Ra carbonate is soluble, Ra dissolves and is carried away by CO₂-rich groundwater; (3) Ra (and Ba) is selectively adsorbed on illite grains migrated in the veins; (4) Adsorbed ²²⁶Ra decays to ²⁰⁶Pb, resulting in low ²⁰⁷Pb/²⁰⁶Pb isotopic ratios due to the enrichment of ²⁰⁶Pb [3].

2.2. Migration Behavior of ²³⁹Pu Evaluated from the Isotopic Variations of ²³⁵U

Several types of actinide isotopes were produced by nuclear reactions in the Oklo RZs. The major actinide isotopes produced in the reactors are ²³⁶U, ²³⁷Np, and ²³⁹Pu, and they ultimately decayed to ²³²Th, ²⁰⁹Bi and ²³⁵U, respectively. ²³⁵U depletion (²³⁵U/²³⁸U < 0.00725) has been generally found in the Oklo RZ samples, because the fission of ²³⁵U was main reaction. Uranium-235-depleted U migrated from the reactor to peripheral rocks associated with dissolution of reactor U, to produce isotopic anomalies in the wall rocks of the reactor itself. However, as a very rare case, isotopic enrichment of ²³⁵U (²³⁵U/²³⁸U > 0.00725) was found and interpreted as a result of selective uptake of ²³⁹Pu in association with chemical differentiation between U and Pu. The production of ²³⁹Pu occurs by the neutron capture reaction of ²³⁸U(n, γ2β⁻)²³⁹Pu in the reactors. Then, ²³⁹Pu decays with a half-life of 2.4 × 10⁴ years, to ²³⁵U. Uranium-235 isotopic enrichments have been observed in clay minerals found in the surrounding rock of the Oklo reactors [14] and in apatite [1,15].

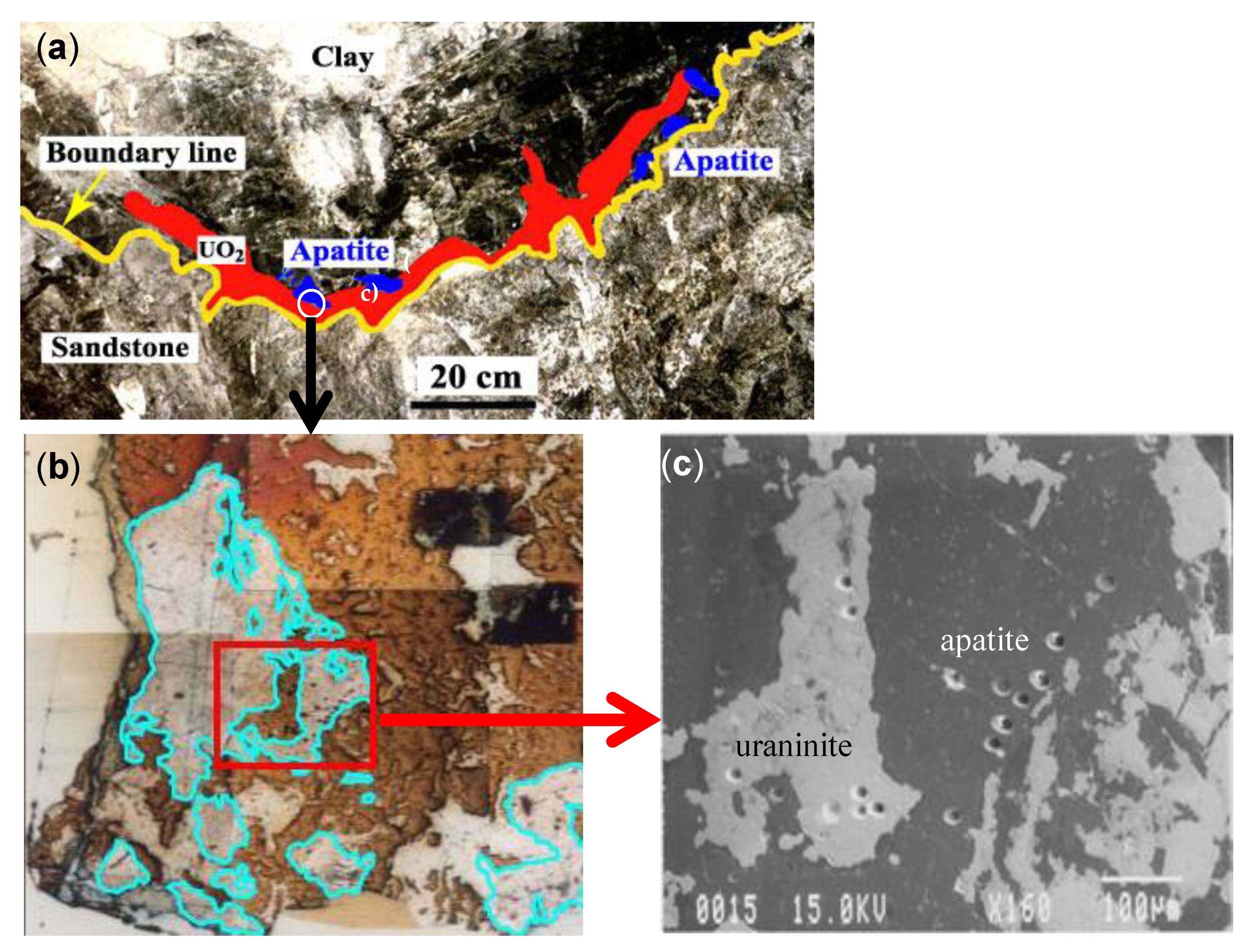

Early investigations of the Oklo reactors (RZs1-6) lead to the conclusion that Pu has not migrated out of the reactors [16]. However, as a result of in situ U isotopic analyses by SHRIMP, as shown in Figure 3, apatite grain from the boundary between RZ10 and the sandstone layer showed significantly large ²³⁵U excess up to ²³⁵U/²³⁸U = 0. 01707 [1], although uraninites surrounding the apatite showed depleted ²³⁵U (²³⁵U/²³⁸U = 0.0066). It seems reasonable that Pu was trapped into the apatite grain, because the apatite includes a large amount of LREE. LREE and especially Nd are often used as a geochemical analogue of Pu [17,18]. Considering that a large amount of Nd is included in the apatite grain, it seems reasonable that Pu was trapped in the apatite grain. Plutonium might be present as trivalent from under reducing conditions and behaved with other trivalent species such as Nd.

2.3. Evidence for Water Radiolysis in the Natural Reactors

Spent fuel in contact with water undergoes oxidative dissolution under both oxidizing and reducing environments through the formation of water radiolysis products, OH* and H₂O₂ [19]. Interestingly, geochemical evidence of water radiolysis can be seen in the natural products of the Oklo RZs.

The major Pb minerals found in the natural reactors are galena (PbS). 20–30 μm-sized galena grains are often observed in the uraninite matrices of all over the reactors. Besides the galena grains, very rare lead oxide minerals, minium (Pb₃O₄), are found in a chlorite matrix and in an apatite crystal at the boundary region of RZ10 [1,20]. Highly oxidizing conditions are necessary for the formation of minium. However, such oxidizing conditions are generally not expected in natural reactors where reducing conditions have prevailed. Redox conditions of the formation of Pb minerals are restricted to low oxygen fugacity (fO₂) for PbS, and high fO₂ for Pb₃O₄. Radiolysis of water is the only means of producing the locally oxidizing conditions in natural reactors. Radiolysis of water is commonly observed when the spent fuel is exposed to groundwater; oxidants (OH*, H₂O₂, HO₂* and O₂) and reductants (hydrated electrons, H* and H₂) are then produced in the spent fuel. The oxidants from radiolysis of water may have been stored and played a role in locally changing the oxidizing conditions in the natural reactors.

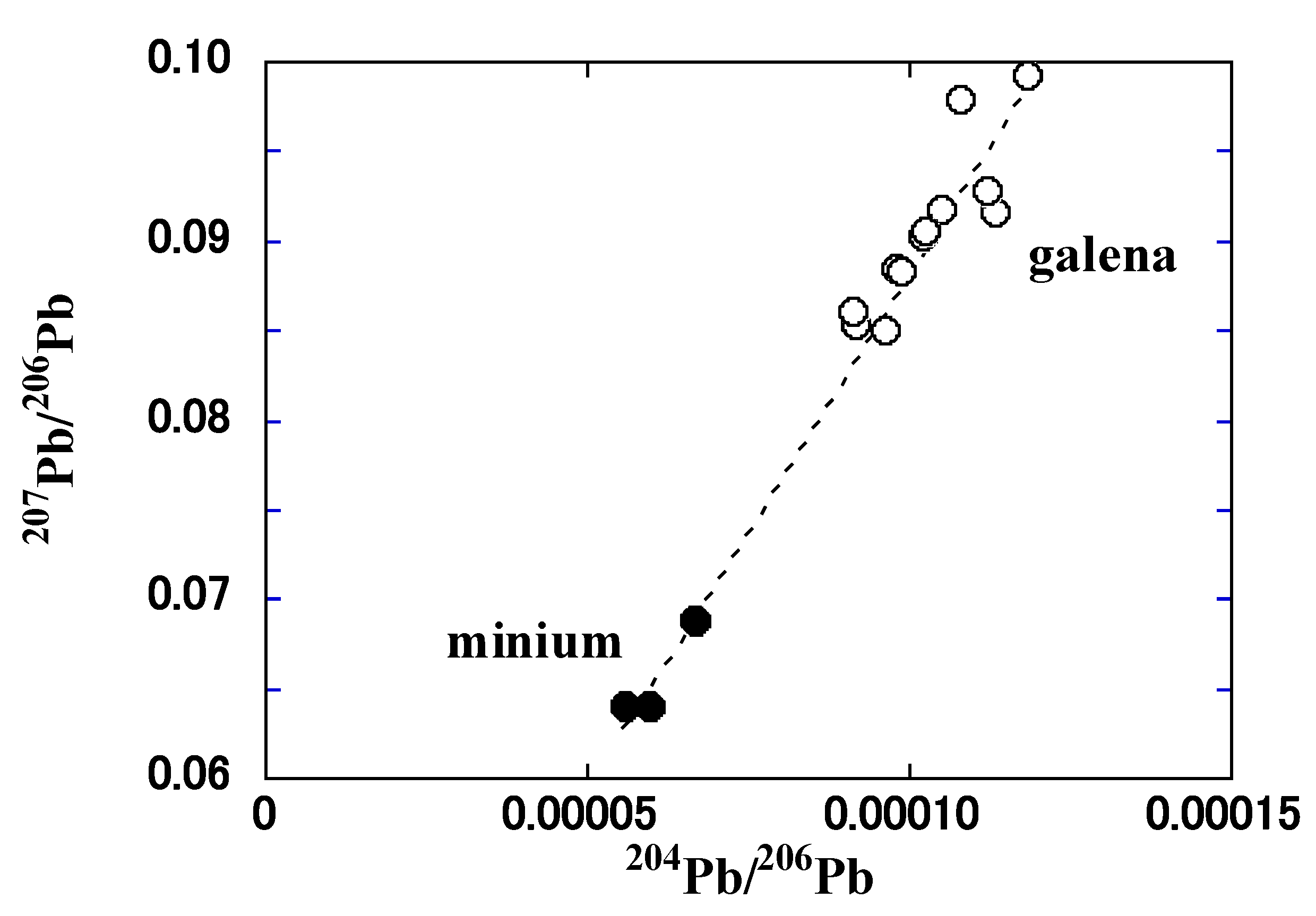

Isotopic analyses showed that nearly all Pb isotopes of galena and minium grains are radiogenic with very low common Pb abundances (²⁰⁴Pb/²⁰⁶Pb < 0.00012 for galena, and <0.00007 for minium). Figure 4 shows a ²⁰⁴Pb/²⁰⁶Pb vs. ²⁰⁷Pb/²⁰⁶Pb diagram of galena and minium in a uraninite of RZ10. The data points of galena and minium are plotted on the same single line, suggesting that the minium was formed by later dissolution of the galena.

2.4. Isotopic Variations of Fissiogenic Mo, Zr, and Ru in ε-Particles

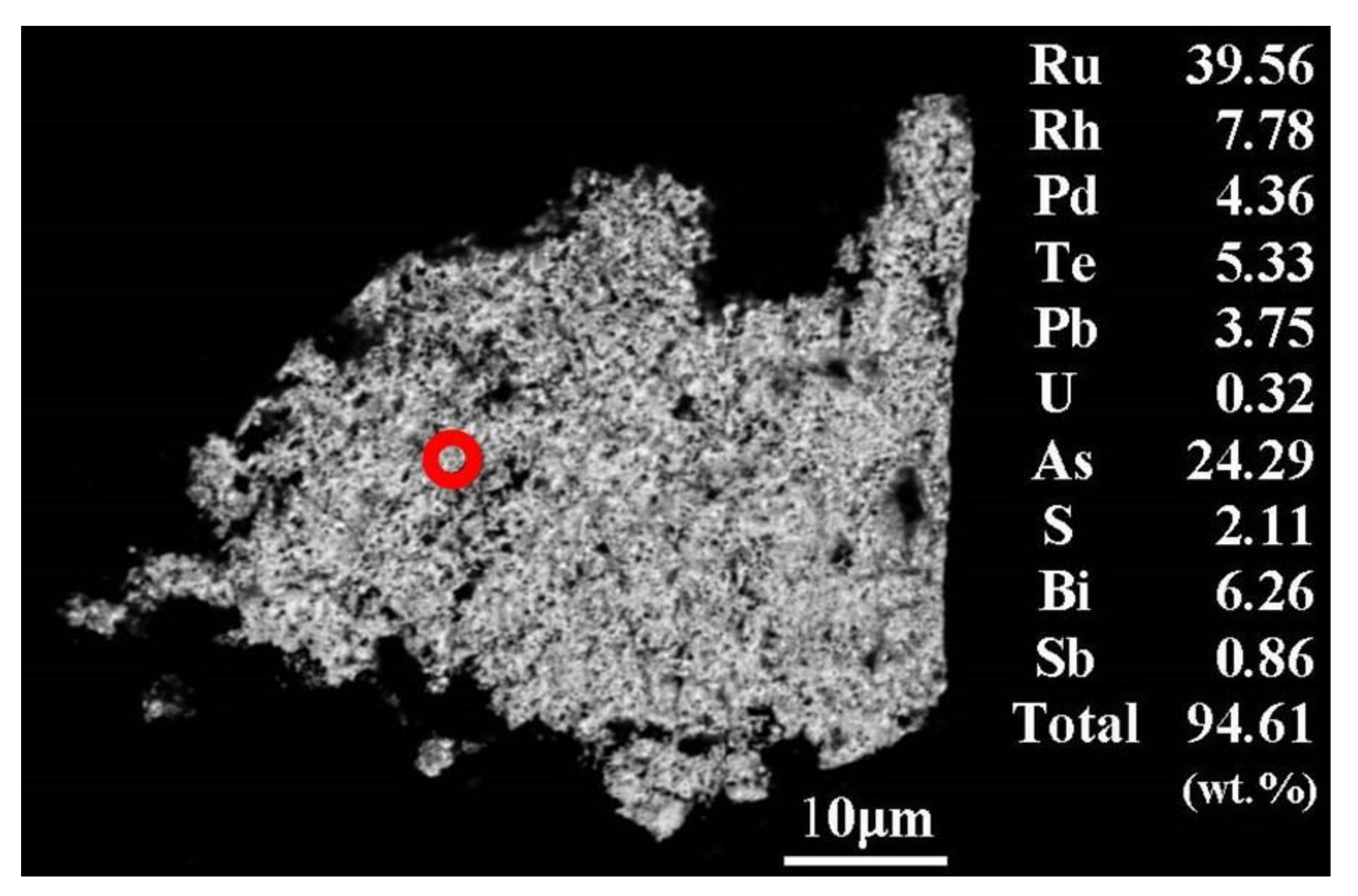

Tiny alloy particles consisting of fissiogenic Mo, Tc, Ru, Rh, Pd, Ag, Cd, In, Sn, Sb and Te, which are referred to as ε-particles, are formed in spent nuclear fuels [21]. The electron microscopic observation shows that the ε-particles are localized in the grain boundary regions and/or in the fuel-clad gap [22]. The chemical compositions of the ε-particles extracted from spent fuel vary in a narrow range and the averages for the chemical composition (wt. %) are 32.7% Mo, 40.5% Ru, 7% Tc, 4.2% Rh, 11.7% Pd and 3.8% Te [23]. Finding the similar particles in RZs10 and 13 of the Oklo uranium deposit [24,25,26,27] and in sandstone below the Bangombé RZ [28] have been reported. The particles consist of several fine minerals intergrown with galena (PbS) and U-rich minerals [24]. The sizes of the aggregates are generally small in the range from a few μm to 100 μm. Larger-sized particles with diameters of ~100 μm, as shown in Figure 5, were found particularly in the sample SD37-S2/CD collected from RZ13.

Because many elements in the Oklo reactors show the isotopic variations due to fission and neutron capture reactions, isotopic results from the reactor materials may provide practical information on the long-term behavior of fission products in the samples. Isotopic analyses in microscopic regions by secondary ion mass spectrometry (SIMS) make it possible to understand the migration and retardation processes of fission products in individual minerals. In particular, a large variation in the ⁹⁹Ru/¹⁰¹Ru isotopic ratios was observed in the ε-particles, while other isotopic ratios such as ⁹⁰Zr/⁹¹Zr and ⁹⁵Mo/⁹⁷Mo were nearly constant in the particles [2]. The data suggest that the ε-particles formed under various redox conditions. The Zr and Mo isotopic ratios, ⁹⁰Zr/⁹¹Zr = 1.7–2.1 and ⁹⁵Mo/⁹⁷Mo = 0.82–0.93, for most particles showed little variations, which can be simply explained by a two-component mixing between fissiogenic and nonfissiogenic materials. On the other hand, a large variation in the ⁹⁹Ru/¹⁰¹Ru ratios from 0.32 to 1.7 cannot be explained only by the mixing of fissiogenic and nonfissiogenic components. The data suggest that chemical fractionation occurred between Tc and Ru under various redox conditions due to the radiolysis of water before decay of ⁹⁹Tc with a half-life of 2.1 × 10⁵ years to ⁹⁹Ru. In addition, a large variation of ²³⁵U/²³⁸U in the range from 0.00478 to 0.01466 was also found in the same particles [2]. In the case of U isotopic compositions, depletion of ²³⁵U is generally observed in the reactor materials because of the consumption of ²³⁵U by fission. In particular, isotopic excess of ²³⁵U can be explained by the enrichment of ²³⁹Pu after chemical fractionation between Pu and U in local oxidizing conditions made possible by radiolytic oxygen [1]. The large variations in ⁹⁹Ru/¹⁰¹Ru and ²³⁵U/²³⁸U isotopic ratios suggest the implication of water radiolysis for the formation of ε-particles under various redox conditions.

2.5. Fissiogenic REE in Phosphate, Uraninite and Zircon

It is of great interest to study the behavior of rare earth elements (REE) in the geosphere, because a part of REE (La, Ce, Nd) possesses high fission production yields and their distribution behavior is closely related to general geochemical events. Therefore, it is important to decipher the geochemical behavior of fissiogenic REE in RZs in response to nuclear reactions and postreactor weathering processes.

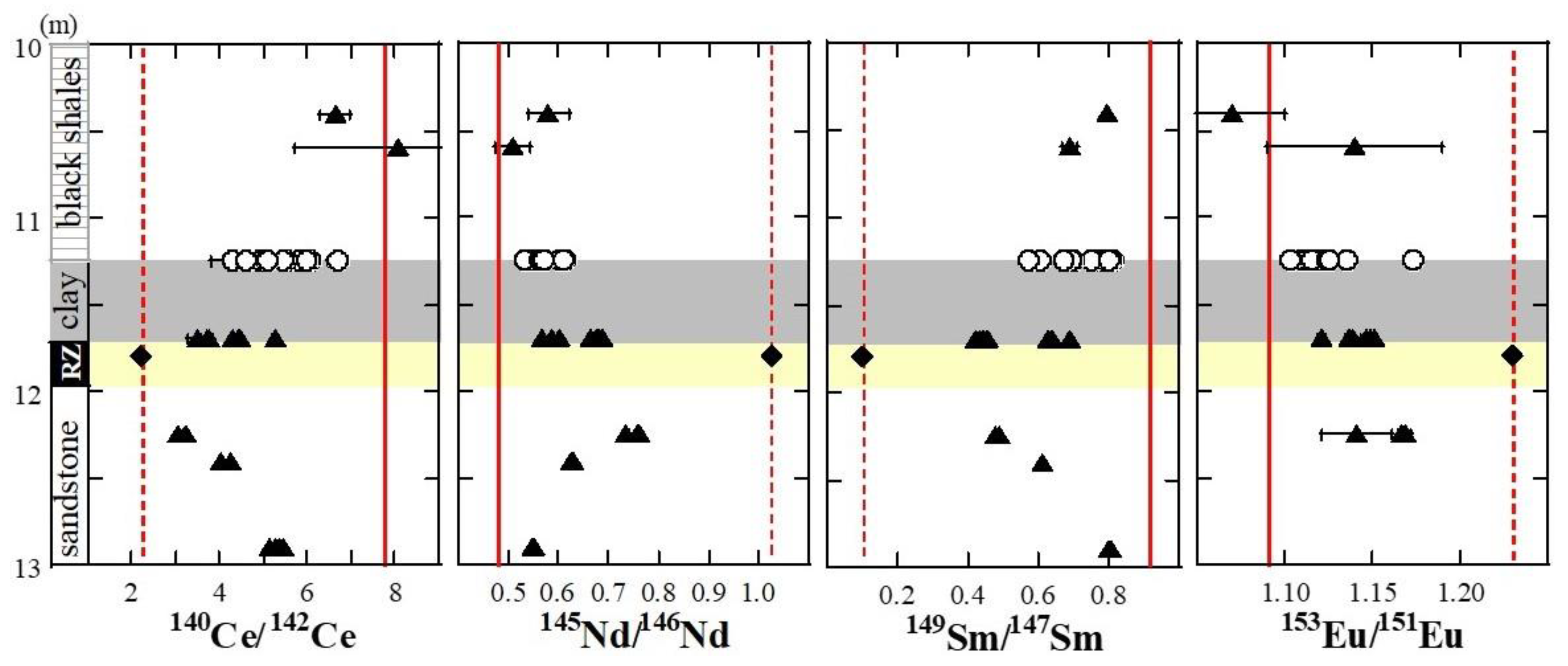

As the result of the isotopic analyses of U and REE, U- and REE-bearing secondary minerals such as coffinite (USiO₄), florencite ((REE)Al₃(PO₄)₂(OH)₆), and françoisite ((REE)(UO₂)₃O(OH)(PO₄)6H₂O) found in a sandstone layer 30‒110 cm beneath the Bangombé RZ contain depleted U and a large amount of fissiogenic lighter REE, such as Ce, Nd, and Eu [9]. Interestingly, the proportion of fissiogenic and nonfissiogenic REE components in the minerals varied based on distance from the RZ. Figure 6 shows a chemical fractionation of individual REE in the secondary minerals based on a two-component mixing model. In the underlayer (sandstone) of the reactor, the proportion of the fissiogenic component for individual elements gradually decreases the greater the distance from the reactor. On the other hand, in the clay layers just above the reactor, the isotopic ratios of individual elements are widely variable between the fissiogenic and nonfissiogenic lines. In addition, most isotopic data in the black shales above the clay layer are close to those of nonfissiogenic materials. These isotopic results in Figure 6 show that clay plays a role as a barrier to trap most fissiogenic REE and to prevent their migration. Furthermore, the chemical differentiation factor of Ce clearly differs from those of other REE, which suggests the occurrence of large fractionation between Ce and other REE during the formation of the secondary minerals under an oxidizing atmosphere.

The two-component mixing model between the 2.05 Ga-old original uraninite and fissiogenic material from the reactor component was also supported by the Pb isotopic data. Furthermore, the Pb isotopic data can put the temporal constraint into the timing of the large mobilization of U, Pb and fissiogenic REE from the reactor of around 0.8 Ga corresponding to the age of dolerite dyke intrusion into the Oklo uranium deposit and the formation of the secondary minerals consisting of the mixture of 2.05 Ga-old original minerals and reactor materials by recent alteration [9].

Zircon is one of accessary minerals which are suitable for U–Pb chronometrical application, because it contains a certain amount of U and less initial Pb. Uranium-lead analysis of zircon using SHRIMP was progressively accepted by the Earth science community, and a wealth of chronological data by SHRIMP has been published since the mid-1980s. To discuss the thermal history of the Oklo and Bangombé areas, U-Pb systematics of zircon are very informative [29,30].

Forty-eight zircon grains from the clay and black shale layers 10 cm and 50 cm above the Bangombé reactor were collected for REE, U and Pb isotopic measurements [7,8]. As a result of mineral observation by back-scattered electron images and Raman spectroscopy, the zircons showed highly altered and low crystallinity. The U contents of the analyzed zircons varied widely from <0.01 to 2.83 × 10⁵ ppm [8]. Some zircon grains contained a certain amount of fissiogenic REE. The U–Pb system was largely disturbed by mobilization and chemical fractionation of U and Pb in association with recent alteration.

3. Fissiogenic Noble Gases in Phosphates

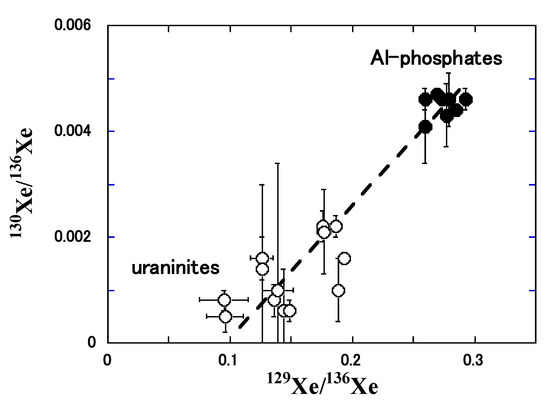

A La-Ce-Sr-Ca aluminous hydroxy phosphate (hereafter, Al-phosphate) found in the SD37 gallery on the east face of RZ13 consists of large amounts of fissiogenic LREE (La, Ce and Nd) and nonfissiogenic Sr [31]. Later, Meshik et al. [4,5] found that the Al-phosphate contains significant amounts of anomalous Xe isotopes including fissiogenic Xe. The concentrations of fissiogenic Xe in the Al-phosphates are considerably higher than those in U-oxides as matrices. This suggests that large amounts of fissiogenic gases were lost from U-oxides and recaptured by Al-phosphates. Interestingly, as shown in Figure 7, the Al-phosphates contain excess ¹³⁰Xe which correlates with ¹²⁹Xe abundances. ¹³⁰Xe is not produced by fission, because it is shielded by ¹³⁰Te in the fission chain. Alternatively, ¹³⁰Xe is produced by the reaction of ¹²⁹I(n,γβ-)¹³⁰Xe. This is thus isotopic evidence for the migration of fissiogenic ¹²⁹I from the RZ uraninite into the Al-phosphates.

Isotopic deficits of ¹³⁶Xe are the most remarkable property of the Al-phosphates’ Xe isotopic compositions. Iodine-136 is the radioactive precursor to ¹³⁶Xe and has a very short half-life (86 s), therefore fissiogenic ¹³⁶Xe has a greater chance of being lost before other fissiogenic Xe isotopes start to accumulate. This specific isotopic composition of Xe in the Al-phosphates defines a record of cycling operation for the reactor with 30-min active pulses separated by 2.5-h dormant periods [5].

4. Fissiogenic Cs Behavior from Ba Isotopic Study

Since Cs is highly produced by the fission reaction of ²³⁵U, it is important to understand the long-term behavior of Cs in environments for the disposal of radioactive waste. Because Cs (¹³³Cs) is a monoisotopic element, fissiogenic and nonfissiogenic ¹³³Cs cannot be directly distinguished by mass spectrometric techniques. However, isotopic abundance patterns of fissiogenic Ba in the RZs can be used as a useful indicator to understand the geochemical behavior of long-lived ¹³⁵Cs (t_1/2 = 2.3 × 10⁶ years) and ¹³⁷Cs (t_1/2 = 30 years), which ultimately decay to ¹³⁵Ba and ¹³⁷Ba, respectively.

Barium has seven stable isotopes with the mass numbers 130, 132, 134, 135, 136, 137 and 138. Three of the seven isotopes,¹³⁵Ba, ¹³⁷Ba and ¹³⁸Ba, are fissiogenic, while the other four isotopes, ¹³⁰Ba, ¹³²Ba, ¹³⁴Ba and ¹³⁷Ba, are nonfissiogenic. As the results of previous Ba isotopic studies, long-lived fissiogenic Cs isotopes as well as Rb, Sr, and Ba are known to have been nearly removed from the reactors because of their incompatibilities with the uranium matrix materials and their high solubility and reactivity [32,33,34]. It is calculated that the majority of fissiogenic Cs (>90%) was removed even in less-weathered RZs [34]. Where most of the fissiogenic Cs has gone is a major concern. According to the observation of artificial spent nuclear fuel by a scanning electron microscope, fissiogenic Cs and Ba are known to migrate to grain boundaries, fractures and gap regions between the edge of the spent nuclear fuel pellet and the surrounding metal cladding and form oxide precipitates [21]. Although it has been shown that the fissiogenic ¹³⁵Ba and ¹³⁷Ba behaved as Cs from the Ba isotopic studies of bulk analyses, there was no strong evidence for the enrichment of fissiogenic Cs [33,34]. Therefore, in situ isotopic analysis of Ba for the reactor materials is desirable to search for the hot spot of fissiogenic Cs.

Conventional in situ isotopic analyses with SIMS cannot measure trace elements with high atomic number like Ba because of the existence of significantly large background and isobars derived possibly from unknown molecular compounds. Groopman et al. [6] used their ion probe facility, named the Naval Ultra Trace Isotopes Laboratory’s Universal Spectrometer (NAUTILUS) consisting of a combination SIMS and single stage accelerator mass spectrometer, to enable in-situ and molecular-isobar-free isotopic analyses and perform the in situ Ba isotopic measurements. Then, they found the enrichments of ¹³⁵Ba and ¹³⁷Ba in a reactor sample collected from a drill hole S2 in the gallery SD37 at RZ13. As a result of the in situ Ba isotopic analysis, they found several hot spots of fissiogenic Ba. Interestingly, one of the hot spots of fissiogenic ¹³⁵Ba and ¹³⁷Ba coexisted with ε-particle. Their isotopic results show that most fissiogenic ¹³⁵Ba and ¹³⁷Ba migrated as Cs (¹³⁵Cs and ¹³⁷Cs, respectively) within five years after the reactor shutdown.

5. Application to Particle Physics

The Oklo natural reactor may also provide a possibility of isotopic shifts in what was formerly thought to be fundamental physical constants related to particle physics. Thermal neutron capture cross section of ¹⁴⁹Sm is known to be dominated by extremely low resonance energy, E_r, of the neutron capture. The isotopic shifts of ¹⁴⁹Sm-¹⁵⁰Sm caused by neutron capture reaction in the Oklo RZs may put temporal constraints on the variability of coupling constants over 2 billion years, if the neutron capture resonance has moved by 0.01 eV after the comparison of the data between the time at the Oklo RZs operating (2 billion years ago) and the present, ΔE_r = E_r(Oklo) − E_r(present). Regarding limits on the time variation of coupling constants from the isotopic data of the Oklo RZs, those on the variation of the neutron capture cross section act as constraints on the variation of the resonance energies of neutron capture from which we may put constraints on the time variation of particle coupling strengths.

In the physics research field, such quantities as the Planck’s constant ħ, the velocity of light c, the Newton’s constant of gravitation G, the Coulomb coupling constant α = e²/(4πcħ), and the strong-interaction counterpart of the fine-structure constant α_s = g²/(4πcħ) are believed to be the same at all places and times in the universe. They are called fundamental constants. Dirac (1937) firstly suggested that G might vary as t⁻¹, over the cosmological time scale t, and proposed “Large-numbers Hypothesis [35]” showed the possibility of a time variation of one of the fundamental constants. In his theory, $\dot{G}∕G~$10⁻¹⁰ year⁻¹ was speculated, where $\dot{G}=\mathsf{\Delta }G∕t$ [36].

Since then, “Large-numbers Hypothesis” has been proffered by some scientists as the result of a numerological coincidence. Several attempts have been examined to set experimental and observational constraints on the time variation of fundamental constants. Regarding G, the solar-system astrometric data from the Viking landers on Mars [37] showed that the most restrictive bound is an order of magnitude below Dirac’s prediction. On the other hand, regarding the fine structure constants, α and α_s, several approaches have been examined, including the isotopic balance of ¹⁸⁷Re-¹⁸⁷Os decay systematics in terrestrial materials [38], adsorption of quasar spectra by gas clouds from the observation using Very Large Telescope [39], and comparison of the frequencies of two optical atomic clocks between Al⁺ and Hg⁺ [40]. These results of the upper bounds for α and α_s are small, but the estimate from the Sm isotopic data from the Oklo RZs [41,42] gives more critical time constraints than any other method. The results of time variations of the fine structure constant given by the representative approaches are listed in

Table 2. Time variation of the fine structure constant ($\dot{\alpha }/\alpha$) estimated from several methods.

Method	$$\dot{\mathit{\alpha }}/\mathit{\alpha }$$	References
Half-life of 187Re	<3 × 10−13	[38]
QSO spectroscopy	(6.40 ± 1.35) × 10−16	[39]
Frequency of ion optical clocks	(−1.6 ± 2.3) × 10−17	[40]
Oklo phenomenon	<1 × 10−17	[41,42]

.

6. Summary

This review covers in situ isotopic measurement capabilities of microbeam facilities, including SHRIMP. Isotopic studies provide useful information to estimate the reactor conditions and to understand the behavior of radionuclides in and around natural reactors. As conventional analytical techniques before 2000 were based on bulk analysis, the situation of heterogeneous distribution of fissiogenic products in and around natural reactors remained unclear. Since that time, the introduction of microbeam probes for the chemical and isotopic analysis represents a great advance toward understanding the migration and retardation of fissiogenic products into specific phases. Finding of several types of microminerals in and around the RZs led to further insights on the mechanism of geochemical behaviors of fission products from the application of in situ isotopic characterization.

In this review, the following topics were selected: (1) selective uptake of Ra deduced from Pb isotopic analyses in clay minerals, (2) chemical fractionation between Pu and U evaluated from the isotopic variations of ²³⁵U in apatite, (3) evidence for the local occurrence of water radiolysis from the existence of minium (Pb₃O₄) coexisted with galena (PbS), (4) formation mechanism of ε-particles under various redox conditions deduced from the isotopic variations of fissiogenic Mo, Zr, and Ru, (5) retardation behavior of fissiogenic REE characterized from the isotopic variations of Ce, Nd, Sm, and Eu in REE bearing minerals, (6) construction of the model for cycling operation of RZs supported from fissiogenic Xe isotopic data, and (7) finding of hot spots of fissiogenic ¹³⁵Cs and ¹³⁷Cs, presently decayed to ¹³⁵Ba and ¹³⁷Ba, respectively, resulted from the chemical fractionation between Cs and Ba.

The aim of the isotopic studies for the Oklo and Bangombé natural reactors is mainly to support the assessment of nuclear waste management but also evaluation of the time variation of fundamental constants in the research field of particle physics.
