The Important Role of Dissolved Oxygen Supply Regulated by the Hydraulic Shear Force during the Biosynthesis of Iron Hydroxysulfate Minerals

by
Jun Yang
,
Rui Wang
,
Heru Wang
and
Yongwei Song
*
Department of Environmental Engineering, School of Information and Safety Engineering, Zhongnan University of Economics and Law, Wuhan 430073, China
*
Author to whom correspondence should be addressed.
Minerals 2020, 10(6), 518; https://doi.org/10.3390/min10060518
Submission received: 7 April 2020 / Revised: 28 May 2020 / Accepted: 1 June 2020 / Published: 5 June 2020
(This article belongs to the Section Environmental Mineralogy and Biogeochemistry)
Browse Figures
Review Reports Versions Notes

Abstract

:
The severity of environmental pollution from acid mine drainage (AMD) is increasingly garnering attention. In this study, the effects of hydraulic shear forces (achieved by regulating the shaking table’s rotation speed) on Fe2+ bio-oxidation and Fe3+ hydrolytic mineralization in an acidic 9K medium-FeSO4-Acidithiobacillus ferrooxidans system (simulated AMD) are investigated. Results reveal that a higher shaking speed favors a higher oxidation rate of Fe2+, whereas a very low or high shaking speed restricts the removal of Fe3+. Shaking table rotation speeds of 120–180 rpm were preferred for biomineralization treatment in the simulated AMD. As the initial concentration of Fe2+ in the system decreased from 9.67 to 0 g/L in 40 h, the dissolved O2 (DO) in the solution dropped to its lowest concentration after 20 h and then increased to its initial level between 40 and 120 h. However, the corresponding total Fe (TFe) precipitation efficiency increased with the increasing mineralization time after 40 h. The effect of O2 supply time on biomineralization revealed that DO was mainly used in Fe2+ bio-oxidation. After Fe2+ was completely oxidized by A. ferrooxidans, the precipitation efficiency of TFe was independent of the O2 supply.

1. Introduction

When exposed to air and water, sulfidic wastes undergo atmospheric and aqueous oxidation and tend to generate acid mine drainage (AMD), which often contains elevated concentrations of soluble Fe (Fe2+ and Fe3+), SO42− and heavy metals [1,2]. The oxidation of pyrite to sulfate in AMD systems is described by the following two end-member reactions that utilize either O2 or Fe3+ as oxidants [3].
FeS2 + 7/2O2 + H2O → Fe2+ + 2SO42− + 2H+
FeS2 + 14Fe3+ + 8H2O → 15Fe2+ + 2SO42− + 16H+
AMD corrodes the underground pipes, drainage pumps and other related equipment and cause acid and heavy metal pollution of vast water resources and soils, considerably affecting the daily productivity and life. Therefore, AMD is a global environmental problem even though several predictive and preventive techniques have been developed.
Currently, neutralization is the most mature and widely used method for handling AMD [4,5,6]; however, this method has many limitations. For example, some soluble Fe in AMD remains as Fe2+ and the pH (>8.5) required for the complete precipitation of Fe2+ in the hydroxide form is significantly higher than that required for the complete precipitation of Fe3+ (pH = 3.5), considerably decreasing the demand for the neutralization reagent. When AMD passes through a limestone ditch, Fe2+, Fe3+ and SO42− easily produce high amounts of flocculent sediments comprising Fe(OH)2, Fe(OH)3 and CaSO4. These compounds adhere to the limestone particle surfaces, acting as barriers and preventing further reaction between the reagent and water. Thus, the filter medium is blocked in the dewatering stage, inducing poor dehydration performance and reduced treatment efficiency [7,8,9]. Obviously, quickly transforming Fe2+ to Fe3+ and controlling the formation of Fe(OH)3 and CaSO4 are critical issues that must be resolved to optimize the lime neutralization technology in case of AMD.
However, for a solution having pH < 3.5, the air oxidation rate constant of Fe2+ is only 10−3.5/d [10]. Bosecker [11] indicates that A. ferrooxidans increases the oxidation rate of Fe2+ by approximately 105–106 in an acid sulfate environment. Furthermore, this oxidation is frequently accompanied by the hydrolysis and mineralization of the produced Fe3+ to form iron hydroxysulfate minerals such as schwertmannite and jarosite [12,13]. Equations (3)–(5) represent the schwertmannite and jarosite formation processes [14].
4Fe2+ + O2 + 4H+ → 4Fe3+ + 2H2O
8Fe3+ + 14H2O + SO42− → Fe8O8(OH)6SO4 (schwertmannite) + 22H+
M+ + 3Fe3+ + 2SO42− + 6H2O → MFe3(SO4)2(OH)6 (jarosite) + 6H+
M+ represents K+, NH4+, Na+ and H3O+. In addition, the iron hydroxysulfate minerals can be directly synthesized via chemical methods. For example, under acidic conditions, schwertmannite can be obtained via iron salt hydrolysis or ferrous salt oxidation (FeSO4-H2O2) [15,16,17]. Iron hydroxysulfate minerals are ideal materials for the adsorption and coprecipitation of heavy metals in AMD [18,19,20]. Therefore, the A. ferrooxidans-mediated biomineralization is an efficient AMD treatment method, exhibiting significant economic and environmental benefits.
The primary factors controlling the formation of iron hydroxysulfate minerals are the reaction time, temperature, acidity, Fe2+ concentration and the monovalent cation type and concentration (K+, Na+, NH4+, etc.) [21,22,23,24]. In an extremely acidic environment, the A. ferrooxidans-mediated biomineralization involves the biologic oxidation of Fe2+ and thus facilitate Fe hydrolysis. Previous studies showed that schwertmannite formation usually occurs in Fe and sulfate-rich solutions in a pH range of 2.5–4.5, with lower pH values promoting the precipitation of jarosite. For instance, Bigham et al. [25] demonstrated that schwertmannite, formed through the bio-oxidation of Fe2+ by A. ferrooxidans, was the only mineral phase at pH = 3.0. Liao et al. [26] observed that the formed ferric hydroxysulfate minerals were a mixture of Na–jarosite and schwertmannite at an initial pH of 3.5; however, a pH of 1.6–3.4 produced only pure schwertmannite. As an aerobic autotrophic bacterium, A. ferrooxidans utilizes Fe2+ as the electron donor and O2 as the electron acceptor for oxidization to Fe3+. It also uses CO2 as the carbon source and N and P as the nutrient elements. Further, it employs the energy obtained via the oxidation of Fe2+ to support its growth and reproduction [27,28]. Many studies have investigated the effects of O2 supply on Fe2+ oxidation, growth and metabolism of A. ferrooxidans. For example, Ohmura et al. [29] indicated that the growth of A. ferrooxidans is inhibited at a dissolved O2 (DO) concentration of less than 0.29 mg/L and terminated at 0.2 mg/L. Goodman et al. [30] reported that bacteria can survive under anaerobic conditions when the oxidation potential of A. ferrooxidans for pyrite (FeS2) decreases rapidly at DO levels of lower than 3 µmol/L. Magdalene et al. [31] reported positive correlations between the concentration of DO and the oxidation rate of FeS2 as well as the cell synthesis of A. ferrooxidans. O2 is vital with respect to the oxidation ability, growth and reproduction of A. ferrooxidans. In acidic sulfate environments, such as AMD, the Fe2+ bio-oxidation and Fe3+ hydrolysis reactions are coupling reactions of the A. ferrooxidans-mediated biomineralization. However, the effect of the DO supply level on the Fe3+ hydrolysis reactions in the system has been rarely investigated. Liao et al. [26] observed that a significant amount of yellowish hydroxysulfate precipitates was generated by statically incubating the FeSO4 solution containing A. ferrooxidans for 40 h, implying that DO may not be indispensable throughout the experiment for the biosynthesis of the iron hydroxysulfate minerals. However, this assumption is not supported by direct evidence.
The objective of this study was to investigate the influence of DO on the formation of iron hydroxysulfate minerals by A. ferrooxidans. Proper hydraulic shear force can maintain the uniformity of a three-phase system (gas–liquid–solid), ensuring a high concentration of DO in the solution and maintaining good heat transfer in the system [32,33]. The effects of the hydraulic shear force on the Fe2+ oxidation, total Fe (TFe) precipitation, DO concentration, iron hydroxysulfate mineral yield or phase were investigated by adjusting the rotating speed of the shaking table. These investigations provide the necessary theoretical basis for promoting the regulation and biologic transformation of Fe in AMD to iron hydroxysulfate minerals.

2. Materials and Methods

2.1. Preparation of the Modified 9K Liquid Medium

The modified 9K liquid medium was prepared as follows: 3.5 g of (NH4)2SO4, 0.119 of KCl, 0.058 of K2HPO4, 0.0168 of Ca(NO3)2·4H2O and 0.583 g of MgSO4·7H2O in 1 L of distilled water, adjusted to pH = 2.50 with 1:1 (v/v) H2SO4, followed by sterilization using a sterilizer for 30 min at 121 °C [34].

2.2. Preparation of the A. ferrooxidans Resting Cells

A. ferrooxidans (CGMCC0727) was obtained from the China General Microbial Culture Collection Center (Beijing, China). Sterilized FeSO4·7H2O was added to an Erlenmeyer flask containing 225 mL of the modified 9K liquid medium, which was inoculated with 25 mL of A. ferrooxidans to obtain an Fe2+ concentration of 9.67 g/L. After evenly mixing the solution, the flask was shaken and cultured in a shaker at 28 °C and 180 rpm, and the culture was terminated later in the exponential growth stage (approximately 3 d). The culture medium was filtered using 1004-055 Whatman filter paper (Grade 4: 20–25 µm) to collect the iron hydroxysulfate minerals, whereas the filtrate was centrifuged at 7720 rpm to collect the concentrated bacteria and then washed twice using dilute H2SO4 (pH = 1.50) to eliminate the various doped ions. Finally, the centrifuged cells were resuspended in dilute H2SO4 at an optimum pH of 2.50, producing the A. ferrooxidans resting cells [26]. The density of A. ferrooxidans was approximately 5 × 108 cells/mL.

2.3. Effect of Hydraulic Shear Force on Fe2+ Bio-Oxidation and Fe3+ Hydrolysis by A. ferrooxidans

In a series of 500-mL Erlenmeyer flasks, 225 mL of the modified 9K liquid medium and 25 mL of the A. ferrooxidans resting cells were added to produce an inoculation with 10% (v/v) A. ferrooxidans. The effective volume of the prepared 9K-FeSO4-A. ferrooxidans system was 250 mL, where the A. ferrooxidans density was approximately 5 × 107 cells/mL. Then, based on the Fe2+ concentration of 9.67 g/L, FeSO4·7H2O was accurately added and shaken for complete dissolution. The pH values of the solutions were adjusted to 2.50 by adding 1:1 (v/v) H2SO4. The Erlenmeyer flasks were sealed with eight layers of gauze and placed in the shaker at 0, 60, 120, 180 and 240 rpm at a constant temperature of 28 °C for a 120-h biomineralization reaction. During the reaction period, the Fe2+ concentration, TFe precipitation efficiency and DO concentration were measured and calculated via regular sampling (after waiting for mineral precipitation, extract 1 mL of the supernatant passed through a 0.22-μm filter membrane). At the end of the culture, the iron hydroxysulfate minerals were collected using 1004-055 Whatman filter paper (Grade 4: 20–25 µm), which was rinsed twice with deionized water to eliminate the ions adsorbed on the minerals and the minerals were weighed after drying at 60 °C for 24 h, with each treatment conducted in triplicate.

2.4. Effect of the O2 Supply Time on the A. ferrooxidans-Mediated Biomineralization

The DO concentration in the solution returned to the initial level and remained stable after 9.67 g/L of Fe2+ in the system was completely oxidized by A. ferrooxidans at shaking speeds of 120 and 180 rpm (40 h). However, the TFe precipitation efficiency continuously increased between 40 and 120 h. This response provides motivation to investigate the role of DO in the A. ferrooxidans-mediated biomineralization.
Another series of 500-mL Erlenmeyer flasks with 250 mL of the 9K-FeSO4-A. ferrooxidans solution (pH of 2.50, Fe2+ concentration of 9.67 g/L and A. ferrooxidans density of approximately 5 × 107 cells/mL) was prepared. The prepared system was divided according to the O2 supply times as follows. In treatment (1) (“unlimited O2 supply”), the Erlenmeyer flasks were sealed with eight layers of gauze and placed in a shaker at 28 °C and 180 rpm for biologic oxidation and hydrolytic mineralization. During the culture, the DO concentration, Fe2+ oxidation and TFe precipitation efficiency were measured and calculated at 0 and every 12 h up to 120 h (after waiting for mineral precipitation, extract 1 mL of the supernatant passed through a 0.22-μm filter membrane). In treatment (2) (“limited O2 supply at 0 h”), the eight layers of gauze in treatment (1) were replaced with rubber plugs equipped with samplers, suction ducts and DO monitors (Figure 1). The suction ducts were connected to vacuum pumps, and pumping was initiated, creating a relative pressure of −0.098-MPa in Erlenmeyer flasks. Subsequently, the catheter valves were closed. Then, the Erlenmeyer flasks were placed in a shaker at 28 °C and 180 rpm for the biomineralization reaction. Sampling was performed and parameters were calculated according to treatment (1). Treatment (3) (“limited O2 supply at 36 h”) involved biomineralization reactions according to treatment (1) for assessing the oxidation efficiency of the Fe2+ in the 9K-FeSO4-A. ferrooxidans system. After the Fe2+ oxidation efficiency reached 100% (monitoring determined that the time was 36 h), the eight layers of gauze were replaced by rubber plugs as in treatment (2), and the vacuum pumps were initiated to ensure that the relative pressure in the flask was −0.098 MPa. Further, the catheter valves were closed. The Erlenmeyer flasks were placed in the shaker at 28 °C and 180 rpm for the reaction to proceed, and sampling was performed for determining and calculating various parameters; each treatment was performed in triplicate.
After 120 h of the biomineralization reaction, the iron hydroxysulfate minerals were collected using Whatman No. 4 filter paper, washed twice with deionized water to eliminate the adsorbed ions, and weighed after drying at 60 °C for 24 h. The minerals obtained from the three treatments were identified via X-ray diffraction (XRD) analyses, and their characteristics were observed via scanning electron microscopy (SEM).

2.5. Determination Methods

The pH values of the solutions were determined using a pH S-3C precision pH meter, whereas the DO concentrations were measured using a portable dissolved oxygen analyzer (JPB-607A). The Fe2+ and TFe concentrations were determined via the 1,10-phenanthroline method using a spectrophotometer [35]. Then, the Fe2+ oxidation efficiency and the TFe precipitation efficiency were calculated according to the following formulas.
Fe2+ oxidation efficiency (%) = [(CFe(II) − C’Fe(II))/CFe(II)] × 100%, where CFe(II) is the initial Fe2+ concentration (mg/L) and C’Fe(II) is the Fe2+ concentration (mg/L) at different times.
TFe precipitation efficiency (%) = [(CTFe − C’TFe)/CTFe] × 100%, where CTFe is the initial TFe concentration (mg/L) and C’TFe is the TFe concentration (mg/L) at different times.
The density of A. ferrooxidans was measured using the double-layer plate method [36]. Briefly, 0.1 mL of the heterotrophic yeast strain Rhodotorula sp. R30 solution was spread onto the bottom layer made of 2% agar in plate. Then, the mineral–salt medium containing 0.4% agarose with respect to A. ferrooxidans were poured on it as the upper layer; after the plates were cold, 0.1 mL of the bacterial suspension containing A. ferrooxidans was evenly spread on the superstratum and cultured for 15 d at 30 °C. Further, the bacterial colony on the plate was assessed. The precipitated mineral phases were analyzed via XRD (Bruker D8A25, Bruker Corporation, Karlsruhe, Germany) using CuKα radiation (40 kV, 40 mA); the samples were scanned from 2θ = 10° to 80° with an increment step of 0.01° and a scanning speed of 6°/min. The morphology of the precipitates was examined via field-emission scanning electron microscopy (FE-SEM, SU8010) [37], whereas the specific surface areas of the secondary iron minerals were determined using the Brunauer–Emmett–Teller (BET) adsorption method (Micromeritic ASAP 2020) [38].

3. Results and Discussion

3.1. Effect of Hydraulic Shear Force on the Fe2+ Oxidation and TFe Precipitation Efficiency

Generally, the faster the rotating speed of the shaker, the more will be the consumption of Fe2+ by A. ferrooxidans (Figure 2). During biologic oxidation, A. ferrooxidans oxidizes the Fe2+ in the system to Fe3+. Further, Fe3+ precipitates through hydrolysis with other metal ions or SO42− in the solution as iron hydroxysulfate minerals, eliminating soluble Fe [25,39]. Bai et al. [40] indicated that the Fe3+ supply rate was an important factor affecting mineral formation in the biomineralization system containing A. ferrooxidans, with a higher rate promoting mineral formation. Increasing the hydraulic shear force accelerates the supply rate of the oxidation product Fe3+ during biomineralization, with TFe precipitation efficiencies of 5.28%, 26.33% and 39.65% at 0, 60 and 120 rpm in the system at the end of the biomineralization reaction, respectively.
However, under approximately identical Fe3+ supply rates, very high shaker speeds (240 rpm) adversely affected the removal of TFe from the 9K-FeSO4-A. ferrooxidans system. Thomas [41] and Doran [42] indicated that bacterial mineralization is weakened because of their inability to adhere to the solid surface in a strong stirring environment, significantly reducing the TFe removal efficiency of the solution. The changes in TFe precipitation efficiency directly reflect the formation potential of the iron hydroxysulfate minerals in the system [40]. Based on Figure 3, at the end of biomineralization, the TFe precipitation efficiencies of the system at 0, 60, 120, 180 and 240 rpm were 5.28%, 26.33%, 39.65%, 41.28% and 33.38%, respectively, with corresponding iron hydroxysulfate mineral masses of 0.24, 0.87, 1.25, 1.47 and 1.02 g.
A. ferrooxidans is an exclusive aerobic microbe. With O2 as the only electron acceptor for Fe2+ oxidation, A. ferrooxidans utilizes the energy released by this oxidation for its growth and reproduction. Therefore, sufficient supply of O2 is a necessary condition for the growth of A. ferrooxidans [27,28]. The DO variations in the 9K-FeSO4-A. ferrooxidans system under different hydraulic shear forces are displayed in Figure 4.
When the reaction proceeds at 0 or 60 rpm, the DO concentration in the solution gradually decreases from approximately 9.50 mg/L at the beginning to 6.32 and 5.21 mg/L after 120 h, respectively. As the speed of the shaker was increased to 120 and 180 rpm, the DO concentration in the system (approximately 9.50 mg/L) initially decreased to 5.38 and 6.91 mg/L, respectively, after 20 h and then becomes 9.26 mg/L and 9.64 mg/L, respectively, after 40 h. If the nutrient supply is sufficient, the amount of A. ferrooxidans in the system can increase by a hundred times as the culture time increases when compared with that observed during the initial stage of the reaction [21]. In this case, the O2 needed for the biologic oxidation of Fe2+ in the solution gradually increases, and the dissolution rate of the air O2 is insufficient to support the O2 consumption of A. ferrooxidans during the Fe2+ oxidation process, gradually decreasing the solution’s DO concentration. However, the concentration of Fe2+ will decrease gradually when the density of A. ferrooxidans is high. At this time, the Fe2+ concentration becomes the main limiting factor with respect to the biologic oxidation reaction [43]. Further, biologic oxidation wanes and the O2 needed for oxidation reduces. Because of the O2 obtained from the air, the DO concentration in the solution slowly increases, attaining a stable state.
Figure 2 shows that the TFe precipitation efficiency of the solution increases as the mineralization reaction time increases after the complete biologic oxidation of Fe2+ in the 9K-FeSO4-A. ferrooxidans system. Compared with Figure 4, for a biomineralization lasting for 40 h, the DO concentration in the system at 120 and 180 rpm returns to the initial level, indicating that DO was not involved in the hydrolytic mineralization of Fe3+. Liao et al. [26] noted that after inoculating A. ferrooxidans into an Fe2(SO4)3 solution and waiting for 40 h (equivalent to a rotation speed of 0 rpm), the Fe concentration in the solution gradually decreases, producing a small amount of minerals. However, the study lacked an in-depth discussion about the causes of this phenomenon.

3.2. Effect of the O2 Supply Time on the Formation of Iron Hydroxysulfate Minerals

Three groups of control experiments were conducted to further determine the function of O2 in Fe precipitate formation (Section 2.4). As shown in Figure 5, in the treatment “limited O2 supply at 0 h,” the O2 in air cannot dissolve in the 9K-FeSO4-A. ferrooxidans system, whereas the O2 in the solution diffuses into the air owing to the difference in concentration. Accordingly, a marked inhibition of Fe2+ bio-oxidation and TFe precipitation efficiency could be observed, as indicated by the low Fe2+ oxidation efficiency (16.26%) and TFe precipitation efficiency (4.25%) at the end of the reaction (120 h). This suggests that relying only on the DO remaining in the initial reaction solution barely supports the O2 requirement for the formation of iron hydroxysulfate minerals when A. ferrooxidans should utilize O2 to oxidize Fe2+ and obtain energy for its growth [27,28].
The DO concentration in the “unlimited O2 supply” treatment decreases to its lowest value (3.17 mg/L) at 36 h and then rapidly increases to the initial level (9.52 mg/L) and remains stable at 48 h. Furthermore, almost similar dynamic changes were observed with respect to the Fe2+ oxidation efficiency and TFe precipitation efficiency in the “unlimited O2 supply” and “limited O2 supply at 36 h” treatments. This suggests that the supply of O2 had an important function in the oxidation of Fe2+ to Fe3+ by A. ferrooxidans; however, its function in the formation of iron hydroxysulfate minerals could be neglected possibly because the energy released from the oxidation of Fe2+ can be used for the subsequent hydrolysis reaction of Fe3+ into minerals [44,45]. This was advantageous to significantly reduce the AMD biomineralization treatment cost because the O2 charging operation of aeration can be stopped after complete Fe2+ oxidization by A. ferrooxidans.

3.3. Characteristics of the Minerals Obtained from Different O2 Supply Conditions

Generally, XRD is employed to analyze the mineral phases [46,47]. The XRD patterns of three biogenic iron hydroxysulfate minerals obtained using different O2 supply times are presented in Figure 6. Based on standards [48], the product obtained from the “limited O2 supply at 0 h” treatment after biomineralization for 120 h was schwertmannite, whereas the remaining two treatment systems produce a mixture of schwertmannite and jarosite. Based on Figure 5, the oxidation efficiency of Fe2+ can be determined using the O2 supply time. At a low Fe2+ oxidation efficiency, the hydrolytic mineralization product of Fe3+ was mainly schwertmannite and a high Fe2+ oxidation efficiency promotes the formation of jarosite. Bai et al. [49] observed that either amorphous schwertmannite or crystalline jarosite existed at the critical point of jarosite formation in a FeSO4-K2SO4-H2O system with A. ferrooxidans and depended on the rate of Fe3+ supply. The low supply rate of Fe3+ obviously inhibited the incorporation of K+ into the iron hydroxysulfate mineral to form jarosite, improving the generation of amorphous schwertmannite in the system.
Figure 7 shows the SEM images of the iron hydroxysulfate minerals mediated by A. ferrooxidans under different O2 supply times. Schwertmannite agglomeration was obvious during the “limited O2 supply at 0 h” treatment. The mineral particles exhibit “chestnut shell” and “sea urchin” shapes, with their surfaces covered with needle-like burrs. Further, their average specific surface areas (42.12 m2/g) were considerably higher than the range (4–14 m2/g) reported for schwertmannite by Regenspurg et al [15]. Similar to the results of this study, Loan et al. [16,23,50] observed that the schwertmannite formed in an acidic mine environment dominantly displayed a spherical “sea urchin”-like structure, which had a diameter of only 300–500 nm and the surface of which was covered with 60–90-nm needle-like burrs. When compared with the structure of the minerals obtained via the “limited O2 supply at 0 h” treatment, the apparent structure of the minerals obtained from the “unlimited O2 supply” and “limited O2 supply at 36 h” treatments clearly differ. The crystallinity of schwertmannite was poor with a distributed network, whereas the jarosite minerals display obvious crystallinity and were relatively dispersed on the schwertmannite surfaces. This is consistent with Sasaki and Konno’s results that biosynthetic jarosite comprises many micron-sized crystals with clear edges and corners and smooth surfaces [51]. The average specific surface areas of the mixtures obtained via the two treatments were 28.97 and 31.53 m2/g, respectively.

4. Conclusions

In this study, we demonstrated that in a 9K-FeSO4-A. ferrooxidans system, the greater the hydraulic shear force (the higher the shaker speed), the higher will be the utilization of Fe2+ by A. ferrooxidans. Regardless, a very high shaker speed (e.g., 240 rpm) adversely impacted the hydrolytic mineralization and precipitation of Fe3+ in the system. Based on the Fe2+ biologic oxidation efficiency and TFe precipitation capacity, shaking table speeds of 120–180 rpm were optimum for efficiently synthesizing iron hydroxysulfate minerals. In addition, the effect of O2 supply time on the A. ferrooxidans biomineralization process confirmed that the DO in the system was mainly consumed by the biologic oxidation of Fe2+. After Fe2+ was completely oxidized by A. ferrooxidans, the hydrolytic precipitation efficiency of the oxidation product Fe3+ was independent of the O2 supply. The XRD and SEM analyses demonstrated that when Fe2+ is completely oxidized in the 9K-FeSO4-A. ferrooxidans system, the O2 supply did not alter the mineral precipitated via Fe3+ hydrolysis, mainly comprising partially amorphous schwertmannite and jarosite with good crystallinity.

Author Contributions

J.Y. conceived and designed this study. R.W. performed the experiments and conducted data collation and analysis. H.W. contributed to the revision of the manuscript. Y.S. collated the data, performed analysis and wrote the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (21906183) and the Soft Science Foundation of Hubei Province, China [2019ADC152] and the Fundamental Research Funds for the Central Universities [2722020JCG068; 2722020PY061].

Acknowledgments

The authors would like to thank the Solid Waste Research Institute of Nanjing Agricultural University for providing A. ferrooxidans LX5 (CGMCC No. 0727). The authors would also like to thank Zhenyu Wang for kindly editing the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Balci, N.; Demirel, C. Prediction of Acid Mine Drainage (AMD) and Metal Release Sources at the Küre Copper Mine Site, Kastamonu, NW Turkey. Mine Water Environ. 2018, 37, 56–74. [Google Scholar] [CrossRef]
  2. Yucel, D.S.; Balci, N.; Baba, A. Generation of Acid Mine Lakes Associated with Abandoned Coal Mines in Northwest Turkey. Arch. Environ. Contam. Toxicol. 2016, 70, 757–782. [Google Scholar] [CrossRef] [Green Version]
  3. Balci, N.; Shanks, W.C., III; Mayer, B.; Mandernack, K.W. Oxygen and sulfur isotope systematics of sulfate produced by bacterial and abiotic oxidation of pyrite. Geochim. Cosmochim. Acta 2007, 71, 3796–3811. [Google Scholar] [CrossRef]
  4. Cravotta, C.A.; Trahan, M.K. Limestone drains to increase pH and remove dissolved metals from acidic mine drainage. Appl. Geochem. 1999, 14, 581–606. [Google Scholar] [CrossRef]
  5. Vhahangwele, M. A novel technology for neutralizing acidity and attenuating toxic chemical species from acid mine drainage using cryptocrystalline magnesite tailings. J. Water Process Eng. 2016, 10, 67–77. [Google Scholar]
  6. Wang, X.M.; Jiang, H.K.; Fang, D.; Liang, J.R.; Zhou, L.X. A novel approach to rapidly purify acid mine drainage through chemically forming schwertmannite followed by lime neutralization. Water Res. 2019, 151, 515–522. [Google Scholar] [CrossRef]
  7. Song, Y.W.; Wang, M.; Liang, J.R.; Zhou, L.X. High-rate precipitation of iron as jarosite by using a combination process of electrolytic reduction and biological oxidation. Hydrometallurgy 2014, 143, 23–27. [Google Scholar] [CrossRef]
  8. Meschke, K.; Herdegen, V.; Aubel, T.; Janneck, E.; Repke, J.U. Treatment of opencast lignite mining induced acid mine drainage (AMD) using a rotating microfiltration system. J. Environ. Chem. Eng. 2015, 4, 2848–2856. [Google Scholar] [CrossRef]
  9. Lee, W.C.; Lee, S.W.; Yun, S.T.; Lee, P.K.; Hwang, Y.S.; Kim, S.O. A novel method of utilizing permeable reactive kiddle (PRK) for the remediation of acid mine drainage. J. Hazard. Mater. 2016, 301, 332–341. [Google Scholar] [CrossRef]
  10. Umita, T. Biological mine drainage treatment. Resour. Conserv. Recycl. 1996, 16, 179–188. [Google Scholar] [CrossRef]
  11. Bosecker, K. Bioleaching: Metal solubilization by microorganisms. FEMS Microbiol. Rev. 1997, 20, 591–604. [Google Scholar] [CrossRef]
  12. Valente, T.; Grande, J.A.; De, I.T.M.L.; Santisteban, M.; Cerón, J.C. Mineralogy and environmental relevance of AMD-precipitates from the Tharsis mines, Iberian Pyrite Belt (SW, Spain). Appl. Geochem. 2013, 39, 11–25. [Google Scholar] [CrossRef]
  13. Zhu, J.Y.; Gan, M.; Zhang, D.; Hu, Y.H.; Chai, L.Y. The nature of schwertmannite and jarosite mediated by two strains of Acidithiobacillus ferrooxidans with different ferrous oxidation ability. Mater. Sci. Eng. C 2013, 33, 2679–2685. [Google Scholar] [CrossRef] [PubMed]
  14. Diao, Z.H.; Shi, T.H.; Wang, S.Z.; Huang, X.F.; Zhang, T.; Tang, Y.T.; Zhang, X.Y.; Qiu, R.L. Silane-based coatings on the pyrite for remediation of acid mine drainage. Water Res. 2013, 47, 4391–4402. [Google Scholar] [CrossRef]
  15. Regenspurg, S.; Brand, A.; Peiffer, S. Formation and stability of schwertmannite in acid mining lakes. Geochim. Cosmochim. Acta 2004, 68, 1185–1197. [Google Scholar] [CrossRef]
  16. Loan, M.; Richmond, W.R.; Parkinson, G.M. On the crystal growth of nanoscale schwertmannite. J. Cryst. Growth 2005, 275, 1875–1881. [Google Scholar] [CrossRef] [Green Version]
  17. Barham, R.J. Schwertmannite: A unique mineral, contains a replaceable ligand, transforms to jarosites, hematites, and/or basic iron sulfate. J. Mater. Res. 1997, 12, 2751–2758. [Google Scholar] [CrossRef]
  18. Min, G.; Sun, S.J.; Zheng, Z.H.; Tang, H.J.; Sheng, J.R.; Zhu, J.Y.; Liu, X.X. Adsorption of Cr(VI) and Cu(II) by AlPO4 modified biosynthetic schwertmannite. Appl. Surf. Sci. 2015, 356, 986–997. [Google Scholar]
  19. Zhang, S.L.; Jia, S.Y.; Yu, B.; Liu, Y.; Wu, S.H.; Han, X. Sulfidization of As(V)-containing schwertmannite and its impact on arsenic mobilization. Chem. Geol. 2016, 420, 270–279. [Google Scholar] [CrossRef]
  20. Song, Y.W.; Zhang, J.Y.; Wang, H.R. Initial pH and K+ concentrations jointly determine the types of biogenic ferric hydroxysulfate minerals and their effect on adsorption removal of Cr(VI) in simulated acid mine drainage. Water Sci. Technol. 2018, 78, 2183–2192. [Google Scholar] [CrossRef]
  21. Dutrizac, J.E.; Kaiman, S. Synthesis and properties of jarosite-type compounds. Can. Mineral. 1976, 14, 151–158. [Google Scholar]
  22. Dutrizac, J.E. The effectiveness of jarosite species for precipitating sodium jarosite. J. Mineral. Met. Mater. Soc. 1999, 51, 30–32. [Google Scholar] [CrossRef]
  23. Gramp, J.P.; Jones, F.S.; Bigham, J.M.; Tuovinen, O.H. Monovalent cation concentrations determine the types of Fe(III) hydroxysulfate precipitates formed in bioleach solutions. Hydrometallurgy 2008, 94, 29–33. [Google Scholar] [CrossRef]
  24. Song, Y.W.; Wang, H.R.; Yang, J.; Cao, Y.X. Influence of monovalent cations on the efficiency of ferrous ion oxidation, total iron precipitation, and adsorptive removal of Cr(VI) and As(III) in simulated acid mine drainage with inoculation of Acidithiobacillus ferrooxidans. Metals 2018, 8, 596. [Google Scholar] [CrossRef] [Green Version]
  25. Bigham, J.M.; Schwertmann, U.; Pfab, G. Influence of pH on mineral speciation in a bioreactor simulating acid mine drainage. Appl. Geochem. 1996, 11, 845–849. [Google Scholar] [CrossRef]
  26. Liao, Y.H.; Zhou, L.X.; Liang, J.R.; Xiong, H.X. Biosynthesis of schwertmannite by Acidithiobacillus ferrooxidans cell suspensions under different pH condition. Mater. Sci. Eng. C 2009, 29, 211–215. [Google Scholar] [CrossRef]
  27. Jensen, A.B.; Webb, C. Ferrous sulphate oxidation using Thiobacillus ferrooxidans: A review. Process Biochem. 1995, 30, 225–236. [Google Scholar] [CrossRef]
  28. Daoud, J.; Karamanev, D. Formation of jarosite during Fe2+ oxidation by Acidithiobacillus ferrooxidans. Mineral. Eng. 2006, 19, 960–967. [Google Scholar] [CrossRef]
  29. Ohmura, N.; Sasaki, K.; Matsumoto, N.; Saiki, H. Anaerobic respiration using Fe3+, S0, and H2 in the chemolithoautotrophic bacterium Acidithiobacillus ferrooxidans. J. Bacteriol. 2002, 184, 2081–2087. [Google Scholar] [CrossRef] [Green Version]
  30. Goodman, A.E.; Babij, T.; Ritchie, A.I.M. Leaching of a sulphide ore by Thiobacillus ferrooxidans under anaerobic conditions. In Biohydrometallurgy; Rossi, G., Torma, A.E., Eds.; Associazionen Mineraria Sarde, Iglesias: Iglesias, Italy, 1983; pp. 361–376. [Google Scholar]
  31. Magdalena, G.; Roger, B.H.J.; Paul, C.F.K. Pyrite oxidation by Acidithiobacillus ferrooxidans at various concentrations of dissolved oxygen. Chem. Geol. 2006, 225, 16–19. [Google Scholar]
  32. Wang, Z.; Che, J.; Ye, C. Application of ferric chloride both as oxidant and complexant to enhance the dissolution of metallic copper. Hydrometallurgy 2010, 105, 69–74. [Google Scholar] [CrossRef]
  33. Sun, L.X.; Zhang, X.; Tan, W.S.; Zhu, M.L. Effect of agitation intensity on the biooxidation process of refractory gold ores by Acidithiobacillus ferrooxidans. Hydrometallurgy 2012, 127–128, 99–103. [Google Scholar] [CrossRef]
  34. Silverman, M.P.; Lundgren, D.G. Studies on the chemoautotrophic iron bacterium Ferrobacillus ferrooxidans. I. An improved medium and a harvesting procedure for securing high cell yields. J. Bacteriol. 1959, 77, 642–647. [Google Scholar] [CrossRef] [Green Version]
  35. American Public Health Association. Standard Methods for the Examination of Water and Wastewater; American Water Works Assn: Washington, DC, USA, 2012. [Google Scholar]
  36. Wang, S.M.; Zhou, L.X. A renovated approach for increasing colony count efficiency of Thiobacillus ferrooxidans and Thiobacillus thiooxidans: Double-layer plates. Acta Sci. Circumstantiae 2005, 25, 1418–1420. [Google Scholar]
  37. Liu, F.W.; Gao, S.Y.; Wang, M.; Yu, H.Y.; Cui, C.H.; Zhou, L.X. Effect of KOH on the formation of biogenic secondary iron minerals in iron- and sulfate-rich acidic environment. Acta Sci. Circumstantiae 2015, 35, 476–483. [Google Scholar]
  38. Manna, B.; Ghosh, U.C. Adsorption of arsenic from aqueous solution on synthetic hydrous stannic oxide. J. Hazard. Mater. 2007, 144, 522–531. [Google Scholar] [CrossRef] [PubMed]
  39. Schwertmann, U.; Bigham, J.M.; Murad, E. The first occurrence of schwertmannite in a natural stream environment. Eur. J. Mineral. 1995, 7, 547–552. [Google Scholar] [CrossRef]
  40. Bai, S.Y.; Liang, J.R.; Zhou, L.X. Effects of monovalent cation and dissolved organic matter on the formation of biogenic secondary iron minerals in bioleaching system. Acta Mineral. Sin. 2011, 31, 118–125. [Google Scholar]
  41. Thomas, C.R. Problems of shear in biotechnology. In Chemical Engineering Problems in Biotechnology; Elsevier: Oxford, UK, 1990; pp. 23–93. [Google Scholar]
  42. Doran, M.P. Bioprocess Engineering Principles; Academic Press: San Diego, CA, USA, 1995. [Google Scholar]
  43. Liu, J.S.; Zhang, Y.H.; Li, B.M. The study kinetic for growth of Acidithiobacillus ferrooxidans. J. Microbiol. 2006, 2, 9–13. [Google Scholar]
  44. Majzlan, J.; Navrotsky, A. Thermodynamics of iron oxides: Part III. Enthalpies of formation and stability of ferrihydrite (−Fe(OH)3), schwertmannite (−FeO(OH)3/4(SO4)1/8), and ε-Fe2O3. Geochim. Cosmochim. Acta 2004, 68, 1049–1059. [Google Scholar] [CrossRef]
  45. Amouric, A.; Brochier, A.C.; Johnson, D.B.; Bonnefoy, V.; Hallberg, K.B. Phylogenetic and genetic variation among Fe(II)-oxidizing acidithiobacilli supports the view that these comprise multiple species with different ferrous iron oxidation pathways. Microbiology 2011, 157, 111–122. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Wang, H.M.; Bigham, J.M.; Tuovinen, O.H. Formation of schwertmannite and its transformation to jarosite in the presence of acidophilic iron-oxidizing microorganisms. Mater. Sci. Eng. C 2006, 26, 588–592. [Google Scholar] [CrossRef]
  47. Eskandarpour, A.; Onyango, M.S.; Ochieng, A.; Asai, S. Removal of fluoride ions from aqueous solution at low pH using schwertmannite. J. Hazard. Mater. 2008, 152, 571–579. [Google Scholar] [CrossRef] [PubMed]
  48. Joint Committee on Powder Diffraction Standards (JCPDS). Mineral Powder Diffraction Files; International Center for Diffraction Data: Newtown Square, PA, USA, 2002; pp. 856–975. [Google Scholar]
  49. Bai, S.Y.; Xu, Z.H.; Wang, M.; Liao, Y.H.; Liang, J.R.; Zheng, C.C.; Zhou, L.X. Both initial concentrations of Fe(II) and monovalent cations jointly determine the formation of biogenic iron hydroxysulfate precipitates in acidic sulfate-rich environments. Mater. Sci. Eng. C 2012, 32, 2323–2329. [Google Scholar] [CrossRef]
  50. Liu, F.W.; Bu, Y.S.; Tian, G.J.; Cui, C.H.; Zhou, L.X. Influence of temperature and pH on dissolution behavior of biogenic Schwertmannite in acidic environment and the adsorption of Cu2+. Acta Sci. Circumstantiae 2013, 33, 2445–2451. [Google Scholar]
  51. Sasaki, K.; Konno, H. Morphology of jarosite-group compounds precipitated from biologically and chemically oxidized Fe ions. Can. Mineral. 2000, 38, 45–56. [Google Scholar] [CrossRef]
Minerals 10 00518 g001 550

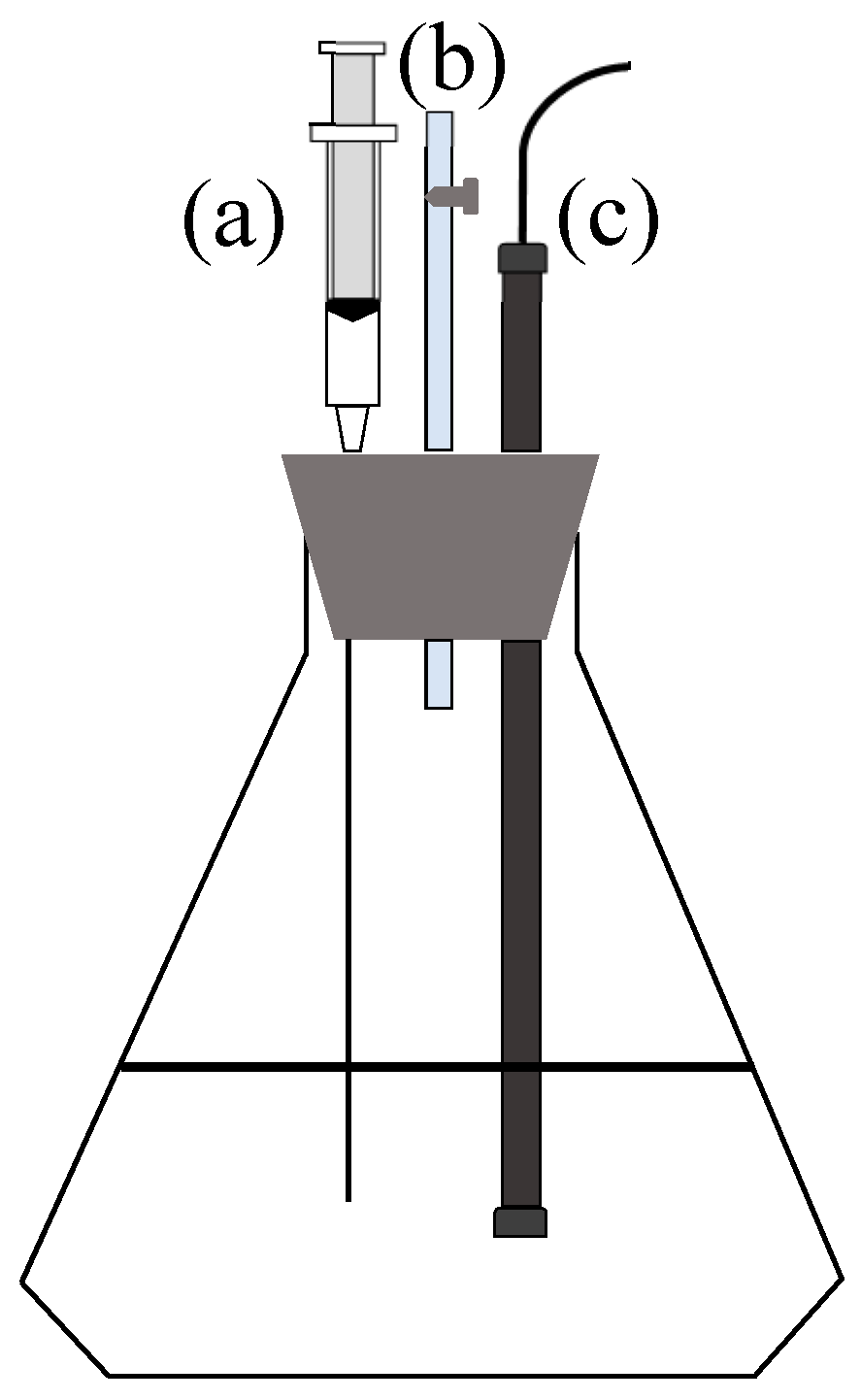

Figure 1. Erlenmeyer flask with a (a) sampler, (b) suction tube and (c) dissolved O2 (DO) monitor installed on the rubber stopper.
Figure 1. Erlenmeyer flask with a (a) sampler, (b) suction tube and (c) dissolved O2 (DO) monitor installed on the rubber stopper.
Minerals 10 00518 g001
Minerals 10 00518 g002 550

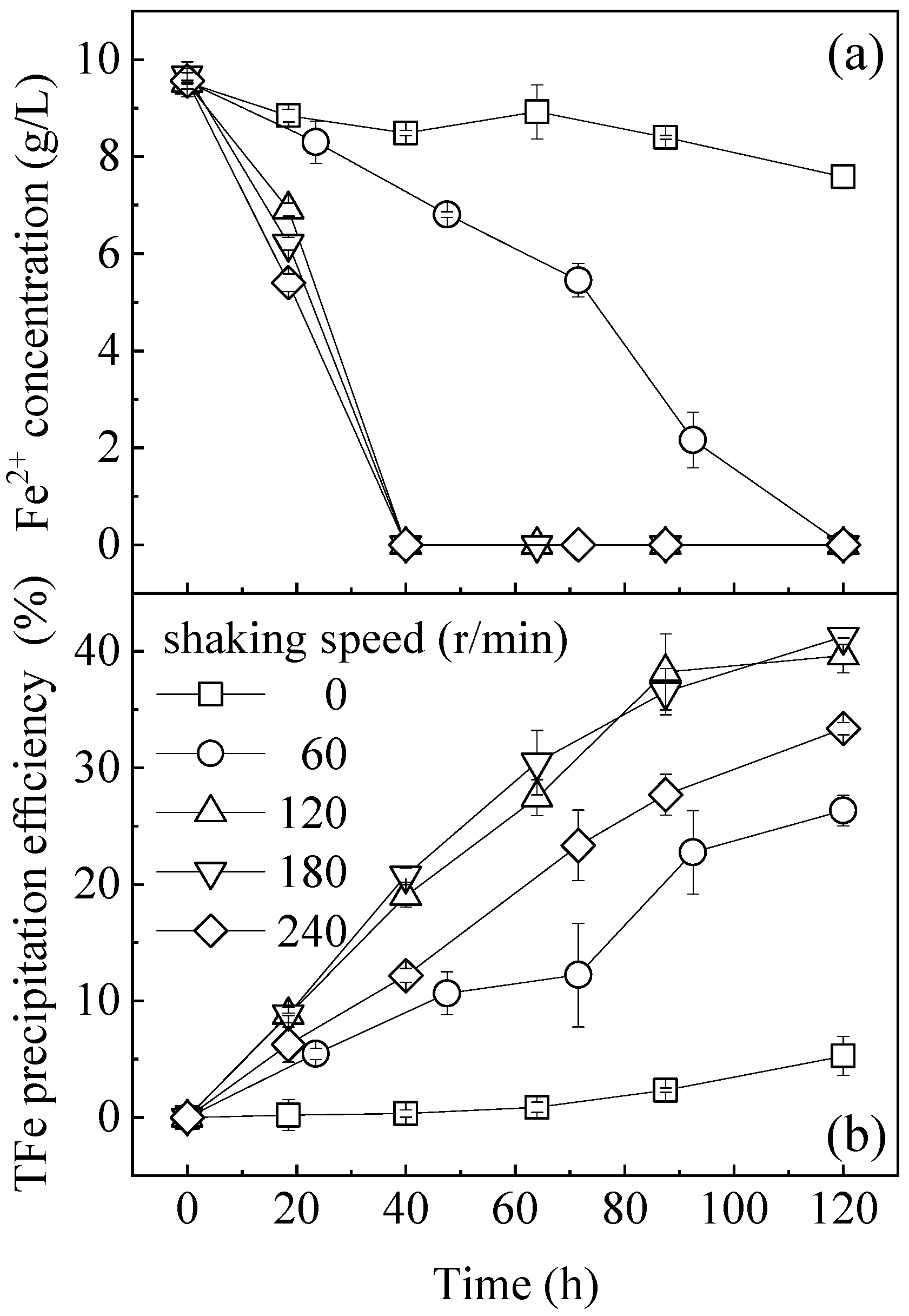

Figure 2. Effect of hydraulic shear force on the (a) Fe2+ concentration and (b) TFe precipitation efficiency in the 9K-FeSO4-A. ferrooxidans system.
Figure 2. Effect of hydraulic shear force on the (a) Fe2+ concentration and (b) TFe precipitation efficiency in the 9K-FeSO4-A. ferrooxidans system.
Minerals 10 00518 g002
Minerals 10 00518 g003 550
Figure 3. Comparison of the biosynthetic iron hydroxysulfate mineral mass with respect to different hydraulic shear forces.
Figure 3. Comparison of the biosynthetic iron hydroxysulfate mineral mass with respect to different hydraulic shear forces.
Minerals 10 00518 g003
Minerals 10 00518 g004 550
Figure 4. Effect of the hydraulic shear force on the DO concentration of the 9K-FeSO4-A. ferrooxidans system.
Figure 4. Effect of the hydraulic shear force on the DO concentration of the 9K-FeSO4-A. ferrooxidans system.
Minerals 10 00518 g004
Minerals 10 00518 g005 550
Figure 5. Effects of O2 supply time on the (a) DO concentration, (b) Fe2+ oxidation and (c) TFe precipitation efficiency during A. ferrooxidans-mediated biomineralization.
Figure 5. Effects of O2 supply time on the (a) DO concentration, (b) Fe2+ oxidation and (c) TFe precipitation efficiency during A. ferrooxidans-mediated biomineralization.
Minerals 10 00518 g005
Minerals 10 00518 g006 550

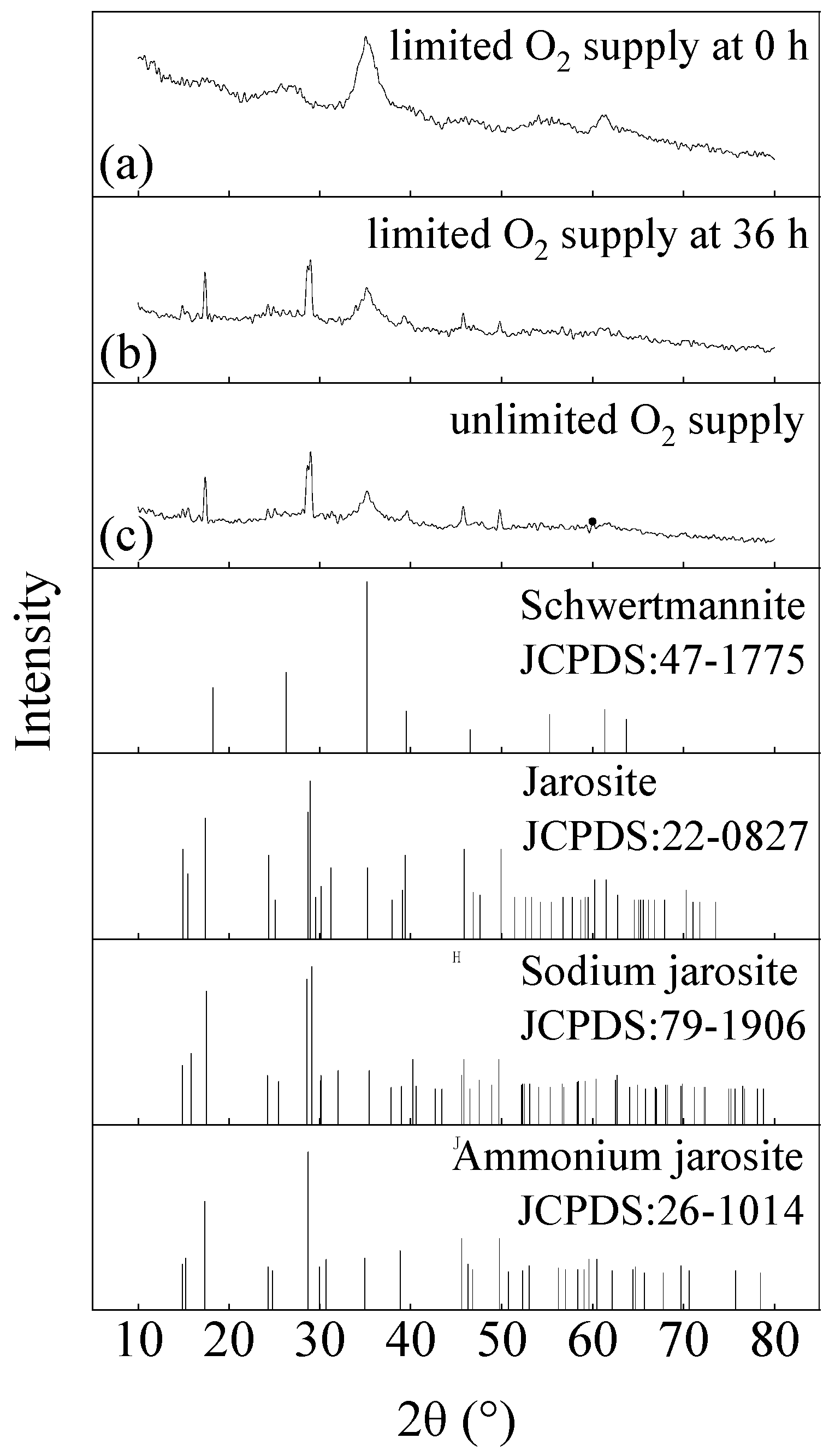

Figure 6. XRD patterns of the iron hydroxysulfate minerals mediated by A. ferrooxidans under different O2 supply times, i.e., (a) limited O2 supply at 0 h; (b) limited O2 supply at 36 h and (c) unlimited O2 supply.
Figure 6. XRD patterns of the iron hydroxysulfate minerals mediated by A. ferrooxidans under different O2 supply times, i.e., (a) limited O2 supply at 0 h; (b) limited O2 supply at 36 h and (c) unlimited O2 supply.
Minerals 10 00518 g006
Minerals 10 00518 g007 550

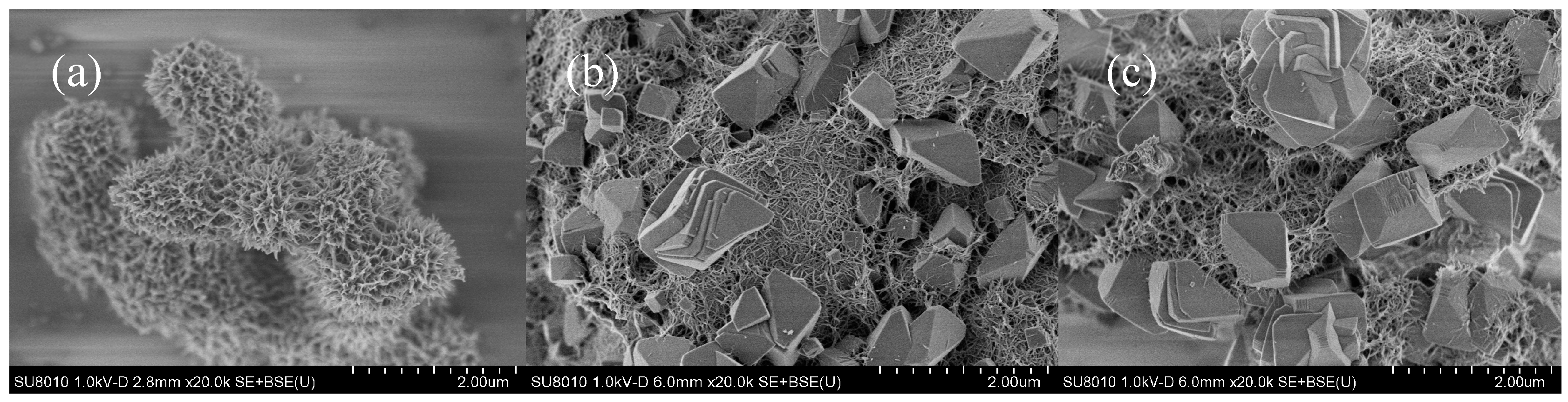

Figure 7. Scanning electron microscopy (SEM) images of the iron hydroxysulfate minerals mediated by A. ferrooxidans under different O2 supply times, i.e., (a) limited O2 supply at 0 h; (b) limited O2 supply at 36 h and (c) unlimited O2 supply.
