Geochemistry and Acid Hydrometallurgy Accessibility of Uraninite from Mianhuakeng Granite-Hosted Uranium Deposit, South China

by
Jian Wang
1,2,
Zhanxue Sun
2,*,
Guangrong Li
2,*,
Yajie Liu
2,
Zhongkui Zhou
2,
Xuegang Wang
2,
Zhihong Zheng
2,
Yipeng Zhou
2,
Kai Zhao
2,
Ling Xiang
2 and
Jiaxin Wei
2
1
School of Water Resources and Environment, Beijing Key Laboratory of Water Resources and Environmental Engineering, and MOE Key Laboratory of Groundwater Circulation and Environmental Evolution, China University of Geosciences (Beijing), Beijing 100083, China
2
State Key Laboratory of Nuclear Resources and Environment, East China University of Technology, Nanchang 330013, China
*
Authors to whom correspondence should be addressed.
Minerals 2020, 10(9), 747; https://doi.org/10.3390/min10090747
Submission received: 18 May 2020 / Revised: 15 August 2020 / Accepted: 18 August 2020 / Published: 23 August 2020
(This article belongs to the Special Issue Geochemical and Mineralogical Characterization of Uranium and Thorium Deposits )
Browse Figures
Review Reports Versions Notes

Abstract

:
Systematic study of the surface chemical properties of uranium minerals is necessary to improve the uranium ore extracting process. The presented work aims to argue geochemistry and acid hydrometallurgy accessibility of uraninite from the Mianhuakeng (MHK) granite-hosted uranium deposit, South China, which provides insight on this ore extracting domain. Mineralogy, geochemical composition, U–Th–Pb chemical age, and uranium deportment of the uraninite were systematically analyzed by using scanning electron microscope with energy dispersion spectrum (SEM-EDS), an electron probe microanalyzer (EPMA), and x-ray photoelectron spectroscopy (XPS). The results showed that uraninite was intergrowth with coffinite, probably due to uraninite being partly metasomatized into coffinite along the fissures. The major element content of uraninite such as for UO2, SiO2, and CaO were 79.46 ± 2.03 wt%, 6.19 ± 1.36 wt%, and 5.09 ± 0.80 wt%, respectively. Single-point U–Th–Pb chemical ages for uraninite grains were calculated with the EPMA data, and the results showed ages ranging from a few million to dozens of million years, indicating Pb loss after uraninite formed. Uranium deportment in uraninite generally existed in the forms of UO2, U3O8, and UO3, and mostly showed high valence states suggested by XPS. Uranium on the surface of the uraninite grain was partially oxidized by sulfuric acid leaching, which led to tetravalent uranium converting to hexavalent uranium, suggesting uraninite in the MHK uranium deposit is accessible to be leached by sulfuric acid.

1. Introduction

As one type of mostly potential and practical non-fossil energy sources, nuclear energy has irreplaceable advantage, not only because of low carbon dioxide emissions, but also in terms of operating stability relative to traditional fossil energy and renewable energy [1]. Therefore, many countries in the world, especially in China, have paid more attention to the development of nuclear power in order to meet the international emissions reduction commitment and construct an ecological society [2]. In recent years, uranium (U) resource consumption has been substantially increased, accompanied by the ever-increasing need for nuclear power worldwide [3,4]. However, it is a hard fact that uranium ore grades have rapidly declined over the past few decades [3]. Mineral processing techniques, which are used to extract uranium from low grade refractory uranium ores, have become a hot spot and are now receiving renewed attention [5,6,7,8,9,10]. However, nowadays, systematic study of the surface chemical properties of uranium minerals is still rare, which seriously slow down the uranium ore extracting process techniques [11]. In particular, it is still not very clear as to how the uranium valence changes during the acid leaching of uranium minerals.
According to the host rocks, the uranium deposits in Southern China can be mainly divided into three types: granite-hosted, volcanic-hosted, and carbonaceous-siliceous-pelitic rock-hosted deposits [12,13], of which the first type has attracted the most scientific attention. Over the past decade, research has focused on the characterization of granite-host uranium deposits for the ore genesis, chemical composition, and ore forming age in Southern China. The ore minerals are mainly uraninite, coffinite, and brannerite [14]. UO2 contents in uraninite compositions usually vary from 77.1 to 90.9 wt%, SiO2 from ca. 0.1 to 7.8 wt%, and relatively high CaO from ca. 2.0 to 11.5 wt% [15,16]. Furthermore, abundant studies have been carried out on the ore forming ages of uranium deposits including in situ high sensitivity and high spatial resolution dating techniques [17,18,19,20,21]. Recently, a robust Secondary Ion Mass Spectrometry (SIMS) U–Pb age of ~2.0 Ma was first discovered in the Menggongjie uranium deposit, which has been interpreted as a newly identified mineralization stage, making the Menggongjie deposit the youngest granite-hosted uranium deposit [16]. The predominant valence states of uranium are U(Ⅲ), U(Ⅳ), U(Ⅴ), and U(Ⅵ) across various geological bodies on Earth, which occur widely in compounds of multiple valences. Among these compounds, U(Ⅳ) and U(Ⅵ) are relatively common in nature [22]. U(Ⅳ) is usually reserved as uraninite (UO2) during magmatic, metamorphic, and hydrothermal processes. U(Ⅵ) easily dissolves in water in forms of either uranyl compounds or secondary uranium minerals as sulfate, carbonate, vanadates, and phosphate in environments such as sedimentation, evaporation, and oxidation [23]. Native uranium, which was thought to not exist in nature due to its instability and changeable valence of uranium, was first discovered in hydrothermal Guidong and Zhuguang uranium deposits [24]. Meanwhile, it was found that the main uranium minerals in the Xianshi uranium deposit may not be uraninite, otherwise, it might be the first discovery of vorlanite (CaU)O4 enriched by a deposit of economic size [25,26].
In this work, uraninite from the MHK uranium deposit, one of the main uranium minerals, was taken as the target mineral. The petrography and mineralogy, geochemical composition, chemical U–Th–Pb ages and uranium valence of uraninite collected from the MHK (also called No. 302) uranium deposit were systematically analyzed using SEM-EDS, EPMA, and XPS. In particular, the variation characteristics of the uranium valence are discussed in detail when the pristine uraninite samples were leached by chemically pure sulfuric acid. The goal of this research is to provide fundamental knowledge on the surface chemical properties of uraninite from MHK, and to determine how sulfuric acid will oxidize uranium minerals during acid leaching.

2. Materials and Methods

2.1. Geological Setting and MHK Uranium Deposit

South China, which is composed of the Yangtze Block in the north and the Cathaysian Block in the southeast, has yielded the most important granite-hosted uranium deposits in China, especially in the area of Motianling, Miaoershan, Jiuyishan, Liuchen, Guidong, Zhuguang, Taoshan, Aigao, and Dafuzu [12,13,14]. The Zhuguang complex, which is composed of multiperiodic granites, is located in the northern Guangdong Province of South China. The MHK deposit is located in the central part of the southern Zhuguang complex, which is pinched between the Mianhuakeng fault (strike 50°–60° N) and Youdong fault (strike 295°–310° N). Tectonically, this location is in the transition zone of the Cathaysian Caledonian uplift and Guangdong Hercynian–Indosinain depression (Figure 1).
The crustal evolution has experienced four tectonic cycles, namely Caledonian, Hercynian Indosinian, Yanshan, and Xishan tectonic cycles, showing the evolution model of activity–stability–reactivation. The Caledonian movement at the end of the early Paleozoic resulted in tight linear compound folds in the lower Paleozoic strata and widespread regional metamorphism, forming the basic outline of the North-East (NE) trending post Caledonian uplift of Fujian and Jiangxi Provinces [14,27,28]. During the Variscan, the whole area was relatively stable, during which a slow ascending and descending movement occurred, showing that the Longtan Formation of the upper Permian was parallel unconformity on the Dangchong Formation of the lower Permian. During the Indosinian movement between the Middle and Late Triassic, the early Paleozoic strata underwent another transformation, while the late Paleozoic strata produced surface sliding and formed transitional folds. With this movement, the region further uplifted, connecting the Jiufeng and Jiulianshan uplifts, thus forming the basic outline of the post Indosinian landmass in northern Guangdong [29]. The Yanshanian movement is characterized by strong fault block activity and large-scale acid magmatic intrusion. The Himalayan movement took place between the Paleogene, Neogene, and the end of the Neogene, which is the continuation and development of Yanshan movement. With the exception of the Silurian, strata of different ages from the Sinian to Quaternary were well developed, which were distributed in the edge of rock mass. Among them, the Paleozoic is the most widely distributed, followed by the Mesozoic and Cenozoic. There were frequent magmatic activities in the area including Indosinian and Yanshanian granites, which were dominated by late Indosinian medium coarse-grained porphyritic biotite granite and early Yanshanian medium coarse-grained biotite granite, followed by the second stage of Indosinian medium coarse-grained porphyritic monzogranite, the third stage of early Yanshanian fine-grained porphyritic biotite granite, and late Yanshanian period fine grained biotite granite with a small amount of late Yanshanian intermediate-basic dike and fine-grained dike intrusion [28].
The MHK ore field hosts significant uranium deposits such as those at Shulouqiu, Mianhuakeng, Youdong, Changpai, and Changkeng, etc. (Figure 2), of which the MHK is the largest in South China. There are three groups of faults in the MHK ore field: the Norh-East-East (NEE, probably the ore controlling structure), Norh-West-West (NWW), and Norh-Norh-West (NNW) strike. The predominant uranium mineral in this ore field is uraninite associated with quartz, fluorite, pyrite, and minor carbonates, which mainly occur in the veins. The uranium mineralization was accompanied by chloritization, hematization, and sericitization, etc.
For the MHK uranium deposit precisely, mineralization of the MHK uranium deposit was mainly controlled by the fracture system with a south–north extension, which led to the ore bodies being mainly vein-like and lenticular. These fracture systems probably formed approximately 90 Ma ago, and the major mineralization temperature ranged from 150 to 350 °C, according to fluid inclusion experiments [24]. The buried depth of the ore bodies ranged from the surface to a few hundred meters (Figure 2c), however, the industrial ore body is produced at an elevation from 500 m to −647 m. There are three main deportments of uranium, namely, (1) independent mineral of uranium; (2) isomorphism in accessory minerals; and (3) distribution in other rock forming minerals [32,33]. The ore minerals are mainly uraninite with a small amount of secondary uranium minerals [13]. The ores are dark red and gray, and uraninite occurs in mostly disseminated veinlet and agglomerate forms (Figure 3). The main gangue minerals are quartz and feldspar (microcline feldspar and plagioclase) and the secondary gangue minerals are sericite, hematite, pyrite, fluorite, calcite, galena, etc. [34]. The main types of alteration are as follows progressively: silicification, hematite mineralization, strong sericitization chloritization, sericitization kaolinization, and weak altered granite [35,36].
Furthermore, wall rock of the upper part of the deposit is medium-grained porphyritic dimicite granite of Youdong Indosinian pluton, with a diagenetic age of 232 ± 4 Ma. Moreover, the middle-lower surrounding rock is medium-grained biotite granite of Changjiang Yanshanian plutons, with a diagenetic age from 155 to 164 Ma [31,37,38]. It is noteworthy that uranium minerals are commonly associated with several generations of quartz, carbonate, fluorite, pyrite, and other gangue and alteration minerals. The existence of all these minerals suggests that the hydrothermal ore-forming fluid composition is complicated, and was formed in multiple environments [24]. In this research, samples of U-ore were all collected from the MHK uranium deposit below a depth of 150 m. Then, the samples were mashed and passed through a 50-mesh sieve. Finally, the uraninite was picked out within a binocular eyepiece to make mineral targets that were used to analyze the microscopy, mineral, chemical compositions, and uranium valence.

2.2. Analytical Methods

The characterization of the mineral and chemical compositions of the samples was determined at the State Key Laboratory of Nuclear Resources and Environment, East China University of Technology. The microstructure and microzone chemical properties of the uraninite grains were analyzed by the Nova Nano-SEM 450 scanning electron microscope equipped with energy dispersive spectrometry (Inca Energy X-Max20, made by Oxford Instruments, Abingdon, UK). Based on petrographic observations and SEM-EDS analysis, the same uraninite grains were chosen for quantitative chemical analysis and map scanning by a JEOL JXA-8530 electron probe microanalyzer (EPMA). The EPMA analytical conditions were 15 kV accelerating voltage, and a 20 nA beam current with a 5 µm beam diameter for analyzing the uranium oxides composition. Data were reduced using the X-PHI procedure, and detection limits for these elements were approximately 0.01 wt%. Moreover, prior to SEM-EDS and EPMA analysis, thin sections of samples were gold and carbon coated to create a conductive surface, respectively.
XPS was chosen to characterize the uranium chemical valences of uraninite and the relative proportions of different valence uranium in the uraninite. In order to investigate how sulfuric acid oxidized uranium mineral, the target minerals were leached by 3 g L−1 chemically pure sulfuric acid (50 µL) for 2 h before it was tested again. Furthermore, the XPS analysis could also provide additional elemental information on the surface of the uraninite. In this study, the XPS analysis was carried out at the Guangzhou Institute of Geochemistry, Chinese Academy of Science using a Thermo Fisher K-Alpha instrument fitted with Al Kα (hv = 1486.6 eV) at 300 W on, and at the pass energy of 100 eV for a better result in quantitative determination. In addition, a high vacuum condition of less than 3 × 10−9 Pa, high resolution of 0.50 eV, and pass energy of 30 eV were set up for gaining precise binding energies in qualitative narrow scanning analysis. The calibration of the binding energy was referenced on the adventitious carbon (284.8 eV). The XPS spectrum was processed using the software Thermo Avantage V5.934.

3. Result

3.1. Petrography and Mineralogy of the Uraninite

The back-scattered electron (BSE) images were obtained by SEM (Figure 4). Figure 4a–c indicated that the uraninite grains generally showed a polygonal aspect with serrated edges, and mostly showed relatively homogeneous grayscale with a small number of broken cracks. Moreover, the crystal habits of the uraninite and mineralogical assemblages were identical to those previously described for primary uraninite at the MHK uranium deposit [13,39]. According to the BSE images, some coffinite was embedded in the uraninite, which showed different brightness in Figure 4d–g. The variations in BSE brightness indicated different chemical compositions [40]. The darker areas linked to lower average atomic weight reflected some changes in the chemical composition of the uraninite by a substitution of the heavy element (U) with a lighter element (Si). Furthermore, these in situ elemental substitutions in the uraninite were strong, but progressive, and probably ultimately led to a total conversion of uraninite to secondary uranium minerals such as coffinite [41,42]. The chemical composition of the uraninite would be described in more detail in the following sections.
To analyze the major elemental composition of the uranium mineral, EDS was used as a semiquantitative tool to determine the percent of major components (the analytical zones were shown in Figure 4). Figure 5 lists the elemental constitution of each sample with their mass and atomic proportions. SEM-EDS analyses revealed that U, O, Si, and Ca were the major elements of the uranium mineral. However, Al, Fe, and especially Y, were only detected in some grains (Figure 5).

3.2. Geochemical Composition of Uraninite

The quantitative elemental composition of uraninite were investigated by an electron probe microanalyzer (EPMA). The in situ chemical composition data are presented in Table S1. Moreover, the statistical characteristic value of the elemental composition of representative grains is shown in Table 1. The uraninite corresponding to the bright zones in the BSE-image (Figure 4) was characterized by the higher U, Ca, and Fe contents and lower Si and Al contents. Coffinite (the gray areas in BSE-image) showed relatively higher Si and Al contents. Concentrations of UO2, SiO2, CaO, FeO, and Al2O3 in uraninite and coffinite were 79.46 ± 2.03 and 65.79 ± 2.45 wt%, 6.19 ± 1.36 and 15.72 ± 1.70 wt%, 5.09 ± 0.80 and 2.08 ± 0.28 wt%, 0.55 ± 0.12 and 0.15 ± 0.07 wt%, and 0.57 ± 0.17 and 0.93 ± 0.20 wt%, respectively. In addition to the aforementioned oxides, the uraninite and coffinite also contained minor amounts of Ce2O3, Na2O, TiO2, P2O5, PbO, etc.
High-resolution EPMA elemental mapping of the selected elements (major elements of U, Si, Ca, and Fe, and trace elements of Al, Ce, Na, and Pb) were also carried out to examine different grains and within-grain compositional heterogeneity. It showed that the four uranium mineral grains presented relatively variable element contents, especially exemplified by U, Si, Al, and Pb maps (Figure 6a–d and Figure S1a–d in Supplementary Materials). Additionally, internal heterogeneity within an individual grain was revealed by the element mapping, which was well corroborated with the stripe type distribution of U, Si, Ca, and Fe (Figure 6a–d). Importantly, it was vividly demonstrated that the ultimate conversion from uraninite to coffinite was characterized by a Si increase, coupled with a significant drop in the U, Ca, and Fe contents in these maps.

3.3. The Age of Uraninite from the MHK Uranium Deposit

In situ U–Th–Pb chemical ages of fine uranium mineral can be obtained through EPMA due to its high spatial resolution [15,16]. Single-point U–Th–Pb chemical ages of uranium mineral grains were calculated through the Cameron–Schiman’s Equation (Equation (1)), which was described in detail by Bowles [43] and applied by uranium deposit geologists [40,44,45]. Moreover, the accuracy of Pb analyses by EPMA was about 0.01%, which corresponded to errors of 1 Ma for the chemical ages.
t(y) = Pb∙1010/(1.612U + 4.95Th)
In this equation, amounts of U, Th, and Pb were contents in atomic percentage (%) and the resultant age was in years. Through the calculation, the average chemical ages of uraninite and coffinite were 5.96 ± 3.49 Ma and 5.32 ± 2.92 Ma, respectively, except for several extreme values (Figure 7).

3.4. Acid Hydrometallurgy of Uraninite

The distribution of XPS measured spots are shown in Figure S2, and grains 1–3 were analyzed again when the uraninite samples were leached by sulfuric acid. In general, the abscissa and ordinate of the XPS curve were binding energy and measured intensity, respectively. The handbook or database for XPS binding energy could be applied to identify elements qualitatively [46]. As shown in the XPS spectrum, the binding energy at 284.88 eV corresponded to the C 1s peak, and O 1s peak, U 4f peak, Si 2p peak, and Ca 2p peak were at 533.73 eV, 381.07 eV, 97.16 eV, and 347.37 eV, respectively. Thus, the whole spectrum scanning indicated that the uraninite mainly consisted of C, O, U, Si, and Ca with minor Ce (Figure 8). These results were well consistent with the determination by EPMA and EDS.
In order to identify the major ionic species of uranium of uraninite, the XPS narrow scan of U 4f (the spin orbit splitting was 10.8 eV) was done repeatedly. Moreover, the U 4f7/2 bands were further resolved to quantitatively assess the existing uranium species. The peak fitting curves of the different uranium chemical valences are shown in Figure 9. These results indicate that uranium in the uraninite existed in the forms of UO2, U3O8, and UO3 with a binding energy of 380.0 eV, 381.0 eV, and 381.9 eV, respectively [39,47].
The percentages of uranium species of different uraninite grains are listed in Table 2. It indicated that the occurrence of uranium chemical valences on the surface of different particles were different, despite the similarities in the uranium species before and after the acid leaching. In these samples, U3O8 and UO3 are the main forms of uranium, which suggest that uranium existed mostly at high valence states. Furthermore, oxygen coefficients (ko) of all grains were also calculated according to their percentages of uranium in various states (Table 2).

4. Discussion

4.1. Chemical Composition of Uraninite

As shown in Table 1, the analytical data fell short of 100%. This could be interpreted by the presence of structural water, undetected rare earth elements (REEs) as well as the hexavalent uranium due to the U completely calculated as UO2 [16,41,48,49]. According to previous studies, low-temperature hydrothermal uraninite was marked by U/Th 1000 [50]. In this study, the contents of ThO2 were extremely low (mostly below the limit of detection and U/Th were far greater than 1000), which were in accordance with their hydrothermal origin due to the generally lower solubility of Th at low to intermediate fluid temperature (i.e., lower than 300 °C as previously mentioned) [15,17,51]. However, the uraninite and coffinite contained relatively high calcium contents (up to 6.16 wt% CaO), which were also in agreement with their hydrothermal origin [16]. In fact, it is commonly considered that the incorporation of Ca into the uraninite structure compensates for the charge difference because of the presence of hexavalent uranium [52]. Therefore, the concentration of Ca correlates positively to that of U in the mineral grains (Figure 10a). Furthermore, calcium was most possibly incorporated during crystallization, even if a small part of it could be related to post-crystallization alteration [13]. Both Si versus U and Si versus Ca of uraninite and coffinite showed significantly negative correlations (Figure 10b,c). As shown in the BSE images (Figure 4), uraninite was possible intergrown with coffinite. And then, the most significant difference about uraninite and coffinite was up to 18.42 wt% SiO2, and low to 63.93 wt% UO2 and 1.72 wt% CaO, respectively. The obvious trends of high U and Ca and low Si from uraninite to coffinite are shown in Figure 11. As a matter of fact, these characteristics of the two minerals’ composition generally depended on the features of the host rocks, and amounts and compositions of the alteration fluids, particularly their capacity for oxidation [41].

4.2. Pb Loss and Reliability of the Uraninite U–Th–Pb Chemical Ages

Chemical U–Th–Pb ages derived from the composition of uraninite varied from 0.65 to 68.13 Ma, indicating Pb loss [53]. In this study, Pb rich zones were clearly seen predominately along the grain edge (Figure S1), which meant that initial Pb existed. Moreover, there was a low correlation of UO2 vs. PbO (Figure 12) and extremely weak correlations of Σ(SiO2 + CaO + FeO) vs. chemical ages of uraninite, which were also in agreement with obvious Pb loss in uraninite [15,40,54]. A well-defined negative correlation between the Σ(SiO2 + CaO + FeO) contents and Σ(UO2 + PbO) contents (Figure 13) indicated that the major elements (UO2 + PbO) had been partially replaced by elements of Σ(SiO2 + CaO + FeO) [41]. As we all know, uraninite usually has a high content of U, so a large number of ɑ particle would be released during the decay, leading to lattice damage. Next, Ca, Si, Fe, and other impurity elements would enter into the crystal lattice of uraninite because of the effect of the alteration fluids later, which led to U and Pb loss [55]. Furthermore, Pb loss, U redistribution, and incorporation of Si, Ca, and Fe in uraninite suggested that it was an opening of the U–Th–Pb system [48]. However, the mechanism of Pb loss is unclear and Pb loss quantification is lacking in this area. It may have been continuous diffusional Pb loss, episodic recrystallization, or by the formation of secondary uraninite [52,56].
Due to the Pb loss of uraninite, a “chemical age” of uraninite calculated from the EPMA analyses were highly questionable [57,58,59]. Therefore, uraninite in situ Laser Ablation-Inductively Coupled Plasma-Mass Spectrometry (LA-ICP-MS) U–Pb geochronological research should be carried out, in order to obtain a precise mineralization age for the MHK (No. 302) uranium deposit. Moreover, it is also worthwhile to research the Pb loss mechanism for the crucial uranium mineralization age, especially for deciphering the mechanism of multi-stage uranium mineralization in South China.

4.3. Acid Leaching Accessibility of Uraninite

Until now, leaching by utilizing sulfuric acid solutions is still the most widely used process for extracting uranium from uraninite, coffinite, and brannerite ores due to the relatively low cost and wide availability of the acid [5]. In general, the acid sulfate leaching process includes treating the uranium mineral with sulfuric acid at elevated temperatures (usually 30–50 °C), with an oxidant to convert the low-valent state uranium to the hexavalent state uranium [60]. Moreover, chemistry of uranium ores such as element species will change during acid sulfate leaching, and it has been discussed in detail by some authors [61,62]. In this study, the variation of element composition of uraninite before and after acid leaching is shown in Figure 14. It suggests that the mass percentages of U, C, and Ca decreased significantly, followed by O increasing observably and S appeared when the uraninite target was leached by sulfuric acid. However, the content of Si did not show obvious variation characteristics.
All the uranium mass percentages of different sized grains (grains 1, 2 and 3) showed a decrease in the low-valent state (UO2 and U3O8) and a corresponding increase in the high-valent state (UO3) in the proportion when these samples were leached by sulfuric acid (Figure 15). This indicates that uranium on the surface of uraninite was partially oxidized during the acid leaching process. Consequently, the most likely reaction pathway was the oxidation of tetravalent uranium to hexavalent uranium because of the leaching [63]. Some studies indicated that the oxidation of UO2 possibly proceeded through two successive electrochemical reactions, coupled with a U5+ intermediate at the UO2 surface noticeable between the U4+ and U6+ oxidation states [64,65], but it was not detected in this study. In addition, the binding energy of the uranium oxide tended to rise due to the increase in the oxygen coefficient (ko). Hence, the main peak corresponding to U 4f7/2 moved 1.28 eV to the left in the XPS spectrum (Figure 16). It was worth noting that uraninite in this deposit hosted predominantly oxidized uranium, which was novel and unusual because it contained uranium as a necessary structural constituent in either the reduced U4+ or oxidized U6+ valence state.
In light of the above analysis, it is possible to extract uranium from uraninite in the MHK deposit by using an acid sulfate leaching process. In order to raise the uranium extraction rates, it is necessary and important to appropriately improve sulfuric acid concentration typically used in commercial leaching operations [66]. An understanding of the low temperature aqueous and redox geochemistry of uraninite provides important background information as to the stability of uraninite under different environmental conditions (e.g., T, pH, and pO2), all of which are relevant to understanding the behavior of uraninite in commercial leaching processes. However, the finding that uraninite at this deposit hosts predominantly oxidized uranium is novel and unusual, and must be discussed in great detail and from a mineralogical and crystallographic point of view.

5. Conclusions

The present study provided the uranium mineralogy, chemical compositions, U–Th–Pb chemical age, and uranium valence of uraninite in the Mianhuakeng granite-hosted uranium deposit, South China. In addition, the variation characterization of the compositions and uranium valence after being acid leached were particularly discussed in detail. The following conclusions were drawn with regard to the surface chemical properties and acid leaching accessibility of uraninite in the MHK deposit.
The uraninite was intergrowth with coffinite. Elemental contents of the two minerals were significantly different. Their major elements concentrations for UO2, SiO2, and CaO were 79.46 ± 2.03 and 65.79 ± 2.45 wt%, 6.19 ± 1.36 and 15.72 ± 1.70 wt%, and 5.09 ± 0.80 and 2.08 ± 0.28 wt%, respectively. Then, the most important difference between uraninite and coffinite was up to 18.42 wt% SiO2, and as low as 63.93 wt% UO2 and 1.72 wt% CaO, respectively. The average chemical ages of uraninite and coffinite were 5.96 ± 3.49 Ma and 5.32 ± 2.92 Ma, respectively. However, the “chemical age” calculated from the EPMA analyses were highly questionable due to lead loss.
Second, uranium in the uraninite generally existed in the forms of UO2, U3O8, and UO3 with a binding energy of 380.0 eV, 381.0 eV, and 381.9 eV, respectively. The fractions of U3O8 and UO3 were overwhelming, which suggested that uranium mostly existed at high valence states. Moreover, uranium on the surface of uraninite was partially oxidized by sulfuric acid leaching, which led to a conversion of tetravalent uranium to hexavalent uranium. Thus, uraninite in the MHK deposit was able to be leached by sulfuric acid.

Supplementary Materials

The following are available online at https://www.mdpi.com/2075-163X/10/9/747/s1, Table S1: Representative analyses of the chemical composition (wt%) and single-spot ages of uranium mineral from the MHK uranium deposit (Ma); Figure S1: EPMA elemental maps for Al, Ce, Na, and Pb of uraninite grains; Figure S2: Locations of the spot analyses for the XPS.

Author Contributions

Conceptualization, Z.S.; Methodology, Z.S. and G.L.; Project administration, Z.S.; Funding acquisition, Z.S.; Formal analysis, J.W. (Jian Wang); Investigation and sampling, K.Z., J.W. (Jiaxin Wei), L.X. and J.W. (Jian Wang); Data curation, J.W. (Jian Wang); Writing-original draft preparation, J.W. (Jian Wang); Writing-review and editing, G.L., Y.L., X.W., Z.Z. (Zhongkui Zhou), Z.Z. (Zhihong Zheng), and Y.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the National Natural Science Foundation of China (No. 41772266, 51764001) and the Open Fund from the State Key Laboratory of Nuclear Resources and Environment, East China University of Technology (No. NRE1929).

Acknowledgments

This research was carried out at the State Key Laboratory of Nuclear Resources and Environment, East China University of Technology. Specially, we thank the laboratory members for helping to analyze the mineral samples by EPMA and SEM-EDS. We are very grateful for the Guangzhou Institute of Geochemistry, Chinese Academy of Science for helping with the surface analysis of the mineral samples through XPS.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Jungho, B. Do nuclear and renewable energy improve the environment? Empirical evidence from the United States. Ecol. Ind. 2016, 66, 352–356. [Google Scholar]
  2. Xing, W.L.; Wang, A.J.; Yan, Q.; Chen, S. A study of China’s uranium resources security issues: Based on analysis of China’s nuclear power development trend. Ann. Nucl. Energy 2017, 110, 1156–1164. [Google Scholar] [CrossRef]
  3. Mudd, G.M. The future of Yellowcake: A global assessment of uranium resources and mining. Sci. Total. Environ. 2014, 472, 590–607. [Google Scholar] [CrossRef] [PubMed]
  4. Ilankoon, I.M.S.K.; Tang, Y.; Ghorbani, Y.; Northey, S.; Yellishetty, M.; Deng, X.Y.; McBride, D. The current state and future directions of percolation leaching in the Chinese mining industry: Challenges and opportunities. Miner. Eng. 2018, 125, 206–222. [Google Scholar] [CrossRef] [Green Version]
  5. Bhargava, S.K.; Ram, R.; Pownceby, M.; Grocott, S.; Ring, B.; Tardio, J.; Jones, L. A review of acid leaching of uraninite. Hydrometallurgy 2015, 151, 10–24. [Google Scholar] [CrossRef]
  6. Petersen, J. Heap leaching as a key technology for recovery of values from low-grade ores—A brief overview. Hydrometallurgy 2016, 165, 206–212. [Google Scholar] [CrossRef]
  7. Wang, X.G.; Liu, Y.J.; Sun, Z.X.; Li, J.; Chai, L.Y.; Min, X.B.; Guo, Y.D.; Li, P.; Zhou, Z.K. Heap bioleaching of uranium from low-grade granite-type ore by mixed acidophilic microbes. J. Radioanal. Nucl. Chem. 2017, 314, 251–258. [Google Scholar] [CrossRef]
  8. Wang, X.G.; Li, P.; Liu, Y.J.; Sun, Z.X.; Chai, L.Y.; Min, X.B.; Guo, Y.D.; Zheng, Z.H.; Ke, Y.; Liang, Y.J. Uranium bioleaching from low-grade carbonaceous-siliceous-argillaceous type uranium ore using an indigenous Acidithiobacillus ferrooxidans. J. Radioanal. Nucl. Chem. 2018, 317, 1033–1040. [Google Scholar] [CrossRef]
  9. Wang, X.G.; Sun, Z.X.; Liu, Y.J.; Min, X.B.; Guo, Y.D.; Li, P.; Zheng, Z.H. Effect of particle size on uranium bioleaching in column reactors from a low-grade uranium ore. Bioresour. Technol. 2019, 281, 66–71. [Google Scholar] [CrossRef]
  10. Zhou, Y.P.; Li, G.R.; Xu, L.L.; Liu, J.H.; Sun, Z.X.; Shi, W.J. Uranium recovery from sandstone-type uranium deposit by acid in-situ leaching-an example from the Kujieertai. Hydrometallurgy 2020, 191, 105–116. [Google Scholar] [CrossRef]
  11. Cai, Y.Q.; Zhang, J.D.; Li, Z.Y.; Guo, Q.Y.; Song, J.Y.; Fan, H.H.; Liu, W.S.; Qi, F.C.; Zhang, M.L. Outline of uranium resources characteristics and metallogenetic regularity in China. Acta Geol. Sin. Engl. 2015, 89, 918–937. [Google Scholar]
  12. Zhong, F.J.; Pan, J.Y.; Qi, J.M.; Yan, J.; Liu, W.Q.; Li, H.D. New in-situ LA-ICP-MS U-Pb ages of uraninite from the Mianhuakeng uranium deposit, Northern Guangdong Province, China: Constraint on the metallogenic mechanism. Acta Geol. Sin. Engl. 2018, 92, 852–854. [Google Scholar] [CrossRef]
  13. Bonnetti, C.; Liu, X.D.; Mercadier, J.; Cuney, M.; Etienne, D.; Johan, V.; Liu, W.Q. The genesis of granite-related hydrothermal uranium deposits in the Xiazhuang and Zhuguang ore fields, North Guangdong Province, SE China: Insights from mineralogical, trace elements and U-Pb isotopes signatures of the U mineralisation. Ore Geol. Rev. 2018, 92, 588–612. [Google Scholar] [CrossRef]
  14. Zhang, L.; Chen, Z.Y.; Li, S.R.; Huang, G.L. Characteristics of uranium minerals in wall-rock alteration zones of the Mianhuakeng (No. 302) uranium deposit, northern Guangdong, South China. Acta Petrol. Sin. 2018, 34, 2657–2670. [Google Scholar]
  15. Luo, J.C.; Hu, R.Z.; Shi, S.H. Timing of uranium mineralization and geological implications of Shazijiang granite-hosted uranium deposit in Guangxi, South China: New constraint from chemical U-Pb Age. J. Earth Sci. 2015, 26, 911–919. [Google Scholar] [CrossRef]
  16. Luo, J.C.; Hu, R.Z.; Fayek, M.; Bi, X.W.; Shi, S.H.; Chen, Y.W. Newly discovered uranium mineralization at ~2.0 Ma in the Menggongjie granite-hosted uranium deposit, South China. J. Asian Earth Sci. 2017, 137, 241–249. [Google Scholar] [CrossRef]
  17. Hu, R.Z.; Bi, X.W.; Zhuo, M.F.; Peng, J.T.; Su, W.C.; Liu, S.; Qi, H.W. Uranium metallogenesis in South China and its relationship to crustal extension during the Cretaceous to Tertiary. Econ. Geol. 2008, 103, 583–598. [Google Scholar] [CrossRef]
  18. Shi, S.H.; Hu, R.Z.; Wen, H.J.; Sun, R.L.; Wang, J.S.; Chen, H. Geochronology of the Shazijiang uranium ore deposit, Northern Guangxi, China: U-Pb ages of uraninite and their geological significance. Acta Geol. Sin. 2010, 84, 1175–1182, (In Chinese With English Abstract). [Google Scholar]
  19. Hu, H.; Wang, R.C.; Chen, W.F.; Chen, P.R.; Ling, H.F.; Zhang, G.M. Timing of hydrothermal activity associated with the Douzhashan uranium-bearing granite and its significance for uranium mineralization in Northeastern Guangxi, China. Chin. Sci. Bull. 2013, 58, 4319–4328. [Google Scholar] [CrossRef] [Green Version]
  20. Hu, R.Z.; Luo, J.C.; Chen, Y.W.; Pan, L.C. Several processes in the study of uranium deposits in South China. Acta Petrol. Sin. 2019, 35, 2625–2636, (In Chinese With English Abstract). [Google Scholar]
  21. Corcoran, L.; Simonetti, A.; Spano, T.L.; Lewis, S.R.; Dorais, C.; Simonetti, S.; Burns, P.C. Multivariate analysis based on geochemical, isotopic, and mineralogical compositions of uranium-rich samples. Minerals 2019, 9, 537. [Google Scholar] [CrossRef] [Green Version]
  22. Yan, S.; Boyanov, M.I.; Mishra, B.; Kemner, K.M.; O’Loughlin, E.J. U (VI) reduction by biogenic and abiotic hydroxycarbonate green rusts: Impacts on U (IV) speciation and stability over time. Environ. Sci. Technol. 2018, 52, 4601–4609. [Google Scholar] [CrossRef] [PubMed]
  23. Hazen, R.M.; Ewing, R.C.; Sverjensky, D.A. Evolution of uranium and thorium minerals. Am. Mineral. 2009, 94, 1293–1311. [Google Scholar] [CrossRef]
  24. Li, Z.Y.; Huang, Z.Z.; Li, X.Z.; Guo, J.; Fan, C. The discovery of natural native uranium and its significance. Acta Geol. Sin. Engl. 2015, 89, 1561–1567. [Google Scholar]
  25. Luo, J.C.; Hu, R.Z.; Fayek, M.; Li, C.; Bi, X.W.; Abdu, Y.; Chen, Y.W. In-situ SIMS uraninite U-Pb dating and genesis of the Xianshi granite-hosted uranium deposit, South China. Ore Geol. Rev. 2015, 65, 968–978. [Google Scholar] [CrossRef]
  26. Luo, J.C.; Hu, R.Z.; Bi, X.W.; Chen, Y.W. REE characteristics of a new uranium mineral from the Xianshi uranium deposit, South China. Acta Geol. Sin. 2018, 92, 1667–1669. [Google Scholar] [CrossRef]
  27. Tan, Z.Y.; Zhang, D.C.; Kuang, Z.P.; Zhu, Q.Z.; Li, Y. Analysis of deep prospecting at Mianhuakeng uranium deposit in the southern Zhuguang massif in northern Guangdong. Uranium Min. Metall. 2015, 2, 22–30, (In Chinese With English Abstract). [Google Scholar]
  28. Li, L.L. Studying on Geological and Geochemical Characteristics of Uranium Ore from Typical Uranium Deposits in Zhuguang Area. Master’s Thesis, East China Institute of Technology, Nanchang, China, 2018. (In Chinese With English Abstract). [Google Scholar]
  29. Li, J.H.; Xia, Z.Q. Typical deposit type and diagenetic metallogenic sequence model of Taoshan—Zhuguangshan uranium metallogenic belt. Mineral. Depos. 2012, S1, 205–206, (In Chinese With English Abstract). [Google Scholar]
  30. Huang, G.L.; Yin, Z.P.; Ling, H.H.; Deng, P.; Zhu, B.; Shen, W.Z. Formation age, geochemical characteristics and genesis of uraninite from No. 302 uranium deposit in northern Guangdong. Mineral Depos. 2010, 29, 352–360, (In Chinese With English Abstract). [Google Scholar]
  31. Zhang, C.; Cai, Y.Q.; Xu, H.; Dong, Q.; Liu, J.L.; Hao, R.X. Mechanism of mineralization in the Changjiang uranium ore field, South China: Evidence from fluid inclusions, hydrothermal alteration, and H-O isotopes. Ore. Geol. Rev. 2017, 86, 225–253. [Google Scholar] [CrossRef]
  32. Kotzer, T.G.; Kyser, T.K. O, U and Pb isotopic and chemical variations in uraninite: Implications for determining. Am. Mineral. 1993, 78, 11–12. [Google Scholar]
  33. Hu, H.; Wang, R.C.; Chen, W.F.; Ding, H.H.; Chen, P.R.; Ling, H.F. Study on uranium resource minerals of Douzhashan uranium-bearing granite, Northeastern Guangxi. Geol. Rev. 2012, 58, 1056–1068. [Google Scholar]
  34. Huang, G.L.; Liu, X.Y.; Sun, L.Q.; Li, Z.S.; Zhang, S.J. Zircon U-Pb dating, geochemical characteristic and genesis of the Changjiang granite in Northern Guangdong. Acta Geol. Sin. 2014, 88, 836–849. [Google Scholar]
  35. Gao, F.; Lin, J.R.; Zhong, Q.L.; Guo, S.Y.; Pang, Y.Q.; Rong, J.S.; Hu, Z.H. The wall rock alteration and its geochemical characteristics of uranium deposit No. 302. Uranium Geol. 2011, 5, 274–281, (In Chinese With English Abstract). [Google Scholar]
  36. Gao, X.; Shen, W.Z.; Liu, L.L.; Yao, W.; Zhu, B.; Huang, G.L.; Li, Q.Y. Geochemical characteristics and causes of wall rock alteration in the No. 302 uranium deposit, northern Guangdong. Acta Petrol. Mineral. 2011, 30, 71–82. [Google Scholar]
  37. Li, Z.Y.; Zhang, J.D.; Jian, X.F.; Cai, Y.Q.; Guo, Q.Y.; Zhu, P.F. Uranium metallogenic regionalization and resource potential in China. Acta Geol. Sin. Engl. 2012, 82, 547–554. [Google Scholar]
  38. Li, X.H. Cretaceous magmatism and lithospheric extension in Southeast China. J. Asian Earth Sci. 2000, 18, 293–305. [Google Scholar] [CrossRef]
  39. Zhang, L.; Chen, Z.Y.; Li, X.F.; Li, S.R.; Santosh, M.; Huang, G.L. Zircon U-Pb geochronology and geochemistry of granites in the Zhuguangshan complex, South China: Implications for uranium mineralization. Lithos. 2018, 308, 19–33. [Google Scholar] [CrossRef]
  40. Martz, P.; Mercadier, J.; Perret, J.; Villeneuve, J.; Deloule, E.; Cathelineau, M.; Quirt, D.; Doney, A.; Ledru, P. Post-crystallization alteration of natural uraninites: Implications for dating, tracing, and nuclear forensics. Geochim. Cosmochim. Acta 2019, 249, 138–159. [Google Scholar] [CrossRef]
  41. Alexandre, P.; Kyser, T.K. Effects of cationic substitutions and alteration in uraninite, and implications for the dating of uranium deposits. Can. Mineral. 2005, 43, 1005–1017. [Google Scholar] [CrossRef]
  42. Fayek, M.; Harrison, T.M.; Ewing, R.C.; Grove, M.; Coath, C.D. O and Pb isotopic analyses of uranium minerals by ion microprobe and U-Pb ages from the Cigar Lake deposit. Chem. Geol. 2002, 185, 205–225. [Google Scholar] [CrossRef]
  43. Bowles, J.F.W. Age dating of individual grains of uraninite in rocks from electron microprobe analyses. Chem. Geol. 1990, 83, 47–53. [Google Scholar] [CrossRef]
  44. Pal, D.C.; Rhede, D. Geochemical dating of uraninite in the Jaduguda uranium deposit, Singhbhum Shear Zone, India-implications for uranium mineralization and geochemical evolution of uraninite. Econ. Geol. 2013, 108, 1499–1515. [Google Scholar] [CrossRef]
  45. Deditius, A.P.; Utsunomiya, S.; Ewing, R.C. Fate of trace elements during alteration of uraninite in a hydrothermal vein-type U-deposit from Marshall Pass, Colorado, USA. Geochim. Cosmochim. Acta 2007, 71, 4954–4973. [Google Scholar] [CrossRef]
  46. Moudler, J.F.; Stickle, W.F. Handbook of X-ray Photoelectron Spectroscopy; Perkin-Elmer: Eden Prairie, MN, USA, 1992. [Google Scholar]
  47. Teterin, Y.A.; Popel, A.J.; Maslakov, K.I.; Teterin, A.Y.; Ivanov, K.E.; Kalmykov, S.N.; Springell, R.; Scott, T.B.; Farnan, I. XPS study of ion irradiated and unirradiated UO2 thin films. Curr. Org. Chem. 2016, 55, 8059–8070. [Google Scholar] [CrossRef] [Green Version]
  48. Kempe, U. Precise electron microprobe age determination in altered uraninite: Consequences on the intrusion age and the metallogenic significance of the Kirchberg Granite (Erzgebirge, Germany). Contrib. Mineral. Petr. 2003, 145, 107–118. [Google Scholar] [CrossRef]
  49. Mukhopadhyay, J.; Mishra, B.; Chakrabarti, K.; De, S.; Ghosh, G. Uraniferous paleoplacers of the Mesoarchean Mahagiri Quartzite, Singhbhum craton, India: Depositional controls, nature and source of 3.0 Ga detrital uraninites. Ore. Geol. Rev. 2016, 72, 1290–1306. [Google Scholar] [CrossRef]
  50. Frimmel, H.E.; Schedel, S.; Brätz, H. Uraninite chemistry as forensic tool for provenance analysis. Appl. Geochem. 2014, 48, 104–121. [Google Scholar] [CrossRef]
  51. Cuney, M. Evolution of uranium fractionation processes through time: Driving the secular variation of uranium deposit types. Econ. Geol. 2010, 105, 553–569. [Google Scholar] [CrossRef]
  52. Evins, L.Z.; Jensen, K.A.; Ewing, R.C. Uraninite recrystallization and Pb loss in the Oklo and Bangombé natural fission reactors, Gabon. Geochim. Cosmochim. Acta 2005, 69, 1589–1606. [Google Scholar] [CrossRef]
  53. Clourier, J.; Kyser, K.; Olivo, G.R.; Alexandre, P.; Halaburda, J. The millennium uranium deposit, Athabasca basin, Saskatchewan, Canada: An atypical basement-hosted unconformity-related uranium deposit. Econ. Geol. 2009, 104, 815–840. [Google Scholar] [CrossRef]
  54. Kister, P.; Cuney, M.; Golubev, V.N.; Royer, J.J.; Veslud, C.L.C.D.; Rippert, J.C. Radiogenic lead mobility in the Shea Creek unconformity-related uranium deposit (Saskatchewan, Canada): Migration pathways and Pb loss quantification. Geochemistry. 2004, 336, 205–215. [Google Scholar] [CrossRef]
  55. Suzuki, K.; Kato, T. CHIME dating of monazite, xenotime, zircon and polycrase: Protocol, pitfalls and chemical criterion of possibly discordant age data. Gondwana Res. 2008, 14, 569–586. [Google Scholar] [CrossRef]
  56. Janeczek, J.; Ewing, R.C. Mechanisms of lead release from uraninite in the natural fission reactors in Gabon. Geochim. Cosmochim. Acta 1995, 59, 1917–1931. [Google Scholar] [CrossRef]
  57. Alexander, P.; Kyser, K.; Layton-matthews, D.; Joy, B. Chemical compositions of natural uraninite. Can. Mineral. 2015, 53, 595–622. [Google Scholar] [CrossRef]
  58. René, M.; Dolnícek, Z.; Sejkora, J.; Škácha, P.; Šrein, V. Uraninite, coffinite and ningyoite from vein-type uranium deposits of the Bohemian Massif (central European Variscan belt). Minerals. 2019, 9, 123. [Google Scholar] [CrossRef] [Green Version]
  59. Syverson, D.D.; Etschmann, B.; Liu, W.; Ram, R.; Mei, Y.; Lanzirotti, T.; Mercadier, J.; Brugger, J. Oxidation state and coordination environment of Pb in U-bearing minerals. Geochim. Cosmochim. Acta 2019, 265, 109–131. [Google Scholar] [CrossRef]
  60. Edwards, C.; Oliver, A. Uranium processing: A review of current methods and technology. JOM. 2000, 52, 12–20. [Google Scholar] [CrossRef]
  61. Youlton, B.; Kinnaird, J. Gangue-reagent interactions during acid leaching of uranium. Miner. Eng. 2013, 52, 62–73. [Google Scholar] [CrossRef]
  62. Ram, R.; Charalambous, F.; McMaster, S.; Pownceby, M.; Tardio, J.; Bhargava, S. Chemical and micro-structural characterisation studies on natural uraninite and associated gangue minerals. Miner. Eng. 2013, 45, 159–169. [Google Scholar] [CrossRef]
  63. Ulrich, K.U.; Ilton, E.S.; Veeramani, H.; Sharp, J.O.; Rizlan, B.L.; Schofield, E.J.; Bargar, J.R.; Giammar, D.E. Comparative dissolution kinetics of biogenic and chemogenic uraninite under oxidizing conditions in the presence of carbonate. Geochim. Cosmochim. Acta 2009, 73, 6065–6083. [Google Scholar] [CrossRef]
  64. Broczkowski, M.E.; Noel, J.J.; Shoesmith, D.W. The influence of temperature on the anodic oxidation/dissolution of uranium dioxide. Electrochim. Acta 2007, 52, 7386–7395. [Google Scholar] [CrossRef]
  65. Gaulard-Balandret, C.; Larabigruet, N.; Miserque, F.; Radwan, J.; Ferry, C.; Chausse, A. Kinetics of oxidation and dissolution of uranium dioxide in aqueous acid solutions. Electrochim. Acta 2012, 83, 471–477. [Google Scholar] [CrossRef]
  66. Ram, R.; Charalambous, F.A.; McMaster, S.; Pownceby, M.I.; Tardio, J.; Bhargava, S.K. An investigation on the dissolution of synthetic and natural uraninite ores. Miner. Eng. 2013, 50–51, 83–92. [Google Scholar] [CrossRef]
Minerals 10 00747 g001 550

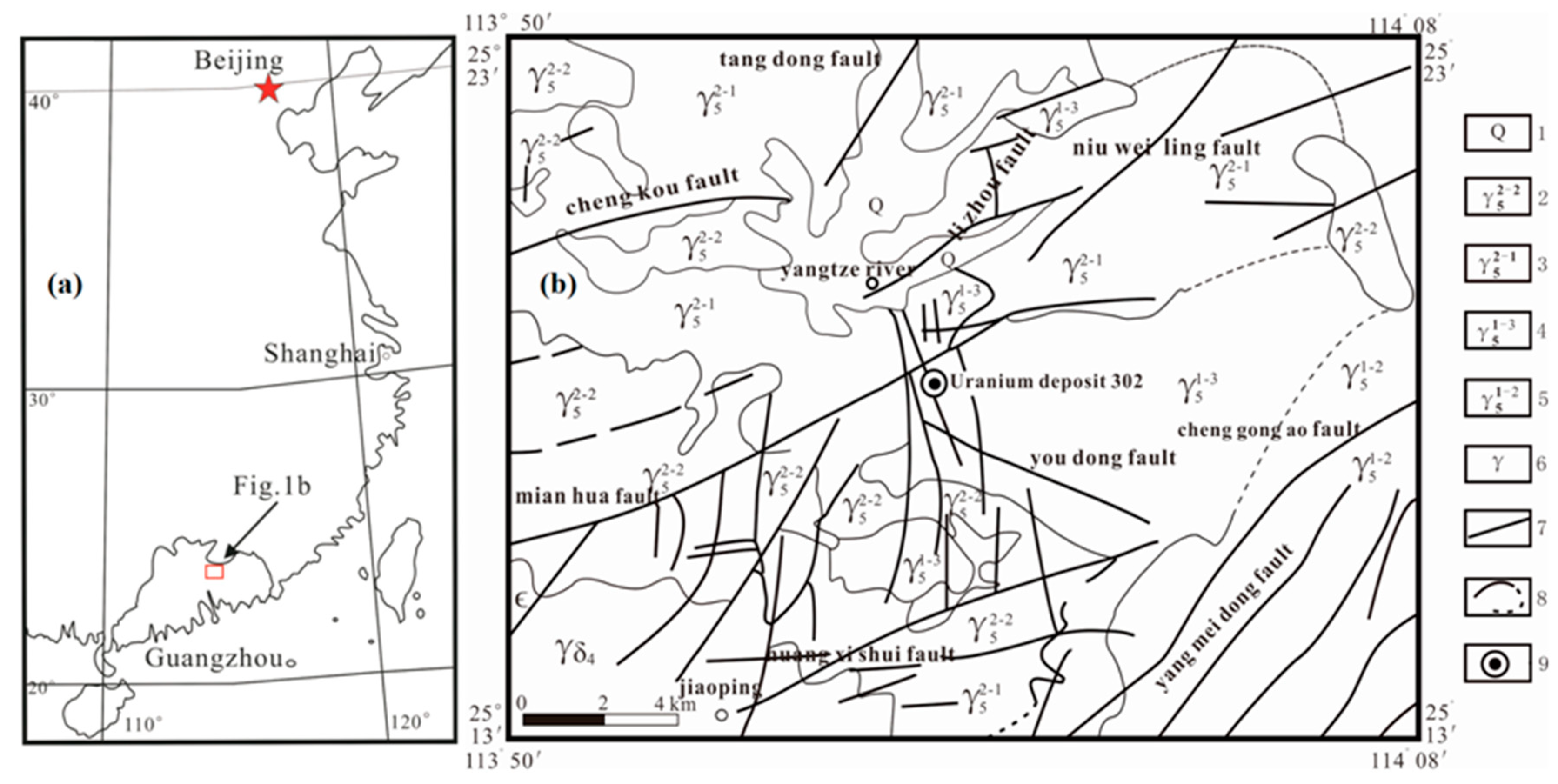

Figure 1. (a) Schematic map showing the location of the Mianhuakeng uranium deposit. (b) Geological sketch map of Mianhuakeng (No. 302) uranium deposit (after Huang et al. [30]). 1—Quartenary; 2—Medium-fine grained biotite-muscovite granite; 3—Medium-grained (porphyritic) biotite granite; 4—Medium-grained (porphymic) biotite-muscovite granite; 5—Medium-coarse grained porphyritic biotite monzonitic granite; 6—Granodiorite; 7—Fault; 8—Measured and inferred geological boundaries; 9—Uranium deposit.
Figure 1. (a) Schematic map showing the location of the Mianhuakeng uranium deposit. (b) Geological sketch map of Mianhuakeng (No. 302) uranium deposit (after Huang et al. [30]). 1—Quartenary; 2—Medium-fine grained biotite-muscovite granite; 3—Medium-grained (porphyritic) biotite granite; 4—Medium-grained (porphymic) biotite-muscovite granite; 5—Medium-coarse grained porphyritic biotite monzonitic granite; 6—Granodiorite; 7—Fault; 8—Measured and inferred geological boundaries; 9—Uranium deposit.
Minerals 10 00747 g001
Minerals 10 00747 g002 550

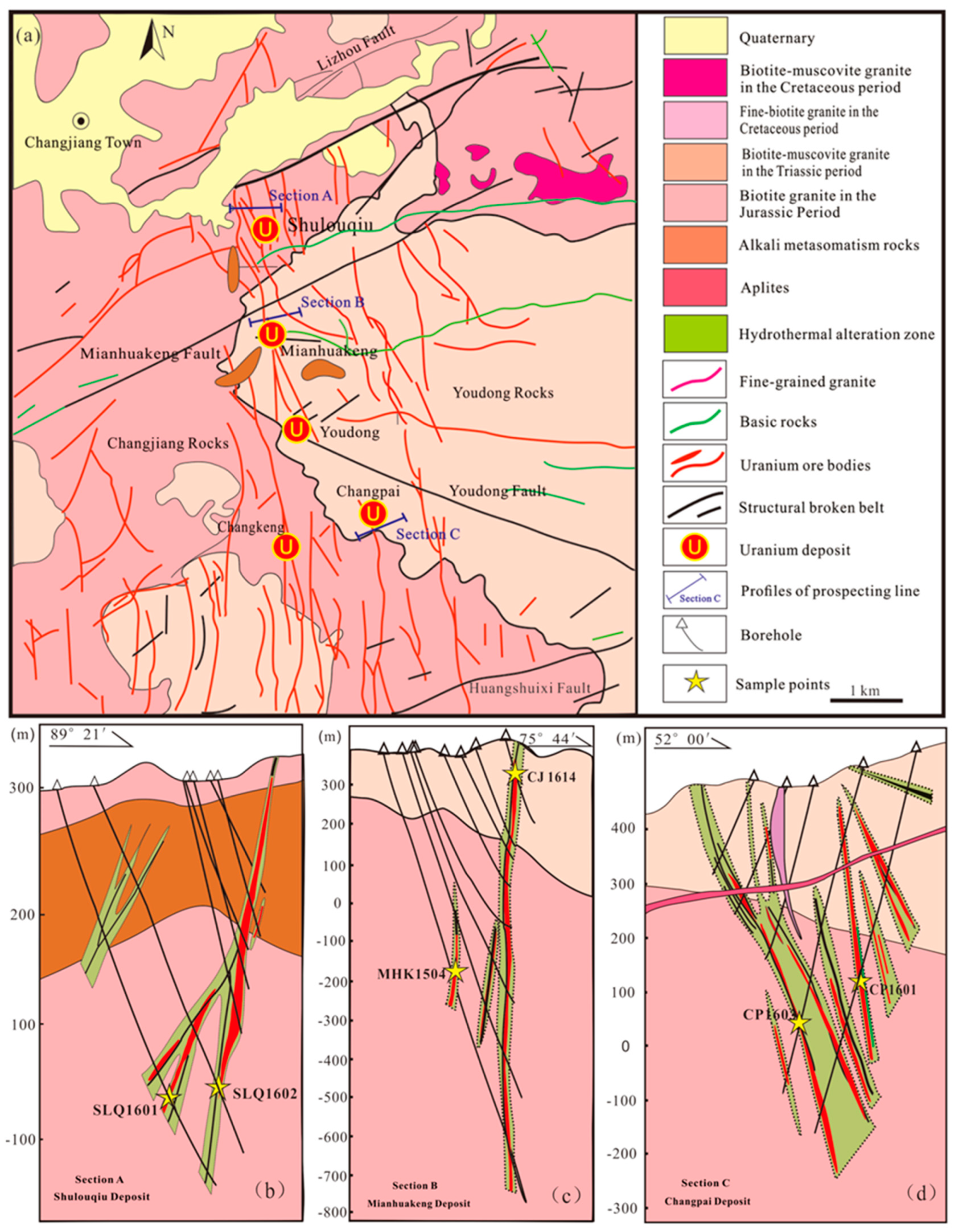

Figure 2. The MHK uranium ore field and related geological profiles. (a) Geological sketch map of MHK uranium ore field [27,31]. (b) Geological cross section of A, Shulouqiu Deposit. (c) Geological cross sectionof B, Mianhuakeng Deposit. (d) Geological cross sectionof C, Changpai Deposit.
Figure 2. The MHK uranium ore field and related geological profiles. (a) Geological sketch map of MHK uranium ore field [27,31]. (b) Geological cross section of A, Shulouqiu Deposit. (c) Geological cross sectionof B, Mianhuakeng Deposit. (d) Geological cross sectionof C, Changpai Deposit.
Minerals 10 00747 g002
Minerals 10 00747 g003 550
Figure 3. Specimen of the uranium ore from MHK. (a) The yellow and dark red minerals are oxidized uranium mineral and hematite. (b) The green dark minerals are agglomerate uraninite.
Figure 3. Specimen of the uranium ore from MHK. (a) The yellow and dark red minerals are oxidized uranium mineral and hematite. (b) The green dark minerals are agglomerate uraninite.
Minerals 10 00747 g003
Minerals 10 00747 g004 550

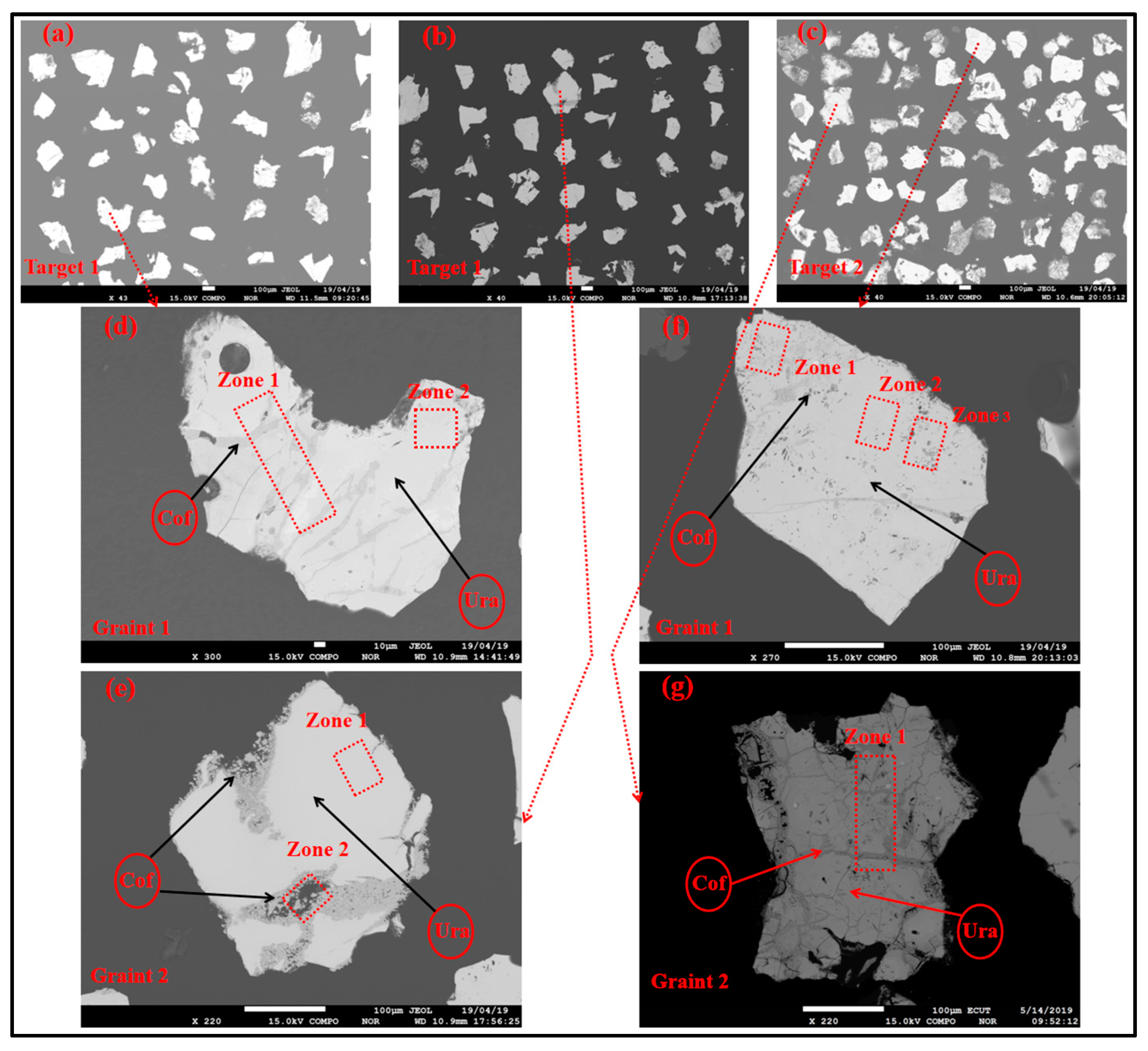

Figure 4. BSE (a–g) photomicrographs of typical uraninite from the MHK uranium deposit. (a,b) Viewshed map of Target 1. (c) Viewshed map of Target 2. (d,e) Typical grains of Target 1. (f,g) Typical grains of Target 2. “Ura” and “Cof” represent uraninite and coffinite, respectively. The analysis regions are shown in red rectangles for EDS mapping.
Figure 4. BSE (a–g) photomicrographs of typical uraninite from the MHK uranium deposit. (a,b) Viewshed map of Target 1. (c) Viewshed map of Target 2. (d,e) Typical grains of Target 1. (f,g) Typical grains of Target 2. “Ura” and “Cof” represent uraninite and coffinite, respectively. The analysis regions are shown in red rectangles for EDS mapping.
Minerals 10 00747 g004
Minerals 10 00747 g005a 550Minerals 10 00747 g005b 550

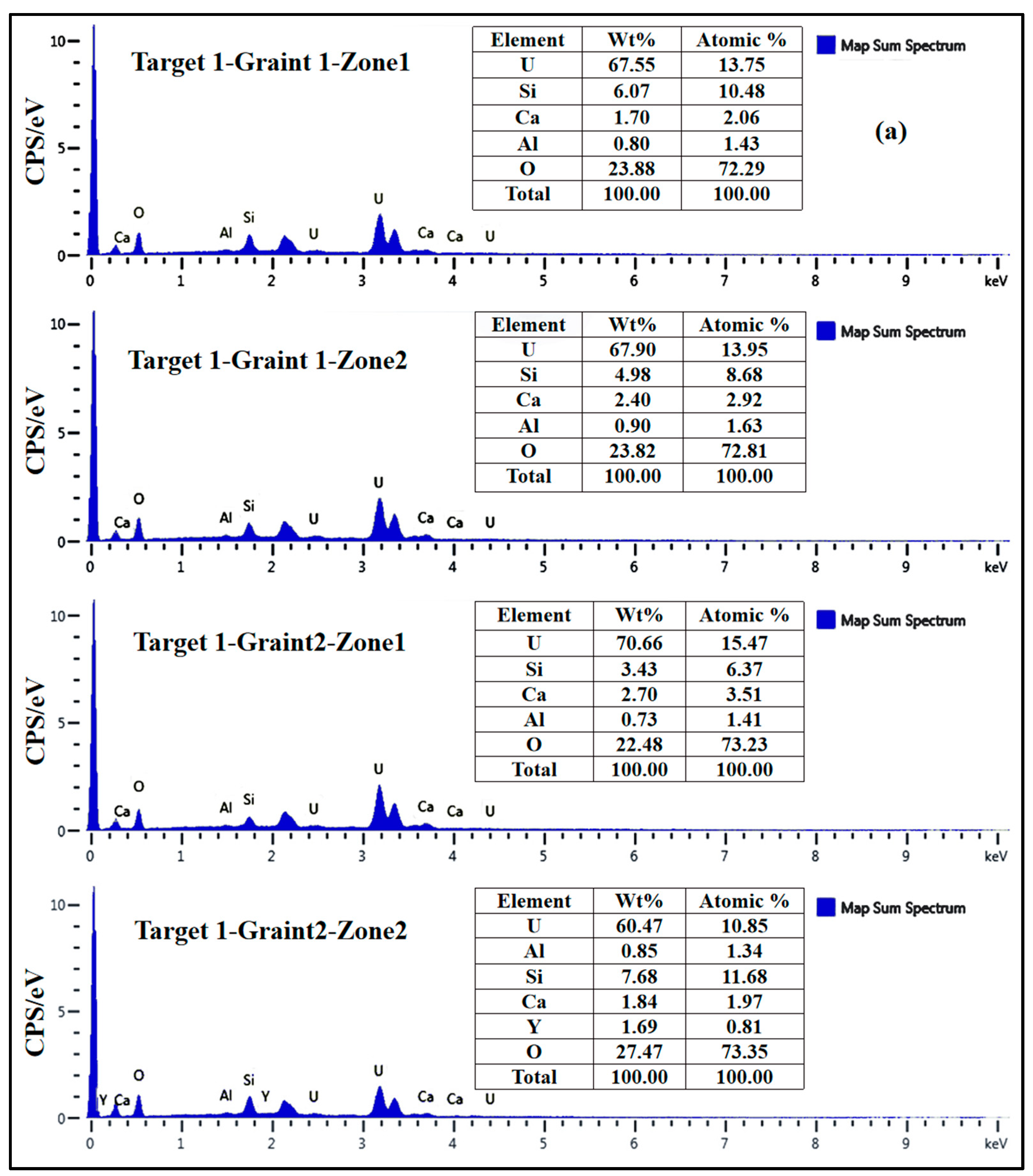

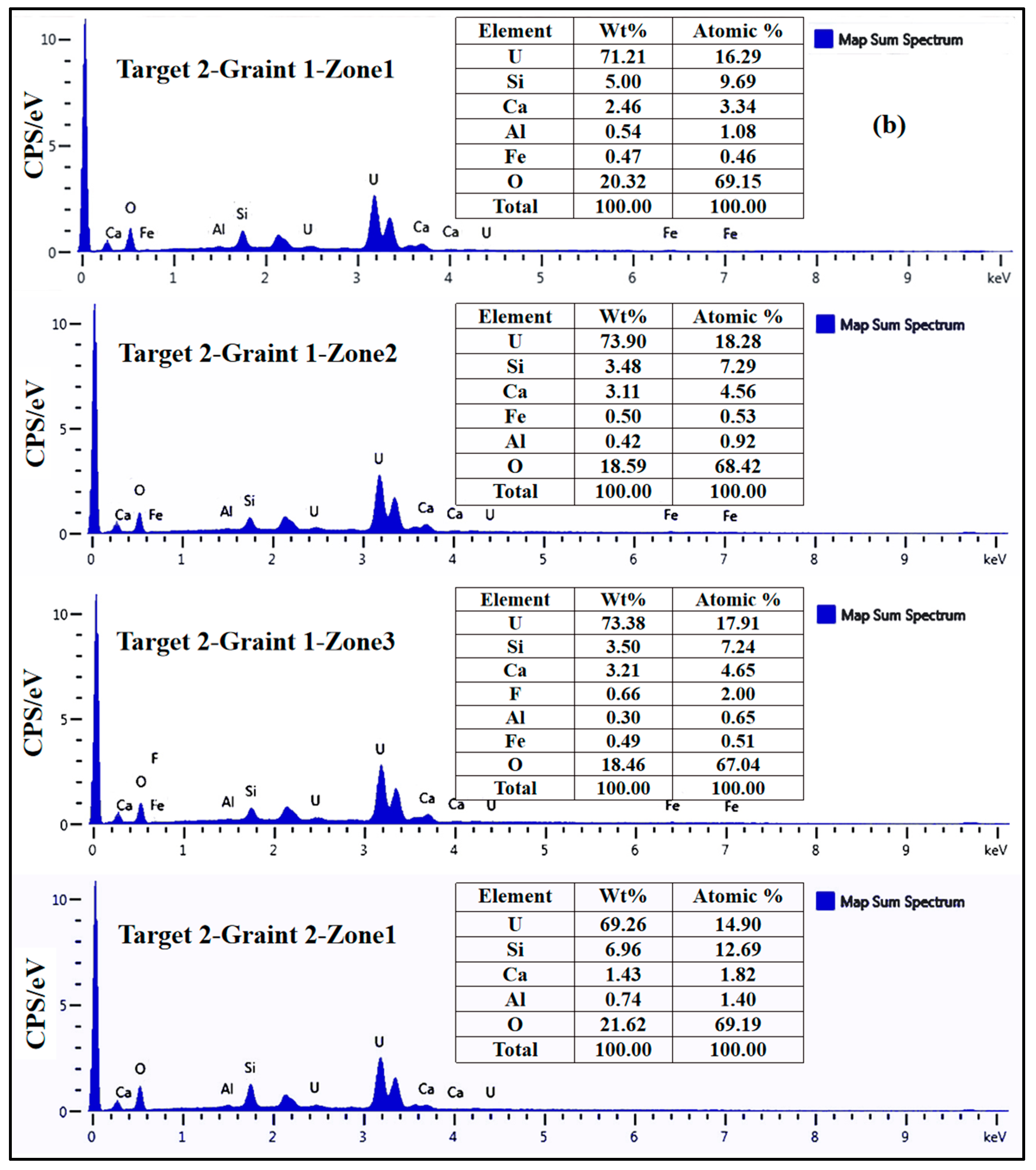

Figure 5. EDS mapping of the uraninite and related concentrations of elements from EDS. (a) The EDS mapping of Target 1. (b) The EDS mapping of Target 2. The peak value was the Au, which was coated to create a conductive surface.
Figure 5. EDS mapping of the uraninite and related concentrations of elements from EDS. (a) The EDS mapping of Target 1. (b) The EDS mapping of Target 2. The peak value was the Au, which was coated to create a conductive surface.
Minerals 10 00747 g005aMinerals 10 00747 g005b
Minerals 10 00747 g006 550

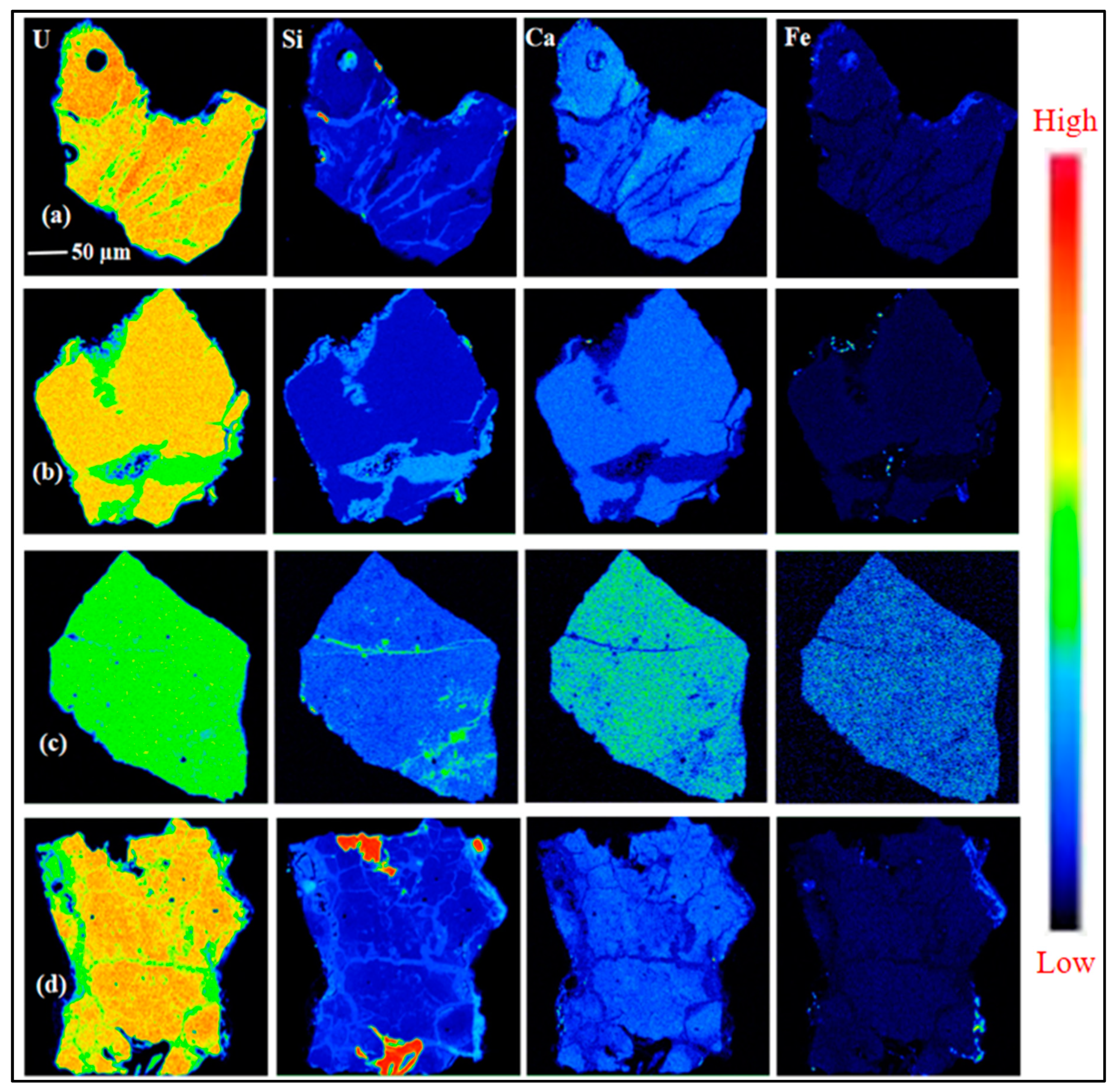

Figure 6. EPMA elemental mappings for U, Ca, Pb, and Si of uraninite grains. (a) Grain 1 of Target 1; (b) grain 2 of Target 1; (c) grain 1 of Target 2; and (d) grain 2 of Target 2 (warmer color indicates a higher concentration).
Figure 6. EPMA elemental mappings for U, Ca, Pb, and Si of uraninite grains. (a) Grain 1 of Target 1; (b) grain 2 of Target 1; (c) grain 1 of Target 2; and (d) grain 2 of Target 2 (warmer color indicates a higher concentration).
Minerals 10 00747 g006
Minerals 10 00747 g007 550

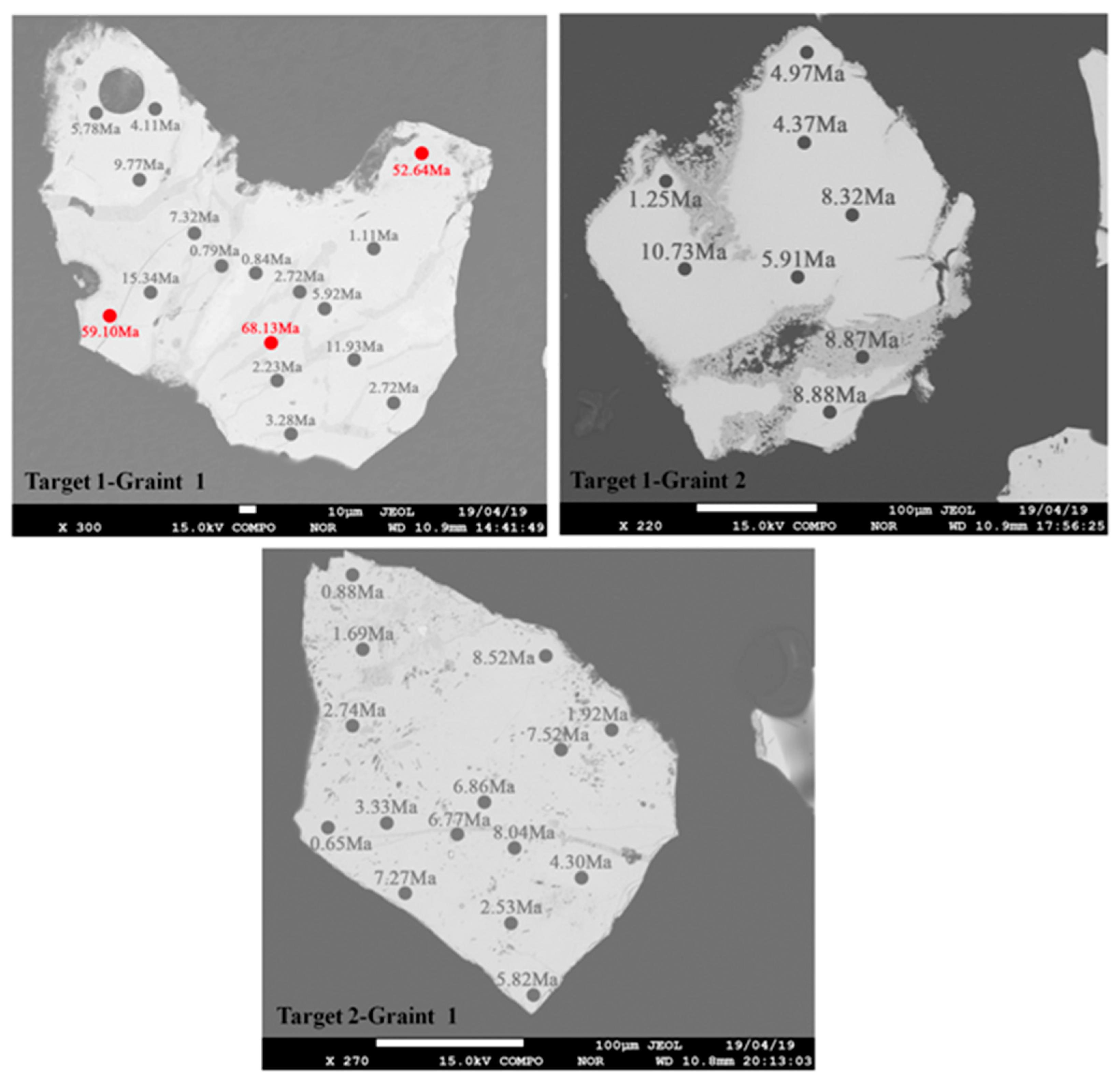

Figure 7. Calculated chemical ages of uraninite and coffinite from the MHK uranium deposit. The red circles were three extremely high values.
Figure 7. Calculated chemical ages of uraninite and coffinite from the MHK uranium deposit. The red circles were three extremely high values.
Minerals 10 00747 g007
Minerals 10 00747 g008 550

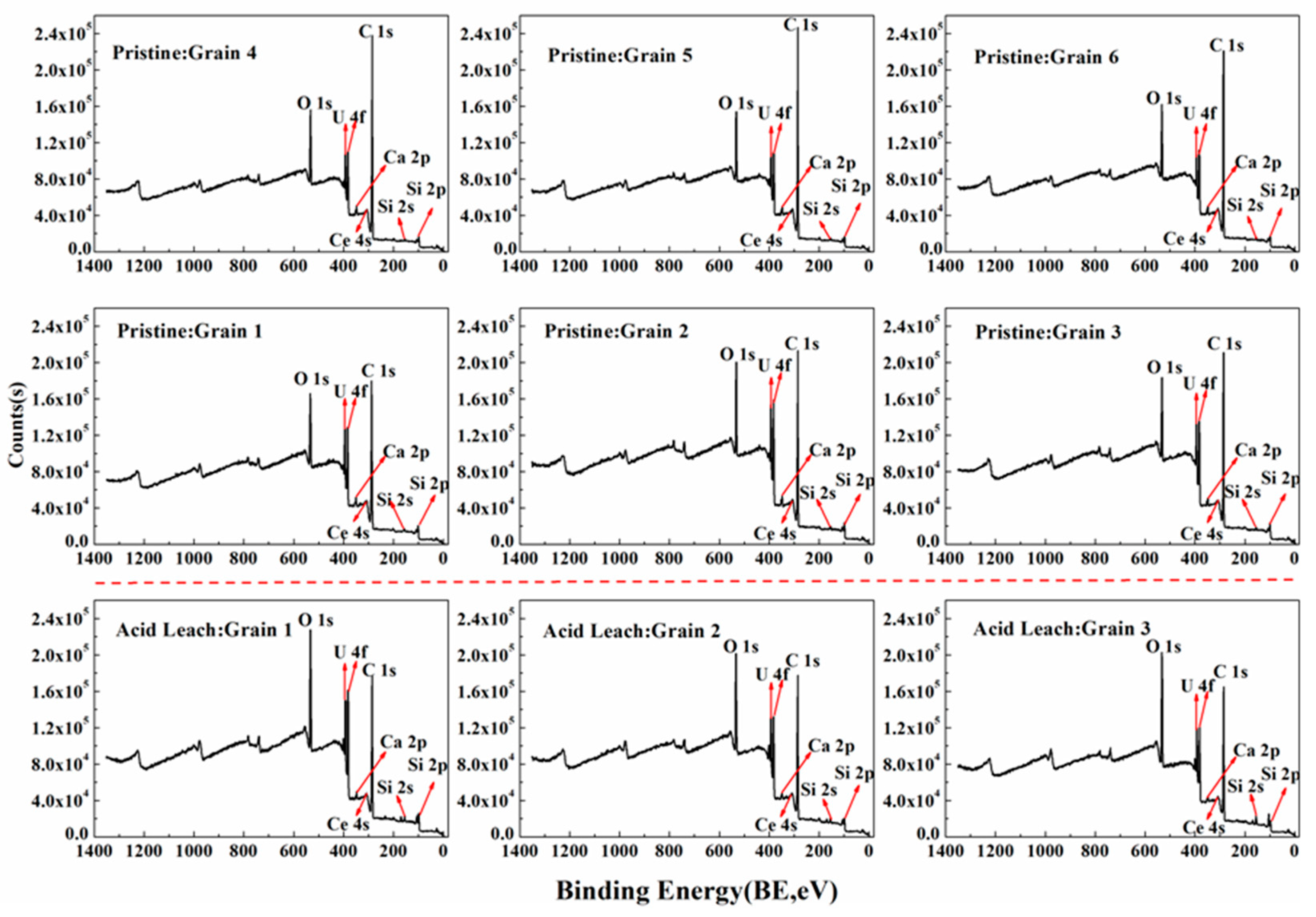

Figure 8. Survey XPS scan of the uraninite in the MHK uranium deposit. Above the red dotted line: pristine samples; below the red dotted line: samples leached by sulfuric acid). The red arrows pointed to the names of elements peak.
Figure 8. Survey XPS scan of the uraninite in the MHK uranium deposit. Above the red dotted line: pristine samples; below the red dotted line: samples leached by sulfuric acid). The red arrows pointed to the names of elements peak.
Minerals 10 00747 g008
Minerals 10 00747 g009 550

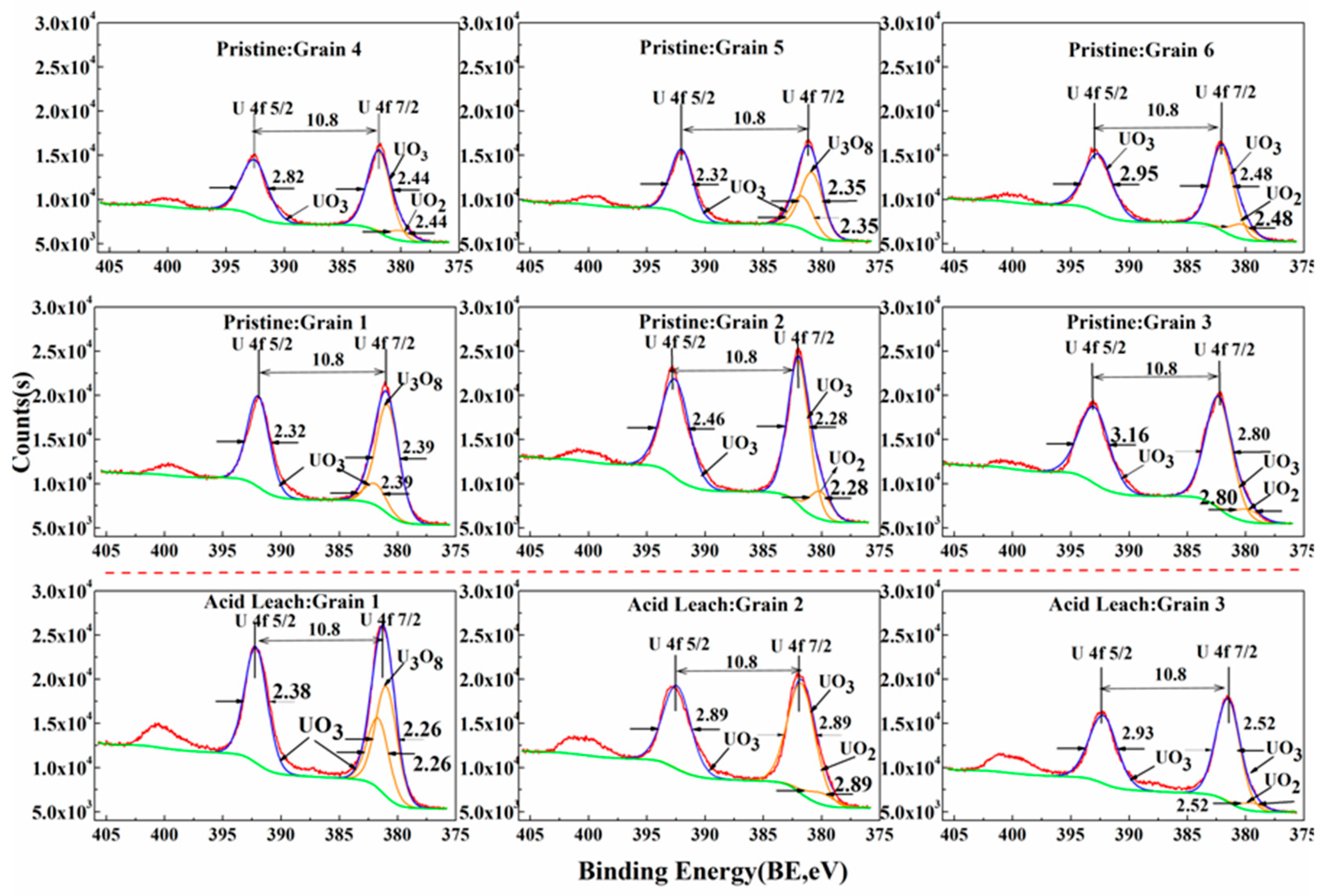

Figure 9. XPS narrow scans of uranium in the MHK uranium deposit. Above the red dotted line: pristine samples; below the red dotted line: samples leached by sulfuric acid. The red lines, blue lines, orange lines and green lines were original spectrogram, fitting spectrogram, peak fitting curves of different uranium chemical valences and baseline, respectively.
Figure 9. XPS narrow scans of uranium in the MHK uranium deposit. Above the red dotted line: pristine samples; below the red dotted line: samples leached by sulfuric acid. The red lines, blue lines, orange lines and green lines were original spectrogram, fitting spectrogram, peak fitting curves of different uranium chemical valences and baseline, respectively.
Minerals 10 00747 g009
Minerals 10 00747 g010 550

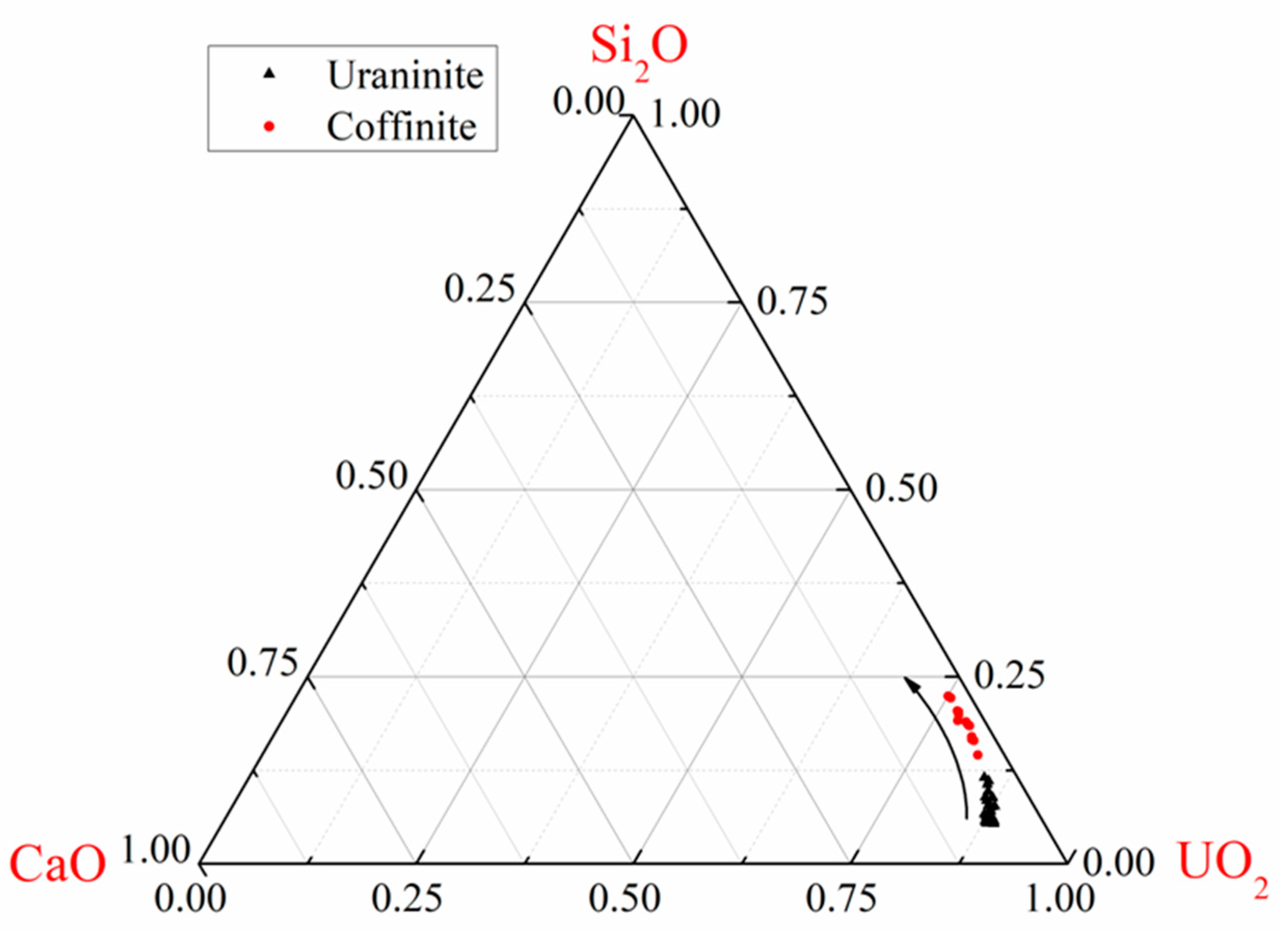

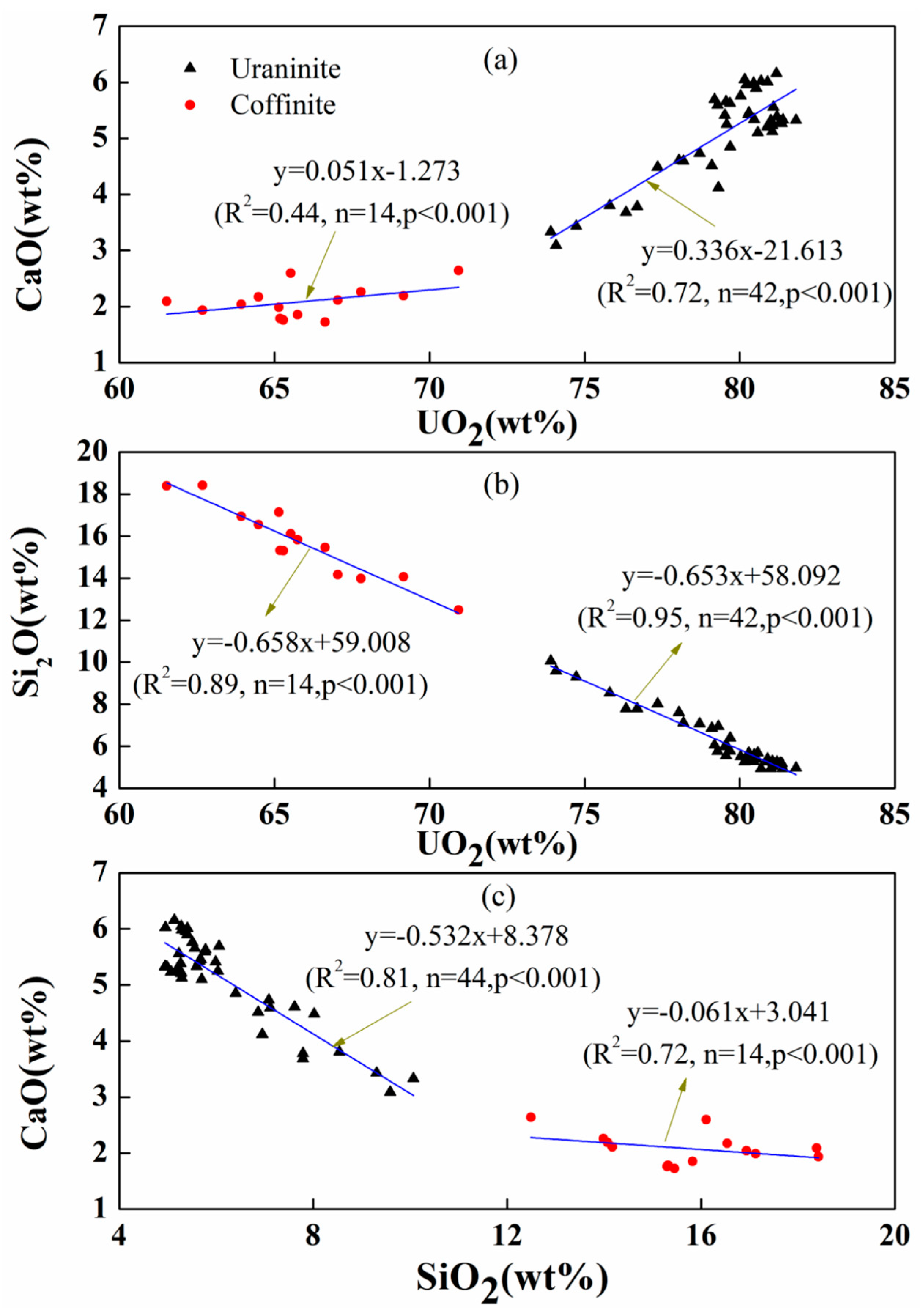

Figure 10. (a) CaO vs. UO2, (b) SiO2 vs. UO2, and (c) CaO vs. SiO2 plots of uraninite and coffinite.
Figure 10. (a) CaO vs. UO2, (b) SiO2 vs. UO2, and (c) CaO vs. SiO2 plots of uraninite and coffinite.
Minerals 10 00747 g010
Minerals 10 00747 g011 550
Figure 11. The significant trends indicated an overall U, Ca loss, and Si gain during metasomatism.
Figure 11. The significant trends indicated an overall U, Ca loss, and Si gain during metasomatism.
Minerals 10 00747 g011
Minerals 10 00747 g012 550

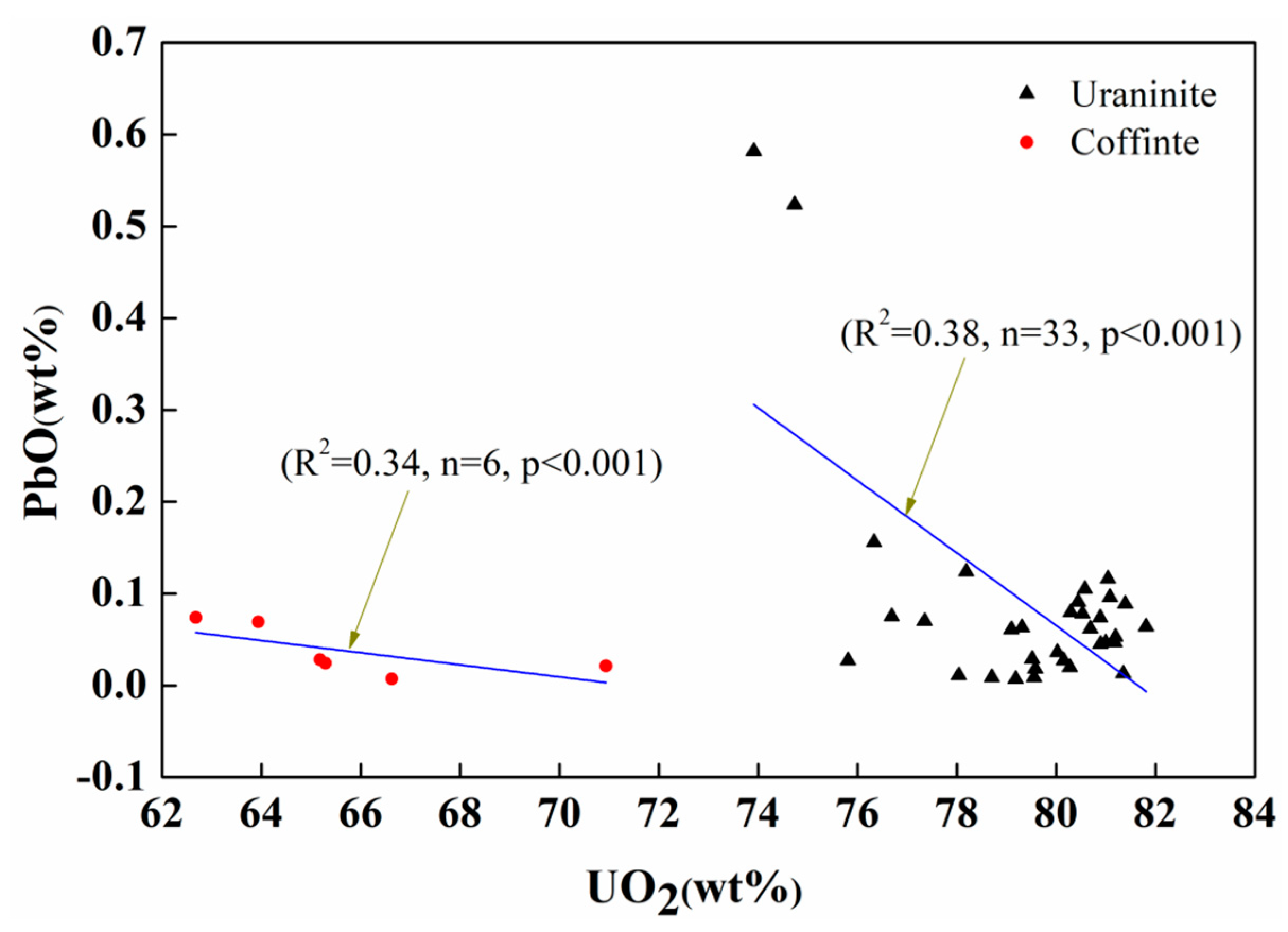

Figure 12. PbO–UO2 correlation trend of uraninite and coffinite grains.
Figure 12. PbO–UO2 correlation trend of uraninite and coffinite grains.
Minerals 10 00747 g012
Minerals 10 00747 g013 550
Figure 13. Binary diagrams of UO2 + PbO vs. SiO2 + CaO + FeO.
Figure 13. Binary diagrams of UO2 + PbO vs. SiO2 + CaO + FeO.
Minerals 10 00747 g013
Minerals 10 00747 g014 550

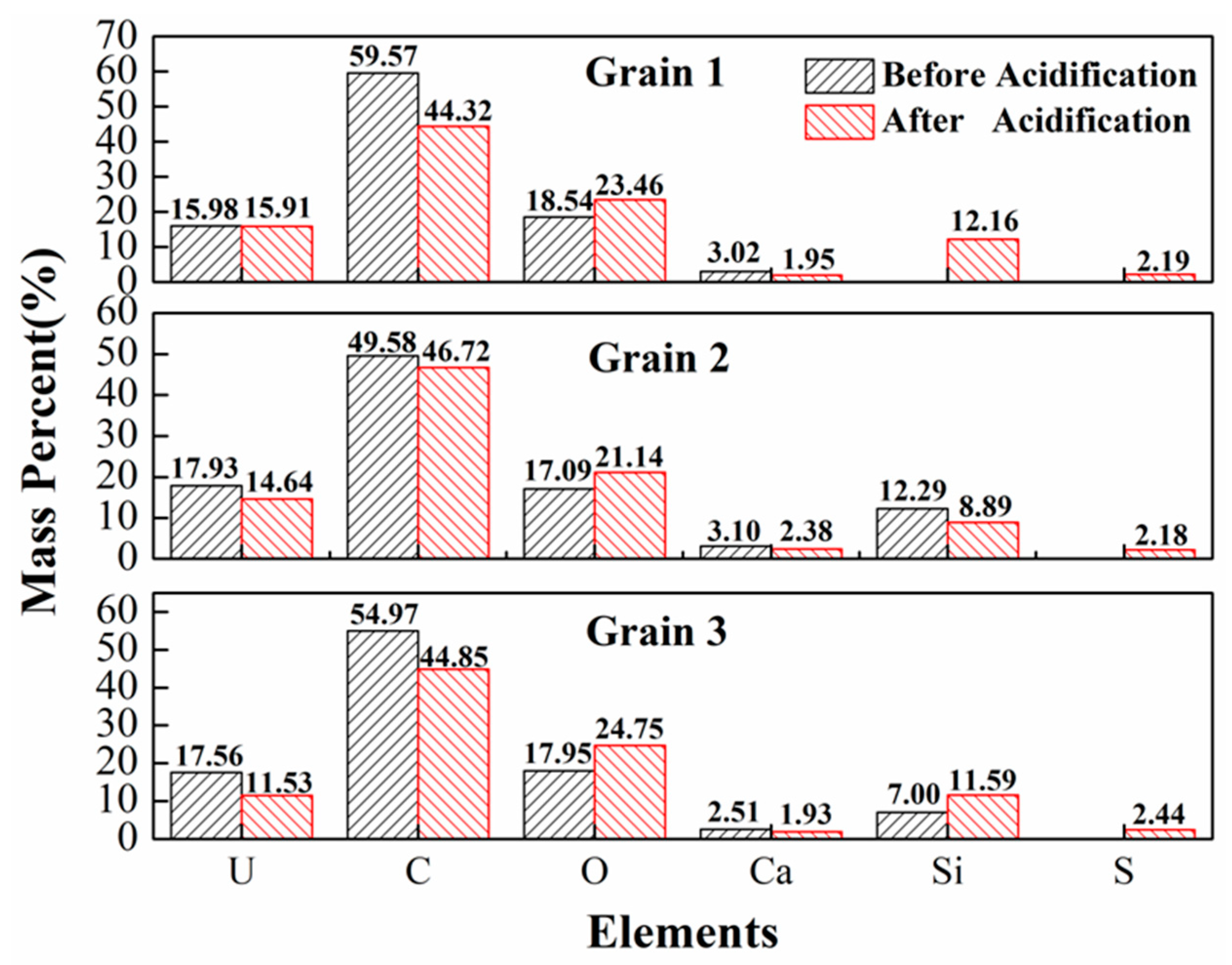

Figure 14. Variation characteristics of elements before and after acid leaching.
Figure 14. Variation characteristics of elements before and after acid leaching.
Minerals 10 00747 g014
Minerals 10 00747 g015 550

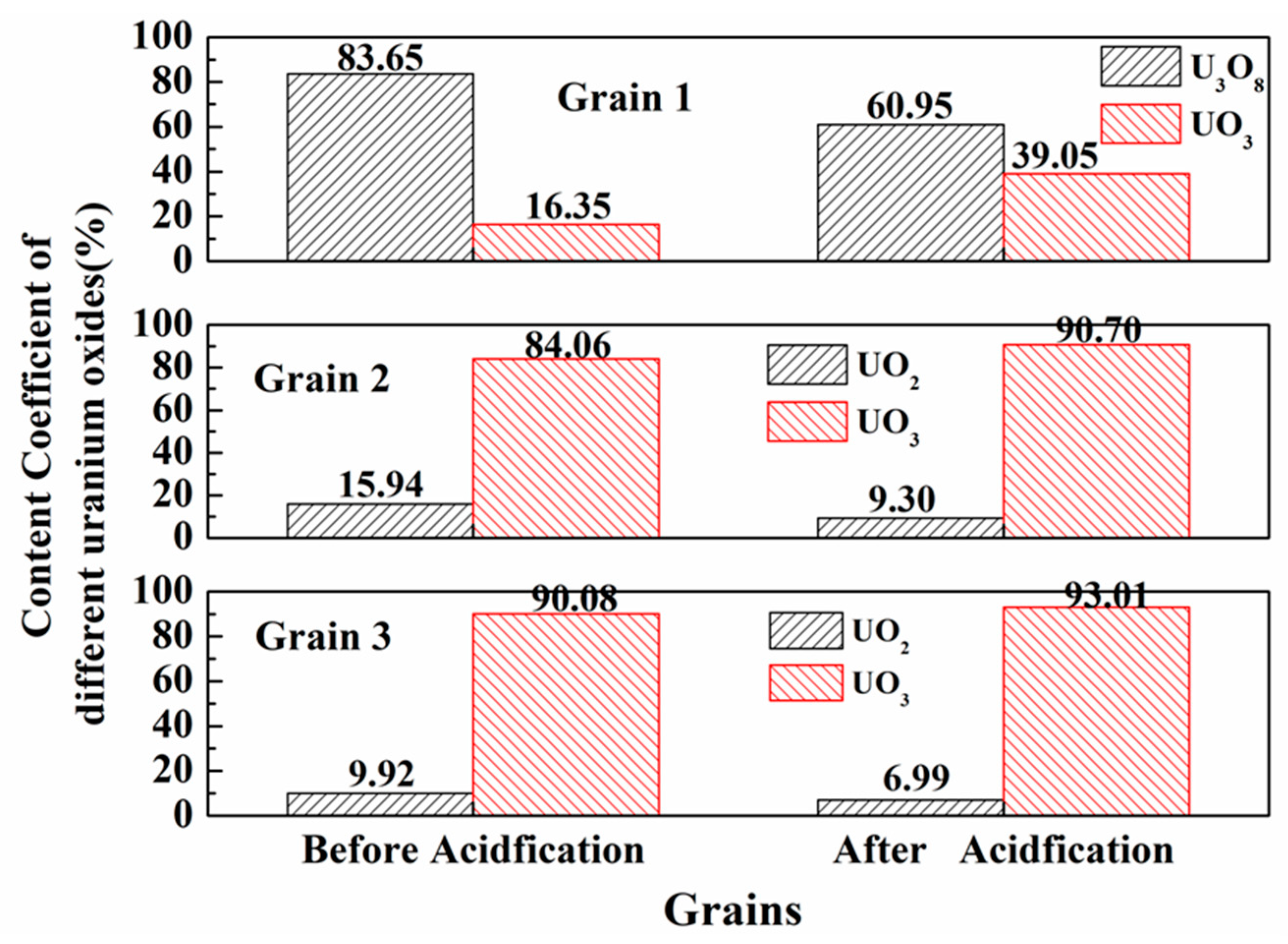

Figure 15. The variation of the uranium valence after sulfuric acid leaching.
Figure 15. The variation of the uranium valence after sulfuric acid leaching.
Minerals 10 00747 g015
Minerals 10 00747 g016 550
Figure 16. The variation of the U 4f spectra along with oxygen coefficient (k0).
Figure 16. The variation of the U 4f spectra along with oxygen coefficient (k0).
Minerals 10 00747 g016
Table
Table 1. The statistical characteristic value of oxide concentrations (wt%) of uranium mineral from the MHK uranium deposit (n.d = not detected; Spot no. “1-1” represents the number of target and grain, respectively).
Table 1. The statistical characteristic value of oxide concentrations (wt%) of uranium mineral from the MHK uranium deposit (n.d = not detected; Spot no. “1-1” represents the number of target and grain, respectively).
Spot No.Uranium MineralNumber of Measuring PointsCharacteristic ValueUO2SiO2CaOFeOAl2O3Ce2O3Na2OTiO2P2O5PbOMgOZrO2NiOK2OThO2Total
1-1, 1-2Uraninite25Maximum81.81 10.07 5.56 0.72 1.06 0.52 0.30 0.33 0.080.580.03 0.04 0.05 n.dn.d93.85
Minimum73.91 4.94 3.09 0.33 0.47 0.13 0.06 0.09 0.01 0.01n.d n.d n.d n.dn.d90.00
Average79.15 6.52 4.69 0.52 0.64 0.31 0.15 0.21 0.04 0.12 0.01 0.02 0.02 n.dn.d92.41
Standard Deviation2.51 1.60 0.76 0.11 0.18 0.10 0.05 0.09 0.02 0.16 0.01 0.02 0.02 n.dn.d1.30
Coffinite11Maximum70.94 18.42 2.64 0.30 1.24 0.60 0.21 0.14 0.53 0.61 0.09 0.03 0.03 n.dn.d87.95
Minimum61.52 12.49 1.72 0.06 0.69 0.13 n.d 0.03 0.07 n.d n.d 0.02 0.01 n.dn.d83.71
Average65.71 15.64 2.08 0.15 0.98 0.35 0.07 0.06 0.27 0.13 0.03 0.03 0.02 n.dn.d85.38
Standard Deviation2.51 1.77 0.32 0.08 0.17 0.16 0.07 0.05 0.17 0.24 0.03 0.01 0.01 n.dn.d1.21
2-1Uraninite17Maximum81.18 8.02 6.16 0.77 0.55 0.48 0.23 0.15 0.06 0.09 0.04 0.05 0.09 n.dn.d93.92
Minimum77.35 4.95 4.49 0.36 0.39 0.17 0.07 0.07 0.01 0.01 0.01 0.01 n.d n.dn.d91.43
Average79.93 5.70 5.67 0.59 0.46 0.30 0.14 0.10 0.03 0.05 0.02 0.03 0.04 n.dn.d93.01
Standard Deviation0.87 0.68 0.41 0.11 0.06 0.08 0.04 0.02 0.02 0.03 0.01 0.02 0.04 n.dn.d0.62
Coffinite3Maximum69.16 17.13 2.19 0.19 0.96 0.54 n.dn.d0.25 n.d0.05 n.dn.dn.dn.d87.32
Minimum63.93 14.07 1.99 0.10 0.46 0.12 n.dn.d0.10 n.d0.02 n.dn.dn.dn.d83.95
Average66.08 16.05 2.07 0.14 0.74 0.33 n.dn.d0.18 n.d0.03 n.dn.dn.dn.d85.67
Standard Deviation2.74 1.71 0.11 0.05 0.25 0.21 n.dn.d0.08 n.d0.02 n.dn.dn.dn.d1.68
Table
Table 2. Summary of oxygen coefficient kO and UO2+x oxide mass percentage of uraninite (%; n.d = not detected).
Table 2. Summary of oxygen coefficient kO and UO2+x oxide mass percentage of uraninite (%; n.d = not detected).
Spot No.Oxygen Coefficient, k0Mass Percentage, %
UO2U3O8UO3
Grain 1 (pristine)2.72n.d83.6516.35
Grain 1 (acid leaching)2.79n.d60.9539.05
Grain 2 (pristine)2.8415.94n.d84.06
Grain 2 (acid leaching)2.919.30n.d90.70
Grain 3 (pristine)2.909.92n.d90.08
Grain 3 (acid leaching)2.936.99n.d93.01
Grain 4 (pristine)2.8910.89n.d89.11
Grain 5 (pristine)2.78n.d65.3234.68
Grain 6 (pristine)2.8515.15n.d84.85

Share and Cite

MDPI and ACS Style

Wang, J.; Sun, Z.; Li, G.; Liu, Y.; Zhou, Z.; Wang, X.; Zheng, Z.; Zhou, Y.; Zhao, K.; Xiang, L.; et al. Geochemistry and Acid Hydrometallurgy Accessibility of Uraninite from Mianhuakeng Granite-Hosted Uranium Deposit, South China. Minerals 2020, 10, 747. https://doi.org/10.3390/min10090747

AMA Style

Wang J, Sun Z, Li G, Liu Y, Zhou Z, Wang X, Zheng Z, Zhou Y, Zhao K, Xiang L, et al. Geochemistry and Acid Hydrometallurgy Accessibility of Uraninite from Mianhuakeng Granite-Hosted Uranium Deposit, South China. Minerals. 2020; 10(9):747. https://doi.org/10.3390/min10090747

Chicago/Turabian Style

Wang, Jian, Zhanxue Sun, Guangrong Li, Yajie Liu, Zhongkui Zhou, Xuegang Wang, Zhihong Zheng, Yipeng Zhou, Kai Zhao, Ling Xiang, and et al. 2020. "Geochemistry and Acid Hydrometallurgy Accessibility of Uraninite from Mianhuakeng Granite-Hosted Uranium Deposit, South China" Minerals 10, no. 9: 747. https://doi.org/10.3390/min10090747

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
