Improving Colloidal Stability of Sepiolite Suspensions: Effect of the Mechanical Disperser and Chemical Dispersant

Abstract

To allow the use of fibrous-like clays, as sepiolite, in different applications, their disaggregation and the formation of stable suspensions are crucial steps to enhance their performance significantly, e.g., in cellulose nanofibrils/clay composite formulations, enabling an adequate mixture of the matrix and filler individual components. Three distinct physical treatments of dispersion (magnetic stirring, high-speed shearing, and ultrasonication) and four different chemical dispersants (polyacrylate, polyphosphate, carboxymethylcellulose, and alginate, all in the form of sodium salts) were tested to improve the dispersibility and the formation of stable suspensions of sepiolite. Two sepiolite samples from the same origin but with different pre-treatments were evaluated. The particle size and suspension stability were evaluated by dynamic light scattering, zeta potential measurements and optical microscopy. Additionally, the sepiolite samples were initially characterized for their mineralogical, chemical, and morphologic properties. Of the three physical dispersion treatments tested, the ultrasonicator typically produced more stable suspensions; on the other hand, the biopolymer carboxymethylcellulose showed a higher ability to produce stable suspensions, being, however, a smaller particle size obtained when polyphosphate was used. Remarkably, 47 out of 90 prepared suspensions of sepiolite stayed homogeneous for at least three months after their preparation. In sum, the combination of a high energy dispersing equipment with an appropriate dispersing agent led to stable suspensions with optimal properties to be used in different applications, like in the composite production.

1. Introduction

Sepiolite is a natural fibrous clay with the ideal formula Si₁₂O₃₀Mg₈(OH)₄(OH₂)₄·8H₂O. The structure of this magnesium silicate is based on structural blocks alternating with structural cavities, called tunnels, which gives rise to a highly porous framework. The structural blocks comprise two tetrahedral silica sheets, with the tetrahedra inverted from one sheet to the other, sandwiching a central octahedral sheet of magnesium oxide-hydroxide. In the octahedral sheet, both hydroxyl ions and water molecules are coordinated to magnesium centers, while the remaining water molecules occupy positions inside the tunnels. The presence of tunnels with cross-section dimensions of 1.06 × 0.37 nm² [1] enables the retention of small organic molecules. Isomorphic substitutions of Si⁴⁺ by Al³⁺ in the tetrahedral layer or Mg²⁺ by Al³⁺ in the octahedral layer promote the formation of charged sites in the structure. An important characteristic of this mineral is the high density of silanol groups on the particle surface, much higher than that of platelet-like clay minerals. These are formed from the bonding between non-shared oxygens from the tetrahedral silica sheets located on channels (tunnels at the surface of the particle) and hydrogen [2].

Galán (1996) collected classical applications (sorptive, catalytic, organo-mineral derivatives, rheological, filler, animal nutrition, biomaterials, and environmental) for the use of sepiolite [3]. Other uses of sepiolite, like foams, films, supported lipid membrane, hybrid bilayers, other types of supported membranes, bioplastics and membranes, drug delivery, DNA non-viral transfection, vaccines, tissue engineering and scaffolds, environmental applications, bionanocomposites as source of supported carbonaceous materials and bionanocomposites as components of sensor devices and bioreactors, have been developed [4].

As stated previously [5], a good dispersion of the clay mineral in a selected medium, preferentially water-based, is essential to achieve superior properties in the final bionanocomposites. Acicular individual particles of fibrous clays, such as sepiolite, easily aggregate in water by hydrogen bonding and Van der Waals interactions to form bundles and aggregates, which limits the quality of the clay dispersion [6]. Additionally, the characteristic crystalline structure of fibrous clays does not allow them to be delaminated (or exfoliated) as in the case of the plate-like clays. To improve the dispersibility of sepiolite, several strategies have been evaluated and the most common approaches are as follows: mechanical treatment; addition of chemical dispersants to the suspension; chemical modification of the mineral surface.

The mechanical treatment may consist of ultrasonication or high-speed shearing processes, among others, able to disrupt the bulk bundles into smaller bundles or single rods, without damaging the crystal structure and length of nanorods. Ultrasonication has been presented as a relatively simple approach to disaggregate sepiolite fibers and enhance their characteristic properties, which is not possible to be accomplished by magnetic stirring only. For instance, when a sepiolite suspension in water was previously submitted to ultrasonication, under adjusted conditions, the specific surface area was found to increase from 322 to 487 m²·g⁻¹, which improved its adsorption capacity of methylene blue dye [7]. Ultrasonication has also been used as a method to generate homogeneous and stable dispersions with other materials in water for the preparation of hybrid and composite structures [8,9]. It was claimed that high energy ultrasonication can also promote the formation of thixotropic gels with highly dispersed fibrous clays, although with shorter fibers [3]. On the other hand, Viseras et al. (1999) used high-speed homogenization to disperse colloidal particles of sepiolite [10]. Rotor speed of 8000 rpm for a period of 10 min was used to enhance the viscosity of the suspension and to produce a stable dispersion. High-pressure homogenization can also be an interesting approach to disaggregate sepiolite particles in water suspensions, as it was reported for palygorskite [11].

The addition of chemical dispersants is also used to stabilize the dispersions of fibrous clays. By changing the surface characteristics of the individual particles (rods) of the fibrous clay, namely their charge and surface chemistry, they may contribute to a better dispersion without damaging the crystal structure. The choice of the dispersant is crucial for the target result. Takei et al. (2013) have evaluated the effect of the addition of different types of dispersants (followed by ultrasonication) to disperse sepiolite on the tensile strength of composites produced with nitrile butadiene rubber; they found that ammonium polycarboxylate and amino alcohol polyphosphate, in particular, provided valuable results, as evaluated by the increase in tensile strength of the sepiolite-rubber composite [12]. More recently, ionic liquids have also been used to disperse sepiolite [13]. The use of ionic liquids was found to influence the arrangement of sepiolite particles, as well as the thermal properties but without significant structural changes of it.

The chemical modification of the surface has also been presented as a viable approach to improve the dispersion of fibrous clays. It has been found that modification of sepiolite fibers by reaction with methyltrimethoxysilane (MTMS) in water, at appropriate concentrations, enhanced the dispersion of the aggregates or large bundles of fibers as almost individual nanorods forming aqueous gels. The surface of the fibers becomes covered with nanometric MTMS condensed spheres, which, according to the authors, reduces strongly the contact surface between fibers and precludes a strong reaggregation of the material [14].

The present work evaluates the influence of four dispersing agents (sodium polyphosphate, hydrophobically modified poly(sodium acrylate) (HM-PAA), sodium carboxymethylcellulose (CMC), and sodium alginate) and three distinct dispersion apparatus (magnetic stirring, ultrasonication, and high-speed shearing) on the dispersion state of water-based suspensions of sepiolite, at low concentration. The capacity of each dispersing agent and apparatus, as well as the effect of the suspension pH, were studied aiming at improving the disaggregation and the formation of stable suspensions, i.e., no phase separation (by visual inspection) for a period of at least 90 days, crucial to significantly enhance the performance and extend the application of fibrous-like clays, for example, in cellulose nanofibrils/clay composite formulations, allowing an adequate mixture of the matrix and filler individual components [5]. Related with the chemical dispersants addressed in the present work, and polysaccharides, in general, studies have been reported in literature dealing with the preparation of composites of sepiolite with poly(sodium acrylate) [15], CMC and alginate (films) [16], alginate and starch (foams) [17], and nanofibrillated cellulose (nanopapers) [18]. However, none of the works reported a comprehensive and systematic study of the effect of the biopolymers and/or synthetic polymers over the dispersion and stability of the fibrous clay suspensions.

2. Materials and Methods

2.1. Clays and Chemicals

In this study, two natural sepiolite samples, referred as sepiolite 1 and sepiolite 2, from the deposit of Vallecas-Vicálvaro (Madrid, Spain), supplied by Tolsa, SA (Madrid, Spain) were used. Sepiolite 1 was processed by a dry micronization process using a jet mill to break the fiber bundles down into micron-size particles. Sepiolite 2 was micronized using a wet process that produces an extensive deagglomeration of the sepiolite fiber bundles without affecting their aspect ratio [19].

Hydrochloric acid (Puriss p.a., ACS reagent grade, fuming, 37%) was acquired from Fluka, Porto Salvo, Portugal. Sodium hydroxide (reagent grade, ≥98%, pellets) was purchased from Sigma-Aldrich (Merck), Algés, Portugal. The dispersing agents used were sodium polyphosphate (Emplura grade, 99%, catalogue number 106529) purchased from Sigma-Aldrich (Merck); hydrophobically modified poly(sodium acrylate) (HM-PAA) (Acusol 820, 30% active emulsion polymer consisting of 40% methacrylic acid, 50% ethyl acrylate, and 10% stearyl oxypoly ethyl methacrylate; the viscosity of an aqueous solution containing 1% (w/w) polymer at pH 7 is ca. 12 Pa·s) acquired from Rohm and Haas, Philadelphia, PA, USA; carboxymethylcellulose sodium salt (molecular weight of 250 kDa, degree of substitution of 0.7) and alginic acid sodium salt from brown algae (Bioreagent, suitable for immobilization of micro-organisms, catalogue number 71238) obtained from Sigma-Aldrich (Merck). The estimated molecular weight of alginate was ca. 280 kDa (by rheometry) and ca. 210 kDa (by capillary viscometry). All chemicals were used as received without any further purification.

2.2. Characterization of the Sepiolite Samples

The samples were analyzed according to mineralogical, physical, and chemical characterization, using the following equipment and operational conditions.

The mineralogical characterization obtained by powder X-ray diffraction was carried out using a Philips X’Pert MPD diffractometer (Amsterdam, The Netherlands), with CoKα radiation (λ = 1.7903 Å), at a current of 35 mA and a voltage of 40 kV. Diffractograms were collected by the counting method (step 0.025° and time 1.0 s) in the 2θ range of 5–60°. Crystalline phases were discriminated by comparison with reference diffractograms from the International Centre for Diffraction Data.

The chemical composition of the sepiolite samples was determined by X-ray fluorescence using a PANalytical equipment PW 4400/40 Axios with CrKα radiation (Malvern Panalytical, Almelo, The Netherlands). The Loss on Ignition (LOI) was determined gravimetrically, by treatment at 1000 °C for 2 h in a Nabertherm laboratory furnace.

FTIR-ATR spectra of the minerals were obtained on a JASCO FT/IR-4200 spectrometer (JASCO, Tokyo, Japan) using a MKII Golden Gate accessory. The spectra were recorded in the 800–4000 cm⁻¹ range with a resolution of 4 cm⁻¹ and 64 scans.

Thermal analysis was done using a simultaneous DSC-TGA thermal analyzer (TA Instrument SDT Q600, New Castle, DE, USA). The samples were heated from room temperature up to 1000 °C, at a rate of 10 °C/min, under a nitrogen atmosphere.

Brunauer, Emmett, and Teller (BET) specific surface area was determined by nitrogen adsorption at 77 K using a Micromeritics Gemini V analyzer (Micromeritics Instrument, Norcross, GA, USA). The samples were previously degassed at 124 °C under nitrogen flow for 12 h.

Particle size distribution was determined in the 0.01–3500 µm range using a laser diffraction particle size analyzer Malvern Mastersizer 3000 (Malvern Instruments, Malvern, UK). The samples were previously dispersed in water in an automated dispersion unit Malvern Hydro LV, using 0.1 wt% tetrasodium pyrophosphate as dispersant.

The morphology of the particles was evaluated by field emission scanning electron microscopy (FE-SEM) in a Carl Zeiss Merlin–61–50 microscope ( Carl Zeiss, Oberkochen, Germany). Secondary electron mode and acceleration voltage of 1 kV were the operational conditions. The samples were previously sputter-coated with a thin film of Au/Pd.

2.3. Preparation of the Sepiolite Suspensions with Different Mechanical Dispersers and Chemical Dispersants

Suspensions with 1.0 wt% of sepiolite were prepared at room temperature from their respective dry powders. The desired amount of clay powder was added into distilled water and the mixture stirred using a magnetic stirrer at 200 rpm; right after, the dispersing agents were added at a concentration of 0.1 wt%, under constant mixing. Then, the suspensions were finished using different mixing systems: magnetic stirrer at 300 rpm for 20 min; high-shear disperser (Dispermat CV3-PLUS-E, VMA-Getzman GmbH, Reichshof, Germany) at 5000 rpm for 15 min; ultrasound probe (Vibra-cell VC 505, Sonics, Newtown, CT, USA) working at 60% amplitude and 1 s pulse, for 10 min. The pH of the suspensions was measured and for some cases adjusted to 3 (using HCl 1 M) or to 12 (using NaOH 1 M), after which, the suspensions were allowed to continue the mixture until the above referred times. Then, the suspensions were left stabilizing for particle size and zeta potential measurements, as well as before the microscopic analysis. The suspension stability was evaluated for a period of 90 days.

2.4. Characterization of the Sepiolite Suspensions

Zeta potential measurements of aqueous suspensions of the two mineral samples, at different pH values, were carried out in a Zetasizer NanoZS equipment (ZN 3500, Malvern Instruments, Malvern, UK) by electrophoretic light scattering. For this characterization, previously to the measurements, an aqueous suspension of the mineral sample (2%, w/v) was magnetically stirred for 30 min at 500 rpm. The zeta potential of this suspension with a pH of ca. 8.5 was measured. Then, the pH was adjusted to lower values by the addition of HCl (acidic series) or to higher values by the addition of NaOH (alkaline series). The suspension was always kept stirred between the measurements at different pH values. Measurements were done by taking the average of six repetitions. Different series of measurements were performed in order to check reproducibility of the results.

For the characterization of the mineral suspensions after the treatments referred in Section 2.3, the sepiolite suspensions at 1 wt% were diluted to 0.1 wt% using MilliQ water and transferred to the measurement cell before the measurements.

To evaluate the size of the sepiolite particles in suspension, dynamic light scattering measurements were performed in the Zetasizer NanoZS equipment (ZN 3500, Malvern Instruments, Malvern, UK), with a 532 nm laser, using a backscatter angle detection of 173°, at 25 °C. Stable sepiolite suspensions with the concentration of 0.1 wt% were gently transferred to a glass cuvette and checked for the presence of bubbles. The average particle size (equivalent diameter) was determined from the distributions in intensity (Di) and based on six repetitions. The data optimized according to the non-negative least-squares (NNLS) algorithm and the polydispersity index (PDI) values were obtained through the Zetasizer Nano Software (version 7.11).

The dispersion/aggregation state of the sepiolite suspensions was evaluated using an Olympus BH-2 KPA microscope (Olympus Optical Co., Ltd., Tokyo, Japan) equipped with a high-resolution CCD color camera (Olympus ColorView III), at different pH values and using different dispersion agents and methods. Samples were kept between cover slips and illuminated with linearly polarized light and analyzed through a cross polarizer. Images were captured and analyzed using the analySIS software (Soft Imaging System GmbH, Münster, Germany).

3. Results and Discussion

3.1. Characterization of the Sepiolite Samples

The X-ray diffractograms of the two sepiolite samples were similar and indicated the presence of only sepiolite, pointing out to a clay with monomineralic composition (Figure 1).

Additionally, the chemical composition of the two sepiolite samples was also similar (

Table 1. XRF data (in wt%) of the sepiolite samples.

	Sepiolite 1	Sepiolite 2
SiO2	53.6	53.5
MgO	22.3	22.8
Al2O3	2.10	1.93
CaO	0.28	0.17
Fe2O3	0.56	0.58
Na2O	0.15	0.12
K2O	0.67	0.51
MnO	0.02	0.02
TiO2	0.11	0.07
P2O5	0.03	0.04
SO3	0.03	0.03
F-	0.78	0.97
LOI a	19.4	19.3

^a LOI: loss on ignition.

). The high content of Si and Mg evidenced the magnesium silicate nature of these raw materials. The SiO₂/MgO ratio was 2.41 for sepiolite 1 and 2.35 for sepiolite 2, which are common values for this type of mineral [20]. Al and Fe were found, which are known to substitute Si and Mg in the crystalline structure. The XRF data are in agreement with results provided by Sabah et al. (2007) for other sepiolite samples from the same origin [20].

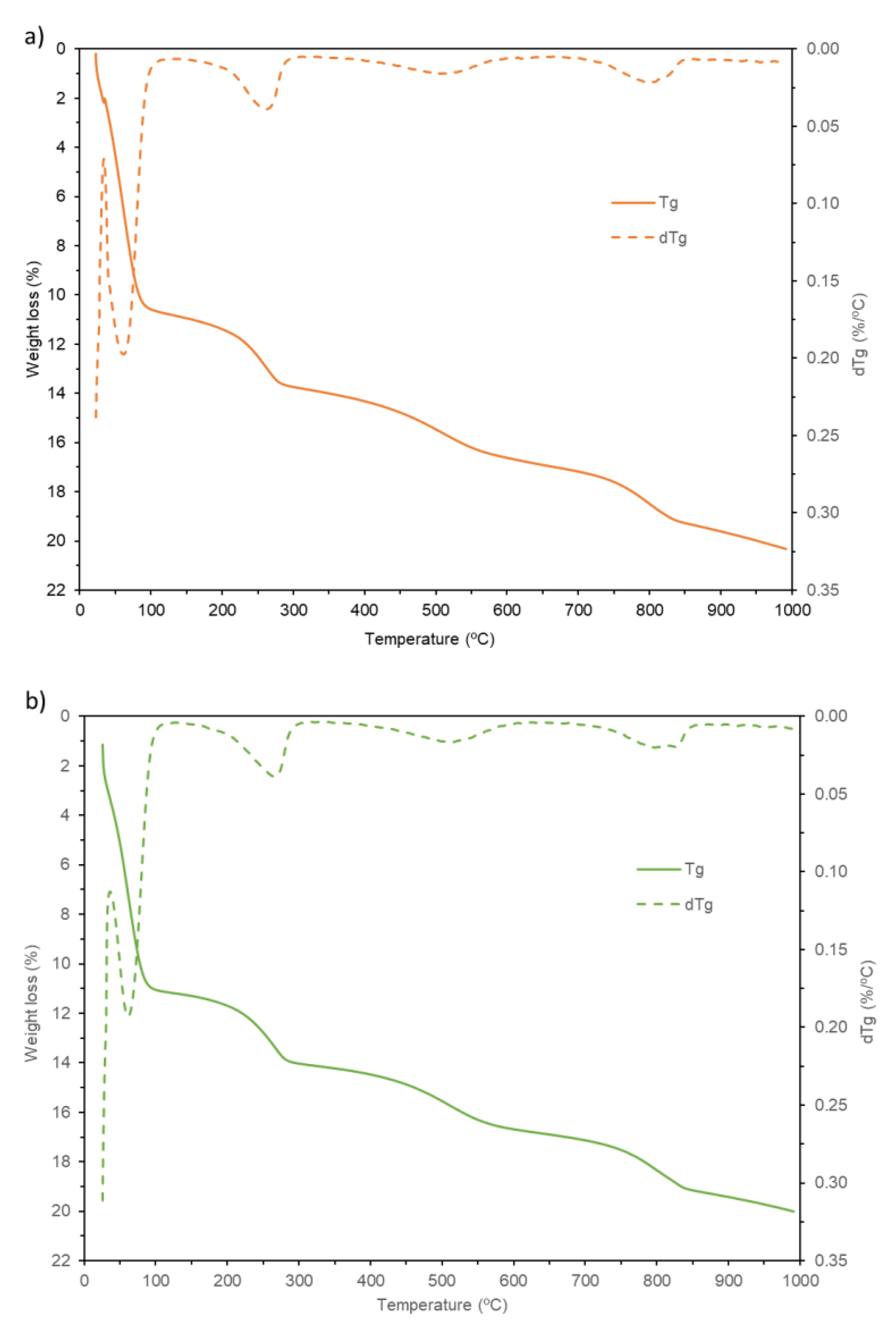

The thermogravimetric analysis results of the two sepiolite samples were similar (Figure 2), in agreement with the similar chemical composition. The first and major endothermic weight loss (≈11%) can be seen by increasing temperature up to ca. 100 °C; this is mainly due to the release of zeolitic water and hygroscopic water. A second endothermic weight loss (≈2.8–3.0%) is observed from ca. 100 to 280 °C, attributed to release of some Mg-coordinated water. The release of the remaining Mg-coordinated water is completed in a third stage, extending up to about 600 °C (≈2.8–3.1%). A final endothermic weight loss step from ca. 600 to 1000 °C (≈3.3–3.7%), occurs due to the dehydroxylation of the octahedrally coordinated hydroxyl groups [21,22,23,24]. The total thermogravimetric weight losses (≈20%) are in agreement with the loss on ignition values (Table 1) presented above.

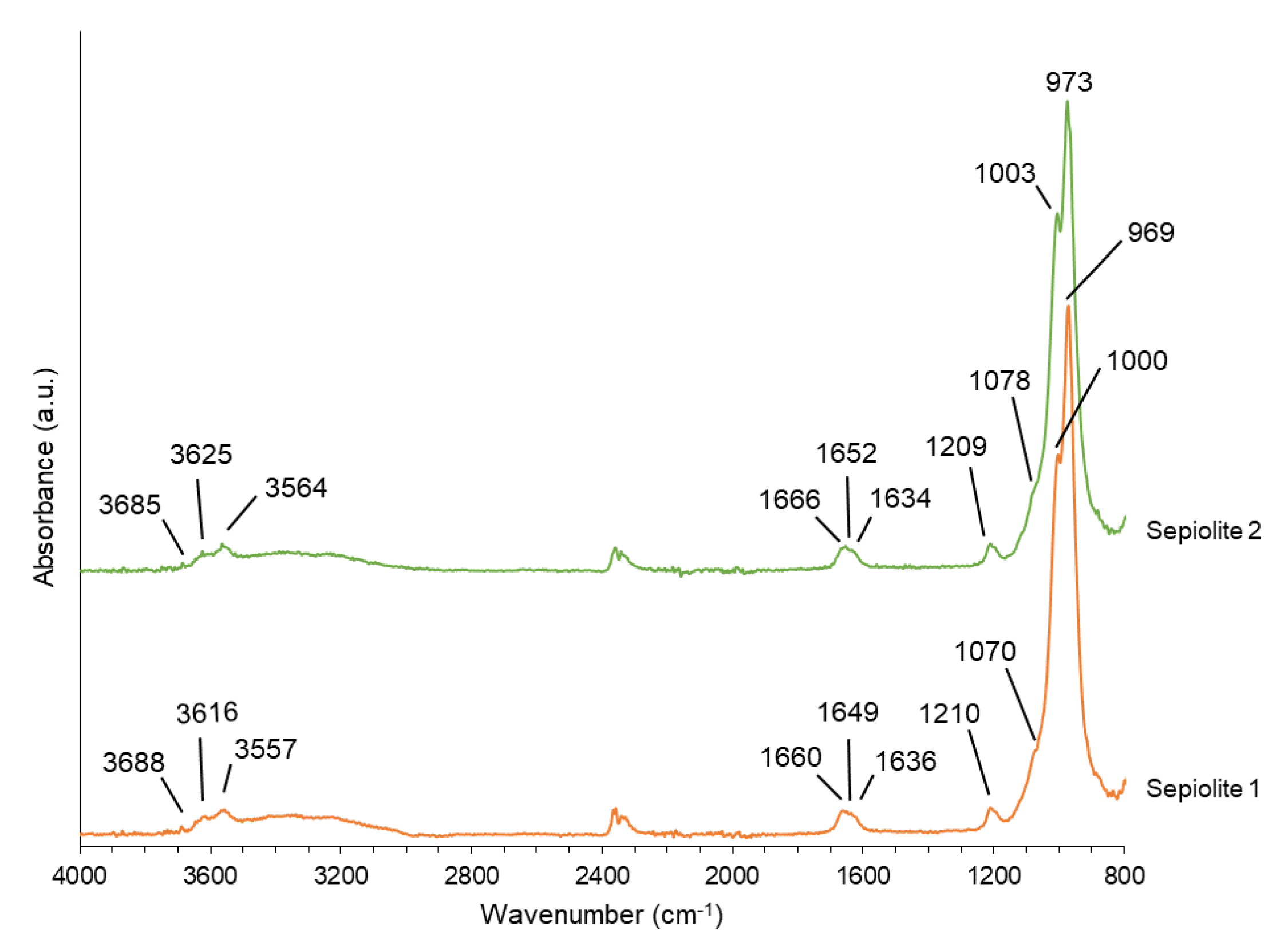

FTIR spectroscopy was also used to characterize the mineral (Figure 3). The spectra of the two sepiolite samples were quite similar. The bands at 3688 and 3616 cm⁻¹ for sepiolite 1 and at 3685 and 3625 cm⁻¹ for sepiolite 2 are associated to the stretching of the OH coordinated with Mg [25]. At 3557 and 3564 cm⁻¹ for sepiolite 1 and sepiolite 2, respectively, a band occurs related with the OH-stretching for water coordinated with Mg [25]. For both samples, the diffuse region between 3400 and 3200 cm⁻¹ may include bands attributed to adsorbed, zeolitic, and coordinated water. In the 2370–2330 cm⁻¹ region, bands corresponding to ambient CO₂ are present. A group of bands related to OH bending are observed at 1660 (for sepiolite 1) and 1666 cm⁻¹ (for sepiolite 2) assigned to water strongly bonded to Mg [25]; 1649 (sepiolite 1) and 1652 cm⁻¹ (sepiolite 2) related to zeolitic water [26]; 1636 (sepiolite 1) and 1634 cm⁻¹ (sepiolite 2) attributed to adsorbed water [26]. Bands at 1210, 1070 (shoulder), and 1000 cm⁻¹ in the case of sepiolite 1 and at 1209, 1078 (shoulder), and 1003 cm⁻¹ in the case of sepiolite 2 were assigned to Si–O stretching modes, whereas those at 969 (sepiolite 1) and 973 cm⁻¹ (sepiolite 2) were attributed to OH deformation in the Mg–OH or Al–OH bonds [25].

Some physical parameters of the sepiolite samples were also determined, namely particle sizes and specific surface area. The results are summarized in

Table 2. Physical data of the sepiolite samples.

	Particle Size Distribution a (µm)				SSA b (m2/g)
	Dv (4,3)	Dv10	Dv50	Dv90
Sepiolite 1	12.3	3.3	9.4	24.7	288
Sepiolite 2	17.0	3.0	9.6	31.1	337

^a Dv10, Dv50, and Dv90 are the equivalent diameters corresponding to 10%, 50%, and 90%, respectively, of the cumulative undersize particle size distribution (volume-weighted); Dv (4,3) is the weighted mean value of particle size by volume. ^b SSA—specific surface area.

. Considering the results supplied by the manufacturing company, similar Dv10 and Dv50 size values are obtained for the two sepiolites; the apparent larger Dv90 of sepiolite 2 compared to sepiolite 1 is due to the presence of a few agglomerates with bigger dimensions in sepiolite 2 dispersion. The original materials, as supplied by Tolsa, did not undergo any optimized dispersion procedure for these measurements, being the starting point for the developed work discussed in Section 3.2. Thus, the size values shown in Table 2 correspond for sure to aggregated particles, and this state of the initial materials is, in our opinion, the reason for the formation of suspensions of poor stability. The more extensive disentanglement of the fiber bundles in sepiolite 2 compared to sepiolite 1 makes the surface more available and it results in a higher specific surface area.

The SEM microphotographs clearly showed the fibrous nature of the studied samples, composed by bundles, and individual long rods with thin diameter. No contaminants were detected in the samples (Figure 4).

Zeta potential results for aqueous suspensions of clay are shown in Figure 5. For sepiolite 1, zeta potential at the initial pH (≈8.5) is negative (ca. −12 mV) and tended to increase (in absolute value) with the increase of pH. Increasing pH until 12 highly increased the zeta potential to around −45 mV. On the other hand, zeta potential varied less in the region of pH 8.5 down to pH 3.0. At pH 3.7, the zeta potential was −3 mV. The isoelectric point was found at a pH value of 3.2–3.3. Under this condition, there was an equilibrium between positive and negative charges on the surface of sepiolite particles. The isoelectric point found for this sample is similar to that determined for a sample of similar origin, for which the authors determined an isoelectric point pH of ca. 3.4, at the same mineral content [20]. For pH 2.6, the zeta potential achieved a relatively high positive value (+9 mV). The variation of zeta potential with pH is the expected for this type of mineral and can be rationalized in terms of the acid-base behavior of the surface hydroxyl groups (M–OH) of sepiolite. At pH values superior to the isoelectric point, the hydroxyl groups deprotonate releasing protons and forming negatively charged M–O⁻ species, providing a negative zeta potential. At pH values lower than the isoelectric point, they protonate to form M–OH₂⁺ species, providing positive zeta potential. In the isoelectric point, the concentration of M–O⁻ and M–OH₂⁺ is the same. Different isoelectric point values can be obtained depending on the sepiolite origin [27,28]. The presence of contaminants and defects in the crystalline structure of the sepiolite (e.g., isomorphic tetrahedral and octahedral substitutions) highly influence the pH value for the isoelectric point.

For sepiolite 2, the zeta potential results evidenced a trend similar to that found for sepiolite 1 (Figure 5). However, the values achieved at each pH are somewhat different. At pH 8.5, the zeta potential was ca. −20 mV and increasing the pH till 12 increased it (in absolute value) to −56 mV. At pH 3.0, zeta potential was −4 mV. The isoelectric point was found to be at a pH near 2.5. At pH 1.6, zeta potential was +5 mV. Thus, in comparison to sepiolite 1, sepiolite 2 showed more negative values of zeta potential for the same pH and lower pH value for the isoelectric point. Since sepiolite 1 and 2 have similar mineralogical, chemical, and thermal properties, as demonstrated above, the different zeta potential values can be related to slightly different surface characteristics. The higher specific surface area of sepiolite 2 (Table 2) affords a higher exposure of silanol groups on the external surface of the particles which generates more negative values of zeta potential.

3.2. Characterization of the Sepiolite Suspensions: Effects of Dispersing Equipment and Dispersant

Images of the formed suspensions of sepiolite 1 and sepiolite 2 (at the natural pH of the suspensions), in the presence of sodium polyphosphate and without addition of dispersing agent, using different dispersing equipment, are presented in Figure 6.

As can be macroscopically observed, the use of sepiolite 2 resulted, overall, in suspensions of better stability, being only observed phase separation for the samples produced using the magnetic stirrer and a slight sedimentation of clay particles for the sample produced with the high-speed disperser. All the other three samples appeared stable for a long period of time, 90 days. Less stable suspensions were formed when sepiolite 1 was used, being only observed macroscopically uniform samples with the use of the sonicator as dispersion equipment. This is certainly related with the different pre-treatments used to prepare the two samples of sepiolite; the pre-treatment used to produce sepiolite 2 allows a better and slightly easier dispersion of the clay individual fibers, even if these have a longer length compared to sepiolite 1.

Additionally, in the insets, which correspond to microscopic observations of the samples it is also possible to observe clear differences. For the case of sepiolite 1 suspensions prepared using the magnetic stirrer and high-shear disperser, the top phase microscopic image shows a clear image, being the mineral-rich phase concentrated in the bottom of the flask, even when the dispersing agent, polyphosphate, was used (Figure 6, images (i), (iii), (v), and (vi)). On the other hand, for the suspension of sepiolite 2 prepared with the high-shear disperser, the top phase of suspension (c) shows some dispersed particles, and the bottom phase is smaller than the observed for sepiolite 1. When polyphosphate was added to the suspension of sepiolite 2, using the high-shear disperser, a homogeneous suspension was formed, some particles of relatively large dimensions being observed in suspension. Comparing the macroscopic aspect and the microscopic observation of suspensions of sepiolite 2 prepared with the high-speed disperser (Figure 6, samples c and d), it is reasonable to say that part of the mineral was disaggregated into small particles, not visible in the optical microscope, only a small sediment of mineral particles being observed in the absence of polyphosphate.

With ultrasonication, stable suspensions with solely sepiolite in water and also with the addition of polyphosphate (Figure 6, samples e and f) were prepared. However, the sample containing only sepiolite 1 (no dispersant) showed some large particles in suspension, contrary to the samples prepared with sepiolite 1 or sepiolite 2 with dispersing agent, which presented a clear image in the optical microscope. The presence of the dispersing agent can introduce extra charges on the surface of the particles, resulting in an improved disaggregation and stability of the suspensions. Sepiolite 2, without added dispersing agent, already showed a clear image in the microscope, confirming that it is easier to disperse than sepiolite 1.

3.2.1. Effect of Mechanical Treatment

In order to have a better elucidation of the state of the sepiolite aqueous suspensions, dynamic light scattering and zeta potential measurements were performed. The results obtained for the size and zeta potential of the prepared suspensions are shown in

Table 3. Particle sizes of sepiolite 1 as a function of the different conditions used for preparation of the suspensions.

	Mechanical Treatment	pH 3		pH 8		pH 12
		Di50 (nm)	PDI	Di50 (nm)	PDI	Di50 (nm)	PDI
Without dispersing agent	Magnetic stirring	2φ	-	2φ	-	2φ	-
	High-speed homogenization	2φ	-	2φ	-	770	0.48
	Ultrasonication	574	0.91	782	0.29	305	0.32
With 0.1% polyphosphate	Magnetic stirring	2φ	-	2φ	-	2φ	-
	High-speed homogenization	2φ	-	2φ	-	2φ	-
	Ultrasonication	350	0.24	287	0.23	274	0.27
With 0.1% polyacrylate	Magnetic stirring	2φ	-	2φ	-	2φ	-
	High-speed homogenization	2φ	-	2φ	-	1470	0.62
	Ultrasonication	395	1.00	232	0.33	485	0.36
With 0.1% CMC	Magnetic stirring	2φ	-	2φ	-	1060	0.47
	High-speed homogenization	1170	0.27	1440	0.43	791	0.42
	Ultrasonication	691	0.29	445	0.31	487	0.37
With 0.1% alginate	Magnetic stirring	2φ	-	2φ	-	2φ	-
	High-speed homogenization	2φ	-	2φ	-	2φ	-
	Ultrasonication	552	0.34	2φ	-	412	0.36

2φ—refers to two separate phases.

,

Table 4. Particle sizes of sepiolite 2 as a function of the different conditions used for preparation of the suspensions.

	Mechanical Treatment	pH 3		pH 8		pH 12
		Di50 (nm)	PDI	Di50 (nm)	PDI	Di50 (nm)	PDI
Without dispersing agent	Magnetic stirring	2φ	-	2φ	-	2φ	-
	High-speed homogenization	389	0.75	1030	0.31	757	0.32
	Ultrasonication	508	0.91	773	0.26	344	0.25
With 0.1% polyphosphate	Magnetic stirring	2φ	-	2φ	-	350	0.28
	High-speed homogenization	794	0.28	385	0.27	418	0.25
	Ultrasonication	379	0.26	253	0.25	257	0.25
With 0.1% polyacrylate	Magnetic stirring	2φ	-	2φ	-	320	0.46
	High-speed homogenization	2500	0.49	372	0.42	2φ	-
	Ultrasonication	1760	0.42	578	0.62	499	0.29
With 0.1% CMC	Magnetic stirring	2φ	-	2φ	-	1030	0.52
	High-speed homogenization	2φ	-	1370	0.50	1120	0.53
	Ultrasonication	620	0.38	551	0.34	485	0.32
With 0.1% alginate	Magnetic stirring	2φ	-	2φ	-	2φ	-
	High-speed homogenization	2φ	-	2φ	-	558	0.41
	Ultrasonication	2φ	-	2φ	-	401	0.31

2φ—refers to two separate phases.

,

Table A1. Zeta potential values for sepiolite 1 suspensions as a function of the different conditions used.

	Mechanical Treatment	pH 3		pH 8		pH 12
		Zeta Potential (mV)	Zeta Deviation	Zeta Potential (mV)	Zeta Deviation	Zeta Potential (mV)	Zeta Deviation
Without dispersing agent	Magnetic stirring	2φ	-	2φ	-	2φ	-
	High-speed homogenization	2φ	-	2φ	-	−30	3.4
	Ultrasonication	−19	4.3	−19	4.0	−48	9.6
With 0.1% polyphosphate	Magnetic stirring	2φ	-	2φ	-	2φ	-
	High-speed homogenization	2φ	-	2φ	-	2φ	-
	Ultrasonication	−43	6.8	−57	8.9	−52	10.4
With 0.1% polyacrylate	Magnetic stirring	2φ	-	2φ	-	2φ	-
	High-speed homogenization	2φ	-	2φ	-	−49	4.9
	Ultrasonication	−22	3.1	−26	5.6	−52	5.0
With 0.1% CMC	Magnetic stirring	2φ	-	2φ	-	−56	3.9
	High-speed homogenization	−38	3.1	−62	4.5	−50	3.8
	Ultrasonication	−36	3.3	−54	4.4	−51	5.5
With 0.1% alginate	Magnetic stirring	2φ	-	2φ	-	2φ	-
	High-speed homogenization	2φ	-	2φ	-	2φ	-
	Ultrasonication	−41	3.8	2φ	-	−56	8.7

2φ—refers to two separate phases. Zeta deviation is the uncertainty of the zeta potential determination.

and

Table A2. Zeta potential values for sepiolite 2 suspensions as a function of the different conditions used.

	Mechanical Treatment	pH 3		pH 8		pH 12
		Zeta Potential (mV)	Zeta Deviation	Zeta Potential (mV)	Zeta Deviation	Zeta Potential (mV)	Zeta Deviation
Without dispersing agent	Magnetic stirring	2φ	-	2φ	-	2φ	-
	High-speed homogenization	−19	3.1	−22	4.9	−38	6.0
	Ultrasonication	−19	2.7	−25	8.4	−47	8.4
With 0.1% polyphosphate	Magnetic stirring	2φ	-	2φ	-	−54	8.8
	High-speed homogenization	−38	5.3	−60	10.3	−55	10.0
	Ultrasonication	−38	5.5	−58	11.6	−54	11.4
With 0.1% polyacrylate	Magnetic stirring	2φ	-	2φ	-	−53	4.7
	High-speed homogenization	−21	2.8	−24	4.7	2φ	-
	Ultrasonication	−24	5.2	−29	3.5	−56	5.1
With 0.1% CMC	Magnetic stirring	2φ	-	2φ	-	−65	4.6
	High-speed homogenization	2φ	-	−60	4.4	−54	4.3
	Ultrasonication	−50	4.5	−66	5.4	−57	5.0
With 0.1% alginate	Magnetic stirring	2φ	-	2φ	-	2φ	-
	High-speed homogenization	2φ	-	2φ	-	−55	4.9
	Ultrasonication	2φ	-	2φ	-	−52	9.1

2φ—refers to two separate phases. Zeta deviation is the uncertainty of the zeta potential determination.

(Appendix A).

As shown in Table 3 and Table 4, typically the disaggregation and dispersion stability increase as the power of the dispersion equipment is increased. In the case of sepiolite 1, for the samples where the magnetic stirrer was employed, only one stable dispersion was obtained (at pH 12 with CMC), contrary to the suspensions prepared using the ultrasonicator where all preparations (excluding the sample with alginate at the initial pH) showed stability for a long period of time. The same trend was observed for the sepiolite 2, only three stable suspensions being prepared (at pH 12) using the magnetic stirrer, whereas using the ultrasonicator almost all the prepared suspensions (excluding with alginate at pH 3 and 8) were stable. With the high-speed disperser equipment, the results were, in general, intermediate between those above mentioned, being not very effective, as ultrasonication, to generate stable colloidal dispersions of sepiolite. These results are in agreement with previous conclusions from other authors [9].

This factor can be rationalized in the following way: the increase in the power of the dispersing equipment results in higher disaggregation of the clay micro and nanoparticles (aggregates and bundles), leading to particles of smaller size and thus the formation of more stable suspensions.

3.2.2. Effect of the pH

An increase in the suspension pH is expected to improve the dispersibility and colloidal stability of the sepiolite particles, due to an increase in the negative charge of the clay particles (Figure 5). Table 3, Table 4, Table A1 and Table A2 evidence that the disaggregation and dispersion stability increased with the rise of the suspension pH from 3 to 12: an increment in the number of stable suspensions, i.e., six suspensions over the 15 investigated at pH 3, to nine suspensions over the 15 investigated at pH 12, was observed when working with sepiolite 1 and from 7 to 12, over the 15 investigated, in the case of sepiolite 2.

The increase in the negative surface charge of the clay particles is derived from the presence of hydroxyl groups or breakage of M–O–M (M = Si or Mg) at highly alkaline pH [29]. This increase in the surface charge helps the disaggregation and the stabilization of the particles, avoiding also the particle re-aggregation that introduces instability on the systems. Even though no strict defined relationship between zeta potential values and colloidal stability of systems can be assumed, it is known that a very small absolute zeta potential value, lower than ±5.0 mV, is a driving force for flocculation and instability of the particles in solution, and only above a value of ±30 mV the systems tend to be stable [30]. Thus, an increase in the absolute value obtained by pH increment will be favorable to enhance the stability of the suspensions.

The combination of high pH (pH 12) and ultrasonication led to 100% stable suspensions either for the sepiolite 1 or sepiolite 2. At pH 12 and with the high-shear disperser most of the prepared suspensions were also stable. Even with only magnetic stirring at pH 12, it was possible to obtain a few stable suspensions if an appropriate chemical dispersant (e.g., CMC for both sepiolite samples) was used. These suspensions stayed stable for more than three months, contrary to most of the suspensions at pH 3. Additionally, the particle size of the suspensions tendentiously decreased with pH rise and the polydispersity index decreased, indicating a suspension with a narrower distribution of the particle size (Table 3 and Table 4). Besides the increase in the surface charge of the clay particles, the dispersing agents used also suffer changes as the pH is increased, as discussed in the next section.

3.2.3. Effect of the Dispersants

The dispersing agents are species able to interact with the clay particles and change some surface properties, leading to an improvement in dispersibility and colloidal stability. In the present work, four different dispersing/stabilizing agents were studied: two synthetic ones, sodium polyphosphate and hydrophobically modified poly(sodium acrylate), and two bio-based ones, sodium carboxymethylcellulose and sodium alginate. It was observed that among all the studied dispersing agents the CMC is the one that provided a higher number of stable dispersions of all the preparations performed, enabling the preparation of stable dispersions in a wide range of conditions. Polyphosphate as chemical dispersant also provided good results in terms of stability of the sepiolite suspensions. However, the particle size of the clay in the CMC stabilized suspensions was tendentiously higher than that obtained when polyphosphate was used, in the cases where it was possible to compare the particle size. On the other hand, poorer results were obtained with alginate, for which the obtained data indicate that this biopolymer is less effective to stabilize sepiolite suspensions in water (under the tested conditions).

The difference in the results obtained with CMC and alginate can be attributed to a better interaction of the CMC polymer with the clay particles, derived from the relatively low degree of substitution of the cellulose derivative (less charged). The reported values of the pKa for CMC (degree of substitution of 1.2) and alginate are quite similar, ca. 4.6 and 4.5, respectively [31]. It has also been reported that the degree of substitution of CMC affects slightly the pKa value, with a higher substitution by carboxymethyl groups leading to a higher pKa. Thus, being the degree of substitution low (0.7), it is expected that the pKa value of the CMC used in the present work is slightly lower but not significantly different of that of alginate. Additionally, alginate possesses in its structure blocks of guluronate monomers (besides mannuronate) that due to their axial-axial conformation reduce the flexibility of the polymer chain; the mannuronate blocks are more flexible and with a structure similar to CMC structure in its conformation [32]. The lower degree of substitution of CMC (less electrostatic repulsion with the sepiolite fibers), in the one hand, and, on the other hand, its semi-flexible chain leading to a more extended conformation of the polymer chain at low pH values, can explain the better results obtained when CMC was used. Moreover, the aggregation and gelation of alginate polymer chains has been reported at pH values of ca. 3 [33], thus the polymer-polymer interaction being favored instead of polymer–clay interaction, resulting in poor dispersion and stabilization of clay suspension when alginate was used. Finally, it can be hypothesized that CMC is more apt to interact with sepiolite particles, via Van der Waals forces and hydrogen bonds, to produce stable suspensions [34].

From the synthetic options studied, polyphosphate demonstrated to be the more effective, presenting better results than CMC in the case of sepiolite 2, but worse results in the case of sepiolite 1. Polyphosphate has a very low pKa value, being ionized and negatively charged in the entire range of studied pH [35]. It was expected that this compound could act as a good dispersing/stabilizing agent in the studied range. It is important to highlight that phosphates are traditionally used as dispersing agents for clay suspensions [36]. However, for sepiolite 1, it seems that the highly negative charge density of the polyphoshate did not favor the interaction with the clay, unless ultrasonication is applied in the system. For sepiolite 2, particularly at low pH, the results with polyphosphate were even better than the obtained when CMC was used. This observation reveals a better interaction of phosphate anions with the low charged clay particles at low pH.

The results obtained for polyacrylate (HM-PAA) as dispersant and stabilizer were quite unexpected. It was found that this polymer can have a good performance acting as disperser of sepiolite, being less effective as stabilizer of the suspensions. These results can be explained by two factors: the pKa of the polymer is higher than that of the other three dispersing agents studied, ca. 5.8 [31]; secondly, the polymer possesses hydrophobic modification, which leads to a shift in the expansion of the polymer chain [37]. These two factors can explain the poor stabilization effect observed for low pH values, having been typically observed suspension gelation with time, and a slightly better performance at pH 12, where the polymer is fully ionized and extended, being able to interact and stabilize the clay particles. It is important however to note that the lowest particle size obtained for the sonicated sepiolite 1 suspensions was obtained using HM-PAA at pH 8, with a particle size value of ca. 230 nm. This can be attributed to the excellent affinity of this kind of polymer, amphiphilic polymers, to interact for instance with surfactants [38] and other compounds containing both hydrophilic and hydrophobic domains, as is the case of the sepiolite clays [6,39,40]. In summary, the combination of an adequate dispersing agent with suitable dispersing equipment and suspension pH led to a significant improvement in disaggregation, dispersion, and stability of sepiolite suspensions in aqueous medium.

4. Conclusions

The present work explored the effect of different dispersing equipment and chemical dispersing agents on the dispersion state and stability of sepiolite suspensions. Two different samples of sepiolite, obtained from different physical pre-treatments, were studied. The characterization results of the sepiolite samples in the solid state revealed the characteristic magnesium silicate nature and high purity of the raw materials and clearly confirmed their fibrous-like structure. Additionally, the isoelectric point, ca. 3.2 for sepiolite 1 and ca. 2.5 for sepiolite 2, determined by zeta potential measurements, was in good agreement with other values reported in literature. Our results put in evidence the importance of the dispersing conditions used in order to prepare stable dispersions of sepiolite. It was observed that the use of high-energy dispersing apparatus, as the ultrasonicator, produced more stable suspensions compared to low-energy equipment, like the magnetic stirrer. On the other hand, it was observed that the biopolymer CMC showed a higher ability to produce stable suspensions; however, tendentiously, the smaller particle size was obtained when polyphosphate was used. Amphiphilic polymers, such as HM-PAA, also demonstrated good ability to disperse sepiolite particles, due to their good ability to interact with species containing hydrophobic moieties and reduce the Van der Waals forces among the clay rods. Nevertheless, most of the prepared suspensions with HM-PAA at low pH, tended to form viscous gels with time, ruling out the possibility of using this synthetic polymer to stabilize sepiolite, at least under the tested conditions. In sum, the combination of a high energy dispersing equipment with an appropriate dispersing agent led to stable suspensions with optimal properties to be used in different applications, like composites.
