Genetic Environments of the Eunjeok Au–Ag Deposit in the Yeongam District: Implications for Cretaceous Epithermal Au–Ag Mineralization in South Korea
Abstract
:1. Introduction

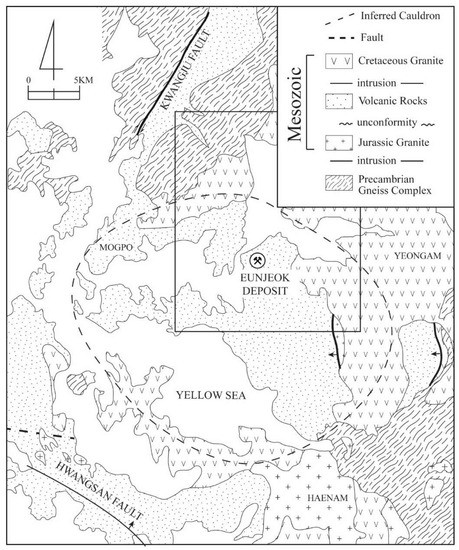

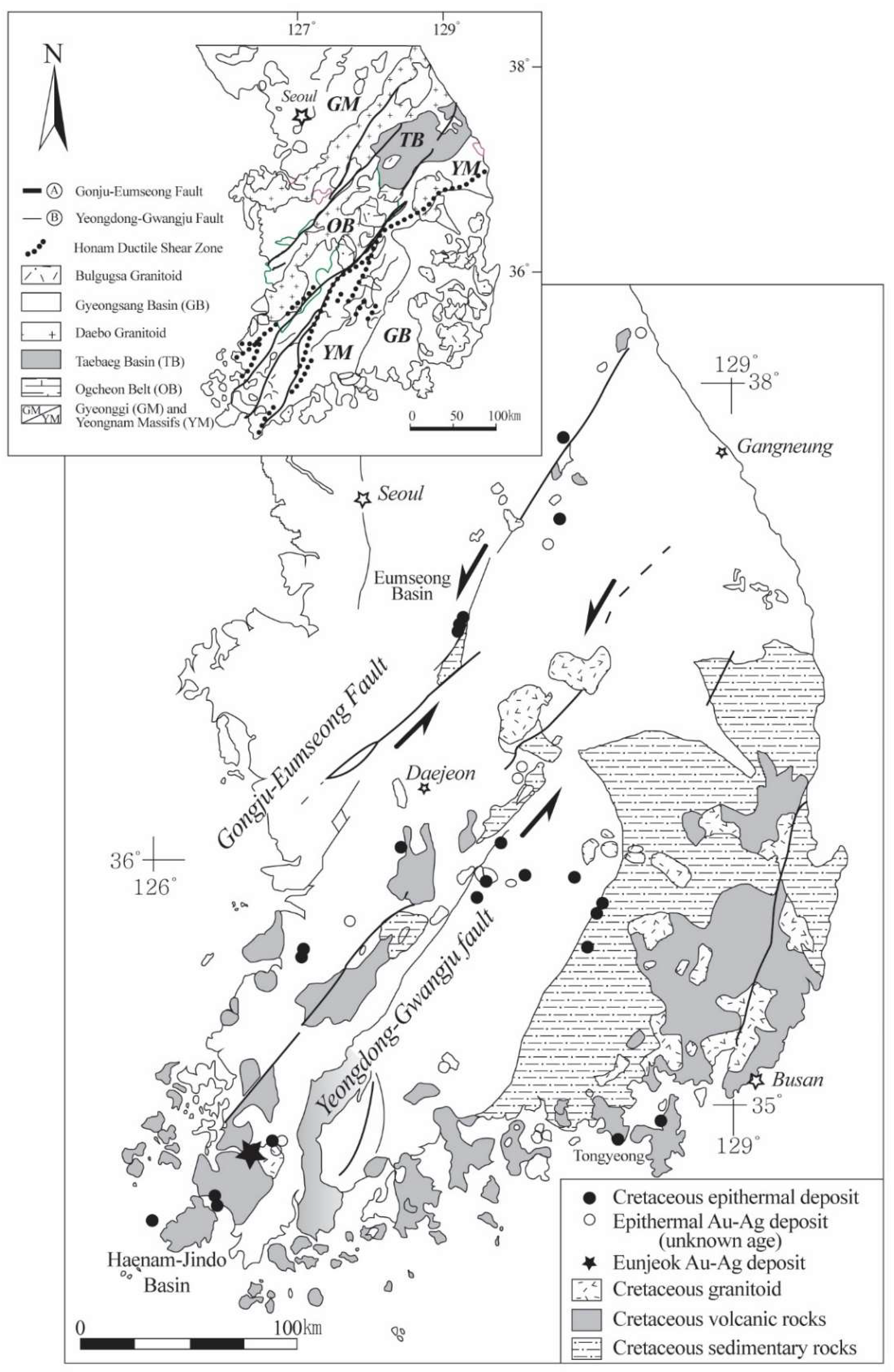

2. Tectonic Framework

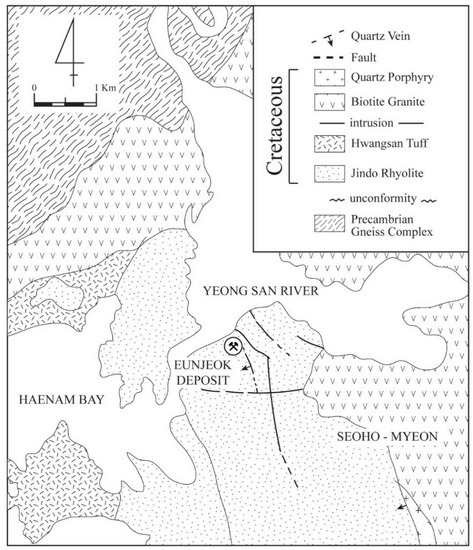

3. Geology

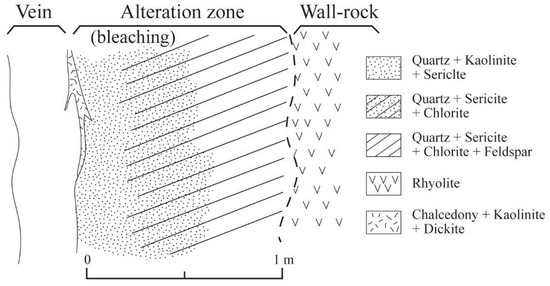

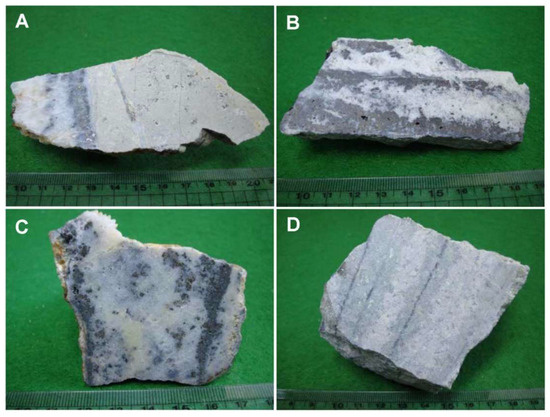

4. Ore veins and Hydrothermal Alterations

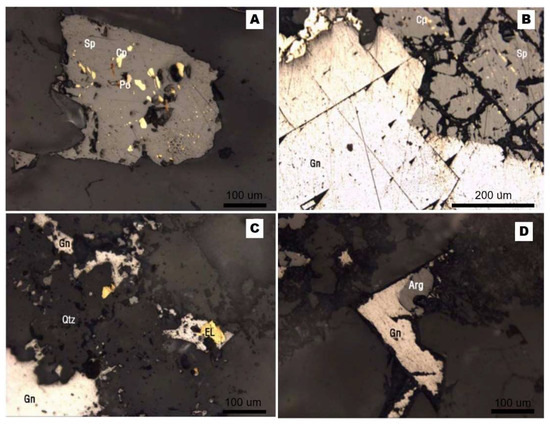

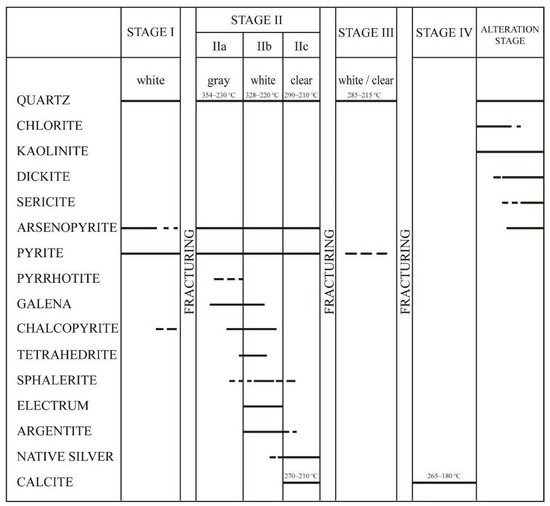

5. Mineralization and Paragenesis
5.1. Stage I Vein Mineralization
5.2. Stage II Vein Mineralization
5.3. Stage III Vein Mineralization
5.4. Stage IV Vein Mineralization

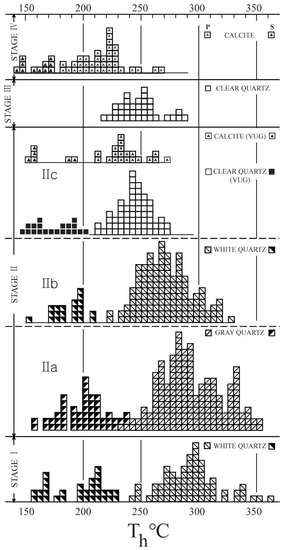

6. Fluid Inclusion Study
6.1. Inclusions in Stage II Veins
6.2. Inclusions in Stage III Vein
6.3. Inclusions in Stage IV Carbonate Vein

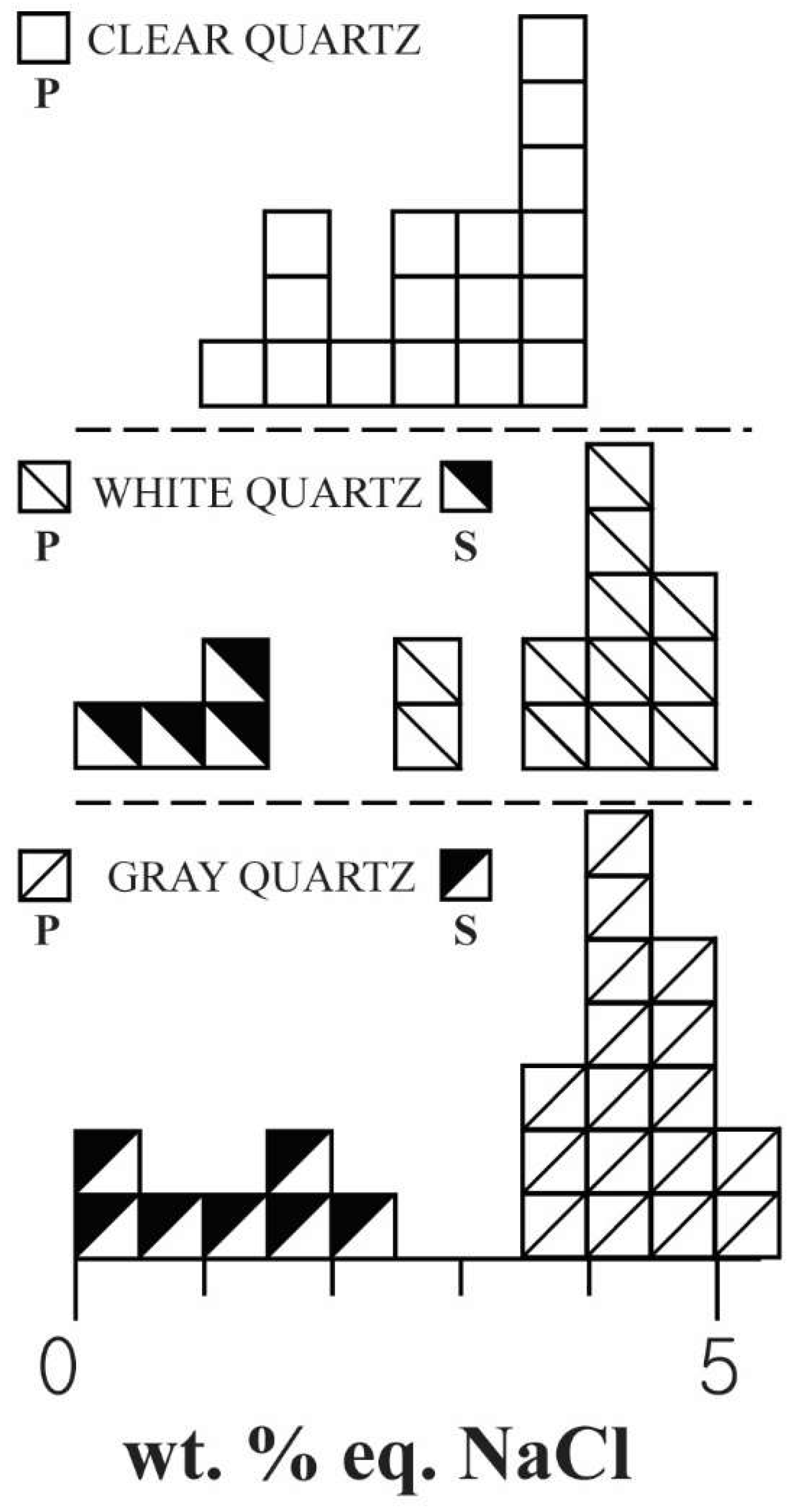

6.4. Variations in Temperature and Composition of Auriferous Fluids

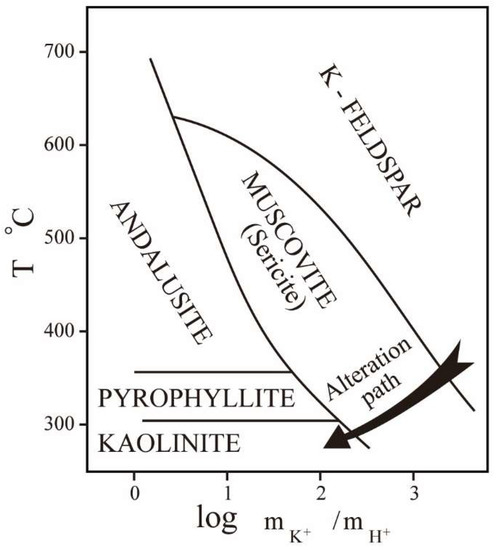

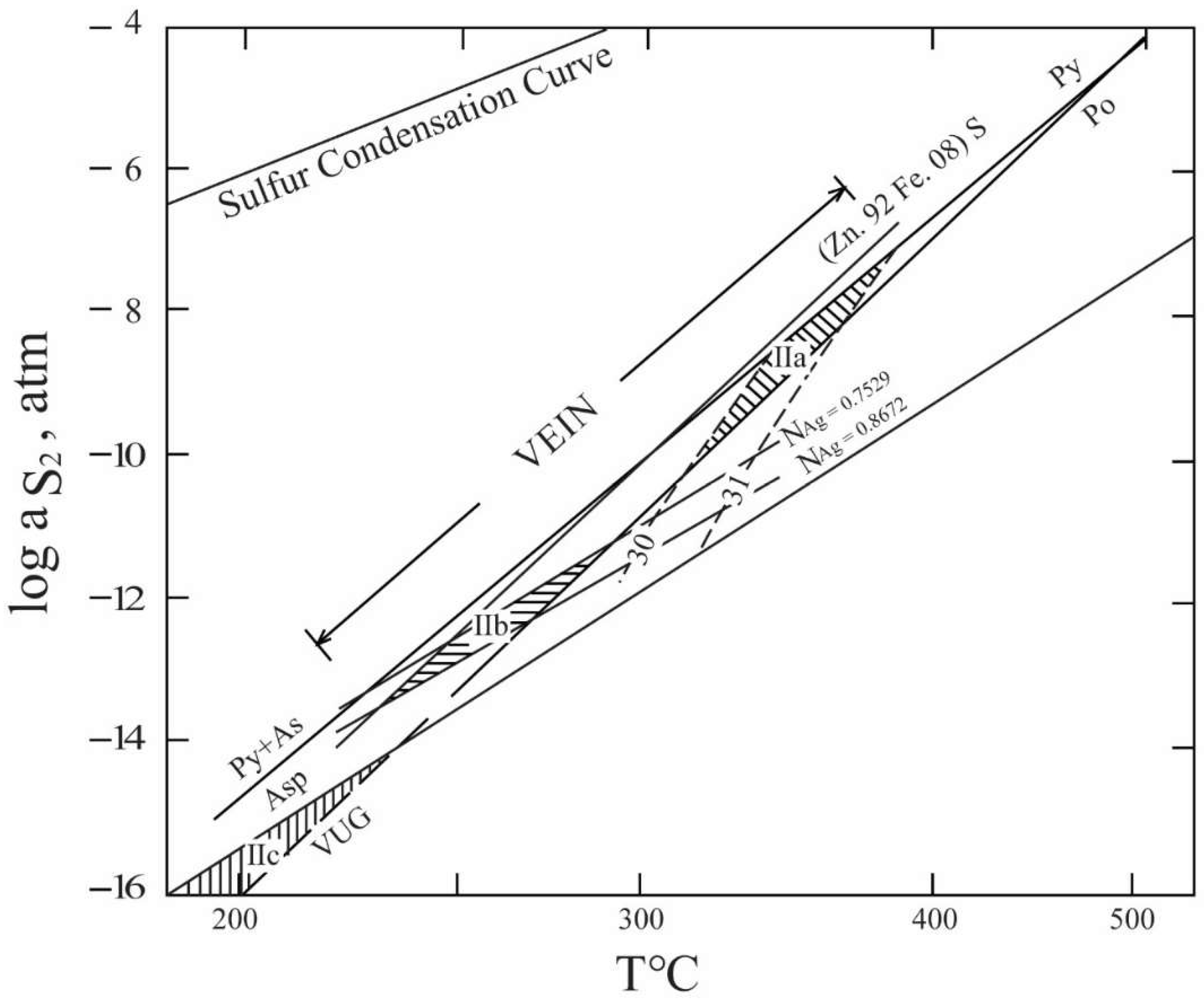

7. Chemical Environments of Ore Deposits
8. Stable Isotope Studies
8.1. Sulfur Isotope Study
8.2. Oxygen and Carbon Isotope Studies
9. Discussion
10. Conclusions
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Choi, S.G.; Ryu, I.C.; Wee, S.M.; Kim, C.S.; Pak, S.J. Overview of Epithermal Gold–Silver Mineralization, Korea; Tectonics and Genetic Implication. In The Origin of Granites and Related Rocks. The 5th Hutton Symposium, Toyohashi, Japan; The Geological Survey of Japan: Tokyo, Japan, 2003; Volume 29, p. 23. [Google Scholar]
- Choi, S.G.; Ryu, I.C.; Pak, S.J.; Wee, S.M.; Kim, C.S.; Park, M.E. Cretaceous Epithermal Gold–Silver Mineralization and Geodynamic Environment, Korea. Ore Geol. Rev. 2005, 26, 115–135. [Google Scholar] [CrossRef]
- Lee, G.; Koh, S.M.; Pirajno, F. Evolution of Hydrothermal Fluids of HS and LS Type Epithermal Au-Ag Deposits in the Seongsan Hydrothermal System of the Cretaceous Haenam Volcanic Field, South Korea. Ore Geol. Rev. 2014, 61, 33–51. [Google Scholar] [CrossRef]
- Shin, Y.W.; Suh, K.S. Exploration and Development of the Muguk Au Mine. Korea Inst. Min. Geol. J. 1987, 20, 261–271. (In Korean) [Google Scholar]
- Park, H.I.; Kang, S.J. Gold and Silver Mineralization of Samhyungje Vein, the Mugeug Mine. Korea Inst. Min. Geol. J. 1988, 21, 257–268. (In Korean) [Google Scholar]
- Kim, K.H.; Kim, O.J.; Chang, H.W. Stable Isotope and Fluid Inclusion Studies of the Mugug Au-Ag Mineral Deposits. Korean Inst. Min. Geol. J. 1990, 23, 1–9. (In Korean) [Google Scholar]
- Choi, S.G.; Lee, D.E.; Pak, S.J.; Choi, S.H.; Kang, H.S. Genetic Model of Mineral Exploration for the Korean Au-Ag Deposits: Mugeug Mineralized Area. Econ. Environ. Geol. 2001, 34, 423–435, (In Korean with English abstract). [Google Scholar]
- Choi, S.G. The Genetic Implications of Mesozoic Gold–Silver Mineralization, Korea. In Proceedings of the Mesozoic Sedimentation, Igneous Activity and Mineralization in South Korea, Korea Institute of Geology, Mining and Materials; Jin, M.J., Lee, S.R., Chon, H.I., Park, K.H., Koh, S.M., Cho, D.L., Eds.; Special Publications: Daejeon, Korea, 2002; Volume 1, pp. 216–226. [Google Scholar]
- Kim, C.S.; Choi, S.G.; Choi, S.H.; Lee, I.W. Hydrothermal Alteration and Its Genetic Implication in the Gasado Volcanic-Hosted Epithermal Gold–Silver Deposit: Use in Exploration. J. Miner. Soc. Korea 2002, 15, 205–220, (In Korean with English abstract). [Google Scholar]
- So, C.S.; Yun, S.T.; Youm, S.J.; Shelton, K.L.; Heo, C.H.; Choi, S.G. Episodic meteoric water interaction in a granite-hosted hydrothermal gold-silver system: Geochemistry of fluids at the Mugeuk mine, South Korea. Geochem. J. 2005, 39, 227–240. [Google Scholar] [CrossRef]
- Heo, C.H.; Park, S.W.; Lee, J.H. Revaluation of Ore Deposits within the Yeongam District, Cheollanamdo-Province: The Eunjeok and Sangeun Mines. Econ. Environ. Geol. 2010, 43, 73–84. [Google Scholar]
- Lee, C.S.; Kim, J.; Kim, H.N. Mineralization of the Gold–Silver Ore Deposits in Naju-Youngam Area. J. Earth Sci. Educ. Soc. 1996, 17, 166–173. [Google Scholar]
- Na, K.C.; Lee, D.J. Preliminary Age Study of the Gyeonggi Metamorphic Belt by the Rb-Sr Whole Rock Method. J. Geol. Soc. Korea 1973, 9, 168–174. [Google Scholar]
- Cheong, C.S.; Kwon, S.T.; Park, K.H. Pb and Nd Isotopic Constraints on Paleoproterozoic Crustal Evolution of the Northeastern Yeongnam Massif, South Korea. Precambrian Res. 2000, 102, 207–220. [Google Scholar] [CrossRef]
- Cluzel, D.; Jolivet, L.; Cadet, J.P. Early Middle Paleozoic Intraplate Orogeny in the Ogcheon Belt (South Korea): A New Insight on the Paleozoic Buildup of East Asia. Tectonics 1991, 10, 1130–1151. [Google Scholar] [CrossRef] [Green Version]
- Chough, S.K.; Kwon, S.T.; Ree, J.H.; Choi, D.K. Tectonic and Sedimentary Evolution of the Korean Peninsula: A Review and New View. Ear. Sci. Rev. 2000, 52, 175–235. [Google Scholar] [CrossRef]
- Cha, M.S.; Yun, S.H. Cretaceous Volcanic Cauldrons and Ring Complexes. J. Geol. Soc. Korea 1988, 24, 67–86. [Google Scholar]
- Larsson, D. Transition of granite to quartz-kyanite rock at Hålsjöberg, southern Sweden: Consequence of acid leaching and later metamorphism. GFF 2001, 123, 237–246. [Google Scholar] [CrossRef]
- Morrison, G.W.; Rose, W.J.; Jaireth, S. Geological and geochemical controls on the silver content (fineness) of gold in gold-silver deposits. Ore Geol. Rev. 1991, 6, 333–364. [Google Scholar] [CrossRef]
- Yun, J.H. Geochemistry of Hydrothermal Gold–Silver Deposit in Korea. Ph.D. Thesis, Seoul National University, Seoul, korea, 1989; p. 191. [Google Scholar]
- Potter, R.W., III. Pressure Corrections for Fluid-Inclusion Homogenization Temperature Based on the Volumetric Properties of the System NaCl-H2O. USA Geol. Surv. J. Res. 1977, 5, 603–607. [Google Scholar]
- Nash, J.T. Fluid Inclusion Petrology, Data from Porphyry Copper Deposits and Applications to Exploration. In United States Geological Survey, Professional; U.S. Government Printing Office: WA, USA, 1976; p. 907-D. [Google Scholar]
- Bodnar, R.J.; Lecumberri-Sanchez, P.; Moncada, D.; Steele-MacInnis, M. Fluid inclusions in Hydrothermal Ore Deposits. In Treatise on Geochemistry, 2nd ed.; Holland, H.D., Turekian, K.K., Eds.; Elsevier: Oxford, UK, 2014; pp. 119–142. [Google Scholar]
- Fontbote, L.; Kouzmanov, K.; Chiaradia, M.; Pokrovski, G.S. Sufide mineraqls in hydrothermal deposits. Elements 2017, 13, 97–103. [Google Scholar] [CrossRef]
- Willams-Jones, A.E.; Bowell, R.J.; Migdisov, A.A. Gold in Solution. Elements 2009, 5, 281–287. [Google Scholar] [CrossRef]
- Kretschmar, U.; Scott, S.D. Phase Relations Involving Arsenopyrite in the System Fe-As-S and Their Application. Can. Mineral. 1976, 14, 364–386. [Google Scholar]
- Barton, P.B., Jr.; Toulmin, P., III. Phase Relations Involving Sphalerite in the Fe-Zn-S System. Econ. Geol. 1966, 61, 815–849. [Google Scholar] [CrossRef]
- Scott, S.D.; Barnes, H.L. Sphalerite Geothermometry and Geobarometry. Econ. Geol. 1971, 66, 653–669. [Google Scholar] [CrossRef]
- Barton, P.B., Jr.; Toulmin, P., III. The Electrum Tarnish Method for Determination of the Fugacity of Sulfur in Laboratory Sulfide Systems. Geochim. Comsmochim. Acta 1964, 28, 619–640. [Google Scholar] [CrossRef]
- Taylor, H.P., Jr. O18/O16 Evidence for Meteoric-Hydrothermal Alteration and Ore Deposition in the Tonopah, Comstock Lode, and Goldfield Mining Districts, Nevada. Econ. Geol. 1973, 68, 747–764. [Google Scholar] [CrossRef]
- O’Neil, J.R.; Silberman, M.L. Stable Isotope Relations in Epithermal Au-Ag Deposits. Econ. Geol. 1974, 69, 902–909. [Google Scholar] [CrossRef]
- Rye, D.M.; Rye, R.O. Homestake Gold Mine, South Dakota: I. Stable Isotope Studies. Econ. Geol. 1974, 69, 293–317. [Google Scholar] [CrossRef]
- Rye, R.O.; Doe, B.R.; Wells, J.D. Stable Isotope and Lead Isotope Study of the Cortez, Nevada Gold Deposit and Surrounding Area. USA Geol. Surv. J. Res. 1974, 2, 13–23. [Google Scholar]
- Casadevall, T.; Ohmoto, H. Sunnyside Mine, Eureka Minining District, San Juan County, Colorado; Geochemistry of Gold and Base Metal Ore Deposition in a Volcanic Environment. Econ. Geol. 1977, 72, 1285–1320. [Google Scholar] [CrossRef]
- Kerrich, R.; Allison, I. Vein Geometry and Hydrostatics during Yellowknife Mineralisation. Can. J. Earth Sci. 1978, 15, 1653–1660. [Google Scholar] [CrossRef]
- Kesler, S.E.; Russell, N.; Seaward, M.; Rivera, J.; McCurdy, K.; Cumming, G.L.; Sutter, J.F. Geology and Geochemistry of Sulfide Mineralization Underlying the Pueblo Viejo Gold–Silver Oxide Deposit, Dominican Republic. Econ. Geol. 1981, 76, 1096–1117. [Google Scholar] [CrossRef]
- McCrea, J.M. On the Isotopic Carbonates and a Paleotemperature Scale. J. Chem. Phys. 1950, 18, 849–857. [Google Scholar] [CrossRef]
- Grinenko, V.A. Preparation of Sulfur Dioxide for Isotopic Analysis. Zh. Neorg. Khim. 1962, 7, 2478–2483. [Google Scholar]
- Hall, W.E.; Friedman, I. Composition of Fluid Inclusions, Cave-in-Rock Fluorite District, Illinois and Upper Mississippi Valley Zinc–Lead District. Econ. Geol. 1963, 58, 886–911. [Google Scholar] [CrossRef]
- Roedder, E.; Ingram, B.; Hall, W.E. Studies of Fluid Inclusions. [Part] 3. Extraction and Quantitative Analysis of Inclusions in the Milligram Range. Econ. Geol. 1963, 58, 353–374. [Google Scholar] [CrossRef]
- Rye, R.O. The Carbon, Hydrogen, and Oxygen Isotopic Composition of the Hydrothermal Fluids Responsible for the Lead–Zinc Deposits at Providencia, Zacatecas, Mexico. Econ. Geol. 1966, 61, 1399–1427. [Google Scholar] [CrossRef]
- Ohomoto, H.; Rye, R.O. Isotopes of Sulfur and Carbon. Geochem. Hydro. In Ore Deposits, 2nd ed.; Barnes, H.L., Ed.; Wiley Interscience: New York, NY, USA, 1979; pp. 509–567. [Google Scholar]
- O’Neil, J.R.; Clayton, R.N.; Mayeda, T.K. Oxygen Isotope Fractionation in Divalent Metal Carbonates. J. Chem. Phys. 1969, 51, 5547–5558. [Google Scholar] [CrossRef]
- Shimazaki, H.; Lee, M.S.; Tsusue, A.; Kaneda, H. Three Epochs of Gold Mineralization in South Korea. J. Min. Geol. 1986, 36, 265–272. [Google Scholar]
- Cho, D.R.; Kwon, S.T. Hornblende Geobarometry of the Mesozoic Granitoids in South Korea and the Evolution of the Crustal Thickness. J. Geol. Soc. Korea 1994, 30, 41–61, (in Korean with English abstract). [Google Scholar]
- Choi, S.G.; Choi, S.H. Contrasting Style of Gold and Silver Mineralization in the Central and Southeastern Korea. Econ. Environ. Geol. 1995, 28, 587–597. [Google Scholar]
- Kim, C.S. Genesis of the Cretaceous Low-Sulfidation Epithermal Au-Ag Deposits in the Haenam District, Republic of Korea. Ph.D. Thesis, Korea University, Seoul, Korea, 2011. [Google Scholar]
- Yang, S.J.; Duuring, P.; Kim, Y.S. Structural Genesis of the Eunsan and Moisan Low-Sulphidation Epithermal Au-Ag Deposits, Seongsan District, Sothwest Korea. Miner. Depos. 2013, 48, 467–483. [Google Scholar] [CrossRef]
- Kim, I.J.; Nagao, K. K-Ar Ages of the Hydrothermal Clay Deposits and the Surrounding Igneous Rocks in Southwest Korea. J. Petrogr. Soc. Kor. 1992, 1, 58–70. [Google Scholar]
- Chun, S.S.; Chough, S.K. The Cretaceous Uhangri Formation, SW Korea: Lacustrine Margin Facies. Sedimentology 1995, 42, 293–322. [Google Scholar] [CrossRef]
- Koh, S.; Takagi, T.; Kim, M.; Naito, K.; Hong, S.; Sudo, S. Geological and Geochemical Characteristics of the Hydrothermal Clay Alteration in South Korea. Resour. Geol. 2000, 50, 229–242. [Google Scholar] [CrossRef]
- Shikazono, N.; Shimizu, M. Compositional Variations in Au-Ag Series Mineral from Some Gold Deposits in the Korean Peninsula. J. Min. Geol. 1986, 36, 545–554. [Google Scholar]
- Sugaki, A.; Kim, O.J.; Kim, W.J. Gold and Silver Ores from Geumwang Mine in South Korea and Their Mineralization. J. Min. Geol. 1986, 36, 555–572. [Google Scholar]
- Choi, S.G.; Wee, S.M. The Genetic Characteristics of Gold and/or Silver Vein Deposits Related to Chemical Composition of Electrum in Central Korea. J. Geol. Soc. Korea 1992, 28, 196–217, (in Korean with English abstract). [Google Scholar]
- Maruyama, S.; Isozaki, Y.; Kimura, G.; Terabayashi, M. Paleogeographic Maps of the Japanese Islands: Plate Tectonic Synthesis from 750Ma to the Present. Isl. Arc. 1997, 6, 121–142. [Google Scholar] [CrossRef]
Elements Sample No. | Fe % | Pb % | Zn % | Cu mg/kg | In mg/kg | Ga mg/kg | Ge mg/kg | Se mg/kg | Te mg/kg | Y mg/kg | Mo mg/kg | Re mg/kg | W mg/kg | Sm mg/kg | Eu mg/kg | Ba mg/kg | Ag mg/kg | Au mg/kg | U mg/kg |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EJ-3 | 3.56 | 0.08 | 0.61 | 1787 | 8 | 71 | 141.8 | 8 | 38 | 213 | 350 | 1 | 837 | 37 | 6 | 3046 | 206 | 41 | 95 |
EJ-4 | 12.84 | 0.08 | 0.13 | 50 | 4 | 33 | 273.7 | 89 | 76 | 70 | 1325 | N.D | 651 | 15 | 3 | 58 | 216 | 100 | 21 |
EJ-5 | 4.79 | 0.17 | 0.30 | 92 | 2 | 13 | 123.1 | 31 | 28 | 37 | 4787 | 2 | 1006 | 12 | 1 | 524 | 325 | 132 | 39 |
EJ-7 | 2.95 | 0.29 | 0.01 | 175 | 6 | 53 | 111.3 | 6 | - | 334 | 657 | 1 | 876 | 42 | 4 | 4843 | 157 | 10 | 114 |
EJ-8 | 4.18 | 0.20 | 0.71 | 1751 | 5 | 38 | 106.9 | 75 | 16 | 9 | 262 | 2 | 1202 | 1 | N.D | 1990 | 124 | 304 | 4 |
EJ-10 | 1.85 | 0.45 | 0.39 | 2690 | 11 | 89 | 94.5 | 135 | - | 59 | 755 | 3 | 673 | 15 | 2 | 304 | 158 | 30 | 14 |
Description | K (%) | 40Ar (mol/g) | 40Ar Rad. (%) | Age (Ma) |
---|---|---|---|---|
Sericite from alteration selvage | 7.40 | 1.3236 × 10−10 | 80.49 | 86.15 ± 7.7 |
Sample No. | Stage | Association Minerals | Fe (wt.%) | As (wt.%) | S (wt.%) | Total | As (atomic %) |
---|---|---|---|---|---|---|---|
Ej-3 | Ⅱa | py + asp | 34.65 | 43.90 | 21.52 | 99.92 | 31.21 |
Ej-5 | Ⅱa | py + asp | 35.08 | 44.24 | 21.08 | 101.06 | 31.47 |
Ej-6 | Ⅱa | py + asp | 34.89 | 43.51 | 20.53 | 98.93 | 31.47 |
Ej-12 | Ⅱb | py + asp + sp | 35.29 | 42.81 | 21.70 | 99.80 | 30.40 |
Ej-13 | Ⅱb | py + asp + el + sp + arg | 35.11 | 43.40 | 21.26 | 99.77 | 30.96 |
Ej-16 | Ⅱc | py + arg + cp + gn | 34.50 | 42.63 | 22.56 | 99.69 | 30.10 |
Ej-19 | Ⅱc | py + asp | 35.01 | 43.22 | 21.94 | 100.17 | 30.56 |
Sample No. | Stage | Association Minerals | FeS (mole %) |
---|---|---|---|
Ej-1 | Ⅱa | py + asp + po | 18.20 |
Ej-2 | Ⅱa | py + asp | 17.50 |
Ej-3 | Ⅱb | asp + gn | 10.71 |
Ej-8 | Ⅱb | asp + py | 8.95 |
Ej-9 | Ⅱb | py + arg + el + gn + cp | 8.58 |
Ej-11 | Ⅱb | asp + py | 8.95 |
Ej-14 | Ⅱb | asp + gn + el + arg | 10.71 |
Ej-15 | Ⅱb | py + el + gn | 10.24 |
Ej-17 | Ⅱb | asp + py + el + gn | 9.80 |
Ej-22 | Ⅱb | py + el + gn | 10.02 |
Sample No. | Au (wt. %) | Ag (wt. %) | Atomic Fraction (NAg) |
---|---|---|---|
Ej-9 | 37.60 | 62.77 | 0.7529 |
Ej-13 | 27.89 | 71.40 | 0.8238 |
Ej-14 | 33.24 | 66.71 | 0.7857 |
Ej-15 | 33.30 | 65.70 | 0.7777 |
Ej-17 | 21.85 | 78.15 | 0.8672 |
Sample No. | Stage | Minerals | δ34S (‰) | py-sp | T (°C) |
---|---|---|---|---|---|
Ej-4 | alteration | asp | 6.52 | ||
Ej-5 | alteration | asp | 6.70 | ||
Ej-6 | alteration | asp | 6.56 | ||
Ej-1 | Ⅱa | asp | 7.40 | ||
Ej-2 | Ⅱa | asp | 7.46 | ||
Ej-3 | Ⅱa | asp | 7.46 | ||
Ⅱa | py | 4.93 | |||
Ej-8 | Ⅱa | py | 4.91 | ||
Ej-9 | Ⅱa | py | 5.21 | ||
Ej-12 | Ⅱb | py | 6.50 | 1.1 | 251 ± 38 |
Ⅱb | sp | 5.40 | |||
Ⅱb | sp | 5.50 | |||
Ej-14 | Ⅱc | asp | 7.00 | ||
Ej-15 | Ⅱc | py | 6.20 |
Sample No. | Minerals | δ13C (‰) | δ18O (‰) | δ18OH2O (‰) | T (℃) |
---|---|---|---|---|---|
Ej-23 | calcite | −4.93 | 5.53 | 3.01 | 220 |
Ej-24 | calcite | −5.37 | 5.82 | 2.72 | 220 |
Deposit | Eunjeok [11,12] | Mugeuk [4,5,6,7,10] | Haenam–Jindo [3,9,47,48] |
---|---|---|---|
Geologic setting | Volcano–tectonic setting(Mokpo cauldron) | Pull-apart sedimentary setting(Eumseong basin) | Volcano–tectonic setting (Haenam basin) |
Major fault system | Gwangju–Hwangsan fault | Gongju–Eumseong fault | Gwangju–Yeongdong fault |
Host rock | Late Cretaceous volcanics, granite | Jurassic granitoids and sedimentary rocks | Intermediate-to-silicic extrusive rocks in the Cretaceous volcano–tectonic terrane |
Age of gold–silver mineralization | 86.0 Ma | 105.7 or 98.0 Ma | <70.3 Ma |
Commodities | Ag ≥ Au | Ag ≥ Au | Ag ≫ Au |
Mineral composition (range, average) | |||
Au (at.%) in el | 62.77–78.15 | 5.2–82.0 | 8.6–57.5 |
FeS (mole%) in sp | 8.58–10.71 | 0.03–7.4 | 0.2–6.6 |
As (at.%) in ap | 31.47–32.20 | 28.5–32.7 | Not found |
Fluid inclusion data | |||
Fluid system | H2O-NaCl | H2O-NaCl | H2O/-CO2-NaCl |
Type | I ≫ II | I ≫ II | I > II > III |
Th (℃) | 204–314 | 137–341 | 113–298 |
Salinity (wt.% equiv. NaCl) | 2.5–5.4 | 0.8–7.9 | 0.0–3.4 |
Isotope data (range, average) | |||
Oxygen (‰) | |||
quartz | - | 7.7–12.7, 9.4 | 1.6–10.2 |
calculated δ18OH2O | - | −1.2 to 3.8, 0.5 | −10.1 to −2.1 |
carbonate | 5.53–5.82 | 6.9 | 0.0–3.8 |
calculated δ18OH2O | 2.72–3.01 | −2.6 | −9.5 to −7.8 |
Hydrogen (‰) | |||
quartz | - | −73 to −71, −72 | −76 to −71 |
carbonate | - | −76 | −80 to −52 |
Carbon (‰)(carbonate) | −4.94 to −5.37 | −4.7 | −6.9 to −5.0 |
Sulfur (‰) | −4.91 to −7.46 | - | - |
calculated δ34SH2S | 3.7–5.1 | - | - |
