Experimental Study of Pt Solubility in the CO-CO₂ Fluid at Low f_O2 and Subsolidus Conditions of the Ultramafic-Mafic Intrusions

Abstract

The solubility of Pt in CO-CO₂ fluid was studied experimentally at P = 50–200 MPa and T = 950 °C. A mixture of MgC₂O₄ and MgCO₃ was used as a source of the fluid. Upon the reaction of the Pt capsule walls and the fluid, a carbonyl of platinum is formed. The use of the high-temperature quartz ceramics as a fluid trap avoids the effect of mechanical contamination with Pt from the eroded capsule walls. The total content of platinum in the porous fluid traps was measured by the Electrothermal Atomic Absorption (ET-AAS) method. In some experiments, the local analysis of traps was carried out by the Laser Ablation Inductively Coupled Plasma Mass Spectrometry (LA-ICP-MS) method. The composition of fluid in bubbles captured in an albite glass trap was studied by micro-Raman spectroscopy. On the capsule walls and MgO, Pt “whiskers” of submicron diameter were observed, which were formed as a product of carbonyl decomposition during quenching. About 5–15% of carbonyl withstands quenching resulting in 1.5 to 2 ppm Pt soluble in acetone (runs at P = 200 MPa) in a quartz glass trap. The amount of Pt soluble in acetone from the capsule walls corresponds to a concentration of up to 8 ppm in the fluid. A high content of soluble Pt of 2000–3000 ppm was determined in a carbon coated MgO matrix. Our study demonstrated that the solubility of Pt in the CO-CO₂ fluid is 15–150 ppm, presumably in the form of Pt₃(CO)₆²⁻ under conditions corresponding to the conditions of the subsolidus stage of layered ultramafic-mafic and ultramafic-alkaline intrusions formation. Our preliminary data showed that this solubility will increase with the addition of water at low f_O2.

1. Introduction

Platinum group elements (PGE) are both chalcophile and siderophile elements. Their lower contents in the mantle and crust relative to those of chondrite are explained by the strong fractionation into the iron core at the early stage of the Earth’s formation. Likewise, sulfide melts concentrate all PGE upon separation from basic magmas. At conditions of high oxygen fugacity (f_O2) in the basic magmas of the subduction zones, no sulfides are formed and PGE are disseminated in the intrusive rocks. In the Ural-Alaska concentric intrusions of subduction origin, PGE are mobilized and concentrated at the post-magmatic stage as a result of the high-temperature fluid-rock interaction [1]. Postmagmatic fluid is also involved in the formation of the low sulphide type PGE deposits of Merensky reef type in the layered ultramafic-mafic intrusions with sulfide mineralization (Bushveld, SA and other) [2]. In the Merensky Reef, zircon and thorite were deposited from high-temperature fluid along with PGE and chromite [3]. The crystallization temperature estimated by the titanium contents in the zircon ranges from 750 to 930 °C.

Fluids that are active agents during the evolution of PGE-bearing basic-ultrabasic intrusions contain carbon, which is confirmed by an occurrence of carbonaceous matter in mineral form and in the form of fluid inclusions. The fluid–rock (melt) interaction continues in the temperature range from magmatic to the (background) temperature of the host rocks. Following the high-temperature stage, the fluid-rock system is quenched, and the fluid equilibrates at lower temperature. In a Stillwater complex (MT, USA), assemblage of graphite-calcite-forsterite-antigorite was equilibrated at the temperature below 510 °C [4]. Association of graphite with quartz and magnetite in the ultramafic pegmatites of the Bushveld complex was described to be equilibrated at T = 500–600 °C [5]. The fluid trapped in the solidified basic-ultrabasic rocks was also equilibrated at the subsolidus temperatures, and therefore contained reduced carbon components mainly in the form of CO₂ and CH₄. Hanley et al. [6] reported the CO₂ ± CH₄ fluid and concentrated brine inclusions in quartz of the late granophyric albite-quartz core of a zoned pegmatite body in the Gabbronorite of Stillwater Complex. Konnikov and Vasyukova [7] observed fluid inclusions in quartz from sulfide-bearing amphibolized pyroxenite (Shanuch Ni-bearing pluton, Kamchatka) containing 79 vol.% of CO₂ and 12 vol.% of CH₄. Bulk-rock analysis of the basic-ultrabasic PGE-bearing Yoko-Dovyren intrusion (Trans-Baikal region, Russia) showed an increased content of CH₄ (up to 15 cm³/kg) and H₂ (up to 7 cm³/kg) in the mineralized reefs of the Stillwater type [8]. An appreciable CO content (up to 2 cm³/kg) was found in the lower dunite-troctolite part of this intrusion. According to fluid inclusion data (from Au–Pt-rich quartz-sulfide-epidote veins, Sudbury Igneous Complex), Hanley et al. [9] concluded that at a late stage, Cu and partially Ag and Bi were fractionated into a gas phase enriched in CH₄, in equilibrium with a coexisting brine enriched with Zn, Pb, Mn.

Graphite deposited from the fluid at the low oxygen fugacity (f_O2) near CCO buffer (carbon dioxide-carbon oxide buffer) below quartz-fayalite-magnetite buffer (QFM)). There was a unique observation of ilmenite-titanomagnetite inclusion in the isoferroplatinum crystal in Konder PGE deposit (alkaline-ultramafic concentric intrusion, Russia) which indicates equilibration conditions at T = 700 °C and f_O2 = QFM-1.6 [10]. High solubility of PGE and Au at high oxygen fugacity in form of chloride complexes is well established [11] and it was attributed to the ore formation in the ultramafic cumulus different from actual redox conditions. At low f_O2 between QFM and wustite-magnetite (WM) buffers, PGE, Au, Ag, Ni, Co may exist in their native states. Methane is a non-polar compound that weakly interacts with most substances. While in a reduced carbonic fluid, CO can react with metals to form carbonyls Me_xCO_y, which can become important PGE transporting species. Many carbonyls, e.g., carbonyls of Ni, Cr, Mo are stable at low pressures and temperatures up to 150–200 °C and are widely used in metallurgy and chemical industry (e.g., [12]). The stability of carbonyls at high pressure and temperature is poorly studied.

In geological processes, the main prerequisite of carbonyls formation is sufficiently high CO content in the fluid. The main forms of the carbon in C-O-H system at high temperatures are CO₂, CO and CH₄. At high oxygen fugacity, CO₂ prevails while at low f_O2, carbon monoxide and CH₄. Maximum CO/CO₂ ratio is controlled by the reaction of CCO buffer:

С + СО₂ = 2СО,

(1)

Reaction (1) is endothermic and has positive volume effect, therefore ratio CO/CO₂ rises with temperature increase and pressure decrease. As mentioned above, methane predominates in the low-temperature fluid inclusions observed mainly in the quartz of late differentiates of basic-ultrabasic magmas. Ratio СО/СН₄ is controlled by reaction:

СО + 3Н₂ = СН₄ + Н₂О,

(2)

Reaction (2) is exothermic and has negative volume effect correspondingly ratio СО/СН₄ rises with temperature increase and pressure decrease. When the oxygen fugacity in the fluid is buffered externally, for example, by the reaction with cumulus minerals, the СО/СН₄ ratio is also strongly dependent on the C/H ratio in the fluid and fO₂. It is easy to show that at low concentrations of reduced gases in CO₂-H₂O fluid (that is often the case), the СН₄ concentration reaches a maximum in the fluid with X_CO2 = X_H2O = 0.5 and increases in proportion to 1/(f_O2)². The CO concentration increases in proportion to CO₂ content and to 1/(f_O2)^1/2. At the crustal conditions at pressures of 10–1000 MPa and magmatic temperatures of 900–1200 °С, mole ratio CO/(CO + CO₂) varies in the range of 0.05–0.99. At P = 200 MPa in a fluid with C/H = 0.5 (initial composition X_H2O = X_CO2), CO prevails over CH₄ at T > 700–800 °C: f_O2 = QFM/QFM-1 [13]. Taking into account high chlorine content in magmatic fluids (10 atomic % of Cl) at low f_O2 and high T, it leads to the prediction of the high content of CO, CO₂, HCl and CH₃Cl in expense of CH₄ [4]. Fluid inclusions with a high CO contents were found in plagioclases and pyroxenes from magmatic rocks and in xenoliths quenched at high cooling rates at high temperature (e.g., [14,15]).

Figure 1 depicting the vapor pressure data of some carbonyls of the transitional metals as a function of temperature gives a general idea (educated guess) of the stability of the carbonyls. At the marginal stability of the carbonyl as a phase, its evaporation and decomposition reactions are in equilibrium. For example, we can write for nickel carbonyl Ni(CO)₄ based on known thermodynamic properties:

Ni(CO)_4l = Ni(CO)_4g,

(3)

Ni(CO)_4g = Ni_s +4CO_g,

(4)

It follows from Figure 1 that near decomposition point (P = 1 bar, T = 180 °C) Ni(CO)₄ vapor pressure is about 0.1 bar. Based on this pressure, constant of the reaction (4) can be estimated as (ideal gas limit):

$$K_2\left(180°C\right)=\frac{X_{Ni{\left(CO\right)}_4}}{{\left(X_{CO}\right)}^4}\approx \frac{0.1}{{0.9}^4}=0.15,$$

(5)

In accordance with our thermodynamic calculations [16], K₂ reaches this value at Т = 171 °C. The similarity between the calculated and observed values confirms our predictions of the significant Ni solubility of 100–1000 ppm as a carbonyl in the temperature range of 600–900 °C and pressures above 500–700 MPa.

Simple platinum carbonyl Pt(CO)₄ was only synthesized at low temperature (4–10 K) by condensation of platinum one atom vapor in the Ar-CO medium [19]. Anionic Chini complex [Pt₃(CO)₆]_n²⁻ is the most common carbonyl form in the solutions [20]. The number of stacked three member rings (Pt₃(CO)₆)n can reach 15. In each triangle, platinum atoms are bonded through a bridging CO, and the three terminal CO are bonded to single Pt atoms. Rings are connected via Pt-Pt bonds (see e.g., [21]). Stable multinuclear (n = 9–15) carbonyls were synthesized in the zeolite cavities with the method “ship in the bottle” [22]. Platinum carbonyls are unstable in air due to the oxidation [23]. There are no thermodynamic data on the platinum carbonyls, therefore it is impossible to predict theoretically their stability at high pressure–temperature (PT) conditions. We performed experimental study of Pt solubility in the dry CO-CO₂ fluid at PT conditions close to the subsolidus conditions of upper crust ultramafic–mafic intrusions. Raman spectra of quenching Pt phases dissolved in acetone confirm the formation of Pt carbonyls in our experiments.

2. Materials and Methods

For the determination of Pt solubility in the CO-CO₂ fluid, we use analogue of the diamond fluid trap method used for the work with water fluid at the mantle parameters in a rocking multi-anvil apparatus [24]. The reliability of this method is lower than that of in-situ techniques such as probing of fluid and spectral measurements during a run. In our experiments, fluid was generated due to the decomposition of MgC₂O₄ at the temperature above 650 °C in accordance with reaction:

MgC₂O₄ = MgO + CO + CO₂,

(6)

To set higher than 0.5 mole fraction of CO₂ in the fluid MgCO₃ was added which is also decomposing at the temperature above 750 °C at P = 200 MPa. In one experiment (cor102) siderite was used which at the thermal decomposition generates fluid with X_CO = 1/3:

3FeCO₃ = Fe₃O₄ + CO + 2CO₂,

(7)

Solids used as a fluid source were loaded into the small (diameter of 3 mm) open capsule, which was placed in the welded larger capsule (diameter of 5 mm and length of 40 mm) loaded with fluid trap (see Figure 2). Both capsules were made of platinum that was a source of this metal for the dissolution experiment. In our experiments using the Internally Heated Pressure Vessel (IHPV) apparatus, we tried several types of fluid traps.

(1)

Albite glass trap (AGT). It is a powder at the beginning of experiment when it is filled with fluid. It is sintered rapidly into the dense material with isolated fluid bubbles. In the loose state, the trap can be mechanically contaminated with platinum particles of the walls. These particles have larger size (up to 10–15 µm) than particles (usually of submicron size) deposited from the fluid. Mechanically produced particles contain less iron than deposited ones. Using of the bulk analysis of albite trap leads to the severely overestimated solubility. After the initial trials, albite traps were used only for probing experimental fluid conserved in the bubbles.

(2)

Industrial corundum filter for high temperature gasses (CRT). The advantages of this filter are the high mechanical stability and chemical resistance of the main corundum component. The main disadvantage is the use of alkaline aluminosilicate glass as a binder in the production of ceramics. This glass can react with the fluid and thus affect the platinum solubility. Another drawback of the corundum traps is the impossibility of their analysis by the Laser Ablation Inductively Coupled Plasma Mass Spectrometry (LA-ICP-MS) method.

(3)

Trap from the optic silica glass (CGT). These traps were prepared by the high-temperature sintering in the vacuum furnace at T = 1370 °C during an hour. Porosity of this trap measured after experiments at P = 200 MPa is about 40 ± 5%. Traps are not strong enough to clean their surface with mechanical abrasion after experiment, therefore some surface mechanical contamination with platinum is possible. To avoid this effect, trap was split into three pieces analyzed separately with Electrothermal Atomic Absorption (ET-AAS) method.

The procedure for estimating the solubility of Pt from the data on the bulk metal content in the trap is described in details in [25]. Neglecting the quenching effect and assuming an absence of adsorption and deposition during the experiment, the bulk platinum content (C_bulk) in the trap is:

$$C_{bulk}=\frac{\left(1-\epsilon \right)C_s{\rho }_s+\epsilon {\rho }_{fl}{C}_{fl}}{\left(1-\epsilon \right){\rho }_s},$$

(8)

where C_s and C_fl are metal content in the trap and fluid, ρ_s and ρ_fl are densities of the material of the trap and fluid and ε is porosity. Because of negligibly small C_s ≈ 0, the equation may be written as:

$$C_{bulk}=\frac{\epsilon {\rho }_{fl}{C}_{fl}}{\left(1-\epsilon \right){\rho }_s}=\frac{C_{fl}}{\gamma } or C_{fl} = \gamma C_{bulk},$$

(9)

The porosity of the quartz trap, estimated from BSE images of the slices surface is 0.4 ± 0.05. Quartz glass density is 2.3 g/cm³. Porosity of the corundum trap at P = 200 MPa is 0.3 ± 0.1, density of corundum is of 4.02 g/cm³. We estimate fluid density via equation of state for CO₂ [26] correcting average molecular weight for CO mole fraction. Fugacity coefficients of СО and СО₂ calculated in accordance with [27] at the experimental conditions differ by no more than 3% justifying this approach. The fluid density in the reference point at P = 200 MPa and T = 950 °C is ρ_fl = 0.589–0.214 X_CO. Based on these data, values of conversion factor γ for corundum and quartz traps are in the ranges of γ_cor = 14–18 and γ_qz = 6–8.5.

Starting materials. We use chemically pure MgC₂O₄ (Onyxmet reagent). By X-ray powder diffraction data it is dihydrate MgC₂O₄ 2H₂O (С_Н2О = 24.3 wt.%). Water content after drying at T = 100 °C for 4 h by KFT analysis becomes 10.4 wt.%. After drying at 260 °C for 4 h, it decreases to less than 2 wt.%. As a source of CO₂, we used natural magnesite (S. Ural). To minimize water contamination, all equipped capsules were additionally heated at 220 °C for 1–1.5 h before experiment, flashed with argon and then welded. Optical quartz (Lytkarino Optical Glass Factory, Lytkarino, Russia) glass was used in the fluid trap and has the concentrations of all impurities below detection limit for microprobe. Dry albite glass was prepared by the melting of the natural albite mineral from pegmatite (Kalba Region, Eastern Kazakhstan).

The experiments were carried out in an apparatus of high gas pressure at the Institute of Experiment Mineralogy, Russian Academy of Sciences (IEM RAS, Chernogolovka). The vessel of stainless steel had a free volume of 262 cm³, the working medium was Ar. The temperature was measured during the experimental run by a Pt–Rh thermocouple, the gradient-free zone was 40–50 mm. The pressure was measured with piezo sensors accurate to 5%. Temperature was controlled with precision of ±2.5°C, pressure was controlled with precision of ±1%. Quenching was performed by the switching off the furnace at the cooling rate 150 °C/min. The experiments have been performed at a pressure of 100 and 200 MPa and temperature of 950 °C, the duration of the runs was 2 h.

Spectroscopic study of fluid trapped in the albite glass was carried at the Institute of Geology, RAS (Syktyvkar) and at CEMES (Toulouse, France). Raman spectra of quenching platinum phases dissolved in acetone were measured in Institute of Experimental Mineralogy RAS (IEM RAS, Chernogolovka, Russia). Details of spectroscopic measurements are presented in supplementary materials (supplementary text).

Phase compositions of the each run products were studied in IEM RAS (Chernogolovka, Russia). Samples were prepared by mounting the products of the runs in polystyrene and polishing one face of a polystyrene cylinder. The textural and chemical analyses were performed using a CamScan MV2300 and Tescan Vega TS5130MM SEMs with an energy-dispersive spectrometer (INCA Energy 450). The spectrometer was equipped with semi-conductive Si(Li) detector INCA PentaFET X3. All phases were analyzed at an accelerating voltage of 20 kV, the current of the absorbed electrons on the Co sample was 0.1–0.2 nA. The smallest beam diameter was 0.2 μm for point phase analysis; some glasses were analyzed using a rectangle scanning area with a width of up to 50–80 µm. The measurements results were processed by the software package INCA Energy 200.

Water contents in the starting Mg₂C₂O₄ were measured by the Karl–Fischer titration (KFT) on an Aqua 40.00 system with a high-temperature HT 1300 unit at IEM RAS (Chernogolovka, Russia). Detectable water weight (m_W) range: 1 μg–100 mg, reproducibility: ± 3 μg at m_W 1–1000 μg, 3% at the m_W > 1 mg.

Platinum analyses were performed using a New Wave Research I3107 system (Fremont, CA, USA). This is a UV femtosecond laser system equipped with a Pharos HE from Light Conversions coupled with a high-resolution ICP-MS Element-XR. A 65 µm spot size was applied with 5 Hz and 3.34 J/cm² conditions (laser output 48%). The background was measured during 60 s, ablation for 60 s and wash-out after ablation for 30 s. To quantify the elemental composition of the glasses, average silica concentrations (based on ²⁹Si) measured by electron microprobe were used as an internal standard. For external calibration in bracketing mode, we used NIST SRM 612 reference material [28]. Furthermore, to control the accuracy, we used the MPI-DING mafic and ultramafic glasses (NIST SRM 610, GOR132-G, GOR128-G) [28,29] as secondary standards. The detection limit for major elements varied between 1 and 20 ppm, whereas it was 0.2 ppm for ¹⁹⁵Pt. The distribution of platinum in the samples was uneven on a scale of 65 µm, therefore measurements are characterized by a large relative standard deviation of 60–80% of the measured values (see Supplementary text, Table S2, Figure S5).

To prepare for analysis by Electrothermal Atomic Absorption (ET-AAS) method, the samples were decomposed by heating to 120 °C in a mixture of strong HF + HNO₃ in Savillex screw vessels, and then dried to wet salt. Then the sample was treated with Aqua Regia (HCl:HNO₃ = 3:1) to obtain wet salts, and then it was treated with concentrated HCl to convert the salts into chlorides. After complete dissolution of the salts, the solution was cooled and filtered in a 5–10 mL flask. Determination of the nanograms quantities of Pt was carried out using a Solaar MQZ (Thermo Electron Corp. UK) ETAA spectrometer with a Zeeman background correction [30]. The measurements were conducted on the most sensitive line of λ = 265.9 using pyrolytically coated graphite furnaces. The sample was introduced automatically or manually with a micropipette with disposable plastic tips (5 to 20 μL). The signal was measured using the height of the peak and its area. The metrological performance of the methods was assayed using standard reference materials of known composition: SARM-7B, SOP-3-SR and others and samples available under the international GeoPT Proficiency Testing Programme (peridotite OPY-1, harzburgite HARZ-01, and iron–manganese nodules FeMn-1). The analytical inaccuracy of ET-AAS analysis within the concentration range of 1–100 ng/mL is no higher than 4 relative %. Detection limit is 2.5 ppb for Pt. To analyze the forms of platinum dissolved in acetone and chloroform, an organic phase was introduced directly into the ET-AAS graphite furnaces. The measurement was performed using water calibration solutions.

3. Results

3.1. Qualitative Observations of the Reduced Carbonic Fluid Activity

In our experiments, the reduced carbonic fluid reacts not only with the walls of the platinum capsule, but also with the material of the trap. In earlier publication [25] interaction of such fluid with iron oxides matrix formed at siderite (used as a fluid source) decomposition was described. Figure 3a shows the SEM image of aliminosilicate glass ellipsoids deposited from the reduced carbonic fluid in the experiment ab84 (see Supplementary text, Table S3 for details) with albite trap. Small axes of the ellipsoids are in several microns range while maximum axes are up to 10 microns. SEM-EDS gives composition of the glass close to the albite with Na/Al ratio less than unity. This probably reflects the tendency of sodium to fractionate into the fluid. Tiny platinum particles were co-precipitated with albite. In Figure 3b, SEM image of the surface of the silica glass trap may be seen. Small deposited silica balls along with Pt particles are on the surface of the glass shreds. In the presence of water, silica glass began to actively crystallize from the surface at the parameters of our runs. Upon contact with a dry fluid, only the sharp silica glass edges were smoothed out due to dissolution. Thus, SEM observations indicate high dissolution ability of carbonic fluid at relatively low pressure of 200 MPa. The composition of the fluid and the solubility of Pt were quantitatively characterized by various instrumental methods and described below.

3.2. Fluid Composition

3.2.1. Raman Data Interpretation

The composition of the fluid in the first series of experiments was characterized by micro-Raman measurements of fluid inclusions in the albite glass trap. In Figure 4, Raman spectra of a fluid bubble from run ab108 recorded in Syktyvkar and Toulouse are displayed. They are similar and demonstrate strong CO band at k = 2141 cm⁻¹. Quantitative estimation of the fluid composition can be made in accordance with the following relation (e.g., [31]).

$$X_i=\frac{A_i/\left({\sigma }_i{\zeta }_i\right)}{{{\displaystyle \sum }}_{k=1..n}{A}_k/\left({\sigma }_k{\varsigma }_k\right)},$$

(10)

where A_i area of the peak, σ_i–Raman cross-section, а ζ_i–device efficiency coefficient for component i. The efficiency coefficients of devices are unknown. We use the products z_i = σ_iζ_i as in [15] z_CO = 0.95, z_CO2 = 1.25 for bands CO with k = 2140 cm⁻¹ and СО₂ with k = 1388 cm⁻¹, correspondingly.

Results of Micro-Raman Study

The initial CO₂/CO ratio in the fluid was determined by the composition of the fluid source. When the CO content exceeds the level constrained by CCO buffer, it decomposes into carbon and CO₂ at some finite rate. The equilibration of fluid can continue after trapping. The walls of the bubbles in the albite trap from experiment ab86 (P = 200 MPa) were covered with an opaque carbon layer formed in-situ, which hampers to carry out Raman measurements of the fluid composition.

In experiment ab108 (P = 100 MPa) pure MgC₂O₄ was used and an initial mole ratio (r = CO/CO₂ + CO) was 0.5. The equilibrium value constrained by CCO buffer reaction at P = 100 MPa T = 950 °C is 0.23. For the trapped fluid, we estimated r = 0.40 (Syktyvkar) and 0.39 ± 0.03 (Toulouse); the smallest value was obtained for the smallest bubble. All r values are between the initial and equilibrium values, reflecting incomplete equilibration in 2 h.

The fluid composition formed at P = 50 MPa (run ab107) measured in Toulouse corresponds to r = 0.54 ± 0.03. This value is close to the initial value of 0.5 for pure MgC₂O₄. From these data, it follows that the used values of coefficients z_i are in good agreement with the values given in [15]. No carbon was detected in the products of the experiment, despite the fact that the equilibrium X_CO = 0.31 is lower than the initial mole fraction. At this pressure, the CO disproportionation rate was negligible. More information is presented in supplementary information (Supplementary text, Figures S1–S4, Table S1).

3.3. Platinum Dissolution in the Fluid

3.3.1. Pt Content in the Traps

The viscosity of the fluid under the PT conditions of our experiments is not more than 1.0 × 10⁻⁵ Pas. Due to the efficient diffusion in such a low viscosity fluid, the quenching phases can become significant in size, which they do. The supplementary information files (capsule_walls_I.xls, capsule_walls_II.xls) contain images of quenching Pt whiskers several tens of microns in length. Platinum is deposited from the fluid mainly as the particles (nuggets). Obviously, the “nugget” picks up metal in a significant volume of the fluid, forming a wide bare zone around itself, which leads to a greater uneven distribution of Pt. Similar nuggets were encountered in experimental studies of the solubility of noble metals in silicate melts (e.g., [32]). However, the possibility of a quenching mechanism of the nugget’s formation is excluded due to the low diffusivity of these metals in silicate melts, the contribution of nuggets is excluded from the analytical data.

Thus, the distribution of platinum particles in fluid traps is inherently irregular. First, the particles were initially located on the surface of the glass shards. When using the local LA-ICP-MS method, the analyzed volume is an ablation pit, the shape of which can be approximated by a hemisphere with a diameter equal to the spot width of 65 µm. The maximum width of fragments of quartz glass was 100–200 µm, albite glass—up to 1000 µm. When the analytical volume avoids the former grain boundaries, the analysis will give a blank result.

The next factor is particles size distribution. The largest particles were formed as a result of mechanical abrasion of the capsule walls. They are rare and there is a small chance of being captured by the ablation pit. The next set of relatively large particles can be attributed to a slow change in the intensive parameters during the experiment, causing a drop in solubility. These particles are larger than the particles formed during the several minutes of the quenching process. 3D distribution of large particles in the albite trap from the experiment ab86 was characterized by microX-Ray computer tomography (x-Ray CMT) with resolution 1.8 mkm (see supplementary information x-Ray_CMTab86.avi). For MCT, the SkyScan 1172 apparatus (MSU, Moscow) was used. Due to the large density contrast (21.45 g/cm³ Pt versus 2.2 g/cm³ glass) strong reflections appear in the recordings of transmission images of sample slices. The actual particles sizes were distorted and x-Ray CMT data cannot be used for a quantitative analysis. As a result, these factors lead to a large scatter in the results of local analysis using the LA-ICP-MS (see supplementary_text, Table S2). The bulk ET-AAS method gives a concentration averaged over the entire volume of the trap (or part of it) that is approximately 3.5 orders of magnitude greater than the sampling volume for LA-ICP-MS. However, in this case, all possible large particles are taken into account that are not related to deposition from the fluid during quenching and, therefore, to solubility.

The most reliable data was obtained for the reference point P = 200 MPa and T = 950 °C with different traps and different analysis methods. For initial CO/CO₂ ratio of 0.5 (pure oxalate source) and quartz trap (run qz98), bulk C_Pt = 57.7 ppm (ET-AAS). The local concentration obtained with LA-ICP-MS is 22.1 ± 15.6 ppm. This difference can be attributed to the irregular in space Pt deposition during CO decomposition. The laser ablation spots transmit the sparsely distributed large Pt particles, resulting in a lower concentrations obtained by the LA-ICP-MS. In run qz118 with an initial r = CO/(CO + CO₂) = 0.15 close to the equilibrium ratio r = 0.14, averaged over three parts C_Pt = 22.9 ± 7 ppm (ET-AAS). Corundum ceramics is the strongest trap, guaranteeing the absence of mechanical contamination. However, it appeared to have an irregular structure with the locally isolated pore space and sometime gives low C_Pt. As mentioned above, even at the highest laser power, corundum does not evaporate that makes it impossible to use LA-ICP-MS for analysis. The highest bulk concentration (run cor99) obtained by the ET-AAS method for an initial CO/CO + CO₂ = 0.5 is 27.5 ppm. The density of corundum is high and the solubility corresponding to this value is practically the same as for qz98 by ET-AAS method (see

Table 1. Results of fluid traps analyses and Pt concentration in the fluid.

Run	T/P (°C/Kbar)	XCO/XCOeq	LA-ICP-MS (ppm)	ET-AAS (ppm)	Porosity	Cfl/CCO2 2
ab86	950/2	0.5/0.14	109.5 ± 129.8	335.5	0.35 1	mechanical contamination
ab86	950/2	0.5/0.14	55.3 ± 53.0 3	-	0.35 1	489.6/418.5
cor99	950/2	0.5/0.14	-	27.5	0.4	512.4/437.9
qz98	950/2	0.5/0.14	-	57.7	0.35 1	490.0/418.4
ab86	950/2	0.5/0.14	32.7 ± 33.7 4	n.d.	0.4 1	289.5/247.5
qz98	950/2	0.5/0.14	22.1 ± 15.1	n.d.	0.30	136.3/129.3
cor102	950/2	0.33/0.14	-	11.5	0.4 1	192.9/183.1
qz118	950/2	0.15/0.14	-	22.9 ± 7.1	0.5	141.0/133.8
ab108	950/1	0.5/0.22	2.5 ± 2.0	n.d.	0.45	20.5/18.0
cor105	950/1	0.5/0.22	-	5.1	0.5	85.5/75.3
qz120	950/1	0.21/0.22	-	10.2	0.60	80.1/70.5
cor104	950/0.5	0.5/0.31	-	1.4	0.60	24.1/19.7
ab107	950/0.5	0.5/0.31	0.22 ± 0.17	n.d.	0.6 1	6.3/5.16
qz119	950/0.5	0.5/0.31	-	11.6/32.4	0.21	114/93.6
cor106	9500/3	0.5/0.10	-	5.0	0.4 1	145.8/119.3
qz117	950/2;1000/1	0.2/0.29	-	1.3/6.4	0.4 1	44.0/40.8

¹ estimate of porosity; ² solubility recalculated on pure CO₂ fluid, ³ excluding largest particle, ⁴ excluding large particles.

). With the fluid generated by the decomposition of FeCO₃ (run cor102) the bulk C_Pt is 11.5 ppm. In terms of solubility, it is close to the value obtained using a quartz glass trap and an equilibrium initial CO/CO₂ ratio (183 and 133 ppm for cor102 and qz118, respectively, see Table 1). To assess the dynamics of equilibration of the fluid trap, experiment qz97 was quenched shortly after the decomposition of oxalate at Т = 800 °C and P = 200 MPa (holding for 5 min at these parameters). The local concentration of platinum found by LA-ICP-MS is 15.3 ± 11.8 ppm, which is only slightly lower than the value adopted above for 2 h runs at T = 950 °C. Experiments at low pressure 100 and 50 MPa gave generally lower platinum content. Especially low values of 2.5 and 0.22 ppm were obtained using LA-ICP-MS analysis of albite traps from experiments ab108 (P = 100 MPa) and ab107 (50 MPa), respectively (see Table 1). However, from the single piece ET-AAS analysis of CRT from run cor105 and SGT from run qz120 (P = 100 MPa) we get larger values of 5 and 10 ppm with corresponding solubility of 75.3, 70.5 ppm, respectively. And at P = 50 MPa, the results are similar: the bulk ET-AAS concentrations of SGT (run qz119) and CRT (run cor104) are 11.6 and 5 ppm, which corresponds to solubility of 119 and 93 ppm, which is significantly higher than the solubility of 5.2 ppm from LA-ICP-MS analysis data of AGT (run ab107). In other words, we do not find a large difference between the solubility at 200, 100 and 50 MPa estimated from the bulk analysis of SGT and CRT by the ET-AAS method. However, AGTs analyzed by local LA-ICP-MS have demonstrated a strongly decreasing solubility at lower pressures.

3.3.2. Influence of Pressure and CO Concentration on Pt Solubility

All our estimates of Pt solubility at T = 950 °C are presented in Table 1 and plotted in Figure 5. Variations in solubility caused by the different CO concentrations and pressures are comparable by magnitude. CO concentration in equilibrium with carbon decreases approximately as 1/P^1/2, while stability of carbonyl increases with rise of X_CO in accordance with reaction scheme:

mPt + nCO = Pt_mCO_n,

(11)

as defined by the equilibrium condition

$$\frac{{\gamma }_{CO}^n{X}_{CO}^n{P}^{n-1}}{{\gamma }_{crb}{X}_{P{t}_m{\left(CO\right)}_n}}=K\left(T\right),$$

(12)

where Х_СО-mole fraction of CO and γ_i are fugacity coefficients of CO and Pt carbonyl. Using the reference pressure P_0, the variation in solubility can be expressed as

$$\frac{C\left(P\right)}{C\left(P_0\right)}={\left(\frac{X_{CO}{\gamma }_{CO}\left(P\right)}{X_{CO}{\gamma }_{CO}\left(P_0\right)}\right)}^n{\left(\frac{P_0}{P}\right)}^{n-1}\frac{{\gamma }_{crb}\left(P_0\right)}{{\gamma }_{crb}\left(P\right)}$$

(13)

In our case, reference pressure is P₀ = 200 MPa (T = 950 °C). To estimate the activity coefficient γ for CO, we use the ideal solution model of the non-ideal components and take the fugacity coefficient of pure CO from [27]. The fugacity coefficient for carbonyl is unknown. As a first proxy, we take it equal to γ_co. We also assume that the speciation of Pt in fluid does not depend on the pressure in the studied interval and its weight concentration is proportional to the carbonyl molar fraction used in equations (12 and 13). The dependence of Pt solubility as a function of pressure was calculated under these assumptions with the reaction coefficient n in the range 2–5.5 and is shown in Figure 5. Plots calculated for n = 4 and 5.5 are in the concentration interval for the pressure range 50–200 MPa. Two groups of experimental points below and above the reference point (P = 200 MPa) arose due to the influence of CO concentration on solubility. The low point corresponds to the published estimate [25] obtained with siderite as a source of fluid and albite fluid trap. The average CO concentration characterized by micro-Raman is 12 mol.%. The best fit with the reported concentration of Pt in the fluid of 15 ppm is obtained for n = 5.1. Upper group of points correspond to the effective solubility in the experiment with MgC₂O₄ as fluid source. In the course of experiment, mole fraction of CO dropped from 0.5 to some lower value. In experiment ab108 (P = 100 MPa), the molar fraction of CO in the fluid from the albite trap, determined using micro-Raman, is X_CO = 0.39, which is between the initial and equilibrium values of 0.5 and 0.21. In experiment ab86 (P = 200 MPa), the walls of the fluid bubbles in the albite trap are coated with carbon, which makes it impossible to analyze the fluid composition using micro-Raman. Reducing of CO content towards CCO buffer limit resulted in the deposition of carbon, carbonyl decomposition and growth of the relatively large Pt particles. By discarding the LA-ICP-MS data points affected by mechanical contamination of trap and large particles, we get an estimate of the solubility in fluid of about 500 ppm. The increase in solubility from 130 to 500 ppm at X_CO = 0.18–0.19 can be explained by the effective value of n = 5 in eqn. (13). For low pressure experiments with an albite glass trap analyzed by LA-ICP-MS, n = 5.5 is the best fit. The only value for 300 MPa was obtained with a corundum trap, the use of which often underestimates the results. However, this solubility is at least 100 ppm and is expected to be higher (see Figure 2).

3.4. Solubility of the Pt Quenching Phases in Organic Solvents

Additionally, we study platinum quenching phases soluble in organic solvents chlorophorm and acetone, providing an estimate of the decomposition degree of carbonyl during quenching (

Table 2. Content of acetone-soluble Pt form in fluid traps and in washes from capsule walls.

Run	Time, Hours	Dissol. Time, h	XCO/XCOeq	Pt in MgO ppm	Comments	Pt in Flush ppm 1
qz121	21	0.5	0.5/0.14	1469	MgO + acetone stirred	8.8 2
qz122	2	0.5	0.5/0.14	2393	stirred	48.2 2
qz123	2	0.25	0.5/0.14	17.4	not stirred	4.3
O56	21	0.25	0.16/0.14	1.4	no carbon	21.5
O57	21	0.25	0.16/0.14	3.4	no carbon	0.1
qz114	2	12	0.5/-	21.8	fluid with XH2O = 0.046	-

¹ recalculated for C_fl assuming half fluid was out of the trap; ² walls were scrabbled at washing; all experiments were carried out at P = 200 MPa and T = 950 °C.

). Platinum deposited from fluid on the walls of capsule, trap, and periclase matrix has the morphology of whiskers and wires with a submicron width and up to tens of microns in length (see Figure 6 and supplementary files capsule_walls_I.xls and capsule_walls_II.xls). This morphology is indicative of high supersaturation and fast growth. Due to decomposition of carbonyl, the concentration of the soluble form of Pt is less than the bulk content determined both by ET-AAS and LA-ICP-MS methods.

3.4.1. Pt in Carbon-Periclase Matrix

As mentioned above, in experiments with MgC₂O₄ as a fluid source, the periclase matrix was coated with carbon adsorbing carbonyl from the fluid. At the initial stage of the research, the capsule is opened immediately after experiment, some days before being dissolved in acetone. Carbonyl is oxidized in air, and the content of the soluble Pt in the matrix was only 21.8 ppm and 32.4 ppm in experiments 114qz (acetone) and 91qz (chloroform), respectively. The total content of Pt in the periclase matrix was 87.1 and 32,403 ppm (high due to the mechanical contamination) in experiments 114qz and 91qz, respectively. The content of Pt soluble in acetone in experiments 98qz (silica glass trap) and 99cor (corundum trap) was even lower—1.5 and 6.0 ppm, respectively.

When the matrix was placed in acetone immediately after opening of the capsule, the Pt content in the solution was significantly higher. The matrix from runs qz121 and qz122 was thoroughly mixed with acetone, and the Pt concentrations in the solution were 1469 and 2393 ppm, respectively. The duration of these experiments was 21 and 2 h, and the difference in concentration may reflect the gradual decomposition of excess CO and carbonyl over time during approaching the C-CO-CO₂ (CCO) buffer equilibrium. The matrix from run 123 was dissolved without stirring, and the concentration of soluble Pt was 17.4 ppm, which is close to the bulk content of quenching Pt in fluid traps treated at P = 200 MPa and T = 950 °C.

3.4.2. Pt in Pure Periclase Matrix

The pure periclase matrix, formed in experiments with MgCO₃ + MgC₂O₄ mixture providing an equilibrium CO/CO₂ ratio, was also investigated. Acetone soluble Pt concentrations in the runs O56 and O57 (immediate dissolution) were 1.4 and 3.4 ppm, respectively. Comparison of the data on the periclase matrix with and without carbon indicated that the carbonyl adsorbed on the carbon is almost completely retained during quenching. While in the carbon free matrix only about 13–15% of the carbonyl is conserved.

We also analyze solutions of quenching phases taken by flushing with acetone from the surface of the capsule walls. The total mass of soluble Pt in the flushing liquid was recalculated to the concentration in the fluid, assuming that half of the fluid was in the trap. Residual concentrations in the fluid were estimated at 2–24 ppm, which is 1.5–18% of our estimate of the equilibrium concentration of 130 ppm at the reference point. No systematic difference in Pt concentrations in the flush from runs with and without excess CO was observed.

3.5. Surface-Enhanced Raman Scattering (SERS) Spectra of the Quenching Phase Solution

The concentration of platinum in acetone solution determined with ET-AAS method is in the range 0.01–1 ppm, which is usually below the detection limit of Raman spectroscopy. It was discovered in 1977 that the Raman spectra of compounds adsorbed on the Ag surface are strongly amplified [33]. Currently, this effect known as Surface-Enhanced Raman scattering (SERS) is widely used in practice. For example, nano-sized supercrystals of gold (built of micro-spheres) with amplification factor up to 10⁵ times are applied in medicine and forensic investigations to determine organic compounds [34,35].

In our acetone solutions, native platinum is formed during carbonyls oxidation, which allows spectroscopic investigation of the quenching phase in solution.

3.5.1. Excitation of Raman Spectrum with Infrared Laser

In the first series of measurements, fresh periclase and periclase-carbon matrices were kept in acetone for a day before measurements. In the second series, measurements were made after 10 min of dissolution. In both cases, acetone bands dominate in the spectra.

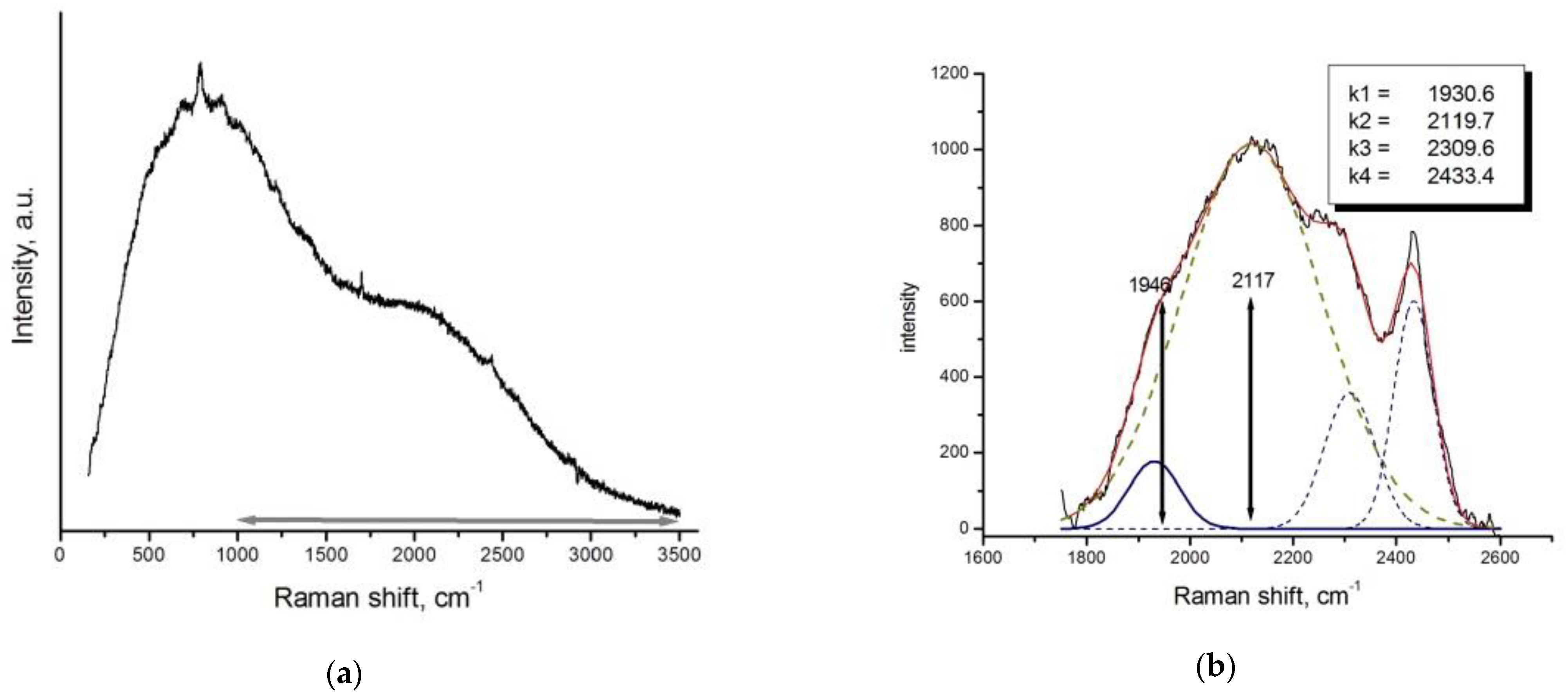

When using infrared laser light (1064 nm), a broad fluorescence band in the range 1000–3000 сm⁻¹ was obtained after subtracting the acetone spectrum. This band was modulated with several peaks. In the series with a long dissolution time (Figure 7), a peak with a maximum of around 1946 cm⁻¹ is clearly recognized, which corresponds to the main band of the terminal CO in Pt₃(CO)₆²⁻ complex [20]. A bridging CO peak of about 1740 сm⁻¹ can be anticipated from the shoulder of the fluorescence band. In the solution with a small dissolution time (runs O59 and O63), a peak with a maximum of 1954 cm⁻¹ is clearly recognized and can be associated with a polynuclear Pt carbonyl. In addition, two bands with wave numbers k = 210 cm⁻¹ and 420 cm⁻¹ are well expressed. These lines can be attributed to bonds Pt-Pt in metallic nanoparticles. The theoretical Raman spectrum of three atoms cluster has two lines 147 and 228 cm⁻¹ [36]. Pt-Pt stretching mode in the crystalline Pt₃Fe is prescribed k = 253 cm⁻¹ [37]. Au micro-particles have a strong Raman band at k = 412 cm⁻¹ [34].

3.5.2. Excitation of Raman Spectrum with Green Laser

When using green laser (λ = 532 nm), the low frequency edge of the fluorescence band is shifted to k_left = 100 cm⁻¹ (Far Infrared), and the maximum—to k_max = 800 cm⁻¹—compared to k_left = 1000 cm⁻¹ and k_max = 2000 cm⁻¹ for an infrared laser (λ = 1064 nm). In the spectrum of the O59 sample (Figure 8), the local maximum on the shoulder of the fluorescence band is located in the region of CO vibrations of about 2100 cm⁻¹. The spectrum obtained when subtracting the smooth fluorescence band is deconvoluted in four Gaussians, two of which with k = 1931 cm⁻¹ and 2119.7 cm⁻¹ are close to the platinum carbonyl lines. Thus, spectroscopic observations are direct evidence of the formation of Pt carbonyls at high PT parameters.

4. Discussion

It is generally accepted that in the post-magmatic processes, platinum is dissolved in a hydrous fluid in the form of chloride, bisulphide, polysulphide, thiosulphate, depending on pH, f_O2, temperature and ligand concentration [38,39,40]. The calculated maximum solubility of PtS at f_O2 near QFM-1 at T = 300 °C as Pt(HS)₂ is 3 ppb in an acidic fluid and 0.01 ppb in an oxidized conditions at pH = 2 as PtCl₄²⁻ [41]. Our results demonstrated that at P = 200 MPa and T = 950 °C platinum solubility in the carbonic fluid in the form of carbonyl at the low CO content is about 15 ppm and increases to 130 ppm in the equilibrium with graphite. This value approaches the highest solubility level of Au in the hydrous fluid under close pressure–temperature (PT) conditions and high f_O2 [11]. This means that the formation of carbonyl itself can be an important mechanism for the transport of Pt by fluid at the post-magmatic stage of evolution of layered ultramafic-mafic intrusions. There are numerous observations that the chlorine content in such fluids is high, which makes it possible to associate the transfer of Pt with chlorine [42]. Mixed chlorine/carbonyl complexes of Pt are known under ambient conditions and their study at elevated PT parameters deserves attention.

Our preliminary data indicate that low concentration of H₂O in CO-CO₂ fluid increases the solubility of Pt (see supplementary text, Table S3). As described in details in [25], we are limited in our attempts to quantitatively constrain the solubility of Pt using a dry CO-CO₂ fluid due to the use of Pt capsules in the IHPV apparatus. During the experiment, the fluid is oxidized via the loss of H₂ through the capsule walls, and it is not clear to what extent the high contents of Pt in the traps in hydrous carbonic fluid is caused by the re-deposition of Pt under conditions of the fO₂ gradient. In the presence of water, organic compounds may form, which are potential ligands for complexation with Pt. However, it is expected that at P = 200 MPa and T above c.a. 700 °C (close to subsolidus conditions of mafic intrusions) CO predominates as a form of reduced carbon [13], and complexation with organic ligands can become significant at lower temperatures. As it follows from our experiments, carbon (graphite) will adsorb Pt carbonyl and may contribute to the concentration of the diluted relative PGE natural fluids. The origin of graphitized rocks enriched in PGE and Au [43] may be related to this process.

Carbonyl speciation may explain origin of isoferroplatinum (Pt₃Fe), the most abundant nonsulfide platinum mineral. It is the main mineral of placer PGE deposits related to the origin of ring alkaline-ultrabasic (Konder) and ring ultrabasic-basic (Alaska type) intrusions. Pt alloys are also quite common in the Bushveld intrusion, where the main forms of platinum are sulfides, arsenides, tellurides [44]. Some investigators attributed the formation of Pt-Fe alloys to the magmatic stage of evolution of gabbro-pyroxenite-dunite massifs (e.g., [45,46]). Karpinsky in 1926 (see in [1]) proposed metasomatic mechanism of formation of chromitite-Pt association as a result of interaction of dunite with fluid containing Cr and Pt. Some modern researchers are developing similar models of the interaction cumulus-fluid as a mechanism of PGE localization [1,47].

Assuming crystallization of Pt₃Fe from fluid, it should be noted that oxygen fugacity in ultramafic-mafic intrusions is close to CCO (near QFM-2) and much exceeds the IW buffer. Consequently, iron is present in the fluid as the Fe²⁺ ion and is reduced to native metal during the deposition of Pt₃Fe. The specific mechanism of Pt₃Fe crystallization can be associated with the nature of platinum carbonyl. The most probable form is the multinuclear anion Pt₃(CO)₆²⁻. The origin of the negative charge can be explained with redox reactions:

Pt₃(CO) ₆ + O²⁻ + CO = Pt₃(CO)₆²⁻ + CO₂,

(14)

Pt₃(CO) ₆ + 2Fe²⁺ = Pt₃(CO)₆²⁻ + 2Fe³⁺

(15)

If the anionic form of the carbonyl does prevail, a neutral complex with Fe²⁺ will naturally form in the fluid:

Pt₃(CO)₆²⁻ + Fe²⁺ = FePt₃(CO)₆

(16)

At the decomposition of this complex during quenching in experiment or in due to a decrease in the CO fugacity in nature, isoferroplatinum crystallizes:

FePt₃(CO)₆ = Pt₃Fe+ 6CO,

(17)

The formation of a Fe-Pt alloy with a higher Fe content (tetraferroplatinum PtFe) can be explained by the secondary leaching of Pt from isoferroplatinum. The less common Pt₂FeCu and Pt₃Cu are also thought to be formed from lower temperature fluid leaching [48].
