Reaction Characteristics and Existing Form of Phosphorus during Coal-Based Reduction of Oolitic Iron Ore

Abstract

It is particularly significant to investigate the reduction behavior and existing form of phosphorus in metal and slag phase during coal-based reduction for the efficient development and utilization of high-phosphorus oolitic hematite. The reduction behavior of phosphorus minerals and their existing form in the metal and slag phase during the coal-based reduction of high phosphorus oolitic hematite were systematically investigated using HSC software simulation, thermodynamic calculation, X-ray diffraction (XRD), scanning electron microscopy (SEM), and energy-dispersive spectrometry (EDS). The results show that after Fe₂O₃ was reduced to metal iron, the reduction of apatite was promoted by providing the most inclined enrichment site of phosphorus (metallographic phase). Phosphorus existed mainly in two forms in the metal phase—one was in the form of Fe₃P compound at the boundary of the metal phase, and the other was in the form of solid solution in the metal iron. There were two forms of phosphorus in the slag phase—one was incompletely reacted apatite, and the other was formed as CaO–SiO₂–P₂O₅ solid solution. In the early stage of coal-based reduction, phosphorus in the slag phase mainly existed in the form of apatite, while in the later stage, it mainly existed in the form of CaO–SiO₂–P₂O₅ solid solution.

1. Introduction

Despite the abundant reserves of iron ore resources in China, the overall iron ore is characterized by the behavior of low grade, fine grain size, and high impurities, resulting in the situation of importing large quantities of iron ore from abroad and the unavailability of domestic resources for many years [1,2,3,4]. Oolitic hematite ore with a total reserve of 3.72 billion tons has been unable to be exploited and utilized on a large scale due to its complex characteristics, causing a great waste of resources [5,6]. Since the 1930s, scholars at home and abroad have made many explorations and studies on the beneficiation of high phosphorus oolitic hematite. However, due to its high phosphorus content, fine size of iron ore, and complex mineral composition, it is impossible for traditional single mineral processes such as gravity separation, magnetic separation, and flotation (including positive flotation and reverse flotation) to beneficiate effectively and independently to meet industrial needs due to the limitations of their own processes [7,8,9,10,11]. Therefore, scholars at home and abroad try to use a combined separation process to treat oolitic hematite. Many research institutes adopt high-intensity magnetic-reverse flotation, roasting-magnetic separation, and roasting-magnetic separation-reverse flotation processes to study high-phosphorus oolitic hematite. However, many tests show that these processes cannot achieve satisfactory results in both iron concentrate grade and recovery rate, and these processes cannot effectively control the trend of phosphorus and achieve the comprehensive utilization of phosphorus [12,13,14,15]. Therefore, in order to realize the comprehensive utilization of high phosphorus oolitic hematite, the combined treatment of beneficiation and metallurgy should be more promising [16,17,18,19].

Due to the traditional beneficiation method is not effective for the treatment of high phosphorus oolitic hematite, researchers break through the traditional beneficiation-sintering-smelting process and innovatively adopt coal-based reduction technology to treat complex refractory ores such as high phosphorus oolitic hematite [20,21,22]. Coal-based reduction technology refers to the process of reducing complex refractory iron ore, which cannot be directly used as blast furnace raw material, to metal iron at a higher temperature, having a stronger reduction atmosphere than magnetization roasting and making metal iron grow into certain size iron particles. The coal-based reduction is a reduction state between direct reduction and smelting reduction. The process includes two processes—iron oxide reduction and iron particle growth. The product of coal-based reduction is an iron particle, which is different from direct reduction product (DRI) and melts reduction product (liquid molten iron). Phosphorus is a harmful element in most kinds of steel, with the development and exploration of coal-based reduction technology, some research institutes try to treat phosphorus in oolitic hematite by coal-based reduction technology. The main research ideas are the dephosphorization process and phosphorus-rich process. At present, the research on phosphorus in the coal-based reduction process is focused on process optimization, while research on the mechanism of phosphorus reaction behavior and existing form of phosphorus in the metal and slag phase during the coal-based reduction process is still scarce.

The purpose of this study was to investigate the reduction behavior of phosphorus minerals and the existing form of phosphorus in the metal and slag phase during the coal-based reduction of high phosphorus oolitic hematite. On the basis of systematically studying the technological mineralogy of high phosphorus oolitic hematite, the reaction behavior of phosphorus minerals, the effects of various substances on the reduction of phosphorus minerals, and existing form of phosphorus minerals in the metal and slag phase in the coal-based reduction process were investigated by HSC software simulation, thermodynamic calculation, XRD, and SEM–EDS analyses, which could provide theoretical guidance for the ultimate realization of the direct control of phosphorus in the coal-based reduction process.

2. Materials and Methods

2.1. Materials

The raw material used in the experiment is produced from Guanzhuang, Hubei Province, China. The analysis results of the chemical composition of the ore by potassium dichromate titration and X-ray fluorescence (PW3040 produced by panalytical B. V in the Netherlands) methods are shown in

Table 1. Chemical element analysis of high phosphorus oolitic hematite ore (mass %).

Component	TFe	SiO2	Al2O3	CaO	MgO	P	FeO	Fe2O3	S
Content	42.21	21.80	5.47	4.33	0.59	1.31	4.31	55.51	0.13

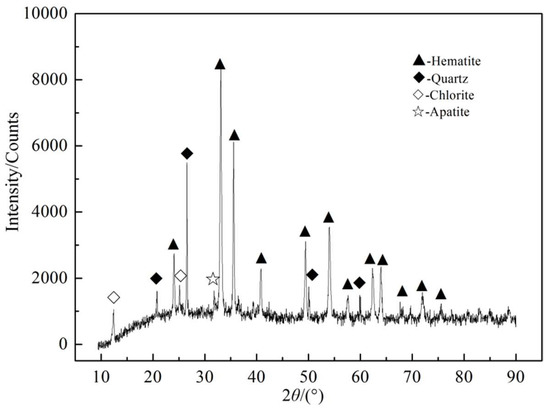

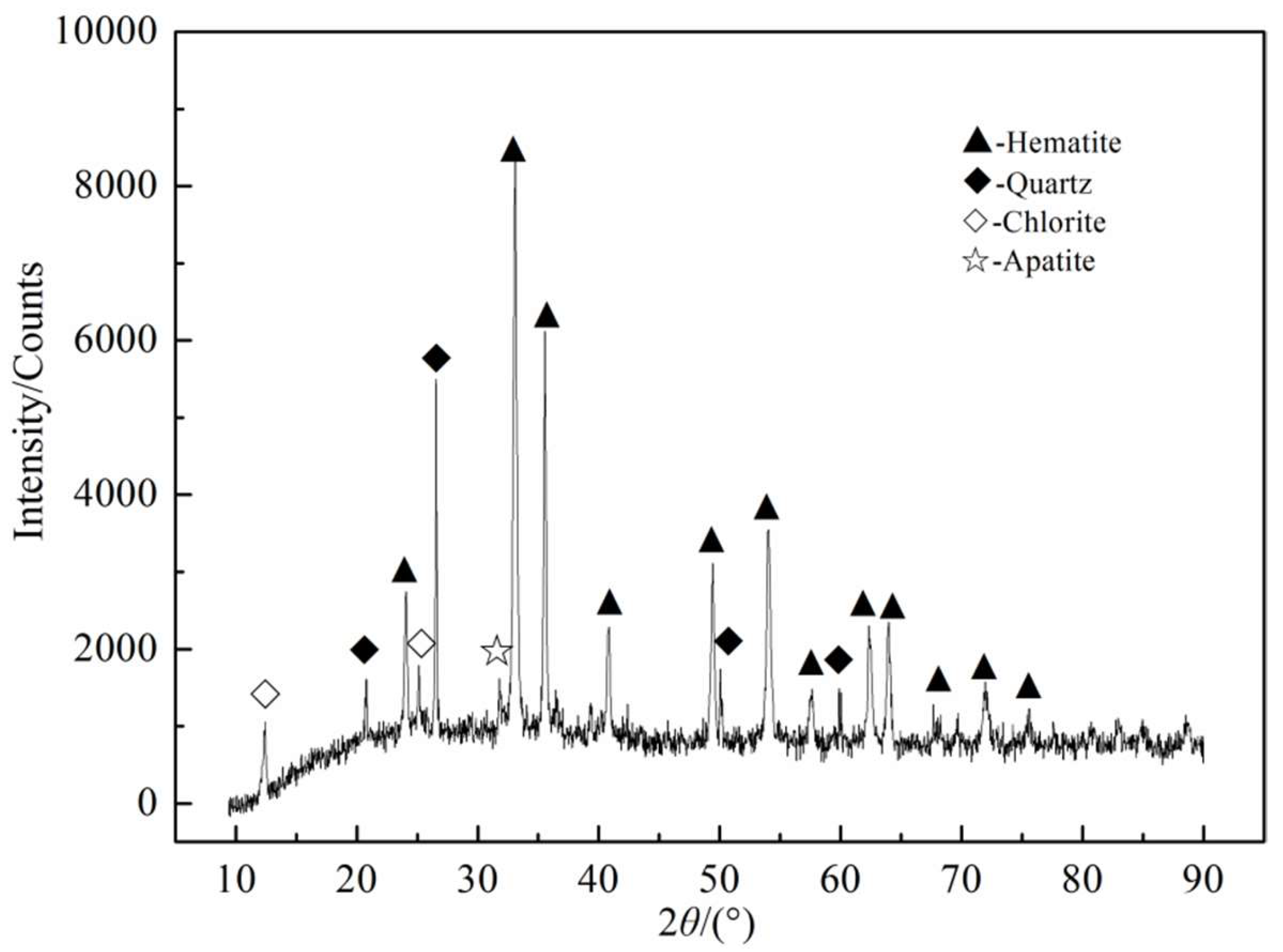

. Table 1 shows that the main valent metal element in the ore was iron, the content of total iron was 42.21%, the content of Fe₂O₃ was 55.51%, the content of FeO was 4.31%, and the content of phosphorus was as high as 1.31%. In order to find out the phase composition of iron ore in the ore, the phase analysis of the ore was carried out by using both physical and chemical methods, as shown in Figure 1. The results are shown in

Table 2. Analysis result of iron phase (mass %).

Phase Analysis of Iron	Iron in Hematite	Iron in Magnetic	Iron in Siderite	Iron in Sulfide	Iron in Silicate	Total
Content	40.97	0.54	0.37	0.13	0.19	42.21
Distribution rate	97.09	1.28	0.88	0.31	0.45	100.00

.

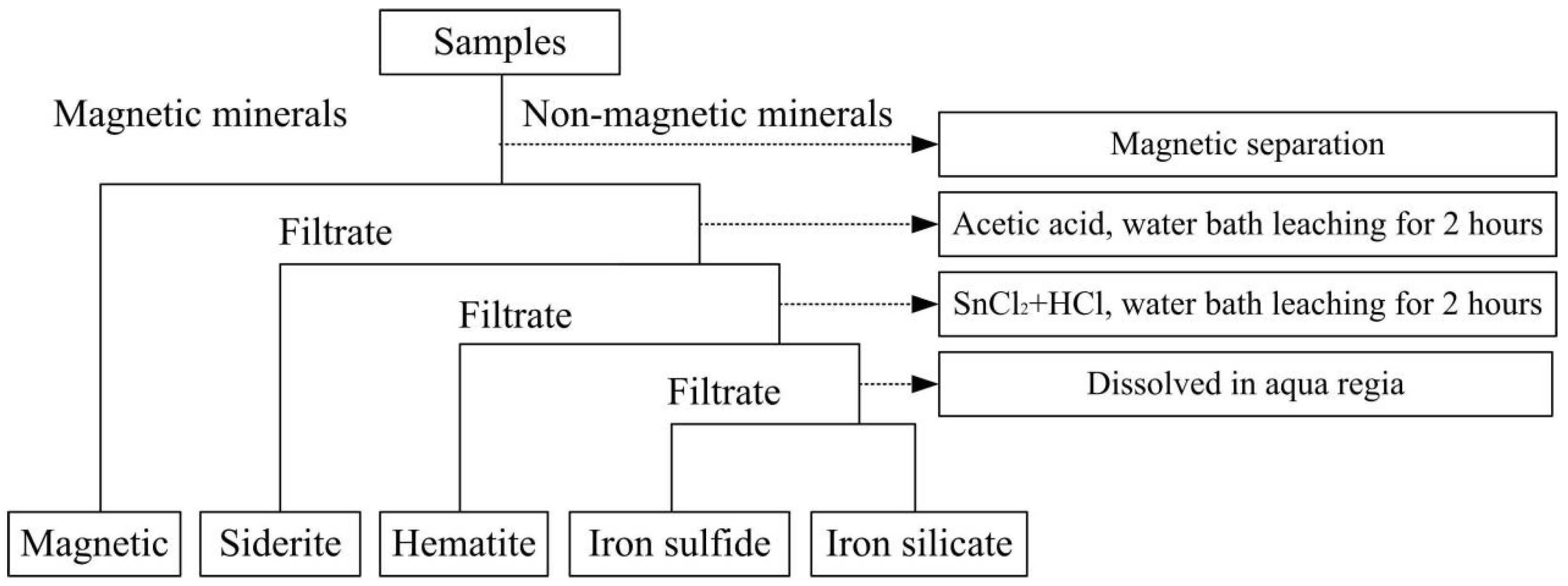

Table 2 indicates that iron in ores occurred in hematite, magnetite, siderite, sulfide, and silicate minerals. Most irons existed in hematite with a distribution rate of 97.09%. A small amount of iron existed in magnetite and siderite. In order to identify the types of minerals in ore samples further, the qualitative analysis of the mineral phase was carried out by X-ray diffraction analysis. The results are shown in Figure 2. Figure 2 indicates that hematite was the main iron ore, apatite was the main phosphorus mineral, and quartz and oolitic chlorite were the main gangues.

In order to simulate the reduction behavior of apatite in high phosphorus oolitic hematite in coal-based reduction, the apatite from Hubei Province was taken as the research object. In order to determine the chemical composition of the apatite and the purity of the apatite, the chemical analysis of the ore was carried out. The results are presented in

Table 3. Chemical composition of apatite ore (mass %).

P	TFe	SiO2	CaO	Al2O3	MgO	F	Cl
17.56	0.012	3.44	53.49	<0.01	<0.01	4.73	0.086

.

Table 3 states clearly that the content of CaO, SiO_2, and phosphorus was 53.49%, 3.44%, and 17.56%, respectively. It can be calculated that the content of P₂O₅ in the ore reached 40.22%, indicating that the content of apatite in the apatite ore was very high, which met the requirements of the test (the content of Ca₃(PO₄)₂ was 87.80%). Meanwhile, the content of F was much higher than that of Cl, indicating that the apatite ore was mainly fluoroapatite, which was similar to the main component of apatite in high phosphorous oolitic hematite. In addition, the SiO₂, Fe₂O_3, and Al₂O₃ used in this experiment were all analytical pure.

2.2. Methods and Equipment

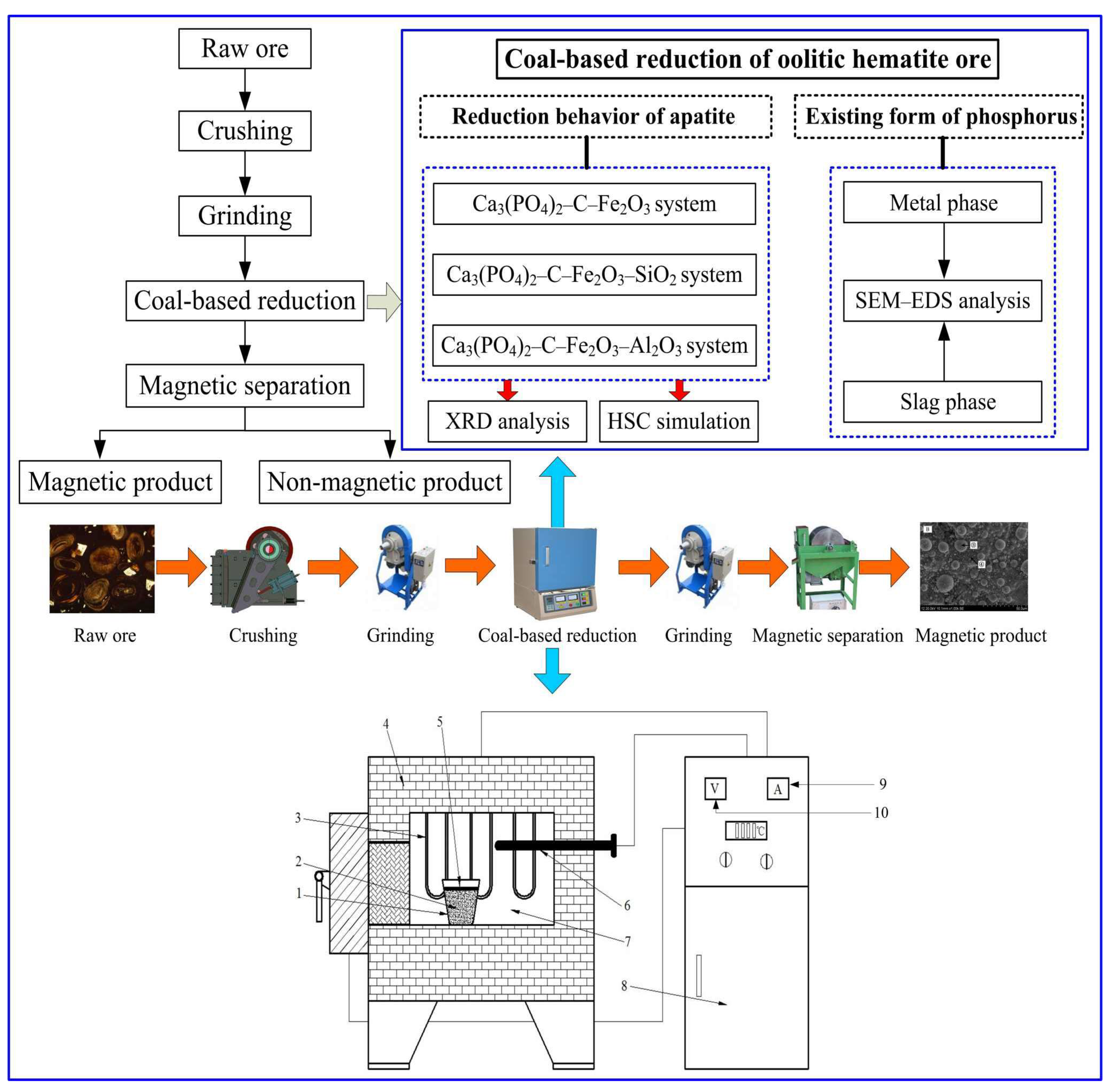

The main equipment of coal-based reduction used in this study was a self-made high-temperature box-type resistance furnace (KSL-1400X). The profile of the resistance furnace is shown in Figure 3. Because the reduction furnace was a non-closed system, in order to maintain the reduction atmosphere in the furnace chamber during the coal-based reduction process, the high-temperature box resistance furnace was used to add pulverized coal protection in the crucible. In this study, coal-based reduction technology was used to treat the iron ore. The specific operations were as follows: Firstly, the required amount of high phosphorus oolitic hematite was weighed, and the appropriate amount of pulverized coal through theoretical calculation was added to the dry mixture, and then it was loaded into a crucible. When the temperature in the furnace chamber reached the preset temperature, the crucible was put into the furnace chamber and the temperature was raised to the preset temperature. When the predetermined temperature was reached, the time was started and the temperature was kept constant. After the prescribed time, the reduction products were quickly taken out for water quenching treatment, then they were placed in the oven for drying after the products are cooled. The reduced products were ground to −0.074 mm and then subdivided and sampled for further analysis. The schematic diagram of the reduction behavior of apatite and the existing form of phosphorus in coal-based reduction is shown in Figure 3.

In this study, a X-ray diffractometer was used in this experiment. Its working parameters were radiation from the copper target, nickel filter, solid detector, tube voltage 40 kV, tube current 40 mA, scanning range 2Theta = 5–90°, step-by-step scanning, step length 0.033°, residence time 20.68 s per step, a wavelength of incident line 1.541 Å, scanning speed 12°·min^–1, and working temperature 25 °C [23,24,25,26]. In this study, SEM was used to observe the micro-morphology of the reduction products, and EDS could be used to analyze the composition of various elements in the required position of ore after coal-based reduction. The SSX-550 (Shimadzu, Kyoto, Japan) scanning electron microscope produced by Shimadzu Company of Japan was used in this experiment. The working parameters were as follows: acceleration voltage was 15 kV, magnification was different. HSC Chemistry 6.0 software (R&D center of Outokumpu, Finland) was used to calculate and simulate the composition of the equilibrium phase under coal-based reduction [27]. The equilibrium phase components that may exist after reaction equilibrium under different coal-based reduction conditions were obtained. The possibility of the reaction was further calibrated by Gibbs free energy, then the phase analysis of the test materials was carried out by XRD, and the reaction behavior between phosphorus minerals and other minerals in different systems was determined. The effect of other minerals on the reduction of phosphorus minerals was clarified, and the existing form of phosphorus minerals in metal and slag phases was determined. For the sake of simple calculation, it was considered that the chemical formula of apatite in raw ore was Ca₃ (PO₄)₂.

3. Results and Discussion

3.1. Analysis of Volatile Phase of Phosphorus

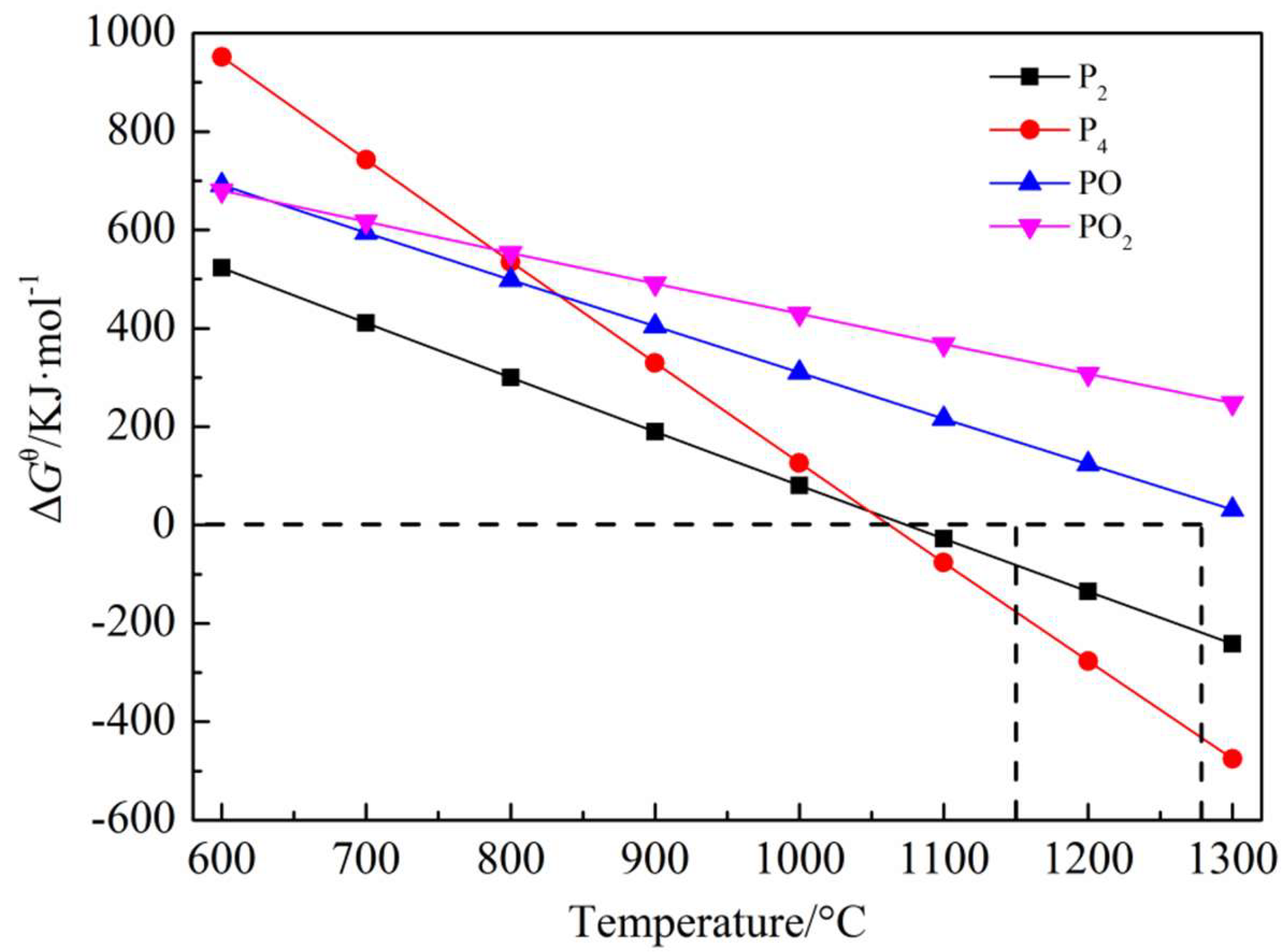

Phosphorus can be volatilized in the following four forms: P₂, P₄, PO, and PO₂. Because of the high content of aluminosilicate gangue minerals in high-phosphorus oolitic hematite, thermodynamic calculations were carried out in the presence of reduction atmosphere of aluminosilicate gangue minerals to determine the form of phosphorus volatilization, as shown in Equations (1)–(4). Equations (1)–(4) show that the relationship between Gtheta and temperature (assuming that the partial pressure of phosphorus gas phase is 0.1) are presented in Figure 4. Figure 4 exhibits that the volatile phases of phosphorus were mainly P₂ and P₄ gases in the temperature range (1150–1275 °C) of coal-based reduction.

$${\mathrm{Ca}}_3({\mathrm{PO}}_4{)}_2 + 5\mathrm{C} + 6{\mathrm{SiO}}_2 + 3{\mathrm{Al}}_2{\mathrm{O}}_3 \to 3\mathrm{CaO}·{\mathrm{Al}}_2{\mathrm{O}}_3·2{\mathrm{SiO}}_2 + {\mathrm{P}}_2(\mathrm{g}) + 5\mathrm{CO}(\mathrm{g}) {\Delta }_r{G}_m^{\theta } = 1175719 - 1093\mathrm{T} \mathrm{J}/\mathrm{mol}$$

(1)

$$2{\mathrm{Ca}}_3({\mathrm{PO}}_4{)}_2 + 10\mathrm{C} + 12{\mathrm{SiO}}_2 + 6{\mathrm{Al}}_2{\mathrm{O}}_3 \to 6\mathrm{CaO}·{\mathrm{Al}}_2{\mathrm{O}}_3·2{\mathrm{SiO}}_2 + {\mathrm{P}}_4(\mathrm{g}) + 10\mathrm{CO}(\mathrm{g}) {\Delta }_r{G}_m^{\theta } = 2168820 - 2039\mathrm{T} \mathrm{J}/\mathrm{mol}$$

(2)

$${\mathrm{Ca}}_3({\mathrm{PO}}_4{)}_2 + 3\mathrm{C} + 6{\mathrm{SiO}}_2 + 3{\mathrm{Al}}_2{\mathrm{O}}_3 \to 3 \mathrm{CaO}·{\mathrm{Al}}_2{\mathrm{O}}_3·2{\mathrm{SiO}}_2 + 2\mathrm{PO}(\mathrm{g}) + 3\mathrm{CO}(\mathrm{g}) {\Delta }_r{G}_m^{\theta } = 1253228 - 942\mathrm{T} \mathrm{J}/\mathrm{mol}$$

(3)

$${\mathrm{Ca}}_3({\mathrm{PO}}_4{)}_2 + \mathrm{C} + 6{\mathrm{SiO}}_2 + 3{\mathrm{Al}}_2{\mathrm{O}}_3 \to 3 \mathrm{CaO}·{\mathrm{Al}}_2{\mathrm{O}}_3·2{\mathrm{SiO}}_2 + 2{\mathrm{PO}}_2(\mathrm{g}) + \mathrm{CO}(\mathrm{g}) {\Delta }_r{G}_m^{\theta } = 1049089 - 618\mathrm{T} \mathrm{J}/\mathrm{mol}$$

(4)

3.2. Reduction Behavior of Phosphorus Minerals

Based on the idea from easy to difficult and from simple to complex, the reduction behavior of apatite in three systems of Ca₃(PO₄)₂–C–Fe₂O₃, Ca₃(PO₄)₂–C–Fe₂O₃–SiO₂, and Ca₃(PO₄)₂–C–Fe₂O₃–Al₂O₃ were studied in order to ascertain the effect of each component on the reduction of apatite. The content of MgO and CaO in raw ore was relatively low and had little influence on the reaction of apatite. Therefore, the experiments of MgO and CaO were not involved in this study.

3.2.1. Ca₃(PO₄)₂–C–Fe₂O₃ System

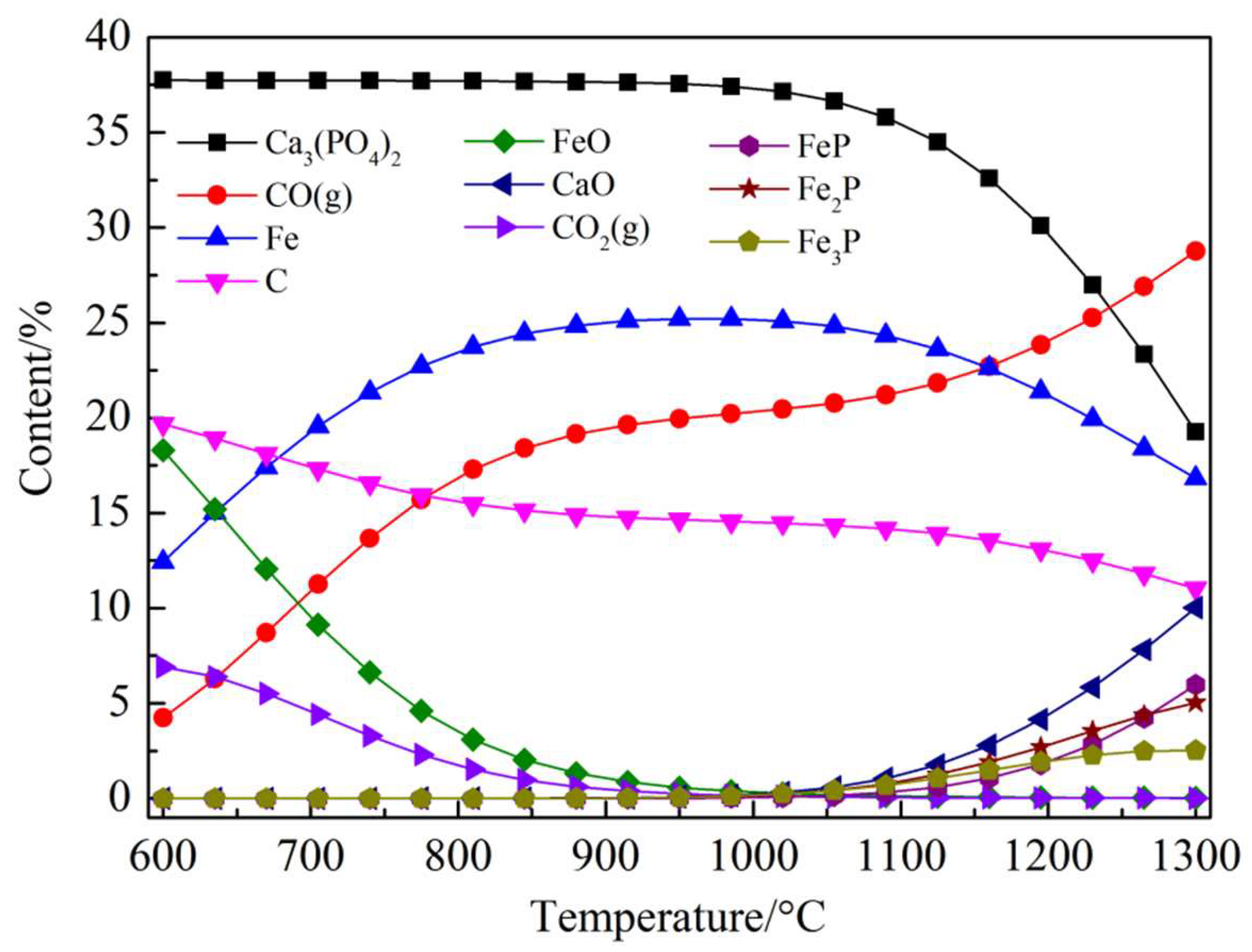

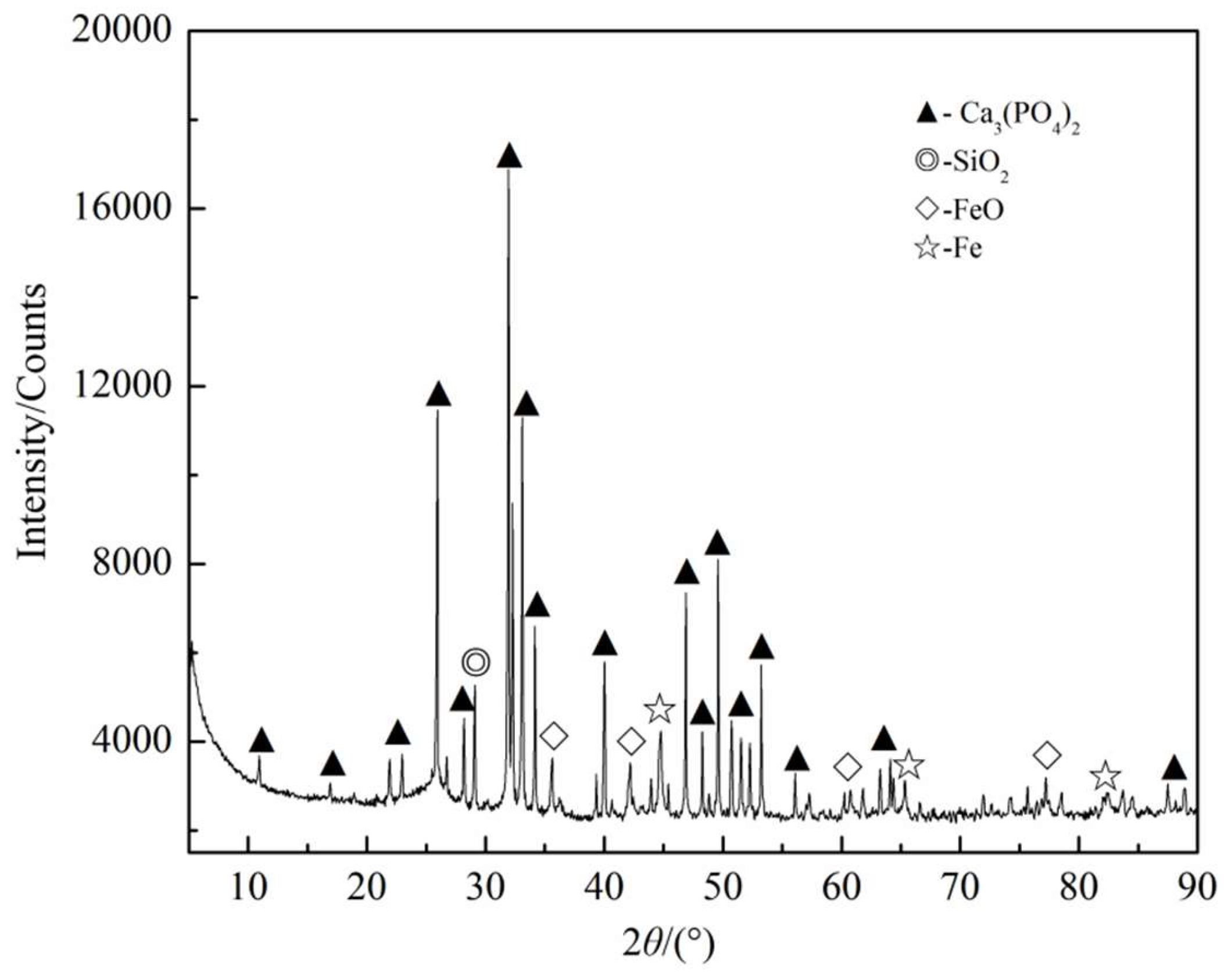

The HSC simulation results of the Ca₃(PO₄)₂–C–Fe₂O₃ system are given in Figure 5. Figure 5 shows the addition of Fe₂O₃ also promoted the reduction of Ca₃(PO₄)₂, resulting in the formation of Fe and P compounds and FeO. Within the temperature range of coal-based reduction, it was most likely to observe that the solid material was Fe, followed by the compounds of Fe, P, and FeO. Among them, the compounds of iron and phosphorus may be FeP, Fe₂P, and Fe₃P. The specific equation is shown in Equations (5)–(7). Equations (5)–(7) indicate that all three compounds formed by the combination of iron and phosphorus can be produced in the temperature range of coal-based reduction. The actual reduction test results of Ca₃(PO₄)₂–C–Fe₂O₃ are shown in Figure 6. Figure 6 shows that the presence of metal iron and fusiform FeO was observed in the XRD spectra of reducing materials, but no iron and phosphorus compounds were observed, which indicated that apatite had not been reduced and only iron was reduced in Ca₃(PO₄)₂–C–Fe₂O₃ system.

$${\mathrm{Ca}}_3({\mathrm{PO}}_4{)}_2 + 9.5\mathrm{C} + 1.5{\mathrm{Fe}}_2{\mathrm{O}}_3 \to 9.5\mathrm{CO}(\mathrm{g}) + 2\mathrm{FeP} + 3\mathrm{CaO} + \mathrm{Fe} {\Delta }_r{G}_m^{\theta } = 1705484 - 1631\mathrm{T} \mathrm{J}·{\mathrm{mol}}^{-1}$$

(5)

Assuming ${\Delta }_r{G}_m^{\theta }$ = 0, then T = 1046 °C

$${\mathrm{Ca}}_3({\mathrm{PO}}_4{)}_2 + 12.5\mathrm{C} + 2.5{\mathrm{Fe}}_2{\mathrm{O}}_3 \to 12.5\mathrm{CO}(\mathrm{g}) + 2{\mathrm{Fe}}_2\mathrm{P} + 3\mathrm{CaO} + \mathrm{Fe} {\Delta }_r{G}_m^{\theta } = 1947237 - 2105\mathrm{T} \mathrm{J}·{\mathrm{mol}}^{-1}$$

(6)

Assuming ${\Delta }_r{G}_m^{\theta }$ = 0, then T = 925 °C

$${\mathrm{Ca}}_3({\mathrm{PO}}_4{)}_2 + 15.5\mathrm{C} + 3.5{\mathrm{Fe}}_2{\mathrm{O}}_3 \to 15.5\mathrm{CO}(\mathrm{g}) + 2{\mathrm{Fe}}_3\mathrm{P} + 3\mathrm{CaO} + \mathrm{Fe} {\Delta }_r{G}_m^{\theta } = 2245844 - 2615\mathrm{T} \mathrm{J}·{\mathrm{mol}}^{-1}$$

(7)

Assuming ${\Delta }_r{G}_m^{\theta }$ = 0, then T = 859 °C

3.2.2. Ca₃(PO₄)₂–C–Fe₂O₃–SiO₂ System

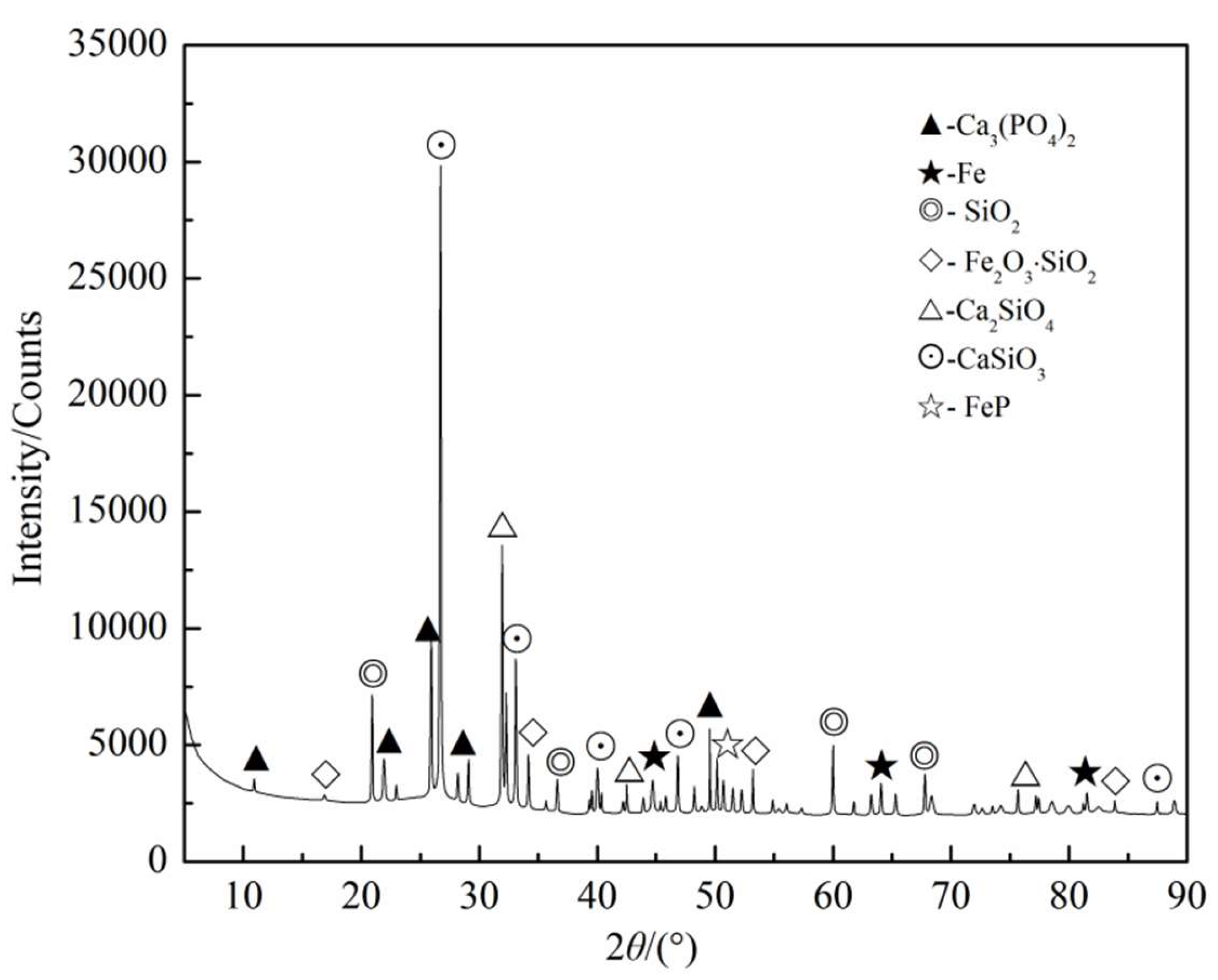

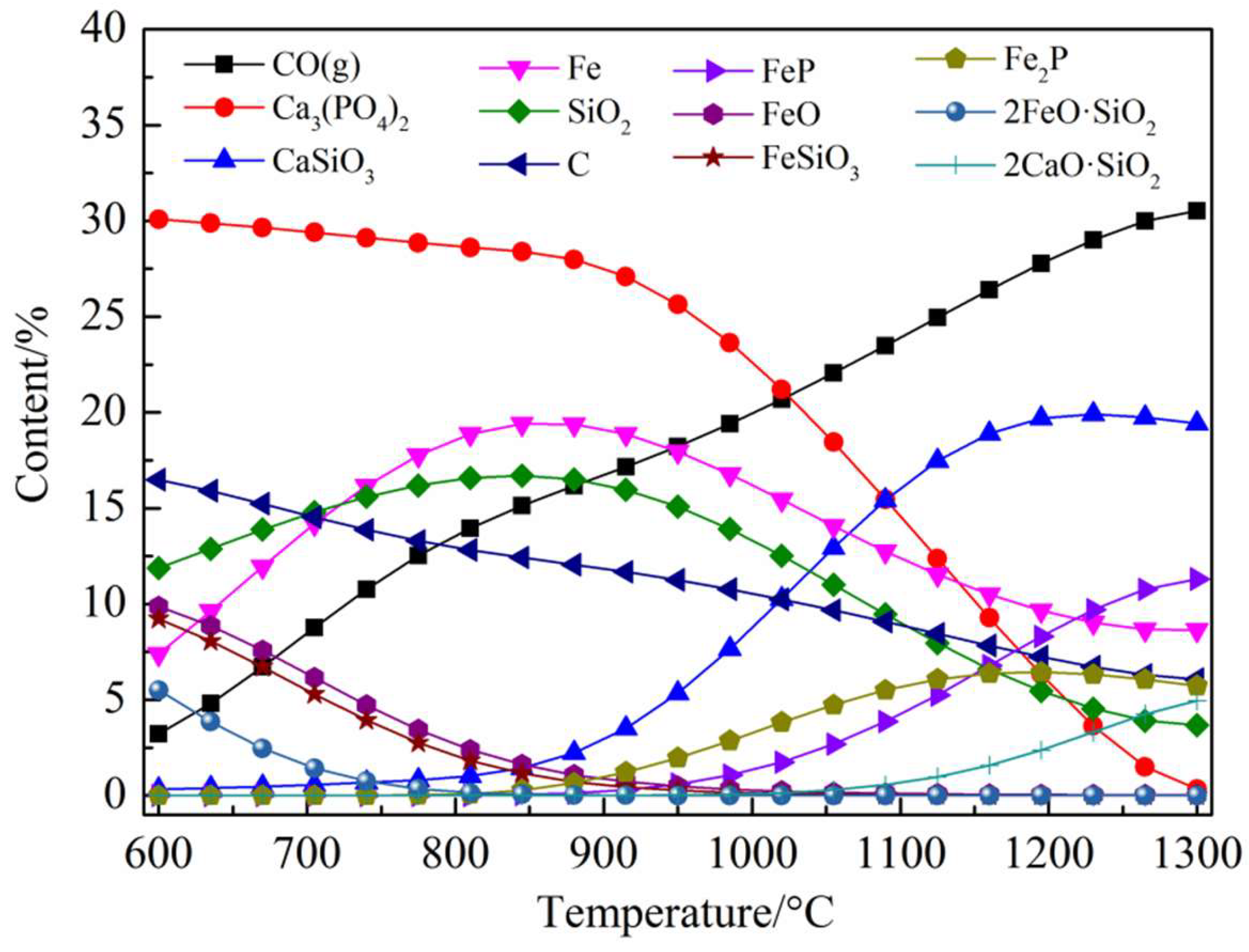

The HSC simulation results of the Ca₃(PO₄)₂–C–Fe₂O₃–SiO₂ system are shown in Figure 7. Figure 7 indicates that in the Ca₃(PO₄)₂–C–Fe₂O₃–SiO₂ system, apatite had been thoroughly reduced. FeP and Fe₂P were formed when apatite was reduced and combined with iron. Fe₂O₃ was reduced to form metal iron, and a small amount of iron olivine might exist. Other solid substances that might be observed should be CaSiO₃ and 2CaO·SiO₂. The actual reduction test results of the Ca₃(PO₄)₂–C–Fe₂O₃–SiO₂ system are presented in Figure 8. Figure 8 states clearly that in the XRD spectra of reducing materials, except for some unreacted quartz and apatite, the presence of iron, iron olivine, and CaSiO₃ was observed, and the presence of iron and phosphorus compounds FeP was also observed, which was in good agreement with the HSC simulation results.

3.2.3. Ca₃(PO₄)₂–C–Fe₂O₃–Al₂O₃ System

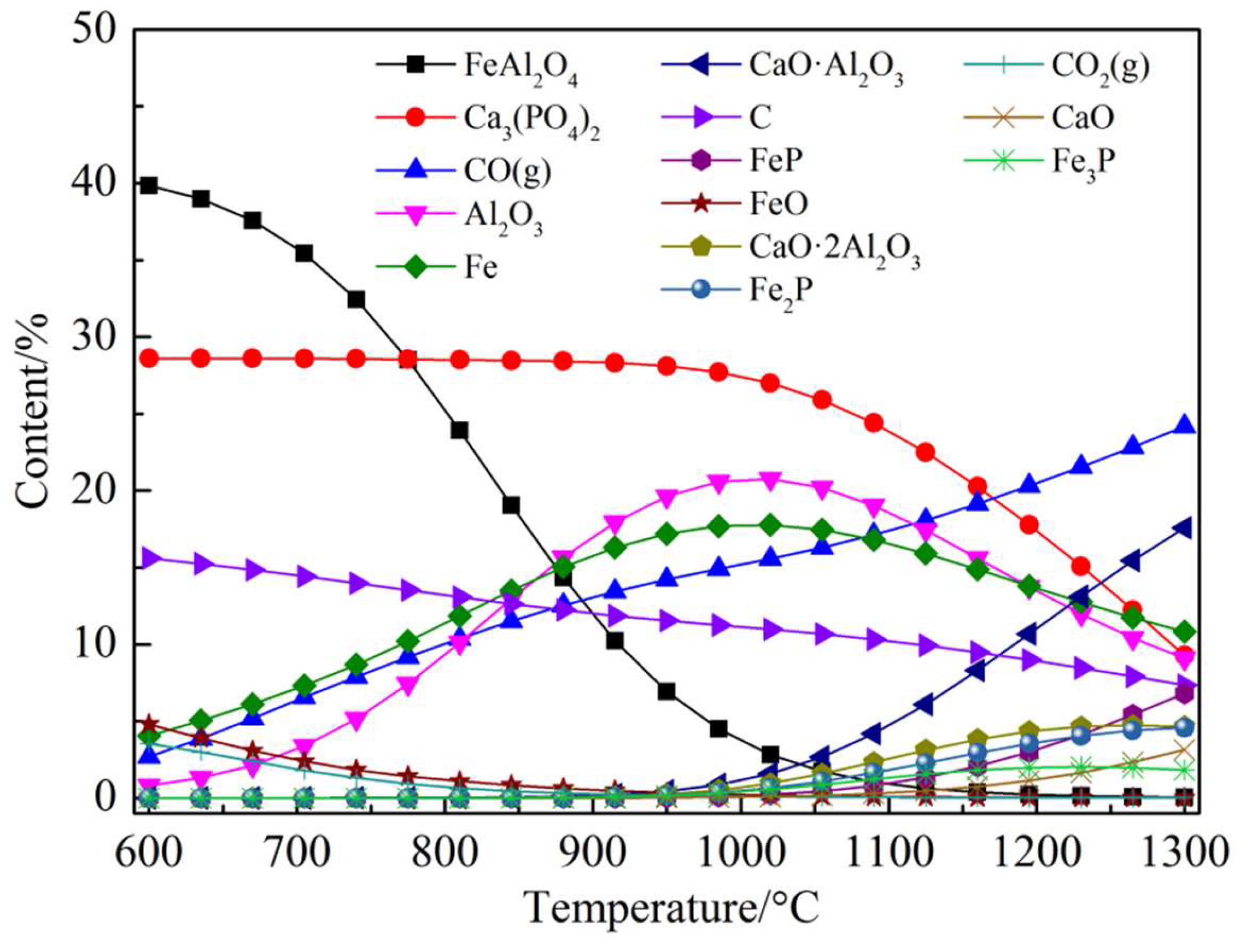

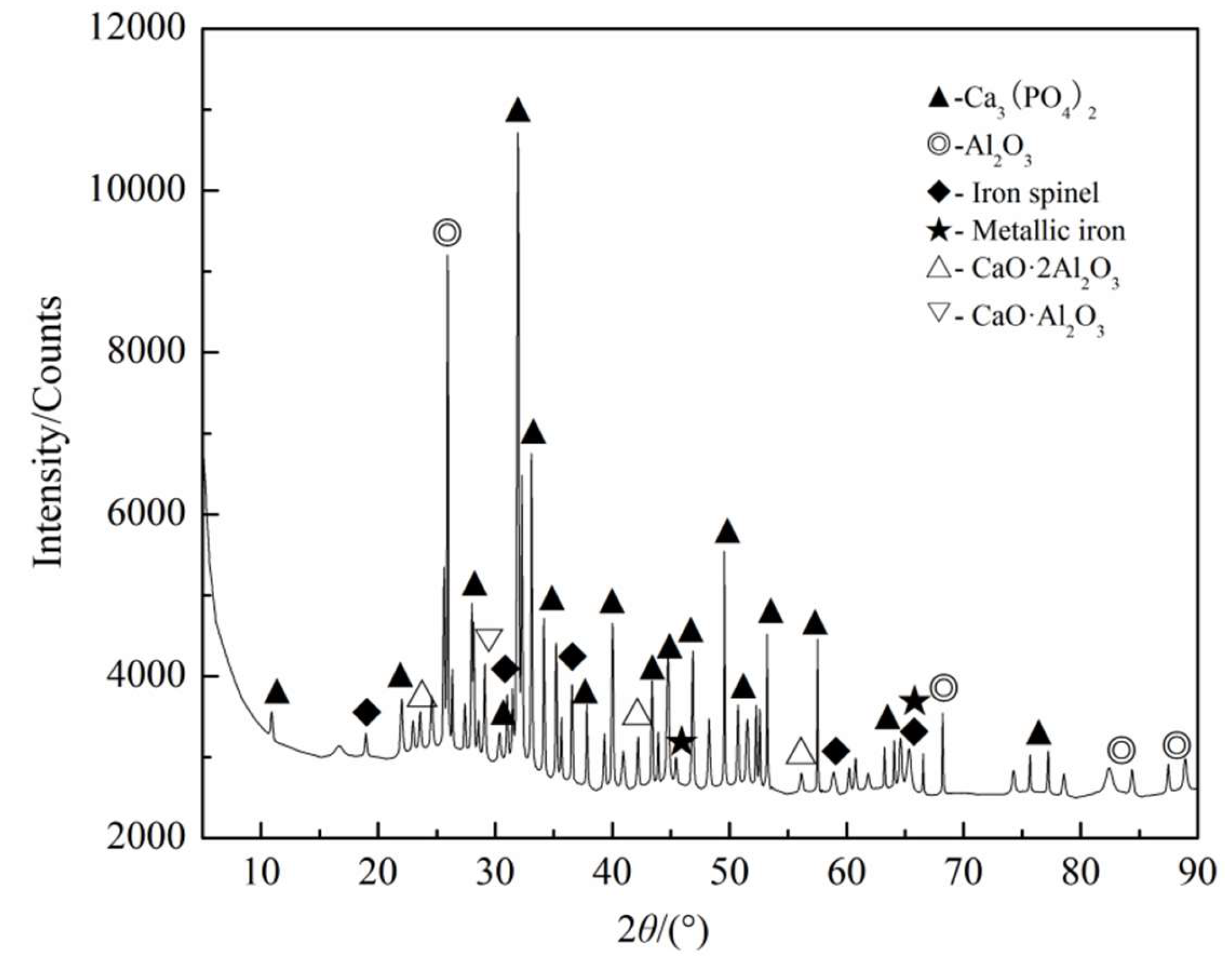

The HSC simulation results of the Ca₃(PO₄)₂–C–Fe₂O₃–Al₂O₃ system are shown in Figure 9. Figure 9 shows that in the Ca₃(PO₄)₂–C–Fe₂O₃–Al₂O₃ system, Fe₂O₃ was reduced to form metal iron, and apatite was reduced to form FeP, Fe₂P, and Fe₃P by combining with iron. There might also be some alumina spinel. Compared with the Ca₃(PO₄)₂–C–Fe₂O₃–SiO₂ system, apatite was not completely reduced. Other solid substances that might be observed were CaO·Al₂O₃ and 2CaO·Al₂O₃. The actual reduction test results are presented in Figure 10. Figure 10 exhibits that iron spinel, CaO·Al₂O_3, and 2CaO·Al₂O₃ were observed in the XRD spectra of reducing materials in the Ca₃(PO₄)₂–C–Fe₂O₃–Al₂O₃ system, which was in good agreement with HSC simulation results. It can be seen from the above that the addition of Al₂O₃ alone could not reduce apatite, so the presence of iron and phosphorus compounds could not be observed. Therefore, the reduction of the Ca₃(PO₄)₂–C–Fe₂O₃–Al₂O₃ system was mainly the reduction of Fe₂O₃.

3.3. Existing Form of Phosphorus

3.3.1. Phosphorus in the Metal Phase

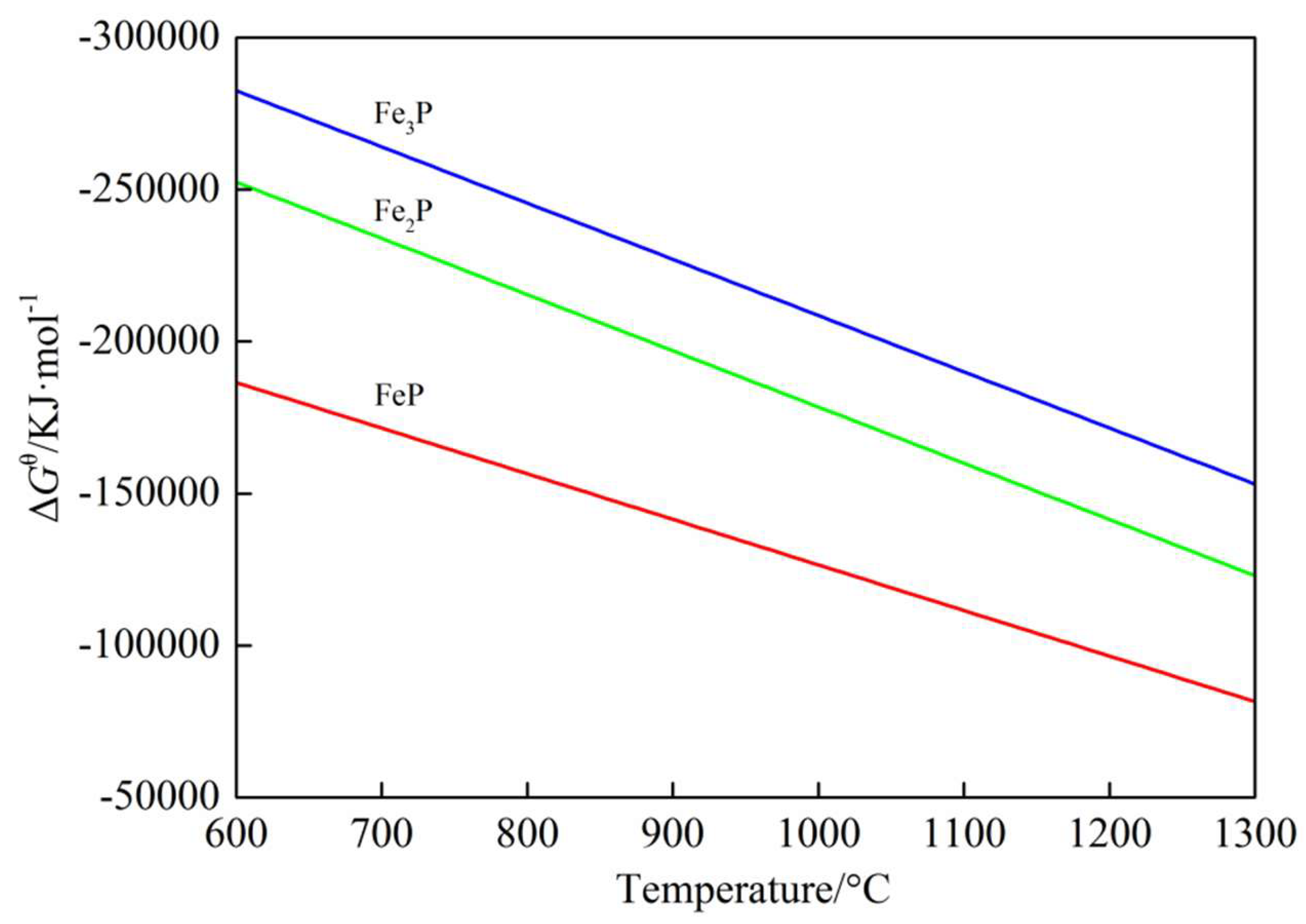

In the field of metallurgy, the phase diagram of the Fe–P system had been agreed that the alloy could form three kinds of compounds—FeP, Fe₂P, and Fe₃P. Based on the atomic and molecular coexistence theory of metal melts containing compounds and the previous research results, the above compounds could exist in high-temperature liquid alloys by comparing and calculating different schemes, and the results were in line with the actual situation. The equation involved is shown in Equations (8)–(10). The relationship between Gibbs free energy and temperature in each reaction is given in Figure 11. It can be found from Figure 11 that according to thermodynamic analysis, three compounds (FeP, Fe₂P, and Fe₃P) could be easily formed in the coal-based reduction process. In theory, the most easily formed substance should be Fe₃P, followed by Fe₂P, and finally, FeP.

$$2\mathrm{Fe} + {\mathrm{P}}_2 \left(\mathrm{g}\right) \to 2\mathrm{FeP}; {\Delta }_r{G}_m^{\theta } = -2765034 + 150\mathrm{T} \mathrm{J}·{\mathrm{mol}}^{-1}$$

(8)

$$4\mathrm{Fe} + {\mathrm{P}}_2 \left(\mathrm{g}\right) \to 2{\mathrm{Fe}}_2\mathrm{P}; {\Delta }_r{G}_m^{\theta } = -363460 + 185\mathrm{T} \mathrm{J}·{\mathrm{mol}}^{-1}$$

(9)

$$6\mathrm{Fe} + {\mathrm{P}}_2 \left(\mathrm{g}\right) \to 2{\mathrm{Fe}}_3\mathrm{P}; {\Delta }_r{G}_m^{\theta } = -393563 + 185\mathrm{T} \mathrm{J}·{\mathrm{mol}}^{-1}$$

(10)

In order to determine the existing form of phosphorus in the metal phase after coal-based reduction of high-phosphorus oolitic hematite, coal-based reduction samples were prepared by reducing high-phosphorus oolitic hematite for 60 min at 1250 °C and C/O molar ratio of 2.0. The metal phase in the sample was observed by scanning electron microscopy, and the surface scanning analysis and spot scanning analysis of Fe and P elements in the metal phase area was carried out. The results are shown in Figure 12 and Figure 13, respectively.

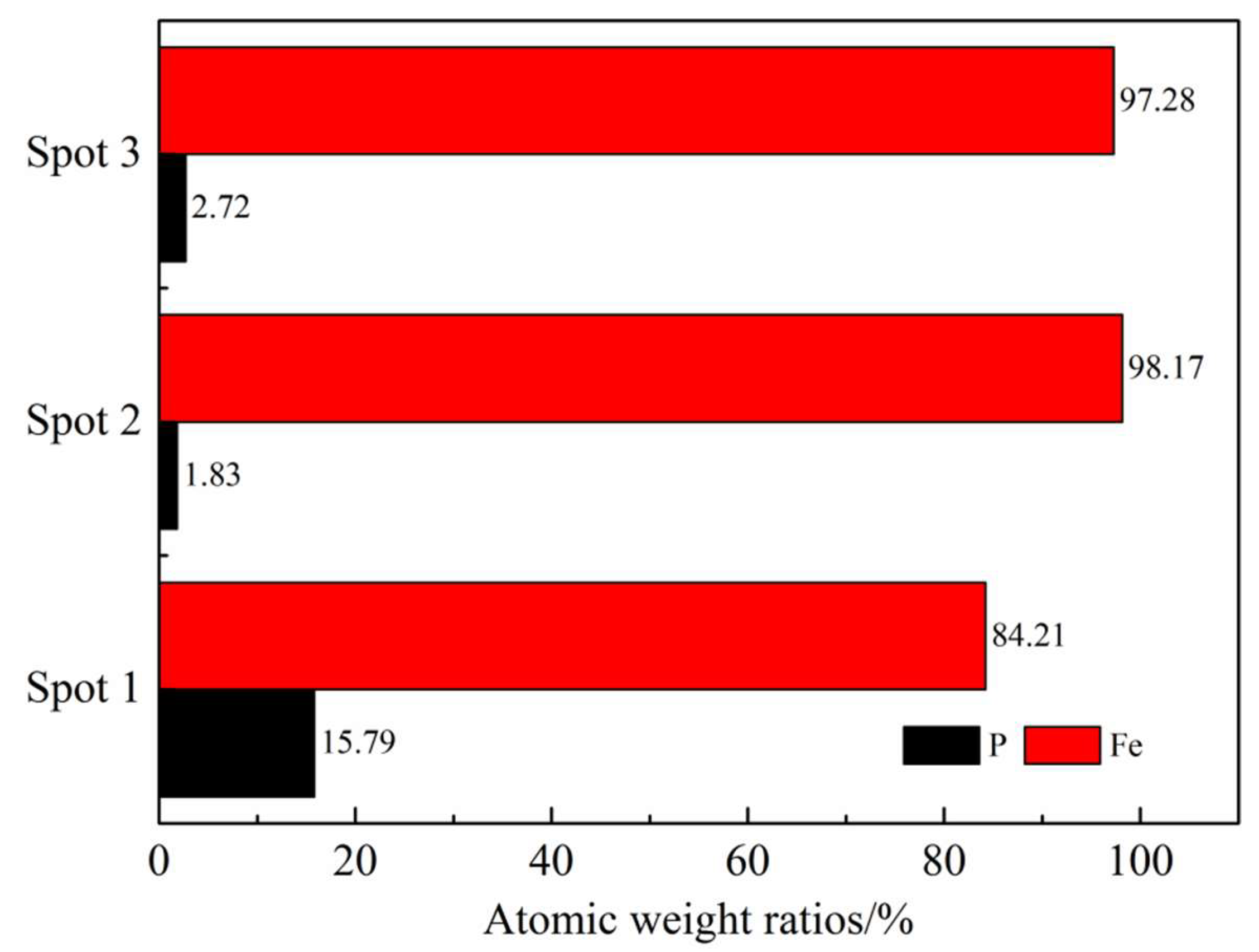

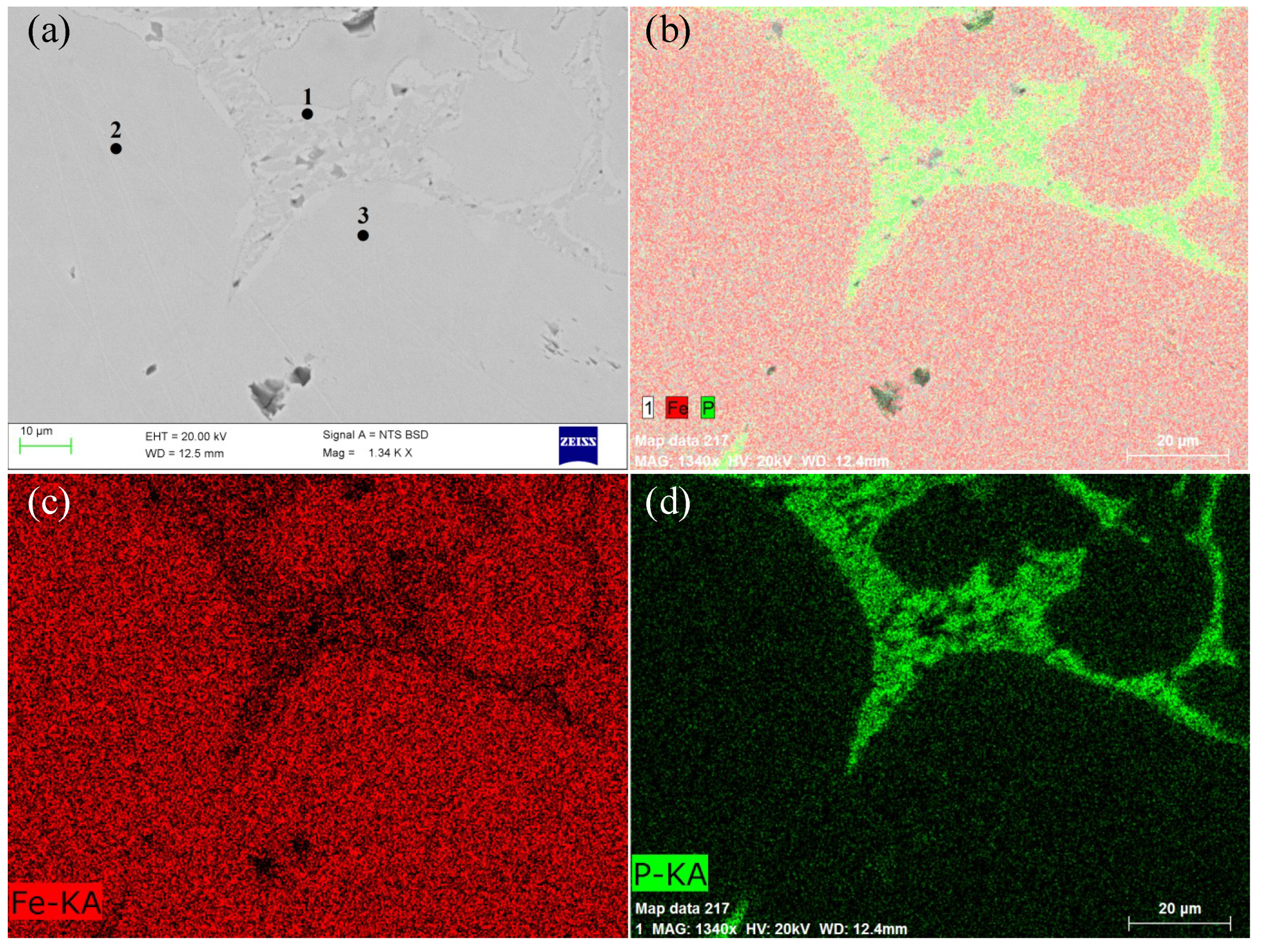

Figure 12 demonstrates clearly that the metal phase was divided into light gray and bright gray. The bright gray area was mainly distributed at the boundary of the metal phase, indicating that the composition of the metal phase was not uniform. From the surface distribution of Fe and P elements, it was found that P elements were mainly concentrated in the bright gray area, while P elements were relatively dispersed in the light gray area. On the contrary, the distribution of Fe elements was in the light gray area. The results show that the content of P was relatively high at the boundary of the metal phase (bright gray area). In order to further clarify the material composition of light gray and bright gray areas in the metallographic phase, an EDS energy spectrometer (Quantax 200 made by Bruker company in Germany) was used to quantitatively analyze the composition of micro-areas in different areas. The results are shown in Figure 13. EDS results show that the main component of light gray and bright gray areas was Fe, which contained a certain amount of P, but the phosphorus content of the two areas was quite different. The content of Fe and P was 84.21% and 15.79% at the position of spot 1 (bright gray area), respectively. The ratio of them was 5.33, which was very close to the mass ratio of Fe and P in Fe₃P (5.42). Therefore, it can be inferred that the material in the bright gray area was Fe₃P. The ratios of Fe and P at spot 2 and spot 3 (light gray region) were 53.64 and 35.76, respectively, which were much larger than 5.42. Meanwhile, SEM images show that the gray region was homogeneous in texture and there was no obvious iron–phosphorus compound phase, indicating that P in this region did not form a compound with Fe, and P should be solute in metal iron.

3.3.2. Phosphorus in the Slag Phase

Scholars at home and abroad had carried out many in-depth and systematic studies on the occurrence and migration of phosphorus in steel slag. The results show that the CaO–SiO₂ phase in the slag phase was the enrichment site of phosphorus, and phosphorus mainly existed in CaO–SiO₂–P₂O₅ solid solution in the CaO–SiO₂ phase [28,29]. Inoue and Suitoo found that the rate of phosphorus transfer to 2CaO·SiO₂ particles was very fast in the slag phase, and homogeneous 2CaO·SiO₂–3CaO·P₂O₅ solid solution phase was formed within five seconds [30,31]. Fukagai et al. [32] studied the formation mechanism of CaO–SiO₂–P₂O₅ solid solution in molten slag at 1573 K. It was found that P₂O₅ in the slag phase diffused rapidly to the interface of 2CaO·SiO₂ and formed CaO–SiO₂–P₂O₅ solid solution phase. Yang et al. [33] studied the distribution of P₂O₅ near the interface between 2CaO·SiO₂ particles and CaO·SiO₂–FeO_x–P₂O₅ slag system. It was considered that P₂O₅ was enriched within a certain range of 2CaO·SiO₂ particles, and the temperature played a positive role in the enrichment of P₂O₅.

In the process of coal-based reduction, phosphorus minerals were indeed reduced to elemental phosphorus. In the range of coal-based reduction temperature, elemental phosphorus exists in the form of a gas phase. The gas-phase form of phosphorus was less stable and could be converted into oxides in the limited oxygen environment. Therefore, when phosphorus migrated in the slag phase, it reacted with a very small amount of CO₂ in the system to form P₂O₅ (sublimation temperature 360 °C) gas. The reaction is shown in Equation (11).

P₂ (g) + 5CO₂ (g) → P₂O₅ (g) + 5CO (g)

(11)

The standard Gibbs free energy change of the above reaction was calculated by HSC Chemistry 6.0 thermodynamic calculation software. The results show that when the temperature was higher than 1177 °C, the standard Gibbs free energy change of reaction Equation (11) began to be less than 0, which indicated that reaction Equation (11) could be carried out. The temperature of coal-based reduction of ore was higher than or close to 1177 °C, which showed that P₂O₅ was formed when phosphorus was reduced through the slag phase. The CaO–SiO₂ phase was the enrichment site of phosphorus in the slag phase. Therefore, the generated P₂O₅ would be captured by CaO–SiO₂ in the slag phase to form CaO–SiO₂–P₂O₅ solid solution.

In order to clarify the existing form of phosphorus in the slag phase of coal-based reduction material of high phosphorus oolitic hematite, the slag phase of reduction sample (reduction temperature 1250 °C, reduction time 60 min, C/O molar ratio 2.0) was also analyzed by SEM. The results are shown in Figure 14.

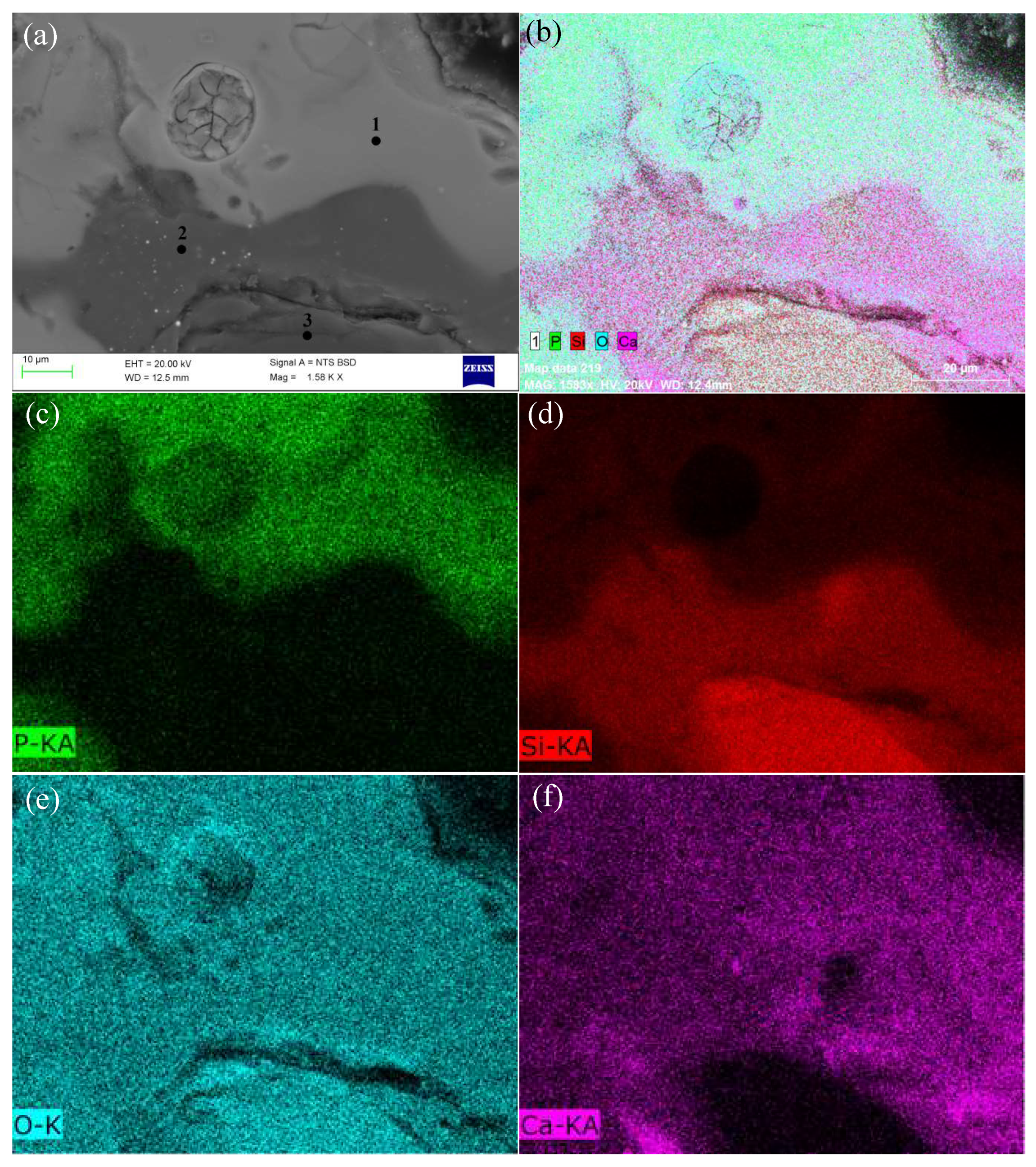

Figure 14 indicates that the slag phase was obviously divided into three areas—gray, dark gray, and light gray. Meanwhile, it can be found that the three areas in the slag phase were homogeneous in texture, indicating that the slag phase was mainly composed of three substances. From the surface distribution of P, Si, O, and Ca elements, it is evident that the distribution of O elements was relatively uniform in the whole scanning area, P elements were mainly concentrated in the gray area, Ca elements were concentrated in the gray area and the dark gray area, Si elements were obviously distributed in the whole scanning area, and the distribution of Si elements was the most concentrated in the light gray area, followed by the gray area. Element surface scanning results show that the gray area was the enrichment site of phosphorus in the slag phase.

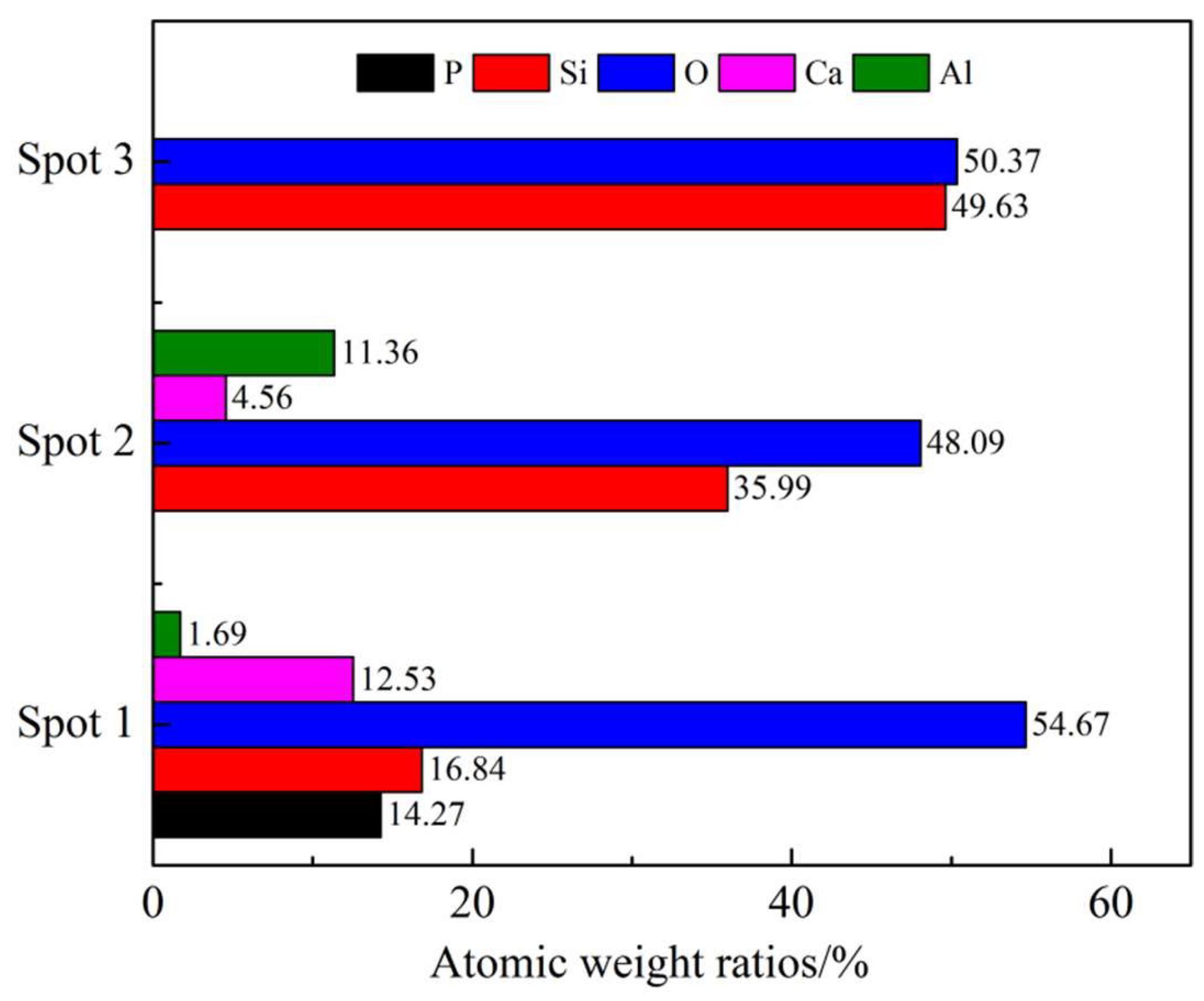

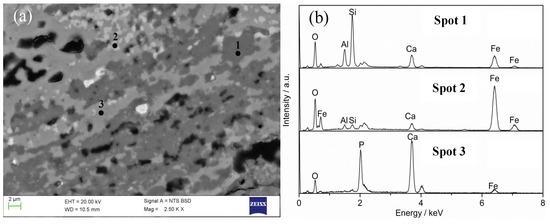

The surface scanning analysis of Si, O, and Ca was not enough to judge the material composition of each region. Therefore, the EDS energy spectrum was used to quantitatively analyze the micro-component of the slag phase. The results are shown in Figure 15. Quantitative analysis by EDS shows that the gray area (spot 1) consisted of P, Si, Ca, Al, and O elements with contents of 14.27%, 16.84%, 12.53%, 54.67%, and 1.69%, respectively; the dark gray area (spot 2) consisted of Si, Ca, Al, and O elements with contents of 35.99%, 4.56%, 11.36%, and 48.09%, respectively; the light gray area (spot 3) consisted of Si and O elements with contents of 49.63% and 50.37%, respectively. When the element content in the above area was converted into oxide content, the material composition in the gray area was mainly 17.54% CaO-36.09% SiO₂-32.68% P₂O₅; the material composition in the dark gray area was 77.12% SiO₂-21.45% Al₂O₃-6.38% CaO; and the material composition of the light gray area was mainly 94.44% of SiO₂. It can be concluded that the gray area was CaO–SiO₂–P₂O₅ solid solution phase, the dark gray area was the SiO₂–Al₂O₃–CaO slag phase, and the light gray area was SiO₂. According to the thermodynamic analysis of the reduction of phosphorus minerals, the phosphorus minerals in ores can only be reduced by solid carbon in the presence of SiO₂. Therefore, the sufficient contact among phosphorus minerals, reductants, and SiO₂ in ores was the necessary condition to realize the reduction of phosphorus minerals. In the coal-based reduction test, the particle size of the ore sample was generally crushed to –2 mm accounts for 100%. It was impossible to completely dissociate phosphorus minerals under this fineness. Therefore, some phosphorus minerals were not in contact with reductant and SiO₂ in the reduction process, which resulted in that the phosphorus minerals could not be reduced and still existed in the reduced material as phosphorus minerals.

However, apatite was not observed in the slag phase of the reduced material under the conditions of reduction temperature 1250 °C, reduction time 60 min, and C/O molar ratio 2.0. The ore contained only 4.26% phosphorus minerals, and a considerable part of phosphorus minerals was reduced during the reduction process, especially when the reduction temperature was higher and the reduction time was longer, the reduction effect was better. Therefore, no apatite was found in the slag phase under this condition. In order to determine whether there was unreacted apatite in the slag phase, the slag phase was analyzed by SEM–EDS under the conditions of reduction temperature 1250 °C, reduction time 20 min, and C/O molar ratio 2.0. As shown in Figure 16, it is clearly observed that there were mainly three different substances in the slag phase. EDS spectra show that the three substances were apatite, ferrous oxide, and iron olivine, which proved that some phosphorus elements existed as apatite in the slag phase.

Based on the above analysis, it can be concluded that there were two forms of phosphorus in the slag phase—one was unreacted apatite, and the other was CaO–SiO₂–P₂O₅ solid solution. In the early stage of coal-based reduction, phosphorus in the slag phase mainly existed in the form of apatite, while in the later stage, it mainly existed in the form of CaO–SiO₂–P₂O₅ solid solution.

4. Conclusions

The reduction behavior of phosphorus minerals and the existing form of phosphorus in reduced materials during the coal-based reduction of high phosphorus oolitic hematite were systematically studied using XRD, SEM–EDS, and HSC simulation software. The following conclusions were obtained: The reduction of apatite was promoted by providing the most inclined enrichment site of phosphorus (metallographic phase), while Al₂O₃ played a certain role in promoting the reduction of apatite in the presence of SiO₂ after Fe₂O₃ was reduced to metal iron. Phosphorus existed mainly in two forms in the metal phase—one was in the form of Fe₃P compound at the boundary of the metal phase, and the other was in the form of the solid solution in the metal iron. There were two forms of phosphorus in the slag phase—one was unreacted apatite, and the other was CaO–SiO₂–P₂O₅ solid solution. In the early stage of coal-based reduction, phosphorus in the slag phase mainly existed in the form of apatite, while in the later stage, it mainly existed in the form of CaO–SiO₂–P₂O₅ solid solution.
