Carbon-Assisted Bioleaching of Chalcopyrite and Three Chalcopyrite/Enargite-Bearing Complex Concentrates

Abstract

Overcoming the slow-leaching kinetics of refractory primary copper sulfides is crucial to secure future copper sources. Here, the effect of carbon was investigated as a catalyst for a bioleaching reaction. First, the mechanism of carbon-assisted bioleaching was elucidated using the model chalcopyrite mineral, under specified low-redox potentials, by considering the concept of E_normal. The carbon catalyst effectively controlled the E_h level in bioleaching liquors, which would otherwise exceed its optimal range (0 ≤ E_normal ≤ 1) due to active regeneration of Fe³⁺ by microbes. Additionally, E_normal of ~0.3 was shown to maximize the carbon-assisted bioleaching of the model chalcopyrite mineral. Secondly, carbon-assisted bioleaching was tested for three types of chalcopyrite/enargite-bearing complex concentrates. A trend was found that the optimal E_h level for a maximum Cu solubilization increases in response to the decreasing chalcopyrite/enargite ratio in the concentrate: When chalcopyrite dominates over enargite, the optimal E_h was found to satisfy 0 ≤ E_normal ≤ 1. As enargite becomes more abundant than chalcopyrite, the optimal E_h for the greatest Cu dissolution was shifted to higher values. Overall, modifying the E_h level by adjusting AC doses to maximize Cu solubilization from the concentrate of complex mineralogy was shown to be useful.

1. Introduction

To satisfy the world’s increasing copper demand, refractory primary copper sulfides, represented by chalcopyrite (CuFeS₂), are now also considered a critical copper source. Despite its refractoriness, chalcopyrite constitutes a dominant component of porphyry copper deposits and accounts for approx. 70% of the world’s copper reserves [1]. Therefore, researchers have been trying to overcome chalcopyrite’s slow-leaching kinetics through a number of chemical leaching studies using a variety of lixiviant. While the formation of secondary minerals, such as elemental sulfur (S⁰), disulfide (S₂²⁻), polysulfide (S_n²⁻) (metal deficient sulfide) and Fe oxyhydroxide (jarosite-like species), have been proposed [2], the nature of the chalcopyrite surface transition is still debated. On the one hand, such surface passivation layers were suggested to hinder chalcopyrite chemical leaching (e.g., [3,4,5]). On the other hand, it was suggested that porous S⁰ layers do not impede the leaching efficiencies [4,6,7,8]. Nonetheless, it is generally recognized that one of the most critical factors ruling the chalcopyrite leaching efficiency is the solution redox potential (E_h).

It was suggested by Viramontes-Gamboa et al. [5,9] that chalcopyrite leaching with ferric sulfate is in its active state at <685 mV (SHE), regardless of impurities in the chalcopyrite or the acidity and temperature of the reaction. In the range of 685–755 mV (SHE), chalcopyrite is in its bistable state (either passive or active, depending on how it was brought to that potential). Chalcopyrite leaching comes in its passive state at >755 mV (SHE) due to a strong passivation effect [5,9].

A series of electrochemical/chemical leaching studies of chalcopyrite by Hiroyoshi et al. [10,11] proposed the E_h-controlled chalcopyrite dissolution mechanism, in which chalcopyrite leaching in ferric sulfate is promoted by Fe²⁺ and Cu²⁺ to form intermediate chalcocite (Cu₂S) at low E_h (1). Cu₂S is then oxidized by Fe³⁺ to yield Cu²⁺ (2):

Cu^IFe^IIIS^−II₂ (chalcopyrite) + 3Cu²⁺ + 3Fe²⁺ → 2Cu^I₂S^−II (chalcocite) + 4Fe³⁺

(1)

Cu₂S (chalcocite) + 4Fe³⁺ → 2Cu²⁺ + S⁰ + 4Fe²⁺

(2)

Copper dissolution is promoted within the range of E_ox < E_h < E_c, with an optimal E_h of 630 mV (SHE) [10,12], where E_c (“critical potential”): the equilibrium redox potential of the formation of the intermediate chalcocite from chalcopyrite

$$(E_{\mathrm{c}} (\mathrm{V}) = E_{\mathrm{c}}^0 + \frac{\mathrm{RT}}{4\mathrm{F}} \ln \frac{{\left(a_{C{u}^{2+}}\right)}^3}{a_{F{e}^{2+}}})$$

(3)

E_ox (“oxidation potential”): the equilibrium redox potentials of the subsequent oxidation of chalcocite

$${\mathrm{Cu}}^{2+} (E_{\mathrm{ox}} (\mathrm{V}) = E_{\mathrm{ox}}^0 + \frac{\mathrm{RT}}{4\mathrm{F}} \ln {\left(a_{C{u}^{2+}}\right)}^2)$$

(4)

Here, experimental conditions (i.e., metal ion concentrations, solid/liquid ratios and co-existing minerals) can affect the optimal E_h value for Cu solubilization, causing misleading interpretation of data produced under different conditions [10,11,13,14]. To define the optimal E_h regardless of such conditional differences, the “normalized redox potential (E_normal)” was proposed, with its optimal range being 0 ≤ E_normal ≤ 1 (greatest Cu solubilization rate achieved at E_normal ≈ 0.43 at 30 °C [10,11,13,14]:

E_normal = (E_h − E_ox)/(E_c − E_ox)

(5)

In the case of bioleaching studies of chalcopyrite, Gericke et al. [15] and Ahmadi et al. [16,17] reported the advantages of E_h control (via electrochemical reduction or oxygen arrest) at 600–650 mV (SHE), owing to the suppression of pyrite oxidation and thereby preventing jarosite passivation. These were followed by our E_h-controlled bioleaching study using “weak” Fe²⁺-oxidizing microorganisms [18]. Masaki et al. [18] reported the reaction rate-limiting step being dependent on E_h and successfully clarified the chalcopyrite bioleaching efficiency by incorporating the concept of E_normal: Controlling the optimal E_h level to satisfy 0 ≤ E_normal ≤ 1 (especially at E_normal = ~0.35 at 45 °C) was critical in promoting steady Cu solubilization by a surface chemical reaction.

So far, other studies on AC-assisted bioleaching of chalcopyrite attributed the effect of AC to the galvanic interaction between electrically nobler AC and electrically poorer chalcopyrite, as well as the lowered E_h level as the driving force for the mineral dissolution [19,20,21,22,23]. Still, its detailed mechanism is unclear, and the concept of E_normal has yet to be verified in the AC-assisted bioleaching system of chalcopyrite. Hence, the first objective of the present study was set to clarify the catalytic function of AC in bioleaching of the model chalcopyrite, especially in the viewpoint of E_normal as well as a possible galvanic effect.

In practice, multiple mineral types co-exist in ore concentrates. Enargite (Cu₃AsS₄) is another refractory primary copper sulfide often concomitant with chalcopyrite. The fundamental difference between the two is that unlike chalcopyrite leaching, which favors the controlled E_h level, the dissolution of the enargite mineral itself prefers a strong oxidizing condition [24]. Therefore, in such situations where chalcopyrite and enargite co-exist in the concentrate, the interpretation of AC’s catalytic function can become complicated. So far, the E_normal theory has been proposed only for the chalcopyrite leaching behavior [10,11,13,14] but not for enargite.

Ahead of the present study on chalcopyrite, we have reported the catalytic mechanism of AC-assisted bioleaching of enargite concentrate (37.4% enargite and 47.3% pyrite) with moderately thermophilic microorganisms at 45 °C [25]. The enargite mineral itself favored higher E_h for solubilization. However, the dissolution of co-existing pyrite, which also favors high E_h, immediately hindered enargite dissolution through the surface passivation. The AC surface functioned as an electron mediator to couple RISCs’ oxidation and Fe³⁺ reduction, thus lowering the E_h by offsetting microbial Fe³⁺ regeneration. By controlling at E_h < 700 mV, the pyrite dissolution was largely suppressed, which in turn enabled a steady and continuous dissolution of enargite [25]. By combining these findings on the AC-assisted enargite bioleaching mechanism [25], the second objective of the present study was set to test three types of chalcopyrite/enargite-bearing complex concentrates for the AC-assisted bioleaching in order to compare and clarify their leachability with regard to the E_h profile.

2. Materials and Methods

2.1. Minerals

Nearly pure chalcopyrite with pyrite as a minor constituent (S 37.1%, Cu 32.7% and Fe 28.8% [18]; D₅₀ = 25 μm) was used as a model mineral. Additionally, three types of chalcopyrite/enargite-bearing complex concentrates, D3 (D₅₀ = 39 μm), Eb (D₅₀ = 81 μm) and Ea (D₅₀ = 49 μm), were used (Figure 1). Chalcopyrite was washed with 1 M HNO₃, deionized water and 100% ethanol, followed by freeze-drying overnight and sterilization by autoclaving prior to use. Other concentrates were used as received, without washing and sterilization.

2.2. Microorganisms

Four moderately thermophilic, acidophilic microorganisms were used as different mixed cultures in this study: (i) Fe-oxidizing archaeon, Acidiplasma sp. Fv-Ap; (ii) S-oxidizing bacterium, Acidithiobacillus (At.) caldus KU (DSM 8584^T); (iii) Fe-oxidizing bacterium, Acidimicrobium (Am.) ferrooxidans ICP (DSM 10331^T); (iv) Fe/S-oxidizing bacterium Sulfobacillus (Sb.) sibiricus N1 (DSM 17363^T). They were maintained and pre-grown aerobically at 45 °C in heterotrophic basal salts (HBS) medium [25] (pH 1.5 adjusted with 1 M H₂SO₄). For Acidiplasma sp. Fv-Ap, Am. ferrooxidans ICP, and Sb. sibiricus N1 and 0.02% (w/v) yeast extract plus 10 mM Fe²⁺ (added as FeSO₄ 7H₂O) were added. For At. caldus KU, 0.1% (w/v) S⁰ plus 0.1% (v/v) of trace elements stock solution (10 mg/L ZnSO₄ 7H₂O, 1 mg/L CuSO₄ 5H₂O, 1.09 mg/L MnSO₄ 5H₂O, 1 mg/L CoSO₄ 7H₂O, 0.39 mg/L Cr₂(SO₄)₃ 7H₂O, 0.6 mg/L H₂BO₃, 0.5 mg/L Na₂MoO₄ 2H₂O, 0.1 mg/L NaVO₃, 1 mg/L NiSO₄ 6H₂O, 0.51 mg/L Na₂SeO₄, 0.1 mg/L Na₂WO₄ 2H₂O) were added.

2.3. Carbon-Assisted Bioleaching Tests of the Model Chalcopyrite

Bioleaching tests were conducted in 500 mL flasks containing 200 mL HBS media (pH 1.5 adjusted with 1 M H₂SO₄) with 5 mM Fe²⁺ (as FeSO₄ 7H₂O), 0.01% (w/v) S⁰ and 1% (w/v) chalcopyrite. Pre-grown cells (as described in Section 2.2) of Acidiplasma sp. Fv-Ap and At. caldus KU were harvested at the early stationary phase by centrifugation (9000 rpm, 10 min at 4 °C), washed with fresh medium and inoculated to an initial cell density of 1.0 × 10⁷ cells/mL (2.0 × 10⁷ cells/mL in total). The mixed culture of the two strains was shown to exhibit high E_h (>800 mV) during the bioleaching of chalcopyrite [18]. In order to first compare two different carbon materials, namely, powdery activated carbon (AC; Wako; 46.5 µm, 1400 m²/g) and milled carbon fiber (CF; CFMP-30X, Nippon Polymer; 30.6 µm; 6.2 m²/g), chalcopyrite bioleaching tests were conducted at different AC (0%, 0.025%, 0.05% or 0.1% (w/v) and CF (0%, 0.5%, 1.0% or 2.0% (w/v)) doses. The flasks were incubated aerobically and shaken at 45 °C and 150 rpm. Cell-free flasks were set up in parallel. All tests were done in duplicate flasks.

2.4. Activated Carbon-Assisted Bioleaching of Three Types of Chalcopyrite/Enargite-Bearing Complex Concentrates (D3, Eb and Ea Concentrates)

Bioleaching tests were conducted in 500 mL flasks containing 200 mL HBS media (pH 1.5 adjusted with 1 M H₂SO₄) with 5 mM Fe²⁺ (as FeSO₄ 7H₂O), 0.01% (w/v) S⁰, 0.01% (w/v) yeast extract and 1% (w/v) D3, Eb or Ea concentrate. Pre-grown cells (as described in Section 2.2) of Acidiplasma sp. Fv-Ap, Am. ferrooxidans ICP, Sb. sibiricus N1 and At. caldus KU were harvested at the early stationary phase by centrifugation (9000 rpm, 10 min at 4 °C), washed with fresh medium and inoculated to an initial cell density of 1.0 × 10⁷ cells/mL (4.0 × 10⁷ cells/mL in total). The mixed culture of the latter three strains was shown to exhibit high E_h (>800 mV) during the bioleaching of chalcopyrite and was effective in the oxidative dissolution of arsenopyrite while releasing over 15 mM total arsenic [26]. Powdery activated carbon (Section 2.3) was added at 0% or 0.05% (w/v) to D3 concentrate and at 0%, 0.05% or 0.3% (w/v) to Eb and Ea concentrates. The flasks were incubated aerobically and shaken at 45 °C and 150 rpm. The culture pH was manually adjusted (using H₂SO₄) to 1.5 twice on days 2 and 3 for the D3 concentrate and once on day 4 for the Eb concentrate. No manual pH re-adjustment was done for the Ea concentrate. Cell-free flasks were set up in parallel. All tests were done in duplicate flasks.

2.5. Solution and Solid Residue Analyses

Liquid samples were regularly taken to monitor pH, E_h (vs. SHE), cell density (direct count of planktonic cells using a Thoma cell-counting chamber) and concentrations of total soluble Cu, As, Fe (Inductively Coupled Plasma Optical Emission Spectrometry (ICP-OES); PerkinElmer Optima 8300 DV) and Fe²⁺ (o-phenanthroline method). Leaching residues were collected at the end of the experiment and freeze-dried overnight for X-Ray Diffraction (XRD; Ultima IV, Rigaku; CuKα 40 mA, 40 kV) analysis and Scanning Electron Microscope (SEM; VE-9800, KEYENCE) observation.

2.6. Electrochemical Galvanic Current Measurement

Three mineral electrodes (1 cm³ cube of pure chalcopyrite, pasted and solidified AC or CF) were prepared and polished by emery-paper to provide a fresh flat surface before each measurement. Solutions with varying E_h values were prepared using 0.1 M H₂SO₄ solution containing 0.1 M Fe with different Fe²⁺/Fe³⁺ ratios, to adjust E_h to 0.56, 0.62, 0.68, 0.74 and 0.8 V (vs. SHE). The E_h values were measured with the Ag/AgCl reference electrode and the Pt working electrode. The Pt electrode was then replaced with each of the mineral electrodes to measure mineral potentials (E_Cp, E_AC and E_CF, respectively, for 300 s) using the electrochemical analyzer (1280C, Solartron Analytical). The ΔE_AC−Cp and ΔE_CF−Cp values were defined as the galvanic electromotive force between the two minerals. The galvanic current between the two minerals (I_AC−Cp or I_CF−Cp) was measured (300 s) by connecting the chalcopyrite electrode to either the CF electrode or the AC electrode, which was done by applying the galvanic electromotive force (ΔE_Cp−AC or ΔE_Cp−CF) to simulate the galvanic interaction between the two minerals. All tests were done in duplicate flasks.

3. Results and Discussion

3.1. Carbon-Assisted Bioleaching of the Model Chalcopyrite

3.1.1. Synergistic Effect of Carbon Material and Microorganisms

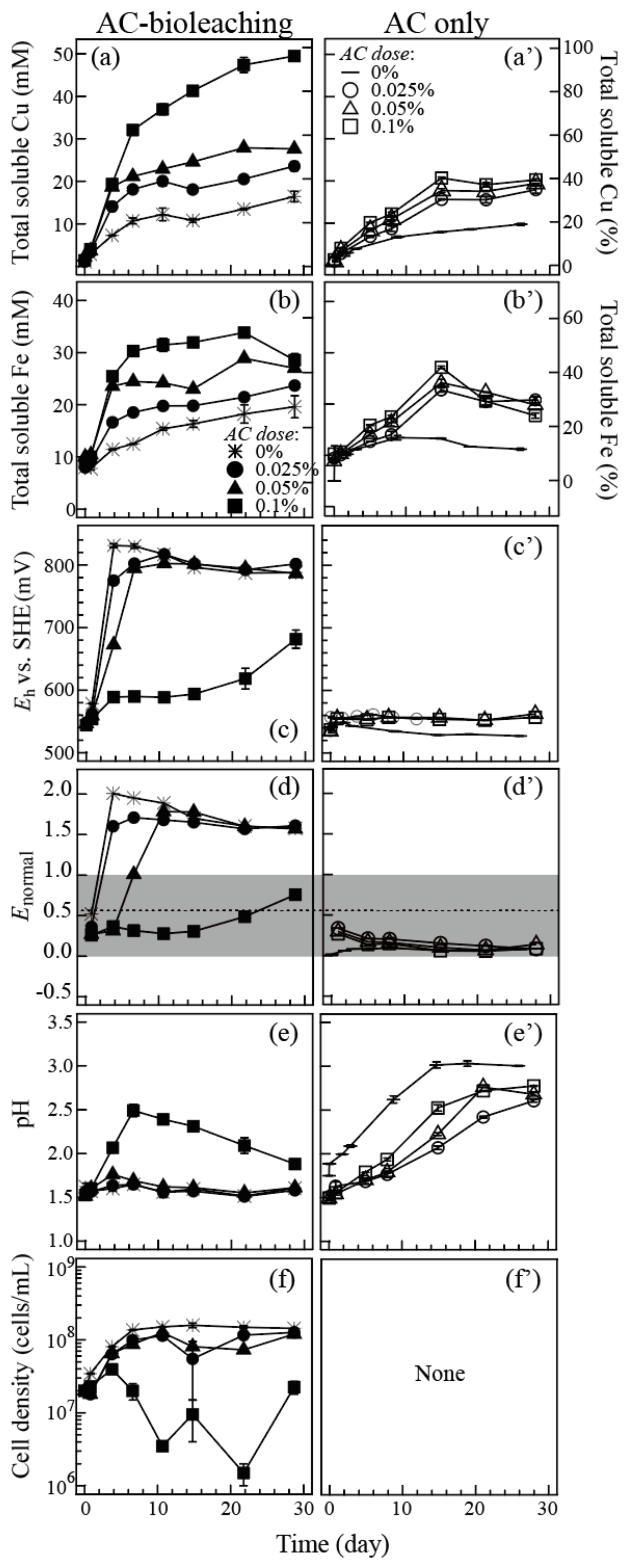

The AC-assisted leaching behavior of chalcopyrite was compared with and without bioleaching microorganisms in Figure 2. Real-time concentrations of Fe²⁺ and Cu²⁺ were incorporated into Equations (3) and (4) to calculate the E_normal value defined by Equation (5).

In AC-free bioleaching cultures, E_h rapidly jumped to >800 mV (E_normal~2) due to the active microbial Fe²⁺ oxidation (Figure 2c,d), consequently leading to the least Cu and Fe dissolutions from the mineral (Figure 2a,b). By elevating the AC dose, the E_h was increasingly suppressed, and the E_normal remained in its optimal range (0 ≤ E_normal ≤ 1) at 0.1% AC throughout the leaching period (Figure 2d). As a result, Cu readily dissolved to near completion at 0.1% AC (Figure 2a). The pH profiles seen in AC-bioleaching cultures are the net result of H⁺ consumption (by chalcopyrite dissolution and Fe²⁺ oxidation reactions) and H⁺ production (by microbial sulfur oxidation). The net pH increase from 1.5 to 2.5 was seen only at the highest AC dose of 0.1%, where the extensive chalcopyrite dissolution was promoted (Figure 2e). The planktonic cell count was unstable and even decreased at the highest AC dose of 0.1% AC, likely reflecting the attachment of cells on the AC surface as well as AC’s possible inhibitory effect on the cell growth (Figure 2f).

In the cell-free control tests, the presence of AC exhibited a slight chemical Fe²⁺ oxidation (coupled with the reduction of atmospheric oxygen on the AC surface), as can be seen from the E_h and E_normal profiles (Figure 2c,d, respectively). This promoted some chalcopyrite dissolution, but the E_h levels were generally too low to enable extensive chalcopyrite dissolution even at the highest AC dose of 0.1% (Figure 2a). A much more apparent pH increase was seen in cell-free controls due to the lack of microbial culture acidification (Figure 2e’).

Overall, a similar observation was made when CF, instead of AC, was added as a catalyst (Supplementary Materials Figure S1). However, the much larger specific surface area of AC (1400 m²) rather than CF (6.2 m²) made the former much more effective and practical in controlling the E_h level at lower doses. Both AC and CF were shown to start losing their catalytic effect during the bioleaching reaction due to the jarosite passivation onto the surface (Figure S2). Having a smaller surface area than AC, CF lost its E_h-controlling effect midway even at the highest dose of 2.0% (Figure S1d).

The above results suggest that carbon materials themselves possess some chemical Fe²⁺ oxidation ability, which induces abiotic chalcopyrite leaching but only to a limited extent. The synergistic combination of bioleaching microorganisms and carbon materials (especially AC with a larger specific surface area) exhibit the greatest chalcopyrite leaching efficiency, wherein the AC dose should be fixed to fit the culture E_h within the range of 0 ≤ E_normal ≤ 1 (“active region” for chalcopyrite dissolution) [10,11].

3.1.2. Galvanic Interaction between Carbon Material and Chalcopyrite

As the catalytic mechanism of AC, other researchers suggested the contribution of galvanic interaction between the surface of chalcopyrite and AC during bioleaching [19,20,21]. However, whether or not such galvanic interaction can significantly add extra leaching effect under the E_h-controlled leaching situation is unclear.

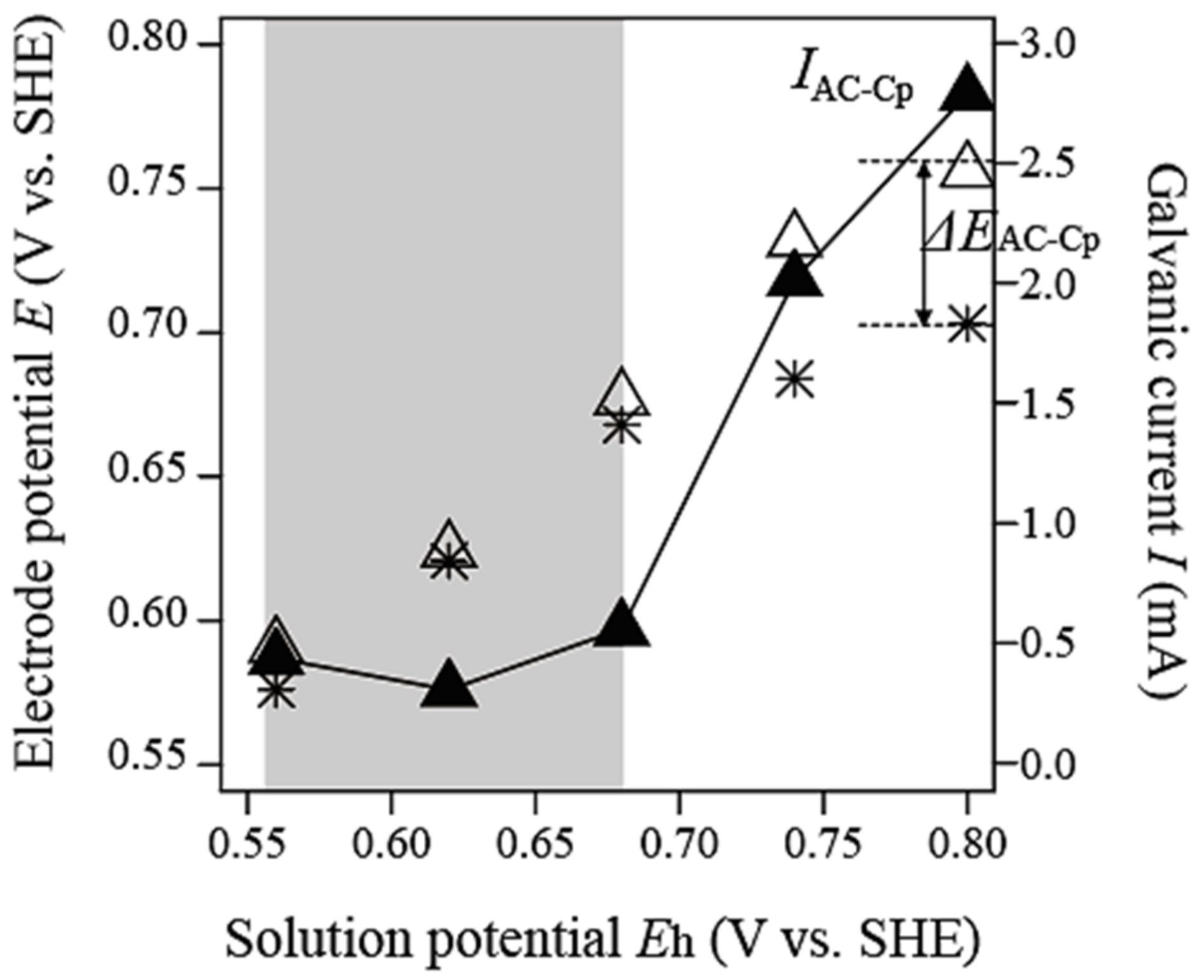

Figure 3 shows that the electrode potential of chalcopyrite (E_Cp) and AC (E_AC) are nearly identical and equaled E_h in the E_h range of 0.55–0.68 V, but then E_Cp started to level off at higher E_h. This indicates that the electromotive force generated between chalcopyrite and AC (ΔE_AC−Cp) is negligible at 0.55 ≤ E_h ≤ 0.68 V but becomes noticeable at E_h > 0.68 V. This trend was consistent with that of galvanic currents measured between chalcopyrite and AC (I_AC−Cp). A similar observation was made using CF (Figure S3). According to this result (Figure 3), Cu solubilization behaviors observed under the elevated E_h level (i.e., ~800 mV at 0%, 0.025% and 0.05% AC; Figure 2a,c) in bioleaching cultures should have received the greatest galvanic effect. However, the extent of Cu solubilization in such high E_h-bioleaching cultures was still significantly lesser than that in the E_h-controlled bioleaching culture using 0.1% AC.

These results suggest that the primary catalytic role of AC is to control the E_h level by its Fe³⁺-reducing ability to provide the optimal E_h range (0 ≤ E_normal ≤ 1, “active region”) and facilitate chalcopyrite dissolution. Under such an E_h–controlled condition, the galvanic interaction seemed to make a minor (if any) contribution to its catalytic mechanism.

3.1.3. Correlation between the Cu Dissolution Rate and E_normal

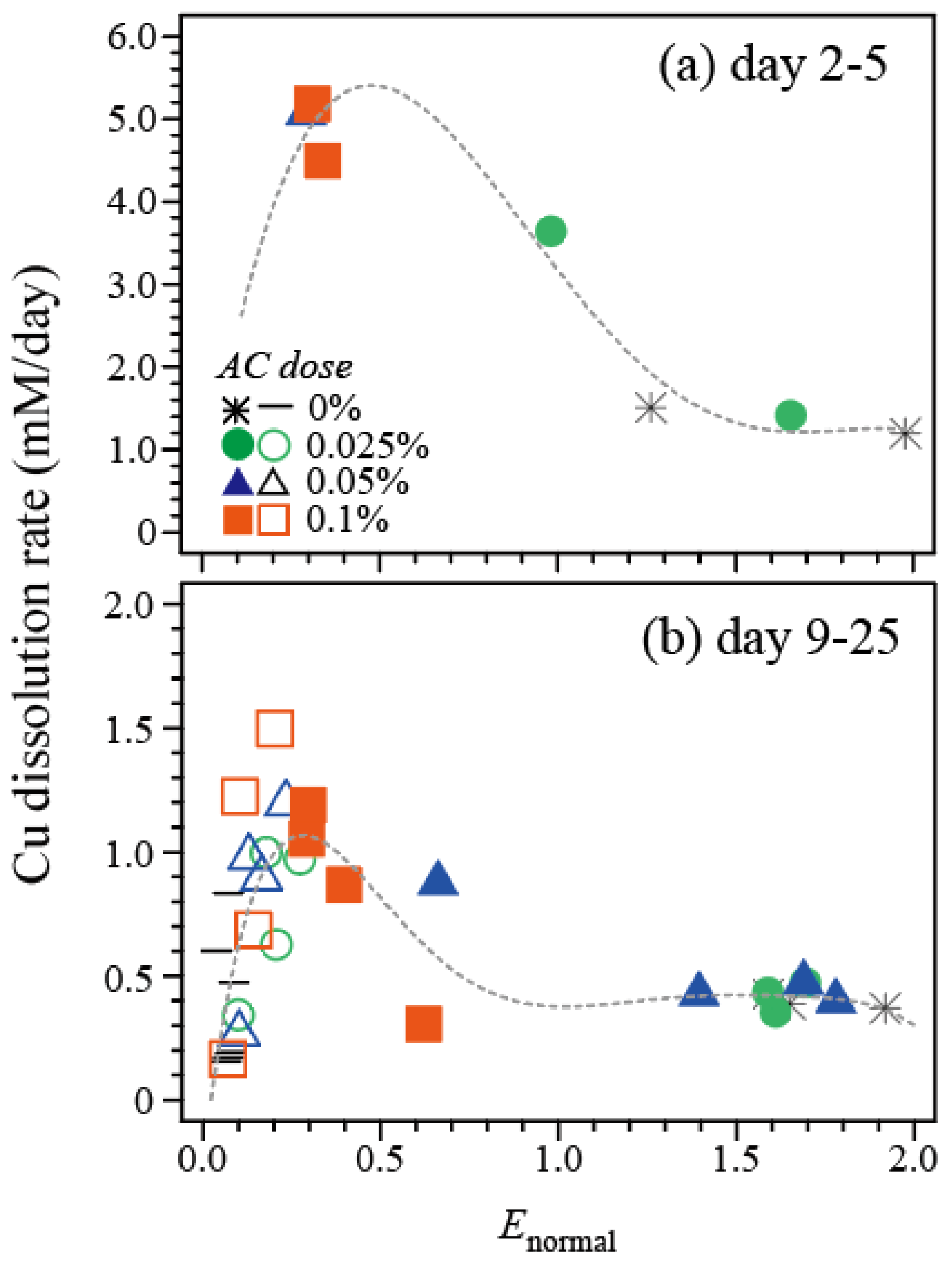

The correlation between the Cu dissolution rate versus E_normal is summarized in Figure 4. The maximum Cu dissolution rate was achieved at around E_normal = 0.4–0.5 at the initial leaching phase (day 2–5; Figure 4a) and E_normal = ~0.3 at the mid–end leaching phase (day 9–25; Figure 4b). The higher optimum (0.4–0.5) shown at the former leaching phase (Figure 4a) might have resulted from the presence of a minor amount of Cu oxides/secondary Cu sulfides.

Compared to the optimum E_normal = 0.43 initially reported by Hiroyoshi et al., (using 30 °C) [10,11], the value was lower in this study (~0.3) and our previous study (~0.35) [18] (both using 45 °C). The difference was likely caused by the higher temperature and the activity of moderately thermophilic microorganisms used for the leaching test, which facilitated the kinetics of chalcocite-intermediate reactions at even lower E_h levels. Masaki et al. [18] found that the bioleaching efficiency of chalcopyrite can be effectively evaluated on the basis of E_normal, and that microbial E_h control is possible using a “weak” Fe²⁺-oxidizing microorganism [18]. However, natural ecosystems existing in the real bioleaching situations generally raise E_h when active, and artificially modifying such indigenous microbial consortium is unpractical. The findings of this study indicate that AC dosing is indeed a useful approach in modifying the E_h level in bioleaching cultures, where the E_h level otherwise exceeds the optimal range due to active microbial Fe²⁺-oxidation.

3.2. Activated Carbon (AC)-Assisted Bioleaching of Three Types of Chalcopyrite/Enargite-Bearing Complex Concentrates

The carbon-assisted bioleaching mechanism of chalcopyrite was described in Section 3.1 by using nearly pure chalcopyrite as a model mineral. In practice, however, multiple mineral types often co-exist in ore concentrates. Enargite (Cu₃AsS₄) is another refractory primary copper sulfide often concomitant with chalcopyrite.

Our previous AC-assisted bioleaching study on enargite concentrate [25] suggested that the overall Cu dissolution from enargite is governed mainly by the AC’s E_h-suppressing effect rather than the galvanic interaction under the E_h control at <700 mV. Together with the results obtained in Section 3.1, it can be said that the primary function of AC in the dissolution of both minerals is its E_h-controlling effect rather than its galvanic interaction with them. Nevertheless, the degree of E_h control needed for chalcopyrite and enargite is different. The concept of E_normal has been proposed for chalcopyrite [10,11], but not for enargite. Controlling at E_normal = 0.3–0.35 was shown to be optimal for the chalcopyrite bioleaching when using moderately thermophilic microorganisms at 45 °C (this study and [18]). On the other hand, while enargite mineral itself prefers higher E_h for dissolution, controlling the E_h < 700 mV was essential for enargite leaching so as to avoid its surface passivation, which immediately hinders its solubilization [25]. In this section, three types of chalcopyrite/enargite-bearing concentrates were chosen to see how the E_h control by AC affects the bioleaching efficiency of the concentrates of such complex mineralogy. The overall mineral compositions of the three concentrates are shown in Figure 1. All three concentrates contain several different Cu minerals, including both relatively amenable (geerite, chalcocite and bornite) and refractory Cu sulfides (chalcopyrite and enargite) as major components. Theoretical Cu atomic % deriving from each Cu mineral upon its complete dissolution was calculated and summarized in Figure 5. The chalcopyrite/enargite ratio (Cha/Ena) ranges in descending order, from 2.5 (wt)/5.4 (mol) (Eb concentrate), 0.6 (wt)/1.2 (mol) (D3 concentrate) to 0.3 (wt)/0.7 (mol) (Ea concentrate).

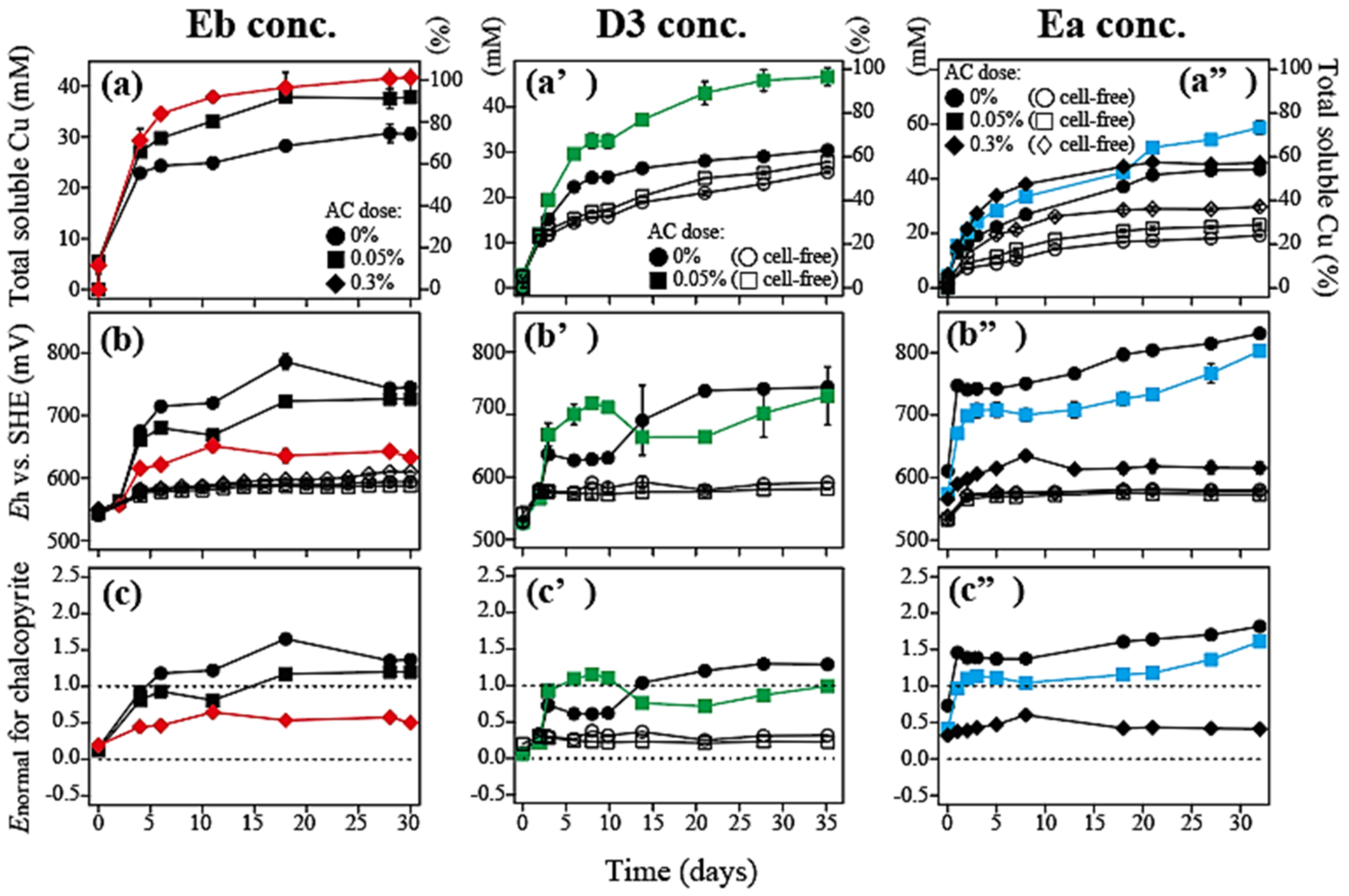

Activated carbon-assisted bioleaching profiles of the three concentrates are shown in Figure 6 and Figure S4. As was the case with the model chalcopyrite (Section 3.1), the constantly low E_h level (<600 mV) observed in all sterile control cultures (Figure 6b,b’,b”) indicates that microbial activity is an essential component in the AC-leaching system.

3.2.1. Eb Concentrate (Weight Cha/Ena Ratio = 2.5)

Eb concentrate had the highest weight Cha/Ena ratio of 2.5. In AC-free bioleaching cultures, E_h quickly rose to >700 mV (Figure 6b) to exceed E_normal (for chalcopyrite) of 1 (Figure 6c), resulting in the lowest final Cu dissolution of 74% (on day 30; Figure 6a). Most of the dissolved Cu in this AC-free bioleaching reaction was likely derived from relatively amenable minerals such as geerite, chalcocite and bornite (Figure 5). It can be expected that most of the amenable minerals were dissolved in all conditions at the initial bioleaching phase (by around day 4) since nearly 60% Cu was already dissolved by then (Figure 6a).

The AC dose clearly affected the Cu solubilization speed at the later bioleaching phase, where more refractory minerals were likely subjected to dissolution. The addition of 0.05% or 0.3% AC was effective in suppressing the E_h level to the average during day 4–30 of ~700 mV or ~630 mV, respectively (Figure 6b). This E_h control increasingly facilitated bioleaching of more refractory Cu sulfides (chalcopyrite and enargite) to achieve the final Cu dissolution of 92% and 100%, respectively (on day 30; Figure 6a). Under the best condition using 0.3% AC, E_normal (for chalcopyrite) stayed at around 0.5 (Figure 6c), slightly higher than its optimal (0.3–0.35; Section 3.1; [18]). Since chalcopyrite is more dominant than enargite in the Eb concentrate, adjusting the E_h level within the “active region” for chalcopyrite (0 ≤ E_normal ≤ 1) was effective in completing the leaching reaction.

3.2.2. D3 Concentrate (Weight Cha/Ena Ratio = 0.6)

In the case of D3 concentrate with the weight Cha/Ena ratio of 0.6, about half of Cu in the leachate is estimated to derive from amenable Cu minerals (Figure 5). It is likely that these amenable Cu sulfides were preferably dissolved in all conditions, including cell-free controls (Figure 6a’). In AC-free bioleaching culture, E_h initially leveled off at ~630 mV (day 3–10) and then further increased to >700 mV, where Cu dissolution plateaued at just over 60% (Figure 6a’). At 0.05% AC, on the other hand, E_h initially bumped (day 3–10) but later pulled down to 660 mV before re-increasing towards the end (>700 mV) (Figure 6b’): Despite such E_h fluctuation, this AC-mediated E_h control (at an average during day 3–35 of ~690 mV) facilitated Cu dissolution to near completion on day 35 (Figure 6a’). Such bumpy E_h behavior is often observed when the mineral concentrate carries some inhibitory substance to microbial cells (e.g., toxic metals or flotation chemicals; Okibe, unpublished data). In fact, the cell growth was found to be weaker in this concentrate, compared to that in the other two concentrates (Figure S4d’). The use of higher AC doses than 0.05% did not further improve the Cu dissolution behavior (Okibe, unpublished data). The E_normal (for chalcopyrite) was shown to fluctuate around 0.8–1.1, generally higher than that observed for Eb concentrate.

3.2.3. Ea Concentrate (Weight Cha/Ena Ratio = 0.3)

In the case of Ea concentrate with the lowest weight Cha/Ena ratio of 0.3, about 70% of total Cu are expected to derive from amenable Cu minerals (Figure 5). However, the overall Cu dissolution speed was slower with this concentrate than that of the other two (Figure 6a”). This could be partly due to: (i) the lack of additional sulfuric acid dosing as a manual pH re-adjustment at the early bioleaching phase (while the other two concentrates received a pH re-adjustment); (ii) the higher quantity of Cu ions dissolved in the leachate, which tends to slow down further Cu dissolution according to the chemical equilibrium theory. In the case of AC-free bioleaching of Ea concentrate, E_h immediately rose to ~750 mV and further increased to >800 mV towards the end (Figure 6b”), resulting in the final Cu dissolution of 54% (Figure 6a”). The addition of 0.05% or 0.3% AC pulled down the E_h level to varying extents (at an average during day 2–32 of ~720 mV or ~610 mV, respectively). Suppressing the E_normal down to ~0.5 (“active region” for chalcopyrite) by the addition of 0.3% AC was most effective for Cu dissolution only until the halfway point (Figure 6a”). Eventually, greater Cu dissolution was seen at 0.05% AC under lesser E_h suppression (E_normal for chalcopyrite fluctuated at 1–1.5; Figure 6c”). Since enargite dominated over chalcopyrite in this concentrate, the overall Cu dissolution was found to be greater at the E_h range set more preferable for enargite than for chalcopyrite. At a higher AC dose (0.3%), the planktonic cell counts decreased partly due to cells’ attachment onto the mineral surface or some cell growth inhibition (Figure S4d”).

As a general trend with all three concentrates, controlling the E_h level by AC facilitated the Cu dissolution while suppressing the Fe dissolution (compared to the AC-free controls; Figure S4b,b’,b”). The trend of As dissolution was correlated with that of Cu, and roughly 60% of As was leached (Figure S4a,a’,a”) while the rest was expected to form amorphous Fe-As precipitates [26,27]. The sustainable E_h-controlling effect was reported to be critical not only to enable longer Cu dissolution from enargite but also for the stabilization of Fe-As precipitates [25,27].

Based on the overall results with three chalcopyrite/enargite-bearing complex concentrates, a trend was found that the optimal E_h level for a maximum Cu solubilization increased as the ratio of Cha/Ena in the concentrate decreased: Eb concentrate (Cha/Ena = 2.5, ~630 mV); D3 concentrate (Cha/Ena = 0.6, ~690 mV); Ea concentrate (Cha/Ena = 0.3, ~720 mV). When chalcopyrite dominates over enargite, the optimal E_h was found to satisfy 0 ≤ E_normal ≤ 1 (“active region” for chalcopyrite [10,11]). As enargite becomes more abundant than chalcopyrite, the optimal E_h for the greatest Cu dissolution was shifted to higher values, where E_normal exceeds 1 to head into the “passive region” for chalcopyrite [10,11] but still controlled ideally at around 700 mV for maximized Cu solubilization [25]. It was shown possible to modify the E_h level to varying extents to make it optimal for the concentrate of different mineralogy.

4. Conclusions

• The carbon catalyst (AC and CF) effectively controlled the E_h level in bioleaching liquors, which would otherwise exceed its optimal range (0 ≤ E_normal ≤ 1) due to regeneration of Fe³⁺ by microbial activity.
• E_normal of ~0.3 was shown to maximize the AC-assisted bioleaching of the model chalcopyrite mineral.
• When three types of chalcopyrite/enargite-bearing complex concentrates were tested, the optimal E_h level for a maximum Cu solubilization increased in response to the decreasing chalcopyrite/enargite ratio in the concentrate.
• Modification of the E_h level by adjusting AC doses was useful to maximize Cu solubilization from the concentrate of complex mineralogy.
