Article

Cadmium Uptake and Growth Responses of Potted Vegetables to the Cd-Contaminated Soil Inoculated with Cd-Tolerant Purpureocillium lilacinum N1

by
Yan Deng
1,†,
Haonan Huang
1,†,
Shaodong Fu
1,
Luhua Jiang
1,
Yili Liang
1,
Xueduan Liu
1,
Huidan Jiang
2,* and
Hongwei Liu
1,*
1
Key Laboratory of Biometallurgy of Ministry of Education, School of Minerals Processing and Bioengineering, Central South University, Changsha 410083, China
2
Hunan Agricultural Biotechnology Research Institute, Hunan Academy of Agricultural Sciences, Changsha 410125, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this paper.
Minerals 2021, 11(6), 622; https://doi.org/10.3390/min11060622
Submission received: 24 May 2021 / Revised: 6 June 2021 / Accepted: 9 June 2021 / Published: 11 June 2021
(This article belongs to the Special Issue Bioprocessing of Mine and Metallurgical Wastes)
Browse Figures
Versions Notes

Abstract

:
Bioremediation of Cd- (cadmium) contaminated soil using Cd-tolerant fungus is considered an eco-friendly and cost-effective technique. In this study, we isolated one fungal strain that was hyper-tolerant to Cd from a highly polluted river and conducted pot experiments to evaluate its effects on bioremediation. We found that the fungal strain belonging to the genus, Purpureocillium lilacinum, tolerated 12,000 mg/L Cd. SEM manifested that Cd can be bioaccumulated on the crumpled mycelial surface, generating plenty of metal precipitation particles. In addition, pot experiments showed that the inoculation of P. lilacinum N1 could reduce the total Cd content in soil (2.09% in low contaminated soil and 12.56% in high contaminated soil) and greatly promote plant growth (2.16~3.13 times). Although the Cd concentration of plants was increased by 112.8% in low contaminated soil and decreased by 9.5% in highly contaminated soil with the inoculation of P. lilacinum N1, the total uptake of Cd by plants was greatly improved—1.84~3.6 times higher than that in CK groups. All our results suggest that P. lilacinum N1 is a valuable candidate for the bioremediation of Cd-contaminated soils because of its dual effects on the total Cd content in soil and Cd uptake in plants.

1. Introduction

Cadmium (Cd) is a highly toxic heavy metal element ubiquitous in soil and is threatening human health more and more seriously. In the natural environment, Cd pollution is mainly derived from anthropogenic inputs, including industrial and agricultural activities, such as metal smelting and indiscriminate fertilizer and pesticide application [1,2]. According to the China Soil Environmental Quality Standard (GB15618-1995) and the National Food Safety Standard (GB 2762-2017), the recommended limits for Cd concentration in the environment and food are 0.3 mg/kg in acid paddy soil (pH < 6.5), and 0.2 mg/kg in brown rice and leafy vegetables, respectively [3,4]. These are the standardized limit values that must be adhered to, to ensure safe agricultural production and human health. However, with the rapid industrial development, the cadmium content in paddy fields is up to 60 mg/kg in some areas of Hunan Province [5]. In addition, according to a comprehensive investigation of 15 towns in a county of Hunan Province, the Cd concentration in 57.5% of the soil samples and 59.6% of rice grains exceeded the national standard limit [6]. Long-term intake of Cd can cause severe bone metabolism disease, cardiovascular disease, and kidney damage [7,8,9]. Therefore, it is urgent to develop efficient strategies to remediate Cd-contaminated soils to safeguard people’s health.
Bioremediation has received more and more concerns in recent years, and the application of microorganisms is considered an eco-friendly and cost-effective technology [10,11,12,13,14]. Fungi have developed metal resistance mechanisms and can survive even under high Cd stress. The organic acids and metal-binding proteins produced by fungi or functional groups like amino, carboxyl, hydroxyl, and sulfhydryl groups existing on fungi cells, usually involves in biosorption, bioaccumulation, biotransformation, or biomineralization of Cd in the process of bioremediation [15,16]. These physical-chemical processes could alter the fractions of Cd in soil, thus changing its bioavailability. In addition, some fungi boost a plant’s antioxidant system, which aids in the reduction of Cd’s damaging effects [17,18]. Many fungi species have been isolated from Cd-contaminated sites and used for soil remediation, such as Aspergillus niger, Mucor circinelloides, Trichoderma asperellum, Trichoderma atroviride, Trichoderma virens, Fusarium oxysporum, Leptobacillium chinense, and arbuscular mycorrhizal fungi [18,19,20,21,22,23,24]. Given the difference in the removal efficiency of Cd and protective effects on plants by various fungi, it is essential to explore more valuable fungi resources.
We summarized the effects of microbial remediation on soil Cd pollution into two aspects. Firstly, from the perspective of the changes of soil’s total Cd content and Cd fractions, the application of microorganisms to the soil can alter Cd fractions, resulting in the inhibition or improvement of Cd bioavailability, thus reducing or promoting the uptake of Cd in plants [25,26,27]. Microorganisms can potentially reduce the total Cd content in the soil [28]. Secondly, from the perspective of plants, the application of microorganisms can promote the growth of plants, increase the total uptake of Cd [20], or reduce the concentration of Cd in plants [29]. For non-edible plants like hyperaccumulators, promoting plant biomass and increasing total Cd uptake can improve the remediation efficiency of Cd pollution [30]. For edible plants, reducing Cd content in edible parts below the standard limit is the primary objective of remediation [10]. Therefore, screening some strains which have dual effects on the total Cd content in soil and Cd uptake in plants has a tremendous application value.
In the present study, one Cd-tolerant fungus strain was isolated from highly Cd-contaminated soils. The purpose of this study was to evaluate its ability for bioremediation of Cd-contaminated soils. Pot experiments were designed to determine the effects of inoculation of the fungal isolate on total Cd content and Cd fractions in soils, and plant biomass and Cd concentration in plants. The results obtained showed progress in applying Purpureocillium lilacinum for the bioremediation of Cd-contaminated soil.

2. Materials and Methods

2.1. Fungal Isolation, Identification and Characterization

Three topsoil samples (0–30 cm) were collected from river sediment in Zhongwan village (N 27°46′, E 112°52′), Xiangtan City, Hunan Province, China. This river sediment has been contaminated with untreated industrial wastewater over ten years ago, and the Cd concentration in sediment was up to 4224 mg/kg according to our previous investigation [5]. Three sampling sites were selected at intervals of about 20 m along the river. After that, the samples were kept on dry ice and sent to the laboratory within four hours.
For the isolation of Cd-tolerant fungi, 10 g sediment samples were fully suspended in 100 mL sterilized water, serially diluted (up to 10–7), and then spread on nutrient broth (NB) agar plates (10 g/L tryptone, 5 g/L yeast extract, 10 g/L sodium chloride, 20 g/L agar, pH = 7) in the presence of Cd (II) (supplemented with 500 mg/L CdCl2) at 30 °C for 48–96 h. The colonies were selected and inoculated on new plates containing a gradual increase concentration of Cd (1000, 2000, 4000, 6000, 9000, 12,000 mg/L). Finally, one Cd-tolerant fungal strain N1 was found to be tolerant to 12,000 mg/L Cd, and this fungal strain was selected for further studies.
The spore suspension (107 spores/mL) of the fungal isolate N1 was first prepared before inoculating into NB broth. For fungal molecular identification, 1 mL spore suspension was inoculated into 100 mL NB broth for 3 days at 30 °C, 170 rpm. The culture was centrifuged at 4000 rpm for 8 min to collect mycelial pellets and then ground with liquid nitrogen. Extracted genomic DNA and amplification of the internal transcribed spacers (ITS) DNA was done using the primer set ITS1F (5′-TCCGTAGGTGAACCTGCGG-3′) and ITS4R (5′-TCCTCCGCTTATTGATATGC-3′). Sequence data were analyzed using NCBI BLASTn search (http://www.ncbi.nlm.nih.gov, accessed on 10 December 2020) to identify its homology. These sequences with high similarity from the database were downloaded and a phylogenetic tree was constructed using the neighbor-joining method in MEGA X (Pennsylvania State University, State College, PA, USA) to analyze the evolutionary relationship. The sequence was deposited in the GenBank NCBI database (accession no. SAMN19304788, accessed on 21 May 2021).

2.2. Temperature and pH Tolerance

For determining temperature tolerance, 2 mL spore suspension were inoculated into 98 mL NB liquid medium at different temperatures of 25, 30, 35 and 40 °C for 4 days. For examining pH tolerance, 2 mL spore suspension were inoculated into 98 mL NB liquid medium at different initial pH of 2, 4, 6, 8 and 10 at 30 °C for 4 days. The pH of the media was adjusted using 1 M H2SO4 or NaOH; 2 mL samples were taken every day and centrifuged at 10,000 rpm for 10 min. The pH of the supernatant was determined using a pH meter (BPH-220, Bell Instrument Equipment Co., Ltd., Dalian, China). The wet weight of mycelial pellets was determined to evaluate the growth of strain. Three replicates were set for each temperature and pH gradient.

2.3. Biosorption Experiment of Cd (II) in Aqueous Solution

Biosorption experiments were carried out by inoculating 2 mL spore suspension into 98 mL NB liquid medium at different initial concentrations of Cd (II) ranging from 10 to 500 mg/L for 10 days at 30 °C, 170 rpm; 2 mL samples were taken every 2 days and centrifuged at 10,000 rpm for 3 min. The supernatant was stored at 4 °C and used to determine Cd concentration. All experiments were carried out in triplicate.
The fungal strain N1 was cultivated in NB broth containing 9000 mg/L Cd (II) to observe its morphology before and after the biosorption of Cd (II). The culture was centrifuged at 10,000 rpm for 5 min and the mycelial pellets were fixed in 2.5% glutaraldehyde solution and placed at 4 °C overnight. The fixed samples were observed using a scanning electron microscope (SEM, EM-30C, COXEM, Daejeon. Korea).

2.4. Pot Experimental Design

Cadmium-contaminated mine soil samples were collected from farmland soil around several zinc smelters that have been contaminated for twenty years in Hengyang City (N 26°59′, E 112°48′), Hunan Province, China. The samples were collected from a relatively higher contaminated region (High-Cd) and a less contaminated region (Low-Cd). After removing the stones, plant debris and other coarse materials, the soil samples were air-dried at room temperature and then ground to pass through a 10-mesh sieve for pot experiments. Soil pH, organic matter, total Cd content and the Cd fractions were determined.
Both High-Cd and Low-Cd soil samples were applied in pot experiments, with each pot (length: 23 cm, weight: 17 cm, height: 13 cm) containing 1 kg soil. The pots had holes at the bottom to ensure good drainage. Before pot experiments, the fungal spore suspension was cultivated in the sterile NB liquid medium for 3 days. A proportion of the fungal inoculum was filtered using a 0.45 μm cellulose–acetate membrane; the supernatant and the fungal pellets were collected, respectively. Fungal pellets were re-suspended in sterile distilled water with the same volume as supernatant to obtain the mycelia pellets without metabolites. Therefore, 4 treatments with 3 replicates were set up, yielding a total of 24 pots (2 Cd level, 4 treatments, and 3 replicates). Four treatments were as follows: (1) soil + distilled water (CK); (2) soil + inoculum (SI); (3) soil + supernatant (SS); (4) soil + re-suspended mycelia pellets (SR). Ten vegetable seeds (Brassica Chinensis L.) were sown in each pot, covered with a thin layer of soil, and watered thoroughly with a volume of 400 mL of the prepared liquid. Each pot was watered with 100 mL corresponding liquid 4 times in the first 10 days and watered with 100 mL distilled water 10 days later. After 30 days, the plants were carefully removed from the pots and rinsed with distilled water. All the pots were placed in natural light and kept at around 25 °C for room temperature.
A phenomenon in the growth process was that seeds sprayed with inoculum and supernatant (SI and SS) did not germinate or survive when emerged. After 30 days of growth, the rest of the grown vegetables were harvested, washed with distilled water, and dried with filter paper. After measuring the wet weight, the plants were dried to a constant weight at 80 °C for Cd concentration determination. Soil samples were collected after harvesting for measurement of total Cd concentration and Cd fractions.

2.5. Total Cd Content and Fraction Analysis in Soil and Plant Samples

According to reported methods, soil samples were air-dried at room temperature and then powdered to pass through a 100-mesh sieve for total Cd determination [31]; 0.200–0.500 g samples were digested in a mixture of HNO3/HF/HClO4 (10/5/2, v/v/v) solution following a digestion procedure: 110 °C for 30 min, 140 °C for 30 min, and 180 °C until the samples were completely digested, and clarified digestion fluid obtained. Similarly, 0.200–0.500 g plant samples were digested in a mixture solution of 8 mL HNO3 and 4 mL HClO4 following the same digestion procedure as soil digestion. Reagent blanks and standard reference materials (GBW07401) were included in each digestion batch to ensure the analytical quality. The relative standard deviations were less than 5%. The concentration of Cd in the digested fluid obtained was measured using inductively coupled plasma atomic emission spectrometry (ICP-AES, Optima 5300DV, PerkinElmer, Shelton, CT, USA) by measuring the absorbance values under the emission wavelength of Cd at 228.8 nm.
A three-step sequential extraction procedure was carried out to determine the fractions of Cd in soil samples according to the modified BCR (European Community Bureau of Reference) [32,33], in which the Cd was divided into four fractions: weak acid soluble Cd (F1), reducible Cd (F2), oxidizable Cd (F3), and residual Cd (F4). Generally, acid-soluble Cd in the soil can be more easily absorbed by plants, and oxidation and residual Cd are not likely to be utilized [34]. For each liquid extract and digested solution, ICP-AES was used to determine the fractions of heavy metals.

2.6. Statistical Analysis

Statistical analyses were performed using one-way analysis of variance and the Tukey’s test (p < 0.05) in the Minitab 17 (Minitab Inc, State College, PA, USA) and Figures were drawn using Origin 9.0 (OriginLab Corporation, Northampton, MA, USA).

3. Results and Discussion

3.1. Identification and Characterization of Cd-Tolerant Fungal Strain

We isolated fungi from heavily polluted river sediment with NB broth. Initially, few colonies were obtained at the concentration of 500 mg/L Cd (II), but only one Cd-tolerant fungal strain was obtained when Cd (II) concentration was increased to 6000 mg/L. The minimum inhibitory concentration (MIC) of Cd (II) for this isolate was up to 12,000 mg/L. According to the internal transcribed spacers (ITS) rDNA gene sequencing results, the isolated fungal strain showed 100% similarity with the sequences of Purpureocillium lilacinum.
In addition, we only observed few colonies, even when the initial Cd concentration was 500 mg/L. Our results showed that few microorganisms were existing in these extremely heavily contaminated sites (Cd content > 4224 mg/kg). Generally, soil fungal populations decreased with increasing concentration of heavy metals [16,35]. Several kinds of research have shown that fungi appeared to be more adaptable to the toxicity of heavy metals than bacteria and could survive in extremely harsh environments [36,37,38]. Furthermore, a wide range of fungi such as Aspergillus, Penicillium, Trichoderma, Fusarium, etc., have been frequently isolated from contaminated soils, harboring a strong resistance to heavy metals in many studies [16,35,39,40,41]. However, the maximum tolerance against Cd (II) of these reported fungi was usually in the range of 500~1600 mg/L [16,42]. Liaquat et al. has reported that the maximum tolerance against Cd (II) of Komagataella phaffii, Aspergillus, and Trichoderma harzianum were 6000 mg/L, 4000 mg/L, and 2500 mg/L, respectively [41]. The Cd tolerance limit of isolated P. lilacinum in this study was up to 12,000 mg/L, exhibiting an extraordinary acceptance for Cd, making it a potential candidate for bioremediation of Cd pollution.
The morphology of strain N1 (Figure 1A) showed a suede-like lilac colony with whitish mycelia. The phylogenetic tree (Figure 1B) constructed with MEGA X showed evolutionary relationships between the strain N1 and other reported species of P. lilacinum. The effects of temperature and pH on the growth of strain N1 were conducted, and the wet weight of mycelial pellets was used to evaluate the growth of strain (Figure 1C, D). We observed that strain N1 could grow under a broad range of temperature from 25 °C to 40 °C, and a broad range of pH from an acidic medium at pH 4 to alkaline at pH 8. However, the growth of strain N1 was inhibited entirely at pH 2 and pH 10. The optimal pH and temperature of strain N1 were 6 and 30 °C, respectively. During the four days of growth, the pH of supernatant decreased slightly at an initial pH of 4, 6 and 8, which indicated that some organic acids may be produced by P. lilacinum N1 to reduce the pH. The pH of supernatant remained unchanged at initial pH of 2 and 10, which was mainly due to the complete inhibition of fungal growth at pH 2 and pH 10 (Figure 1E).

3.2. Biosorption of Cd (II) by P. lilacinum N1 in Aqueous Solution

The Cd biosorption efficiency of P. lilacinum N1 was assessed in an aqueous solution at different initial Cd concentrations ranging from 10 to 500 mg/L (Figure 2A). It was observed that the biosorption efficiency increased gradually in the first 4 days and tended towards stability from the 4th day. The maximum removal efficiency gradually decreased from 70.67% ± 4.47% to 9.05% ± 1.98% when Cd (II) concentration increased from 10 mg/L to 500 mg/L Cd. The decrease of removal efficiency may be due to the limited binding sites on cell surface and the decrease of biomass. At lower concentration of Cd (II), the P. lilacinum N1 can grow rapidly and provide enough binding sites for Cd (II) adsorption. On the contrary, the higher concentration of Cd (II) inhibited the growth of P. lilacinum N1, and the binding sites were saturated only by a small part of Cd (II), leading to the decrease of biosorption efficiency of Cd (II).
SEM was used to analyze the morphological changes of P. lilacinum N1 under Cd stress. The mycelia of strain N1 was plump and intact in the control group (Figure 2B). However, apparent irregular folds and disruption were observed in the mycelia of strain N1 growing in the NB broth with 9000 mg/L Cd (II) (Figure 2C, D). On the crumpled mycelial surface of P. lilacinum N1, many metal precipitations were formed with different particle sizes. Many findings have observed similar morphological changes in the mycelium of fungi exposed to heavy metals [41,43]. Many active groups like amino, phosphate, and carboxyl groups existing on fungi cells, combine with Cd to form the inorganic minerals and reduced Cd toxicity [43]. Previous studies have shown that the extracellular polymer substances of P. lilacinum are involved in the biomineralization of jarosite minerals, which significantly alleviated the damage of Fe3+ to the fungal cells [44,45]. Thus, we speculated that the biomineralization process on the surface of cells could also alleviate the damage of Cd2+ to the P. lilacinum. Biomineralization may also be the reason for forming an enormous number of mineral particles on the cell surface. Zeng et al. isolated one strain of P. lilacinum, which tolerated 80 mM Cd (i.e., 8960 mg/L Cd), and the adsorption capacity of Cd reached 24.23 mg/g [46]. Some other studies also showed that P. lilacinum is strongly resistant to various heavy metals such as chromium, arsenic, lead, copper, mercury, vanadium, etc. [47,48,49,50]. These results showed that P. lilacinum strongly resisted high Cd stress and could be a potential strain for Cd bioremediation.

3.3. Variation of Fractions of Cd in Soils after Pot Experiments

The results for the characterization of soil samples taken from a chunk of farmland around several abandoned zinc smelters were presented in Table 1. These farmlands have been subjected to Cd exposure for over twenty years. Soil pH values were 5.97 ± 0.15 and 5.22 ± 0.32 in low-contaminated and high contaminated regions, respectively. The soil samples were acidic, and pH values were lower in the samples which suffered more severe pollution. Similar results were obtained in the previous study [51] and this might be due to more extended periods of industrial acid wastewater irrigation in highly contaminated regions.
Soil total Cd content in highly contaminated soil was significantly higher than in lower contaminated soil, 20.18 ± 0.426 mg/kg and 1.45 ± 0.263 mg/kg, respectively. Soil organic matters and detailed fraction analysis, including weak acid-soluble, reducible, oxidizable and residual Cd, were much higher in the High-Cd group. The fractions of Cd in soils were critical for evaluating its bioavailability. Generally, acid-soluble Cd was much more available for plant uptake than oxidizable and residual Cd [5]. However, Cd in both low contaminated and high contaminated soil was mainly presented in the acid-soluble Cd (69.9% and 65.3%, respectively), indicating that the Cd in test soil can be easily transferred to pot vegetables.
The effects of P. lilacinum N1 on the Cd fractions in soils after pot experiments are shown in Figure 3. Compared to the CK group, total Cd content in low contaminated and high contaminated soil treated with re-suspended mycelia pellets reduced by 2.09% and 12.56%, respectively. In the low contaminated soil, the acid-soluble Cd decreased by 6.0%, whereas the residual Cd increased by 17.73%. The results indicated that P. lilacinum N1 could promote the immobilization of Cd in the low contaminated soil. The reduction of total Cd in highly contaminated soil was owed to the decrease of all the fractions, namely, 10.61% for F1, 18.02% for F2, 13.64% for F3, and 15.60% for F4, respectively. The results meant that P. lilacinum N1 could remove Cd in the soil through drainage.
The removal of heavy metals from the soil via fungus has been widely reported. For example, Xu et al. [52] and Ren et al. [24] used Aspergillus niger to remove the heavy metals in the sludge and contaminated soil, and found that the removal rate of Cd was up to 97.8% and 100% after bioleaching. P. lilacinum decreased the pH in culture media [53], which might be due to the excreted organic acid metabolites such as citric acid, succinic acid, oxalic acid, malic acid, and gluconic acid [54,55]. These organic acids can promote the activation of heavy metals in soil [56,57]. In addition, the release of dissolved organic carbon and the degradation of humic substances by fungal activity can increase the solubility and motility of heavy metals [58,59]. P. lilacinum can degrade humic substances, which may also contribute to the reduction of Cd in contaminated soil [60,61].

3.4. Effects of Fungal Inoculation on the Growth of Plant Samples

The results for plant growth and Cd accumulation were shown in Figure 4. In terms of wet weight and dry weight, it was axiomatic that the treatments with re-suspended mycelia pellets promoted plant growth. The wet weight of the SR groups was 2.76 and 2.56 times that of the CK groups in low contaminated and high contaminated soil, respectively. Likewise, the dry weight of the SR groups was 3.13 and 2.16 times that of the CK groups, respectively. High concentration of Cd in soil inhibited plant growth, which can be alleviated by applying P. lilacinum N1. In terms of Cd accumulation, it is evident that the application of strain N1 had different impacts on the Cd concentration in plants. In low contaminated soil, the Cd concentration of plants in SR groups was increased by 112.8% compared to the CK groups, whereas it decreased by 9.5% in highly contaminated soil. The total uptake of Cd by plants was significantly improved with the inoculation of P. lilacinum N1. The total uptake of Cd by plants in SR groups was 3.6 times and 1.84 times higher than that in CK groups, in low contaminated and high contaminated soil, respectively (Table 2).
Studies have shown that some fungi can promote plant growth and reduce Cd content in plants. For example, Zhang et al. reported that the application of Mucor circinelloides and Trichoderma asperellum could increase 13.49–39.53% shoot fresh weight and decrease 19.7–38.92% Cd content in Arabidopsis [18]. However, the decrease of Cd content in Arabidopsis was mainly due to the reduction of bioavailable Cd rather than total Cd content in soil by Mucor circinelloides and Trichoderma asperellum. Indeed, the reduction in plant Cd concentration can also be influenced by increased plant biomass and subsequent “dilution effects” [62]. In this study, P. lilacinum N1 greatly promoted the growth of plants (2–3 times). Additionally, it reduced the total Cd content in soils (2.09% in Low-SR and 12.56% in High-SR), which can greatly reduce the Cd concentration in plants. However, the Cd concentration of plants in SR groups was increased by 112.8% in low contaminated soil and decreased only by 9.5% in highly contaminated soil, which cannot be explained by “dilution effects”. These results showed that P. lilacinum N1 not only promoted plant growth, but also enhanced the uptake of Cd by plants.
There are only a few studies on the bioremediation of heavy metal-contaminated soil by P. lilacinum, and the remediation efficiency is quite different. It was found that P. lilacinum could significantly promote plant biomass and reduce arsenic content in the plants [63]. Moreover, Gong et al. indicated that Purpureocillium sp. could protect the growth of plants under Cu stress in mangrove ecosystems and reduce the uptake of Cu, but the total Cu content in soil increased. Purpureocillium sp. increased the concentration of carbonate-bound Cu, Fe/Mn oxide-bound Cu, and organic-bound Cu in soil [64]. Furthermore, one study has shown that P. lilacinum enhanced 30~45% of plant biomass and improved 10~15% of Cd concentration in plants [65]. Another study also showed that the application of P. lilacinum has facilitation to biomass, but probably has no effects on Cd concentration in plants [66]. These conflicting results may be caused by the differences in metal characteristics and heavy metal accumulation ability of plants. Although the concentration of heavy metals in plants remained unchanged or even decreased, the total uptake may be greatly increased considering the biomass [66,67]. In this study, the total uptake of Cd by plants was greatly improved with the inoculation of P. lilacinum N1, 1.84~3.6 times higher than that in CK groups. These data indicated that P. lilacinum can be an outstanding candidate for Cd bioremediation because of its double effects on the total Cd content in soil and Cd uptake in plants.
It was noteworthy that the treatments, including SI and SS (soil sprayed with inoculum and supernatant), did not germinate or survive. The difference between them and the survival groups was the fermented culture medium. We hypothesized that some metabolites produced during fungal growth might inhibit seed germination. Many fungi have been reported to inhibit seed germination, such as certain strains of Aspergillus, Cladosporium, Fusarium, and Macrophomina [68]. However, contrary to previous studies, the cell-free supernatant of P. lilacinum in PDA culture medium increased seed germination and promoted plant growth [69]. Thus, we speculated that some components of NB nutrient media or metabolites produced by P. lilacinum N1 in NB media might inhibit seed germination.

3.5. Implications for Cd Remediation

P. lilacinum was mainly known for its nematophagous capacity [70], and most studies were focused on its roles in biocontrol against etiological agents of the plant diseases, such as Meloidogyne incognita [63,71,72], Sweet-potato whitefly [73], Penicillium digitatum [74]. It also possesses multiple characteristics such as indoleacetic acid, siderophores, phosphate solubilization, and potash solubilization [53,75,76,77]. These functional traits can promote soil fertility and plant growth [78]. In addition, this study showed that P. lilacinum could increase the total uptake of Cd in plants and reduce total Cd content in the soil, indicating that this strain can be applied for the treatment of Cd-contaminated soil. Notably, the Cd content was 1.45 mg/kg in low contaminated soil and 20.18 mg/kg in highly contaminated soil, whereas the Cd concentration in plants was about 5~10 times higher than that in soil, which far exceeded the guidance limit of the China Food Safety National Standard (GB 2762-2017) of 0.2 mg/kg [79]. Therefore, crop variety and soil pollution should also be considered when applying microbial agents. To harvest high-quality vegetables while avoiding Cd harm to human health, low Cd-accumulating vegetables should be cultivated in low Cd-polluted soil as much as feasible, together with the Cd-reduction effect of microbial agents. In the highly polluted soil, microbial-assisted hyperaccumulators have more advantages than microbes or phytoextraction alone to remove Cd from soil gradually. It needs to be processed repeatedly for a long time before the effects can be seen. Further investigations need to analyze the complex interactions between microbes and hyperaccumulators towards the chemical and biological perspectives [80]. Hyperaccumulators were more valuable than vegetables (Brassica Chinensis L.) planted in this study, due to their high biomass and enrichment ability under high Cd stress. P. lilacinum isolated in this study further enriched the microbial resources of bioremediation for Cd-contaminated soil.

4. Conclusions

In this study, P. lilacinum N1 was isolated from a highly Cd-contaminated sediment sample, which showed hyper-tolerance to Cd. It was able to grow in the presence of Cd concentration up to 12,000 mg/L in NB medium. The maximum removal efficiency gradually decreased from 70.67% ± 4.47% to 9.05% ± 1.98% when Cd (II) concentration increased from 10 mg/L to 500 mg/L Cd. Compared to the CK groups, total Cd content in low contaminated and high contaminated soil with fungal inoculation was reduced by 2.09% and 12.56%, respectively. In the low contaminated soil, the acid-soluble Cd decreased by 6.0%, whereas the residual Cd increased by 17.73%. In high contaminated soil, four fractions of Cd decreased by 10.61~18.02%. P. lilacinum N1 demonstrated tremendous capacity to promote the growth of plants, with the wet weight and dry weight of plants 2.16~3.13 times that of the control groups. In addition, the Cd concentration in plants with fungal inoculation was increased by 112.8% in low contaminated soil, whereas it decreased by 9.5% in highly contaminated soil. The total uptake of Cd by plants with fungal inoculation was 1.84~3.6 times higher than that in control groups. To sum up, this study found that using a microbial-assisted plant technique to bioremediate Cd-contaminated soil is a promising method, and P. lilacinum isolated in this study further showed an enrichment in the microbial resources.

Author Contributions

Conceptualization, X.L.; methodology, H.L.; software, Y.D.; validation, X.L. and H.L.; formal analysis, H.J.; investigation, Y.D. and H.H.; resources, H.J.; data curation, Y.D., H.H.; writing—original draft preparation, Y.D.; writing—review and editing, Y.D., H.H. and S.F.; visualization, Y.D.; supervision, Y.L. and L.J.; project administration, X.L.; funding acquisition, H.J., H.L., X.L., L.J. and Y.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Key Research and Development Projects in Hunan Province, grant number 2018WK2012; the National Key Research and Development Program of China, grant number 2018YFC1800400; the National Natural Science Foundation of China, grant number 51909282; the National Natural Science Foundation of China, grant number 41907032; the Major Science and Technology Programs of Changsha, grant number kq2006026, and the project of Graduate Innovation in Central South University, grant number 2020zzts205.

Data Availability Statement

Not applicable.

Acknowledgments

Thanks for Emmannuel Konadu Sarkodie’s efforts in English language editing.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhong, Q.; Yin, M.; Zhang, Q.; Beiyuan, J.; Liu, J.; Yang, X.; Wang, J.; Wang, L.; Jiang, Y.; Xiao, T.; et al. Cadmium isotopic fractionation in lead-zinc smelting process and signatures in fluvial sediments. J. Hazard. Mater. 2020, 411, 125015. [Google Scholar] [CrossRef]
  2. Cabrera, C.; Ortega, E.; Lorenzo, M.-L.; López, M.-D.-C. Cadmium Contamination of Vegetable Crops, Farmlands, and Irrigation Waters. Rev. Environ. Contam. Toxicol. 1998, 154, 55–81. [Google Scholar] [CrossRef]
  3. Xue, S.; Shi, L.; Wu, C.; Wu, H.; Qin, Y.; Pan, W.; Hartley, W.; Cui, M. Cadmium, lead, and arsenic contamination in paddy soils of a mining area and their exposure effects on human HEPG2 and keratinocyte cell-lines. Environ. Res. 2017, 156, 23–30. [Google Scholar] [CrossRef] [PubMed]
  4. Khaliq, M.A.; James, B.; Chen, Y.H.; Saqib, H.S.A.; Li, H.H.; Jayasuriya, P.; Guo, W. Uptake, translocation, and accumulation of Cd and its interaction with mineral nutrients (Fe, Zn, Ni, Ca, Mg) in upland rice. Chemosphere 2019, 215, 916–924. [Google Scholar] [CrossRef] [PubMed]
  5. Deng, Y.; Jiang, L.; Xu, L.; Hao, X.; Zhang, S.; Xu, M.; Zhu, P.; Fu, S.; Liang, Y.; Yin, H.; et al. Spatial distribution and risk assessment of heavy metals in contaminated paddy fields—A case study in Xiangtan City, southern China. Ecotoxicol. Environ. Saf. 2019, 171, 281–289. [Google Scholar] [CrossRef] [PubMed]
  6. Du, Y.; Hu, X.-F.; Wu, X.-H.; Shu, Y.; Jiang, Y.; Yan, X.-J. Affects of mining activities on Cd pollution to the paddy soils and rice grain in Hunan province, Central South China. Environ. Monit. Assess. 2013, 185, 9843–9856. [Google Scholar] [CrossRef]
  7. Ma, Y.; Ran, D.; Shi, X.; Zhao, H.; Liu, Z. Cadmium toxicity: A role in bone cell function and teeth development. Sci. Total. Environ. 2021, 769, 144646. [Google Scholar] [CrossRef]
  8. Chowdhury, R.; Ramond, A.; O’Keeffe, L.M.; Shahzad, S.; Kunutsor, S.; Muka, T.; Gregson, J.; Willeit, P.; Warnakula, S.; Khan, H.; et al. Environmental toxic metal contaminants and risk of cardiovascular disease: Systematic review and meta-analysis. BMJ 2018, 362, k3310. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Buser, M.C.; Ingber, S.Z.; Raines, N.; Fowler, D.A.; Scinicariello, F. Urinary and blood cadmium and lead and kidney function: NHANES 2007–2012. Int. J. Hyg. Environ. Health 2016, 219, 261–267. [Google Scholar] [CrossRef] [Green Version]
  10. Liu, Y.; Tie, B.; Li, Y.; Lei, M.; Wei, X.; Liu, X.; Du, H. Inoculation of soil with cadmium-resistant bacterium Delftia sp. B9 reduces cadmium accumulation in rice (Oryza sativa L.) grains. Ecotoxicol. Environ. Saf. 2018, 163, 223–229. [Google Scholar] [CrossRef]
  11. Wang, L.; Chen, H.; Wu, J.; Huang, L.; Brookes, P.C.; Rodrigues, J.L.M.; Xu, J.; Liu, X. Effects of magnetic biochar-microbe composite on Cd remediation and microbial responses in paddy soil. J. Hazard. Mater. 2021, 414, 125494. [Google Scholar] [CrossRef]
  12. Abbas, S.; Javed, M.T.; Shahid, M.; Hussain, I.; Haider, M.Z.; Chaudhary, H.J.; Tanwir, K.; Maqsood, A. Acinetobacter sp. SG-5 inoculation alleviates cadmium toxicity in differentially Cd tolerant maize cultivars as deciphered by improved physio-biochemical attributes, antioxidants and nutrient physiology. Plant Physiol. Biochem. 2020, 155, 815–827. [Google Scholar] [CrossRef]
  13. Xia, X.; Wu, S.; Zhou, Z.; Wang, G. Microbial Cd(II) and Cr(VI) resistance mechanisms and application in bioremediation. J. Hazard. Mater. 2021, 401, 123685. [Google Scholar] [CrossRef]
  14. Liu, P.; Zhang, Y.; Tang, Q.; Shi, S. Bioremediation of metal-contaminated soils by microbially-induced carbonate precipitation and its effects on ecotoxicity and long-term stability. Biochem. Eng. J. 2021, 166, 107856. [Google Scholar] [CrossRef]
  15. Ayangbenro, A.S.; Babalola, O.O. A New Strategy for Heavy Metal Polluted Environments: A Review of Microbial Biosorbents. Int. J. Environ. Res. Public Health 2017, 14, 94. [Google Scholar] [CrossRef] [PubMed]
  16. Imran, M.; Ahmad, I.; Barasubiye, T.; Abulreesh, H.H.; Samreen, S.; Monjed, M.K.; Elbanna, K. Heavy Metal Tolerance among Free-living Fungi Isolated from Soil Receiving Long Term Application of Wastewater. J. Pure Appl. Microbiol. 2020, 14, 157–170. [Google Scholar] [CrossRef] [Green Version]
  17. Hashem, A.; Abd_Allah, E.; Alqarawi, A.; Egamberdieva, D. Bioremediation of adverse impact of cadmium toxicity on Cassia italica Mill by arbuscular mycorrhizal fungi. Saudi J. Biol. Sci. 2016, 23, 39–47. [Google Scholar] [CrossRef] [Green Version]
  18. Zhang, X.; Li, X.; Yang, H.; Cui, Z. Biochemical mechanism of phytoremediation process of lead and cadmium pollution with Mucor circinelloides and Trichoderma asperellum. Ecotoxicol. Environ. Saf. 2018, 157, 21–28. [Google Scholar] [CrossRef] [PubMed]
  19. Mao, L.; Tang, N.; Feng, H.; Gao, Y.; Zhou, P.; Xu, L.; Wang, L. Determining soil enzyme activities for the assessment of fungi and citric acid-assisted phytoextraction under cadmium and lead contamination. Environ. Sci. Pollut. Res. 2015, 22, 19860–19869. [Google Scholar] [CrossRef] [Green Version]
  20. Cao, L.; Jiang, M.; Zeng, Z.; Du, A.; Tan, H.; Liu, Y. Trichoderma atroviride F6 improves phytoextraction efficiency of mustard (Brassica juncea (L.) Coss. var. foliosa Bailey) in Cd, Ni contaminated soils. Chemosphere 2008, 71, 1769–1773. [Google Scholar] [CrossRef] [PubMed]
  21. Zhang, X.; Lin, L.; Chen, M.; Zhu, Z.; Yang, W.; Chen, B.; Yang, X.; An, Q. A nonpathogenic Fusarium oxysporum strain enhances phytoextraction of heavy metals by the hyperaccumulator Sedum alfredii Hance. J. Hazard. Mater. 2012, 229–230, 361–370. [Google Scholar] [CrossRef] [PubMed]
  22. Hu, J.; Wu, S.; Wu, F.; Leung, H.M.; Lin, X.; Wong, M.H. Arbuscular mycorrhizal fungi enhance both absorption and stabilization of Cd by Alfred stonecrop (Sedum alfredii Hance) and perennial ryegrass (Lolium perenne L.) in a Cd-contaminated acidic soil. Chemosphere 2013, 93, 1359–1365. [Google Scholar] [CrossRef]
  23. Jin, Z.; Deng, S.; Wen, Y.; Jin, Y.; Pan, L.; Zhang, Y.; Black, T.; Jones, K.C.; Zhang, H.; Zhang, D. Application of Simplicillium chinense for Cd and Pb biosorption and enhancing heavy metal phytoremediation of soils. Sci. Total Environ. 2019, 697, 134148. [Google Scholar] [CrossRef] [PubMed]
  24. Ren, W.-X.; Li, P.-J.; Geng, Y.; Li, X.-J. Biological leaching of heavy metals from a contaminated soil by Aspergillus niger. J. Hazard. Mater. 2009, 167, 164–169. [Google Scholar] [CrossRef]
  25. Zhu, X.; Lv, B.; Shang, X.; Wang, J.; Li, M.; Yu, X. The immobilization effects on Pb, Cd and Cu by the inoculation of organic phosphorus-degrading bacteria (OPDB) with rapeseed dregs in acidic soil. Geoderma 2019, 350, 1–10. [Google Scholar] [CrossRef]
  26. Albert, Q.; Leleyter, L.; Lemoine, M.; Heutte, N.; Sage, L.; Garon, D.; Baraud, F. Industrial Cd-Contaminated Soil Bioaugmented with Absidia cylindrospora: Influence on the Mineralogical Speciation of Cadmium. Geomicrobiol. J. 2020, 37, 890–900. [Google Scholar] [CrossRef]
  27. Jiang, Y.; Huang, R.; Jiang, L.; Chen, K.; Zhu, W. Alleviation of Cadmium Toxicity to Medicago Truncatula by AMF Involves the Changes of Cd Speciation in Rhizosphere Soil and Subcellular Distribution. Phyton 2021, 90, 403–415. [Google Scholar] [CrossRef]
  28. Hao, X.; Zhu, P.; Zhang, H.; Liang, Y.; Yin, H.; Liu, X.; Bai, L.; Liu, H.; Jiang, H. Mixotrophic acidophiles increase cadmium soluble fraction and phytoextraction efficiency from cadmium contaminated soils. Sci. Total Environ. 2019, 655, 347–355. [Google Scholar] [CrossRef]
  29. Krupa, P.; Piotrowska-Seget, Z. Positive aspects of interaction between plants and mycorrhizal fungi originating from soils polluted with cadmium. Pol. J. Environ. Stud. 2003, 12, 723–726. [Google Scholar]
  30. Khan, A.R.; Waqas, M.; Ullah, I.; Khan, A.L.; Khan, M.A.; Lee, I.-J.; Shin, J.-H. Culturable endophytic fungal diversity in the cadmium hyperaccumulator Solanum nigrum L. and their role in enhancing phytoremediation. Environ. Exp. Bot. 2017, 135, 126–135. [Google Scholar] [CrossRef]
  31. Liu, B.; Ma, X.; Ai, S.; Zhu, S.; Zhang, W.; Zhang, Y. Spatial distribution and source identification of heavy metals in soils under different land uses in a sewage irrigation region, northwest China. J. Soils Sediments 2016, 16, 1547–1556. [Google Scholar] [CrossRef]
  32. Rauret, G.; López-Sánchez, J.F.; Sahuquillo, A.; Rubio, R.; Davidson, C.; Ure, A.; Quevauviller, P. Improvement of the BCR three step sequential extraction procedure prior to the certification of new sediment and soil reference materials. J. Environ. Monit. 1999, 1, 57–61. [Google Scholar] [CrossRef]
  33. Pueyo, M.; Mateu, J.; Rigol, A.; Vidal, M.; López-Sánchez, J.F.; Rauret, G. Use of the modified BCR three-step sequential extraction procedure for the study of trace element dynamics in contaminated soils. Environ. Pollut. 2008, 152, 330–341. [Google Scholar] [CrossRef]
  34. Zhang, J.; Li, H.; Zhou, Y.; Dou, L.; Cai, L.; Mo, L.; You, J. Bioavailability and soil-to-crop transfer of heavy metals in farmland soils: A case study in the Pearl River Delta, South China. Environ. Pollut. 2018, 235, 710–719. [Google Scholar] [CrossRef]
  35. Joo, J.-H.; Hussein, K.A. Heavy Metal Tolerance of Fungi Isolated from Contaminated Soil. Korean J. Soil Sci. Fertil. 2012, 45, 565–571. [Google Scholar] [CrossRef] [Green Version]
  36. Ashraf, R.; Ali, A. Effect of heavy metals on soil microbial community and mung seed germination. Pak. J. Bot. 2007, 39, 629. [Google Scholar]
  37. Del Carmen Vargas-Garcia, M.; López, M.J.; Suárez-Estrella, F.; Moreno, J. Compost as a source of microbial isolates for the bioremediation of heavy metals: In vitro selection. Sci. Total Environ. 2012, 431, 62–67. [Google Scholar] [CrossRef]
  38. Bååth, E. Effects of heavy metals in soil on microbial processes and populations (a review). Water Air Soil Pollut. 1989, 47, 335–379. [Google Scholar] [CrossRef]
  39. Talukdar, D.; Jasrotia, T.; Sharma, R.; Jaglan, S.; Kumar, R.; Vats, R.; Kumar, R.; Mahnashi, M.H.; Umar, A. Evaluation of novel indigenous fungal consortium for enhanced bioremediation of heavy metals from contaminated sites. Environ. Technol. Innov. 2020, 20, 101050. [Google Scholar] [CrossRef]
  40. Nam, I.-H.; Murugesan, K.; Ryu, J.; Kim, J.H. Arsenic (As) Removal Using Talaromyces sp. KM-31 Isolated from As-Contaminated Mine Soil. Minerals 2019, 9, 568. [Google Scholar] [CrossRef] [Green Version]
  41. Liaquat, F.; Munis, M.F.H.; Haroon, U.; Arif, S.; Saqib, S.; Zaman, W.; Khan, A.R.; Shi, J.; Che, S.; Liu, Q. Evaluation of Metal Tolerance of Fungal Strains Isolated from Contaminated Mining Soil of Nanjing, China. Biology 2020, 9, 469. [Google Scholar] [CrossRef]
  42. Talukdar, D.; Sharma, R.; Jaglan, S.; Vats, R.; Kumar, R.; Mahnashi, M.H.; Umar, A. Identification and characterization of cadmium resistant fungus isolated from contaminated site and its potential for bioremediation. Environ. Technol. Innov. 2020, 17, 100604. [Google Scholar] [CrossRef]
  43. Chen, S.H.; Cheow, Y.L.; Ng, S.L.; Ting, A.S.Y. Mechanisms for metal removal established via electron microscopy and spectroscopy: A case study on metal tolerant fungi Penicillium simplicissimum. J. Hazard. Mater. 2019, 362, 394–402. [Google Scholar] [CrossRef]
  44. Xia, M.; Bao, P.; Liu, A.; Li, S.; Yu, R.; Liu, Y.; Li, J.; Wu, X.; Huang, C.; Chen, M.; et al. Application of the kinetic and isotherm models for better understanding of the mechanism of biomineralization process induced by Purpureocillium lilacinum Y3. Colloids Surf. B Biointerfaces 2019, 181, 207–214. [Google Scholar] [CrossRef] [PubMed]
  45. Xia, M.; Bao, P.; Peng, T.; Liu, A.; Shen, L.; Yu, R.; Liu, Y.; Li, J.; Wu, X.; Huang, C.; et al. Exploration of potential jarosite biomineralization mechanism based on extracellular polymer substances of Purpureocillium lilacinum Y3. Int. Biodeterior. Biodegrad. 2020, 150, 104941. [Google Scholar] [CrossRef]
  46. Zeng, X.X.; Tang, J.X.; Yin, H.Q.; Liu, X.D.; Jiang, P.; Liu, H.W. Isolation, identification and cadmium adsorption of a high cadmium-resistant Paecilomyces lilacinus. Afr. J. Biotechnol. 2010, 9, 6525–6533. [Google Scholar]
  47. Ceci, A.; Maggi, O.; Pinzari, F.; Persiani, A.M. Growth responses to and accumulation of vanadium in agricultural soil fungi. Appl. Soil Ecol. 2012, 58, 1–11. [Google Scholar] [CrossRef]
  48. De, S.; Sanyal, P.K.; Sarkar, A.K.; Patel, N.K.; Pal, S.; Mandal, S.C. Effect of heavy metals and carbendazim on the in vitro growth of Paecilomyces lilacinus (Thom.) Samson and Verticillium chlamydosporium Goddard. Proc. Natl. Acad. Sci. India Sect. B Biol. Sci. 2009, 79, 393–398. [Google Scholar]
  49. Zucconi, L.; Ripa, C.; Alianiello, F.; Benedetti, A.; Onofri, S. Lead resistance, sorption and accumulation in a Paecilomyces lilacinus strain. Biol. Fertil. Soils 2003, 37, 17–22. [Google Scholar] [CrossRef]
  50. Lotlikar, N.P.; Damare, S.R. Variability in Protein Expression in Marine-Derived Purpureocillium lilacinum Subjected to Salt and Chromium Stresses. Indian J. Microbiol. 2018, 58, 360–371. [Google Scholar] [CrossRef]
  51. Li, X.; Meng, D.; Li, J.; Yin, H.; Liu, H.; Liu, X.; Cheng, C.; Xiao, Y.; Liu, Z.; Yan, M. Response of soil microbial communities and microbial interactions to long-term heavy metal contamination. Environ. Pollut. 2017, 231, 908–917. [Google Scholar] [CrossRef]
  52. Xu, Y.; Feng, Y.-Y. Feasibility of Sewage Sludge Leached by Aspergillus Niger in Land Utilization. Pol. J. Environ. Stud. 2016, 25, 405–412. [Google Scholar] [CrossRef]
  53. Hernandez-Leal, T.I.; Carrion, G.; Heredia, G. In vitro PHOSPHATE SOLUBILIZATION BY A STRAIN OF Paecilomyces lilacinus (Thom) Samson. Agrociencia 2011, 45, 881–892. [Google Scholar]
  54. Vrabl, P.; Fuchs, V.; Pichler, B.; Schinagl, C.W.; Burgstaller, W. Organic Acid Excretion in Penicillium ochrochloron Increases with Ambient pH. Front. Microbiol. 2012, 3, 121. [Google Scholar] [CrossRef] [Green Version]
  55. Goldberg, I.; Rokem, J.S.; Pines, O. Organic acids: Old metabolites, new themes. J. Chem. Technol. Biotechnol. 2006, 81, 1601–1611. [Google Scholar] [CrossRef]
  56. Ray, P.; Adholeya, A. Correlation between organic acid exudation and metal uptake by ectomycorrhizal fungi grown on pond ash in vitro. BioMetals 2008, 22, 275–281. [Google Scholar] [CrossRef] [PubMed]
  57. Xu, L.; Yang, H.; Liu, Y.; Zhou, Y. Uranium leaching using citric acid and oxalic acid. J. Radioanal. Nucl. Chem. 2019, 321, 815–822. [Google Scholar] [CrossRef]
  58. Wengel, M.; Kothe, E.; Schmidt, C.M.; Heide, K.; Gleixner, G. Degradation of organic matter from black shales and charcoal by the wood-rotting fungus Schizophyllum commune and release of DOC and heavy metals in the aqueous phase. Sci. Total Environ. 2006, 367, 383–393. [Google Scholar] [CrossRef] [PubMed]
  59. Gramss, G.; Ziegenhagen, D.; Sorge, S. Degradation of Soil Humic Extract by Wood- and Soil-Associated Fungi, Bacteria, and Commercial Enzymes. Microb. Ecol. 1999, 37, 140–151. [Google Scholar] [CrossRef]
  60. Řezáčová, V.; Gryndler, M. Fluorescence spectroscopy: A tool to characterize humic substances in soil colonized by microorganisms? Folia Microbiol. 2006, 51, 215–221. [Google Scholar] [CrossRef] [PubMed]
  61. Gryndler, M.; Hršelová, H.; Sudová, R.; Gryndlerová, H.; Řezáčová, V.; Merhautová, V. Hyphal growth and mycorrhiza formation by the arbuscular mycorrhizal fungus Glomus claroideum BEG 23 is stimulated by humic substances. Mycorrhiza 2005, 15, 483–488. [Google Scholar] [CrossRef]
  62. Liu, M.; Zhao, Z.; Chen, L.; Wang, L.; Ji, L.; Xiao, Y. Influences of arbuscular mycorrhizae, phosphorus fertiliser and biochar on alfalfa growth, nutrient status and cadmium uptake. Ecotoxicol. Environ. Saf. 2020, 196, 110537. [Google Scholar] [CrossRef]
  63. Khalid, H.; Aminuzzaman, F.M.; Amit, K.; Faria, A.A.; Mitu, A.I.; Chowdhury, M.S.M.; Shammi, J.; Khan, M.A. Evaluation of the combined application of Purpureocillium lilacinum PLSAU-1 and Glomus sp. against Meloidogyne incognita: Implications for arsenic phytotoxicity on eggplant. Eur. J. Plant Pathol. 2021, 159, 139–152. [Google Scholar] [CrossRef]
  64. Gong, B.; Liu, G.; Liao, R.; Song, J.; Zhang, H. Endophytic fungus Purpureocillium sp. A5 protect mangrove plant Kandelia candel under copper stress. Braz. J. Microbiol. 2017, 48, 530–536. [Google Scholar] [CrossRef] [PubMed]
  65. Gao, Y.; Miao, C.; Mao, L.; Zhou, P.; Jin, Z.; Shi, W. Improvement of phytoextraction and antioxidative defense in Solanum nigrum L. under cadmium stress by application of cadmium-resistant strain and citric acid. J. Hazard. Mater. 2010, 181, 771–777. [Google Scholar] [CrossRef]
  66. Wang, F.Y.; Lin, X.G.; Yin, R. Role of microbial inoculation and chitosan in phytoextraction of Cu, Zn, Pb and Cd by Elsholtzia splendens—A field case. Environ. Pollut. 2007, 147, 248–255. [Google Scholar] [CrossRef] [PubMed]
  67. Farias, C.P.; Alves, G.S.; Oliveira, D.C.; De Melo, E.I.; Azevedo, L.C.B. A consortium of fungal isolates and biochar improved the phytoremediation potential of Jacaranda mimosifolia D. Don and reduced copper, manganese, and zinc leaching. J. Soils Sediments 2019, 20, 260–271. [Google Scholar] [CrossRef]
  68. Da Silva, V.B.; Bomfim, C.S.G.; Sena, P.T.S.; Santos, J.C.S.; Mattos, W.D.S.; Gava, C.A.T.; de Souza, A.P.; Fernandes-Júnior, P.I. Vigna spp. Root-Nodules Harbor Potentially Pathogenic Fungi Controlled by Co-habiting Bacteria. Curr. Microbiol. 2021, 78, 1835–1845. [Google Scholar] [CrossRef] [PubMed]
  69. Cavello, I.A.; Crespo, J.M.; García, S.S.; Zapiola, J.M.; Luna, M.F.; Cavalitto, S.F. Plant Growth Promotion Activity of Keratinolytic Fungi Growing on a Recalcitrant Waste Known as “Hair Waste”. Biotechnol. Res. Int. 2015, 2015, 1–10. [Google Scholar] [CrossRef] [Green Version]
  70. Moreno-Gavíra, A.; Huertas, V.; Diánez, F.; Sánchez-Montesinos, B.; Santos, M. Paecilomyces and Its Importance in the Biological Control of Agricultural Pests and Diseases. Plants 2020, 9, 1746. [Google Scholar] [CrossRef]
  71. Binh, C.T.; Thai, H.-D.; Ha, B.T.V.; Tran, V.-T. Establishment of a new and efficient Agrobacterium-mediated transformation system in the nematicidal fungus Purpureocillium lilacinum. Microbiol. Res. 2021, 249, 126773. [Google Scholar] [CrossRef] [PubMed]
  72. Xu, W.-F.; Yang, J.-L.; Meng, X.-K.; Gu, Z.-G.; Zhang, Q.-L.; Lin, L.-B. Understanding the Transcriptional Changes during Infection of Meloidogyne incognita Eggs by the Egg-Parasitic Fungus Purpureocillium lilacinum. Front. Microbiol. 2021, 12, 617710. [Google Scholar] [CrossRef]
  73. Sun, T.; Wu, J.; Ali, S. Morphological and molecular identification of four Purpureocillium isolates and evaluating their efficacy against the sweet potato whitefly, Bemisia tabaci (Genn.) (Hemiptera: Aleyrodidae). Egypt. J. Biol. Pest Control 2021, 31, 1–9. [Google Scholar] [CrossRef]
  74. Elsherbiny, E.; Taher, M.; El-Aziz, M.A.; Mohamed, S. Action mechanisms and biocontrol of Purpureocillium lilacinum against green mould caused by Penicillium digitatum in orange fruit. J. Appl. Microbiol. 2021. [Google Scholar] [CrossRef]
  75. Parida, B.K.; Vyas, R.V.; Jhala, Y.K.; Dasgupta, S. Myco-Potash Solubilizers. Curr. Sci. 2019, 116, 116–120. [Google Scholar] [CrossRef]
  76. Moreno-Salazar, R.; Sánchez-García, I.; Chan-Cupul, W.; Ruiz-Sánchez, E.; Hernández-Ortega, H.A.; Pineda-Lucatero, J.; Figueroa-Chávez, D. Plant growth, foliar nutritional content and fruit yield of Capsicum chinense biofertilized with Purpureocillium lilacinum under greenhouse conditions. Sci. Hortic. 2020, 261, 261. [Google Scholar] [CrossRef]
  77. Baron, N.C.; Pollo, A.D.S.; Rigobelo, E.C. Purpureocillium lilacinum and Metarhizium marquandii as plant growth-promoting fungi. PeerJ 2020, 8, e9005. [Google Scholar] [CrossRef]
  78. Maitlo, S.A.; Rajput, N.A.; Syed, R.N.; Khanzada, M.A.; Rajput, A.Q.; Lodhi, A.M. Microbial control of Fusarium wilt of chickpea caused by Fusarium oxysporum f. sp. ciceris. Pak. J. Bot. 2019, 51, 2261–2268. [Google Scholar] [CrossRef]
  79. Huang, Y.; Guo, X.; Hu, X.-Y. Effects of Biochar on Bioavailability of Two Elements in Phosphorus and Cadmium-Enriched Soil and Accumulation of Cadmium in Crops. Huan Jing Ke Xue = Huanjing Kexue 2020, 41, 2861–2868. [Google Scholar] [PubMed]
  80. Kumar, A.; Subrahmanyam, G.; Mondal, R.; Cabral-Pinto, M.; Shabnam, A.A.; Jigyasu, D.K.; Malyan, S.K.; Fagodiya, R.K.; Khan, S.A.; Yu, Z.-G. Bio-remediation approaches for alleviation of cadmium contamination in natural resources. Chemosphere 2021, 268, 128855. [Google Scholar] [CrossRef]
Minerals 11 00622 g001 550

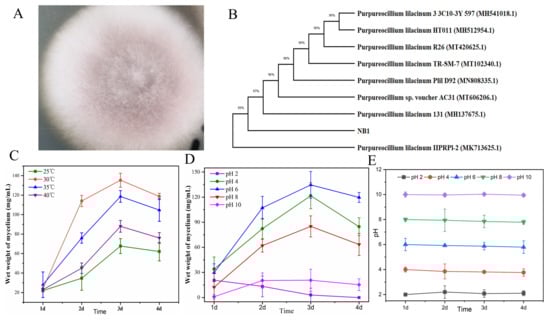

Figure 1. (A) The fungal morphology on the plate; (B) The phylogenetic tree based on the ITS DNA sequence data of P. lilacinum N1 using MEGA X; (C) The wet mycelial weight of P. lilacinum N1 at different temperatures and (D) pH; (E) The pH variation of supernatant at different initial pH during four days.
Figure 1. (A) The fungal morphology on the plate; (B) The phylogenetic tree based on the ITS DNA sequence data of P. lilacinum N1 using MEGA X; (C) The wet mycelial weight of P. lilacinum N1 at different temperatures and (D) pH; (E) The pH variation of supernatant at different initial pH during four days.
Minerals 11 00622 g001
Minerals 11 00622 g002 550

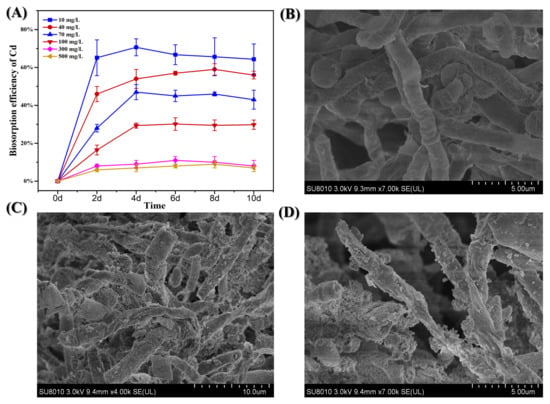

Figure 2. (A) The Cd biosorption efficiency of P. lilacinum N1 at initial Cd concentrations of 10 mg/L and 100 mg/L; (B) SEM image of normal mycelia. SEM image of mycelia grown in the NB liquid medium supplemented with 9000 mg/L of Cd (II) with the resolution of 10 μm (C) and 5 μm (D).
Figure 2. (A) The Cd biosorption efficiency of P. lilacinum N1 at initial Cd concentrations of 10 mg/L and 100 mg/L; (B) SEM image of normal mycelia. SEM image of mycelia grown in the NB liquid medium supplemented with 9000 mg/L of Cd (II) with the resolution of 10 μm (C) and 5 μm (D).
Minerals 11 00622 g002
Minerals 11 00622 g003 550

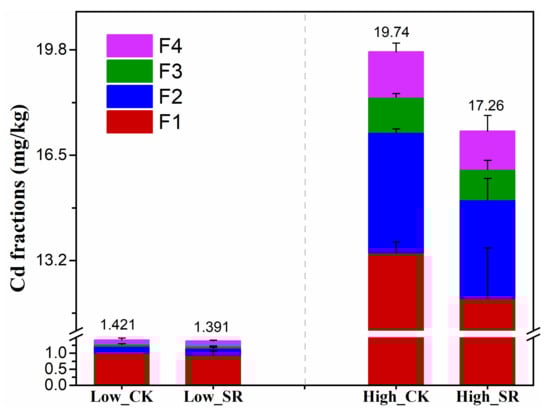

Figure 3. Cd fractions in soils after pot experiments. T signs presented on every bar mean error bars. Low_CK: low contaminated soil + distilled water; Low_SR: low contaminated soil + re-suspended mycelia pellets; High_CK: high contaminated soil + distilled water; High_CK: high contaminated soil + re-suspended mycelia pellets; F1: weak acid-soluble Cd; F2: reducible Cd; F3: oxidizable Cd; F4: residual Cd.
Figure 3. Cd fractions in soils after pot experiments. T signs presented on every bar mean error bars. Low_CK: low contaminated soil + distilled water; Low_SR: low contaminated soil + re-suspended mycelia pellets; High_CK: high contaminated soil + distilled water; High_CK: high contaminated soil + re-suspended mycelia pellets; F1: weak acid-soluble Cd; F2: reducible Cd; F3: oxidizable Cd; F4: residual Cd.
Minerals 11 00622 g003
Minerals 11 00622 g004 550

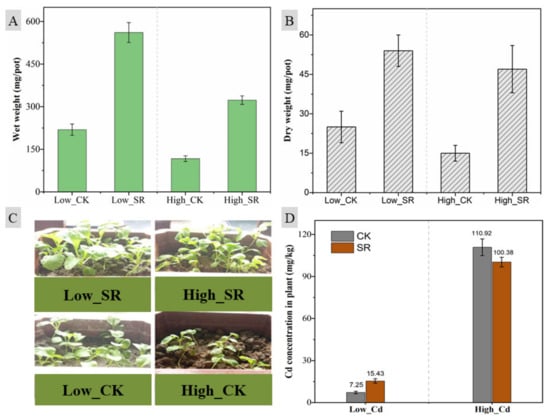

Figure 4. The effects of fungal inoculation on the growth of plant samples: (A) The wet weight and (B) the dry weight of all plant samples in a pot; (C) Plants in the pots before sampling; (D) The Cd concentration of the dry plants.
Figure 4. The effects of fungal inoculation on the growth of plant samples: (A) The wet weight and (B) the dry weight of all plant samples in a pot; (C) Plants in the pots before sampling; (D) The Cd concentration of the dry plants.
Minerals 11 00622 g004
Table
Table 1. The properties of soil samples from a high and low contaminated region.
Table 1. The properties of soil samples from a high and low contaminated region.
Soil Properties (mg/kg)Low-CdHigh-Cd
pH5.97 ± 0.15 a5.22 ± 0.32 b
Organic matters (%)3.59 ± 0.149 a1.72 ± 0.214 b
Total Cd1.45 ± 0.263 b20.18 ± 0.426 a
Weak acid soluble Cd (F1)0.946 ± 0.108 b14.09 ± 0.745 a
Reducible Cd (F2)0.263 ± 0.056 b3.837 ± 0.248 a
Oxidizable Cd (F3)0.052 ± 0.011 b1.254 ± 0.206 a
Residual Cd (F4)0.189 ± 0.024 b0.99 ± 0.103 a
Different letter within the same line means significant differences (p < 0.05), a means that the value was significantly higher than the value labeled with b.
Table
Table 2. The total uptake of Cd content in plants.
Table 2. The total uptake of Cd content in plants.
GroupsCK (μg)SR (μg)
Low contaminated soil0.181 ± 0.0440.833 ± 0.093
High contaminated soil1.664 ± 0.3334.718 ± 0.920
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Deng, Y.; Huang, H.; Fu, S.; Jiang, L.; Liang, Y.; Liu, X.; Jiang, H.; Liu, H. Cadmium Uptake and Growth Responses of Potted Vegetables to the Cd-Contaminated Soil Inoculated with Cd-Tolerant Purpureocillium lilacinum N1. Minerals 2021, 11, 622. https://doi.org/10.3390/min11060622

AMA Style

Deng Y, Huang H, Fu S, Jiang L, Liang Y, Liu X, Jiang H, Liu H. Cadmium Uptake and Growth Responses of Potted Vegetables to the Cd-Contaminated Soil Inoculated with Cd-Tolerant Purpureocillium lilacinum N1. Minerals. 2021; 11(6):622. https://doi.org/10.3390/min11060622

Chicago/Turabian Style

Deng, Yan, Haonan Huang, Shaodong Fu, Luhua Jiang, Yili Liang, Xueduan Liu, Huidan Jiang, and Hongwei Liu. 2021. "Cadmium Uptake and Growth Responses of Potted Vegetables to the Cd-Contaminated Soil Inoculated with Cd-Tolerant Purpureocillium lilacinum N1" Minerals 11, no. 6: 622. https://doi.org/10.3390/min11060622

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
