Field Observations and Geophysical Research Applied to the Detection of Manganese (Mn) Deposits in the Eastern Part of Oban Massif, South-Eastern Nigeria: An Integrated Approach

Abstract

The growing need for an industrialized world, especially in Africa, cannot be feasible without adequate mineral resources. Thus, the search for more mineral deposits will continue to be necessary. An integrated approach involving geological mapping and a high-resolution geophysical (aeromagnetic) investigation was conducted to assess the manganese mineralization in parts of the Oban Massif, southeast Nigeria. The aeromagnetic data were processed using regional-residual anomaly separation techniques, first vertical derivative (1VD), analytical signals, source parameters imaging (SPI), and Euler deconvolution to better understand magnetic source distributions and their depths of occurrence. The geological investigation revealed a dominant variety of metamorphic rock types, including migmatitic (banded) gneisses hornblende granite gneisses, amphibolites, charnockites, and some quartzite ridges. Also present are some indications of pockets of dolerites. The study area also observed epithermal Mn+Fe+Qtz vein type mineralization associated with hydrothermal alteration zones whose orientation coincides with dominant structural orientation from aeromagnetic interpretation. Analysis of aeromagnetic data shows that the study area is dominated by ENE, NNE, and E-W structural directions (near-surface basement structures), with the ENE trends related to mineralization in the area. The manganese mineralization within Oban Massif is structurally controlled. The depths of the magnetic anomalies in the study area were estimated using SPI and Euler decomposition algorithms. SPI delineated the shallow, intermediate, and deep magnetic anomalies at 84–142 m, 152–200 m, and 215–656 m, respectively. Euler decomposition, however, revealed that shallow, intermediate, and deep depths occurrence of the magnetic anomalies are at 200–377 m, 393–472 m, and 499–793 m, respectively.

1. Introduction

In recent times, there has been the need to diversify the Nigerian economy from over-dependence on the oil sector to one that is multi-sectorial. Amidst several options is the revitalization of the mining sector through exploration and exploitation of the endowed natural resources of the nation. In addition to this significant point, there is a growing need for energy transition, especially regarding cleaner and greener energies. Before now, most geoscience players in the oil sector have viewed this move with increasing uncertainty, but the good side of the story is that some of the critical requirements of the energy transition are geoscience-related. Certain essential minerals will likely determine the pace and chart the course toward a successful energy transition. Geoscientists’ skill sets are required to fit into the big picture adequately. The technological requirements of each renewable energy flow path can be directly related to critical minerals and metals (copper, nickel, molybdenum, manganese, lithium, chromium, rare earth elements, etc.). The search for the availability of these minerals becomes very paramount. At present, it is noted that countries such as China, Peru, and the Democratic Republic of Congo (DRC) as known sources of these minerals, and their presence in other climes are not well documented or exploited [1,2]. The Federal Government of Nigeria’s move towards revitalizing the nation’s foremost Ajaokuta Steel Company for domestic production stresses the need for raw materials (Iron, Manganese, carbonates) and to make Oban manganese deposits open to the ready market. Besides this move, manganese, a multi-faceted metallic mineral, is not found as an element in nature but occurs in many minerals such as sugilite, purpurite, rhodonite, rhodochrosite, pyrolusite, and psilomelane [3]. It has extensive economic use in other sectors, including the steel industry, chemical, and environmental engineering, production of special aluminum alloys, ceramics industry, water purifying agents, agriculture (additives to livestock feed, plant fertilizers), colorants for bricks, and batteries [4]. The occurrence of manganese in Nigeria is distributed mainly within the NW and SW schist belts, including Maru-Anka, Birnin Gwari, and Igarra-Jakura-Kabba schist belts (Figure 1) belonging to the younger metasediments [5]. It is documented that Nigeria has over 5,000,000 metric tons (MT) of manganese deposits [6]. There are reports of manganese within basement rocks in southeastern parts of Nigeria and adjacent Cameroun [7,8,9,10]. However, [11] noted four (4) fracture sets in the Oban massif, the most prominent being the NNW-SSE trend, while minor sets occur in the NNE-SSW, E-W, and NW-SE trends. Local manganese occurrences have been reported in Neghe, Oban, Aking, and Akor [2,11].

These structural orientations are common to other mineralization, such as gold, banded iron formation (BIF), lead/zinc ores, tantalite, manganese, and marble deposits elsewhere in the crystalline basement rocks in Nigeria [12]. However, little is known about the manganese mineralization in the Oban area regarding the extent, nature, and style of mineralization. A proper understanding of the geology, structural setting, and the lateral extent of the deposit are needed to develop the resource. Like other basement terrains in Nigeria, the Oban Massif had experienced poly-phase deformational episodes with their relicts/vestiges left in the rocks of the area. The structural attributes of these deformational episodes are significant for exploration geologists in aspects of water and mineral exploration, building, and construction materials, among others [13,14,15]. This study is part of ongoing research to document updated information about the origin and economic significance of the area’s manganese (MnO) deposit. To this end, a geological and preliminary geophysical investigation was carried out in parts of the Oban Massif to unravel the relationship between basement structures and mineral deposits. The choice of the aeromagnetics technique as a tool here is to narrow the area of investigation and concentrate further exploration activities in highly prospective areas. The objective of this research involves analyzing the geological structures present within the study area and relating them to the occurrence of manganese mineralization. This research further elucidates the particular structure dominantly controlling the Mn mineralization.

2. Geological Settings

The study area is in the SE highland and forms part of the Oban Massif in the southeastern Nigerian Basement complex. It is situated within Latitudes 5° 18′ 00″ N to 5° 27′ 00″ N and Longitudes 8° 32′ 00″ E to 8° 43′ 00″ E covering an estimated area of approximately 336.804 m² (Figure 2). Remotely sensed data used to extract the topographic information were ASTER-DEM sourced from a global land cover facility (GLCF), hosted by the University of Maryland, U. S. A. There is a predominance of isolated hills in the area, with maximum heights of about 1200 m above sea level [16]. These hills rise steeply and abruptly, often dissected by V-shaped valleys, and are thickly forested to the summit of even the highest peaks.

Significant towns in the study area include Oban, Okarara, Mangor, Aking, Neghe, Ossomba, Isoba-Oban, and Mbere-Ntung, among others. The major road that gives accessibility to the study area is the Calabar-Ekang road. Other access routes into the interior areas where rock outcrops are exposed during the field mapping include minor roads, foot-path, and tracks. The study area is well-drained with a network of rivers and associated streams, actively engaged in the erosion of channels. The underlying geology is expressed within the weathered zones, fractured and jointed areas, and the drainage pattern is controlled [17,18]. Smaller rivers and streams drain into the larger Great Kwa River and the Cross River. Prominent ones include Ikpai, Ibe, Akarom, Mankor, Ajin, Ayok, Eku, and many other rivers.

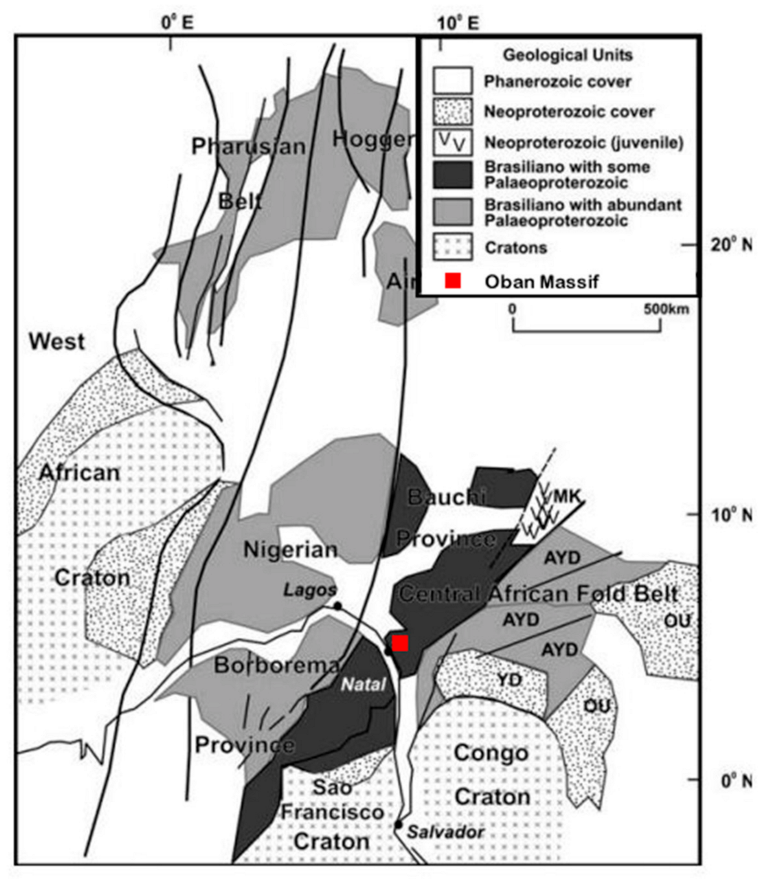

Geologically, the study area lies within the Oban Massif of the southeastern Basement Complex of Nigeria and forms part of the Pan-African mobile belt. It is Precambrian and extends from the African continent to the orogenic belts known around the northeast of South America [19,20,21]. It forms part of the Nigerian Basement Complex and is composed dominantly of the gneiss-migmatite rock suites, which were later intruded by the Older Granite (Pan-African) and Younger Granite (Jurassic) rock series, as well as mafic, ultramafic, and intermediate rocks [22,23]. The absolute age from radiometric dating (Rb-Sr and K-Ar) revealed that the basement rocks are polycyclic [24]. They were affected by the Eburnean (2000 ± 200 Ma), Kibaran (1300–900 Ma), and Pan-African (800–500 Ma) orogeny [25,26,27]. According to [28], Archean and Proterozoic rocks found in the basement terrains were believed to have been remobilized during the Neoproterozoic with a valuable portion of juvenile materials (Figure 3).

The Orogenic belts in Nigeria have been divided into eastern and western blocks and are separated by a major NS trending lineament [30,31]. The main feature characterizing the eastern terrains of the Precambrian basement rocks are high-grade metamorphic rocks [32], pervasive migmatization, granite plutonism [33], and a thin metallogenic province [5,34].

3. Materials and Methods

3.1. Data Acquisition

Data for this study were from geologic field mapping and secondary aeromagnetic data obtained from the Nigerian Geological Survey Agency. The geologic field campaign involved lithological mapping of rock units and measuring the observed structural (foliation orientations, lineament) features. Rock samples and mineral samples were also collected during the mapping exercise. Thus, structural data were tabulated and used to generate rose diagrams and stereographic projections. Secondary aeromagnetic data were employed in this study from part of topographic sheet 324 (Oban) Nigeria, on a scale of 1:100,000. Fugro-Airborne Surveys (FAS) of Canada collected airborne magnetic data in Nigeria under contract to the Nigerian government under the supervision of the Nigerian Geological Survey Agency (NGSA) between the years 2005 and 2010. Aeromagnetic data of some parts of Nigeria are available for research upon request from the Nigerian Geological Survey Agency (NGSA). The data were acquired with a terrain clearance of 0.08–0.1 km, tie line spacing of 0.5 km, and flight-line spacing of 0.1 km along 826,000 lines using the Flux Adjusting Surface Data Assimilation System (FASDAS). The flight lines and tie-lines, respectively, were aligned northwest–southeast and northeast–southwest. The direction of the tie-lines was carefully chosen to run across the major geological strike. To eliminate IGRF from the produced dataset, FAS used the 10th generation International Geomagnetic Reference Field (IGRF) version 4.0. In magnetic data reduction, IGRF is widely used and widely available. IGRF ensures uniformity in data reduction methods. Mineral evaluation programs, basin framework, hydrocarbon, hydrogeological explorations, and regional geologic boundary delineation can benefit from processed and corrected high-resolution aero-magnetic data [35,36,37]. The airborne magnetic data used in this study were corrected and processed into a total magnetic intensity map (Figure 4), which was gridded, stored, and shown in color raster format in Oasis Montaj Geosoft.

3.2. Data Processing and Analysis

The outcrop and mineral samples collected from the field were subjected to petrographic analysis using an XP-213C petrographic microscope, and the information was used to classify the rocks and map out the boundaries for the geological map. Fugro-Airborne Surveys (FAS), Canada, completed all of the needed aerial magnetic data filtering and correction techniques. The magnetic data were fed into the World Geodetic System 84 (WGS 84) and the Universal Transverse Mercator coordinate system at zone 32 of the Northern Hemisphere (UTM-32N) using the local datum-transformation and projection method, respectively. The data file was loaded into Oasis Montaj. The processes such as regional-residual anomaly separation, first vertical derivative (1VD), analytical signals, source parameters imaging (SPI), and Euler deconvolution were comprehensively applied to extract valuable structural information, mapping subsurface structures such as geological contacts, faults, and zones associated with mineral deposits in the study area.

In geophysical studies, the observed total magnetic field intensity is the sum of magnetic fields generated from all subsurface sources. The goal of a particular magnetic interpretation often involves the delineation of small-scale targets buried at a specific depth, and the magnetic responses of these targets are merged with a regional field which is typically the responses of more extensive or deeper magnetic sources than the shallower targets. The residual fields created by the target sources are usually removed from the regional field using the residual-regional anomaly separation technique [38]. The high and short-wavelength components of the magnetic anomaly are termed regional and residual anomalies, respectively. The residual anomalies are seen as small, local patterns but of considerable importance. They provide information on structures for mineral ore exploration. The conventional method for regional-residual anomaly separation utilizes either low pass (for regional) or high pass (for residual) filtering techniques. The high pass filter attenuates the frequencies lower than the cut-off frequency (${\lambda }_c$) and passes high-frequency signals [39]. It passes all frequencies with $\lambda \ge {\lambda }_c$. The high pass rectangular filter can be expressed in the 1D Fourier domain as:

$$L(\lambda )=\{{}_{1,\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\lambda \ge {\lambda }_c}^{0,\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\lambda <{\lambda }_c}$$

(1)

The low pass filter attenuates all frequencies higher than the cut-off frequency (${\lambda }_c$) and passes low-frequency signals [39,40,41]. The exact attenuation number depends on each frequency’s filter configuration [41]. The low pass rectangular filter can be expressed in the 1D Fourier domain as:

$$L(\lambda )=\{{}_{0,\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\lambda >{\lambda }_c}^{1,\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\lambda \le {\lambda }_c}$$

(2)

The 1VD was employed to remove long-wavelength features of the magnetic field, thereby significantly improving the resolution of closely spaced and superposed anomalies. Additionally, a fast Fourier transform (FFT) combined with transfer functions of the first vertical derivative and a low-pass filter was performed using the gridded residual magnetic intensity data. The vertical gradient filters ideally amplify short-wavelength field components at the expense of long wavelengths [42]. The applied analytical signal (AS) filter is significant in detecting the source of magnetic minerals [43,44]. The amplitude of the analytic signal can be obtained from the square root of the square sum of the vertical and horizontal derivatives of the magnetic field as follows:

$$\Vert ASIG(x,y)\Vert =\sqrt{{\left(\frac{\partial m}{\partial x}\right)}^2+{\left(\frac{\partial m}{\partial y}\right)}^2+{\left(\frac{\partial m}{\partial z}\right)}^2}$$

(3)

where $m$ is the observed magnetic field.

The significance of this technique in data enhancement is that its amplitude function is ever positive and the assumption on the magnetization direction of the source. The analytical signal operates on a principle similar to the horizontal gradient method; peaks in the analytic signal (AS) amplitude are identified. The identified maxima of the analytical signal can be used to detect the structures responsible for the observed magnetic anomalies over the study area. AS technique helps to delineate the source locations of the magnetic anomaly irrespectively of the direction and remnant magnetization in the source.

Depth estimation by the Euler deconvolution technique was used for mapping the geologic contacts within the area. This technique is a boundary finder and a depth estimating method because it automatically calculates source location and depth. The standard-Euler deconvolution (st-ED) method relies on solving Euler’s homogeneity equation:

$$(x-x_0)\frac{\partial m}{\partial x}+(y-y_0)\frac{\partial m}{\partial y}+(z-z_0)\frac{\partial m}{\partial z}=N(B-M)$$

(4)

where $(x_0,y_0,z_0)$ represents the position of the magnetic source that produces the total magnetic field $M$ measured at $(x,y,z)$. $B$ and $N$ is the regional value of the total magnetic field and structural index, respectively. The depth approximation using source parameter imaging is derived from the wavelength of the analytical signal, which according to [45], is described as;

$$A_1(x,z)=\frac{\partial T(x,z)}{\partial x}-j\frac{\partial T}{\partial z}$$

(5)

where $j=\sqrt{-1}$, and $T(x,z)$ is the magnitude of the anomalous total magnetic field; $x$ and $z$ are the orthogonal Cartesian coordinates representing the vertical and horizontal directions perpendicular to the strike, respectively.

The gridded aeromagnetic data for this research were processed using the Oasis Montaj software version 8.2. The data were subjected to various enhancement algorithms, such as edge detection and source detection. These algorithms enabled the delineation of lineaments and magnetic zonation related to lithology and their subsequent mineralization within the heterogeneous subsurface. The enhancement techniques utilized variation in the physical properties such as magnetic susceptibility and thickness of the lithologic units. Structural information enhanced from processed magnetic data was then extracted using ArcMAP 10.4, a GIS software. The surface and near-surface structural information were digitized from the processed aeromagnetic data.

4. Results

4.1. Field Geological Mapping

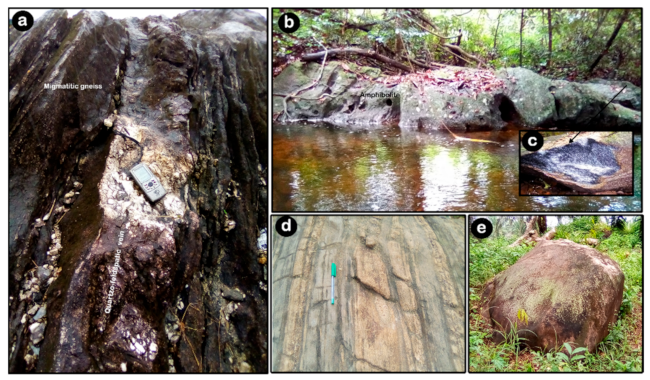

Field investigation revealed the presence of hornblende granite gneiss and migmatitic (banded) gneiss, which were observed to dominate the area with amphibolite and a few quartzite ridges scattered across the map area (Figure 5a–e). The rock exposures are predominantly low-lying and highly weathered, with evidence of mineral banding (lit-par-lit mineral segregation) and fracture patterns with orientation in the N-S, ENE, and NW-SE trends (Figure 5d and Figure 6). Rosette (Figure 7a) was prepared using the joint data collected in the field during the field mapping exercise, especially within the rocks that host the mineralization; these rocks predominantly have E-W fracture patterns. Notably, most quartz veins near manganese mineralization attain a black coloration and have iron stains. The mineralization follows the ENE like many observed healed joints in the field, especially towards the eastern half of the map area. Notably, large mountain ranges occur within the north-western part of the map.

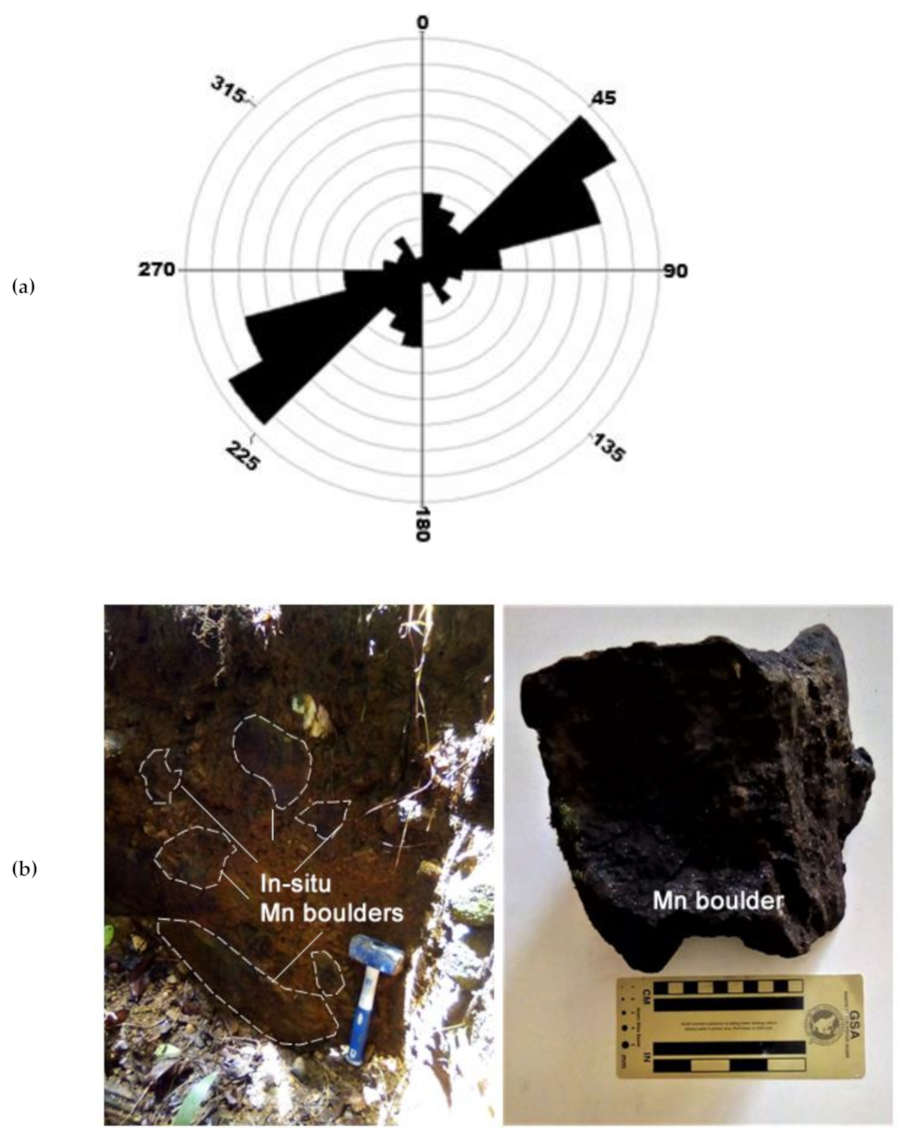

Deep weathering and overburden thickness concealed most of the mineralized veins in the area except for the large resistant boulders of iron–manganese–quartz association (Figure 7b). Field observation indicated intense weathering in areas where the Mn-rich boulders were sampled. This made indications of mineral alterations difficult to document; however, the observed brecciated stained-quartz, chlorite, and clays in the area were almost overtaken by the incomplete lateritization process. This alteration is marked by linear zones almost parallel to the E-W fracture patterns in the area. Additionally, along stream channels, the rocks were exposed for critical study, and visual analysis of stream sediment samples revealed the presence of transported fragments of Manganese grains within the stream sediment load. A petrographic study of the hornblende granite gneiss revealed the presence of the two most common minerals, quartz, and feldspar. In contrast, biotite and hornblende formed a lesser portion of the rock (Figure 8;

Table 1. Modal composition of rocks of the study area.

Mineral	Migmatitic Gneiss (n = 4)	Hornblende Granite Gneiss (n = 5)	Amphibolite (n = 2)	Pegmatite (n = 2)	Charnockite (n = 1)
Quartz	45	35	5	19	39
Plagioclase	18	16	20	24	17
K-Feldspar	11	13	17	42	20
Biotite	19	21	17	9	8
Chlorite	2	0	0	0	0
Epidote	1	1	0	0	1
Muscovite	1	6	0	0	0
Garnet	0	1	3	2	0
Hornblende	1	7	33	0	11
Accessories	2	1	4	5	3
Total	100	100	100	100	100

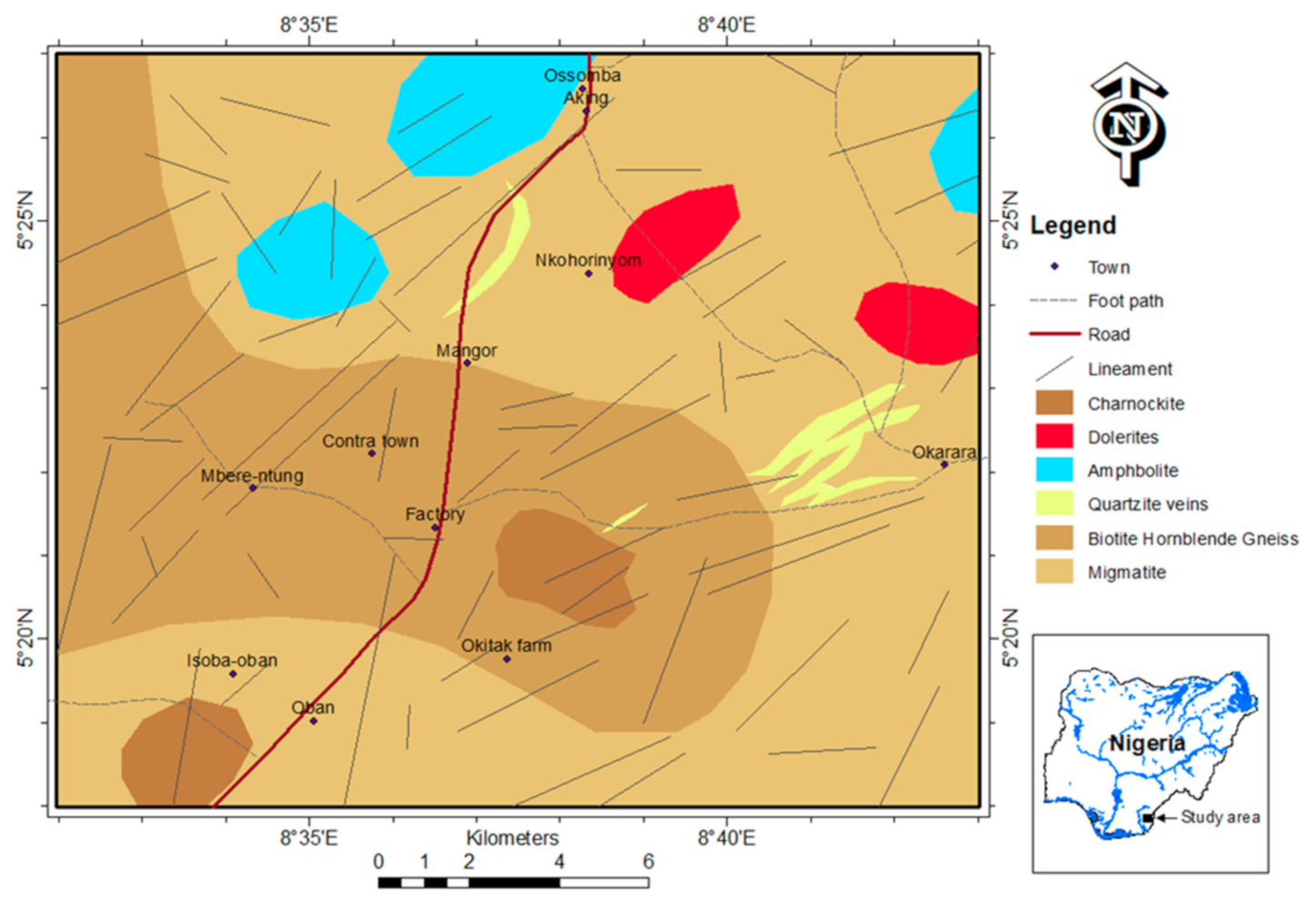

). The minerals show preferred alignment indicating the influence of metamorphism. The distribution of the rocks, their lineament features, and their inferred lithological boundaries are presented in Figure 9.

4.2. Geophysical Exploration

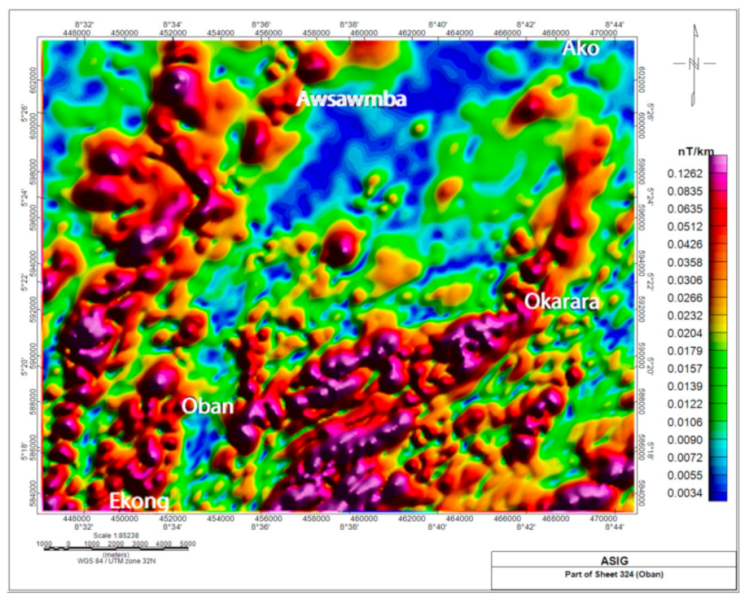

The analytical signal map of the TMI (Figure 4) was analyzed. The analytical signal map reveals the sources of the magnetic anomalies in the study area (Figure 10). The analytical map showed magnetic intensity ranging from 0.0034 nT/km to 0.1262 nT/km (Figure 10). The sources of the high magnetic anomalies in the study area are the Chanockites, Dolerites, Hornblende granite gneiss, Amphibolites, Quartzite veins, and Migmatitic rocks. In contrast, the weathered basements rocks constitute the overburden in the study area with low magnetic anomalies. The first vertical derivative grid enabled the identification of magnetic susceptibility anomalies reinforcing the interpreted geological structures from the TMI. The first vertical derivative map presented the magnetic intensity value range from −0.066 nT/km to 0.053 nT/km (Figure 11). The derivative image was upward continued by 100 m to reduce the effect of man-made features (artifacts) that might affect the accuracy of the results. The first vertical derivative map enhances the structural components such as lineament (fractures) with a general orientation in the NE-SW directions for this study (Figure 12 and Figure 13). The general lineament orientations agree with the regional geology of the study area. The signatures of known locations of the manganese in the study area were used to predict other occurrences of the manganese minerals in the area leading to the delineation of thirteen new locations in the study area (Figure 12 and Figure 13;

Table 2. Predicted locations for potential occurrence of manganese minerals.

ID	X LONG	Y LAT
0	8.650392269	5.361502236
1	8.702411124	5.29835895
2	8.607342012	5.30508693
3	8.704877257	5.353322316
4	8.681387335	5.331182978
5	8.680924998	5.349889541
6	8.578128548	5.29713331
7	8.561047898	5.330773567
8	8.638183097	5.383744871
9	8.694346765	5.43181191
10	8.72989464	5.45175794
11	8.588898983	5.386156108
12	8.720843053	5.398378085
13	8.695901765	5.315178112

).

The residual magnetic intensity (RMI) map reveals the spatial distribution of magnetic intensity anomaly within the study area (Figure 14). It was produced after removing the regional magnetic effects from the TMI data. The magnetic intensity values within the study area range between −18.3350 nT for magnetic low and 17.2878 nT for magnetic high. The high magnetic intensity anomalies represent the occurrence of basic igneous and metamorphic rocks such as Dolerites, Chanockites, Hornblende granite gneiss, Amphibolites, and Migmatitic gneiss within the study area.

However, the low magnetic intensity anomalies in the area represent the weathered basement rocks, including eluvium deposits and alluvium surrounding large stream channels. Juxtaposing the geology of the area with the interpreted aeromagnetic signatures (derived analytical signal, first vertical derivative, magnetic lineament, and residual magnetic anomaly), it became clear that the manganese mineralization zones in the area are structurally controlled. They are associated with fractures and fault structures within hornblende granite gneiss, amphibolites, migmatitic gneisses, and quartzite veins.

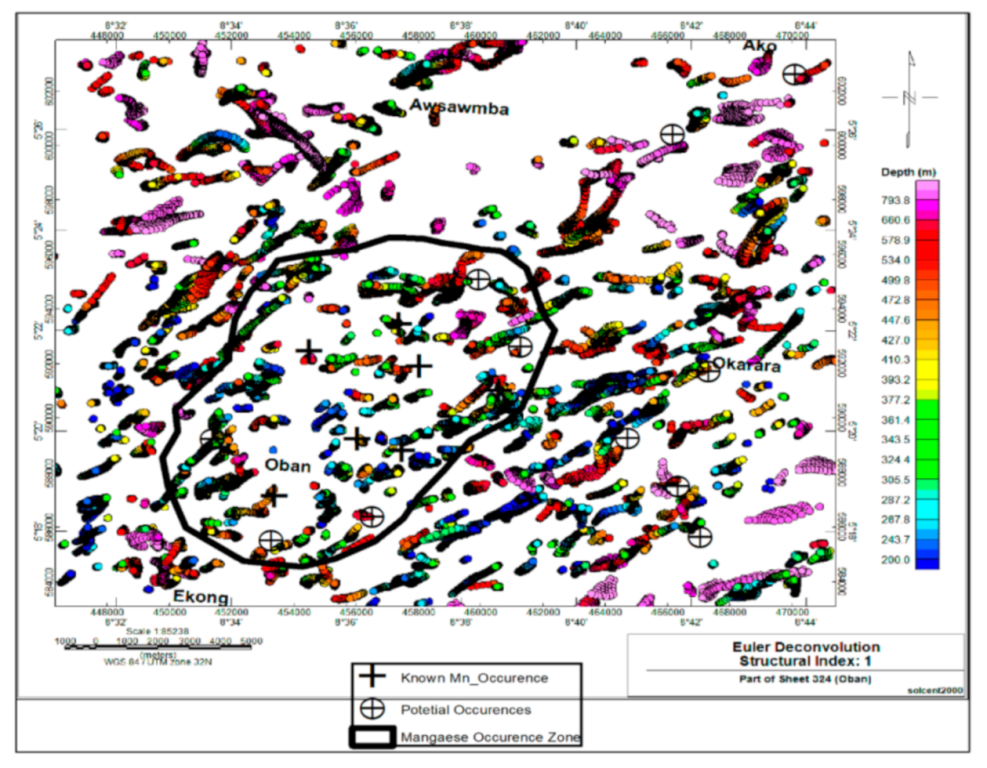

The source parameters imaging (SPI) and Euler decomposition techniques are data enhancement processes for evaluating the depth and location of magnetic bodies [47]. They are suitable for delineating the geometries of the magnetic sources and their susceptibility variations [48,49]. The color ranges (pink-blue) depicting various depths and locations of different magnetic sources within the subsurface in the study area are presented by the SPI (Figure 15) and Euler decomposition gridded maps (Figure 16).

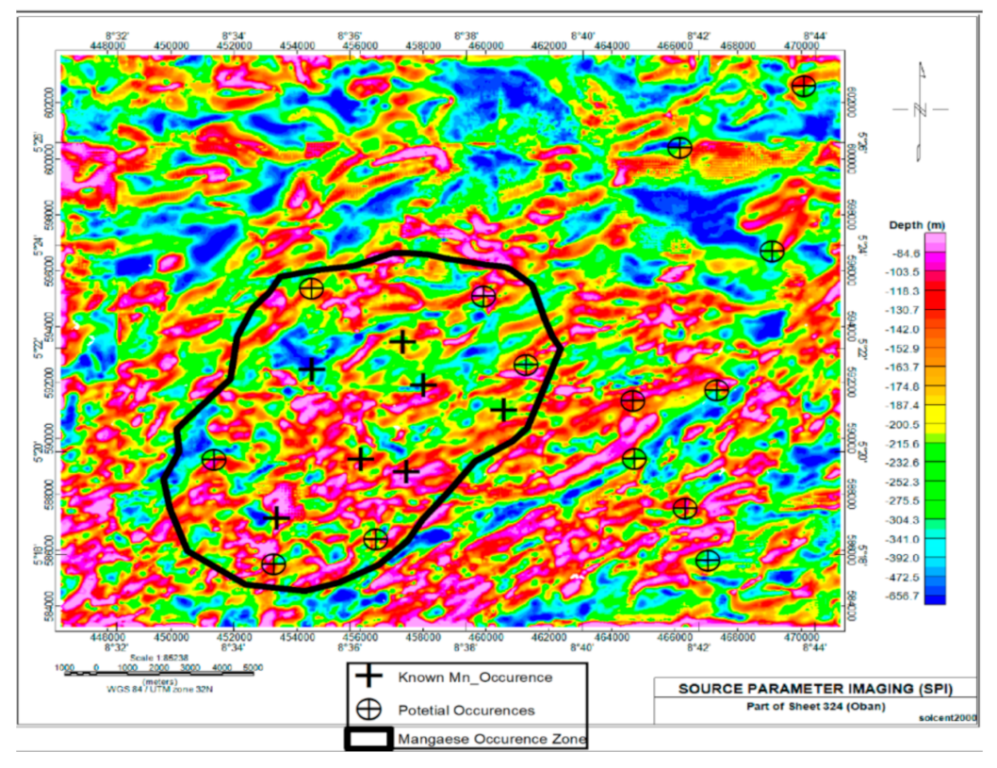

The negative signs on the color legend bar of the SPI map indicate the depth measurement from the earth’s surface downward into the subsurface (Figure 15). SPI presented the shallow depths (red-pink), intermediate depths (yellow-red), and deep depths (lemon green-blue) with ranges of 84–142 m, 152–200 m, and 215–656 m, respectively. However, the Euler decomposition (Figure 16) shows the depth of shallow (from 200 to 377 m), intermediate (from 393 to 472 m), and deep (from 499 to 793 m) magnetic sources characterized by blue-lemon green, yellow-red, and red-pink colors, respectively. These results show that most of the manganese occurrences are localized within the shallow to the intermediate depths of the study area.

5. Discussion

Deep weathering and overburden thickness concealed most of the mineralized veins in the area except for the resistant large boulders of iron–manganese–quartz association. Field observation indicated intense weathering in areas where the Mn-rich boulders were sampled. The boulders observed were resistant bodies within the weathering profile of the area where the mineral samples were collected. For example, the host rock in the area is migmatitic-gneiss, and it most probably was intruded by a high-medium temperature late phase hydrothermal fluid that was rich in manganiferous materials to the degree that most of the quartz veins observed in the area attain a black coloration due to the presence (trace concentration) of manganese. A shallow Mn-pit dug parallel to this ENE fracture direction revealed some of these manganese boulders within the weathering profile in the area (Figure 17). The boulders were observed to be uneven and angular and range in sizes from 8–37 cm in diameter, having Mn–Fe–Qtz association and being siliceous in places. This made indications of mineral alteration difficult to document; however, brecciated stained-quartz, chlorite, and clays we observed in the area were almost overtaken by the incomplete lateritization process. Although at this stage of the investigation, geochemical analyses were not carried out, the alteration marked by linear zones almost parallel to the E-W fracture patterns in the area provided some indications of hydrothermal emplacement. It is hypothesized that the variation in nascent temperature of the mineralizing fluid affected the integrity of the host rock and allowed it to weather easily, leaving the more resistant Mn–Fe–Qtz minerals to remain as boulders. This, however, does not preclude supergene enrichment of Manganese within the weathering profile in the area. Field observation near Neghe village (due east of Ekong town) showed manganese occurrence approximating the preferred orientation of ENE direction as observed from fracture patterns in the area. This association and mode of occurrence suit the humid (tropical) hypergenic deposit of manganese origin mostly observed in weathered crusts [50]. The extent to which this suits the gondite model is worth investigating. It has been suggested that the Manganese of weathering crusts are commonly the richest and most economically valuable. More often, they represent ferromanganese ores of hypergenesis (gondites, ampelites, manganous carbonates, e.tc) origin found in varying climatic zones [5,50]. However, studies have shown that the geochemical (Ba, Sr, Ti, As, and Sb) and mineralogical (barite, fluorite, and calcite association) composition are critical elements in determining the origin of the Mn deposit, whether hydrothermal or from secondary processes [50,51].

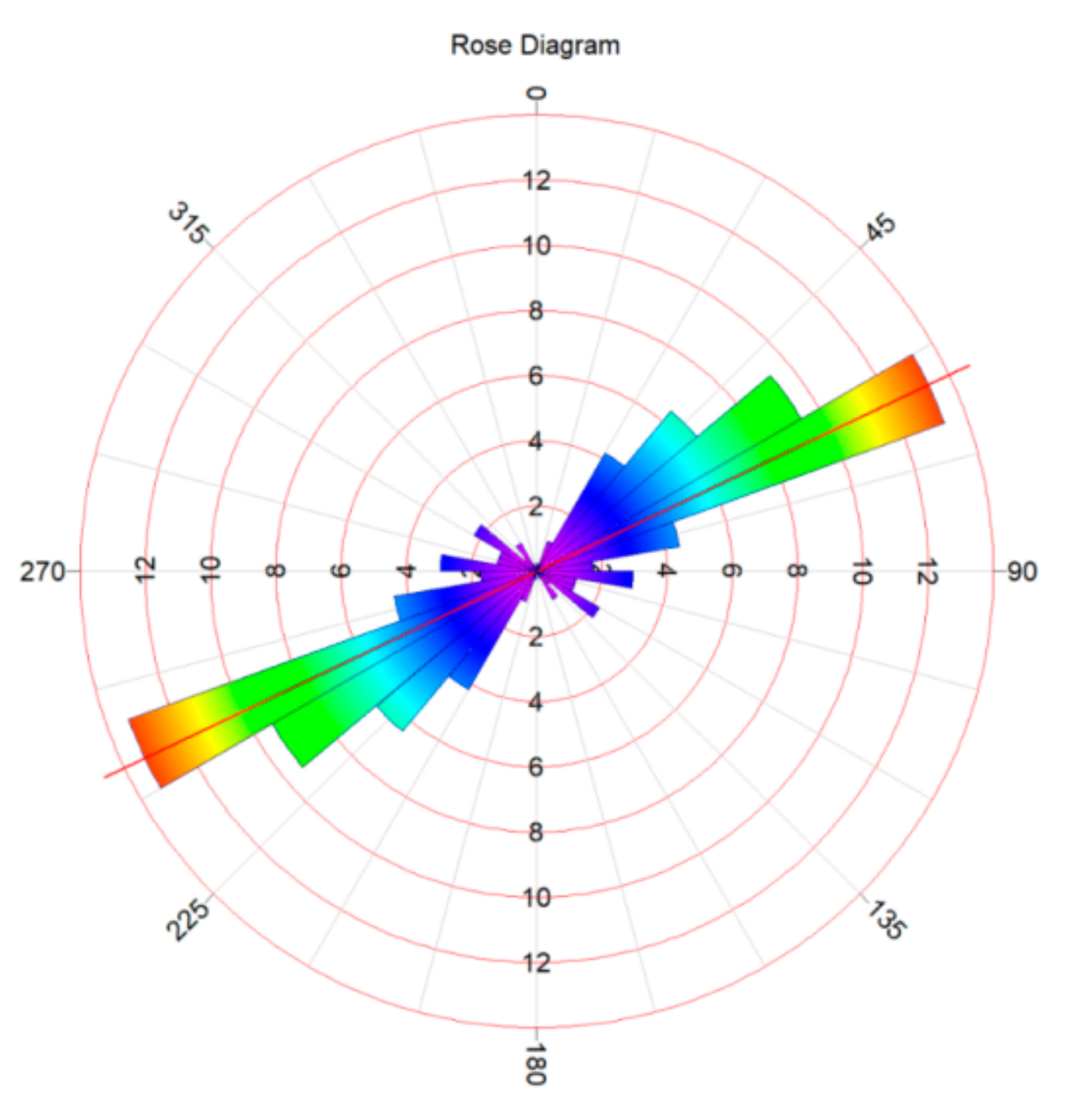

The findings of this study have revealed that the geophysical technique using the aeromagnetic method could complement geological mapping to enhance the structural interpretation for mineral exploration. The most dominant structural alignment of lineaments hosting Mn occurrence was observed within the ENE-WSW structures, consistent with the Mn mineralization in the area from the geological mapping results. With more accuracy, the aeromagnetic data enabled the identification of structural features such as faults and fractures associated with mineral emplacement. However, the depth interpretations of these structural features reveal that they are concealed by overburdened sediment thickness. However, the detailed interpretation of the aeromagnetic data revealed the area of interest (AOI) for manganese exploration. The overall distribution of the economic minerals based on the mineral resources map of Nigeria [52] with structural lineaments mapping within the study area is presented in Figure 18. This further suggests that the manganese minerals within the study area occur as structurally controlled emplacements within the iron oxides and areas with intense lateritic alterations [53]. The map (Figure 17) corroborates the reports of [2,11,53,54,55] on the occurrence of manganese, iron ores, and silicate minerals within the Akampa local government area of Cross-River state, Nigeria.

6. Conclusions

The need for mineral resources for economic development is the key in any developing country. This study was channeled towards assessing the manganese mineralization potential in part of eastern Oban, southeastern Nigeria. Geological field observations and aeromagnetic data interpretation were used to identify mineral-bearing zones that show high prospects of manganese deposits within the study area. The orientation of the mineral banding of the exposed rocks and fracture patterns are N-S, ENE, and NW-SE trends. The rose diagram for the subsurface lineaments revealed that they are aligned in the NE-SW directions. Field observations have revealed the occurrence of an epithermal Mn+Fe+Qtz vein type mineralization with orientation coinciding with dominant structural orientation from aeromagnetic data in the study area. The ENE was the most important one that coincided with Manganese occurrences along regional structural indications and was considered the preferred orientation of ore deposits.

The spatial distribution and depths of occurrence of the manganese minerals were mapped using source parameter imaging (SPI) and Euler decomposition algorithms. The manganese minerals occur within the shallow to intermediate depths of 84–142 m and 152–200 m by the SPI algorithm, and 200–377 m, from 393 to 472 m by the Euler decomposition algorithm. New spatial locations of Mn mineralization were identified in the study area and were suggested to be favorable locations for mineralization emplacement. The magnetic data show near-surface and deep-seated structural features (faults and lineaments) related to mineralization in the area. This buttressed the fact that the manganese mineralization is structurally controlled. The research provides a baseline for mineral resource development, exploration, and management in the study area. It is recommended that a detailed ore reserve estimation of the manganese deposits in the area should be conducted. Furthermore, a comprehensive ore characteristic and ore grade analysis should be carried out on the manganese mineral deposits.
