Study on Fracture and Seepage Evolution Law of Stope Covered by Thin Bedrock under Mining Influence
Abstract
:1. Introduction

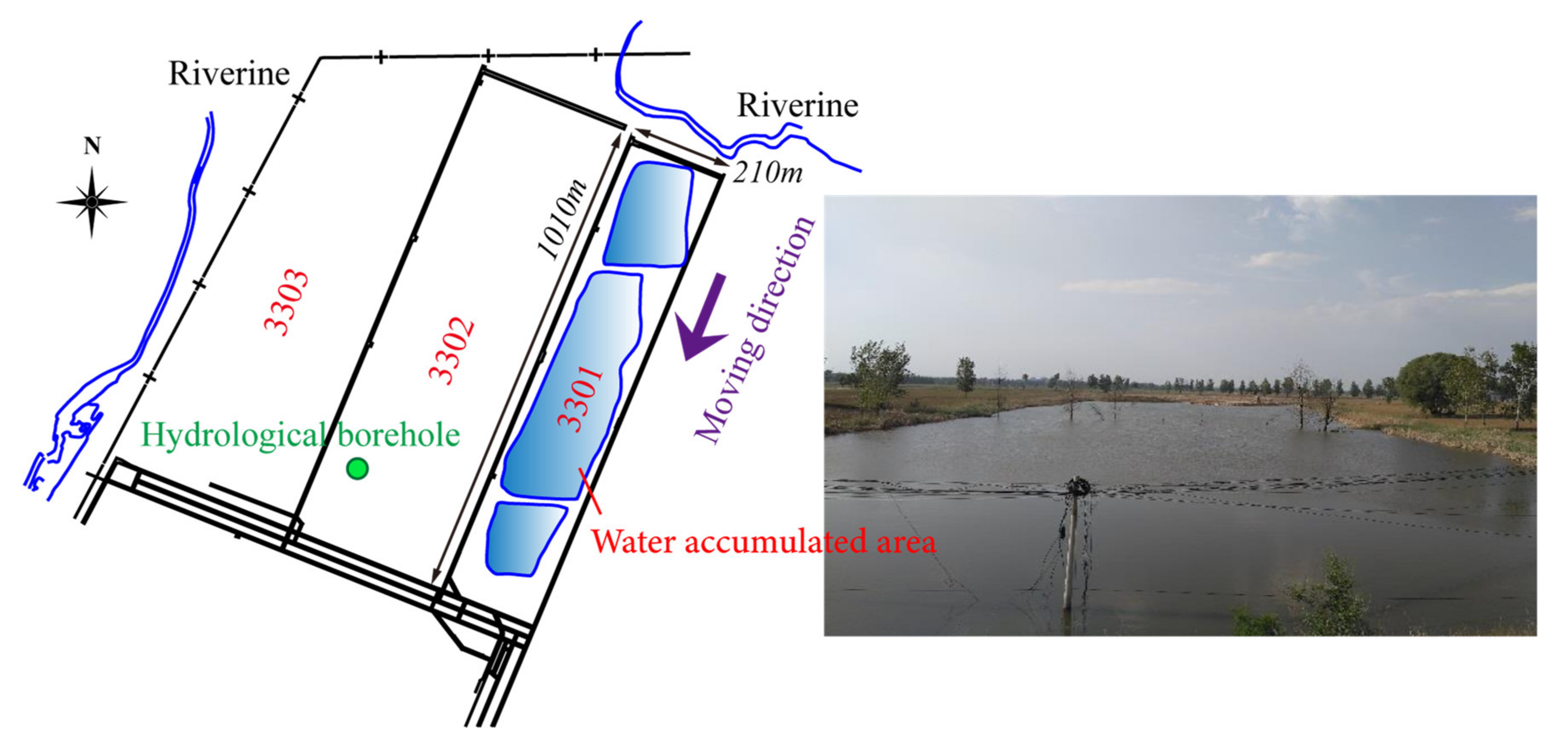

2. Background of the Engineering
3. Numerical Modeling and Scheme
4. Fracture Evolution Law of Overlying Rock during Mining
5. Evolution Law of Seepage Field
6. Conclusions
- (1)

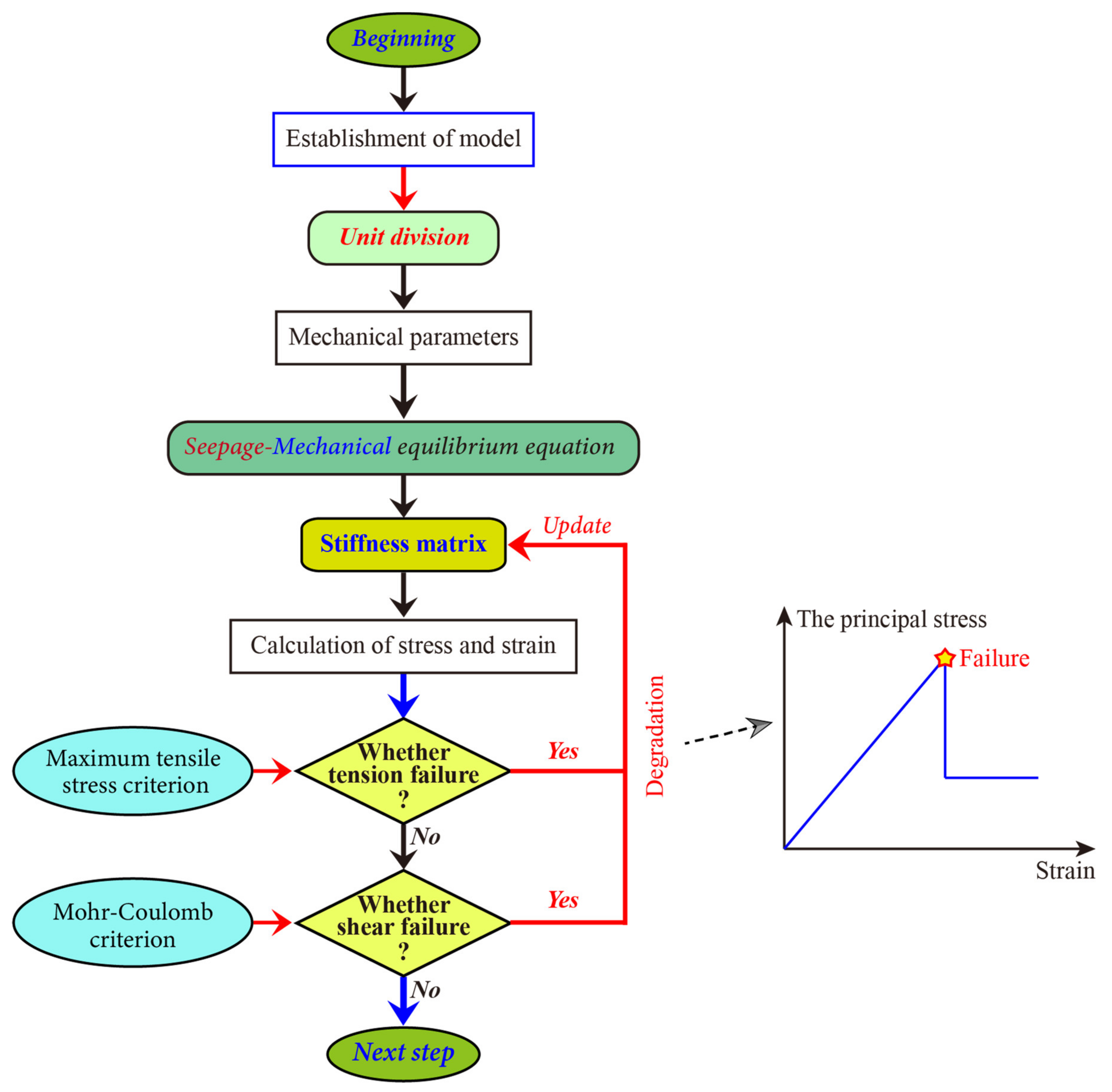

- Based on seepage and mechanics theory, a rock seepage-stress coupling equation with random damage elements is established. The numerical calculation model for the fracture evolution of the overlying rock in the stope under the coupled seepage-stress condition was established by using the ABAQUS secondary development program. A multi-scale numerical calculation method for the whole process analysis of rock mass destruction under seepage-stress coupling is realized.
- (2)

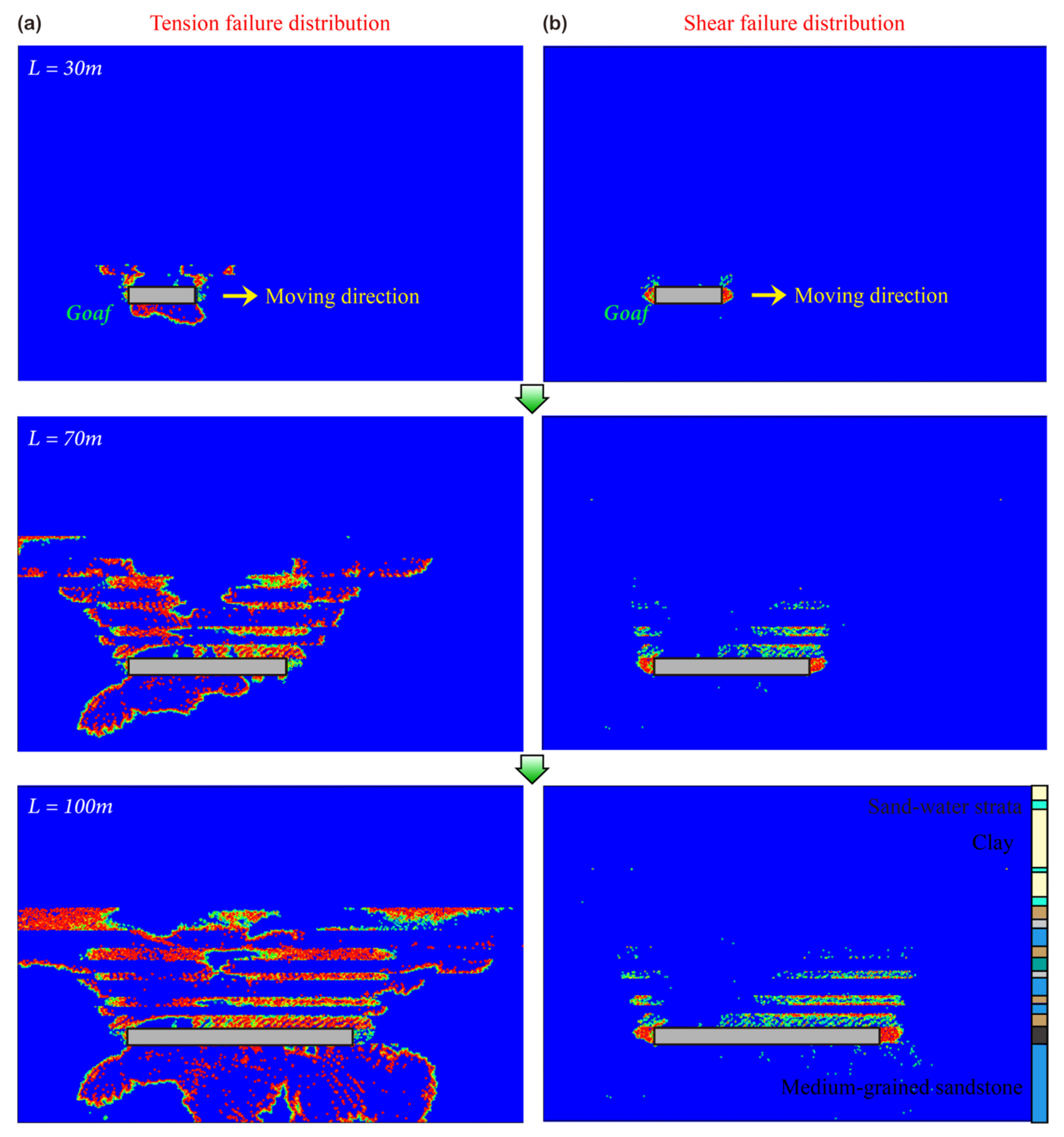

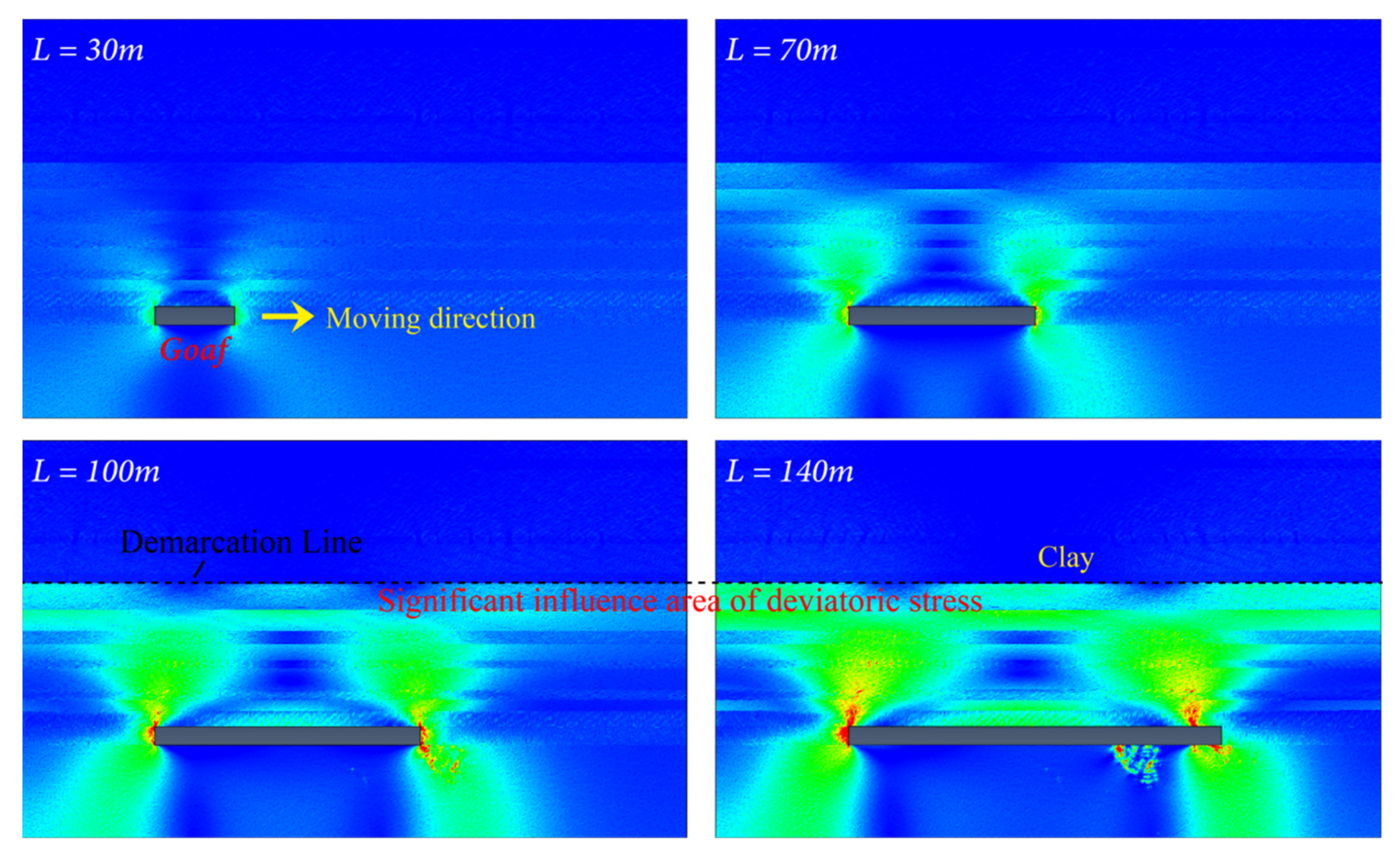

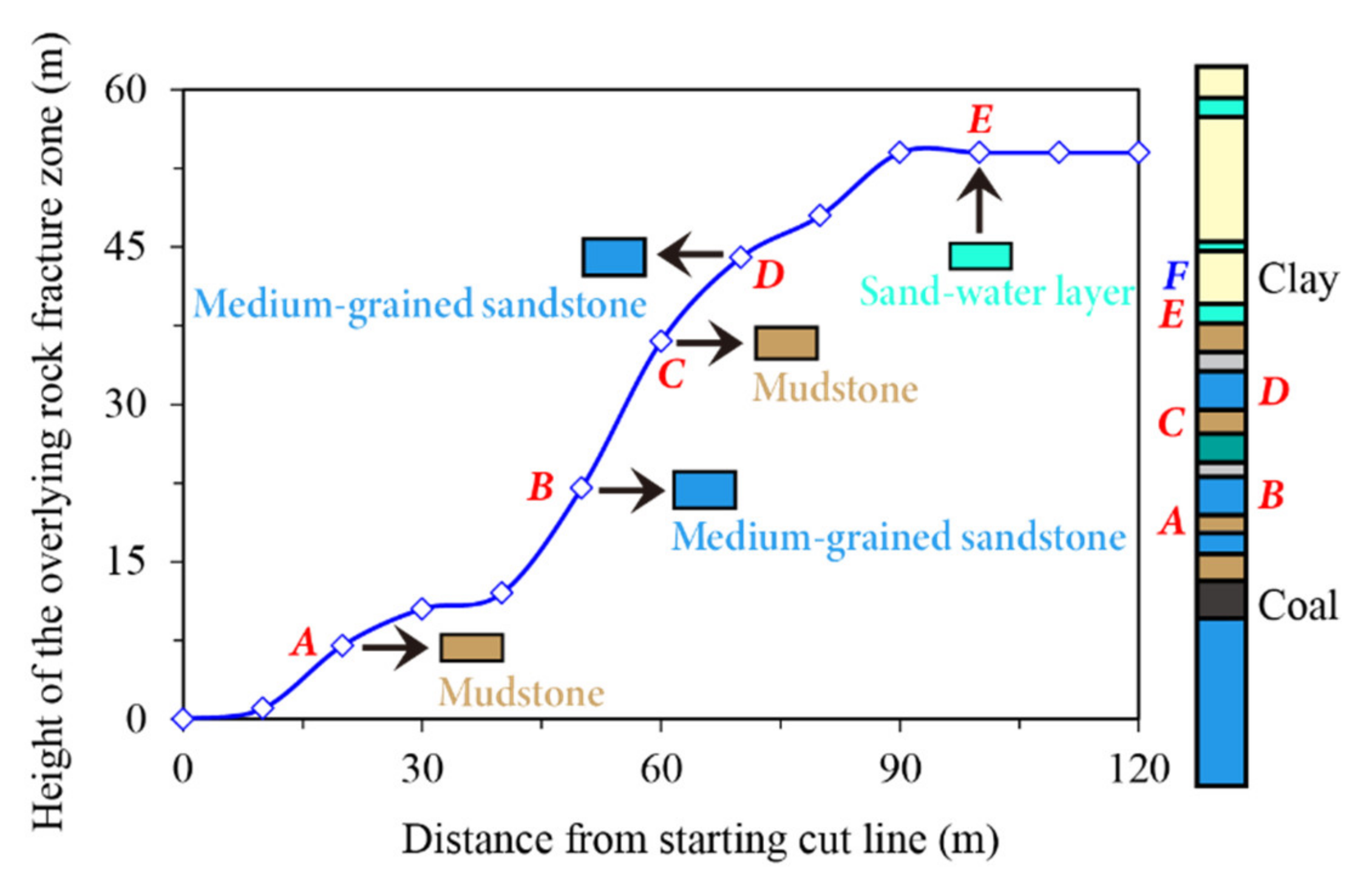

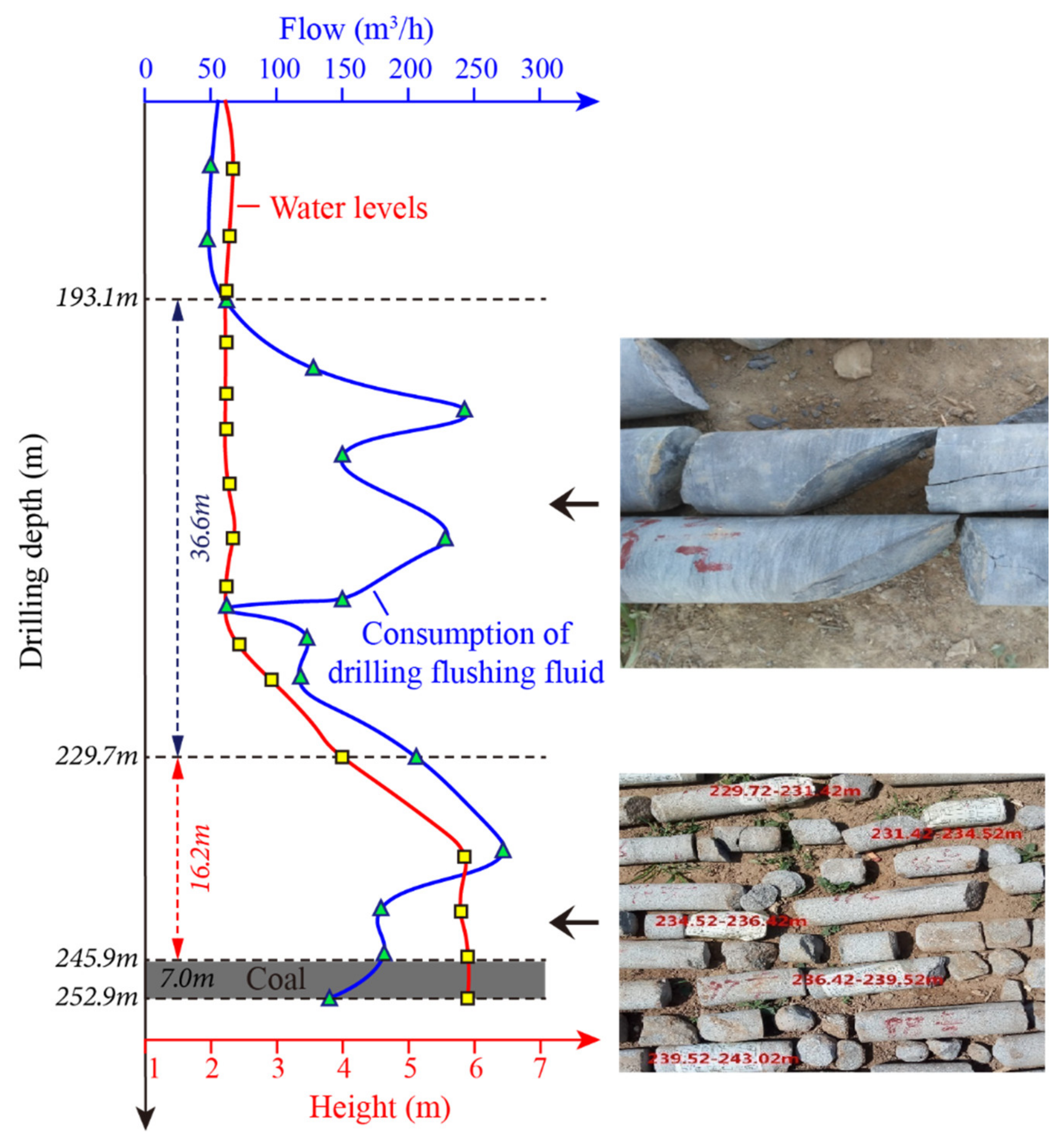

- The whole process of the overlying rock fracture evolution during the advancing process of the working face is reproduced. The results show that with the advancement of the working face, shear and tension compound rupture occurs in the overlying rock layer bottom-up. It gradually penetrates into the sand-water layer and forms a stable rupture zone, which ends at the bottom of the clay layer in the vertical direction and no longer develops upward. The damage height reached 54.5 m, which was consistent with the field monitoring results, indicating the accuracy of the numerical calculation results. The equivalent stress is used to quantify the failure trend of the surrounding rock during the advancing process of the working face. The equivalent stress concentration area is obviously separated at the bottom of the clay layer, while there is no obvious damage to the clay layer. This shows that the characteristics of the “soft–hard” roof layer greatly weaken the rupture degree of the roof caused by mining, protecting the integrity of the clay layer and ensuring its good water insulation.
- (3)

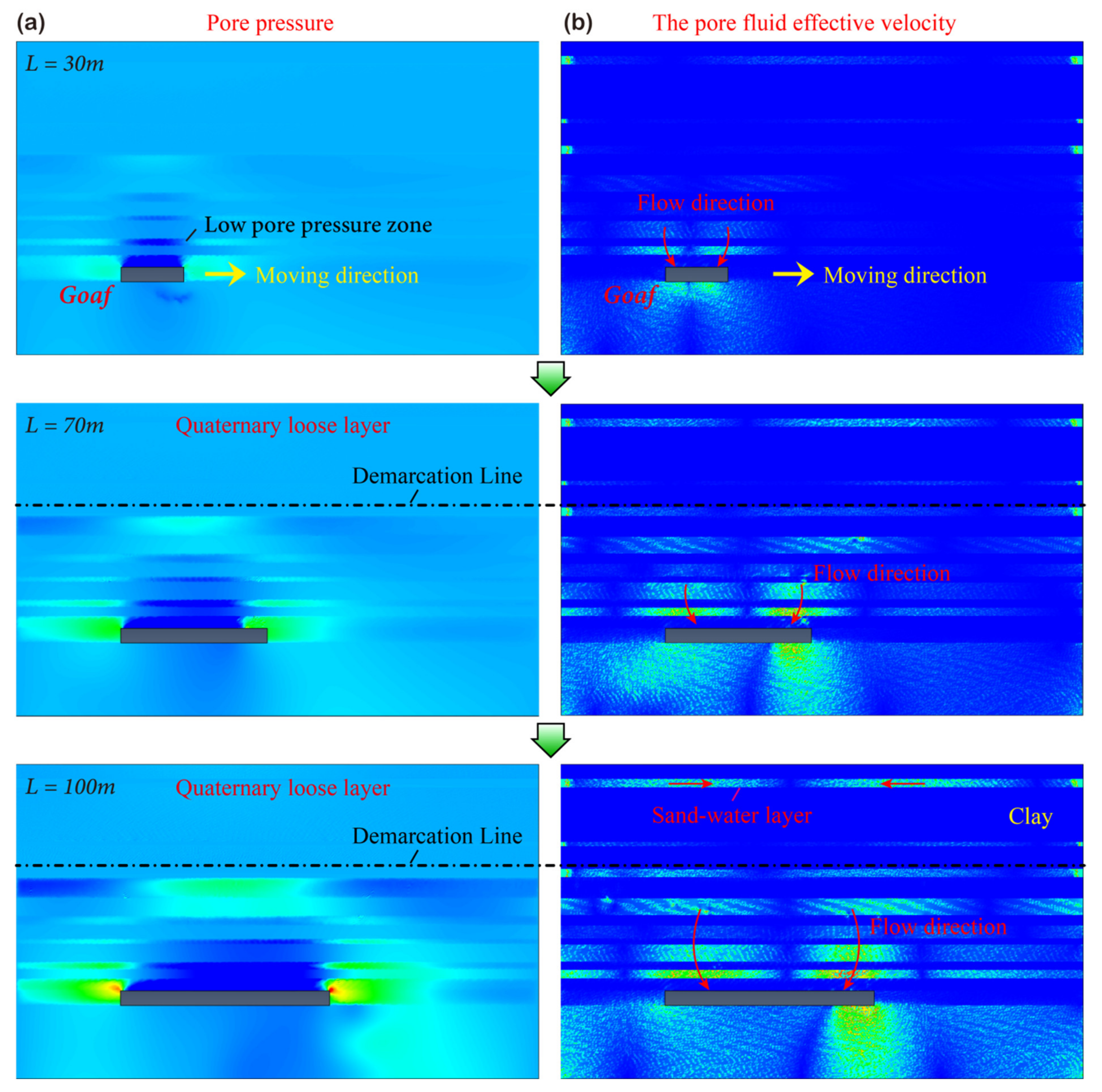

- The permeation law of the overlying rock of the roof during the advancement of the working face was analyzed, and the results were that: under the dual action of mining stress and pore water pressure, the bedrock aquifer ruptured in a wide range, and gradually caused water to flow to the goaf. The low pore pressure zone runs through the entire bedrock layer and ends at the bottom of the clay layer; also, the effective velocity of pore fluid shows a consistent pattern. This indicates that the clay layer has a good water barrier effect, effectively blocking the flow of shallow groundwater or surface water into the working face. This also shows that the “soft–hard” roof layer combination feature greatly buffers the impact of mining on the water isolation layer and has good water separation effect.
- (4)

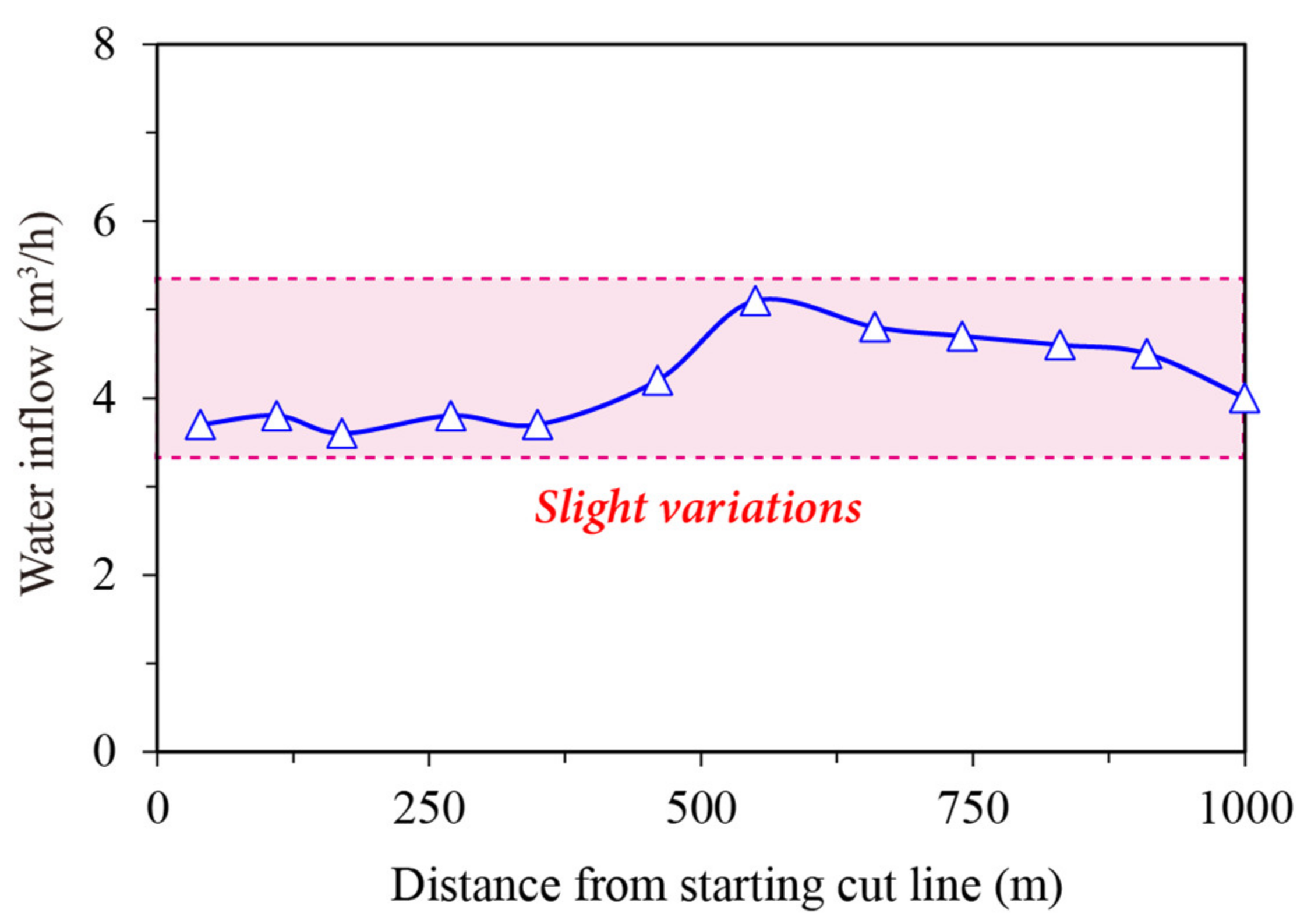

- The monitoring results of on-site water inflow showed that during the mining of the working face, the main source of water inflow was the sandstone water layer of the bedrock section, and the shallow groundwater and surface water did not enter the working face in large quantities with the mining of the coal seam. The clay in the Quaternary overburden has not been damaged as a whole due to coal mining, which shows that the roof rock layer combination characteristics of “soft–hard alternate” greatly buffer the destructive effect of mining on the clay water separation layer, and that this has a good water separation effect.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Wu, G.M.; Bai, H.B.; Wu, L.Y.; He, S.X. Study on the Influence of Bedrock Thickness on Deformation and Failure of Overlying Soil Layer in Thin Bedrock Coal Seam Mining. J. Min. Sci. 2020, 56, 518–528. [Google Scholar] [CrossRef]
- Lian, X.G.; Zhang, Y.J.; Yuan, H.Y.; Wang, C.L.; Guo, J.T.; Liu, J.B. Law of Movement of Discontinuous Deformation of Strata and Ground with a Thick Loess Layer and Thin Bedrock in Long Wall Mining. Appl. Sci. 2020, 10, 2874. [Google Scholar] [CrossRef] [Green Version]
- Yang, W.; Xia, X. Study on mining failure law of the weak and weathered composite roof in a thin bedrock working face. J. Geophys. Eng. 2018, 15, 2370–2377. [Google Scholar] [CrossRef] [Green Version]
- Kratzsch, H. Mining Subsidence Engineering; Springer Science & Business Media: Berlin, Germany, 2012. [Google Scholar]
- Guo, Y.; Wei, J.; Gui, H.; Zhang, Z.; Hu, M. Evaluation of changes in groundwater quality caused by a water inrush event in Taoyuan coal mine, China. Environ. Earth Sci. 2020, 79, 1–15. [Google Scholar] [CrossRef]
- Mandal, R.; Maity, T.; Chaulya, S.K.; Prasad, G.M. Laboratory investigation on underground coal gasification technique with real-time analysis. Fuel 2020, 275, 117865. [Google Scholar] [CrossRef]
- Zhang, S.; Tang, S.; Zhang, D.; Fan, G.; Wang, Z. Determination of the Height of the Water-Conducting Fractured Zone in Difficult Geological Structures: A Case Study in Zhao Gu No. 1 Coal Seam. Sustainability 2017, 9, 1077. [Google Scholar] [CrossRef] [Green Version]
- Reddish, D.; Whittaker, B. Subsidence: Occurrence, Prediction and Control; Elsevier: Amsterdam, The Netherlands, 2012. [Google Scholar]
- Yang, W.; Xia, X. Prediction of mining subsidence under thin bedrocks and thick unconsolidated layers based on field measurement and artificial neural networks. Comput. Geosci. 2013, 52, 199–203. [Google Scholar] [CrossRef]
- Brady, B.H.; Brown, E.T. Rock Mechanics: For Underground Mining; Springer Science & Business Media: Berlin, Germany, 2006. [Google Scholar]
- Liu, S.; Li, W.; Wang, Q.; Pei, Y. Investigation on mining-induced fractured zone height developed in different layers above Jurassic coal seam in western China. Arab. J. Geosci. 2018, 11, 30. [Google Scholar] [CrossRef]
- Zhao, K.; Xu, N.; Mei, G.; Tian, H. Predicting the distribution of ground fissures and water-conducted fissures induced by coal mining: A case study. SpringerPlus 2016, 5, 977. [Google Scholar] [CrossRef] [Green Version]
- Fu, B.; Wang, B. An Influence Study of Face Length Effect on Floor Stability under Water-Rock Coupling Action. Geofluids 2021, 2021, 1–13. [Google Scholar] [CrossRef]
- Ma, D.; Wang, J.; Li, Z. Effect of particle erosion on mining-induced water inrush hazard of karst collapse pillar. Environ. Sci. Pollut. Res. 2019, 26, 19719–19728. [Google Scholar] [CrossRef] [PubMed]
- Zhang, J.; Guo, L.; Mu, W.; Liu, S.; Zhao, D. Water-inrush Risk through Fault Zones with Multiple Karst Aquifers Underlying the Coal Floor: A Case Study in the Liuzhuang Coal Mine, Southern China. Mine Water Environ. 2021, 40, 1037–1047. [Google Scholar] [CrossRef]
- Lin, Z.; Zhang, B.; Guo, J. Analysis of a Water-Inrush Disaster Caused by Coal Seam Subsidence Karst Collapse Column under the Action of Multi-Field Coupling in Taoyuan Coal Mine. Comput. Model. Eng. Sci. 2021, 126, 311–330. [Google Scholar]
- Xu, Y.; Zhang, E.; Luo, Y.; Zhao, L.; Yi, K. Mechanism of Water Inrush and Controlling Techniques for Fault-Traversing Roadways with Floor Heave Above Highly Confined Aquifers. Mine Water Environ. 2020, 39, 320–330. [Google Scholar] [CrossRef]
- Ma, J.; Yin, D.; Jiang, N.; Wang, S.; Yao, D. Application of a superposition model to evaluate surface asymmetric settlement in a mining area with thick bedrock and thin loose layer. J. Clean. Prod. 2021, 314, 128075. [Google Scholar] [CrossRef]
- Tang, C.; Yao, Q.; Li, Z.; Zhang, Y.; Ju, M. Experimental study of shear failure and crack propagation in water-bearing coal samples. Energy Sci. Eng. 2019, 7, 2193–2204. [Google Scholar] [CrossRef]
- Li, Z.; Yu, S.; Zhu, W.; Feng, G.; Xu, J. Dynamic loading induced by the instability of voussoir beam structure during mining below the slope. Int. J. Rock Mech. Min. 2020, 132, 104343. [Google Scholar] [CrossRef]
- Yao, Q.L.; Tang, C.J.; Xia, Z.; Liu, X.L.; Zhu, L.; Chong, Z.H.; Hui, X.D. Mechanisms of failure in coal samples from underground water reservoir. Eng. Geol. 2020, 267, 105494. [Google Scholar] [CrossRef]
- Fan, L. Some scientific issues in water-preserved coal mining. J. China Coal Soc. 2019, 44, 667–674. [Google Scholar]
- Miao, X.; Cui, X.; Wang, J.a.; Xu, J. The height of fractured water-conducting zone in undermined rock strata. Eng. Geol. 2011, 120, 32–39. [Google Scholar] [CrossRef]
- Fan, L.; Ma, X. A review on investigation of water-preserved coal mining in western China. Int. J. Coal Sci. Technol. 2018, 5, 411–416. [Google Scholar] [CrossRef] [Green Version]
- Xu, S.; Zhang, Y.; Shi, H.; Zhang, Z.; Chen, J. Impacts of Aquitard Properties on an Overlying Unconsolidated Aquifer in a Mining Area of the Loess Plateau: Case Study of the Changcun Colliery, Shanxi. Mine Water Environ. 2020, 39, 121–134. [Google Scholar] [CrossRef]
- Xu, Y.; Luo, Y.; Li, J.; Li, K.; Cao, X. Water and Sand Inrush during Mining Under Thick Unconsolidated Layers and Thin Bedrock in the Zhaogu No. 1 Coal Mine, China. Mine Water Environ. 2018, 37, 336–345. [Google Scholar] [CrossRef]
- Fan, G.; Zhang, D. Mechanisms of Aquifer Protection in Underground Coal Mining. Mine Water Environ. 2015, 34, 95–104. [Google Scholar] [CrossRef]
- Song, H.; Xu, J.; Fang, J.; Cao, Z.; Li, T. Potential for mine water disposal in coal seam goaf: Investigation of storage coefficients in the Shendong mining area. J. Clean. Prod. 2019, 244, 118646. [Google Scholar] [CrossRef]
- Fei, Y.; Liu, S.; Xu, Y.; Zhao, L. Failure Analysis of Thin Bedrock and Clay Roof in Underground Coal Mining: Case Study in Longdong Coal Mine. Int. J. Geomech. 2020, 20, 04020187. [Google Scholar] [CrossRef]
- Zhang, H.; Tu, M.; Cheng, H.; Tang, Y. Breaking mechanism and control technology of sandstone straight roof in thin bedrock stope. Int. J. Rock Mech. Min. 2020, 30, 259–263. [Google Scholar] [CrossRef]
- Li, T.; Li, L.; Tang, C.; Zhang, Z.; Li, M. A coupled hydraulic-mechanical-damage geotechnical model for simulation of fracture propagation in geological media during hydraulic fracturing. J. Pet. Sci. Eng. 2019, 173, 1390–1416. [Google Scholar] [CrossRef]
- Wang, S.; Li, Z.; Yuan, R.; Li, G.; Li, D. A shear hardening model for cohesive element method and its application in modeling shear hydraulic fractures in fractured reservoirs. J. Nat. Gas. Sci. Eng. 2020, 83, 103580. [Google Scholar] [CrossRef]
- Tidke, A.R.; Adhikary, S. Seismic fragility analysis of the Koyna gravity dam with layered rock foundation considering tensile crack failure. Eng. Fail. Anal. 2021, 125, 105361. [Google Scholar] [CrossRef]
- Zhang, X.X.; Wang, J.G.; Gao, F.; Wang, X.L. Numerical Study of Fracture Network Evolution during Nitrogen Fracturing Processes in Shale Reservoirs. Energies 2018, 11, 2503. [Google Scholar] [CrossRef] [Green Version]
- Li, W.; Jiang, B.; Gu, S.; Yang, X.; Shaikh, F.U.A. Experimental study on the shear behaviour of grout-infilled specimens and micromechanical properties of grout-rock interface. J. Cent. South. Univ. 2022, 1–14. [Google Scholar]
- Feng, Q.; Jin, J.; Zhang, S.; Liu, W.; Yang, X.; Li, W. Study on a Damage Model and Uniaxial Compression Simulation Method of Frozen–Thawed Rock. Rock Mech. Rock Eng. 2022, 55, 187–211. [Google Scholar] [CrossRef]

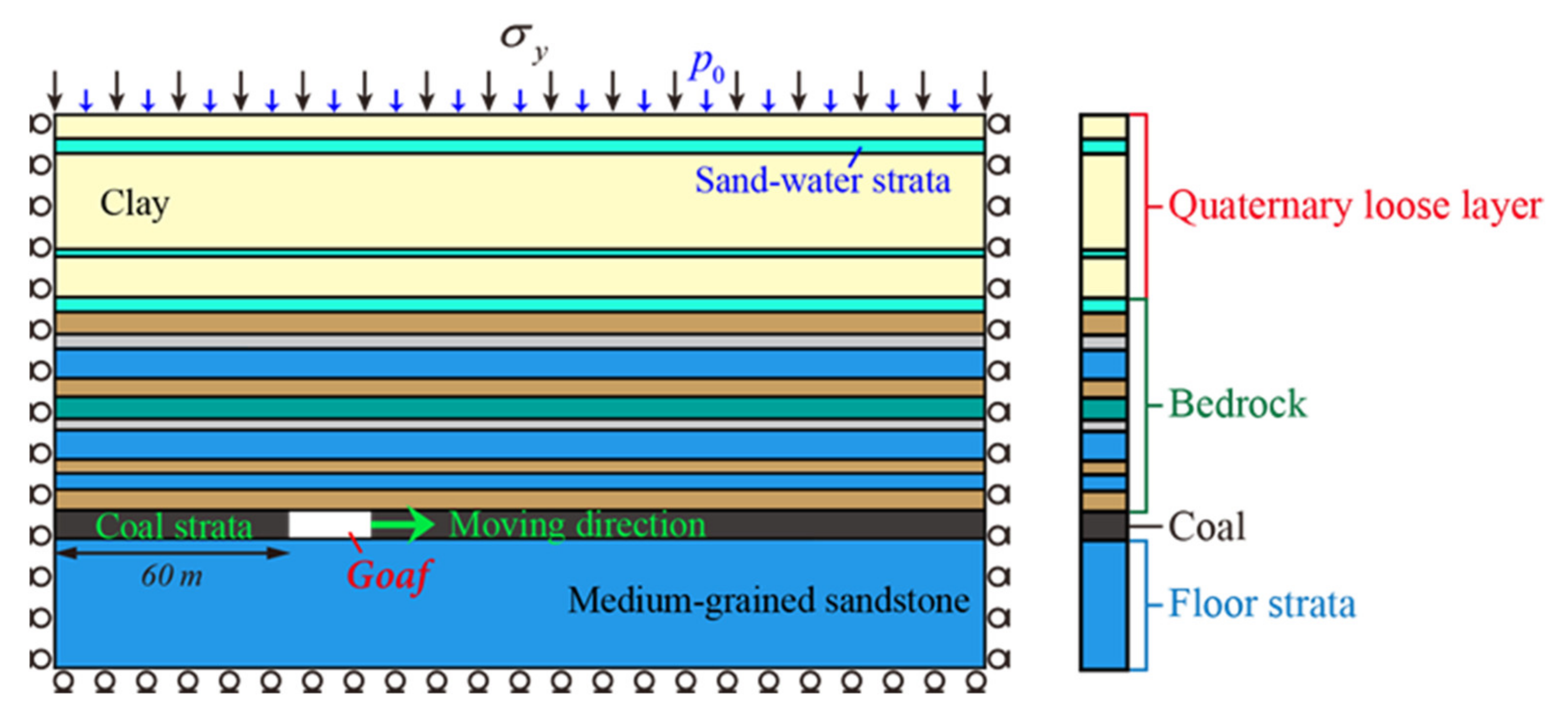

Quaternary Loose Layer | Strata | Thickness (m) | Young’s Modulus (GPa) | Internal Cohesion (MPa) | Internal Frictional Angle (°) | The Proportion of Damaged Elements (%) | Tensile Strength (MPa) | Permeability (m2) |
Clay | 7.0 | 0.8 | 0.55 | 30.0 | 10 | 0.16 | 1 × 10–15 | |
Sand-water layer | 4.0 | 0.1 | 0.20 | 20.0 | 8 | 0.10 | 5 × 10–8 | |
Clay | 26.0 | 0.8 | 0.55 | 30.0 | 10 | 0.16 | 1 × 10–15 | |
Sand-water layer | 2.0 | 0.1 | 0.20 | 20.0 | 8 | 0.10 | 5 × 10–8 | |
Clay | 11.0 | 0.8 | 0.55 | 30.0 | 10 | 0.16 | 1 × 10–15 | |
Bedrock | Sand-water layer | 4.0 | 0.1 | 0.20 | 20.0 | 8 | 0.10 | 5 × 10–8 |
Mudstone | 6.0 | 12.1 | 2.30 | 20.9 | 9 | 0.40 | 1 × 10–13 | |
Sandy mudstone | 4.0 | 16.3 | 3.45 | 29.0 | 9 | 0.45 | 1 × 10–12 | |
Medium-grained sandstone | 8.0 | 35.0 | 5.20 | 30.5 | 7 | 6.50 | 1 × 10–10 | |
Mudstone | 5.0 | 16.3 | 3.45 | 29.0 | 9 | 0.45 | 1 × 10–13 | |
Fine-grained sandstone | 6.0 | 38.0 | 5.91 | 24.4 | 5 | 1.98 | 1 × 10–10 | |
Sandy mudstone | 3.0 | 16.3 | 3.45 | 29.0 | 7 | 0.45 | 1 × 10–12 | |
Medium-grained sandstone | 8.0 | 35.0 | 5.20 | 30.5 | 7 | 6.50 | 1 × 10–10 | |
Mudstone | 4.0 | 12.1 | 2.30 | 20.9 | 9 | 0.40 | 1 × 10–13 | |
Medium-grained sandstone | 4.0 | 35.0 | 5.20 | 30.5 | 7 | 6.50 | 1 × 10–10 | |
Mudstone | 6.0 | 12.1 | 2.30 | 20.9 | 9 | 0.40 | 1 × 10–13 | |
Coal | 3# Coal | 7.0 | 5.0 | 1.60 | 30.0 | 10 | 0.20 | 5 × 10–12 |
Floor strata | Medium-grained sandstone | 35.0 | 35.0 | 5.20 | 30.5 | 5 | 6.50 | 1 × 10–10 |
