Genesis of the Tangshang Au Deposit in Southeast Yunnan Province, China: Constraints from In Situ Chemical and S-Sr Isotope Analyses
Abstract
:1. Introduction
2. Geological Background

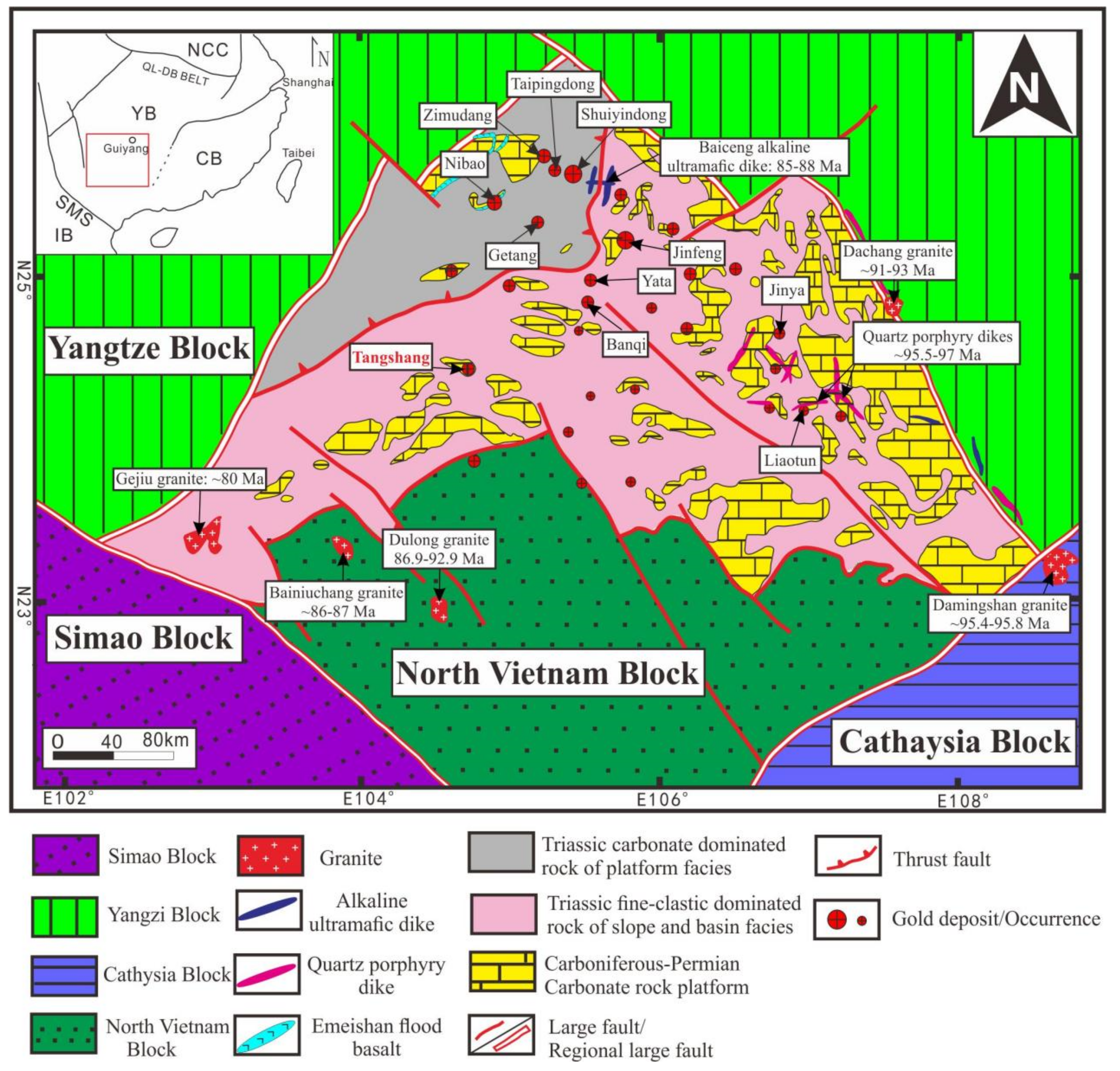

2.1. Regional Geology

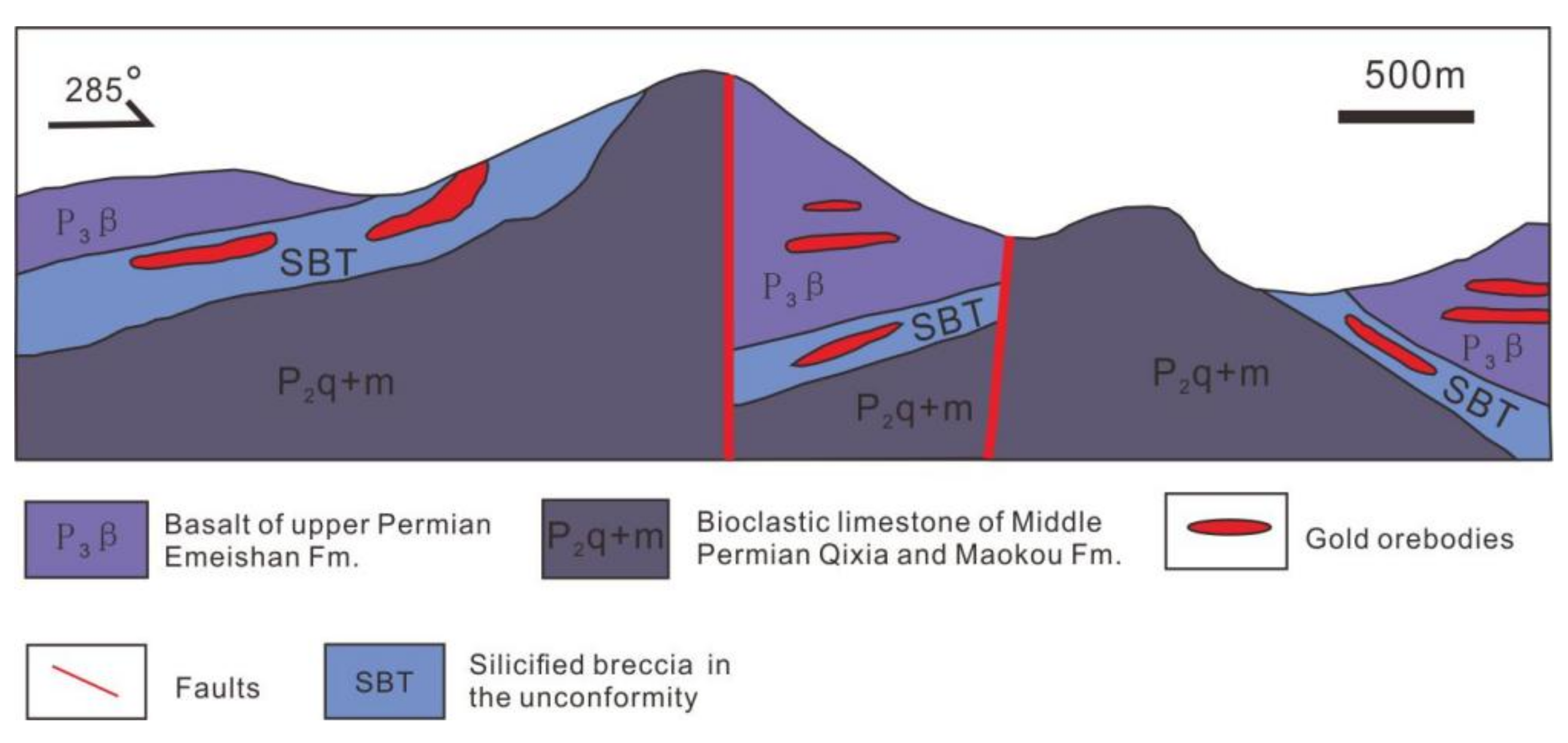

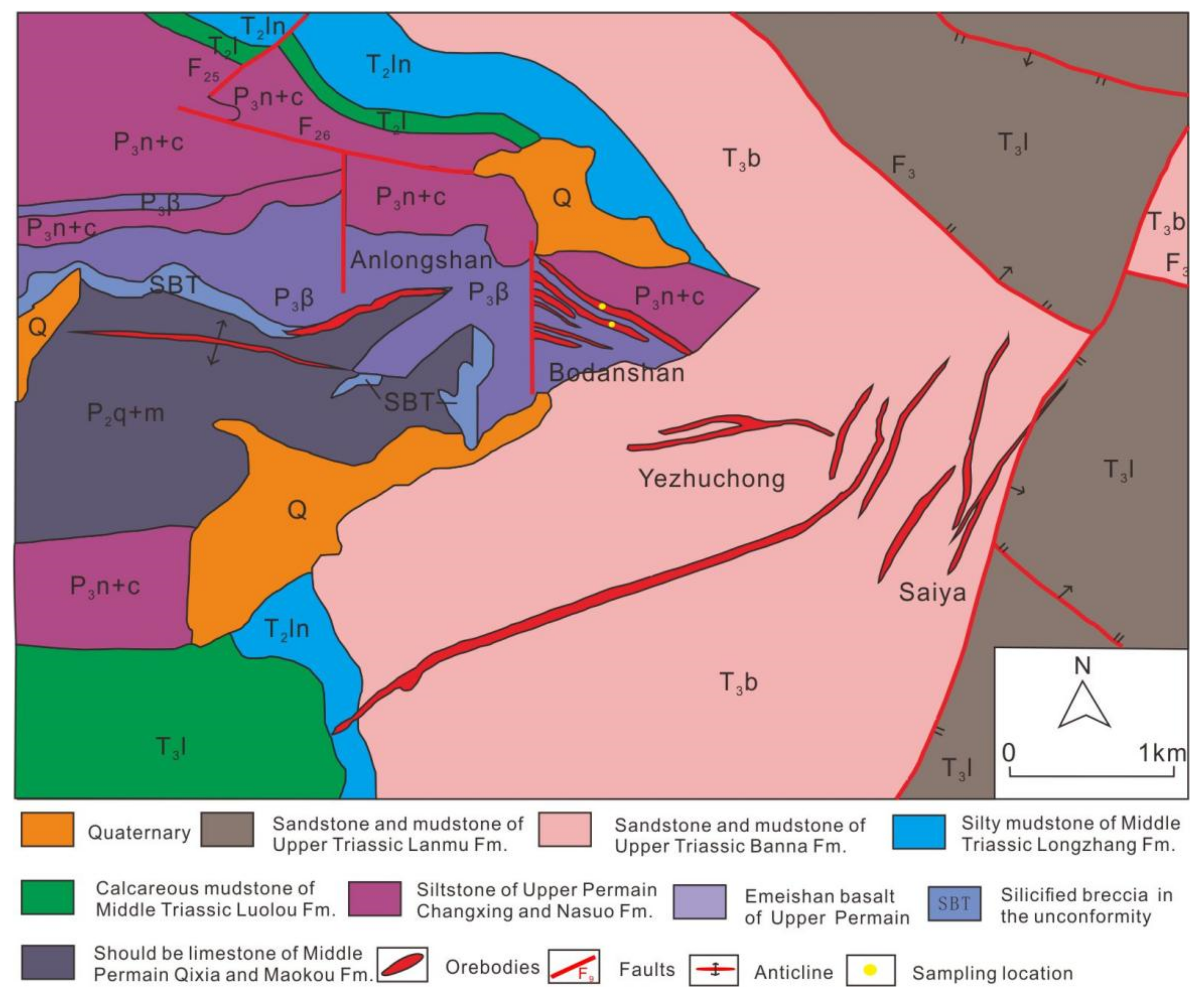

2.2. Deposit Geology
3. Samples and Analytical Methods
3.1. Sample Preparation
3.2. LA-ICP-MS Major and Trace Element Analyses
3.3. In Situ Sulfur Isotope Analysis
3.4. In Situ Strontium Isotope Analysis
4. Results

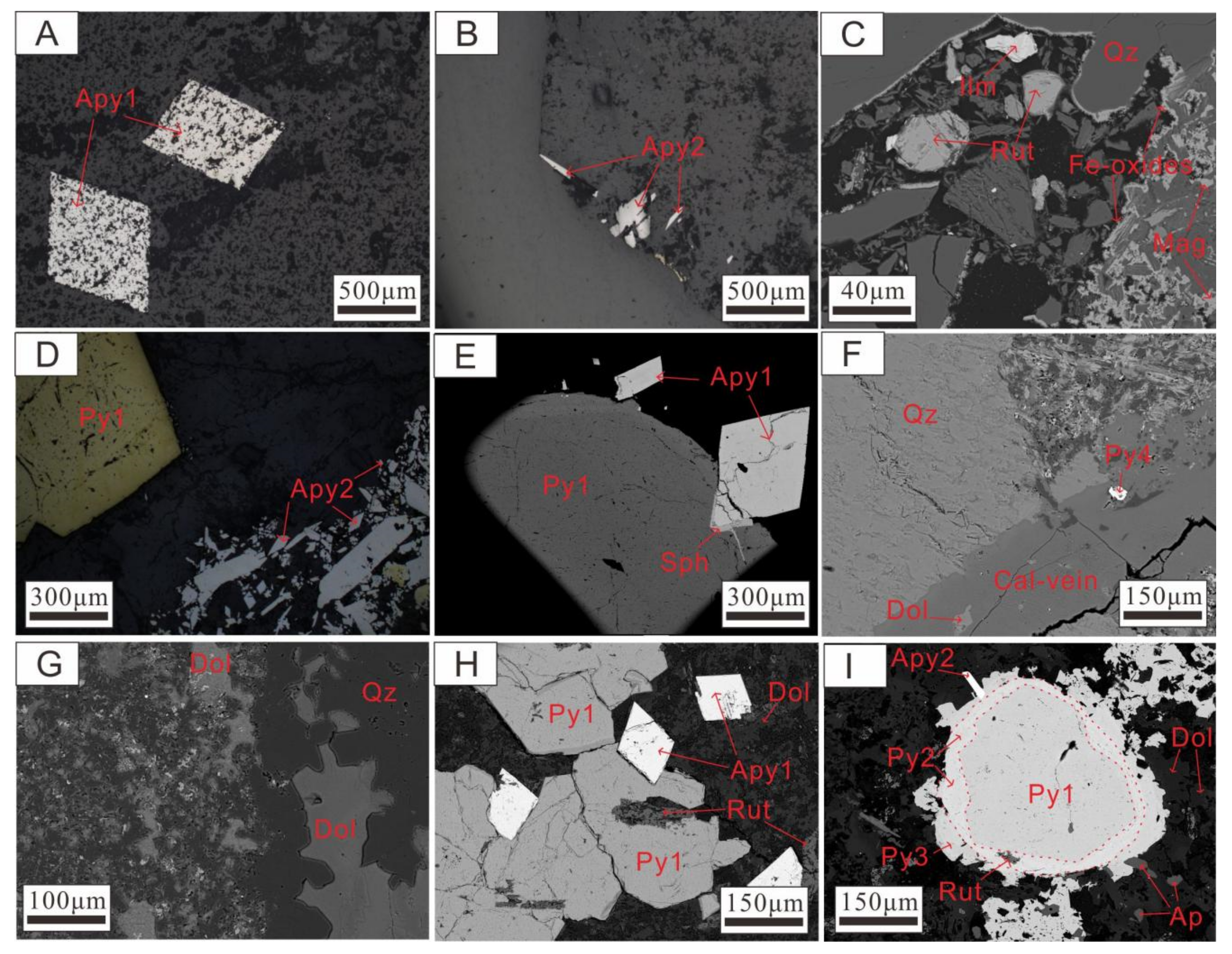

4.1. Occurrence and Texture of Pyrite and Arsenopyrite
4.1.1. Py1
4.1.2. Py2
4.1.3. Py3
4.1.4. Py4
4.2. Composition of Pyrite
4.2.1. Major Elements in Pyrite Determined Using LA-ICP-MS

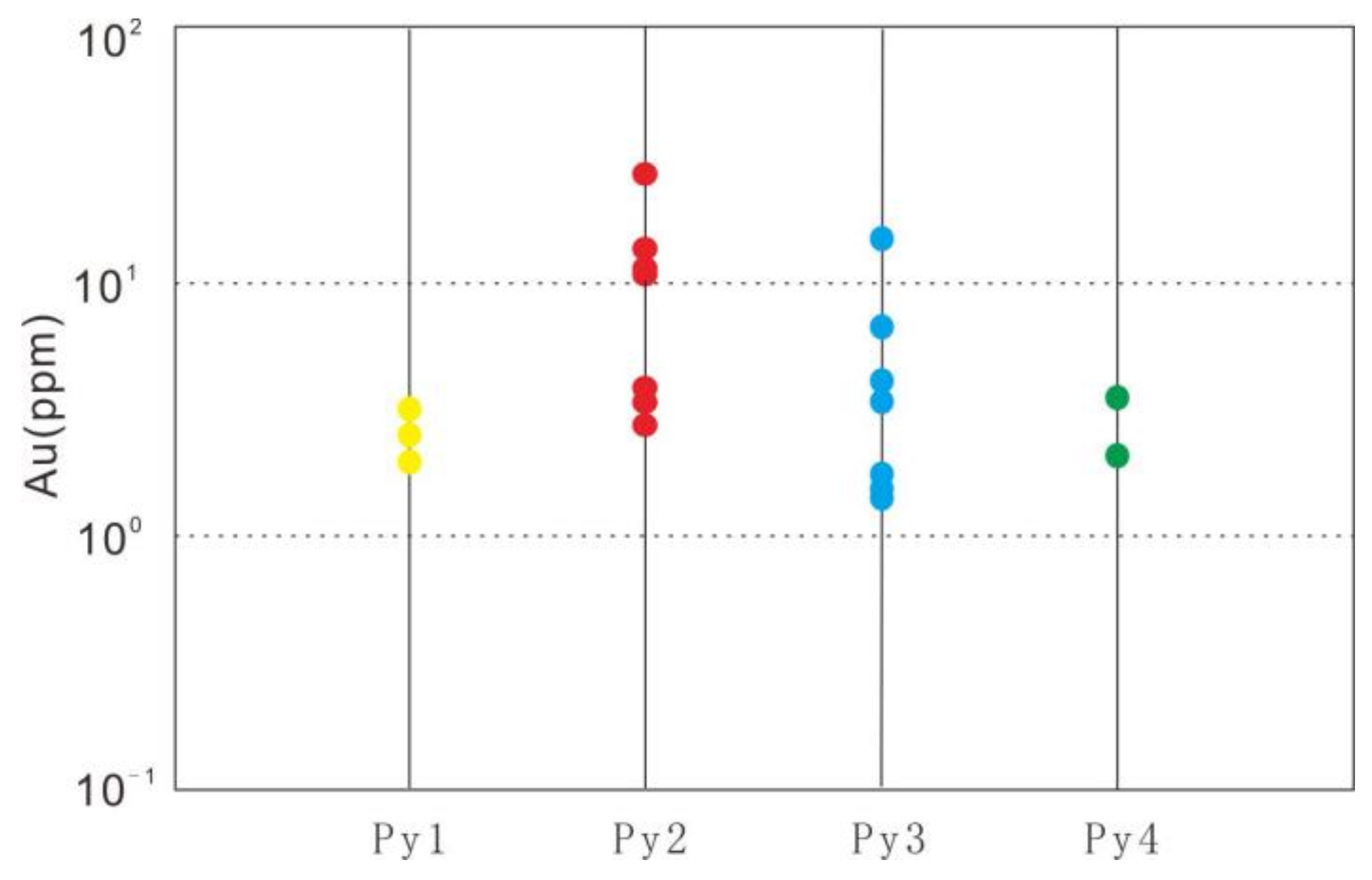

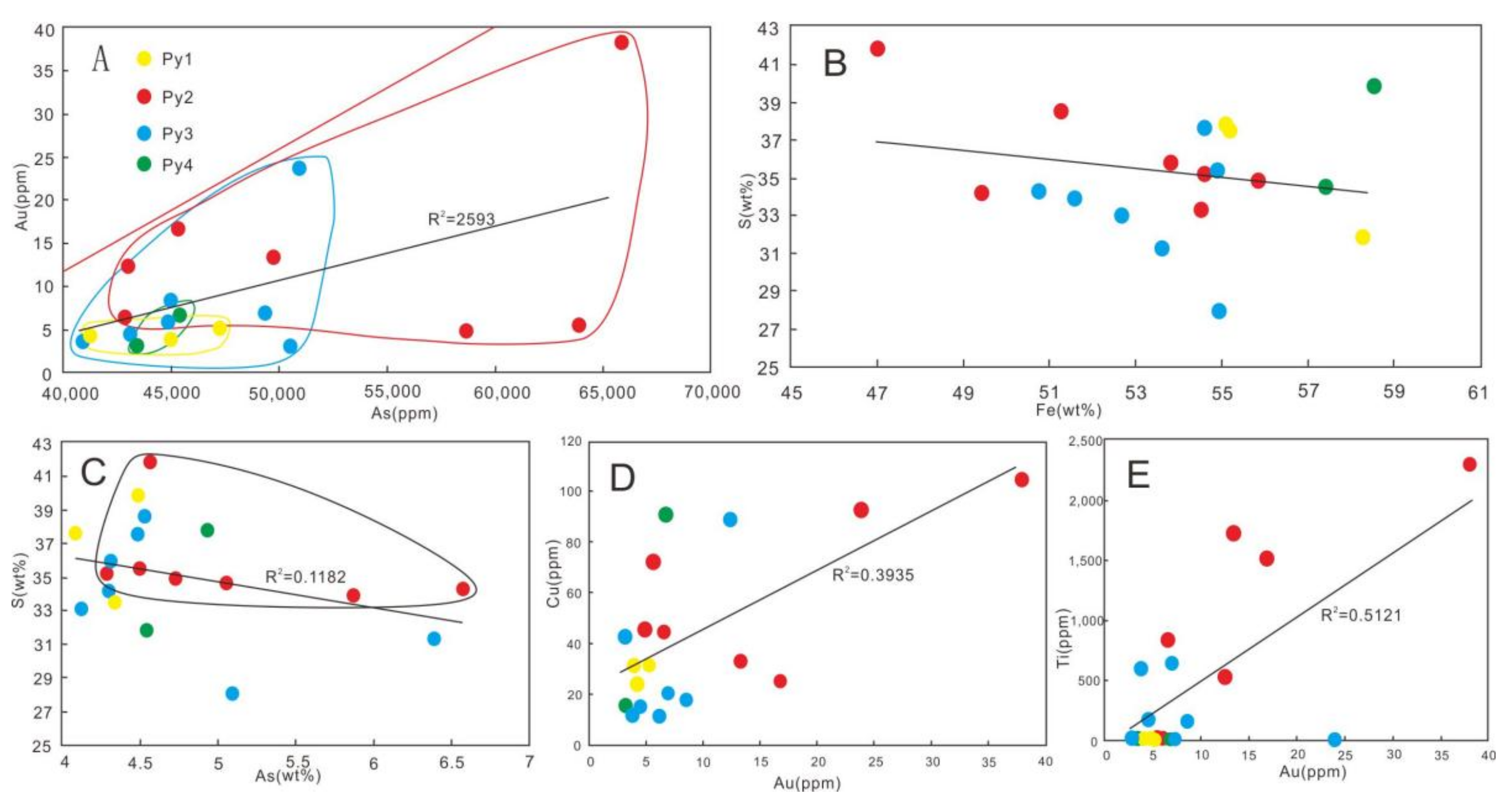

4.2.2. Trace Elements of Pyrite Determined Using LA-ICP-MS
4.3. Sulfur Isotope Ratios of Pyrite and Arsenopyrite
4.4. In Situ Trace and Rare Earth Element Compositions of Calcite
4.4.1. Trace Elements in Calcite

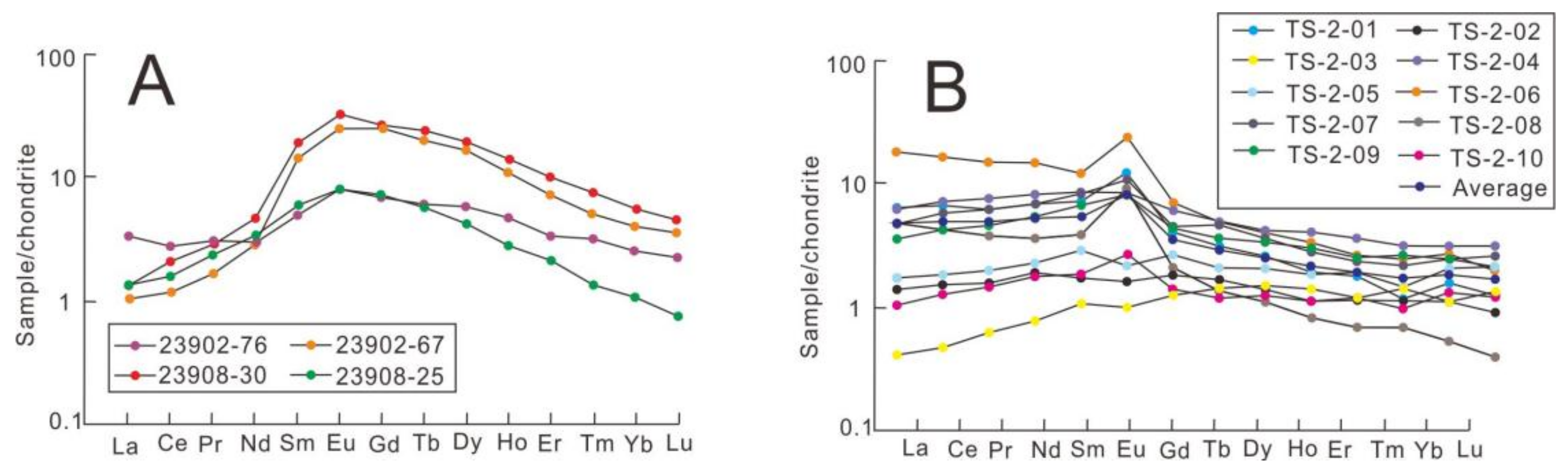

4.4.2. REEs in Calcite

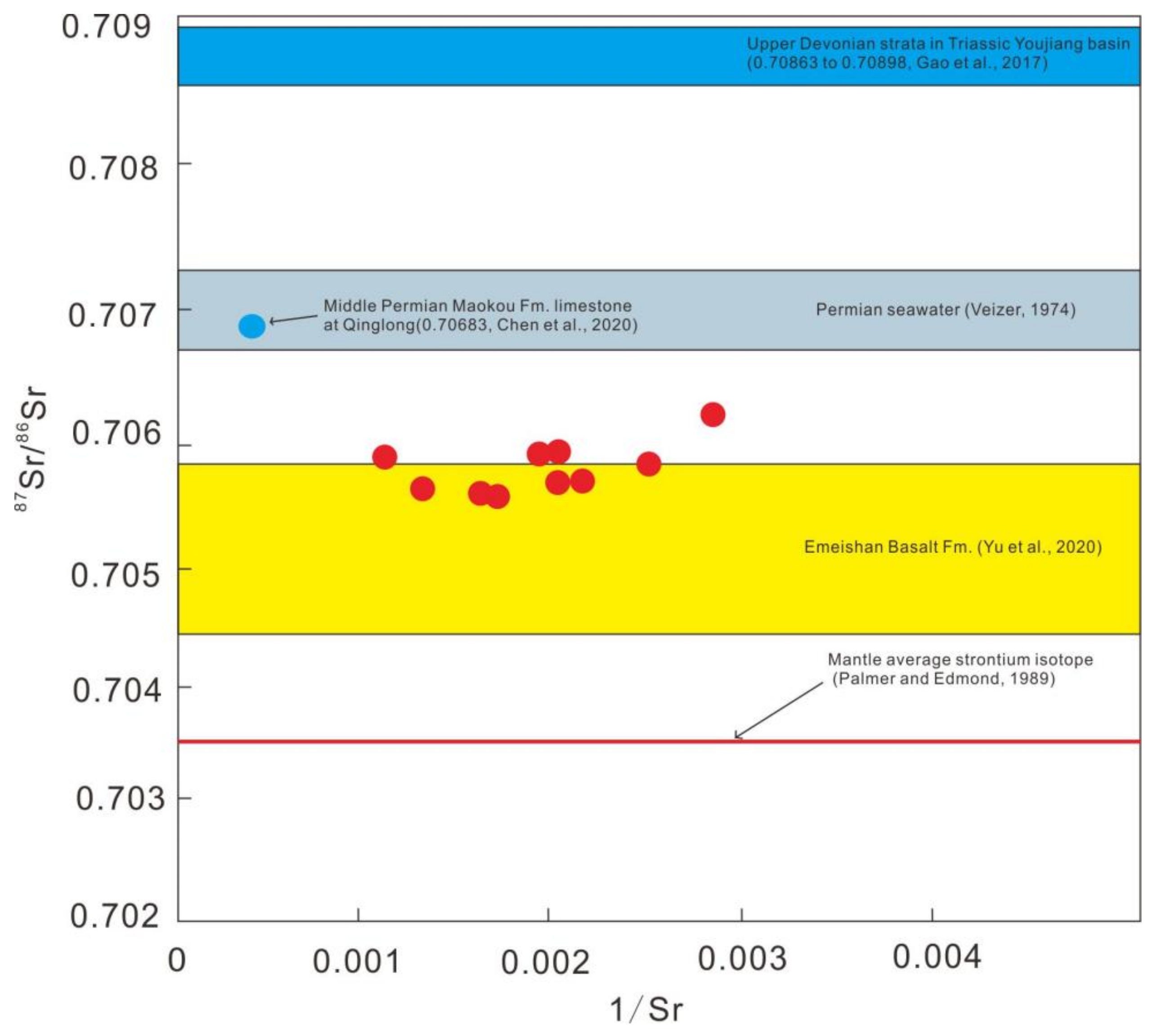

4.5. Strontium Isotope Ratios of Calcite
5. Discussion
5.1. Occurrence of Au in the Deposit
5.2. Implications for the Origin of Au
5.3. REE Characteristics
5.4. Source of Strontium and Au-Bearing Fluids
5.5. Ore Deposit Genesis
6. Conclusions
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Dobra, J.L. The US gold industry 1996. Nev. Bur. Mines Geol. Spec. Publ. 1997, 31, 1545. [Google Scholar]
- Cline, J.S.; Hofstra, A.H.; Muntean, J.L.; Tosdal, R.M.; Hickey, K.A. Carlin-type gold deposits in Nevada: Critical geologic characteristics and viable models. Econ. Geol. 2005, 10, 451–484. [Google Scholar]
- Hu, X.L.; Gong, Y.J.; Zeng, G.P.; Zhang, Z.J.; Wang, J.; Yao, S.Z. Multistage pyrite in the Getang sediment-hosted disseminated gold deposit, southwestern Guizhou Province, China: Insights from textures and in situ chemical and sulfur isotopic analyses. Ore Geol. Rev. 2018, 99, 1–16. [Google Scholar] [CrossRef]
- Yan, J.; John, A.M.; Liu, S.; Ian, M.C. Fluid properties and origins of the Lannigou Carlin-type gold deposit, SW China: Evidence from SHRIMP oxygen isotopes and LA-ICP-MS trace element compositions of hydrothermal quartz. J. Geochem. Explor. 2020, 215, 1–14. [Google Scholar] [CrossRef]
- Arehart, G.B. Characteristics and origin of sediment-hosted disseminated gold deposits: A review. Ore Geol. Rev. 1996, 11, 383–403. [Google Scholar] [CrossRef]
- Hofstra, A.H.; Cline, J.S. Characteristics and models for Carlin-type gold deposits. Rev. Econ. Geol. 2000, 11, 163–220. [Google Scholar]
- Hu, R.Z.; Su, W.C.; Bi, X.W.; Tu, G.Z.; Hofstra, A.H. Geology and geochemistry of Carlin-type gold deposits in China. Mine Depos. 2002, 37, 378–392. [Google Scholar]
- Hu, R.Z.; Chen, W.T.; Xu, D.R.; Zhou, M.F. Reviews and new metallogenic models of mineral deposits in South China: An introduction. J. Asian Earth Sci. 2017, 137, 1–8. [Google Scholar] [CrossRef]
- Hu, R.Z.; Fu, S.L.; Huang, Y.; Zhou, M.F.; Fu, S.H.; Zhao, C.H.; Wang, Y.J.; Bi, X.W.; Xiao, J.F. The giant South China Mesozoic low-temperature metallogenic domain: Reviews and a new geodynamic model. J. Asian Earth Sci. 2017, 137, 9–34. [Google Scholar] [CrossRef]
- Zaw, K.; Peters, S.G.; Cromie, P.; Burrett, C.; Hou, Z.Q. Nature, diversity of deposit types and metallogenic relations of South China. Ore Geol. Rev. 2007, 31, 3–47. [Google Scholar] [CrossRef]
- Su, W.C.; Heinrich, C.A.; Pettke, T.; Zhang, X.C.; Hu, R.Z.; Xia, B. Sediment-hosted gold deposits in Guizhou, China: Products of wall-rock sulfidation by deep crustal fluids. Econ. Geol. 2009, 104, 73–93. [Google Scholar] [CrossRef] [Green Version]
- Su, W.C.; Hu, R.Z.; Xia, B.; Xia, Y.; Liu, Y.P. Calcite Sm-Nd isochron age of the Shuiyindong Carlin-type gold deposit, Guizhou, China. Chem. Geol. 2009, 258, 269–274. [Google Scholar] [CrossRef]
- Su, W.C.; Dong, W.D.; Zhang, X.C.; Shen, N.P.; Hu, R.Z.; Hofstra, A.H.; Cheng, L.Z.; Xia, Y.; Yang, K.Y. Carlin-type gold deposits in the Dian-Qian-Gui “Golden Triangle” of southwest China. Rev. Econ. Geol. 2018, 20, 157–185. [Google Scholar]
- Large, R.R.; Bull, S.W.; Maslennikov, V.V. A carbonaceous sedimentary source-rock model for Carlin-type and orogenic gold deposits. Econ. Geol. 2011, 106, 331–358. [Google Scholar] [CrossRef]
- Large, S.J.E.; Bakker, E.Y.N.; Weis, P.; Waelle, M.; Ressel, M.; Heinrich, C.A. Trace elements in fluid inclusions of sediment-hosted gold deposits indicate a magmatichydrothermal origin of the Carlin ore trend. Geology 2016, 44, 1015–1018. [Google Scholar] [CrossRef] [Green Version]
- Peng, Y.W.; Gu, X.X.; Zhang, Y.M.; Liu, L.; Wu, C.Y.; Chen, S.Y. Ore-forming process of the Huijiabao gold district, southwestern Guizhou Province, China: Evidence from fluid inclusions and stable isotopes. J. Asian Earth Sci. 2014, 93, 89–101. [Google Scholar] [CrossRef]
- Chen, M.H.; Mao, J.W.; Li, C.; Zhang, Z.Q.; Dang, Y. Re-Osisochron ages for arsenopyrite from Carlin-like gold deposits in the Yunnan-Guizhou-Guangxi “golden triangle”, southwestern China. Ore Geol. Rev. 2015, 64, 316–327. [Google Scholar] [CrossRef]
- Groves, D.I.; Goldfarb, R.J.; Santosh, M. The conjunction of factors that lead to formation of giant gold provinces and deposits in non-arc settings. Geosci. Front. 2016, 7, 303–314. [Google Scholar] [CrossRef] [Green Version]
- Tu, G.C. The uranium and gold metallogenic belts in SW Qinling and the SW Guizhou, and their similarities to the Carlin-type gold deposits in the western America. Uranium Geol. 1990, 6, 322–325. (In Chinese) [Google Scholar]
- Li, Y.C. A summary of the genesis of gold deposit in guangnan county, yunnan province. World Nonf. Met. 2017, 3, 147–149. [Google Scholar]
- Yang, C.H.; She, Z.M.; Cheng, S.F. Discussion on genesis of Tangshang gold deposit in Yunnan. Miner. Explor. 2013, 4, 387–394. [Google Scholar]
- Zhang, J.; Su, Q.W.; Liu, X.F.; He, Z.H.; Zhou, Y.M.; Li, Z.; Zhao, K. Characteristics of geology and isotopic geochemistry of the Laozhaiwan gold deposit in southeastern Yunnan Province, China. Acta Petrol. 2014, 9, 2657–2668. [Google Scholar]
- Pi, Q.H.; Hu, R.Z.; Xiong, B.; Li, Q.L.; Zhong, R.C. In situ SIMS U-Pb dating of hydrothermal rutile: Reliable age for the Zhesang Carlin-type gold deposit in the golden triangle region, SW China. Miner Deposit. 2017, 52, 1179–1190. [Google Scholar] [CrossRef]
- Zhang, Y.; Xia, Y.; Su, W.C. Metallogenic model and prognosis of the Shuiyindong super-large strata-bound Carlin-type gold deposit, southwestern Guizhou Province, China. Chin. J. Geochem. 2010, 29, 157–166. [Google Scholar] [CrossRef]
- Chen, J.; Yang, R.D.; Du, L.J.; Gao, J.B.; Zheng, L.L.; Huang, Z.L. Multistage fluid sources and evolution of Qinglong Sb-(Au) deposit in northern margin of Youjiang basin, SW China: REE geochemistry and Sr-H-O isotopes of ore-related jasperoid, quartz and fluorite. Ore Geol. Rev. 2020, 127, 1–18. [Google Scholar] [CrossRef]
- Su, W.C.; Xia, B.; Zhang, H.T.; Zhang, X.C.; Hu, R.Z. Visible gold in arsenian pyrite at the Shuiyindong Carlin-type gold deposit, Guizhou, China: Implications for the environment and processes of ore formation. Ore Geol. Rev. 2008, 33, 667–679. [Google Scholar] [CrossRef]
- Liu, J.Z.; Chen, J.H.; Deng, Y.M.; Fu, Z.K.; Chen, F.E.; You, B. Exploration of the Shuiyingdong super-scale gold deposit and the evolution of exploration for metallogenic belt of the Huijiabao anticline in Guozhou Province. Geol. Surv. Res. 2009, 32, 138–143, (In Chinese with English abstract). [Google Scholar]
- Wang, Z.P. Genesis and Dynamic Mechanism of the Epithermal Ore Deposits, SW Guizhou, China. A Case Study of Gold and Antimony Deposits. Ph.D. Thesis, Institute of Geochemistry, Chinese Academy of Sciences, Guiyang, China, 2013; pp. 1–150, (In Chinese with English abstract). [Google Scholar]
- Xie, Z.J.; Xia, Y.; Cline, J.S.; Pribil, M.J.; Koenig, A.; Tan, Q.P.; Wei, D.T.; Wang, Z.P.; Yan, J. Magmatic origin for sediment-hosted Au deposits, Guizhou Province, China: In situ chemistry and sulfur isotope composition of pyrites, Shuiyindong and Jinfeng deposits. Econ. Geol. 2018, 113, 1627–1652. [Google Scholar] [CrossRef]
- Large, R.R.; Maslennikon, V.V.; Robert, F.; Danyushevsky, L.V.; Chang, Z.S. Multistage sedimentary and metamorphic origin of pyrite and gold in the giant Sukhoi Log deposit, Lena gold province Russia. Econ. Geol. 2007, 102, 1233–1267. [Google Scholar] [CrossRef]
- Hazarika, P.; Mishra, B.; Chinnasamy, S.S.; Bernhardt, H.J. Multi-stage growth and invisible gold distribution in pyrite from the Kundarkocha sediment-hosted gold deposit, eastern India. Ore Geol. Rev. 2013, 55, 134–145. [Google Scholar] [CrossRef]
- Gregory, D.D.; Large, R.R.; Bath, A.B.; Steadman, J.A.; Wu, S.; Danyushevsky, L.; Bull, S.W.; Holden, P.; Ireland, T.R. Trace element content of pyrite from the Kapai Slate, St. Ives gold district, western Australia. Econ. Geol. 2016, 111, 1297–1320. [Google Scholar] [CrossRef]
- Xie, Z.J.; Xia, Y.; Cline, J.S.; Koenig, A.; Wei, D.T.; Tan, Q.P.; Wang, Z.P. Are there Carlin-type Au deposits in China? A comparison of the Guizhou, China, deposits with Nevada, USA. Rev. Econ. Geol. 2018, 20, 187–233. [Google Scholar]
- Kesler, S.E.; Riciputi, L.C.; Ye, Z.J. Evidence for a magmatic origin for Carlin-type gold deposits: Isotopic composition of sulfur in the Betze-Post-Screamer deposit, Nevada USA. Miner. Depos. 2005, 40, 127–136. [Google Scholar] [CrossRef] [Green Version]
- Bendall, C.; Lahaye, Y.; Fiebig, J.; Weyer, S.; Brey, G.P. In situ sulfur isotope analysis by laser ablation MC-ICPMS. Appl. Geochem. 2006, 21, 782–787. [Google Scholar] [CrossRef]
- Chang, Z.S.; Large, R.R.; Maslennikov, V. Sulfur isotopes in sediment-hosted orogenic gold deposits: Evidence for an early timing and a seawater sulfur source. Geology 2008, 36, 971–974. [Google Scholar] [CrossRef] [Green Version]
- Barker, S.L.L.; Hickey, K.A.; Cline, J.J.; Dipple, G.M.; Kilburn, M.R.; Vaughan, J.R.; Longo, A.A. Uncloaking invisible gold: Use of nanoSIMS to evaluate gold, trace elements, and sulfur isotopes in pyrite from Carlin-type gold deposits. Econ. Geol. 2009, 104, 897–904. [Google Scholar] [CrossRef]
- Hou, L.; Peng, H.J.; Ding, J.; Zhang, J.R.; Zhu, S.B.; Wu, S.Y.; Wu, Y.; Hegen, O. Textures and in situ chemical and isotopic analyses of pyrite, Huijiabao Trend, Youjiang Basin, China: Implications for paragenesis and source of sulfur. Econ. Geol. 2016, 111, 331–353. [Google Scholar] [CrossRef]
- Gao, Z.P.; Ren, Y.H.; Zhang, Z. Geological characteristics and prospective prognosis of the Tangshang Au deposit in Guangnan County, Yunnan Province. Acta Geosci. Sin. 2013, 34, 76–80. [Google Scholar]
- Zhou, X.M.; Sun, T.; Shen, W.Z.; Shu, L.S.; Niu, Y.L. Petrogenesis of mesozoic granitoids and volcanic rocks in South China: A response to tectonic evolution. Episodes 2006, 29, 26–33. [Google Scholar] [CrossRef] [Green Version]
- Wang, Y.J.; Fan, W.M.; Sun, M.; Liang, X.Q.; Zhang, Y.H.; Peng, T.P. Geochronological, geochemical and geothermal constraints on petrogenesis of the Indosinian peraluminous granites in the South China Block: A case study in the Hunan Province. Lithos 2007, 96, 475–502. [Google Scholar] [CrossRef]
- Hu, R.Z.; Zhou, M.F. Multiple Mesozoic mineralization events in South China—An introduction to the thematic issue. Miner. Depos. 2012, 47, 579–588. [Google Scholar] [CrossRef]
- Hu, X.L.; Yao, S.Z.; Ding, Z.J.; He, M.C. Early Paleozoic magmatism and metallogeny in Northeast China: A record from the Tongshan porphyry Cu deposit. Miner. Depos. 2017, 52, 85–103. [Google Scholar] [CrossRef]
- Zhang, X.C.; Spiro, B.; Halls, C.; Stanley, C.J.; Yang, K.Y. Sediment-hosted disseminated gold deposits in Southwest Guizhou, PRC: Their geological setting and origin in relation to mineralogical, fluid inclusion, and stable-isotope characteristics. Int. Geol. Rev. 2003, 45, 407–470. [Google Scholar] [CrossRef]
- Wang, Y.G.; Suo, S.T.; Zhang, M.F. Tectonics and Carlin-Type Gold Deposits in Southwestern Guizhou, China; Geology Publishing House: Beijing, China, 1994; pp. 512–516, (In Chinese with English abstract). [Google Scholar]
- Zheng, L.L.; Yang, R.D.; Gao, J.B.; Chen, J.; Li, D.P. Quartz Rb-Sr isochron ages of two type Orebodies from the Nibao Carlin-type gold deposit, Guizhou, China. Minerals 2019, 9, 399. [Google Scholar] [CrossRef] [Green Version]
- Chen, M.H.; Zhang, Z.Q.; Santosh, M.; Dang, Y.; Zhang, W. The Carlin-type gold deposits of the “golden triangle” of SW China: Pb and S isotopic constraints for the ore genesis. J. Asian Earth Sci. 2015, 103, 115–128. [Google Scholar] [CrossRef]
- Zhang, X.J.; Xiao, J.F. Zircon U-Pb geochronology, Hf isotope and geochemistry study of the Late Permian diabases in the northwest Guangxi autonomous region. Bull. Mineral Petrol Geochem. 2014, 33, 163–176, (In Chinese with English abstract). [Google Scholar]
- Zhu, J.J.; Zhong, H.; Xie, G.Q.; Zhao, C.H.; Xu, L.L.; Lu, G. Origin and geological implication of the inherited zircon from felsic dikes, Youjiang Basin, China. Acta Petrol. Sin. 2016, 32, 3269–3280, (In Chinese with English abstract). [Google Scholar]
- Liu, S.; Su, W.C.; Hu, R.Z.; Feng, C.X.; Gao, S.; Coulson, I.M.; Wang, T.; Feng, G.Y.; Tao, Y.; Xia, Y. Geochronological and geochemical constraints on the petrogenesis of alkaline ultramafic dykes from southwest Guizhou Province, SW China. Lithos 2010, 114, 253–264. [Google Scholar] [CrossRef]
- Guo, J.H. Relationship between ultramicro-grained gold mineralization and magmatism in northwest Guangxi Province, China. J. Precious Metal. Geol. 2000, 9, 133–143, (In Chinese with English abstract). [Google Scholar]
- Huang, Y.Q.; Cui, Y.Q. The relationship between magmatic rocks and gold mineralization of Mingshan Gold deposit of Lingyun. Guangxi. Guangxi Geol. 2001, 4, 22–28, (In Chinese with English abstract). [Google Scholar]
- Su, W.C. The Hydrothermal Fluid Geochemistry of the Carlin-Type Gold Deposits in Southeastern Yangtze Craton, China. Ph.D. Thesis, Institute of Geochemistry, Chinese Academy of Science, Guiyang, China, 2002; pp. 1–116, (In Chinese with English abstract). [Google Scholar]
- Peters, S.G.; Huang, J.Z.; Li, Z.P.; Jing, C.G. Sedimentary rock-hosted Au deposits of the Dian-Qian-Gui area. Ore Geol. Rev. 2007, 31, 170–204. [Google Scholar] [CrossRef]
- Li, Y.Q.; Pang, B.C.; Yang, F.; Zhang, D.W.; Zeng, Q.F.; Liu, X. Geochemical characteristics and metallogenic significance of quartz porphyry in Liaotun gold deposit, Bama County, Guangxi. Geoscience 2014, 6, 1138–1150, (In Chinese with English abstract). [Google Scholar]
- Li, J.H. The Study of Ore-Forming Processes of the Jiadi and Damaidi Basalt-Hosted Gold Deposits, Southwestern Guizhou Province, China. Ph.D. Thesis, Guizhou University, Guiyang, China, 2021; pp. 1–169, (In Chinese with English abstract). [Google Scholar]
- Wang, L.; Zhang, Y.W.; Liu, S.G. The application of regional gravity and magnetic data to delineating intrusive bodies and local geological structures in Guizhou Province. Geophy. Geochem. Explor. 2009, 33, 246–249, (In Chinese with English abstract). [Google Scholar]
- Wang, L.; Long, C.L.; Liu, Y. Discussion on concealed rock mass delineation and gold source in southwestern Guizhou. Geoscience 2015, 29, 703–712, (In Chinese with English abstract). [Google Scholar]
- Chen, M.H.; Mao, J.W.; Bierlein, F.P.; Norman, T.; Uttley, P.J. Structural features and metallogenesis of the Carlin-type Jinfeng (Lannigou) gold deposit, Guizhou Province, China. Ore Geol. Rev. 2011, 43, 217–234. [Google Scholar]
- Ma, J.; Pang, B.; Li, P.; Yang, B.; Zhao, J. Geochemical characteristics of the quartz porphyry and its geological implications, northwest Guangxi, China. Acta Mineral. Sin. 2013, 33, 165. (In Chinese) [Google Scholar]
- Regional Geology of Guangxi Zhuang Autonomous Region; Geological Publishing House, Bureau of Geology and Mineral Resources of Guangxi Zhuang Autonomous Region: Guanxi, China, 1985.
- Regional Geology of Guizhou Province; Geological Publishing House, Bureau of Geology and Mineral Resources of Guizhou Province: Guizhou, China, 1987.
- Regional Geology of Yunnan Province; Geological Publishing House, Bureau of Geology and Mineral Resources of Yunnan Province: Yunnan, China, 1990.
- Du, Y.S.; Huang, H.; Yang, J.H.; Huang, H.W.; Tao, P.; Huang, Z.Q.; Hu, L.S.; Xie, C.X. The basin translation from Late Paleozoic to Triassic of the Youjiang basin and its tectonic signification. Geol. Rev. 2013, 59, 1–11, (In Chinese with English abstract). [Google Scholar]
- Yang, L.; Deng, L.; David, I.G.; Wang, Q.F.; Zhang, L.; Wu, W.; Qin, K.; Zhang, Q.Z. Recognition of two contrasting structural-and mineralogical-gold mineralsystems in the Youjiang basin, China-Vietnam: Orogenic gold in the south and Carlin-type in the north. Geosci. Front. 2020, 11, 1477–1494. [Google Scholar] [CrossRef]
- Zhu, Z.Y.; Jiang, S.Y.; Ciobanu, C.L.; Yang, T.; Cook, N.J. Sulfur isotope fractionation in pyrite during laser ablation: Implications for laser ablation multiple collector inductively coupled plasma mass spectrometry mapping. Chem. Geol. 2017, 450, 223–234. [Google Scholar] [CrossRef]
- Hu, Z.C.; Zhang, W.; Liu, Y.S.; Gao, S.; Li, M.; Zong, K.Q.; Chen, H.H.; Hu, S.H. “Wave” signal-smoothing and mercury-removing device for laser ablation quadrupole and multiple collector ICPMS analysis: Application to lead isotope analysis. Anal. Chem. 2015, 87, 1152–1157. [Google Scholar] [CrossRef] [PubMed]
- Wilson, S.A.; Ridley, W.I.; Koenig, A.E. Development of sulfide calibration standards for the laser ablation inductively-coupled plasma mass spectrometry technique. J. Anal. At. Spectrom. 2002, 17, 406–409. [Google Scholar] [CrossRef]
- Liu, Y.S.; Hu, Z.C.; Gao, S.; Guenther, D.; Xu, J.; Gao, C.G.; Chen, H.H. In situ analysis of major and trace elements of anhydrous minerals by LA-ICP-MS without applying an internal standard. Chem. Geol. 2008, 257, 34–43. [Google Scholar] [CrossRef]
- Hu, X.L.; Ding, Z.J.; Yao, S.Z.; He, M.C.; Shen, J.; Zhu, B.P.; Chen, B. Geochronology and Sr-Nd-Hf isotopes of the Mesozoic granitoids from the Great Xing’an and Lesser Xing’an ranges: Implications for petrogenesis and tectonic evolution in NE China. Geol. J. 2016, 51, 1–20. [Google Scholar] [CrossRef]
- Ramos, F.C.; Wolff, J.A.; Tollstrup, D.L. Measuring 87Sr/86Sr variations in minerals and groundmass from basalts using LA-MC-ICP-MS. Chem. Geol. 2004, 211, 135–158. [Google Scholar] [CrossRef]
- Chen, W.; Lu, J.; Jiang, S.Y.; Ying, Y.C.; Liu, Y.S. Radiogenic Pb reservoir contributes to the rare earth element(REE) enrichment in South Qinling carbonatites. Chem. Geol. 2018, 494, 80–95. [Google Scholar] [CrossRef]
- Liu, Y.S.; Gao, S.; Hu, Z.C.; Gao, C.G.; Zong, K.Q.; Wang, D.B. Continental and oceanic crust recycling-induced melt-peridotite interactions in the Trans-North China Orogen: U-Pb dating, Hf isotopes and trace elements in zircons of mantle xenoliths. J. Petrol 2010, 51, 537–571. [Google Scholar] [CrossRef]
- Tong, X.R.; Liu, Y.S.; Hu, Z.C.; Chen, H.H.; Zhou, L.; Hu, Q.H.; Xu, R.; Deng, L.X.; Chen, C.F.; Yang, L. Accurate determination of Sr isotopic compositions in clinopyroxene and silicate glasses by LA–MC–ICP–MS. Geostand. Geoanal. Res. 2016, 40, 85–99. [Google Scholar] [CrossRef]
- Reich, M.; Kesler, S.E.; Utsunomiya, S.; Palenik, C.S.; Chryssoulis, S.L.; Ewing, R.C. Solubility of gold in arsenian pyrite. Geochim. Cosmochim. 2005, 69, 2781–2796. [Google Scholar] [CrossRef]
- Tan, Q.P.; Xia, Y.; Wang, X.Q.; Xie, Z.J.; Wei, D.T. Carbon-oxygen isotopes and rare earth elements as an exploration vector for Carlin-type gold deposits: A case study of the Shuiyindong gold deposit, Guizhou Province, SW China. J. Asian Earth Sci. 2017, 148, 1–12. [Google Scholar] [CrossRef]
- Simon, G.; Kesler, S.E.; Chryssoulis, S. Geochemistry and textures of gold-bearing arsenian pyrite, Twin Creeks, Nevada: Implications for deposition of gold in Carlintype deposits. Econ. Geol. 1999, 94, 405–421. [Google Scholar] [CrossRef]
- Xie, X.Y.; Feng, D.S.; Chen, M.H.; Guo, S.X.; Kuang, S.D.; Chen, H.S. Fluid inclusion and stable isotope geochemistry study of the Nibao gold deposit, Guizhou and insights into ore genesis. Acta Petrol. Sin. 2016, 32, 3360–3376, (In Chinese with English abstract). [Google Scholar]
- Emsbo, P.; Hofstra, A.H.; Lauha, E.A.; Griffin, G.L.; Hutchinson, R.W. Origin of high-grade gold ore, source of ore fluid components, and genesis of the Meikle and neighboring Carlin-type deposits, northern Carlin trend. Nevada. Econ. Geol. 2003, 98, 1069–1105. [Google Scholar] [CrossRef]
- Ohmoto, H. Systematics of sulfur and carbon isotopes in hydrothermal ore deposits. Econ. Geol. 1972, 67, 551–578. [Google Scholar] [CrossRef]
- Ohmoto, H.; Rye, R.O. Isotopes of sulfur and carbon. In Geochemistry of Hydrothermal Ore Deposits; Barnes, H.L., Ed.; Wiley Intersci: New York, NY, USA, 1979; pp. 509–567. [Google Scholar]
- Tan, Q.P.; Xia, Y.; Xie, Z.J.; Yan, J. Migration paths and precipitation mechanisms of ore-forming fluids at the Shuiyindong Carlin-type gold deposit, Guizhou, China. Ore Geol. Rev. 2015, 69, 140–156. [Google Scholar] [CrossRef]
- Chang, J.Y. Relationship between Calcite and Metallogenic Process and Prospecting Significance of Zhesang Carlin Type Gold Deposit in Southeast Yunnan. Master’s Thesis, Kunming University of Science and Technology, Kunming, China, 2020; pp. 1–80, (In Chinese with English abstract). [Google Scholar]
- Xu, B.L.; Tan, Q.P.; Xia, Y.; Zhao, Y.M.; Chen, M.; Wang, Z.P. REE geochemical characteristics and prospecting significance of calcite in Shuiyindong Carlin type gold deposit in Guizhou. Acta Miner. Sin. 2020, 40, 685–694, (In Chinese with English abstract). [Google Scholar]
- Palmer, M.R.; Edmond, J.M. The strontium isotope budget of the modern ocean. Earth Planet. Sci. Lett. 1989, 92, 11–26. [Google Scholar] [CrossRef]
- Veizer, J. Strontium isotopes in seawater through time. Annu. Rev. Earth Planet. Sci. 2005, 17, 141–167. [Google Scholar] [CrossRef]
- Veizer, J.; Compston, W. 87Sr/86Sr composition of seawater during the Phanerozoic. Geochim. Cosmochim. Acta 1989, 38, 1461–1484. [Google Scholar] [CrossRef]
- Yu, S.Y.; Chen, L.M.; Lan, J.B.; He, Y.S.; Chen, Q.; Song, X.Y. Controls of mantle source and condition of melt extraction on generation of the picritic lavas from the Emeishan large igneous province, SW China. J. Asian Earth Sci. 2020, 203, 1–15. [Google Scholar] [CrossRef]
- Gao, J.B.; Yang, R.D.; Chen, J.; Zheng, L.L.; Cheng, W.; Wei, H.R. Multiple proxies indicating methane seepage as the origin of Devonian large barite deposit in Zhenning-Ziyun, Guizhou, SW China. Ore Geol. Rev. 2017, 80, 18–26. [Google Scholar] [CrossRef]
Pyrite Type | Spot No. | S (wt. %) | Fe (wt. %) | As (wt. %) | Ti (ppm) | Co (ppm) | Ni (ppm) | Cu (ppm) | Total (wt. %) |
---|---|---|---|---|---|---|---|---|---|
Py1 | TS-3-01-04 | 34.8 | 55.1 | 4.7 | 5.9 | 9.9 | 8.9 | 30.7 | 94.6 |
TS-3-01-06 | 35.4 | 55.0 | 4.4 | 7.1 | 5.7 | 4.6 | 30.9 | 94.8 | |
TS-3-01-10 | 33.0 | 58.3 | 4.1 | 5.3 | 25.8 | 29.7 | 23.3 | 95.4 | |
Py2 | TS5-2-05-03 | 34.1 | 55.8 | 4.3 | 517 | 247 | 447 | 88 | 94.4 |
TS5-2-05-06 | 36.2 | 49.4 | 6.5 | 2298 | 43 | 65 | 102 | 92.4 | |
TS5-2-05-08 | 38.5 | 51.3 | 4.5 | 1489 | 60 | 171 | 24 | 93.8 | |
TS5-2-05-09 | 41.8 | 47.0 | 4.9 | 1702 | 192 | 393 | 32 | 93.8 | |
TS3-2-03-03 | 35.1 | 54.6 | 4.2 | 817 | 986 | 1598 | 43 | 94.8 | |
TS-3-01-08 | 33.8 | 53.8 | 5.8 | 4.4 | 4.0 | 21.2 | 44 | 93.8 | |
TS-3-01-01 | 31.2 | 54.6 | 6.3 | 17.5 | 1199 | 310 | 71 | 92.5 | |
Py3 | TS5-2-05-04 | 34.1 | 54.8 | 5.0 | 3.0 | 142 | 252 | 92 | 94.2 |
TS5-2-05-05 | 37.5 | 52.7 | 4.4 | 153 | 257 | 664 | 16.8 | 94.5 | |
TS5-2-05-07 | 39.7 | 50.7 | 4.4 | 6.7 | 19.5 | 61 | 10.8 | 94.8 | |
TS3-2-03-04 | 37.8 | 51.5 | 4.9 | 636 | 196 | 294 | 20.1 | 94.1 | |
TS3-2-03-07 | 37.6 | 53.6 | 4.0 | 594 | 158 | 375 | 11.2 | 95.1 | |
TS3-2-03-08 | 35.8 | 54.9 | 4.3 | 171 | 357 | 759 | 14.9 | 95.1 | |
TS-3-01-07 | 34.6 | 54.5 | 5.0 | 5.3 | 1.7 | 2.3 | 41 | 94.1 | |
Py4 | TS-3-01-05 | 31.8 | 58.5 | 4.5 | 5.6 | 20.6 | 40 | 89 | 94.8 |
TS-3-01-09 | 33.5 | 57.4 | 4.3 | 4.7 | 5.2 | 4.2 | 14.3 | 95.2 |
Pyrite Type | Spot No. | Co | Ni | Cu | Sb | Ti | Au | Tl | W | V |
---|---|---|---|---|---|---|---|---|---|---|
Py1 | TS-3-01-04 | 9.9 | 8.8 | 30.7 | 9.4 | 5.8 | 5.1 | bdl | bdl | bdl |
TS-3-01-06 | 5.7 | 4.6 | 30.8 | 2.7 | 7.0 | 3.9 | bdl | bdl | bdl | |
TS-3-01-10 | 25.7 | 29.7 | 23.3 | bdl | 5.2 | 4.1 | bdl | bdl | bdl | |
Py2 | TS5-2-05-03 | 247 | 447 | 88.3 | 50.9 | 517 | 12.2 | 1.6 | 2.4 | 7.9 |
TS5-2-05-06 | 43.3 | 65.1 | 102 | 32.3 | 2298 | 38.1 | bdl | 6.2 | 25.4 | |
TS5-2-05-08 | 60.9 | 171 | 24.0 | 111 | 1489 | 16.6 | bdl | 6.5 | 19.1 | |
TS5-2-05-09 | 192 | 393 | 32.6 | 33.5 | 1702 | 13.2 | bdl | 9.3 | 17.7 | |
TS3-2-03-03 | 986 | 1598 | 43.6 | 130 | 817 | 6.4 | 0.9 | 0.8 | 9.1 | |
TS-3-01-08 | 4.0 | 21.1 | 44.9 | 13.6 | 4.4 | 4.8 | bdl | bdl | bdl | |
TS-03-01-01 | 1,199 | 310 | 71.0 | 117 | 17.5 | 5.5 | 0.9 | 0.1 | 0.9 | |
Py3 | TS5-2-05-04 | 142 | 252 | 92.1 | 6.3 | 3.0 | 23.6 | bdl | bdl | bdl |
TS5-2-05-05 | 257 | 664 | 16.8 | 3.2 | 153 | 8.4 | bdl | 0.5 | 1.3 | |
TS5-2-05-07 | 19.5 | 61.7 | 10.8 | 25.3 | 636 | 5.9 | bdl | bdl | bdl | |
TS3-2-03-04 | 196 | 294 | 20.1 | 58.6 | 594 | 6.8 | 0.3 | 6.7 | 10.4 | |
TS3-2-03-07 | 158 | 375 | 11.2 | 63.1 | 171 | 3.6 | bdl | 6.4583 | 6.3 | |
TS3-2-03-08 | 357 | 759 | 14.9 | 80.6 | 5.3 | 4.4 | 0.1 | 0.8 | 4.9 | |
TS-3-01-07 | 1.7 | 2.3 | 41.7 | 95.5 | 5.6 | 3.0 | 1.3 | bdl | bdl | |
Py4 | TS-3-01-05 | 20.6 | 40.9 | 89.7 | 343.4 | 4.7 | 6.6 | 3.2 | bdl | bdl |
TS-3-01-09 | 5.2 | 4.2 | 14.3 | 1.2 | 5.8 | 3.1 | bdl | bdl | 0.2 |
Types | Stages | Spot No. | δ34SV-CDT (‰) |
---|---|---|---|
Apy1 | Early-ore stage | TS-5-2-05-1 | 11.29 |
TS-3-1-05-1 | 11.59 | ||
TS-3-1-05-2 | 11.25 | ||
Py1 | Early-ore stage | TS-5-2-05-2 | 11.71 |
TS-5-2-05-4 | 12.05 | ||
TS-5-2-05-5 | 11.78 | ||
TS-3-1-05-3 | 11.91 | ||
TS-3-1-05-4 | 11.76 | ||
TS-3-1-05-6 | 12.21 | ||
TS-3-1-05-7 | 12.64 | ||
TS-3-1-02-12 | 12.06 | ||
Apy2 | Main-ore stage | TS-3-1-02-1 | 8.39 |
TS-3-1-02-5 | 7.41 | ||
TS-3-1-02-7 | 5.39 | ||
TS-3-1-02-11 | 10.08 | ||
TS-3-1-02-13 | 8.92 | ||
Py2 | Main-ore stage | TS-3-1-02-2 | 7.75 |
TS-3-1-02-3 | 7.66 | ||
TS-3-1-02-4 | 8.19 | ||
TS-3-1-02-6 | 7.40 | ||
TS-3-1-02-10 | 9.89 | ||
Py3 | Late-ore stage | TS-5-2-05-3 | 11.60 |
TS-3-1-05-5 | 9.98 | ||
TS-3-1-05-8 | 11.79 | ||
TS-3-1-02-9 | 11.05 | ||
Py4 | Late-ore stage | TS-3-1-02-8 | 10.59 |
Spot No. | Mn | Fe | Sr | Na | P | Cr | Ba | K | Al | Rb |
---|---|---|---|---|---|---|---|---|---|---|
TS-2-01 | 2857 | 1695 | 452 | 23.7 | 38.7 | 3.5 | 3.9 | bdl | 0.4 | bdl |
TS-2-02 | 2714 | 1617 | 561 | 23.6 | 35.0 | 3.9 | 2.4 | 1.1 | bdl | 0.02 |
TS-2-03 | 1679 | 925 | 402 | 10.7 | 21.8 | 5.1 | 1.4 | bdl | 0.7 | 0.06 |
TS-2-04 | 2720 | 1373 | 506 | bdl | 31.4 | 6.1 | 18.9 | 0.1 | 3.2 | bdl |
TS-2-05 | 2239 | 1383 | 505 | bdl | 31.4 | 6.3 | 1.8 | bdl | 1.0 | bdl |
TS-2-06 | 1961 | 1263 | 606 | 47.8 | 26.2 | 4.5 | 3.2 | 1.9 | 0.5 | bdl |
TS-2-07 | 3836 | 2040 | 640 | 16.8 | 27.4 | 12.3 | 5.2 | 5.4 | 0.7 | bdl |
TS-2-08 | 2714 | 2060 | 740 | 31.7 | 19.2 | 3.4 | 4.7 | 1.6 | 0.2 | bdl |
TS-2-09 | 3425 | 2270 | 876 | bdl | 32.0 | 4.7 | 4.1 | 1.7 | 0.1 | bdl |
TS-2-10 | 1797 | 1343 | 362 | bdl | 31.2 | 4.3 | 1.8 | 0.4 | 3.4 | bdl |
Spot No. | La | Ce | Pr | Nd | Sm | Eu | Gd | Tb | Dy | Ho | Er | Tm | Yb | Lu | LREE | HREE | Ce/Ce* | Eu/Eu* |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TS-2-01 | 1.8 | 5.1 | 0.7 | 3.9 | 1.0 | 0.8 | 1.0 | 0.1 | 0.8 | 0.1 | 0.3 | bdl | 0.3 | bdl | 13.3 | 2.6 | 1.06 | 2.18 |
TS-2-02 | 0.4 | 1.1 | 0.1 | 1.1 | 0.2 | 0.1 | 0.4 | 0.1 | 0.4 | 0.1 | 0.2 | bdl | 0.2 | bdl | 3.0 | 1.5 | 1.04 | 0.90 |
TS-2-03 | 0.1 | 0.3 | 0.1 | 0.4 | 0.1 | 0.1 | 0.3 | 0.1 | 0.4 | 0.1 | 0.2 | bdl | 0.2 | bdl | 1.1 | 1.3 | 0.91 | 0.85 |
TS-2-04 | 1.8 | 5.4 | 0.8 | 4.6 | 1.2 | 0.5 | 1.4 | 0.2 | 1.2 | 0.2 | 0.7 | 0.1 | 0.6 | 0.1 | 14.3 | 4.5 | 1.03 | 1.17 |
TS-2-05 | 0.5 | 1.4 | 0.2 | 1.3 | 0.4 | 0.1 | 0.6 | 0.1 | 0.6 | 0.1 | 0.3 | bdl | 0.4 | 0.1 | 3.9 | 2.2 | 0.99 | 0.77 |
TS-2-06 | 5.2 | 12.7 | 1.7 | 8.4 | 1.8 | 1.6 | 1.7 | 0.2 | 1.2 | 0.2 | 0.5 | 0.1 | 0.5 | 0.1 | 45.7 | 4.5 | 1.00 | 2.46 |
TS-2-07 | 1.4 | 4.4 | 0.7 | 3.9 | 1.2 | 0.7 | 1.1 | 0.2 | 1.1 | 0.1 | 0.4 | 0.1 | 0.4 | 0.1 | 12.3 | 3.5 | 1.06 | 1.70 |
TS-2-08 | 1.4 | 3.2 | 0.4 | 2.0 | 0.5 | 0.6 | 0.5 | 0.1 | 0.3 | 0.1 | 0.1 | bdl | 0.1 | bdl | 8.1 | 1.2 | 0.97 | 2.99 |
TS-2-09 | 1.0 | 3.2 | 0.5 | 3.1 | 1.0 | 0.5 | 1.0 | 0.1 | 1.0 | 0.2 | 0.4 | 0.1 | 0.4 | 0.1 | 9.5 | 3.3 | 1.02 | 1.53 |
TS-2-10 | 0.3 | 0.9 | 0.1 | 1.0 | 0.2 | 0.1 | 0.3 | 0.1 | 0.3 | 0.1 | 0.2 | 0.1 | 0.2 | bdl | 2.6 | 1.3 | 1.02 | 1.63 |
Ave. | 1.4 | 3.8 | 0.5 | 3.0 | 0.8 | 0.5 | 0.8 | 0.1 | 0.7 | 0.1 | 0.3 | 0.1 | 0.3 | bdl | 10.0 | 2.4 | 1.01 | 1.62 |
Spot No. | 87Rb/86Sr | 2σ | 87Sr/86Sr | 2σ |
---|---|---|---|---|
TS-2-01 | 0.00002 | 0.00003 | 0.70571 | 0.00014 |
TS-2-02 | 0.00012 | 0.00004 | 0.70591 | 0.00019 |
TS-2-03 | 0.00000 | 0.00006 | 0.70587 | 0.00026 |
TS-2-04 | 0.00001 | 0.00005 | 0.70592 | 0.00025 |
TS-2-05 | 0.00003 | 0.00006 | 0.70572 | 0.00028 |
TS-2-06 | 0.00005 | 0.00007 | 0.70557 | 0.00026 |
TS-2-07 | 0.00002 | 0.00006 | 0.70563 | 0.00022 |
TS-2-08 | 0.00003 | 0.00003 | 0.70567 | 0.00012 |
TS-2-09 | 0.00000 | 0.00003 | 0.70590 | 0.00017 |
TS-2-10 | 0.00001 | 0.00004 | 0.70622 | 0.00019 |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Song, W.; Wu, P.; Liu, J.; Li, J.; Wang, Z.; Tan, Q.; Xie, Z.; Zheng, L. Genesis of the Tangshang Au Deposit in Southeast Yunnan Province, China: Constraints from In Situ Chemical and S-Sr Isotope Analyses. Minerals 2022, 12, 806. https://doi.org/10.3390/min12070806
Song W, Wu P, Liu J, Li J, Wang Z, Tan Q, Xie Z, Zheng L. Genesis of the Tangshang Au Deposit in Southeast Yunnan Province, China: Constraints from In Situ Chemical and S-Sr Isotope Analyses. Minerals. 2022; 12(7):806. https://doi.org/10.3390/min12070806
Chicago/Turabian StyleSong, Weifang, Pan Wu, Jianzhong Liu, Junhai Li, Zepeng Wang, Qinping Tan, Zhuojun Xie, and Lulin Zheng. 2022. "Genesis of the Tangshang Au Deposit in Southeast Yunnan Province, China: Constraints from In Situ Chemical and S-Sr Isotope Analyses" Minerals 12, no. 7: 806. https://doi.org/10.3390/min12070806
