Crystal Chemistry, Isomorphism, and Thermal Conversions of Extra-Framework Components in Sodalite-Group Minerals

by
Nikita V. Chukanov
1,2,*,
Roman Yu. Shendrik
3,
Marina F. Vigasina
2,
Igor V. Pekov
2,4,
Anatoly N. Sapozhnikov
3,
Vasily D. Shcherbakov
2 and
Dmitry A. Varlamov
1,5
1
Institute of Problems of Chemical Physics, Russian Academy of Sciences, Chernogolovka, 142432 Moscow, Russia
2
Faculty of Geology, Moscow State University, 119991 Moscow, Russia
3
Vinogradov Institute of Geochemistry, Siberian Branch of Russian Academy of Sciences, 664033 Irkutsk, Russia
4
Vernadsky Institute of Geochemistry and Analytical Chemistry, Russian Academy of Sciences, 119991 Moscow, Russia
5
Institute of Experimental Mineralogy RAS, Chernogolovka, 142432 Moscow, Russia
*
Author to whom correspondence should be addressed.
Minerals 2022, 12(7), 887; https://doi.org/10.3390/min12070887
Submission received: 27 June 2022 / Revised: 12 July 2022 / Accepted: 12 July 2022 / Published: 14 July 2022
(This article belongs to the Section Crystallography and Physical Chemistry of Minerals & Nanominerals)
Browse Figures
Versions Notes

Abstract

:
Isomorphic substitutions of extra-framework components in sodalite-group aluminosilicate minerals and their thermal conversions have been investigated using infrared, Raman, electron spin resonance (ESR), as well as ultraviolet, visible and near infrared (UV–Vis–near IR) absorption spectroscopy methods and involving chemical and X-ray diffraction data. Sodalite-related minerals from gem lazurite deposits (haüyne, lazurite, and slyudyankaite) are characterized by wide variations in S-bearing extra-framework components including SO42− and various polysulfide groups (S2●−, S3●−, S4●− radical anions, and S4 and S6 neutral molecules) as well as the presence of CO2 molecules. Heating at 700 °C under reducing conditions results in the transformation of initial S-bearing groups SO42− and S3●− to a mixture of S2−, HS−, S2●−, and S4●− and transformation of CO2 to a mixture of CO32− and C2O42− or HC2O4− anionic groups. Further heating at 800 °C in air results in the decomposition of carbonate and oxalate groups, restoration of the SO42− and S3●− groups, and a sharp transformation of the framework. The HS− anion is stable only under reducing conditions, whereas the S3●− radical anion is the most stable polysulfide group. The HS−-dominant sodalite-group mineral sapozhnikovite forms a wide solid-solution series with sodalite. The conditions required for the formation of HS−- and CO20-bearing sodalite-group minerals are discussed.

1. Introduction

Minerals belonging to the sodalite group are microporous cubic or pseudo-cubic alumino- and beryllosilicates which occur in different kinds of alkaline magmatic and metasomatic rocks. Some of them (sodalite, haüyne, and nosean) belong to important rock-forming minerals.
The unit cell parameters of the “idealized sodalite (SOD-type) framework” deposited in the Database of Zeolite Structures are a = 8.9561 Å; V = 718.4 Å3; and space group Im-3m (aristotype) [1,2]. However, due to different schemes of the Si/Al ordering as well as specific features of the occupation of the intra-framework cavities (sodalite cages) by extra-framework components, the observed symmetry is usually lower. A distinctive feature of sodalite-type compounds is a three-dimensional system of channels consisting of sodalite cages and running along different directions. The extra-framework constituents in sodalite-group minerals are more diverse than in the members of the related cancrinite group and include different cations (Na+, [N(CH3)4]+, Ca2+, Mn2+, Fe2+, and Zn2+), anions (Cl−, F−, OH−, HS−, S2−, and SO42−), radical anions (S3●−), and neutral molecules (H2O, CO2, S6) as species-defining components. Some subordinate, admixed components (K+, H+, S2●−, S4●−, SO4●2−, S3, S4, MoO42−, WO42−, AsO43−, and COS) were identified in sodalite-group minerals using a multianalytical approach involving different spectroscopic methods [3,4,5,6].
To date, many dozens of chemically different microporous compounds with the SOD-type framework have been synthesized. Interest in such compounds is caused by their specific properties, which make it possible to consider them as advanced materials with technologically important properties. The hydrothermal method was applied to obtain sodalite-type compounds with aluminosilicate frameworks as well as frameworks containing W-, Mo-, Ga-, Be-, Ge-, P-, or As-centered tetrahedra, with a wide variety of extra-framework cations and anions [7]. Microporous compounds belonging to the topological type of sodalite are advanced materials that can be used as pigments, sorbents for water purification and gas sorption, matrices for immobilization of radioactive isotopes and heavy metals, hydrogen and methane storage, superconductors, catalysts, membranes for separation of gases and desalination of seawater, etc. [8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37].
This paper provides new data on the isomorphism of extra-framework components in some sodalite-group minerals as well as mechanisms for their thermal conversions.

2. Materials and Methods

The studied samples are listed below. Their empirical formulae are partly taken from literature sources. Chemical data for newly analyzed samples are given in Table 1. Samples 1–6 and 9 were collected at the Malo-Bystrinskoe gem lazurite deposit, Baikal Lake area, Siberia, Russia.
Sample 1 is bluish lilac S4-bearing haüyne. The mineral forms granular aggregate (4 cm across) embedded in calciphyre. The associated minerals are calcite, diopside, and pyrite. The charge-balanced empirical formula is (Table 1; the contents of CO2 and HS− were estimated from the IR spectrum; for the identification of H2S and S4, see below): Na6.24Ca1.49K0.05(Si5.99Al6.01O24)(SO4)1.50(H2S)0.075(S4)0.09Cl0.10F0.24(CO2)0.16·nH2O (Z = 1).
Sample 2 is deep blue haüyne. It forms single-crystal grains up to 1 cm across in association with calcite, phlogopite, and accessory sphalerite, Zn-bearing spinel, and grossular. The empirical formula of Sample 2 is (Table 1): Na6.28Ca1.47K0.17(Si6.05Al5.92Fe0.03O24)(SO42−)1.68S00.40Cl0.06(CO2)0.06·nH2O, where S0 is all sulfide sulfur provided that it occurs in neutral molecules.
Sample 3 is lilac haüyne forming a rim around light gray fine-grained aggregates of earlier silicates up to 2 cm across. The associated minerals are lazurite, sodalite, diopside, and calcite. The empirical formula is Na6.39K0.06Ca1.57(Si6.08Al5.92O24)(SO4)1.78(S4)0.03(S2−)0.02Cl0.07(CO2)0.15·nH2O (Z = 1) [4]. The mineral is cubic, with the unit cell parameter a = 9.076 Å.
Sample 4 is light blue SO3●−-bearing haüyne with the empirical formula Na6.45K0.03Ca1.35(Si6.07Al5.93O24)(SO4)1.35(SO3●−)1.35S2●−0.02Cl0.16(CO2)0.02·nH2O (Z = 1) [4]. The unit cell parameter is a = 9.067 Å. The mineral forms grains up to 5 mm in calciphyre, in association with pyrite.
Sample 5 is bright blue haüyne with the empirical formula Na6.45K0.01Ca1.36(Si6.06Al5.94O24)(SO4)1.58S00.43Cl0.09(CO2)0.02·nH2O, where S0 is all sulfide sulfur provided that it occurs in neutral molecules. The unit cell parameter is a = 9.071 Å. The mineral forms grains in coarse-grained calciphyre consisting mainly of calcite, with subordinate diopside.
Sample 6 is the holotype specimen of slyudyankaite Na28Ca4(Si24Al24O96)(SO4)6(S6)1/3(CO2)·2H2O [38]. The mineral is triclinic, space group: P1, a = 9.0523 (4) Å, b = 12.8806 (6) Å, c = 25.681 (1) Å, α = 89.988(2)°, β = 90.052(1)°, γ = 90.221(1)°, and V = 2994.4 (2) Å3. The empirical formula is Na27.57Ca4.05K0.11(Si24.52Al23.48O96)(SO4)6.06S02.42Cl0.12(CO2)1.43·2.21H2O (Z = 1), where S02.42 is total sulfide sulfur, mainly occurring as S6 and subordinate S4 neutral molecules, according to the structural data. The color of slyudyankaite is nonuniform: from blue-green in the major part of grains to pink and yellow in thin peripheral zones. The mineral forms isolated anhedral equant grains up to 0.5 cm across. The associated minerals are diopside, calcite, fluorapatite, phlogopite, lazurite, and pyrite.
Sample 7 is gray nosean forming crystals up to 0.5 cm across and elongate twins on (111) up to 1 cm long in cavities of nosean sanidinite. The sample originates from the In den Dellen (Zieglowski) pumice quarry, 1.5 km NE of Mendig, Laach Lake (Laacher See) paleovolcano, Eifel region, Rhineland-Palatinate, Germany. The associated minerals are sanidine, augite, annite, and zircon. The empirical formula of Sample 7 is [3]: (H3O)xNa5.72K0.64Ca0.33(Si6.43Al5.51Fe0.06O24)(SO4)1.21Cl0.11F0.09(CO2)0.11·nH2O (Z = 1).
Sample 8 is the holotype specimen of sapozhnikovite Na8(Al6Si6O24)(HS)2 from a hydrothermally altered urtite-like rock at Karnasurt Mountain, Lovozero alkaline massif, Kola Peninsula, Russia [39]. The mineral forms isolated colourless to pale grayish anhedral equant grains up to 0.5 cm across. The empirical formula is Na7.73Al6.08Si5.97O24(HS)1.25Cl0.60·0.16H2O (Z = 1). Sapozhnikovite is cubic, P 4 ¯ 3n, with a = 8.91462(7) Å.
Sample 9 is the neotype specimen of lazurite with the empirical formula (Na6.97Ca0.88K0.10)7.96(Si6.04Al5.96O24)(SO4)1.09(S3●−)0.55S2−0.05Cl0.04·0.72H2O [5]. The associated minerals are calcite and diopside as well as accessory dolomite, forsterite, and phlogopite. The crystal structure of Sample 9 is characterized by commensurate and incommensurate modulations; the a parameter of the cubic sub-cell is equal to 9.087(3) Å.
Sample 10 is the holotype specimen of the recently IMA-approved new F-dominant sodalite-group mineral bolotinaite (IMA 2021-088). The mineral occurs as isolated yellow elongate interpenetration twins up to 1 mm long in cavities of a volcanic ejectum of trachitoid sanidinite collected in the In den Dellen pumice quarry, Eifel region, Rhineland-Palatinate, Germany. The associated minerals are sanidine, nepheline, annite, and zircon. The empirical formula of Sample 10 is (Na5.92K0.82Ca0.10H0.08)(Si6.33Al5.67O24)(SO4)0.17F0.84Cl0.16(CO2)0.38·3.96H2O.
Sample 11 is blue sodalite forming grains up to 3 cm across in a cancrinite-sodalite pegmatite uncovered at the western slope of Mount Kobelikha, Vishnevye Gory, Vishnevogorskiy syenite-miaskite complex, South Urals, Russia. The associated minerals are potassic feldspar, cancrinite, annite, muscovite, different zeolites, as well as accessory zircon, thorite, ilmenite, columbite-(Fe), Nb-bearing rutile, a pyrochlore-group mineral, various sulfides, etc. The composition of Sample 10 is close to the end-member formula Na8(Si6Al6O24)Cl2 [3].
Sample 12 was collected from the same area as sapozhnikovite (Sample 8), north slope of Karnasurt Mountain located in the northern part of the Lovozero alkaline massif. This sample includes several similar but not identical to each other pieces of hydrothermally altered highly agpaitic urtite-like rocks containing rock-forming minerals of the sodalite–sapozhnikovite solid-solution series. Their share in a rock varies from 5 to 20 vol.%. Other rock-forming minerals are nepheline (the major constituent: >60 vol.%), aegirine, albite, potassic feldspar, natrolite, and kyanoxalite in different proportions; accessory minerals are murmanite (sometimes with lomonosovite relics), fluorapatite, and loparite-(Ce). Sodalite–sapozhnikovite series minerals form white or colourless, with strong orange fluorescence in longwave UV light (λ = 330 nm), grains up to 1 cm across. The representative chemical compositions of these minerals are given in Table 1.
Chemical analyses of haüyne Samples 1 and 2 (Table 1) were carried out using a Tescan VEGA-II XMU INCA Energy 450 (TESCAN, Brno, Czech Republic) (EDS mode, 20 kV, 120–150 pA, beam size 120 nm, excitation zone < 5 μm). The following standards were used: CaF2 for F, albite for Na, synthetic Al2O3 for Al, wollastonite for Ca, potassium feldspar for K, SiO2 for Si, Fe metal for Fe, and FeS2 for S. Chemical analyses of sodalite–sapozhnikovite series minerals (Sample 12, Table 1) were carried out using a Jeol JSM-6480LV scanning electron microscope equipped with an INCA-Wave 500 wavelength-dispersive spectrometer (Laboratory of Analytical Techniques of High Spatial Resolution, Department of Petrology, Geological Faculty, Moscow State University), with an acceleration voltage of 20 kV, a beam current of 10 nA, and a 10 μm beam diameter. The standards used are as follows: jadeite for Na, Al and Si, FeS2 for Fe, ZnS for S, and NaCl for Cl. Contents of other elements with atomic numbers >6 are below detection limits.
Additionally, chemical compositions of 55 samples of minerals belonging to the sodalite–sapozhnikovite solution series were investigated.
The diffuse absorption spectra in the near infrared, visible, and ultraviolet (NIR/Vis/UV) ranges were measured at room temperature using a Lambda 950 spectrophotometer (Perkin-Elmer, Shelton, CT, USA). In particular, the absorption spectra of platelets of Sample 1 (about 1 mm thick) were measured in the transmission mode through a circular diaphragm 0.8 mm in diameter. The spectra were measured in an integrating sphere at room temperature. To do this, small crystals of the studied mineral were placed in a quartz test tube, transparent in the region of 250–2000 nm, and the test tube was placed in an integrating sphere.
The ESR spectra were measured with a RE-1306 X-band spectrometer (KBST, Smolensk, Russia) with a frequency of 9.3841 GHz at room temperature and 9.1841 GHz at 77 K. For low-temperature measurements, a quartz ampoule with the sample was placed in a flooded cryostat.
Heating of Samples 3 and 4 was carried out according to the following scheme. The samples were placed in a muffle furnace in air and sequentially heated every 50 °C for 10 min. After holding at each of the temperatures, ESR and NIR/Vis/UV diffuse absorption spectra were measured.
Thermal conversions of other studied samples were carried out in two stages. In the first stage, the samples were heated for three days at 700 °C in reducing atmosphere (over the Fe-FeS buffer). Thereafter, parts of the preheated samples were annealed at 800 °C in air for 24–36 h.
The powder X-ray diffraction study was carried out at room temperature with an automatic powder diffractometer (D8 ADVANCE, Bruker, Germany) equipped with a Göbel mirror. The powder X-ray diffraction patterns were obtained in step scan mode (in the 2θ range of 10 to 80°) using CuKα radiation at an accelerating voltage of 40 kV, with a current of 40 mA, time per step of 1 s, and a 2θ step of 0.02°. Calculations of interplanar distances were performed using the software that was delivered with the diffractometer (DIFFRAC Plus Evaluation package EVA, Bruker AXS, Bruker, Germany). Unit cell parameters were refined using the (440), (611), (622), and (721) reflections.

3. Results

3.1. Isomorphism of Extra-Framework Components in Cubic Sodalite-Group Minerals

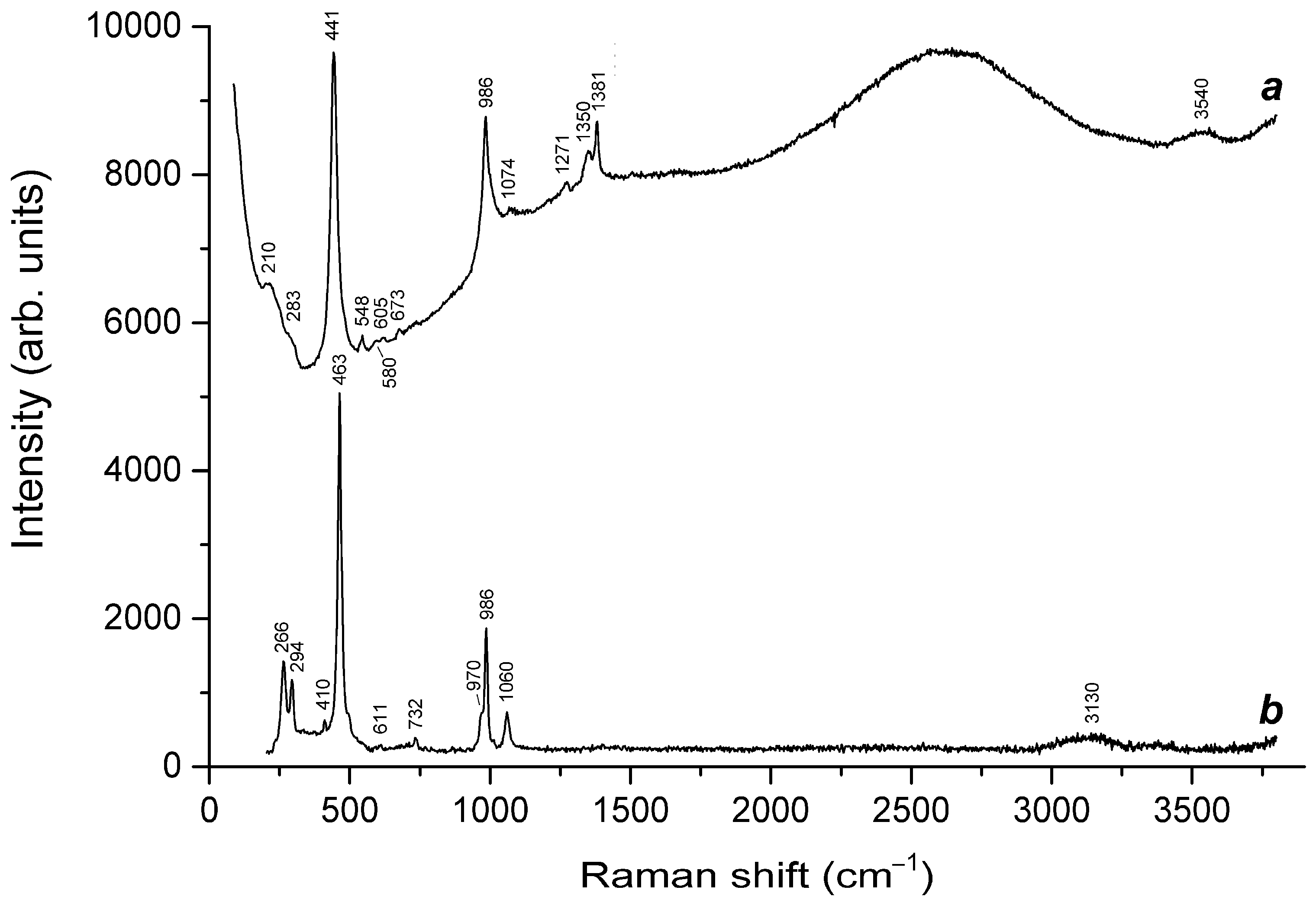

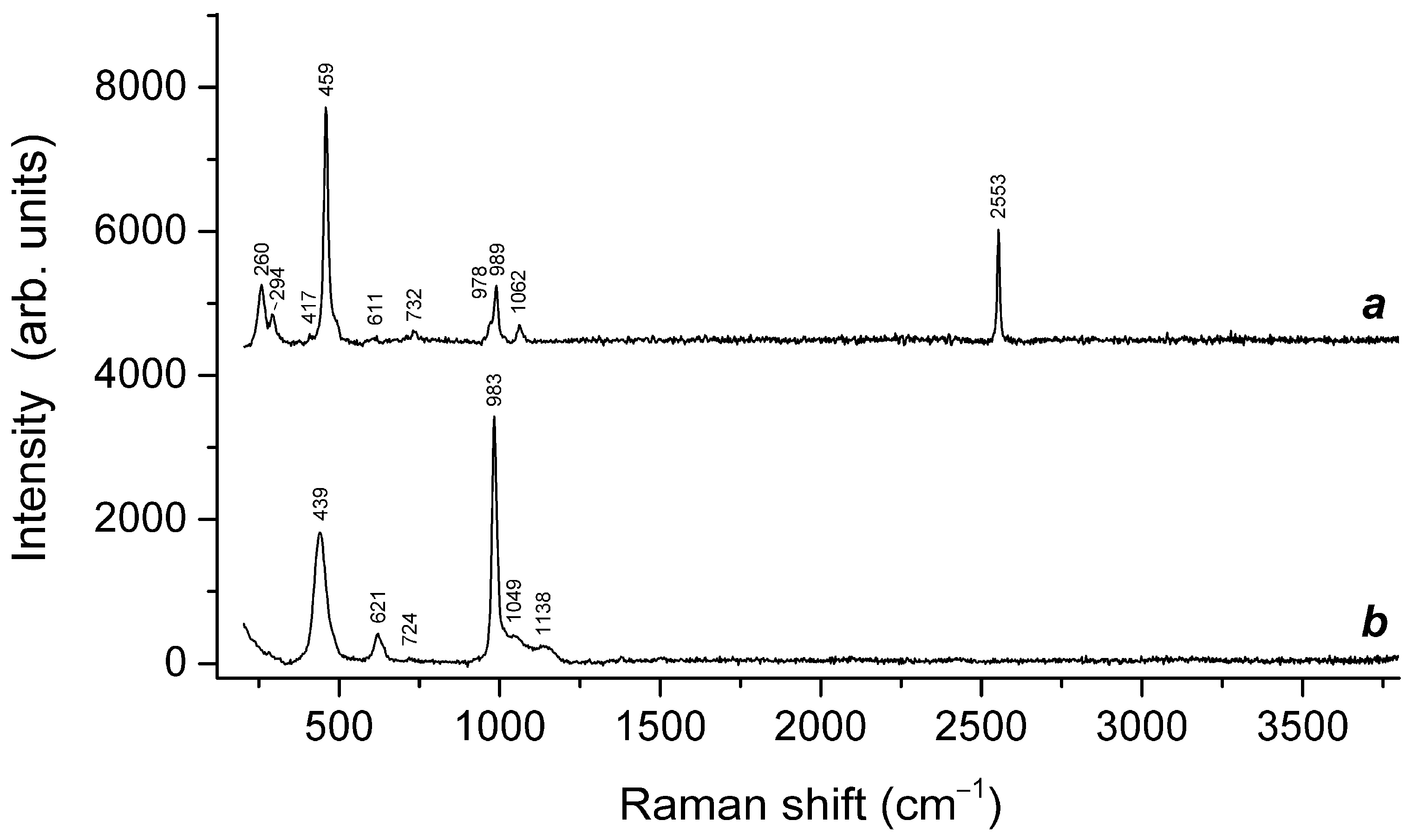

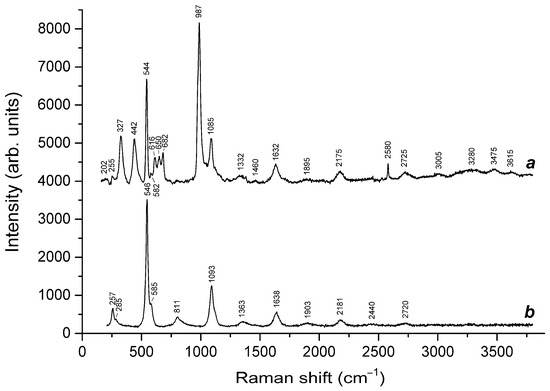

Raman spectra are very sensitive to anionic groups and neutral molecules containing sulfide sulfur. Representative Raman spectra of cubic sodalite-group minerals are given in Figure 1, Figure 2 and Figure 3.

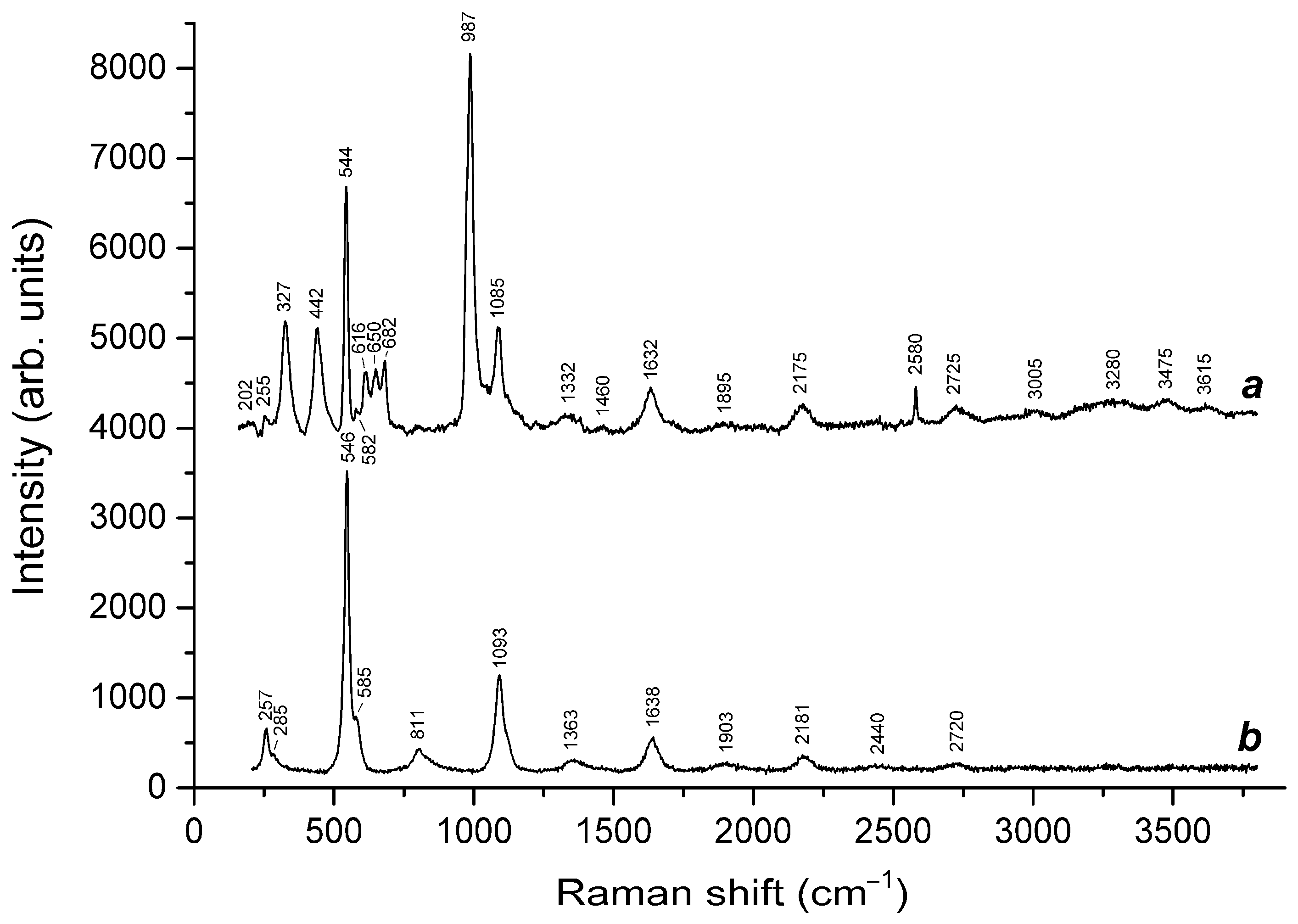

The assignment of bands in the Raman spectra of cubic sodalite-group minerals shown in Figure 1, Figure 2 and Figure 3 (Table 2) was made in accordance with [3,4,38,39,40,41,42,43,44,45,46,47,48,49,50].
Except for a very weak band at 285 cm−1 (combination of low–frequency lattice modes involving Na+ cations), all bands in the Raman spectrum of lazurite (Sample 9: curve b in Figure 1) correspond to the S3●− radical anion [5]. Weak bands of sulfate groups are not observed in the Raman spectrum of Sample 9 because of their overlapping with the bands of S3●−.
Analogous bands of the trisulfide radical anion are present in the spectrum of bluish lilac haüyne (Sample 1), which contains trace amounts of S3●− (curve a in Figure 1). Additionally, in the Raman spectrum of Sample 1, bands of SO42− groups are observed at 987 cm−1 [symmetric stretching vibrations, A1(ν1) mode], 616 cm−1 [bending vibrations, F2(ν4) mode], and 442 cm−1 [bending vibrations, the E(ν2) mode]. A series of distinct Raman bands (at 327, 650, and 682 cm−1) corresponding to S4 molecules having cis-, gahche- and trans-conformations, respectively, as well as bands of carbonate groups (at 1953 and 1460 cm−1), H2S molecules (at 2580 cm−1), and hydronium cations H3O+ (at 3005 and 3280 cm−1) (Table 2) are the specific feature of Sample 1 distinguishing it from all other haüyne samples studied in this work and elsewhere [1,2,48]. The presence of hydronium in Sample 1 is in agreement with the deficit of extra-framework cations determined by the electron microprobe analysis (Table 1).
Ideally, sodalite, bolotinaite and sapozhnikovite are the end-members of the solid-solution system with the general formula [Na7(▯,Na)](Si6Al6O24){Cl,HS,[F0.5(H2O)2]}2. However, natural samples of these minerals contain various extra-framework impurities (K, H3O+, SO42−, S2●−, CO2, S4, HF, etc.) The Raman spectrum of sapozhnikovite in the range of 200–2500 cm−1 is very close to the spectrum of typical sodalite (Figure 2 and Figure 3). The only significant distinctive feature of sapozhnikovite is a strong Raman band at 2553 cm−1 corresponding to stretching vibrations of HS− anions. Bolotinaite is the member of this solid-solution system most enriched in impurities (Table 1). In particular, it contains S2●−, which is the cause of the yellow color of this mineral and its strong luminescence under laser beams (Figure 2).

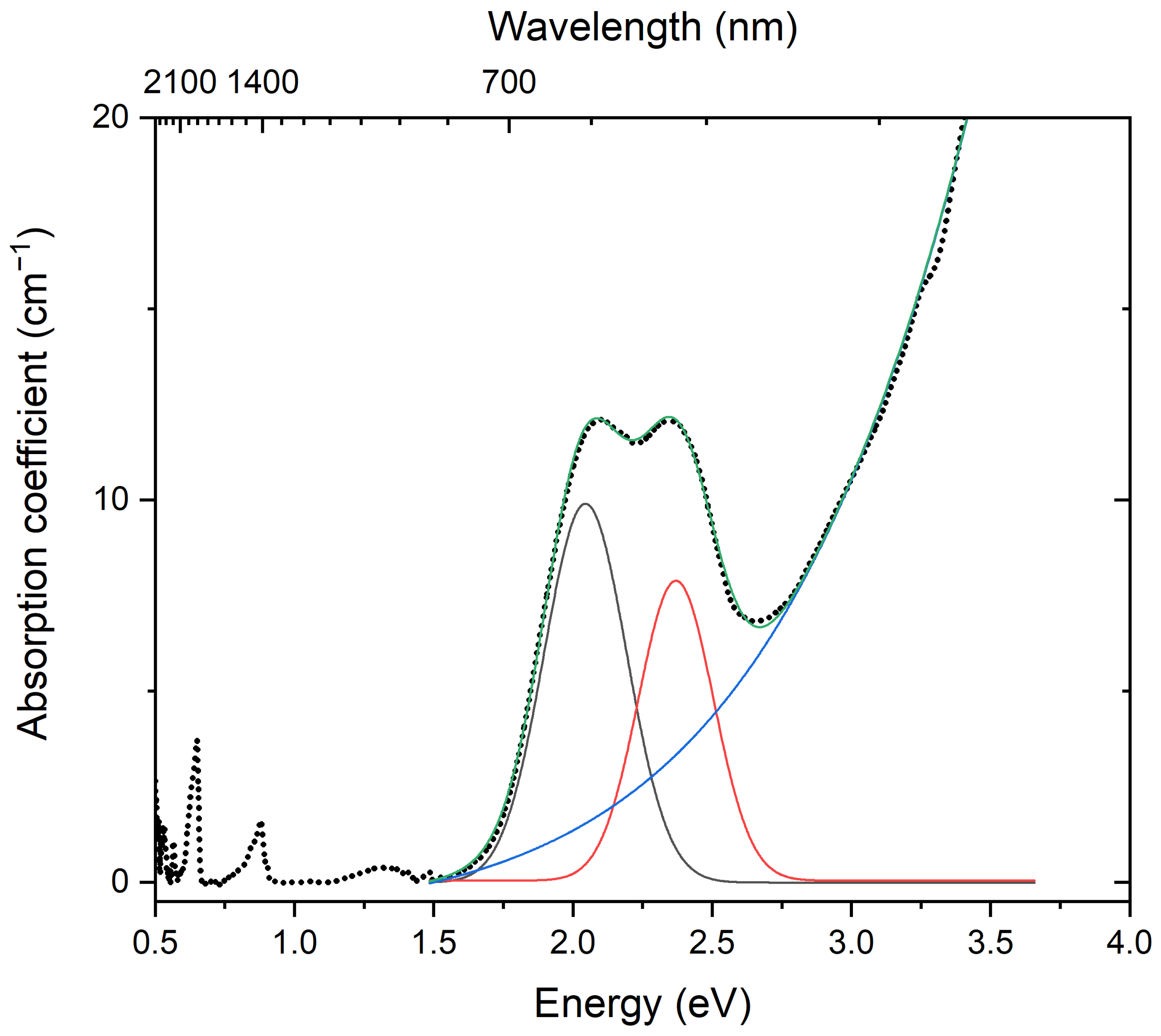

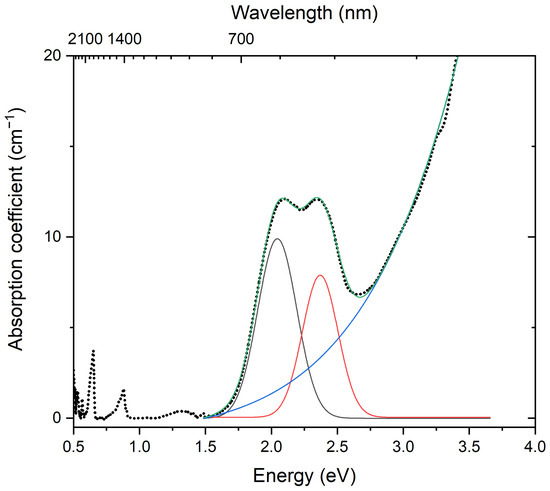

In the NIR/Vis/UV absorption spectrum of Sample 1, strong bands with the maxima at 0.65, 0.88, 2.05, and 2.38 eV (respectively, 1900, 1400, 605, and 520 nm) as well as absorption growth above 2.7 eV (460 nm) and a weak band at 1.33 eV (920 nm) are observed (Figure 4). The ESR spectrum of Sample 1 contains a sextet of Mn2+ ions in the low-spin state (S = ½ [51]) with g = 2.001, a strong single band with g = 2.002, and a weak band with g = 2.036 (Figure 5). Most probably, Mn2+ ions occur in calcite forming inclusions in haüyne individuals.
The absorption bands with maxima at 0.65 and 0.88 eV are associated with the vibrational modes of water in the studied mineral. The absorption bands with maxima at 2.05 and 2.38 eV, which impart a blue color to the studied mineral, can be associated with the presence of S3●− radical anions, which are easily detected by ESR [4,5], while the lilac hue can be associated with the presence of S4 molecules (red chromophore). In the samples under study, the ESR signal characteristic of S3●− (with g = 2.036) is practically not observed, which indicates a very low concentration of S3●− radical anions in Sample 1. The absorption spectrum of S3●− radical anions is characterized by a plateau at about 1.77 eV. However, the shape of the absorption spectrum of Sample 1 differs from the characteristic absorption of S3●− of lazurite [4,5]. Thus, the absorption band at 2.05 eV is not related to S3●− radical anions. On the other hand, in a number of works [40,41,52,53] it is noted that absorption bands at 2.05 and 2.38 eV, as well as a much less intense band about 1.33 eV, can be attributed to the absorption of trans- and cis-conformers of the neutral S4 molecule. The authors of [40] calculated the oscillator strengths f for these conformals, which are equal to 0.07 and 0.047, respectively.
The observed intense ESR signal with a g-factor of 2.002 can be attributed to the presence of some amount of O●− radical anions (Figure 5). Previously, blue sodalite, in which a similar ESR signal and absorption spectrum were observed, was studied in [54,55], but the nature of the color of the mineral was not fully elucidated in this work.
When this sample is heated above a temperature of 500 °C, the studied sodalite loses its color. Along with this, an absorption band appears at 3.1 eV (400 nm) upon excitation, in which intense luminescence is observed with a maximum at 1.9 eV (650 nm). Such luminescence is characteristic of S2●− radical anions [4].

3.2. Crystal Chemistry, Isomorphism, and Thermal Conversions of Haüyne

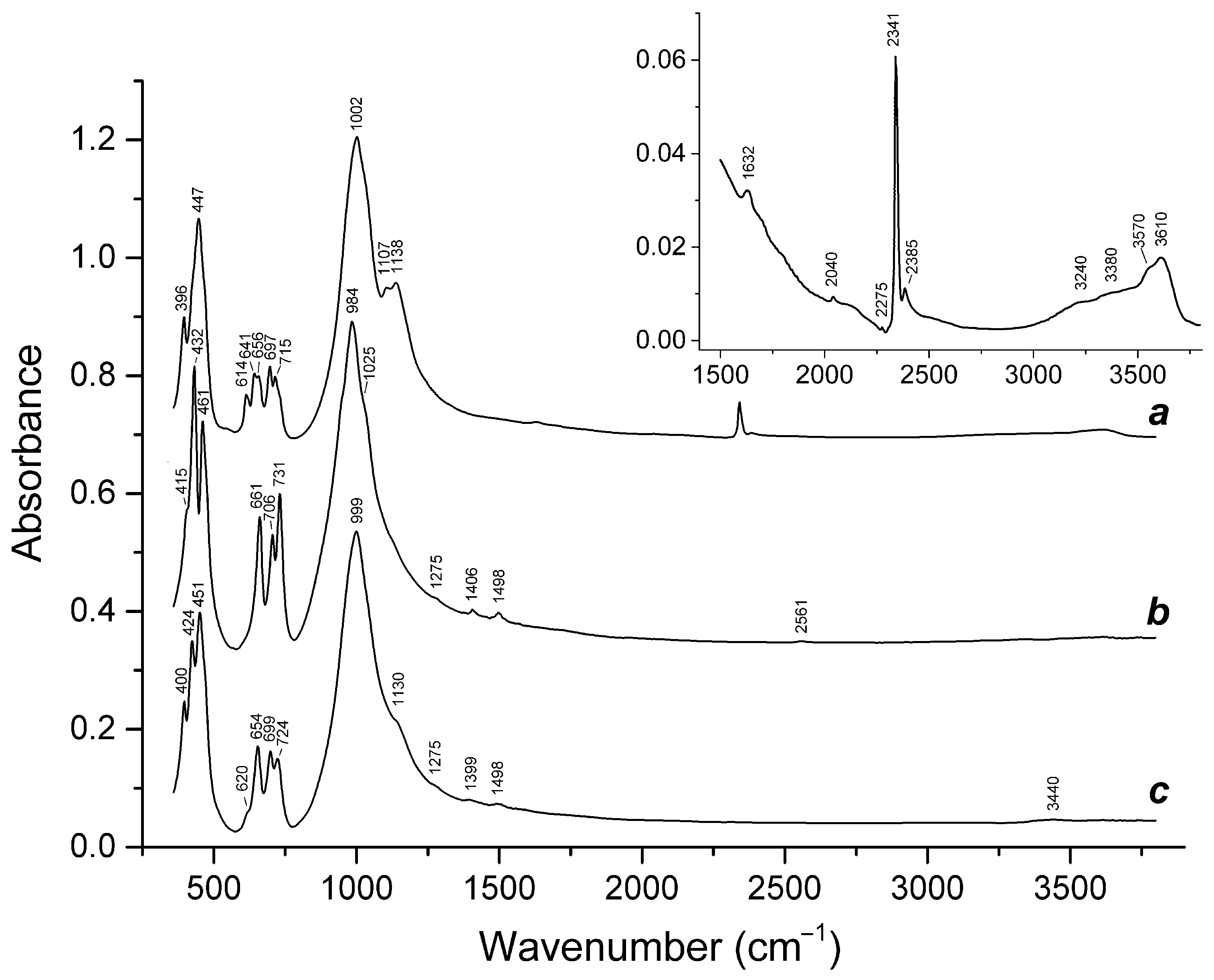

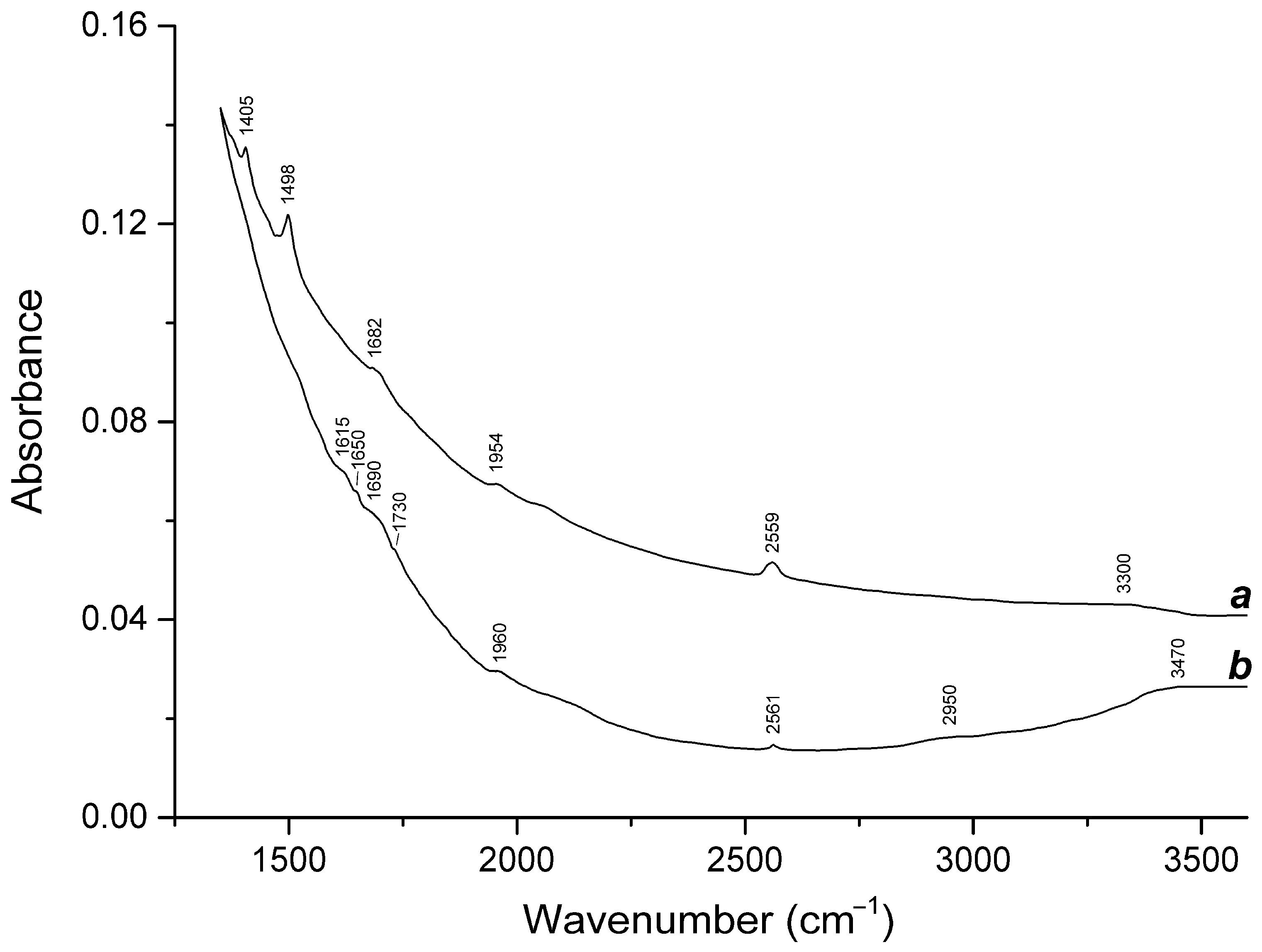

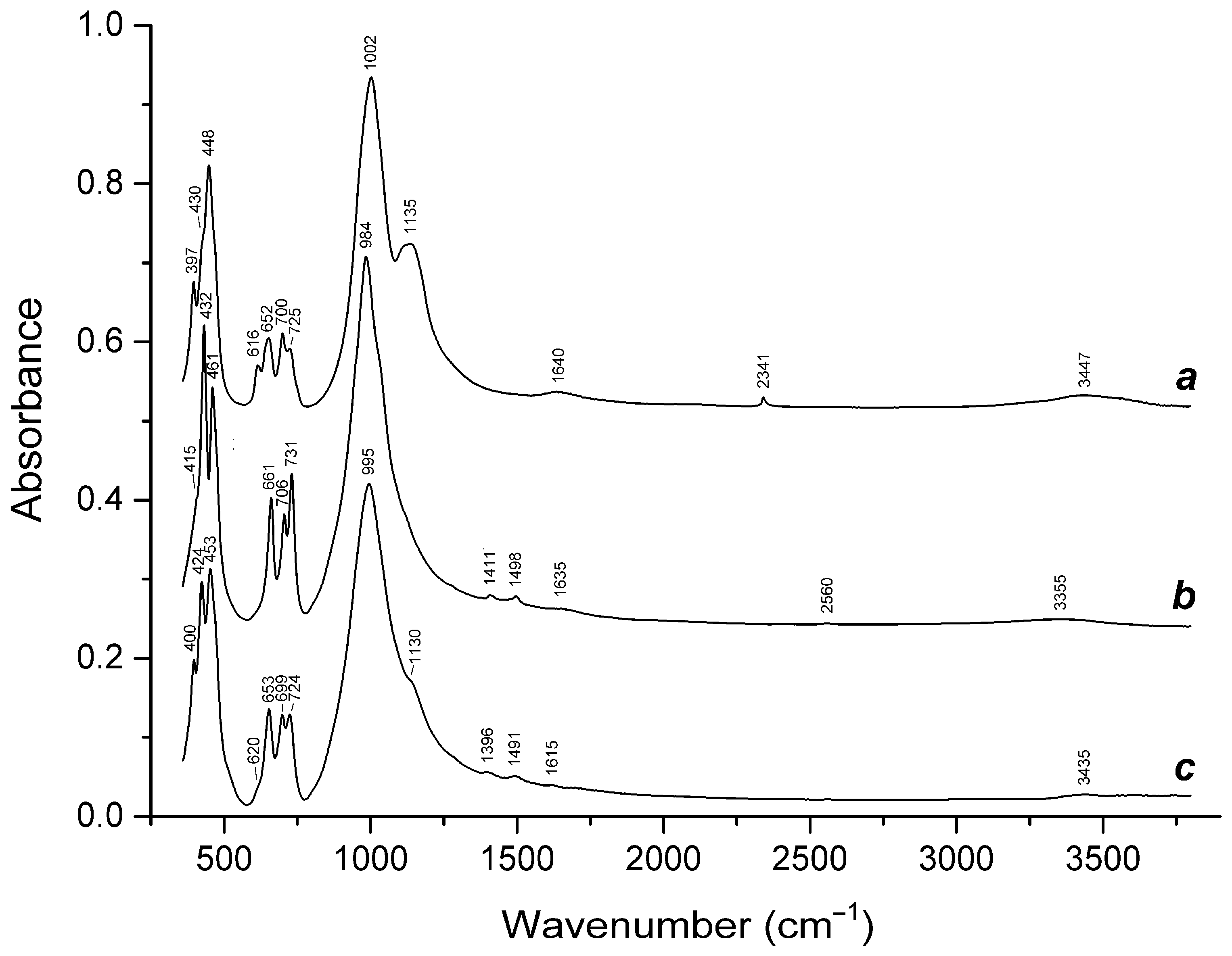

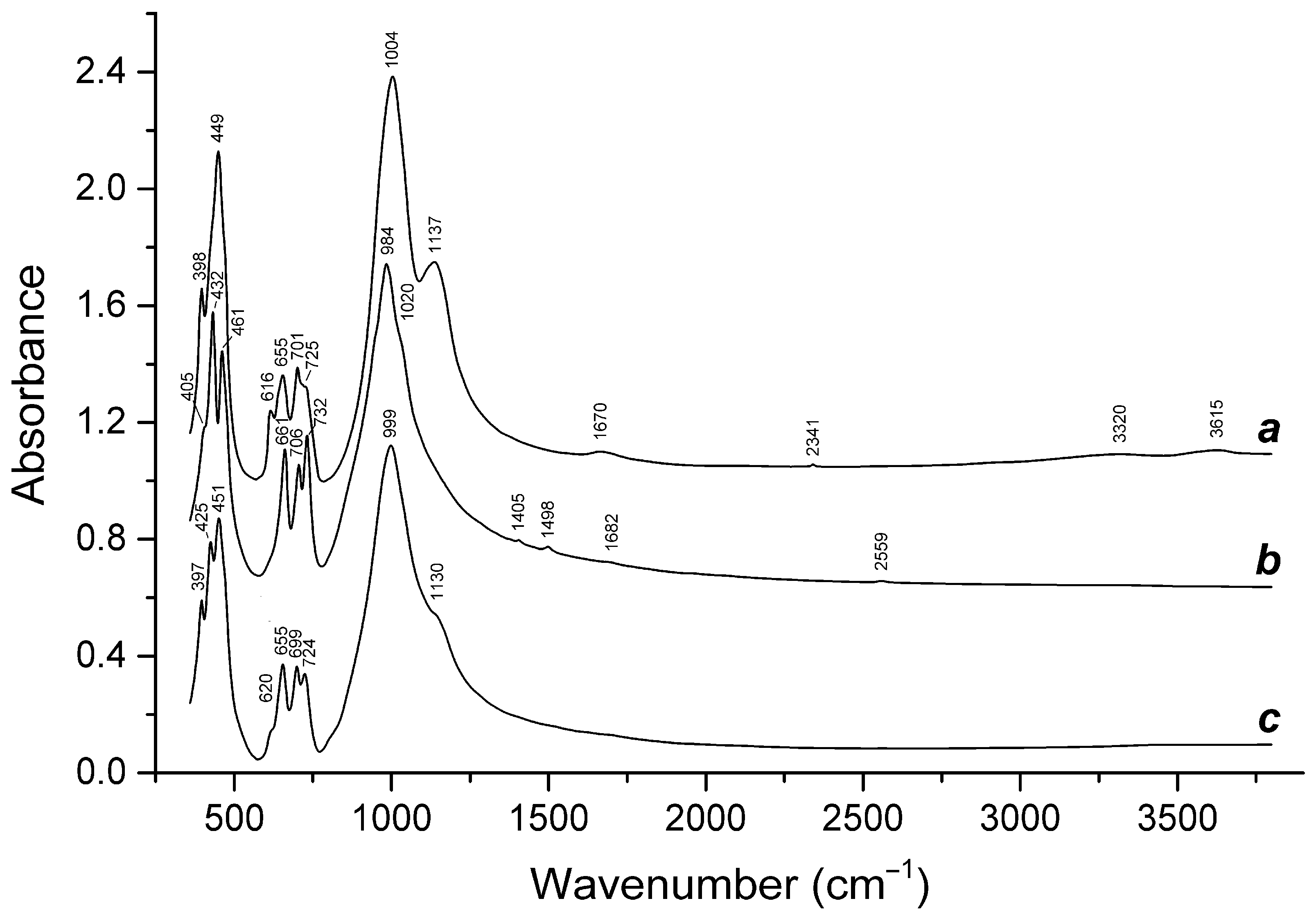

The IR spectra of initial and heated haüyne (Samples 2 and 5) are given in Figure 6, Figure 7 and Figure 8. The spectra of initial samples contain bands of O–H stretching and bending vibrations of H2O molecules (in the ranges of 3300–3700 and 1640–1670 cm−1, respectively), antisymmetric vibrations of the CO2 molecules (at 2341 cm−1), asymmetric stretching [F2(ν3) mode 1135–1137 cm−1] and bending [F2(ν4) mode, 616 cm−1] vibrations of the SO4 tetrahedra, as well as stretching (1002–1004 cm−1), O–(Si,Al)–O (650–730 cm−1), and Si–O–Al (in the range of 390–450 cm−1) modes of the aluminosilicate framework.
Heating results in the lowering of intensities of the bands of H2O and disappearance of the bands of SO42− and CO2. The samples preheated under reducing conditions change color from blue to yellow. Their IR spectra contain a weak band at 2559–2560 cm−1, which is due to stretching vibrations of the HS− anion [39]. The weak bands at 1405–1411 and 1498 cm−1 in the IR spectra of the preheated samples correspond to asymmetric stretching vibrations of carbonate groups required for the charge compensation. The weak band at 1954 cm−1 (curve a in Figure 8) is an overtone of stretching vibrations of the aluminosilicate framework.
It is worth noting that bands of the isolated S2− anion are absent in the middle IR range, but the transformation of SO42− into S2− as a result of annealing of lazurite at 800 °C was reported [56,57]. Thus, the main scheme of transformations in the first step includes reduction of sulfate anions, and formation of S2− and HS−.
Splittings and shifts of IR bands in the preheated samples are mainly due to transformations of the framework. However, the band at 461 cm−1 may be partly due to vibrations of the trans-S4 molecule (C2h conformation) [40].
Annealing of the preheated haüyne samples at 800 °C in air results in the change of color from yellow to blue, disappearance or weakening of the band of HS− and in the case of Sample 5, disappearance of the bands of CO32− (Figure 1, Figure 2 and Figure 3).

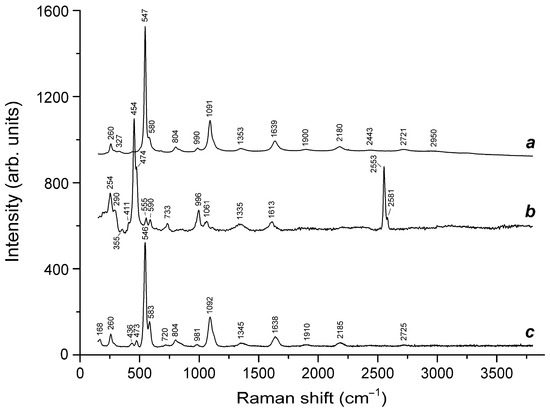

As noted above, unlike IR spectra, Raman spectra are sensitive to anionic groups and neutral molecules containing sulfide sulfur. The Raman spectra of Samples 2 and 5 are given in Figure 9 and Figure 10.

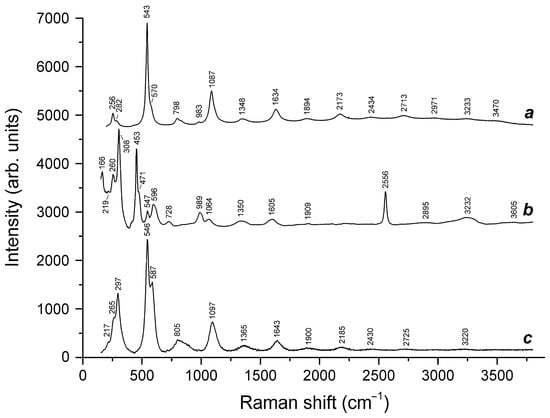

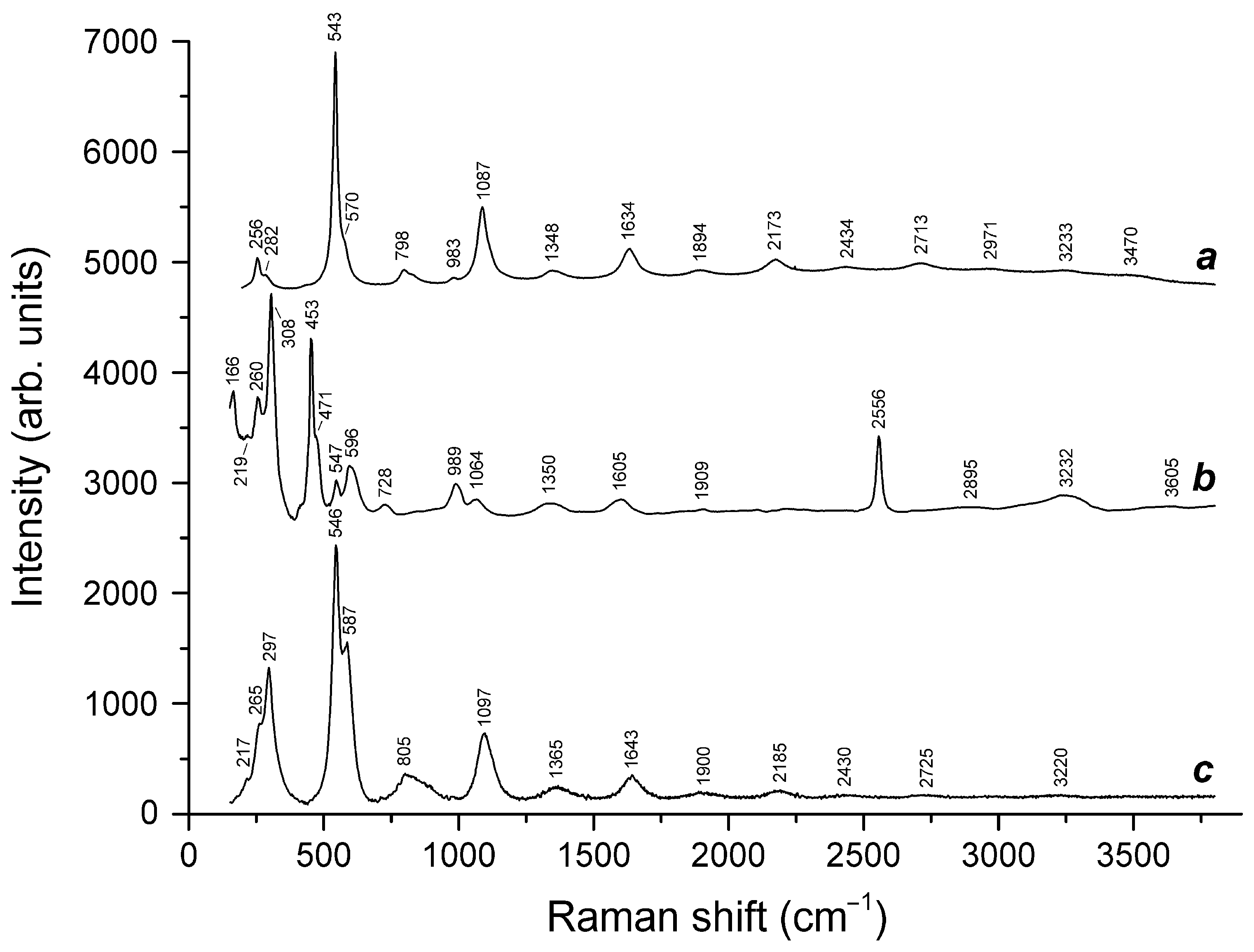

The assignment of bands in the Raman spectra of Samples 2 and 5 and products of their thermal conversions made is given in Table 3 and Table 4. The Raman spectra confirm the presence of HS− and CO32− anions in the products of the heating of both samples at 700 °C, over the Fe-FeS buffer. Additionally, the Raman spectra indicate the formation of oxalate C2O42− and monosulfide S2− anions, S2●− and S4●− radical anions, and S4 molecules in the preheated samples. The Raman spectra of both initial haüyne samples and products of their annealing at 800 °C in air contain sets of characteristic bands of S3●− radical anions.
In the original Sample 3, no S3●− centers were observed before heating. Two absorption bands with maxima at 525 and 585 nm are associated with S4●− centers in different configurations, and a weak absorption band at 400 nm corresponds to S2●− centers (Figure 11) [4,58]. Being excited in the 400 nm region, the samples show intense luminescence with a maximum in the 650 nm region associated with these S2●− radical anions.

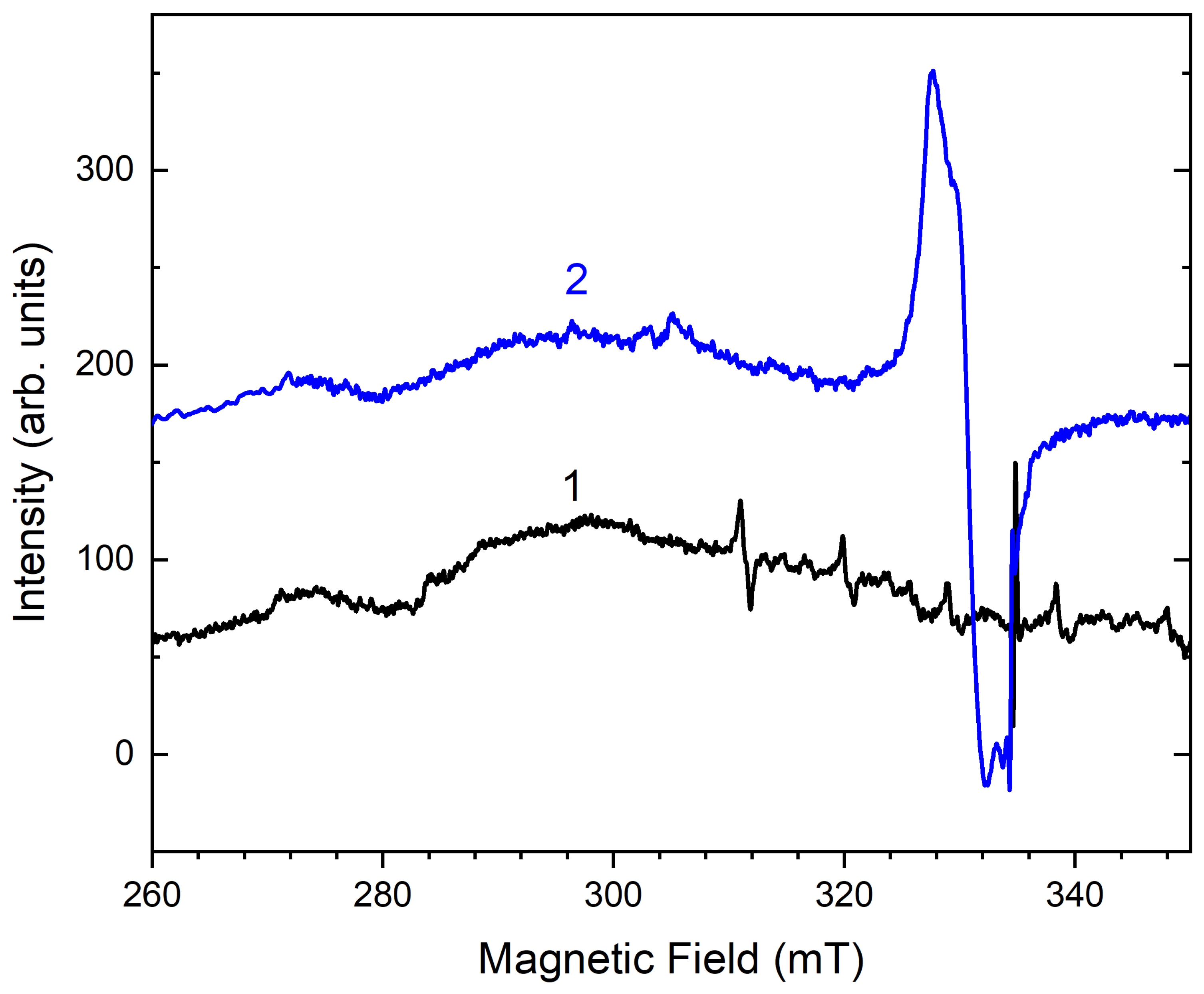

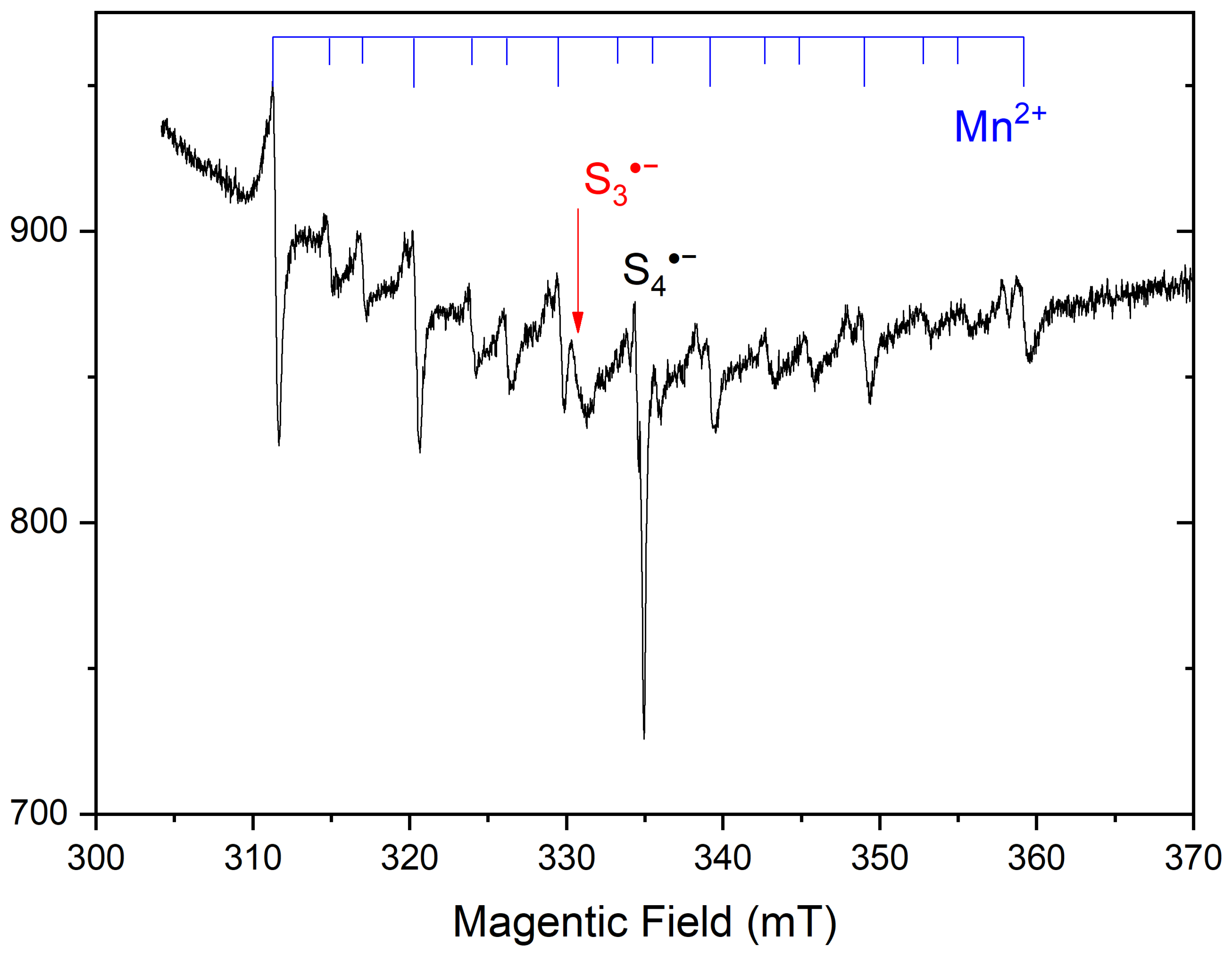

In the ESR spectrum, in addition to six lines associated with Mn2+ centers in calcite inclusions, there is a signal with g-tensor components of 2.034 and 2.021, associated with S4●− centers (Figure 12) [58]. As a result of heating the sample, the intensity of this signal decreases, together with a weakening of the absorption bands. At temperatures above 400 °C, the S4●−—centers disappear.
The intensities of the absorption band and luminescence associated with S2●− centers increase in this case. At temperatures above 700 °C, a signal with g1 = 2.056, g2 = 2.041, and g3 = 2.008, associated with S3●− centers, appears in the ESR spectrum. At the same time, the shape of the absorption band in the region of 600 nm changes, it acquires a table-like shape, and its intensity also begins to grow. The sample acquires an intense blue color, also associated with the S3●− radical anion [4]. In this case, the absorption band in the region of 400 nm and the luminescence associated with the S2●− centers begin to decrease. The temperature dependences of the observed effects are shown in Figure 13.

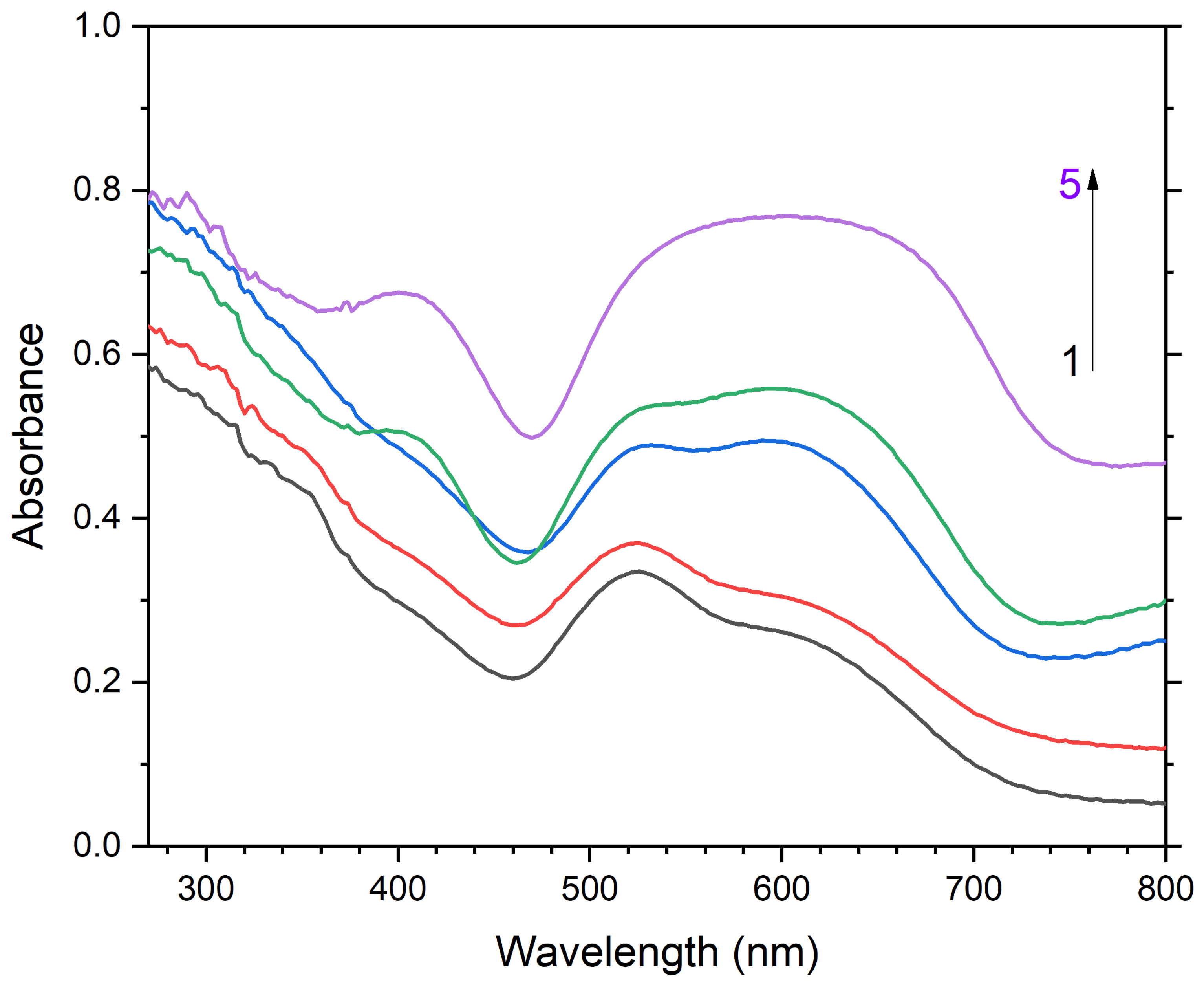

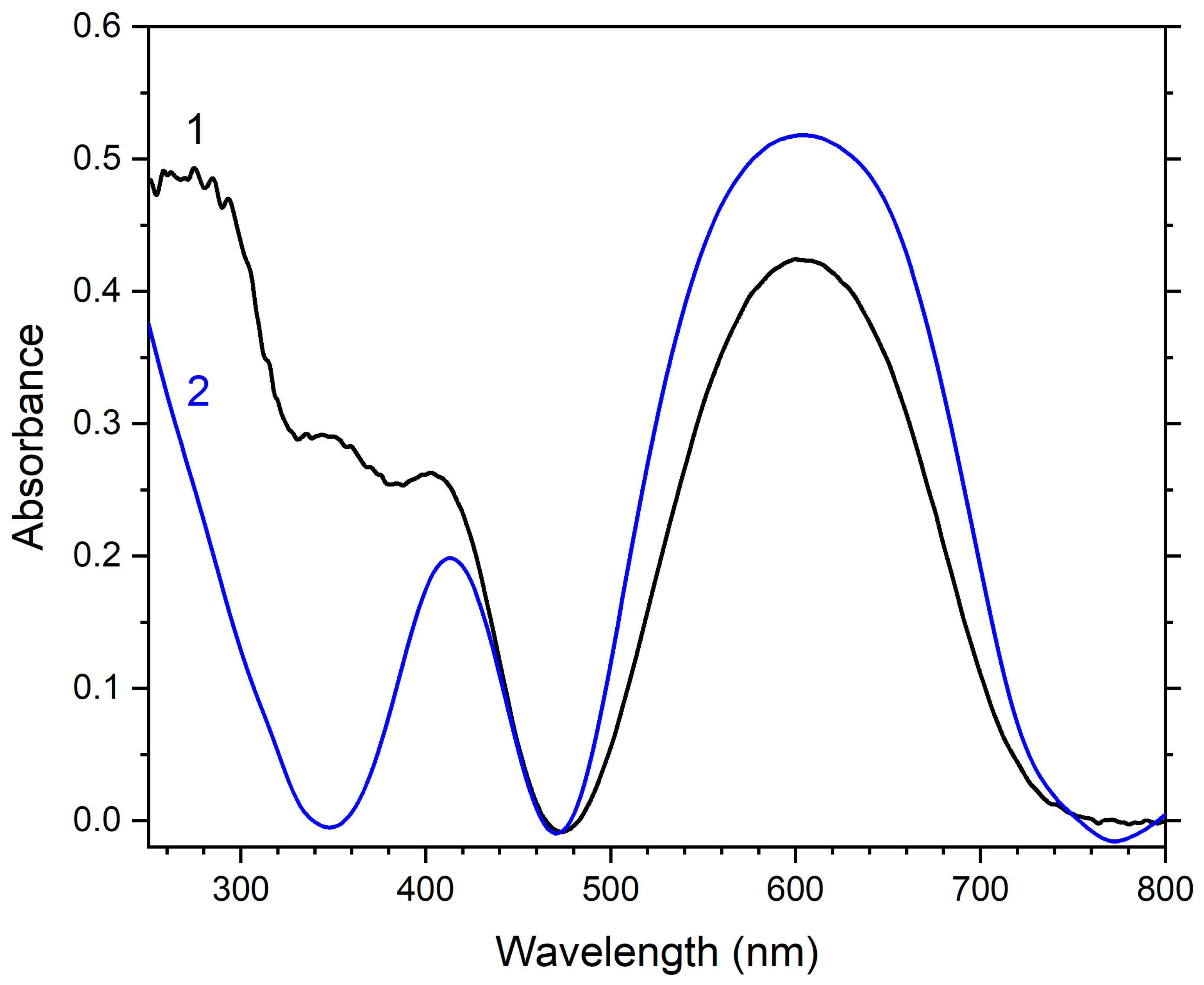

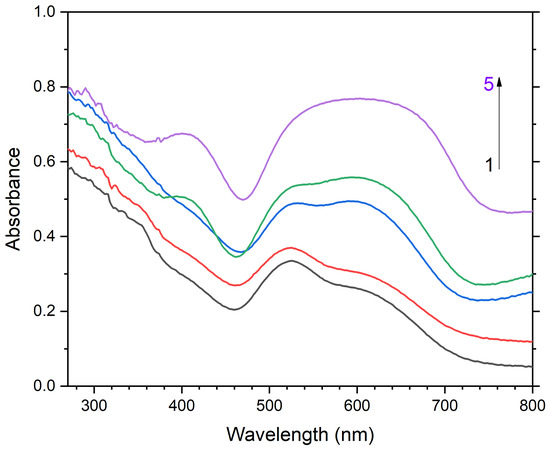

The absorption spectrum of initial sample 4 shows a broad band at 600 nm, which is also associated with S3●− radical anions, as well as a sharp rise in the region of 280 nm, which can be caused by the absorption of S6●− radical anions (Figure 14) [39,58,59]. In the original sample 4, a weak signal with the g-tensor components g1 = 2.045, g2 = 2.034, and g3 = 2.008, associated with S3●− radical anions [4], as well as a signal with the g-tensor components g1 = 2.011 and g2 = 2.006, associated with the radical anion S6●− [45,58,60], are observed (Figure 15).

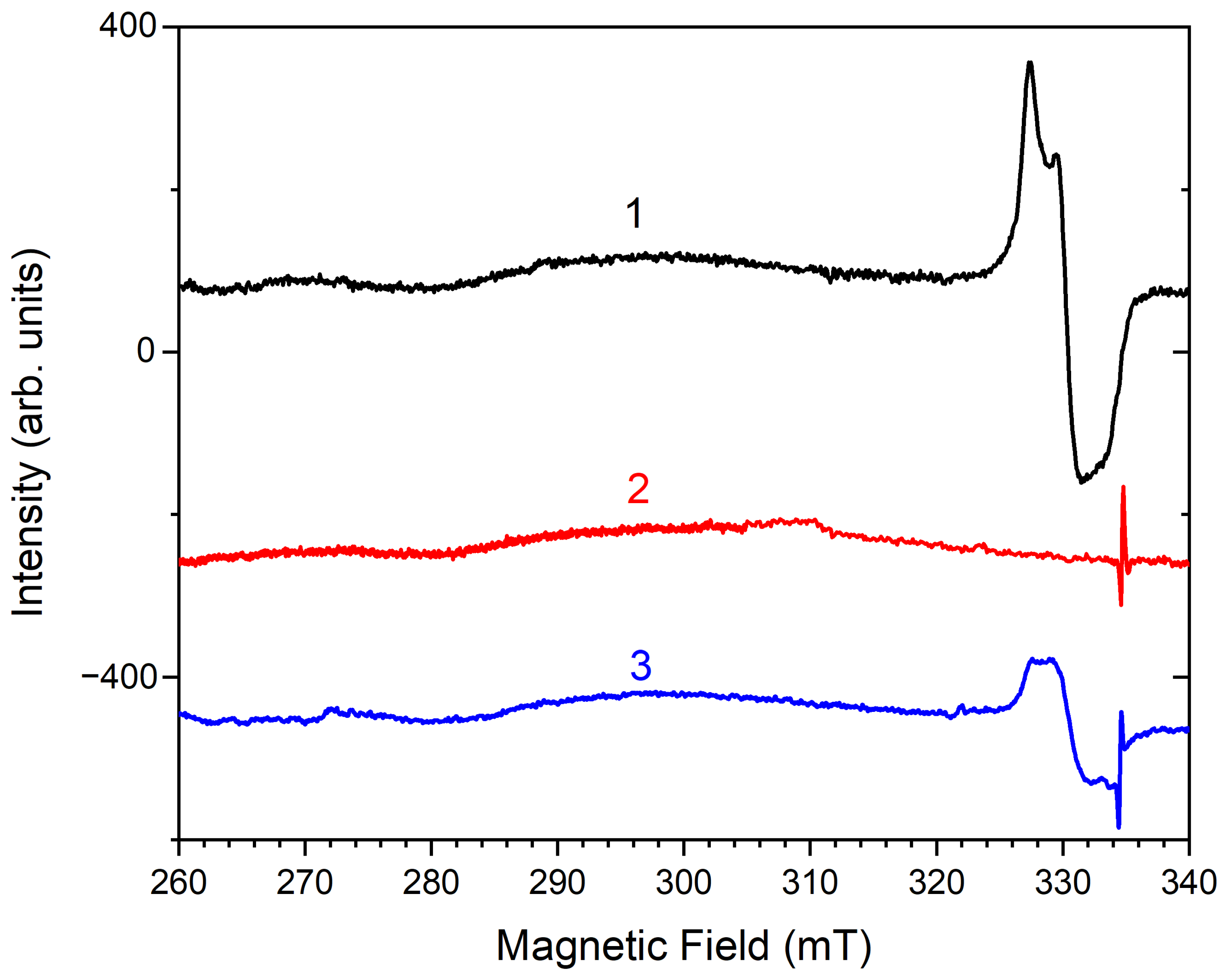

When the sample was heated above 500 °C, the ESR signal with g1 = 2.011 and g2 = 2.017 decreases together with a decrease in the rise intensity in the region of 280 nm. Along with this, the sample acquires a saturated blue color, which is accompanied by an increase in the ESR signal with g1 = 2.045, g2 = 2.034, and g3 = 2.008, as well as absorption bands in the region of 600 nm associated with S3●− radical anions. The temperature dependences built on the basis of the analysis of the absorption and EPR spectra are shown in Figure 16.
The blue color of Sample 2 is due to the presence of the S3●− radical anions, which are easily identified by an ESR signal with g1 = 2.049, g2 = 2.035, and g3 = 2.010 (Figure 17, curve 1). After heating in reducing atmosphere using the Fe/FeS buffer at 700 °C, the color of the sample changes to yellow, and the ESR signal associated with the S3●− radical anion disappears (Figure 17, curve 2). During subsequent heating at 800 °C, the blue color is partially restored and an ESR signal with g1 = 2.049, g2 = 2.035, and g3 = 2.010 appears (Figure 17, curve 3). However, its intensity is less than that of the original sample.
The observed results show that various polysulfide radical anions are converted into S2●− and S4●− radical anions and S4 neutral molecules during heating at 700 °C in a reducing atmosphere, whereas the S3●− radical anion is stable during heating at 800 °C in air. These data do not contradict the experimental results obtained in [61,62], where it was shown that various sulfur radicals are converted into S2●− and S3●− radical anions when heated.
It should be noted that the values of the g-tensor components of the S3●− radical anions formed during heating of most S-bearing sodalite-group minerals studied in this work and elsewhere [58] are close to those of the g tensor of S3●− in haüyne and some synthetic sodalites [4,63]. The only exception is S3●− radical anion in Sample 3 heated in air: its values of the g-tensor components are close to those of S3●− or S3●− occurring in minerals of the cancrinite group [58,63].
Annealing of preheated powdered Sample 5 at 800 °C in air results in gradual enhancement of its unit cell parameter from 8.04 to 8.97 Å, accompanied by its transformation into a new cubic phase with the a parameter growing from 9.05 to 9.08 Å during 32 h (Figure 18). This transformation is accompanied by broadening and shifts of reflections.

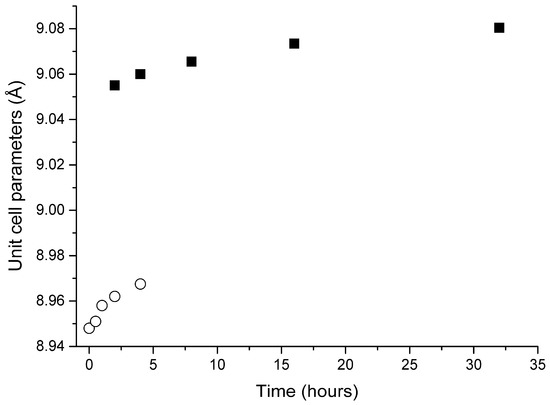

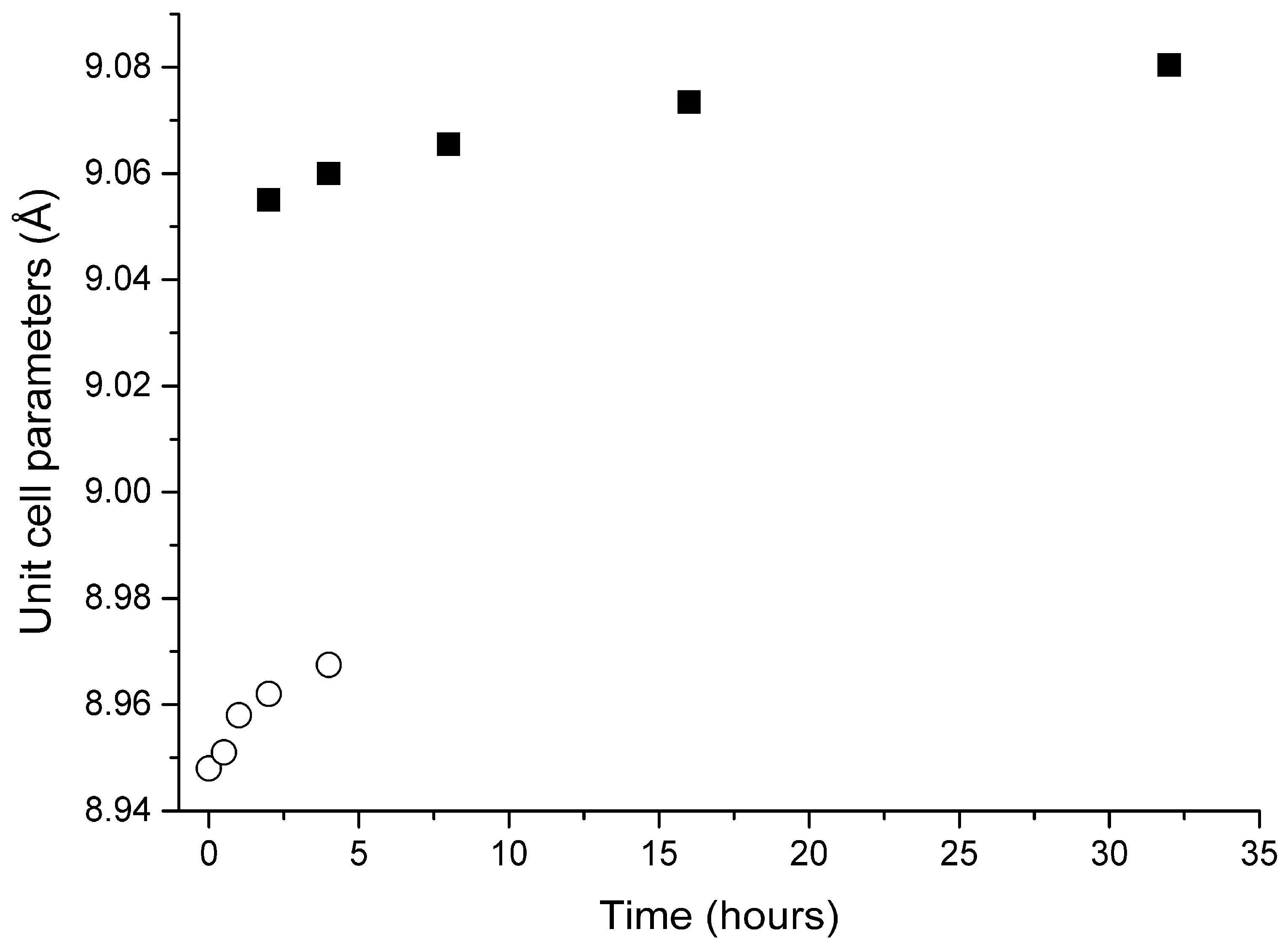

The initial phase with a smaller a parameter disappears five hours after the start of annealing. The final product of annealing is pale blue. Annealing of preheated single-crystal grains of Sample 5 at 800 °C during 32 h results in the formation of a greenish blue cubic phase. Based on the above spectroscopic data, one can conclude that the enhancement of the unit cell parameter during annealing is caused by the transformation of small extra-framework anions (S2− and HS−) into larger ones (SO42− and, to a lesser extent, S3●−). Thus, the process observed during annealing has the character of a phase transition, and both in the initial and in the final phase, the degree of sulfur oxidation (and, consequently, the unit cell parameter) can vary smoothly within relatively narrow limits.
The observed abrupt increase in the unit cell parameter may indicate that the formation of the new phase proceeds by the nucleation mechanism. Partial oxidation of sulfur in the preheated sample at the initial stage of calcination leads to a broadening of the lines in the diffraction patterns, which may indicate the inhomogeneity of the composition and associated mechanical stresses in the crystal.

3.3. Thermal Conversions of Slyudyankaite

Slyudyankaite, ideally Na28Ca4(Si24Al24O96)(SO4)6(S6)1/3(CO2)·2H2O, is a triclinic sodalite-group mineral containing sodalite cages of two kinds. Cages of the first type contain Na+ and Ca2+ cations and SO42− anions as well as trace amounts of S3●− radical anions. Cages of the second type contain only neutral molecules (cyclic S6 having chair-like conformation, CO2, H2O, and subordinate S4).

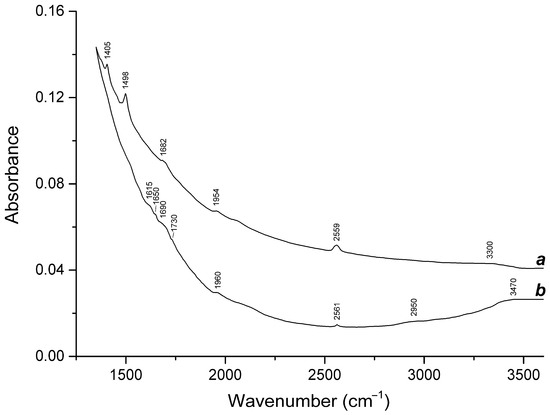

The IR spectrum of slyudyankaite (curve a in Figure 19) contains bands of O–H stretching vibrations of hydrogen bonds of medium strength (3380 to 3610 cm−1), strong hydrogen bond or strong dipole-dipole interactions with CO2 molecules (shoulder at 3240 cm−1), antisymmetric stretching vibrations of free 12CO2 molecules and 12CO2 molecules which are acceptors of strong hydrogen bonds (2341 and 2385 cm−1, respectively), antisymmetric stretching vibrations of the 13CO2 molecules (2275 cm−1), C–O stretching vibrations of trace admixture of O=C=S molecules (a very weak band at 2040 cm−1), bending vibrations of H2O molecules (at 1632 cm−1 with an indistinct shoulder at ~1680 cm−1 which may correspond to H2O molecules forming strong hydrogen bonds), asymmetric stretching vibrations of the SO42− anionic groups [the degenerate F2(ν3) mode] (1138 and 1107 cm−1), stretching vibrations of the aluminosilicate framework (1002 cm−1), mixed vibrations of the aluminosilicate framework (in the range of 650–720 cm−1), stretching vibrations of the neutral S4 molecule having cis conformation (641 cm−1), bending vibrations of the SO42− anionic groups [the degenerate F2(ν4) mode] (614 cm−1), and lattice modes involving bending vibrations of the aluminosilicate framework and librations of SO42− and extra-framework molecules (below 550 cm−1). An indistinct shoulder at ~465 cm−1 may be partly due to stretching vibrations of the cyclic S6 molecule having D3d symmetry [41].
Changes in the IR spectrum of slyudyankaite that occur as a result of its calcination are basically similar to those observed during calcination of the haüyne samples described above: the bands of O–H stretching vibrations, CO2, S4, and S6 molecules, and SO42− anions disappear or become weaker. In the IR spectrum of Sample 6 preheated at 700 °C under reducing conditions, a weak band of HS− is observed at 2561 cm−1. Both heated samples (preheated and annealed at 800 °C in air) contain bands of CO32− anions in the range of 1390–1500 cm−1. Unlike IR spectra of heated haüyne (Samples 2 and 5), spectral curves of both preheated and annealed at 800 °C, slyudyankaite samples have a weak shoulder at 1275 cm−1, which may correspond to the BO33− anion. If this assumption is correct, then it follows that initial slyudyankaite contained boron in the four-fold coordination, which could not be detected by means of IR spectroscopy because IR bands of the BO4 tetrahedron overlap with bands of the aluminosilicate framework.

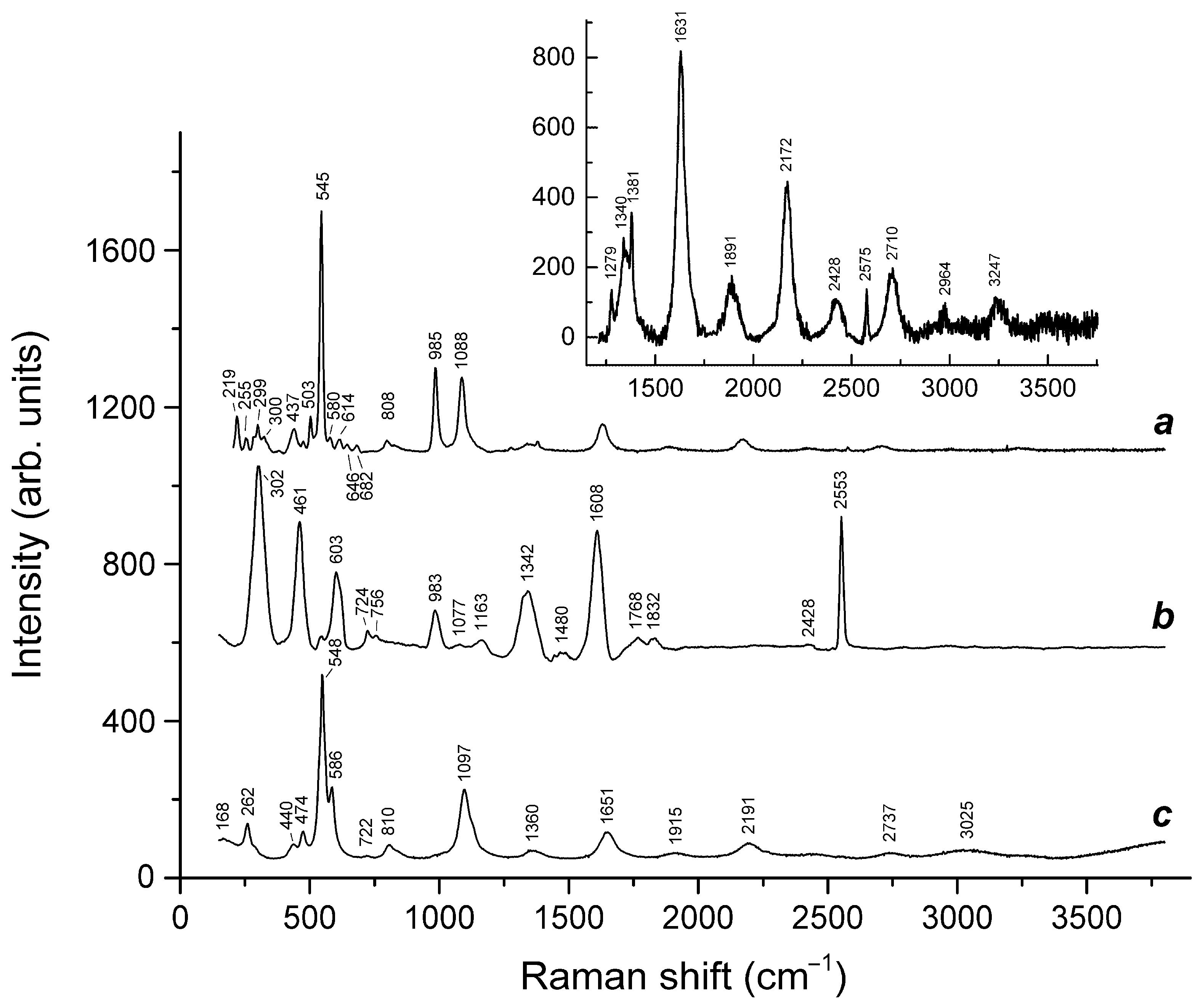

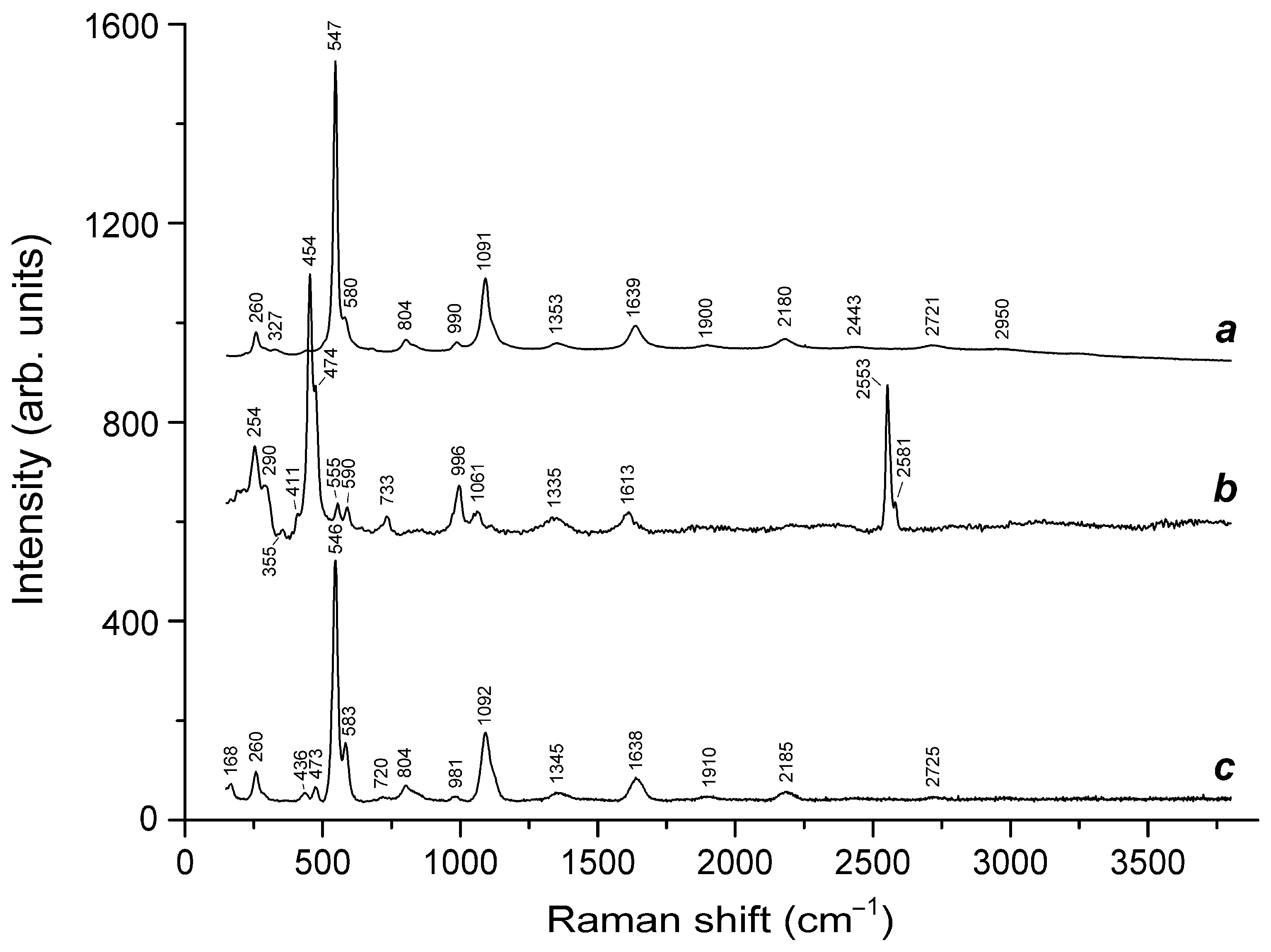

Raman spectra of slyudyankaite and products of its heating are presented in Figure 20. The assignment of Raman bands is given in Table 5.
The Raman spectrum of the initial slyudyankaite sample contains bands of SO42− anions, S3●− radical anions, and different neutral molecules (cis- and trans-S4, S6, H2S, and CO2). Preheating of slyudyankaite at 700 °C under reducing conditions results in the transformation of S-bearing species into HS−, S2●−, and S4●− and, possibly, monosulfide anion S2−, which could not be detected by means of vibrational spectroscopy methods but is required for the charge balance. Note that S2− was identified as the main extra-framework anion in the crystal structure of the product of thermal conversions of lazurite under the same conditions [57]. Reduction of CO2 occurring in initial slyudyankaite results in the formation of carbonate and acid oxalate anions.
Further annealing of preheated slyudyankaite at 800 °C in air results in the disappearance of HS−, S2●−, and S4●−, restoration of the SO42− and S3●− anionic groups, and transformation of acid oxalate groups into neutral ones. Bands of S3●− in the Raman spectrum of the annealed slyudyankaite are shifted towards higher frequencies as compared to analogous bands of the initial sample, which may indicate their occurrence in a straitened state.

3.4. Sodalite—Sapozhnikovite Solid-Solution Series

Sodalite, ideally Na8(Al6Si6O24)Cl2, and sapozhnikovite, its hydrosulfide-dominant structural analogue with the formula of the hypothetical end-member Na8(Al6Si6O24)(HS)2 form a solid-solution (isomorphous) series in which the Cl−:HS− (simply, Cl:S) ratio is the only significant variable. In the studied specimens from Karnasurt Mt. (Lovozero alkaline massif), this ratio varies from [Cl1.11(HS)0.84]Σ1.95 to [(HS)1.57Cl0.38]Σ1.95 (Table 1; Figure 21). Samples with Cl > S (in atom proportions) belong to the mineral species sodalite, whereas samples with S > Cl belong to sapozhnikovite. Slight deficiency of the Cl + S sum in comparison with the ideal value 2.00 atoms per formula unit (Table 1; Figure 21) is caused by the presence of minor amounts of H2O in these minerals [39], probably together with Cl− and HS− anions in sodalite cages. The presence of water also explains slight deficiency of analytical totals in all electron-microprobe analyses of sodalite–sapozhnikovite series minerals (Table 1).

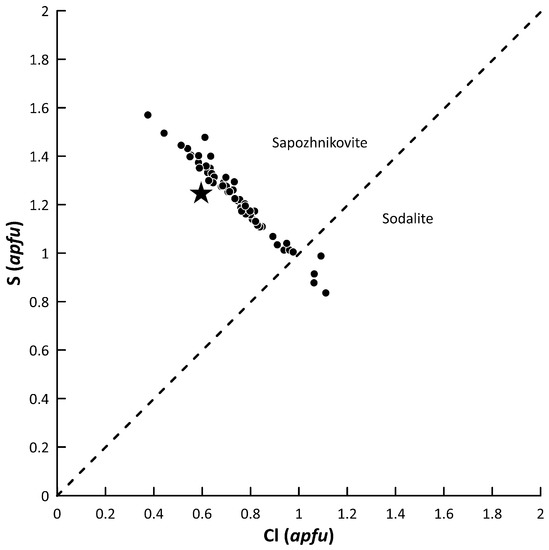

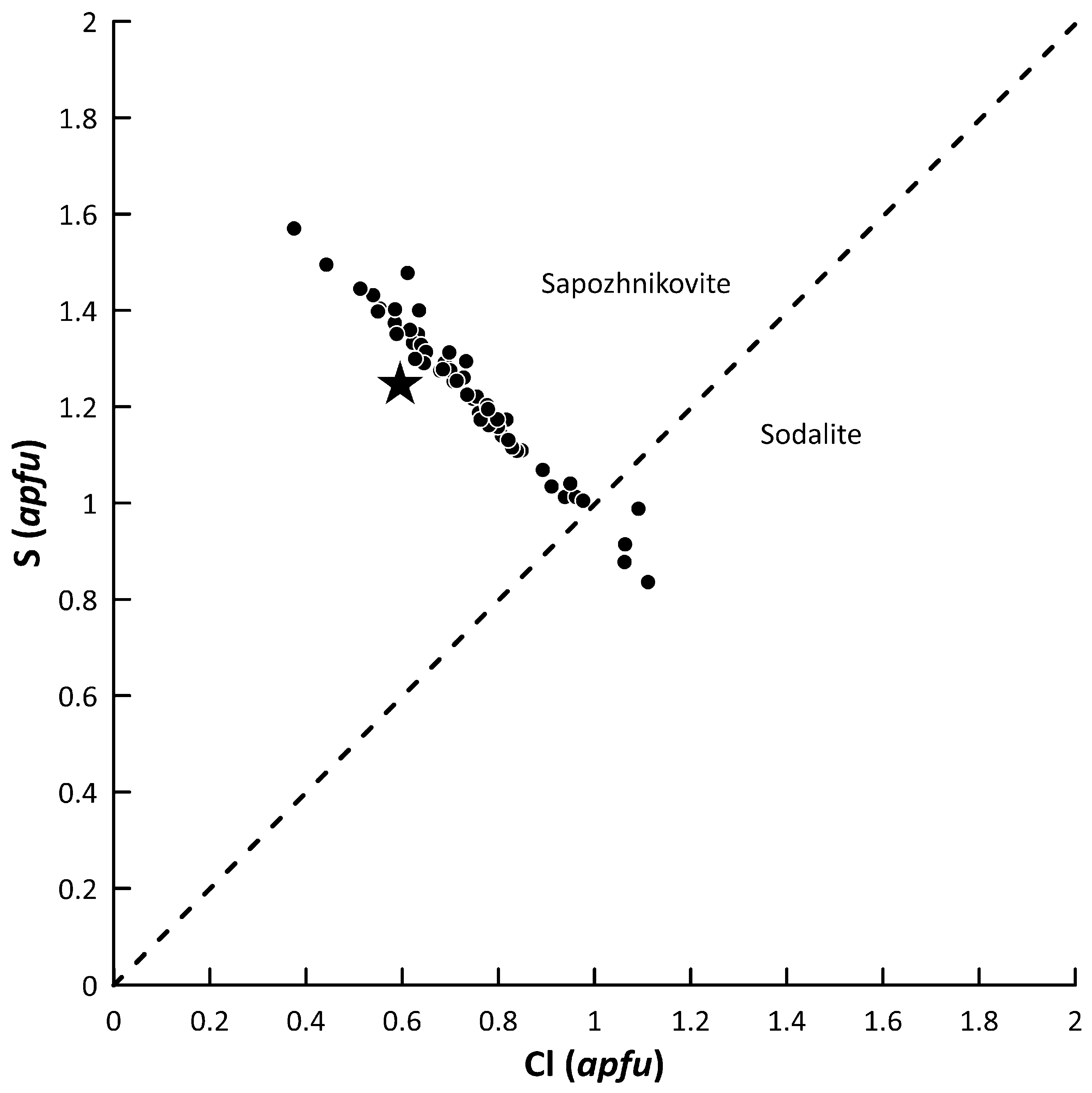

In the interval [Cl1.11-0.38(HS)0.84-1.57], this homovalent isomorphous series is continuous (Figure 21). We suggest this interval is caused by geochemical features rather crystal chemical constraints.

4. Discussion

4.1. General Remarks on the Isomorphism of Extra-Framework Components in Sodalite-Group Minerals

The general common formula of cubic alkaline aluminosilicates belonging to the sodalite group is ABNa6(Si6Al6O24)XY, where the pairs of cationic and anionic extra-framework components AB + XY are Na2 + Cl2 for sodalite, Na2+(HS)2 for sapozhnikovite, K▯+F(H2O)4 for bolotinaite, Na2+(SO4)(H2O) for nosean, Ca2+(SO4)2 for haüyne, and NaCa+(S3●−)(SO4) for lazurite. However, the application of a complex of spectroscopic methods in this work and elsewhere [3,4,64] shows that the crystal chemistry of subordinated components in cubic sodalite-group aluminosilicates is much more complex. In particular, H+, H3O+, CO32−, OH−, S2−, S2●−, S3, cis- and trans-S4●−, SO3●2−, SO4●2−, cis-, trans- and gauche-S4, S6, CO2, COS, and HF were identified as extra-framework species in these minerals. Experiments with annealing show that these components take part in complex thermal conversions involving some additional components, e.g., oxalate anions. Similar transformations can occur in natural mineral assemblages. Thus, the composition of sodalite-group minerals may serve as a marker of mineral-forming media including fugacities of volatile components (H2O, O2, CO2, HF, SO2, and polysulfide compounds).
In general, similar processes were observed in sulfur-enriched fluids [61,62]. Apparently, when heated, the channel widths increase, which allows complex anion radicals to migrate and disproportionate with the formation of the most stable radical anion radicals (S3●− or S2●−, depending on the redox conditions). Along with this, dehydration of the studied samples also occurs, which also facilitates the migration of polysulfide species.

4.2. Sapozhnikovite as a Marker of Reducing Conditions

Experiments with heating of haüyne under reducing conditions (in the presence of Fe-FeS buffer) show that the main scheme of transformations of extra-framework components is SO42− → S2− + 2O2(gas), and a subordinate process is CO2 + 2SO42− + H2O → 2HS− + CO32− + 4O2(gas). The conversions 3SO42− → S3●− +5e +6O2(gas), 2S3●− → S2●− + S4●−, and 2CO2 + 2e → C2O42− (e = electron) are the additional channels of haüyne transformations during their heating at 700 °C under reducing conditions.
Thus, HS− and C2O42− anions are stable only under reducing conditions. Data on the occurrence of sapozhnikovite Na8(Al6Si6O24)(HS)2 confirm this conclusion. Crystallization of aegirine NaFe3+Si2O6, which precedes formation of sapozhnikovite, could be accompanied by the following redox reactions: Na2O + 2FeO + 4SiO2 + CO2 → 2NaFeSi2O6 + CO; Na2O + 2FeO + 4SiO2 + 0.5CO2 → 2NaFeSi2O6 + 0.5C, where C is carbon with the oxidation degree of 0 [39]. During the crystallization of aegirine, iron occurring as Fe2+ in the fluid is fixed as Fe3+ in the solid phase. Such processes are possible only in peralkaline media with a high Na:Ca ratio (otherwise, hedenbergite CaFe2+Si2O6 is formed instead of aegirine). Similar reactions, e.g., 2Na2O + 4FeO + 4SiO2 + 2SO3 + 2OH− + O2 → 4NaFeSi2O6 + 2HS−, could lead to the formation of reduced forms of sulfur, including HS− anions.
The redox processes in sodalite-group minerals discussed above involve species hosted by sodalite cages as well as gaseous O2. However, in the case of sapozhnikovite, an alternative mechanism including incorporation of HS− as a result of the exchange reaction of sodalite with a late reduced fluid is not excluded.
Unlike CO2 molecules, carbonate anions rarely occur in sodalite-group minerals in significant amounts. An unusual CO32−-bearing mineral with the sodalite-type framework, empirical formula (Na5.28K0.40Ca1.23Fe0.01)(Si5.93Al6.07O24.01)(SO4)0.77Cl0.94(CO3)0.30 and unit cell parameter a = 9.0352 Å has been discovered in a metasomatic ejectum from Mount Vesuvio, Italy and its crystal structure has been solved [65]. Taking into account above-described thermal transformations of CO2 in haüyne and the fact that the CO3-bearing sodalite-group mineral from Vesuvio underwent heating during metasomatism, it is reasonable to suppose that CO32− anions in this mineral were formed as a result of the transformation CO2 + 2SO42− + H2O → 2HS− + CO32− + 4O2(gas) in an initial sodalite-group mineral. In the experiments with heating of haüyne under reducing conditions, CO2 molecules occurring in sodalite cages partly transformed into neutral or acid oxalate anions. In this regard, the association of sapozhnikovite with kyanoxalite (a cancrinite-group mineral containing neutral or acid oxalate anions) is indicative.
Experiments with annealing of sulfate sodalite-group minerals show that under high-temperature oxidizing conditions (in air, at 800 °C) S3●− is the most stable sulfide species. Annealing of the preheated samples in air at 800 °C results in partial reverse transformations: S2●− + S2− + 2O2(gas) → SO42−, S4●− + S2●− → 2S3●−, as well as subordinate processes S3●− + 5e +6O2(gas) → 3SO42− and C2O42− → 2CO2(gas) + 2e. The oxidation of S3●− into SO42− can proceed only partly due to the charge-balance requirement.
As noted above, S3●− is a very strong blue chromophore and even trace amounts of this radical anion are detectable by Raman spectroscopy. However, S3●− was not detected in sapozhnikovite. The possible cause of this fact is a high concentration of lithium in peralkaline rocks of the Lovozero massif (55 ppm, in average [66], whereas, e.g., in peralkaline rocks of the Khibiny massif, the mean Li content is only 20 ppm). Unlike other metal cations, Li+ reacts with S3●− to form a cyclic radical anion LiS3● with strong covalent Li–S bonds [67], which results in the immobilization of S3●−. Kyanoxalite containing trace amounts of S3●− crystallized after sapozhnikovite at the hydrothermal zeolite stage with a lowered activity of lithium and containing trace amounts of S3●− [58].

4.3. Color Centers in Sodalite-group Minerals

Sodalite-group minerals show a wide range of colors. In particular, yellow, pink, violet, lilac, green, and blue samples are known. In most cases, coloration of sodalite-group minerals is caused by S-bearing extra-framework components. The S3●− radical anion is a very strong chromophore [45] which causes the deep blue color of lazurite [5]. Blue color of haüyne is usually due to trace amounts of S3●− [3,4,44,48]. The main yellow chromophore in sodalite-group minerals is the S2●− radical anion, which occurs in significant amounts in yellow varieties of bolotinaite (IMA 2021-088) earlier described as an “F-rich sodalite-group mineral” [4] as well as in above-described yellow products of heating of haüyne under reducing conditions.
Green chromophores are unknown among extra-framework components in sodalite-group minerals. Green color of some varieties of haüyne and slyudyankaite appears as a result of the presence of both S3●− and a yellow chromophore (S2●− and/or S6). However, S6 is a rather weak chromophore [41].
Pink color of sodalite-group minerals (in particular, sodalite and tugtupite) may have different causes, including the presence of S4 or S4●− [41,45], Cr3+ or F-centers [68]. Lilac and violet tints of some haüyne samples from gem lazutite deposits (Sample 1 in this work; see [3,4]) is due to simultaneous presence of S4 or S4●− and trace amounts of S3●−.

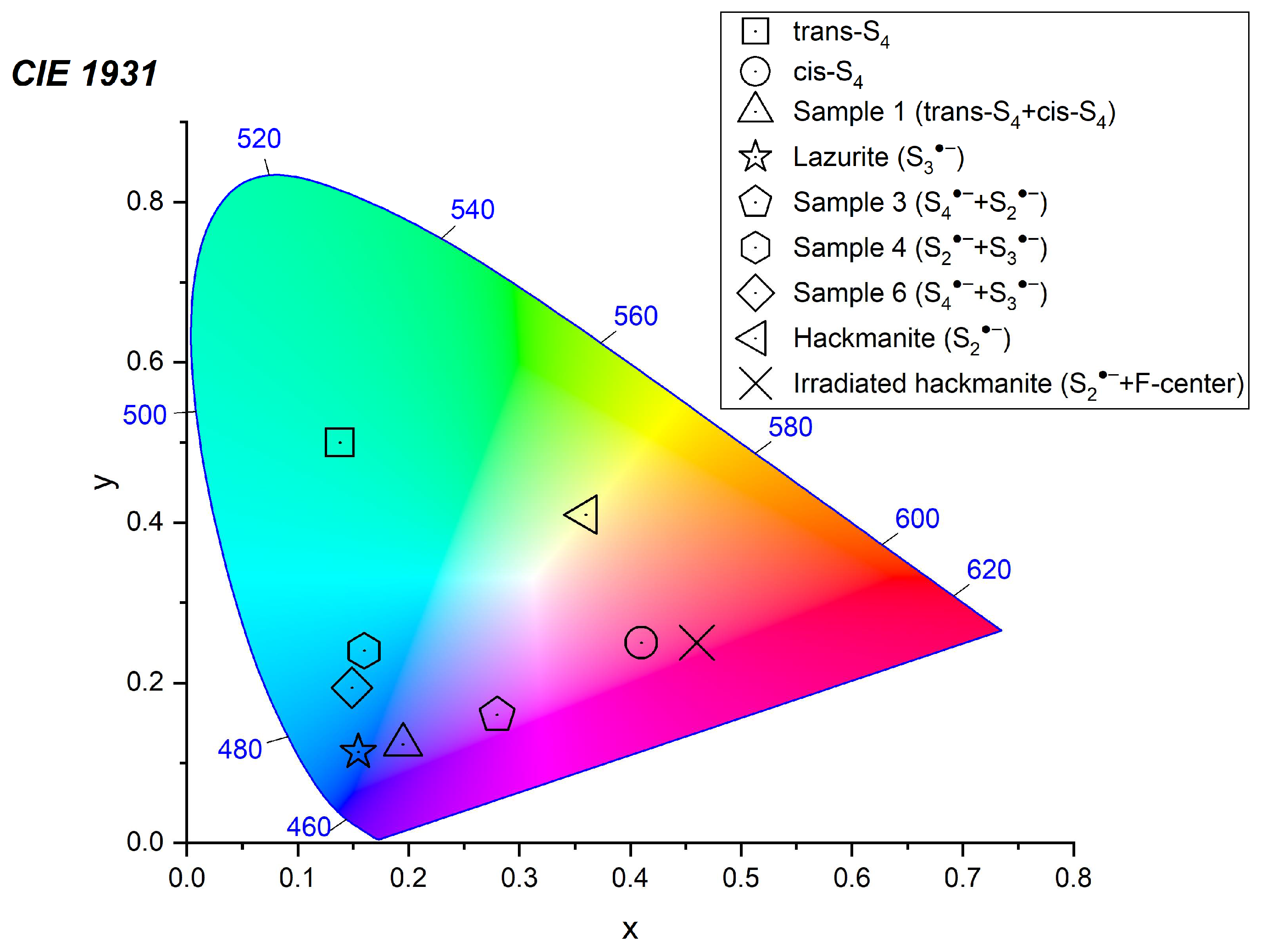

Color coordinates in the CIE1931 color space chromaticity diagram for the samples studied in this work using NIR/Vis/UV spectroscopy are shown in Figure 22. Coordinates of coloration were calculated for daylight illuminant D with 4500 K temperature.
Lilac-blue color of Sample 1 may be partly due to the presence of two conformers of S4 that absorb mainly in the middle part of the visible range with band maximums shifted in opposite directions (towards blue and red ranges). However, the Raman spectrum of Sample 1 shows a series of characteristic bands of the S3●− radical anion, which may be an additional cause of the blue tint.
The color change of hackmanite and tugtupite upon irradiation with ultraviolet light from colorless or pale pink to purple is explained by the transfer of an electron from the impurity S22− anions to the Cl vacancy, with the formation of color centers (F-centers). The absorption band of the F-centers is located at about 550 nm. The resulting S2●− radical anions practically do not affect the color due to their low concentration and relatively low oscillator strength. When irradiated with visible light, the F-centers disappear due to the phototransfer of an electron back to S2●−, and the crystals become colorless. This reversible color change is called tenebrescence or photochromism. It is noteworthy that the presence of significant amounts of potassium in the mineral leads to the disappearance of photochromism: in hackmanite and tugtupite, where sodium sharply predominates among the extraframework cations, photochromism is observed, unlike haüyne, despite hauine usually containing a fairly large number of S2●− centers. The causes of this are still being discussed. Perhaps this phenomenon is due to the fact that when sodium is replaced by potassium, either the value of the energy barrier for electron phototransfer from sulfur to a vacancy changes, or the excited state of the F-center enters the conduction band. Radiation coloring of haüyne does not change the visible color caused by F-centers. The presence of Fe3+ and Ti3+ impurities also affects the intensity of photochromic color and luminescence of S2●− radical anions [69].
Other possible radical anions in minerals of the sodalite group are SO4●− и SO3●−. The most intense absorption band of SO4●− is located at about 450 nm and the second band is at about 300 nm in Na2S2O8 [70]. It was noted in [71] that there is an electron transfer between Fe2+ и SO4●− with the formation of Fe3+ и SO42−. Thus, the presence of SO4●− in the mineral can lead to the loss of the blue color. The radical anion SO3●− absorbs in the region of about 280 nm and does not affect the color [70].

5. Conclusions

Application of a complex of spectroscopic methods to sodalite-group minerals and products of their thermal conversions made it possible to identify various S- and C-bearing extra-framework components, including SO42−, HS−, S2−, CO32−, C2O42−, HC2O4−, Cl−, and F− anions S2●−, S3●−, S4●−, and S6●− radical anions as well as CO2, H2O, and S4 neutral molecules. The composition of extra-framework species in sodalite-group minerals may serve as a marker of mineral-forming media including fugacities of volatile components (H2O, O2, CO2, HF, SO2, and polysulfide compounds). Complex mutual transformations of these components are observed during heating at high temperatures. The scheme of transformations of extra-framework components in SO42−-bearing members of the sodalite group during their heating at 700 °C under reducing conditions includes the elementary processes SO42− → S2– + 2O2(gas), CO2 + 2SO42− + H2O → 2HS− + CO32− + 4O2(gas). 3SO42− → S3●− +5e +6O2(gas), 2S3●− → S2●− + S4●−, and 2CO2 + 2e → C2O42− (e = electron). Subsequent annealing in air at 800 °C results in the partial reverse transformations S2●− + S2− + 2O2(gas) → SO42−, S4●− + S2●− → 2S3●−, S3●− + 5e +6O2(gas) → 3SO42−, and C2O42− → 2CO2(gas) + 2e.
Based on these data, it can be concluded that natural HS−- and CO20-bearing sodalite-group minerals can be formed under reducing conditions and as a result of thermal transformation of an initial mineral, respectively. In this respect, the occurrence of the HS−-dominant mineral sapozhnikovite in association with the oxalate-rich cancrinite-type mineral kyanoxalite in agpaitic rocks [58] and the occurrence of a CO32−-bearing sodalite-group mineral in a metasomatic volcanic ejectum [65] are indicative.
Normally, the oxalate group is unstable at temperatures higher than 500 °C. However, it was shown that the occurrence of oxalate anions in wide channels of cancrinite-group minerals is a stabilizing factor. In particular, oxalate anions in kyanoxalite decompose at 700 °C [72]. New data obtained in this work show that oxalate groups in sodalite cages are relatively stable up to 700 °C and decompose at 800 °C. Earlier we have shown that similar stabilization of nitrate anion takes place in cancrinite channels [73].
Color variations of sodalite-group minerals are mainly caused by the presence of S-bearing chromophores, S3●− (blue), S2●− and/or S6 (yellow), S4●− and/or S4 (red). Green color is due to the simultaneous presence of blue and yellow chromophores.

Author Contributions

Conceptualization, N.V.C., R.Y.S. and I.V.P.; methodology, N.V.C., R.Y.S., M.F.V., V.D.S. and D.A.V.; collecting of minerals, A.N.S.; investigation, R.Y.S., M.F.V., V.D.S., I.V.P. and D.A.V.; original manuscript draft preparation, N.V.C., A.N.S. and R.Y.S.; manuscript review and editing, R.Y.S., N.V.C., I.V.P. and D.A.V.; figures, N.V.C., R.Y.S. and V.D.S. All authors have read and agreed to the published version of the manuscript.

Funding

All spectroscopic studies, as well as full investigation of the sodalite-sapozhnikovite series of minerals from the Lovozero massif, were supported by the Russian Science Foundation, grant No. 22-17-00006, https://rscf.ru/project/22-17-00006/. Collecting of sodalite-group minerals and identification and chemical analyses of minerals from the Malo-Bystrinskoe deposit were carried out in accordance with the state task, state registration No. AAA-A19-119092390076-7.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Baerlocher, C.; McCusker, L.B. Database of Zeolite Structures, (n.d.). Available online: http://www.iza-structure.org/databases/ (accessed on 16 June 2022).
  2. Fischer, R.X.; Baur, W.H. Symmetry relationships of sodalite (SOD)-type crystal structures. Z. Krist. 2009, 224, 185–197. [Google Scholar] [CrossRef]
  3. Chukanov, N.V.; Vigasina, M.F.; Zubkova, N.V.; Pekov, I.V.; Schäfer, C.; Kasatkin, A.V.; Yapaskurt, V.O.; Pushcharovsky, D.Y. Extra-framework content in sodalite-group minerals: Complexity and new aspects of its study using infrared and Raman spectroscopy. Minerals 2020, 10, 363. [Google Scholar] [CrossRef] [Green Version]
  4. Chukanov, N.V.; Sapozhnikov, A.N.; Shendrik, R.Y.; Vigasina, M.F.; Steudel, R. Spectroscopic and crystal-chemical features of sodalite-group minerals from gem lazurite deposits. Minerals 2020, 10, 1042. [Google Scholar] [CrossRef]
  5. Sapozhnikov, A.N.; Chukanov, N.V.; Shendrik, R.Y.; Vigasina, M.F.; Tauson, V.L.; Lipko, S.V.; Belakovskiy, D.I.; Levitskiy, V.I.; Suvorova, L.F.; Ivanova, L.A. Lazurite: Confirmation of the status as a mineral species with the formula Na7Ca(Al6Si6O24)(SO4) S3•–·H2O and new data. Zap. Ross. Mineral. Obs. (Proc. Russ. Mineral Soc.) 2021, 150, 92–102. [Google Scholar] [CrossRef]
  6. Shchipalkina, N.V.; Pekov, I.V.; Koshlyakova, N.N.; Britvin, S.N.; Zubkova, N.V.; Varlamov, D.A.; Sidorov, E.G. Unusual silicate mineralization in fumarolic sublimates of the Tolbachik volcano, Kamchatka, Russia—Part 2: Tectosilicates. Eur. J. Mineral. 2020, 32, 121–136. [Google Scholar] [CrossRef] [Green Version]
  7. Chukanov, N.V.; Aksenov, S.M.; Rastsvetaeva, R.K. Structural chemistry, IR spectroscopy, properties, and genesis of natural and synthetic microporous cancrinite- and sodalite-related materials: A review. Micropor. Mesopor. Mater. 2021, 323, 111098. [Google Scholar] [CrossRef]
  8. Gobeltz-Hautecoeur, N.; Demortier, A.; Lede, B.; Lelieur, J.P.; Duhayon, C. Occupancy of the sodalite cages in the blue ultramarine pigments. Inorg. Chem. 2002, 41, 2848–2854. [Google Scholar] [CrossRef]
  9. Heil, C.; Cataldo, S.; Bachelet, G.B.; Boeri, L. Superconductivity in sodalite-like yttrium hydride clathrates. Phys. Rev. B Condens. Matter. 2019, 99, 220502(R). [Google Scholar] [CrossRef] [Green Version]
  10. Ogura, M.; Morozumi, K.; Elangovan, S.P.; Tanada, H.; Ando, H.; Okubo, T. Potassium-Doped sodalite: A tectoaluminosilicate for the catalytic material towards continuous combustion of carbonaceous matters. Appl. Catal. B 2008, 77, 294–299. [Google Scholar] [CrossRef]
  11. Shanbhag, G.V.; Choi, M.; Kim, J.; Ryoo, R. Mesoporous sodalite: A novel, stable solid catalyst for base-catalyzed organic transformations. J. Catal. 2009, 264, 88–92. [Google Scholar] [CrossRef]
  12. Sachse, A.; Galarneau, A.; Renzo, F.D.; Fajula, F.; Coq, B. Synthesis of zeolite monoliths for flow continuous processes. The case of sodalite as a basic catalyst. Chem. Mater. 2010, 22, 4123–4125. [Google Scholar] [CrossRef]
  13. Hiyoshi, N. Nanocrystalline sodalite: Preparation and application to epoxidation of 2-cyclohexen-1-one with hydrogen peroxide. Appl. Catal. 2012, 419–420, 164–169. [Google Scholar] [CrossRef]
  14. Manique, M.C.; Lacerda, L.V.; Alves, A.K.; Bergmann, C.P. Biodiesel production using coal fly ash-derived sodalite as a heterogeneous catalyst. Fuel 2017, 190, 268–273. [Google Scholar] [CrossRef]
  15. Wang, S.; Zhao, Z.-J.; Chang, X.; Zhao, J.; Tian, H.; Yang, C.; Li, M.; Fu, Q.; Mu, R.; Gong, J. Activation and spillover of hydrogen on sub-1 nm palladium nanoclusters confined within sodalite zeolite for the semi-hydrogenation of alkynes. Angew. Chem. Int. Ed. 2019, 58, 7668–7672. [Google Scholar] [CrossRef]
  16. Khajavi, S.; Jansen, J.C.; Kapteijn, F. Production of ultra pure water by desalination of seawater using a hydroxyl sodalite membrane. J. Membr. Sci. 2010, 356, 52–57. [Google Scholar] [CrossRef]
  17. Nabavi, M.S.; Mohammadi, T.; Kazemimoghadam, M. Hydrothermal synthesis of hydroxyl sodalite zeolite membrane: Separation of H2/CH4. Ceram. Int. 2014, 40, 5889–5896. [Google Scholar] [CrossRef]
  18. Kalantari, N.; Vaezi, M.J.; Yadollahi, M.; Babaluo, A.A.; Bayati, B.; Kazemzadeh, A. Synthesis of nanostructure hydroxysodalite composite membranes via hydrothermal method: Support surface modification and synthesis method effects. Asia-Pac. J. Chem. Eng. 2015, 10, 45–55. [Google Scholar] [CrossRef]
  19. Wei, X.-L.; Pan, W.-Y.; Li, X.; Pan, M.; Huo, C.-F.; Yang, R.; Chao, Z.-S. MCM-22 zeolite-induced synthesis of thin sodalite zeolite membranes. Chem. Mater. 2020, 32, 333–340. [Google Scholar] [CrossRef]
  20. Yang, G.; Guo, H.; Kang, Z.; Feng, S.; Zhao, L.; Mintova, S. Sandwich-type H2/CO2 membranes comprising of graphene oxide and sodalite crystals with adjustable morphology and size. Micropor. Mesopor. Mater. 2020, 300, 110120. [Google Scholar] [CrossRef]
  21. Eterigho-Ikelegbe, O.; Bada, S.O.; Daramola, M.O. Preparation and evaluation of nanocomposite sodalite/α-Al2O3 tubular membranes for H2/CO2 separation. Membranes 2020, 10, 312. [Google Scholar] [CrossRef]
  22. Eden, C.L.; Daramola, M.O. Evaluation of silica sodalite infused polysulfone mixed matrix membranes during H2/CO2 separation. Mater. Today Proc. 2021, 38, 522–527. [Google Scholar] [CrossRef]
  23. Ntshangase, N.C.; Sadare, O.O.; Daramola, M.O. Effect of silica sodalite functionalization and PVA coating on performance of sodalite infused PSF membrane during treatment of acid mine drainage. Membranes 2021, 11, 315. [Google Scholar] [CrossRef] [PubMed]
  24. Navarro, J.A.R.; Barea, E.; Salas, J.M.; Masciocchi, N.; Galli, S.; Sironi, A.; Ania, C.O.; Parra, J.B. H2, N2, CO, and CO2 sorption properties of a series of robust sodalite-type microporous coordination polymers. Inorg. Chem. 2006, 45, 2397–2399. [Google Scholar] [CrossRef] [PubMed]
  25. Asgari, A.; Jawahery, S.; Bloch, E.D.; Hudson, M.R.; Flacau, R.; Vlaisavljevich, B.; Long, J.R.; Brown, C.M.; Queen, W.L. An experimental and computational study of CO2 adsorption in the sodalite-type M-BTT (M = Cr, Mn, Fe, Cu) metal–organic frameworks featuring open metal sites. Chem. Sci. 2018, 9, 4579–4588. [Google Scholar] [CrossRef] [Green Version]
  26. Wang, Y.; Jiang, Y.; Hu, S.; Peng, S.; Xu, C.; Lu, A. Dehydrated Na6[AlSiO4]6 sodalite as a promising SO2 sorbent material: A first principles thermodynamics prediction. J. Amer. Ceram. Soc. 2019, 102, 3663–3672. [Google Scholar] [CrossRef]
  27. Asgari, M.; Semino, R.; Schouwink, P.A.; Kochetygov, I.; Tarver, J. Understanding how ligand functionalization influences CO2 and N2 adsorption in a sodalite metal-organic framework. Chem. Mater. 2020, 32, 1526–1536. [Google Scholar] [CrossRef]
  28. Dickson, J.O.; Harsh, J.B.; Lukens, W.W.; Pierce, E.M. Perrhenate incorporation into binary mixed sodalites: The role of anion size and implications for technetium-99 sequestration. Chem. Geol. 2015, 395, 138–143. [Google Scholar] [CrossRef] [Green Version]
  29. Gilbert, M.R. Pressureless sintering of sodalite waste-forms for the immobilization of pyroprocessing wastes. In MRS Online Proceedings Library (OPL): Symposium EE—Scientific Basis for Nuclear Waste Management XXXVIII; Cambridge University Press: cambrige, UK, 2015; Volume 1744, pp. 61–66. [Google Scholar] [CrossRef]
  30. Luksic, S.A.; Riley, B.J.; Parker, K.E.; Hrma, P. Sodalite as a vehicle to increase Re retention in waste glass stimulant during vitrification. J. Nucl. Mater. 2016, 479, 331–337. [Google Scholar] [CrossRef] [Green Version]
  31. Vance, E.R.; Gregg, D.J.; Grant, C.; Stopic, A.; Maddrell, E.R. Silver iodide sodalite for 129I immobilization. J. Nucl. Mater. 2016, 480, 177–181. [Google Scholar] [CrossRef]
  32. Lilova, K.; Pierce, E.M.; Wu, L.; Jubb, A.M.; Subramani, T.; Navrotsky, A. Energetics of salt-bearing sodalites, Na8Al6Si6O24X2 (X = SO4, ReO4, Cl, I): A treatment option for pertechnetate-enriched nuclear waste streams. ACS Earth Space Chem. 2020, 4, 2153–2161. [Google Scholar] [CrossRef]
  33. Grajciar, L. PbS clusters embedded in sodalite zeolite cavities of different compositions: Unraveling the structural evolution and optical properties using ab initio calculations. J. Phys. Chem. 2016, C120, 27050–27065. [Google Scholar] [CrossRef]
  34. Van den Berg, A.W.C.; Bromley, S.T.; Jansen, J.C. Thermodynamic limits on hydrogen storage in sodalite framework materials: A molecular mechanics investigation. Micropor. Mesopor. Mater. 2005, 78, 63–71. [Google Scholar] [CrossRef]
  35. Zheng, Z.; Guliants, V.V.; Misture, S. Sodalites as ultramicroporous frameworks for hydrogen separation at elevated temperatures: Thermal stability, template removal, and hydrogen accessibility. J. Porous Mater. 2009, 16, 343–347. [Google Scholar] [CrossRef]
  36. Rüscher, C.H.; Stemme, F.; Schomborg, L.; Buhl, J.-C. Low temperature hydrogen release from borontetrahydride-sodalite and its reloading: Observations in in situ and ex situ TIR experiments. In Ceramics for Environmental and Energy Applications; Boccaccini, A., Marra, J., Dogan, F., Lin, H.-T., Watanabe, T., Eds.; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2010; pp. 65–70. [Google Scholar]
  37. Gong, Y.-N.; Meng, M.; Zhong, D.-C.; Huang, Y.-L.; Jiang, L.; Lu, T.-B. Counter-Cation modulation of hydrogen and methane storage in a sodalite-type porous metal–organic framework. Chem. Commun. 2012, 48, 12002–12004. [Google Scholar] [CrossRef]
  38. Sapozhnikov, A.N.; Bolotina, N.B.; Chukanov, N.V.; Kaneva, E.V.; Shendrik, R.Y.; Vigasina, M.F.; Ivanova, L.A. IMA Commission on New Minerals, Nomenclature and Classification (CNMNC)—Newsletter 65. Eur. J. Mineral. 2022, 34, 143–148. [Google Scholar] [CrossRef]
  39. Chukanov, N.V.; Zubkova, N.V.; Pekov, I.V.; Shendrik, R.Y.; Varlamov, D.A.; Vigasina, M.F.; Belakovskiy, D.I.; Britvin, S.N.; Yapaskurt, V.O.; Pushcharovsky, D.Y. Sapozhnikovite, Na8(Al6Si6O24)(HS)2, a new sodalite-group mineral from the Lovozero alkaline massif, Kola Peninsula. Mineral. Mag. 2022, 86, 49–59. [Google Scholar] [CrossRef]
  40. Rejmak, P. Computational refinement of the puzzling red tetrasulfur chromophore in ultramarine pigments. Phys. Chem. Chem. Phys. 2020, 22, 22684–22698. [Google Scholar] [CrossRef]
  41. Eckert, B.; Steudel, F. Molecular spectra of sulfur molecules and solid sulfur allotropes. Top. Curr. Chem. 2003, 231, 31–97. [Google Scholar] [CrossRef]
  42. Hettmann, K.; Wenzel, T.; Marks, M.; Markl, G. The sulfur speciation in S-bearing minerals: New constraints by a combination of electron microprobe analysis and DFT calculations with special reference to sodalite-group minerals. Amer. Mineral. 2012, 97, 1653–1661. [Google Scholar] [CrossRef]
  43. Ling, Z.C.; Wang, A.; Jolliff, B.L. Mineralogy and geochemistry of four lunar soils by laser-Raman study. Icarus 2011, 211, 101–113. [Google Scholar] [CrossRef]
  44. Sapozhnikov, A.N.; Tauson, V.L.; Lipko, S.V.; Shendrik, R.Y.; Levitskii, V.I.; Suvorova, L.F.; Chukanov, N.V.; Vigasina, M.F. On the crystal chemistry of sulfur-rich lazurite, ideally Na7Ca(Al6Si6O24)(SO4)(S3)−·nH2O. Amer. Mineral. 2021, 106, 226–234. [Google Scholar] [CrossRef]
  45. Steudel, R. Inorganic polysulfides Sn2− and radical anions Sn●−. In Elemental Sulfur und Sulfur-Rich Compounds II. Topics in Current Chemistry; Steudel, R., Ed.; Springer: Berlin/Heidelberg, Germany, 2003; Volume 231. [Google Scholar]
  46. Steudel, R.; Chivers, T. The role of polysulfide dianions and radical anions in the chemical, physical and biological sciences, including sulfur-based batteries. Chem. Soc. Rev. 2019, 48, 3279–3319 and 4338. [Google Scholar] [CrossRef]
  47. Wong, M.W.; Steudel, R. Structure and spectra of tetrasulfur S4—An ab initio MO study. Chem. Phys. Lett. 2003, 379, 162–169. [Google Scholar] [CrossRef]
  48. Caggiani, M.C.; Mangone, A.; Aquafredda, P. Blue coloured haüyne from Mt. Vulture (Italy) volcanic rocks: SEM-EDS and Raman investigation of natural and heated crystals. J. Raman Spectrosc. 2022, 53, 956–968. [Google Scholar] [CrossRef]
  49. Bény, C.; Guilhaumou, N.; Touray, J.-C. Native-Sulphur-Bearing fluid inclusions in the CO2-H2S-H2O-S system—Microthermometry and Raman microprobe (MOLE) analysis—Thermochemical interpretations. Chem. Geol. 1982, 37, 113–127. [Google Scholar] [CrossRef]
  50. Dubessy, J.; Boiron, M.-C.; Moissette, A.; Monnion, C.; Sretenskaya, N. Determination of water, hydrates and pH in fluid inclusions by micro-Raman spectrometry. Eur. J. Mineral. 1992, 4, 885–894. [Google Scholar] [CrossRef] [Green Version]
  51. Kaneva, E.; Shendrik, R.; Mesto, E.; Bogdanov, A.; Vladykin, N. Spectroscopy and crystal chemical properties of NaCa2[Si4O10]F natural agrellite with tubular structure. Chem. Phys. Lett. 2020, 738, 136868. [Google Scholar] [CrossRef]
  52. Weser, G.; Hensel, F.; Warren, W.W. The optical absorption spectrum of fluid sulfur up to supercritical conditions. Ber. Bunsenges. Phys. Chem. 1978, 82, 588–594. [Google Scholar] [CrossRef]
  53. Paniz, H.; Lester, A. Vibronic absorption spectra of S3 and S4, in solid argon. J. Phys. Chem. 1992, 96, 6579–6585. [Google Scholar]
  54. Annersten, H.; Haseeb, A. Blue sodalite. Canad. Mineral. 1979, 17, 39–46. [Google Scholar]
  55. Radomskaya, T.A.; Kaneva, E.V.; Shendrik, R.Y.; Suvorova, L.F.; Vladykin, N.V. Sulfur-Bearing sodalite, hackmanite, in alkaline pegmatites of the Inagli massif (Aldan Shield): Crystal chemistry, photochromism, and luminescence. Geol. Ore Depos. 2021, 63, 696–704. [Google Scholar] [CrossRef]
  56. Tauson, V.L.; Akimov, V.V.; Sapozhnikov, A.N.; Kuznetzov, K.E. Investigation of the stability conditions and structural-chemical transformations of Baikal lazurite. Geochem. Int. 1998, 36, 717–733. [Google Scholar]
  57. Rastsvetaeva, R.K.; Sapozhnikov, A.N.; Tauson, V.L.; Kashaev, A.A. Crystal structure of sulfide sodalite, a product of sulfate sulfur reduction in lazurite. Dokl. Akad. Nauk. 1997, 356, 773–776. (In Russian) [Google Scholar]
  58. Chukanov, N.V.; Vigasina, M.F.; Shendrik, R.Y.; Varlamov, D.A.; Pekov, I.V.; Zubkova, N.V. Nature and Isomorphism of Extra-Framework Components in cancrinite- and sodalite-related minerals: New data. Minerals 2022, 12, 729. [Google Scholar] [CrossRef]
  59. Steudel, R.; Jensen, D.; Göbel, P.; Hugo, P. Optical absorption spectra of the homocyclic sulfur molecules Sn (n = 6, 7, 8, 9, 10, 12, 15, 20) in solution. Ber. Bunsenges. Phys. Chem. 1988, 92, 118–122. [Google Scholar] [CrossRef]
  60. Raulin, K.; Gobeltz, N.; Vezin, H.; Touat, N.; Ledé, B.; Moissette, A. Identification of the EPR signal of S2− in green ultramarine pigments. Phys. Chem. Chem. Phys. 2011, 13, 9253–9259. [Google Scholar] [CrossRef]
  61. Pokrovski, G.S.; Dubrovinsky, L.S. The S3− ion is stable in geological fluids at elevated temperatures and pressures. Science 2011, 331, 1052–1054. [Google Scholar] [CrossRef]
  62. Pokrovski, G.S.; Dubessy, J. Stability and abundance of the trisulfur radical ion S3− in hydrothermal fluids. Earth Planet. Sci. Lett. 2015, 411, 298–309. [Google Scholar] [CrossRef]
  63. Arieli, D.; Vaughan, D.E.W.; Goldfarb, D. New synthesis and insight into the structure of blue ultramarine pigments. J. Amer. Chem. Soc. 2004, 126, 5776–5788. [Google Scholar] [CrossRef]
  64. Ostroumov, M.; Fritsch, E.; Faulques, E.; Chauvet, O. Etude spectrometrique de la lazurite du Pamir, Tajikistan. Canad. Mineral. 2002, 40, 885–893. [Google Scholar] [CrossRef] [Green Version]
  65. Ballirano, O.; Maras, A. Crystal chemical and structural characterization of an unusual CO3-bearing sodalite-group mineral. Eur. J. Mineral. 2005, 17, 805–812. [Google Scholar] [CrossRef]
  66. Gerasimovskiy, V.I.; Volkov, V.P.; Kogarko, L.N.; Polyalov, A.I.; Saprykina, T.V.; Balashov, Y.A. Geochemistry of the Lovozero Alkaline Massif; Nauka: Moskow, Russia, 1966. (In Russian) [Google Scholar]
  67. Zhang, B.; Wu, J.; Gu, J.; Li, S.; Yan, T.; Gao, X.-P. The fundamental understanding of lithium polysulfides in ether-based electrolyte for lithium-sulfur batteries. ACS Energy Lett. 2021, 6, 537–546. [Google Scholar] [CrossRef]
  68. Finch, A.A.; Friis, H.; Maghrabi, M. Defects in sodalite-group minerals determined from X-ray-induced luminescence. Phys. Chem. Miner. 2016, 43, 481–491. [Google Scholar] [CrossRef] [Green Version]
  69. Agamah, C.; Vuori, S.; Colinet, P.; Norrbo, I.; Miranda de Carvalho, J.; Key, L.; Nakamura, O.; Lindblom, J.; van Goethem, L.; Emmermann, A.; et al. Hackmanite—The natural glow-in-the-dark material. Chem. Mater. 2020, 32, 8895–8905. [Google Scholar] [CrossRef]
  70. Huie, R.E.; Clifton, C.L.; Altstein, N. A pulse radiolysis and flash photolysis study of the radicals SO2−, SO3−, SO4− and SO5−. Int. J. Radiat. Appl. Instr. Part C Radiat. Phys. Chem. 1989, 33, 361–370. [Google Scholar] [CrossRef]
  71. McElroy, W.J.; Waygood, S.J. Kinetics of the reactions of the SO4− radical with SO4−, S2O82−, H2O and Fe2+. J. Chem. Soc. Faraday Trans. 1990, 86, 2557. [Google Scholar] [CrossRef]
  72. Olysych, L.V.; Vigasina, M.F.; Melchakova, L.V.; Pekov, I.V.; Chukanov, N.V. Study of thermal decomposition of the cancrinite-kyanoxalite solid-solution series minerals. In Proceedings of the Abstracts of XXVII International Conference “Geochemistry of Magmatic Rocks”, Moscow, Russia, 9–16 September 2010; pp. 135–136. [Google Scholar]
  73. Chukanov, N.V.; Zubkova, N.V.; Buhl, J.-C.; Pekov, I.V.; Ksenofontov, D.A.; Depmeier, W.; Pushcharovskii, D.Y. Crystal structure of nitrate cancrinite synthesized under low-temperature hydrothermal conditions. Dokl. Earth Sci. 2011, 438, 669–672. [Google Scholar] [CrossRef]
Minerals 12 00887 g001 550
Figure 1. Raman spectra of (a) S4-bearing haüyne (Sample 1) and (b) lazurite (Sample 9).
Figure 1. Raman spectra of (a) S4-bearing haüyne (Sample 1) and (b) lazurite (Sample 9).
Minerals 12 00887 g001
Minerals 12 00887 g002 550
Figure 2. Raman spectra of (a) bolotinaite (Sample 10) and (b) sodalite (Sample 11).
Figure 2. Raman spectra of (a) bolotinaite (Sample 10) and (b) sodalite (Sample 11).
Minerals 12 00887 g002
Minerals 12 00887 g003 550
Figure 3. Raman spectra of (a) sapozhnikovite (Sample 8) and (b) nosean (Sample 7).
Figure 3. Raman spectra of (a) sapozhnikovite (Sample 8) and (b) nosean (Sample 7).
Minerals 12 00887 g003
Minerals 12 00887 g004 550
Figure 4. Absorption spectrum of haüyne (Sample 1, dotted curve). The black and red solid lines show the deconvolution of the doublet in the region of 2.0–2.5 eV into two peaks, and the total decomposition curve is shown with green color.
Figure 4. Absorption spectrum of haüyne (Sample 1, dotted curve). The black and red solid lines show the deconvolution of the doublet in the region of 2.0–2.5 eV into two peaks, and the total decomposition curve is shown with green color.
Minerals 12 00887 g004
Minerals 12 00887 g005 550
Figure 5. ESR spectrum of haüyne (Sample 1) measured at room temperature.
Figure 5. ESR spectrum of haüyne (Sample 1) measured at room temperature.
Minerals 12 00887 g005
Minerals 12 00887 g006 550
Figure 6. Infrared spectra of (a) initial haüyne (Sample 2), (b) Sample 2 preheated for three days at 700 °C, over the Fe-FeS buffer, and (c) preheated Sample 2 additionally annealed at 800 °C in air for one day.
Figure 6. Infrared spectra of (a) initial haüyne (Sample 2), (b) Sample 2 preheated for three days at 700 °C, over the Fe-FeS buffer, and (c) preheated Sample 2 additionally annealed at 800 °C in air for one day.
Minerals 12 00887 g006
Minerals 12 00887 g007 550
Figure 7. Infrared spectra of (a) initial haüyne (Sample 5), (b) Sample 5 preheated for three days at 700 °C over the Fe-FeS buffer, and (c) preheated Sample 5 additionally annealed at 800 °C in air for one day.
Figure 7. Infrared spectra of (a) initial haüyne (Sample 5), (b) Sample 5 preheated for three days at 700 °C over the Fe-FeS buffer, and (c) preheated Sample 5 additionally annealed at 800 °C in air for one day.
Minerals 12 00887 g007
Minerals 12 00887 g008 550
Figure 8. Infrared spectra in the 1350–3600 region of (a) haüyne (Sample 5) preheated for three days at 700 °C over the Fe-FeS buffer, and (b) preheated Sample 5 additionally annealed at 800 °C in air for one day.
Figure 8. Infrared spectra in the 1350–3600 region of (a) haüyne (Sample 5) preheated for three days at 700 °C over the Fe-FeS buffer, and (b) preheated Sample 5 additionally annealed at 800 °C in air for one day.
Minerals 12 00887 g008
Minerals 12 00887 g009 550
Figure 9. Raman spectra of (a) initial Sample 2, (b) Sample 2 preheated for three days at 700 °C, over the Fe-FeS buffer, and (c) preheated Sample 2 additionally annealed at 800 °C in air for one day.
Figure 9. Raman spectra of (a) initial Sample 2, (b) Sample 2 preheated for three days at 700 °C, over the Fe-FeS buffer, and (c) preheated Sample 2 additionally annealed at 800 °C in air for one day.
Minerals 12 00887 g009
Minerals 12 00887 g010 550
Figure 10. Raman spectra of (a) initial haüyne (Sample 5), (b) Sample 5 preheated for three days at 700 °C, over the Fe-FeS buffer, and (c) preheated Sample 5 additionally annealed at 800 °C in air for one day.
Figure 10. Raman spectra of (a) initial haüyne (Sample 5), (b) Sample 5 preheated for three days at 700 °C, over the Fe-FeS buffer, and (c) preheated Sample 5 additionally annealed at 800 °C in air for one day.
Minerals 12 00887 g010
Minerals 12 00887 g011 550
Figure 11. Spectra of diffuse absorption of haüyne (Sample 3): unheated sample (1) and samples heated at 200 °C (2), 400 °C (3), 600 °C (4), and 800 °C (5).
Figure 11. Spectra of diffuse absorption of haüyne (Sample 3): unheated sample (1) and samples heated at 200 °C (2), 400 °C (3), 600 °C (4), and 800 °C (5).
Minerals 12 00887 g011

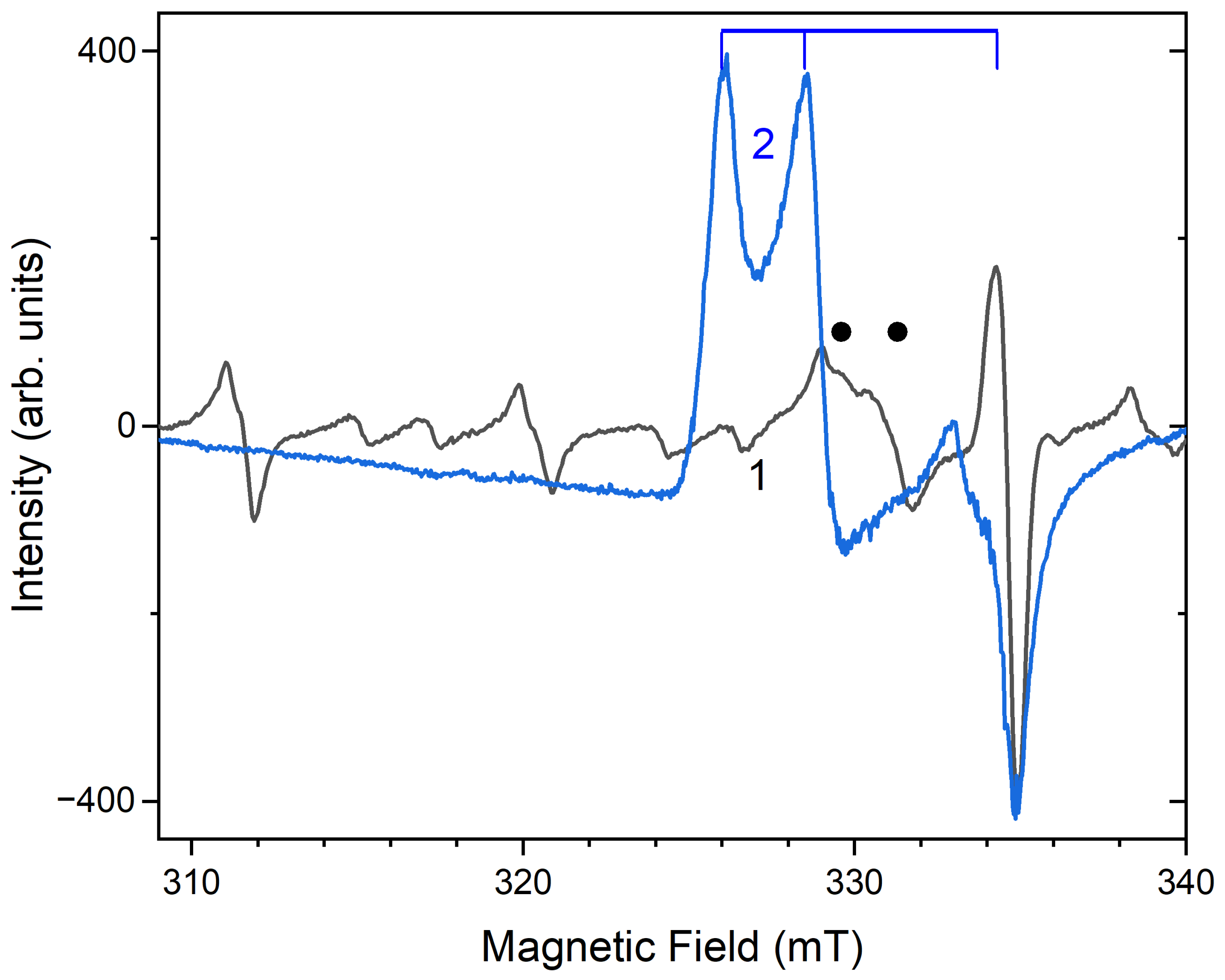

Minerals 12 00887 g012 550
Figure 12. The ESR spectra of unheated haüyne (Sample 3) (1) and Sample 3 heated at a temperature of 800 °C (2). The dots indicate the bands of S4●− and the vertical lines show the bands of S3●−.
Figure 12. The ESR spectra of unheated haüyne (Sample 3) (1) and Sample 3 heated at a temperature of 800 °C (2). The dots indicate the bands of S4●− and the vertical lines show the bands of S3●−.
Minerals 12 00887 g012

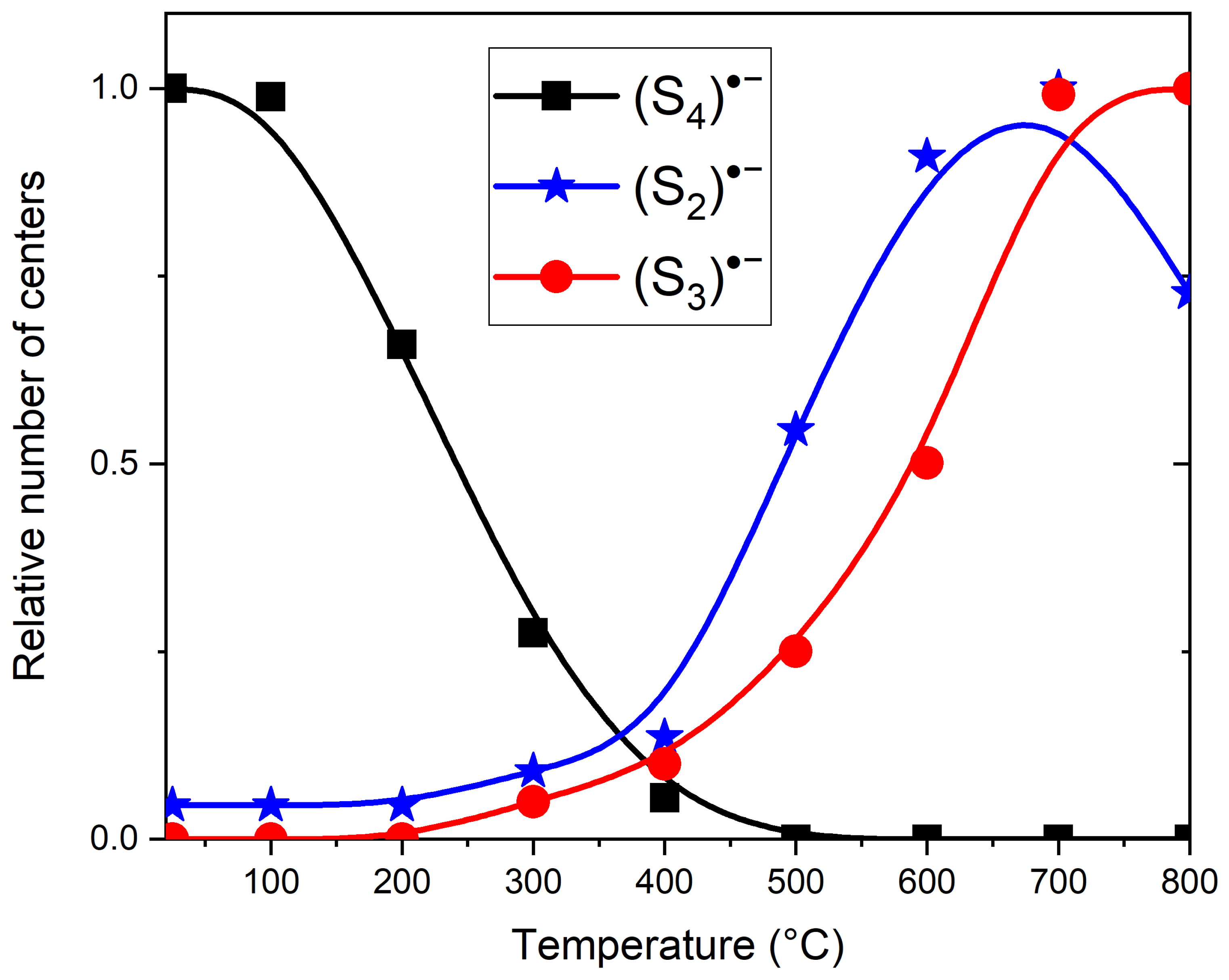

Minerals 12 00887 g013 550
Figure 13. Relative amounts of various sulfur radical anions in haüyne (Sample 3) heated at different temperatures. The values of the relative amounts are normalized to the maximum number of each of the radical anions.
Figure 13. Relative amounts of various sulfur radical anions in haüyne (Sample 3) heated at different temperatures. The values of the relative amounts are normalized to the maximum number of each of the radical anions.
Minerals 12 00887 g013
Minerals 12 00887 g014 550
Figure 14. Diffuse absorption spectra of original haüyne (Sample 4) (1) and Sample 4 heated at 800 °C (2).
Figure 14. Diffuse absorption spectra of original haüyne (Sample 4) (1) and Sample 4 heated at 800 °C (2).
Minerals 12 00887 g014
Minerals 12 00887 g015 550
Figure 15. The ESR spectra of original haüyne (Sample 4) (1) and Sample 4 heated at 800 °C (2). The black triangles show the bands of the S6●− radical anions bands, and the vertical blue lines indicate the bands of S3●−.
Figure 15. The ESR spectra of original haüyne (Sample 4) (1) and Sample 4 heated at 800 °C (2). The black triangles show the bands of the S6●− radical anions bands, and the vertical blue lines indicate the bands of S3●−.
Minerals 12 00887 g015

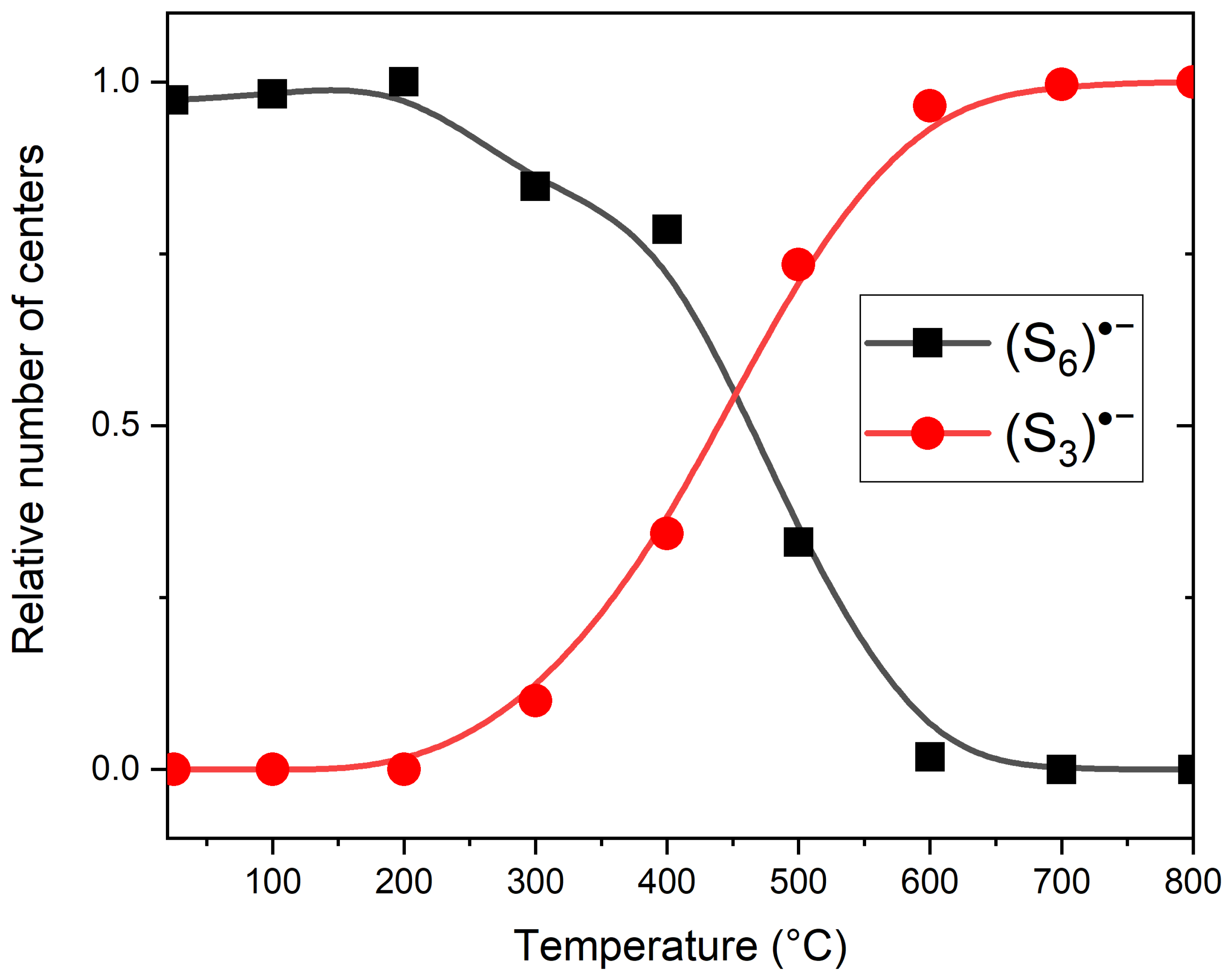

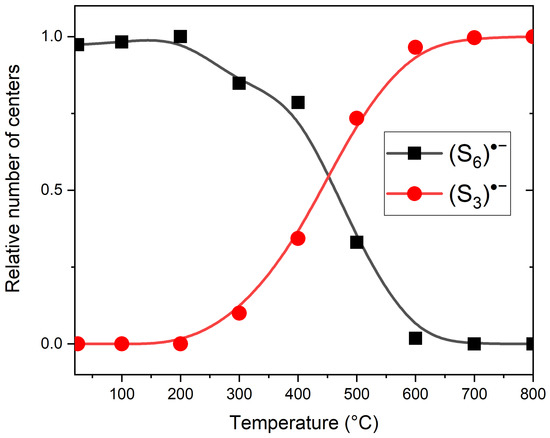

Minerals 12 00887 g016 550
Figure 16. Relative amounts of polysulfide radical anions in haüyne (Sample 3) heated at different temperatures. The values of the relative amounts are normalized to the maximum number of each of the radical anions.
Figure 16. Relative amounts of polysulfide radical anions in haüyne (Sample 3) heated at different temperatures. The values of the relative amounts are normalized to the maximum number of each of the radical anions.
Minerals 12 00887 g016
Minerals 12 00887 g017 550
Figure 17. ESR spectra of initial haüyne (Sample 2) (1), and Sample 2 heated at 700 °C under buffer (2) and at 800 °C in air (3).
Figure 17. ESR spectra of initial haüyne (Sample 2) (1), and Sample 2 heated at 700 °C under buffer (2) and at 800 °C in air (3).
Minerals 12 00887 g017
Minerals 12 00887 g018 550
Figure 18. Kinetics of changes of the cubic unit cell parameter of the initial phase of the preheated haüyne (Sample 5, circles) and product of its annealing at 800 °C (squares).
Figure 18. Kinetics of changes of the cubic unit cell parameter of the initial phase of the preheated haüyne (Sample 5, circles) and product of its annealing at 800 °C (squares).
Minerals 12 00887 g018
Minerals 12 00887 g019 550
Figure 19. Infrared spectra of (a) initial slyudyankaite (Sample 6), (b) Sample 6 preheated for three days at 700 °C, over the Fe-FeS buffer, and (c) preheated Sample 6 additionally annealed at 800 °C in air for one day. The inset shows the IR spectrum of initial Sample 6 in the range of 1500–3800 cm−1.
Figure 19. Infrared spectra of (a) initial slyudyankaite (Sample 6), (b) Sample 6 preheated for three days at 700 °C, over the Fe-FeS buffer, and (c) preheated Sample 6 additionally annealed at 800 °C in air for one day. The inset shows the IR spectrum of initial Sample 6 in the range of 1500–3800 cm−1.
Minerals 12 00887 g019
Minerals 12 00887 g020 550
Figure 20. Raman spectra of (a) initial slyudyankaite (Sample 6), (b) Sample 6 preheated for three days at 700 °C, over the Fe-FeS buffer, and (c) preheated Sample 6 additionally annealed at 800 °C in air for one day. The inset shows the Raman spectrum of initial Sample 6 in the range of 1200–3750 cm−1.
Figure 20. Raman spectra of (a) initial slyudyankaite (Sample 6), (b) Sample 6 preheated for three days at 700 °C, over the Fe-FeS buffer, and (c) preheated Sample 6 additionally annealed at 800 °C in air for one day. The inset shows the Raman spectrum of initial Sample 6 in the range of 1200–3750 cm−1.
Minerals 12 00887 g020
Minerals 12 00887 g021 550
Figure 21. Variations of the contents of Cl and S atoms per formula unit (apfu) in minerals belonging to the sodalite–sapozhnikovite solid-solution series from Karnasurt Mt., Lovozero massif, Kola Peninsula, Russia.
Figure 21. Variations of the contents of Cl and S atoms per formula unit (apfu) in minerals belonging to the sodalite–sapozhnikovite solid-solution series from Karnasurt Mt., Lovozero massif, Kola Peninsula, Russia.
Minerals 12 00887 g021
Minerals 12 00887 g022 550
Figure 22. Color space chromaticity diagram for sodalite-group minerals.
Figure 22. Color space chromaticity diagram for sodalite-group minerals.
Minerals 12 00887 g022
Table
Table 1. Chemical composition (wt.%) of haüyne from the Malo-Bystrinskoe gem lazurite deposit, Baikal Lake area, Siberia, Russia obtained in this work. Representative chemical analyses of sodalite–sapozhnikovite series minerals (Sample 12) from Karnasurt Mt., Lovozero massif, Kola Peninsula, Russia obtained in this work.
Table 1. Chemical composition (wt.%) of haüyne from the Malo-Bystrinskoe gem lazurite deposit, Baikal Lake area, Siberia, Russia obtained in this work. Representative chemical analyses of sodalite–sapozhnikovite series minerals (Sample 12) from Karnasurt Mt., Lovozero massif, Kola Peninsula, Russia obtained in this work.
Sample No.12
ColorBluish lilacDeep blue
Na2O18.0417.92
K2O0.210.74
CaO7.837.60
Al2O328.6327.79
Fe2O300.19
SiO233.6533.46
CO2 a0.670.25
SO3 b14.5815.33
F0.420
Cl0.320.31
–O=Cl,F−0.25−0.07
Total104.10103.52
Analysis No.12345678
Contents, wt. %
Na2O23.6024.2024.6024.2824.4924.3424.0124.21
Al2O330.8431.5031.3731.3831.6931.2931.1631.33
Fe2O30.36-0.27--0.13--
SiO236.0336.8836.9536.6136.8236.5036.4836.26
HS *2.783.103.523.744.174.484.865.27
Cl3.973.413.323.072.682.311.851.35
–O=(Cl,HS)–1.57–1.52–1.60–1.59–1.61–1.60–1.60–1.58
Total96.0197.5798.4397.4998.2497.4596.7696.84
Formula Calculated on the Basis of Al + Fe + Si = 12 Atoms Per Formula Unit
Na7.567.617.727.687.687.717.567.70
Al6.006.025.996.036.046.026.026.05
Fe0.04-0.03--0.02--
Si5.965.985.985.975.965.965.985.95
S0.840.911.031.111.221.331.451.57
Cl1.111.060.910.850.730.640.510.38
S + Cl1.951.971.941.961.951.971.961.95
a CO2 contents corresponding to CO2 molecules were determined from the IR spectra using a procedure described in [3]; b All sulfur is given as SO3, which results in high total sums for the samples bearing sulfide groups. * Recalculated from values for S measured by electron microprobe. Dash means Fe content below detection limit. Analyses are ordered by increase of the S: Cl ratio.
Table
Table 2. Assignment of Raman bands of cubic sodalite-group minerals.
Table 2. Assignment of Raman bands of cubic sodalite-group minerals.
Raman Shift (cm−1)Assignment
Sample No.
17891011
202w---210-Combination of low-frequency lattice modes and/or trans-S4 bending mode
255- 257--S3●− bending mode (ν2)
--260--266Bending vibrations of the [ClNa4]3+ and [(HS)Na4]3+ clusters
--294285w283w-Combination of low–frequency lattice modes involving Na+ cations and/or S6 bending mode
327-----cis-S4 mixed (bending + stretching) ν4 mode
--417w--410wBending vibrations of the aluminosilicate framework
442439 -441s-SO42− [the E(ν2) mode] and/or δ[O–Si(Al)–O] bending vibrations
--459s--463sStretching vibrations of the [ClNa4] and [(HS)Na4] clusters
544s--546s548w-S3●− symmetric stretching (ν1) mode
582w--585--S3●− antisymmetric stretching (ν3), possibly, overlapping with the stretching band of S2●−
----580w, 605w-S2●− stretching mode
--611w--611wOvertone of vibrations involving Na+ cations?
616621----SO42− bending vibrations [F2(ν4) mode]
650-----gauche-S4 symmetric stretching A1(ν1) mode
682---673w-trans-S4 symmetric stretching ν3 mode
-724w732w--732wMixed vibrations of the aluminosilicate framework
987s983s978, 989-986s970, 986SO42− symmetric stretching vibrations [A1(ν1) mode]
1053w10491062--1060Stretching vibrations of the framework and/or CO32− symmetric stretching vibrations
----1074-HF libration
1085--1093s--S3●− overtone (2 × ν1)
-1138----SO42− asymmetric stretching vibrations [F2(ν3) mode], possibly, overlapping with S2●− overtone (2 × ν1)
----1271-CO2 Fermi resonance
1332-----Overtone of the cis-S4 antisymmetric stretching mode (2 × ν3)
----1350-H+ translation
---1363--S3●− combination mode (2ν1 + ν2)
----1381-CO2 Fermi resonance
1460w-----CO3 asymmetric stretching mode
1632--1638--S3●− overtone (3 × ν1)
1895-----S3●− combination mode (3 × ν2 + ν1)
2175--2181--S3●− overtone (4 × ν1)
---2440w--S3●− combination mode (4 × ν2 + ν1)
--2553---HS− stretching mode
2580-----H2S symmetric stretching mode
2725--2720--S3●− overtone (5 × ν1)
3005, 3280----3130H3O+ stretching mode
3475, 3615---3540-H2O stretching vibrations
Table
Table 3. Assignment of Raman bands of Sample 2 and products of its thermal conversions.
Table 3. Assignment of Raman bands of Sample 2 and products of its thermal conversions.
Raman Shift (cm−1)Assignment
Initial SamplePreheated SampleSample Heated at 800 °C in Air
-194w168wCombination of low-frequency lattice modes
-213w219trans-S4 bending mode
-254-Bending vibrations of the [(HS)−Na4]3+ cluster
260-260S3●− bending mode (ν2)
287w290-Low–frequency lattice modes involving Na+ cations and/or S4●− bending vibrations
---cis-S4 mixed ν4 mode (combined symmetric bending + stretching vibrations)
327w355w-cis-S4●− mixed ν3 mode
--380cis-S4 mixed ν3 mode
448w--SO42− [E(ν2) mode] and/or δ[O–Si(Al)–O] bending vibrations
-454s-Stretching vibrations of the [(HS)−Na4]3+ cluster
-474473S6 stretching mode and/or mixed ν4 mode of trans–S4
547s-546sS3●− symmetric stretching (ν1) mode
555-S3 neutral molecule and/or gauche-S4
580-583S3●− antisymmetric stretching (ν3), possibly, overlapping with the stretching band of S2●−
-590-Stretching vibrations of the [(S2−)Na4]2+ cluster and/or S2●− stretching mode
-733-O–C–O bending vibrations of oxalate anions
--720Mixed vibrations of the aluminosilicate framework
804-804S3●− combination mode (ν1 + ν2)
-845w-C–C stretching vibrations of oxalate anions
990996981wSO42− symmetric stretching vibrations [A1(ν1) mode] and/or framework stretching vibrations
-1061-CO32− symmetric stretching vibrations
1091s-1092sS3●− overtone (2 × ν1)
-1335-Symmetric C–O stretching vibrations of oxalate anions
1353-1345S3●− combination mode (2ν1 + ν2)
-1613-Antisymmetric C–O stretching vibrations of oxalate anions
1639-1638S3●− overtone (3 × ν1)
1900w-1910wS3●− combination mode (3 × ν2 + ν1)
2180-2185S3●− overtone (4 × ν1)
2443w--S3●− combination mode (4 × ν2 + ν1)
-2553s-HS− stretching mode
-2581w-H2S symmetric stretching mode
2721-2725S3●− overtone (5 × ν1)
2950w--S3●− combination mode (5 × ν1 + ν2)
Note: w—weak band, s—strong band.
Table
Table 4. Assignment of Raman bands of Sample 5 and products of its thermal conversions.
Table 4. Assignment of Raman bands of Sample 5 and products of its thermal conversions.
Raman Shift (cm−1)Assignment
Initial SamplePreheated SampleSample Heated at 800 °C in Air
-166-Combination of low-frequency lattice modes
-219w217wtrans-S4 bending mode
-260-Bending vibrations of the [(HS)−Na4]3+ cluster
256-265S3●− bending mode (ν2)
282w--Low–frequency lattice modes involving Na+ cations and/or S4●− bending vibrations
-308s297sS4●− bending vibrations and/or cis-S4 mixed ν4 mode (combined symmetric bending + stretching vibrations)
-453s-Stretching vibrations of the [(HS)−Na4]3+ cluster
-471-S6 stretching mode and/or mixed ν4 mode of trans–S4
543s547546sS3●− symmetric stretching (ν1) mode
570-587S3●− antisymmetric stretching (ν3), possibly, overlapping with the stretching band of S2●−
-596-Stretching vibrations of the [(S2−)Na4]2+ cluster and/or S2●− stretching mode
-728-O–C–O bending vibrations of oxalate anions
798-805S3●− combination mode (ν1 + ν2)
-850w-C–C stretching vibrations of oxalate anions
983w989-SO42− symmetric stretching vibrations [A1(ν1) mode] and/or framework stretching vibrations
-1064-CO32− symmetric stretching vibrations
1087s-1097sS3●− overtone (2 × ν1)
-1350-Symmetric C–O stretching vibrations of oxalate anions
1348-1365S3●− combination mode (2ν1 + ν2)
-1605-Antisymmetric C–O stretching vibrations of oxalate anions
1634-1643S3●− overtone (3 × ν1)
1894w-1900wS3●− combination mode (3 × ν2 + ν1)
-1909w-Overtone of SO42− symmetric stretching vibrations?
2173-2185S3●− overtone (4 × ν1)
2434w-2430wS3●− combination mode (4 × ν2 + ν1)
-2556s-HS− stretching mode
2713-2725S3●− overtone (5 × ν1)
2971w--S3●− combination mode (5 × ν1 + ν2)
3233w, 3470w3232, 3605w3220wO–H stretching modes
Table
Table 5. Assignment of Raman bands of slyudyankaite and products of its thermal conversions.
Table 5. Assignment of Raman bands of slyudyankaite and products of its thermal conversions.
Raman Shift (cm−1)Assignment
Initial
Sample		Preheated SampleSample Heated at 800 °C in Air
219--trans-S4 bending
260-262S3●− bending A2 (ν2) and S6 (with D3d symmetry) bending
283--Framework bending vibrations (resonance with a S6 bending mode?)
298302s-S4●− bending vibrations
330--cis-S4 mixed ν4 mode (symmetric bending + stretching)
380w--cis-S4 mixed ν3 mode
437-440wSO4 [bending E (ν2) mode] and/or S6 (mixed mode)
-461s-[(HS)Na4]3+ stretching vibrations
477-474S6 stretching mode and/or mixed ν4 mode of trans-S4
503--Bending vibrations of the framework
545s-548sS3●− symmetric stretching (ν1) (possibly, overlapping with the stretching band of gauche-S4)
580-586S3●− antisymmetric stretching mode (ν3)
-603-S2●− stretching mode
614--SO42– [bending F2 (ν4) mode]
645--cis-S4 stretching
682--trans-S4 symmetric stretching ν3 mode
-724, 756w722wO–C–O bending vibrations of oxalate anions
807-810S3●− combination mode (ν1 + ν2)
985s983-SO42− [symmetric stretching A1 (ν1) mode] (possibly, overlapping with the weak band of framework stretching vibrations)
-1077w-CO32− symmetric stretching mode
1088s-1097sS3●− overtone (2 × ν1) [possibly, overlapping with the SO4●− stretching band (ν3 − F2)]
-1163-S2●− overtone (2 × ν1)
1279, 1381--Symmetric stretching vibrations of CO2 molecules (Fermi doublet, resonance with the overtone of bending vibrations).
134013421360Symmetric C–O stretching vibrations of CO2 molecules—involved in strong dipole-dipole interactions and/or symmetric C–O stretching vibrations of acid oxalate anions
-1480w-CO32− asymmetric stretching mode
-1609s-Antisymmetric C–O stretching vibrations of acid oxalate anions
1631--S3●− overtone (3 × ν1)
--1651Symmetric C–O stretching vibrations of oxalate anions
-1768, 1832-C=O stretching vibrations of acid oxalate groups
1891-1915S3●− combination mode (3 × ν1 + ν2)
2172-2191S3●− overtone (4 × ν1)
2428w--S3●− combination mode (4 × ν2 + ν1)
-2553s-HS− stretching mode
2575w--H2S symmetric stretching mode
2710-2737S3●− overtone (5 × ν1)
2964w--S3●− combination mode (5 × ν1 + ν2)
3025--O–H stretching vibrations
3247w--S3●− overtone (6 × ν1)
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Chukanov, N.V.; Shendrik, R.Y.; Vigasina, M.F.; Pekov, I.V.; Sapozhnikov, A.N.; Shcherbakov, V.D.; Varlamov, D.A. Crystal Chemistry, Isomorphism, and Thermal Conversions of Extra-Framework Components in Sodalite-Group Minerals. Minerals 2022, 12, 887. https://doi.org/10.3390/min12070887

AMA Style

Chukanov NV, Shendrik RY, Vigasina MF, Pekov IV, Sapozhnikov AN, Shcherbakov VD, Varlamov DA. Crystal Chemistry, Isomorphism, and Thermal Conversions of Extra-Framework Components in Sodalite-Group Minerals. Minerals. 2022; 12(7):887. https://doi.org/10.3390/min12070887

Chicago/Turabian Style

Chukanov, Nikita V., Roman Yu. Shendrik, Marina F. Vigasina, Igor V. Pekov, Anatoly N. Sapozhnikov, Vasily D. Shcherbakov, and Dmitry A. Varlamov. 2022. "Crystal Chemistry, Isomorphism, and Thermal Conversions of Extra-Framework Components in Sodalite-Group Minerals" Minerals 12, no. 7: 887. https://doi.org/10.3390/min12070887

APA Style

Chukanov, N. V., Shendrik, R. Y., Vigasina, M. F., Pekov, I. V., Sapozhnikov, A. N., Shcherbakov, V. D., & Varlamov, D. A. (2022). Crystal Chemistry, Isomorphism, and Thermal Conversions of Extra-Framework Components in Sodalite-Group Minerals. Minerals, 12(7), 887. https://doi.org/10.3390/min12070887

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
