Effects of Magmatic-Hydrothermal Activities on Characteristic of Source Rocks from Beipiao Formation in the Jinyang Basin, NE China
Abstract
:1. Introduction

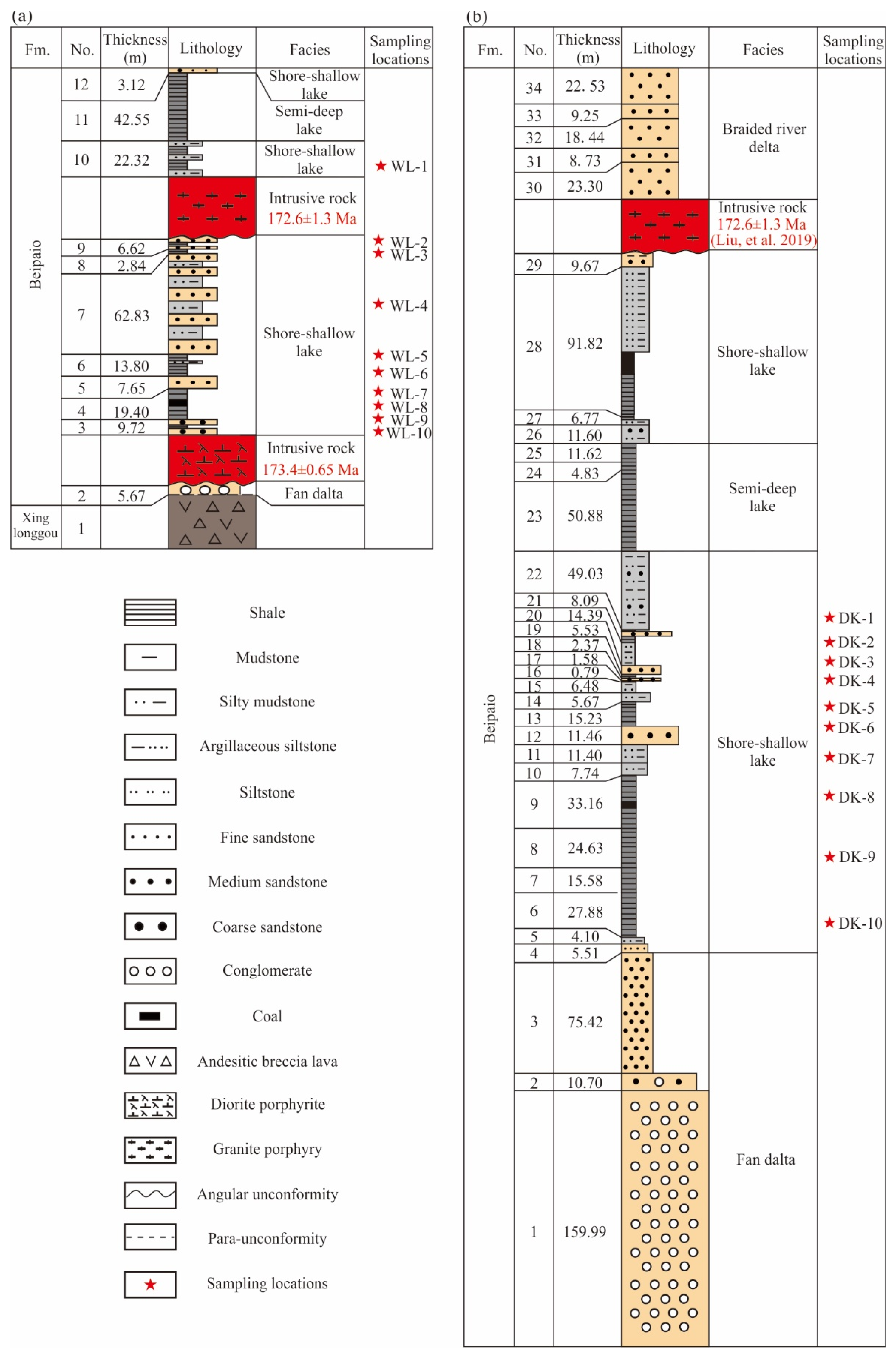

2. Geological Settings
3. Samples and Methods
4. Results

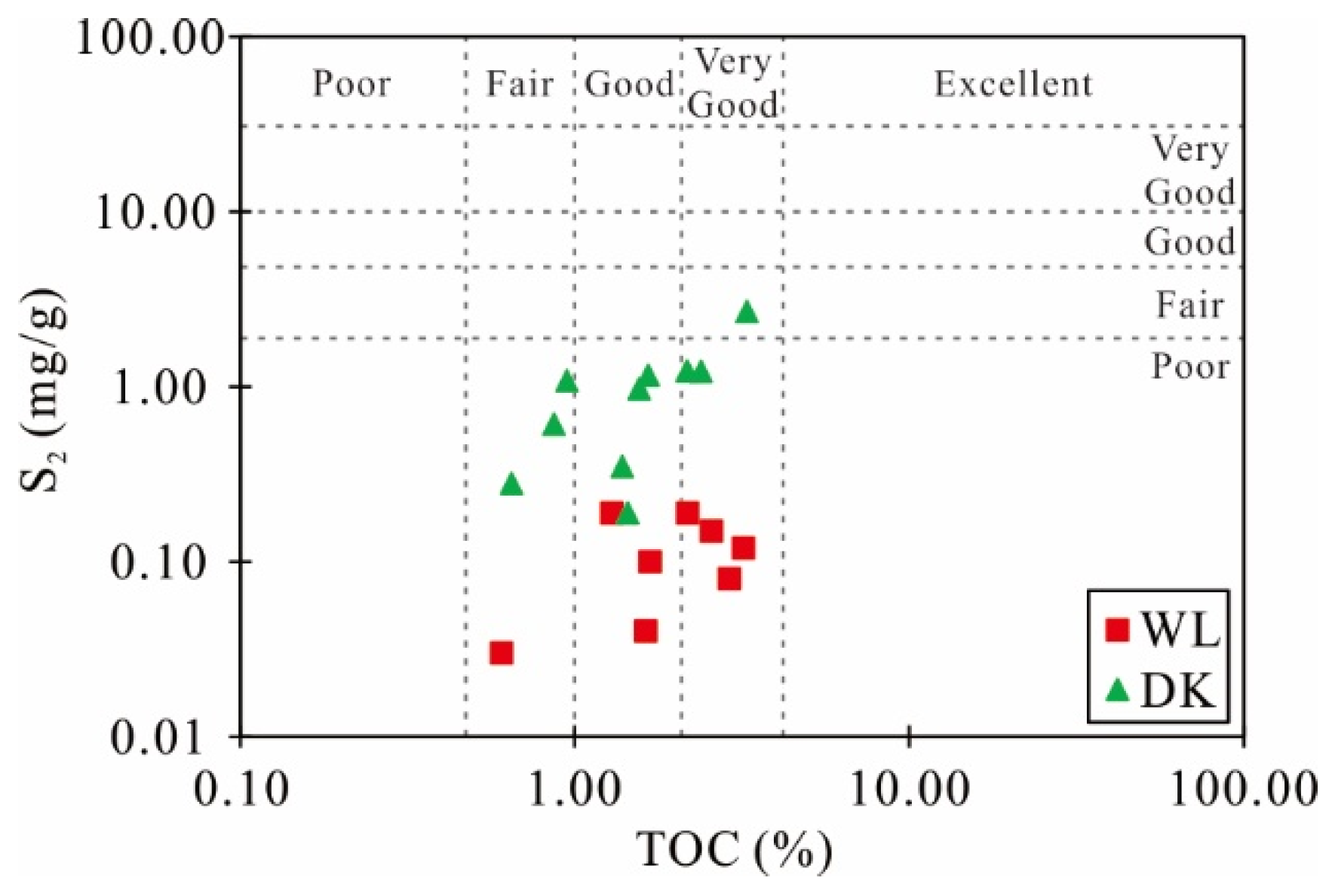

4.1. Total Organic Carbon and Rock-Eval Pyrolysis

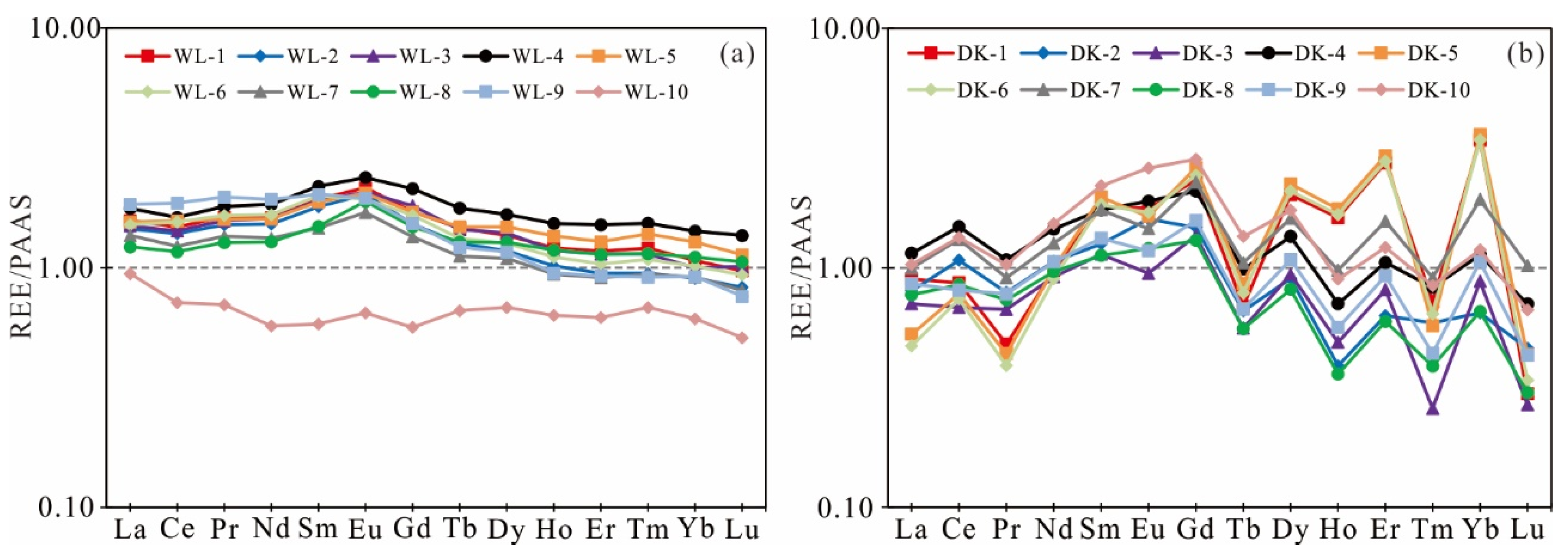

4.2. Rare Earth Elements

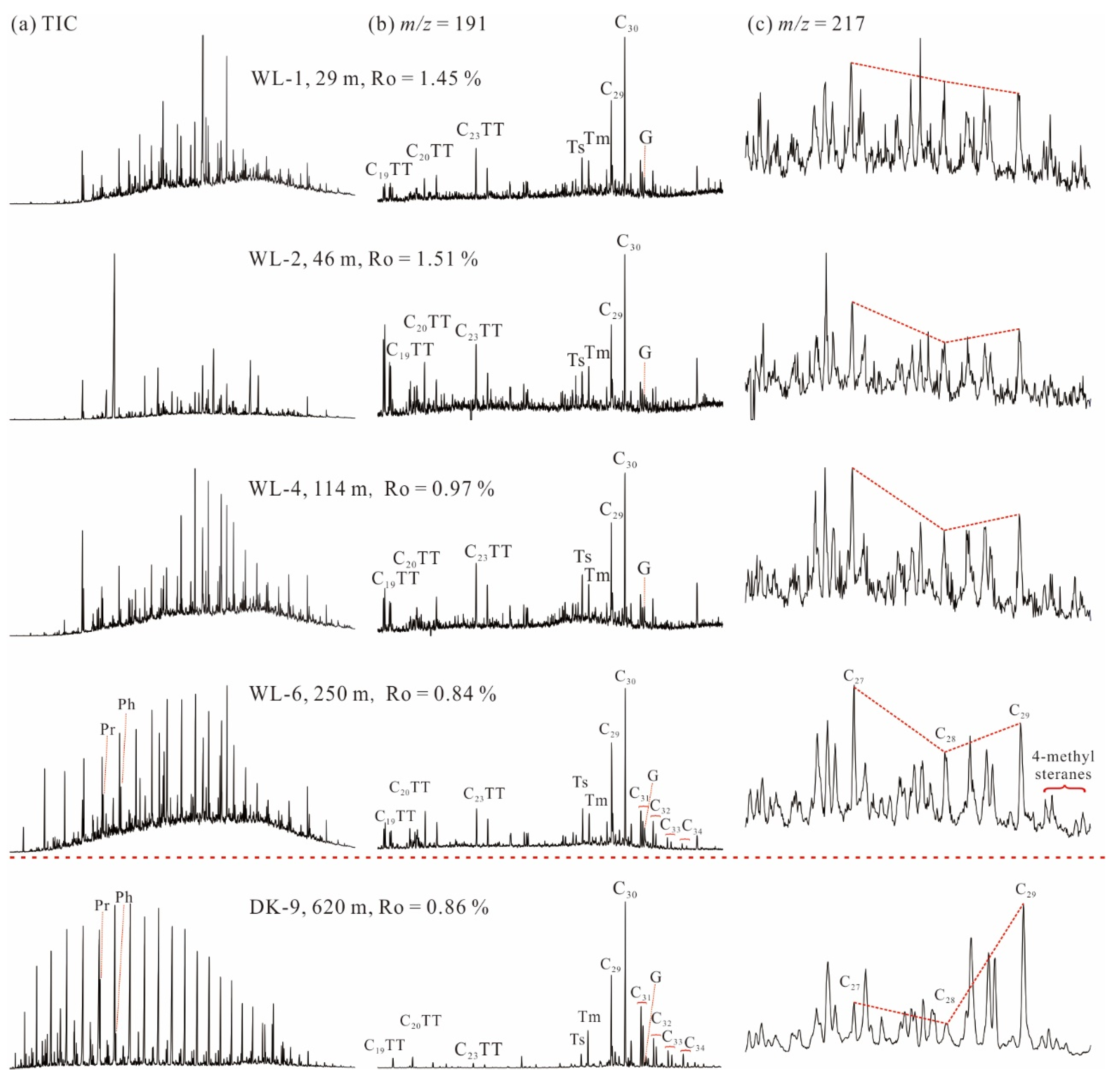

4.3. Biomarkers
5. Discussion
5.1. Evidence of Magmatic-Hydrothermal Activities

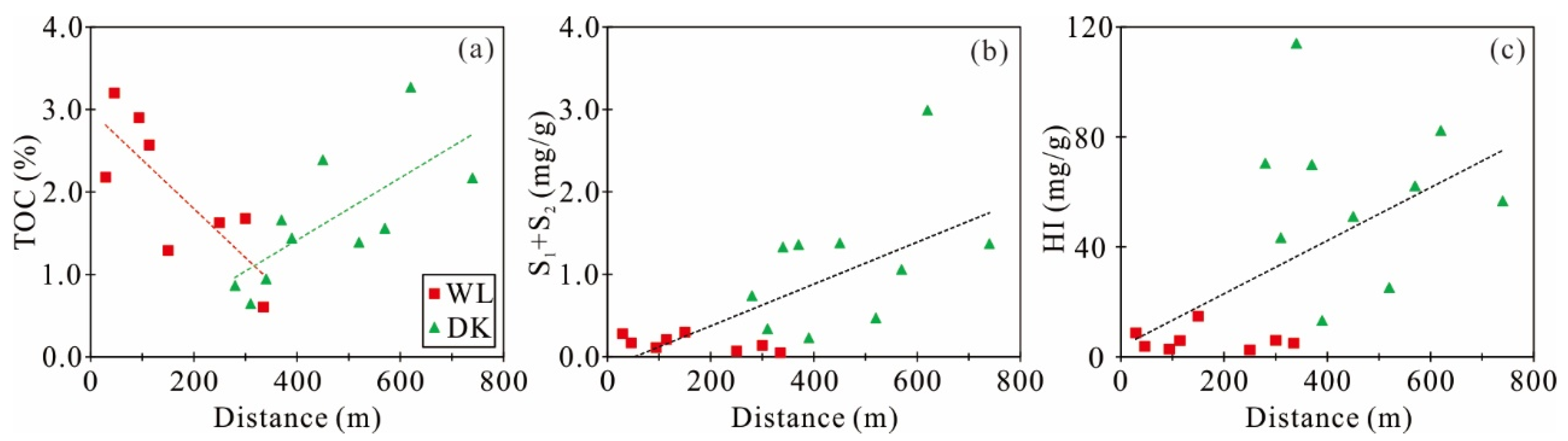

5.2. Influence of Magmatism on Organic Matter Abundance

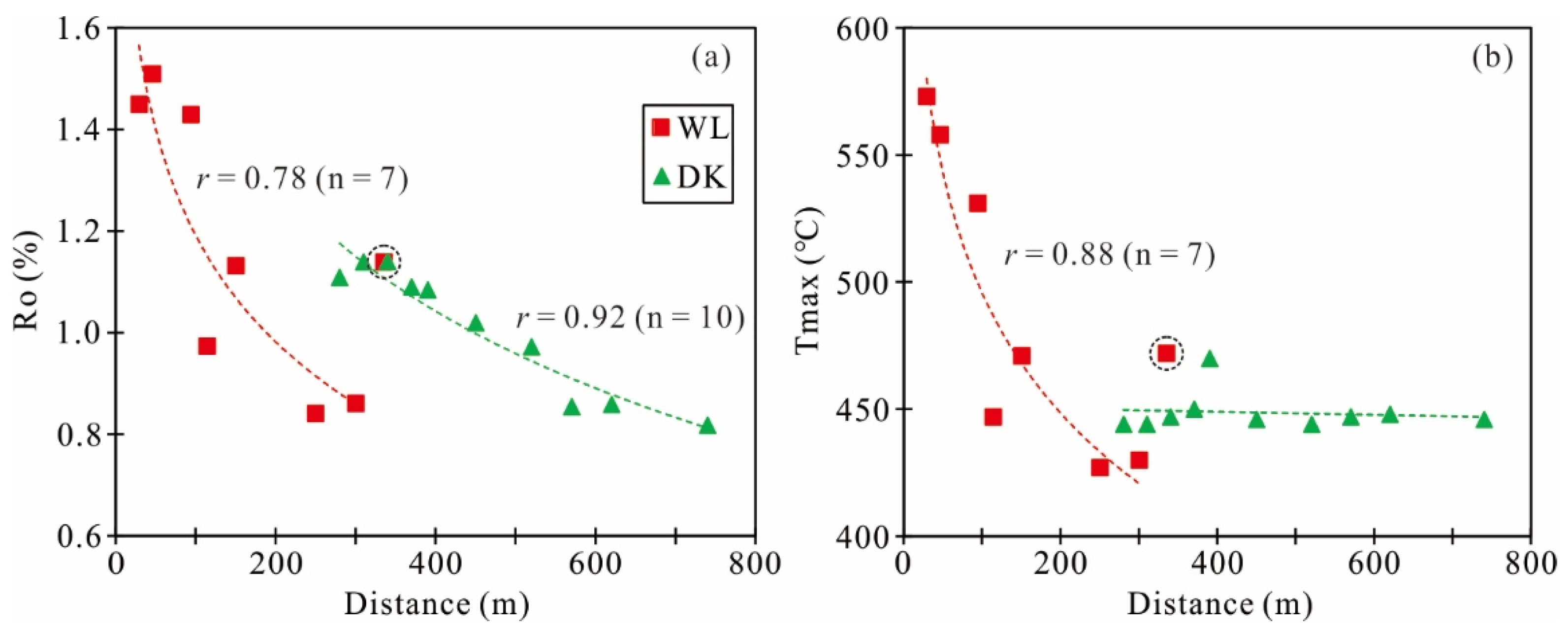

5.3. Influence of Magmatism on Hydrocarbon Evolution Stage of Source Rocks

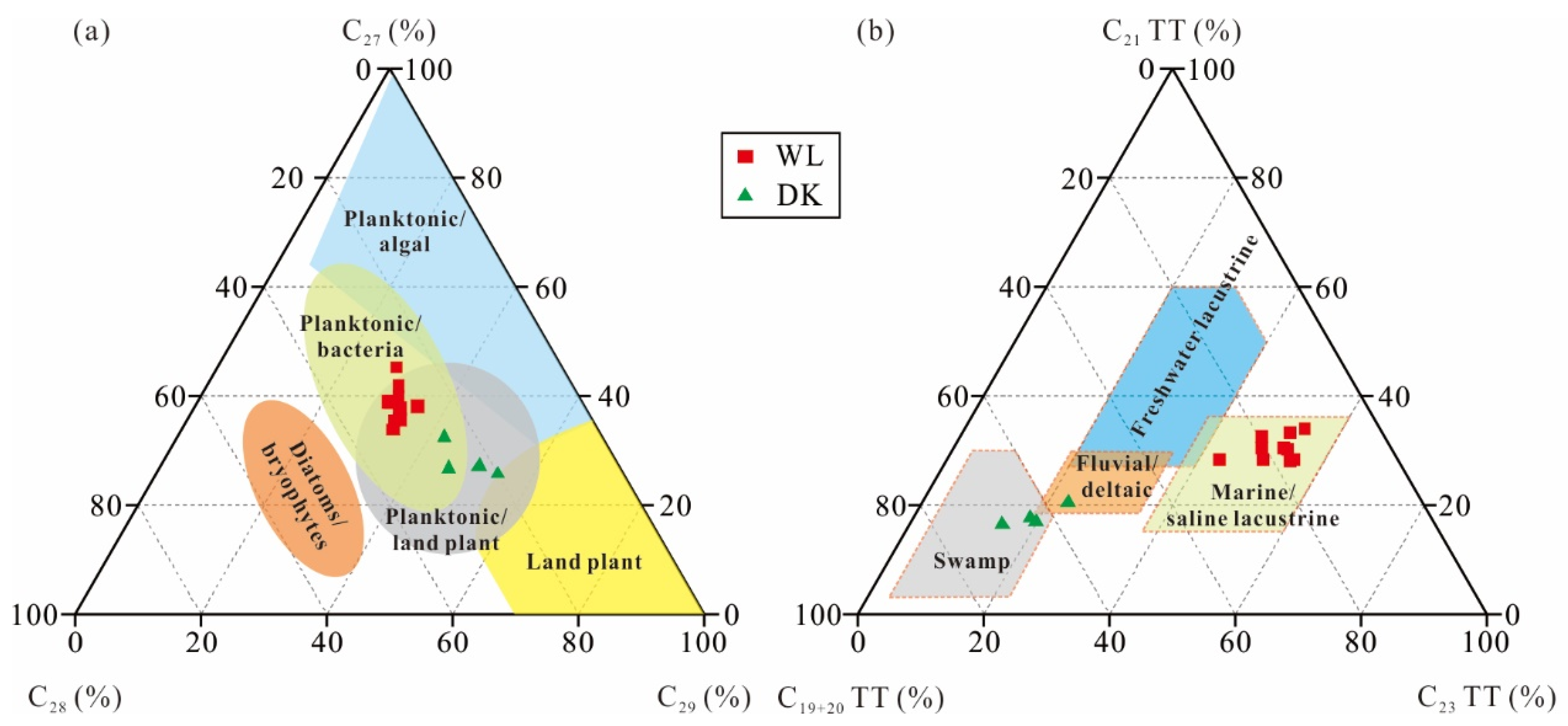

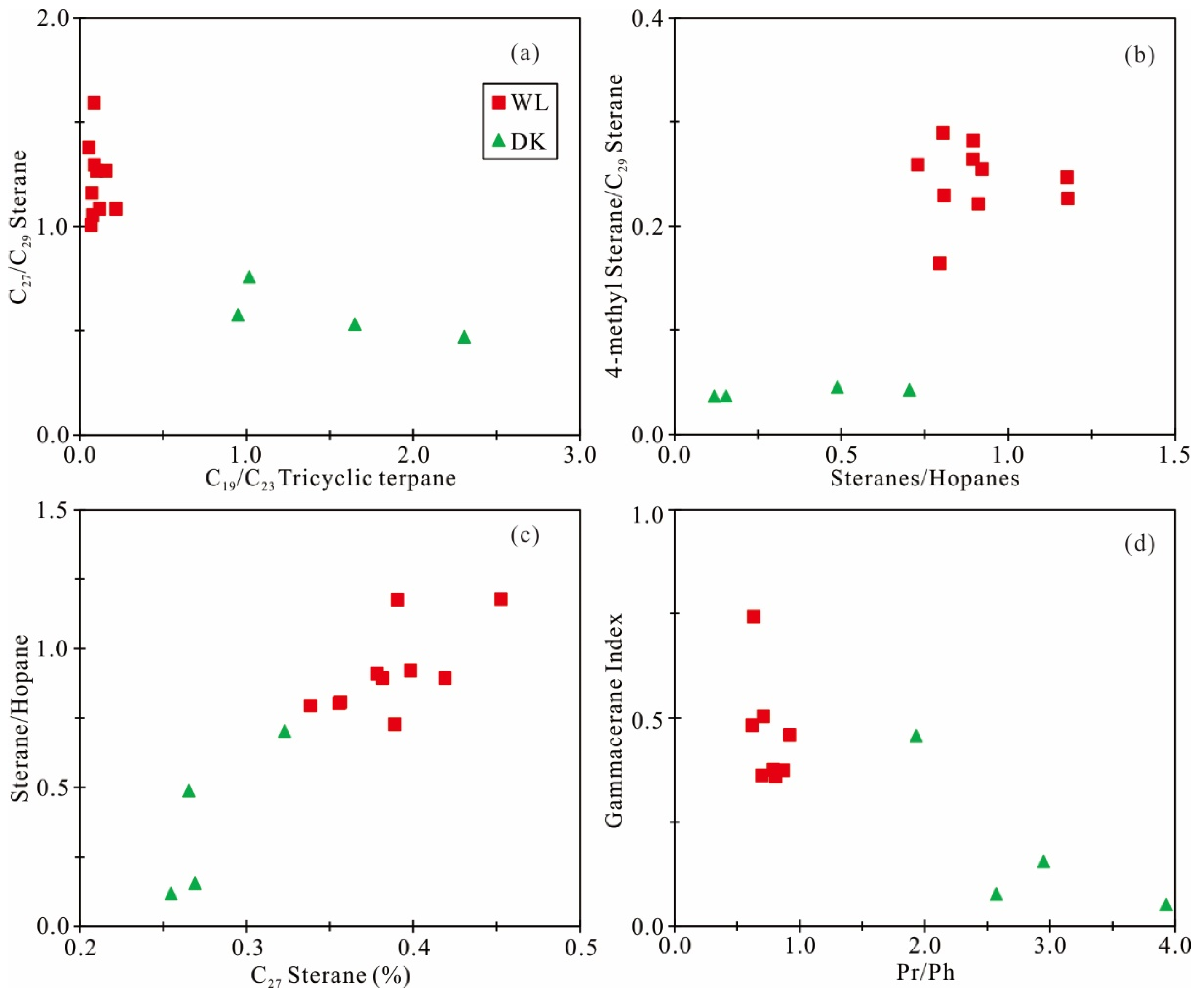

5.4. Influence of Magmatic-Hydrothermal Activities on the Sedimentary Environment and Organic Matter Input
6. Conclusions
- (1)

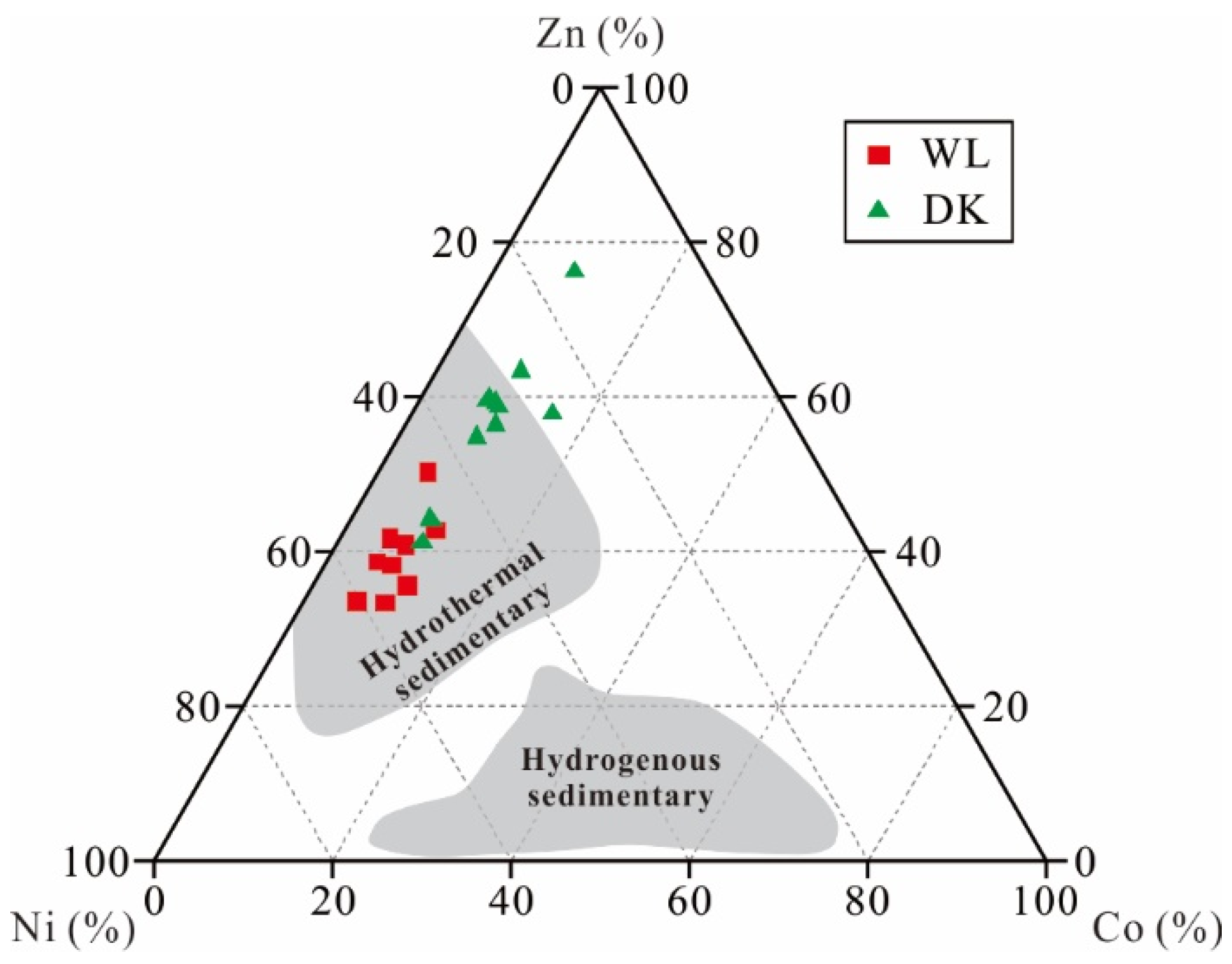

- The hydrothermal indicator discrimination diagram (Zn-Ni-Co triangular plot) and rare earth element anomalies (δEu and δCe) indicate hydrothermal activity occurred during the deposition of the WL samples, but not for the DK samples.
- (2)
- The TOC values indicate that the organic matter abundance of the WL samples was higher than that of the DK samples.
- (3)
- The WL samples were influenced by the magmatic intrusion with higher maturity, demonstrating the magmatic-hydrothermal activities promoted a hydrocarbon generation process.
- (4)
- The magmatic-hydrothermal activities brought abundant nutrients to the lake basin, increased the salinity of water and promoted the formation of a water reducing environment, resulting in the formation of organic-rich source rocks.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Monreal, F.R.; Villar, H.; Baudino, R.; Delpino, D.; Zencich, S. Modeling an atypical petroleum system: A case study of hydrocarbon generation, migration and accumulation related to igneous intrusions in the Neuquen Basin, Argentina. Mar. Pet. Geol. 2009, 26, 590–605. [Google Scholar] [CrossRef]
- Jackson, C.A.-L.; Schofield, N.; Golenkov, B. Geometry and controls on the development of igneous sill-related forced folds: A 2-D seismic reflection case study from offshore southern Australia. GSA Bull. 2013, 125, 1874–1890. [Google Scholar] [CrossRef]
- Fjeldskaar, W.; Helset, H.M.; Johansen, H.; Grunnaleite, I.; Horstad, I. Thermal modelling of magmatic intrusions in the Gjallar Ridge, Norwegian Sea: Implications for vitrinite reflectance and hydrocarbon maturation. Basin Res. 2008, 20, 143–159. [Google Scholar] [CrossRef]
- Aarnes, I.; Planke, S.; Trulsvik, M.; Svensen, H. Contact metamorphism and thermogenic gas generation in the Vøring and Møre basins, offshore Norway, during the Paleocene–Eocene thermal maximum. J. Geol. Soc. 2015, 172, 588–598. [Google Scholar] [CrossRef]
- Svensen, H.; Planke, S.; Polozov, A.G.; Schmidbauer, N.; Corfu, F.; Podladchikov, Y.Y.; Jamtveit, B. Siberian gas venting and the end-Permian environmental crisis. Earth Planet. Sci. Lett. 2009, 277, 490–500. [Google Scholar] [CrossRef]
- Aarnes, I.; Svensen, H.; Connolly, J.A.; Podladchikov, Y.Y. How contact metamorphism can trigger global climate changes: Modeling gas generation around igneous sills in sedimentary basins. Geochim. Cosmochim. Acta 2010, 74, 7179–7195. [Google Scholar] [CrossRef] [Green Version]
- Othman, R.; Arouri, K.R.; Ward, C.R.; McKirdy, D.M. Oil generation by igneous intrusions in the northern Gunnedah Basin, Australia. Org. Geochem. 2001, 32, 1219–1232. [Google Scholar] [CrossRef]
- Jones, S.; Wielens, H.; Williamson, M.-C.; Zentilli, M. Impact of magmatism on petroleum systems in the sverdrup basin, canadian arctic islands, nunavut: A numerical modelling study. J. Pet. Geol. 2007, 30, 237–256. [Google Scholar] [CrossRef]
- Cooper, J.R.; Crelling, J.C.; Rimmer, S.M.; Whittington, A.G. Coal metamorphism by igneous intrusion in the Raton Basin, CO and NM: Implications for generation of volatiles. Int. J. Coal Geol. 2007, 71, 15–27. [Google Scholar] [CrossRef]
- Delpino, D.H.; Bermúdez, A.M. Petroleum systems including unconventional reservoirs in intrusive igneous rocks (sills and laccoliths). Lead. Edge 2009, 28, 804–811. [Google Scholar] [CrossRef]
- Karvelas, A.; Magee, C.; Shtukert, O.; Schenk, O.; Devine, T. Understanding Magmatic History and its Implications upon Petroleum Systems of the NE Rockall Basin. In Proceedings of the 77th EAGE Conference and Exhibition 2015. European Association of Geoscientists & Engineers, Madrid, Spain, 1–4 June 2015. [Google Scholar] [CrossRef]
- Svensen, H.; Planke, S.; Malthe-Sørenssen, A.; Jamtveit, B.; Myklebust, R.; Eidem, T.R.; Rey, S.S. Release of methane from a volcanic basin as a mechanism for initial Eocene global warming. Nature 2004, 429, 542–545. [Google Scholar] [CrossRef]
- Cartwright, J.; Huuse, M.; Aplin, A. Seal bypass systems. AAPG Bull. 2007, 91, 1141–1166. [Google Scholar] [CrossRef]
- Rateau, R.; Schofield, N.; Smith, M. The potential role of igneous intrusions on hydrocarbon migration, West of Shetland. Pet. Geosci. 2013, 19, 259–272. [Google Scholar] [CrossRef]
- Haug, T.; Galland, O.; Souloumiac, P.; Souche, A.; Guldstrand, F.; Schmiedel, T. Inelastic damage as a mechanical precursor for the emplacement of saucer-shaped intrusions. Geology 2017, 45, 1099–1102. [Google Scholar] [CrossRef]
- Schmiedel, T.; Kjoberg, S.; Planke, S.; Magee, C.; Galland, O.; Schofield, N.; Jackson, C.A.-L.; Jerram, D.A. Mechanisms of overburden deformation associated with the emplacement of the Tulipan sill, mid-Norwegian margin. Interpretation 2017, 5, SK23–SK38. [Google Scholar] [CrossRef] [Green Version]
- Zalán, P.V.; Wolff, S.; Conceição, J.C.J.; Marques, A.; Astolfi, M.A.M.; Vieira, I.S.; Appi, V.T.; Zanotto, O.A. Bacia Do Paraná. In Origem e Evolução de Bacias Sedimentares; Raja Gabiglia, G.P., Milani, E.J., Eds.; Petrobras: Rio de Janeiro, Brazil, 1990; pp. 681–708. [Google Scholar]
- Spacapan, J.; Palma, J.; Galland, O.; Manceda, R.; Rocha, E.; D’Odorico, A.; Leanza, H. Thermal impact of igneous sill-complexes on organic-rich formations and implications for petroleum systems: A case study in the northern Neuquén Basin, Argentina. Mar. Pet. Geol. 2018, 91, 519–531. [Google Scholar] [CrossRef]
- Filho, A.T.; Mizusaki, A.M.P.; Antonioli, L. Magmatism and petroleum exploration in the Brazilian Paleozoic basins. Mar. Pet. Geol. 2008, 25, 143–151. [Google Scholar] [CrossRef]
- Santos, R.V.; Dantas, E.L.; de Oliveira, C.G.; de Alvarenga, C.J.S.; dos Anjos, C.W.D.; Guimarães, E.M.; Oliveira, F.B. Geochemical and thermal effects of a basic sill on black shales and limestones of the Permian Irati Formation. J. S. Am. Earth Sci. 2009, 28, 14–24. [Google Scholar] [CrossRef]
- Annen, C. Implications of incremental emplacement of magma bodies for magma differentiation, thermal aureole dimensions and plutonism–volcanism relationships. Tectonophysics 2011, 500, 3–10. [Google Scholar] [CrossRef]
- Agirrezabala, L.M.; Permanyer, A.; Suárez-Ruiz, I.; Dorronsoro, C. Contact metamorphism of organic-rich mudstones and carbon release around a magmatic sill in the Basque-Cantabrian Basin, western Pyrenees. Org. Geochem. 2014, 69, 26–35. [Google Scholar] [CrossRef]
- Sydnes, M.; Fjeldskaar, W.; Løtveit, I.F.; Grunnaleite, I.; Cardozo, N. The importance of sill thickness and timing of sill emplacement on hydrocarbon maturation. Mar. Pet. Geol. 2018, 89, 500–514. [Google Scholar] [CrossRef] [Green Version]
- Skinner, B. The Many Origins of Hydrothermal Mineral Deposits. In Geochemistry of Hydrothermal Ore Deposits, 2nd ed.; Barnes, H.L., Ed.; John Wiley & Sons: New York, NY, USA, 1979; pp. 3–21. [Google Scholar]
- Qi, H.; Hu, R.; Su, W.; Qi, L.; Feng, J. Continental hydrothermal sedimentary siliceous rock and genesis of superlarge germanium (Ge) deposit hosted in coal: A study from the Lincang Ge deposit, Yunnan, China. Sci. China Ser. D Earth Sci. 2004, 47, 973–984. [Google Scholar] [CrossRef]
- Zhang, Y.; Horsfield, B.; Hou, D.; Noah, M.; Yang, S. Impact of hydrothermal activity on organic matter quantity and quality during deposition in the Permian Dalong Formation, Southern China. Mar. Pet. Geol. 2019, 110, 901–911. [Google Scholar] [CrossRef]
- Sun, X.; Chen, J.; Zheng, J.; Liu, W. Geochemical characteristics of organic matterrich sedimentary strata in Lower Cambrian, Tarim Basin and its origins. Acta Sedimentol. Sin. 2004, 22, 548–552, (In Chinese with English Abstract). [Google Scholar]
- Liu, J.; Liu, Q.; Zhu, D.; Meng, Q.; Liu, W.; Qiu, D.; Huang, Z. The role of deep fluid in the formation of organic-rich source rocks☆. J. Nat. Gas Geosci. 2018, 3, 171–180. [Google Scholar] [CrossRef]
- Liu, Q.; Zhu, D.; Jin, Z.; Meng, Q.; Li, S. Influence of volcanic activities on redox chemistry changes linked to the enhancement of the ancient Sinian source rocks in the Yangtze craton. Precambrian Res. 2019, 327, 1–13. [Google Scholar] [CrossRef]
- Gao, P.; He, Z.; Li, S.; Lash, G.G.; Li, B.; Huang, B.; Yan, D. Volcanic and hydrothermal activities recorded in phosphate nodules from the Lower Cambrian Niutitang Formation black shales in South China. Palaeogeogr. Palaeoclim. Palaeoecol. 2018, 505, 381–397. [Google Scholar] [CrossRef]
- Zhang, W.; Yang, H.; Xie, L.; Yang, Y. Lake-bottom hydrothermal activity and their influences on the high-quality source rock development: A case from Chang 7 source rocks in Ordos Basin, China. Pet. Explor. Dev. 2010, 37, 424–429, (In Chinese with English Abstract). [Google Scholar]
- Wu, F.Y.; Sun, D.Y.; Ge, W.C.; Zhang, Y.B.; Grant, M.L.; Wilde, S.A.; Jahn, B.M. Geochronology of the Phanerozoic granitoids in northeastern China. J. Asian Earth Sci. 2011, 41, 1–30. [Google Scholar] [CrossRef] [Green Version]
- Zhen, Z.; Li, Y.F.; Gao, X.Y.; Sun, S.L.; Zhou, T.S. Characteristics of sedimentary facies and organic matter of Lower Jurassic Beipiao Formation of Well SZK01 in Jinyang Basin. Glob. Geol. 2016, 35, 207–215, (In Chinese with English Abstract). [Google Scholar]
- Sun, S.L.; Li, Y.F.; Gao, X.Y.; Zhou, T.S.; Zhang, T.; Wang, S.H. An analysis of the genesis and geochemical characteristics of shale gas in Lower Jurassic Beipiao Formation in Jinyang Basin. Geol. Bull. China 2017, 36, 575–581, (In Chinese with English Abstract). [Google Scholar]
- Sun, S.L.; Li, Y.F.; Chen, S.W.; Gao, X.Y.; Sun, Q.S.; Zhang, K.; Zhou, T.S. Depositional environment and organic geochemical characteristics of source rocks of Beipiao Formation in Jinyang Basin. Glob. Geol. 2017, 36, 889–902, (In Chinese with English Abstract). [Google Scholar]
- Sun, S.L.; Zhang, T.; Liu, M.; Li, Y.F.; Chen, S.W.; Zhang, J.; Tang, Y.J.; Sun, Q.S. Sedimentary environment and genesis of source rocks of Beipiao Formation in Jinyang Basin, Western Liaoning. J. Northeast. Pet. Univ. 2019, 43, 1–12, (In Chinese with English Abstract). [Google Scholar]
- Sun, S.; Zhang, T.; Li, Y.; Chen, S.; Sun, Q. Effects of igneous intrusions on source rock in the early diagenetic stage: A case study on Beipiao Formation in Jinyang Basin, Northeast China. Open Geosci. 2020, 12, 990–1002. [Google Scholar] [CrossRef]
- Mou, H.S.; Xue, X.Y.; Jiang, Z.X. Exploration status and prospect of shale oil and gas in the Mesozoic Basins, Eastern Yanshan Orogenic Belt. Earth Sci. Front. 2022, 1–14, in press(In Chinese with English Abstract). [Google Scholar]
- Liu, X. Some viewpoints on Yanshan Movement in Eastern China. Geol. Rev. 1982, 28, 428–438, (In Chinese with English Abstract). [Google Scholar]
- Zhou, L.D.; Zhao, M.P. Study on evolution history of the fault zone on the west edge of Jinlingsi-Yangshan Basin in west Liaoning. Liaoning Geol. 1999, 16, 249–254, (In Chinese with English Abstract). [Google Scholar]
- Wang, G.H.; Zhang, C.H.; Wang, S.G. Tectonic framework of Western Liaoning Province and its evolution during Mesozoic. Geoscience 2001, 15, 1–7, (In Chinese with English Abstract). [Google Scholar]
- Li, Z.; Liu, S.; Zhang, J.; Wang, Q. Typical basin-fill sequences and basin migration in Yanshan, North China. Sci. China Ser. D: Earth Sci. 2004, 47, 181–192. [Google Scholar] [CrossRef]
- Yan, Y.; Lin, G.; Li, Z. Characteristics of the Jurassic filling sequence and the indication of tectonic evolution of Beipiao basin, western Liaoning. J. Strat. 2002, 26, 151–155, (In Chinese with English Abstract). [Google Scholar]
- Liu, S.; Zhang, J.; Hong, S.; Ritts, B.D. Early Mesozoic Basin Development and Its Response to Thrusting in the Yanshan Fold-and-Thrust Belt, China. Int. Geol. Rev. 2007, 49, 1025–1049. [Google Scholar] [CrossRef]
- Liu, S.; Li, Z.; Zhang, J. Mesozoic basin evolution and tectonic mechanism in Yanshan, China. Sci. China Ser. D Earth Sci. 2004, 47, 24–38. [Google Scholar] [CrossRef]
- Li, Y.; Chen, S. A new discovery of oil and gas in Jinyang Basin, western Liaoning province. Geol. Bull. China 2014, 33, 1463–1464, (In Chinese with English Abstract). [Google Scholar]
- Zhang, T.; Li, Y.F.; Sun, S.L.; Gao, X.Y.; Zhou, T.S.; Sun, P. Saturated hydrocarbon geochemical characteristics of the oil sand from YD1 well in Jinyang Basin and its significance for oil and gas exploration. Geol. Bull China 2017, 36, 582–590, (In Chinese with English Abstract). [Google Scholar]
- Liu, M.; Chen, J.S.; Sun, S.L.; Li, B.; Yang, F.; Zhang, T.; Wang, Y.; Wu, Z. Stratigraphic sequence and characteristics of depositional system of the Beipiao Formation in the Beipiao (Jin-Yang) basin, western Liaoning. Geol. Bull. China 2018, 37, 1755–1759, (In Chinese with English Abstract). [Google Scholar]
- Liu, M.; Zhang, Y.J.; Sun, S.L.; Chen, J.S.; Li, B.; Yang, F.; Zhang, T.; Wang, Y.; Wu, Z. Palynological assemblages of Beipiao Formation in Jinyang Basin of West Liaoning, and their age and Paleoclimatic significances. Earth Sci. 2019, 44, 3393–3408, (In Chinese with English Abstract). [Google Scholar]
- Zhang, L.S.; Xie, M.Z.; Zhang, S.S.; Zhang, X.S.; Shang, H.T.; Li, X.H.; Wu, R.F. Rediscussion on geologic age and regional correlation about Beipiao Formation in Western Liaoning. Geol. Rev. 2016, 62, 1392–1402, (In Chinese with English Abstract). [Google Scholar]
- Gao, H.-L.; Zhao, Y.; Zhang, S.-H.; Liu, J.; Ye, H.; Wang, G.-C. Ages of Jurassic volcano-sedimentary strata in the Yanshan Fold-and-Thrust Belt and their implications for the coal-bearing strata of northern China. Int. Geol. Rev. 2018, 61, 956–971. [Google Scholar] [CrossRef]
- Peters, K.E.; Cassa, M.R. Applied Source Rock Geochemistry. In The Petroleum Systemdfrom Source to Trap; Magoon, L.B., Dow, W.G., Eds.; The American Association of Petroleum Geologists: Tulsa, OK, USA, 1994; Volume 60, pp. 93–120. [Google Scholar]
- Douville, E.; Bienvenu, P.; Charlou, J.L.; Donval, J.P.; Fouquet, Y.; Appriou, P.; Gamo, T. Yttrium and rare earth elements in fluids from various deep-sea hydrothermal systems. Geochim. Cosmochim. Acta 1999, 63, 627–643. [Google Scholar] [CrossRef]
- Craddock, P.R.; Bach, W.; Seewald, J.S.; Rouxel, O.J.; Reeves, E.; Tivey, M.K. Rare earth element abundances in hydrothermal fluids from the Manus Basin, Papua New Guinea: Indicators of sub-seafloor hydrothermal processes in back-arc basins. Geochim. Cosmochim. Acta 2010, 74, 5494–5513. [Google Scholar] [CrossRef] [Green Version]
- Chu, C.L.; Chen, Q.L.; Zhang, B.; Shi, Z.; Jiang, H.J.; Yang, X. Influence on formation of Yuertusi source rock by hydrothermal activities at Dongergou section, Tarim Basin. Acta Sedimentol. Sin. 2016, 34, 803–810, (In Chinese with English Abstract). [Google Scholar]
- Peters, K.E.; Walters, C.C.; Moldowan, J.M. The Biomarker Guide: Biomarkers and Isotopes in Petroleum Exploration and Earth History, 2nd ed.; Cambridge University Press: Cambridge, UK, 2005; Volume 2. [Google Scholar]
- George, S. Effect of igneous intrusion on the organic geochemistry of a siltstone and an oil shale horizon in the Midland Valley of Scotland. Org. Geochem. 1992, 18, 705–723. [Google Scholar] [CrossRef]
- Cronan, D.; Varnavas, S.; Perissoratis, C. Hydrothermal sedimentation in the caldera of Santorini, Hellenic Volcanic Arc. Terra Nova 1995, 7, 289–293. [Google Scholar] [CrossRef]
- Hecht, L.; Freiberger, R.; Gilg, H.A.; Grundmann, G.; Kostitsyn, Y.A. Rare earth element and isotope (C, O, Sr) characteristics of hydrothermal carbonates: Genetic implications for dolomite-hosted talc mineralization at Göpfersgrün (Fichtelgebirge, Germany). Chem. Geol. 1999, 155, 115–130. [Google Scholar] [CrossRef]
- Hu, W.X.; Chen, Q.; Wang, X.L.; Cao, J. REE models for the discrimination of fluids in the formation and evolution of dolomite reservoirs. Oil Gas Geol. 2010, 31, 810–818, (In Chinese with English Abstract). [Google Scholar]
- Hu, W.X. Origin and indicators of deep-seated fluids in sedimentary basins. Bull. Miner. Petrol. Geochem. 2016, 35, 817–826, (In Chinese with English Abstract). [Google Scholar]
- Bau, M.; Schmidt, K.; Koschinsky, A.; Hein, J.; Kuhn, T.; Usui, A. Discriminating between different genetic types of marine ferro-manganese crusts and nodules based on rare earth elements and yttrium. Chem. Geol. 2014, 381, 1–9. [Google Scholar] [CrossRef]
- Espitalié, J.; Laporte, J.L.; Madec, M.; Marquis, F.; Leplat, P.; Pauletand, J.; Boutefeu, A. Methode rapide de caracterisation des roches meres, de leur potential petrolier et de leur degre d’evolution. Rev. Inst. Fr. Petrol. 1977, 32, 23–42. [Google Scholar] [CrossRef]
- Peters, K.E. Guidelines for Evaluating Petroleum Source Rock Using Programmed Pyrolysis. AAPG Bull. 1986, 70, 318–329. [Google Scholar] [CrossRef]
- Langford, F.F.; Blanc-Valleron, M. Interpreting Rock-Eval pyrolysis data using graphs of pyrolizable hydrocarbons vs. total organic carbon. AAPG (Am. Assoc. Pet. Geol.) Bull. 1990, 74, 799–804. [Google Scholar]
- Svensen, H.; Planke, S.; Chevallier, L.; Malthe-Sørenssen, A.; Corfu, F.; Jamtveit, B. Hydrothermal venting of greenhouse gases triggering Early Jurassic global warming. Earth Planet. Sci. Lett. 2007, 256, 554–566. [Google Scholar] [CrossRef]
- Aarnes, I.; Svensen, H.; Polteau, S.; Planke, S. Contact metamorphic devolatilization of shales in the Karoo Basin, South Africa, and the effects of multiple sill intrusions. Chem. Geol. 2011, 281, 181–194. [Google Scholar] [CrossRef]
- Bishop, A.N.; Abbott, G.D. Vitrinite reflectance and molecular geochemistry of Jurassic sediments: The influence of heating by Tertiary dykes (northwest Scotland). Org. Geochem. 1995, 22, 165–177. [Google Scholar] [CrossRef]
- Iyer, K.; Schmid, D.W. Comment on “Thickness matters: Influence of dolerite sills on the thermal maturity of surrounding rocks in a coal bed methane play in Botswana” by Bulguroglu and Milkov (2020). Mar. Pet. Geol. 2020, 115, 104247. [Google Scholar] [CrossRef]
- Wang, D. Comparable study on the effect of errors and uncertainties of heat transfer models on quantitative evaluation of thermal alteration in contact metamorphic aureoles: Thermophysical parameters, intrusion mechanism, pore-water volatilization and mathematical equations. Int. J. Coal Geol. 2012, 95, 12–19. [Google Scholar] [CrossRef]
- Aquino Neto, F.R.; Trendel, J.M.; Restle, A.; Connan, J.; Albrecht, P. Occurrence and Formation of Tricyclic and Tetracyclic Terpanes in Sediments and Petroleum. In Advances in Organic Geochemistry, Bjorøy, M., Ed.; Wiley: Hoboken, NJ, USA, 1981; pp. 659–667. [Google Scholar]
- Neto, F.A.; Trigüis, J.; Azevedo, D.; Rodriques, R.; Simoneit, B. Organic geochemistry of geographically unrelated tasmanites. Org. Geochem. 1992, 18, 791–803. [Google Scholar] [CrossRef]
- Zumberge, J.E. Prediction of source rock characteristics based on terpane biomarkers in crude oils: A multivariate statistical approach. Geochim. Cosmochim. Acta 1987, 51, 1625–1637. [Google Scholar] [CrossRef]
- Hanson, A.D.; Zhang, S.C.; Moldowan, J.M.; Liang, D.G.; Zhang, B.M. Molecular organic geochemistry of the Tarim basin, NW China. AAPG (Am. Assoc. Pet. Geol.) Bull. 2000, 84, 1109–1128. [Google Scholar]
- Volk, H.; George, S.C.; Dutkiewicz, A.; Ridley, J. Characterisation of fluid inclusion oil in a Mid-Proterozoic sandstone and dolerite (Roper Superbasin, Australia). Chem. Geol. 2005, 223, 109–135. [Google Scholar] [CrossRef]
- Noble, R.A.; Alexander, R.; Kagi, R.I.; Knox, J. Tetracyclic diterpenoid hydrocarbons in some Australian coals, sediments and crude oils. Geochim. Cosmochim. Acta 1985, 49, 2141–2147. [Google Scholar] [CrossRef]
- Azevedo, D.; Neto, F.R.A.; Simoneit, B.; Pinto, A. Novel series of tricyclic aromatic terpanes characterized in Tasmanian tasmanite. Org. Geochem. 1992, 18, 9–16. [Google Scholar] [CrossRef]
- Volkman, J.K. A review of sterol markers for marine and terrigenous organic matter. Org. Geochem. 1986, 9, 83–99. [Google Scholar] [CrossRef]
- Grantham, P.; Wakefield, L. Variations in the sterane carbon number distributions of marine source rock derived crude oils through geological time. Org. Geochem. 1988, 12, 61–73. [Google Scholar] [CrossRef]
- Volkman, J.K.; Barrett, S.M.; Blackburn, S.I.; Mansour, M.P.; Sikes, E.L.; Gelin, F. Microalgal biomarkers: A review of recent research developments. Org. Geochem. 1998, 29, 1163–1179. [Google Scholar] [CrossRef]
- Knoll, A.H.; Summons, R.E.; Waldbauer, J.R.; Zumberge, J.E. The Geological Succession of Primary Producers in the Oceans. In The Evolution of Primary Producers in the Sea; Falkowski, P., Knoll, A.H., Eds.; Academic Press: Boston, MA, USA, 2007; pp. 133–163. [Google Scholar] [CrossRef]
- Huang, W.-Y.; Meinschein, W. Sterols as ecological indicators. Geochim. Cosmochim. Acta 1979, 43, 739–745. [Google Scholar] [CrossRef]
- Bohacs, K.M.; Carroll, A.R.; Neal, J.E.; Mankiewicz, P.J. Lake-Basin Type, Source Potential, and Hydrocarbon Character: An Integrated Sequence-Stratigraphicgeochemical Framework. In Lake Basins through Space and Time; Gierlowski-Kordesch, E.H., Kelts, K.R., Eds.; American Association of Petroleum Geologists Studies in Geology: Tulsa, OK, USA, 2000; Volume 46, pp. 3–34. [Google Scholar]
- Gonçalves, F.T.T. Organic and isotope geochemistry of the Early Cretaceous rift sequence in the Camamu Basin, Brazil: Paleolimnological inferences and source rock models. Org. Geochem. 2002, 33, 67–80. [Google Scholar] [CrossRef]
- Goodwin, N.; Mann, A.; Patience, R. Structure and significance of C30 4-methyl steranes in lacustrine shales and oils. Org. Geochem. 1988, 12, 495–506. [Google Scholar] [CrossRef]
- Volkman, J.K.; Farmer, C.L.; Barrett, S.M.; Sikes, E.L. Unusual dihydroxysterols as chemotaxonomic markers for microalgae from the order pavlovales (haptophyceae). J. Phycol. 1997, 33, 1016–1023. [Google Scholar] [CrossRef]
- Hou, D.; Wang, T.; Kong, Q.; Feng, Z.; Moldowan, J.M. Distribution and characterization of C31 sterane from cretaceous sediments and oils, Songliao Basin, China. Chin. Sci. Bull. 1999, 44, 560–563. [Google Scholar] [CrossRef]
- Thomas, J.; Marshall, J.; Mann, A.; Summons, R.; Maxwell, J. Dinosteranes (4,23,24-trimethylsteranes) and other biological markers in dinoglagellate-rich marine sediments of Rhaetian age. Org. Geochem. 1993, 20, 91–104. [Google Scholar] [CrossRef]
- Xiao, H.; Li, M.J.; Yang, Z.; Zhu, Z.L. Distribution patterns and geochemical implications of C19–C23 tricyclic terpanes in source rocks and crude oils occurring in various depositional environments. Acta Geochim. 2019, 48, 161–170, (In Chinese with English Abstract). [Google Scholar]
- Didyk, B.M.; Simoneit, B.R.T.; Brassell, S.C.; Eglinton, G. Organic geochemical indicators of palaeoenvironmental conditions of sedimentation. Nature 1978, 272, 216–222. [Google Scholar] [CrossRef]
- Mello, M.R.; Telnaes, N.; Caglianone, P.C.; Chicarelli, M.I.; Brassell, S.C.; Maxwell, J.R. Organic geochemical characterization of depositional palaeoenvironments of source rocks and oils in Brazilian marginal basins. Org. Geochem. 1988, 13, 31–45. [Google Scholar] [CrossRef]
- Damsté, J.S.S.; Kenig, F.; Koopmans, M.P.; Köster, J.; Schouten, S.; Hayes, J.; de Leeuw, J.W. Evidence for gammacerane as an indicator of water column stratification. Geochim. Cosmochim. Acta 1995, 59, 1895–1900. [Google Scholar] [CrossRef] [Green Version]
Sample No. | Fm. | Lithology | Distance (m) | TOC (%) | S1 (mg/g) | S2 (mg/g) | Tmax (°C) | HI (mg/g) | OI (mg/g) | Ro (%) |
---|---|---|---|---|---|---|---|---|---|---|
WL-1 | J1b | Shale | 29.00 | 2.18 | 0.09 | 0.19 | 573.00 | 8.72 | 216.06 | 1.45 |
WL-2 | J1b | Shale | 46.00 | 3.20 | 0.05 | 0.12 | 558.00 | 3.75 | 184.38 | 1.51 |
WL-3 | J1b | Shale | 94.00 | 2.90 | 0.03 | 0.08 | 531.00 | 2.76 | 160.34 | 1.43 |
WL-4 | J1b | Shale | 114.00 | 2.57 | 0.06 | 0.15 | 447.00 | 5.84 | 163.04 | 0.97 |
WL-5 | J1b | Shale | 150.00 | 1.29 | 0.11 | 0.19 | 471.00 | 14.73 | 430.23 | 1.13 |
WL-6 | J1b | Shale | 250.00 | 1.63 | 0.03 | 0.04 | 427.00 | 2.45 | 142.94 | 0.84 |
WL-7 | J1b | Shale | 300.00 | 1.68 | 0.04 | 0.10 | 430.00 | 5.95 | 110.71 | 0.86 |
WL-8 | J1b | Shale | 335.00 | 0.61 | 0.02 | 0.03 | 472.00 | 4.96 | 345.45 | 1.14 |
WL-9 | J1b | Shale | 380.00 | - | - | - | - | - | - | - |
WL-10 | J1b | Shale | 396.00 | - | - | - | - | - | - | - |
DK-1 | J1b | Shale | 280.00 | 0.87 | 0.13 | 0.61 | 444.00 | 70.36 | 144.18 | 1.11 |
DK-2 | J1b | Shale | 310.00 | 0.65 | 0.06 | 0.28 | 444.00 | 43.28 | 194.74 | 1.14 |
DK-3 | J1b | Shale | 340.00 | 0.95 | 0.25 | 1.08 | 447.00 | 114.04 | 180.57 | 1.14 |
DK-4 | J1b | Shale | 370.00 | 1.66 | 0.20 | 1.16 | 450.00 | 69.88 | 80.12 | 1.09 |
DK-5 | J1b | Shale | 390.00 | 1.44 | 0.04 | 0.19 | 470.00 | 13.19 | 106.25 | 1.08 |
DK-6 | J1b | Shale | 450.00 | 2.39 | 0.16 | 1.22 | 446.00 | 51.05 | 66.95 | 1.02 |
DK-7 | J1b | Shale | 520.00 | 1.39 | 0.12 | 0.35 | 444.00 | 25.18 | 87.05 | 0.97 |
DK-8 | J1b | Shale | 570.00 | 1.56 | 0.09 | 0.97 | 447.00 | 62.18 | 123.08 | 0.86 |
DK-9 | J1b | Shale | 620.00 | 3.27 | 0.30 | 2.69 | 448.00 | 82.26 | 47.09 | 0.86 |
DK-10 | J1b | Shale | 740.00 | 2.17 | 0.14 | 1.23 | 446.00 | 56.68 | 86.18 | 0.82 |
Sample No. | Distance (m) | La | Ce | Pr | Nd | Sm | Eu | Gd | Tb | Dy | Ho | Er | Tm | Yb | Lu | ∑REE | LREE/HREE | δEu | δCe |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
WL-1 | 29 | 60.11 | 117.66 | 14.36 | 54.89 | 10.72 | 2.33 | 7.99 | 1.13 | 6.38 | 1.20 | 3.35 | 0.49 | 3.02 | 0.42 | 284.03 | 10.85 | 1.19 | 0.92 |
WL-2 | 46 | 55.41 | 110.59 | 13.34 | 51.55 | 9.97 | 2.18 | 7.08 | 0.98 | 5.50 | 1.01 | 2.70 | 0.38 | 2.55 | 0.36 | 263.59 | 11.82 | 1.22 | 0.94 |
WL-3 | 94 | 57.09 | 113.47 | 13.88 | 54.39 | 10.57 | 2.23 | 8.46 | 1.12 | 6.52 | 1.17 | 3.25 | 0.46 | 2.82 | 0.44 | 275.85 | 10.38 | 1.11 | 0.93 |
WL-4 | 114 | 67.59 | 129.06 | 15.90 | 62.36 | 12.13 | 2.57 | 9.96 | 1.37 | 7.81 | 1.52 | 4.30 | 0.62 | 4.01 | 0.59 | 319.79 | 9.60 | 1.10 | 0.91 |
WL-5 | 150 | 59.23 | 124.87 | 14.07 | 54.21 | 10.45 | 2.21 | 7.94 | 1.15 | 6.92 | 1.34 | 3.66 | 0.56 | 3.61 | 0.49 | 290.70 | 10.32 | 1.14 | 1.00 |
WL-6 | 250 | 57.72 | 123.64 | 14.59 | 56.39 | 11.08 | 2.08 | 7.71 | 1.03 | 5.92 | 1.10 | 2.96 | 0.44 | 2.86 | 0.40 | 287.92 | 11.84 | 1.06 | 0.98 |
WL-7 | 300 | 52.07 | 97.74 | 11.94 | 45.00 | 8.12 | 1.84 | 6.28 | 0.86 | 5.11 | 0.93 | 2.59 | 0.38 | 2.58 | 0.35 | 235.80 | 11.35 | 1.21 | 0.90 |
WL-8 | 335 | 46.68 | 92.84 | 11.25 | 43.44 | 8.26 | 2.04 | 6.90 | 0.99 | 5.97 | 1.17 | 3.24 | 0.46 | 3.13 | 0.46 | 226.83 | 9.16 | 1.27 | 0.93 |
WL-9 | 380 | 70.25 | 148.08 | 17.41 | 65.30 | 11.22 | 2.11 | 7.13 | 0.94 | 5.44 | 0.94 | 2.63 | 0.37 | 2.59 | 0.33 | 334.73 | 15.43 | 1.11 | 0.98 |
WL-10 | 396 | 36.07 | 56.87 | 6.19 | 19.38 | 3.24 | 0.70 | 2.63 | 0.51 | 3.20 | 0.63 | 1.77 | 0.28 | 1.73 | 0.22 | 133.40 | 11.18 | 1.13 | 0.88 |
DK-1 | 280 | 34.21 | 68.99 | 4.23 | 33.09 | 9.93 | 1.92 | 10.83 | 0.53 | 9.45 | 1.60 | 7.81 | 0.29 | 9.62 | 0.13 | 192.64 | 3.78 | 0.87 | 1.32 |
DK-2 | 310 | 30.61 | 85.54 | 6.96 | 36.01 | 6.97 | 1.73 | 6.87 | 0.51 | 4.22 | 0.39 | 1.80 | 0.24 | 1.83 | 0.20 | 183.87 | 10.46 | 1.17 | 1.35 |
DK-3 | 340 | 27.03 | 54.34 | 5.92 | 31.08 | 6.33 | 1.02 | 6.35 | 0.43 | 4.39 | 0.48 | 2.31 | 0.10 | 2.47 | 0.12 | 142.38 | 7.55 | 0.76 | 0.99 |
DK-4 | 370 | 43.87 | 118.08 | 9.53 | 49.21 | 9.68 | 2.05 | 9.74 | 0.76 | 6.31 | 0.70 | 2.99 | 0.34 | 3.19 | 0.31 | 256.76 | 9.55 | 0.99 | 1.33 |
DK-5 | 390 | 20.13 | 61.92 | 3.86 | 33.70 | 10.95 | 1.77 | 12.19 | 0.66 | 10.46 | 1.74 | 8.37 | 0.23 | 10.14 | 0.19 | 176.32 | 3.01 | 0.72 | 1.62 |
DK-6 | 450 | 18.01 | 58.88 | 3.44 | 30.43 | 10.19 | 1.84 | 11.34 | 0.61 | 9.78 | 1.65 | 7.94 | 0.26 | 9.62 | 0.15 | 164.13 | 2.97 | 0.80 | 1.73 |
DK-7 | 520 | 38.08 | 104.58 | 8.02 | 42.91 | 9.69 | 1.58 | 10.62 | 0.81 | 7.52 | 0.97 | 4.46 | 0.37 | 5.43 | 0.44 | 235.47 | 6.69 | 0.73 | 1.38 |
DK-8 | 570 | 29.45 | 67.52 | 6.49 | 32.69 | 6.24 | 1.30 | 6.07 | 0.43 | 3.80 | 0.36 | 1.70 | 0.16 | 1.85 | 0.13 | 158.17 | 9.92 | 0.99 | 1.13 |
DK-9 | 620 | 32.80 | 64.19 | 6.86 | 35.85 | 7.37 | 1.27 | 7.35 | 0.52 | 5.06 | 0.56 | 2.63 | 0.18 | 2.99 | 0.19 | 167.81 | 7.62 | 0.81 | 0.99 |
DK-10 | 740 | 39.39 | 106.43 | 9.10 | 51.75 | 12.19 | 2.81 | 13.23 | 1.05 | 8.12 | 0.89 | 3.47 | 0.34 | 3.35 | 0.29 | 252.41 | 7.21 | 1.04 | 1.30 |
Sampleno. | Fm. | Lithology | Distance (m) | Pr/Ph | 20S | αββ | 22S | Ts | M/H | C27 (%) | C28 (%) | C29 (%) | C19+20 TT(%) | C21TT (%) | C23TT (%) | C19/C23 | C27/C29 | S/H | GI | 4MSI |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
WL-1 | J1b | Shale | 29.00 | - | 0.49 | 0.43 | 0.65 | 0.54 | 0.13 | 35.64 | 30.55 | 33.81 | 16.40 | 30.39 | 53.21 | 0.08 | 1.05 | 0.81 | 0.43 | 0.23 |
WL-2 | J1b | Shale | 46.00 | - | 0.45 | 0.40 | 0.65 | 0.52 | 0.14 | 41.89 | 27.74 | 30.37 | 11.82 | 34.21 | 53.97 | 0.05 | 1.38 | 0.89 | 0.42 | 0.26 |
WL-3 | J1b | Shale | 94.00 | 0.81 | 0.43 | 0.36 | 0.68 | 0.55 | 0.15 | 38.16 | 26.58 | 35.26 | 28.18 | 28.51 | 43.31 | 0.22 | 1.08 | 0.90 | 0.36 | 0.28 |
WL-4 | J1b | Shale | 114.00 | 0.62 | 0.47 | 0.43 | 0.66 | 0.54 | 0.13 | 45.26 | 26.34 | 28.41 | 16.35 | 28.61 | 55.03 | 0.09 | 1.59 | 1.18 | 0.48 | 0.23 |
WL-5 | J1b | Shale | 150.00 | 0.71 | 0.46 | 0.42 | 0.59 | 0.52 | 0.13 | 37.82 | 29.60 | 32.58 | 17.15 | 28.38 | 54.47 | 0.07 | 1.16 | 0.91 | 0.50 | 0.22 |
WL-6 | J1b | Shale | 250.00 | 0.79 | 0.48 | 0.42 | 0.65 | 0.54 | 0.13 | 35.55 | 31.60 | 32.85 | 19.42 | 32.69 | 47.89 | 0.12 | 1.08 | 0.80 | 0.38 | 0.29 |
WL-7 | J1b | Shale | 300.00 | 0.92 | 0.50 | 0.43 | 0.60 | 0.51 | 0.13 | 38.89 | 30.38 | 30.74 | 21.29 | 28.38 | 50.33 | 0.10 | 1.27 | 0.73 | 0.46 | 0.26 |
WL-8 | J1b | Shale | 335.00 | 0.87 | 0.45 | 0.40 | 0.68 | 0.51 | 0.13 | 39.83 | 28.71 | 31.46 | 17.00 | 30.62 | 52.38 | 0.16 | 1.27 | 0.92 | 0.38 | 0.26 |
WL-9 | J1b | Shale | 380.00 | 0.70 | 0.48 | 0.41 | 0.71 | 0.53 | 0.12 | 39.04 | 30.79 | 30.17 | 20.50 | 30.53 | 48.96 | 0.09 | 1.29 | 1.18 | 0.36 | 0.25 |
WL-10 | J1b | Shale | 396.00 | 0.63 | 0.48 | 0.40 | 0.66 | 0.53 | 0.14 | 33.83 | 32.58 | 33.59 | 14.69 | 33.34 | 51.97 | 0.07 | 1.01 | 0.80 | 0.74 | 0.16 |
DK-4 | J1b | Shale | 370.00 | 2.95 | 0.50 | 0.52 | 0.59 | 0.69 | 0.12 | 26.55 | 27.30 | 46.15 | 56.13 | 20.55 | 23.32 | 0.95 | 0.73 | 0.49 | 0.16 | 0.05 |
DK-5 | J1b | Shale | 390.00 | 2.57 | 0.48 | 0.43 | 0.60 | 0.40 | 0.13 | 26.91 | 22.27 | 50.82 | 63.59 | 17.62 | 18.79 | 1.65 | 0.89 | 0.16 | 0.08 | 0.04 |
DK-9 | J1b | Shale | 620.00 | 3.93 | 0.45 | 0.38 | 0.59 | 0.26 | 0.13 | 25.48 | 20.11 | 54.41 | 68.66 | 16.48 | 14.87 | 2.31 | 0.66 | 0.12 | 0.05 | 0.04 |
DK-10 | J1b | Shale | 740.00 | 1.93 | 0.52 | 0.49 | 0.61 | 0.89 | 0.09 | 32.29 | 25.12 | 42.59 | 63.04 | 16.97 | 19.98 | 1.02 | 1.01 | 0.70 | 0.46 | 0.04 |
Sample No. | Fm. | Lithology | Co | Ni | Zn |
---|---|---|---|---|---|
WL-1 | J1b | Shale | 21.96 | 150.22 | 118.74 |
WL-2 | J1b | Shale | 20.99 | 145.05 | 115.84 |
WL-3 | J1b | Shale | 26.81 | 171.63 | 99.55 |
WL-4 | J1b | Shale | 21.40 | 160.33 | 112.85 |
WL-5 | J1b | Shale | 24.39 | 115.97 | 105.27 |
WL-6 | J1b | Shale | 27.88 | 145.31 | 96.17 |
WL-7 | J1b | Shale | 10.05 | 100.50 | 79.33 |
WL-8 | J1b | Shale | 9.92 | 105.82 | 58.54 |
WL-9 | J1b | Shale | 9.44 | 96.46 | 67.21 |
WL-10 | J1b | Shale | 4.16 | 35.34 | 40.03 |
DK-1 | J1b | Shale | 24.85 | 70.87 | 165.80 |
DK-2 | J1b | Shale | 31.27 | 53.41 | 116.73 |
DK-3 | J1b | Shale | 18.74 | 69.26 | 127.86 |
DK-4 | J1b | Shale | 25.41 | 110.08 | 200.36 |
DK-5 | J1b | Shale | 26.71 | 141.51 | 133.05 |
DK-6 | J1b | Shale | 37.37 | 197.21 | 163.98 |
DK-7 | J1b | Shale | 35.41 | 58.50 | 302.34 |
DK-8 | J1b | Shale | 21.82 | 74.29 | 135.88 |
DK-9 | J1b | Shale | 24.53 | 104.40 | 156.69 |
DK-10 | J1b | Shale | 33.02 | 110.92 | 185.75 |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Deng, S.; Li, S.; Sun, S.; Hao, Z.; Qin, M.; Li, Y. Effects of Magmatic-Hydrothermal Activities on Characteristic of Source Rocks from Beipiao Formation in the Jinyang Basin, NE China. Minerals 2022, 12, 947. https://doi.org/10.3390/min12080947
Deng S, Li S, Sun S, Hao Z, Qin M, Li Y. Effects of Magmatic-Hydrothermal Activities on Characteristic of Source Rocks from Beipiao Formation in the Jinyang Basin, NE China. Minerals. 2022; 12(8):947. https://doi.org/10.3390/min12080947
Chicago/Turabian StyleDeng, Shuo, Sumei Li, Shouliang Sun, Ziyan Hao, Menghua Qin, and Yongfei Li. 2022. "Effects of Magmatic-Hydrothermal Activities on Characteristic of Source Rocks from Beipiao Formation in the Jinyang Basin, NE China" Minerals 12, no. 8: 947. https://doi.org/10.3390/min12080947
