Article

Age and Composition of Columbite-Tantalite Group Minerals in the Spodumene Pegmatite from the Chakabeishan Deposit, Northern Tibetan Plateau and Their Implications

by
Wenli Sun
1,2,3,
Zhidan Zhao
2,*,
Xuanxue Mo
2,
Chunjing Wei
1,
Guochen Dong
2,
Xiaowei Li
2,
Wanming Yuan
2,
Tao Wang
4,
Shuang Yang
2,
Bingzhang Wang
4,
Tong Pan
4,
Jie Han
4,
Hongliang Cao
4,
Yan Tang
2 and
Liangliang Zhang
2
1
MOE Key Laboratory of Orogenic Belts and Crustal Evolution, School of Earth and Space Sciences, Peking University, Beijing 100871, China
2
State Key Laboratory of Geological Processes and Mineral Resources, School of Earth Science and Resources, China University of Geosciences, Beijing 100083, China
3
Gansu Industry Polytechnic College, Tianshui 741025, China
4
Bureau of Geological Exploration and Development of Qinghai Province, Xining 810012, China
*
Author to whom correspondence should be addressed.
Minerals 2023, 13(2), 201; https://doi.org/10.3390/min13020201
Submission received: 19 December 2022 / Revised: 27 January 2023 / Accepted: 28 January 2023 / Published: 30 January 2023
(This article belongs to the Special Issue Understanding Hydrothermal Ore Deposits: Insights from In-situ Analyses)
Browse Figures
Versions Notes

Abstract

:
The Chakabeishan (CKBS) deposit is the first pegmatite-type Li-Be deposit discovered in the eastern North Qaidam Tectonic Belt (NQTB) of Tibetan Plateau. The correct understanding of its petrogenesis and the precise determination of its formation age are of great significance for further regional prospecting and the discovery of new economically valuable rare-metal deposits. Therefore, a systematic study of texture, major-element composition, and U-Pb dating of columbite-tantalite group minerals (CGMs) in the spodumene pegmatite dyke from the CKBS deposit was undertaken. Three types of CGMs were identified, including concentric oscillatory ferrocolumbite (CGMs-1), homogeneous ferrocolumbite (CGMs-2), and irregular ferrotantalite (minor manganocolumbite) with abundant early ferrocolumbite replacement remnants (CGMs-3). The zoning patterns and chemical compositions in the CGMs record the complex evolutionary history of their host pegmatite from the magmatic stage (CGMs-1, disequilibrium crystallization) to the magmatic-hydrothermal transition stage (CGMs-2, equilibrium crystallization) and then to the late metasomatic stage (CGMs-3, replacement/re-equilibrium). CGMs U-Pb dating results suggest that the spodumene pegmatite dyke (No.15) emplaced at 230.1 ± 2.6 Ma. Subsequently, it experienced fluid metasomatism at 221 ± 5.3 Ma. Based on the new age data and published geochronological data, it can be concluded that the spodumene pegmatite dykes in the CKBS deposit formed in an oceanic subduction-related setting, representing a new metallogenic event in western China. Except for the CKBS deposit, a large number of rare-metal pegmatite dykes have also been discovered in the eastern NQTB, indicating that the eastern NQTB may be an important potential rare-metal metallogenic belt that should be explored in detail and arouse painstaking attention.

1. Introduction

Rare metals (e.g., Li, Be, Nb, Ta, Rb and Cs) play a vital role in the modern electronic industry, medicine, new energy industry, national defense and other high-tech fields. No nation has all of the rare-metal resources it needs domestically, so international trade in rare metals is necessary [1]. If global supplies are considered to be at risk or insufficient to meet growing demand, international commerce may result in international competition for rare-metal resources. Against the background of competition for rare-metal resources, many countries have designated highly import-dependent rare metals as critical metals or strategic metals in the 21st century [1,2,3]. Granitic pegmatite (hereafter pegmatite) is one of the important host rocks for rare metals, thus, it has attracted special attentions [4,5,6,7,8,9]. Pegmatite has been extensively documented over the last two centuries, but many fundamental problems remain unresolved, and new ones are coming to our attention, such as the role of hydrothermal process, the control factor for rare-metal mineralization and the geochemical fractionation of twin elements (e.g., Nb-Ta, Zr-Hf) [10,11,12]. One of the best ways to address the aforementioned issues is through textural and chemical variations in particular minerals, e.g., tourmaline [13,14], muscovite [15,16] and columbite-tantalite group minerals (CGMs) [17,18,19].
The Tibetan Plateau and its marginal areas contain a large number of rare-metal pegmatite dykes. The most fascinating region is the Tianshuihai-Songpan-Ganze terrane in the center of the Tibetan Plateau (Figure 1), where many super-large to medium-sized Li deposits, with a total Li2O resource of >14.8 Mt, have been found [20,21,22,23,24]. These pegmatite-type Li deposits have close temporal, spatial, and genetic relationships to Triassic S-type granites and flysch sedimentary rocks; therefore, it is also called the Markam-Yajiang-Karakoram giant Li ore belt (MYKB), which formed in an orogenic setting in the Paleo-Tethys tectonic domain [20,24,25]. The eastern NQTB, located to the north of the MYKB, also developed significant Triassic granitoids associated with orogenic events in the Paleo-Tethys tectonic domain [21,26,27]. Recently, numerous pegmatite dykes and several pegmatite-type rare-metal deposits/mineralized points have been discovered in the eastern NQTB, including Honglingbei Li-Be mineralization point, Chakabeishan (CKBS) Li-Be deposit, Qiemoge Li-Be deposit, and so on [28,29,30,31,32,33]. The genetic relationship between pegmatite-type rare-metal deposits in the eastern NQTB and MYKB is less discussed. Whether they are products of the same magmatic-tectonic event is worth investigating, which is vital for regional rare-metal prospecting.
In this paper, we focus on the internal zoning pattern, major-element composition, and U-Pb isotope of CGMs (AB2O6, A = Mn, Fe, B = Nb, Ta) in the spodumene-bearing pegmatite from the CKBS Li-Be deposit with the aim of revealing the evolutionary history of the Li-rich pegmatite, determining the formation age of the host pegmatite, and deciphering the relationship between the CKBS deposit and rare-metal deposits in adjacent tectonic units. The results of this study can potentially aid in the exploration of new rare metal mineralization in the eastern section of the North Qaidam Tectonic Belt (NQTB).

2. Geological Backgrounds

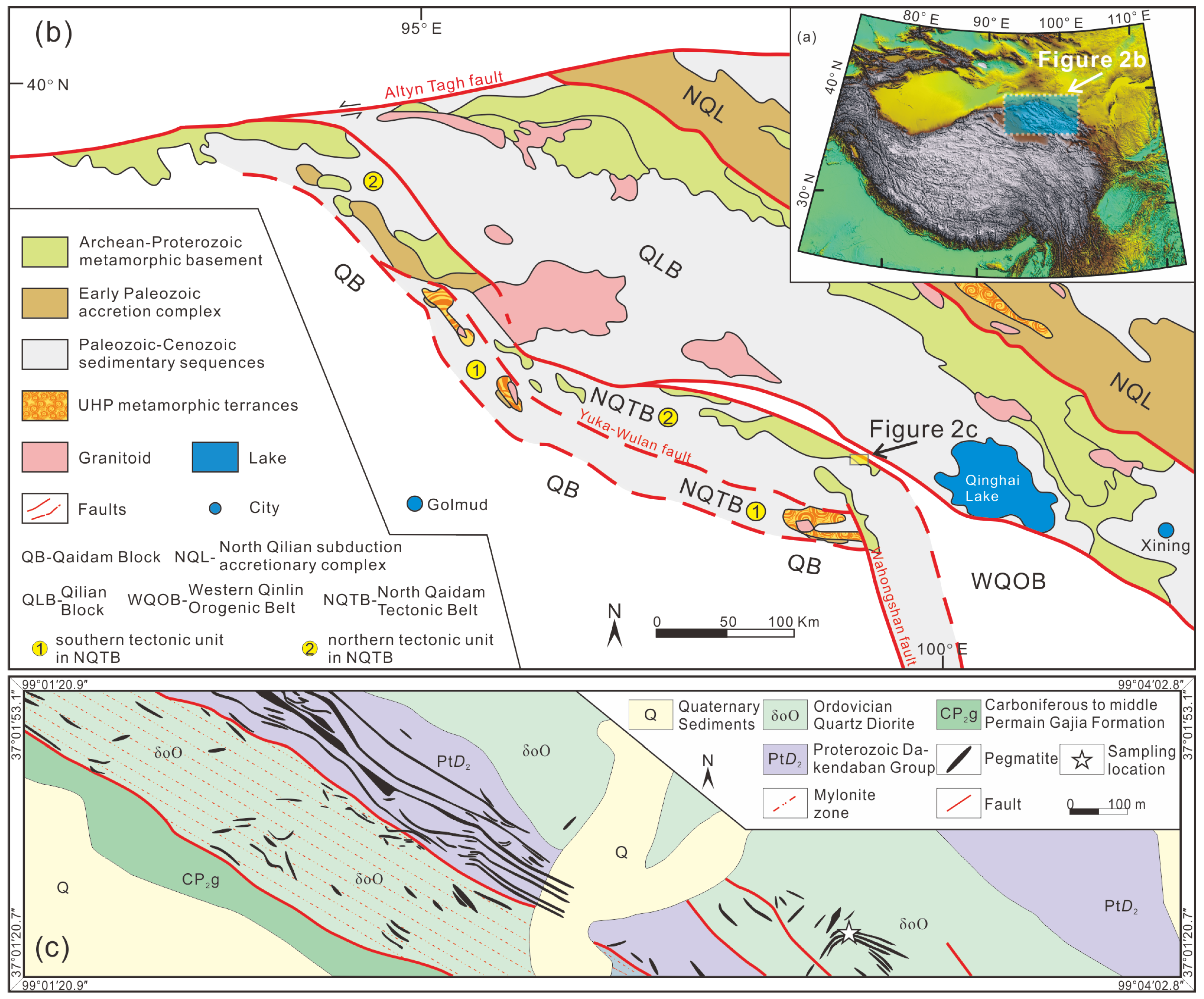

The NQTB is situated on the northern margin of the Tibetan Plateau (Figure 2a), with the Qaidam Block to the south, the Qilian Block to the north, the Altyn Tagh fault to the west and the West Qinling Orogen to the east [33,34,35,36,37]. The NQTB is divided into a northern unit and a southern unit by the E-W-trending Yuka-Wulan fault (Figure 2b). The southern unit is an Early Paleozoic subduction-collision complex related to Proto-Tethys Ocean subduction. It is well known for ultra-high pressure (UHP) metamorphic rocks [37,38]. The northern unit, also known as Quanji Massif or Olongbuluke Massif, mainly consists of Proterozoic metamorphic basement and Phanerozoic sedimentary rocks [35,36,39]. More detailed information about the NQTB can be found in the work of Wang et al. [32], Chen et al. [34], Song et al. [38], Pan et al. [40], and Liu et al. [41].
The CKBS deposit is the first pegmatite-type Li-Be deposit discovered in the eastern segment of NQTB (Figure 2b). There are ca. 800 LCT-type pegmatite dykes in the CKBS deposit, which were derived from high fractional crystallization of granitic magmas [42,43]. These pegmatite dykes occurred in the Paleoproterozoic Dakendaban Group schist Formation and the Ordovician quartz diorite (Figure 2c). The elongation of these pegmatites varies but generally shows NW-SE trending with varying dipping (23°–83°). These pegmatite dykes are ca. 10–400 m in length and ca. 0.5–5 m in width. Since its first discovery in 2018, Li-Be resources of ca. 14,200 t Li2O and ca. 7000 t BeO have been identified [31]. More detailed information on the pegmatites and ore-body in the CKBS deposit can be found in the work of Liu et al. [21], Wang et al. [32], Pan et al. [40], and Liu et al. [41]. In the past four years, the formation ages of pegmatite dykes in this deposit, with greater controversy, have been suggested, including 240.6 ± 1.5 Ma [40] and 217–215 Ma [21] by coltan U-Pb dating; 213–211 Ma by muscovite Ar-Ar dating [21,44]; 216.6 ± 0.88 Ma by lepidolite Ar-Ar dating [21]; 235.9 ± 2.3 Ma and 217 ± 1.8 Ma by zircon U-Pb dating [32].

3. Samples

The investigated pegmatite samples were collected from the No.15 spodumene pegmatite dyke in the CKBS deposit, which is emplaced in the Ordovician diorite and mainly consists of spodumene, albite, feldspar, and quartz, with minor muscovite, tourmaline, and garnet (Figure 2c and Figure 3). Although CGM grains were not directly observed within double polished thin sections and hand specimens, they were successfully separated from the investigated samples using conventional heavy liquid and magnetic methods and then hand-picked under a binocular microscope. The CGM grains were extracted, mounted in epoxy resin, and polished by standard methods. The images of back-scattered electron (BSE), transmitted light, and reflected light were obtained to ensure that the CGM grains are fresh and free of inclusions or cracks.

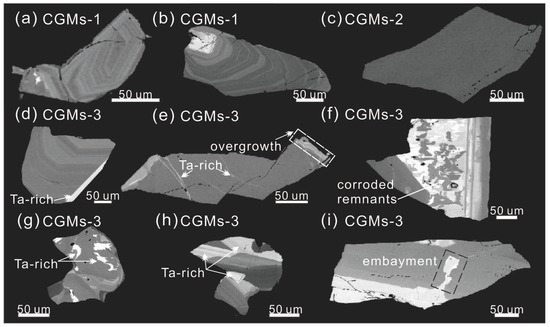

As shown in Figure 4, the lengths and widths of the investigated CGM grains are ca. 100–350 μm and ca. 50–150 μm. Based on conspicuously different zoning patterns in the BSE images, three types of CGMs were identified: concentric oscillatory CGMs-1 (Figure 4a,b), homogeneous dark CGMs-2 (Figure 4c), and irregular patchy/complex CGMs-3 (Figure 4d–i). CGMs-3 grains are commonly composed of dark domains (CGMs-3a) and bright domains (CGMs-3b), showing obvious replacement phenomena, such as overgrowth, crosscutting, corrosion, and embayment (Figure 4d–i). CGMs-1 grains are rare, with only three in this study, whereas CGMs-2 and CGMs-3 particles are common.

4. Analytical Methods

4.1. Major-Element Analyses

Major-element concentrations were analyzed by JEOL JXA8230 at Wuhan SampleSolution Analytical Technology Co., Ltd. (Wuhan, China), using a 20 kV accelerating voltage, 20 nA beam current, and 1 μm beam diameter. Peak and background counting times for all investigated elements were 10 s and 5 s, respectively. Data were corrected by the ZAF method provided by JEOL and the following standards were used: TiO2 for Ti, CaMnSi2O6 for Ca, NaAlSi2O6 for Na, SnO2 for Sn, MnSiO3 for Mn, FeCr2O4 for Fe, Bi2Se3 for Bi, Mg3Al2Si3O12 for Al, PbS for Pb and pure metals for Ta, Nb, Pb, U and W. To reveal the chemical variations in the oscillatory zoning, EMPA mapping was performed on typical CGMs-1 grains using the JEOL JXA8230 at the same company, using a 20 kV voltage and 50 nA beam current. The dwell time is 50 ms, the image pixel lattice size is 1 × 1 μm, and the pixel size is 262 × 192.

4.2. U-Pb Analyses

The in-situ U-Pb dating for CGMs grains was performed at the Mineral Laser Microprobe Analysis Laboratory, China University of Geosciences, Beijing (CUGB), China, using an Agilent 7900 Quadrupole Inductively Coupled Plasma Mass Spectrometry (Agilent, Santa Clara, CA, USA) coupled with an ASI RESOlution S115LR laser ablation system (Australian Scientific Instruments, Fyshwick, ACT, Australia). During the analyses, the laser spot size was 33 μm, energy density was 5 J/cm2, ablation time was 40 s, repetition rate was 5 Hz, and raster scanning speed was 5 μm/s. The dwell times for each mass scan were 10 ms for 232Th, 15 ms for 238U and 208Pb, 20 ms for 204Pb and 206Pb, and 30 ms for 207Pb. During analysis, Coltan 139 was used to correct the ratios of 206Pb/238U, 207Pb/235U and 207Pb/206Pb (ID-TIMS age of 506 ± 2.3 Ma, [45]); NP-2 was used to monitor instrument status and experimental results. Offline data analysis and processing were undertaken with the Iolite software (Iolite Softwares Inc., Laurel, MD, USA). In addition, Isoplot v.4.15 software (Berkeley Geochronology Center, Berkeley, CA, USA) was used to plot Tera–Wasserburg diagrams and calculate weighted mean U-Pb ages [46].

5. Results

5.1. Major-Element Composition

All analysis results by EMPA are listed in Table S1. The abundance ranges, average values, and standard deviations of major element compositions in the CGMs are shown in Table 1. The results of EMPA mapping for CGMs-1 grains are shown in Figure 5. The three types of CGM show marked differences in chemical composition. Among, the CGMs-1 grains are characterized by episodic Nb- and Ta-rich zones alternating to each other (Figure 5), coupled with episodic concentrations of TiO2 (0.290–0.439 wt.%), WO3 (0.276–0.497 wt.%) and PbO (0.254–0.393 wt.%) (Figure 6a–c). The ratios of Ta/(Ta + Nb) and Mn/(Mn + Fe) in CGMs-1 range from 0.141–0.204 and 0.273–0.318, respectively. Compared with CGMs-1, CGMs-2 grains have slightly lower Ta/(Ta + Nb) ratios (0.069–0.120) and elevated Mn/(Mn + Fe) ratios (0.292–0.474). The ratios of Ta/(Ta + Nb) (0.058–0.168) and Mn/(Mn + Fe) (0.370–0.482) in CGMs-3a domains are comparable with those in CGMs-1 and CGMs-2. Compared with CGMs-3a domains, CGMs-3b domains display obviously increased Ta/Nb and slightly varied Mn/Fe, TiO2, SnO2, WO3, and PbO (Figure 6d–f).

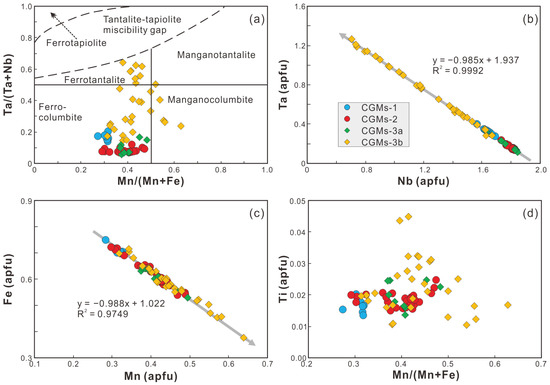

As shown in Figure 7a, CGMs-1, CGMs-2, and CGMs-3a exclusively plot in the ferrocolumbite region, whereas the CGMs-3b domains are represented mainly by ferrocolumbite and ferrotantalite, and rarely by manganocolumbite. All CGMs show negative correlations in the diagrams of Nb (apfu) vs. Ta (apfu) and Mn (apfu) vs. Fe (apfu) (Figure 7b,c), suggesting the substitution of Ta with Nb and Fe with Mn in the three-type CGMs. The abundances of Nb, Ta, Fe, Mn, and Ti in the dark domains of CGMs-3 are comparable to those in CGMs-2 (Figure 7a–d). However, CGMs-3b show obviously different major element abundances from CGMs-1 and CGMs-2 (Figure 7a–d), especially Nb and Ta.

5.2. U-Pb Ages

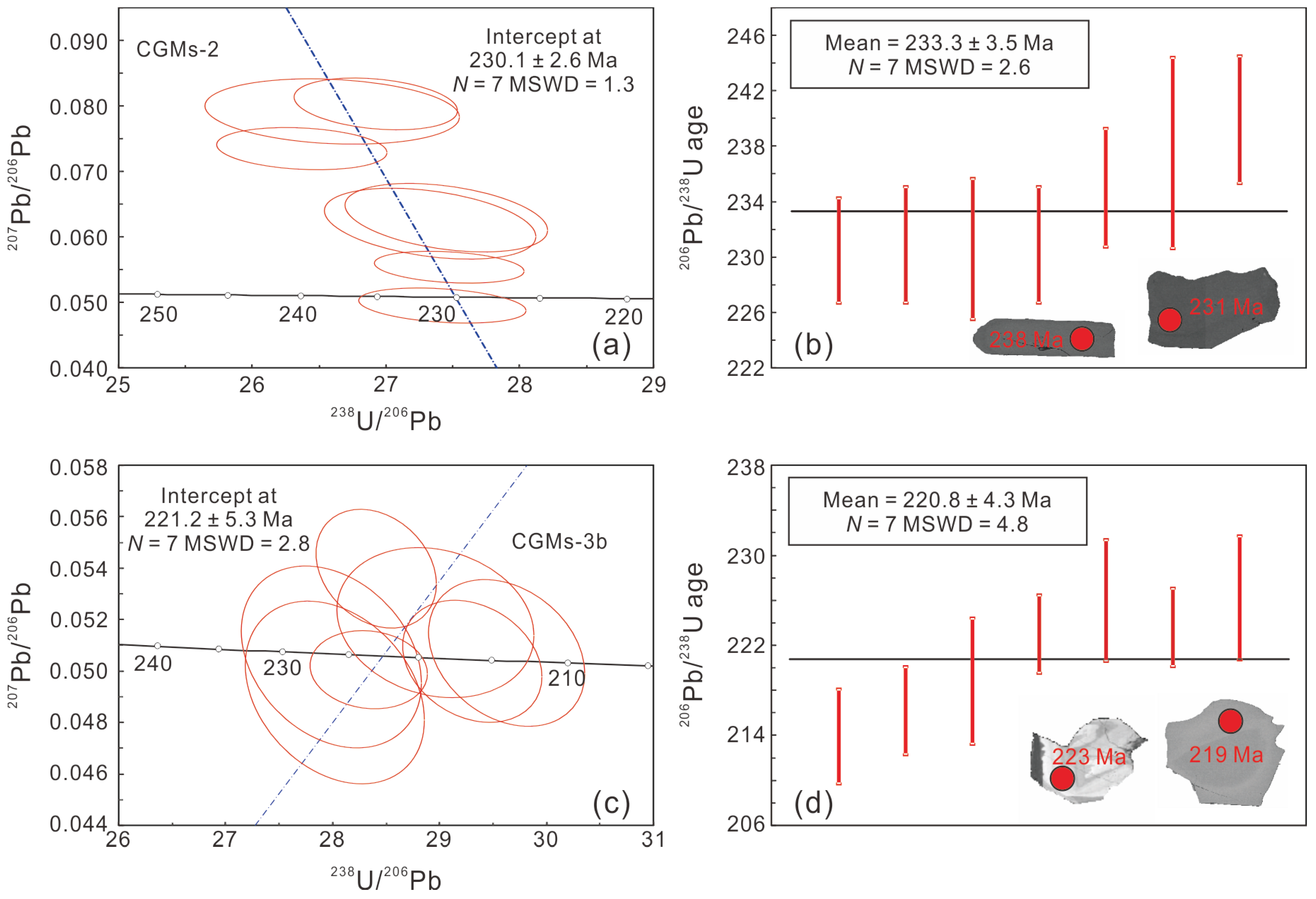

LA-ICP-MS U-Pb data for the CGMs are summarized in Table 2 and illustrated in Figure 8. Since there are few well-preserved CGMs-1 grains in the investigated pegmatite, we thus obtain only one analysis point with a 207Pb/235U ratio of 0.5570 and a 206Pb/238U ratio of 0.0398. The one point has a 206Pb/238U age of 252 ± 6.4 Ma. The ratios of 207Pb/235U and 206Pb/238U in CGMs-2 vary from 0.2490 to 0.4110 and 0.0364 to 0.0379, respectively. On the Tera–Wasserburg plot, the CGMs-2 grains are relatively scattered and yield an intercept age of 230.1 ± 2.6 Ma (2SD; MSWD = 1.3), with a weighted-mean 206Pb/238U age of 233.3 ± 3.5 Ma (2SD; MSWD = 2.6). The ratios of 207Pb/235U and 206Pb/238U in CGMs-3b vary from 0.236 to 0.262 and 0.0338 to 0.357, respectively. The seven CGMs-3b analyzed points yield an intercept age of 221.2 ± 5.3 Ma (2SD; MSWD = 2.8), with a weighted-mean 206Pb/238U age of 220.8 ± 4.3 Ma (2SD; MSWD = 4.8). The intercept ages yielded by CGMs-2 and CGMs-3b agree well with their weighted-mean 206Pb/238U age.

6. Discussions

6.1. CGMs Origin and Chemical Evolution

Both primary magmatic and secondary metasomatic models have been suggested for the genesis of CGMs in the hydrous granitic magma systems. The magmatic origin of CGMs has been established by both experimental determinations and natural samples [47,48,49,50]. The researchers favoring a magmatic model suggested that the CGMs commonly coexist with other rock-forming minerals, show simple textures (oscillatory zoning, homogeneous, progressive normal/reverse zoning), and display gradual or periodical variations in Ta/(Ta + Nb) and/or Mn/(Mn + Fe) from core to rim [49,50,51,52,53,54,55]. The main pieces of evidence cited for a metasomatic model are that the CGMs show patchy/complex textures with two distinctly different chemical domains (mainly expressed in the ratios Ta/Nb and Mn/Fe), and coexist with secondary minerals (e.g., wodginite, microlite), and occur in replacement bodies [19,40,48,49,54]. It is worth noting that a recent experimental study suggested that homogenous CGMs with magmatic textures could crystallize from fluid–melt interactions in a hydrous granitic system, where CGMs saturations are reached at geologically reasonable concentrations of high field strength elements (HFSE, e.g., Nb, Ta) in melts and fluid-mobile elements (FME, e.g., Mn, Fe) in hydrothermal fluids [50]. The experiment demonstrated that CGMs can form at the magmatic-hydrothermal stage and require two-end members, rather than always resulting from a single melt or fluid phase as previously reported. The question arises as to whether the CGM grains in the spodumene pegmatite from the CKBS deposit were formed through magmatic processes, metasomatic processes, or fluid–melt interactions.

6.1.1. Primary CGMs-1 and CGMs-2

The oscillatory zoning in the CGMs-1 ferrocolumbite is concentric and continuous, which is different from the irregular, discontinuous oscillatory zoning in metasomatic CGMs [56], indicating that CGMs-1 are of non-metasomatic origin. The textural pattern in CGMs-1 is similar to that in magmatic CGMs from granite and pegmatite worldwide, such as Shangbao granite [47], Ineigi granite [48], Penouta leucogranite [52], Separation Lake pegmatite [19], Tanco Lower pegmatite [49], Jezuitské Lesy pegmatite [57], and Koktokay No.3 pegmatite [5], implying that CGMs-1 have a syn-magmatic origin. The magmatic origin of the CGMs-1 is further supported by the coupled chemical oscillatory zoning, including periodical variations in the concentrations of Ta, Nb, Ti, Sn, W and Pb (Figure 5 and Figure 6c). The chemical oscillatory zoning in magmatic CGMs from pegmatites is believed to result from non-equilibrium fractional crystallization due to the slow diffusion of Nb and Ta, as well as Ti, Sn, W, and Pb, relative to the rate of crystal growth in the crystallization front of the pegmatite [49,56,58,59], which is described as a process of constitutional zone refining by London et al. [4].
Unlike CGMs-1, CGMs-2 ferrocolumbite grains are homogeneous in the BSE images (Figure 4c). The unzoned textural pattern in the CGMs-2 ferrocolumbite reflects balanced contributions of the main components [49,60,61], chiefly Nb and Ta (Figure 7a). This indicates that the CGMs-2 ferrocolumbite grains were products of equilibrium crystallization, which is significantly distinct from the non-equilibrium crystallization crystals of CGMs-1 ferrocolumbite. In the context of pegmatite, equilibrium-crystallization could take place in the condition of a silicate melt phase coexisting with an independent fluid phase [62,63], where CGMs might directly crystallize from the melt phase, or from the fluid phase, or form via melt-fluid interactions. The chemical and B-isotopic compositions in tourmaline indicated that Na-Fe-B-rich fluid exsolution occurred during the evolution of spodumene pegmatite from the CKBS deposit [43]. The Na-Fe-B-rich fluid cannot transport significant amounts of Nb and Ta to precipitate CGMs-2 ferrocolumbite directly, since melt-aqueous fluid partition coefficients for Ta and Nb are extremely low in the hydrous granitic melt system [12,64,65,66]. The solubility of Nb and Ta could be enhanced in fluoride solutions, mainly as HF [55,67,68]. However, we have to discount a major role of such fluid on the formation of CGMs-2, since F-rich minerals (e.g., lepidolite, fluorapatite, fluorite, topaz) are either scarce or absent in the investigated pegmatite (No.15), suggesting a low-F system rather than an F-rich one [69,70]. Furthermore, if CGMs-2 had crystallized directly from an F-rich fluid phase, they should have plotted in the Mn-rich region [19,69] rather than the Fe-rich region (Figure 7a). Unlike Nb and Ta, abundant Fe (a fluid mobile element, [60]) was incorporated into the Na-Fe-B-rich fluid phase during fluid-melt immiscibility, resulting in the residual melt phase hardly crystallizing ferrocolumbite directly due to the absence of bivalent cations. Thus, the most possible mechanism for the formation of homogeneous CGMs-2 ferrocolumbite grains is fluid-melt interactions, i.e., they formed via interactions of a melt that is enriched in HFSE (e.g., Nb, Ta) with a diffused fluid enriched in FME (e.g., Mn, Fe). The elevated Mn/(Mn + Fe) trend in the CGMs-2 ferrocolumbite crystals could be ascribed to the competitive crystallization of paragenetic Fe-rich minerals (e.g., hydrothermal tourmaline, [43]).

6.1.2. Secondary CGMs-3

The textures, such as corrosion, crosscutting, embayment, and overgrowth (Figure 4d–i), exclusively indicate the partial decomposition of CGMs-3a by later fluids/melts and the generation of a more Ta-rich CGMs-3b along with the margins and micro-cracks of crystals [19,49,58]. Since the CGMs-3a domains are comparable to CGMs-1 and CGMs-2 in texture patterns and chemical compositions (Figure 4 and Figure 7), it is thus reasonable to infer that CGMs-3a are pristine domains of CGMs-1 and CGMs-2 remaining after alterations of CGMs-3b. The texture patterns in CGMs-3 are comparable to those in CGMs from hydrous granitic melts worldwide, such as Shihuiyao granite [61], Abu Dabbab granite [71], Big Whopper pegmatite [19], Kamativi pegmatite [69], Presqueira pegmatite [70], Mufushan pegmatite [72], and Nanyangshan pegmatite [73], which was suggested to be of later fluid-induced or melt-induced replacement origin. If melt-induced model (Ta-rich melt replaced) were applied to CGMs-3, highly evolved injected melt could react with early crystallized rock-forming minerals and form replacement phenomena (e.g., muscovite replacement, [49]). However, replacement phenomena are not observed in the investigated spodumene pegmatite where all main rock-forming minerals boundaries are sharp (Figure 3). Thus, the most possible metasomatic medium for CGMs-3 was a special fluid phase, which might be regional metamorphic [74] or exsolved from the more evolved melt in the very last stages of fractionation [5,19,56,70]. There is no evidence for the pegmatite formation being connected to regional metamorphism either at the outcrop or thin section scale, suggesting the CGMs-3 recorded the variable conditions within the pegmatite-forming melt itself. This is further supported by the extremely wide range of composition in CGMs-3 expressed as ferrocolumbite, ferrotantalite and manganocolumbite (Figure 6a), since metamorphic fluid could homogenize the composition of CGMs whereas magmatic hydrothermal alteration results in diversification of the mineralogy of Nb and Ta [74]. Accordingly, it can be concluded that the special fluid for CGMs-3 formation was magmatic fluid that exsolved from the pegmatite-forming melt at the end of magmatic crystallization. Unfortunately, the available data in the study and reliable data in the associated papers are insufficient to constrain the physicochemical properties of the special fluid, warranting further work on this topic, especially fluid inclusions. As several case studies have shown [47,73], we suggest that the Ta-rich special fluids may be similar to hydrosilicate fluids that were rich in both H2O and SiO2 and had the capacity to dissolve Ta that accumulated in the terminal melts at temperatures ranging from 600 °C to relatively lower temperatures. It is worth noting that the special fluid phase is not the same fluid phase related to CGMs-2 formation in terms of textural relationships between CGMs-2 and CGMs-3, i.e., two fluid exsolution events occurred. By studying fluid inclusions, Alfonso and Melgarejo [75] have confirmed that fluid pulse exsolution could occur during the evolution of rare-metal pegmatite.
According to the study of the internal zoning patterns and element compositions, the formation process of CGMs and the evolution of the spodumene pegmatite are specifically reconstructed as follows (Figure 9): after the pegmatitic melt was emplaced into the shallow crust, Nb was initially saturated and primary CGMs-1 crystals with oscillatory zonation were crystallized directly from the melt in disequilibrium conditions. Subsequently, during the magmatic-hydrothermal transition stage, the homogeneous CGMs-2 crystals were generated via interactions of the evolved melt (enriched in Nb and Ta) with the diffused fluid (enriched in Fe and Mn). Finally, a special magmatic Ta-rich fluid (hydrosilicate?) exsolved from the imminently exhausted melt and led to the formation of secondary CGMs-3 grains by substituting the early formed CGMs-1 and CGMs-2.

6.2. Geochronogical Framework and Implications

6.2.1. Previous Geochronology Review

Zircon U-Pb data revealed that spodumene pegmatite dykes in the CKBS deposit were emplaced at ca. 217 Ma [32]. However, these zircons experienced obvious metamictization and metasomatism, indicating that their U-Pb ages cannot represent the crystallization time of the host pegmatite [76]. The uncertainty of zircon U-Pb age in pegmatite-system has been demonstrated in many case studies, e.g., [21,76]. CGMs grains are regarded as an excellent U-Pb dating alternative for pegmatite-system due to their high U and low common Pb contents [24,45]. Pan et al. [40] were the first to report CGMs U-Pb age for spodumene pegmatite dykes in the CKBS deposit, where eleven homogenous dark CGMs grains yielded a weighted mean 206Pb/238U age of 240.6 ± 1.5 Ma. The textural patterns in the CGMs grains documented by Pan et al. [40] are comparable with those in CGMs-2, indicating that they formed at the magmatic-hydrothermal stage and their U-Pb ages could represent consolidation ages of the host pegmatite. Recently, Liu et al. [21] reported obviously younger CGMs U-Pb ages (217–215 Ma) for spodumene pegmatite dykes in the CKBS deposit. After careful comparisons, it can be found that these CGMs grains of 217–215 Ma commonly show bright BSE images (Ta-rich domains), which are similar to the CGMs-3b domains in this study and the CGM grain of 211 Ma documented by Pan et al. [40], indicating they are of metasomatic origin and their U-Pb ages represent the time of late metasomatic events. This is further supported by the fact that the U-Pb ages of CGMs with bright BSE images (217–215 Ma) are comparable with muscovite Ar-Ar ages (217–212 Ma) and lepidolite Ar-Ar ages (ca. 217 Ma) [21,44], since the Ar-Ar isotopic systems in the muscovite/lepidolite are susceptible to being reset by late metasomatic events related to CGMs-3 formation due to the low closure temperature (350–400 °C, Burrt and Phillips [77]).

6.2.2. Geochronogical Framework

In terms of the origin and evolution model for the CGMs crystals as discussed above, it would be accepted that the U-Pb ages of CGMs-1 and CGMs-2 represent the crystallization time of the host pegmatite whereas the secondary CGMs-3 U-Pb age is representative of late metasomatic time. One data point obtained for CGMs-1 has no apparent statistical significance, and its 206Pb/238U age of 252 ± 6.4 Ma hardly represents the crystallized age of host spodumene pegmatite. Because the cooling rate of pegmatite-forming melts after emplacement is rapid [4,78], it is reasonable to ignore the CGMs-1 U-Pb data and use the CGMs-2 intercept age as the crystallization time of the host pegmatite. Accordingly, we reconstruct the geochronological framework for the spodumene pegmatite dyke (No.15) in the CKBS deposit: a Li-B-rich pegmatite-forming melt phase was emplaced into the eastern NQTB and started to crystallize CGMs-1 and CGMs-2 at 230 ± 2.6 Ma. Subsequently, CGMs-1 and CGMs-2 grains were replaced to form CGMs-3 by a special fluid phase at 221 ± 5.3 Ma. Please note that the U-Pb ages of the primary and secondary CGMs are consistent within errors (minimum gap is ca. 1 Ma).
Comparing the new U-Pb data (Table 2, Figure 8) with published geochronological data [21,32,40,44], it can be concluded that the crystallization ages of the spodumene pegmatite dykes in the CKBS deposit are different, with a discrepancy of ca. 6–15 Ma within errors. As the consolidation of an individual pegmatite dyke should be finished in a short time [4,78], the age discrepancy of ca. 6–15 Ma reflects that (i) the Li-rich pegmatites in the CKBS deposit are not a cogenetic pegmatite group (defined by Černý [79]) although they are spatially close together, i.e., they might be derived from different sources, as documented in the pegmatites of the Fregeneda area [80] and the Kamativi area [69]; (ii) the pulse emplacements rather than a single emplacement of Li-rich pegmatite-forming melts in the CKBS deposit, i.e., multiple batches of Li-rich pegmatitic melts were emplaced into the shallow crust during a period of ca. 6–15 Ma. The latter scenario is difficult to reconcile with geological observations that a granitic magma chamber must be large enough to survive over ca. 6 Ma (1200 km2 for ca. 10 Ma, [81]). So far, no contemporaneous S-type granite with such a large volume has been found around the CKBS deposit. The scenario of the pegmatites not being a cogenetic pegmatite group is more likely, which is supported by the numerous independent 255–235 Ma granitoids exposed around the CKBS deposit [21,42].

6.2.3. Tectonic Environment

Extensive Early-Middle Triassic arc igneous plutons are exposed near the studied area in the eastern NQTB, including the Wulan gabbro (245–242 Ma), the Tianjunnanshan granites (246 Ma), the Qinghaihunanshan granite (238 Ma), the Xugeigou granite (254 Ma), the Qiluoshan granodiorite (251 Ma), the Chahannuo hornblende diorite (249 Ma), the Chahannuo granite (248 Ma), the Chahanuo granodiorite (243 Ma), the Chahanhe granite (240 Ma), the Shailekeguolei granodiorite (249 Ma), and the Narong granitic porphyry (245 Ma) [21,27,40]. The formation ages and Nd-Hf isotopic compositions of these arc igneous plutons in the eastern NQTB are comparable to those of arc igneous rocks in the Buerhanbuda area (250–238 Ma) in the East Kunlun and the Tongren-Zeku area (242–234 Ma) in the West Qinling, indicating that the eastern NQTB, East Kunlun, and West Qinling were a complete active continental margin system during the Early-Middle Triassic, which was related to the northward subduction of the Paleo-Tethys oceanic plate [21,26]. Post-collision A-type granite plutons in the eastern NQTB (220–215 Ma) and East Kunlun (228–218 Ma) indicate that the Paleo-Tethys Ocean was closed in the Late Triassic [21]. Therefore, it would be accepted that the Middle Triassic pegmatites and adjacent Early-Middle Triassic granitoids in and around the CKBS deposit were formed in an oceanic subduction-related setting. The conclusion is consistent with Boroujerd pegmatites [82].

6.3. Regional Mineralization Comparison

Regionally, there are three important rare-metal metallogenic belts related to Tethys evolution around the CKBS deposit in the eastern NQTB (Figure 10a), including the world-class MYKB [21,24], the Guanpo-Danfeng mineralization belt (GDMB) [73,83,84] and the Tugman-Tashisayi mineralization belt (TTMB) [76,85]. The CKBS Li-Be deposit in the eastern NQTB and the pegmatite-type rare-metal deposits in the MYKB, GDTB and TGMB are products of extreme fractionation of peraluminous granitic intrusions [21,25,42,83,85,86]. Therefore, whether the CKBS deposit can be connected with one of the spatially adjacent MYKB, GDTB, and TTMB remains an interesting question, which is of great significance for regional prospecting. The following three reasons support the conclusion that the CKBS deposit is not connectible to the three spatially adjacent rare-metal mineralization belts. First, the formation ages of rare-metal deposits in the MYKB, GDMB, and TTMB are 224–144 Ma, 420–394 Ma, and 468–350 Ma, respectively, which are different from the crystallization age of the CKBS deposit (ca. 240–230 Ma, Table 3, Figure 10b–d). However, it is interesting to note that the late metasomatic ages of pegmatite dykes in the CKBS deposit overlap with the crystallization ages of some deposits in the MYKB (Figure 10d). Second, regionally comprehensive studies showed that the geological environments were late/post-orogenic regimes when rare-metal deposits formed in the MYKB, GDMB, and TTMB [25,73,83,85], whereas the dynamic environment for the formation of spodumene pegmatite in the CKBS deposit was an active continental margin, indicating that they were controlled by different geological events. Third, Hf isotopic compositions in zircons are believed to be unaffected during metamictization, which thus could trace the source of host granitic rock [86]. The εHf(t) values in zircons from the CKBS deposit varied from −15.5 to −11.63 [32] while those from the rare-metal deposits in the MYKB and GDMB ranged from −13.6 to −7.23 [86,87] and from −7.8 to −7.0 [83], respectively, indicating that the sources of these pegmatite-granite are different.
Except for ca. 800 pegmatite dykes in the CKBS deposit, significantly abundant pegmatite dykes have also been found in the eastern segment of NQTB (Figure 11), e.g., ca. 360 in the Shaliuquan area, ca. 100 in the Chahannuo area and ca. 700 in the Shinaihai area [28,33]. Recently, several granite-pegmatite-related rare metal deposits/mineralization points have also been discovered in these pegmatite-exposure areas, including the Shaliuquan Nb-Ta deposit, Asiheta Be deposit, Shinaihai Nb-Ta-Rb deposit, Honglingbei Li-Be mineralization point, Yematannan Li mineralization point, and so on (Figure 11). In addition to the pegmatite in the CKBS deposit, pegmatite dykes in other deposits/mineralized points in the eastern NQTB are very poorly understood, which makes it difficult to quantitatively decipher the rare-metal metallogenic regularity at the moment. However, the following three commonalities can be concluded for the pegmatite dykes in the eastern NQTB based on the results of preliminary field investigations [28,29,30,31,32,33,40]: (1) mostly intruded into schist, gneiss, and marble of Paleoproterozoic Dakendaban Group; (2) distributions were controlled by secondary fracture and/or ductile shear zone; (3) closed related to adjacent granite, some even occurred in granite. Therefore, we suggest that the eastern NQTB may be a new potential rare-metal mineralization belt, which should be explored in detail and arouse painstaking attention.

7. Conclusions

(1) Three-stage crystallizations of CGM crystals are identified in terms of variations in internal zoning patterns and major element compositions. First, oscillatory CGMs-1 ferrocolumbite grains crystallize at the magmatic stage, which are products of non-equilibrium fractional crystallization and are characterized by episodic variations in Ta/(Ta + Nb), TiO2, WO3 and PbO. Second, homogeneous CGMs-2 ferrocolumbite grains are formed at the magmatic-hydrothermal transition stage, which result from equilibrium crystallization via fluid-melt interactions and are characterized by the relatively stable Ta/(Ta + Nb) and moderately elevated Mn/(Mn + Fe). Third, irregular/complex CGMs-3 crystals commonly consist of Nb-rich domains (CGMs-3a) and Ta-rich domains (CGMs-3b) and are formed by the metasomatism of early-formed CGMs-1 and CGMs-2 with special fluids. This metasomatism causes considerably elevated Ta/(Ta + Nb) in CGMs-3b.
(2) The investigated spodumene pegmatite dyke (No.15) emplaced at 230.1 ± 2.6 Ma and then experienced a late fluid-induced metasomatic event at 221 ± 5.3 Ma.
(3) The CKBS deposit is not likely to be connected to the adjacent rare-metal mineralization belts (MYKB, GDTB and TTMB). The occurrence of abundant pegmatite dykes and obvious mineralization information indicate that the eastern NQTB may be a new potential rare-metal mineralization belt in western China, which should be paid more attention to.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/min13020201/s1, Table S1: Chemical compositions of CGMs in the spodumene pegmatite from the CKBS Li-Be deposit analyzed by EMPA.

Author Contributions

Conceptualization, W.S., Z.Z. and X.M.; Data Curation, W.S.; Writing-Original Draft, W.S.; Writing-Review & Editing, Z.Z.; Validation, S.Y. and L.Z.; Supervision, Z.Z., X.M., C.W., B.W. and T.P.; Project Administration, Z.Z., X.M., G.D., X.L., W.Y. and T.W.; Funding Acquisition, Z.Z.; Investigation, W.S., Z.Z., G.D., W.Y., T.W., B.W., J.H., H.C. and Y.T. All authors have read and agreed to the published version of the manuscript.

Funding

The present study was financially supported by the National Natural Science Foundation of China (Grant No. 92062217) and the University Innovation Foundation of Education Department of Gansu Province (Grant No. 2021A-230).

Data Availability Statement

The authors declare that all analytical data supporting the findings of this study are available within the paper and its supplementary information files or cited peer-review references.

Acknowledgments

We are indebted to Yao Wang from the China University of Geosciences for his work with rock samples preparation. We sincerely thank Zhenzhong Liu and Weilin La from the Bureau of Geological Exploration and Development of Qinghai Province for their help in the field investigation. We are also grateful to the editors and reviewers for their constructive comments that led to significant improvements in the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gulley, A.L.; Nassar, N.T.; Xun, S. China, the United States, and competition for resources that enable emerging technologies. Proc. Natl. Acad. Sci. USA 2018, 115, 4111–4115. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Wang, D.H. Discussion on issues related to strategic key mineral resource. Geol. Chem. Miner. 2019, 41, 65–72, (In Chinese with English abstract). [Google Scholar]
  3. Wang, D.H. Study on critical mineral resources: Significance of research, determination of types, attributes of resources, progress of prospecting, problems of utilization and direction of exploitation. Acta Geol. Sin. 2019, 93, 1189–1209, (In Chinese with English abstract). [Google Scholar]
  4. London, D. Ore-forming processes within granitic pegmatites. Ore Geol. Rev. 2018, 101, 349–383. [Google Scholar] [CrossRef]
  5. Zhang, A.C.; Wang, R.C.; Hu, H.; Zhang, H.; Zhu, J.C.; Chen, X.M. Chemical evolution of Nb-Ta oxides and zircon from the Koktokay No.3 granitic pegmatite, Altai, northwestern China. Mineral. Mag. 2004, 68, 739–756. [Google Scholar] [CrossRef]
  6. Linnen, R.L.; van Lichtervelde, M.; Černý, P. Granitic pegmatites as sources of strategic metals. Elements 2012, 8, 275–280. [Google Scholar] [CrossRef]
  7. Sun, W.L.; Liu, Y.; Zhang, Z.W. Research progress on petrogenesis of LCT-type granitic pegmatite and therein lithium enrichment mechanism. Northwest. Geol. 2022, 55, 35–55, (In Chinese with English abstract). [Google Scholar]
  8. Chukwu, A.; Obiora, S.C. Petrogenetic characterization of pegmatites and their host rocks in southern Akwanga, North-Central Basement Complex, Nigeria. J. Earth Syst. Sci. 2021, 130, 18. [Google Scholar] [CrossRef]
  9. Maneta, V.; Baker, D.R. The potential of lithium in alkali feldspars, quartz, and muscovite as a geochemical indicator in the exploration for lithium-rich granitic pegmatites: A case study from the spodumene-rich Moblan pegmatite, Quebec, Canada. J. Geochem. Explor. 2019, 205, 106336. [Google Scholar] [CrossRef]
  10. London, D. Reply to Thomas and Davidson on “A petrologic assessment of internal zonation in granitic pegmatites” (London, 2014a). Lithos 2015, 212, 469–484. [Google Scholar] [CrossRef]
  11. Thomas, R.; Davidson, P. Comment on “A petrologic assessment of internal zonation in granitic pegmatites” by David London (2014). Lithos 2015, 212, 462–468. [Google Scholar] [CrossRef]
  12. Thomas, R.; Davidson, P.; Beurlen, H. The competing models for the origin and internal evolution of granitic pegmatites in the light of melt and fluid inclusion research. Miner. Petrol. 2012, 106, 55–73. [Google Scholar] [CrossRef]
  13. Trumbull, R.B.; Beurlen, H.; Wiedenbeck, M.; Soares, D.R. The diversity of B-isotope variations in tourmaline from rare-element pegmatites in the Borborema Province of Brazil. Chem. Geol. 2013, 352, 47–62. [Google Scholar] [CrossRef]
  14. van Hinsberg, V.J.; Henry, D.J.; Marschall, H.R. Tourmaline: An ideal indicator of its host environment. Can. Mineral. 2011, 49, 1–16. [Google Scholar] [CrossRef]
  15. Hulsbosch, N.; Hertogen, J.; Dewaele, S.; André, L.; Muchez, P. Alkali metal and rare earth element evolution of rock-forming minerals from the Gatumba area pegmatites (Rwanda): Quantitative assessment of crystal-melt fractionation in the regional zonation of pegmatite groups. Geochim. Cosmochim. Acta 2014, 132, 349–374. [Google Scholar] [CrossRef]
  16. Zhou, Q.F.; Qin, K.Z.; Tang, D.M.; Wang, C.L. A combined EMPA and LA-ICP-MS study of muscovite from pegmatites in the Chinese Altai, NW China: Implications for tracing rare-element mineralization type and ore-forming process. Minerals 2022, 12, 377. [Google Scholar] [CrossRef]
  17. Černý, P.; Ercit, T.S. Some recent advances in the mineralogy and geochemistry of Nb and Ta in rare-element granitic pegmatites. Bull. Mineral. 1985, 108, 499–532. [Google Scholar] [CrossRef]
  18. Černý, P.; Ercit, T.S. Mineralogy of niobium and tantalum: Crystal chemical relationships, paragenetic aspects and their economic implications. In Lanthanides, Tantalum and Niobium; Moller, P., Černý, P., Saupe, F., Eds.; Springer: Berlin, Germany, 1989; pp. 27–79. [Google Scholar]
  19. Tindle, A.G.; Breaks, F.W. Columbite-tantalite mineral chemistry from rare-element granitic pegmatites: Separation Lakeh area, NW Ontario, Canada. Miner. Petrol. 2000, 70, 165–198. [Google Scholar] [CrossRef]
  20. Yan, Q.H.; Wang, H.; Chi, G.; Wang, Q.; Hu, H.; Zhou, K.L.; Zhang, X.Y. Recognition of a 600-km long late Triassic rare metal (Li-Rb-Be-Nb-Ta) pegmatite belt in the western Kunlun Orogenic belt, western China. Econ. Geol. 2022, 117, 213–236. [Google Scholar] [CrossRef]
  21. Liu, J.H.; Wang, Q.; Xu, C.B.; Zhou, J.S.; Wang, B.Z.; Li, W.F.; Li, S.P.; Huang, T.Y.; Yan, Q.H.; Song, B.Z.; et al. Geochronology of the Chakabeishan Li-(Be) rare-element pegmatite, Zongwulong orogenic belt, northwest China: Constraints from columbite-tantalite U-Pb and muscovite-lepidolite 40Ar/39Ar dating. Ore Geol. Rev. 2022, 146, 104930. [Google Scholar] [CrossRef]
  22. Fei, G.C.; Menuge, J.F.; Li, Y.Q.; Yang, J.Y.; Deng, Y.; Chen, C.S.; Yang, Y.F.; Yang, Z.; Qin, L.Y.; Zheng, L.; et al. Petrogenesis of the Lijiagou spodumene pegmatites in Songpan-Garze fold belt, West Sichuan, China: Evidence from geochemistry, zircon, cassiterite and coltan U-Pb geochronology and Hf isotopic compositions. Lithos 2020, 364, 105555. [Google Scholar] [CrossRef]
  23. Li, K.; Gao, Y.B.; Teng, J.X.; Jin, M.S.; Li, W. Metallogenic geological characteristics, mineralization age and resource potential of the granite-pegmatite-type rare metal deposits in Dahongliutan area, Hetian County, Xinjiang. Northwest. Geol. 2019, 52, 206–221, (In Chinese with English abstract). [Google Scholar]
  24. Yan, Q.H.; Qiu, Z.W.; Wang, H.; Wang, M.; Wei, X.P.; Li, P.; Zhang, R.Q.; Li, C.Y.; Liu, J.P. Age of the Dahongliutan rare metal pegmatite deposit, West Kunlun, Xinjiang (NW China): Constraints from LA-ICP-MS U-Pb dating of columbite-(Fe) and cassiterite. Ore Geol. Rev. 2018, 100, 561–573. [Google Scholar] [CrossRef]
  25. Xu, Z.Q.; Fu, X.F.; Wang, R.C.; Li, G.W.; Zheng, Y.L.; Zhao, Z.B.; Lian, D.Y. Generation of lithium-bearing pegmatite deposits within the Songpan-Ganze orogenic belt, East Tibet. Lithos 2020, 354, 105281. [Google Scholar] [CrossRef]
  26. Yue, Y.; Sun, D.Y.; Hou, K.J.; Peng, Y.B. Geochronology and geochemistry of Triassic gabbro in Northern Wulan, northern margin of Qaidam Basin. J. Jilin Univ. (Earth Sci.) 2021, 51, 154–168, (In Chinese with English abstract). [Google Scholar]
  27. Wu, C.L.; Wu, D.; Mattinson, C.; Lei, M.; Chen, H.J. Petrogenesis of granitoids in the Wulan area: Magmatic activity and tectonic evolution in the North Qaidam, NW China. Gondwana Res. 2019, 67, 147–171. [Google Scholar] [CrossRef]
  28. Pan, T.; Li, S.P.; Ren, H.; Wang, B.Z.; Li, W.F.; Wang, C.T.; Jin, T.T. Metallogenic conditions and prospecting potential of Lithium polymetallic deposits in North Qaidam Basin. Miner. Explor. 2020, 11, 1101–1116, (In Chinese with English abstract). [Google Scholar]
  29. Li, S.P.; Pan, T.; Wang, B.Z.; Yan, X.P.; Ren, H.; Yu, F.C.; Qiu, W.; Wang, J.J.; Tang, J.; Wang, J.S.; et al. Characteristics and tectonic significance of Beryl-bearing pegmatites in Qiemoge Mountain, Northern margin of Qaidam Basin. Geotecton. Metallog. 2021, 45, 608–619, (In Chinese with English abstract). [Google Scholar]
  30. Li, S.P.; Ren, H.; Wang, C.T.; Li, W.F.; Wang, J.S.; Wang, J.F.; Jin, T.T.; Sun, H.L. Indosinian tectonic setting, magmatism and rare metal mineralization in the northern marginal area of Qaidam Basin. J. Salt Lake Res. 2020, 28, 1–9, (In Chinese with English abstract). [Google Scholar]
  31. Pan, T.; Li, S.P.; Wang, T.; Han, G.; Jia, J.T. Metallogenic characteristics and prospecting potential of lithium deposits in the Qinghai Province. Acta Geol. Sin. 2022, 96, 1827–1854, (In Chinese with English abstract). [Google Scholar]
  32. Wang, B.Z.; Han, J.; Xie, X.L.; Chen, J.; Wang, T.; Xue, W.W.; Bai, Z.H.; Li, S.P. Discovery of the Indosinian (Beryl-bearing) spodumene pegmatitic dike swarm in the Chakaibeishan area in the northeastern margin of the Tibetan plateau: Implications for Li-Be mineralization. Geotecton. Metallog. 2020, 44, 69–79, (In Chinese with English abstract). [Google Scholar]
  33. Li, S.P.; Xue, W.W.; Ren, H.; Zhao, H.X.; Zhang, Z.Q.; Qiu, W.; Cheng, B.F.; Bai, J.H.; Fu, J. The status and metallogenic regularity of critical mineral resource in Qinghai Province, China. Qinghai Technol. 2018, 6, 10–15. (In Chinese) [Google Scholar]
  34. Chen, N.S.; Lu, Z.; Min, S.; Wang, Q.Y.; Kusky, T.M. U-Pb and Hf isotopic compositions of detrital zircons from the paragneisses of the Quanji Massif, NW China: Implications for its early tectonic evolutionary history. J. Asian Earth Sci. 2012, 54–55, 110–130. [Google Scholar] [CrossRef]
  35. Li, X.C.; Niu, M.L.; Yakymchuk, C.; Yan, Z.; Fu, C.L.; Zhao, Q.Q. Anatexis of former arc magmatic rocks during oceanic subduction: A case study from the north Wulan gneiss complex. Gondwana Res. 2018, 61, 128–149. [Google Scholar] [CrossRef]
  36. Ren, Y.F.; Chen, D.L.; Wang, H.J.; Zhu, X.H.; Bai, B.W. Grenvillian and early paleozoic polyphase metamorphism recorded by eclogite and host garnet mica schist in the north Qaidam Orogenic belt. Geosci. Front. 2021, 12, 101170. [Google Scholar] [CrossRef]
  37. Wu, C.L.; Gao, Y.H.; Li, Z.L.; Lei, M.; Qin, H.P.; Li, M.Z.; Liu, C.H.; Ronald, B.F.; Paul, T.R.; Joseph, L.W. Zircon SHRIMP U-Pb dating of granites from Dulan and the chronological framework of the North Qaidam UHP belt, NW China. Sci. China Earth Sci. 2014, 57, 2945–2965. [Google Scholar] [CrossRef]
  38. Song, S.G.; Niu, Y.L.; Su, L.; Zhang, C.; Zhang, L.F. Continental orogenesis from ocean subduction, continent collision/subduction, to orogen collapse, and orogen recycling: The example of the North Qaidam UHPM belt, NW China. Earth Sci. Rev. 2014, 129, 59–84. [Google Scholar] [CrossRef]
  39. Zhang, L.; Wang, Q.Y.; Chen, N.S.; Sun, M.; Santosh, M.; Ba, J. Geochemistry and detrital zircon U-Pb and Hf isotopes of the paragneiss suite from the Quanji Massif. SE Tarim Craton: Implication for Paleoproterozoic tectonics in NW China. J. Asian Earth Sci. 2014, 95, 33–50. [Google Scholar] [CrossRef]
  40. Pan, T.; Ding, Q.F.; Zhou, X.; Li, S.P.; Han, J.; Cheng, L. Columbite-Tantalite Group Mineral U-Pb Geochronology of Chaqiabeishan Li-Rich Granitic Pegmatites in the Quanji Massif, NW China: Implications for the Genesis and Emplacement Ages of Pegmatites. Front. Earth Sci. 2021, 8, 606951. [Google Scholar] [CrossRef]
  41. Liu, C.X.; Sun, F.Y.; Qian, Y.; Wu, D.Q.; Hui, C.; Lu, Y.H. Vertical zonation characteristics of Chakabeishan Li-Be rare-metal pegmatite deposit in northern margin of Qaidam Basin, Qinghai Province. Glob. Geol. 2021, 40, 843–880, (In Chinese with English abstract). [Google Scholar]
  42. Sun, W.L.; Zhao, Z.D.; Mo, X.X.; Wei, C.J.; Dong, G.C.; Li, X.W.; Yuan, W.M.; Wang, T.; Wang, B.Z.; Pan, T.; et al. Petrogenesis of pegmatite revealed by geochemical and Hf isotopic data: A case study from the eastern North Qaidam Tectonic Belt, northern Tibetan Plateau. Geochemistry, 2022; submitted. [Google Scholar]
  43. Sun, W.L.; Zhao, Z.D.; Niu, Y.L.; Wei, C.J.; Dong, G.C.; Li, X.W.; Yuan, W.M.; Wang, T.; Wang, B.Z.; Pan, T.; et al. Petrogenesis of regionally zoned pegmatite and associated Li-Be enrichment process: Perspectives from major-element and B isotopic composition of tourmaline. Geosci. Front. 2022; submitted. [Google Scholar]
  44. Chen, J.; Han, J.; Yu, F.C.; Wang, B.Z.; Li, W.F. 40Ar-39Ar dating of muscovite in Chaka Beishan Li-polymetallic deposit in Qinghai Province and the geological significance. Contrib. Geol. Miner. Resource Res. 2022, 37, 142–147, (In Chinese with English abstract). [Google Scholar]
  45. Che, X.D.; Wu, F.Y.; Wang, R.C.; Gerdes, A.; Ji, W.Q.; Zhao, Z.H.; Yang, H.H.; Zhu, Z.Y. In situ U-Pb isotopic dating of columbite-tantalite by LA-ICP-MS. Ore Geol. Rev. 2015, 65, 979–989. [Google Scholar] [CrossRef]
  46. Ludwig, K.R. Users Manual for Isoplot Version 3.75–4.15: A Geochronological Tool Kit for Microsoft Excel. 4; Berkeley Geochronological Centre Special Publication: Berkeley, CA, USA, 2012; p. 75. [Google Scholar]
  47. Zhao, Z.; Yang, X.; Lu, S.; Lu, Y.; Sun, C.; Chen, S.; Chen, S.S.; Zhang, Z.Z.; Bute, S.I.; Zhao, L.L. Genesis of Late Cretaceous granite and its related Nb-Ta-W mineralization in Shangbao, Nanling Range: Insights from geochemistry of whole-rock and Nb-Ta minerals. Ore Geol. Rev. 2021, 131, 103975. [Google Scholar] [CrossRef]
  48. Sami, M.; Ntaflos, T.; Farahat, E.S.; Mohamed, H.A.; Ahmed, A.F.; Hauzenberger, C. Mineralogical, geochemical and Sr-Nd isotopes characteristics of fluorite-bearing granites in the Northern Arabian-Nubian Shield, Egypt: Constraints on petrogenesis and evolution of their associated rare metal mineralization. Ore Geol. Rev. 2017, 88, 1–22. [Google Scholar] [CrossRef]
  49. van Lichtervelde, M.; Salvi, S.; Beziat, D.; Linnen, R.L. Textural features and chemical evolution in tantalum oxides: Magmatic versus hydrothermal origins for Ta mineralization in the Tanco Lower Pegmatite, Manitoba, Canada. Econ. Geol. 2007, 102, 257–276. [Google Scholar] [CrossRef]
  50. McNeil, A.G.; Linnen, R.L.; Flemming, R.L.; Fayek, M. An experimental approach to examine fluid-melt interaction and mineralization in rare-metal pegmatites. Am. Mineral. 2020, 105, 1078–1087. [Google Scholar] [CrossRef]
  51. Diao, X.; Wu, M.; Zhang, D.; Liu, J. Textural features and chemical evolution of Ta-Nb-W-Sn oxides in the Jianfengling Deposit, South China. Ore Geol. Rev. 2022, 142, 104690. [Google Scholar] [CrossRef]
  52. González, T.L.; Polonio, F.G.; Moro, F.J.L.; Fernández, A.F.; Contreras, J.L.S.; Benito, M.C.M. Tin-tantalum-niobium mineralization in the Penouta deposit (NW Spain): Textural features and mineral chemistry to unravel the genesis and evolution of cassiterite and columbite group minerals in a peraluminous system. Ore Geol. Rev. 2017, 81, 79–95. [Google Scholar] [CrossRef]
  53. Chládek, Š.; Uher, P.; Novák, M. Compositional and textural variations of columbite-group minerals from beryl-columbite pegmatites in the Maršíkov District, Bohemian Massif, Czech Republic: Magmatic versus hydrothermal evolution. Can. Mineral. 2020, 58, 767–783. [Google Scholar] [CrossRef]
  54. Wu, M.; Samson, I.M.; Zhang, D.H. Textural features and chemical evolution in Ta-Nb oxides: Implications for deuteric rare-metal mineralization in the Yichun granite-marginal pegmatite, southeastern China. Econ. Geol. 2018, 113, 937–960. [Google Scholar] [CrossRef]
  55. Timofeev, A.; Williams-Jones, A.E. The origin of niobium and tantalum mineralization in the Nechalacho REE Deposit, NWT, Canada. Econ. Geol. 2015, 110, 1719–1735. [Google Scholar] [CrossRef]
  56. Lahti, S.I. Zoning in columbite-tantalite crystals from the granitic pegmatites of the Eräjärvi area, southern Finland. Geochim. Cosmochim. Acta 1987, 51, 509–517. [Google Scholar] [CrossRef]
  57. Chudík, P.; Uher, P.; Gadas, P.; Škoda, R.; Pršek, J. Niobium-tantalum oxide minerals in the Jezuitské Lesy granitic pegmatite, Bratislava Massif, Slovakia: Ta to Nb and Fe to Mn evolutionary trends in a narrow Be, Cs-rich and Li, B-poor dike. Mineral. Petrol. 2011, 102, 15–27. [Google Scholar] [CrossRef]
  58. van Lichtervelde, M.; Linnen, R.L.; Salvi, S.; Beziat, D. The role of metagabbro rafts on tantalum mineralization in the Tanco granitic pegmatite, Manitoba. Can. Mineral. 2006, 44, 625–644. [Google Scholar] [CrossRef]
  59. van Lichtervelde, M.; Holtz, F.; Melcher, F. The effect of disequilibrium crystallization on Nb-Ta fractionation in pegmatites: Contraints from crystallization experiments of tantalite-tapiolite. Am. Mineral. 2018, 103, 1401–1416. [Google Scholar] [CrossRef]
  60. McNeil, A.G. Crystallization Processes and Solubility of Columbite-(Mn), Tantalite-(Mn), Microlite, Pyrochlore, Wodginite and Titanowodginite in Highly Fluxed Haplogranitic Melts. Ph.D. Thesis, The Western University, London, UK, 2018. [Google Scholar]
  61. Zhou, Z.; Breiter, K.; Wilde, S.A.; Gao, X.; Burnham, A.D.; Ma, X.; Zhao, J. Ta-Nb mineralization in the shallow-level highly-evolved P-poor Shihuiyao granite, Northeast China. Lithos 2022, 416, 106655. [Google Scholar] [CrossRef]
  62. Jahns, R.H.; Burnham, C.W. Experimental studies of pegmatite genesis: I. A model for the derivation and crystallization of granitic pegmatites. Econ. Geol. 1969, 64, 843–864. [Google Scholar] [CrossRef]
  63. Manning, D.A.C. Chemical and morphological variation in tourmalines from the Hub Kapong batholith of peninsular Thailand. Mineral. Mag. 1982, 45, 139–147. [Google Scholar] [CrossRef] [Green Version]
  64. Borodulin, G.P.; Chevychelov, V.Y.; Zaraysky, G.P. Experimental study of partitioning of tantalum, niobium, manganese, and fluorine between aqueous fluoride fluid and granitic and alkaline melts. Doklady Earth Sci. 2009, 427, 868–873. [Google Scholar] [CrossRef]
  65. Borisova, A.Y.; Thomas, R.; Salvi, S.; Candaudap, F.; Lanzanova, A.; Chmeleff, J. Tin and associated metal and metalloid geochemistry by femtosecond LA-ICP-QMS microanalysis of pegmatite–leucogranite melt and fluid inclusions: New evidence for melt-melt-fluid immiscibility. Mineral. Mag. 2012, 76, 91–113. [Google Scholar] [CrossRef]
  66. Kotelnikov, A.R.; Korzhinskaya, V.S.; Kotelnikova, Z.A.; Suk, N.I. Influence of silicate substance on Pyrochlore and Tantalite solubility in fluoride aqueous solutions (experimental studies). Russ. Geol. Geophys. 2020, 61, 26–35. [Google Scholar]
  67. Timofeev, A.; Migdisov, A.A.; Williams-Jones, A.E. An experimental study of the solubility and speciation of tantalum in fluoride-bearing aqueous solutions at elevated temperature. Geochim. Cosmochim. Acta 2017, 197, 294–304. [Google Scholar] [CrossRef] [Green Version]
  68. Zaraisky, G.P.; Korzhinskaya, V.; Kotova, N. Experimental studies of Ta2O5 and columbite–tantalite solubility in fluoride solutions from 300 to 550 °C and 50 to 100 MPa. Miner. Petrol. 2010, 99, 287–300. [Google Scholar] [CrossRef]
  69. Shaw, R.A.; Goodenough, K.M.; Deady, E.; Nex, P. The magmatic-hydrothermal transition in lithium pegmatites: Petrographic and geochemical characteristics of pegmatites from the Kamativi area, Zimbabwe. Can. Mineral. 2022, 60, 1–31. [Google Scholar] [CrossRef]
  70. Llera, A.R.; Fuertes-Fuente, M.; Cepedal, A.; Martin-Izard, A. Barren and Li-Sn-Ta mineralized pegmatites from NW Spain (Central Galicia): A com- parative study of their mineralogy, geochemistry, and wallrock metasomatism. Minerals 2019, 9, 739. [Google Scholar] [CrossRef] [Green Version]
  71. Sami, M.; EI Monsef, M.A.; Abart, R.; Toksoy-koksal, F.; Abdelfadil, K.M. Unraveling the genesis of highly fractionated rare-metal granites in the Nubian shield via the rare-earth elements tetrad effect, Sr-Nd isotope systematic and mineral chemistry. ACS Earth Space Chem. 2022, 6, 2368–2384. [Google Scholar] [CrossRef]
  72. Madayipu, N.; Li, H.; Algeo, T.J.; Elatikpo, S.M.; Heritier, R.N.; Zhou, H.X.; Zheng, H.; Wu, Q.H. Long-lived Nb-Ta mineralization in Mufushan, NE Hunan, South China: Geological, geochemical, and geochronological constraints. Geosci. Front. 2023, 14, 101491. [Google Scholar] [CrossRef]
  73. Zhou, Q.F.; Qin, K.Z.; Tang, D.M. Mineralogy of columbite-group minerals from the rare-element pegmatite veins in the East-Qinling orogen, central China: Implications for formation times and ore genesis. J. Asian Earth Sci. 2021, 218, 104879. [Google Scholar] [CrossRef]
  74. Černy, P.; Novak, M.; Chapman, R. Effects of sillimanite-grade metamorphism and shearing on Nb-Ta oxide minerals in granitic pegmatites: Marsikov, Northern Moravia, Czechoslovakia. Can. Mineral. 1992, 30, 699–718. [Google Scholar]
  75. Alfonso, P.; Melgarejo, J.C. Fluid evolution in the zoned rare-element pegmatite field at Cap de Creus, Catalonia, Spain. Can. Mineral. 2008, 46, 597–617. [Google Scholar] [CrossRef]
  76. Li, H.; Hong, T.; Yang, Z.Q.; Chen, J.Z.; Ke, Q.; Wang, X.H.; Niu, L.; Xu, X.W. Comparative studying on zircon, cassiterite and coltan U-Pb dating and 40Ar/39Ar dating of muscovite rare-metal granitic pegmatite: A case study of the northern Tugman lithium-beryllium deposit in the middle of Altyn Tagh. Acta Petrol. Sin. 2020, 36, 2869–2892, (In Chinese with English abstract). [Google Scholar]
  77. Burtt, A.C.; Phillips, D. 40Ar/39Ar dating of muscovite from a pegmatite in Kinchina Quarry, near Murray Bridge. MESA J. 2003, 28, 50–52. [Google Scholar]
  78. Zhou, J.S.; Wang, Q.; Xu, Y.G.; Cempirek, J.; Wang, H.; Ma, J.L.; Wei, G.J.; Huang, T.Y.; Zhu, G.H.; Zhang, L. Geochronology, petrology, and lithium isotope geochemistry of the Bailongshan granite-pegmatite system, northern Tibet: Implications for the ore-forming potential of pegmatites. Chemi. Geol. 2021, 584, 120484. [Google Scholar] [CrossRef]
  79. Černý, P. Rare-element granitic pegmatites. Part II: Regional to global environments and petrogenesis. Geosci. Can. 1991, 18, 68–81. [Google Scholar]
  80. Roda-Robles, E.; Pesquera, A.; Velasco, F.; Fontan, F. The granitic pegmatites of the Fregeneda area (Salamanca, Spain); characteristics and petrogenesis. Mineral. Mag. 1999, 63, 535–558. [Google Scholar] [CrossRef]
  81. Coleman, D.S.; Gray, W.; Glazner, A.F. Rethinking the emplacement and evolution of zoned plutons: Geochronologic evidence for incremental assembly of the Tuolumne Intrusive Suite, California. Geology 2004, 32, 433–436. [Google Scholar] [CrossRef] [Green Version]
  82. Ghasemi Siani, M.; Mehrabi, B.; Bayat, S.; Neubauer, F.; Cao, S.Y. Geochronology, geochemistry and mineral chemistry of Malayer–Boroujerd–Shazand pegmatite dikes, Sanandaj–Sirjan zone, NW Iran. Int. J. Earth Sci. 2021, 110, 1139–1167. [Google Scholar] [CrossRef]
  83. Zeng, W.; Sun, F.Y.; Zhou, H.Y.; Wang, J.Y.; Li, Z.D.; Chen, J.Q.; Bi, J.H.; Cui, Y.R. Cassiterite U-Pb age, geochemistry and their geological significances of rare metal pegmatites in Guanpo area, North Qinling, China. Earth Sci. 2021, 1–30, (In Chinese with English abstract). [Google Scholar] [CrossRef]
  84. Li, J.K.; Zou, T.R.; Liu, X.F.; Wang, D.H.; Ding, X. The metallogenetic regularities of lithium deposits in China. Acta Geol. Sin-Engl. 2015, 89, 652–670. [Google Scholar]
  85. Xu, X.W.; Li, H.; Shi, F.P.; Yao, F.J.; Chen, J.Z.; Hong, T.; Ke, Q. Metallogenic characteristics and prospecting of granitic pegmatite-type rare metal deposits in the Tugman area, middle part of Altyn Tagh. Acta Petrol. Sin. 2019, 35, 3303–3316, (In Chinese with English abstract). [Google Scholar]
  86. Yuan, F.; Jiang, S.Y.; Wang, C.L.; Jin, G.; Zhang, J.; Zhang, H.X.; Hu, X.J. U-Pb geochronology of columbite-group mineral, cassiterite, and zircon and Hf isotopes for Devonian rare-metal pegmatite in the Nanyangshan deposit, North Qinling Orogenic Belt, China. Ore Geol. Rev. 2022, 140, 104634. [Google Scholar] [CrossRef]
  87. Li, W.F.; Li, S.P.; Wang, B.Z.; Wang, C.T.; Liu, J.H.; Zhang, X.Y.; Cao, J.S.; Xu, C.B.; Liu, J.D.; Jin, T.T. Discovery of the (Beryl-bearing) spodumene pegmatite in the Caolong area in the Sanjiang northern section of the Qinghai: Implication for Li-Be Mineralization. Geotecton. Metallog. 2021, 1–25, (In Chinese with English abstract). [Google Scholar] [CrossRef]
  88. Zhan, Q.Y.; Zhu, D.C.; Wang, Q.; Weinberg, R.F.; Xie, J.C.; Li, S.M.; Zhang, L.L.; Zhao, Z.D. Source and pressure effects in the genesis of the Late Triassic high Sr/Y granites from the Songpan-Ganzi Fold Belt, eastern Tibetan Plateau. Lithos 2020, 368, 105584. [Google Scholar] [CrossRef]
  89. Zhang, C.L.; Zou, H.B.; Ye, X.T.; Chen, X.Y. Tectonic evolution of the West Kunlun Orogenic Belt along the northern margin of the Tibetan Plateau: Implications for the assembly of the Tarim terrane to Gondwana. Geosci. Front. 2019, 10, 973–988. [Google Scholar] [CrossRef]
  90. Robinson, A.C. Geologic offsets across the northern Karakorum fault: Implications for its role and terrane correlations in the western Himalayan-Tibetan orogen. Earth Planet. Sci. Lett. 2009, 279, 123–130. [Google Scholar] [CrossRef]
  91. Wu, C.L.; Lei, M.; Wu, D.; Li, T.X. Zircon SHRIMP dating and genesis of granites in Wulan area of northern Qaidam. Acta GeoScientica Sin. 2016, 37, 493–516. [Google Scholar]
  92. Qiao, G.B.; Wu, Y.Z.; Liu, T. Formation age of the Dahongliutan pegmatite type rare-metal deposit in Western Kunlun Mountains: Evidence from muscovite 40Ar/39Ar isotopic dating. Geol. Chin. 2020, 47, 1591–1593. (In Chinese) [Google Scholar]
  93. Zhang, Z.; Liang, T.; Feng, Y.G.; Yang, X.Q.; Li, K.; Ding, K.; Wang, Y.Q. Geologicial Feature and Chronology Study of Kangxiwar Beryl-Bearing Muscovite Pegmatite in Weste Kunlun Orogen, Xinjiang. Northwest. Geol. 2019, 52, 75–88, (In Chinese with English abstract). [Google Scholar]
  94. Wang, H.; Gao, H.; Zhang, X.Y.; Yan, Q.H.; Xu, Y.G.; Zhou, K.L.; Dong, R.; Li, P. Geology and geochronology of the super-large Bailongshan Li-Rb-(Be) rare-metal pegmatite deposit, West Kunlun orogenic belt, NW China. Lithos 2020, 360–361, 105449. [Google Scholar] [CrossRef]
  95. Li, P.; Li, J.K.; Chou, I.M.; Wang, D.H.; Xiong, X. Mineralization Epochs of Granitic Rare-Metal Pegmatite Deposits in the Songpan-Ganzê Orogenic Belt and Their Implications for Orogeny. Minerals 2019, 9, 280. [Google Scholar] [CrossRef] [Green Version]
  96. Hao, X.F.; Fu, X.F.; Liang, B.; Yuan, L.P.; Pan, M.; Tang, Y. 2014. Formation ages of granite and X03 pegmatite vein in Jiajika, western Sichuan and their geological significance. Miner. Depos. 2014, 24, 1199–1208, (In Chinese with English abstract). [Google Scholar]
  97. Dai, H.Z.; Wang, D.H.; Liu, L.J.; Yu, Y.; Dai, J.J. Geochronology and geochemistry of Li (Be)-bearing granitic pegmatites from the Jiajika superlarge Li-polymetallic deposit in Western Sichuan, China. J. Earth Sci. 2019, 30, 707–727. [Google Scholar] [CrossRef]
  98. Li, J.K. Mineralizing Mechanism and Continental Geodynamics of Typical Pegmatite Deposits in Western Sichuan, China. Ph.D. Thesis, China University of Geoscience, Beijing, China, 2006. (In Chinese with English abstract). [Google Scholar]
  99. Fei, G.C.; Tian, J.J.; Yang, J.Y.; Gao, J.G.; Tang, W.C.; Li, J.; Gu, C.H. New zircon U-Pb age of the super-large Lijiagou spodumene deposit in Songpan-Garze fold belt, Eastern Tibet: Implications for Early Jurassic rare-metal polymetallic event. Acta Geol. Sin-Engl. 2018, 92, 1274–1275. [Google Scholar] [CrossRef]
  100. Chen, X.Z.; Chen, G.C.; Li, R.B.; Zhang, Y.F.; Ji, X.J.; Zhang, X.F. Zircon U-Pb geochronology and trace element characteristics of Wuduoshan granite pegmatite in the eastern part of East Qinling and its geological significance. Earth Sci. 2021. (In Chinese with English abstract). [Google Scholar] [CrossRef]
Minerals 13 00201 g001 550

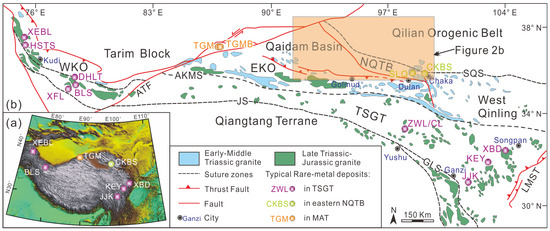

Figure 1. (a) Topographic map showing typical rare-metal deposits in the Tibetan Plateau. (b) Geological sketch showing the distributions of Late Triassic to Early Jurassic igneous rocks and major pegmatite-type rare-metal deposits in the NQTB and neighboring tectonic zones (modified after Yan et al. [20]; Liu et al. [21]). Abbreviations of tectonic units: TSGT = Tianshuihai-Songpan-Ganzi Terrane, EKO = Eastern Kunlun Orogen, WKO = Western Kunlun Orogen, MAT = Middle of Altyn Tagh. Abbreviations of geological boundaries: GLS = Ganzi-Litang suture, JS = Jinsha suture, AKMS = Ayimaqin-Kunlun-Matztagh suture, SQS = South Qilian suture, LMST = Longmenshan thrust, ATS = Altyn Tagh fault. Abbreviations of typical rare-metal deposits: BLS = Bailongshan, MLC = Mulinchang, XEBL = Xiaoerbulong, HSTS = Huoshitashi, XFL = Xuefengling, DHLT = Dahongliutan, ZWL = Zhawulong, CL = Caolong, JJK = Jiajika, KEY = Ke’eryin, XBD = Xuebaoding, TGM = Tugman, TGMB = TugmanBei, CKBS= Chakabeishan and SLQ = Shaliuquan.
Figure 1. (a) Topographic map showing typical rare-metal deposits in the Tibetan Plateau. (b) Geological sketch showing the distributions of Late Triassic to Early Jurassic igneous rocks and major pegmatite-type rare-metal deposits in the NQTB and neighboring tectonic zones (modified after Yan et al. [20]; Liu et al. [21]). Abbreviations of tectonic units: TSGT = Tianshuihai-Songpan-Ganzi Terrane, EKO = Eastern Kunlun Orogen, WKO = Western Kunlun Orogen, MAT = Middle of Altyn Tagh. Abbreviations of geological boundaries: GLS = Ganzi-Litang suture, JS = Jinsha suture, AKMS = Ayimaqin-Kunlun-Matztagh suture, SQS = South Qilian suture, LMST = Longmenshan thrust, ATS = Altyn Tagh fault. Abbreviations of typical rare-metal deposits: BLS = Bailongshan, MLC = Mulinchang, XEBL = Xiaoerbulong, HSTS = Huoshitashi, XFL = Xuefengling, DHLT = Dahongliutan, ZWL = Zhawulong, CL = Caolong, JJK = Jiajika, KEY = Ke’eryin, XBD = Xuebaoding, TGM = Tugman, TGMB = TugmanBei, CKBS= Chakabeishan and SLQ = Shaliuquan.
Minerals 13 00201 g001
Minerals 13 00201 g002 550
Figure 2. (a) Topographic map showing the location of (b); (b) Geological sketch of the NQTB and its surrounding tectonic units (modified after Chen et al. [34], Li et al. [35] and Ren et al. [36]); (c) Geological sketch showing the typical area of the CKBS Li-Be deposit and sampling location (modified after 1:10,000 geological survey data).
Figure 2. (a) Topographic map showing the location of (b); (b) Geological sketch of the NQTB and its surrounding tectonic units (modified after Chen et al. [34], Li et al. [35] and Ren et al. [36]); (c) Geological sketch showing the typical area of the CKBS Li-Be deposit and sampling location (modified after 1:10,000 geological survey data).
Minerals 13 00201 g002
Minerals 13 00201 g003 550
Figure 3. Photographs and photomicrographs showing mineral assemblages of the spodumene pegmatite dykes in the CKBS Li-Be deposit. (a) The pegmatite dyke intruded into diorite. (b) Hand-specimen of pegmatites in the CKBS deposit. (c) Photograph of a coarse green spodumene crystal. (d–f) Photomicrographs of the spodumene-bearing pegmatite on double polished thin sections. Spd—spodumene, Tur—tourmaline, Mus—muscovite, Ab—albite, Kfd—feldpasr, Gt—garnet and Q—quarzt.
Figure 3. Photographs and photomicrographs showing mineral assemblages of the spodumene pegmatite dykes in the CKBS Li-Be deposit. (a) The pegmatite dyke intruded into diorite. (b) Hand-specimen of pegmatites in the CKBS deposit. (c) Photograph of a coarse green spodumene crystal. (d–f) Photomicrographs of the spodumene-bearing pegmatite on double polished thin sections. Spd—spodumene, Tur—tourmaline, Mus—muscovite, Ab—albite, Kfd—feldpasr, Gt—garnet and Q—quarzt.
Minerals 13 00201 g003
Minerals 13 00201 g004 550
Figure 4. Back-scattered electron images of the CGMs. (a,b): oscillatory CGMs-1 grains; (c): homogenous CGMs-2 crystal; (d): Ta-rich patch overgrowth on CGMs-1; (e): Ta-rich domains crosscutting Nb-rich domain; (f): corroded Nb-rich fragments remained in the Ta-rich domain (metasomatic relict texture); (g): small worm-like Ta-rich domains occurred into the Nb-rich domain (metasomatic myrmekitic texture); (h): CGMs-3 with mottled zoning; (i): CGMs-3 with embayment texture.
Figure 4. Back-scattered electron images of the CGMs. (a,b): oscillatory CGMs-1 grains; (c): homogenous CGMs-2 crystal; (d): Ta-rich patch overgrowth on CGMs-1; (e): Ta-rich domains crosscutting Nb-rich domain; (f): corroded Nb-rich fragments remained in the Ta-rich domain (metasomatic relict texture); (g): small worm-like Ta-rich domains occurred into the Nb-rich domain (metasomatic myrmekitic texture); (h): CGMs-3 with mottled zoning; (i): CGMs-3 with embayment texture.
Minerals 13 00201 g004
Minerals 13 00201 g005 550

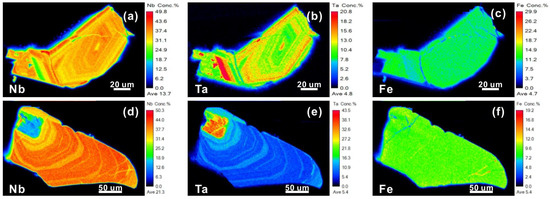

Figure 5. EMPA mapping for the oscillatory CGMs-1 grains. (a–c) for grain on Figure 4a and (d–f) for grain on Figure 4b.
Figure 5. EMPA mapping for the oscillatory CGMs-1 grains. (a–c) for grain on Figure 4a and (d–f) for grain on Figure 4b.
Minerals 13 00201 g005
Minerals 13 00201 g006 550

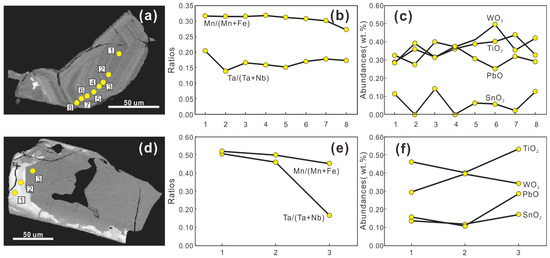

Figure 6. Electron probe microanalysis profiles showing the chemical variations of typical CGMs-1 (a–c) and CGMs-3 (d–f) from core to rim. Analyzed numbers and sites are marked as yellow circles (not to scale) in the backscattered electron images of (a,d), and the corresponding contents and ratios of elements are shown in the form of change curve (b,c,e,f).
Figure 6. Electron probe microanalysis profiles showing the chemical variations of typical CGMs-1 (a–c) and CGMs-3 (d–f) from core to rim. Analyzed numbers and sites are marked as yellow circles (not to scale) in the backscattered electron images of (a,d), and the corresponding contents and ratios of elements are shown in the form of change curve (b,c,e,f).
Minerals 13 00201 g006
Minerals 13 00201 g007 550
Figure 7. Major-element compositions in CGMs from the CKBS deposit expressed in terms of (a) Mn/(Mn + Fe) vs. Ta/(Ta + Nb) (after Černy and Ercit [17]), (b) Nb (apfu) vs. Ta (apfu), (c) Mn (apfu) vs. Fe (apfu) and (d) Mn/(Mn + Fe) vs. Ti (apfu).
Figure 7. Major-element compositions in CGMs from the CKBS deposit expressed in terms of (a) Mn/(Mn + Fe) vs. Ta/(Ta + Nb) (after Černy and Ercit [17]), (b) Nb (apfu) vs. Ta (apfu), (c) Mn (apfu) vs. Fe (apfu) and (d) Mn/(Mn + Fe) vs. Ti (apfu).
Minerals 13 00201 g007
Minerals 13 00201 g008 550
Figure 8. Tera-Wasserburg (a) and weighted average (b) diagrams for CGMs-2. Tera-Wasserburg (c) and weighted average (d) diagrams for CGMs-3b. Red circles and red words on the BSE images of typical CGM crystals showing U-Pb analyzed sites and results (206Pb/238U ages), respectively.
Figure 8. Tera-Wasserburg (a) and weighted average (b) diagrams for CGMs-2. Tera-Wasserburg (c) and weighted average (d) diagrams for CGMs-3b. Red circles and red words on the BSE images of typical CGM crystals showing U-Pb analyzed sites and results (206Pb/238U ages), respectively.
Minerals 13 00201 g008
Minerals 13 00201 g009 550

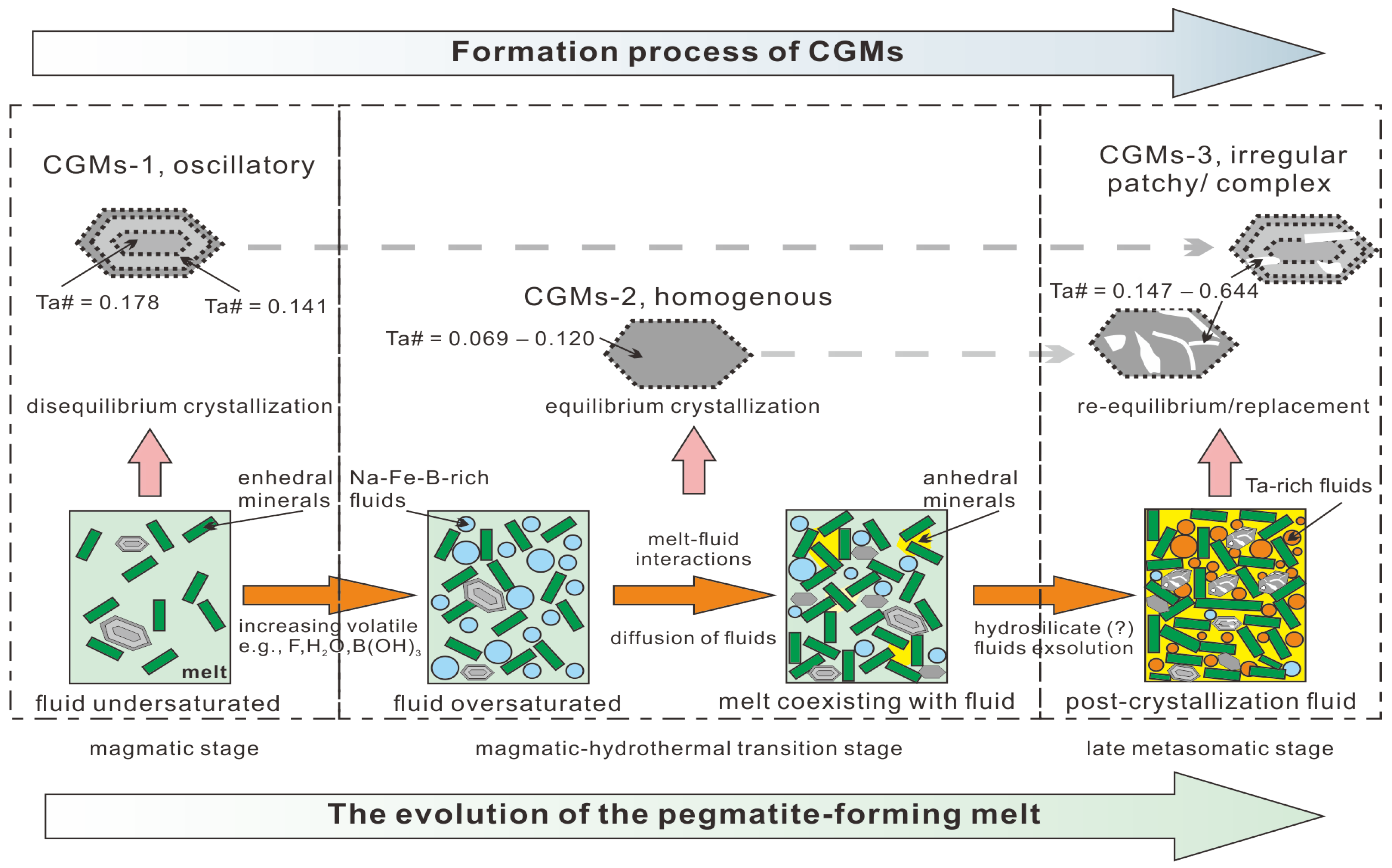

Figure 9. Schematic model illustrating the formation process of CGMs and the evolution of pegmatite. Ta# = Ta/(Ta + Nb). Note that the sizes of minerals are not to scale.
Figure 9. Schematic model illustrating the formation process of CGMs and the evolution of pegmatite. Ta# = Ta/(Ta + Nb). Note that the sizes of minerals are not to scale.
Minerals 13 00201 g009
Minerals 13 00201 g010 550

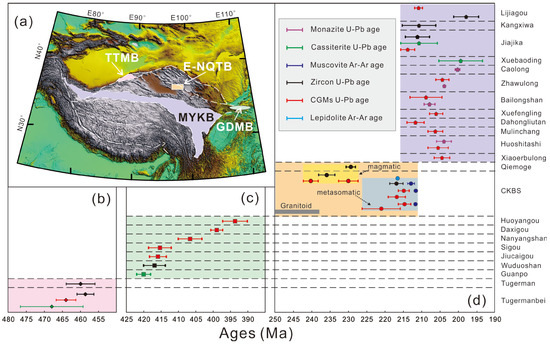

Figure 10. Comparison of geochronological data of the pegmatite-type rare-metal deposits in the TTMB, GDMB, E-NQTB and MYKB. (a) Topographic map showing the distributions of the rare-metal mineralized belts around the CKBS deposit in the eastern NQTB (modified after Zhan et al. [88], Zhang et al. [89] and Robinson [90]). (b) the dating results for the TTMB (Tugman-Tashisayi mineralization belt, pink area). (c) the dating results for the GDMB (Guanpo-Danfeng mineralization belt, laurel-green area). (d) the dating results for the E-NQTB (the eastern North Qaidam Tectonic Blet, saffron yellow area) and the MYKB (Markam-Yajiang-Karakoram belt, purple area). Yellow area and light grey area in (c) represent the ranges for crystallization ages and metasomatic ages of pegmatites in the eastern NQTB, respectively. Detailed data and sources are shown in Table 3. This diagram does not include the muscovite Ar-Ar ages of the Aketasi, Dangba and Tugmanbei deposits due to their far difference from the results of other geochronological methods. Meanwhile, due to the large error values (±8, MSWD = 6.7, Li et al. [23]), the cassiterite U-Pb age for the 505 Li is also ruled out. The ages of Triassic granitoids (grey area) in the eastern NQTB are from Wu et al. [91] and Sun et al. [42].
Figure 10. Comparison of geochronological data of the pegmatite-type rare-metal deposits in the TTMB, GDMB, E-NQTB and MYKB. (a) Topographic map showing the distributions of the rare-metal mineralized belts around the CKBS deposit in the eastern NQTB (modified after Zhan et al. [88], Zhang et al. [89] and Robinson [90]). (b) the dating results for the TTMB (Tugman-Tashisayi mineralization belt, pink area). (c) the dating results for the GDMB (Guanpo-Danfeng mineralization belt, laurel-green area). (d) the dating results for the E-NQTB (the eastern North Qaidam Tectonic Blet, saffron yellow area) and the MYKB (Markam-Yajiang-Karakoram belt, purple area). Yellow area and light grey area in (c) represent the ranges for crystallization ages and metasomatic ages of pegmatites in the eastern NQTB, respectively. Detailed data and sources are shown in Table 3. This diagram does not include the muscovite Ar-Ar ages of the Aketasi, Dangba and Tugmanbei deposits due to their far difference from the results of other geochronological methods. Meanwhile, due to the large error values (±8, MSWD = 6.7, Li et al. [23]), the cassiterite U-Pb age for the 505 Li is also ruled out. The ages of Triassic granitoids (grey area) in the eastern NQTB are from Wu et al. [91] and Sun et al. [42].
Minerals 13 00201 g010
Minerals 13 00201 g011 550

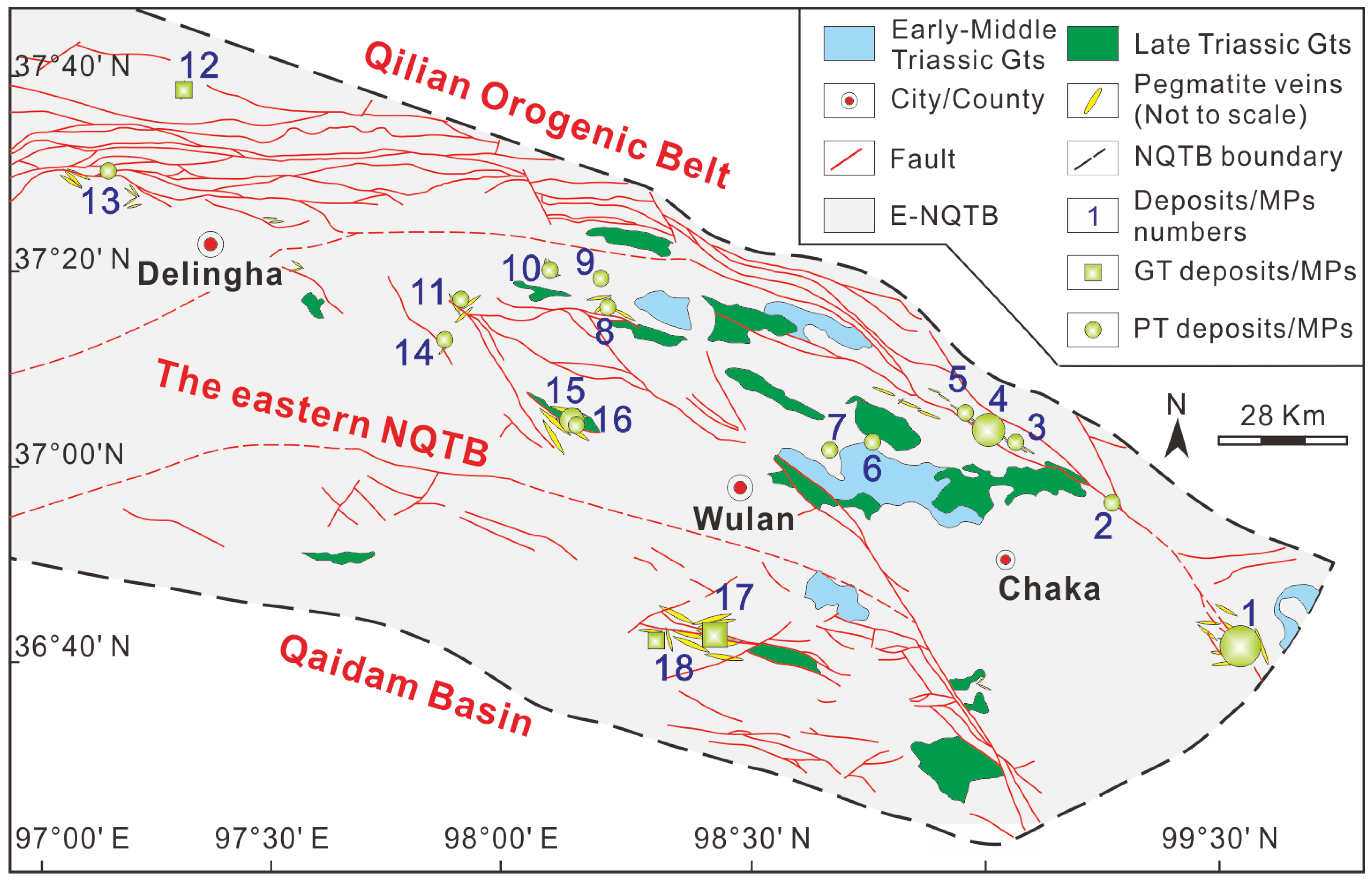

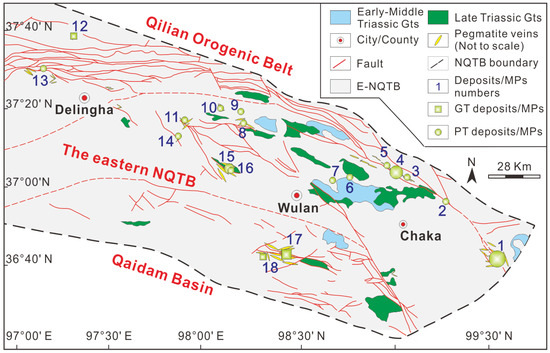

Figure 11. Geological sketch of Triassic granitoids and rare-metal deposits in the eastern NQTB. Letter abbreviations: NQTB = North Qaidam Tectonic Belt, Gts = grantoids, GT = granite-type, PT = pegmatite-type and MPs = mineralization points. Number abbreviations of deposits/mineralized-point: 1 = Shinaihai Nb-Ta deposit, 2 = Honglingbei Li mineralized point, 3 = Qiemoge Li-Be deposit, 4 = Chakabeishan Li-Be deposit, 5 = Edanggang Be deposit, 6 = Ashiheta Be deposit, 7 = Chahannuo Nb mineralized point, 8 = Shengge Nb mineralized point, 9 = Yematannan Nb-Ta mineralized point, 10 = Bahagaidege Be mineralized point, 11 = Gaotelameng REE mineralized point, 12 = Balegenluole LREE mineralized point, 13 = Chahansen Nb mineralized point, 14 = Halahada Be mineralized point, 15 = Shaliuquan Nb-Ta deposit, 16 = Amuneige Nb mineralized point, 17 = Xiaerdawu Nb-REE mineralized deposit, 18 = Chachaxiangka U mineralized point.
Figure 11. Geological sketch of Triassic granitoids and rare-metal deposits in the eastern NQTB. Letter abbreviations: NQTB = North Qaidam Tectonic Belt, Gts = grantoids, GT = granite-type, PT = pegmatite-type and MPs = mineralization points. Number abbreviations of deposits/mineralized-point: 1 = Shinaihai Nb-Ta deposit, 2 = Honglingbei Li mineralized point, 3 = Qiemoge Li-Be deposit, 4 = Chakabeishan Li-Be deposit, 5 = Edanggang Be deposit, 6 = Ashiheta Be deposit, 7 = Chahannuo Nb mineralized point, 8 = Shengge Nb mineralized point, 9 = Yematannan Nb-Ta mineralized point, 10 = Bahagaidege Be mineralized point, 11 = Gaotelameng REE mineralized point, 12 = Balegenluole LREE mineralized point, 13 = Chahansen Nb mineralized point, 14 = Halahada Be mineralized point, 15 = Shaliuquan Nb-Ta deposit, 16 = Amuneige Nb mineralized point, 17 = Xiaerdawu Nb-REE mineralized deposit, 18 = Chachaxiangka U mineralized point.
Minerals 13 00201 g011
Table
Table 1. Major-element compositional variations of the three-type CGMs in the spodumene pegmatite from the CKBS deposit.
Table 1. Major-element compositional variations of the three-type CGMs in the spodumene pegmatite from the CKBS deposit.
CGMs-1CGMs-2CGMs-3aCGMs-3b
min–maxa ± sdmin–maxa ± sdmin–maxa ± sdmin–maxa ± sd
Nb2O5 (wt.%)55.63–61.7058.92 ± 1.86263.66–69.2767.75 ± 1.41358.34–70.4166.11 ± 4.45520.66–59.8740.80 ± 12.79
Ta2O5 (wt.%)16.78–23.7319.81 ± 2.0718.496–14.479.924 ± 1.3807.187–19.5611.76 ± 4.43117.11–62.2238.99 ± 14.27
TiO2 (wt.%)0.290–0.4390.361 ± 0.0490.341–0.5560.420 ± 0.0480.310–0.5650.449 ± 0.0900.192–0.9510.447 ± 0.178
SnO2 (wt.%)0.000–0.1420.066 ± 0.0570.000–0.2700.081 ± 0.0800.016–0.3040.129 ± 0.0860.000–1.1820.237 ± 0.254
MnO (wt.%)5.356–6.3516.075 ± 0.3185.980–9.6988.148 ± 0.9877.376–9.5188.224 ± 0.6796.163–11.897.849 ± 1.395
FeO (wt.%)13.51–14.4413.84 ± 0.29310.91–14.7212.52 ± 1.03110.34–13.2412.21 ± 0.9737.121–13.7410.38 ± 1.729
WO3 (wt.%)0.276–0.4970.383 ± 0.0670.261–0.5750.388 ± 0.0780.278–0.5110.408 ± 0.0790.215–1.6080.398 ± 0.253
PbO (wt.%)0.254–0.3930.319 ± 0.0460.174–0.4270.363 ± 0.0480.275–0.4260.337 ± 0.0470.000–0.3430.188 ± 0.093
Total (wt.%)98.81–100.299.77 ± 0.41798.50–100.699.60 ± 0.50798.92–100.599.63 ± 0.61797.84–100.999.30 ± 0.899
Mn/(Mn + Fe)0.273–0.3180.308 ± 0.0150.292–0.4740.397 ± 0.0490.370–0.4820.406 ± 0.0390.312–0.6280.435 ± 0.075
Ta/(Ta + Nb)0.141–0.2040.168 ± 0.0190.069–0.1200.081 ± 0.0120.058–0.1680.098 ± 0.0390.147–0.6440.375 ± 0.160
min–max: minimum value–maximum value; a: average value; sd: standard deviation; the numbers of analysis points for CGMs-1, CGMs-2, CGMs-3a and CGMs-3b are 12, 27, 9 and 30, respectively; details see Table S1.
Table
Table 2. Analytical results of U-Pb isotopes and calculated ages for CGMs grains in the spodumene pegmatite from the CKBS deposit.
Table 2. Analytical results of U-Pb isotopes and calculated ages for CGMs grains in the spodumene pegmatite from the CKBS deposit.
Spot No.TypeIsotopic RatiosAge (Ma)
207Pb/235U2σ206Pb/238U2σ207Pb/206Pb2σ207Pb/235U2σ206Pb/238U2σ207Pb/206Pb2σ
1CGMs-10.5570 0.0450 0.03980 0.00100 0.10010 0.00680 445 29 252 6.4 1570 130
2CGMs-20.4100 0.0260 0.03760 0.00110 0.07810 0.00330 343 18 238 6.9 1062 89
3CGMs-20.4110 0.0200 0.03714 0.00069 0.08010 0.00350 346 14 235 4.3 1114 92
4CGMs-20.3160 0.0250 0.03643 0.00082 0.06110 0.00360 274 18 231 5.1 540 110
5CGMs-20.2490 0.0130 0.03647 0.00068 0.04980 0.00260 224 11 231 4.2 150 110
6CGMs-20.2780 0.0120 0.03640 0.00061 0.05610 0.00250 247 10 231 3.8 409 96
7CGMs-20.3130 0.0260 0.03659 0.00087 0.06250 0.00530 273 20 232 5.4 500 170
8CGMs-20.3840 0.0170 0.03792 0.00075 0.07380 0.00290 327 13 240 4.6 970 89
9CGMs-3b0.2420 0.0170 0.03569 0.00087 0.04990 0.00350 217 14 226 5.4 100 130
10CGMs-3b0.2370 0.0110 0.03412 0.00062 0.05100 0.00240 215 9 216 3.9 200 100
11CGMs-3b0.2490 0.0170 0.03573 0.00088 0.05200 0.00390 224 14 226 5.5 160 140
12CGMs-3b0.2470 0.0140 0.03453 0.00090 0.05200 0.00280 222 12 219 5.6 210 110
13CGMs-3b0.2360 0.0130 0.03375 0.00068 0.05150 0.00280 215 10 214 4.2 210 100
14CGMs-3b0.2620 0.0110 0.03520 0.00057 0.05370 0.00220 235 9 223 3.5 302 87
15CGMs-3b0.2435 0.0075 0.03529 0.00056 0.04980 0.00150 221 6 224 3.5 162 65
Table
Table 3. The formation ages revealed by various dating methods for pegmatite-type rare-metal deposits in the TTMB, MYKB, GDMB and the eastern NQTB.
Table 3. The formation ages revealed by various dating methods for pegmatite-type rare-metal deposits in the TTMB, MYKB, GDMB and the eastern NQTB.
DepositMinerallized BeltDating MethodAge (Ma)References
CKBSThe eatern NQTBColumbite U-Pb *230.1 ± 2.6This study
Columbite U-Pb *240.6 ± 1.5Pan et al. [4]
Columbite U-Pb **214.9 ± 1.7Liu et al. [21]
Columbite U-Pb **217 ± 2.3Liu et al. [21]
Columbite U-Pb **221.2 ± 5.3This study
Columbite U-Pb **215 ± 1.5Liu et al. [21]
Zircon U-Pb217 ± 1.8Wang et al. [32]
Zircon U-Pb235.9 ± 2.3Wang et al. [32]
Muscovite Ar-Ar212.6 ± 0.6Chen et al. [44]
Muscovite Ar-Ar211.7 ± 0.4Liu et al. [21]
Muscovite Ar-Ar211.8 ± 0.3Liu et al. [21]
Lepidolite Ar-Ar216.6 ± 0.9Liu et al. [21]
QiemogeThe eatern NQTBZircon U-Pb229.5 ± 1.3Li et al. [29]
AketasiMYKBMuscovite Ar-Ar144.7 ± 4.3Qiao et al. [92]
505 LiMYKBCassiterite U-Pb223.5 ± 7.9Li et al. [23]
Xiaoerbulong MYKBColumbite U-Pb204.6 ± 2.1Yan et al. [20]
KangxiwarMYKBZircon U-Pb209 ± 4.4Zhang et al. [93]
XuefenglingMYKBColumbite U-Pb206.3 ± 1.8Yan et al. [20]
BailongshanMYKBColumbite U-Pb208.1 ± 1.5Wang et al. [94]
Monazite U-Pb207.4 ± 0.6Yan et al. [20]
CaolongMYKBMonazite U-Pb204 ± 0.3Li et al. [87]
Monazite U-Pb200.4 ± 0.7Li et al. [87]
ZhawulongMYKBColumbite U-Pb204.5 ± 1.8Li et al. [95]
XuebaodingMYKBCassiterite U-Pb199.6 ± 6Yan et al. [20]
JiajikaMYKBColumbite U-Pb214 ± 2Hao et al. [96]
Cassiterite U-Pb210.9 ± 4.6Dai et al. [97]
Zircon U-Pb211 ± 5Dai et al. [97]
DangbaMYKBMuscovite Ar-Ar152 ± 1Li et al. [98]
DahongliutanMYKBColumbite U-Pb211.9 ± 2.4Yan et al. [24]
MulinchangMYKBColumbite U-Pb206.4 ± 2.0Yan et al. [20]
Huoshitashi MYKBColumbite U-Pb205.7 ± 2.7Yan et al. [20]
Monazite U-Pb204.2 ± 2.0Yan et al. [20]
LijiagouMYKBZircon U-Pb198 ± 3.4Fei et al. [99]
MYKBColumbite U-Pb211.1 ± 1.0Fei et al. [22]
TugmanTTMBZircon U-Pb459.9 ± 3.7Xu et al. [85]
TugmanbeiTTMBZircon U-Pb458.7 ± 2.3Li et al. [76]
Cassiterite U-Pb468 ± 8.7Li et al. [76]
Muscovite Ar-Ar350.2 ± 1.6Li et al. [76]
Columbite U-Pb464.1 ± 2.7Li et al. [76]
GuanpoGDMBCassitereite U-Pb420 ± 2Zeng et al. [83]
WuduoshanGDMBZircon U-Pb417.4 ± 2.5Chen et al. [100]
NanyangshanGDMBColumbite U-Pb406.8 ± 3.3Yuan et al. [86]
JiucaigouGDMBColumbite U-Pb415.9±2.4Zhou et al. [16]
DaxigouGDMBColumbite U-Pb399.2±1.7Zhou et al. [16]
SigouGDMBColumbite U-Pb415.4±3.2Zhou et al. [16]
HuoyangouGDMBColumbite U-Pb393.9±3.6Zhou et al. [16]
* represents magmatic age; ** represents metasomatic age; NQTB: North Qaidam Tectonic. Belt; MYKB: Markam-Yajiang-Karakoram Mineralization Belt; TTMB: Tugman-Tashisayi Mineralization Belt; GDMB: Guanpo-Danfeng Mineralization Belt.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Sun, W.; Zhao, Z.; Mo, X.; Wei, C.; Dong, G.; Li, X.; Yuan, W.; Wang, T.; Yang, S.; Wang, B.; et al. Age and Composition of Columbite-Tantalite Group Minerals in the Spodumene Pegmatite from the Chakabeishan Deposit, Northern Tibetan Plateau and Their Implications. Minerals 2023, 13, 201. https://doi.org/10.3390/min13020201

AMA Style

Sun W, Zhao Z, Mo X, Wei C, Dong G, Li X, Yuan W, Wang T, Yang S, Wang B, et al. Age and Composition of Columbite-Tantalite Group Minerals in the Spodumene Pegmatite from the Chakabeishan Deposit, Northern Tibetan Plateau and Their Implications. Minerals. 2023; 13(2):201. https://doi.org/10.3390/min13020201

Chicago/Turabian Style

Sun, Wenli, Zhidan Zhao, Xuanxue Mo, Chunjing Wei, Guochen Dong, Xiaowei Li, Wanming Yuan, Tao Wang, Shuang Yang, Bingzhang Wang, and et al. 2023. "Age and Composition of Columbite-Tantalite Group Minerals in the Spodumene Pegmatite from the Chakabeishan Deposit, Northern Tibetan Plateau and Their Implications" Minerals 13, no. 2: 201. https://doi.org/10.3390/min13020201

APA Style

Sun, W., Zhao, Z., Mo, X., Wei, C., Dong, G., Li, X., Yuan, W., Wang, T., Yang, S., Wang, B., Pan, T., Han, J., Cao, H., Tang, Y., & Zhang, L. (2023). Age and Composition of Columbite-Tantalite Group Minerals in the Spodumene Pegmatite from the Chakabeishan Deposit, Northern Tibetan Plateau and Their Implications. Minerals, 13(2), 201. https://doi.org/10.3390/min13020201

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
