The Depositional Environment of the Lacustrine Source Rocks in the Eocene Middle Number of the Liushagang Formation of the Weixinan Sag, Beibuwan Basin, China: Implications from Organic Geochemical Analyses

by
Xiaoyong Yang
1,2,
Xiaoxia Lv
1,2,*,
Yahao Huang
3,*,
Yunlong He
1,
Rui Yang
4,
Ruyue Wang
5 and
Peng Peng
6
1
Hubei Key Laboratory of Marine Geological Resource, China University of Geosciences, Wuhan 430074, China
2
State Key Laboratory of Biogeology and Environmental Geology, China University of Geosciences, Wuhan 430074, China
3
College of Resource and Environment, Yangtze University, Wuhan 430100, China
4
School of Earth Resources, China University of Geosciences, Wuhan 430074, China
5
SINOPEC Petroleum Exploration and Production Research Institute, Beijing 102206, China
6
PetroChina Tarim Oilfield Company, Korla 841000, China
*
Authors to whom correspondence should be addressed.
Minerals 2023, 13(4), 575; https://doi.org/10.3390/min13040575
Submission received: 19 February 2023 / Revised: 22 March 2023 / Accepted: 13 April 2023 / Published: 20 April 2023
(This article belongs to the Topic Hydrocarbon Generation and Accumulation in Unconventional Shale Reservoir: Up-to-Date Advances in Theory, Experiment, Method and Application, Volume II)
(This article belongs to the Section Mineral Exploration Methods and Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
The Eocene middle number of the Liushagang Formation (LS2) of the Weixinan Sag, Beibuwan Basin, characterized by a thick succession of excellent quality source rocks, is composed of lacustrine organic-rich shales, mudstones, and shales (mudstones/shales). However, the complex and specific depositional environment in the source rocks of LS2 raise questions about the mainly controlling factors of lacustrine organic matter (OM) accumulation. In this study, total organic carbon (TOC) contents, Rock-Eval pyrolysis, as well as biomarker data are used to investigate the nature of the depositional environment and the enrichment mechanism of OM in the source rocks of LS2. The values of Tmax, CPI, C29 steranes αββ/(ααα+αββ), and the 22S/(22S+22R) ratios of the 17α, 21β(H)-C31 hopane together confirm that the OM in the source rocks of LS2 is immature to of low maturity, which suggests that the nature of biomarkers may not be affected by thermal maturity. The hydrocarbon potential was higher in the organic-rich shales (with a mean of 20.99 mg/g) than in the mudstones/shales (with a mean of 7.10 mg/g). The OM in organic-rich shales is type I and II kerogen and that in mudstones/shales is type II kerogen. The C27/C29 regular steranes ratios and 4-methylsterane indices (4MSI) further confirmed the difference in the source of OM between organic-rich shales and mudstones/shales; that is, that the OM of organic-rich shales is mainly derived from the lake algae and aquatic macrophytes and the OM of mudstones/shales is mainly from the higher plants. The values of the gammacerane index and ratios of C21/C23 TT and C24 Tet/C26 TT all indicate that the source rocks from LS2 are deposited in freshwater to a low salinity water column. Moreover, a cross-plot of C21–22/C27–29 sterane versus dia/reg C27 sterane ratios and Pr/Ph ratios suggests that the source rocks from LS2 are recorded to have sub-oxic to oxic conditions. Based on those analyses, two dynamical formation models were proposed: a high-productivity and oxic-suboxic dynamical formation model (Model A) and a low-productivity and oxic-suboxic dynamical formation model (Model B).

1. Introduction

Organic-rich fine-grained sediments are significant hydrocarbon source rocks and, in recent years, have become key targets for shale oil exploration and production in China [1]. The Liushagang Formation, widely developed in the Weixinan Sag, Beibuwan Basin, was considered to be excellent source rocks and a shale oil target interval in the northwestern South China sea [2,3,4,5,6,7,8,9,10].
In recent years, the massive amounts of research into organic-rich shales were concentrated in the Liushagang Formation in the Weixinan Sag, Beibuwan Basin [5,6,7,8,9]. Analyzing the characteristics of organic geochemistry and geobiology in the whole Liushagang Formation, Ye et al. (2020) proposed that the paleo-productivity, organic matter burial efficiency, and organic carbon burial productivity of the source rocks were the significant factors limiting the development of excellent quality source rocks. The hyper-trophic lake is developed during the LS2 sedimentary period, which indicated that hydrogen-rich components might be derived from the endogenous aquatic algae of lakes, providing most of the hydrocarbon potential of excellent quality source rocks [5].
Paradoxically, Xu et al. (2021) proposed that hydrogen-rich components including liptinite, cutinite, and sporinite might be from terrigenous higher plants, providing most of the hydrocarbon potential of excellent quality source rocks and oil shales. Samples of general quality and excellent quality source rocks and oil shales from the whole Liushagang Formation in the Weixinan Sag, Beibuwan Basin were analyzed to investigate their organic geochemistry, palynofacies, and trace elements, and it was further pointed out that fresh-brackish and weak oxidation reducing conditions were the main controlling factors for excellent quality source rocks [6].
In addition, Cao et al. (2020) investigated the mechanisms for the accumulation of organic matter in source rocks from LS2 of Weixinan Sag by analyzing the depositional environment and lithological characteristics of the parent rocks using elemental geochemistry and biomarker data, which pointed out that the inter-relationships among algal blooms, paleoproductivity, and paleoredox conditions played a significant role for excellent quality source rocks [7,8,9].
Therefore, the nature of the conditions and accumulation mechanism of organic matter in LS2 of Weixinan Sag were unclear. In conclusion, detailed investigation into environment changes and the enrichment mechanism of OM during the period of LS2 sedimentary play a significant role in understanding their nature.
Here, we generated a number of total organic carbon (TOC) content, Rock-Eval pyrolysis, as well as biomarker data from the drilling rocks analyses in LS2 located in Weixinan Sag, Beibuwan Basin. The objectives are to (1) reconstruct the nature of the paleo-environment that occurs in the deposition of the source rocks from LS2 in Weixinan Sag by assessing the degree of paleo-productivity, redox conditions and water salinity; (2) analyze the mechanisms responsible for the accumulation of organic matter from two source rocks groups, organic-rich shales and mudstones/shales, in LS2, respectively; (3) based on those analyses, two formation models of the lacustrine OM accumulation in the source rocks of LS2 are presented.

2. Geologic Setting and Samples

The Beibuwan basin, a Cenozoic extensional one, is located in the northern continental shelf of the South China Sea, covering an area of 3.9 × 104 km2, where a number of oil and gas fields have been explored, mainly in Weishan Sag, Wushi Sag, and Fushan Sag [11]. The Weixinan Sag, a third-level structural unit, spanning an area of about 3000 km2, is located in the northwest of the Beibuwan Basin, which is a dustpan-shaped fault depression caused by Shenhu Movement in the late period of the Paleocene [12]. Based on the configuration of this depression, the evolution of the Weixinan Sag experienced syn-rift lacustrine depositions during the Paleogene, followed by the deposition of marine sediments from the Neogene to present (Figure 1 and Figure 2) [13,14].
The Cenozoic strata of the sag, from bottom to top, are composed of Paleogene Changliu, Liushagang, Weizhou Formation, Neogene Xiayang, Jiaowei, Dengloujiao, Wanglougang Formation, and Quaternary strata, among which the Eocene Liushagang Formation is the main source rock of the sag, which can be further subdivided into the top number (LS1), middle number (LS2), and bottom number (LS3). In addition, based on the depositional characteristics of the Liushagang Formation, Weixinan Sag can be classified into A, B, C, and D sub-depressions (Figure 3) [5].
During the deposition period of LS2, basin subsidence further intensified, resulting in the development of the sag reaching its peak. Controlled by these characteristics, the sedimentary facies of LS2 are mainly semi-deep lacustrine-deep lacustrine facies and the lithology mainly is composed of shales and mudstones [15,16].
The lacustrine shale of LS2 is mainly composed of gray-black shale and gray-black calcareous shale, developed for horizontal bedding and intermittent horizontal bedding [9,17]. The total organic carbon content of the lacustrine shale is generally high, with most of them classified as organic-rich shales, indicating that the water column is calm during deposition without benthic disturbance and a relatively high deposition rate. Visible banded pyrite particles and a high content of reduced sulfur are found in the lacustrine shale, which suggest that the sediments may be anoxic during deposition [17].
Moreover, the relative abundances of clay minerals of lacustrine shale from LS2 follow the order of illite > illite/smectite mixed-layers > kaolinite > smectite > chlorite, which may indicate a relatively warm and humid climate environment during deposition in that period [17].
Here, 31 drilling rock samples, including 15 organic-rich shales, 11 mudstones, and 5 shales (the definition is from 4.1) were collected from LS2 in well 1 (4 samples), 2 (7 samples), 3 (7 samples), 4 (9 samples), and 6 (4 samples) in the Weixinan Sag, Beibuwan Basin.

3. Analytical Methods

3.1. TOC Contents

The TOC contents of the collected source rock samples were analyzed with a LECO-230 carbon-sulfur analyzer (CS-230, Laboratory Equipment Corporation (LECO), San Joseph, MI, USA). The experiments were carried out at a temperature of 25 °C and a relative humidity of 40%. Approximately 120–200 mg of powdered rock samples, less than 100 mesh, was added to hydrochloric acid (10%) at a consistent temperature of 60 °C to 80 °C until no reaction occurred to remove carbonate, and then used deionized water to rinse the residual hydrochloric acid. Finally, these powder samples were freeze-dried to measure the TOC content. Based on replicate analyses and standards, the analytical errors of TOC content were better than ± 0.2%.

3.2. Rock-Eval Pyrolysis

Rock-Eval pyrolysis was performed using a Rock-Eval 6 instrument (Vinci Technologies, Nanterre, France) with a flame ionization detector. Each of the crushed source rock samples, approximately 80–120 mg, were initially rapidly heated to 300 °C, then held at 300 °C for 1 min, then heated from 300 °C to 600 °C at 50 °C/min, and finally held at 600 °C for 8 min. The hydrocarbon generation evaluation parameters measured by these methods included S1 (mg HC/g rock), S2 (mg HC/g rock), S3 (mg CO2/g rock), and Tmax (the temperature of maximum pyrolysis yield, °C).

3.3. Extraction and Separation

Aliquots of 10–40 g of powdered rock, less than 100 mesh, were extracted in Soxhlet apparatus using DCM and MeOH (9:1 by vol.) at a constant temperature of 55 °C for approximately 72 h. The asphaltene was precipitated from the total extract samples using an excessive volume of n-hexane overnight in a freezer. After removing the asphaltene, the resultant maltene was separated through a silica gel/alumina column, using n-hexane, n-hexane/dichloromethane (1:2 by vol.), and dichloromethane/methanol (98:2 by vol.) sequentially to elute saturated, aromatic, and resin fractions.

3.4. Instrumental Analyses

3.4.1. GC Analysis

These saturate fractions were analyzed using gas chromatography (GC) on a HP6890 instrument equipped with fused silica capillary column (30 m × 0.25 mm HP-5). The oven temperature for saturate fractions in the GC analysis was initially held at 40 °C for 5 min, then raised to 80 °C at 2 °C/min, then from 80 to 300 °C with 4 °C/min, and held for 30 min at 300 °C as the final temperature. Helium, at 1.5 mL/min, was used to carry gas and data were obtained using an HP ChemStation.

3.4.2. GC-MS Analysis

These saturated and aromatic fractions were immediately sealed and then conducted using HP6890GC/5973MSD (ionization energy was 70 eV) equipped with an HP-5MS fused silica column (30 m × 0.25 mm, film thickness 0.25 μm). A mass selective detector (MSD) was operated in full scan acquisition mode and the scan range was about 50~550 amu. The GC oven temperature for analysis of the saturated fractions was initially held at 50 °C for 1 min and then ramped from 50 °C to 100 °C at 20 °C/min, from 100 °C to 315 °C at 3 °C/min, and eventually held at 315 °C for 16 min. The temperature of injector was 300 °C. Helium, with a flow rate of 1.0 mL/min, was used to carry gas. The temperature program for the aromatic fraction was as follows: oven temperature was initially held at 60 °C for 2 min, then programmed to 150 °C at 8 °C/min, to 320 °C at 4 °C/min, and finally held at 320 °C for 10 min. The injector temperature was 280 °C. Helium was used as a carrier gas at 1.4 mL/min. The relative abundance of molecular markers was determined from peak areas in the relevant mass chromatograms.

4. Results

4.1. Bulk Organic Matter Compositions and Properties

The total organic carbon (TOC) contents and values of hydrogen index (HI, calculated from 100× S2/TOC) for source rock samples from the LS2 range from 1.12 to 5.70 wt% and from 143 to 707 mg HC/g TOC, respectively (Table 1). Variations in HI and TOC of the studied samples are well correlated, and the values of pyrolytic yield (calculated from S1 + S2), similarly, range between 1.64 and 38.53 mg/g. Their average values are 2.79 wt%, 422 mg HC/g TOC, and 13.82 mg/g, respectively (Table 1).
Integrated the logging data and rock observations, based on the different distributions of TOC, the source rocks samples from LS2 can be divided into organic-rich shales and general mudstones and shales (mudstones/shales). The TOC contents of the organic-rich shales, with a mean of 3.75 wt%, range from 2.22 to 5.70 wt%, and those of the mudstones/shales vary from 1.12 wt% to 2.20 wt%, with an average of 1.88 wt% (Table 1). In addition, the HI and pyrolytic yield of organic-rich shales range from 305 to 707 mg HC/g TOC and 6.95 to 38.53 mg/g, with a mean of 494 mg HC/g TOC and 20.99 mg/g, respectively. Those of general mudstones/shales vary from 143 to 502 mg HC/g TOC and 1.64 to 11.22 mg/g, respectively. Their average values are 355 mg HC/g TOC and 7.10 mg/g, respectively.

4.2. Biomarkers

4.2.1. n-alkanes and the Pr/Ph Ratio

n-alkanes of studied source rock samples are relatively abundant, from which n-C12 to n-C38 were detected (Figure 4). TAR, ratios of certain n-alkanes, and values in organic-rich shales range from 0.25 to 1.82 with a mean of 0.98, and those in mudstones/shales range from to 0.18 to 3.25, with an average value of 1.37.
The CPI (carbon preference index) values of the studied source rock samples range from 1.11 to 2.69, with a mean of 1.49, which indicate that the n-alkanes exhibit an obvious odd predominance (Table 2). The values of Pr/Ph ratios range from 1.25 to 3.37, with an average value of 2.37 (Table 2). Those in organic-rich shales vary from 1.25 to 3.37, with a mean of 2.54, and those in mudstones/shales range from 1.42 to 3.07, with a mean of 2.14 (Table 2).

4.2.2. Tricyclic Terpane

The tricyclic terpane, with carbon numbers ranging from 19 to 29, of these studied samples has the main distribution pattern: near normal distribution with a maximum peak at C21 (Figure 5). The values of C21/C23 TT and C24 Tet/C26 TT ratios in these source rock samples range from 0.86 to 3.00 and 0.97 to 2.42, with a mean of 1.67 and 1.58, respectively (Table 2). The value of C21/C23 TT ratios in the organic-rich shales and shales/mudstones varied from 0.86 to 3.00 with an average of 1.59, and from 0.87 to 2.98 with a mean of 1.77, respectively (Table 2). The values of C24 Tet/C26 TT ratios of the organic-rich shales were between 1.20 and 1.95 with a mean of 1.54, and those of the shales/mudstones were from 0.97 to 2.42, with an average of 1.62 (Table 2).

4.2.3. Hopanes and Gammacerane

The distribution of hopanes in the studied samples is characterized by the presence of 17α,21β(H)- and 17β,21α(H)-hopanes, ranging from C27 to C35, with 17α,21β-22R C30 hopane being the most abundant one (Figure 5). Gammacerane was also found in all samples, with the values of gammacerane index (GI, calculated as gammacerane/C30 αβ-hopane) ranging from 0.03 to 0.47, the average value of which was 0.11. The values of GI of the organic-rich shales were between 0.03 and 0.44 with a mean of 0.10, and those of the shales/mudstones were from 0.03 to 0.47, with an average of 0.12 (Table 2).

4.2.4. Steranes

Steranes were detected in all samples, including regular steranes and diasteranes (Figure 6). The values of C27/C29 regular sterane ratios in the studied samples vary from 0.56 to 2.18, among which the values of C27/C29 regular steranes ratios of the organic-rich shales were between 0.056 and 2.18, with a mean of 1.00, and those of the shales/mudstones were from 0.70 to 1.38, with an average of 0.92 (Table 2).
Significantly, the values of C27 diasteranes/C27 regular steranes and C21–22/C27–29 steranes range from 0.00 to 1.57 and 0.00 to 0.06, respectively (Table 2).
The 4MSI (calculated from 4-methylsterane/C29 regular sterane) in the organic-rich shales were between 0.00 and 1.50, with a mean of 0.39, and those of the shales/mudstones were from 0.00 to 1.38, with an average of 0.35, respectively (Table 2).

5. Discussion

5.1. Maturity Assessment

Relatively low values of Tmax, ranging from 421 to 441 °C, indicate that the OM of the studied source rock samples is of low maturity to mature in LS2, and the maturity is similar [18,19]. The n-alkanes exhibiting an obvious odd predominance also confirms this conclusion.
Previous systematic studies have found that the C29 steranes αββ/(ααα+αββ) and the 22S/(22S+22R) ratios of the 17α,21β(H)-C31 hopanes can be effectively used to assess the maturity of OM [20]. The values of these ratios are distributed in both mature and low maturity areas; the highest maturity of these samples is only near the oil-generating window, which suggests that the nature of the biomarker may not be affected by thermal maturity (Figure 7).

5.2. Sources of Organic Matter

In this study, based on the cross-plot of HI versus Tmax values showing the organic matter types for source rock samples, the OM of organic-rich shales is type I and II kerogen and that of mudstones/shales is type II kerogen (Figure 8).
Ratios of certain n-alkanes, for example, TAR (equation annotated in Table 2), can be applied to indicate variations in the relative amounts of terrigenous versus aquatic hydrocarbons in sediment or rock extracts [22]. Higher ratios (TARs) indicate more terrigenous input from the surrounding watershed relative to aquatic sources [22]. In this study, the mean of value of TAR ratios in organic-rich shales is much lower than that in mudstones/shales, which indicates more terrigenous inputting from the surrounding watershed relative to aquatic sources in mudstones/shales and more aquatic sources relative to terrigenous inputting in organic-rich shales.
The plot formed by the ratios of pristane to C17 n-alkanes and phytane to nC18 n-alkanes (Pr/nC17 and Ph/nC18) can also be effectively applied to the organic matter types, depositional environment, and maturity of source rocks. As shown in Figure 9, the organic matter of source rocks from LS2 is mixed [23].
Extensive studies showed that the abundance of C27 regular steranes relative to C29 regular steranes can also be used to reflect the biological resource of the source rock [24,25]. The values of C27/C29 regular steranes ratios of organic-rich shales from LS2 range from 0.56 to 2.18, with a mean of 1.02, which suggest that the organic matter of these samples is mainly from the lake algae and aquatic macrophytes, whereas those values of mudstones/shales vary from 0.70 to 1.38, with an average of 0.35, indicating that their organic matter is mainly derived from terrestrial higher plants.

5.3. Plaeoproductivity

It has been suggested that C30-4-methyl steranes have two biological sources, one occurring from natural products of dinoflagellates and the other derived from bacteria (methanogens, methylococcus capsulatus) [26,27,28,29].
The abundance of C30-4-methylsterane is found in samples from LS2. Owing to the special and unique depositional environment of LS2 of the Weixinan Sag, Beibuwan Basin, the biological sources of C30-4-methylsterane may only be derived from natural products of dinoflagellates, which may indirectly reflect the level of algal biomass.
In this study, significantly, the values of the 4MSI in organic-rich shales from LS2 were relatively higher than those of the mudstones/shales, which suggests that the paleo-lake experienced more severe algal blooms during the sedimentation of the organic-rich shales compared with during the deposition of the mudstones/shales, and the results are similar to those of Cao et al., 2020 [7].

5.4. Paleoenvironmental Changes

5.4.1. Redox Conditions

The isoprenoids pristane (Pr) and phytane (Ph) are found in all of the studied samples (Figure 5). Previous systematic studies have shown that high Pr/Ph (>3.0) ratios suggest oxic conditions, while low values (<0.8) indicate an anoxic environment [30]. The values of Pr/Ph ratios in samples from LS2 range between 1.25 and 3.37, with a mean of 2.37. Moreover, all samples were determined to be of low maturity, which indicated that the nature of Pr/Ph ratios may not be affected by variability in thermal maturity. Therefore, the relatively high values of Pr/Ph ratios observed in LS2 are likely to be a trustworthy recorder of sub-oxic to oxic conditions.
In addition, according to Wang et al. (2015), pregnane and its homologues are related t restricted, clastic-starved marine, or saline depositional settings [31]. Therefore, a cross-plot of C21–22/C27–29 sterane versus dia/reg C27 sterane ratios was proposed to illustrate the diagnosis of depositional environments. As shown in Figure 10, the values of C21–22/C27–29 sterane and dia/reg C27 sterane ratios of samples from LS2 all fall into the area of a relatively open environment.

5.4.2. Water Salinity

Gammacerane, thanks to its special biological sources, is widely regarded as being highly specific for water column stratification (commonly owing to hyper-salinity) during the deposition of sediments. Therefore, when the water column has a higher salinity, the stratification of the water column will be more distinct, which may produce abundant gammacerane [32,33].
Significantly, the gammacerane index (GI) was proposed to reflect changes in salinity, which are calculated from the concentration of gammacerane relative to C30 αβ-hopane [32,33]. In this study, the observed values of GI of all studied samples from LS2 range from 0.03 to 0.47, with a mean of 0.11, which indicates that they are deposited in a fresh water to brackish environment without water stratification.
In general, for the distribution patterns of C19–26‚ the tricyclic terpane series of lacustrine source rocks presents a normal distribution, which, in saline lacustrine source rocks, has a maximum peak at C23 and, in freshwater lacustrine source rocks, has a maximum peak at C21. Therefore, C21/C23 tricyclic terpane ratios can be used to reflect changes in the salinity of the water column [34,35]. In this study, the values of C21/C23 tricyclic terpane ratios in source rock samples from LS2 range from 0.86 to 3.00, with a mean of 1.67, which indicates that they are deposited in a fresh water to brackish environment.
Abundant C24 17, 21-secohopane (C24 Tet), detected in mass chromatogram using m/z 191, may indicate a fresh water to brackish environment [21,34,35,36]. It is commonly expressed as C24 Tet/C26 TT to reflect changes in the salinity of the water column. The values of C24 Tet/C26 TT ratios in source rock samples from LS2 range from 0.97 to 2.42, with a mean of 1.58.

5.5. Dynamical Formation Model of the Lacustrine OM

According to the above comprehensive analysis, we concluded that, during the deposition of organic-rich shales in LS2, a oxic-suboxic and fresh to brackish environment was experienced, with a relatively severe algae bloom, which may be the joint result of the warm and humid paleo-climate, moderate chemical weathering, and an abundance of nutrients inputted into the water body of the paleo-lake [7]. The sedimentation and the subsequent decomposition of OM led to oxygen and other oxidant depletion and, concomitantly, promoted the remineralization of phosphorus and other nutrient elements, which may result in phosphorus and other nutrients released into the water body and causing paleo-productivity to increase further (Figure 11) [37,38,39,40,41,42].
The mudstones/shales were deposited In similar redox and salinity conditions, with weaker algae blooms compared with that of organic-rich shales, which may be caused by the relatively few nutrients provided owing to the parent rocks of the mudstone/shales being acidic granite (Figure 11) [7].
Taking together, the different paleo-productivity conditions of the overlaying water layers played a main role in the different degrees of organic matter enrichment between the organic-rich shales and mudstones/shales from LS2 of the Weixinan Sag, Beibuwan Basin.

6. Conclusions

Rock-Eval pyrolysis data suggest that the OM of organic-rich shales from LS2 is type I and II kerogen with low maturity, and that in mudstones/shales is type II kerogen with similar maturity compared with that of organic-rich shales. The distributions of biomarkers (n-alkanes and regular steranes) indicate a mainly lake algae and aquatic macrophytesl origin in organic-rich shales from LS2, and the OM of mudstones/shales is mainly contributed from terrestrial higher plants.
Moreover, LS2 was deposited in a fresh to low salinity water column, in oxic to sub-oxic environments, indicated by the relatively low gammacerane index and C24 Tet/C26 TT, high Pr/Ph ratios, and C21/C23 TT, and confirmed by a cross-plot of C21–22/C27–29 sterane versus dia/reg C27 sterane ratios.
The values of the 4MSI in organic-rich shales from LS2 were relatively higher than those of the mudstones/shales, which suggest that the paleo-lake experienced more severe algal blooms during the sedimentation of the organic-rich shales compared with during the deposition of the mudstones/shales. Based on this investigation, two dynamical formation models are proposed: a high-productivity and oxic to sub-oxic dynamical formation model (Model A) and a low-productivity and oxic to sub-oxic dynamical formation model (Model B).

Author Contributions

X.Y.: Conceptualization, Investigation, Formal analysis, Methodology and Writing—original draft; X.L.: Formal analysis, Validation, writing—review & editing and Software; Y.H. (Yahao Huang): Resources, Writing—review & editing, Validation and Software; Y.H. (Yulong He): Writing—review & editing; R.Y.: Visualization and Writing—review & editing; R.W.: Writing—review & editing; P.P.: Writing—review & editing. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Petrochina Carbonate Reservoir Key Laboratory Foundation, grant number: RIPED-2022-JS-2382.

Data Availability Statement

The data used to support the findings of this study are included within the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zou, C.N.; Zhu, R.K.; Chen, Z.Q.; Ogg, J.G.; Wu, S.T.; Dong, D.Z.; Qin, Z.; Wang, Y.M.; Wang, L.; Lin, S.H.; et al. Organic-matter-rich shales of China. Earth. Sci. Rev. 2019, 189, 51–78. [Google Scholar] [CrossRef]
  2. Huang, B.J.; Huang, H.T.; Wu, G.X.; You, J.J. Geochemical characteristics and formation mechanism of Eocene lacustrine organic-rich shales in the Beibuwan Basin. Acta. Petrol. Sin. 2012, 33, 2–31, (In Chinese with English Abstract). [Google Scholar]
  3. Huang, B.J.; Zhu, W.L.; Tian, H.; Jin, Q.Y.; Xiao, X.M.; Hu, C.H. Characterization of Eocene lacustrine source rocks and their oils in the Beibuwan Basin, offshore South China Sea. AAPG Bull. 2017, 101, 1395–1423. [Google Scholar] [CrossRef]
  4. Huang, B.J.; Tian, H.; Wilkins, R.W.T.; Xiao, X.M.; Li, L. Geochemical characteristics, palaeoenvironment and formation model of Eocene organic-rich shales in the Beibuwan Basin. South China Sea. Mar. Petrol. Geol. 2019, 48, 77–89. [Google Scholar] [CrossRef]
  5. Ye, J.R.; Zhao, N.B.; Yang, B.L.; Xu, J.Y. Productivity and development model of source rock of the Liushagang Formation in the Weixinan Sag. Bull. Geol. Sci. Technol. 2020, 39, 105–113, (In Chinese with English Abstract). [Google Scholar]
  6. Xu, J.J.; Jin, Q.; Xu, X.D.; Cheng, F.Q.; Hu, C.H.; Wang, B.; Chen, T. Factors controlling organic-rich shale development in the Liushagang Formation, Weixinan Sag, Beibu Gulf Basin: Implications of structural activity and the depositional environment. Pet. Sci. 2021, 18, 1011–1020. [Google Scholar] [CrossRef]
  7. Cao, L.; Zhang, Z.H.; Li, H.Y.; Zhong, N.N.; Xiao, L.L.; Jin, X.; Li, H. Mechanism for the enrichment of organic matter in the Liushagang Formation of the Weixinan Sag, Beibuwan Basin, China. Mar. Petrol. Geol. 2020, 122, 104649. [Google Scholar] [CrossRef]
  8. Fu, N. On relationship between abundance of 4-methyl-C30 sterane and source rock quality: A case study of exploration practices in Beibuwan basin. China Offshore Oil Gas 2018, 30, 15–24, (In Chinese with English Abstract). [Google Scholar]
  9. Yan, D.T.; Lu, J.; Wei, X.S.; He, W.J.; Qin, C.Y.; Li, T. Sediment environment and major controlling factors of organic-rich shales in the rift lake basin:A case study of the 2nd Member of I Liushagang Formation of the Weixinan sag. China Offshore Oil Gas 2019, 31, 21–29, (In Chinese with English Abstract). [Google Scholar]
  10. Li, F.Y.; Zhang, H.H.; Li, C.R.; Zhang, W.Z.; Hao, J.; Xu, Q.M.; Yan, H. Offshore petroleum exploration history and enlightenment in Beibu Gulf Basin. Xinjiang Pet. Geol. 2021, 46, 337–345, (In Chinese with English Abstract). [Google Scholar]
  11. Zhu, W.L.; Wu, G.X.; Li, M.B. Palaeolimnology and hydrocarbon potential in Beibu gulf Basin of south china sea. Oceanol. Limnol. Sin. 2004, 35, 8–14, (In Chinese with English Abstract). [Google Scholar]
  12. Xie, N.; Cao, Y.C.; Wang, J.; Jin, J.H.; Zhang, W.J.; Zhong, Z.H. Diagenesis and its control on physical property of the reservoirs in the 3rd member of the Paleogene Liushagang Formation in Weixinan Depression, Beibuwan Basin. Nat. Gas Geosci. 2019, 30, 1743–1754, (In Chinese with English Abstract). [Google Scholar]
  13. Zhang, G.C.; Xie, X.J.; Wang, W.Y.; Liu, S.X.; Wang, Y.B.; Dong, W.; Shen, H.L. Tectonic types of petroliferous basins and its exploration potential in the South China Sea. Acta Pet. Sin. 2013, 34, 611–627, (In Chinese with English Abstract). [Google Scholar]
  14. Liu, E.T.; Wang, H.; Li, Y.; Zhou, W.; Leonard, N.D.; Lin, Z.L.; Ma, Q.L. Sedimentary characteristics and tectonic setting of sublacustrine fans in a half-graben rift depression, Beibuwan Basin, South China Sea. Mar. Petrol. Geol. 2014, 52, 9–21. [Google Scholar] [CrossRef]
  15. Liu, Y.M.; Wu, Z.P.; Yan, S.Y.; Yang, X.B.; Ping, M.M.; Zhang, M. Identification of Eocene Tectonic Transition and Its Geological Significance of Rift Basins Offshore China:A Case Study in Weixi’nan Sag, Beibu Bay Basin. Earth Sci. 2022, 46, 2145–2156. [Google Scholar]
  16. Gao, G.; Xu, X.D.; Liu, S.J.; Gan, J.; Hu, C.H.; Zhao, J.Y. Organic geochemistry identification of high-quality source rocks in the 2nd member of Liushagang Fm and its controls on petroleum occurrence inthe Weixi’nan Sag, Beibuwan Basin. Oil Gas Geol. 2020, 41, 339–347. [Google Scholar]
  17. You, J.J.; Xu, X.D.; Li, L.; Xie, R.Y.; Li, X.H.; Yang, G.L. Organic facies of source rocks of the second member of Liushagang Formation in the Weixinan sag. China Min. Mag. 2012, 21, 87–90. [Google Scholar]
  18. Xie, S.C.; Pancost, R.D.; Yin, H.F.; Wang, H.M.; Evershed, R.P. Two episodes of microbial change coupled with Permo/Triassic faunal mass extinction. Nature 2005, 434, 494–497. [Google Scholar] [CrossRef]
  19. Luo, G.M.; Hallmann, C.; Xie, S.C.; Ruan, X.Y.; Summons, R.E. Comparative microbial diversity and redox environments of black shale and stromatolite facies in the Mesoproterozoic Xiamaling Formation. Geochim. Cosmochim. Acta 2015, 151, 150–167. [Google Scholar] [CrossRef]
  20. Tong, X.N.; Hu, J.F.; Xi, D.P.; Zhu, M.B.; Song, J.Z.; Peng, P.A. Depositional environment of the Late Santonian lacustrine source rocks in the Songliao Basin (NE China): Implications from organic geochemical analyses. Org. Geochem. 2018, 124, 215–227. [Google Scholar] [CrossRef]
  21. Yang, X.Y.; Tang, Y.J.; Hong, H.T.; Wang, X.J.; Wu, C.J.; Zhang, J.Z.; Huang, Y.H.; Li, M.J.; Lu, X.L.; Pei, B.B. An abnormal assemblage of molecular markers and its geochemical significance in the Da’ anzhai Member of the central Sichuan Basin. Geol. Bull. China 2022, 41, 669–681. [Google Scholar]
  22. Meyers, P.A. Organic geochemical proxies of paleooceanographic, paleolimnlogic, and paleoclimatic processes. Org. Geochem. 1997, 27, 50–213. [Google Scholar] [CrossRef]
  23. Lu, X.L.; Li, M.J.; Li, Y.C.; Yang, Y.C.; Wang, N.; Ran, Z.C.; Fu, Y.; Ali, S. Rearranged oleananes in Tertiary oils from the Baiyun Sag, Pearl River Mouth Basin, South China Sea: Identification, distribution and geochemical significance. Org. Geochem. 2023, 175, 104525. [Google Scholar] [CrossRef]
  24. Ding, J.H.; Sun, J.S.; Zhang, J.C.; Yang, X.T.; Shi, G.; Wang, R.Y.; Huang, B.; Li, H.L. Characteristics and Geological Significance of Biomarker for the Upper Permian Dalong Formation Shale in Southern Anhui Province. Earth Sci. 2023, 48, 35–251. [Google Scholar]
  25. Lei, C.; Yin, S.Y.; Ye, J.R.; Wu, J.F. Geochemical Characteristics and Hydrocarbon Generation History of Paleocene Source Rocks in Jiaojiang Sag, East China Sea BasinNeoproterozoic source rocks and oil-source correlations in the Yanshan area. Earth Sci. 2021, 46, 3575–3587. [Google Scholar]
  26. Volkman, J.K. A review of sterol markers for marine and terrigenous organic matter. Org. Geochem. 1986, 9, 83–99. [Google Scholar] [CrossRef]
  27. Huang, D.F.; Zhang, D.J.; Li, J.C. On the origin of 4-methylgonane and progesterone. Pet. Explor. Dev. 1989, 3, 8–15, (In Chinese with English Abstract). [Google Scholar]
  28. Moldowan, J.M.; Dahl, J.; Jacobson, S.R.; Huizinga, B.J.; Fago, F.J.; Shetty, R.; Peters, K.E. Chemostratigraphic reconstruction of biofacies: Molecular evidence linking cyst-forming dinoflagellates with pre-Triassic ancestors. Geology 1996, 24, 159–162. [Google Scholar] [CrossRef]
  29. Wang, G.L.; Wang, T.G.; Simoneit, B.R.; Chen, Z.L.; Zhang, L.Y.; Xu, J.L. The distribution of molecular fossils derived from dinoflagellates in Paleogene lacustrine sediments (Bohai Bay Basin, China). Org. Geochem. 2008, 39, 1512–1521. [Google Scholar] [CrossRef]
  30. Didyk, B.M.; Simoneit, B.R.T.; Brassell, S.C.; Eglinton, G. Organic geochemical indicators of palaeoenvironmental conditions of sedimentation. Nature 1978, 272, 216–222. [Google Scholar] [CrossRef]
  31. Wang, G.L.; Chang, X.C.; Wang, T.G.; Simoneit, B.R. Pregnanes as molecular indicators for depositional environments of sediments and petroleum source rocks. Org. Geochem. 2015, 78, 110–120. [Google Scholar] [CrossRef]
  32. Sinninghe Damsté, J.S.; Kenig, F.; Koopmans, M.P.; Köster, J.; Schouten, S.; Hayes, J.M.; de Leeuw, J.W. Evidence for gammacerane as an indicator of water column stratification. Geochim. Cosmochim. Acta 1995, 59, 1895–1900. [Google Scholar] [CrossRef]
  33. Bechtel, A.; Jia, J.L.; Strobl, S.A.I.; Sachsenhofer, R.F.; Liu, Z.J.; Gratzer, R.; Püttmann, W. Palaeoenvironmental conditions during deposition of the Upper Cretaceous oil shale sequences in the Songliao Basin (NE China): Implications from geochemical analysis. Org. Geochem. 2012, 46, 76–95. [Google Scholar] [CrossRef]
  34. Bao, J.P.; Zhu, C.S.; Ni, C.H. Distribution and composition of biomarkers in crude oils from different sags of Beibuwan Basin. Acta Sedimentol. Sin. 2007, 25, 646–652, (In Chinese with English Abstract). [Google Scholar]
  35. Bao, J.P.; Wang, Z.F.; Zhu, C.S.; Wang, L.Q.; Chen, Y.; Zhou, F. A new kind of crude oils and the geochemical characteristics in the Dongping Area, Qaidam Basin. Acta Sedimentol. Sin. 2018, 36, 829–841, (In Chinese with English Abstract). [Google Scholar]
  36. Zhu, Y.M.; Li, Y.; Zhou, J.; Gu, S.X. Geochemical characteristics of Tertiary coal-bearing source rocks in Xihu depression, East China Sea basin. Mar. Petrol. Geol. 2012, 35, 154–165. [Google Scholar] [CrossRef]
  37. Xu, Q.L.; Liu, B.; Ma, Y.S.; Song, X.M.; Wang, Y.J.; Xin, X.K.; Chen, Z.X. Controlling factors and dynamical formation models of lacustrine organic matter accumulation for the Jurassic Da’anzhai Member in the central Sichuan Basin, southwestern China. Mar. Petrol. Geol. 2017, 86, 1391–1405. [Google Scholar] [CrossRef]
  38. Wei, H.; Feng, Q.L.; Yu, J.X.; Chang, S. Characteristics and Sources of Organic Matter from the Early Cambrian Niutitang Formtion and Its Preservation Environment in Guizhou. J. Earth Sci. 2022, 33, 933–944. [Google Scholar] [CrossRef]
  39. Cheng, D.W.; Zhou, C.M.; Zhang, Z.J.; Yuan, X.J.; Liu, Y.H.; Chen, X.Y. Paleo-Environment Reconstruction of the Middle Permian Lucaogou Formation, Southeastern Junggar Basin, NW China: Implications for the Mechanism of Organic Matter Enrichment in Ancient Lake. J. Earth Sci. 2022, 33, 963–976. [Google Scholar] [CrossRef]
  40. Sun, Z.L.; He, Z.L.; Wang, F.R.; Han, Y.J.; He, S.; Hou, Y.G.; Luo, J.; Zheng, Y.H.; Wu, S.Q. Occurrence Characteristics of Saline-Lacustrine Shale-Oil in the Qianjiang Depression, Jianghan Basin, Central China. J. Earth Sci. 2022, 33, 945–962. [Google Scholar] [CrossRef]
  41. Akulov, N.I.; Rubtsova, M.N.; Akulova, V.V.; Shchetnikov, A.A. Phenomenon for the modern ferromanganese mineralization in aeolian sediments along the coastal zone of Lake Baikal (Siberia). J. Earth Syst. Sci. 2022, 131, 20. [Google Scholar] [CrossRef]
  42. Papadomanolaki, N.M.; Lenstra, W.K.; Wolthers, M.; Slomp, C.P. Enhanced phosphorus recycling during past oceanic anoxia amplified by low rates of apatite authigenesis. Sci. Adv. 2022, 8, eabn2370. [Google Scholar] [CrossRef] [PubMed]
Minerals 13 00575 g001 550

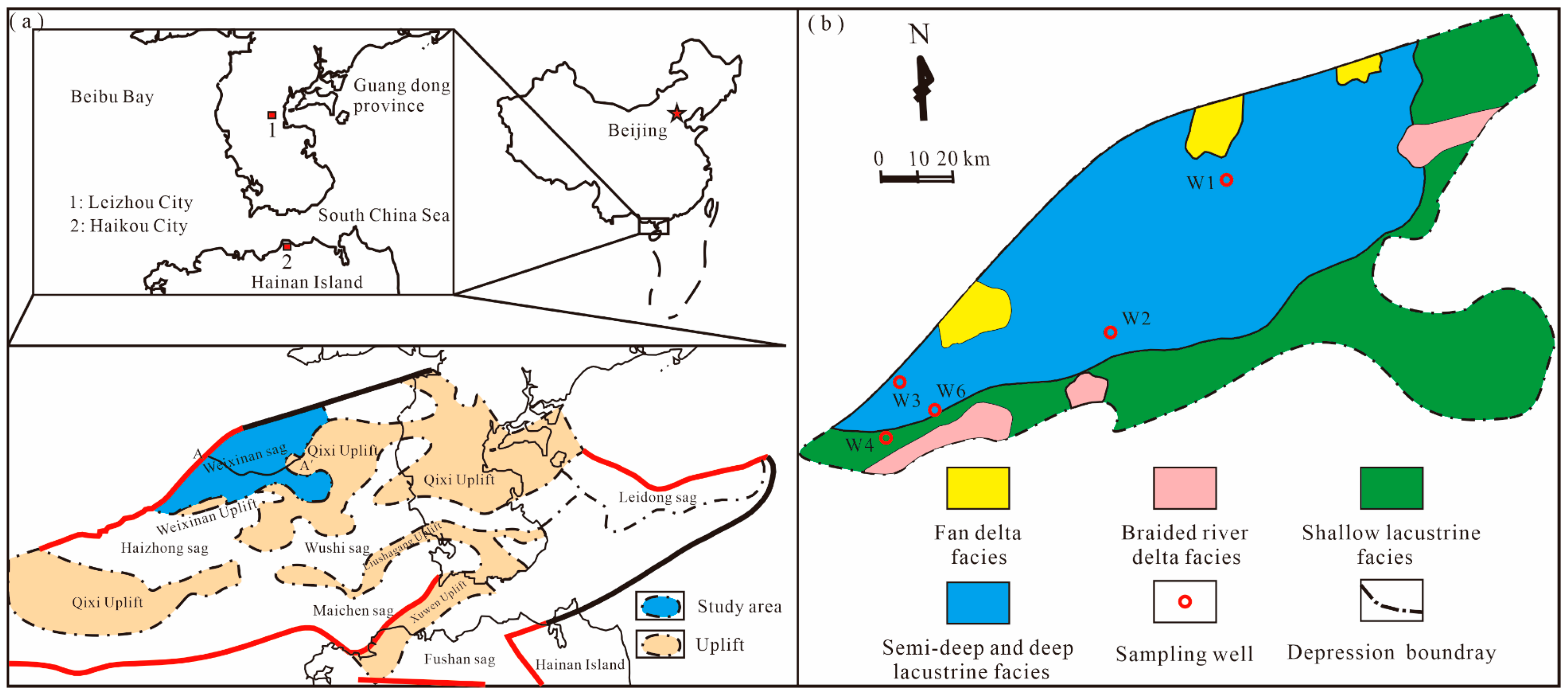

Figure 1. Location of the study area (a), depositional facies of LS2 (b), and the locations of sampling wells in Weixinan Sag (b) from Beibuwan Basin, South China Sea (modified from Refs. [4,9].
Figure 1. Location of the study area (a), depositional facies of LS2 (b), and the locations of sampling wells in Weixinan Sag (b) from Beibuwan Basin, South China Sea (modified from Refs. [4,9].
Minerals 13 00575 g001
Minerals 13 00575 g002 550

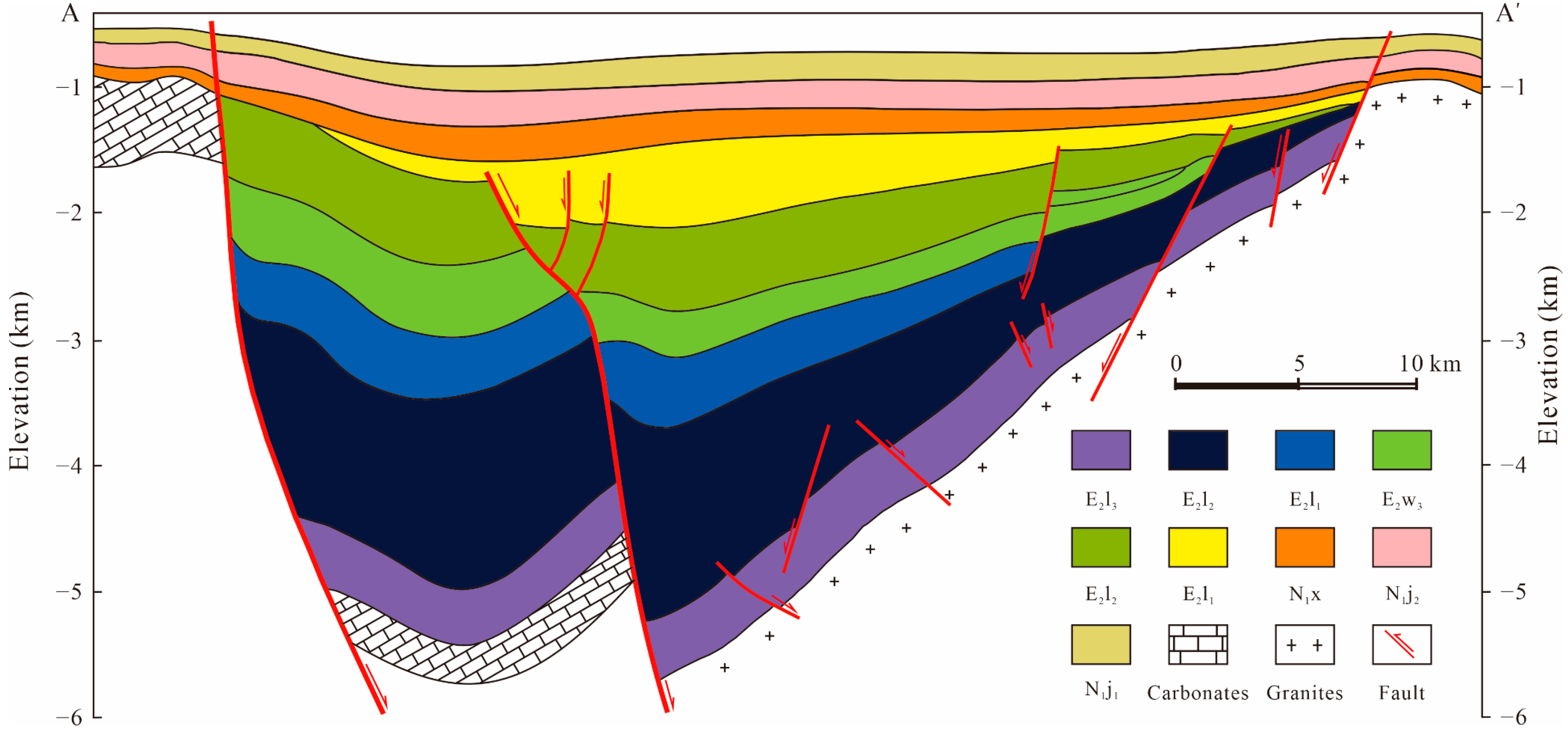

Figure 2. Cross section showing the structural framework of Weixinan Sag from Beibuwan Basin, South China Sea (modified from Ref. [10]. Section locations are shown in Figure 1.
Figure 2. Cross section showing the structural framework of Weixinan Sag from Beibuwan Basin, South China Sea (modified from Ref. [10]. Section locations are shown in Figure 1.
Minerals 13 00575 g002
Minerals 13 00575 g003 550

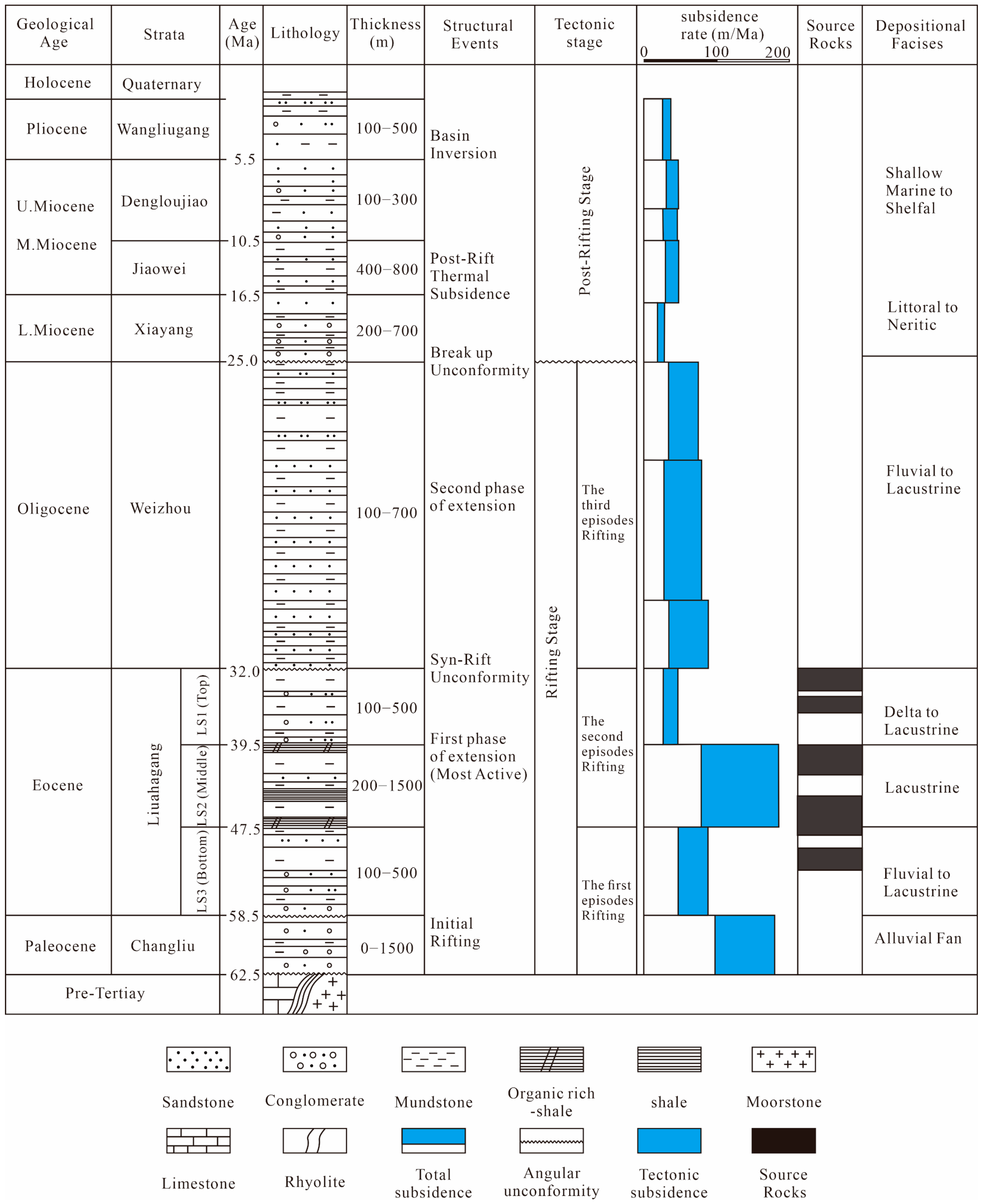

Figure 3. Schematic view showing the stratigraphic column of the Beibuwan Basin (modified from Refs. [7,9].
Figure 3. Schematic view showing the stratigraphic column of the Beibuwan Basin (modified from Refs. [7,9].
Minerals 13 00575 g003
Minerals 13 00575 g004 550

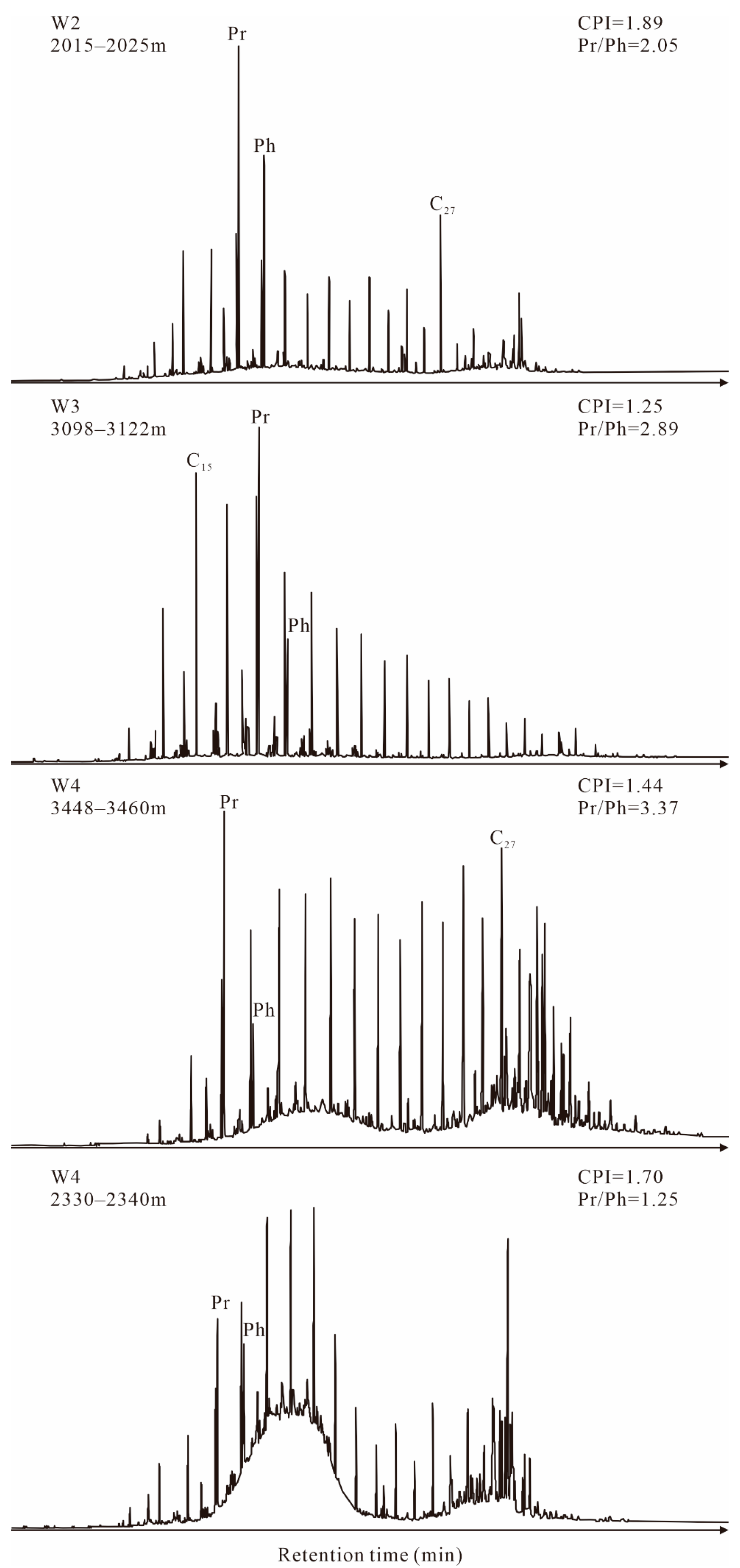

Figure 4. Gas chromatograms of the extractable saturated fractions showing the distribution of n-alkanes for source rock samples from LS2 of the Weixinan Sag, Beibuwan Basin.
Figure 4. Gas chromatograms of the extractable saturated fractions showing the distribution of n-alkanes for source rock samples from LS2 of the Weixinan Sag, Beibuwan Basin.
Minerals 13 00575 g004
Minerals 13 00575 g005 550

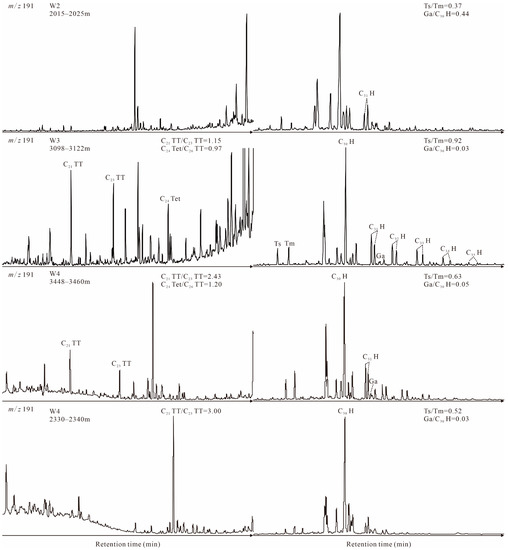

Figure 5. Selected m/z 191 mass fragmentograms for source rock samples from LS2 of the Weixinan Sag, Beibuwan Basin, showing the distribution of the terpane series.
Figure 5. Selected m/z 191 mass fragmentograms for source rock samples from LS2 of the Weixinan Sag, Beibuwan Basin, showing the distribution of the terpane series.
Minerals 13 00575 g005
Minerals 13 00575 g006 550

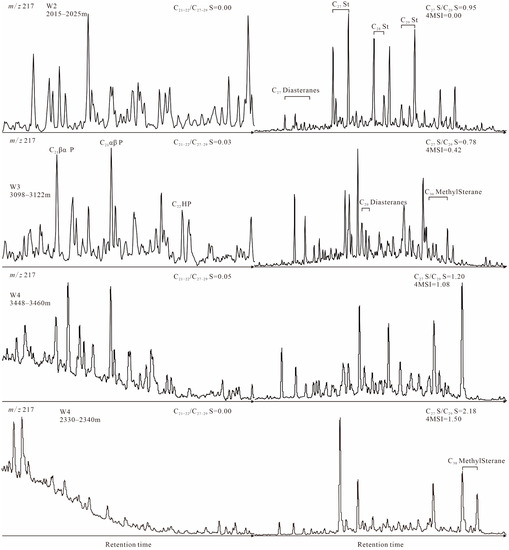

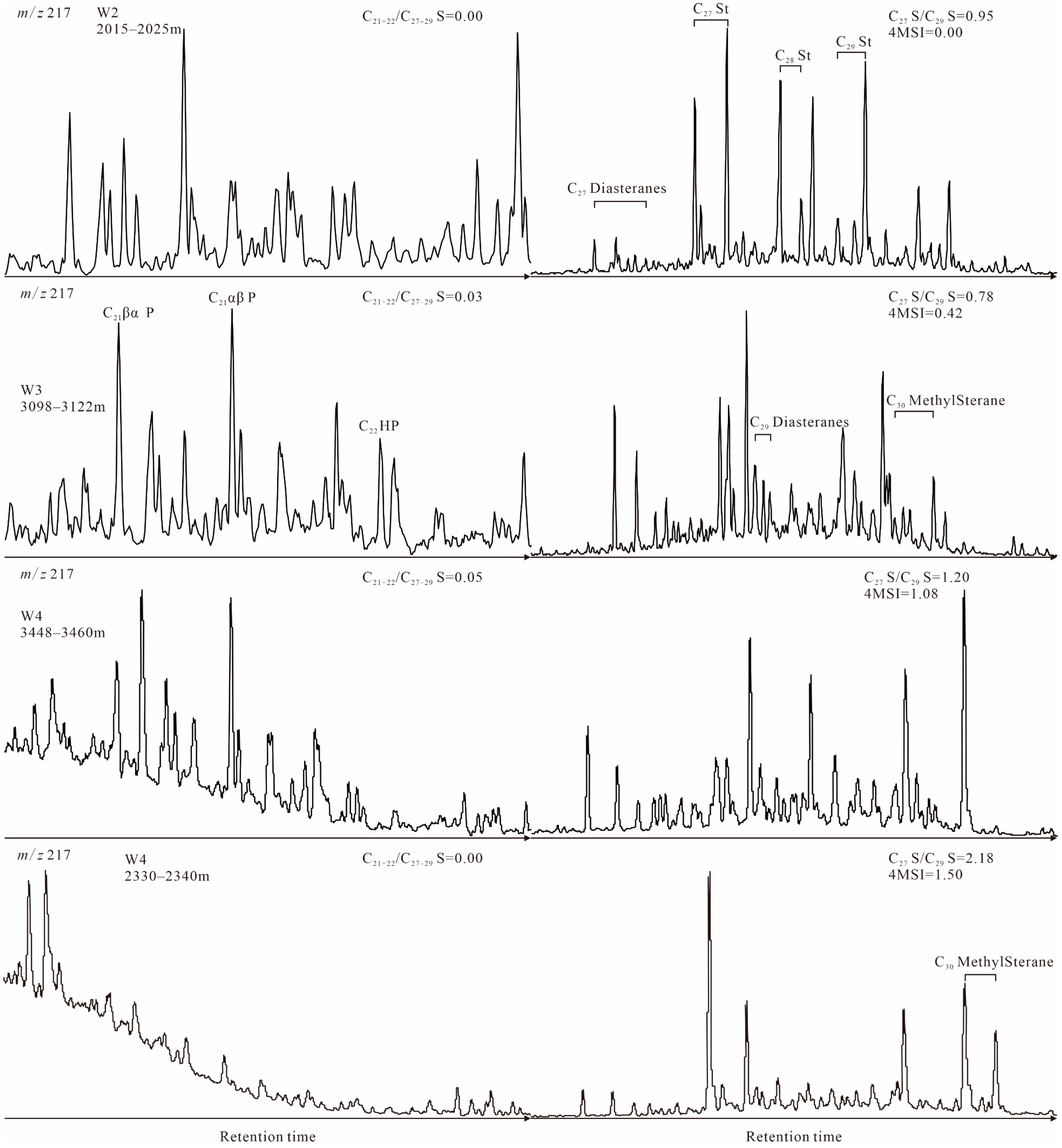

Figure 6. Selected m/z 217 mass fragmentograms for source rock samples from LS2 of the Weixinan Sag, Beibuwan Basin, showing the distribution of the sterane series.
Figure 6. Selected m/z 217 mass fragmentograms for source rock samples from LS2 of the Weixinan Sag, Beibuwan Basin, showing the distribution of the sterane series.
Minerals 13 00575 g006
Minerals 13 00575 g007 550

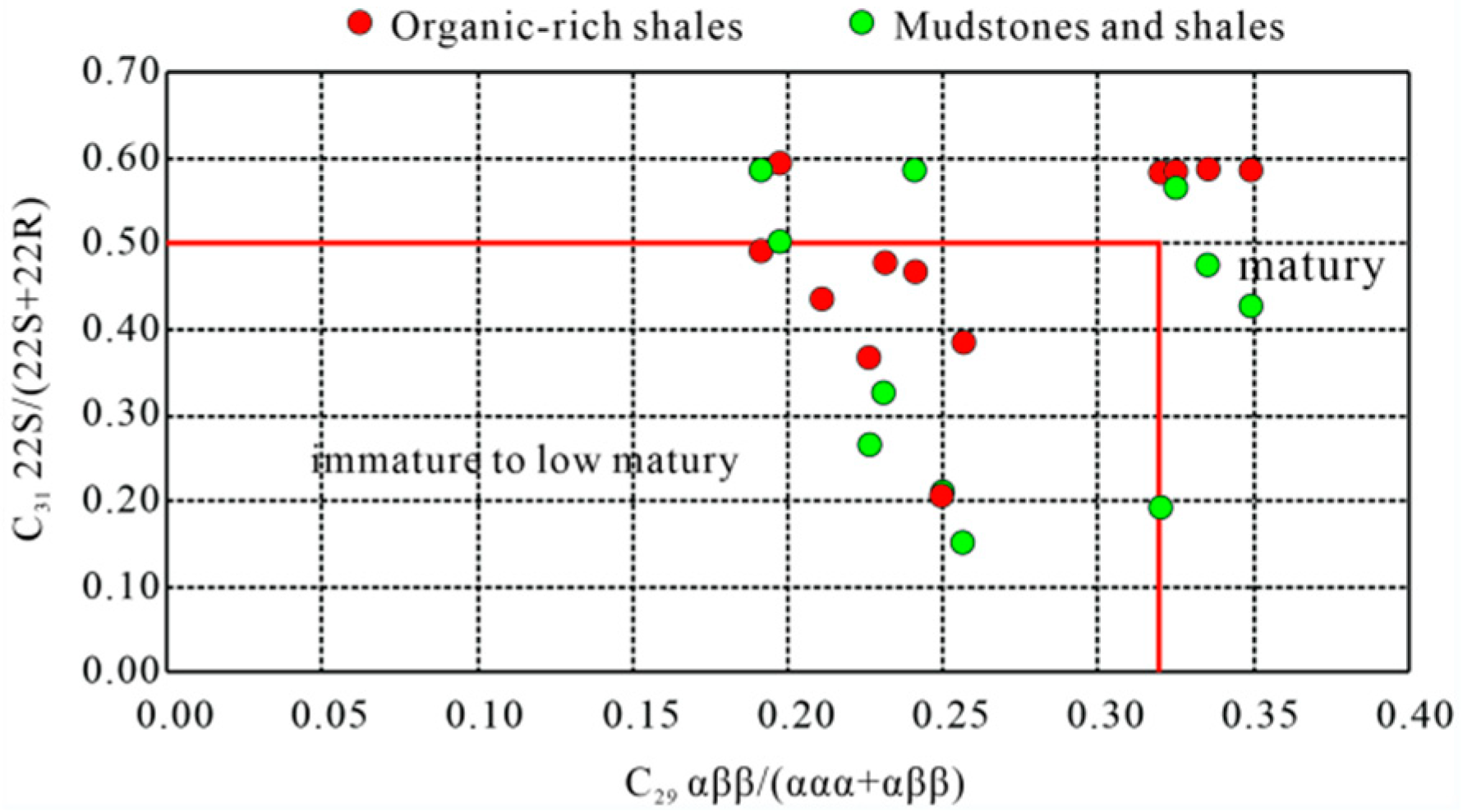

Figure 7. Cross-plot of C29αββ/(ααα+αββ) sterane versus C3122S/(22S+22R) hopane (modified from Ref. [21]).
Figure 7. Cross-plot of C29αββ/(ααα+αββ) sterane versus C3122S/(22S+22R) hopane (modified from Ref. [21]).
Minerals 13 00575 g007
Minerals 13 00575 g008 550

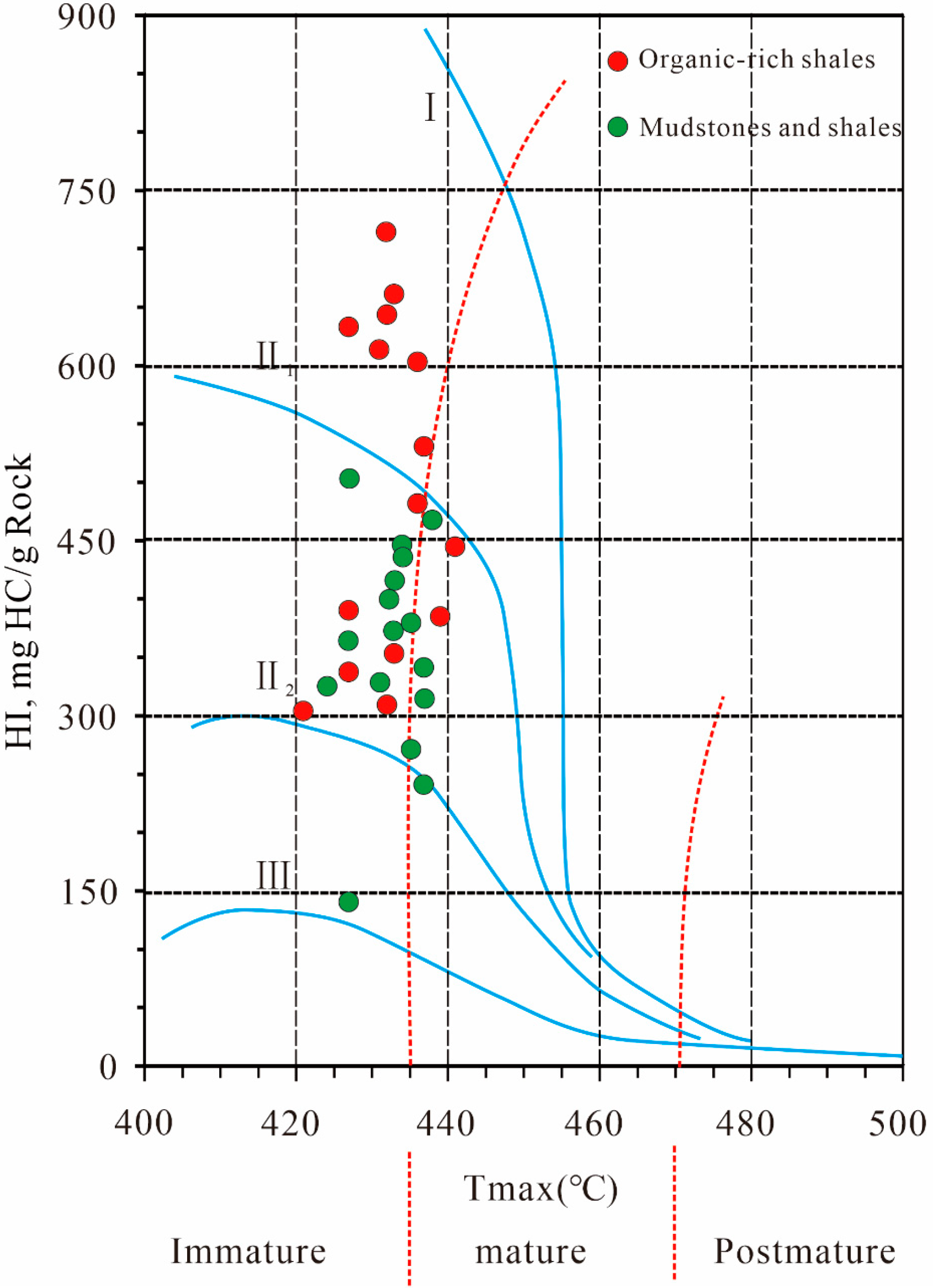

Figure 8. Cross-plot of HI vs. Tmax values showing the organic matter types for source rock samples from LS2 of the Weixinan Sag, Beibuwan Basin (I: type I kerogen; II1: type II1 kerogen; II2: type II2 kerogen; III: type III kerogen).
Figure 8. Cross-plot of HI vs. Tmax values showing the organic matter types for source rock samples from LS2 of the Weixinan Sag, Beibuwan Basin (I: type I kerogen; II1: type II1 kerogen; II2: type II2 kerogen; III: type III kerogen).
Minerals 13 00575 g008
Minerals 13 00575 g009 550

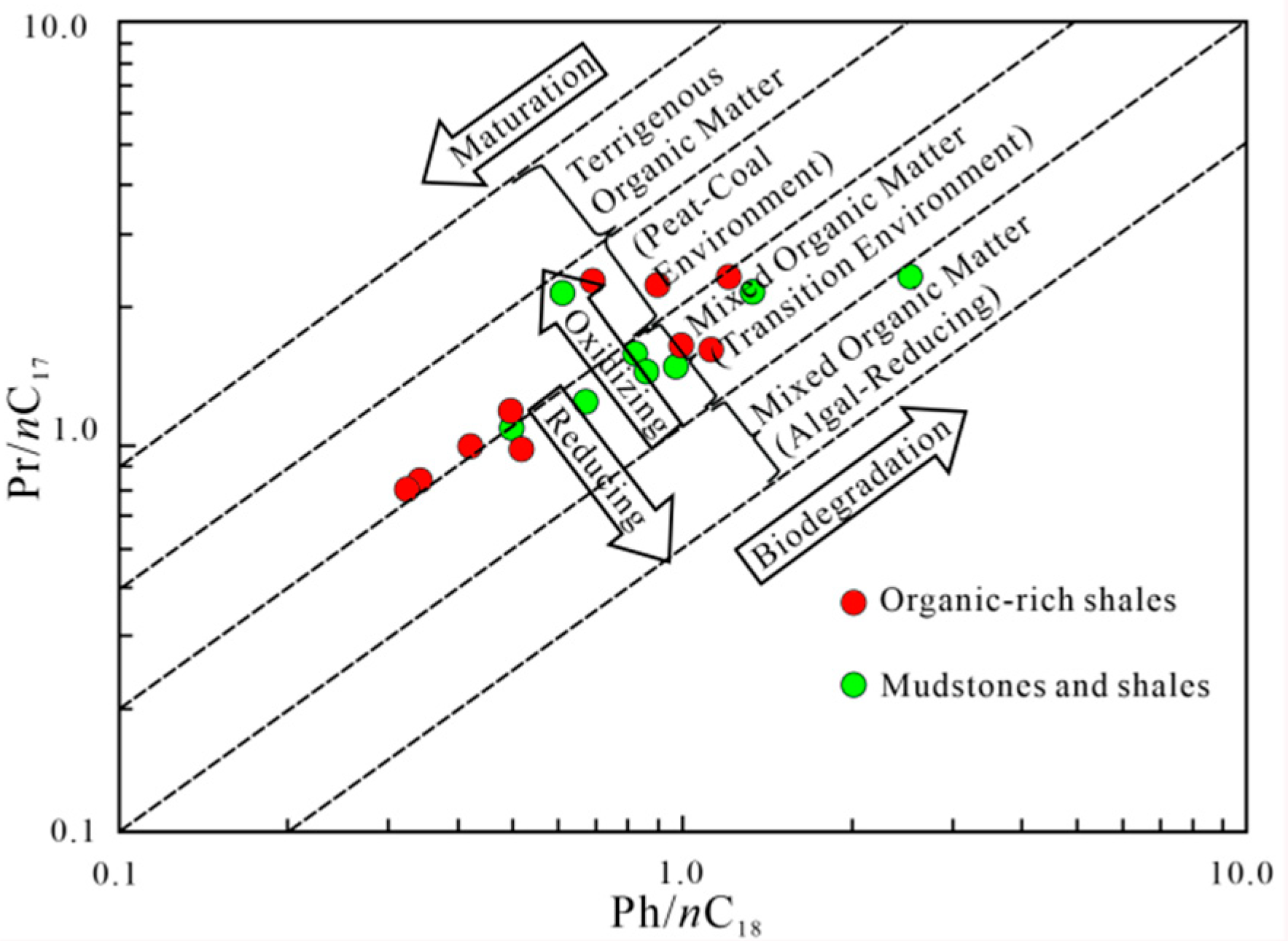

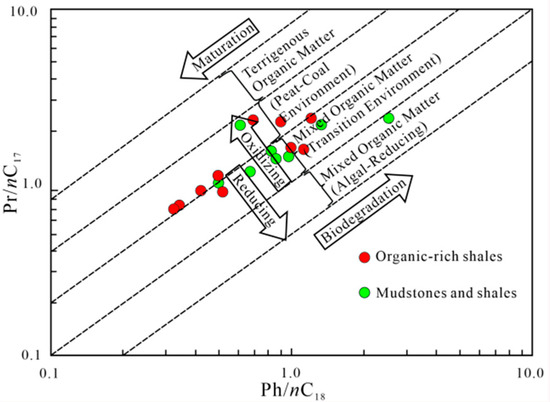

Figure 9. Cross-plot of Pr/nC17 vs. Ph/nC18 ratios for source rock samples from LS2 of the Weixinan Sag, Beibuwan Basin (modified from Ref. [23]).
Figure 9. Cross-plot of Pr/nC17 vs. Ph/nC18 ratios for source rock samples from LS2 of the Weixinan Sag, Beibuwan Basin (modified from Ref. [23]).
Minerals 13 00575 g009
Minerals 13 00575 g010 550

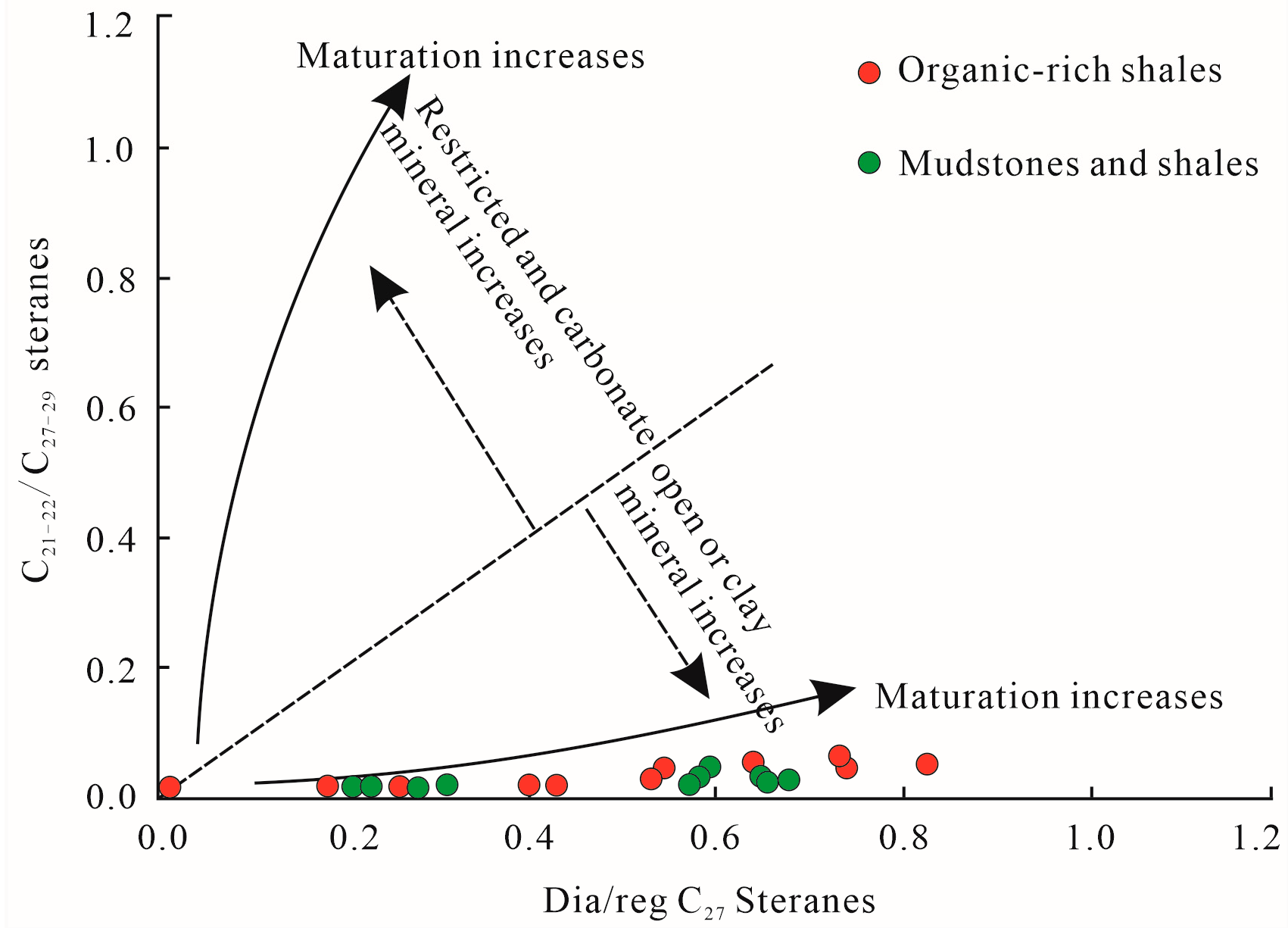

Figure 10. Cross-plot of C21–22/C27–29 sterane versus dia/reg C27 sterane ratios (modified from Ref. [31]).
Figure 10. Cross-plot of C21–22/C27–29 sterane versus dia/reg C27 sterane ratios (modified from Ref. [31]).
Minerals 13 00575 g010
Minerals 13 00575 g011 550

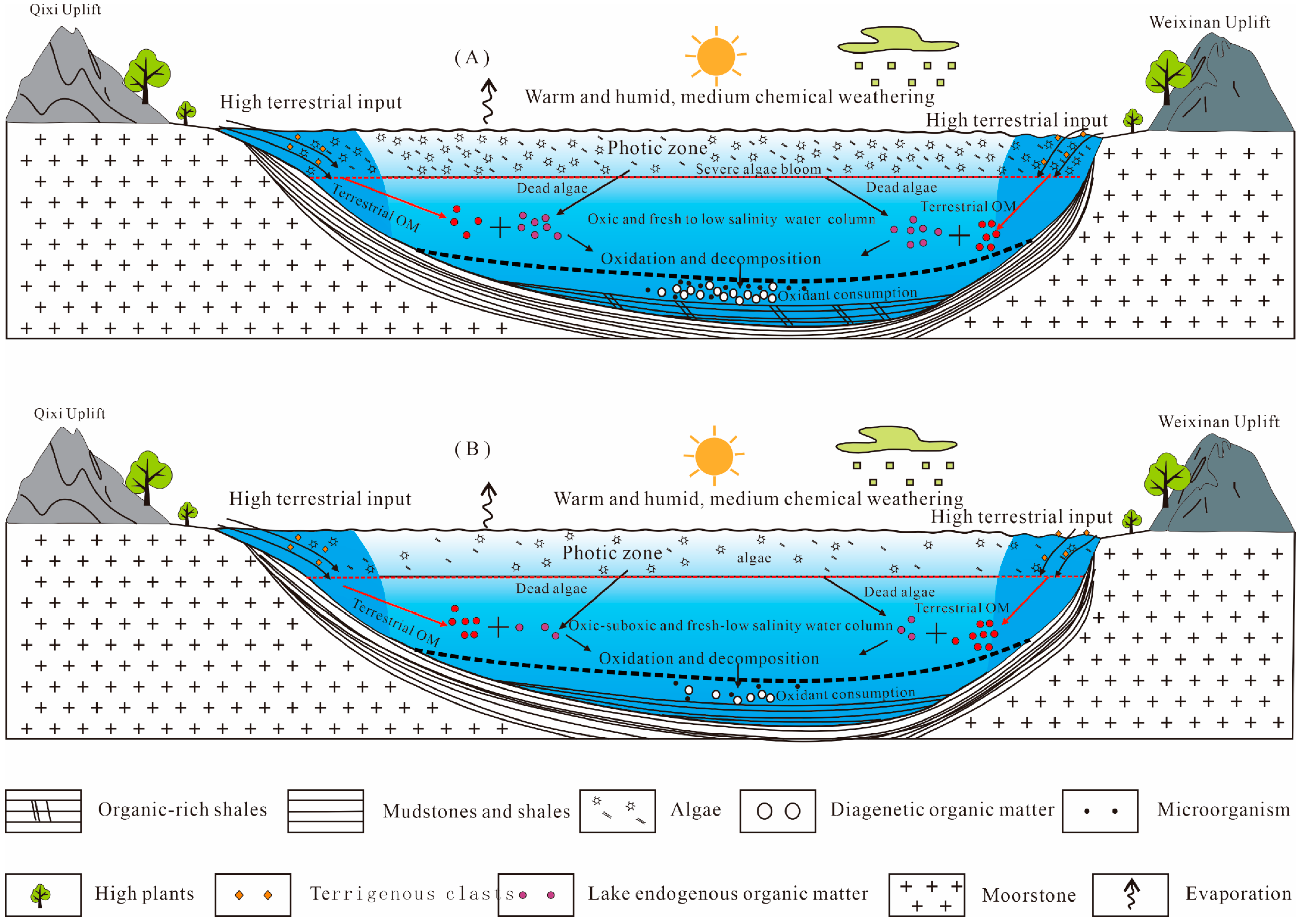

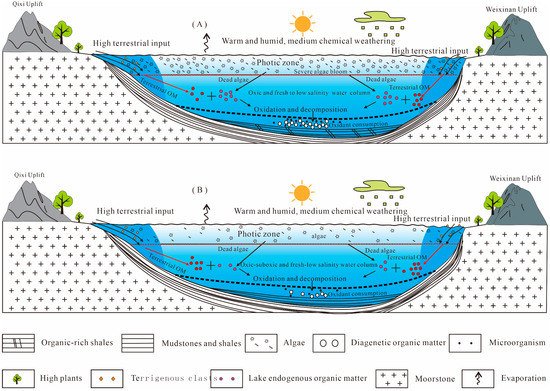

Figure 11. Conceptual diagram along the basin illustrating the factors that influenced the OM enrichment during LS2 of the Weixinan Sag, Beibuwan Basin. (A) A high-productivity and oxic to suboxic dynamical formation model, based on the mechanism for the enrichment of OM in organic-rich shales (Model A); (B) low-productivity and oxic to sub-oxic dynamical formation model (Model B), based on the mechanism for the enrichment of OM in mudstones and shales.
Figure 11. Conceptual diagram along the basin illustrating the factors that influenced the OM enrichment during LS2 of the Weixinan Sag, Beibuwan Basin. (A) A high-productivity and oxic to suboxic dynamical formation model, based on the mechanism for the enrichment of OM in organic-rich shales (Model A); (B) low-productivity and oxic to sub-oxic dynamical formation model (Model B), based on the mechanism for the enrichment of OM in mudstones and shales.
Minerals 13 00575 g011
Table
Table 1. Basic geochemical data for source rock samples from LS2 of the Weixinan Sag, Beibuwan Basin.
Table 1. Basic geochemical data for source rock samples from LS2 of the Weixinan Sag, Beibuwan Basin.
WellsDepth (m)LithologyNumberTOC (wt%)HI (mg HC/gTOC)Tmax (°C)(S1 + S2) (mg/g)
W11635–1650Organic-rich shaleLS24.6963442730.22
W11716.39–1717.39MudstoneLS21.833994327.35
W11770–1780shaleLS22.023324316.78
W11830–1835MudstoneLS21.342404373.26
W21954–1960MudstoneLS22.250242711.22
W22015–2025Organic-rich shaleLS24.4270743231.74
W22100–2130shaleLS21.854394348.24
W22186–2192MudstoneLS224164338.45
W22226–2234Organic-rich shaleLS25.3861443133.57
W22249–2280Organic-rich shaleLS25.5364343236.22
W22286–2290Organic-rich shaleLS25.766343338.53
W33098–3122shaleLS22.173704338.54
W33168–3190MudstoneLS21.633394375.84
W33213–3235Organic-rich shaleLS22.343104328.20
W33250–3262MudstoneLS22.113164377.40
W33332–3340Organic-rich shaleLS24.453143726.08
W33361.3–3363Organic-rich shaleLS22.9244644114.77
W33375–3385Organic-rich shaleLS22.2438743910.00
W43010–3020MudstoneLS21.562734354.38
W43072–3082Organic-rich shaleLS22.243394277.80
W43130–3140MudstoneLS22.193644278.16
W43200–3206Organic-rich shaleLS24.9560443630.94
W43250–3260shaleLS22.1946843810.60
W43312–3322MudstoneLS22.153784358.36
W43383–3396Organic-rich shaleLS22.463554338.94
W43448–3460Organic-rich shaleLS23.8448243619.21
W43490–3496MudstoneLS21.933754337.43
W62262–2274MudstoneLS21.121434271.64
W62292–2302shaleLS21.803234245.92
W62330–2340Organic-rich shaleLS22.223054216.95
W62368–2378Organic-rich shaleLS22.9639142711.75
Table
Table 2. Selected molecular parameters for source rock samples from LS2 of the Weixinan Sag, Beibuwan Basin.
Table 2. Selected molecular parameters for source rock samples from LS2 of the Weixinan Sag, Beibuwan Basin.
WellsDepth (m)LithologyNumberPr/PhCPITARC21/C23 TTC24 Tet/C26 TTG/C30 HC21+22/C27–29 SDia/reg C27 SC27/C29 S4MSI
W11635–1650Organic-rich shaleLS2/////0.030.000.000.940.00
W11770–1780shaleLS2/////0.090.000.310.800.00
W11830–1835MudstoneLS2/////0.060.000.280.700.00
W11716.39–1717.39MudstoneLS2/////0.130.000.210.870.00
W21954–1960MudstoneLS21.621.740.36//0.300.000.230.880.00
W22015–2025Organic-rich shaleLS22.051.890.66//0.440.000.260.950.00
W22100–2130shaleLS21.811.840.76//0.470.000.570.900.00
W22249–2280Organic-rich shaleLS23.021.630.71//0.290.000.431.060.00
W22286–2290Organic-rich shaleLS22.931.131.77//0.050.000.571.020.00
W33098–3122shaleLS22.891.250.181.150.970.030.030.650.780.42
W33213–3235Organic-rich shaleLS23.031.150.630.871.260.030.060.830.710.38
W33250–3262MudstoneLS22.901.220.650.871.360.050.030.680.770.31
W33332–3340Organic-rich shaleLS22.811.120.430.941.580.030.050.650.630.34
W33361.3–3363Organic-rich shaleLS22.731.110.250.901.560.060.050.740.560.32
W33375–3385Organic-rich shaleLS22.551.171.290.861.690.080.060.730.640.25
W43130–3140MudstoneLS21.801.393.251.981.550.030.020.581.380.34
W43200–3206Organic-rich shaleLS22.231.421.821.311.950.040.030.531.480.46
W43250–3260shaleLS21.631.452.031.012.420.080.040.591.220.20
W43448–3460Organic-rich shaleLS23.371.441.802.431.200.050.050.541.201.08
W43490–3496MudstoneLS23.071.422.552.981.810.070.050.651.120.74
W62292–2302shaleLS21.422.691.162.64/0.050.001.570.711.38
W62330–2340Organic-rich shaleLS21.251.700.733.00/0.030.000.182.181.50
W62368–2378Organic-rich shaleLS21.961.510.682.38/0.060.020.400.910.38
Pr: pristane; Ph: phytane; TAR = (C27 + C29 + C31)/(C15 + C17 + C19) n-alkanes; C21/C23 TT: C21/C23 tricyclic terpane; C24 Tet/C26 TT: C24 17,21-secohopane/C26 tricyclic terpanes; Ga/C30 H: Gammacerane/C30 hopane; C21+22/C27–29 S: (pregnane + homopregnane)/C27−29 regular steranes; 4MSI: 4-methylsterane/C29 regular sterane.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Yang, X.; Lv, X.; Huang, Y.; He, Y.; Yang, R.; Wang, R.; Peng, P. The Depositional Environment of the Lacustrine Source Rocks in the Eocene Middle Number of the Liushagang Formation of the Weixinan Sag, Beibuwan Basin, China: Implications from Organic Geochemical Analyses. Minerals 2023, 13, 575. https://doi.org/10.3390/min13040575

AMA Style

Yang X, Lv X, Huang Y, He Y, Yang R, Wang R, Peng P. The Depositional Environment of the Lacustrine Source Rocks in the Eocene Middle Number of the Liushagang Formation of the Weixinan Sag, Beibuwan Basin, China: Implications from Organic Geochemical Analyses. Minerals. 2023; 13(4):575. https://doi.org/10.3390/min13040575

Chicago/Turabian Style

Yang, Xiaoyong, Xiaoxia Lv, Yahao Huang, Yunlong He, Rui Yang, Ruyue Wang, and Peng Peng. 2023. "The Depositional Environment of the Lacustrine Source Rocks in the Eocene Middle Number of the Liushagang Formation of the Weixinan Sag, Beibuwan Basin, China: Implications from Organic Geochemical Analyses" Minerals 13, no. 4: 575. https://doi.org/10.3390/min13040575

APA Style

Yang, X., Lv, X., Huang, Y., He, Y., Yang, R., Wang, R., & Peng, P. (2023). The Depositional Environment of the Lacustrine Source Rocks in the Eocene Middle Number of the Liushagang Formation of the Weixinan Sag, Beibuwan Basin, China: Implications from Organic Geochemical Analyses. Minerals, 13(4), 575. https://doi.org/10.3390/min13040575

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
