Article

Cu-Ag-Au Microspherules in Igneous Rocks: Morphology, Composition, Diagnostic Criteria and Possible Origin

by
Nikolai Berdnikov
,
Pavel Kepezhinskas
*,
Valeria Krutikova
,
Nadezhda Kozhemyako
and
Natalia Konovalova
Institute of Tectonics and Geophysics FEB RAS, Khabarovsk 680063, Russia
*
Author to whom correspondence should be addressed.
Minerals 2023, 13(6), 819; https://doi.org/10.3390/min13060819
Submission received: 17 March 2023 / Revised: 3 May 2023 / Accepted: 14 June 2023 / Published: 16 June 2023
Browse Figures
Versions Notes

Abstract

:
Igneous rocks from the Russian Far East contain Cu-Ag-Au microspherules with distinct exterior and interior structures, compositions and assemblages of Cu-rich micro-inclusions. Natural microspherules are compared in this study with technogenic Cu-Ag-Au microspherules, which are experimentally produced and extracted from gold scrap jewelry. The following set of diagnostic criteria are considered to distinguish natural from technogenic microspherules on a genetic basis as follows: (1) compacted-related features versus cellular appearance of the exterior; (2) lack of exsolution- or crystallization-related features in natural and domain-type internal structure in technogenic microspherules; (3) absence of spherical copper-oxide inclusions along with meniscus-type textural boundaries in technogenic mcirospherules; (4) pure copper-oxide composition of inclusions versus the common presence of Fe, Ni, Zn, Cu and Na in natural microspherules. The diagnostic characteristics of natural Cu-Ag-Au microspherules suggest extremely fast cooling rates during their formation, which is possible during violent explosive volcanic eruptions or injection of partially molten, pulverized metal alloys into shallow intra-crustal cavities and fault-related tectonic gashes.

1. Introduction

Recent studies of magmatic rocks in the Russia Far East using such methods as scanning electron microscopy (micro-metallogeny) revealed presence of substantial quantities of microspherules composed of Cu-Ag-Au alloys [1,2]. Compositionally similar, but texturally non-spherical Cu-Ag-Au alloys were also reported from subduction-related plutonic complexes and adakite lavas in the Mesozoic Stanovoy suture zone [3,4,5], Cr-Ni ores in orogenic peridotites and pyroxenites of the Beni Bousera massif in the Atlas Mountains of Morocco [6], ophiolitic chromitites and peridotites [7,8,9], layered mafic-ultramafic intrusions such as Skaergaard [10] and Norilsk [11], Miocene-Pliocene adakites from northern Kamchatka [5], Quaternary high-K dacites from the Bolivian Andes [12], Eocene trachytes from the Virginian Appalachians [12], basaltic lavas from Kilauea and Mauna Loa volcanoes in Hawaii [13] and glassy MORB-type submarine lavas from the Chile Ridge (southeastern Pacific Ocean) [13]. The occurrence of Cu-Ag-Au alloys in intrusive rocks is interpreted as result of transport of ore elements in mafic plutonic systems under fluid-saturated, relatively reduced conditions [3,4,10], while the formation of Cu-Ag-Au alloys in volcanic environments implies either fast cooling of metal droplets in the course of violent explosive eruptions [1,2] or pre-concentration of precious (Au, Ag) and base (Cu) metals during lava solidification before later-stage hydrothermal remobilization of the host lava flow or igneous dike [12,13,14]. Presence of Cu-Ag-Au alloys in mantle wedge xenoliths and host primitive ankaramite lava at the Avachinsky volcano in Kamchatka suggests that refertilized sub-arc lithospheric or asthenospheric mantle was the ultimate source of these alloys in the wide range of subduction-related (arc, collisional, post-collisional, etc.) tectonic environments [14,15,16,17,18,19].
Compounds with different Cu:Ag:Au ratios and tendency towards pure Cu-Au and Ag-Au compositional end-members were also described in various hydrothermal and contact metamorphic rocks [20,21], where their origins have been attributed to fluid–rock metasomatic interactions under relatively low-temperature (<400 °C) and variably oxidized conditions [22,23]. Primarily due to the general rarity of well-documented magmatic occurrences, precise conditions of formation of Cu-Ag-Au alloys in igneous environment are still rather poorly constrained by the data available from natural systems, thermodynamic calculations or experimental studies [1,2,3,4,5,14,24,25,26,27,28,29,30,31].
Discovery of precious and base metal microspherules in volcanic rocks opens up new avenues for better understanding of emergence of metal-rich alloys and mineral phases in silicate and sulfide melts, as well as processes leading to the formation of precious metal mineralization in high-temperature magmatic settings. The Cu-Ag-Au microspherules are viewed as bona fide evidence for high-temperature transport of primary magmatic gold by melts originating from metal-rich, deep-seated sources in the mantle [1,2,13,14,27,31]. This primary magmatic gold can contribute to a range of economic metal deposits [32] and, upon chemical and morphological transformations under oxidized upper crustal conditions, form classic epithermal Au-Ag mineralization in subvolcanic ore-forming environments [1,2,4,12,33,34,35,36]. Determination of compositional and textural features of microspherules and establishment of clear diagnostic criteria for their primary igneous origins in the context of the development and evolution of mineralized gold-bearing magmatic-hydrothermal systems are especially important in the light of their apparent potential applications as a powerful exploration tool in cratonic and accreted terranes, Andean-type continental margins and orogenic belts.
Our paper presents textural and compositional data on Cu-Ag-Au microspherules in magmatic rocks from the Lesser Khingan Range in Russian Far East combined with some experiments on the formation of these alloys at atmospheric pressure and different cooling regimes. In this respect, we aim to determine specific diagnostic criteria of natural versus technogenic origins for this potentially very important metal association in igneous rocks, either intrusive (plutonic) or extrusive (volcanic).

2. Materials and Methods

2.1. Geologic Background and Samples

The Cu-Ag-Au microspherules were detected in ores, mafic to felsic explosive breccias and tuffs, as well as associated basaltic and carbonatite-like rocks from the Poperechny, Kostenga and Kaylan iron-manganese deposits in the Jewish Autonomous Region of the Russian Far East (Figure 1). Formation of these deposits is linked to Mesozoic explosive volcanism within the Bureya Terrane of the Central Asian Orogenic Belt (CAOB) [1,2]. Mesozoic felsic magmatism within the Bureya Terrane appears to be related to the amalgamation of various crystal blocks in the eastern CAOB into a single Amur superterrane and its collision with the North Asian Craton [37,38]. Mesozoic magmatism, terrane accretion and intrapalte tectonism within the southeastern part of the Russian Far East and bordering region of NE China records general westward flat subduction of the Izanagi lithospheric plate in Middle Jurassic to Early Cretaceous time [39,40,41].
Samples used in this study represent several prominent and typical rock types that occur within the three iron-manganese deposits studied in detail in the Bureya Terrane of the Russian Far East (Figure 1). The sampled rock types include magnetite-rich lava from the Kostenga deposit, mineralized tuff from the Kaylan deposit and carbonatite-like rock from the Poperechny deposit. Details of textural relationships, mineralogy and major and trace element geochemistry of these rock formations can be found in [1,2,42].

2.2. Sample Preparation and Analytical Methods

Gold-bearing particles were liberated from the host iron-oxide ore and volcanic rocks through crushing to 0.25 mm followed by separation into various size fractions and washing with water. Dissolution of excessive magnetite, hematite and carbonate in hydrochloric acid was applied to some samples in order to increase the amount of heavy mineral concentrate. The dried microspherules were then handpicked from the heavy mineral concentrate of each studied sample using the binocular stereomicroscope Discovery V.12 (Carl Zeiss, Jena, Germany).
Due to the extremely small size of the microspherules (usually under first tens of microns), they were studied using a scanning electron microscope with the energy dispersive analyzer (SEM-EDX) system VEGA 3 LMH (TESCAN, Brno, Czech Republic) fitted with the X-Max 80 energy dispersive spectrometer (Oxford, UK). The following analytical conditions were used during microspherule studies: accelerating voltage—20 kV, beam current—530 pA, beam diameter—0.2 µm, maximum counting time—20 s. A set of reference materials including 37 natural and synthetic oxides, minerals and native metals (Oxford/108699 # 6067) was used as reference standards. Co-standard Oxford Instruments/143100 # 9864-15 was used for routine daily instrument calibration. The EDS compositions are considered to be precise within approximately ±0.1 mas.%, which is deemed satisfactory for the purposes of the current study.
X-ray diffraction (XRD) analysis of gold-bearing particles was conducted using the Miniflex II diffractometer (Rigaku, Tokyo, Japan) under the following set of conditions: CuK α-radiation, accelerating voltage of 30 kV and beam current of 15 mA.
For the studies of the exterior morphological features of microspherules, the latter were mounted onto the conductive Scotch tape of the scanning microscope sample holder. In order to study the internal structure of individual microspherules, the Scotch tape with attached microspherules was coated with epoxy resin and disconnected from the sample holder. The remainder of the Scotch tape was washed away (cleaned up) with ethanol and the epoxy with microspherules was ground down until the exposure of representative internal cross-sections and subsequently polished. Ultimate care was paid in order to prevent over-polishing to avoid the appearance of an internal relief due to heterogeneous internal structure of individual microspherules and possible display of the effect of stretching of the softer material over the surface of the harder mineral phase.

3. Results

3.1. Exterior Features of Cu-Ag-Au Microspherules

Microspherules containing Cu, Ag and Au predominantly display spherical shapes combined with sizes ranging from first microns to first tens of microns. The surface of individual Cu-Ag-Au microspherules is very rarely smooth and typically is sculptured and covered with compaction-related deformations, reflecting fast cooling in the absence of crystallization (Figure 2A,B). Exterior features of all studied microspherules lack any evidence for penetration by internal crystals or sub-crystalline phases. We have, however, frequently observed external crusts and fragments of copper-rich phases immiscible with the Cu-Ag-Au alloy on the surface of the individual Cu-Ag-Au microspherules (Figure 2C).

3.2. Internal Structure and Composition of Cu-Ag-Au Microspherules

Internal structure and composition of Cu-Ag-Au microspherules were determined with SEM-EDS on polished cross-sections. Out of 74 studied microspherules, only 8 individual spherules displayed texturally and compositionally homogeneous internal structure (Figure 3A). Additional detailed X-ray diffraction studies confirmed the absence of crystalline phases within these microspherules and the internal homogeneity of their chemical composition [1].
Most of the studied spherules contain very small inclusions of predominantly copper-oxide composition with minor admixtures of Ni, Zn, Cr and Fe (Figure 3B–F). It is important to emphasize that presence of Ag, Au and, partially, Cu in SEM-EDX analyses of copper-oxide micro-inclusions is due to the compositional influence of the surrounding Cu-Ag-Au matrix [1]. The concentration of copper in micro-inclusions consequently leads to its relative depletion in the matrix, although general copper content in the bulk microspherule (determined using areal SEM-EDX scanning of the entire interior cross-section of an individual microspherule) remains approximately constant. Copper-oxide inclusions typically display circular (Figure 3B), dendritic (Figure 3C) or polygonal (in most cases, hexagonal; Figure 3D) shapes. In rare cases, inclusions with different shapes occur within the individual Cu-Ag-Au microspherule (Figure 3E). Some larger copper-oxide inclusions exhibit clear textural evidence for liquid immiscibility represented by internal meniscus-type boundary (Figure 3F) typically interpreted as co-existence of two compositionally different liquids [43,44].

3.3. Diagnostic Criteria for Cu-Ag-Au Microspherule Identification

Figure 4 summarizes compositional variations of principal components (copper, gold and silver) in the Cu-Ag-Au microspherules from the Lesser Khingan deposits we investigate here.
Data in Figure 4 suggest that compositional variations in natural Cu-Ag-Au are broadly similar to the 14K “red” gold alloy, which is typically used in gold jewelry manufacturing [46,47]. This startling coincidence led us to an investigation specifically designed to eliminate any possibility of contamination of our samples with natural microspherules from human-worn pieces of standard gold jewelry. Under this special investigation, we are also seeking to develop some reliable morphological and compositional and textural criteria to distinguish between microspherules of possible natural and technogenic origins. In order to achieve these goals, we supplemented our data on natural microspherules from the Lesser Khingan iron-manganese deposits with SEM studies of experimentally produced Cu-Ag-Au microspherules and scrap jewelry products.
We used pure copper, silver and gold metals to synthesize technogenic Cu-Ag-Au microspherules. Smelting of pure metals was performed in crucibles with borax flux heated by the standard gas torch flame gun. Spherical micro-portions of Cu-Ag-Au alloy were then liberated from the easily solvable flux matrix and investigated with the same methods that were previously applied to natural microspherules. The same sampling methods were applied to broken crucibles previously used in the manufacturing of the 14K gold jewelry. Results of the SEM-EDX studies of technogenic microspherules are presented in Figure 5.
In comparison with the natural samples, technogenic Cu-Ag-Au microspherules completely lack any compaction-related deformational features along their surfaces. Typical technogenic spherule surface display a very characteristic cellular (“mesh”- or “honeycomb”-like) appearance, most probably due to crystallization processes involved in their formation (Figure 5). This suggestion is further supported by the high contrast regime scanning of internal cross-sections of technogenic microspherules along with clear difference in separate spot analyses (chemical compositions) of dark and light zones that occur inside the technogenic spherules (Figure 5C). It is important to emphasize here that the SEM-EDX area scanning of the entire internal section of an individual microspherule will result in the average “bulk” composition of this particular spherule (Figure 5B). Distribution of individual chemical elements between sub-crystalline zones within the individual micro-spherule is best demonstrated with SEM-EDX scanning of its internal cross-sections using characteristic radiation Au Mα1 (Figure 5D), Cu Kα1 (Figure 5E) and Ag Lα1 (Figure 5F).
Oxygen intake, achieved during our experiments either through smelting in the air (room atmospheric conditions) or limiting the amount of borax flux in the crucible, results in the formation of Cu-Ag-Au microspherules almost completely covered with a copper-oxide crust (Figure 6A). Removal of the Cu-oxide crust exposes a surface relief texturally similar to the spherules generated in fully fluxed smelting experiments (Figure 6B).
Cu-Ag-Au microspherules exposed to oxygen-rich conditions during their formation typically contain dendritic copper oxide inclusions and are depleted in copper with specific reference to their gold contents (Figure 6C).

4. Discussion and Genesis of the Cu-Ag-Au Microspherules

Results of our SEM-EDX studies of natural and technogenic microspherules can possibly lead to some important practical and fundamental implications. Data presented in this paper provide some additional firm criteria to identify natural versus technogenic origins of microspherules, which, we believe, can and should be used in future studies of similar spherical objects [48,49,50]. Fundamental aspects of this study can be potentially linked to our better understanding of gold, silver and copper partitioning in the mantle–crust system and transport and evolution of precious and chalcophile metals in the upper crustal hydrothermal environments [4,12,14,51,52,53,54,55,56,57,58,59].
Our data highlight four principal diagnostic criteria to distinguish between natural and technogenic microspherules. It is important to emphasize here that our comparisons are drawn on the basis of 14K gold alloy composition, which occurs naturally [1,2,3,4,5,6,7,8,9] and is also typically used in jewelry manufacturing [45,46,47]. It is possible that for Cu-Ag-Au alloys of different composition (e.g., different proportions of Au, Ag and Cu), these diagnostic criteria would be different. The first diagnostic criterion involves details of surface relief of the spherules, which is characterized by compaction-related textural features (Figure 2A,B) in natural samples and displays a cellular (“mesh”- or “honeycomb”-like) appearance in microspherules of technogenic and anthropogenic origin (Figure 6B). The second criterion is closely tied in with the first, in that natural spherules do not exhibit any evidence for exsolution (e.g., lamellae, etc.) or crystallization, while technogenic spherules possess internal domain structures due to the initial decomposition of the homogeneous primary alloy into various sub-crystalline phases. The third distinction involves the character and appearance of copper oxide inclusions. Technogenic spherules do not carry spherical copper oxide micro-inclusions or micro-inclusions with immiscibility-related, meniscus-type textural boundaries such as those shown in Figure 3F. Finally, copper oxide micro-inclusions in natural versus technogenic microspherules display subtle, but distinct compositional differences. Besides the presence of some Ag and Au due to some matrix contributions from sample areas affected by instrumental X-ray excitement from the SEM source [1], inclusions in technogenic microspherules are composed exclusively of copper and oxygen, while spherical inclusions in natural microspherules almost always contain Fe, Ni, Zn, Cr and some occasional Na. Apparently, the natural environment of formation for the Cu-Ag-Au microspherules was saturated in respect to these chemical elements, while the manufactured 14K gold alloys are depleted in them totally.
Textural and compositional comparisons between natural and technogenic Cu-Ag-Au microspherules presented in this study shed light on their origins under natural conditions. It became abundantly clear that these unique mineralogical objects can only form in nature under strongly reducing conditions (logP(O2) under −3) [1,60] typical of deep horizons of the terrestrial lithosphere. Any oxygen intake during formation of natural Cu-Ag-Au alloys at temperatures in excess of 260 °C immediately triggers oxidation of the copper component, resulting in the formation of a copper-oxide crust on the surface and copper-oxide inclusions in the interior of microspherules. This oxidation process is most probably the primary reason for the rarity of these microspherules in the upper crust, as most of the Cu-Ag-Au spherules will be completely oxidized in shallow epithermal environments associated with magmatic-hydrothermal plumbing systems and terrestrial volcanoes. Consequently, the studied natural Cu-Ag-Au microspherules may represent the “primary magmatic gold” sourced in the deep-seated lithosphere, which, upon oxidation and preferential copper loss, leads to the formation of precious metal deposits with the typical Au-Ag composition of hydrothermal ores [61,62,63,64,65].
Studies of natural Cu-Ag-Au microspherules and their experimentally produced compositional analogues suggest that their formation in nature is facilitated by high to extremely high cooling rates, resulting in the absence of high-temperature exsolution features (lamellae) and preservation of spherical shapes of internal copper-oxide (cuprite) micro-inclusions. Moreover, some copper-oxide inclusions display clear textural evidence (Figure 3F) for oxidation and liquid immiscibility, most probably triggered by contact of microspherules with either strongly oxidized fluids (epithermal environments in the upper crust) or with atmospheric oxygen (violent explosive eruptions). Extremely fast cooling rates resulted in the preservation of Cu-Ag-Au alloys and their oxidized micro-inclusions in the metastable state. These cooling rates were not achieved, even in experiments involving the dropping of a molten Cu-Ag-Au droplet into cold water. However, similar extremely high cooling rates in nature can be achieved during high-energy volcanic explosions (e.g., the “Minoan” Plinian eruption of Santorini volcano in Greece, the 1974 sub-Plinian eruption of Fuego volcano in Guatemala, the 1977 fire-fountain eruption of Seguam volcano in the Aleutians [66,67]) or injection of partially molten, pulverized metal alloys into shallow intra-crustal cavities and fault-related tectonic gashes.

5. Conclusions

We can formulate the following diagnostic criteria for natural Cu-Ag-Au microspherules on the basis of data presented in the current study.
  • Surface relief and appearance. Natural microspherules are characterized by compaction-related surficial deformations, while technogenic products display cellular surfaces indicative of proto-crystallization processes.
  • Natural microspherules do not show any solid solution evidence for exsolution or post-formation crystallization, while technogenic spherules display a well-defined internal domain microstructure due to decomposition of the initial homogenous alloy into several sub-crystalline phases.
  • Technogenic spherules totally lack spherical copper-oxide micro-inclusions and micro-inclusions with meniscus-type textural boundaries, indicative of liquid immiscibility at the early stages of their formation and compaction.
  • Copper-oxide micro-inclusions in natural Cu-Ag-Au spherules always contain some Fe, Ni, Zn, Cr and, to a lesser extent, Na, while inclusions in technogenic microspherules are composed exclusively of copper and oxygen, as suggested by SEM-EDX microanalysis.

Author Contributions

Conceptualization, N.B. and N.K. (Natalia Kozhemyaka); methodology, N.B. and P.K.; validation, N.B., V.K., N.K. (Natalia Kozhemyaka) and N.K. (Natalia Konovalova); formal analysis, V.K. and N.K. (Natalia Kozhemyaka); investigation, N.B., V.K., N.K. (Natalia Konovalova) and N.K. (Natalia Konovalova); resources, N.B.; data curation, N.B.; writing—original draft preparation, N.B. and P.K.; writing—review and editing, N.B. and P.K.; visualization, N.B.; supervision, N.B. and P.K.; project administration, N.B. and P.K.; funding acquisition, N.B. All authors have read and agreed to the published version of the manuscript.

Funding

The study was performed in the context of the Government Assignment to the Institute of Tectonics and Geophysics, Far East Branch, Russian Academy of Sciences with financial support from the Russian Science Foundation, grant 22-17-00023.

Data Availability Statement

Data are available upon request from the senior author.

Acknowledgments

The authors would like to thank A.V. Scherbinin, in «Dragmet» LLC (Khabarovsk, Russian Federation), who kindly provided samples of the manufactured jewelry materials used in this study. We also would like to express our sincere gratitude to David Banks and two anonymous reviewers for their constructive comments on the earlier version of this manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Berdnikov, N.; Nevstruev, V.; Kepezhinskas, P.; Astapov, I.; Konovalova, N. Gold in mineralized volcanic systems from the Lesser Khingan Range (Russian Far East): Textural types, composition and possible origins. Geosciences 2021, 11, 103. [Google Scholar] [CrossRef]
  2. Berdnikov, N.V.; Nevstruev, V.G.; Kepezhinskas, P.K.; Krutikova, V.P.; Konovalova, N.S.; Astapov, I.A. Silicate, Fe-oxide, and Au-Cu-Ag microspherules in ores and pyroclastic rocks of the Kostenga iron deposit, in the Far East of Russia. Russ. J. Pac. Geol. 2021, 15, 236–251. [Google Scholar] [CrossRef]
  3. Kepezhinskas, P.K.; Kepezhinskas, N.P.; Berdnikov, N.V.; Krutikova, V.O. Native metals and intermetallic compounds in subduction-related ultramafic rocks from the Stanovoy mobile belt (Russian Far East): Implications for redox heterogeneity in subduction zones. Ore Geol. Rev. 2020, 127, 127. [Google Scholar] [CrossRef]
  4. Berdnikov, N.; Kepezhinskas, P.; Konovalova, N.; Kepezhinskas, N. Formation of gold alloys during crustal differentiation of convergent zone magmas: Constraints from an Au-rich websterite in the Stanovoy Suture Zone (Russian Far East). Geosciences 2022, 12, 126. [Google Scholar] [CrossRef]
  5. Kepezhinskas, P.; Berdnikov, N.; Kepezhinskas, N.; Konovalova, N. Adakites, high-Nb basalts and copper-gold deposits in magmatic arcs and collisional orogens. Geosciences 2022, 12, 29. [Google Scholar] [CrossRef]
  6. Oen, I.S.; Kieft, C. Nickeline with pyrrhotite and cubanite exsolutions, Ni-Co rich loellingite and an AuCu alloy in Cr-Ni ores from Beni-Bousera, Morocco. Neues Jahrb. Miner. Monatsh. 1974, 443, 1–8. [Google Scholar]
  7. Grigorieva, A.V.; Damdinov, B.B.; Sluzhenikin, S.F. Ore mineralization in ultramafic and metasomatic rocks of the Ospin-Kitoi massif, Eastern Sayan. Geol. Ore Depos. 2018, 60, 121–141. [Google Scholar] [CrossRef]
  8. Yurichev, A.N. Accessory gold-silver mineralization in chromitites from the Kharcheruzky massif (Polar Urals). Proc. Tomsk. Polytech. Univ. Eng. Georesources 2021, 332, 229–236. (In Russian) [Google Scholar]
  9. Yurichev, A.N. Accessory minerals of gold and silver in ultramafic rocks from the Kyzyr-Burlyuksky massif (Western Sayan). Ores Met. 2021, 4, 109–120. (In Russian) [Google Scholar]
  10. Rudashevsky, N.S.; Rudashevsky, V.N.; Nielsen, T.F.D.; Shebanov, A.D. Au-Cu alloys and inter-metallides in Pd-Au ores of the Skaergaard intrusion (Greenland). Proc. Russ. Miner. Soc. 2014, 143, 1–23. [Google Scholar]
  11. Sluzhenikin, S.F.; Mokhov, A.V. Gold and silver in PGE-Cu-Ni and PGE ores of the Noril’sk deposits, Russia. Mineral. Depos. 2015, 50, 465–492. [Google Scholar] [CrossRef]
  12. Kepezhinskas, P.; Berdnikov, N.; Konovalova, N.; Kepezhinskas, N.; Krutikova, V.; Kirichenko, E. Native metals and alloys in trachytes and shoshonite from the continental United States and high-K dacite from the Bolivian Andes: Magmatic origins of ore metals in convergent and within-plate tectonic settings. Russ. J. Pac. Geol. 2022, 16, 405–426. [Google Scholar] [CrossRef]
  13. Li, P.; Boudreau, A.E. Vapor transport of silver and gold in basaltic lava flows. Geology 2019, 47, 877–880. [Google Scholar] [CrossRef]
  14. Kepezhinskas, P.; Berdnikov, N.; Kepezhinskas, N.; Konovalova, N. Metals in Avachinsky peridotite xenoliths with implications for redox heterogeneity and metal enrichment in the Kamchatka mantle wedge. Lithos 2022, 412–413, 106610. [Google Scholar] [CrossRef]
  15. Kepezhinskas, P.; Defant, M.J.; Widom, E. Abundance and distribution of PGE and Au in the island-arc mantle: Implications for sub-arc metasomatism. Lithos 2002, 60, 113–128. [Google Scholar] [CrossRef]
  16. Wang, Z.; Becker, H. Abundances of Ag and Cu in mantle peridotites and the implications for the behavior of chalcophile elements in the mantle. Geochim. Cosmochim. Acta 2015, 160, 209–226. [Google Scholar] [CrossRef]
  17. Richards, J.P. Postsubduction porphyry Cu-Au and epithermal Au deposits: Products of remelting of subduction-modified lithosphere. Geology 2009, 37, 247–250. [Google Scholar] [CrossRef]
  18. Tassara, S.; Reich, M.; Konecke, B.A.; González-Jiménez, J.M.; Simon, A.C.; Morata, D.; Barra, F.; Fiege, A.; Schilling, M.E.; Corgne, A. Unravelling the effects of melt-mantle interactions on the gold fertility of magmas. Front. Earth Sci. 2020, 8, 29. [Google Scholar] [CrossRef] [Green Version]
  19. Holwell, D.A.; Fiorentini, M.; McDonald, I.; Lu, Y.; Giuliani, A.; Smith, D.J.; Keith, M.; Locmelis, M. A metasomatized lithospheric mantle control on the metallogenic signature of post-subduction magmatism. Nat. Commun. 2019, 10, 3511. [Google Scholar] [CrossRef] [Green Version]
  20. Murzin, V.V.; Oydup, C.K.; Varlamov, D.A. A new finding of Cu-Au alloy in association with rodingite minerals in the Kaa-Khem ophiolitic belt, Tuva. Geol. Ore Depos. 2009, 51, 784–793. [Google Scholar] [CrossRef]
  21. Palyanova, G.A.; Murzin, V.V.; Zhuravkova, T.V.; Varlamov, D.A. Au-Cu-Ag mineralization in rodingites and nephritoids of the Agardag ultramafic massif (Southern Tuva, Russia). Russ. Geol. Geophys. 2018, 59, 238–256. [Google Scholar] [CrossRef]
  22. Chudnenko, K.V.; Palyanova, G.A. Thermodynamic properties of solid solutions in the Ag-Au-Cu system. Russ. Geol. Geophys. 2014, 55, 349–360. [Google Scholar] [CrossRef]
  23. Knight, J.; Leitch, C.H.B. Phase relations in the system Au-Cu-Ag at low temperatures, based on natural assemblages. Can. Miner. 2001, 39, 889–905. [Google Scholar] [CrossRef] [Green Version]
  24. Symonds, R.B.; Rose, W.I.; Reed, M.H.; Lichte, F.E.; Finnegan, D.L. Volatilization, transport and sublimation of metallic and non-metallic elements in high-temperature gases at Merapi volcano, Indonesia. Geochim. Cosmochim. Acta 1987, 51, 2083–2101. [Google Scholar] [CrossRef]
  25. Cline, J.S.; Bodnar, R.J. Can economic porphyry mineralization be generated by a typical calc-alkaline melt? J. Geophys. Res. 1991, 96, 8113–8126. [Google Scholar] [CrossRef]
  26. Ulrich, T.; Günther, D.; Heinrich, C.A. Gold of magmatic brines and the metal budget of porphyry copper deposits. Nature 1999, 399, 676–679. [Google Scholar] [CrossRef]
  27. Williams-Jones, A.E.; Heinrich, C.A. Vapor transport of metals and the formation of magmatic-hydrothermal ore deposits. Econ. Geol. 2005, 100, 1287–1312. [Google Scholar] [CrossRef]
  28. Halter, W.E.; Heinrich, C.A.; Pettke, T. Magma evolution and the formation of porphyry Cu-Au ore fluids: Evidence from silicate and sulfide melt inclusions. Miner. Depos. 2005, 39, 845–863. [Google Scholar] [CrossRef] [Green Version]
  29. Li, Y.; Audetat, A. Partitioning of V, Mn, Co, Ni, Cu, Zn, Mo, Ag, Sn, Sb, W, Au, Pb and Bi between sulfide phases and hydrous basanite melt at upper mantle conditions. Earth Planet. Sci. Lett. 2012, 355, 327–340. [Google Scholar] [CrossRef]
  30. Zajacz, Z.; Candela, P.; Piccoli, P.M.; Sanchez-Valle, C.; Wälle, M. Solubility and partitioning behavior of Au, Cu, Ag and reduced S in magmas. Geochim. Cosmochim. Acta 2013, 112, 288–304. [Google Scholar] [CrossRef]
  31. Audetat, A. The metal content of magmatic-hydrothermal fluids and its relationship to mineralization potential. Geochim. Cosmochim. Acta 2019, 114, 1033–1056. [Google Scholar] [CrossRef]
  32. Kesler, S.E.; Simon, A.C. Mineral Resources, Economics and the Environment, 2nd ed.; Cambridge University Press: Cambridge, UK, 2015; p. 446. [Google Scholar]
  33. Morrison, G.W.; Rose, W.J.; Jaireth, S. Geological and geochemical controls on the silver content (fineness) of gold in gold-silver deposits. Ore Geol. Rev. 1991, 6, 333–364. [Google Scholar] [CrossRef]
  34. Banks, D.A.; Bozkaya, G.; Bozkaya, O. Direct observation and measurement of Au and Ag in epithermal mineralizing fluids. Ore Geol. Rev. 2019, 111, 102955. [Google Scholar] [CrossRef]
  35. Liu, H.; Beaudoin, G. Geochemical signatures in native gold derived from Au-bearing ore deposits. Ore Geol. Rev. 2021, 132, 104066. [Google Scholar] [CrossRef]
  36. Townley, B.K.; Hérail, G.; Maksaev, V.; Palacios, C.; de Parseval, P.; Sepulveda, F.; Orellana, R.; Rivas, P.; Ulloa, C. Gold grain morphology and composition as an exploration tool: Application to gold exploration in covered areas. Geochem. Explor. Environ. Anal. 2003, 3, 29–38. [Google Scholar] [CrossRef] [Green Version]
  37. Sorokin, A.A.; Kotov, A.B.; Kudryashov, N.M.; Kovach, V.P. Early Mesozoic granitoid and rhyolite magmatism of the Bureya Terrane of the Central Asian Orogenic Belt: Age and geodynamic setting. Lithos 2016, 261, 181–194. [Google Scholar] [CrossRef]
  38. Ge, M.-H.; Li, L.; Wang, T.; Zhang, J.-J.; Tong, Y.; Geo, L.; Liu, K.; Feng, L.; Song, P.; Yuan, J.-G. Hf isotopic mapping of the Paleozoic-Mesozoic granitoids fro thee Jiamusi and Songhen block, NE China: Implications for their tectonic division and juvenile continental crustal growth. Lithos 2021, 386–387, 106048. [Google Scholar] [CrossRef]
  39. Liu, L.; Liu, L.; Xu, Y.-G. Mesozoic intraplate tectonism of East Asia due to flat subduction of a composite terrane slab. Earth-Sci. Rev. 2021, 214, 103505. [Google Scholar] [CrossRef]
  40. Wu, B.; Wang, Y.; Huang, J. Dynamics of the subducted Izanagi-Pacific plates since the Mesozoic and its implications for the formation of big mantle wedge beneath Eastern Asia. Front. Earth Sci. 2022, 10, 829163. [Google Scholar] [CrossRef]
  41. Wu, J.; Lin, Y.-A.; Flament, N.; Wu, J.T.-J.; Liu, Y. Northwest Pacific-Izanagi plate tectonics since Cretaceous times from western Pacific mantle structure. Earth Planet. Sci. Lett. 2022, 583, 117445. [Google Scholar] [CrossRef]
  42. Berdnikov, N.V.; Nevstruev, V.G.; Kepezhinskas, P.K.; Mochalov, A.G.; Yakubovich, O.V. PGE mineralization in andesite explosive breccias associated with the Poperechny iron-manganese deposit (Lesser Khingan, Far East Russia): Whole-rock geochemical, 190Pt-4He isotopic, and mineralogical evidence. Ore Geol. Rev. 2020, 118, 103352. [Google Scholar] [CrossRef]
  43. Honour, V.; Holness, M.B.; Partridge, J.L.; Charlier, B. Microstructural evolution of silicate immiscible liquids in ferrobasalts. Contrib. Miner. Petrol. 2019, 174, 77. [Google Scholar] [CrossRef] [Green Version]
  44. Philpotts, A.R. Textural evidence for liquid immiscibility in tholeiites. Miner. Mag. 1978, 42, 417–425. [Google Scholar] [CrossRef] [Green Version]
  45. Rapson, W.S. The metallurgy of the coloured carat gold alloys. Gold Bull. 1990, 23, 125–133. [Google Scholar] [CrossRef] [Green Version]
  46. McCloskey, J.C.; Aithal, S.; Welch, P.R. Silicon microsegregation in 14K yellow gold jewelry alloys. Gold Bull. 2001, 34, 3–13. [Google Scholar] [CrossRef] [Green Version]
  47. Ferro, R.; Saccone, A.; Macció, D.; Delfino, S. A survey of gold intermetallic chemistry. Gold Bull. 2003, 36, 39–50. [Google Scholar] [CrossRef] [Green Version]
  48. Kim, W.; Doh, S.J.; Yu, Y. Anthropogenic contribution of magnetic particulates in urban roadside dust. Atmos. Environ. 2009, 43, 3137–3144. [Google Scholar] [CrossRef]
  49. Niyogi, A.; Pati, J.K.; Patel, S.C.; Panda, D.; Patil, S.K. Anthropogenic and impact spherules: Morphological similarity and chemical distinction—A case study from India and its implications. J. Earth Syst. Sci. 2011, 120, 1043–1054. [Google Scholar] [CrossRef]
  50. Magiera, T.; Jablonska, M.; Strzyszcz, Z.; Rachwal, M. Morphological and mineralogical forms of technogenic magnetic particles in industrial dusts. Atmos. Environ. 2011, 45, 4281–4290. [Google Scholar] [CrossRef]
  51. Hegelson, H.C.; Garrels, R.M. Hydrothermal transport and deposition of gold. Econ. Geol. 1968, 63, 622–635. [Google Scholar]
  52. Henley, R.W. Geology and geochemistry of epithermal systems. Rev. Econ. Geol. 1985, 2, 1–24. [Google Scholar]
  53. Kepezhinskas, P.K.; Berdnikov, N.V.; Krutikova, V.O.; Kepezhinskas, N.P.; Astapov, I.A.; Kirichenko, E.A. Silver mineralizaion in deep magmatoogenic systems of ancient island arcs: The Ildeus ultrabasic massif, Stanovoy mobile belt (Russian Far East). Russ. J. Pacific Geol. 2023, 17, 322–349. [Google Scholar]
  54. Simmons, S.F.; Brown, K.L. Gold in magmatic hydrothermal solutions and the rapid formation of a giant ore deposit. Science 2006, 314, 288–291. [Google Scholar] [CrossRef]
  55. Frank, M.R.; Simon, A.C.; Pettke, T.; Candela, P.A.; Piccoli, P.M. Gold and copper partitioning in magmatic-hydrothermal systems at 800 °C and 100 MPa. Geochim. Cosmochim. Acta 2011, 75, 2470–2482. [Google Scholar] [CrossRef]
  56. Zajacz, Z.; Candela, P.A.; Piccoli, P.M.; Wälle, M.; Sanchez-Valle, C. Gold and copper in volatile saturated mafic to intermediate magmas: Solubilities, partitioning, and implications for ore deposit formation. Geochim. Cosmochim. Acta 2012, 91, 140–159. [Google Scholar] [CrossRef]
  57. Pokrovsky, G.S.; Borisova, A.Y.; Bychkov, A.Y. Speciation and transport of metals and metalloids in geological vapors. Rev. Miner. Geochem. 2013, 76, 165–218. [Google Scholar] [CrossRef] [Green Version]
  58. Richards, J.P. Giant ore deposits formed by optimal alignments and combinations of geological processes. Nat. Geosci. 2013, 6, 911–916. [Google Scholar] [CrossRef]
  59. Hou, Z.; Wang, Q.; Zhang, H.; Xu, B.; Yu, N.; Wang, R.; Groves, D.I.; Zheng, Y.; Han, S.; Gao, L.; et al. Lithospheric architecture characterized by crust-mantle decoupling controls the formation of orogenic gold deposits. Nat. Sci. Rev. 2023, 10, nwac257. [Google Scholar] [CrossRef]
  60. Neumann, J.P.; Zhong, T.; Chang, Y.A. The Cu-O (Copper-Oxygen) system. Bull. Alloy Phase Diagr. 1984, 5, 136–140. [Google Scholar] [CrossRef]
  61. Gasparini, C. Gold and Other Precious Metals: From Ore to Market; Springer: Berlin/Heidelberg, Germany, 1993; p. 336. [Google Scholar]
  62. Pal’yanova, G.A. Physicochemical modeling of the coupled behavior of gold and silver in hydrothermal processes: Gold fineness, Au/Ag ratios and their possible implications. Chem. Geol. 2008, 255, 399–413. [Google Scholar] [CrossRef]
  63. Goryachev, N.A.; Pirajno, F. Gold deposits and gold metallogeny of Far East Russia. Ore Geol. Rev. 2014, 59, 123–151. [Google Scholar] [CrossRef]
  64. Heinrich, C.A.; Driesner, T.; Stefánsson, A.; Seward, T.M. Magmatic vapor contraction and the transport of gold from the porphyry environment to epithermal ore deposits. Geology 2004, 32, 761–764. [Google Scholar] [CrossRef]
  65. Savva, N.E.; Kravtsova, R.G.; Anisimova, G.S.; Palyanova, G.A. Typomorphism of native gold (geological-industrial types of gold deposits in the north-east of Russia). Minerals 2022, 12, 561. [Google Scholar] [CrossRef]
  66. Tait, S.; Thomas, R.; Gardner, J.; Jaupart, C. Constraints on cooling rates and permeabilities of pumice in an explosive eruption jet from colour and magnetic mineralogy. J. Volcanol. Geotherm. Res. 1998, 86, 79–91. [Google Scholar] [CrossRef]
  67. Newcombe, M.E.; Plank, T.; Zhang, Y.; Holycross, M.; Barth, A.; Lloyd, A.S.; Ferguson, D.; Houghton, B.F.; Hauri, E. Magma pressure-temperature-time paths during mafic explosive eruptions. Front. Earth Sci. 2020, 8, 531911. [Google Scholar] [CrossRef]
Minerals 13 00819 g001 550

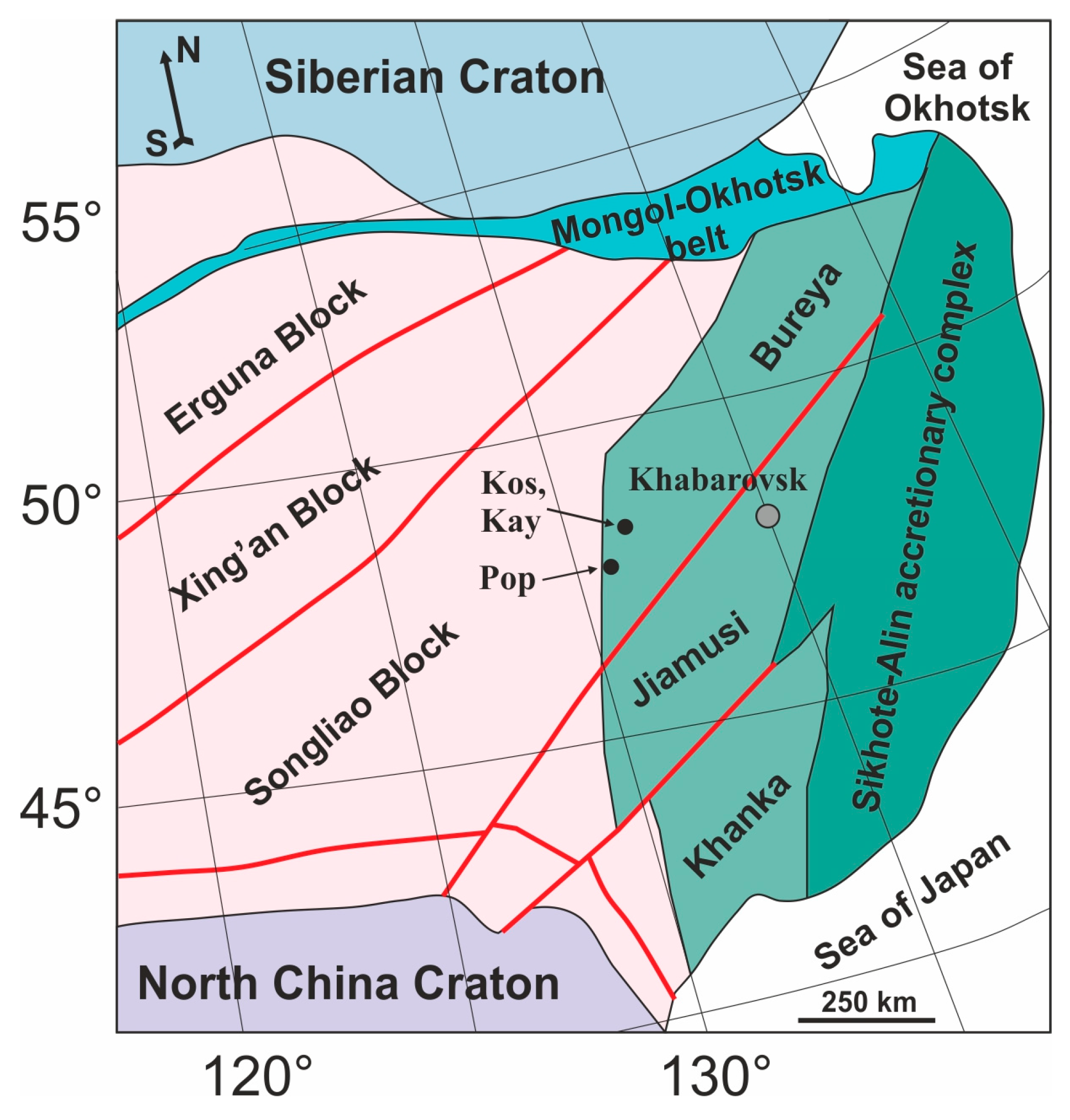

Figure 1. Location of Cu-Ag-Au microspherule-bearing Fe-Mn deposits in the Russian Far East after [1]. Pop—Poperechny, Kos—Kostenga, Kay—Kaylan iron-manganese deposits.
Figure 1. Location of Cu-Ag-Au microspherule-bearing Fe-Mn deposits in the Russian Far East after [1]. Pop—Poperechny, Kos—Kostenga, Kay—Kaylan iron-manganese deposits.
Minerals 13 00819 g001
Minerals 13 00819 g002 550

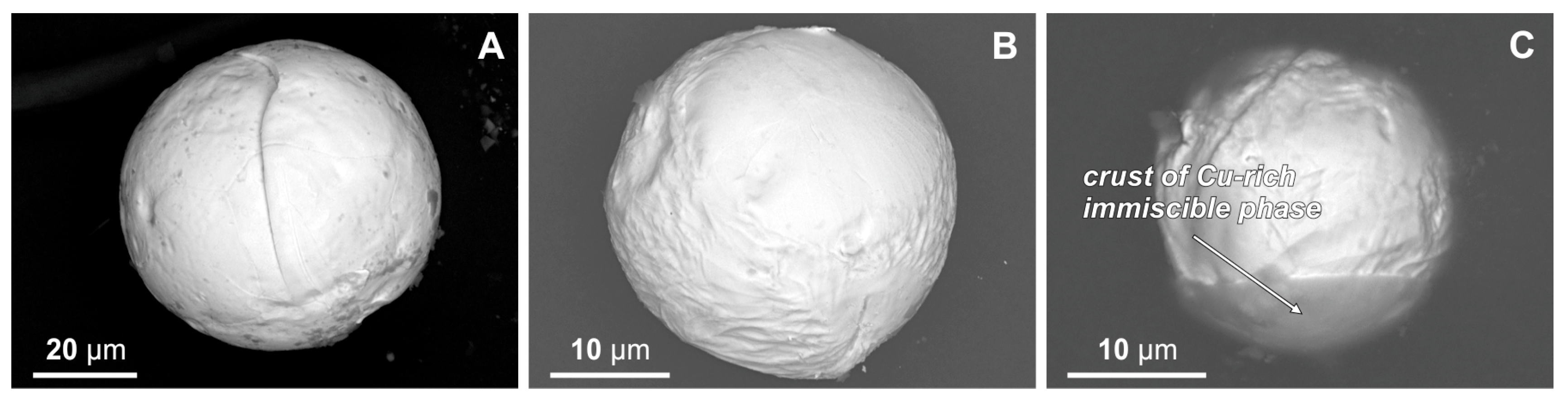

Figure 2. Back-scattered electron (BSE) images of the exterior features of typical Cu-Ag-Au microspherules. (A) Linear compaction-related deformations on microspherule in the magnetite lava from the Kostenga deposit. (B) Compaction-related depressions and “shagreen”-type exterior of microspherule in mineralized felsic tuff from the Kaylan deposit. (C). Partially preserved Cu-rich immiscible phase crust on microspherule in carbonatite-like magmatic rock from the Poperechny deposit. Locations of microspherule sites are shown in Figure 1.
Figure 2. Back-scattered electron (BSE) images of the exterior features of typical Cu-Ag-Au microspherules. (A) Linear compaction-related deformations on microspherule in the magnetite lava from the Kostenga deposit. (B) Compaction-related depressions and “shagreen”-type exterior of microspherule in mineralized felsic tuff from the Kaylan deposit. (C). Partially preserved Cu-rich immiscible phase crust on microspherule in carbonatite-like magmatic rock from the Poperechny deposit. Locations of microspherule sites are shown in Figure 1.
Minerals 13 00819 g002
Minerals 13 00819 g003 550

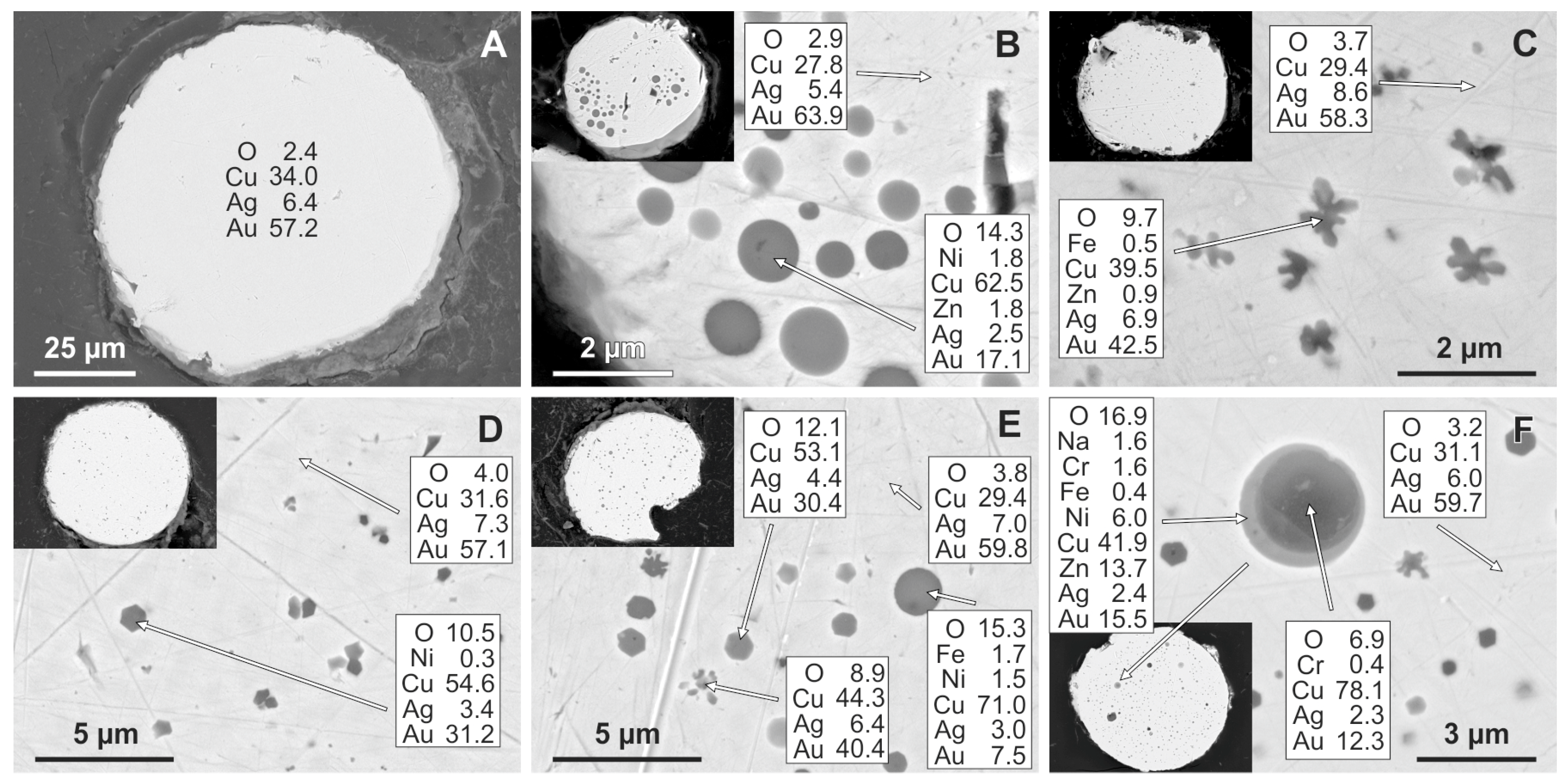

Figure 3. Internal structure and composition of Cu-Ag-Au microspherules (BSE images). (A) Internally homogeneous microspherule in compositionally evolved tuff from the Kaylan deposit. (B) Microspherule with rounded Cu-O inclusions in the carbonatite-like rocks from the Poperechny deposit. (C) Microspherule with dendritic Cu-O inclusions in evolved tuff from the Kaylan deposit. (D) microspherule with faceted Cu-O inclusions in magnetite lava from the Kostenga deposit. (E) Microspherule with combined rounded, dendritic and faceted inclusions in magnetite lava from the Kostenga deposit. (F) Rounded Cu-O inclusion with meniscus-type textural boundary indicative of liquid immiscibility in magnetite lava from the Kostenga deposit. Arrows indicate precise locations of tabulated SEM-EDA analyses. Insets reveal the general internal structure of individual microspherules. Images (B,F) are modified after [1]. Locations of the microspherule sites are shown in Figure 1.
Figure 3. Internal structure and composition of Cu-Ag-Au microspherules (BSE images). (A) Internally homogeneous microspherule in compositionally evolved tuff from the Kaylan deposit. (B) Microspherule with rounded Cu-O inclusions in the carbonatite-like rocks from the Poperechny deposit. (C) Microspherule with dendritic Cu-O inclusions in evolved tuff from the Kaylan deposit. (D) microspherule with faceted Cu-O inclusions in magnetite lava from the Kostenga deposit. (E) Microspherule with combined rounded, dendritic and faceted inclusions in magnetite lava from the Kostenga deposit. (F) Rounded Cu-O inclusion with meniscus-type textural boundary indicative of liquid immiscibility in magnetite lava from the Kostenga deposit. Arrows indicate precise locations of tabulated SEM-EDA analyses. Insets reveal the general internal structure of individual microspherules. Images (B,F) are modified after [1]. Locations of the microspherule sites are shown in Figure 1.
Minerals 13 00819 g003
Minerals 13 00819 g004 550

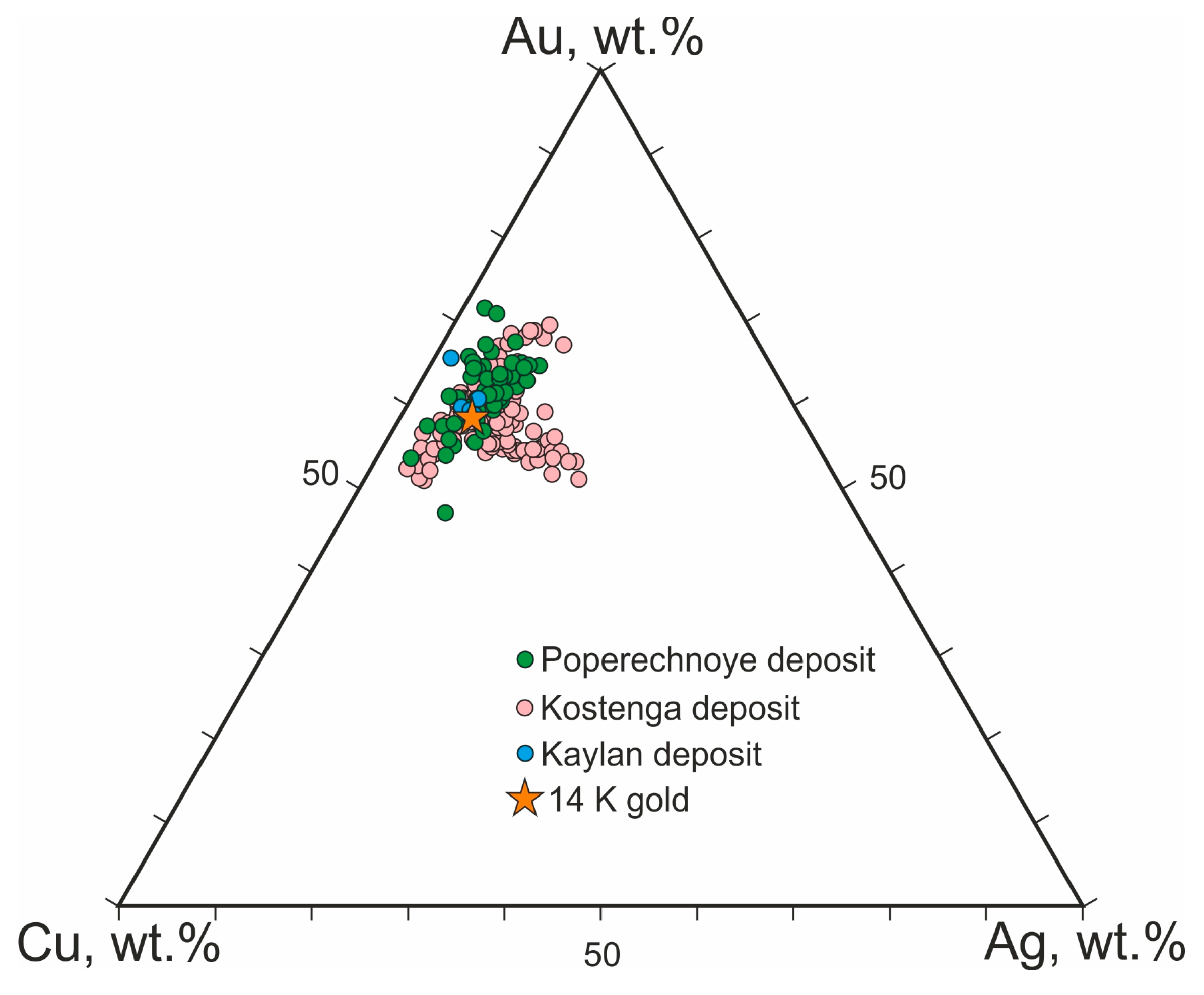

Figure 4. Compositional variations in natural Cu-Ag-Au microspherules compared with the 14 karat (14K) gold alloy composition used in our investigation [45].
Figure 4. Compositional variations in natural Cu-Ag-Au microspherules compared with the 14 karat (14K) gold alloy composition used in our investigation [45].
Minerals 13 00819 g004
Minerals 13 00819 g005 550

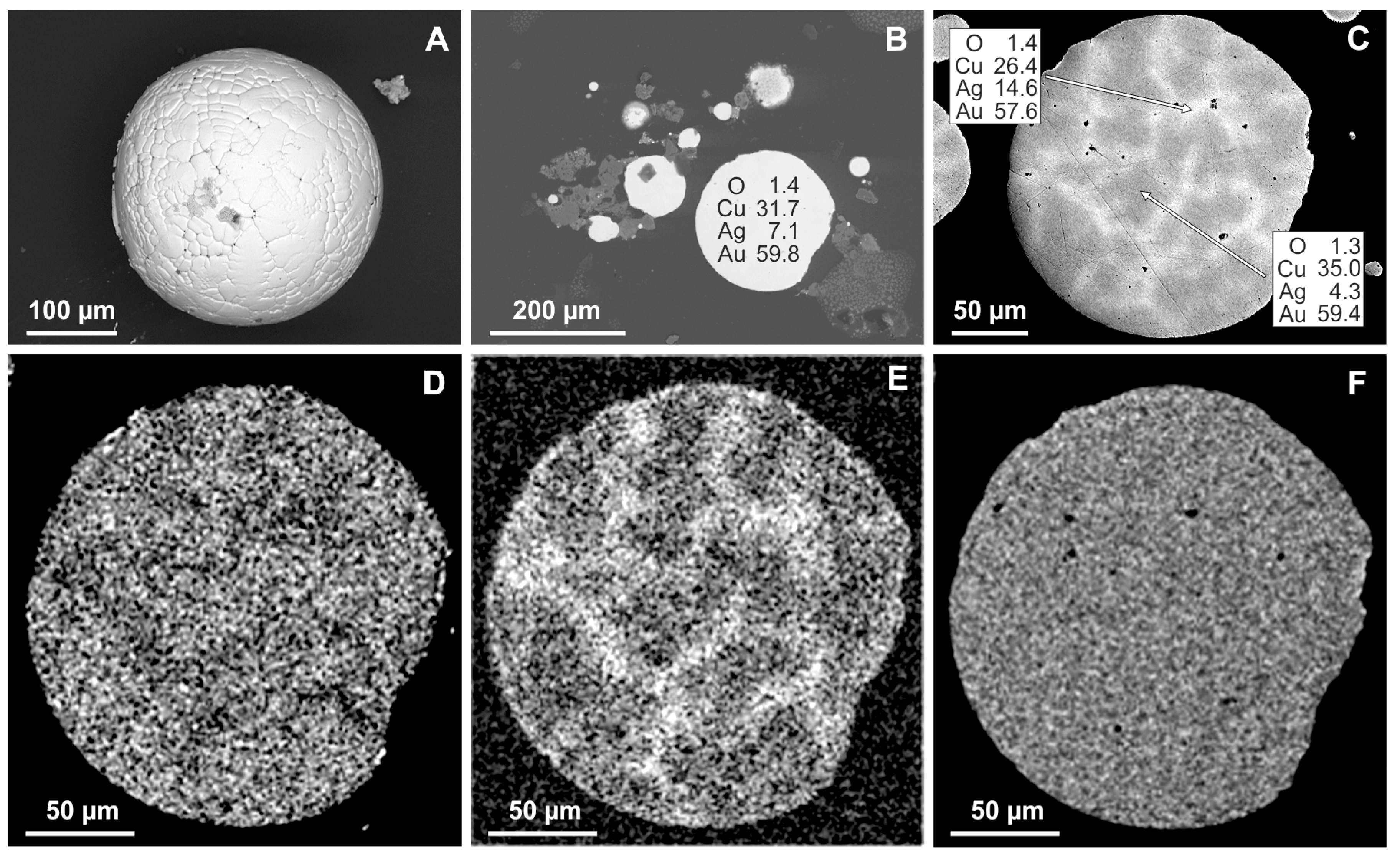

Figure 5. BSE images of microspherules with 14K gold alloy external relief and composition experimentally produced from scrap jewelry materials. (A) Exterior features of experimental microspherules. (B) Internal structure of experimental microspherules. (C) Internal structure of experimental microspherules emphasized under enhanced contrast conditions of the SEM instrument. (D–F) Results of scanning of cross-section (B) in characteristic emission rays Cu Kα1 (D), Ag Lα1 (E) and Au Mα1 (F).
Figure 5. BSE images of microspherules with 14K gold alloy external relief and composition experimentally produced from scrap jewelry materials. (A) Exterior features of experimental microspherules. (B) Internal structure of experimental microspherules. (C) Internal structure of experimental microspherules emphasized under enhanced contrast conditions of the SEM instrument. (D–F) Results of scanning of cross-section (B) in characteristic emission rays Cu Kα1 (D), Ag Lα1 (E) and Au Mα1 (F).
Minerals 13 00819 g005
Minerals 13 00819 g006 550

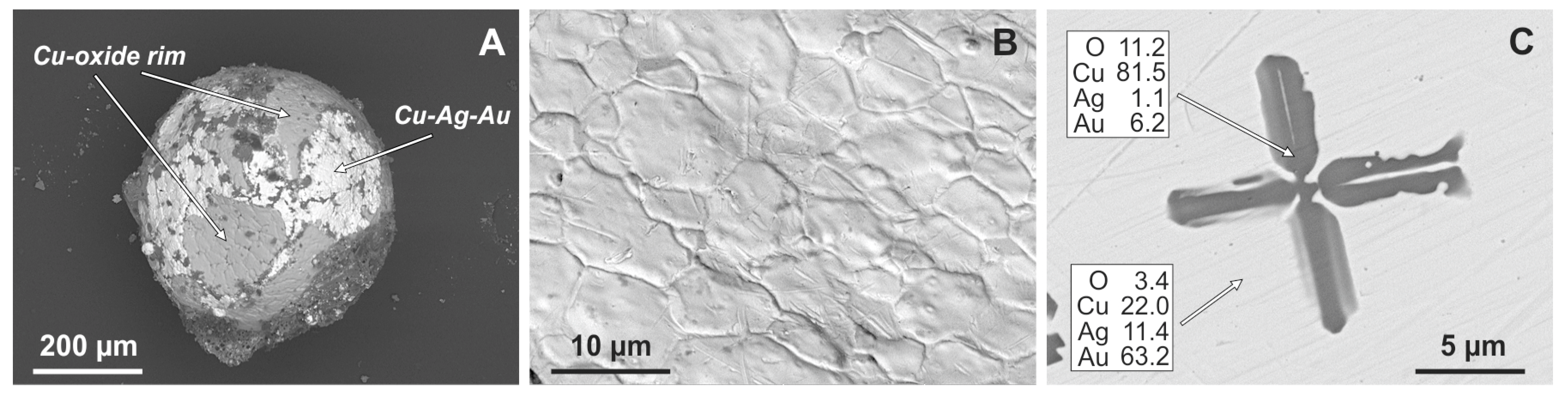

Figure 6. BSE images of microspherules with 14K gold alloy composition experimentally produced at atmospheric conditions (free air cooling). (A) Exterior features of experimentally produced microspherule. (B) Details of microspherule surface morphology after removal of the copper-oxide film. (C) Dendritic (skeletal) copper-oxide (cuprite?) inclusion in the cross-section.
