Remote Sensing for Lithology Mapping in Vegetation-Covered Regions: Methods, Challenges, and Opportunities

Abstract

Remote sensing (RS) technology has significantly contributed to geological exploration and mineral resource assessment. However, its effective application in vegetated areas encounters various challenges. This paper aims to provide a comprehensive overview of the challenges and opportunities associated with RS-based lithological identification in vegetated regions which includes the extensively reviewed prior research concerning the identification of lithology in vegetated regions, encompassing the utilized remote sensing data sources, and classification methodologies. Moreover, it offers a comprehensive overview of the application of remote sensing techniques in the domain of lithological mapping. Notably, hyperspectral RS and Synthetic Aperture Radar (SAR) have emerged as prominent tools in lithological identification. In addition, this paper addresses the limitations inherent in RS technology, including issues related to vegetation cover and terrain effects, which significantly impact the accuracy of lithological mapping. To propel further advancements in the field, the paper proposes promising avenues for future research and development. These include the integration of multi-source data to improve classification accuracy and the exploration of novel RS techniques and algorithms. In summary, this paper presents valuable insights and recommendations for advancing the study of RS-based lithological identification in vegetated areas.

1. Introduction

Accurate lithological mapping is essential in geological surveys and mineral resource exploration [1,2,3,4]. Rocks are classified into sedimentary, magmatic, and metamorphic types based on their formation process, with detailed subtypes referenced in [5,6,7,8]. Leveraging the distinctive spectral responses and texture information of rocks, remote sensing (RS) data/technology facilitates rapid geological mapping [9]. However, the detection of rock information in vegetated areas poses challenges due to weak signals and interference from vegetation cover. Even with vegetation cover of just over 10%, subsurface information can be greatly obscured or entirely hidden [10,11]. Consequently, the extraction of lithologic information in vegetated areas represents a significant obstacle in current geological applications [12].

Various approaches have been identified to address vegetation obstruction in lithological RS. In the field of vegetation-based lithological mapping, classification methods can be categorized into three primary approaches. The first approach focuses on re-emerging lithological information through the Vegetation Suppression Method (VSM) [13,14]. The second approach utilizes Spectral Mixing Analysis (SMA) to decompose and extract target information, specifically lithological categories [15,16]. The third approach involves indirect classification utilizing a range of algorithms, such as maximum likelihood classification (MLC) [17], Support Vector Machines (SVM) [18], random forest (RF) [19], artificial neural networks (ANN) [20,21,22], and deep learning algorithms (DLAs) [23,24], significantly facilitating the process of indirect lithological identification with development of machine learning (ML).

In recent years, the field of lithological identification has benefited from advancements in artificial intelligence and the availability of diverse RS datasets. Among these datasets, the Landsat series satellites have emerged as the primary choice for researchers in vegetation-based lithological mapping studies [25,26,27,28]. Their high cost-effectiveness, wide coverage, and high spatial resolution effectively identify vegetation and lithology-soil information, providing a solid foundation for lithological identification. However, it is important to note that the accuracy of information extraction is constrained by the mixed pixel phenomenon and the loss of information resulting from the low spatial resolution [29]. Furthermore, the emergence of high-resolution imagery has attracted geologists’ attention. Advanced Spaceborne Thermal Emission and Reflection Radiometer (ASTER) with multispectral (15 m) and thermal infrared (TIR) (30 m) data [30,31] allow for the extraction of spectral and thermal features for surface lithology analysis. Sentinel-2 [32] provides high spatial resolution multispectral data (up to 10 m), which is suitable for large-scale lithological identification. Additionally, WorldView-3 [33] and WorldView-4 offer high-resolution multispectral and TIR imagery, enabling the capture of surface details and spectral characteristics. Advanced hyperspectral sensors like Earth Observing-1 (EO-1) [34], PRecursore IperSpettrale della Missione Applicativa (PRISMA) [35], Environmental Mapping and Analysis Program (EnMAP) [36], and Hyperspectral InfraRed Imager (HyspIRI) [37] provide a wider spectral range and finer resolution, facilitating precise lithological identification and mineral analysis. Moreover, China’s high-resolution satellites, including Zhongzi Resources Satellite-1 (ZY-1) [38], ZY-3 [39], and the Gaofen series (GF) [40,41], cover visible (VIR), near-infrared (NIR), and mid-infrared spectra, thereby establishing a robust data foundation for detailed localized lithological survey research.

Despite the notable advancements of optical sensors in lithological identification, they still face certain challenges. Multispectral images are susceptible to various factors such as lighting and weather conditions, spectral resolution limitations, and the complex nature of geological units [23,29]. Similarly, high-resolution hyperspectral images are prone to spectral confusion, complexities in data processing and analysis, and atmospheric interference [35]. In contrast, Synthetic Aperture Radar (SAR) technology can address some of these challenges and offers advantages, including weather independence, detailed capture of texture features, and high sensitivity to surface physical properties [42]. The C-band (4~8 GHz) provides high spatial resolution, capturing microscopic rock structure details and reflecting subtle lithological variations and reflectivity differences [43,44]. On the other hand, the L-band (1~2 GHz) has the capability to penetrate vegetation and shallow surface coverings, directly acquiring information about subsurface rocks [45]. While the X-band (8~12 GHz) might not be commonly used for direct lithology identification in remote sensing applications, it can still contribute to lithology identification efforts by providing valuable information through high-precision topographic data. Sentinel-1 [46], polarimetric SAR (Pol-SAR) [47], and Phased Array type L-band SAR (PALSAR) [45,48] are highly favored for lithological mapping. However, studies have shown that radar data generally has lower spatial resolution compared to optical images, and the acquisition and processing of radar data can be complex [45]. Therefore, relying solely on SAR data for lithological discrimination may lead to poorer performance [44].

The challenge in lithological mapping in vegetated areas lies in the inability of a single type of data resource to accurately characterize rock units [23]. Considering the correlation between lithology and factors such as vegetation [20,49], topography [22,50], temperature [51], humidity [52], etc., indirect lithological identification can be achieved through multi-source RS techniques or integrating RS with ancillary data [53,54]. This strategy has been widely employed in practical geological research and resource exploration, leading to remarkable achievements [13,15,20,42,55]. It is worth noting that the fusion of multi-source data generates high-dimensional features with numerous variables. However, using all these variables can pose computational challenges for machine learning algorithms (MLAs) and may not always yield satisfactory results [56,57] due to some variables being highly correlated, noisy, redundant, or irrelevant [58,59,60]. Therefore, selecting optimal feature variables is crucial for achieving satisfactory classification outcomes.

The aim of this paper is to provide theoretical, technical, and methodological support for further lithology mapping work in vegetation-covered areas by summarizing existing research conducted by previous scholars. In Section 2, we discuss data preparation, including RS data such as optical, hyperspectral, and radar imagery. Section 3 covers feature extraction and classification methods. Section 4 provides an in-depth analysis of the related studies on rock classification in vegetation-covered areas. In Section 5, we presented the opportunities and future development in the research field of vegetation-based lithological mapping. Moving on to Section 6, we provide a comprehensive summary of the research and shed light on the challenges encountered in the field of lithological mapping.

2. RS Imagery

2.1. Optical Imagery

The Landsat series of satellites, operated jointly by the National Aeronautics and Space Administration (NASA) and the United States Geological Survey (USGS) [61,62], comprises Earth observation satellites equipped with multiple multispectral sensors, including a Multispectral Scanner (MSS) aboard Landsat 1–5 [63], Thematic Mapper (TM) aboard Landsat 4 and 5 [27,64], Enhanced Thematic Mapper Plus (ETM+) aboard Landsat 7 [65], Operational Land Imager (OLI) and Thermal Infrared Sensor (TIRS) aboard Landsat 8 [66], and Operational Land Imager 2 (OLI-2) and TIRS-2 aboard Landsat 9 [67], as shown in

Table 1. Band (B), wavelength (L), and resolution (S) information of Landsat (L) 4–5/7/8/9, modified from [27,67,70].

L4–5	L (µm)	S (m)	L7	L (µm)	S (m)	L8	L (µm)	S (m)	L9	L (µm)	S (m)
						B 1	0.43–0.45	30	B 1	0.43–0.45	30
B 1	0.45–0.52	30	B 1	0.45–0.52	30	B 2	0.45–0.51	30	B 2	0.45–0.51	30
			B 8	0.52–0.90	15	B 3	0.53–0.59	30	B 3	0.53–0.59	30
B 2	0.52–0.60	30	B 2	0.52–0.60	30	B 4	0.64–0.67	30	B 4	0.64–0.67	30
B 3	0.63–0.69	30	B 3	0.63–0.69	30	B 5	0.85–0.88	30	B 5	0.85–0.88	30
B 4	0.76–0.90	30	B 4	0.77–0.90	30	B 6	1.57–1.65	30	B 6	1.57–1.65	30
						B 7	2.11–2.29	30	B 7	2.11–2.29	30
B 5	1.55–1.75	30	B 5	1.55–1.75	30	B 8	0.50–0.68	15	B 8	0.50–0.68	15
B 7	2.08–2.35	30	B 7	2.08–2.35	30	B 9	1.36–1.38	30	B 9	1.36–1.38	30
B 6	10.40–12.50	120 * (30)	B 6	10.40–12.50	60 * (30)	B 10	10.60–11.19	100	B 10	10.60–11.19	100
						Band 11	11.50–12.51	100	B 11	11.50–12.51	100

* The product is resampled to 30-m pixels.

. These satellites, spanning from 1972 to the present (excluding a failed launch), capture visible, near-infrared, mid-infrared, and thermal-infrared spectra, providing valuable and abundant data for lithological mapping. Landsat 8 and Landsat 9 are the latest satellites in the series. Launched on 11 February 2013, Landsat 8 carries OLI and TIRS sensors, enabling the capture of visible, short-wave infrared, and TIR radiation [68]. Compared to previous satellites, Landsat 8 provides more accurate and detailed data, as observed by Mwaniki [69], who found that OLI performs better than ETM+ in distinguishing different lithological units.

Freely available Landsat data, including the latest Landsat 9, is a crucial tool for Earth sciences, resource exploration, and environmental monitoring, thanks to its global coverage, long-term time series, and multispectral information. Launched on 27 September 2021, and operational since 2023, Landsat 9 utilizes the OLI-2 and TIRS-2 sensors to capture data in the visible, infrared, and TIR spectra, providing high-resolution and multispectral capabilities for Earth observation [67]. Research by You [70] shows that Landsat 9 outperforms Landsat 8 in water body and tree species classification, attributed to its increased radiometric resolution from 12 bits (Landsat 8) to 14 bits, improved sensitivity to brightness and color, and enabling the detection of subtle differences, particularly in darker areas like water bodies. However, as a new satellite, Landsat 9 may present uncertainties and challenges related to data quality, sensor performance, and data processing algorithms [70].

In the aftermath of the data gaps in Landsat imagery caused by ETM+ scan line corrector failures in June 2003 [71], ASTER (Advanced Spaceborne Thermal Emission Reflection Radiometer) has emerged as a reliable substitute for TIR imagery. ASTER comprises a visible and near-infrared subsystem, a shortwave infrared radiometer, and a TIR radiometer [72]. Please refer to

Table 2. Spectral and wavelength information of ASTER, modified from [75,76].

ASTER	Radiometer	Resolution (m)	Wavelength (µm)	Wave-Width (nm)	S/N
Band 1	VNIR	15	0.52–0.60	90	≥140%
Band 2			0.63–0.69	60	≥140%
Band 3			0.76–0.86	100	≥140%
Band 4	SWIR	30	1.60–1.70	92	≥140%
Band 5			2.145–2.185	35	≥54%
Band 6			2.185–2.225	40	≥54%
Band 7			2.235–2.285	47	≥54%
Band 8			2.295–2.365	70	≥70%
Band 9			2.360–2.430	68	≥54%
Band 10	TIR	90	8.125–8.475	344	≤0.3 K
Band 11			8.475–8.825	347	≤0.3 K
Band 12			8.925–9.275	361	≤0.3 K
Band 13			10.25–10.95	667	≤0.3 K
Band 14			10.95–11.65	593	≤0.3 K

for specific band information. The availability of this data has provided robust support for lithological mapping research [30,31,65,73,74]. Moreover, the global digital elevation model data derived from ASTER stereo image pairs, known as the ASTER GDEM (Shuttle Radar Topography Mission Global Digital Elevation Model), can be effectively utilized for band georeferencing, calibration, and shading calculations [75].

Although the aforementioned data has been widely used and has achieved significant progress, it lacks the capability to meet the requirements of fine-scale lithological classification studies at a local level. The Sentinel series of satellites offers reliable data sets for the Copernicus program, facilitating real-time dynamic monitoring of the global environment and security [77]. The Sentinel-2 satellite constellation [78], consisting of Sentinel-2A and Sentinel-2B launched by the European Space Agency (ESA) on 23 June 2015, and 7 March 2017, respectively, offers a valuable alternative to address this limitation. Sentinel-2 provides coverage between latitudes 56°S and 84°N, with a revisit period of 5 days at the equator and a swath width of 290 km [32]. For specific band information, please refer to

Table 3. Spectrum and wavelength information of Sentinel-2, modified from [78,79].

Sentinel-2	Band	Wavelength (nm)	Resolution (m)
Band 1	Aerosols	443.9 nm (S2A)/442.3 nm (S2B)	60
Band 2	Blue	496.6 nm (S2A)/492.1 nm (S2B)	10
Band 3	Green	560 nm (S2A)/559 nm (S2B)	10
Band 4	Red	664.5 nm (S2A)/665 nm (S2B)	10
Band 5	Red edge 1	703.9 nm (S2A)/703.8 nm (S2B)	20
Band 6	Red edge 2	740.2 nm (S2A)/739.1 nm (S2B)	20
Band 7	Red edge 3	782.5 nm (S2A)/779.7 nm (S2B)	20
Band 8	NIR	835.1 nm (S2A)/833 nm (S2B)	10
Band 8A	Red edge 4	864.8 nm (S2A)/864 nm (S2B)	20
Band 9	Water vapor	945 nm (S2A)/943.2 nm (S2B)	60
Band 10	Cirrus	1373.5 nm (S2A)/1376.9 nm (S2B)	60
Band 11	SWIR 1	1613.7 nm (S2A)/1610.4 nm (S2B)	20
Band 12	SWIR 2	2202.4 nm (S2A)/2185.7 nm (S2B)	20

. Sentinel-2′s advantages, such as higher spatial and spectral resolution, short revisit period, more bands, and open data access, make it essential for land cover classification and lithological mapping [23,29,55]. However, its large data volume necessitates extensive processing and storage, placing significant demands on computing and storage resources [55]. Therefore, a comprehensive consideration of these factors is crucial when utilizing this data.

WorldView-3 (WV-3) [33] is a commercial high-resolution satellite operated by Digital Globe. Launched on 13 August 2014, it provides exceptional image data with outstanding spatial resolution. With a spatial resolution of 0.31 m (31 cm) in the PAN band, 1.24 m in MS (including blue, green, red, and NIR), and 3.7 m in SWIR [80], WV-3 stands out for its remarkable spatial capabilities. The combination of high spectral and spatial resolution empowers WV-3 to excel in lithological mapping, delivering precise and comprehensive information about rock types [40,80].

2.2. Hyperspectral Imagery

Hyperspectral imagery offers advantages such as high spectral resolution, multi-band coverage, spectral continuity, spectral unmixing capability, and feature discrimination ability. It is widely used for lithological classification in vegetated areas with satellites like EO-1 [34], PRISMA [35], EnMAP [36], Hyperion [16], and HyspIRI [37]. A comprehensive review paper on the applications of hyperspectral images in lithological mapping, mineral exploration, and environmental geology was found during the literature reviews [81]. The paper provides an extensive overview of hyperspectral missions, spectral properties of diagnostic minerals, and techniques for geologic information extraction from spaceborne/airborne hyperspectral images. Hence, we will not delve further into data details. However, it is important to acknowledge some limitations of hyperspectral imagery, including limited data availability [16] and coverage, as well as lower spatial resolution compared to multispectral imagery [81].

2.3. Synthetic Aperture Radar

Sentinel-1 is a SAR satellite developed by the European Space Agency (ESA) and forms part of a two-satellite Earth observation system [46]. It consists of two satellites named S1A and S1B launched on 3 April 2014 and 25 April 2016, respectively [44]. S1 utilizes radar systems operating in the C-band, enabling the capture of surface information regardless of weather conditions, including topography, geomorphology, land cover, and surface changes. Notably, they offer high resolution (up to 5 m), multi-polarization (VV, VH, HH, and HV), multiple modes, wide swath coverage, and frequent revisit periods. However, practical applications necessitate consideration of data storage and processing concerns [44,82]. Moreover, SAR’s data sensitivity to surface roughness [78] often requires integration with other data sources, such as optical imagery and terrain data, for interpretation [42].

ALOS-PALSAR [83] (Phased Array L-type band SAR), mounted on an Advanced Land Observing Satellite (ALOS) by the Japan Aerospace Exploration Agency (JAXA), is a SAR sensor with comparable lithological mapping performance to Sentinel-1 (C-band) [45]. ALOS-PALSAR provides high-resolution radar imagery and digital elevation model (DEM) data, which are used for applications such as land cover classification, terrain measurement, and underground target detection. Operating in the L-band, ALOS-PALSAR features dual polarization (HH and HV), high resolution (1 m), DEM, and multiple modes [83]. Combining it with optical RS and radar data enhances the accuracy and reliability of lithological classification [45].

The C-band Spaceborne Imaging Radar and the X-band SAR instrument onboard the space shuttle are utilized for the Shuttle Radar Topography Mission (SRTM), a mapping project conducted jointly by NASA and NGA (National Geospatial-Intelligence Agency) [42]. SRTM is renowned as one of the highest-resolution global digital elevation models accessible to the public, offering comprehensive global coverage, high resolution (ranging from 30 to 90 m), and superior data quality. SRTM data is used in lithological identification studies as factors like slope reflect rock erosion resistance [42]. However, the accuracy of SRTM is lower in polar and forest-covered regions due to SAR sensor characteristics, requiring caution in its use across different research areas.

2.4. Light Detection and Ranging

Light Detection and Ranging (LiDAR) is an active RS technology that can acquire accurate and high-resolution terrain data. This technology offers a potential solution to overcome ambiguous identification of the surface by dense vegetation schemes [84]. Laser reflections from the ground can be distinguished from vegetation reflections, allowing for precise DTM (Digital Terrain Model) generation. The ability to identify subtle topographical features in high-resolution DTMs makes LiDAR an important tool for lithology identification [28].

2.5. High-Resolution Satellite Sources from China

Here, it is particularly important to mention that China’s Gaofen, Huanjing, and Ziyuan series satellites are notable sources of surface imagery data, offering spatial resolutions ranging from sub-meters to hundreds of meters. GF-1 [40,85], GF-2 [86], GF-3 [86], GF-5 [41,87], HJ-1A CCD [53], ZY-1 02D [38], and ZY-3 [88] are widely utilized for lithological mapping, and their detailed specifications can be found in

Table 4. Satellite information of GF-1, GF-2, GF-3, GF-5, and ZY-3 independently launched by China. In the table, the following abbreviations are used: SR for Spatial Resolution, R for Revisit, OA for orbit altitude, and LT for launch time.

Satellite	Band Range	SR (m)	R (Day)	Swath (km)	OA	LT	Reference
GF-1	blue, green, red, MIR	2/8	5	90/800	645 km	2013/4/26	[40]
GF-2	blue, green, red, NIR	0.8/2	3–5	45/16	645 km	2014/8/19	[86]
GF-3	X, S, C, L	1/3/8/25	1–4	30–40	755 km	2016/8/10	[86]
GF-5	VNIR, SWIR, MWIR	30	16	60	705 km	2018/5/9	[87]
HJ-1A CCD	VNIR	30		700		2008/9/6	[53]
ZY-1 02D	VNIR, SWIR	30	55	60	705 km	2019/9/12	[38]
ZY-3	full-color, multispectral	2.1/3.5/6	5/3	51/52	505 km	2012/1/9	[88]

. Among them, GF-1, GF-2, HJ-1A CCD, and ZY-3 loaded multispectral scanner, GF-5 and ZY-1 02D loaded hyperspectral scanner, and GF-3 loaded SAR camera. Their high spatial resolution enables accurate fine-scale lithological classification. However, it is crucial to consider that acquiring this data involves financial costs and each satellite has its own strengths and limitations. For example, GF-2 excels in areas such as high spatial resolution, multiple spectral bands, and frequent revisit periods, but it has limitations in terms of coverage and relatively lower radiometric resolution, which may constrain certain fine-scale analysis applications [86]. Conversely, GF-3 offers benefits like multiple polarization modes and frequent revisit periods, but it has lower spatial resolution and a restricted number of spectral bands [86].

3. Methods

3.1. Feature Extraction

Feature extraction is crucial in RS image classification and recognition. It converts raw pixel data into discriminative feature vectors [16], unveiling meaningful relationships [62] and patterns to enhance MLAs’ performance [40]. This chapter comprehensively reviews spectral features, terrain features, and texture features used in constructing models for lithological mapping, providing detailed insights into their characteristics and applications.

3.1.1. Spectral Features

Reflective properties extracted from various bands of optical imagery (VNIR, SWIR, and TIR) and backscatter derived from radar data (C, L, and X-bands) play a crucial role in mapping lithology within vegetated regions. Optical bands such as VNIR and SWIR provide valuable information for rock identification based on color, reflectance, and absorption properties [16,23,24,29,75,89]. Additionally, TIR data aids in surface temperature inversion, revealing thermal characteristics and subsurface influences [90]. Temperature-related parameters like TVDI and other thermal features [91] can quantitatively assess land or rock properties. On the other hand, radar bands like X-band offer insights into surface morphology and texture through surface and volume scattering, while C-band penetrates vegetation and shallow soil, providing information about rock morphology and structure [44,45]. The longer wavelengths of the L-band enable deeper penetration, facilitating echo signal analysis for lithology classification and geological structural analysis [44]. However, response characteristics in the L-band may exhibit complexity and overlap among different lithology types [45].

Understanding the interplay between reflectance/radiance characteristics and lithology helps us comprehend the impact of lithology on aboveground plant communities in two key ways: nutrient provision for plant growth [92] and influence on water storage potential through weathering depth and porosity changes [93]. Variations in rock types across different regions with similar climates contribute to the formation of diverse plant communities [94]. Vegetation indices used in lithology mapping include the normalized difference vegetation index (NDVI), greenness and short-wave infrared vegetation index (VIGS), and short-wave infrared normalized vegetation index (SWVI) [28,75]. NDVI indicates vegetation coverage [78], VIGS detects vegetation stress from heavy metal elements [28], and SWVI reflects vegetation leaf water content [95].

Band ratio (BR) is widely used in lithological classification to differentiate different rock types by extracting various geological information through different combinations of bands [96]. For example, the Landsat TM [14,26] ratio of band 5/4 is sensitive to changes in ferrous minerals, while the ratio of band 3/1 is sensitive to changes in trivalent iron, aiding in the characterization of goethite. The ratio of band 4/3 [26] is highly sensitive to vegetation density but less sensitive to lithological changes, making it suitable for vegetation delineation. The ratio of band 5/7 [26] typically varies with the abundance of hydroxyl-bearing minerals, carbonates, and other minerals.

3.1.2. Topographic and Geomorphic Features

Topography and geomorphology are influenced by factors such as lithology, structure, and external dynamics [97], and they offer valuable insights into variations in erosion and weathering across different lithologic areas, which can be utilized for lithological mapping [98]. Several common topographic features are commonly employed, including height, slope, aspect, topographic position index (TPI), surface roughness (SR), Height Integral (HI), and Surface Index (SI) [28,96].

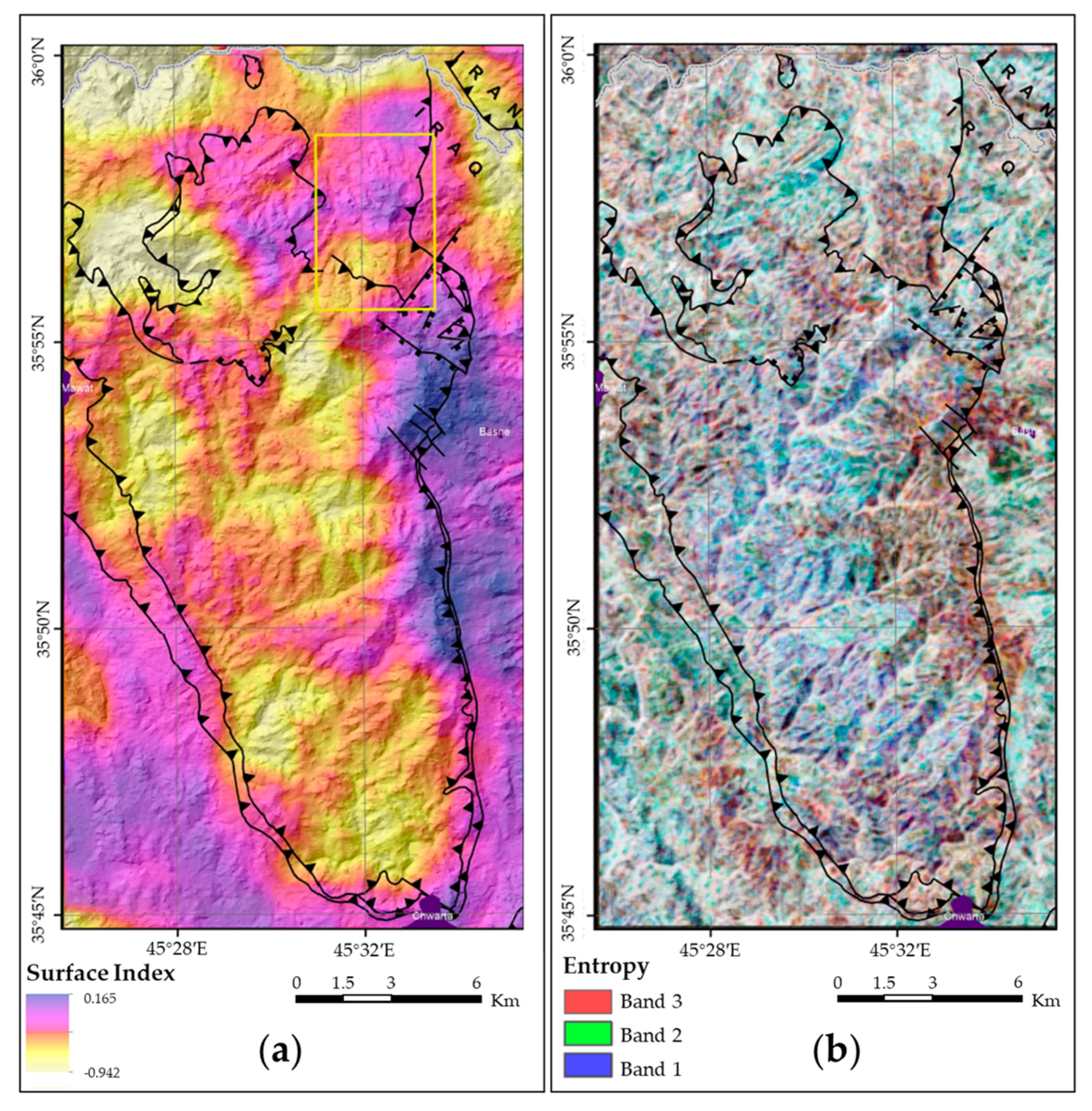

Slope and SR provide indications of landscape fragmentation, with karst regions typically exhibiting a higher degree of fragmentation compared to non-karst regions, as observed by Hou and Gao [99]. TPI plays a crucial role in lithological identification by extracting terrain features and mitigating topographic effects, thus facilitating the recognition of rock types [96]. In a study by Richard [50], significant variations in slope were attributed to tectonic uplift, which reflects the varying erosion resistance of different lithologies. Moreover, SR characterizes surface deformation [28]. SI combines with the HI for surface smoothness and SR for surface incision, providing a comprehensive characterization of preservation and erosion status within a landscape (refer to Figure 1a) [76,100].

3.1.3. Texture Feature

Texture features play a critical role in capturing the spatial distribution and organizational structure of surface objects, as well as their relationship with the surrounding environment [101]. These features provide valuable insights for various applications, including vegetation classification [78], land use and land cover mapping [53,102], and rock identification [28]. In vegetation-covered areas, common texture features derived from gray-level co-occurrence matrices include mean, variance, homogeneity, contrast, dissimilarity, entropy, second moment, and correlation [28,103]. Each of these features serves a specific purpose in characterizing the texture of an image. Contrast, for example, serves as an indicator of the linear relationship between adjacent pixels, revealing differences in intensity or color values [101]. Homogeneity reflects the uniformity or similarity of neighboring pixels, ranging from 0 to 1 [28]. Entropy quantifies the degree of spatial disorder with higher values, indicating greater randomness in pixel distribution [104]. Energy reflects the uniformity of gray distribution and highlights fine details in the texture (refer to Figure 1b). Notably, Hahm [94] observed a distinct transition zone of approximately 200 km in the Northern California Coast Range. This zone acts as a boundary, separating broadleaf-coniferous evergreen mixed forests from oak savannahs, and it corresponds to the geological boundaries depicted on the map. This observation suggests a relationship between the texture features captured in the image and the underlying lithological characteristics that influence vegetation patterns.

3.1.4. Spectral Curve Morphological Feature

In vegetated areas, accurately differentiating various rock materials using traditional spectral feature extraction methods can be challenging due to significant spectral overlap caused by vegetation. However, by analyzing the morphology of the spectral curve and considering features such as absorption band depth, position, width, slope, and peak position [16,23,29], it becomes possible to distinguish between different rock materials. For example, rocks containing iron minerals exhibit pronounced absorption bands in the short-wave infrared (SWIR) region (2000–2500 nm), while rocks with aluminum minerals display strong reflectance in the visible and near-infrared (NIR) regions (700–900 nm) [16].

3.1.5. Dimensionality Reduction/Feature Extraction

Dimensionality reduction and feature extraction methods play a crucial role in the analysis of remote sensing (RS) image data by reducing the dimensionality of the data and retaining essential information [28,42,105]. Techniques such as principal component analysis (PCA), minimum noise fraction (MNF), Discrete Wavelet Transformation (DWT), and deep learning algorithms (DLAs) [23] can be employed for this purpose. By reducing dimensionality, these methods effectively eliminate redundant or irrelevant information, leading to improved computational efficiency and faster analysis. Additionally, these techniques enable the extraction of valuable information from raw RS images, including object boundaries, texture features, and spectral characteristics. This extracted information is highly useful for lithological classification and identification tasks.

3.2. Classification Methods

Different methods suit different data and problem types, requiring careful consideration of data characteristics and classification requirements [42,106]. Commonly used classification algorithms for lithological identification include SMA, SVM, RF, DL, and object-based image analysis (OBIA). Other methods like MLC [67,107], LDA [42,91], partial least square discrimination analysis (PLSDA) [42], SAM [108], SFF [12,107], the Kohonen self-organizing map (SOM) [22], and the Nearest Distance [42] are also options. However, due to limitations on shadowing [14], bedrock exposures [109], spectral library constraints [110], and the assumption of spectral mixture [111] significantly restrict the applications of these methods, their applicability may be limited. For example, LDA is sensitive to noise and lacks non-linear classification capability [91], while PLSDA is sensitive to outliers, prone to overfitting, and requires substantial training data (Lu et al., 2021). In this context, we will focus on introducing SMA, SVM, RF, DL, and OBIA as viable options for lithological mapping in vegetated areas.

3.2.1. Spectral Mixing Analysis (SMA)

Spectral unmixing assumes that each pixel’s spectral reflectance is a combination of endmember radiance values representing specific materials with consistent spectral characteristics [112]. The abundance of these endmembers determines the division of the total surface area of pixels. The radiance of each endmember is directly proportional to its abundance, resulting in a linear spectral mixing process [113]. This relationship between pixel spectral reflectance, endmember radiance, and abundance is mathematically described by Equation (1).

$$Re{f}_{pixe}={{\displaystyle \sum }}_{i=1}^m{f}_{i}D{N}_i$$

(1)

In Equation (1), Ref represents the pixel reflectance value, m denotes the number of endmembers, $f_i$ represents the abundance of each endmember (i.e., the area ratio of endmembers, with ${{\displaystyle \sum }}_{i=1}^m{f}_i=1$), and $D{N}_i$ represents the band value of each endmember.

SMA is a valuable method for quantitatively analyzing and classifying mixed pixels in RS images, facilitating lithological classification in vegetated areas. Hyperspectral or multispectral data is necessary to obtain comprehensive spectral information [15]. Prior to analysis, preprocessing and noise filtering should be conducted to enhance data quality and reduce noise interference [114]. Consideration of factors such as pixel size, non-linearity, no uniformity within pixels, and spectral overlap among different lithologies is important as they can affect the results of analysis [16]. Selection of an appropriate pixel size based on specific circumstances is crucial. Notably, Amaral [15] achieved an impressive accuracy of 85% in identifying geological facies and lithological classification of forest species in the Mogi-Guaçu River Basin, Brazil, by integrating vegetation surveys, sediment sample analysis, self-organizing maps, and spectral unmixing analysis. Similarly, Pal [16] achieved lithological classification with an accuracy exceeding 80% in heterogeneous geological regions using multiple RS data sources such as Hyperion, ASTER, and Landsat 8-OLI, along with spectral unmixing analysis.

3.2.2. Support Vector Machine (SVM)

SVM is a classification method that finds a hyperplane to separate different classes of samples, maximizing the margin between them. It excels in handling non-linear classification problems by using a kernel function to map the data into a high-dimensional space [79,115,116]. SVM minimizes empirical and structural errors by generalizing from limited training data to achieve classification [117]. This method performs well in handling high-dimensional data and is effective in addressing non-linear classification problems [96]. It is widely recommended for complex classification tasks in multispectral and hyperspectral data analysis [116,117,118].

SVM combined with RS data has successfully achieved lithological classification in various regions. For instance, using ASTER satellite data for terrain features, texture, and multispectral information, the Mawat Ophiolite Complex in the Kurdistan Region of Iraq was classified with an overall accuracy of 80.5% [76]. In the Souk Arbaa Sahel area of Morocco, Landsat OLI data and SVM resulted in a high classification accuracy of 85% [13]. SVM, combined with Sentinel-1, ALOS PALSAR, Landsat OLI, ASTER, and ALI data achieved a classification accuracy exceeding 85% in densely vegetated regions of southern Tunisia [45]. In Duolun County, Inner Mongolia Autonomous Region, China, GF-2, Sentinel-2A, ASTER, and GF-3 RS data, along with a particle swarm optimization (PSO)-based SVM classifier, led to a lithological classification accuracy of 90.90% [86].

However, SVM faces challenges when handling large-scale data, including long training times and sensitivity to noise and outliers [119]. Additionally, selecting appropriate parameters for SVM can be difficult, and the interpretability of results may be limited, making it challenging to understand the decision-making process of the classifier [45,96].

3.2.3. Random Forest (RF)

RF is an ensemble learning algorithm proposed by Breiman in 2001 [120]. It simultaneously constructs multiple decision trees to achieve classification, demonstrating strong generalization ability, high computational efficiency, and good robustness [121]. In lithological classification, RF has shown good accuracy and computational efficiency. For instance, Guo et al. [44] utilized Sentinel-1 satellite data and the 2D DWT method to classify six rock types in the western Tianshan region of China. They achieved an accuracy of 85.5% by employing the RF algorithm. Similarly, Han et al. [28] employed multiple RS data sources and various features to automatically classify Quaternary formations in the Viet Chi region of Vietnam, achieving a classification accuracy of 80.99% using the RF algorithm.

It is worth noting that RF is highly dependent on the quantity and distribution of the samples [122], and the maximum depth parameter significantly influences the out-of-bag error [123]. RF is sensitive to noise and outliers, and in the case of imbalanced data, resampling or adjusting class weights may be necessary. Additionally, RF may face challenges when fitting and predicting data with hidden relationships and complex patterns [44].

3.2.4. Deep Learning (DL)

DL, an advanced branch of MLAs, overcomes the limitations of traditional algorithms that focus solely on pixel-level classification and neglect spatial features [23]. In the context of vegetation-covered areas, DLAs such as multilayer perceptron (MLP) [106] and convolutional neural networks (CNN) [23,124,125] have been extensively studied for lithological mapping. MLP, a feedforward neural network with multiple layers, excels at capturing non-linear relationships and automatically learning features, making it suitable for classification and regression tasks [126,127]. On the other hand, CNN, with its hierarchical structure comprising convolutional, pooling, and fully connected layers, excels at feature extraction and image classification [128]. Compared to traditional MLAs, CNN can automatically learn higher-level feature representations and demonstrate strong pattern recognition and generalization capabilities [129]. Moreover, CNN allows end-to-end training, eliminating the need for manual feature engineering.

These advantages have led to the widespread adoption of DLAs in lithological identification within vegetation-covered regions. For instance, Otele [106] utilized MLP and Landsat imagery to classify lithology in densely forested areas of southern Cameroon, achieving a classification accuracy of 53.01%. Similarly, Brandmeier and Chen [29] combined Sentinel-2 and ASTER data with a U-Net model to classify lithology in the Mount Painter region of Australia, achieving a classification accuracy of 75%. Pan [23] employed a CNN with RS imagery and geochemical survey data for geological mapping in Jilin Baolige, Inner Mongolia, China. The CNN model achieved an accuracy of 83.0%, outperforming the random forest model and effectively addressing the “salt and pepper phenomenon” in traditional shallow MLAs. Furthermore, Liu et al. [124] utilized the Thermal Airborne Spectrographic Imager (TASI) and a 3D CNN for lithology classification in three locations in Liuyuan, Gansu Province, China, achieving the highest accuracy of 98.56%.

However, DLAs pose challenges such as the need for ample data and computational resources, resulting in longer training times and a higher risk of overfitting. Regularization techniques are often required to mitigate these challenges [106]. Additionally, DLAs have complex structures that necessitate careful parameter tuning and optimization for optimal performance [45]. Moreover, DLAs tend to lack interpretability, making it difficult to fully comprehend their internal workings [23].

3.2.5. Object-Based Image Analysis (OBIA)

Pixel-based image classification methods have limitations as they ignore the spatial correlation among image pixels, leading to the “salt and pepper” phenomenon in resulting classification maps [21,130]. OBIA has emerged as an alternative approach, considering objects as distinct entities and taking into account characteristics such as shape, size, and texture for more accurate surface feature identification and classification [131].

4. Lithological Mapping in High Vegetation Areas

4.1. Selection and Impact of Data Source

4.1.1. RS Data Sources

Multispectral data offers significant advantages for lithological classification, including comprehensive spectral information, higher spatial resolution, diverse feature extraction methods, and varied options for band combination. However, data selection should align with the study’s specific characteristics. Lower spatial resolution may reduce classification accuracy and detail retention [69]. Higher spatial resolution provides detailed vegetation and surface information, aiding in lithological distinction. However, increasing spatial resolution can introduce challenges such as mixed pixel problems and data noise [23], which may lead to a decrease in classification accuracy [45]. As the resolution increases, the reduction in pixel area leads to more complex object boundaries and a rise in mixed pixel occurrences. Additionally, pixels that have not been assigned to a specific class are categorized only when their likelihood of belonging to a certain class outweighs that of alternative classes. Nevertheless, as resolution further escalates, the diminishing pixel area and subtle distinctions between objects amplify the challenges posed by data noise, thus ultimately affecting the accuracy of classification. Moreover, multispectral data offers a broader range of spectral information, but the lower spectral resolution between bands can lead to spectral overlap and difficulties in distinguishing different lithological features.

Hyperspectral data is particularly appropriate to SMA and advanced ML algorithms as it offers higher spectral resolution, enabling more accurate estimation of rock and mineral content within finer spectral ranges [105]. Hyperion demonstrates the highest accuracy (0.92) in lithological classification compared to ASTER and Landsat 8 (see

Table 5. The average overall accuracy (%) of cross-validation for classification accuracy assessment, modified from [16]. “Proposed” represents a weighted pooling-based ensemble method proposed by the author.

Classifier	Hyperion	ASTER	Landsat 8	Combined
MD	49.02	66.82	63.55
SAM	71.24	45.21	47.16
SID	66.43	42.38	48.22
SVM	87.03	64.89	60.79
MAXW	71.98	54.21	60.78	70.80
Proposed	91.93	75.90	67.16	93.22

) [16]. However, hyperspectral data presents challenges of large volumes, complex processing, noise, and errors. Surface coverings like vegetation, water bodies, and clouds affect data acquisition and analysis, influencing lithological classification accuracy [81].

Radar data, capable of penetrating clouds and surface vegetation, provides information on subsurface rocks, making it advantageous for heavily vegetated areas or regions with less apparent surface lithological features [42]. Using Sentinel-1 with a 10 m spatial resolution and Discrete Wavelet Transformation, Guo et al. [44] achieved 55.6% accuracy in lithological mapping. However, SAR data has lower spatial resolution and lacks color information compared to optical RS, posing challenges in capturing detail and less accurate rock identification and classification. Integration with other data sources is often necessary for comprehensive analysis [132].

4.1.2. Data Preprocessing and Integration

RS data preprocessing includes various steps such as radiometric correction, atmospheric correction, geometric correction, data registration, data cropping, resampling, data filtering, and data fusion [33,45,96]. Hyperspectral data requires more advanced preprocessing methods than multispectral data due to its higher spectral resolution and larger data volume. These methods aim to reduce data size, eliminate noise and errors, and correct for spectral mixing effects [16]. In contrast, preprocessing methods for multispectral data are relatively simpler, usually involving basic calibration and noise reduction procedures.

Data integration improves the classification accuracy of geological images by combining complementary information. Existing literature suggests various approaches for data fusion: (1) Integration of different multispectral data: Integrating different sources to enhance spatial resolution and represent surface features more accurately [40,45]; (2) Multispectral RS imagery and terrain data: This fusion enables better extraction of features essential for lithological classification, including color, texture, and surface morphology (refer to Figure 2) [20,28,96]; (3) Multispectral data and airborne geophysical data: This integration provides comprehensive geological information, improving the accuracy and level of detail in lithological zoning [133]; (4) Multispectral RS imagery and geochemical survey data: Combining surface cover types, vegetation indices, lithology, and mineral composition information to enhance lithological classification (refer to Figure 3) [23]; (5) Hyperspectral and multispectral imagery: This technique improves spatial and spectral resolution, reduces noise and errors, thereby increasing the accuracy and reliability of lithological identification (See Table 5) [16]; (6) Hyperspectral RS and terrain data: Integrating these datasets enhances the detection capability of ground objects, particularly in areas with complex terrain and dense vegetation cover [96]; (7) SAR and terrain data: This fusion approach provides a comprehensive description of terrain and subsurface features, leading to improved accuracy in lithological classification [42].

When conducting data fusion processing, it is crucial to consider challenges such as data inconsistency (varying coordinate systems, resolutions, and spectral ranges), large data volume, and complex data processing tasks (data preprocessing, feature extraction, and data registration) [45].

4.2. Comparative Analysis of Different Feature Extraction Methods

4.2.1. Analyze for Dimensionality Reduction/Feature Extraction

Comparing various methods for feature extraction, including PCA, MNF, DWT, and DLAs, requires careful consideration of their respective strengths and limitations. Principal component analysis (PCA) [28] focuses on linear transformations and identifies orthogonal components that capture the maximum variance in the data, reducing dimensionality while preserving crucial information. However, it is sensitive to data distribution and only applicable to linear relationships. Minimum noise fraction (MNF) [105] is designed for noise processing and orders components based on their noise content, enhancing the interpretability of RS images by emphasizing meaningful components. Unlike PCA, the resulting components from MNF transformation [105] may not be orthogonal, implying potential correlations between the transformed axes. Discrete Wavelet Transformation (DWT) [44] in lithological classification offers the extraction of high-frequency and low-frequency components, enhancing classification smoothness and boundary detection. Nonetheless, it has limitations in affecting the high-frequency components of small-sized samples and requires further validation for mapping larger-scale regions. Deep learning algorithms (DLAs) [23] excel in automatic feature learning, high-level information extraction, robustness, and scalability. However, they necessitate substantial data, computational resources, and labeled data, while lacking interpretability and being prone to overfitting. Therefore, careful consideration of the application context and data characteristics is essential when selecting an appropriate method.

4.2.2. Performance Evaluation and Comparison of Methods for Feature Extraction

In this section, we aim to demonstrate the advantages of feature extraction in lithological mapping within vegetated areas. Comparative analysis of different RS datasets has provided valuable insights into their respective strengths and advantages. For instance, ASTER demonstrated superior performance in lithological identification compared to Sentinel-2, primarily due to its six SWIR bands, while Sentinel-2 excelled in mapping iron-bearing minerals, showcasing the strengths of each dataset [134]. Furthermore, Landsat 8 demonstrated better performance in differentiating lithological units compared to Landsat 7 due to its wider spectral range. However, Landsat 7 exhibited superior capabilities in distinguishing water and clay minerals using specific bands, highlighting the unique advantages of each dataset [135]. Additionally, when comparing ASTER, OLI/Landsat 8, and WorldView-3 datasets, WorldView-3 achieved a higher accuracy rate of 87% [33]. This can be attributed to the SWIR bands of WorldView-3, which contain more diagnostic absorption features, combined with its high spatial resolution, providing more detailed information for lithological classification.

Moving on to feature extraction and fusion, various techniques, such as spectral indices, terrain features, texture features, and dimensionality reduction/feature extraction, have shown their effectiveness in lithological classification. Comparative analysis of classification results has demonstrated that combining multispectral reflectance, terrain features, and PCA with the SVM algorithm yields the best classification results (refer to

Table 6. Classification results for MLC and SOM classifiers, adapted from [20]. Li represents terrain features obtained from LiDAR data.

Variable	MLC		SOM
	OA (%)	Kappa	OA (%)	Kappa
ATM 9	61.6	0.50	60.3	0.48
ATM PCA	51.4	0.37	50.2	0.35
ATM MNF	59.3	0.46	65.5	0.54
ATM-Li	61.9	0.50	70.2	0.60
ATM-Li MNF	60.8	0.49	72.7	0.63

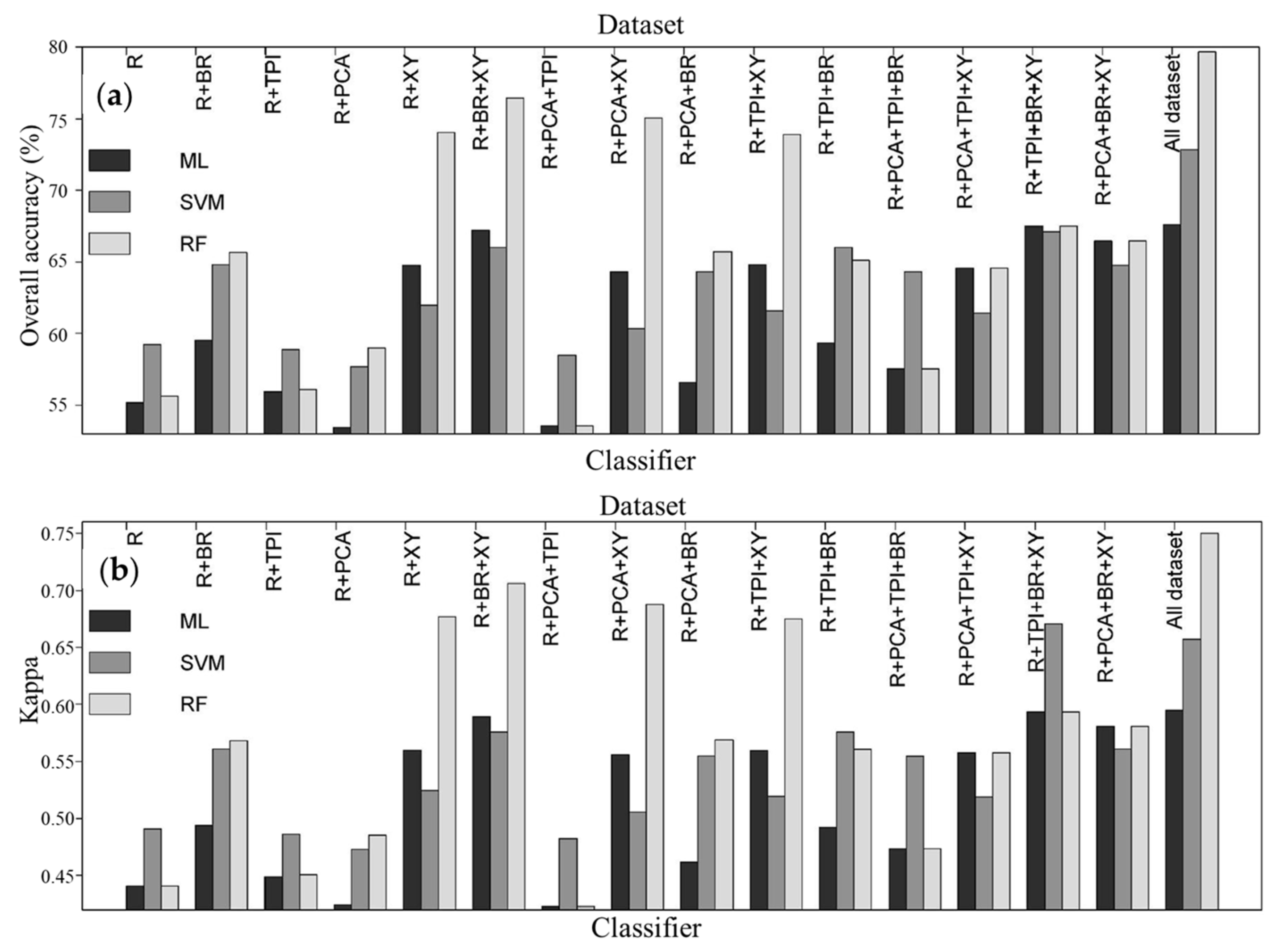

and Figure 4) [20]. Similarly, combining the R, BR, TPI, PCA, and XY features using the RF algorithm led to the highest classification accuracy of 79.66% and a Kappa coefficient of 0.75 [96]. Notably, using only the R and XY features achieved a satisfactory classification accuracy of 74% and a Kappa of 0.68. Adding any additional feature based on these two slightly improved or had minimal impact on classification results. However, introducing two extra feature variables resulted in a significant drop in classification accuracy, with an overall decline of 8% to 10%, accompanied by a reduction of 0.09 to 0.13 in the Kappa coefficient (as shown in Figure 5). Moreover, integrating spectral, texture, terrain, and thermal features, while excluding vegetation features, can lead to optimal lithological classification performance with an overall accuracy of 80.99% (see Figure 6) [28]. Traore [108] used image processing techniques, including band combination, PCA, MNF, and SAM, to generate detailed surface distribution maps of iron oxide minerals, ferrous silicate minerals, clay minerals, and carbonate minerals. These examples highlight the importance of feature selection and extraction in lithological mapping, emphasizing the need to consider the specific characteristics and advantages of different datasets and feature sets for accurate and reliable classification results.

4.3. Selection and Application for Classification Methods

The choice of classification method is crucial in lithological mapping, taking into account the unique strengths and limitations of each method as discussed in Section 3.2. Considering the specific characteristics of the RS images and the objectives of the classification task is essential when applying these methods. The following comparative analysis highlights the significance of these methods in lithological mapping.

The self-organizing map (SOM) is an unsupervised learning model that leverages artificial neural networks. It incorporates non-parametric, noise-resistant, and pattern-learning capabilities, leading to significant enhancements in lithological classification precision. In the context of detailed lithological mapping of the Troodos ophiolite in Cyprus, the SOM showcased exceptional performance, outperforming MLC and achieving the best classification results with an overall accuracy of 72.7% and Kappa of 0.63 [20]. RF outperformed ML and SVM in terms of overall accuracy, attaining an accuracy rate of 79.66% in the contributed dataset [96]. Additionally, the CNN model surpassed RF in lithological unit classification, resulting in a 5% improvement in overall accuracy [23]. Notably, the CNN model exhibited favorable performance in lithological classification across three small sites in Liuyuan, Gansu Province, China, outperforming classical machine learning methods and neural networks. Among various CNN architectures, the 3D CNN achieved the highest classification accuracy (take Liuyuan 1 as an example, refer to

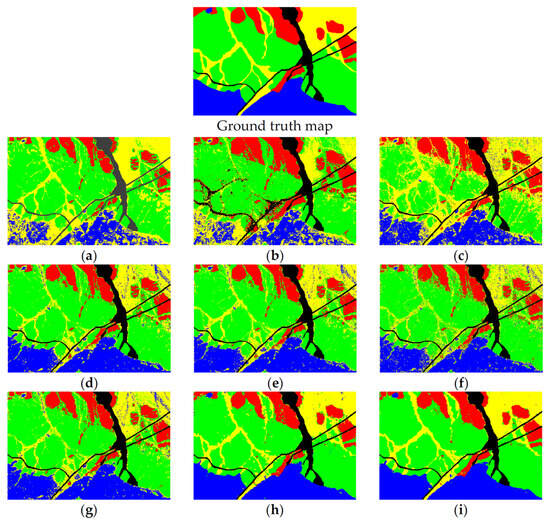

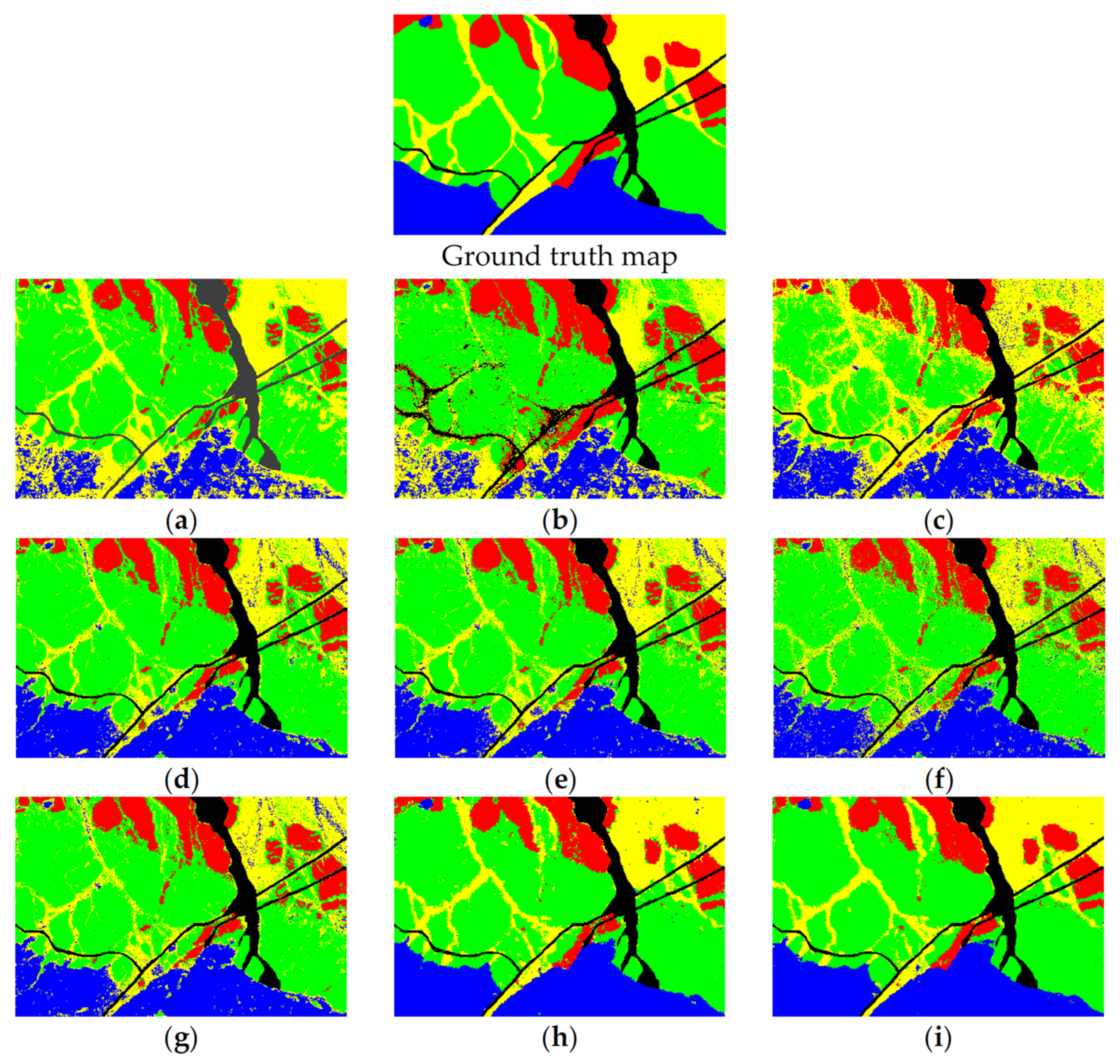

Table 7. Classification results of all the methods for Liuyuan 1. (a) SAM; (b) SID; (c) FCLSU; (d) SVM; (e) RF; (f) NN; (g) 1-D CNN; (h) 2-D CNN; (i) 3-D CNN. Modified form [124].

	SAM	SID	FCLSU	SVM	RF	NN	1D CNN	2D CNN	3D CNN
OA	75.87	72.12	73.42	84.68	86.01	81.27	84.38	94.18	94.70
Kappa	0.64	0.59	0.63	0.77	0.79	0.78	0.77	0.91	0.92

and Figure 7).

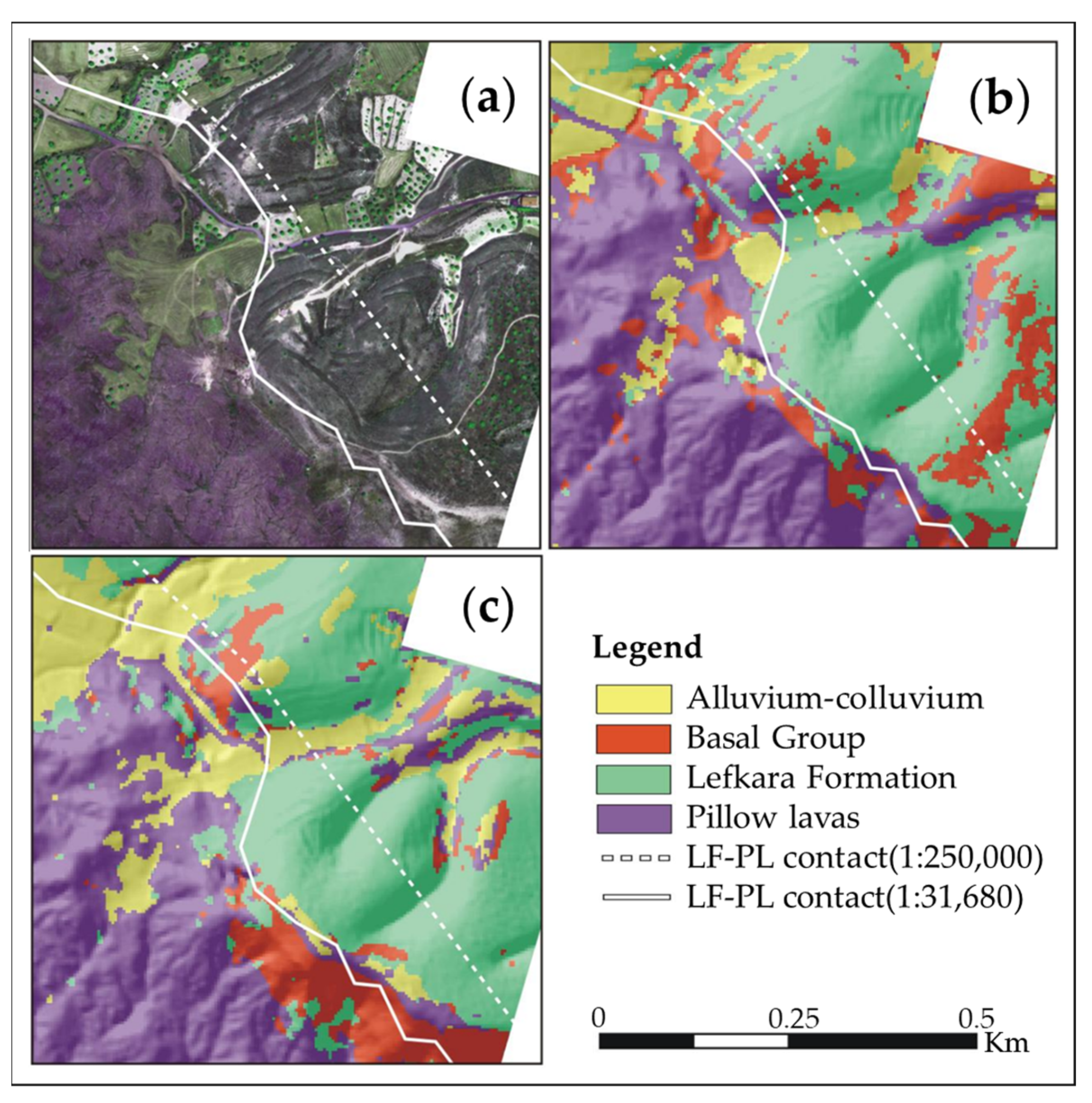

Grebby [21] used OBIA with airborne multispectral and LiDAR data to indirectly map lithology by leveraging associations between terrain and vegetation types. They achieved an overall accuracy of 73.5%, which improved the classification accuracy by 13.1% compared to the pixel-based methods. However, the effectiveness of this indirect approach may be limited in larger or more heterogeneous landscapes. In a different study, Shayeganpour et al. [80] employed OBIA with WorldView-3 VNIR imagery for lithology mapping in Hormuz Island, southern Iran. They achieved an overall accuracy of 86.54%, which improved the accuracy by 19.33% compared to the pixel-based classification. These findings demonstrate the potential of OBIA in enhancing the accuracy and reliability of lithology mapping tasks.

Ensemble classifiers and hybrid model integration offer an enhanced solution for lithological classification tasks. In the study conducted by Pal et al. [16], SVM demonstrated commendable classification results compared to MD, SAM, and SID. However, the proposed weighted pooling-based ensemble mapping method outperformed the Majority Voting-based Technique (MAXW) method which relies on the combination of multiple classifiers, with each pixel’s classification result determined by the class that receives the most votes. This enhancement resulted in a significant 22.42% increase in classification accuracy. Hybrid VSM and SVM [13] can effectively suppress vegetation information and achieve direct classification of lithology.

5. Discussion and Future Opportunities

In vegetated areas, the presence of dense vegetation often obstructs the underlying lithological information, leading to a complex relationship between lithology and vegetation. Despite significant efforts to integrate remote sensing techniques into lithological mapping, the attained classification accuracy still falls short of the expected levels. Remarkably advanced technologies like high-resolution optical satellites, InSAR, ground-based SAR, airborne LiDAR, and airborne geophysics are underutilized in the field of lithological mapping in vegetated areas. The development of classification models for lithological mapping in different regions is still in its early stages, particularly in areas with dense vegetation cover, where further advancements in lithological mapping techniques are needed.

5.1. Integration of Advanced RS Techniques

The emergence of the big data era has brought robust data support for lithological mapping in vegetated areas, particularly in regions with dense vegetation cover. By leveraging advanced RS techniques like hyperspectral imaging, LiDAR, and multi-temporal data analysis, the accuracy and reliability of lithological identification in vegetated areas can be significantly improved. Furthermore, exploring the potential synergies among various data sources and adopting innovative data fusion methods can contribute to improved classification results.

5.2. Enhanced Feature Extraction and Selection

In lithological mapping research in high-vegetation areas, multiple data fusion generates a substantial amount of data. Progress in feature extraction and selection techniques enhances the identification of lithological features in vegetated areas. The Gini Impurity-based Weighted Random Forest (GIWRF) model [136] addresses imbalanced samples and improves feature selection accuracy by considering the Gini impurity measure and assigning weights to samples. Random forest (RF) [78] is widely used for feature importance evaluation, offering high accuracy, suitability for high-dimensional data, and robustness. However, RF may exhibit bias and is not suitable for highly correlated features. To reduce feature dimensionality while considering data correlation, a hybrid feature selection method utilizing a multilayer perceptron (MLP) network [137] has been proposed for multi-class network anomalies. This method leverages the MLP network’s capabilities to capture complex feature relationships and effectively reduce the dimensionality of the feature space, improving the overall performance of the classification model.

5.3. Development of Hybrid Classification Approaches

The integration of multiple classification methods, including object-based and pixel-based approaches, ensemble learning techniques, and hybrid model integration, has the potential to enhance classification accuracy in vegetated areas. Future research can focus on exploring optimal fusion strategies and developing hybrid classification frameworks tailored to specific research domains. The literature has shown that the combination of pixel-based and object-based approaches produces more accurate land cover classification maps compared to using each method separately [102]. The advantages of ensemble learning techniques have been discussed in Section 4.3. Additionally, hybrid convolutional neural network (CNN) models, incorporating both 2D and 3D-CNN architectures [138,139], along with variations in kernel sizes, batch normalization (BN), and dropout layers, can effectively mitigate issues related to model overfitting.

5.4. Exploration of DLAs

DLAs are a significant approach in image classification due to their ability to extract effective features, exhibit powerful classification capabilities, handle complex scenes, reduce data requirements, and demonstrate strong scalability [140]. However, in the specific context of lithology classification in vegetated areas, DLAs have primarily focused on image classification with relatively simple algorithm constructions. For example, the use of convolutional neural networks (CNNs) [23,125] for classification may result in a loss of spatial information and hinder precise segmentation due to pooling and convolution operations that decrease the resolution of feature maps. It is worth noting that DLAs have been widely applied in various image processing tasks, including image enhancement, denoising, super-resolution reconstruction, image registration, image fusion, feature extraction, and image classification.

To address the need for large-scale data in DLAs, data augmentation techniques [141] can increase the number of training samples and significantly reduce the risk of model overfitting. Synthetic methods, such as generative adversarial networks (GANs) [142], allow the generation of virtual samples that closely resemble real data. Additionally, transfer learning approaches [143,144] leverage knowledge acquired from pre-trained models on one task and apply it to new tasks, enabling the utilization of historical training data without the need for continuous manual efforts.

In terms of image preprocessing, image super-resolution methods [145] effectively address challenges in poor image quality, blurry regions of interest, and the need for efficient image reconstruction in RS applications. Additionally, techniques like image registration using GANs [146] aid in aligning and overlaying images acquired at different times or from different sensors.

In image classification, novel approaches have been proposed to overcome challenges unique to high-resolution images, including small inter-class differences, low intra-class similarities, and difficulties in capturing fine-grained structural features. For instance, Liu et al. [147] introduced the Self-Cascaded CNN, a method specifically designed to address these challenges. Additionally, domain adaptation methods, such as an integrated approach combining contrastive learning and adversarial learning [148], provide practical solutions for aligning high-dimensional image representations between source and target domains.

5.5. Incorporation of Domain Knowledge and Expert Systems

Previous research on rock identification in vegetation-covered areas has faced two practical challenges. Firstly, the high variability within rock classes and the similarity between different classes have resulted in low identification accuracy [42,106]. Secondly, a complex relationship exists between vegetation and rock types. For instance, limestone areas exhibit above-ground vegetation types such as evergreen and deciduous broadleaf forests, shrub forests, and barren slopes. The bedrock of evergreen deciduous broadleaf forests consists of limestone and calcareous dolomite [149].

To address these issues, integrating domain knowledge and expert systems into the classification process can enhance the interpretability and accuracy of rock identification in vegetation-covered areas. By combining geological, topographic, soil, ecological, and botanical knowledge [21,49,50], knowledge-driven models can be developed. These models are designed to create customized rock classification systems for different study areas, providing valuable insights for precise classification and supporting decision-making in various applications.

6. Conclusions

Multi-source remote sensing technologies, particularly hyperspectral data and radar data, have witnessed rapid advancements in remote sensing image processing techniques. As a result, research on lithological mapping of vegetation-covered areas worldwide has been significantly accelerated, leading to noteworthy achievements. However, despite these advancements, this field encounters several challenges in the era of big data.

The variability of remote sensing data applicability across regions requires extensive experimentation, while limitations in coverage range and commercialization mechanisms impede the utilization of ultra-high spatial resolution remote sensing sensors.

Despite the early proposal of using vegetation suppression to reveal subsurface information, there has been a lack of significant innovation to enhance the application of VSM in effectively addressing the complex relationship between vegetation and lithology.

Multi-source data fusion involves integrating diverse sensor data from different time periods and varying signal reception angles. This necessitates the further enhancement of dedicated algorithms for effective multi-source data fusion.

In the era of big data, extracting and utilizing valuable information for classification tasks becomes crucial as there is an abundance of data to navigate.

Further exploration is needed in the development of algorithm integration or hybrid algorithm integration, considering that individual algorithms have their own unique strengths and weaknesses.

Deep learning has significantly contributed to image processing, but additional research and investigation are required to explore its innovative application in lithological mapping within vegetation-covered areas.

This study provides a comprehensive review of previous research on lithological mapping based on RS in vegetation areas. Moreover, it offers unique insights into future developments, serving as a valuable reference for the implementation of forthcoming work in this field.
