Potential for the Recovery of Selected Metals and Critical Raw Materials from Slags from Polymineral Zn–Pb Ore Metallurgy—Part II

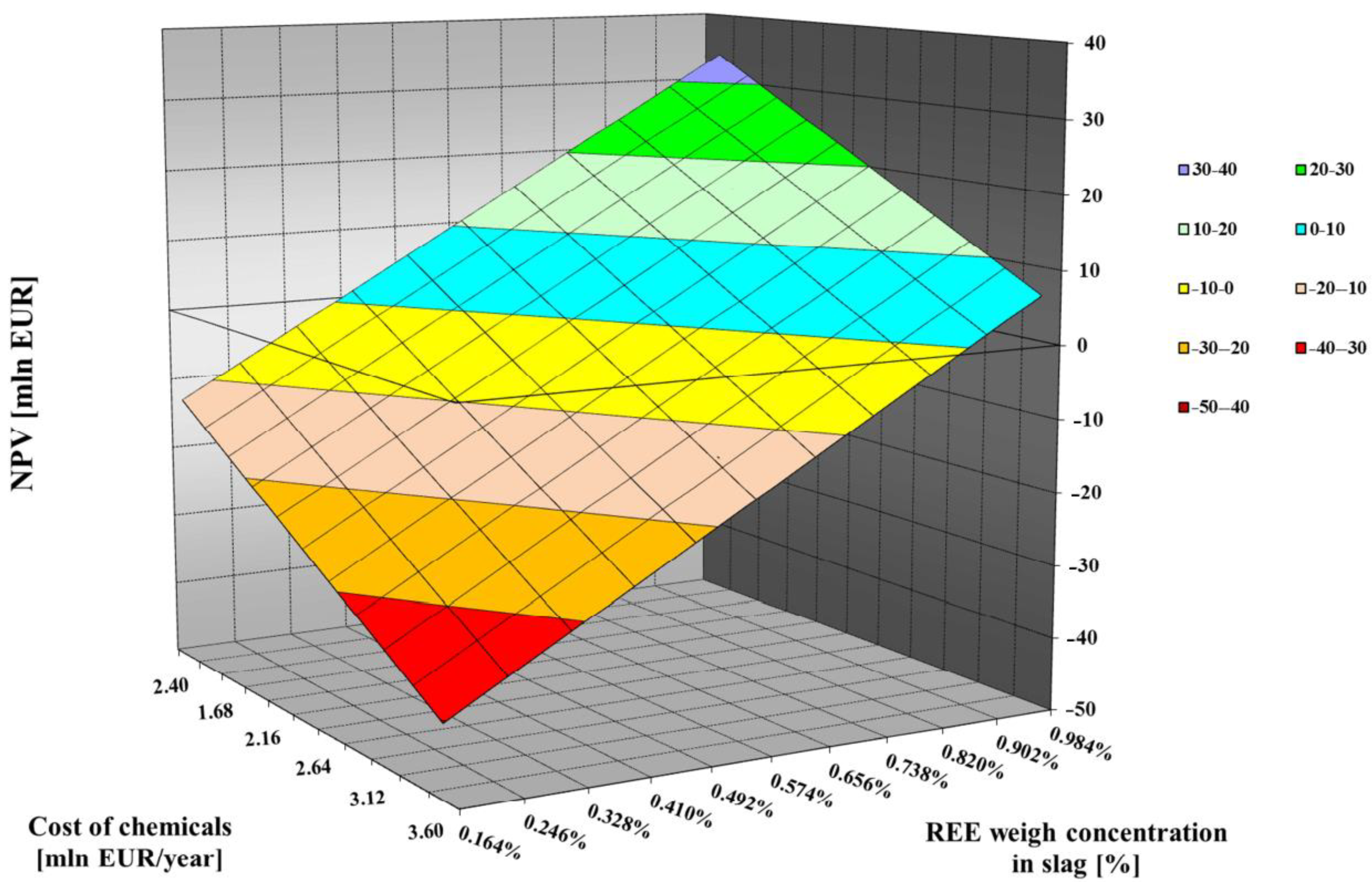

This paper presents the results of research on the possibility to obtain CRMs (REEs) and industrial metals (Zn) from slag as a waste generated as part of zinc and lead extraction processes. Physicochemical methods were used to separate CRM and Zn concentrates: magnetic separation, sintering with NaOH and leaching with selected mineral acids. After analysing the obtained results, it was found that the use of concentrated hydrochloric acid and a temperature of 363 K for leaching was effective in separating REEs from slags obtained from current production. The recovery rate in this case ranged from 83.73% for La to 98.03% for Eu. For slag samples (M1) obtained from current production from ZGH Bolesław S.A.(Poland) as well as HC Miasteczko Śląskie S.A. (Poland) and treated with concentrated HCl, the leaching level of Bi, Zn, Ni, Mn and P exceeded 90% compared to the content in the reference sample. For a historical slag sample from Ruda Śląska (Poland), treatment with concentrated HCl yielded a high leaching level of Cd (70.90%), Pb (78.66%), As (72.49%) and Mo (61.90%). A concentrate containing 1.64% of REEs and 67.1% of Zn was isolated from the solutions obtained after leaching by precipitation. An economic analysis of an REE concentrate extraction facility was also performed. For an operation of 17 years, the calculated NPV was −26,352,644 million EUR. The obtained results indicate that, for the analysed facility, recovering metals and critical raw materials from slag as a waste mass is not economically effective.
