The Devonian Kalarskoe Epithermal Occurrence of the Kaburchak Au-Ag Cluster in the Altai-Sayan Folded Area, Russia: Geological Setting; Mineralogical, Geochemical, and Geochronological Features

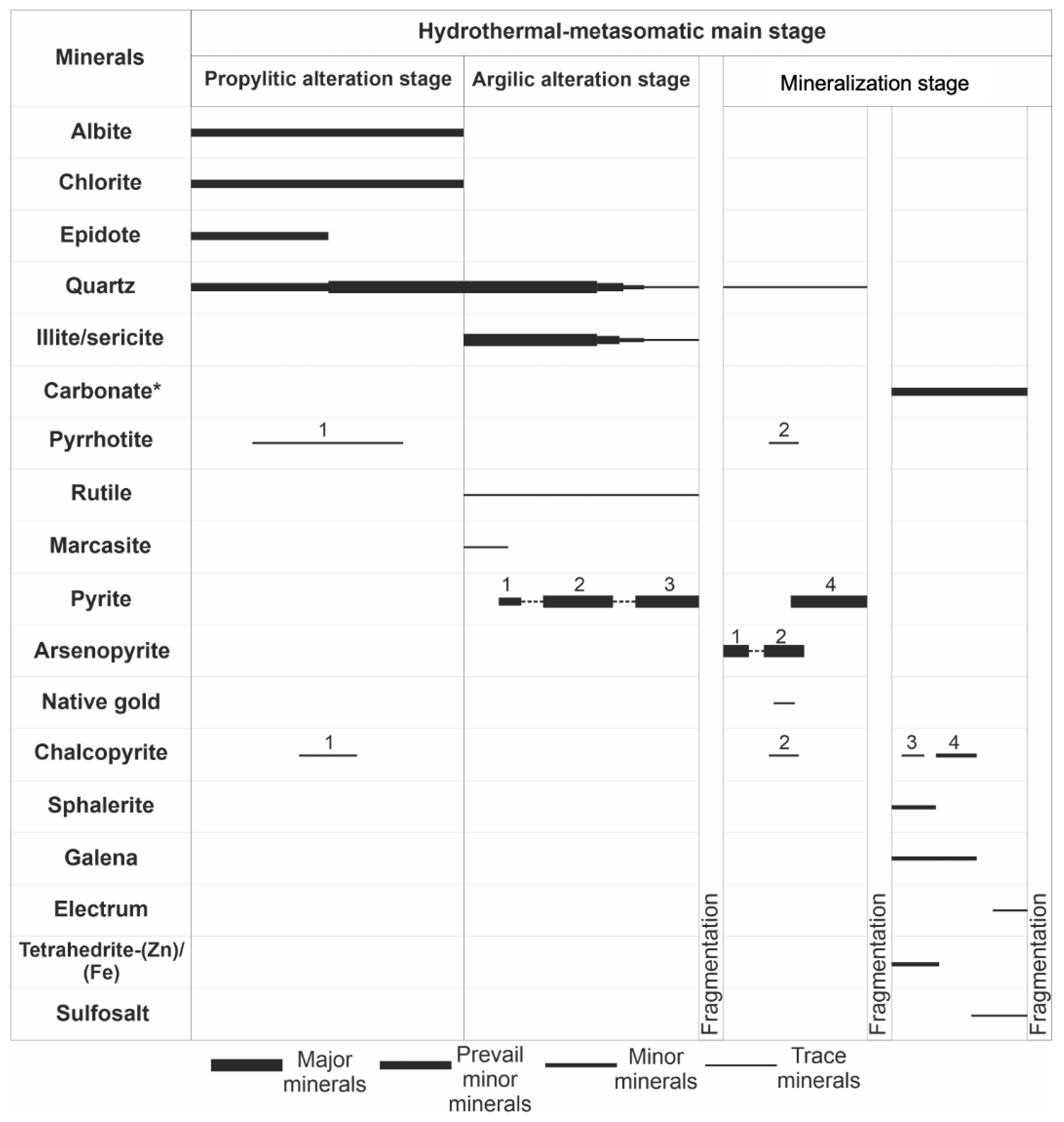

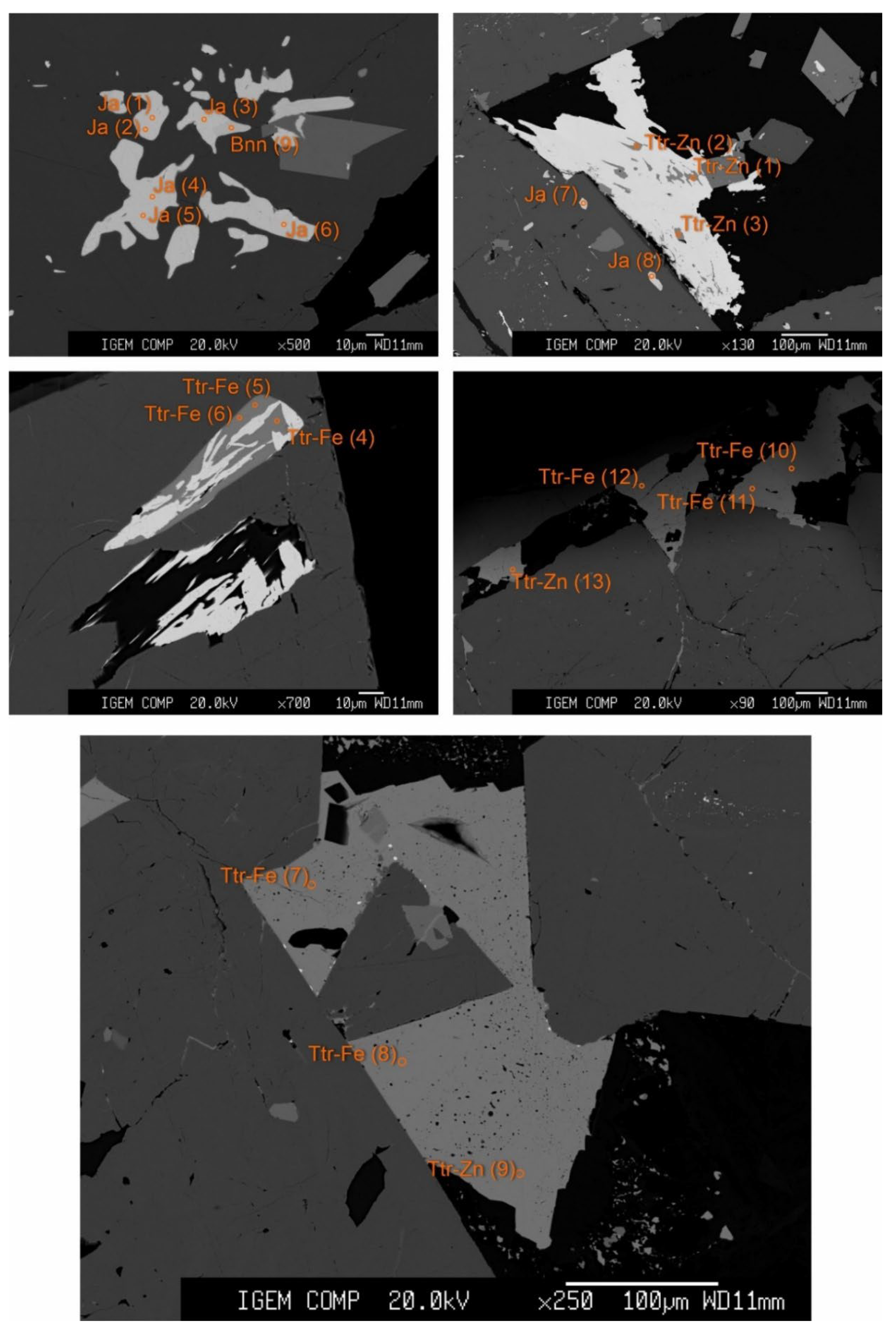

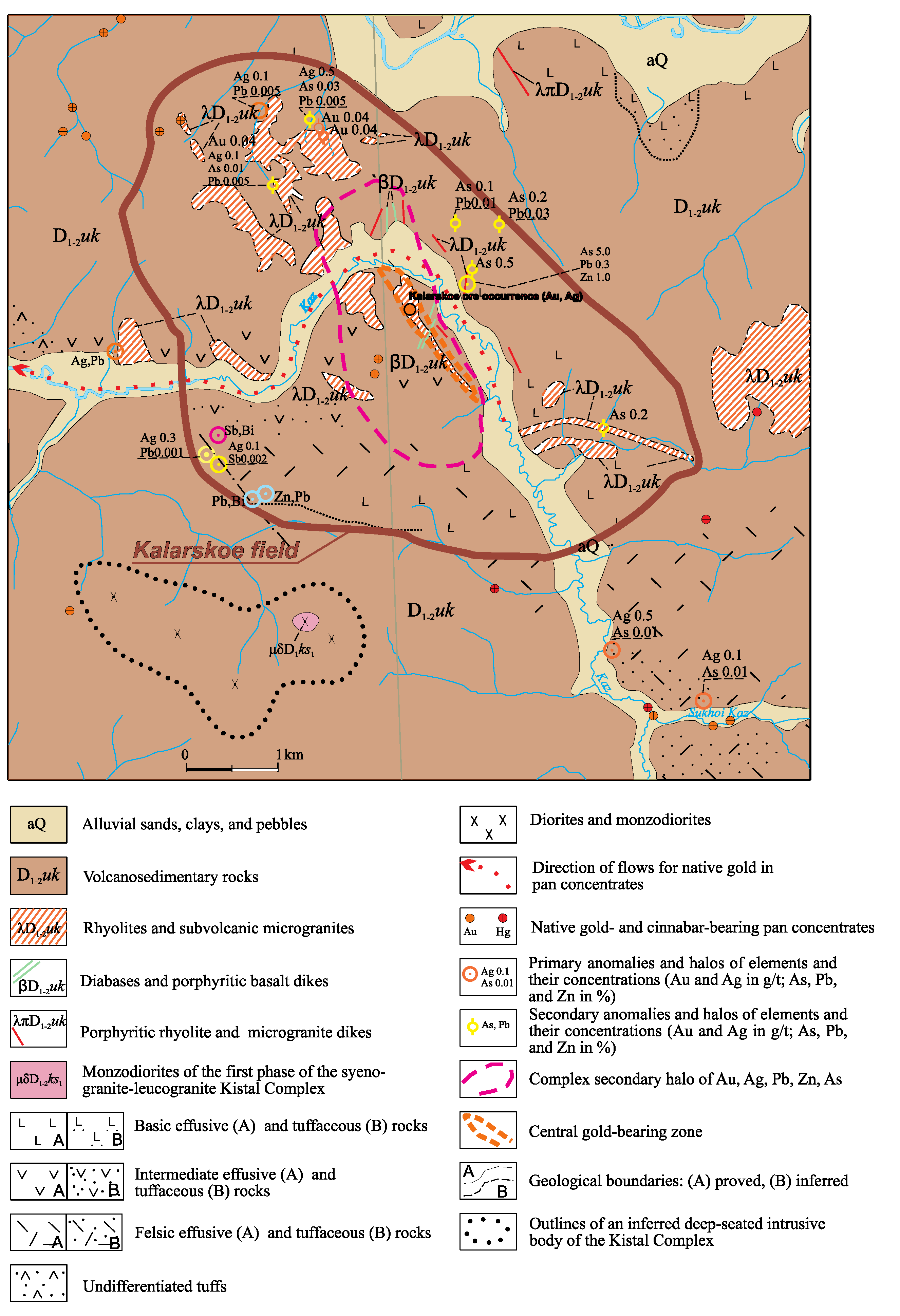

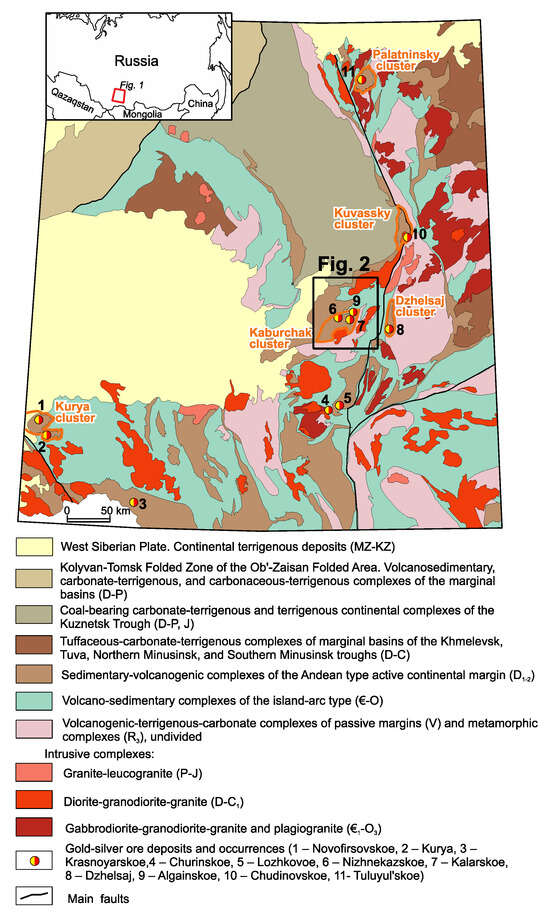

Prospecting efforts to located Au mineralization within the Altai-Sayan fold area (ASFA) over previous decades have revealed that Devonian epithermal Au-Ag mineralization is more widespread than previously recognized. The preservation of this type of mineralization in Paleozoic rocks offers new prospects for the exploration of Au-Ag deposits in the underexplored region of Gornaya Shoria. The Kalarskoe epithermal Au-Ag occurrence represents Devonian epithermal mineralization within the Kaburchak cluster, Gornaya Shoria, Russia. This occurrence is confined to zones of argillic alteration that were superimposed on previously formed propylites. The argillic-altered rocks host quartz-sulfide veinlet zones. The mineralization of the Kalarskoe site is characterized by a high abundance of sulfide minerals: commonly, 5%–10%; often, up to 20%; and in some cases, up to 60%–70%. The ore minerals are represented by pyrite, arsenopyrite, sphalerite, galena, chalcopyrite, fahlores, native Au, and electrum, as well as by the sulfosalts Pb, Bi, Ag, Cu, and the tellurides of Au, Ag, and Pb. Based on mineralogical observations, at least four generations of sulfide mineral formations are distinguished within the ore occurrence. The mineralization of the Kalarskoe ore occurrence may be assigned to the intermediate sulfidation (IS) type. The results of the (U,Th)-He dating of pyrite from the pyrite-arsenopyrite massive body (pyr-3 and 4) revealed the protracted history of the mineralization in the intervals from ~399 to ~371 Ma. The obtained results substantially enhance the prospecting models for the exploration of epithermal Au-Ag deposits in the western part of the Altai-Sayan fold area (ASFA).
