Coal-Hosted Al-Ga-Li-REE Deposits in China: A Review

Abstract

Investigation of the critical metal elements in coal and coal-bearing strata has become one of the hottest research topics in coal geology and coal industry. Coal-hosted Ga-Al-Li-REE deposits have been discovered in the Jungar and Daqingshan Coalfields of Inner Mongolia, China. Gallium, Al, and Li in the Jungar coals have been successfully extracted and utilized. This paper reviews the discovery history of coal-hosted Ga-Al-Li-REE deposits, including contents, modes of occurrence, and enrichment origin of critical metals in each coal mine, including Heidaigou, Harewusu, and Guanbanwusu Mines in the Jungar Coalfield and the Adaohai Coal Mine in the Daqingshan Coalfield, as well as the recently reported Lao Sangou Mine. Gallium and Al in the coals investigated mainly occur in kaolinite, boehmite, diaspore, and gorceixite; REEs are mainly hosted by gorceixite and kaolinite; and Li is mainly hosted by cholorite. Gallium, Al, and REEs are mainly derived from the sediment-source region, i.e., weathered bauxite in the Benxi Formation. In addition, REE enrichment is also attributed to the intra-seam parting leaching by groundwater. Lithium enrichment in the coals is of hydrothermal fluid input. The content of Al₂O₃ and Ga in coal combustions (e.g., fly ash) is higher than 50% and ~100 µg/g, respectively; concentrations of Li in these coals also reach the cut-off grade for industrial recovery (for example, Li concentration in the Haerwusu coals is ~116 µg/g). Investigations of the content, distribution, and mineralization of critical elements in coal not only provide important references for the potential discovery of similar deposits but also offer significant coal geochemical and coal mineralogical evidence for revealing the geological genesis of coal seams, coal seam correlation, the formation and post-depositional modification of coal basins, regional geological evolution, and geological events. Meanwhile, such investigation also has an important practical significance for the economic circular development of the coal industry, environmental protection during coal utilization, and the security of critical metal resources.

1. Introduction

Coal is one of the most complicated geological materials [1] and consists of various minerals and organic components with different chemical structures [2,3,4,5,6,7]. Coal uses have caused serious issues related to environmental pollution and human health [8,9,10,11,12]. However, coal remains a cornerstone of global energy production, currently largely supplying worldwide electricity [13,14]. Beyond power generation, coal is integral to numerous industries, including metallurgy, cement production, and chemical manufacturing [1]. Additionally, it serves as a critical heat source for sectors such as wallboard, aluminum, and cement production. Lesser known is coal’s potential as a source of critical metals [15,16,17]. Many coals contain economically significant concentrations of such metals essential for technological advancement, such as Li, Ga, U, Ge, V, rare earth elements (REEs), Y, Sc, Nb, Zr, Re, Au, Ag, platinum group elements (PGEs), W and Se, and base metals like Al and Mg [16,18,19,20,21]. These metals are indispensable for driving innovations in technology and energy efficiency [13,22,23], and therefore have attracted many researchers to reveal the abundance, modes of occurrence, distribution, and mineralization process of these critical metals in coal and coal ash [18,24,25,26,27,28,29,30]. It is commonly considered that coal is now one of the important sources for critical elements [31,32,33,34,35,36].

On the other hand, the dwindling supplies and escalating prices of these critical metals in traditional ore deposits [37,38], coupled with the concentrated control of production by a limited number of countries, e.g., China, has spurred a global quest for alternative sources [22,39]. Notably, China dominates the global production of rare earth elements (85%) and germanium (73%) [40,41]. Coal and its combustion byproducts offer a promising avenue for extracting these critical elements [34,41]. Some coal deposits and associated materials exhibit element concentrations comparable to, or even surpassing, those found in conventional ores [21]. The terms “coal-hosted rare-metal deposit” proposed by Dai and Finkelman [13] and “metalliferous coal” proposed by Seredin and Finkelman [21] have emerged to characterize coals rich in economically recoverable critical elements.

While extracting Al, Ga, Ge, U, V, and Se from coal/coal ash has been established for years [13,15,22,38,42,43,44,45,46,47,48], the recovery of Li, REY, Sc, Nb, and Zr represents a new frontier in coal utilization [29,31,49,50,51,52]. Some pilot plants for co-recovering rare earth elements and other critical materials have been successfully established in the USA. This emerging field has the potential to redefine coal’s role in the global economy [38].

2. Overview of Coal-Hosted Al-Ga-Li-REE Deposits

The Jungar Coalfield in Inner Mongolia, northern China, was identified as a novel critical metal deposit by researchers from China University of Mining and Technology (Beijing) (CUMTB) in 2006 [53,54]. This discovery is extremely important, as stated by Seredin [19]: “significant steps forward in production of valuable metals from coal and for development of both traditional and alternative energy options. Thus, this operation is a good example that coal deposits, with insight from coal science, can be transformed into clean energy sources”. The findings by these researchers (i.e., discovery of the ore deposit; the abundance, spatial distribution, and modes of occurrence of critical elements; the mechanism of mineralization of Al, Ga, Li, and REEs) [53,54,55] have laid a solid foundation for recovering Al, Ga, and Li from the coal combustion byproducts derived from coal power plants. This is also a typical case of turning coal, a traditional fossil fuel, into a green energy, on the basis of these important findings. Between 2011 and 2017, the deposit underwent seven successful trial runs for alumina production, meeting both quality and quantity targets. A 4000 t/y industrial pilot plant for extracting alumina and gallium from fly ash was successfully constructed by Shenhua Zhunneng Group in August 2011. In 2013, the first batch of metallic gallium was produced from the pilot plant. By 2021, a fourth-generation circulating fluidized bed combustion technology had been developed, utilizing nano-hydrocarbons as fuel for the high-efficiency extraction of aluminosilicate powder. A circular economy industrial chain has been formed, encompassing coal, electricity, fly ash, green electrolytic aluminum, and high-end aluminum products metallic gallium and lithium. The alumina produced exceeds the national standard for first-grade metallurgical-grade alumina, the metallic gallium surpasses the 4N purity standard, and the lithium carbonate meets battery-grade standards. Therefore, a comprehensive review of this deposit not only helps readers to have a full picture of the discovery history of the ore deposit, the origin of the ore formation, and the successful extraction of the critical metals, but also is useful for further discovering similar potential coal-hosted ore deposits in other areas.

Germanium from coal has been industrially recovered for more than half a century [14,19,40]. The recovery of rare earth elements is still on pilot-scale level, and a number of studies have shown promising extraction technologies [26,31,49,56,57,58,59,60,61] not only from coal ashes but also for non-coal rocks in coal-sedimentary sequences [33,62]. Although some studies have investigated the modes of occurrence and enrichment origin of Li in coal [25,32,33,42,57,63,64,65,66,67], the recovery technologies are still being investigated [52]. Uranium in coal has been industrially utilized [19,38]; however, it seems that U in coal has not attracted much attention in the last several decades, although some studies have shown significant enrichment of U in coal [22,34,45,68,69,70,71,72,73,74]. Although Sc enrichment has been found in some Russian coals [24], coals with highly enriched Sc have not been found in China [27,29,34,75,76,77] in spite of the varying geological conditions [6,78,79,80].

3. Geological Setting of the Jungar and Daqingshan Coalfields

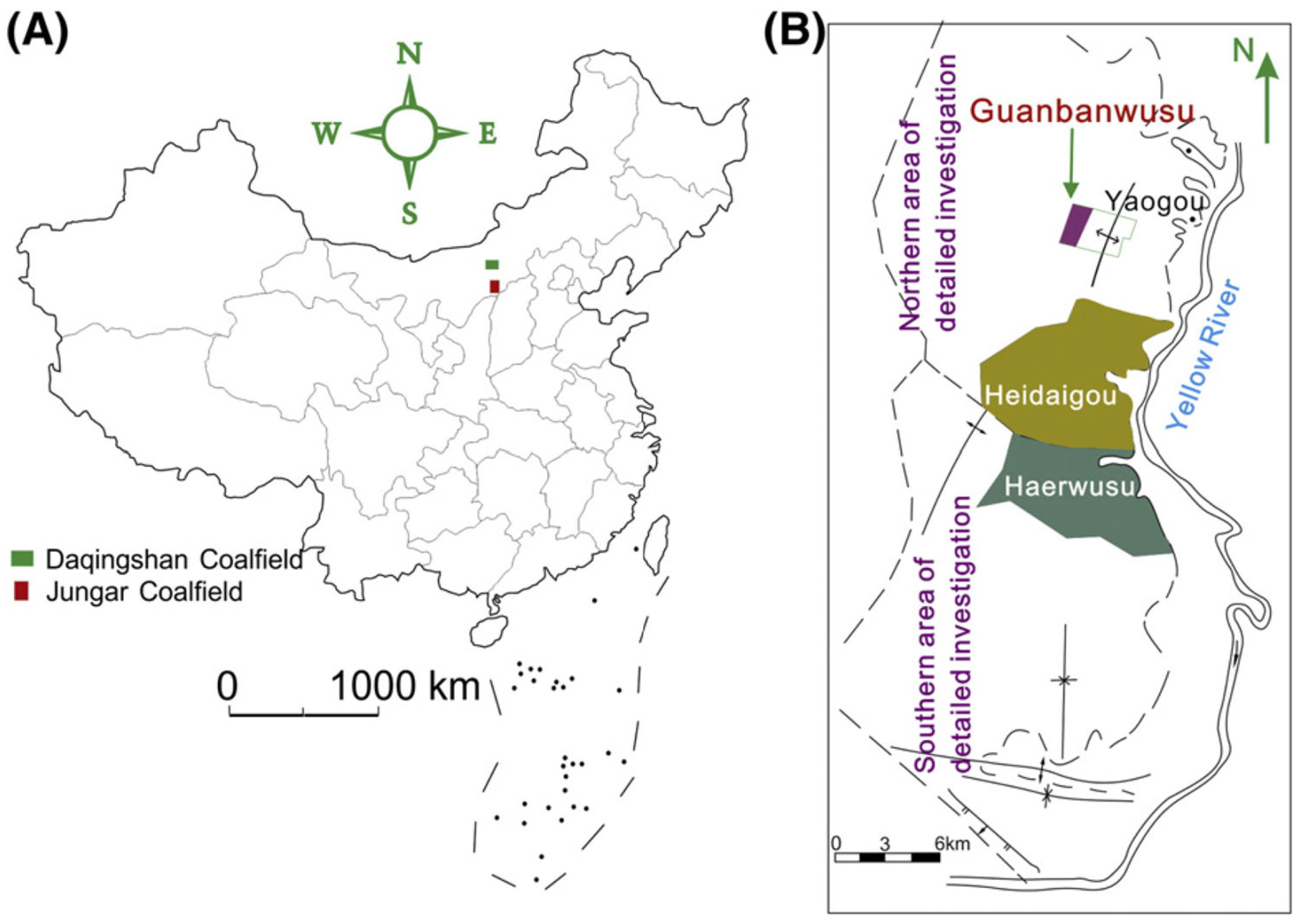

The coal-hosted Al-Ga-Li-REE deposits in China were mainly discovered in the Jungar and Daqingshan Coalfields (Figure 1), which are close to each other. The two coalfields have similar sedimentary sequences, but the Jungar is situated on the margin of the Ordos Basin and the Daqingshan Coalfield is located within the Yinshan Orogenic Belt.

3.1. Jungar Coalfield

The Ordos Basin, one of the most famous depositional basins in China, contains abundant resources, including coal, oil, gas, uranium, and other non-metal resources [25,29,36], and is situated in the west of the Northern China Platform. The Jungar Coalfield lies on the Ordos Basin’s northeastern margin. Measuring 65 km north–south and 26 km east–west, the coalfield covers an area of 1700 km². As one of the Ordos Basin’s most prolific coalfields, its reserves are estimated at 26.8 gigatons.

The sediments in Junger Coalfield are characterized by a diverse range of sedimentary environments [81]. A gradual transition from limestone-dominated to predominantly clastic sediments is evident as limestone deposits thin out within the coalfield from south to north. Coal-bearing strata in the region comprise the Pennsylvanian Benxi and Taiyuan formations, as well as the Lower Permian Shanxi Formation, collectively reaching thicknesses between 110 and 160 m [53,54,55].

The Benxi Formation, with a thickness ranging from 15 to 35 m, unconformably overlies the Middle Ordovician Majiagou Formation. The overlying Taiyuan Formation, varying in thickness from 35 to 70 m, is composed primarily of quartzose sandstone, mudstone, siltstone, and coal seams intercalated with darker mudstone, siltstone, limestone, and thin quartzose sandstone layers. Lithological variations within the Taiyuan Formation are pronounced across the coalfield. In the southern regions, the formation is predominantly composed of terrigenous, coal-bearing clastic rocks, primarily sandstone, and contains five unminable coal seams (Nos. 1 to 5).

The upper portion of the Taiyuan Formation is composed of mudstone, sandy mudstone, and the No. 6 coal. The No. 6 coal, which has an average thickness of 30 m, is located at the top of the Taiyuan Formation. It is the major minable coal bed, accounting for approximately 80% of the total coal reserve in the Jungar Coalfield. The No. 6 coal is overlain by dark gray mudstone, sandy mudstone, or siltstone and underlain by mudstone. Superimposed on the coal-bearing sequences are the non-coal-bearing Upper and Lower Shihezi Formations, the Shiqianfeng Formation, and the Liujiagou Formation.

3.2. Daqingshan Coalfield

The Daqingshan Coalfield is located to the north of the Jungar Coalfield. Encompassing an area between 40°35′ and 40°44′ north latitude and 110°07′ and 110°31′ east longitude in Inner Mongolia, northern China, the Daqingshan Coalfield has 16 coal mines distributed across the coalfield [82,83,84]. Among these, the Adaohai Mine is situated in the southeastern part of the coalfield. The coal-bearing strata within the Daqingshan Coalfield, which includes the Pennsylvanian Shuanmazhuang and the Early Permian Zahuaigou formations [85,86,87,88,89], were deposited in a continental setting.

The Daqingshan Coalfield’s primary coal seam, identified as CP2 coal, is situated in the upper portion of the Shuanmazhuang Formation, varying in thickness from 4.7 to 42.8 m, with an average of 22.3 m. The zoned distribution of coal rank of the CP2 coal within the coalfield is directly attributed to igneous intrusions that occurred during the Yanshan Movement [90]. In the eastern part of the coalfield, igneous rocks have intruded into the coal-bearing strata, resulting in a coal rank gradient that increases from northwest to southeast, transitioning from high volatile bituminous to medium volatile bituminous and ultimately to low volatile bituminous. The CP2 coal contains 3 to 42 parting layers ranging from 0.02 to 3.4 m in thickness. Due to epigenetic tectonic movements, the CP2 coal has been heavily brecciated and exhibits a dip of approximately 83 degrees. The overlying roof, primarily consisting of mudstone and sandy mudstone, has a fluctuating thickness. In certain areas, the CP2 coal directly contacts the overlying sandstone. The floor of the CP2 coal also demonstrates significant variations in thickness and lithology, ranging from 0.2 to 2.0 m and composed of sandy sandstones, medium coarse sandstones, and fine sandstones.

The lower part of the Shuanmazhuang Formation comprises conglomerate, granule conglomerate, sandy mudstone, siltstone, and thin coal seams. Overlying the Shuanmazhuang Formation, the Permian strata consist of the Zahuaigou and Shiyewan formations. The upper portion of the Zahuaigou Formation is composed of mudstones and sandstones, while the lower portion features white quartz-pebble conglomerate with locally intercalated 0.1–0.2 m mudstone beds. The Zahuaigou Formation lacks minable coal beds. The Shiyewan Formation is primarily composed of thick sandstone layers interbedded with mudstone. The Cambrian–Ordovician strata underlying the coal-bearing sequences are dominated by limestone, with intercalated silty mudstone in the lower part.

4. Discovery of the Jungar Coal-Hosted Ore Deposit of Critical Metals

Coal and metal industries have traditionally operated independently. Yet, notable exceptions exist, as evidenced by two significant cases [21] that yielded mutual benefits and economic progress. A pioneering example involves the extraction of U from coals. In the United States and the former Soviet Union, high-U coals played a crucial role in post-WWII nuclear development [19]. Subsequently, the discovery of more substantial U reserves in other types of ore deposits rendered coal-based U extraction less economically viable. Another notable example is the extraction of Ge from coal [19,38], which commenced in the late 1950s and remains a significant industrial practice. Coal currently supplies over half of the global demand for Ge. In a brief commentary by Seredin [19], the author discussed the groundbreaking discovery made by Chinese coal geologists during 2005–2015, i.e., the findings of the coal-hosted Ga-Al-Li-REE deposits in Inner Mongolia, China.

Research initiated by CUMTB scientists in the early 2000s within the Heidaigou surface mine, Jungar Coalfield, Inner Mongolia, unveiled an extraordinary discovery of highly enriched critical metals in the No. 6 coal seam [19,53,54,91], the deposit’s primary minable coal, with an average thickness of 30 m, exhibiting anomalous concentrations of Al₂O₃ (>50%, ash basis) and gallium (up to 100 µg/g, ash basis); the latter is a metal typically associated with Al [53]. Intriguingly, the coal’s silica-to-alumina ratio (Si/Al) was exceptionally low compared to that of global coals, measuring as low as 0.34 [53,54], which was caused by highly enriched mineral boehmite, a rare mineral in coal composed of 84.9% alumina [3,4,72]. Boehmite, alongside kaolinite, served as the primary hosts of aluminum and gallium in these coals [53,54].

Samples of pristine fly ash were collected from the economizer of the Jungar power plant with a special sampling device, because the flue gas along with fly ash was disposed through wet ash concentration units [92]. Concentrations of critical elements in combustion byproducts (e.g., fly ash) confirmed these super-large aluminum and gallium deposits, not only covering the Heidaigou Mine in the Jungar Coalfield but also covering the Haerwusu and Guanbanwusu Mines [55,56] in this coalfield.

The recognition of fly ash as a potential source for recovering these metals marked a significant breakthrough [19]. Comprising approximately 90% of combustion waste, fly ash offered a substantial resource for recovery of these critical metals [22]. Analysis determined average aluminum and gallium concentrations in fly ash to be 51% and 92 µg/g [92], respectively, mirroring those found in conventional bauxite deposits [19]. Additionally, the concentrations of REY in the fly ash derived from this coal seam were also high and a potential source for REY recovery [93,94]. This exceptional metal enrichment was due to neighboring bauxite deposits, which served as the erosional rocks for the peat during the Late Paleozoic, with aluminum and gallium subsequently accumulating in the peat deposit.

Confirmed reserves totaled 150 million tons of alumina and 49,000 tons of gallium in the Heidaigou Mine [53,54]. Aluminum and gallium are primarily concentrated in mullite and glass phases in the fly ash. Laboratory-scale extraction of alumina, silica gel, and gallium from fly ash proved successful [19]. Based on these findings, a pilot plant with an annual capacity of 800,000 tons of alumina and approximately 150 tons of gallium was established in early 2011.

Of significant note is the discovery of similar deposits in the Daqingshan Coalfield of Inner Mongolia, further confirming the importance of these coal-hosted Ga-Al deposits [55,82,83,84,95,96].

5. Abundance and Modes of Occurrence of Critical Elements in Coals

The coal seams labeled as No. 6 and No. CP2 in the Jungar and Daqingshan Coalfields, respectively, were highly enriched in Al, Ga, Li, and REEs and were widely distributed in the two coalfields. Although the two coal seams are labeled as different identities, they are the same coal seam [97]. The coals with highly evaluated Al, Ga, Li, and REEs in the Jungar coals are mainly distributed in the Heidaigou, Haerwusu, and Guanbanwusu Coal Mines. Recently, a new highly mineralized Al, Ga, Li, and REE coal seam was discovered in the Laosangou Coal Mine [98], which is located close to the Heidaigou Mine in the Jungar Coalfield. The coals with highly evaluated Al, Ga, Li, and REEs in the Daqingshan Coalfield are mainly distributed in the Adaohai, Datanhao, and Hailiushu coals.

There have been no cut-off standards for Al, Ga, Li, and REEs that are globally accepted for critical metals in coal, although some researchers have proposed some suggested cut-off grades for selected metals in coal. Considering the high concentrations of Al₂O₃, Ga, Li, and REEs in the Jungar and Daqingshan coals, establishing appropriate cut-off grades for these critical elements in coal combustion byproducts is essential. In 1980s, a Chinese standard recommendation of 30–50 µg/g for Ga in coal (whole coal basis) was proposed CONMR (1987). However, other factors, as pointed out by Dai et al. [55] and Dai and Finkelman [13], including resources, thickness of coal seam, ash yields of raw coals, other associated critical elements, the possibility of beneficiation, market demand and supply, recovery technology, and environmental effects, must also be evaluated. Based on studies on Al₂O₃ and Ga recovery technology, the chemistry and mineralogy of coal combustion products (e.g., fly ash and bottom ash), the thickness of coal seams, mineralogical and elemental associations, and pilot and industrial plants’ experience in recovery of these metals from the Jungar coals [55], it is suggested that CCB with Ga concentrations exceeding 50 µg/g, a ratio of SiO₂/Al₂O₃ less than 1 (or Al₂O₃ greater than 40% in CCB), and a coal thickness of the coal seam of at least 5 m (allowing for selective mining) could be suitable for Al₂O₃ and Ga recovery from CCB [13,55].

The factors mentioned above should also be considered for rare earth elements (REY) and lithium. Experimental data on REY extraction from coal combustion byproducts (CCB) suggests a cut-off grade of 1000 µg/g REO (oxides of rare earth elements plus Y) in ash for profitable recovery from low-rank coals [99]. However, if the REY prices become higher, this cut-off grade could be adjusted for any coals with any coal rank. Importantly, this cut-off grade could be adjusted to 800 to 900 µg/g for coal seams with thicknesses greater than 5 m, from which relatively thick coal benches with REO higher than 1000 µg/g (on an ash basis) are suitable for selective mining. The individual REY composition is another crucial factor. An ideal REY ore deposit should contain a diverse range of critical REY and minimize excessive elements. To assess ore quality, Seredin and Dai [20] proposed the “outlook coefficient” (C_outl), which calculates the ratio of critical REY (Nd, Eu, Te, Dy, Y, Er) to excessive REY (Ce, Ho, Tm Yb, Lu). A higher C_outl indicates a more promising REY ore deposit from an industrial perspective [20]. The outlook coefficient has been widely adopted and applied to the evaluation of coal-hosted REY deposits [26,60,61,100,101,102,103,104,105,106].

Lithium in coal has only recently been considered a recoverable metal. It began to garner significant attention and research interest in 2008 [107]. When the lithium content in coal exceeds a certain threshold, it can form a lithium deposit co-occurring with coal, categorized as a sedimentary lithium deposit. However, due to lithium’s low atomic number and diverse modes of occurrence, it is one of the most challenging elements to study in coal [57,64,65,108,109]. Based on previous research and the characteristics of coal-associated metal deposits, a cut-off grade of 800 µg/g (Li₂O, on a high-temperature ash basis) was proposed by Zhao et al. [107] as a lithium cut-off grade for recovery. In China, coal-associated lithium deposits are primarily distributed in the Carboniferous-Permian strata of North China (e.g., Jungar and Qinshui basins [18,42,66,110,111]), with a smaller portion found in the southern regions of China (e.g., Caotang Coal Mine in Sichuan Basin [112]); on the other hand, a large proportion of coals in China have concentrations [27,41,104,113,114,115] that are close to those in the common coals worldwide, as proposed by Ketris and Yudovich [116].

A number of researchers have investigated the petrology, mineralogy, and geochemistry of the No. 6 coal and No. CP2 Coal from the Jungar and Daqingshan Coalfields, respectively, in Inner Mongolia [25,35,36,53,54,55,56,82,83,95,96,97,117,118,119,120]. The Jungar Coalfield includes the representative coal mines of Heidaigou, Haerwusu, and Guanbanwusu; the Daqingshan Coalfield includes Hailiushu, Datanhao, and Adaohai Mines.

5.1. Critical Metals in the Coals from the Heidaigou Mine, Jungar Coalfield

Petrologically, vitrinite reflectance from the No. 6 coal (0.58% Rr) indicates a high volatile C bituminous coal rank based on ASTM standard D388-12 (2012) [121]. Dai et al. [53,54] conducted a detailed investigation on the macerals of this coal. The inertinite and liptinite average contents are 37.4% and 7.1%, respectively. Vitrinites in this coal are primarily collodetrinite and collotelinite, although corpogelinite may predominate (up to 22.9%) in certain instances [53]. Semifusinite and inertodetrinite are the primary inertinites, with macrinite content sometimes being higher and distributed within collodetrinite. The liptinite content ranges from 2.3% to 10.8%, and liptinites are primarily sporinite and cutinite. Macrosporinite usually clusters, and microsporinite is primarily found within collodetrinite. Cutinite is predominantly thick-walled, but thin-walled cutinite is also present, primarily lining the vitrinite borders [54].

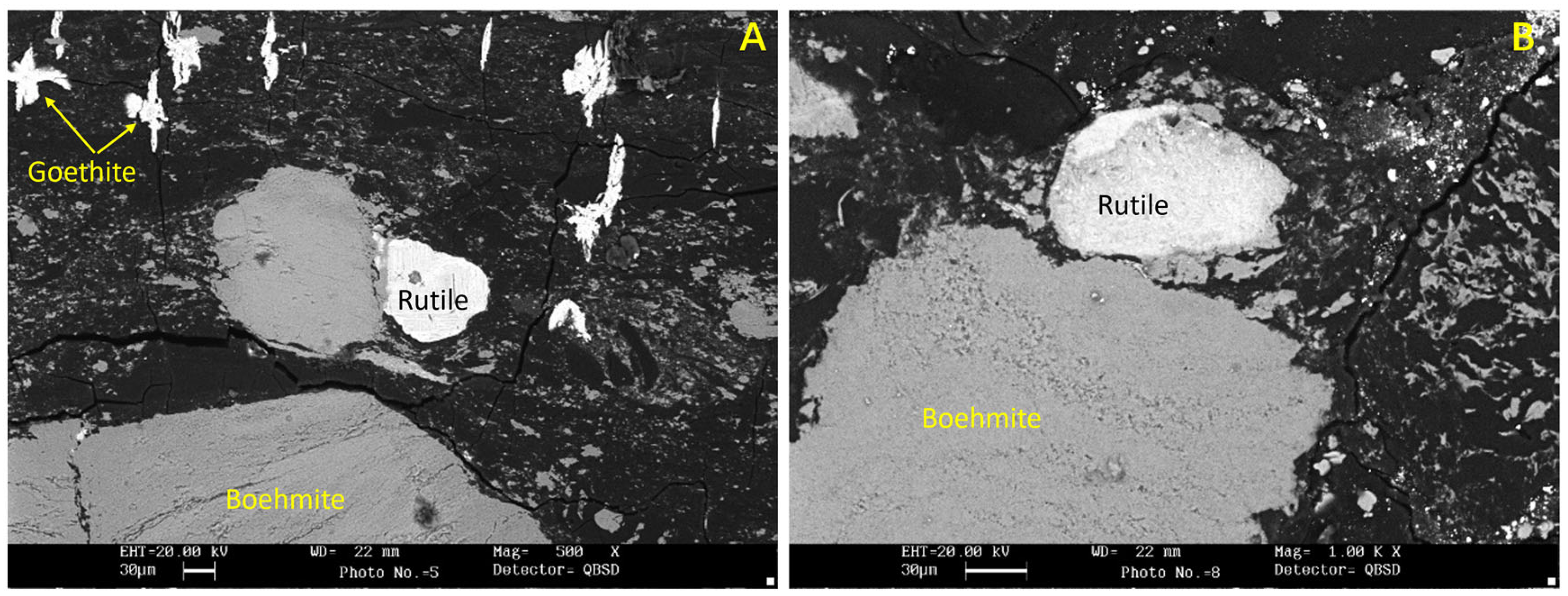

The coal’s mineralogical composition can be divided into four distinct parts from bottom to top [54]. The lowest part primarily contains kaolinite, comprising approximately 21 vol.% of the mineral content (on a maceral-free basis). The second part is predominantly kaolinite (11.4%), with smaller amounts of boehmite (3.3%), pyrite, and a trace of goethite (Figure 2). The EDS data of boehmite show that Al and O contents are 49.2–57.5% and 44.4–49.7%, respectively (six test points on each photo). Boehmite is significantly enriched in the middle part, reaching an average content of ~12 vol.% (Figure 2). This high boehmite concentration is unique, as such high levels have not been observed in other coals worldwide. Kaolinite is the second most abundant mineral in this part, with an average of 4.1%. The uppermost part of the seam is characterized by a high quartz content, reaching 16.4%, and the modes of occurrence of quartz indicate that it likely originated from eroded areas of the coal basin [113,122,123,124,125,126].

Although the average of gallium in the entire coal seam of the Heidaigou Mine is 44.8 µg/g, the average gallium concentration in the major minable benches of the No. 6 coal is 51.9 µg/g, exceeding both Chinese industrial standards (30 µg/g, whole coal basis) and the cut-off grade (50 µg/g, ash basis) proposed by Dai et al. [55]. The major minable benches account for a significant portion of the coal bed, representing 81.9% of the total thickness. The No. 6 coal’s Ga concentration is significantly higher than that of common Chinese, US, Turkish, UK, and most global coals, as reported by Dai et al. [9], Finkelman [127], Palmer [128], and Ketris and Yudovich [116], respectively. The presence of such high gallium in such a super-thick coal bed is rare globally [53,54]. Gallium is enriched in the high-temperature (550 °C) ashes of the coal benches in the Heidaigou Mine [54]. The average Ga concentration in high-temperature ashes of the main workable benches reaches 89.2 µg/g, and 81.8 µg/g in ashes from the entire coal seam. In some ashes, gallium enrichment is significant enriched, reaching up to 178 µg/g [54]. Dai et al. [92] reported gallium concentrations of 99.1 µg/g in fly ash and 28.7 µg/g in bottom ash from the Jungar Power Plant. The estimated fly ash to bottom ash yield ratio from this plant is approximately 9:1 [92]. The high gallium content in No. 6 coal is primarily attributed to the significant enrichment of boehmite, which contains an average gallium concentration of 900 µg/g. Boehmite constitutes an average of 6.1 vol. % of the entire coal seam and 7.5% in the main minable benches [53] in the Heidaigou mine. It originated from bauxite in the weathered crust of the Benxi Formation, which was exposed to the north coal basin during peat deposition. An estimation by Dai et al. [54] shows that No. 6 coal in the Heidaigou Mine holds ensured gallium reserves of up to 63,000 tons, making it a super-large Al-Ga ore deposit. The unique paleogeography of the Jungar Coalfield (thick coal seams, sediment-source regions, sedimentary environments, as described by Dai et al. [53,56]) and the unusual gallium host (mainly boehmite) in the coal indicate that this deposit is unparalleled globally [21]. Additionally, rare earth elements are also found in large amounts in raw coals and their high-temperature ashes in the laboratory. The concentration of total REEs is 255 µg/g and 830 µg/g in the main minable raw coal benches and their laboratory high-temperature ashes, respectively [54]. Given that Al is the dominant component of boehmite, aluminum and REEs in No.6 Coal are also available and valuable resources and should be co-recovered with Ga [54].

5.2. Critical Metals in the Coals from the Haerwusu Mine, Jungar Coalfield

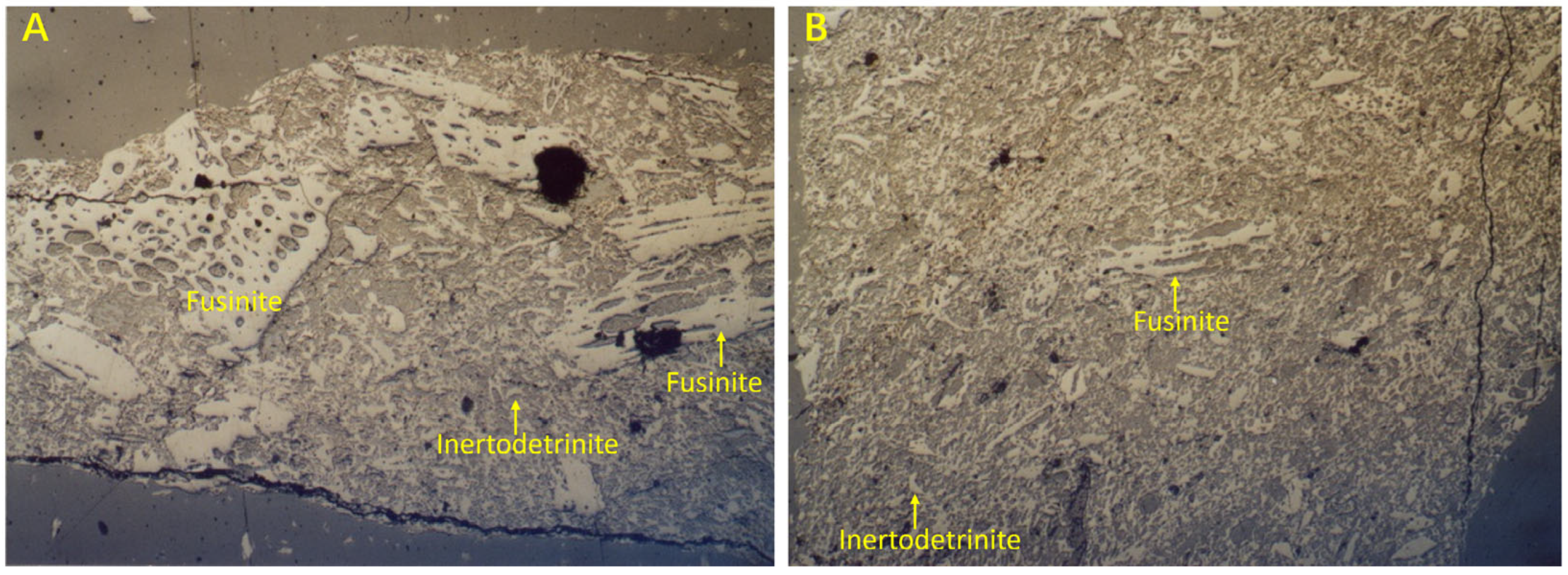

The average vitrinite reflectance of the Haerwusu No. 6 coal is 0.57%, similar to that of the Heidaigou coals and also indicating a high volatile bituminous coal according to the ASTM Standard D388-12 [121]. The Haerwusu coal exhibits a lower vitrinite content (34%) and is significantly enriched in inertinite (46%) [56] compared to those in the Heidaigou coals in the Jungar Coalfield. Semifusinite, inertodetrinite, and macrinite are the primary inertinite macerals (Figure 3), while collodetrinite, telinite, and collotelinite dominate the vitrinite component. The liptinite macerals, including sporinite, cutinite, resinite, suberinite, and liptodetrinite (in trace amounts), are present in both coals [53,56]. As with the No. 6 coal in the Heidaigou mine, the No. 6 coal in Haerwusu mainly contains boehmite and kaolinite (Figure 4B) and traces of pyrite (Figure 4B), with the first being the dominant mineral in the middle part of coal seam [56]. Boehmite was also derived from bauxite in the weathered surface (Benxi Formation) in the sediment-source region.

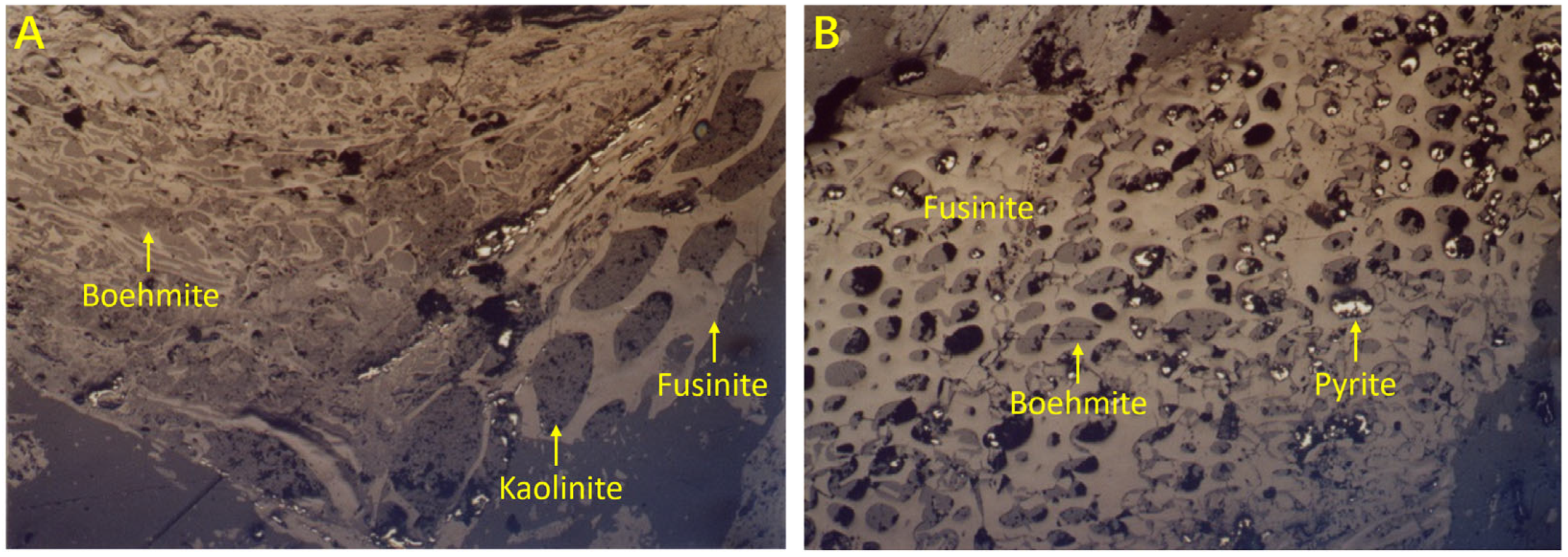

The No. 6 coal is rich in Al₂O₃ (8.89%), Li (116 µg/g), Ga (18 µg/g), Zr (268 µg/g), and REEs (172 µg/g); moreover, this coal is rich in toxic elements F (286 µg/g), Se (6.1 µg/g), Pb (30 µg/g), and Th (17 µg/g) [56]. Aluminum dominantly occurs in boehmite, and to a lesser extent, kaolinite. Statistical analysis, e.g., high correlation coefficients of the Li–ash, Li–Al₂O₃, and Li–SiO₂ pairs, indicate that Li mainly occurs in aluminosilicates in the No. 6 coal. Gallium mainly occurs in boehmite based on XRD and SEM-EDS analyses [58]. Based on sequential chemical extraction, the method that has successfully been applied to the investigations of modes of occurrence of elements in coal [124,129,130], an unusual occurrence is the presence of fluorine within the organic matter [56]. Typically, fluorine in coal, which has attracted much attention due to its toxicity to human health [8,10,131,132], is linked to silicates and, to a lesser extent, phosphates, carbonates, and fluorite [45,69,133]. Selenium and lead are primarily found in epigenetic clausthalite, appearing as fracture fillings, similar to those reported by several researchers [21,68,134,135,136]. As investigated by Dai et al. [56], the abundant REEs in No. 6 Coal are believed to have originated from bauxite of the Benxi Formation and from adjacent partings within the coal seam through groundwater leaching during the late stage of peat accumulation or the diagenetic stage. Relative to heavy REEs, light REEs are more susceptible to leaching from partings and subsequent incorporation into the organic matter, resulting in a higher LREE-to-HREE ratio in coal benches than in their corresponding overlying partings. A similar phenomenon has also been observed in the Late Permian coals in the Fusui Coalfield, Guangxi Province [72], and the Late Permian coals in the Huayingshan Coalfield, Sichuan Province [137], both in southern China. However, elevated concentrations of REEs in some coals or non-coal horizons in coal-bearing sequences were derived from volcanic ashes, which were subsequently subjected to hydrothermal solutions [138,139,140,141,142,143,144,145].

5.3. Critical Metals in the Coals from the Guanbanwusu Mine, Jungar Coalfield

The Guanbanwusu Mine is situated to the north of the Heidaigou Mine. The No. 6 Coal within the Guanbanwusu Mine exhibits a low rank (Rr = 0.56%), comparable to that found in the Heidaigou and Haerwusu Mines. Petrologically, the coal’s inertinite content (56.7%) surpasses its vitrinite content (31.0%) [55]. The coal’s mineral composition is predominantly represented by kaolinite, boehmite, and chlorite, with varying proportions of calcite, ankerite, siderite, and goyazite. Boehmite, goyazite, and a portion of the kaolinite originated from the bauxite present in the weathered surface of the erosional region, as evidenced by their modes of occurrence, which are similar to those found in the Heidaigou and Haerwusu coals [53,56]. Like many other coals [18,33,64,77,96,146,147,148,149,150], carbonate minerals, including ankerite, calcite, and siderite, in the Guanbanwusu coals are of authigenic origin, as evidenced by their mode of occurrence as fracture fillings.

Chlorite is not uncommon in coal and is usually found in a relatively high rank coals [32,57,133,138,151,152,153]. Chemically, the chlorite composition is unique in the Guanbanwusu coals because it has a composition between cookeite and chamosite [55]. The modes of occurrence of chlorite primarily occur as cell fillings, further suggesting an authigenic formation, likely formed from hydrothermal solutions [55]. However, chlorite has not been reported in the Haerwusu and Heidaigou coals [53,56].

When compared with other Chinese and worldwide hard coals, the Guanbanwusu coal is significantly enriched in Al₂O₃, P₂O₅, Li, Ga, and Sr, with respective concentrations of 9.34%, 0.126%, 175 µg/g, 13 µg/g, and 700 µg/g (whole coal basis) [55]. The notably lower SiO₂/Al₂O₃ ratio of 0.74 is a direct consequence of the higher abundances of boehmite and goyazite in the coal. Goyazite acts as the primary mineral hosting P₂O₅ and Sr. Lithium in this coal is primarily associated with chlorite (exhibiting similarities to cookeite), kaolinite, and potentially, to a lesser extent, illite. Some studies also showed that Li in coal mainly occurs in clay minerals, i.e., chlorite and kaolinite [25,32,42,52,57,64,67,103,108,109,112]. Gallium in the coal is predominantly concentrated within goyazite. Rare earth elements and yttrium (REY) exhibit a dual affinity, associating with both organic and inorganic components. They are primarily concentrated within goyazite-group minerals, with additional occurrences in boehmite and organic matter [55]. Most coal seams and partings exhibit either L-type or H-type REY enrichment patterns, directly attributable to the weathered bauxite source region or groundwater leaching, respectively. The abundance of Al₂O₃, Ga, REY, and potentially Li in the Guanbanwusu coals, mirroring those found in the Jungar and Daqingshan Coalfields, signifies their potential as industrially valuable metals that are recoverable from coal combustion residues.

5.4. Critical Metals in the Coals from the Laosangou Mine, Jungar Coalfield

The Laosangou Mine is located to the west of the Heidaigou, Haerwusu, and Guanbanwusu Mines of the Jungar Coalfield. Highly enriched Al, Ga, Li, and REEs in the coals from the Laosangou Mine was recently reported by [98]. The coals in the Taiyuan and Shanxi formations in the Laosangou area exhibit a notable co-enrichment of Al-Li-Ga and Nb-Ta-Zr-Hf assemblages [98]. Notably, Li, Ga, and Zr concentrations throughout the coal seam as well as Nb and Ta concentrations in specific sections of the main recoverable No. 6 coal seam reach levels suitable for industrial utilization. This highlights their significant metallogenic potential and economic value. The average ash-based content of Al₂O₃ in the coal is 48.7%, significantly exceeding the industrial recovery standard of 40% for Al₂O₃, as proposed by [55]. The average ash-based content of Li₂O in the entire No. 6 coal seam is 0.13%, surpassing the cut-off grade of 0.08% for Li recovery from coal, as proposed by Zhao et al. [107]. Moreover, the ash-based content range of Li₂O in the lower volcanic ash tuff section of the No. 6 coal seam, approximately 5 m thick (583–588 cm), is 0.24–0.33%, with an average of 0.28% [98], exceeding the industrial recovery standard of 0.2% for associated lithium oxide (Li₂O) specified in the “Geological Exploration Code for Rare Metal Minerals”. The average ash-based content of Ga in the entire No. 6 coal seam is 139 µg/g, and that of ZrO₂ is 2041 µg/g [98], both meeting their respective industrial recovery standards. In some specific layers of the No. 6 coal seam, the ash-based content of Nb₂O₅ reaches 315 µg/g, meeting its industrial recovery standard. The carrier minerals for aluminum are boehmite and kaolinite. Lithium is hosted in kaolinite and chlorite in the coal, while kaolinite and boehmite are the major carriers of gallium in the coal of the study area.

The enrichment of Al, Ga, and Li in the coal-bearing Taiyuan and Shanxi formations is a product of complex geological processes [98]. Initially, the weathering and denudation of Mesoproterozoic moyite in the Yinshan Oldland provided a primary source for Al, Ga, and Li. Terrigenous detritus originating from this source was initially enriched in the weathering crust of the Upper Carboniferous Benxi Formation, situated in the northeastern part of the basin, serving as a direct material source for Al, Ga, and Li enrichment in the coal-bearing sequences. Subsequently, fluid activity and water/rock interactions played a pivotal role. Al, Ga, and Li migrated alongside groundwater, eventually being deposited and enriched within the coal-bearing sequence. Finally, the introduction of Li, Ga, Nb, and Ta-rich intermediate-felsic alkaline volcanic ash, in conjunction with the migration of hydrothermal fluids, led to secondary enrichment of these elements in the studied coals during the coalification process [98].

5.5. Critical Metals in the Coals from the Adaohai Mine, Daqingshan Coalfield

The CP2 coal seam, the primary target for mining at the Adaohai Mine in the Daqingshan Coalfield of Inner Mongolia, exhibits a higher rank (Ro = 1.58%) than those in the same coals in neighboring mines in the Daqingshan Coalfield [84,95,97]. This elevated rank is a result of igneous intrusions that occurred during the late Jurassic to early Cretaceous ages. Elevated coal ranks caused by igneous intrusions have also been reported in a number of other areas around the world [75,78,154,155], but it seems that concentrations of critical elements in these hydrothermally altered coals were not highly enough to be recovered [113,156,157]. The CP2 coal contains a higher inertinite content, i.e., 35.3%. Compared with the common Chinese and world coals, the CP2 coal is enriched in Al₂O₃ (10.75%, whole coal basis), Ga (16.3 µg/g), and Zr (446 µg/g) and has a lower SiO₂/Al₂O₃ ratio (0.93) due to the higher proportions of diaspore, boehmite, and gorceixite in the coal [97]. The average ash yield of the coal seam is 25.1%. The average concentration of Al₂O₃ and Ga in the coal ash is 42.8% and 65 µg/g, respectively, reaching their cut-off grade (40% and 50 µg/g, respectively). The major hosts of Ga are diaspore and kaolinite. The coals exhibit an enrichment in light rare earth elements (LREEs) and a significant fractionation of LREEs and HREEs, with an average (La/Yb)_N value of 8.71. Heavy REEs in the coals demonstrate a stronger organic affinity compared to LREEs. The mineral assemblage of the CP2 coal includes hydrodioxides (e.g., boehmite and diaspore), phosphate minerals (e.g., gorceixite), carbonate minerals (e.g., dolomite, calcite, and siderite), and clay minerals (e.g., kaolinite and ammonian-illite) [96,111,112]. The hydrodioxides and phosphate minerals as mentioned above originated from oxidized bauxite in the erosional areas during peat deposition. In contrast to diaspore, which originated from gibbsite dehydrated by the heat of igneous intrusions, gorceixite may have formed at an earlier stage [158,159,160]. Ammonian illite likely formed at a relatively high temperature through the interaction of kaolinite with N released from the organic matter of the coal during the metamorphism induced by the igneous intrusion [82,96,161]. Calcite and dolomite, occurring as epigenetic cell and fracture fillings, probably derived from igneous fluids [96].

The Adaohai Mine is situated approximately 50 km southwest of the intrusion. The Datanhao Mine is located between the Hailiushu and Adaohai Mines; the latter two mines are separated by a distance of about 10 km [82]. As proximity to the intrusion increases, so does vitrinite reflectance (from 0.84% to 1.17% to 1.58%), but volatile matter yield decreases (from 44.57% to 31.31% to 19.60%) in the three coal mines mentioned above [83,84,95,97]. The coals in the Hailiushu mine, which is located at the westernmost area of the coalfield, exhibits the most negative δ¹³C values for organic matter (from −24.8‰ to −23.5‰, mean of −24.3‰). Conversely, as distance from the intrusion diminishes, the carbon isotope values of the organic matter of coals from the Datanhao Mine vary from −24.8‰ to −23.5‰ (mean of −24.2‰). The easternmost Adaohai coals in the Daqingshan Coalfield display δ¹³C values of organic matter between −23.8‰ and −22.8‰ (mean of −23.3‰), approximately 1‰ more positive than those found in the coals from the Datanhao and Hailiushu Mines. The variation in δ¹³C values of organic matter is not solely attributed to macerals but also to the loss of volatiles that are rich in ¹²C, resulting from the heat generated by the igneous intrusions in the coalfield. As previously reported by other researchers [6,162,163,164,165], the δ¹³C variation of organic matter in coal is caused by several reasons, such as coal-forming plants, sedimentary environments, paleoclimate, and rank advance.

The hypothesis proposed by Dai et al. [97], i.e., the coal was subjected to igneous intrusion, was corroborated by Rock-Eval analysis of the organic matter [96], which revealed an increase in the average Tmax value in the order of Hailiushu, Datanhao, and Adaohai coals. Additionally, fracture-filling and/or cleat-filling carbonate minerals were more commonly prevalent in the coals of Adaohai than those of the Datanhao Mine. The δ¹³C_PDB values (ranging from −14.2‰ to −1.7‰) and δ¹⁸O_PDB (ranging from −16.9‰ to −7.0‰) of these veined carbonate minerals collectively suggest a precipitation of hydrothermal solutions [96], which originated from the igneous intrusion and were implied by the high ⁸⁷Sr/⁸⁶Sr values (varying from 0.711392 to 0.717643) of carbonates within the hydrothermal solution-affected coals [96]. ⁸⁷Sr/⁸⁶Sr values have also been successfully used as indicators for depositional environments [47,166] and sources of critical element Ge in coal [47].

6. Benefits of Recovery of Critical Metals from Coal Combustion By-Products

The ensured coal reserves in the Jungar Coalfield are estimated at 58.2 billion tons. High-aluminum coal reserves, accounting for 26.7 billion tons, are recoverable from this region, with an annual mining capacity of approximately 100 million tons. Consequently, the annual coal combustion byproduct from this mining activity is estimated at 2 million tons. Therefore, extracting critical elements from the Jungar coal ash offers a number of important advantages. First, it can ensure a possible stable supply of critical elements of Al, Ga, Li, rare earth elements, and possibly Zr and Nb, bolstering national security and economic development. Second, it may mitigate the challenges associated with developing new conventional metalliferous mines by utilizing an existing coal combustion byproduct that is highly rich in these critical metals [167], thereby significantly reducing infrastructure and mining costs. Third, the energy-intensive grinding process is bypassed, as fly ash is already finely particulate. Forth, traditional coal mining and utilization’s environmental consequences, including dust emissions and the risk of slurry impoundment breaches, could be minimized. For example, the leaching of toxic elements (e.g., F, Pb, Hg, and As) from fly ash into ground water, a common issue with tailings [168,169], could be prevented. Finally, the financial and environmental burdens of coal combustion product disposal are alleviated through the co-recovery of several critical elements. These economic and environmental benefits make Jungar and possibly Daqingshan coals and their coal combustion byproducts an attractive source of critical elements, particularly for China, a country with substantial coal consumption [170].

7. Conclusions

Overall, compared with conventional critical metal deposits, coal-hosted Al-Ga-Li-REE deposits have the following characteristics: (1) they were discovered, explored, and developed relatively late, belonging to a new type of critical metal deposit; (2) these deposits have huge resources/reserves, often forming large or super-large critical metal deposits; (3) these deposits are characterized by the co-enrichment of multiple metals, providing conditions for the co-recovery of various metals; (4) the stratigraphic position of these deposits is stable in both thickness and space, and the coal structure is relatively simple, making exploration and development relatively easy and cost-effective.

To better develop and utilize these deposits, the following work should be emphasized and carried out in the future: (1) Work should focus on the joint exploration and development of coal resources and critical metal resources to reduce the cost of exploration and development of coal-hosted critical metals and shorten the exploration and development cycle. (2) Since REEs are highly enriched in these deposits but have not been developed and utilized, in addition to gallium, aluminum, and lithium, the development and utilization of REEs in coal and fly ash should also be strengthened to improve resource utilization efficiency and reduce the cost of critical metal development. (3) Toxic elements such as fluorine and lead are enriched in these deposits, and their harm to the environment and health should be considered during the extraction and development of critical metals, particularly their concentrations, modes of occurrence, and migration during critical metal extraction from coal ashes. A high-efficiency technology for controlling their adverse effects on environments should be developed. (4) Further research should be conducted on the mineralization theory of critical elements in order to provide basic data on coal geochemistry and coal mineralogy for regional geological evolution but also provide references and directions for the search and development of similar ore deposits in other areas.
