Chemical Environment of Unusually Ge- and Pb-Rich Willemite, Tres Marias Mine, Mexico

Abstract

The Tres Marias carbonate-hosted Zn-Ge deposit in Chihuahua, Mexico contains willemite [Zn₂SiO₄] with unusually high concentrations of minor and trace elements (e.g., Pb, Ge, As, P, V); Pb concentrations are as high as 2 wt %, and Ge may reach 4000 ppm (average 900 ppm). Electron microprobe analyses and synchrotron X-ray fluorescence maps show that Zn and Ge, as well as Zn and Pb are negatively correlated, whereas Ge and Pb are positively correlated across zoned willemite crystals. In cathodoluminescence (CL) images, those areas of willemite having high trace element concentrations have no, or low CL intensities, whereas zones low in trace elements (except for P) display bright blue CL colors. X-ray absorption fine structure (XAFS) spectroscopy was used to characterize the chemical nature of Ge and Pb in willemite. Comparisons to reference spectra of natural and artificial substances points to the presence of Ge⁴⁺ and Pb²⁺ in Tres Marias willemite. No evidence for Pb⁴⁺ was detected. Oscillatory zonation reflects trace element incorporation into willemite from the oxidation of primary Ge-bearing sphalerite and galena (PbS) by siliceous aqueous fluids.

1. Introduction

Germanium (Ge) is a high technology metal in great demand for use in the manufacture of optics and sensors, computer chips, solar cells, and as a catalyst in plastics manufacturing. Most Ge is recovered as a byproduct from processing zinc sulfide ore, or from combustion products of Ge-bearing lignites [1,2,3]. Investigating the chemical behavior of trace elements in willemite is of interest not only because of its use as an ore of non-sulfide zinc [4] but also for understanding chemical substitution mechanisms, and the controls on its luminescence and other electronic properties [5,6].

While the geochemistry of germanium has been reviewed [7,8], very few detailed chemical data on Ge in willemite, and in related minerals such as hemimorphite, are available in the literature. Willemite from Franklin, N.J. and New Mexico contains up to 350 ppm Ge [9]. Willemite in the Tsumeb deposit contains up to 1280 ppm Ge [10]. Zinc silicates in concentrate leach residues that are stoichiometrically equivalent to willemite contain 800 to 1500 ppm Ge and from 4000 to 8100 ppm Pb [11]. Ore from the Beltana deposit in the Flinders Range of Australia contains up to 50 ppm Ge in willemite, and a range of 0.4–2.5 wt % Pb [12]. Willemite from the Bou Arhous deposit [13] in Morocco contains over 1000 ppm Ge [14].

The substitution of Pb for Zn raises the interrelated questions of the oxidation state, ionic radius, and substitution mechanism of Pb in the crystal structure. Tetravalent, tetrahedrally coordinated lead, ^IVPb⁴⁺, has an ionic radius of 0.65 Å, similar to 0.60 Å for ^IVZn²⁺ [15]. In this case, Pb would exist in a sp³ hybridized form, and following arguments concerning Fe [16] and Mn [17] substitution into willemite, it might preferentially enter the slightly larger Zn(2) position. Charge balance, perhaps in the form of vacancies, would also be required. If the Pb exists as the much larger Pb²⁺, with radius 1.19–1.49 Å, its s2 lone-electron pairs would likely lead to strong distortion of the site.

The present work provides the first X-ray absorption fine structure (XAFS) studies of the oxidation state of Ge and Pb in willemite which is naturally highly enriched in these elements. Understanding the oxidation state of these elements in the willemite structure is critical for understanding trace element substitution mechanisms for geochemical and technological applications.

2. Analytical Methods

Quantitative wavelength dispersive analyses of minerals were performed at the German Federal Institute for Geosciences and Natural Resources (BGR), Hanover, on polished thin sections using a CAMECA SX100 electron microprobe (CAMECA, Gennevilliers, France). For the analyses of willemite, the following lines were measured at 30 kV using the listed minerals as standards, for the number of seconds listed, and with average detection-limits given in ppm: Fe Kα, magnetite, 10 s, 300 ppm; Ca Kα DICR (chromian diopside) 10 s, 210 ppm; Mn Kα, rhodochrosite, 10 s, 300 ppm; Cu Kα, Cu°, 10 s, 370 ppm; Zn Kα, willemite, 10 s, 600 ppm; Si Kα, willemite, 10 s, 270 ppm; Al Kα, plagioclase, 10 s, 280 ppm; S Kα pentlandite, 10 s, 180 ppm; P Kα, apatite, 10 s, 360 ppm; V Kα, V°, 10 s, 300 ppm; As Lα, GaAs, 70 s, 480 ppm; Pb Mα, galena, 30 s, 620 ppm; Ga Kα, GaAs, 80 s, 200 ppm; Ge Kα, Ge°, 90 s, 230 ppm; Cd Lα, Cd°, 80 s, 400 ppm; Mo Lα, Mo°, 40 s, 260 ppm; Mg Kα, kaersutite, 10 s, 380 ppm; Ti Kα, kaersutite, 10 s, 100 ppm; K Kα, biotite, 10 s, 200 ppm; Cl Kα, tugtupite, 20 s, 100 ppm. The Pb Mα and the Ge Kα lines were also used to produce X-ray fluorescence maps. A defocused beam was used to analyze hemimorphite. Detection-limits for the hemimorphite and carbonate mineral analyses are provided in the tables.

Powder X-ray diffraction analysis was carried out at the BGR. Whole-rock chemical analyses were carried out at the BGR using X-ray fluorescence (XRF) on a Philips PW-2400 (Cr and Rh targets) (Philips, Amsterdam, The Netherlands), and with LECO methods (LECO, St. Joseph, MO, USA). Additional whole-rock analyses were carried out by Activation Laboratories of Canada using instrumental neutron activation analysis (INAA), and inductively coupled plasma-mass spectrometry (ICP-MS) following total digestion.

XAFS spectroscopy was carried out at the Synchrotron Umwelt-Labor X-ray SUL-X beamline of ANKA with a wiggler as synchrotron radiation source on the X-ray absorption near-edge spectroscopy XANES part of the Pb L₃ edge (Pb L₃ edge at ≈ 13.035 keV) and Ge K edge (≈11.103 keV) absorption spectra [18]. In both cases, Si(111) crystals were used as a monochromator. The prefocused beam was subsequently focused with a Kirkpatrick–Baez mirror system to the sample position. Spot sizes at the sample position were adjusted to about 20 µm (vert.) × 30 µm (hor.) for the Ge K-edge and to about 40 µm (vert.) × 70 µm (hor.) for the Pb L₃-edge spectra by collimating the beam with slits at the intermediate focus. When measuring the Pb L₃ edge XANES, the Ge Kα fluorescence emission is excited. The difference between the Pb Lα and the Ge Kα emission lines is about 600 eV. Effective energy resolution was adequate to distinguish these lines, even at higher count rates and shorter detector peaking times. In order to select suitable positions for the XAFS measurements, a mapping of fluorescence intensities of the emission lines for Pb (Pb Lα, about 10.5 keV) and Ge (Kα, about 9.9 keV) was carried out. Ore samples were prepared as thin or polished sections, and Kirkpatrick–Baez mirrors allowed final focusing of beam sizes sufficient to select different parts of the zoned crystals. Because of low element concentrations (Ge < 1 wt %; Pb about 2 wt %), the XAFS measurements of the samples were performed in fluorescence mode using a seven-element Si(Li) solid state detector (SGX Sensortech, formerly Gresham Scientific Instruments Ltd., Corcelles-Cormondreche, Switzerland).

Ge K-edge XAFS measurements suffer from the overlap of the Ge K_α emission (≈9.9 keV) with the strong Zn K_β emission at about 9.57 keV (high Zn content of the minerals). To overcome this drawback, separation of the emission peaks and improvement of the signal to noise ratio could be achieved by choosing a long peaking time at a large sample to detector distance which reduces the total count rates that are dominated by Zn K_β emission.

Reference materials containing the following Pb silicates (identification number) were acquired from the Smithsonian Institution, Washington, D.C. and measured: margarosanite [PbCa₂Si₃O₉] (R18305), esperite [PbCa₂(ZnSiO₄)₃] (C6175), and larsenite [PbZnSiO₄] (C6174). Crystallites were separated under binocular microscope. Samples were mounted in two ways. First, approximately 10 to 18 mg of material was mixed with 100 mg cellulose and pressed into a 13 mm diameter pellet. Pb L₃ XANES spectra were measured in transmission and fluorescence mode. A second mounting method was to place pulverized material on Kapton tape. X-ray diffraction (XRD) and XRF measurements were carried out on a number of crystallites to assure their identity. Reference compounds for Ge were GeO₂, GeS₂, briartite [Cu₂(Fe,Zn)GeS₄] and argyrodite [Ag₈GeS₆]. Transmission data were preferred because fluorescence data suffer from self absorption effects.

Energies were calibrated for the Pb L₃ spectra to 13.035 eV (maximum of 1st derivative of the spectrum) with a foil of elemental Pb, and for the Ge K-edge at the Pt L3 edge to 11.564 eV (maximum of 1st derivative of the spectrum) at a Pt foil.

Because of the thickness of the samples, measurements for energy calibration could not be performed parallel to sample measurements. Energy calibration was checked and corrected before and after a series of XANES/extended x-ray absorption fine-structure spectroscopy (EXAFS) scans.

Two to four scans were measured on three sample spots at the Pb L₃ edge, four scans at three samples’ positions for the Ge K edge spectra of willemite and Ge containing sphalerite each. For the reference spectra, one to two scans were sufficient for collecting data with a good signal to noise ratio. At the Pb L₃ edge, only XANES spectra were recorded. At the Ge K-edge, EXAFS data up to k 13 are still noisy for the Ge measurements of willemite, and Fourier transformation is limited to k < 10.

XAFS data were pre-edge and post-edge background corrected using a linear and a polynomial function, respectively, and were normalized to an edge jump of one using the ATHENA program of the IFFEFIT software package [19]. In addition, the EXAFS functions and Fourier transforms have been extracted and calculated with the ATHENA program. EXAFS data have only been evaluated on a comparative basis and no fits have been performed.

3. Sample Descriptions

Samples were collected from the Tres Marias ore body which occurs in a solution collapse breccia in Cretaceous age carbonate rocks [20]. In the deposit itself, two major ore types exist: a type consisting primarily of zinc and lead sulfides, and a type referred to as “oxidized ore”, i.e., nonsulfide ore, consisting of Zn-silicates, carbonates plus oxide minerals.

The willemite reported here is from two samples, TM06-15 and TM06-18, taken from mine level 6 and 6.5, respectively. Whole rock chemical analyses show these samples contain significant zinc, lead, and germanium, with subordinate Cd, As, and related elements (

Table 1. Whole rock chemical analyses of samples TM06-15 and TM06-18 from the Tres Marias Mine.

Analyte	TM06-15	TM06-18	Method 1	Analyte	TM06-15	TM06-18	Method 1
	wt %	wt %			ppm	ppm
SiO2	16.03	28.68	1	Ag	0.8	6.8	6
TiO2	0.004	0.044	1	As	1200	685	7
Al2O3	0.07	16.97	1	Au	<2	<2	7
Fe2O3	6.9	21.16	1	Ba	219	13	1
MnO	0.007	0.007	1	Bi	<12	6	1
MgO	0.03	0.15	1	Cd	179	80.4	5
CaO	4.03	0.34	1	Ce	<3	18	7
Na2O	<0.01	<0.01	1	Cr	<8	137	1
K2O	0.01	0.26	1	Cs	<1	7	7
P2O5	0.028	0.137	1	Cu	32	19	5
(SO3)	4.22	0.95	5	Ga	5	58	6
(F)	<0.10	<0.10	1	Ge	1070	304	6
LOI	3.2	14.7	3	Ge	1248	344	1
Pb	21.4	0.728	4	In	0.2	6.5	6
Zn	33.5	12.4	1	Mo	44	99	7
C org	0.23	0.30	2	Nb	20	<5	1
C total	2.03	0.70	2	Ni	6	<5	1
CO2	8.99	2.00	diff	Sb	28	22	1
Sum	98.75	98.84		Sc	<2	5	1
				Sr	252	478	1
				V	438	168	6
				W	<30	<18	1
				Zr	<9	14	1

¹: Analytical Methods: diff = by difference; 1: BGR-XRF; 2: BGR-LECO; 3: BGR-LOI; 4: Actlabs-ICP-OES; 5: Actlabs-TD-ICP; 6: Actlabs-FUS-MS; 7: Actlabs-INAA.

).

In hand sample, ore sample TM06-15 is porous, dense and cryptocrystalline. Powder X-ray diffraction analysis identified willemite, smithsonite, calcite, hemimorphite, quartz, and cerussite. Willemite occurs as fine-grained matrix material, and as well-crystallized white to tan vein fillings containing crystals up to approximately 1 mm across.

In polished section, willemite crystals in sample TM06-15 are transparent with high pink to blue interference colors (Figure 1). In some cases, distinct zoning is apparent in transmitted light. Similarly, using backscattered electron (BSE) imaging, lighter and darker areas indicate either oscillatory or irregular zoning. The brightness of these areas corresponds to measured variation in mean atomic weight.

The occurrence of willemite in sample TM06-18 differs markedly from that in TM06-15. In hand sample, the clay-like material is red-brown colored and friable. XRD analysis indicated the presence of an amorphous phase, plus goethite, hematite, quartz and halloysite. SEM and electron microprobe analyses show that much of the sample consists of blades of hemimorphite crystals with lengths up to approximately 100 µm, which surround willemite crystallites of 20–30 µm size (Figure 2). Thin rims of smithsonite surround hemimorphite and porous smithsonite. Cerussite and rare descloizite were also observed based on electron microprobe analysis.

4. Results

4.1. X-Ray Mapping and Microprobe Analyses

X-ray mapping (Figure 3) shows a distinct coincidence of high Pb and Ge in zoned crystals (and vice versa). Quantitative electron microprobe analyses were made along two profiles in single willemite crystals from sample TM06-15 (Figure 4 and Figure 5; Table S1). The width of the growth zones varies from a few to approximately 50 µm.

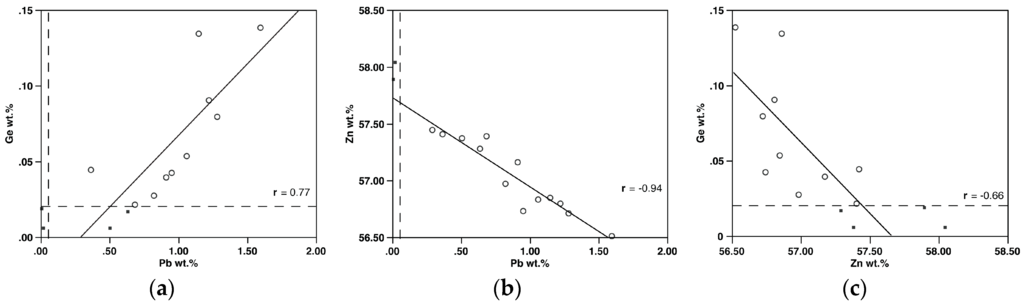

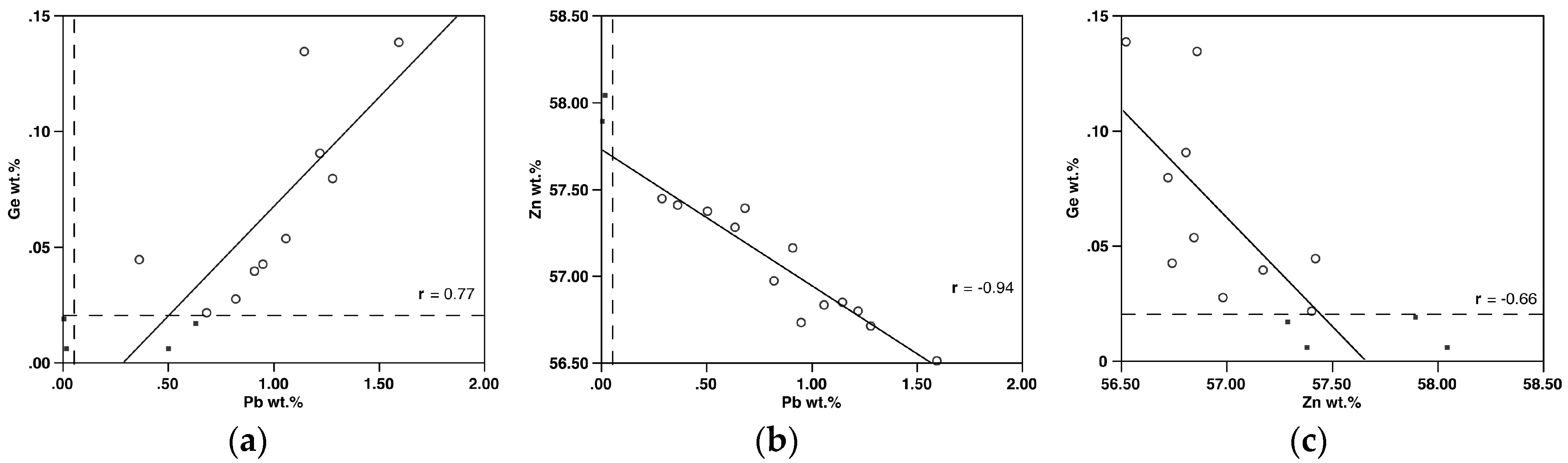

Results of electron microprobe analyses show the following trends (Figure 6):

(a)

Pb and Ge are positively correlated (r = 0.77). The Pb and Ge concentrations range from below the detection limits to over 1.5 wt % and 1400 ppm, respectively. Concentrations of both elements increase from core to rim, overprinting tandem oscillations between extreme values.

(b)

Pb and Zn are negatively correlated, with a slope near −1.0 (r = −0.94). The slope of this line is similar if data are plotted in wt % or in formula units.

(c)

Zn and Ge are also negatively correlated (r = −0.66).

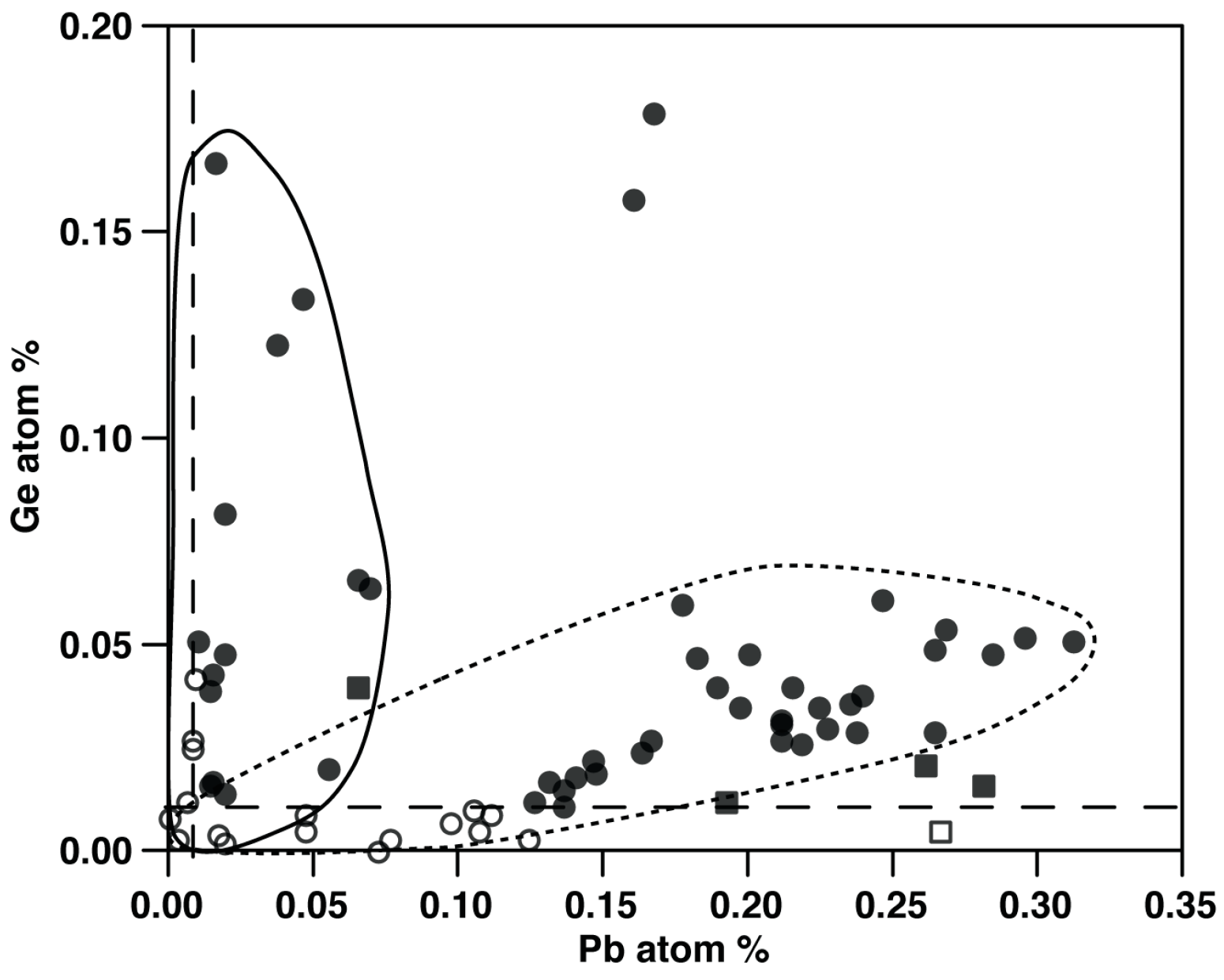

In addition to analyses of the zoned crystals, analyses of fine-grained matrix willemite were conducted. When compositions from both samples are plotted in terms of atom % (Figure 7), two main trends become apparent: a low Ge-high Pb trend and a high Ge-low Pb trend. Two measurements with high Ge and intermediate Pb contents lie outside the main trends, and analyses from sample TM06-18 lie below the low Ge-high Pb trend. Concentrations of P, V, Fe and As were sporadically detected and may reach up to 1 wt % P₂O₅, As₂O₃ and FeO, and 0.15 wt % As₂O₃.

Hemimorphite in sample TM06-18 was studied for its trace element content, but no Ge was detected, even in cases where the hemimorphite is in contact with willemite crystals containing 900 ppm Ge. Of the trace elements measured, only Fe was above the detection limit, with an average concentration of 400 ppm. Smithsonite and cerussite in sample TM06-18 were also analyzed, and found to contain Ge at below detection limits. Cerussite contains between 0.6 and 5.8 wt % Zn, whereas smithsonite contains an average of 440 ppm Pb, 0.39 wt % Fe, 0.18 wt % Mg, and 0.18 wt % Ca. Cadmium content was below the limit of detection.

4.2. XAFS and XANES Analyses

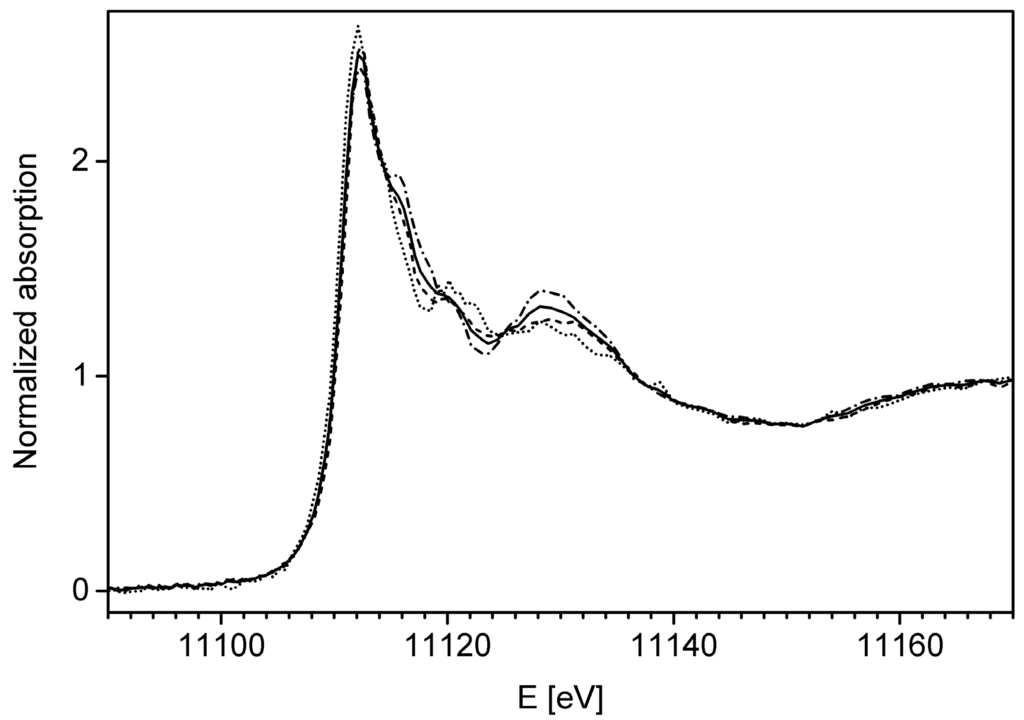

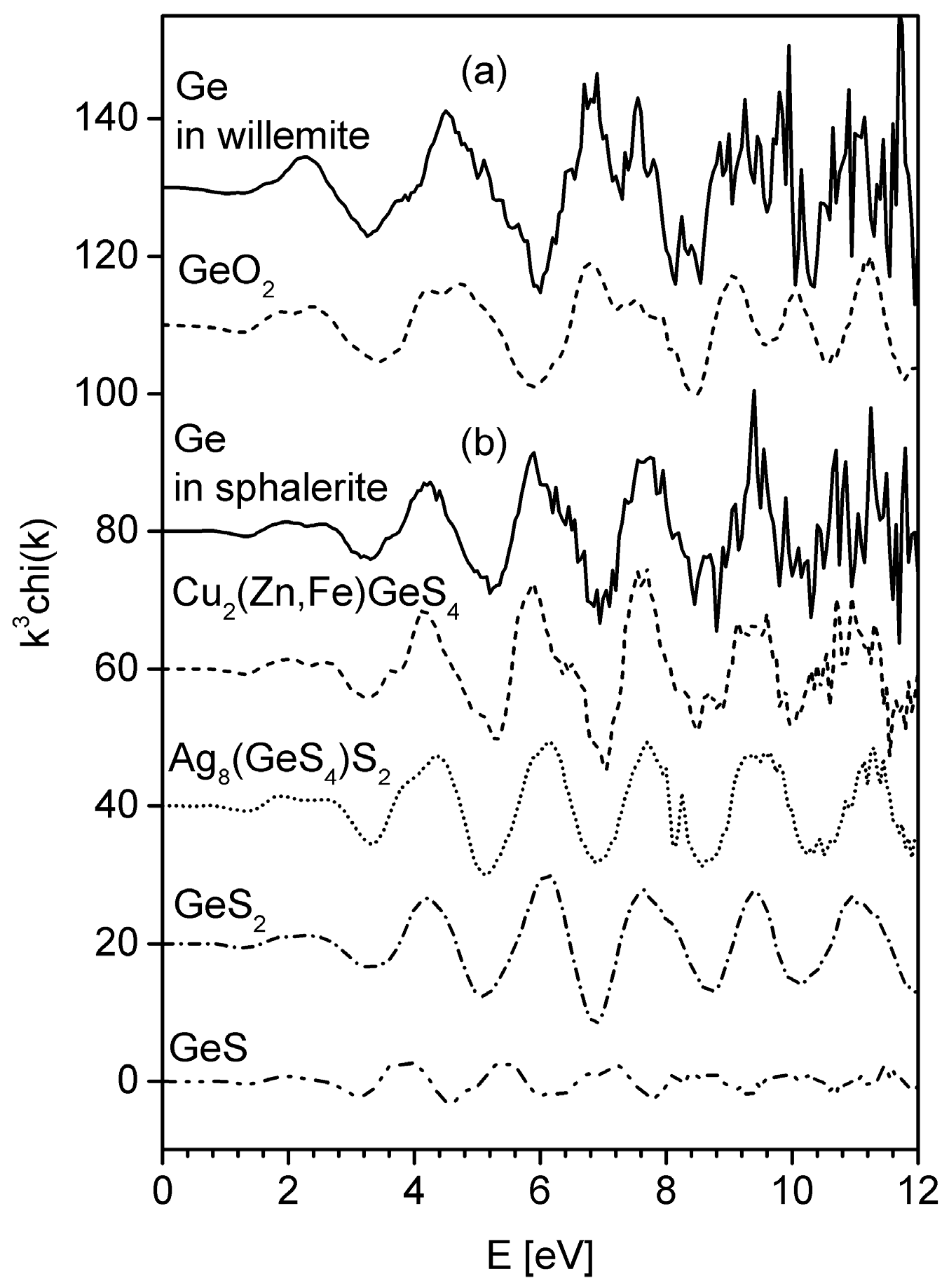

Ge K XANES spectra measured at three different positions of the willemite part of the sample differ in their shape (Figure A1) due to crystal orientation effects on the polarized synchrotron beam. For further discussion, the averaged spectrum will be used, and is designated as the Ge K XANES/EXAFS spectrum of willemite.

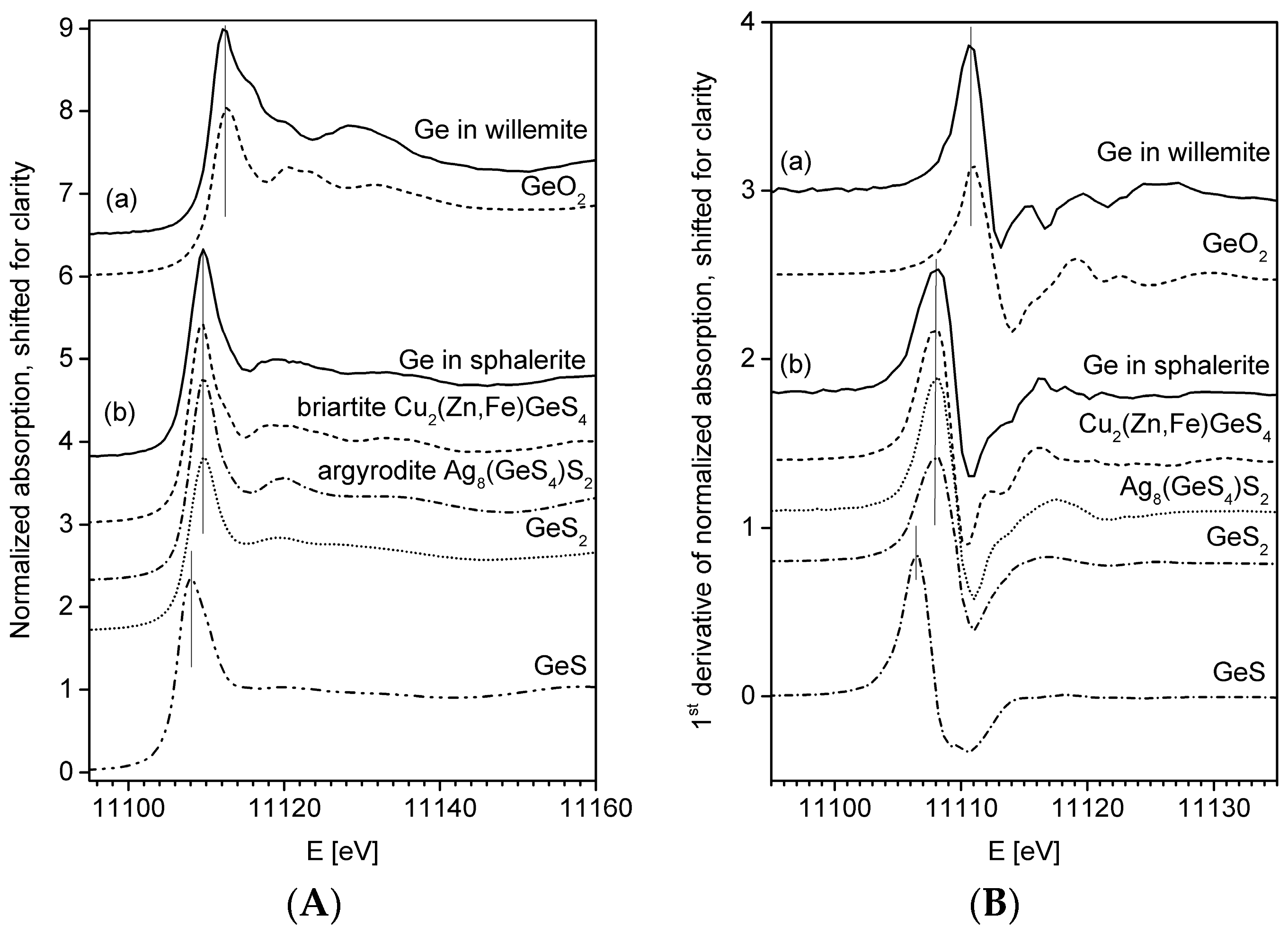

The positions of the white line and of the maximum of the first derivative of the Ge K XANES spectrum of the willemite is very close to the one of a GeO₂ reference spectrum, whereas the positions of Ge in sulfidic environment are located at about 2.7 eV lower energies (Figure 8).

The reference GeO₂ has low quartz structure where Ge is coordinated by four oxygens in distances of 1.734 Å ([21], recalculated from Inorganic Crystal Structure Database (ICSD) No. 59624) in contrast to the six-fold oxygen coordination of GeO₂ with rutile structure with four Ge-O distances of 1.872 Å and two of 1.902 Å ([22], recalculated from ICSD No. 9162). With an estimated phase shift of 0.44 Å, the Ge-O distance of Ge in willemite from the EXAFS Fourier Transform results to about 1.73 Å and, hence, is very close to the Ge-O distance in GeO₂ with low quartz structure (Figure 9).

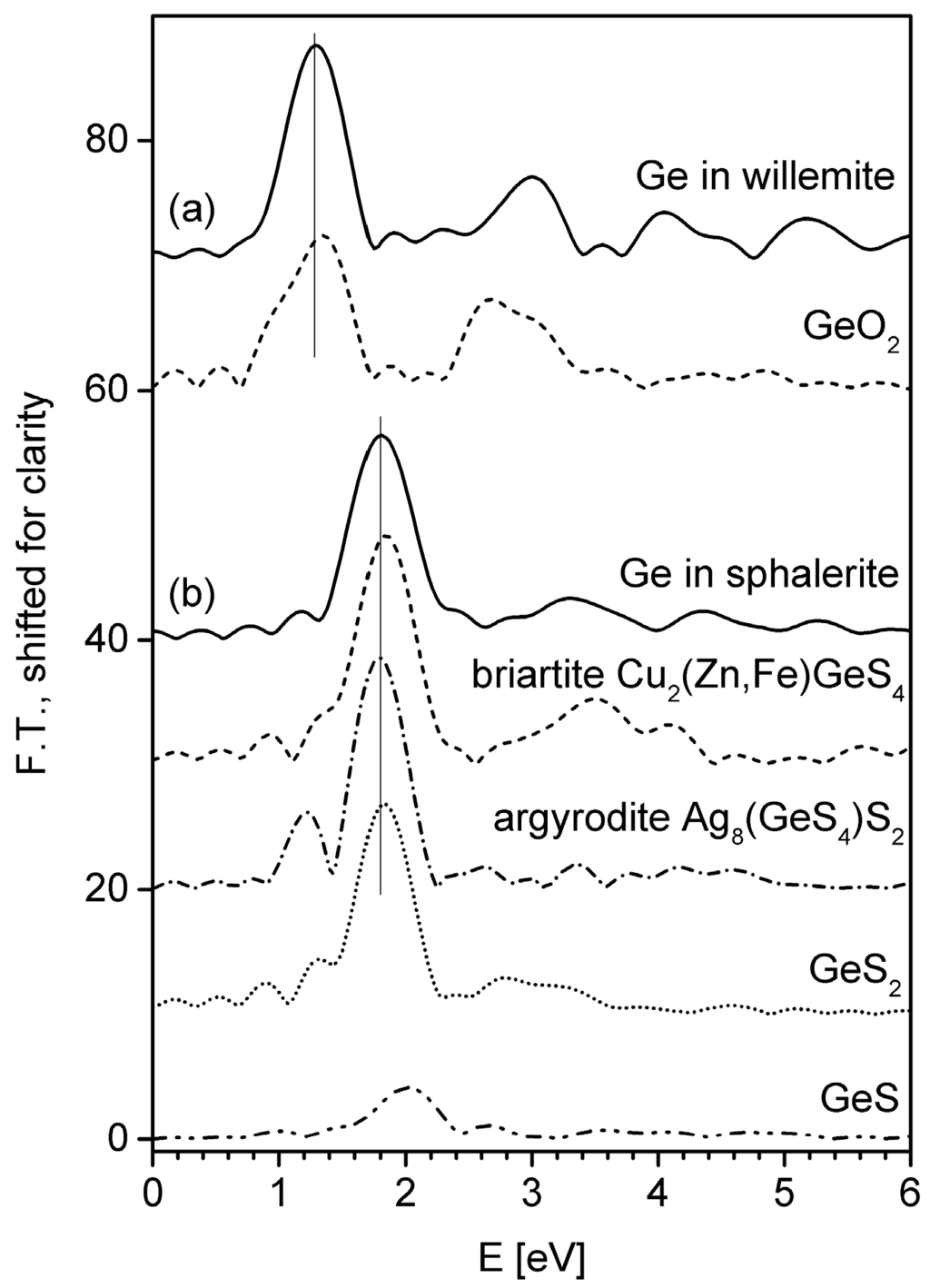

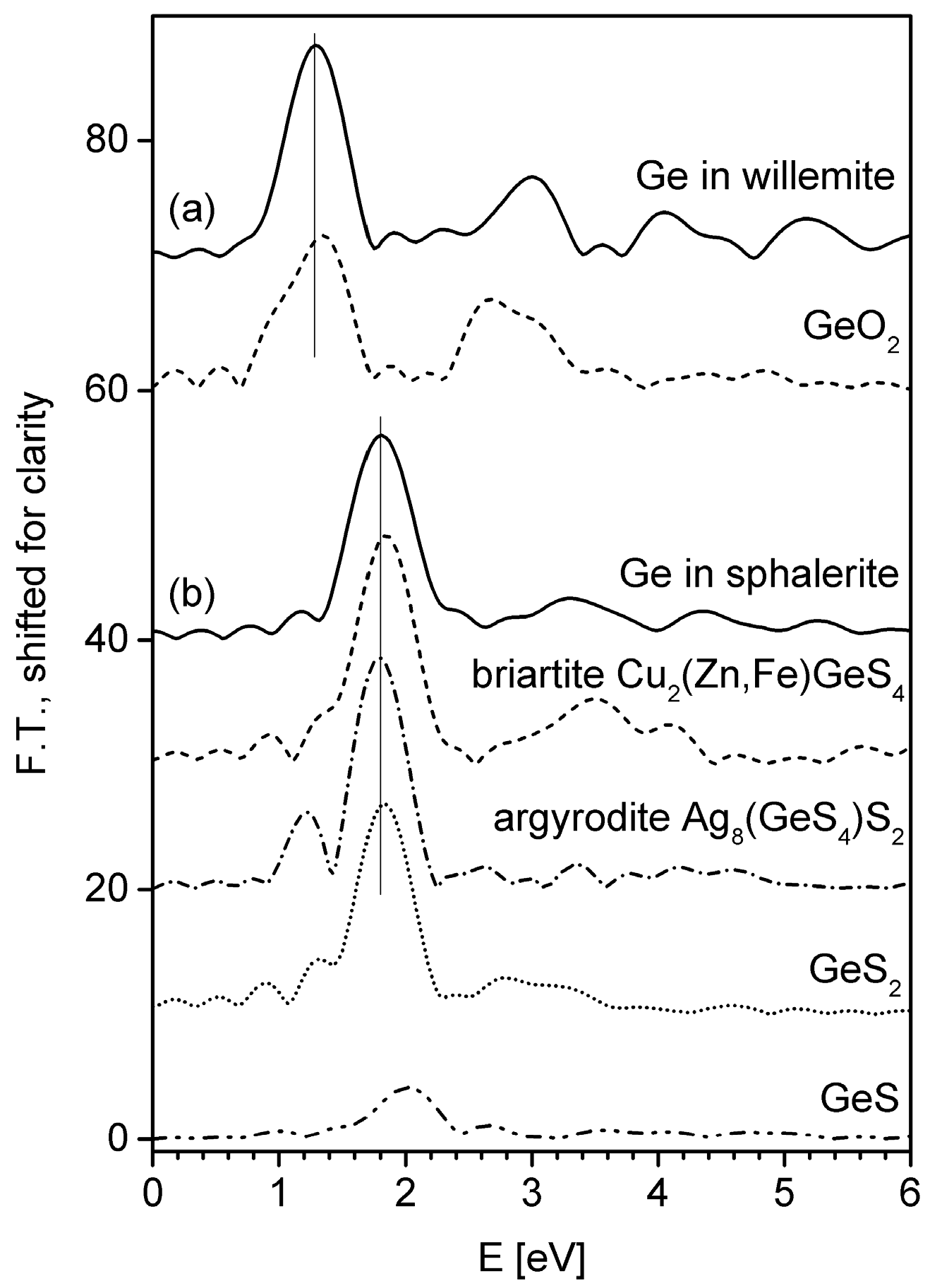

Ge-S distances in Ge-containing sphalerite are similar to the Ge-S distances in briartite, argyrodite, and GeS₂ (Figure 9). Ge is also four-fold coordinated in these structures. Average Ge-S distances calculated from several ICSD entries are for briartite 2.24 Å ([23], ICSD No. 627304; [24] ICSD No. 47165; [25] ICSD No. 627306), for argyrodite 2.2 Å ([26]; ICSD No. 100079), and for GeS₂ 2.21 Å ([27] ICSD No. 31685; [28] ICSD No. 16951). With an estimated phase shift of 0.39 Å the Ge-S distance of Ge in sphalerite is about 2.2 Å.

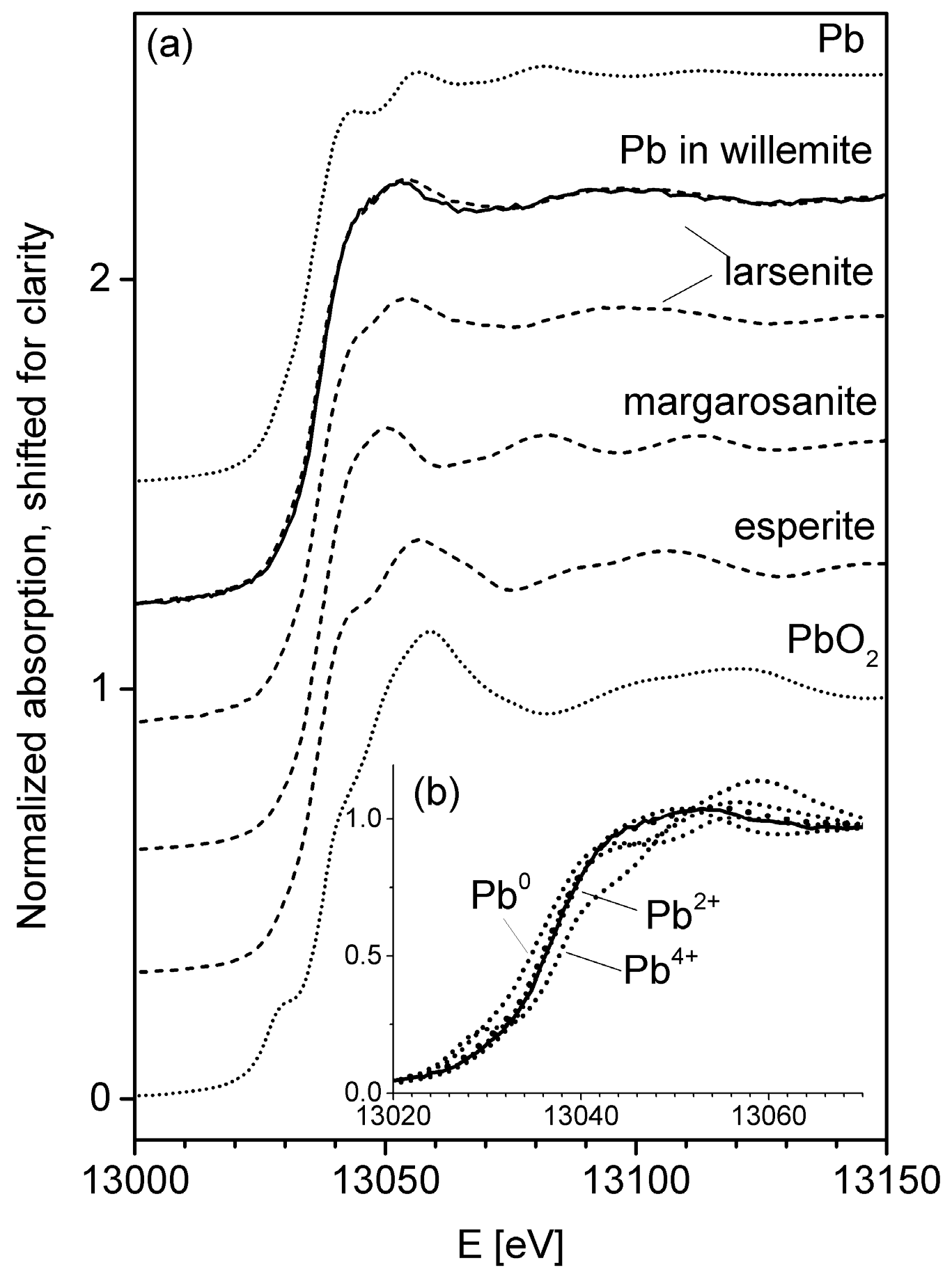

A comparison of the Pb L₃ XANES spectrum of Pb in Tres Marias willemite shows that Pb is present as Pb²⁺. No evidence for Pb⁴⁺ was detected. A reference spectrum of the Pb²⁺ mineral larsenite [PbZnSiO₄] is very similar to the sample spectrum (Figure 10a). In addition, spectra of the Pb²⁺-bearing minerals margarosanite [Pb(Ca,Mn²⁺)₂(Si₃O₉)] and esperite [PbCa₂(ZnSiO₄)₃] are similar to those of the sample and to the larsenite spectrum from its edge position. The inset (b) of Figure 10 shows the lower edge position of elemental Pb and the edge position of a Pb⁴⁺ reference [PbO₂] at higher energies, and the good match of the spectrum of the sample with that of larsenite.

5. Discussion

Results presented here provide evidence for the chemical environment of Ge and Pb in natural willemite, and provide constraints on the substitution mechanisms for minor elements in the willemite structure. The chemical nature of Ge in silicates can be derived from Ge K-edge XANES and EXAFS spectra (Ge K-edge 11.103 keV) [18]. Ge-O distance, oxygen coordination number and comparison of the XANES resonances with reference compounds enable the distinction between Ge in tetrahedral and octahedral coordination. From Ge K XANES and EXAFS measurements, it is likely that Ge in willemite occurs as Ge⁴⁺ and is four-fold coordinated with oxygen, as expected because the ionic radius of Si⁴⁺ (0.39 Å) is close to that of Ge⁴⁺ (0.44 Å) and isomorphism of Ge⁴⁺ with Si⁴⁺ is most probable [9]. Lattice parameters of Zn₂SiO₄ and Zn₂GeO₄ are also similar (see below). Changes in lattice parameters are in the range of 0.00034 Å for a, b and 0.00023 Å for c (R-3H setting) for 1000 ppm Ge assuming a linear behavior. These small values explain why changes in lattice constants with substitution are not or are barely detectable.

Measurement of the XANES spectra of Pb in willemite indicates it is present as Pb²⁺. One interpretation of the positive correlation of concentrations of Pb with Ge in willemite is that these elements may be simultaneously accommodated in the willemite structure. The cosubstitution could be due to overall expansion of the lattice with increased Ge in the tetrahedral site. Support for this idea is the increase in cell parameters from a = 13.948 Å and c = 9.315 Å for willemite [16,29] to a = 14.284 Å and c = 9.547 Å for Zn₂GeO₄ [30]. Similarly, average ^IVM-O bond length increases from 1.6319 Å in synthetic Zn₂SiO₄ to 1.7628 Å in Zn₂GeO₄ [31]. However, as discussed in Section 1, Pb²⁺ is unlikely to simply replace Zn²⁺ at its tetrahedrally coordinated site due to its much larger size. This is also indicated by the similarities with the Pb L₃ XANES spectrum of larsenite, where Pb is coordinated very differently. Following [4], an interstitial location of the larger Pb²⁺ ion in the willemite structure, charge compensated by a vacant Zn-site is more favorable. Another possibility is that Pb is accommodated as microdomains of larsenite or a similar mineral. Further work using TEM or Pb EXAFS might clarify the crystal structural setting of Pb in willemite.

Textural relationships from ore body to thin section scale indicate alteration of primary sulfides released Ge and Pb for incorporation into willemite, in the presence of quartz. Reference [32] discussed models of willemite formation from hydrothermal fluids and indicated that, at low temperatures, SO₄²⁻ is the dominant sulfur species at greater than neutral pH and oxidizing conditions with quartz saturation. A possible reaction at Tres Marias is:

$$2(\mathrm{Zn},\mathrm{Ge},\mathrm{Pb})\mathrm{S}+{\mathrm{H}}_4{\mathrm{SiO}}_{4(\mathrm{aqueous})}+4{\mathrm{O}}_2={\mathrm{Zn}}_{2-\mathrm{x}}{\mathrm{Pb}}_{\mathrm{x}}(\mathrm{Si},\mathrm{Ge}){\mathrm{O}}_4+2{\mathrm{SO}}_{4(\mathrm{aqueous})}^{2-}+4{\mathrm{H}}_{(\mathrm{aqueous})}^{+}$$

(1)

with additional Pb potentially being supplied to crystallizing willemite by reaction of subordinate galena in the ore.

Analyses of willemite from sample TM06-18 fall slightly below the main low Ge/Pb trend (Figure 7). These grains are enclosed in hemimorphite associated with smithsonite, whereas cerussite also occurs in this sample. The process of hydrothermal alteration that formed the hemimorphite-smithsonite-cerussite assemblage could have led to germanium loss from the willemite as aqueous germanic acid [33]), resulting in even lower Ge/Pb ratios. This released germanium may reside adsorbed onto oxide or other minerals elsewhere in the deposit, as it occurs in the oxidation zones of Tsumeb type Ge deposits [34] and at the Apex deposit, Utah [35].

In coals and related organic material, organic compounds account for the concentration of Ge [7]. Likewise in the Tres Marias deposit, the original source of Ge may have been migrating petroleum, now represented by extensive bitumen present in disseminated form in and around the orebody.

Willemite in the Tres Marias mine contains up to 1.5 wt % Ge substituting for ^IVSi; concomitantly, up to 2 wt % Pb substitutes for Zn. To our knowledge, these are the highest reported Ge contents in natural willemite. The mechanism of substitution may involve interstitial Pb²⁺ in the willemite structure. Some Ge-rich willemite contains little to no Pb, so the converse is not true. Willemite at Tres Marias incorporated Ge as primary Ge-bearing zinc sulfide was dissolved and reprecipitated by oxidizing siliceous aqueous fluids.
