Silica Colloid Ordering in a Dynamic Sedimentary Environment

Abstract

The formation of ordered particle arrays plays an essential role in nanotechnology, biological systems, and inorganic photonic structures in the geosphere. Here, we show how ordered arrays of amorphous silica spheres form in deeply weathered lithologies of the Great Artesian Basin (central Australia). Our multi-method approach, using optical and scanning electron microscopy, X-ray microdiffraction, Raman spectroscopy, and electron probe microanalysis, reveals that particle morphologies trace the flow of opal-forming colloidal suspensions and document syn- and post-depositional deformation. The micromorphology of amorphous silica pseudomorphs suggests that the volume-preserving replacement of non-silicate minerals proceeds via an interface-coupled dissolution precipitation process. We conclude that colloid flow and post-depositional shearing create but also destroy natural photonic crystals. Contrary to previous studies, our results indicate that purely gravitational settling/ordering is the exception rather than the rule during the formation of three-dimensional periodic sphere arrays in the highly dynamic colloidal suspensions of chemically weathered clastic sediments.

1. Introduction

The hydrated mineralogical assemblages of the Great Artesian Basin (central Australia) record the acidic oxidative weathering of volcaniclastic sediments on a multimillion-year time scale [1]. Chemical weathering of the silicate rocks induces the in situ formation of amorphous silica at silicate mineral surfaces [2] and the release of silica into solution, followed by amorphous nanoparticle precipitation through inorganic processes [3]. Scanning electron microscopy shows that nanosphere-based amorphous silica (opal-A) in central Australia consists of subparticles tens of nanometers in size, indicating aggregative particle growth [4,5,6,7]. Ordering of the final silica spheres leads to the formation of a natural photonic crystal that modulates visible light due to Bragg diffraction. In precious opal-A, uniform spheres form a regular three-dimensional array that diffracts visible light, giving the characteristic play-of-color [8,9], which is absent in common opal-A. So far, the formation of ordered sphere lattices in fractures and pores of the host rocks and during mineral replacement has been attributed to gravitational sphere settling [1,4,5,10,11]. All of these models agree that gravity and short-range particle interaction potentials create structural order when uniform spheres form in a gel and sediment from or through it at quiescent conditions in sealed environments. This classical theory contrasts considerably with the abundant presence of opal-bearing hydraulic fractures, viscous colloid flow textures, opal reactivation structures, and nanoscale replacement processes in the subsurface precious opal deposits [1,6,7,11]. These characteristics demonstrate the highly dynamic environment that produces ordered arrays of uniform, X-ray amorphous silica spheres. In this study, we use a multi-method analytical approach to identify the mineralogical and micromorphological characteristics of these ordered arrays in two different contexts: fracture infilling and replacement. These new data allow us to provide a coherent interpretation of particle ordering processes that are consistent with the dynamic environment. Our results contradict the classical theory of gravitational sphere settling at quiescent conditions in sealed environments.

2. Materials and Methods

2.1. Sample Material

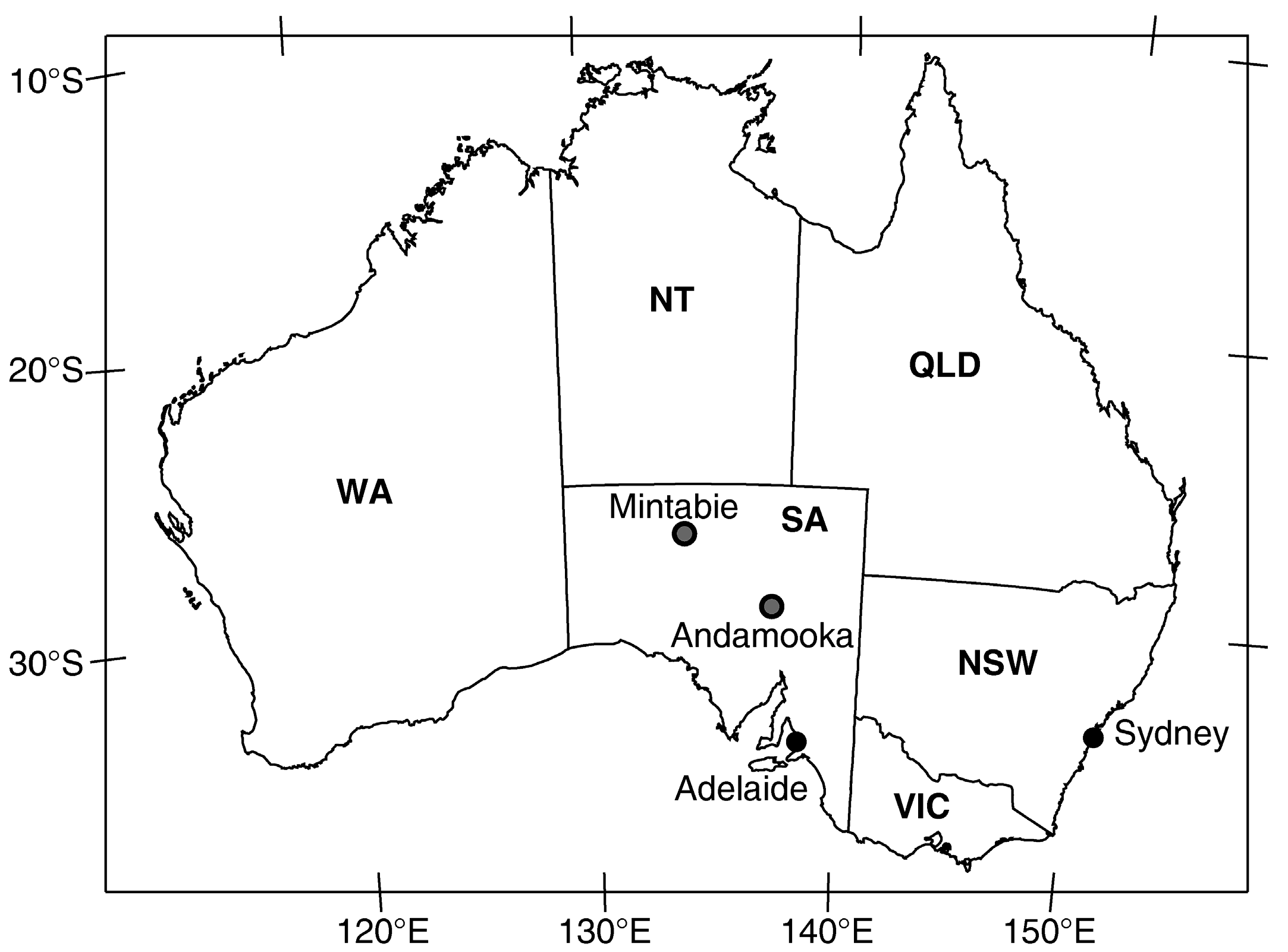

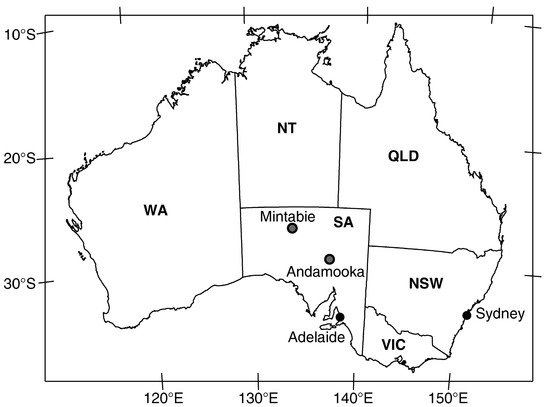

Australian opals and their host rocks were collected from the precious opal fields (Figure 1) at Andamooka and Mintabie (South Australia) and analyzed using petrographic microscopy, X-ray microdiffraction, Raman spectroscopy, scanning electron microscopy, and electron probe microanalysis. From a total of 82 samples from Andamooka and 13 samples from Mintabie, we selected 22 and 6 samples, respectively, based on textural and mineralogical characteristics, for in-depth analyses. Andamooka opal samples are associated with the deeply weathered early Cretaceous sediments of the Marree Subgroup [1,12]. Samples were extracted from the bleached Early Cretaceous Bulldog Shale (~20 m beneath the surface) in the Teatree Flat field, which is located about 15 km northwest of the Andamooka Township.

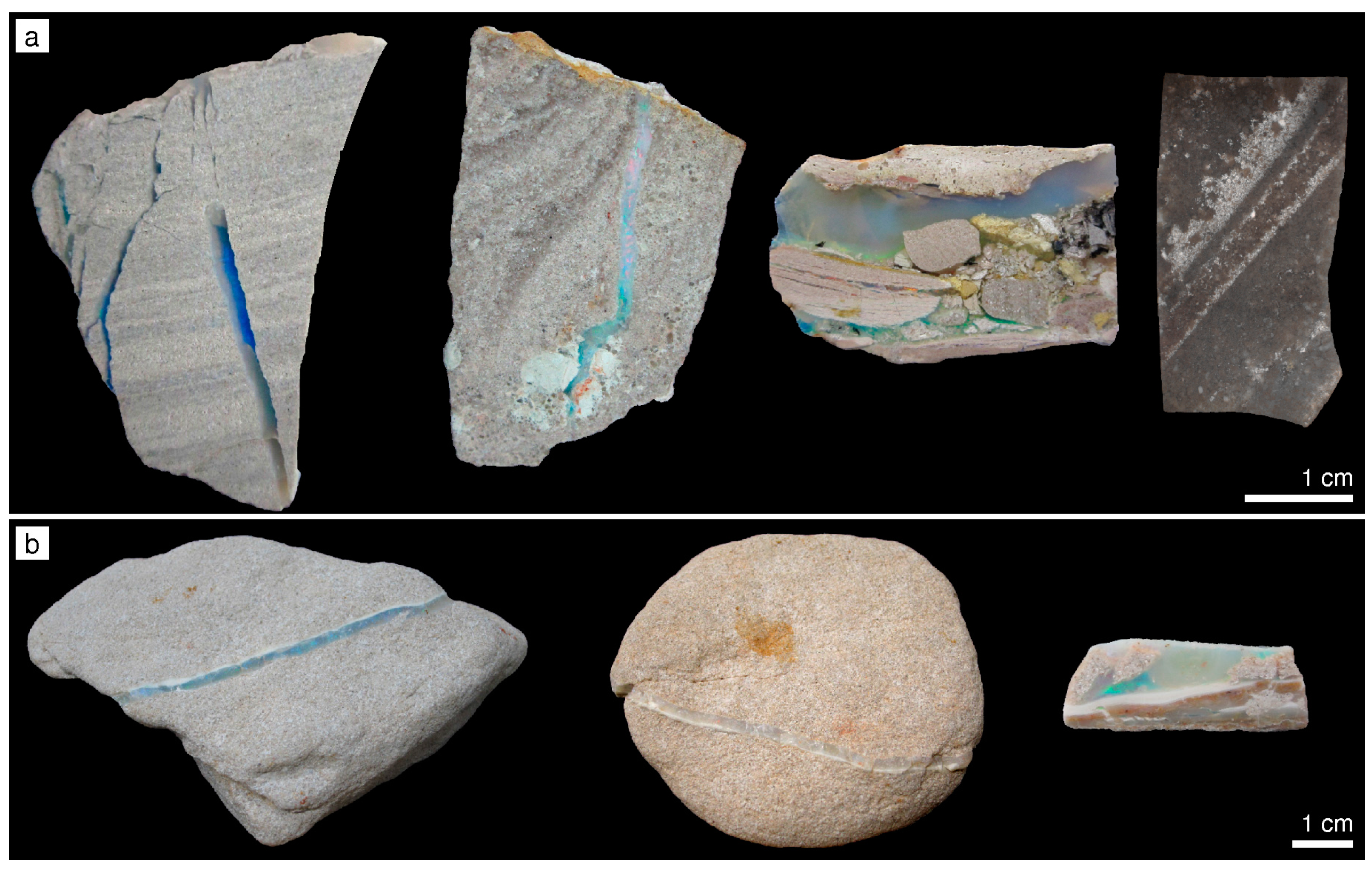

Silicified sample material from Andamooka comprises silt- and sandstones, conglomerates, and cherts with oolitic structures (Figure 2a). Opaline material fills extensional fractures and pseudomorphically replaces rhombohedral and twinned crystals. The fracture-filling opals from Mintabie are exceptional because they are hosted by tightly cemented, microcline-rich Ordovician sandstone of the Mintabie beds (Figure 2b; [2]). These samples are typical for the deepest parts of the opal-bearing profiles in the Mintabie field [2]. Opals analyzed in this study include gray, milky, white, brown, and transparent samples. Precious opals are transparent with a play-of-color covering the visible spectrum.

2.2. Analytical Methods

Diamond-polished thin sections (30 µm thick) and thick sections were prepared using standard procedures. For polarized light microscopy, a Zeiss Axio Lab.A1 petrographic microscope (Carl Zeiss, Jena, Germany) was used. At least 40 intersection angles between thin straight lines in single photonic crystals were measured digitally and averaged.

The micromorphology of opals and their host rocks was investigated on the surfaces of thin and thick sections and freshly fractured material by SEM. Specimens were etched in 10 vol % hydrofluoric acid (HF) solution for 15 s, dried, and sputter-coated with ~15 nm W. Secondary electron (SE) images were obtained in a Zeiss Supra 40 VP Ultra SEM instrument (Carl Zeiss, Jena, Germany), at an acceleration voltage of 5 kV and a beam current of 10 nA. Sphere diameters were determined by sizing over 1000 particles from secondary electron images. The sphere diameter dispersity has been calculated as relative standard deviation.

Quantitative element concentrations were determined on carbon-coated, polished thin sections using a JEOL JXA 8200 Superprobe operated at 15 kV accelerating voltage, 20 nA beam current, and a beam diameter of 10 μm. For each opal specimen, 30 point analyses were measured. The acquisition time for Na analysis was 5 s on peak and 5 s on background. The peak and background of other elements were measured for 10 s each. The instrument was internally calibrated using natural silicate, oxide, and basalt (VG-2) and rhyolite (VG-568) glass. Elemental maps were acquired using the wavelength dispersive spectrometer (WDS) detectors. The operating conditions were a 15 kV accelerating voltage and a 20 nA beam current (on Faraday cup), with a beam diameter of 1 µm and a 60 ms counting time per 0.5–1 µm pixel size.

Non-destructive X-ray microdiffraction was used on polished thick sections, at the Eberhard Karls Universität Tübingen (Tübingen, Germany), with a Bruker AXS micro-X-ray diffractometer D8 Discover (Bruker AXS GmbH, Karlsruhe, Germany) with focusing X-ray optics (IfG Berlin, Berlin, Germany; incidence angle of 10°), a HOPG-monochromator, and a large VÅNTEC-500 2D-detector (µ-XRD²). Diffractograms were recorded for 300 s at a beam diameter of 50 µm in the 2θ range of 7–67°, using CoKα radiation (λα₁ = 1.78897 Å) at 30 kV and a tube current of 30 mA. The step size of the diffractogram was 0.05° 2θ. We analyzed X-ray diffraction patterns with PeakFit 4 (Systat Software, San Jose, CA, USA). After a manual baseline subtraction, we used a five-point Savitzky–Golay moving filter [13] to smooth the diffraction pattern and minimize human bias in peak maxima determination. Diffractograms, peak positions, and the full width at half the maximum intensity (FWHM) are expressed as d-spacing (in Å) calculated from the diffraction angles (° 2θ) to facilitate the comparison of diffractograms recorded with different anode material.

Raman spectroscopy analyses were conducted on a Horiba Jobin Yvon LabRAM HR 800 instrument (Horiba Jobin Yvon, Bensheim, Germany) coupled to an Olympus BX41 microscope (Olympus, Hamburg, Germany) at the Museum für Naturkunde (Berlin, Germany). A 785 nm air-cooled diode laser was used to excite the sample with a 100× objective, a spectral integration time of 60 s, and three accumulations. With the Peltier-cooled charge-coupled device (CCD) detector (1024 × 256 pixels), a spectral resolution of ~0.2 cm⁻¹/pixel is achieved. Scattered Raman light was collected in backscattering geometry and dispersed by a grating of 600 grooves/mm after passing through a 100 µm entrance slit. The confocal hole size was set to 1000 µm. Unpolarized spectra were collected with the Labspec 6 software over a range from 100 to 1200 cm⁻¹. An internal intensity correction (ICS, Horiba) was used to correct detector intensities. The instrument was calibrated using the Raman band of silica at 520.7 cm^–1.

3. Results

3.1. Opal Mineralogy

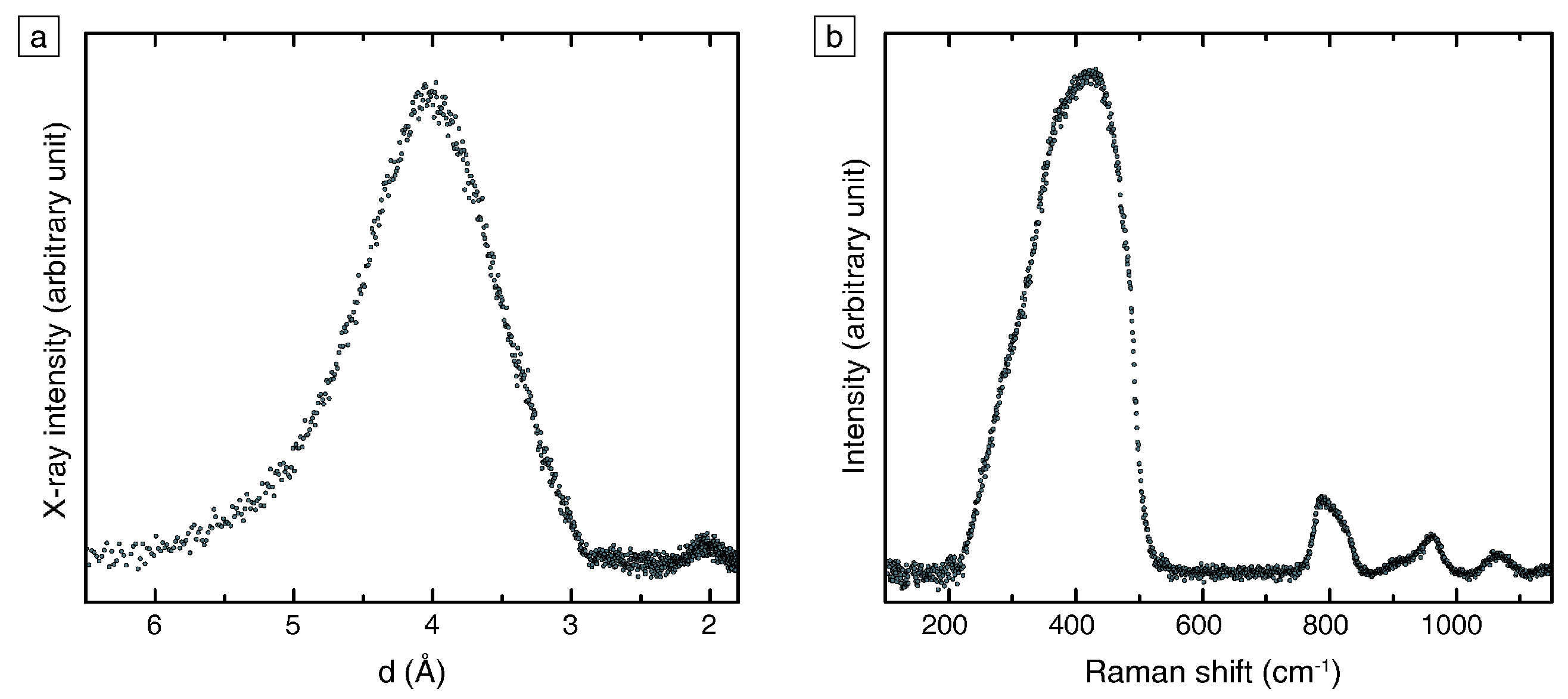

We used X-ray microdiffraction and Raman spectroscopy to identify the mineralogy of fracture-filling and replacive opals. The typical X-ray microdiffraction pattern of the studied opals is shown in Figure 3a. The diffractograms, expressed as a function of d-spacing, generally show a broad asymmetric peak with a maximum ranging between 3.97 and 4.06 Å and a high d-spacing side shoulder. A secondary broad reflection of low intensity occurs at ~2 Å. The full width at half-maximum intensity (FWHM) of all samples scatters unsystematically from 1.07 to 1.19 Å and is independent of the main peak position. The maximum intensity of the main peak varies unsystematically by less than 5% between samples. According to the Jones and Segnit [14] opal classification scheme, the diffractograms of all samples are consistent with those of opal-A. The peak shapes and positions are uniform within individual samples, including those composed of intermingled composites of precious and common opal. Overall, we found no co-variation between peak shapes/positions and the visual appearance, micromorphology, or chemical aspects of the studied material.

Figure 3b shows a typical Raman spectrum of the studied opals. The spectra and band maximum positions of opals at all sites are similar and display a prominent band at 425 ± 3 cm⁻¹ and bands of lower intensity at 791 ± 1, 961 ± 2, and 1067 ± 3 cm⁻¹. The bands at 425 and 961 cm⁻¹ show a positive skewness, while the band at 791 cm⁻¹ shows a negative skewness. These asymmetries are likely due to the superposition of separate bands with different shapes and positions. Previous studies assigned the Raman bands at ~425, 791, and 1067 cm⁻¹ to fundamental vibrations of the SiO amorphous silica framework [15]. The band at ~961 cm⁻¹ indicates a Si-OH stretching mode due to silanol groups [16]. The Raman spectra of all samples are consistent with those of opal-A [17] and lack a correlation between chemical composition, micromorphological features, and peak shapes and positions obtained from the X-ray diffraction analyses.

3.2. Colloid Flow Structures in Fractures

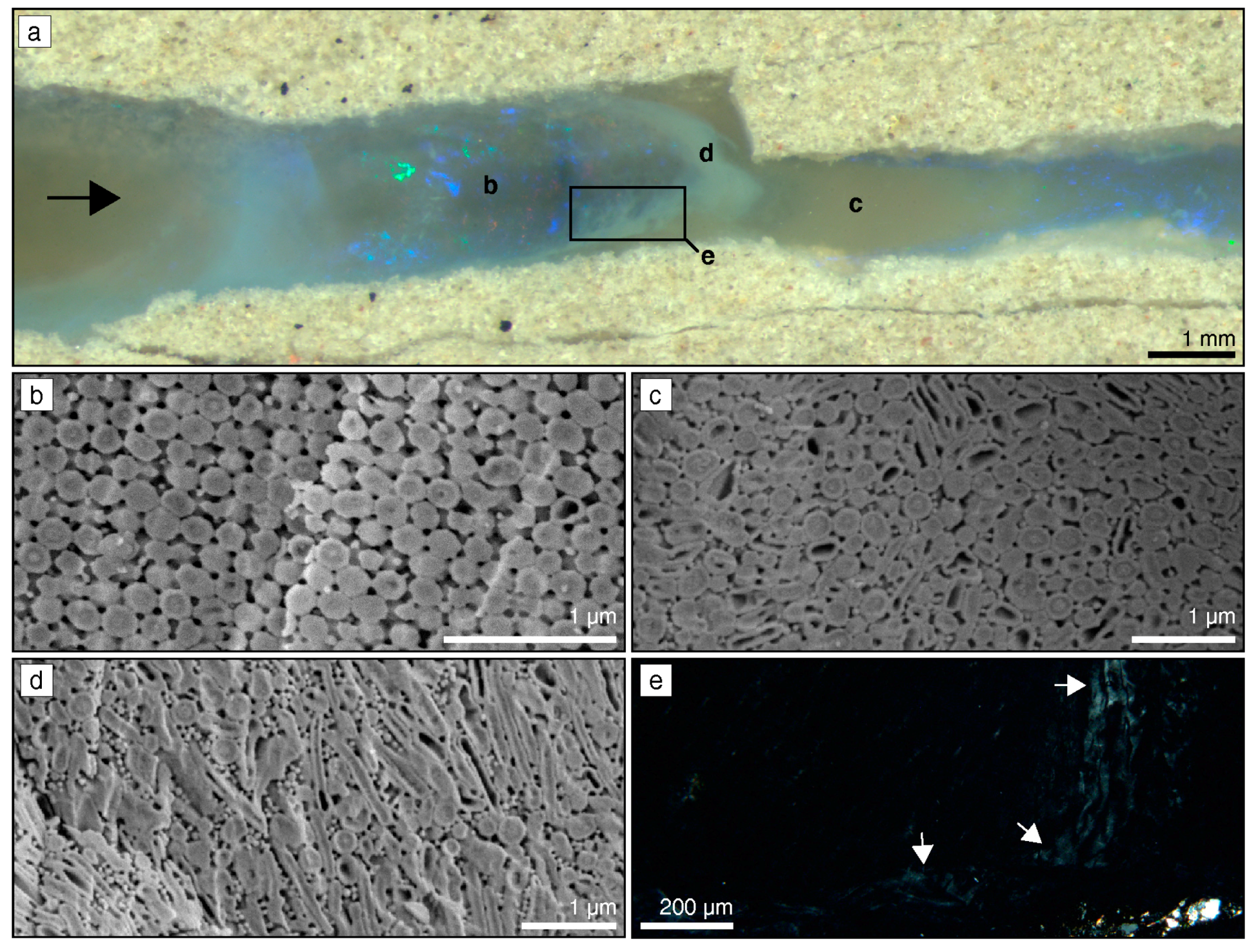

SEM images of vein-filling opal-A show that macroscopic opal characteristics directly link to micromorphological features (Figure 4). Hydraulic extensional fractures contain alternating zones of precious and common opal with variable color and parabolic interfaces pointing toward fracture tips. In these geometries, transparent opals with a play-of-color consist of regularly arranged, uniform spheres ranging in size from 160 to 440 nm. Irregularly arranged spheres with a size of 100–300 nm and minor nonspherical particles form the adjacent translucent common opals. The sphere diameters in translucent common and transparent precious opal are similar (±10 nm) within each sample. The white and milky common opal consists of non-uniform, round to ellipsoidal particles up to 1 µm in length, with a maximum aspect ratio of 0.25. These particles are elongated parallel to the fracture surfaces and parabolic interfaces between adjacent opals. Areas with accumulated, oriented ellipsoidal particles frequently display a moderate first-order grey birefringence between crossed polarizers (Figure 4d). The sequences of vein-filling opal with parabolic interfaces lack chemical or structural (determined by X-ray microdiffraction and Raman spectroscopy) gradients.

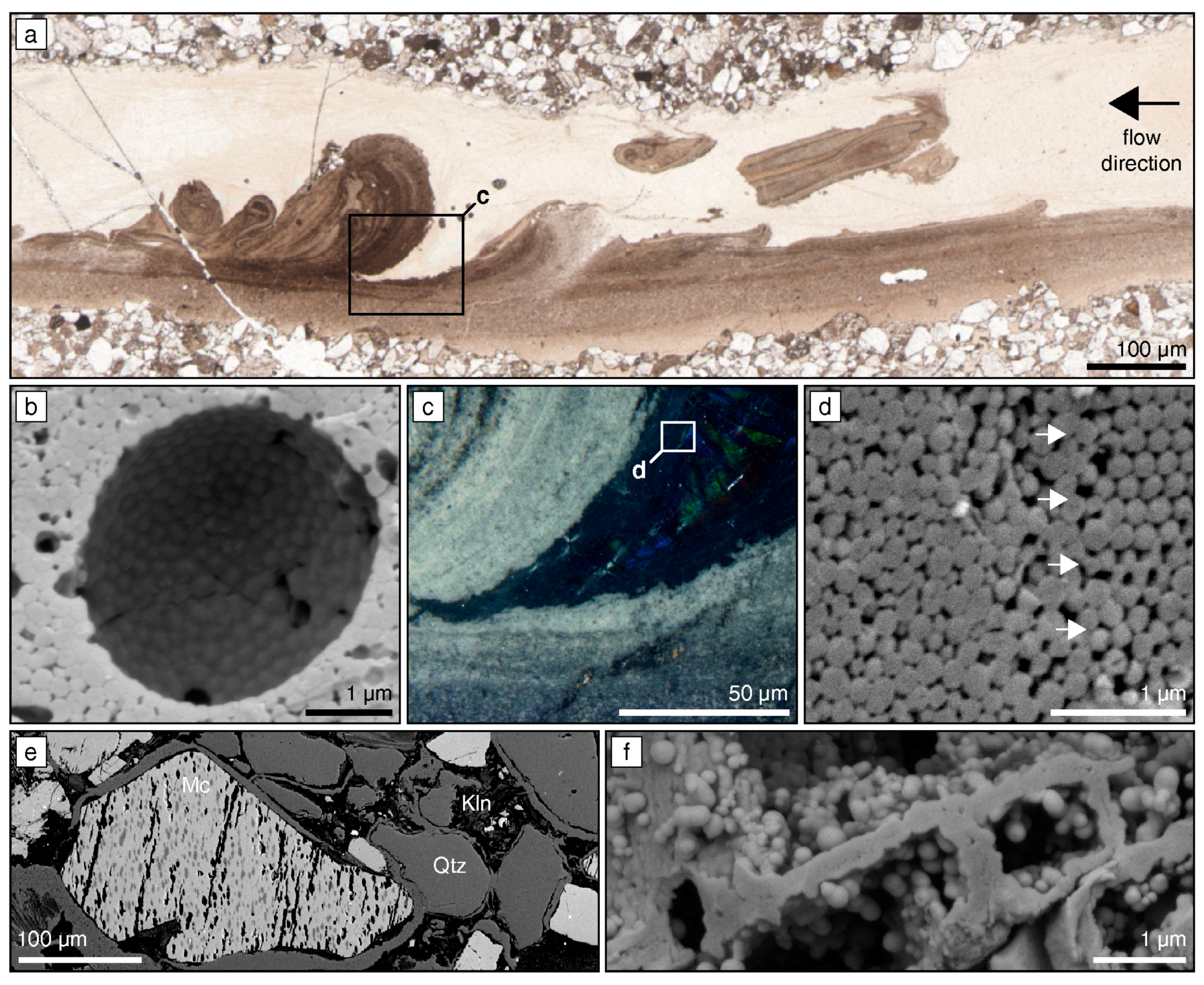

The fractures in opal-indurated sandstones of the Mintabie field commonly contain veins of transparent opal intermingled with wave-shaped, layered white opal (Figure 5). These wave features are concentric and resemble unflattened roll-up structures [18]. Minute-sized (<1 µm) kaolinite flakes are embedded in the material and remnants of the host rock are located on its surface. The white opal consists of irregularly arranged, non-uniform spheres <300 nm in diameter and contains randomly scattered, sphere-lined pores, ~0.4 to 3.5 µm in diameter (Figure 5b). These pore architectures are also widespread in the white opal from Andamooka. Wedge-shaped photonic crystals with thin parallel striations and spindle-shaped extensional fractures are located between roll-up structures (Figure 5c). A sharp interface separates the regularly ordered regions from transparent opal composed of dominantly uniform but irregularly arranged spheres (Figure 5d). The chemical composition of the white and transparent opal and the host rock cement varies insignificantly (

Table 1. Chemical composition of opal-A samples shown in Figure 4, Figure 5 and Figure 6 analyzed by electron probe microanalysis (EPMA) (in wt %). The data are averaged from 30 point analyses per sample. LLD denotes lower limit of detection. Vein opal from Andamooka refers to Figure 4. Mintabie opals are shown in Figure 5. Replacement opal-A from Andamooka comprises twinned and untwinned crystals shown in Figure 6.

Oxide	Andamooka				Mintabie
	Vein Opal	Twinned Crystal 1	Rhombs 1	Inverse Opal	Cement	Transparent	White Roll-Ups
SiO2	90.60	92.63	87.90	84.45	90.25	90.72	89.98
TiO2	0.05	0.06	<LLD	<LLD	0.01	0.03	0.03
Al2O3	0.93	1.23	1.40	1.42	1.17	1.13	1.18
Fe2O3-total	0.09	0.29	0.10	0.09	0.04	0.07	0.08
MgO	0.04	0.08	0.04	0.04	0.01	0.04	0.04
CaO	0.06	0.12	0.09	0.08	0.14	0.12	0.13
SrO	0.03	0.03	0.02	0.02	0.04	0.03	0.03
BaO	0.09	0.10	0.08	0.06	0.10	0.08	0.09
Na2O	0.10	0.13	0.29	0.30	0.18	0.17	0.18
K2O	0.09	0.12	0.09	0.05	0.27	0.26	0.32
SUM Total	92.08	94.79	90.01	86.50	92.21	92.65	92.07
SUM impurities	2.19	2.16	2.11	2.06	1.96	1.93	2.08
(H2O + OH) 2	10.73	5.21	9.99	13.50	7.79	7.35	7.93

¹ Precious opal, ² Calculated by balance of SUM total with 100 wt %.

).

3.3. Carbonate Replacement Structures

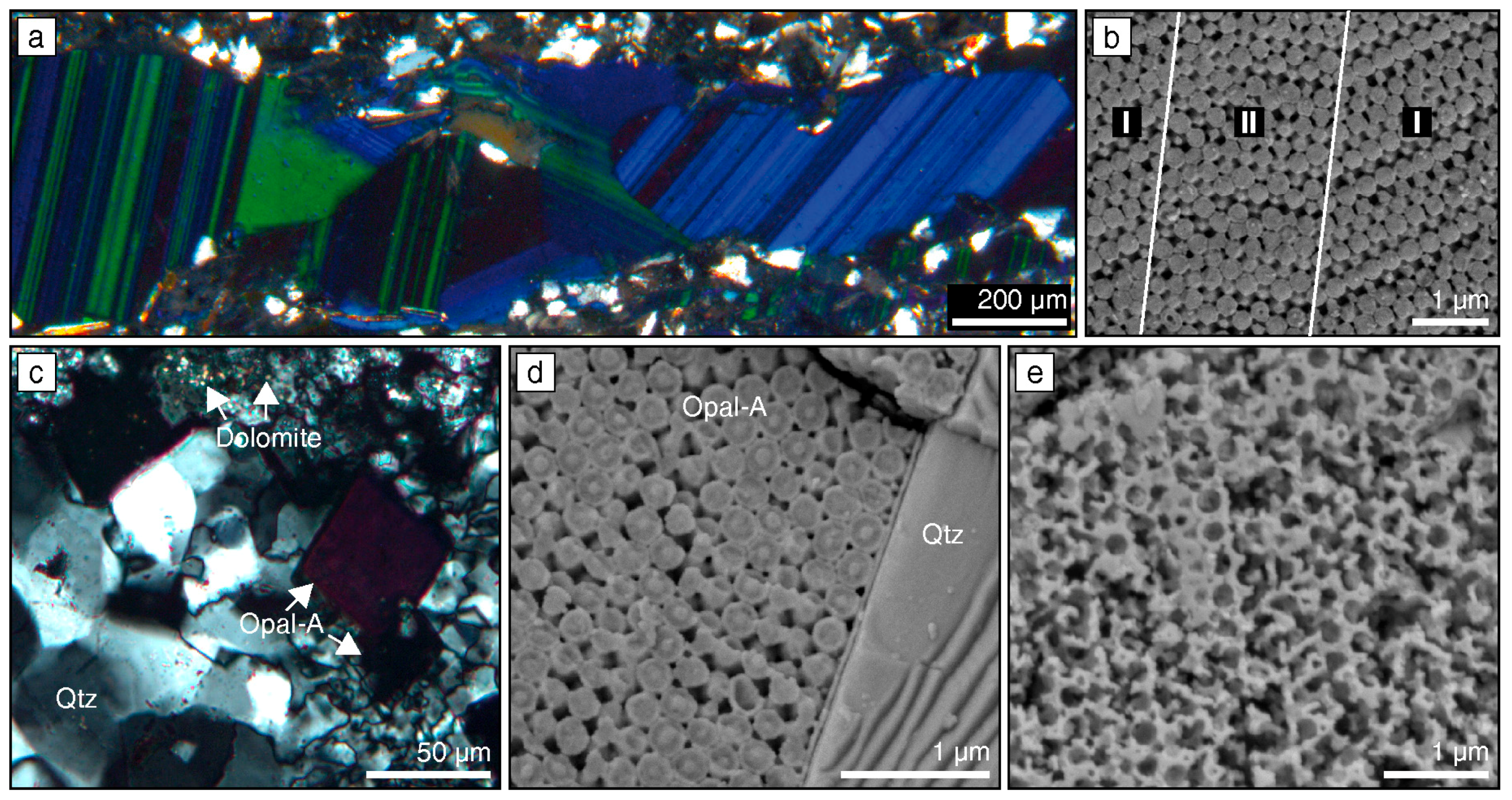

Transmitted light microscopy reveals that fractures in silicified siltstones contain an- to subhedral, randomly oriented, optical photonic crystals up to 1.5 mm in size (Figure 6a). Observation between crossed polarizers reveals parallel striations (3 to 180 µm wide) that mimic polysynthetic twin lamellae on trigonal {018} indicative of recrystallized calcite. The twinned condition of the lamellae is visible as a periodic color variation that changes both color and intensity upon rotation on the microscope stage. The color variations arise from Bragg diffraction effects from close-packed, uniform silica spheres and air-filled pores with rhythmically changing orientation (Figure 6b). The average sphere diameter varies between samples from 200 to 320 nm (size dispersion <4%). X-ray microdiffraction, Raman spectroscopy, and elemental mapping confirm the amorphous nature of the opaline material and indicate the absence of crystalline precursor remnants.

Randomly oriented, opal-filled rhombohedra (<120 µm) are abundant in quartz- and opal-cemented cherts containing round to ellipsoidal oolitic structures (Figure 6c–e). These samples are likely reworked fragments of Cambrian age Andamooka Limestone [19]. The ooids range in size between 200 and 600 µm and are composed of a uniform mosaic of up to 20 µm-sized, interlocked quartz crystals. Small (<2 µm), anhedral dolomite crystals (Ca_1.1Mg_0.9(CO₃)₂ on average) randomly scatter through the quartz mosaic. In transmitted light, opal rhombohedra resembling dolomite rhombs consist of inclusion-free transparent to brown opal-A with variable micromorphology. A homogeneous amorphous silica veneer (~60 nm) covers the inner surface of the rhombs (Figure 6d). Transparent common opal inside the rhombohedra consists of 200–300 nm large, uniform spheres in a predominantly irregular arrangement. Precious opal is composed of similar-sized, but close-packed spheres. Dark brown rhombohedra consist of inverse opal with a regular arrangement of spherical void spaces surrounded by solid walls of opal-A (Figure 6e).

The sandstones of the Mintabie field contain abundant microperthitic microcline partially or entirely altered to translucent opal and/or kaolinite flakes (Figure 5e,f). Aggregates of submicrometer-sized kaolinite platelets and non-uniform silica spheres 120 to 270 nm in diameter fill the dissolution cavities in relictic feldspar grains. The opal-replaced cavity walls resemble fused spheres and occasionally contain subparticles ~50 nm in diameter.

3.4. Polyhedral Particle Shapes and Crystal Bending

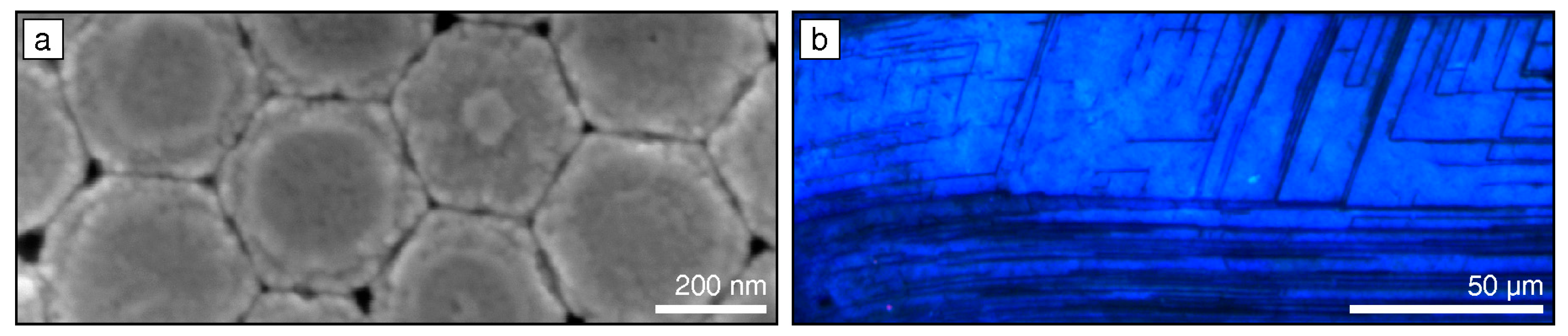

Opal-A from all sample localities consists of silica particles with variable size, shape, ordering, internal structure, and degree of cementation. Close-packed particle arrays often consist of grains with a polyhedral shape (Figure 7a). A mild HF etching of these polyhedral spheres reveals a concentric structure composed of subparticles 20–40 nm in diameter. This subparticle structure is common to all opals studied here, irrespective of their fracture-filling or replacive nature, shape, or chemical composition.

Vein-filling common opal frequently contains anhedral photonic regions with uniform color between crossed polarizers. These crystals often display two sets of intersecting thin black lines less than 1 µm wide (Figure 7b). Straight lines form diamond shapes and intersect at an angle of 70.2 ± 1.1°. However, in most grains, these lines are bent to a variable degree. Locally, the photonic crystals display extensional fractures filled with irregularly arranged spheres.

4. Discussion

Scattering of visible light on the microstructurally diverse opal-A studied here creates color profiles that coincide with micromorphological characteristics, e.g., particle ordering and shape. Several authors have suggested that opal forms from a gel [1,4,5,10,11]. At quiescent conditions in sealed environments, uniform spheres are expected to grow inside this gel and settle gravitationally to form a regular sphere array, i.e., precious opal. However, such a gel matrix strongly immobilizes particles [20], impeding sphere growth, mobility, and arrangement into ordered arrays. Additionally, later particle mobility requires extensive breaking of interparticle bonds [21]. These restrictions equally apply to fracture-filling and replacive opal. In fact, the textural properties of the opals studied here and the aggregative grown single-particle structure point to precipitation and growth of spheres as free units in a sol rather than a gel. After sphere arrangement, dissolved silica from bulk solution or subparticle breakdown precipitates on the available surfaces and acts as a cementing agent [9,22].

4.1. Flow-Induced Ordering

The uniform direction of parabolic fronts in the vein opal indicates that fluid flow directs particles along a pressure gradient toward the fracture tip. The parabolic shape of the opal fronts resembles turbulent non-Newtonian flow velocity profiles [23] and indicates a strong coupling between colloid flow and structural ordering. This observation agrees well with non-Newtonian fluid flow textures preserved in vein opals in previous studies [1,11]. Apparently, colloid flow results in a hierarchy of particle packing, orientation, and deformation.

The uniform diameter of spherical particles in individual vein opal samples indicates that deformation occured when the spheres grew to their final size but were still deformable. The similar chemical composition, microdiffraction and Raman spectroscopic properties, and size of spherical particles point to a pre-existent reservoir of uniform spheres that entered the fracture upon opening. Nonspherical particle morphologies would form within this reservoir only under highly localized, substantially different physicochemical conditions [24]. During colloid ingress into the opening fracture, the pressure gradient forces the particles toward the fracture tip. The increase in particle number within the spatially restricted volume results in a local increase of the fluid’s viscosity and jamming of the particles without fusion of the spheres. The flow leads to structuring of the concentrated colloidal suspension and directional ordering of nonspherical particles. The birefringent character of parabolic fronts between crossed polarizers results from the flow-induced uniform orientation of flattened but regularly ordered particles [25].

The texture of Mintabie vein opals illustrates how a flowing colloidal suspension reactivates and deforms opaline structures. It is probable that the concentric roll-ups reflect re-orientation of earlier-formed opal by the current activity of the colloidal suspension. The structure of the reactivated opaline material suggests that the viscosity of this suspension was high enough to induce roll-up structures in cohesive material and keep ripped-up material suspended. Wedge-shaped photonic structures between roll-up structures (Figure 5) contradict a gravitational sphere settling and ordering process, because gravitational settling likely results in horizontally layered photonic structures with a similar orientation. Previous studies have suggested that composite gels with ordered and unordered domains migrate under differential pressure and preserve their structural order [1]. Accordingly, ordered domains should initially possess a complex wedge shape and orientation that fit its final position. However, ordered sphere lattices with a comparable shape are absent from all fracture-filling opal in the present study. This might indicate that the sphere lattice of wedge-shaped photonic regions results from a flow-induced sphere ordering process, analogous to the shear-induced ordering of a disordered colloidal suspension [26,27]. Thus, fluid flow locally transports the spheres into the correct position to create ordered lattices.

4.2. Mineral Replacement

Apart from the textural similarities of vein opals, the highly selective replacement of carbonate and clay minerals, wood, gypsum, fossils, and organic material by opal-A is frequently reported [1,6,12,28]. To date, the replacement of silicates and carbonate fossils by precious opal-A has been attributed to the infilling of cavities, resulting from partial or bulk dissolution, by a silica-rich gel [1,10]. This gel matrix inhibits particle growth and requires considerable bond breaking, analogous to the sphere-forming processes in fractures. Additionally, the pseudomorphs studied here lack evidence for the shrinkage or layering that may indicate gel desiccation or changes in gel composition [10], respectively. These restraints imply that another process induces structural order during pseudomorphic replacement.

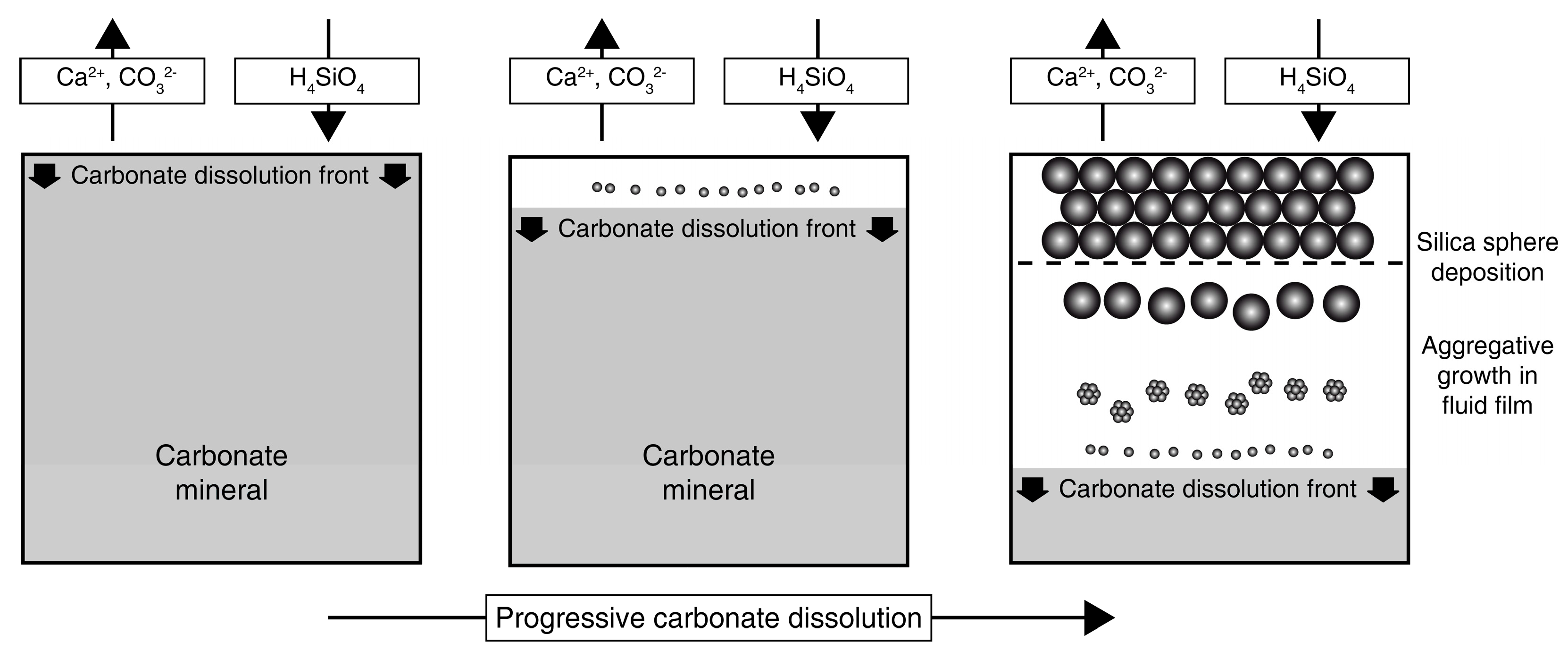

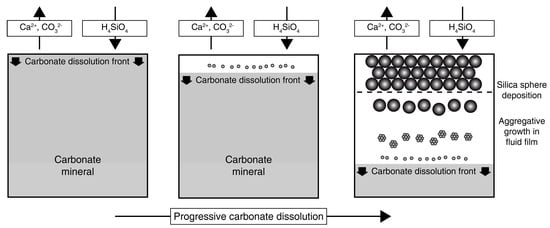

The twinned photonic crystals evidence that carbonate replacement is intimately coupled to the precursor crystallographic orientations. Replacement along lattice planes of the precursor crystal ensures the constant physicochemical conditions that are required for uniform sphere sizes, shapes, and arrays [7]. The dissolution reaction creates a sharp localized pH and salinity increase [29] that gradually decreases toward the bulk fluid. This local change lowers the amorphous silica solubility, induces supersaturation and precipitation [21], and confines particle nucleation close to the moving calcite dissolution front. In this interface-coupled dissolution-precipitation process [7,30], the precursor dissolution and silica deposition fronts advance synchronously. During the replacement process, silica nanoparticles continuously nucleate, aggregate, and form close-packed planes parallel to the most stable lattice planes of the crystalline template (Figure 8). The particle size increases at increasing distance from the dissolution front. The nanoporous close-packed sphere geometry (~26% porosity) is permissive and enables mass transport and permanent fluid access to the calcite dissolution front. The textures and random orientation of the crystal pseudomorphs indicate that gravitational settling is negligible in this case. Our observations further show that carbonate precipitation in extensional fractures locally precedes precious opal formation.

Generally, the microstructure differs between pseudomorphs after silicate minerals (e.g., feldspar) and non-silicates (e.g., carbonate and sulfate minerals). While close-packed sphere arrays replace carbonates and sulfates [2,7], pseudomorphs after feldspar consist of non-uniform spheres in dissolution cavities (Figure 5f). These pseudomorphs are the porous products of the short distance transport and polymerization of dissolved silica. This silicate replacement process does not produce precious opal, due to the small volume fraction of spheres, unless an external source provides additional silica in solution.

Preservation of twin structures in photonic crystal assemblies appears to be a reliable indicator for a replacive interface-coupled dissolution-precipitation mechanism, but the replacement of untwinned crystals is not as straightforward. We observe that randomly oriented rhombohedra consist of ordered uniform spheres. Gravitational sphere settling may fill pseudomorphs but will result in irregular rim structures, horizontal layering, and a late, disordered horizontal region due to limited late-stage particle mobility. Partial infilling of pore space may indicate bulk dissolution of the precursor material. Precious opal in the rhombohedral pseudomorphs studied here lacks all these microstructural features. More likely, close-packed sphere arrays in pseudomorphs predominantly form by an interface-coupled dissolution-precipitation process. This process creates the structural perfection of replacive precious opal compared to those formed by sphere sedimentation.

4.3. Post-Depositional Lattice Deformation

Dislocations and polyhedral particle shapes in ordered sphere arrays indicate post-depositional deformation (Figure 7). At a small shear force, the deformation of soft, ordered spheres into polyhedra decreases pore space and induces a blue-shift of the diffracted light [31]. Therefore, sheared sphere arrays may preserve their long-range order but lose their optical photonic character. At higher shear forces, colloidal crystals can form dislocations or break [32]. Previous studies have shown that dislocations in face-centered cubic (fcc) sphere arrays are visible as permanently extinct lines between crossed polarizers [1,7]. This microscopic observation results from isotropic light scattering on the locally imperfect structure. In the present study, straight, extinct lines intersect at an angle of 70.2 ± 1.1° in untwinned photonic crystals. This intersection angle compares closely with those of ideal fcc {111} planes at 70.53°. Apparently, fcc {111} planes are the preferred slip planes in the natural fcc crystals. Further deformation induces bending and partial disintegration of the crystals. As the wavelength of diffracted light depends on crystal orientation [33], deformation may result in lattice re-orientation and an undulose color of the crystal.
