Parafiniukite, Ca₂Mn₃(PO₄)₃Cl, a New Member of the Apatite Supergroup from the Szklary Pegmatite, Lower Silesia, Poland: Description and Crystal Structure

Abstract

Parafiniukite, ideally Ca₂Mn₃(PO₄)₃Cl, is a new apatite-supergroup mineral from the Szklary pegmatite, Lower Silesia, Poland. It occurs as anhedral grains, up to 250 µm in size, dark olive green in colour, embedded in a mixture of Mn-oxides and smectites around beusite. It has a vitreous luster, and it is brittle with irregular, uneven fracture. The calculated density is 3.614 g·cm⁻³. Parafiniukite is hexagonal, space group P6₃/m, with unit-cell parameters a = 9.4900(6), c = 6.4777(5) Å, V = 505.22(5) ų, Z = 2. The eight strongest reflections in the calculated X-ray powder diffraction pattern of parafiniukite are [d in Å (I) hkl]: 3.239 (39) 002; 2.801 (55) 211; 2.801 (76) 121; 2.740 (100) 300; 2.675 (50) 112; 2.544 (69) 202; 1.914 (31) 222; and 1.864 (22) 132. Chemical analysis by an electron microprobe gave (in wt%) P₂O₅ 39.20, MgO 0.19, CaO 24.14, MnO 31.19, FeO 2.95, Na₂O 0.05, F 0.39, Cl 3.13, H₂O_(calc) 0.68, O=(Cl,F) −0.87, sum 101.05. The resulting empirical formula on the basis of 13 anions per formula unit is (Mn_2.39Ca_2.34Fe_0.22Mg_0.03Na_0.01)_Σ4.99P_3.00O₁₂[Cl_0.48(OH)_0.41F_0.11]. The crystal structure of parafiniukite was refined to an R₁ = 0.0463 for 320 independent reflections with F_o > 4σ(F_o) and 41 refined parameters. Parafiniukite is isotypic with apatites. Manganese is the dominant cation at the M(2) site, and Ca is the dominant cation at the M(1) site.

1. Introduction

Parafiniukite, ideally Ca₂Mn₃(PO₄)₃Cl, was discovered in an LCT (Li–Cs–Ta) granitic pegmatite hosted by serpentinites of the Szklary massif, Lower Silesia, SW Poland. The mineral occurs as small relict grains, not exceeding 250 μm in size, embedded in a Mn-oxide, smectite mixture overgrowing partly altered beusite, the most frequent mineral component of phosphate aggregates occurring in graphic zone of the pegmatite. The new mineral and its name have been approved by the Commission on New Minerals, Nomenclature and Classification (CNMNC) of the International Mineralogical Association (IMA 2018-047). The name of the mineral is after Jan Parafiniuk (b. 1954), Professor of mineralogy at the Institute of Geochemistry, Mineralogy and Petrology of the University of Warsaw, Poland. The parafiniukite holotype (specimen Sz 31) is deposited in the collection of the Mineralogical Museum of the University of Wrocław, Faculty of Earth Science and Environmental Management, Institute of Geological Sciences, 50-205 Wrocław, Cybulskiego 30, Poland, with the catalogue number MMWr IV8024. The crystal used for the collection of single-crystal data is deposited in the mineralogical collection of the Museo di Storia Naturale, Università di Pisa, Via Roma 79, Calci (Pisa), Italy, catalogue number 19902. Parafiniukite was previously reported as “Mn-rich apatite” [1], and codified by the IMA Subcommittee on Unnamed Minerals as UM2007-18:PO:CaClMn mineral, Mn₃Ca₂(PO₄)₃(Cl,F,OH), corresponding to the Mn-dominant analogue of apatite. The present study indicates that the correct end-member formula of this mineral is Ca₂Mn₃(PO₄)₃Cl. The aim of this paper is to describe this member of the apatite supergroup.

2. Occurrence

Parafiniukite, was discovered in the Szklary LCT (Li–Cs–Ta) pegmatite (50°39.068′ N, 16°49.932′ E), ~6 km N of the Ząbkowice Śląskie town, ~60 km south of Wrocław, in Lower Silesia, SW Poland, outcropped in the northern part of the Szklary serpentinite massif. The massif is considered as a part of the tectonically dismembered Central-Sudetic Ophiolite. It adjoins the Góry Sowie Block (GSB) unit on the east and is enclosed as a mega-boudin in the mylonitized Góry Sowie gneisses of the Early Carboniferous Niemcza Shear Zone. The Szklary pegmatite, now completely excavated by mineral collectors, formed a NNE-SSW elongated lens or a boudin ~4 × 1 m large in planar section, which was in primary intrusive contact with an altered aplitic gneiss, up to 2 m thick, to the southwest, and both rocks were surrounded by tectonized serpentinite. A vermiculite-chlorite-talc zone was locally present along the pegmatite-serpentinite contact (for more information about the geological setting of the pegmatite see [2]). The pegmatite represents the beryl–columbite–phosphate subtype of the rare element (REL)–Li pegmatite class sensu Černý and Ercit [3]. The age of the pegmatite, estimated at 383 ± 2 Ma (CHIME dating on monazite-(Ce) [4]), is significantly older than the age ~335–340 Ma of the neighbouring small late-syntectonic dioritic, syenitic and granodioritic intrusions occurring in the Niemcza Shear Zone (e.g., [5]). It is rather contemporaneous with the anatectic event in the adjacent GSB [6,7,8]. The Szklary pegmatite is built mostly of sodic plagioclase (oligoclase-albite), microcline perthite, quartz and biotite, with minor Fe³⁺-bearing schorl-dravite tourmaline, spessartine garnet and muscovite. It is relatively poorly zoned with: (1) a marginal graphic zone of albite + quartz ± minor-to-accessory biotite commonly altered to clinochlore + black tourmaline; (2) a coarser-grained intermediate graphic zone of microcline perthite + quartz + small quartz-tourmaline nests, with smaller amounts of albite and biotite and, simultaneously, increased abundance of muscovite and spessartine; accessory chrysoberyl is locally present in muscovite aggregates; (3) a central zone of graphic microcline + quartz, in places developed as blocky microcline with interstitial albite, rare muscovite, and no black tourmaline or biotite [4,9]. The zones (2) and (3) contain numerous accessory minerals disseminated as inclusions mainly in quartz, microcline, albite, and muscovite. They include native elements and alloys (arsenic, antimony, bismuth, gold, stibarsen, and paradocrasite), Nb-Ta oxides (columbite-group minerals, stibiocolumbite and stibiotantalite, fersmite, pyrochlore-, microlite- and betafite-group minerals), Mn-oxides (ernienickelite, jianshuiite, cesàrolite, cryptomelane, and others), As and Sb oxides, lepageite (type locality, TL) and other arsenites and antimonites, beryllium minerals (chrysoberyl, beryl, and bertrandite), phosphate and arsenate minerals (monazite-(Ce), cheralite, xenotime-(Y), Mn-bearing fluor-, hydroxyl- and chlorapatite, pieczkaite, parafiniukite, beusite and beusite-(Ca), bobfergusonite, fillowite, lithiophilite grading to sicklerite, simferite and purpurite, natrophilite, Pb- and Ba-bearing dickinsonite, triploidite, fairfieldite, phosphohedyphane, plumbogummite, mitridatite, pararobertsite, gorceixite, arsenogorceixite), and a number of silicates, such as e.g., (Be,Mn,Na,Cs)-bearing cordierite, tourmaline-supergroup minerals (dravite/schorl and foitite/oxy-schorl), dumortierite-supergroup minerals (dumortierite, holtite, nioboholtite (TL), titanoholtite (TL) and szklaryite (TL)), spessartine, zircon, harmotome and pollucite [4,10,11,12].

Parafiniukite is closely associated with small aggregates of beusite, up to ~1 cm in size, which underwent intense alteration into a secondary assemblage of Mn-oxides and smectites. Pieczkaite and rarer parafiniukite usually survived only as small relicts, not exceeding 250 μm in size, surrounded by the mixture (Figure 1).

3. Experimental Data

3.1. Mineral Description and Physical Properties

Parafiniukite occurs only as small anhedral grains, up to 250 μm in size (Figure 1). The mineral is transparent with dark olive-green colour sometimes masked by the Mn-oxides. It has a vitreous luster, and it is brittle with irregular, uneven fracture. No forms and twinning were observed. Due to the very small amount of available material and its possible contamination by the surrounding Mn-oxides, streak, hardness, density as well as main optical properties were not determined. Cleavage, parting, and fluorescence were not observed. By analogy with pieczkaite [13], the Mohs hardness of parafiniukite could be estimated at 4–5. The density calculated on the basis of the empirical formula and the refined unit-cell volume of type parafiniukite is 3.614 g·cm⁻³. The mean refractive index, obtained from the Gladstone–Dale relation [14,15], using the empirical formula and calculated density, is 1.731.

3.2. Chemical Data

Preliminary EDS chemical analysis showed Ca, Mn, P, and Cl as the only elements with Z > 8. Quantitative chemical analyses were carried out using a Cameca SX 100 electron microprobe (WDS mode, 15 kV, 20 nA, 3 μm beam diameter) at the Inter-Institute Analytical Complex for Minerals and Synthetic Substances at the University of Warsaw. Standard materials (element, emission line) were: fluorophlogopite (F Kα), YbPO₄ (P Kα), hematite (Fe Kα), rhodonite (Mn Kα), diopside (Mg Kα, Si Kα, Ca Kα), albite (Na Kα), tugtupite (Cl Kα), orthoclase (Al Kα, K Kα), celestine (Sr Lα), baryte (S Kα, Ba Lα), crocoite (Pb Mα) and sphalerite (Zn Kα) and GaAs (As Lα). The following diffracting crystals were used: PC0 for F; TAP for Na, Mg, Al, Si and As; LPET for P, S, Cl, K, Ca, Sr and Pb; LLIF for Mn, Fe, Zn and Ba. Aluminium, Si, S, K, Zn, Sr, As, Ba and Pb were sought but found below the detection limits. The raw data were reduced with the PAP routine [16]. Direct H₂O determination was not performed owing to scarcity of material. However, the occurrence of H₂O was confirmed by micro-Raman spectroscopy (see below). The analytical data on the holotype material are given in

Table 1. Chemical composition of parafiunikite (in wt%).

Constituent	Mean (n = 10)	Range	e.s.d.
P2O5	39.20	38.98–39.44	0.14
MgO	0.19	0.12–0.27	0.05
CaO	24.14	23.66–24.64	0.39
MnO	31.19	30.04–31.78	0.62
FeO	2.95	2.72–3.15	0.16
Na2O	0.05	0.01–0.07	0.02
F	0.39	0.29–0.46	0.05
Cl	3.13	3.00–3.29	0.09
H2O(calc)	0.68	0.61–0.71	0.03
O=(F + Cl)	−0.87
Total	101.05

Note: H₂O was calculated according to stoichiometry, in order to have 1 (OH + F + Cl) per formula unit (pfu); e.s.d., estimated standard deviation.

.

The empirical formula of parafiniukite (with rounding errors) calculated in relation to 12 O²⁻ and 1 (F,Cl,OH)⁻ anion per formula unit (apfu) is (Mn_2.39Ca_2.34Fe_0.22Mg_0.03Na_0.01)_Σ4.99P_3.00O₁₂[Cl_0.48(OH)_0.41F_0.11]. Taking into account the results of the crystal-structure investigation (see below), the ideal formula of parafiniukite should be written as Ca₂Mn₃(PO₄)₃Cl, corresponding to (in wt%): P₂O₅ 37.14, CaO 19.56, MnO 37.12, Cl 6.18, sum 100.00.

3.3. Micro-Raman Spectroscopy

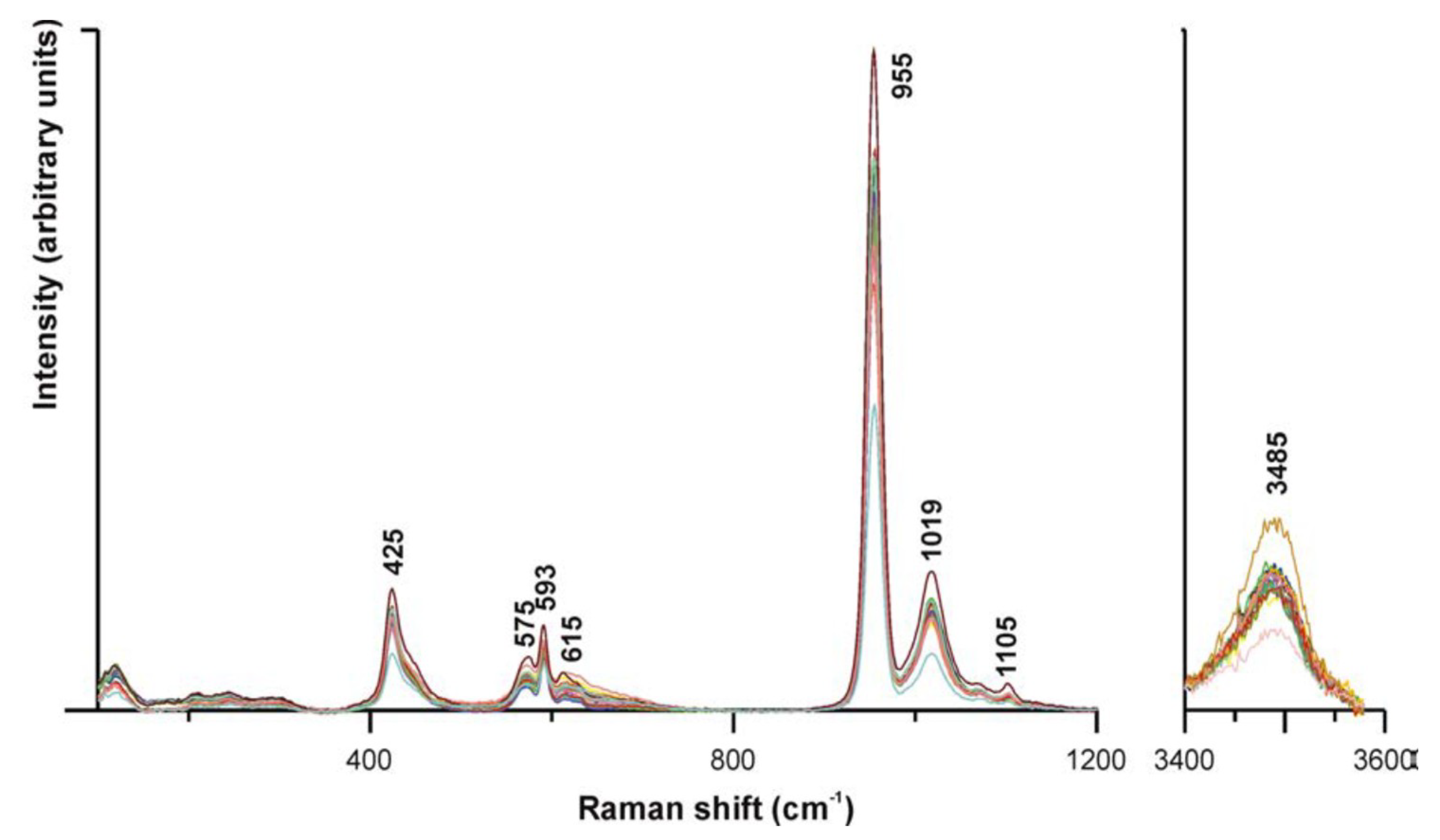

The unpolarized micro-Raman spectra in the range 100–4000 cm⁻¹ (Figure 2) were collected on a polished sample of parafiniukite with randomly oriented crystals in nearly back-scattered geometry at the Faculty of Materials Science and Ceramics, AGH UST, Cracow, Poland, using a Horiba Labram integrated with an Olympus BX40 confocal microscope with a 100× objective. The 532 nm line of a solid-state Nd-YAG laser (10 mW) was used. The minimum lateral and depth resolution was set to ~1 μm. The system was calibrated using the 520.7 cm⁻¹ Raman band of silicon. The spectra were collected through two acquisitions with single counting times of 600 s. The backscattered radiation was analyzed with an 1800 mm⁻¹ grating monochromator.

In Figure 2, the Raman spectra are shown, as recorded in various relicts of the holotype parafiniukite. The bands at ~955 (strong), 1019 (medium) and 1105 (weak) cm⁻¹ may be assigned to stretching vibrations of the PO₄ groups, in agreement with [13]. The peaks at ~615 (weak), 593 (medium), 575 (medium) and 425 cm⁻¹ (medium) are due to the bending vibrations of PO₄ groups. The weaker peaks below ~300 cm⁻¹ are due to deformations of the Ca and Mn polyhedra, whereas the peak at ~3485 cm⁻¹ is from stretching vibrations of O–H bonds.

3.4. Crystallography

A crystal fragment (70 × 40 × 30 μm) was extracted from polished section Sz31 and mounted on a carbon fibre. Intensity data were collected using a Bruker Smart Breeze diffractometer (50 kV, 30 mA) equipped with an air-cooled CCD detector, and graphite-monochromatized Mo Kα radiation. The detector-to-crystal working distance was 50 mm. A total of 1418 frames was collected in ω and φ scan modes. The exposure time was 120 s per frame. The data were integrated and corrected for Lorentz and polarization, background effects, and absorption using the package of software Apex3 [17], resulting in a set of 422 independent reflections (see Supplementary Materials). The refinement of unit-cell parameters constrained to hexagonal symmetry gave a = 9.4900(6), c = 6.4777(5) Å, V = 505.22(5) ų. The c:a ratio calculated from the unit-cell parameters is 0.6826. The statistical tests on the distribution of |E| values (|E² − 1| = 0.784) suggested an acentric structure; taking into account also the systematic absences, the space group P6₃ could be proposed. However, any trial to refine the structure in that space group symmetry was not successful and the space group P6₃/m was eventually chosen. The crystal structure was refined starting from the atomic coordinates of turneaureite [18] using Shelxl-2014 [19]. Scattering curves for neutral atoms were taken from the International Tables for Crystallography [20]. The site occupancy factors (s.o.f.) of the three cation sites were initially refined using the following scattering curves: Ca vs. Mn at the M(1) and M(2) sites, and P vs. ☐ (vacancy) at the T site. The three O sites (O(1), O(2), and O(3)) were refined assuming the full occupancy of O. Owing to the complex chemistry of parafiniukite, the position of the X anions was found through successive difference-Fourier maps, showing the occurrence of an electron density maximum at (0, 0, ¼). The site scattering of this position was refined using the curves of Cl vs. ☐. After several cycles of isotropic refinement, the R1 index converged to 0.092. The s.o.f. at M(1) and M(2) sites showed mixed (Ca,Mn) occupancies, whereas the T site was found to be fully occupied by P only. Its s.o.f. was then fixed to 1.

After the introduction of the anisotropic displacement parameters for cations, the R₁ value converged to 0.067. Assuming an anisotropic model also for the O(1), O(2), and O(3) positions, the R₁ value converged to 0.056. However, the anisotropic displacement parameter of O(2) was negatively defined. The displacement parameter of the X anion was refined isotropically, as discussed in [18]. A residual of ~2.5 e/ų at (0, 0, 0.1667) was found. By adding this additional position (named Xb), constraining the isotropic U value of Xa and Xb to be equal and the sum of their s.o.f. to be 1, the R₁ value converged to 0.058. Finally, we tried to refine the anisotropic displacement parameters of O(2), resulting in positive defined values. The Xb position was assumed to be occupied by Cl only, owing to the longer M(2)–Xb distance, whereas Xa was assumed to have a mixed (OH, F, Cl) occupancy. The site occupancies at the X sub-positions were fixed, taking into account the observed site scattering and the electron microprobe data, to (OH_0.40Cl_0.30F_0.10) and Cl_0.20 at Xa and Xb, respectively.

The refinement converged to R₁ = 0.0463 for 320 unique reflections with F_o > 4 σ(F_o) (0.0676 for all 422 reflections) and 41 refined parameters. The chemical formula derived from the structure refinement (SREF) is (Ca_2.56Mn_2.44)(PO₄)₃[Cl_0.50(OH)_0.40F_0.10]. The details of data collection and refinement are given in

Table 2. Crystal and experimental details for parafiniukite.

Crystal Data
Crystal size (mm)	0.07 × 0.04 × 0.03
Cell setting, space group	Hexagonal, P63/m
a (Å)	9.4900(6)
c (Å)	6.4777(5)
V (Å3)	505.22(5)
Z	2
Data Collection and Refinement
Radiation, wavelength (Å)	Mo Kα, λ = 0.71073
Temperature (K)	293
2θmax (°)	54.89
Measured reflections	6047
Unique reflections	422
Reflections with Fo > 4σ(Fo)	320
Rint	0.1008
Rσ	0.0422
Range of h, k, l	−12 ≤ h ≤ 12, −12 ≤ k ≤ 12, −8 ≤ l ≤ 8
R [Fo > 4σ(Fo)]	0.0463
R (all data)	0.0676
wR (on Fo2)	0.0933
Goof	1.163
Number of least-squares parameters	41
Maximum and minimum residual peak (e Å−3)	0.77 (at 0.98 Å from Xb) −0.80 (at 0.76 Å from T)

.

The fractional atom coordinates and isotropic or equivalent isotropic displacement parameters are reported in

Table 3. Site labels, Wyckoff positions, atom coordinates, and equivalent isotropic or isotropic (*) displacement parameters (Ų) for parafiniukite.

Site	Wyckoff	x/a	y/b	z/c	Ueq
M(1)	4f	2/3	1/3	0.0054(3)	0.0082(5)
M(2)	6h	0.0177(2)	0.2645(2)	¼	0.0206(5)
T	6h	0.3752(2)	0.4034(2)	¼	0.0103(6)
O(1)	6h	0.5008(7)	0.3465(6)	¼	0.0119(13)
O(2)	6h	0.4621(7)	0.5920(7)	¼	0.0247(18)
O(3)	12i	0.2629(5)	0.3424(5)	0.4403(7)	0.0199(12)
Xa	2a	0	0	¼	0.0132(17) *
Xb	4e	0	0	0.186(4)	0.0132(17) *

.

Table 4. Selected bond lengths (in Å) for parafiniukite.

M(1)	–O(1)	2.280(4) × 3	M(2)	–O(3)	2.204(5) × 2	T	–O(1)	1.535(6)
	–O(2)	2.366(4) × 3		–O(2)	2.259(6)		–O(3)	1.540(5) × 2
	–O(3)	2.835(4) × 3		–O(3)	2.401(4) × 2		–O(2)	1.552(6)
				–Xa	2.431(2)
				–Xb	2.466(4)
				–O(1)	3.070(6)

reports the selected bond distances, whereas

Table 5. Refined site scattering vs. calculated site scattering (in electrons) and proposed site occupancy for M sites in parafiniukite.

Site	Refined Site Scattering	Proposed Site Population	Calculated Site Scattering
M(1)	43.4	Ca1.25Mna0.74Na0.01	43.6
M(2)	69.0	Mna1.90Ca1.06Mg0.04	69.2

Note: ^a Includes 0.22 Fe.

and

Table 6. Bond-valence sums (in valence unit) in parafiniukite.

Site	M(1)	M(2)	T	ΣAnions
O(1)	2×→0.37↓×3	0.04	1.21	1.99
O(2)	2×→0.29↓×3	0.34	1.15	2.07
O(3)	0.08↓×3	0.40↓×2 0.23↓×2	1.19↓×2	1.90
Xa		3×→0.26		0.78
Xb		3×→0.08		0.24
ΣCations	2.22	1.98	4.74

Note: In mixed or partially occupied sites, the BVS has been weighted taking into account the site occupancy.

show the proposed site populations and the bond-valence calculations obtained using the bond-valence parameters of Brese and O’Keeffe [21].

Owing to the small crystal size, powder X-ray diffraction data were not collected.

Table 7. Calculated X-ray powder diffraction data (d in Å) for parafiniukite. Intensity and d_hkl were calculated using the software PowderCell 2.3 [22] on the basis of the structural model given in Table 3. Only reflections with I_calc > 5 are listed, if not observed. The eight strongest reflections are given in bold.

Icalc	dcalc	h k l	Icalc	dcalc	h k l
13	8.22	1 0 0	10	2.150	3 1 1
7	5.09	1 0 1	6	1.965	1 1 3
6	4.109	2 0 0	31	1.914	2 2 2
16	3.470	2 0 1	8	1.885	3 2 0
39	3.239	0 0 2	22	1.864	1 3 2
14	3.106	1 2 0	6	1.864	3 1 2
16	3.013	1 0 2	15	1.810	3 2 1
55	2.801	2 1 1	13	1.793	1 4 0
76	2.801	1 2 1	17	1.773	1 2 3
100	2.740	3 0 0	16	1.773	2 1 3
50	2.675	1 1 2	17	1.735	4 0 2
69	2.544	2 0 2	14	1.629	2 3 2
7	2.523	3 0 1	17	1.619	0 0 4
13	2.279	3 1 0	12	1.466	5 0 2
10	2.242	1 2 2	7	1.439	1 5 1

reports the X-ray powder diffraction data (for Cu Kα) calculated on the basis of the refined structural model.

4. Discussion

4.1. Crystal Structure Description

The crystal structure of parafiniukite is topologically similar to those of the other members of the apatite supergroup (e.g., [23]). The refined site scattering values, as given in Table 5, agree with the chemical formula calculated from the electron microprobe data. The M(1) and M(2) sites are Ca- and Mn-dominant, respectively, whereas Cl is the dominant X anion. Hence, the end-member composition of parafiniukite is Ca₂Mn₃(PO₄)₃Cl. A strong partitioning of Mn²⁺ at the M(2) site was previously reported in pieczkaite, ideally Mn₅(PO₄)₃Cl [13].

The T site is occupied by tetrahedrally-coordinated P⁵⁺ with distances ranging between 1.535 and 1.556 Å.

The nine-fold coordinated M(1) site has a mixed (Ca,Mn) occupancy. This occupancy can be idealized as Ca_0.625Mn_0.375. Taking into account the ionic radii of ^[9]Ca²⁺ (1.18 Å), ^[9]Mn²⁺ (1.04 Å), and ^[3]O²⁻ = 1.36 Å (after [13,24]), a <M(1)–O> distance of 2.49 Å can be predicted, in agreement with the observed <M(1)–O> distance, i.e., 2.494 Å. This average value is slightly larger than that observed in pieczkaite (2.473 Å), where the M(1) site is Mn-dominant, with a site occupancy Mn_0.575Ca_0.425 [13], and smaller <M(1)–O> distance than in Ca-apatites, e.g., hydroxylapatite (2.55 Å [25]).

The M(2) site has a seven-fold coordination and a mixed (Mn,Ca) occupancy. The site occupancy at M(2) may be idealized as Mn_0.63Ca_0.37, to be compared with that reported in pieczkaite, Mn_0.82Ca_0.18 [13]. The lower Mn/(Mn + Ca) atomic ratio in parafiniukite results in slightly longer M(2)–O bond distances. M(2) is coordinated also by the monovalent anions at the X site. In parafiunikite, two sub-sites, labelled Xa and Xb, were located; the former on the mirror plane, at z = ¼, and the latter slightly displaced from the mirror plane. In pieczkaite, the X anion (X = Cl_0.62OH_0.38) is only slightly displaced from the mirror plane at z = ¼. Since parafiniukite is a ternary apatite, containing also minor F, the situation is more complicated. Indeed, in order to avoid short anion–anion contacts, only some configurations are possible, confirming that local order within individual [001] anion columns should be present (e.g., [18,26]). In parafiniukite, the anion columns are occupied by (Cl_0.50OH_0.40F_0.10).

According to previous studies [27,28], Mn tends to order at the M(1) site. However, as discussed above and observed in pieczkaite [13], Mn is more strongly ordered at the M(2) site than at M(1), with Mn/(Mn + Ca) atomic ratios of 0.375 and 0.63 at M(1) and M(2), respectively, to be compared with 0.575 and 0.82 in pieczkaite [13]. This preferential distribution seems to be favoured by the occurrence of Cl anion at the X site, whereas Mn tends to be ordered at M(1) when X = F, indicating that the nature of the monovalent anion strongly affects the ordering of Mn and Ca in mixed Ca-Mn apatites [13].

Following [13], the hypothetical short-range ordered distributions could be proposed. The M(2) site population can be simplified as Mn_1.9Ca_1.1. All Ca must be locally associated with an OH group and F at the neighbouring X sites. In the crystal structure of parafiniukite, there is 0.50 (OH + F) at X, and this is associated with 0.50 × 3 = 1.50 M(2) cations. This means that OH and F are bonded to 1.10 Ca + 0.40 Mn, and all Cl is bonded to Mn.

Parafiniukite corresponds to the end-member composition Ca₂Mn₃(PO₄)₃Cl hypothesized by Tait et al. [13]. It belongs to class “08.BN Phosphates with only large cations, (OH, etc.): RO₄ = 0.33:1” in the Strunz-Nickel classification [29] and to the class “41.08 Anhydrous Phosphates, etc. containing hydroxyl or halogen where (A)₅(XO₄)₃ Zq, 41.08.01 Apatite group” of the Dana classification [30]. Following [31], parafiniukite is a new member of the Hedyphane Group in the Apatite Supergroup.

4.2. Crystallization of Parafiniukite

Parafiniukite is a primary phosphate mineral that crystallized from a highly fractionated melt. The Mn-Fe fractionation index, expressed as Mn/(Mn + Fe) atomic ratio, indicates beusite + beusite-(Ca) as the earliest crystallized phosphates (Mn/(Mn + Fe) = 0.71–0.92), followed by pieczkaite (0.89–0.96), parafiniukite (0.91–0.95), Mn-bearing chlorapatite (0.95–0.99), and Cl-free, (Mn,OH)-bearing fluorapatite (0.97–0.99), determining the position of parafiniukite in the crystallization sequence of apatite-supergroup minerals in the Szklary pegmatite. Szuszkiewicz et al. [2] noticed that this crystallization sequence is reversed in relation to that observed in the Cross-Lake pegmatite, the type locality for pieczkaite [13], where early crystallized manganoan fluorapatite is succeeded by late Mn-rich chlorapatite and pieczkaite. The latter sequence reflects progressive enrichment in Mn and F, and next also in Cl with progress in crystallization, corresponding to the general observation that the Cl-enrichment in the apatite structure is typically characteristic of late to secondary stages of evolution (e.g., [32]). Studies of the (Mn,Cl)-rich apatites from the Szklary pegmatite [2] showed that, contrary to the Cross Lake pieczkaite, they are primary magmatic phases that formed together or slightly after beusites, and their crystallization predates manganoan fluor- to hydroxylapatites. Therefore, the early crystallization of pieczkaite and parafiniukite in the Szklary pegmatite was probably constrained by another process, which may be related to the interaction of the evolved pegmatite-forming melt with the ultramafic wall-rock (serpentinite), and its contamination by serpentinite-related fluid-mobile elements, particularly Cl [33]. This enabled precipitation of the small-volume droplets of a hydrous melt extremely enriched in Mn, Cl and P, as a precursor for beusites, pieczkaite and parafiniukite, immixing with normal aluminosilicate melt from which Mn-rich fluorapatite to hydroxylapatite devoid of Cl crystallized in the final stages of the pegmatite formation. Metasomatic interaction between the Szklary pegmatite and the host serpentinite is also marked by intensive Mg contamination, appeared by the occurrence of dravite, and the enrichment of the pegmatite in some other rare components like As and Sb (native elements and alloys, oxides, arsenites and antimonites, arsenates, As- and Sb-bearing dumortierite-supergroup minerals) [11,12], Pb (pyrochlore-, microlite- and betafite group minerals), Bi (native element, pyrochlore-, microlite and betafite group minerals), Ba (K-feldspars, harmotome, baryte), Li and Cs (some phosphates, (Mn,Be,Na,Cs)-bearing cordierite, (Cs,Mg)-bearing beryl, (Cs,Mg)-bearing muscovite, Cs-bearing phlogophite and Cs-bearing annite) identified as serpentinite-related fluid-mobile elements [33], playing important role in zones (1) and (2).
