The Beneficiation Processes of Low-Grade Sedimentary Phosphates of Tozeur-Nefta Deposit (Gafsa-Metlaoui Basin: South of Tunisia)

Abstract

The enrichment of the low-grade-phosphate ore of the Tozeur-Nefta deposit was investigated using scrubbing-attrition, ball grinding and anionic/cationic reverse flotation in order to separate phosphate-rich particles from their gangue. The choice of the beneficiation process was based on the petrographic, mineralogical and chemical analyses. The petrographic and mineralogical studies have revealed the abundance of phosphatic (carbonate-fluorapatite-CFA) particles) coupled with carbonates (calcite, dolomite,) and silicates (quartz, illite, kaolonite) that constitute the (endo/exo) gangue of these ores. Chemical analysis has demonstrated that the raw phosphate sample contains low amounts of P₂O₅ (12.0%) and MgO (4.9%) and high amounts of CaO (40.7%) and SiO₂ (20.5%). Microscopic observation/counting has shown that the release mesh occurs in the 71–315 μm size. Scrubbing-attrition, grinding and reverse flotation methods were applied to the +71μm fraction. Scrubbing-attrition tests of the 71–315 μm fraction have helped to improve the P₂O₅ grade to 15.5%. Ball-grinding tests were used to reduce the coarse fraction +315 μm. Grounded materials were sieved to 71–315 μm and combined with the scrubbed fraction in the flotation feed. Reverse-flotation tests of the phosphate-rich fraction (71–315 μm) have helped to improve the P₂O₅ grade to 27.1%, with a recovery rate of 92.4%.

1. Introduction

Tunisia is the second largest phosphate producer in Africa, with an annual production of about 8 million tons (Mt) [1,2]. The country also boasts about 1750 Mt of phosphate reserves. The main phosphate resources in Tunisia are distributed over three major Eocene sedimentary basins: the Gafsa-Metlaoui Basin, the Meknessi Basin and the Sra Ouertane Basin [3,4,5,6]. The Tozeur-Nefta deposit, which is the subject of the current study, is located in the Southwest region of the Gafsa-Metlaoui Basin, and has remained untapped. In order to upgrade its phosphate-production capacity, the Compagnie des Phosphates de Gafsa (CPG, Tunisia) has planned to make use of the Tozeur-Nefta deposit before 2020. This deposit, which has been the subject of several studies [7,8,9,10,11], contains about 410 Mt of phosphate, has been considered, to date, as a strategic reserve. The majority of the low-grade phosphate ore is organized either in the form of a single layer or a layer-beam including non-phosphatic intercalations [12].

Currently, phosphate fertilizers are generally produced from primary-phosphate ores. Phosphate material can easily be separated from the gangue and concentrated by conventional beneficiation techniques (i.e. washing process). As a result of the concurrent increase in demand for phosphate products, and the continuous depletion of phosphate reserves, much more focus is made today on opportunities to recover phosphate ores from secondary sources (i.e. tailings and low-grade ore deposits). These new sources are continually investigated, as is happening now at the Hazara deposit in Pakistan (16% P₂O₅) and the Kohe-lar deposit in Iran (5.01% P₂O₅) [13,14]. Upgrading processes of sedimentary-type phosphate ores consist of separating the gangue minerals (silicates and carbonates) from the valuable phosphate material [15,16,17]. New processing techniques are needed to upgrade the low-grade phosphates to commercial-grade products (P₂O₅ > 28%) [18]. The choice of the suitable beneficiation process requires a good knowledge of the mineral assemblages of the studied ore [19]. Several industrial processes are used worldwide for the enrichment of phosphate ores, ranging from simple mechanical preparation to more complex treatment schemes, which combine several methods such as flotation, magnetic, electrostatic and dense-media separation (DMS). Calcination is applied for the enrichment of phosphates that are rich in organic materials, like those of the Youssoufia deposit in Morocco [12], or that include a carbonated gangue, like those of Akashart’s phosphates in Iraq [20]. Electromagnetic separation is used mainly for the valorization of igneous phosphates, such as that of the Phalaborawa deposit in South Africa [21]. Acid leaching is a process of enrichment of siliceous and calcareous phosphate ore applied to the Abbotabad deposit in Pakistan [22,23]. Magnetic separation is used to separate magnetic minerals from phosphate ore of the feebly magnetic ankerite, as noted in the Abu Tartur phosphate ore deposit of Egypt [24]. Practically speaking, crushing, grinding and screening methods are used to remove coarse-textured materials. These techniques are also used in the large phosphate-ore deposits of Kef Eddour and Oum El Khecheb, located in the Tunisian Gafsa-Metlaoui Basin [25,26]. Generally, washing, attrition and desliming methods are used to remove the major part of the clay-type binder [27].

Flotation is the most widely used method for the enrichment of medium-grade phosphate rock. This method is mainly employed for the separation of phosphate minerals from silicate gangue [28,29]. Flotation may be conducted in of two ways depending on the composition of the material to be processed: direct flotation and/or reverse flotation. That is to say, direct flotation consists of floating the phosphate minerals and depressing the gangue material, while reverse flotation consists of floating the gangue minerals and keeping the phosphatic matter in the slurry. Direct flotation is less effective in the presence of carbonated gangue because of similar physicochemical properties between phosphate and carbonate minerals [28]. Reverse flotation is the most common method used for the separation of phosphate minerals from carbonated gangue [30].

Several studies on reverse-flotation of phosphates with siliceous and carbonated gangues showed satisfactory results in terms of grade and recovery of P₂O₅ [14,26,31,32,33,34,35,36]. Reverse flotation can be applied as unique process for the beneficiation of sedimentary siliceous carbonate phosphates, such as those of Ayata (Tunisia) [31] and Sebaiya (Egypt) [33]. It can be preceded by other techniques including grinding (e.g. igneous phosphates of kola (Brazil) [32] and sedimentary phosphates of Kef-Eddur (Tunisia) [26]) and gravity separation followed by direct flotation (e.g. phosphate ore slime of Yichang (China) [36]). Other flotation parameters have been studied; the most important are release mesh, flotation reagents type/dosage, and pH and pulp concentration. The present work differs from previous studies by in the following way: (i) release mesh, (ii) processes that precede flotation (sizing, washing, attrition and ball milling), (iii) two reverse flotation stages, although used by others, it was performed in this work under specific conditions of pH, reagents type/dosage and air flow-rate.

The present study consists of characterizing the low-grade sedimentary phosphate ore of the roof series of the Tozeur-Nefta deposit, while having for objectives: (i) the examination of the mineralogical and geochemical characteristics of the studied phosphate ore, and (ii) the design of an efficient and economic process for the beneficiation of low-grade phosphate ores, including siliceous and carbonated gangues.

2. Materials and Methods

2.1. Sampling and Separation

The trench sampling method was used to extract 400 kg of raw phosphate material from the roof series of the Tozeur-Nefta deposit. All samples were crushed using a jaw crusher to 100% below 10 mm in size, then homogenized and divided by a riffle-sample divider to obtain representative sub-samples, each one weighing 2 kg. After further quartering, one sub-sample was ground manually in an agate mortar into a fine powder for XRD and chemical analysis. One of the non-ground sub-samples was used for grain-size analysis as well as for microscopic observation. The remaining sub-samples were stored in plastic bags for phosphate beneficiation process.

2.2. Analysis

A representative sub-sample from the roof phosphate layer of the Tozeur-Nefta deposit was used in this study to conduct the mineralogical and geochemical grain-size analyses.

2.2.1. Petrographic and Mineralogical Analysis

The petrographic analysis was carried out by means of thin sections, which were examined and photographed with an optical microscope. Mineralogical characterization was carried out on the basis of an XRD analysis and binocular observation methods. XRD analyses were carried out by means of PANalytical X’Pert PRO X-ray diffractometer (Cu Kα radiation; λ = 1.5418 Å, PANalytical, Almelo, The Netherland). Mineralogical identification was performed by means of High Score Plus software (version 2.1, PANalytical, Almelo, The Netherland) equipped with the ICDD PDF–2 Release 2004.

2.2.2. Particle-Size Analysis and Heavy-Liquid Separation

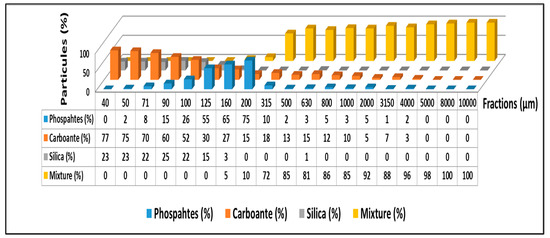

Particle-size distribution was measured by means of the wet-sieve (AFNOR) method (from 0.40 to 10 mm size range). Binocular observation of the different size fractions of the sample was used to identify and quantify, by visual inspection and grain counting, the relative percentages of the major minerals, and to evaluate the release mesh of phosphate minerals. Dense media separation was evaluated at laboratory scale through heavy-liquid separation (HLS) test work. Tetra Bromo Ethane (TBE, density (d) = 2.96 g/cm³) was used to separate phosphate minerals (d > 2.96 g/cm³) from silicate and carbonated gangue minerals (d < 2.96 g/cm³). Phosphate fraction was dried and examined by binocular observation in order to manually sort phosphate grains from the remaining impurities.

2.2.3. Chemical Analysis

Chemical and analytical procedures, applied to the studied phosphate material, as considered in the present study, are adapted from the protocols of CPG and tested in the company’s labs, where standardized methods are used specifically for total digestion and chemical analysis of sedimentary phosphate rocks. P₂O₅ and CaO were analyzed by colorimetry (Technicon Auto-analyzer, Bran-Luebbe, SPX Process Equipment, Norderstedt, Germany) after digestion by HClO₄-HCl. Atomic adsorption spectroscopy (Perkin Elmer-AAnalyst 800, Perkin Elmer, Norwalk, CT, USA) was used to analyze MgO, Fe₂O₃, Al₂O₃, Cu, Zn, Mn and Ni after digestion by HClO₄-HF-HNO₃, SiO₂ after digestion by HCl-HF and Cd after digestion by HNO₃. K₂O and Na₂O were analyzed by flame spectrometry after digestion by HClO₄-HF-HNO₃. SO₃ was analyzed by gravimetry after digestion by HCl and subsequent precipitation of SO₄²⁻ ions as BaSO₄, with a BaCl₂. Loss-on-ignition (LOI) was determined by means of a muffle furnace at 1050 °C. To verify accuracy, standard reference phosphate material SRM694 (Western phosphate rock) and SRM120C (Florida phosphate rock) were digested and analyzed according to the same protocol applied to the phosphate material considered in this study. All chemical analyses presented experimental errors of less than 5%.

2.3. Beneficiation Processes

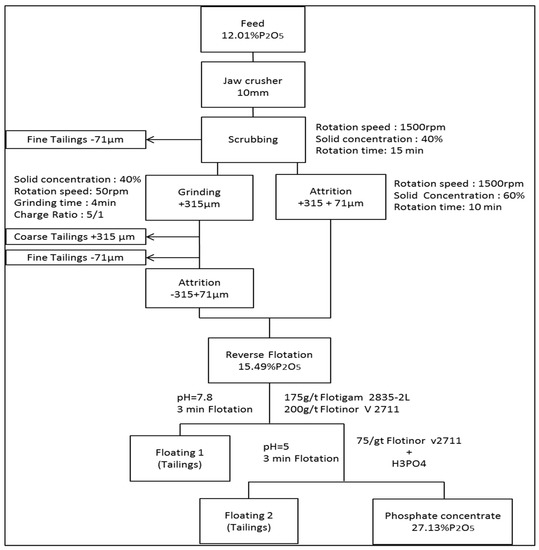

Beneficiation will be conducted to upgrade the +71 µm size fraction by means of sizing, scrubbing-attrition, grinding and flotation methods.

2.3.1. Sizing, Scrubbing (Washing) and Attrition

Scrubbing treatment of raw phosphate (2 kg) was carried out for 15 min (70 rpm) and by using a 10-L scrubber and with 40% solids in order to remove clay impurities from the surface of grains. After scrubbing, the resulting pulp was wet-sieved (AFNOR sieves, see Section 2.2.2) to obtain the 71–315 µm fraction and then subjected to attrition in order to remove further clay coatings from phosphate grains. An attrition step was conducted in a Denver cell at 60% solid/liquid ratio, respectively, and 1500 rpm (5, 10 and 15 min). The product from attrition was wet-sieved to eliminate the fraction −71 µm and the 71–315 µm fraction was used as a flotation feed.

2.3.2. Grinding

In general, the grinding of ores may lead to the liberation of the valuable minerals from the gangue. It is obvious that wet grinding often requires less energy than dry grinding [37]. The wet-grinding process was investigated for the +315 µm fraction in order to improve the liberation of phosphate grains from the gangue and to make this coarse fraction more suitable for flotation. The characteristics of grinding charge are displayed in

Table 1. Characteristics of grinding balls.

Grinding Ball	Diameter (mm)	Ball Ratio (%)	Weight (kg)
B1	40	7.06	0.29
B2	30	55.5	0.12
B3	25	8.91	0.07
B4	20	28.5	0.04

. Steel balls of four types (B1, B2, B3 and B4), of different diameters and weights were used in the study. The large balls are suitable for the fractionation of coarse grains and small balls for small grains [38]. A grinding process was carried out in a ball mill of 10-L capacity. The influence of three grinding parameters on the product fineness was studied and optimized: (i) solid concentration (30%, 40% and 50%), (ii) grinding time (3, 4 and 5 min) and (iii) charge ratio (3/1, 4/1 and 5/1) (Table 1). The rotation speed was fixed at 50 rpm.

2.3.3. Flotation

Reverse flotation was carried out by means of two flotation reagents kindly supplied by Clariant^® Company (Shanghai, China): (i) V2711 Flotinor ([R–O–(CH₂)₃–NH₃]+CH₃COO–; anionic collector) was used as calcite collector and (ii) Ether diamine Flotigam 2835-2L ([R–O–(CH₂)₃-NH–(CH₂)₃–NH₃]+CH₃COO–; cationic collector) as quartz collector [39,40,41]. Fresh solutions of these reagents were prepared daily to be used in flotation tests. Dilute H₃PO₄ (5%) acted both as phosphate depressant and pH-modifier. Reverse flotation tests were performed in a laboratory Denver 1.5 L flotation cell (model D-12). For each flotation test, a 500 g of phosphate sample was used. The dilution of the pulp was fixed at 35% solid, rotation speed at 1500 rpm and air flow-rate at 5.4 L/min. Phosphate is recovered after two stages of reverse flotation: first, separating phosphate from silicate gangue minerals in natural pH (pH = 7.8) by means of cationic and anionic collectors, and then, by means of anionic and H₃PO₄ reagents in acid medium (pH = 5.0) to separate phosphate from carbonate minerals. Under acid condition, phosphate minerals are not taken up by the foams and remain in the cell.

3. Results and Discussion

3.1. Petrographic Analysis

The most abundant phosphatic elements are displayed as rounded to sub-rounded pellets embedded in microsparitic cement (Figure 1a). These elements are often surrounded by a thin and clear cortex (Figure 1b). Other elements were observed in thin sections, such as bone debris of elongated shapes (Figure 1c) and ooliths formed by growth and crystallization of micrometric phosphate layers (Figure 1d). Aggregates of small dolomitic rhombohedra (Figure 1e) constitute the carbonated bonding phase, which generally indicates the beginning of crystallization of the micritic material containing all the impurities of the original mud. The exogangue is generally carbonated, showing phosphate grains surrounded by dolomite rhombohedra (Figure 1f), while the endogangue is present either as silica (Figure 1g) or carbonate grains (Figure 1h), occurring, respectively, as quartz or calcite included within the phosphate grains.

3.2. Mineralogical Analysis

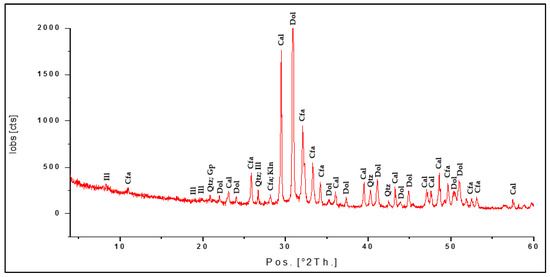

The XRD pattern (Figure 2) revealed the presence of seven mineral species, as follows: carbonate-fluorapatite (CFA), calcite, dolomite, illite, kaolinite, gypsum, and quartz. The binocular observation revealed (Figure 3) the abundance of phosphate elements in the 71–315 μm fractions, carbonate minerals are more concentrated in the −200 μm fraction, whereas free silica is mainly concentrated in the −160 μm fraction. The mixed grains are concentrated in the coarse fraction (+315 μm). The release mesh was defined by Blazy [42], as the size that the grains should have for the best detachment of ore particles from the gangue (mixed grain ≤ 10%). The release mesh of phosphate grains, determined by binocular microscope, corresponds to the 71–315 μm fractions (Figure 3).

3.3. Chemical Analysis

3.3.1. Raw Phosphate Analysis

Chemical analysis (

Table 2. Concentrations of major and trace elements in the studied raw phosphate.

Element	Concentration
P2O5 (%)	12.0
CaO (%)	40.7
MgO (%)	4.95
SiO2 (%)	20.5
SO3 (%)	1.27
Fe2O3 (%)	0.65
Al2O3 (%)	1.75
Na2O (%)	0.39
K2O (%)	0.45
Corg (%)	0.28
F (%)	1.27
CO2	20.2
LOI	20.7
Cd (mg/kg)	65
Cu (mg/kg)	31
Zn (mg/kg)	215
Mn (mg/kg)	296
Ni (mg/kg)	80

) has shown a low concentration of P₂O₅ (12.0%) in the representative phosphate sample of the roof series of Tozeur-Nefta deposit. It is worth noting that phosphate ores can be classified into three groups depending on their P₂O₅ content [43]: (i) high-grade phosphate ore (26 to 35% P₂O₅), (ii) moderately low-grade phosphate ore (17 to 25% P₂O₅), and (iii) low-grade phosphate ore (12 to 16% P₂O₅). According to this classification, the phosphate ore of the top series of the Tozeur-Nefta deposit belongs to the class of low-grade phosphate. The CaO/P₂O₅ ratio (3.39) is much higher than that of pure CFA (1.55) [4,5,6]. The concentration of SiO₂ was very high (20.5%). The concentration of Fe₂O₃ and Al₂O₃ amounting 0.65% and 1.75%, respectively, give a ratio ((Fe₂O₃ + Al₂O₃)/P₂O₅) of 0.2. It is worth noting that for values > 0.1, concentrations of Fe₂O₃ and Al₂O₃ are considered as high and, therefore, many problems can arise during the filtration and purification of phosphoric acid [44]. Organic-matter (0.28% organic carbon), Na₂O (0.39%) and K₂O (0.45%) contents are relatively low.

Results of trace elements concentrations are provided in Table 2. The measured Ni (80 mg/kg), Zn (215 mg/kg), Cd (65 mg/kg), Cu (31 mg/kg) and Mn (296 mg/kg) concentrations are in agreement with their equivalents in the unwashed (raw) economic ores from the main phosphate series of the Gafsa-Metlaoui basin [1,4,5,45,46].

3.3.2. Granulo-Chemical Analysis

The chemical characteristics of the different size fractions of the phosphate sample are shown in

Table 3. Chemical results of major elements in different size fractions of the studied raw phosphate.

Fraction (µm)	Weight (%)	P2O5 (%)	CaO (%)	CaO/P2O5	MgO (%)	SiO2 (%)	SO3 (%)	Fe2O3 (%)	Al2O3 (%)	Na2O (%)	K2O (%)	Corg (%)	CO2 (%)	F (%)	LOI
10,000	4.64	4.25	47.3	11.1	3.93	17.0	0.57	0.43	1.10	0.18	0.10	0.10	23.4	1.74	25.0
8000	2.11	4.63	45.1	9.74	4.55	15.6	0.54	0.49	1.24	0.17	0.11	0.12	25.8	1.74	27.5
5000	2.50	5.16	44.2	8.56	3.99	18.5	0.61	0.41	1.20	0.19	0.11	0.34	23.3	2.24	25.4
4000	0.78	5.53	46.2	8.36	3.67	16.6	0.67	0.47	1.20	0.19	0.10	0.04	23.7	2.04	25.2
3150	0.89	6.89	44.2	6.42	3.34	18.0	0.75	0.36	1.14	0.21	0.10	0.24	22.7	2.60	24.59
2000	1.25	7.95	45.4	5.71	3.17	18.2	0.86	0.38	1.10	0.23	0.10	0.21	20.2	1.20	22.1
1000	1.92	8.83	45.7	5.17	3.15	17.9	1.23	0.28	1.09	0.23	0.10	0.24	19.1	2.40	21.0
800	1.06	8.42	46.4	5.51	2.49	17.7	1.09	0.29	1.11	0.22	0.10	0.10	20.2	3.36	21.9
630	1.25	8.27	46.4	5.61	1.35	17.9	1.10	0.34	1.10	0.24	0.12	0.38	20.9	3.44	23. 9
500	2.02	9.56	46.8	4.89	3.13	17.1	1.14	0.35	1.09	0.39	0.11	0.37	17.4	3.12	19.5
315	6.05	16.8	49.6	2.94	2.21	16.3	1.67	0.41	1.03	0.57	0.10	0.42	9.09	2.72	11.3
200	9.99	21.5	50.7	2.36	1.53	11.3	2.03	0.29	0.95	0.73	0.09	0.49	8.56	2.44	10.9
160	2.31	18.9	49.8	2.64	2.06	16.5	1.8	0.19	0.94	0.59	0.09	0.16	7.38	2.00	9.16
125	3.94	11.3	45.5	4.04	3.66	13.8	1.13	0.26	0.91	0.43	0.11	0.24	20.9	3.32	22.8
100	3.75	6.86	39.9	5.81	5.25	16.3	0.79	0.24	0.91	0.33	0.11	0.12	26.6	2.52	28.3
90	1.92	6.26	36.6	5.85	4.56	19.6	0.73	0.19	1.10	0.32	0.12	0.19	28.3	0.73	30.1
71	7.11	6.11	35.8	5.86	6.82	21.3	0.66	0.15	0.96	0.22	0.13	0.30	25.4	0.66	27.4
50	5.77	5.26	37.8	7.19	7.21	16.9	0.63	0.20	0.82	0.25	0.08	0.48	28.5	0.63	30.9
40	1.92	5.43	38.5	7.09	7.19	15.8	0.68	0.24	0.86	0.20	0.08	0.12	29.2	0.68	30.9
−40	38.8	13.2	35.5	2.68	5.62	22.5	1.33	0.85	3.35	0.42	1.07	0.28	15.1	1.33	17.1

. Results show that the +125–500 μm and the −40 μm fractions (24.3% and 38.8% by weight, respectively) bear the highest amounts in CFA (21.5–11.3% and 13.2% P₂O₅, respectively). All the fractions analyzed are rich in carbonate minerals (CaO concentrations vary from 35.5 to 50.7%). MgO is concentrated in the coarse fraction (+500 μm) and particles of the −125 μm. The fraction (−40 μm) is richer in SiO₂, Fe₂O₃, Al₂O₃ and K₂O than all others (Table 3), which shows that clay minerals are, besides carbonates, among the dominant components of the fine fraction, and that most of SiO₂ is bound to clay minerals. Due to these results, scrubbing and attrition processes may be used in order to remove the major part of slimes and clay coatings, as well as to upgrade the phosphate ore. The trace element concentrations of the different size fractions are presented in

Table 4. Concentrations (mg/kg) of metallic trace elements in different size fractions of the studied raw phosphate.

Fraction (µm)	Cd	Cu	Zn	Mn	Ni
10,000	95	31	148	574	77
8000	129	27	157	589	134
5000	102	26	138	486	97
4000	108	30	151	492	127
3150	82	24	146	544	106
2000	93	22	151	530	143
1000	98	19	113	522	88
800	104	22	112	575	144
630	110	21	112	613	138
500	103	27	120	621	142
315	106	27	110	439	133
200	80	22	85	340	93
160	67	27	84	378	21
125	76	23	95	418	58
100	57	19	91	296	116
90	47	20	84	253	66
71	40	15	80	220	70
50	40	15	79	211	68
40	45	17	83	236	63
−40	49	49	345	173	87

. Results showed that the fine fraction (−40 μm) is richer in Cu and Zn than the others. Cd is concentrated mainly in the coarse fraction (+200 μm).

3.4. Enrichment Methods

As described in the material and methods section, only the +71 μm size fraction was processed by different methods in order to obtain a phosphate-rich fraction (71–315 μm) that is suitable for the flotation process. It is worth noting that the 40–71 µm fraction was subjected to direct and reverse flotation tests in order to assess the flotation performance of phosphate minerals in the fraction below 71 µm. The reverse-flotation test (using the same flowsheet used for the 71–315 μm fractions) was not successful and no stable foam was observed. Direct flotation (2 min) of phosphate minerals using a mixture of 1000 g/t of Aero 725 and fuel oil (pH = 9; 65% solid) gave a low-grade concentrate assaying 15.1% P₂O₅ with a recovery rate of 76.8%. Pease et al. [47] investigated the flotation performance of different size fractions and reported the poor floatability of fine material. Therefore, adding the 40–71 µm fraction to the flotation feed (71–315 μm) might not be a good option.

3.4.1. Scrubbing and Attrition

Scrubbing-attrition treatment was used to improve the grade and recovery of phosphate from the P₂O₅ rich fraction (71–315 μm). The results of the scrubbing test (

Table 5. Chemical analysis of scrubbed sample.

Fraction (µm)	Weight (%)	P2O5 (%)		CaO (%)	CaO/P2O5	MgO (%)	SiO2 (%)	Cd (mg/kg)
		Grade	Recovery
+315	23.1	10.1	19.7	46.8	4.66	3.19	18.8	97
−315+71	30.0	13.5	34.3	43.8	3.26	3.80	16.5	55
−71	46.9	11.5	46.0	35.9	3.11	5.95	22.9	56
Reconstituted	100	11.8	100	40.78	3.46	4.67	20.0	65.2

) showed that the P₂O₅ grade and recovery are 13.5% and 34.3%, respectively. The P₂O₅ content increased by 1.45%, compared to the representative sample (12.0%), even though this did not have a significant impact on the CaO/P₂O₅ ratio (3.26), compared with that of the raw sample (3.39). MgO and SiO₂ contents decreased from 4.67% to 3.8% and from 20.0% to 16.5%, respectively. Cd concentration also decreased from 65 mg/kg (raw sample) to 55 mg/kg. The scrubbing step has raised the content of P₂O₅ by the elimination of the impurities such as MgO, SiO₂ and Cd. The coarse fraction (+315 μm) represented 10.1% and 19.7% of the feed and phosphate value respectively. This fraction may be ball-milled and combined with the −315 + 71μm fraction to constitute the feed to the flotation circuit. The fine fraction (−71 μm) assays 11.5% of P₂O₅ and a recovery close to 45.9%. Attrition was used to improve the separation efficiency of clay coatings from phosphate surface. Results of the scrubbing-attrition test are shown in

Table 6. Chemical analysis after scrubbing and attrition treatments.

Time (min)	Fraction (µm)	Weight (%)	P2O5 (%)
			Grade	Recovery
5	−315+71	88.8	13.7	90.6
10	−315+71	84.2	15.5	97.2
15	−315+71	86.6	14.4	92.4

. The 10 min-assay leads to a P₂O₅ grade (15.5%) which is better than those obtained with 5 and 15 min assays (13.7% and 14.4%, respectively).

The scrubbed-attrited 71–315 µm fraction was used for HLS tests, in order to assess the “pure phase” of phosphate, which corresponds to the optimum concentration of P₂O₅ that can be achieved through enrichment methods. Results of HLS and identification of phosphate grains, under the binocular microscope, are shown in

Table 7. Results of the chemical analysis of pure phosphate phase recovered by HLS.

Element	P2O5 (%)	CaO (%)	CaO/P2O5	MgO (%)	SiO2 (%)	Cd (mg/kg)
Concentration	30.9	49.5	1.60	1.09	2.22	27

. The highest grade of P₂O₅ (30.9%) achieved by HLS, is the maximum concentration that can be obtained by physical or physicochemical separation processes. CaO is high (49.5%), showing that the carbonates are included into the phosphate particles (endogangue), which is in agreement with the petrographic observations. A high content of CaO in the phosphate concentrate may increase the consumption of sulfuric acid during the production of phosphoric acid [48]. Cd concentration (27 mg/kg) is significantly lower than that of the representative raw sample (65 mg/kg) and the scrubbed one (55 mg/kg). Therefore, it can be stated that cadmium is more concentrated in the exogangue of the studied phosphates.

3.4.2. Grinding

According to Anglaret et al. [38], the rotation speed should be between 65 and 80% of the critical rotational speed (Vcr) of the mill. The critical rotational speed is calculated on the basis of the equation:

$${\mathrm{V}}_{\mathrm{cr}}=32/\sqrt{\mathrm{D}}$$

(1)

where D is the diameter of the grinding cell expressed in meters. The diameter of the mill, used in this study, is equal to 0.25 m, which corresponds to a critical rotational speed of 64 rpm; the rotation speed V varies according to the following range: 41.6 < V < 51.2. The rotation speed chosen for this study is 50 rpm.

Effect of the Grinding Time on the Grade and Recovery of P₂O₅

Grinding tests were evaluated at 2, 3 and 4 min after fixing the rotation speed at 50 rpm, solid concentration at 40% and charge ratio at 5/1. Results (

Table 8. Grinding tests results after variation of different parameters.

Parameter to be Varied	Test	Time (min)	Cr	Sc (%)	Rotation Speed (Rpm)	Weight (%)	P2O5 (%)
							Grade	Recovery
Grinding time (Gt)	1	2	5/1	40	50	28.1	14.2	39.7
	2	3	5/1	40	50	32.9	14.4	47.0
	3	4	5/1	40	50	40	14.5	57.6
Charge ratio (Cr)	1	4	3/1	40	50	29.8	14.4	42.6
	2	4	4/1	40	50	30	14.4	43.1
	3	4	5/1	40	50	40.2	14.5	58.1
Solid concentration (Sc)	1	4	5/1	30	50	28.6	14.4	40.9
	2	4	5/1	40	50	40.2	14.5	58.0
	3	4	5/1	50	50	31.2	14.4	44.7

) have shown that the best outcome for P₂O₅ grade and recovery was obtained after a 4 min-grinding period. This optimal grinding time was chosen for the rest of the tests.

Effect of the Charge Ratio on the Grade and Recovery of P₂O₅

The following charge ratio was studied: 3/1, 4/1 and 5/1 after fixing rotation speed at 50 rpm, solid concentration at 40% and grinding time at 4 min. The results displayed in Table 8 show that the best outcome for P₂O₅ grade and recovery was obtained by using the charge ratio 5/1. This optimal ratio was chosen for the rest of the tests.

Effect of Solid Concentration on the Grade and Recovery of P₂O₅

Grinding tests with 30%, 40% and 50% solids were evaluated after fixing the rotation speed at 50 rpm, charge ratio at 5/1 and grinding time at 4 min. Results, displayed in Table 8, show that the best results in term of grade and recovery of P₂O₅ were obtained for 40% solids.

Optimum Grinding Parameters

The optimum grinding parameters are rotation speed (Rs) of 50 rpm, charge ratio (Cr) of 5/1, solid concentration (Sc) of 40% and a grinding time (Gt) equal to 4 min. These parameters allowed us to improve the separation of phosphate grains from their gangue. The optimal test has shown (

Table 9. Grade and recovery of P₂O₅ after optimum grinding and attrition tests.

Experiment	Fraction (µm)	Weight (%)	P2O5 (%)		CaO (%)
			Grade	Recovery
Grinding	>315	33.7	6.71	22.5	47.8
	71–315	40.2	14.5	58.0	46.5
	<71	26.1	5.45	14.1	44.8
Attrition	71–315	87.2	15.2	91.4	46.8

) an improvement in P₂O₅ content, from 10.1% (before grinding) to 14.5%. The 71–315 μm fraction released after grinding was subjected to attrition treatment by using the same parameters as the ones employed for the scrubbed fraction (see Section 3.4.1). This step has made it possible to improve the P₂O₅ content from 14.5% to 15.2% (Table 9). Grinding causes modifications in terms of grain texture, morphology, surface chemistry, and electrical-surface charge [49]. The increase of the grain-surface area may increase the reactivity with the flotation reagents [50].

3.4.3. Flotation

Flotation tests using anionic/cationic collectors [26,51,52] were applied on the 71–315 μm fractions resulting from sizing, washing, grinding and attrition treatments (Figure 4). The flotation feed contains (

Table 10. Results of chemical analysis of the flotation feed and the flotation test products.

Product	Weight (%)	P2O5 (%)		CaO (%)	CaO/P2O5	MgO (%)	SiO2 (%)
		Grade	Recovery
Flotation feed	-	15.5	-	44.6	2.9	3.39	13.2
Floating 1 (Tailings)	21.3	3.23	4.40	36.6	11.3	5.96	26.0
Floating 2 (Tailings)	25.3	2.01	3.20	47.2	23.5	4.89	23.9
Non-floating (Phosphate-concentrate)	53.4	27.1	92.4	46.5	1.71	1.03	2.52
Reconstituted	100	15.7	100	44.6	2.80	3.05	12.9

) 15.5% of P₂O₅ and 3.39% MgO with a very high CaO/P₂O₅ ratio (2.9). SiO₂ content (13.2%) is low compared to the representative raw phosphate sample (20.5%) since silicates are preferably associated to the fine fraction. The latter has been reduced by sieving, scrubbing and attrition. During the flotation tests, two parameters were varied: the pH of the pulp and reagents. The siliceous gangue floated at a natural pH by means of a cationic collector [14]. Carbonates are recovered at acidic pH with the anionic collector which operates, at the same time, as an activator of silicates [39]. Phosphate makes the non-floating fraction, which is recovered in acidic pH [31], and in the presence of phosphoric acid, which is the most recommended depressant during calcite flotation [34,53,54]. The content of the major elements in the final products of the optimal flotation test is summarized in Table 10. Tailings are removed as a froth 1 (21.3% weight: silicates > carbonates) and a froth 2 (25.3% weight: carbonates > silicates). The CaO/P₂O₅ ratio is still high (1.71) compared to the ratio required for industrial application (CaO/P₂O₅ < 1.6; [44]. Initially, such a ratio could be attributable to the presence of carbonates included in the phosphate grains, a hypothesis confirmed by Zidi et al. [26] in the study of the low-grade phosphate discharged by the Kef Eddour washing plant. Nevertheless, part of the floated carbonates could result from the similarity of their surface chemical propriety with respect to apatite, which makes their separation rather difficult [33,53]. The contents of SiO₂ (2.52%) and MgO (1.03%) show a noticeable decrease compared to the flotation feed (13.2% and 3.39%, respectively). The valuable ore (53.4% weight) is recovered as non-floating phosphate concentrate assaying 27.1% P₂O₅ with a recovery rate of 92.4%.

4. Conclusions

Phosphates of the Tozeur-Nefta roof series have, so far, been rejected as non-profitable material. This study has revealed that this material is a low-grade ore (12.0% P₂O₅) with siliceous and carbonated gangue. Beneficiation assays (sizing, scrubbing-attrition, grinding and flotation) were conducted on the +71 µm fraction of this material. Scrubbing followed by attrition of the 71–315 μm fractions to improve the grade to 15.5% P₂O₅. The +315 μm fractions were wet-grounded and sieved to 71–315 μm and floated altogether with the fraction 71–315 μm, as yielded by scrubbing-attrition. Reverse-flotation tests conducted on the phosphate-rich fraction (71–315 μm) have made it possible to enhance the grade from 15.5% to 27.1% P₂O₅ with a recovery of 92.4%. The results of the enrichment tests that were carried out are considered satisfactory as long as they have allowed the beneficiated poor-raw phosphate material to reach the levels of marketable grades. As a result, we believe that the flow sheet developed at the end of this study can be directly applied on an industrial scale.
