Preparation of Calcium Stannate from Lead Refining Dross by Roast–Leach–Precipitation Process

Abstract

Lead refining dross containing plenty of tin and other heavy metals, such as lead and antimony, is considered a hazardous waste generated in large quantities in lead smelter plants. In this study, calcium stannate was synthesized from lead refining dross using sodium carbonate roasting and alkaline leaching followed by precipitation with CaO. The effect of roasting and leaching parameters on the extraction efficiency of tin was investigated. The leaching efficiency of tin reached 94% under the optimized conditions: roasting with 60% Na₂CO₃ at 1000 °C for 45 min, and leaching using 2 mol/L NaOH solution for 90 min at 85 °C and 8 cm³/g liquid/solid ratio. Furthermore, more than 99% of tin in the leaching solution was precipitated using CaO. Finally, XRD, SEM, and ICP-OES analyses indicated that the final CaSnO₃ product had a purity of 95.75% and its average grain size was smaller than 5 μm. The results indicated that the developed method is feasible to produce calcium stannate from lead refining dross.

1. Introduction

Lead, as one of the most common metals, has been widely applied in various fields, such as lead-acid batteries, protection from X-ray and radioactive radiation, chemical anticorrosion, and solder [1,2,3,4,5]. It is primarily produced from lead sulfide concentrates through a sintering roasting-blast furnace smelting-refining process. The crude lead produced by blast furnace smelting requires a refining process to remove various impurities for obtaining refined lead (purity ˃ 99%) [6,7,8,9]. In general, tin is the main impurity in crude lead from which it is usually separated into the lead refining dross stream following oxidation since it has a stronger affinity for oxygen than lead [10,11,12]. As a result, considerable quantities of lead refining dross containing tin are produced annually [13,14,15] containing heavy metals, such as Sn, Sb, and As, which occur rarely as sulfides but mainly as oxides and oxidized compounds that are generally more soluble in the environment. Hence, the accumulation of lead refining dross not only takes up a mass of land, but also causes a potential environmental risk and a waste of valuable metals [16,17,18,19,20,21,22] such as tin which is a scarce metal. According to the International Tin Research Institute (ITRI), the reserve of economically recoverable tin was only 2.2 Mts in 2016, which would merely meet the current global tin demand for approximately eight years [23,24]. It is therefore urgent to develop an economical and eco-friendly technology to recover tin from tin secondary resources for alleviating the financial burdens and environmental degradation.

In the past decades, a large number of studies have been carried out for recovering tin from tin secondary resources including tin anode slime, tin-bearing alloys, electric-wastes, and tin-bearing slags. Various volatilization, selective leaching, alkaline fusion, and roasting–leaching processes are applied to recover tin from these tin secondary resources depending on the differences of phase composition and tin content [25,26,27]. Yang et al. [28] reported that a vacuum distillation process was conducted for recovering metals from waste Sn-based alloys at a distillation temperature of 900–1100 °C under a chamber pressure of 20–50 Pa. The recovery of tin was higher than 99 wt %, and the content of impurities in the metallic tin was no more than 0.05 wt %. Han et al. [29] proposed an alkaline pressure oxidative leaching process to pretreat tin anode slime. The extraction efficiency of tin reached 92% under the following conditions: leaching using 2.5 mol/L NaOH solution at 130 °C under 1 MPa oxygen partial pressure. At the same time, antimony, bismuth, and silver hardly dissolved into the NaOH solution and were enriched in the residue. Kim et al. [30] reported that tin could be successfully leached from Pb-free solder with SnCl₄ and HCl solution at 50–70 °C. Guo et al. [31,32] employed an alkali fusion-leaching–separation process to recycle tin from the copper anode slime and waste printed circuit boards (PCBs). The results indicated that the leaching rate of tin from the copper anode slime and waste PCBs reached 86% and 91.08%, respectively. It is no doubt that these technologies developed have made some significant achievements, but they also have some drawbacks such as high energy consumption, severe equipment corrosion, and the emissions of Cl₂. Furthermore, there are few studies on recycling of tin from lead refining dross, in which tin is mainly in the form of stannic oxide (SnO₂) that has a stable tetrahedral structure [33]. SnO₂ is insoluble in mild acid or alkali solutions, and therefore, it is challenging to recover tin from lead refining dross by direct acid or alkaline leaching.

In the present study, the preparation of calcium stannate (CaSnO₃) from lead refining dross through sodium carbonate roasting, alkaline leaching, and precipitation with CaO was proposed for the first time. The objective of roasting is to convert the SnO₂ contained in lead refining dross into sodium stannate, which is helpful for the selective extraction of tin in the subsequent alkaline leaching process. The effects of roasting conditions (Na₂CO₃ addition, roasting temperature, and time) and leaching parameters (NaOH concentration, liquid/solid ratio, leaching temperature, and time) on the extraction efficiency of tin were systematically investigated. Meanwhile, phase transformations during the roasting process were revealed by X-ray diffraction (XRD) and scanning electron microscopy coupled with energy dispersive spectrometry (SEM–EDS) analyses. The final product obtained was characterized in detail by thermo-gravimetric and differential thermal analysis (TG–DTA), XRD, and SEM–EDS analysis.

2. Materials and Methods

2.1. Materials

The lead refining dross used in this study was collected from a lead pyrometallurgical plant in Jiangsu province, China. The main chemical composition of the lead refining dross is presented in

Table 1. Main chemical composition of lead refining dross (wt %).

Elements	Sn	Sb	Pb	Fe	Cu	S	Si
Contents	54.20	8.92	6.45	0.51	0.04	0.135	0.046

. The results showed that the sample contained 54.20% Sn, 8.92% Sb, and 6.45% Pb, indicating that tin was the most valuable metal in dross. The main phases of Sn, Sb, and Pb in dross are shown in

Table 2. Tin phase composition of the lead refining dross.

Phase Composition	SnO2	Sn	Silicate	SnCl2	Total
Sn content (wt %)	53.90	0.10	0.11	0.09	54.20
Percentage (%)	99.44	0.19	0.20	0.17	100.00

,

Table 3. Antimony phase composition of the lead refining dross.

Phase Composition	Sb2O3	Antimonate	Sb	Sb2S3	Total
Sb content (wt %)	6.06	2.59	0.25	0.024	8.92
Percentage (%)	67.94	29.06	2.80	0.20	100

and

Table 4. Lead phase composition of the lead refining dross.

Phase Composition	Pb	PbO	PbS	Silicate	Total
Pb content (wt %)	1.44	2.09	2.48	0.44	6.45
Percentage (%)	22.33	32.40	38.45	6.82	100

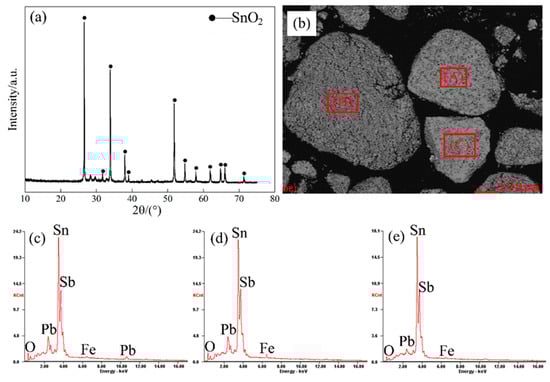

, respectively. The results indicated that the tin contained in the dross was mainly in the form of SnO₂, which has been confirmed by XRD analysis (Figure 1). The SEM–EDS analysis results of the dross are also presented in Figure 1. The results revealed that the lead refining dross was composed of mainly SnO₂, some Sb and Pb, and minor Fe, which was in accordance with the results given in Table 1 and Table 2.

In addition, sodium carbonate (Na₂CO₃) was used as an additive for sodium roasting. Sodium hydroxide (NaOH) was used as the leaching agent for the leaching process. Sodium sulfide (Na₂S) was added to the leaching solution at the leachate purification stage to remove lead ions as lead sulfides. Calcium oxide (CaO) was used to precipitate tin from the purified solution. All of these agents were of analytical grade and provided by Sinopharm Chemical Reagent Co., Ltd. (Beijing, China).

2.2. Methods

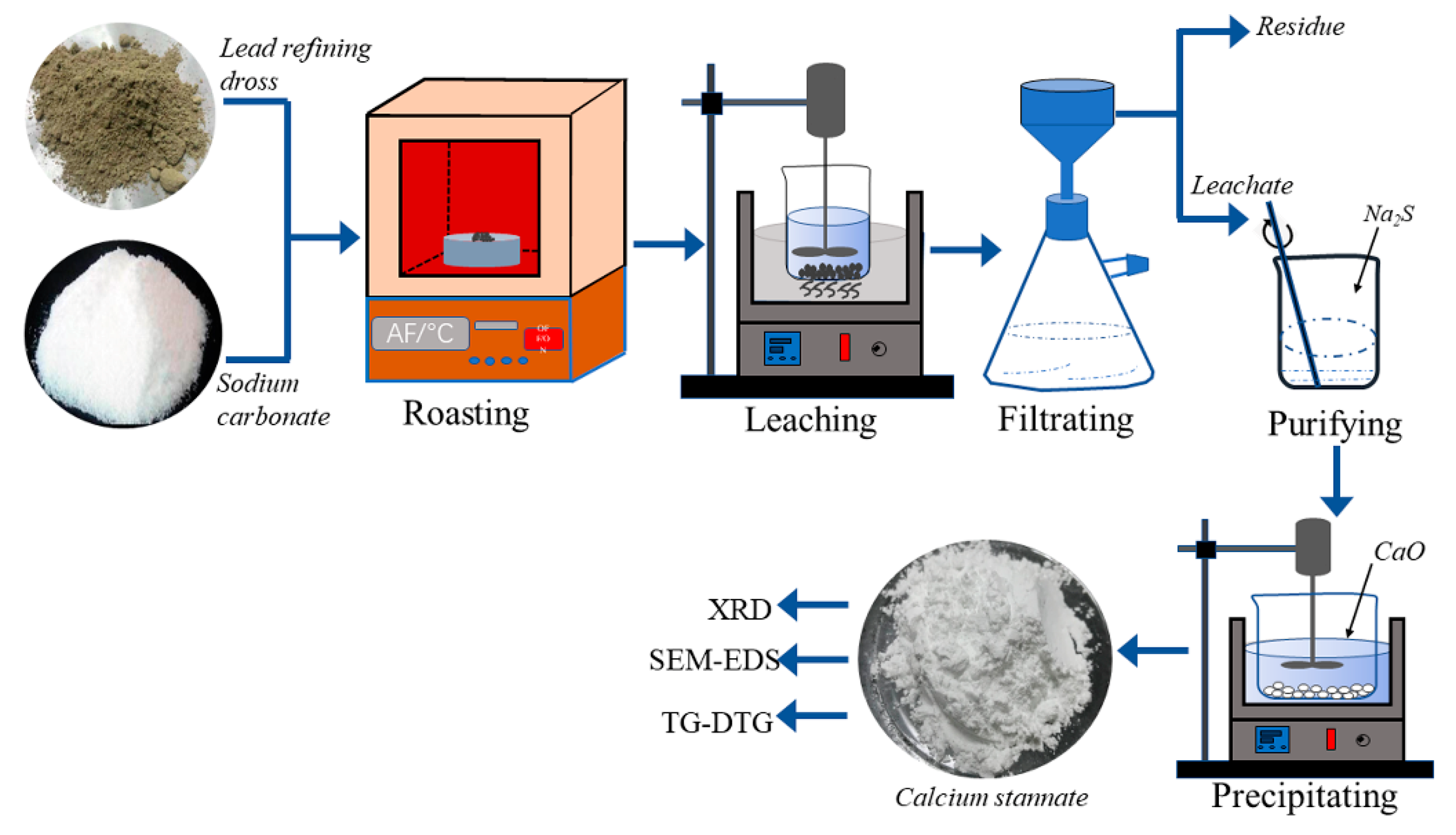

The entire treatment scheme investigated for the production of calcium stannate from lead refining dross is given in Figure 2. The samples were first ground to −74 μm, dried in a vacuum oven, and stored for subsequent experiments. For each test, 10 g of lead refining dross was thoroughly mixed with a certain amount of Na₂CO₃ using a mortar and pestle. The prepared mixture was put into a 50 mL porcelain crucible which was then placed into the muffle furnace for roasting. The samples were heated at a rate of 30 °C/min to a required temperature and roasted at this temperature for a specific time. When roasting was finished, the samples were taken out after cooling to below 100 °C. Finally, the roasted samples were weighed, ground and sieved to −74 μm for analysis and leaching tests.

The leaching experiments were performed in a glass beaker of 500 mL equipped with a mechanical stirrer and placed in a thermostatic water bath. Prior to leaching, a NaOH solution was prepared according to scheduled concentrations and liquid/solid ratio, then placed into a beaker and heated at a particular temperature and stirred at 300 rpm. When the required temperature was reached, 10 g of the roasted sample was put into the beaker. When leaching was finished, the leaching residue was separated from the leachate by filtration. The filtrate was collected for the subsequent precipitation experiments, and the residue was dried, weighed, and analyzed by ICP-OES for tin content. The leaching efficiency of tin (η) was calculated as:

$$\eta =\frac{\alpha \cdot m_0-\beta \cdot m_1}{\alpha \cdot m_0}\times 100\%$$

(1)

where α and β represent tin content in the samples before and after leaching, respectively (%); m₀ and m₁ are the mass of the samples before and after leaching, respectively (g).

After a purification process with the addition of Na₂S, a required amount of CaO was introduced to the purified filtrate for tin precipitation as calcium stannate trihydrate (CaSnO₃·3H₂O). Finally, the obtained CaSnO₃·3H₂O powder was heated at 800 °C for obtaining the final CaSnO₃ product.

2.3. Analytical Techniques

In this study, the chemical composition of samples from all the experiments was determined using inductively coupled plasma-optical emission spectrometry (ICP-OES) (IRIS Intrepid II XSP, Thermo Scientific, Waltham, MA, USA) following digestion with a mixture of concentrated HCl and HNO₃ (3:1, v/v) [34]. The phase composition of tin, antimony, and lead contained in the lead refining dross was determined following selective leaching and ICP-OES analysis. The crystalline phases were determined by X-ray diffraction (XRD) (TTR-III, Rigaku, Tokyo, Japan) in 2θ scale with a copper target (CuKα₁ radiation, λ = 1.5406, 50 Kv, and 100 mA) at the scanning rate of 10 deg/min varying from 10 to 80 deg. The morphologies of the solid samples were investigated by scanning electron microscopy (SEM) (JSM-6490LV, JEOL, Tokyo, Japan) coupled with energy dispersive spectroscopy (EDS) (JSM-6490LV, JEOL, Tokyo, Japan). Additionally, polished sections of powder samples were prepared for SEM–EDS analysis following bonding, cutting, grinding, and polishing processes. The precursor obtained was analyzed using thermo-gravimetric and differential thermal analysis (TG–DTA) with a thermal analyzer (STA 8000, PerkinElmer, Waltham, MA, USA) in flowing N₂ at a heating rate of 10 °C/min from 20 to 1300 °C [35,36].

3. Results and Discussion

3.1. Sodium Roasting of Lead Refining Dross

To selectively convert SnO₂ contained in dross to Na₂SnO₃ and thus to obtain a relatively high alkaline leaching efficiency of tin, it is necessary to optimize the operating parameters of sodium roasting. The reaction describing tin roasting by sodium carbonate is given by Equation (2) [37].

$$N{a}_{2}C{o}_3+Sn{O}_2=N{a}_{2}Sn{O}_3+C{O}_2\left(g\right)$$

(2)

In this study, the effect of Na₂CO₃ dosage, roasting temperature, and time on tin leaching efficiency were investigated by applying the following fixed leaching conditions: NaOH concentration 2 mol/L, temperature 85 °C, 120 min reaction time, and 20 mL/g liquid/solid ratio. The results are shown in Figure 3. As shown in Figure 3a, with increasing Na₂CO₃ dosage from 0% to 60%, the leaching efficiency of tin significantly increases from 5% to 94%, implying that the SnO₂ contained in dross was converted to Na₂SnO₃, which is soluble in mild alkaline or acidic solutions. After that, the value has no significant change with further increasing Na₂CO₃ dosage, indicating that 60% of Na₂CO₃ addition is sufficient for SnO₂ conversion to Na₂SnO₃.

Figure 3b shows the effect of roasting temperature on tin leaching efficiency. It is seen that roasting temperature has a significant effect on the extraction of tin from lead refining dross. The leaching efficiency of tin moderately increases as the temperature increases from 600 to 800 °C, above which the value increases markedly with the temperature increasing from 800 to 900 °C. When the temperature is above 900 °C, with the increase of temperature the leaching efficiency of tin increases slightly and reaches its maximum at 1000 °C. After that, further increase of the temperature results in a decrease of tin recovery, which is probably attributed to the evaporation of molten sodium carbonate at high temperatures [38]. The optimum roasting temperature was considered to be 1000 °C, and therefore further roasting experiments were performed at this temperature. Figure 3c shows the leaching efficiency of tin as a function of roasting time. It is obvious that roasting time also plays an important role in the extraction of tin from lead refining dross, but the effect of roasting time is less than that of Na₂CO₃ dosage or temperature in the ranges investigated. The leaching efficiency of tin increases observably as the time increases from 15 to 45 min, after which the value has no significant variation, implying that the reaction of SnO₂ and Na₂CO₃ almost completed within 45 min. As a result, the optimum roasting time was determined as 45 min.

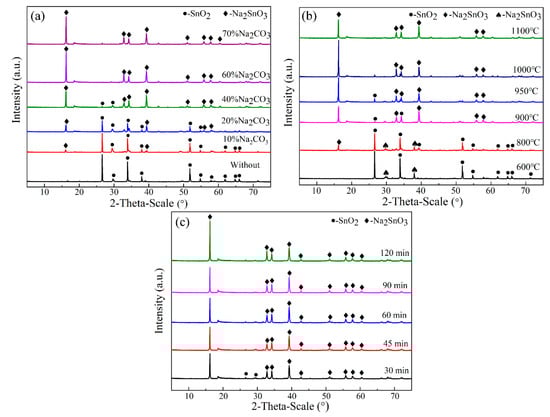

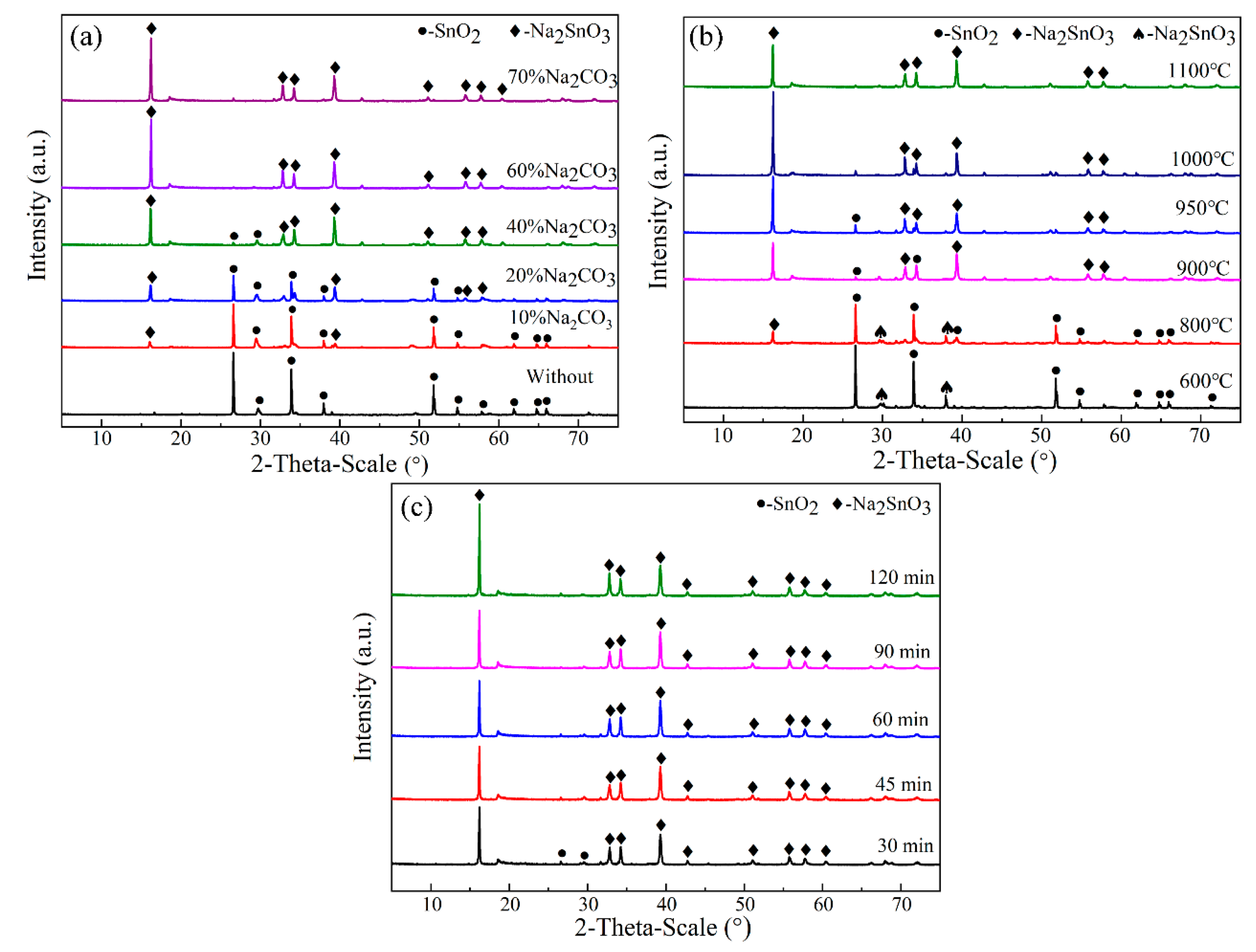

To investigate the phase transformations during the roasting process, those roasted samples generated in the previous experiments were subjected to XRD analysis. The XRD patterns of the lead refining dross roasted at various conditions are presented in Figure 4. It was found that the main phase after roasting was Na₂SnO₃. It can be seen from Figure 4a that the sample roasted without Na₂CO₃ mainly contains SnO₂ without any diffraction peaks of Na₂SnO₃. With the increase of Na₂CO₃ dosage, the peak intensity of Na₂SnO₃ gradually increases while that of SnO₂ decreases. When the addition of Na₂CO₃ is 60% or above, the diffraction peaks of SnO₂ disappear with a maximum peak intensity of Na₂SnO₃, indicating that the Na₂SnO₃ formation reaction is completed. This is in good agreement with the results in Figure 3a. As shown in Figure 4b, it is obvious that there is no diffraction peak of Na₂SnO₃ observed from the XRD pattern at 600 °C The peaks of Na₂SnO₃ begin to appear at 800 °C, which confirms the conclusion that the reaction of SnO₂ and Na₂CO₃ mainly occurred at above 800 °C. The peak intensity of Na₂SnO₃ firstly increases with the increase of roasting temperature while it decreases over 1000 °C, which is consistent with the conclusion obtained from Figure 3b. As seen from Figure 4c, there are diffraction peaks of SnO₂ in the sample roasted for 30 min demonstrating that the conversion to Na₂SnO₃ is incomplete. When the time is above 45 min, no diffraction peak of SnO₂ can be found, and the tin contained in the dross has been fully converted to Na₂SnO₃. It is thus indicated that a 45 min roasting time is sufficient for the transformation, which confirms the conclusions drawn from Figure 3c.

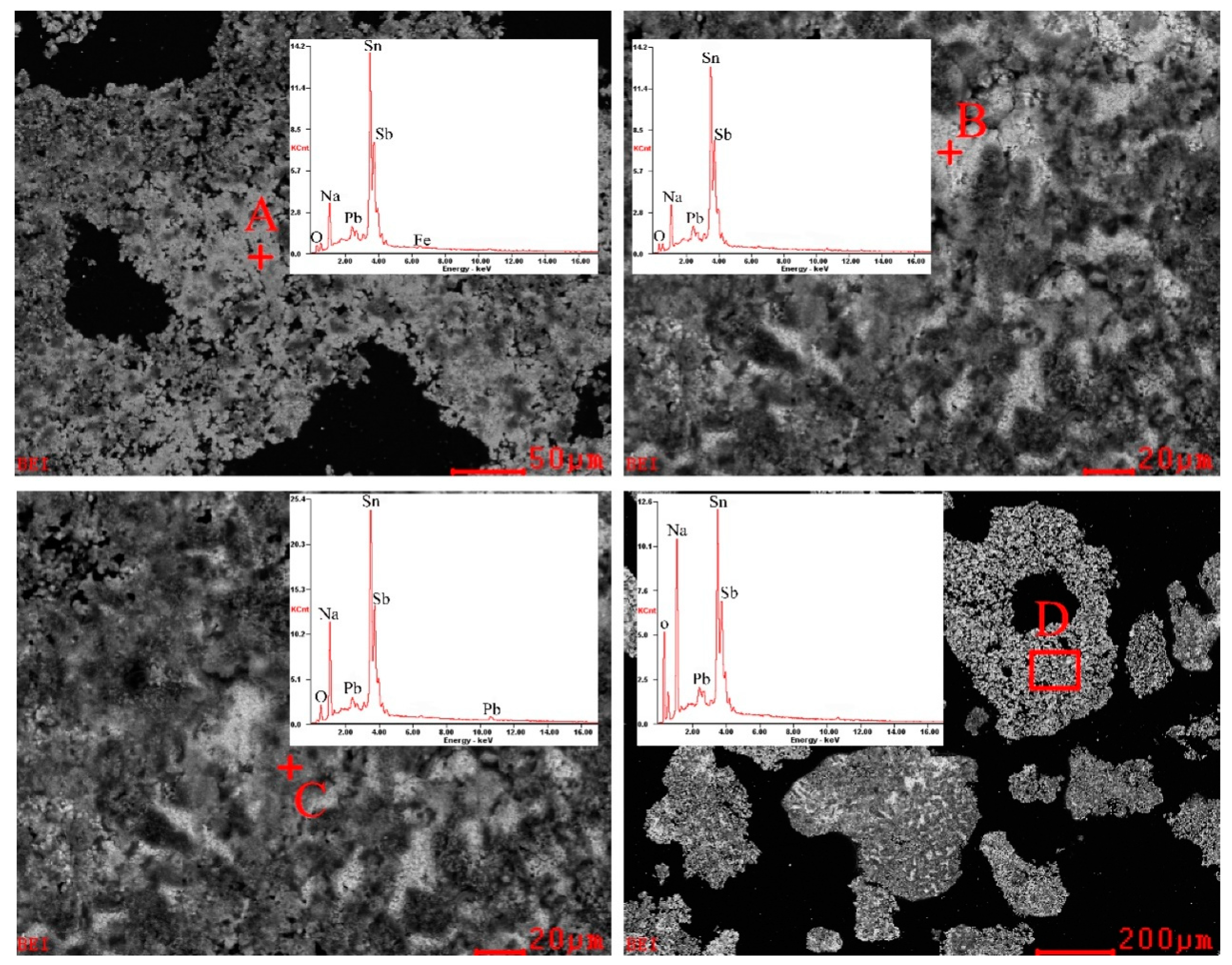

To investigate the morphological characterization of the dross roasted under the optimal conditions, the sample was analyzed by SEM–EDS. The results are presented in Figure 5. It is seen from Figure 5 that the roasted dross is porous and loose compared with the sample before roasting (Figure 1), which is attributed to the gas generated during roasting process. This is beneficial to the lixivium penetrating into the roasted dross particles and thus accelerates the dissolution of tin during the subsequent alkaline leaching process. According to EDS analysis combined with XRD (Figure 4), it is revealed that the tin contained in the roasted dross was mainly in the form of sodium stannate. Additionally, it is seen in Figure 5 that there is some iron, antimony, and lead in the roasted samples, which have not been detected by XRD due to their low content.

3.2. Alkaline Leaching of Tin

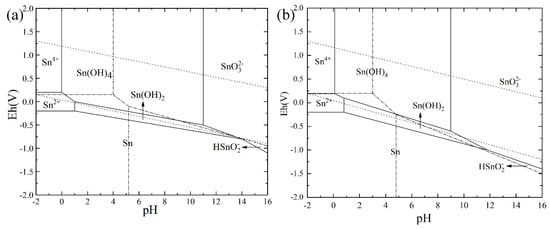

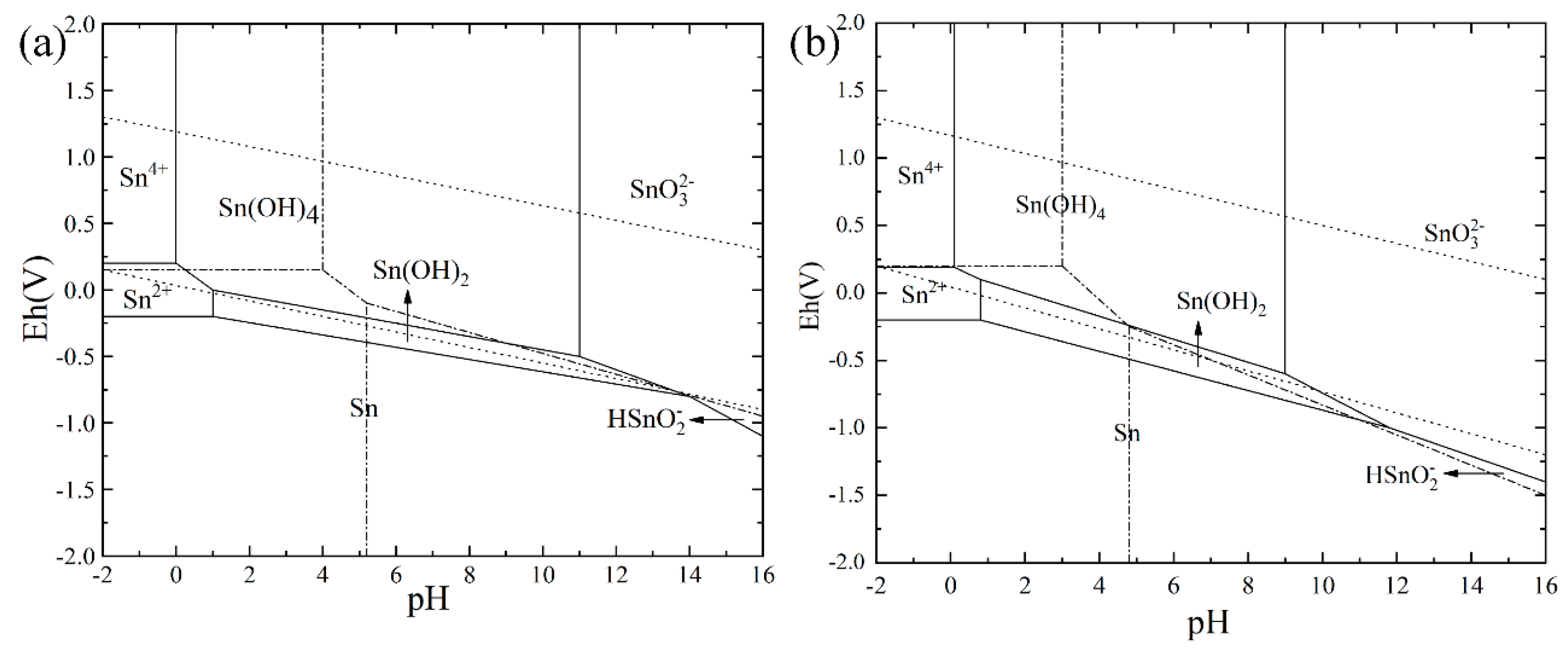

In hydrometallurgy, E-pH diagrams of Me-H₂O systems are widely used to analyze the thermodynamic conditions of a leaching process [29]. The E-pH diagrams of Sn-H₂O at 25 and 100 °C were drawn by the thermodynamic calculation method [39]. Note that the concentrations of related metallic ions are fixed at 1 M, and both of the partial pressures of oxygen and hydrogen are at the standard atmospheric pressure of 101.325 KPa. The E-pH diagrams of Sn-H₂O system shown in Figure 6 indicate that the transformation of $\mathrm{Sn}\to \mathrm{Sn}($Ⅳ) occurs in the whole pH range investigated. $\mathrm{Sn}($Ⅳ) exists in the form of ${\mathrm{SnO}}_3^{2-}$ in the alkaline solution, and it tends to precipitate as Sn(OH)₄ and further dissolve as Sn⁴⁺ with the decrease of the pH value [40,41]. Based on the above analysis, tin can be selectively extracted with an alkaline solution.

Based on the above thermodynamic analysis, the selective extraction of tin from the lead refining dross roasted under the optimized conditions (60% Na₂CO₃ dosage at 1000 °C for 45 min) was further studied. The effects of NaOH concentration, leaching temperature, time, and liquid/solid ratio on the leaching efficiency of tin were investigated in detail. The results are shown in Figure 7. The possible chemical reaction during the leaching process was assumed as follows [42]:

$$N{a}_{2}Sn{O}_3+H_2\mathrm{O}=N{a}_2\left[\mathrm{Sn}\left(\mathrm{OH}\right)\mathrm{6}\right] \left(\mathrm{aq}\right)$$

(3)

As shown in Figure 7a, the leaching efficiency of tin increases from 77% to 94% with the increase of NaOH concentration from 0 to 2 mol/L. Further increase of NaOH concentration has no significant effect on tin leaching, indicating that 2 mol/L of NaOH concentration is sufficient for the leaching of tin. Figure 7b reveals that leaching temperature has a positive effect on the leaching efficiency of tin. The value increases significantly when the temperature increases from 25 to 85 °C, which is attributed to the fact that the increase of leaching temperature results in the increase of the ion diffusion coefficient and decrease of the activation energy of the dissolution reaction [43]. Thereafter, it remains nearly constant. It is seen from Figure 7c that the leaching efficiency of tin could reach 90% in 15 min, which demonstrates that the leaching rate is fast. This confirms the conclusion obtained from Figure 5. With the increase of leaching time, the leaching efficiency of tin gradually increases until it reaches its maximum value (94%) at 90 min. Further increasing the reaction time has no significant effect on leaching efficiency, indicating that the soluble tin contained in the roasted dross has been leached completely. It is seen in Figure 7d that the liquid/solid ratio has an important effect on tin leaching efficiency which increases from about 86% to 94% by increasing the liquid/solid ratio from 4 to 8 cm³/g, above which no significant variation is seen.

Based on the above discussion, the optimal conditions for the selective leaching of tin from the roasted lead refining dross were determined as: NaOH concentration 2mol/L, leaching temperature 85 °C, leaching time 90 min, and liquid/solid ratio equal to 8 cm³/g. Under the conditions, more than 94% of tin and about 45% Pb were extracted from the dross.

3.3. Precipitation and Characterization of Calcium Stannate

The leachate obtained under the optimum conditions contained about 25.5 g/L Sn, 1.5 g/L Pb, and 0.12 g/L Sb. The pH value of the leachate was 12.8. To obtain a pure calcium stannate product, Na₂S was added into the filtrate obtained from the alkaline leaching process to remove lead ions, according to the following Equation (4) [39].

$$HPb{O}_2^{-}+H_2{\mathrm{O}+\mathrm{S}}^{2-}=\mathrm{PbS}\downarrow + 3{\mathrm{OH}}^{-}$$

(4)

Subsequently, after the purification process, precipitation of stannate ions from the filtrate at a pH value of 13.5 using CaO powder was performed to produce a calcium stannate precursor according to the following reaction:

$${\mathrm{Na}}_2{\mathrm{SnO}}_3{+\mathrm{CaO}+4\mathrm{H}}_2{\mathrm{O}=\mathrm{CaSnO}}_3·{3\mathrm{H}}_2\mathrm{O}+2\mathrm{NaOH}$$

(5)

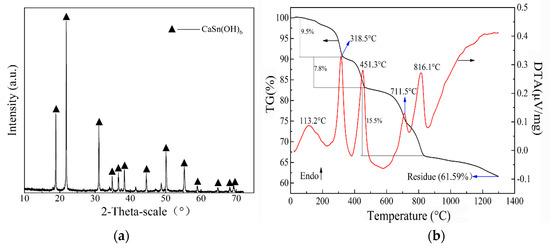

The XRD patterns of the precursor shown in Figure 8 indicate that the sample was a well crystallized calcium stannate trihydrate (CaSn(OH)₆ or CaSnO₃∙3H₂O). The precursor was analyzed by TG–DTA for investigating its thermal decomposition dehydration behavior. The results are also shown in Figure 8. The weight loss of 9.5% from room temperature to 318.5 °C was mainly attributed to the evaporation of physically adsorbed water. The decomposition reaction of calcium stannate trihydrate (Equation (6)) started at about 318.5 °C, and finished at 816.1 °C, which is in good agreement with previous studies [44,45]. The reaction equation is as follows:

$$CaSn{O}_3·3H_2\mathrm{O}=\mathrm{CaSn}{O}_3+3H_{2}O\left(g\right)$$

(6)

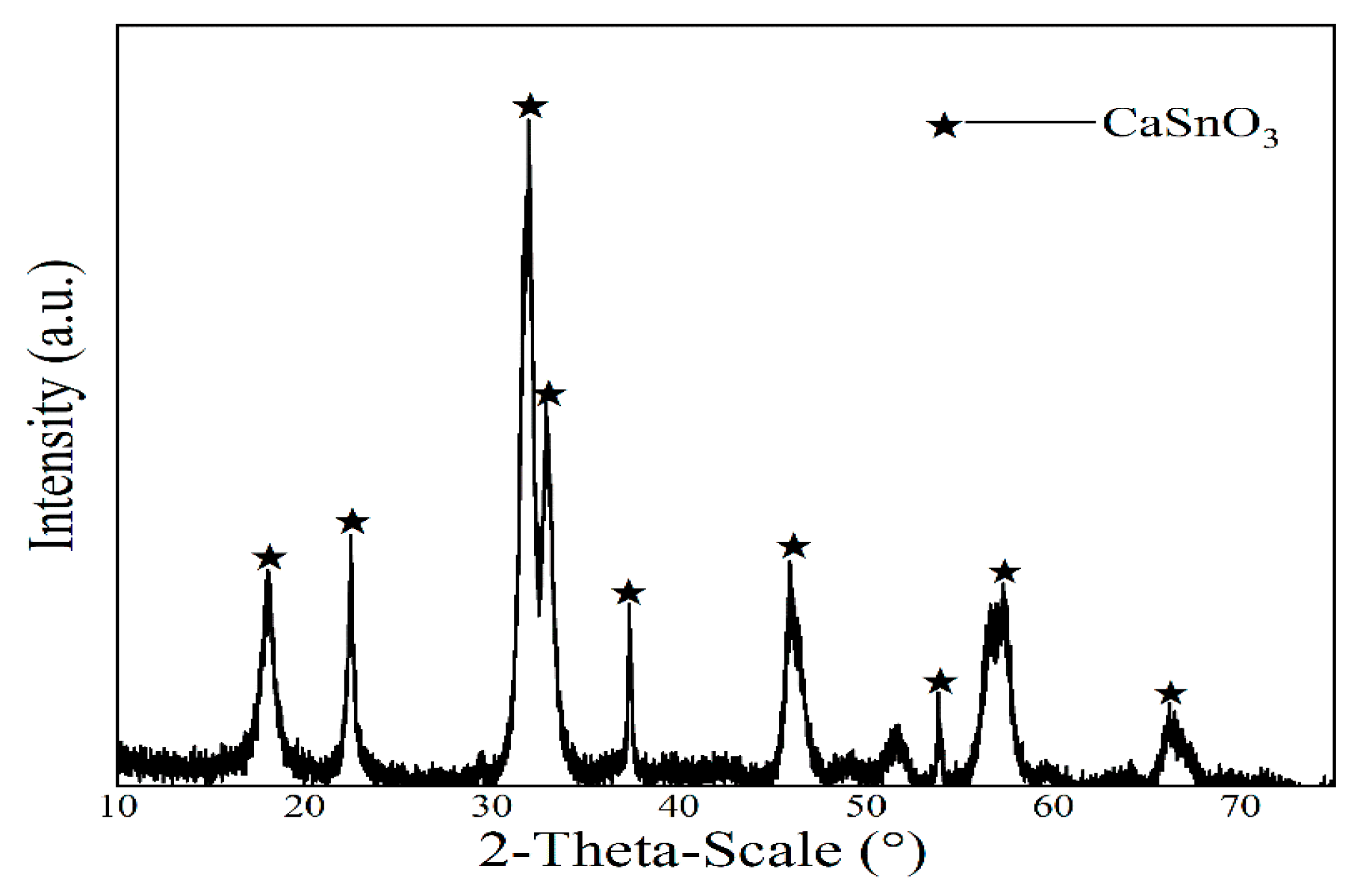

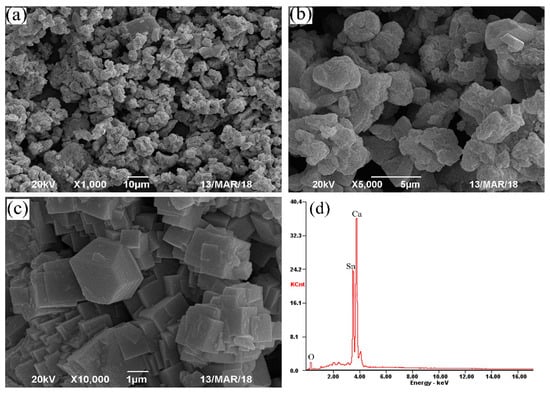

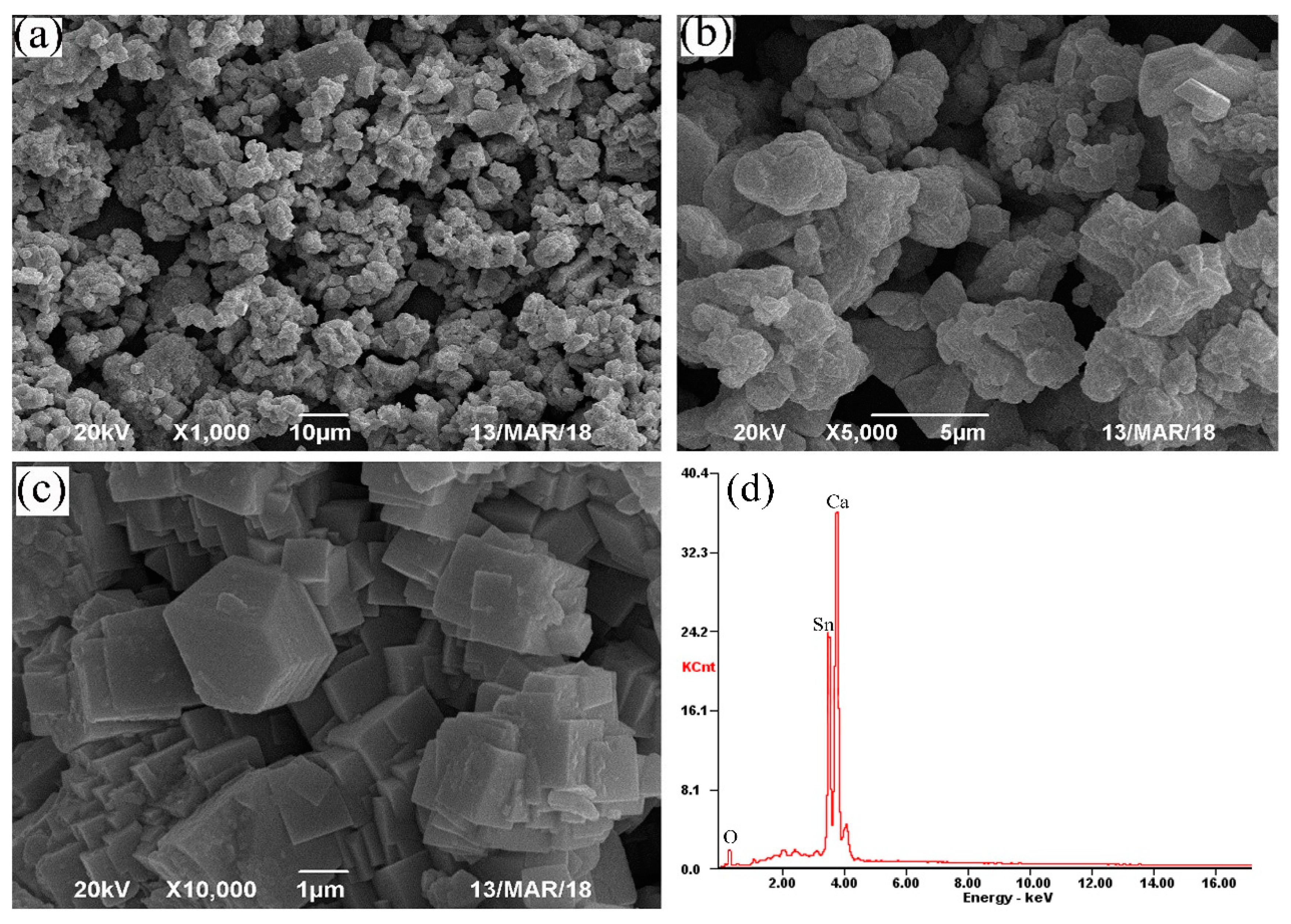

The XRD pattern of the final product, which was produced after calcination of the precursor containing calcium stannate trihydrate at 800 °C, shown in Figure 9, indicates that its main phase is CaSnO₃, whereas chemical analysis following digestion and ICP–OES analysis indicated that its purity was 95.75%. The product was also subjected to SEM–EDS analysis, and the results are presented in Figure 10. The SEM images shown in Figure 10a–c revealed that almost all of the sample particles are smaller than 5 μm with a compact structure, clear edges, and boundaries between different particles, demonstrating that the product had a good crystallinity. EDS analysis (Figure 10d) indicated that the product contained O, Sn, and Ca, which confirmed the high purity of the sample.

4. Conclusions

Calcium stannate was produced from lead refining dross by applying sodium carbonate roasting, alkaline leaching, precipitation with CaO, and calcination of the precipitate. The Na₂CO₃ dosage, roasting temperature, roasting time, NaOH concentration, leaching temperature, leaching time, and liquid/solid ratio have different effects on the extraction of tin from lead refining dross. The optimal conditions resulting in higher tin recovery include roasting at 1000 °C for 45 min and 60% Na₂CO₃ dosage, and leaching using 2 mol/L NaOH solution for 90 min at 85 °C, and an 8 cm³/g liquid/solid ratio. Under these conditions, more than 94% Sn and about 45% Pb were extracted from the dross. The lead dissolved in the leachate was effectively removed by adding Na₂S. Subsequently, more than 99% of tin was precipitated from the purified solution by a causticizing process and the precipitate was calcinated to produce a final CaSnO₃ product with a purity of 95.75%. SEM analysis indicated that the resulting product has a compact structure, clear edges, and clear boundaries between different particles. This study should contribute to fundamental knowledge that can be used to guide the preparation of calcium stannate from lead refining dross, which is missing in the literature at present.
