Molecular Mechanisms of Cereblon-Interacting Small Molecules in Multiple Myeloma Therapy

Abstract

Thalidomide analogues (or immunomodulatory imide drugs, IMiDs) are cornerstones in the treatment of multiple myeloma (MM). These drugs bind Cereblon (CRBN), a receptor for the Cullin-ring 4 ubiquitin-ligase (CRL4) complex, to modify its substrate specificity. IMiDs mediate CRBN-dependent engagement and proteasomal degradation of ‘neosubstrates’, Ikaros (IKZF1) and Aiolos (IKZF3), conveying concurrent antimyeloma activity and T-cell costimulation. There is now a greater understanding of physiological CRBN functions, including endogenous substrates and chaperone activity. CRISPR Cas9-based genome-wide screening has further elucidated the complex cellular machinery implicated in IMiD sensitivity, including IKZF1/3-independent mechanisms. New-generation IMiD derivatives with more potent anti-cancer properties—the CELMoDs (Cereblon E3 ligase modulators)—are now being evaluated. Rational drug design also allows ‘hijacking’ of CRL4^CRBN utilising proteolysis targeting chimeras (PROTACs) to convey entirely distinct substrate repertoires. As all these chemotypes—thalidomide, IMiDs, CELMoDs and PROTACs—engage CRBN and modify its functions, we describe them here in aggregate as ‘CRBN-interacting small molecules’ (CISMs). In this review, we provide a contemporary summary of the biological consequences of CRBN modulation by CISMs. Detailed molecular insight into CRBN–CISM interactions now provides an opportunity to more effectively target previously elusive cancer dependencies, representing a new and powerful tool for the implementation of precision medicine.

1. Introduction

Thalidomide analogues, such as lenalidomide and pomalidomide, have significantly improved outcomes for patients with multiple myeloma (MM), an incurable malignancy of the plasma cell [1,2]. Prior to the precise elucidation of their molecular mechanism of action, thalidomide analogues were characterized by anti-inflammatory and immune-enhancing effects and designated as immunomodulatory imide drugs (IMiDs). It is now apparent that many of the biological activities of IMiDs are mediated by their protein target, Cereblon (CRBN). The CRBN gene is located on chromosome 3p and encodes a 50kDa LON protease which regulates a plethora of biological roles. Before CRBN was identified as the protein target of IMiDs, a CRBN germline nonsense mutation was implicated in an autosomal recessive form of mental retardation [3,4]. CRBN functions as a receptor for the Cullin Ring Ligand 4 E3 ubiquitin ligase complex (CRL4^CRBN), where Cullin 4 (CUL4A/B) is the scaffold, Ring-Box 1 (RBX1) is the RING component binding the E2 enzyme, and DNA Damage Binding protein 1 (DDB1) is the adaptor [5,6]. CRBN docks onto DDB1 with its helical bundle domain and engages substrates for ubiquitination via its C-terminus domain (CTD). When bound by an IMiD, CRBN’s E3 ligase specificity is redirected towards non-physiological proteins targets which are subsequently ubiquitinated and/or degraded [7,8]. It is also evident that IMiDs modulate non-E3 ligase-related properties of CRBN, such as chaperone functions [9,10]. More recently, the term ‘CELMoDs’ (Cereblon E3 ligase modulators) was coined to refer to a ‘new generation’ of IMiDs that have been developed in the post-CRBN era to exploit improved biological activities [11,12,13]. Moreover, bespoke chimeric compounds combining a targeted small molecule with a phthalimide moiety can ‘hijack’ CRL4^CRBN to degrade entirely distinct substrates [14,15,16,17]. Here, we review the physiological activities of CRBN and how these may be modulated by CRBN-interacting small molecules (CISMs) to improve precision in the treatment of hematological malignancies.

2. Mechanisms of Immunomodulatory Imide Drug (IMiD) Activity in Multiple Myeloma

The biological changes induced by IMiD treatment can be divided into tumor cell-extrinsic effects (e.g., relating to the host immune system and bone marrow microenvironment) and tumor cell-intrinsic effects (i.e., direct toxicity to the malignant plasma cell). The earliest cell-based studies of thalidomide and its analogues exploited modulation of immune effector activities including the suppression of tumor necrosis factor (TNF)-α secretion by mononuclear cells following lipopolysaccharide (LPS) challenge [18,19,20] and the capacity to costimulate T-cells [21]. In addition to stimulating cytotoxic effector cells, IMiDs increase antigen presentation by dendritic cells and suppress the activity of T regulatory lymphocytes [22,23,24,25,26,27,28,29]. IMiDs have diverse effects on the bone marrow microenvironment including anti-angiogenic activity, bone protective properties and altered cellular adhesion. Thalidomide impairs angiogenesis via suppression of vascular endothelial growth factor (VEGF) signaling [30,31]. Lenalidomide also impairs angiogenesis by a reduction in VEGF expression, together with inhibition of fibroblast growth factor (FGF) and interleukin (IL)-6 signaling, and shows increased anti-angiogenic activity relative to thalidomide [32,33,34]. Amelioration of myeloma-related bone disease is a consequence of reduced Receptor Activator of NFκB Ligand (RANKL) expression and osteoclast activity [35]. Cell adhesion to the bone marrow extracellular matrix and interactions with stromal cells are mediated by adhesion molecules such as integrins and their ligands Intercellular Adhesion Molecule (ICAM)-1 and Vascular Cell Adhesion Molecular (VCAM)-1 [36]; IMiDs suppress the expression of these molecules and, therefore, interfere with pro-survival paracrine signaling [36]. The net result is disruption of the protective effects of the bone marrow niche with concurrent augmentation of the anti-myeloma immune response.

Cell-intrinsic effects on the myeloma cell include cytostasis and induction of apoptosis. IMiDs cause G₀–G₁ cell cycle arrest by the induction of tumor suppressors p21, p27, and members of the Early Growth Response (EGR) protein family [37], together with the inhibition of cyclin-dependent kinases-2, -4 and -6 [38,39]. Thalidomide also suppresses Nuclear Factor kappa of activated B-cells (NF-κB) signaling [40] which has apoptotic effects consequent to downregulation of B-cell lymphoma 2 (BCL2) and BCL2-like proteins with the release of mitochondrial cytochrome c [41]. Contemporary understanding of IMiD biology indicates that these tumor cell intrinsic effects, and the broader microenvironmental and immunomodulatory activities, are underpinned by a direct interaction with CRBN.

3. Cereblon (CRBN) Is Required for the Anti-Myeloma Activity of IMiDs

A major breakthrough in deciphering the molecular mechanism of IMiDs came with the discovery that thalidomide bound directly to CRBN and that this interaction was necessary for its teratogenic effects using zebrafish and chicken embryo modelling [5]. Soon after, it was shown that CRBN expression was required for the antimyeloma activity of IMiDs [42]. The primacy of CRBN in the IMiD mechanism of action has now been established by examining the cellular changes that arise in the context of IMiD resistance. Prolonged in vitro exposure to increasing concentrations of lenalidomide resulted in IMiD-resistant myeloma cells with reduced CRBN expression caused by deletion of one copy of CRBN [42]. CRBN levels are positively associated with clinical responses to lenalidomide [43] and CRBN expression is lower in plasma cells from patients relapsing after lenalidomide therapy [42]. Splice-out of CRBN exon 10, corresponding to the thalidomide binding domain (TBD), has been associated with lenalidomide refractoriness [44]. Recent deep sequencing work has demonstrated that point mutations, copy number loss and structural variants of CRBN can impair responses to lenalidomide and pomalidomide, and that these aberrations significantly reduce the survival of MM patients [45]. Together these data indicate that CRBN downregulation and/or mutations appear to represent the main mechanism by which MM cells escape the anti-cancer effects of IMiDs in vivo.

4. CRL4^CRBN Neosubstrates in Disease Responses and Teratogenicity

In 2014, two seminal papers demonstrated that lenalidomide’s interaction with CRBN changes its substrate specificity to induce the proteasomal-dependent degradation of Ikaros (or IKZF1) and Aiolos (or IKZF3) [7,8]. IKZF1 and IKZF3 were thus defined CRBN ‘neosubstrates’ because they only become CRBN targets in the presence of an IMiD. Together IKZF1 and -3 are critical transcription factors within the hematological compartment. Degradation of IKZF1/3 is associated with downregulation of interferon regulatory factor 4, IRF4 [7], an ‘oncogene of addiction’ in MM [46]. IRF4 sustains the expression of MYC, another important myeloma oncogene (Figure 1A) [47]. Shaffer and colleagues demonstrated that MYC enhances the expression of IRF4, such that IRF4 and MYC reciprocally promote each other’s transcription within a positive feedback loop [46]. More recent work defined IKZF1/3, IRF4 and MYC as enhancer-associated transcription factors sustaining the core transcriptional regulatory network of the malignant plasma cell [48]. Disruption of the IKZF1/3-IRF4-MYC transcriptional axis is of specific importance in MM [39,49], as studies have shown that in other diseases, such as primary effusion lymphoma, degradation of IKZF1/3 is uncoupled from lenalidomide-induced suppression of IRF4 and MYC [50]. IKZF1/3 also transcriptionally repress the IL2 gene and IKZF1/3 degradation evokes IL-2 production (Figure 1A) [26,51]. This is thought to be one of the mechanisms by which IMiDs mediate T-cell costimulation.

In addition to MM and certain other mature B-cell neoplasms, lenalidomide is indicated for the treatment of myelodysplasia (MDS) with deletion of chromosome 5q (del(5q) or 5q minus syndrome). Patients with del(5q) typically present with refractory anemia and thrombocytosis [52]. The pathogenic mechanism implicates haploinsufficiency of ribosomal protein (RP) S14, which resides within the del(5q) common deleted region (CDR), as the cause of a p53-dependent anemic phenotype [53,54,55]. Haploinsufficiency of another CDR encoded gene, microRNA-145, is associated with increased expression of the transcription factor Friend Leukemia Integration (FLI)-1 which skews hematopoiesis towards megakaryopoiesis, resulting in thrombocytosis [56]. Lenalidomide treatment mitigates both anemia and thrombocytosis in 5q minus syndrome, but it is unclear how lenalidomide directly impacts the activity of RPS14 and microRNA-145 [57]. The specific activity of lenalidomide in MDS with del(5q) is now explained by its capacity to target a further CDR encoded protein, casein kinase 1 alpha (CK1α), for proteasomal degradation [58]. Reduced expression of CK1α in the del(5q) clone conveys sensitivity to the apoptotic effects of lenalidomide via stabilization of p53. Deletion or pharmacological inhibition of CK1α is also detrimental to MM cells, indicating that lenalidomide-dependent degradation of CK1α may contribute to its anti-myeloma activity [59,60,61].

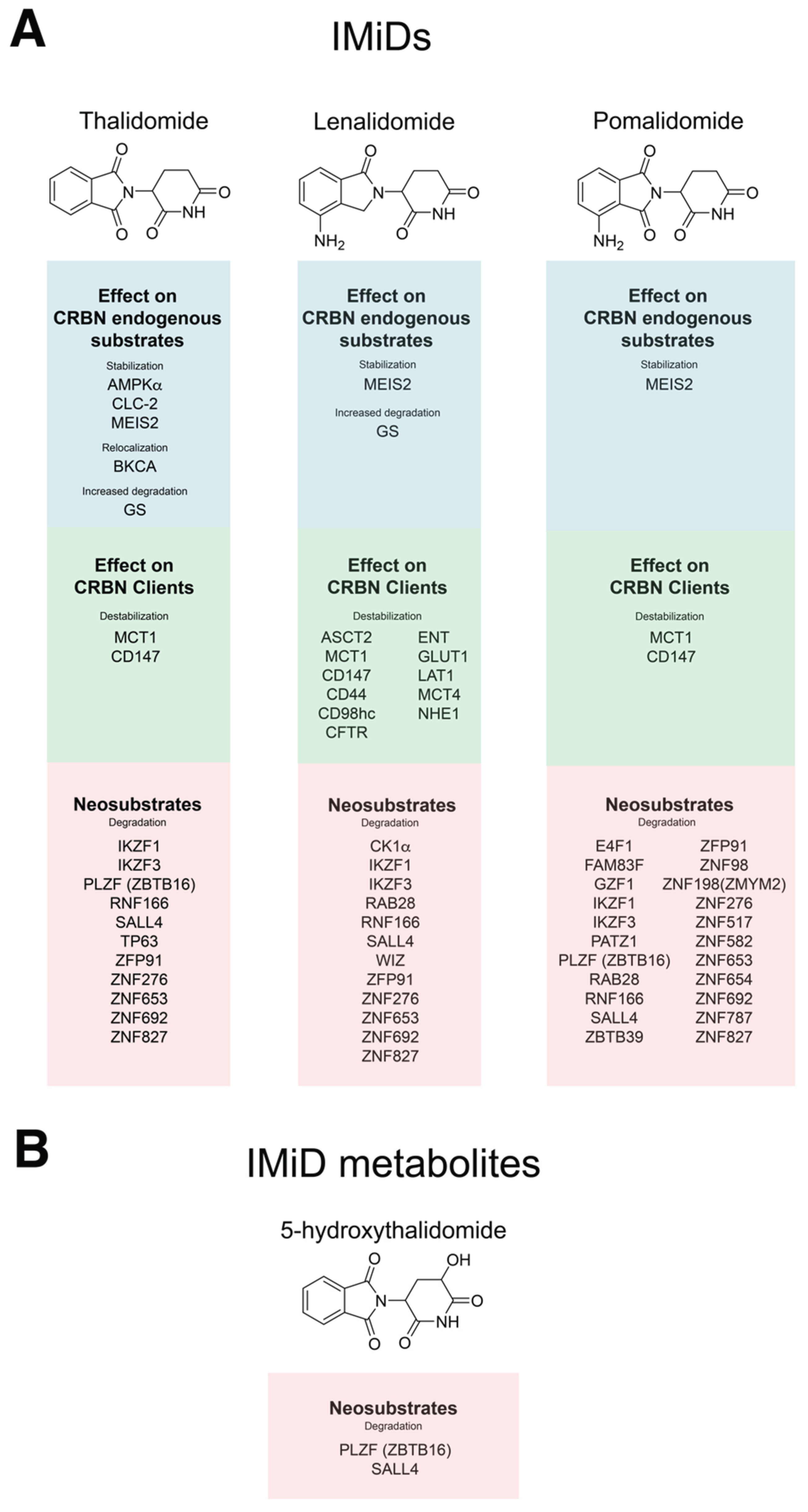

Greater understanding of the IMiD mechanism of action has facilitated the discovery of an expanding repertoire of CRBN neosubstrates (Figure 2A). More recently disclosed neosubstrates include ZFP91, SALL4 and PLZF. These proteins may be differentially regulated by the emerging suite of CRBN-interacting small molecules (IMiDs and CELMoDs; discussed below). ZFP91 is a zinc-finger (ZF) putative ubiquitin-ligase and CRBN neosubstrate [62] that regulates NF-κB signaling by activating NFkB-inducing kinase (NIK) via Lys63 ubiquitination [43]. ZFP91 is also associated with maintenance of T-regulatory cell homeostasis [44]. However, the contribution of ZFP91 degradation to the anti-myeloma activity of IMiDs remains undefined. Mutation of SALL4 causes Duane radial ray syndrome, a congenital disorder resulting in abnormalities of the bones of the forelimbs. SALL4 is degraded upon thalidomide treatment, indicating a potential mechanism of thalidomide teratogenicity [63]. In related work, other neosubstrates belonging to the C₂H₂ zinc-finger protein family (e.g., RNF166, FAM83F, GZF1, ZBTB39) were identified as potentially contributing to IMiD-induced embryopathy. PLZF/ZBTB16 is another ZF protein that is degraded following thalidomide treatment, and loss of PLZF has been linked to limb abnormalities [64]. Finally, thalidomide-dependent degradation of p63 has been implicated in the pathogenesis of thalidomide embryopathy [65]. Taken together, these studies suggest that abnormal fetal development may be caused by the modulation of multiple CRBN neosubstrates.

5. Structure–Activity Relationship of CRL4^CRBN in Complex with CRBN-Interacting Small Molecules (CISMs)

Thalidomide’s chemical structure is represented by a glutarimide ring bonded to a phthalimide group [6,66]. The glutarimide ring binds CRBN at the TBD, which contains a tryptophan-rich pocket (Tryptophan 380, 386, 402 and Phenylalanine 404) and is located at the CRBN CTD [6]. The substitution of Tyr384 and Trp386 with alanine residues abrogates the binding of CISMs into this tri-Tryp pocket [5]. Modifications of functional groups (e.g., NH₂ on C4 of the phthalimide substituent in pomalidomide or on the isoindolinone moiety in lenalidomide) account for differences in the spatial interaction between different CISMs and CRBN. Such differences likely explain differential neosubstrate specificity between chemotypes [6]. Thalidomide is a racemic compound, and the S-enantiomer displays greater CRBN binding relative to the R-enantiomer. S-thalidomide is thought to be responsible for teratogenic effects [66] and it is unclear whether R-thalidomide engages different CRBN neosubstrates to those recruited by S-thalidomide [66]. The potential role of thalidomide metabolites in neosubstrate degradation has also been evaluated. Degradation of PLZF and SALL4 is mediated by both thalidomide and 5-hydroxythalidomide (5-HT), but IKZF1 is only degraded by thalidomide itself [64]. Interestingly, 5-HT was more efficient in degrading SALL4 than unmodified thalidomide (Figure 2B). Therefore, substrate selectivity in vivo may relate to the activities of both parent molecules and metabolites deriving from newer CISMs, including IMiDs and CELMoDs, and this activity spectrum remains poorly determined. A comprehensive study of the C₂H₂ ZF proteome expanded the pool of known CRBN neosubstrates and highlighted the importance of specific ZF domains in determining the engagement of neosubstrates upon treatment with different IMiDs [67]. In particular, the ZF2 domain was identified as the necessary element required for degradation of C₂H₂ ZF proteins, and the presence of ZF3 increased the affinity between CRBN and pomalidomide. Structural studies of CK1α in complex with CRBN and lenalidomide have, however, highlighted that degradation of non-ZF proteins, such as CK1α, can still be engaged by a CISM despite the lack of ZF domains [58,68]. This observation demonstrates that engagement of neosubstrates is not exclusively dependent on the presence of a ZF domain but is determined by the three-dimensional structure of the binding interface between CRBN/CISM and its target.

6. Genome-Scale CRISPR Screening as a Tool for Identifying Mediators of Sensitivity to IMiDs

CRISPR-Cas9 technology facilitates the editing of individual genes within a population of cells transduced with viral library expressing short guide (sg)-RNAs covering the entire genome. Exposure to a selective pressure (e.g., a drug) for a defined period enables positive selection of drug-resistant clones and dropout of sensitized clones [69,70,71,72]. Employment of in vitro CRISPR genome-wide screening has identified the minimal machinery required for the response to the IMiDs in addition to CRBN itself [73,74,75]. Together with essential components of the CRL4 ligase, loss of genes related or unrelated to protein degradation can result in IMiD resistance. CRBN, DDB1, RBX1, GLMN, UBE2G1, UBE2M, UBE2D3, CAND1 and genes encoding subunits of the Constitutive Photomorphogenesis (COP)-9 signalosome (COPS1, COPS2, COPS3, COPS4, COPS5, COPS6, COPS7A, COPS7B, COPS8) are involved in ubiquitination and degradation of IMiD neosubstrates. UBE2G1, UBE2D3 are E2 enzymes implicated in the process of ubiquitin-tagging of substrates [76], whilst UBE2M promotes NEDDylation of CUL4 [77]. The COP9 signalosome (CSN) is a 9-subunit complex which removes NEDD8 from Cullin scaffolds [78,79]. NEDD8 is required for ubiquitination of CRL4 substrates and CSN-dependent removal or inhibition with the small molecule MLN4924 inhibits this process [77]. Once a target has been ubiquitinated by CRL4^CRBN, removal of NEDD8 and disassembly of CRL4^CRBN by CAND1 are required for recycling and reassembly of the complex. Loss of any of these factors interferes with the cycling process of assembly-ubiquitination-disassembly of the CRL4^CRBN ligase, disrupting protein ubiquitination and causing resistance to IMiD treatment [73]. The CSN is also regulates SCF^Fbxo7, an E3 ligase which targets CRBN itself; its activity inhibits the degradation of CRBN by SCF^Fbxo7 and CSN loss causes a reduction in CRBN [74]. This led to the hypothesis that the synergy between lenalidomide and proteasome inhibitors in the clinic is based on sequential scheduling, where the proteasome inhibitor is given before lenalidomide and raises baseline CRBN levels by inhibiting SCF^Fbxo7 mediated CRBN degradation [74].

Other genes that are not directly implicated in protein turnover are also required for IMiD sensitivity. Loss of any of these genes—NCOR1, EDC4, RARA, SNRNP25, OTUB1, PLAA, DEPDC5, SRP14, XRN1, EIF4A1, ARID2, SCAP, MBTPS1, MBPTS2, C12orf49, HIST1H4F-caused IMiD resistance [73,74,75]. Our laboratory performed genome-wide CRISPR screening in cells with acquired lenalidomide resistance [42], aiming to identify potential candidates for IMiD resensitization. Here we found that deletion of TOP2B, ATXN7, MIER3 and subunits of the glucose-responsive GID E3 ligase complex (YPEL5, MAEA) restored IMiD sensitivity [75]. TOP2B is of potential therapeutic relevance as it can be pharmacologically targeted by the cardioprotective agent, dexrazoxane and the topoisomerase poison, etoposide. Interestingly, CRBN plays a role following DNA damage evoked by etoposide in non-tumor cells as CRBN disrupts signaling between TP53 and members of the BCL2 family, resulting in resistance to apoptosis following a DNA insult [80]. Others have demonstrated IMiD resensitization by inhibition of STAT3 signaling or the EP300/CBP acetyltransferase [81]. Inhibition of EP300/CBP causes acute repression of IRF4 and MYC in myeloma cells [82], further indicating that MM cells are strongly dependent on these two key transcription factors.

7. CRBN Functions as a Molecular Chaperone

In 2016, it was discovered that CRBN interacts with MCT1 (or SLC16A1) and CD147 (Basigin) [10]. These proteins have several physiological roles such as nutrient transport, migration of inflammatory cells and induction of metalloproteinases [56]. CRBN promotes maturation of MCT1 in complex with CD147 independent of ubiquitination, and the binding of CRBN to CUL4 or MCT1-CD147 is mutually exclusive. IMiDs inhibit the maturation of MCT1-CD147 in a dose-dependent manner and suppress pro-survival signaling. This important additional mechanistic data provides evidence for an alternative pathway by which IMiDs exert anti-tumor and microenvironmental effects. More recently, the same group reported that CRBN cooperates with the chaperone proteins HSP90 and AHA1 to stabilize the transmembrane protein CD98h-LAT1; this work demonstrated that all CRBN client misfolded proteins are also HSP90 clients, and these are directed to the surface membrane (Figure 1B) [9]. Such clients included CD44, MCT1, MCT4, ENT, CD147, LAT1, CD98h, GLUT1, NHE1, ASCT2 and CFTR (Figure 2A). In a similar manner to that of MCT1-CD147, CD98h-LAT1 was found to be a vulnerability in MM with the advantage of being exploitable also as a radiotheranostic target [9]. Although IMiD-mediated destabilization of MCT1-CD147 has been defined as potentially teratogenic, it remains unclear whether destabilization of CD98h-LAT1 has an impact on fetal development.

8. Other Physiological and Pathological Roles of CRBN

CRBN was initially identified as a gene implicated by mutation in a mental retardation syndrome [4]. The CRBN^R419X mutation causes expression of a truncated transcript that escapes non-sense mediated decay. This alteration was associated with disturbances of Ca⁺⁺ and K⁺ conductance resulting in increased reactivity to intracellular Ca⁺⁺ [3]. Other CRBN substrates are now implicated in the regulation of membrane electrical potential (Figure 2A). BKCA channels, which regulate Ca²⁺-induced release of neurotransmitters and neuronal excitability, are ubiquitinated by CRL4^CRBN [83]. Interestingly, these are not then degraded by the proteasome but are instead retained in the endoplasmic reticulum. Upon loss of CRBN or thalidomide exposure, these BK channels are subsequently redirected to the cell surface conveying increased neuronal excitability. The voltage gated CLC chloride channels CLC-1 and -2 have also been identified as CRBN targets. These are engaged by CRBN for polyubiquitination and proteasomal-dependent degradation and CLC-2 is stabilized following lenalidomide treatment [84,85]. Crbn was identified as an epigenetic regulator of Kv1.3 K+ channels by promoting histone methylation at the Kcna3 locus in murine CD4+ T-cells. Here, thalidomide treatment increased Kv1.3 expression [86].

Detailed structure–activity relationship studies of thalidomide in complex with CRL4^CRBN identified MEIS2 as an endogenous substrate that is stabilized in the presence of IMiD [6]. MEIS2 is a homeobox transcription factor that plays a key role in the maturation of cranial and cardiac neural crests [87]. MEIS2 is also associated with pro-survival activity in neuroblastoma and leukemia cells [88,89]. More recently, JUN, a well-studied proto-oncogene, was shown to be regulated by CRBN [90]. This observation is relevant in the context of LPS-induced inflammatory responses where CRBN dampens excessive proinflammatory cytokine expression induced by JUN/AP1 transcriptional activity [90]. However, further studies demonstrated that JUN levels are not altered upon IMiD exposure, as JUN binds to a CRBN domain that is distinct from that involved in substrate degradation [91]. CRBN also regulates NF-κB signaling in the context of an inflammatory response. Here CRBN binds to TRAF6, preventing its ubiquitination at K124, with subsequent reduction in TAB2 ubiquitination, NF-κB downregulation and dampened TLR4-dependent inflammation [92].

The alpha subunit of AMP kinase (AMPK), which contains the ATP-dependent catalytic domain, is an endogenous CRBN substrate that is stabilized by thalidomide [93]. AMPKα is a pivotal modulator of glucose and lipid metabolism; low AMPK activity enhances the Warburg effect and activates mTOR pathway signaling [94,95]. Other authors also report CRBN-dependent degradation of AMPKγ, another AMPK subunit [96]. The glucose transporter, GLUT1, is a CRBN-HSP90 client and its maturation is affected by IMiD treatment [9]. Together, these observations indicate that CRBN may regulate glucose metabolism. The resensitization of lenalidomide-resistance cells to IMiDs by deletion of the GID E3 ligase further supports this hypothesis [75]. Remarkably, CRBN also promotes degradation of glutamine synthase (GS) in a non-canonical manner. In the presence of high intracellular levels of glutamine, p300/CBP mediates acetylation of GS at lysine 11 and 14 [97]. Acetylated GS has an increased affinity for the thalidomide binding domain of CRBN. The recruitment of GS to CRBN is enhanced by IMiDs and CRBN-engagement mediates polyubiquitination and degradation of GS. Finally, resistance to IMiDs has been associated with the capacity of MM cells to resist the oxidative stress induced by IMiD treatment via inhibition of thioredoxin reductase (TXNR). An interaction between CRBN and thioredoxin (TXN) has been demonstrated, suggesting that CRBN may regulate the response to oxidative stress via disruption of the TXN-TXNR axis (Figure 1C) [98]. CRBN-dependent regulation of cellular metabolism is an interesting yet largely unexplored area. Given the multiplicity of metabolic pathways regulated by CRBN, we suggest that CISMs may have important consequences on cancer cell metabolism.

9. Distinct and Overlapping Toxicity Profiles of the CISMs

Common side effects of therapy with IMiDs include peripheral neuropathy, venous thromboembolism and myelosuppression. Neuropathy is a greater issue in thalidomide-treated patients, usually arising within 12 months of drug commencement [99]. Thalidomide-induced peripheral neuropathy (TiPN) presents as chronic axonal neuropathy displaying Wallerian-like degeneration, without demyelination and in the absence of immune cell infiltrate [100]. Wallerian degeneration is cytokine driven, suggesting that thalidomide interferes with the inflammatory response to axonal damage [101,102]. Dysregulated cation channel function is also implicated in Wallerian degeneration [103,104], and thalidomide’s effects on Ca⁺⁺ and K⁺ may therefore contribute to neuropathy [83,85,86]. However, the pathogenesis of TiPN remains poorly understood, and multiple events could perpetuate neurotoxicity. In contrast to neuropathy, myelosuppression is an uncommon thalidomide side effect [105] that is frequently observed with the more potent IMiDs. Myelosuppression has been attributed to IKZF1 degradation and subsequent downregulation of the transcription factor PU.1 [106,107,108]. As thalidomide is a much less potent IKZF1 degrader relative to lenalidomide and pomalidomide, it may not be as prone to this ‘on target’ toxicity [63]. Thrombocytopenia is a potential consequence of IMiD-induced aromatase degradation [109], which might also contribute to the reduction in platelet count in patients with del(5q) when treated with lenalidomide [52]. Thus, the distinct and overlapping side effect profile of the different CISMs (and their respective metabolites) may be explained by differential ‘on target’ effects on the CRL4^CRBN substrate/neosubstrate pool as well as modulation of other physiological CRBN functions (e.g., chaperone activity).

10. Rationally Developed CISMs: CELMoDs and Hetero-Bifunctional Targeted Protein Degraders

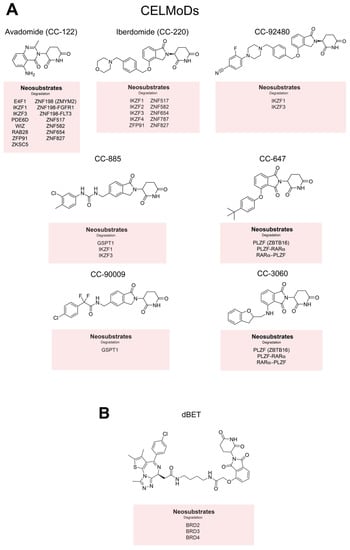

CELMoDs, or Cereblon E3 ligase modulators, such as CC-885, CC-90009, avadomide, iberdomide, CC-92480, CC-3060 and CC-647 represent a new generation of ‘IMiDs’ which have been developed in the ‘post CRBN era’ (Figure 3A). CC-885 and CC-9009 target GSPT1, a translation termination factor. Degradation of GSPT1 is detrimental in acute myeloid leukemia (AML) cell lines and patient-derived AML samples [68]. CC-885 also induces IKZF1/3 degradation, whereas CC-90009 is highly specific for GSPT1 and leaves IKZF1 intact [110]. Analogous to CK1α, GSPT1 is engaged by CRBN despite the absence of ZF domains, again indicating the importance of protein tertiary structure in substrate binding. Avadomide does not degrade GSPT1, but is active on other canonical CRBN neosubstrates such as IKZF1, IKZF3 and ZFP91 [13,67]. Unlike other IMiDs or CELMoDs, avadomide degrades ZNF198 (or ZMYM2) fusion oncoproteins, such as ZNYM2-FGFR1 and ZMYM2-FLT3, indicating potential benefit for patients with acute lymphoblastic leukemias harboring these translocations [13]. CELMoDs CC-3060 and CC-647 degrade PLZF and the PLZF fusion proteins that are pathogenic in variant forms of promyelocytic leukemia. Both compounds target either PLZF-RARα or RARα-PLZF by engaging each at a distinct degron. Therefore, these molecules could be purposed therapeutically in the presence these uncommon cytogenetic entities [111]. Iberdomide is a CELMoD with demonstrable activity in MM patients who are refractory to pomalidomide [11,12]. Recent work demonstrated the activity of iberdomide across a panel of pomalidomide-resistant cell lines despite reduced CRBN expression [12]. The potency and acute kinetics of IKZF3 degradation are greater with iberdomide relative to pomalidomide, which may explain its activity in IMiD-refractory patients [49]. However, differential substrate specificity might also be at play, as iberdomide degrades IKZF2 and IKZF4 as well as IKZF1/3 [67]. Among the newest CELMoDs, CC-92480 also showed remarkable in vitro potency, degrading IKZF1/3 at concentrations as low as 1nM, and is now being assessed in IMiD-refractory myeloma [112].

Hetero-bifunctional targeted protein degraders hijack the function of E3 ubiquitin ligases to degrade specific vulnerabilities via the ubiquitin–proteasome system. This approach is particularly attractive where the use of simple enzymatic small molecules inhibitors is problematic [15,16]. Chimeric molecules interact with the binding receptor for an E3 ligase and a second desired protein target simultaneously and are referred to as ‘proteolysis-targeting chimeras’, or PROTACs [15]. CRBN is commonly utilized as a receptor for thalidomide-based degraders, where a phthalimide moiety is linked to a small molecule inhibitor against the desired target. In 2015, Winter et al. designed dBET1, a BET-bromodomain (BRD)-2/3/4 degrader (Figure 3B), by conjugating phthalimide to JQ1, an acetyl-lysine mimetic BRD2/4 inhibitor. The resulting molecule demonstrated superiority to JQ1 in reducing the tumor burden in murine models of acute leukemia [17]. Other attempts have been made to generate CRBN-based degraders for cancer vulnerabilities, including BCR-ABL selective degraders for Philadelphia-positive malignancies [113]. PROTAC chemistry is a rapidly evolving area of drug development and beyond the scope of this review to describe in detail. We direct the reader to recent reviews and the PROTAC-DB online database as contemporary resources [114,115,116].

11. Conclusions

Following the initial identification of CRBN as the thalidomide binding protein by the Handa laboratory, the works of Krönke and Lu heralded the discovery that IMiDs modulate the ubiquitin ligase activity of CRL4^CRBN. Together, the CISMs (thalidomide, IMiDs, CELMoDs and PROTACs) redirect CRL4^CRBN substrate specificity towards proteins that are normally not targeted by CRL4^CRBN [7,8] while stabilizing the expression of endogenous CRBN substrates [6]. After the first descriptions of canonical endogenous substrates (e.g., MEIS2) and neosubstrates (e.g., IKZF1/3, CK1α) a plethora of new CRL4^CRBN interactors have been discovered [63,64,67,84,85]. Differential structural configuration of various CISM chemotypes is proposed to be the basis of their different substrate specificity [66]. Differential potency between CISMs, the presence of active metabolites and variation in the specificity of engaged neosubstrates, likely underpins different side effects and tissue-specific toxicities. Given the number of biological processes regulated by CRBN (Figure 4A), the potential consequences of CISM treatment may be equally numerous. CISMs concurrently inhibit CRBN’s endogenous activity, engage neosubstrates for degradation, alter the transmembrane proteome and modulate important metabolic pathways in a fashion that is still not completely understood (Figure 4B). The anti-cancer and side effect profiles of CISMs are likely explained by the net product of these many biological events. CISMs exert their anti-myeloma action via distinct and complementary pathways, such as the induction of neosubstrate degradation, the inhibition of CRBN chaperone activity, and the modulation of the response to oxidative stress (summarized in Figure 1). The design and development of selective protein degraders may represent the quintessence of personalized medicine, as targeted protein degraders are theoretically capable of inducing degradation of any cancer vulnerability. The associated medicinal chemistry efforts now sit at a new threshold with CELMoDs and PROTACs being deployed in clinical trials [11,117]. The ability to rationally target a growing repertoire of cancer dependencies at the protein level will likely enable extension of the therapeutic landscape of CISMs well beyond their current niche in the myeloma clinic into the broader practice of precision oncology.
