A Fitness-Fatigue Model of Performance in Peripheral Artery Disease: Predicted and Measured Effects of a Pain-Free Exercise Program

by
Nicola Lamberti
1,
Giovanni Piva
2,
Federico Businaro
1,
Lorenzo Caruso
3,
Anna Crepaldi
1,4,
Pablo Jesùs Lòpez-Soto
4,5 and
Fabio Manfredini
1,6,*
1
Department of Neuroscience and Rehabilitation, University of Ferrara, Via Luigi Borsari 46, 44121 Ferrara, Italy
2
PhD Program in Environmental Sustainability and Wellbeing, Department of Humanistic Studies, University of Ferrara, 44121 Ferrara, Italy
3
Department of Environmental Sciences and Prevention, University of Ferrara, 44121 Ferrara, Italy
4
Department of Nursing, Instituto Maimónides de Investigación Biomédica de Córdoba, 14005 Córdoba, Spain
5
Department of Nursing, Universidad de Córdoba, 14004 Córdoba, Spain
6
Department of Rehabilitation Medicine, University Hospital of Ferrara, 44124 Ferrara, Italy
*
Author to whom correspondence should be addressed.
J. Pers. Med. 2022, 12(3), 397; https://doi.org/10.3390/jpm12030397
Submission received: 25 January 2022 / Revised: 25 February 2022 / Accepted: 3 March 2022 / Published: 4 March 2022
(This article belongs to the Special Issue Personalized Medicine Interdisciplinary Aspects and Sex Gender-Specific Differences)
Browse Figures
Versions Notes

Abstract

:
Banister impulse-response (IR) model estimates the performance in response to the training impulses (TRIMPs). In 100 patients with peripheral artery disease (PAD), we tested by an IR model the predictability of the effects of a 6-month structured home-based exercise program. The daily TRIMPs obtained from prescribed walking speed, relative intensity and time of exercise determined the fitness-fatigue components of performance. The estimated performance values, calculated from the baseline 6-min and pain-free walking distance (6MWD and PFWD, respectively) were compared with values measured at visits through regression models. Interval pain-free walking at controlled speed prescribed during circa-monthly hospital visits (5 ± 1) was safely performed at home with good adherence (92% of scheduled sessions, 144 ± 25 km walked in 50 ± 8 training hours). The mean TRIMP rose throughout the program from 276 to 601 a.u. The measured 6MWD and PFWD values increased (+33 m and +121 m, respectively) showing a good fit with those estimated by the IR model (6MWD: R2 0.81; PFWD: R2 0.68) and very good correspondence (correlation coefficients: 0.91 to 0.95), without sex differences. The decay of performance without training was estimated at 18 ± 3 weeks. In PAD, an IR model predicted the walking performance following a pain-free exercise program. IR models may contribute to design and verify personalized training programs.

1. Introduction

Exercise is an organized series of stressors that may improve physical performance according to the quality and organization of the training impulses and the body response [1,2].
The structured organization of training variables [sets, repetitions, load], the so-called periodization, enables the positive adaptation of stressors and the optimization of the balance between the negative and positive effects of training or fatigue and fitness [1,3,4]. Inspired by the interesting objective to foresee these effects, the research of several authors involved in exercise physiology, as magisterially reviewed by Clarke et al. [1], has tried to develop mathematical models to predetermine/calculate the adaptive response to training stressors [1,5,6].
This approach, primarily of interest in sports to foster the performance and health of athletes [1,7,8,9,10,11], was also considered of interest for rehabilitation [4] or for subjects with chronic diseases, such as patients undergoing cardiac rehabilitation [12,13,14], to design effective and sustainable programs. Nevertheless, this approach has been poorly exploited in general [1,12], particularly for patients with peripheral artery disease (PAD), where exercise is a cornerstone of treatment in the intermediate stages when reduced oxygen delivery affects walking capacity, quality of life and cardiovascular health [15]. However, for PAD patients, walking represents both a noninvasive option to improve mobility [15] and a stressful factor due to muscle pain and psychological-related issues [16,17,18]. Moreover, repeated bouts of exercise at pain tolerance, such as those recommended during supervised treadmill training or for home training [15,18,19], may induce muscle damage [20,21] without hemodynamic improvements [22] and with variable effects according to the severity of disease or the characteristics of the patients [15,21,23]. Unlike this approach, a more aerobic program based on short pain-free walking periods was proposed into an original test-in train-out (TiTo) program prescribed at the hospital and performed at home at a controlled speed [24,25]. This program showed good adherence and was associated with functional and hemodynamic adaptations over the course of the rehabilitative phases [24,25,26,27,28]. We hypothesize that a proper combination of training variables structured according to the exercise principles aimed at attaining aerobic adaptations should evoke theoretically predictable progressive changes in walking performance in patients with PAD with equal response independently of sex.
This study aims to verify whether a mathematical impulse-response model of athletic training can be successfully applied in a real-world PAD population with intermittent claudication by determining whether the predicted effects related to the training stimuli correspond to the performance obtained during a rehabilitative exercise program.

2. Materials and Methods

From July 2017 to December 2018, consecutive PAD patients addressed to the vascular rehabilitation program were evaluated for eligibility. Male and female patients with PAD at Rutherford’s stages 1–3 were enrolled in the rehabilitation program. This observational study was approved by the CE-AVEC Ethics Committee (number 277/2019).

2.1. Performance Assessment

The 6-min walking test (6MWT), a test validated in people with PAD [29], was employed to assess walking performance at baseline (T0).
Patients were instructed to walk as far as possible for 6 min, with the possibility to rest and restart in case of impossibility to continue walking. The distance at the onset of symptoms referred (pain-free walking distance, PFWD) and the total distance covered (6-min walking distance, 6MWD) were collected.
The individual habitual speed was derived by observing the patient and counting the number of steps during the first minute of the test.
Performance assessment was repeated during all the following hospital visits, scheduled at 5 ± 1 weeks (T1), 12 ± 2 weeks (T2), 20 ± 2 weeks (T3) and 28 ± 3 weeks (T4).

2.2. Training Program

During serial circa-monthly visits, patients received at the hospital the first and the updated prescription of the Ti-To program to be performed at home. The 6-month program is composed of two daily 10-min sessions of intermittent walking (1:1 walk: rest ratio) at a prescribed speed. The speed converted into steps or beats/min is respected at home by walking in rhythm with a metronome. The speed was initially set at approximately 60% of the individual habitual walking speed and then increased each week by 3% until reaching 90–100%. A diary was provided to each patient to record the exercise session execution, and any possible symptoms which occurred. More details on the exercise program are reported elsewhere [24,25].
Possible changes in working time and volume—or total number of steps in the session—may also be settled, also by phone, in relation to intercurrent diseases or personal problems.

2.3. Modeling the Performance

The IR model used in this study for performance modeling is based on the principles determined by Banister et al. [5]. This system analyzes the physiological adaptations following training by determining into a mathematical relationship the two components of fitness and fatigue, with performance corresponding to the difference between them. The fitness and fatigue components linearly respond to the training load and are quantified as training impulses (TRIMPs).

2.4. Training Quantification

According to the systems model reported by Banister et al. (1975) [5,10], the daily training quantity w(t), or TRIMP, was calculated as the product of three parameters:
  • Intensity: the ratio between the training speed and the habitual walking speed measured, both quantified in steps/minute
  • Density: the ratio between the walking time and the total time elapsed in training, both quantified in minutes
  • Volume: the total number of steps performed during each training session
An example of TRIMP quantification for a single exercise session is reported in Table 1.

2.5. Definition of the Factors of the Model

Briefly, as reported elsewhere [5], each subject under training is represented as a system with a daily exercise quantity w(t) as input and the predictive performance p(t) as output, both of which are functions of time (t). The effect, or the time impulse response, is obtained by a mathematical formula of a first-order system and is g(t) = k ∙ et/s. where “k” is a magnitude factor corresponding to the increment in fatigue and/or fitness provided by every exercise session and “s” is a decay time constant, or the time necessary to observe a decrease to 37% of the initial value [5].

2.6. Model Development

The model, applied specifically and individually to each patient for the entire duration of the rehabilitation program, was calibrated on the actual measured performance p(m) by calculating the differences between theoretical performance p(t) and p(m) fitting those differences by the least square methods by minimizing the residual sum of squares (RSS) [10,30].

2.7. Statistical Analysis

Data are expressed as the mean ± standard deviation for continuous variables and number and percentage for categorical variables. A comparison between baseline and end-of-treatment PFWD and 6MWD was performed via paired-samples t-tests. The model of performance was calculated for each subject by hypothesizing an adaptive response to the training load and fitted for the parameters measured: PWFD and 6MWD.
The coefficient of determination R2 between p(t) and p(m) was calculated. The statistical significance of the fit was tested by an analysis of variance (ANOVA) on the RSS. Passing–Bablok regressions were employed to make a comparison between the actual and estimated performance for both PFWD and 6MWD. A p-value < 0.05 was considered statistically significant. Statistical analysis was performed with MedCalc® Statistical Software version 20.014 (MedCalc Software Ltd., Ostend, Belgium).

3. Results

One hundred and twenty-four patients were addressed to the vascular rehabilitation program during the period of enrollment. Twenty-four patients were excluded from the final analyses due to dropping out for health reasons (neoplastic or cardiovascular disease n = 13) or personal reasons (family issues, n = 5) or incomplete program execution (n = 6). For the remaining 100 patients, the IR model was applied. The baseline characteristics of the final sample of PAD patients are reported in Table 2. For each patient, the baseline value of PFWD and 6MWD was considered as p(0), or the starting performance value.

3.1. Program Execution and TRIMPs Calculation

All analyzed patients safely completed the 6-month exercise program, completing more than 90% of the scheduled training sessions for a total of 144 ± 25 km walked (during 50 ± 8 h of home training) and coming to the hospital 5 ± 1 times for check-up visits. The training load progressively increased, leading to a mean TRIMP value starting from 276 a.u. the first training day to a value of 601 a.u. the last training day after 27 ± 3 weeks. The TRIMP value progression for each training day is reported in Figure 1.

3.2. Performance Variation over Time and Model Fitting

Both parameters of walking ability improved over the consecutive visits, with a significant difference (p < 0.001) between T0 and T4 for both PFWD and 6MWD. Data are reported in Table 3.
For each patient, the actual performance was fit to the model calculated by the systems model of training with one fitness component. For PFWD and 6MWD, 89 out of 100 patients showed acceptable adherence to the estimated model (R2 > 0.30). The values of the constants k and τ are reported in Table 4 for both PFWD and 6MWD. The estimated decline in performance in absence of training with a return to baseline value was calculated in 18 ± 3 weeks.
The TRIMPS, estimated and actual performance for a sample subject are reported in Figure 1.
When comparing all the actual measured values with the estimated values for all time points, we observed a very high concordance, with intraclass correlation coefficient values of 0.91 (95% CI 0.88–0.92) for PFWD and 0.95 (95% CI 0.94–0.96) for 6MWD.
The Passing–Bablok regressions for both outcomes did not show significant deviations from linearity (Figure 2).

3.3. Sex-Based Response of the Model

The model parameters, subsequently analyzed for the group of men (n = 75), and women (n = 25), did not reveal any significant differences in model fittings (PFWD: Men R2 = 0.69; Women R2 = 0.66; 6MWD: Men R2 = 0.80; Women R2 = 0.83). In addition, no differences in constant values were observed for the two sexes (Table 5).

4. Discussion

The study has shown that the changes in walking performance observed during a structured progressive pain-free exercise program correspond to those predicted by a mathematical IR model based on two components, fitness and fatigue, directly related to the training load imposed.
The study demonstrates that in a population of PAD patients an original organization of the training load based on daily short walking units at increasing speed is effective in producing predictable adaptive walking improvements even in a complex model of performance such as PAD, where multiple factors may cause a wide-ranging response. The study also shows that the model is equally valid for male and female patients of the population under study, without any difference.
We previously observed a discrete repetitiveness of the functional response to progressive training based on weekly cycles and on mesocycles of approximately 5–8 weeks [24,25,26] in PAD patients enrolled in the TiTo program [28,31,32,33,34]. This fact led us to isolate a period of enrolment to mathematically analyze the training effects on patients by an “impulse-response” model [5], where the performance is calculated integrating fitness and fatigue according to a linear response to the training load [14]. Even if modified more complex models enable higher workloads to be evaluated [8,9,30], we opted for the simple model for ease of design and for the nonmaximal load prescribed to patients. In the TiTo program, in order to obtain lower limbs aerobic adaptations in muscles exposed to an early, even not perceived, deoxygenation [35,36], the training is slower than the habitual walking speed and fragmented into short one-minute work units separated by equal rest periods.
This factor was considered in the mathematical model for the training load calculation [30], which is based on exercise units or training impulses the so-called TRIMPs [1,5,37], weighted according to their duration, frequency and relative intensity. In particular, this parameter in the present study was obtained as the ratio between the prescribed home walking speed and the habitual walking speed rather than by using heart rate, speed or lactate concentration [38,39,40,41].
The study, on the one hand, confirms the effectiveness of the exercise program in the cohort under study, with variations in 6MWD and PFWD (+33 m and +121 m, respectively) exceeding the minimal clinically important difference [42]. The relevant increase in PFWD also confirms the aerobic effects of the program, possibly supported by previously reported hemodynamic adaptations [26,28,43]. On the other hand, as the main result for the present study, the analyses show the correspondence between the changes in functional capacity calculated by the IR model as a result of the structured progressive training load and those obtained in vivo in patients enrolled in the TiTo program. This fact is relevant considering the challenging model of performance represented by PAD patients, where the number and type of lesions, different previous treatments, comorbidities and degree of deconditioning might largely affect the rehabilitative outcomes. Moreover, in addition to the general correspondence with the cohort of patients as a whole, 89 patients out of 100 showed a good mathematical correspondence with the model in terms of individual progression of the training load, and the associated effects also in the presence of possible temporary deviations from the prescription due to intercurrent illnesses or personal issues.
The study by the IR model also describes how the changes of performance (6MWD and PFWD) starting from the initial performance p(0) occurred throughout the program, according to Fitness and Fatigue response components, and at which rate the performance may decline in case of exercise interruption. Four coefficients define the magnitude of the response in terms of fitness (k1) and fatigue (k2) and their time of decay (τ1, τ2). In the present study, the τ1 values were comparable to those previously reported during training in healthy sedentary subjects or athletes [1,8,30], suggesting that the proposed exercise represents an effective training stimulus in subjects with reduced mobility. The τ2 values observed are instead higher than those reported in the mentioned studies but congruent with those calculated in a population of cardiopathic patients [12,13] for a possible slower muscle recovery of fatigue even when walking at low-moderate intensity [35].
The analysis of the coefficients also allowed to estimate the decay of performance once the training was suspended. The return to the baseline values estimated at 16–24 weeks is acceptable in terms of persistence of the benefit in absence of any stimulus, but it also confirms the need to maintain an adequate dose of exercise that is actually prescribed at the exit of the program. Purposely, the model can now allow us to calculate the lowest training load required to maintain acquired mobility, thus promoting long-term adherence to exercise.
As a final result, we studied the response according to patients’ sex. It was reported that a generic equation for both males and females [10] may affect the ability of TRIMPs to qualify the individual dose of exercise. Performance fatigability may differ between sexes for muscle characteristics [44,45] and response to physical efforts, even if some of these differences decline with age [45]. Furthermore, a different response to rehabilitation in women may derive from lower physical function and general health or psychological status at entry [46], from limited adherence to the exercise program for several barriers including the presence of pain, especially in PAD [16,17,18,47,48,49]. In this study, not only superimposable 6MWD changes were noted in the two subgroups as previously observed [50], but also in terms of coefficients defining the magnitude of fitness and fatigue and their time of decay. If the features of the in-home execution and the low intensity in the absence of pain [24,25] may bypass some of the barriers to exercise, a personalized progressive exercise may explain the comparability of the coefficients.
There are several limitations of the study. The number of serial measurements performed for each subject is less than that recommended to achieve a good level of accuracy of the model. However, the statistical results observed were acceptable for most subjects. Moreover, in a real-world situation, a high number of medical visits affects the patient’s compliance with a program [25], and purposely, the TiTo program requests few check-ups. In the TRIMP calculation, the relative intensity was calculated by a novel parameter, even with evident physiological significance in PAD [33]. The impact of pharmacological therapy changes during the study, despite in few numbers (<10%), was not investigated. Finally, the model is based only on exercise data prescribed and performed according to the diary without collecting, or measuring by wearable devices, the daily working or leisure activities which could have potentially influenced the fitness and fatigue components of the model.

5. Conclusions

In conclusion, in a cohort of PAD patients at intermediate stages, the changes in walking ability following structured exercise were comparable to those calculated by an IR model of performance. The study demonstrates that mathematical models originally used in sports may support a personalized, sustainable manipulation of the training variables in diseases where fatigue and pain affect adherence and rehabilitative outcomes.

Author Contributions

Conceptualization, N.L., F.B. and F.M.; methodology, F.B.; formal analysis, N.L., G.P., F.B. and F.M.; investigation, N.L., G.P., A.C. and F.M.; data curation, F.B. and L.C.; writing—original draft preparation, N.L., G.P., F.B. and F.M. writing—review and editing, L.C., A.C., P.J.L.-S. and F.M.; supervision, P.J.L.-S. and F.M.; funding acquisition, F.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research was partially funded by FAR 2020 University of Ferrara, Italy.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki, and approved by the Ethics Committee of CE-AVEC (protocol code 277/2019, date of approval 9 May 2019).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The dataset of the study is available upon request to Nicola Lamberti ([email protected]).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Clarke, D.C.; Skiba, P.F. Rationale and Resources for Teaching the Mathematical Modeling of Athletic Training and Performance. Am. J. Physiol. Adv. Physiol. Educ. 2013, 37, 134–152. [Google Scholar] [CrossRef] [PubMed]
  2. Caspersen, C.J.; Powell, K.E.; Christenson, G.M. Physical Activity, Exercise, and Physical Fitness: Definitions and Distinctions for Health-Related Research. Public Health Rep. 1985, 100, 126–131. [Google Scholar] [CrossRef]
  3. Lorenz, D.; Morrison, S. Periodisation Strength Physical Therapy. Int. J. Sports Phys. Ther. 2015, 10, 734–747. [Google Scholar] [PubMed]
  4. Hoover, D.L.; VanWye, W.R.; Judge, L.W. Periodization and Physical Therapy: Bridging the Gap between Training and Rehabilitation. Phys. Ther. Sports 2016, 18, 1–20. [Google Scholar] [CrossRef] [PubMed]
  5. Banister, E.W.; Calvert, T.W.; Savage, M.V.; Bach, T. A Systems Model of Training for Athletic Performance. Austr. J. Sports Med. 1975, 7, 57–61. [Google Scholar]
  6. Billat, L.V.; Koralsztein, J.P.; Morton, R.H.; Physiques, A. Time in Human Endurance Models. From Empirical Models to Psysiological Models. Sports Med. 1999, 27, 359–379. [Google Scholar] [CrossRef] [PubMed]
  7. Morton, R.H. Modeling Training and Overtraining. J. Sports Sci. 1997, 15, 335–340. [Google Scholar] [CrossRef]
  8. Busso, T.; Thomas, L. Using Mathematical Modeling in Training Planning. Int. J. Sports Physiol. Perform. 2006, 1, 400–405. [Google Scholar] [CrossRef]
  9. Hellard, P.; Avalos, M.; Lacoste, L.; Barale, F.; Chatard, J.-C.; Millet, G.P. Assessing the Limitations of the Banister Model in Monitoring Training. J. Sports Sci. 2006, 24, 509–520. [Google Scholar] [CrossRef]
  10. Fitz-Clarke, J.R.; Morton, R.H.; Banister, E.W. Optimizing Athletic Performance by Influence Curves. J. Appl. Physiol. 1991, 71, 1151–1158. [Google Scholar] [CrossRef]
  11. Morton, R.H. The Critical Power and Related Whole-Body Bioenergetic Models. Eur. J. Appl. Physiol. 2006, 96, 339–354. [Google Scholar] [CrossRef] [PubMed]
  12. Le Bris, S.; Ledermann, B.; Topin, N.; Messner-Pellenc, P.; Le Gallais, D. A Systems Model of Training for Patients in Phase 2 Cardiac Rehabilitation. Int. J. Cardiol. 2006, 109, 257–263. [Google Scholar] [CrossRef] [PubMed]
  13. Le Bris, S.; Ledermann, B.; Topin, N.; Messner-Pellenc, P.; Le Gallais, D. High versus Low Training Frequency in Cardiac Rehabilitation Using a Systems Model of Training. Eur. J. Appl. Physiol. 2006, 96, 217–224. [Google Scholar] [CrossRef]
  14. Le Bris, S.; Ledermann, B.; Candau, R.; Davy, J.M.; Messner-Pellenc, P.; Le Gallais, D. Applying a Systems Model of Training to a Patient with Coronary Artery Disease. Med. Sci. Sports Exerc. 2004, 36, 942–948. [Google Scholar] [CrossRef] [PubMed]
  15. Gerhard-Herman, M.D.; Gornik, H.L.; Barrett, C.; Barshes, N.R.; Corriere, M.A.; Drachman, D.E.; Fleisher, L.A.; Fowkes, F.G.R.; Hamburg, N.M.; Kinlay, S.; et al. 2016 AHA/ACC Guideline on the Management of Patients with Lower Extremity Peripheral Artery Disease: A Report of the American College of Cardiology/American Heart Association Task Force on Clinical Practice Guidelines. J. Am. Coll. Cardiol. 2017, 69, e71–e126. [Google Scholar] [CrossRef]
  16. Cavalcante, B.R.; Farah, B.Q.; dos, A.; Barbosa, J.P.; Cucato, G.G.; da Rocha Chehuen, M.; Wolosker, N.; de Moraes Forjaz, C.L.; Ritti-Dias, R.M. Are the Barriers for Physical Activity Practice Equal for All Peripheral Artery Disease Patients? Arch. Phys. Med. Rehabil. 2015, 96, 248–252. [Google Scholar] [CrossRef]
  17. Oka, R.K.; Szuba, A.; Giacomini, J.C.; Cooke, J.P. Gender Differences in Perception of PAD: A Pilot Study. Vasc. Med. 2003, 8, 89–94. [Google Scholar] [CrossRef] [Green Version]
  18. Treat-Jacobson, D.; McDermott, M.M.; Bronas, U.G.; Campia, U.; Collins, T.C.; Criqui, M.H.; Gardner, A.W.; Hiatt, W.R.; Regensteiner, J.G.; Rich, K. Optimal Exercise Programs for Patients with Peripheral Artery Disease: A Scientific Statement from the American Heart Association. Circulation 2019, 139, E10–E33. [Google Scholar] [CrossRef]
  19. McDermott, M.M.; Spring, B.; Berger, J.S.; Treat-Jacobson, D.; Conte, M.S.; Creager, M.A.; Criqui, M.H.; Ferrucci, L.; Gornik, H.L.; Guralnik, J.M.; et al. Effect of a Home-Based Exercise Intervention of Wearable Technology and Telephone Coaching on Walking Performance in Peripheral Artery Disease: The Honor Randomized Clinical Trial. JAMA J. Am. Med. Assoc. 2018, 319, 1665–1676. [Google Scholar] [CrossRef]
  20. Green, D.J.; Hopman, M.T.E.; Padilla, J.; Laughlin, M.H.; Thijssen, D.H.J. Vascular Adaptation to Exercise in Humans: Role of Hemodynamic Stimuli. Physiol. Rev. 2017, 97, 495–528. [Google Scholar] [CrossRef]
  21. Hamburg, N.M.; Balady, G.J. Exercise Rehabilitation in Peripheral Artery Disease: Functional Impact and Mechanisms of Benefits. Circulation 2011, 123, 87–97. [Google Scholar] [CrossRef] [Green Version]
  22. Parmenter, B.J.; Raymond, J.; Singh, M.A.F. The Effect of Exercise on Haemodynamics in Intermittent Claudication—A Systematic Review of Randomized Controlled Trials. Sports Med. 2010, 40, 433–447. [Google Scholar] [CrossRef]
  23. Hirsch, A.T.; Allison, M.A.; Gomes, A.S.; Corriere, M.A.; Duval, S.; Ershow, A.G.; Hiatt, W.R.; Karas, R.H.; Lovell, M.B.; McDermott, M.M.; et al. A Call to Action: Women and Peripheral Artery Disease: A Scientific Statement from the American Heart Association. Circulation 2012, 125, 1449–1472. [Google Scholar] [CrossRef] [Green Version]
  24. Manfredini, F.; Malagoni, A.M.; Mascoli, F.; Mandini, S.; Taddia, M.C.; Basaglia, N.; Manfredini, R.; Conconi, F.; Zamboni, P. Training Rather than Walking—The Test in-Train out Program for Home-Based Rehabilitation in Peripheral Arteriopathy. Circ. J. 2008, 72, 946–952. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Malagoni, A.M.; Vagnoni, E.; Felisatti, M.; Mandini, S.; Heidari, M.; Mascoli, F.; Basaglia, N.; Manfredini, R.; Zamboni, P.; Manfredini, F. Evaluation of Patient Compliance, Quality of Life Impact and Cost-Effectiveness of a “Test in-Train out” Exercise-Based Rehabilitation Program for Patients with Intermittent Claudication. Circ. J. 2011, 75, 2128–2134. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Manfredini, F.; Traina, L.; Gasbarro, V.; Straudi, S.; Caruso, L.; Fabbian, F.; Zamboni, P.; Manfredini, R.; Lamberti, N. Structured Pain-Free Exercise Progressively Improves Ankle-Brachial Index and Walking Ability in Patients with Claudication and Compressible Arteries: An Observational Study. Int. Emerg. Med. 2021, 1–11. [Google Scholar] [CrossRef] [PubMed]
  27. Manfredini, F.; Lamberti, N.; Ficarra, V.; Tsolaki, E.; Straudi, S.; Zamboni, P.; Basaglia, N.; Gasbarro, V. Biomarkers of Muscle Metabolism in Peripheral Artery Disease: A Dynamic NIRS-Assisted Study to Detect Adaptations Following Revascularization and Exercise Training. Diagnostics 2020, 10, 312. [Google Scholar] [CrossRef]
  28. Lamberti, N.; López-Soto, P.J.; Guerzoni, F.; Napoli, N.; Gasbarro, V.; Zamboni, P.; Tsolaki, E.; Taddia, M.C.; Rodríguez-Borrego, M.A.; Manfredini, R.; et al. Changes in Exercise Capacity and Risk of All-Cause Mortality in Patients with Peripheral Artery Disease: A 10-Year Retrospective Cohort Study. Int. Emerg. Med. 2020, 15, 289–298. [Google Scholar] [CrossRef]
  29. Montgomery, P.S.; Gardner, A.W. The Clinical Utility of a Six-Minute Walk Test in Peripheral Arterial Occlusive Disease Patients. J. Am. Geriatr. Soc. 1998, 46, 706–711. [Google Scholar] [CrossRef]
  30. Busso, T.; Quick, C.M.; Berger, D.S.; Noordergraaf, A. Modeling in Physiology. Am. J. Physiol. 2005, 20, 1393–1403. [Google Scholar]
  31. Malagoni, A.M.; Cavazza, S.; Ferraresi, G.; Grassi, G.; Felisatti, M.; Lamberti, N.; Basaglia, N.; Manfredini, F. Effects of a “Test in-Train out” Walking Program versus Supervised Standard Rehabilitation in Chronic Stroke Patients: A Feasibility and Pilot Randomized Study. Eur. J. Phys. Rehabil. Med. 2016, 52, 279–287. [Google Scholar] [PubMed]
  32. Manfredini, F.; Mallamaci, F.; D’Arrigo, G.; Baggetta, R.; Bolignano, D.; Torino, C.; Lamberti, N.; Bertoli, S.; Ciurlino, D.; Rocca-Rey, L.; et al. Exercise in Patients on Dialysis: A Multicenter, Randomized Clinical Trial. J. Am. Soc. Nephrol. 2017, 28, 1259–1268. [Google Scholar] [CrossRef] [PubMed]
  33. Lamberti, N.; Straudi, S.; Donadi, M.; Tanaka, H.; Basaglia, N.; Manfredini, F. Effectiveness of Blood Flow-Restricted Slow Walking on Mobility in Severe Multiple Sclerosis: A Pilot Randomized Trial. Scand. J. Med. Sci. Sports 2020, 30, 1999–2009. [Google Scholar] [CrossRef] [PubMed]
  34. Malagoni, A.M.; Catizone, L.; Mandini, S.; Soffritti, S.; Manfredini, R.; Boari, B.; Russo, G.; Basaglia, N.; Zamboni, P.; Manfredini, F. Acute and Long-Term Effects of an Exercise Program for Dialysis Patients Prescribed in Hospital and Performed at Home. J. Nephrol. 2008, 21, 871–878. [Google Scholar] [PubMed]
  35. Manfredini, F.; Malagoni, A.M.; Felisatti, M.; Mandini, S.; Mascoli, F.; Manfredini, R.; Basaglia, N.; Zamboni, P. A Dynamic Objective Evaluation of Peripheral Arterial Disease by Near-Infrared Spectroscopy. Eur. J. Vasc. Endovasc. Surg. 2009, 38, 441–448. [Google Scholar] [CrossRef] [Green Version]
  36. Manfredini, F.; Lamberti, N.; Malagoni, A.M.; Zambon, C.; Basaglia, N.; Mascoli, F.; Manfredini, R.; Zamboni, P. Reliability of the Vascular Claudication Reporting in Diabetic Patients with Peripheral Arterial Disease: A Study with near-Infrared Spectroscopy. Angiology 2015, 66, 365–374. [Google Scholar] [CrossRef]
  37. Hayes, P.R.; Quinn, M.D. A Mathematical Model for Quantifying Training. Eur. J. Appl. Physiol. 2009, 106, 839–847. [Google Scholar] [CrossRef]
  38. Lucía, A.; Hoyos, J.; Pérez, M.; Chicharro, J.L. Heart Rate and Performance Parameters in Elite Cyclists: A Longitudinal Study. Med. Sci. Sports Exerc. 2000, 32, 1777–1782. [Google Scholar] [CrossRef] [Green Version]
  39. Stagno, K.M.; Thatcher, R.; van Someren, K.A. A Modified TRIMP to Quantify the In-Season Training Load of Team Sport Players. J. Sports Sci. 2007, 25, 629–634. [Google Scholar] [CrossRef]
  40. Seiler, K.S.; Kjerland, G.Ø. Quantifying Training Intensity Distribution in Elite Endurance Athletes: Is There Evidence for an “Optimal” Distribution? Scand. J. Med. Sci. Sports 2006, 16, 49–56. [Google Scholar] [CrossRef]
  41. Foster, C.; Florhaug, J.A.; Franklin, J.; Gottschall, L.; Hrovatin, L.A.; Parker, S.; Doleshal, P.; Dodge, C. A New Approach to Monitoring Exercise Training. J. Strength Cond. Res. 2001, 15, 109–115. [Google Scholar]
  42. McDermott, M.M.; Tian, L.; Criqui, M.H.; Ferrucci, L.; Conte, M.S.; Zhao, L.; Li, L.; Sufit, R.; Polonsky, T.S.; Kibbe, M.R.; et al. Meaningful Change in 6-Minute Walk in People with Peripheral Artery Disease. J. Vasc. Surg. 2021, 73, 267–276.e1. [Google Scholar] [CrossRef] [PubMed]
  43. Manfredini, F.; Malagoni, A.M.; Mandini, S.; Felisatti, M.; Mascoli, F.; Basaglia, N.; Manfredini, R.; Mikhailidis, D.P.; Zamboni, P. Near-Infrared Spectroscopy Assessment Following Exercise Training in Patients with Intermittent Claudication and in Untrained Healthy Participants. Vasc. Endovasc. Surg. 2012, 46, 315–324. [Google Scholar] [CrossRef] [PubMed]
  44. Hunter, S.K. Sex Differences and Mechanisms of Task-Specific Muscle Fatigue. Exerc. Sports Sci. Rev. 2009, 37, 113–122. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Hunter, S.K. The Relevance of Sex Differences in Performance Fatigability. Med. Sci. Sports Exerc. 2016, 48, 2247–2256. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Collins, T.C.; Suarez-Almazor, M.; Bush, R.L.; Petersen, N.J. Gender and Peripheral Arterial Disease. J. Am. Board Fam. Med. 2006, 19, 132–140. [Google Scholar] [CrossRef] [Green Version]
  47. Dörenkamp, S.; Mesters, I.; de Bie, R.; Teijink, J.; van Breukelen, G. Patient Characteristics and Comorbidities Influence Walking Distances in Symptomatic Peripheral Arterial Disease: A Large One-Year Physiotherapy Cohort Study. PLoS ONE 2016, 11, e0146828. [Google Scholar] [CrossRef] [Green Version]
  48. Gommans, L.N.M.; Scheltinga, M.R.M.; van Sambeek, M.R.H.M.; Maas, A.H.E.M.; Bendermacher, B.L.W.; Teijink, J.A.W. Gender Differences Following Supervised Exercise Therapy in Patients with Intermittent Claudication. J. Vasc. Surg. 2015, 62, 681–688. [Google Scholar] [CrossRef]
  49. Gardner, A.W.; Parker, D.E.; Montgomery, P.S.; Blevins, S.M. Diabetic Women Are Poor Responders to Exercise Rehabilitation in the Treatment of Claudication. J. Vasc. Surg. 2014, 59, 1036–1043. [Google Scholar] [CrossRef] [Green Version]
  50. Manfredini, R.; Lamberti, N.; Manfredini, F.; Straudi, S.; Fabbian, F.; Rodriguez Borrego, M.A.; Basaglia, N.; Carmona Torres, J.M.; Lopez Soto, P.J. Gender Differences in Outcomes Following a Pain-Free, Home-Based Exercise Program for Claudication. J. Womens Health 2019, 28, 1313–1321. [Google Scholar] [CrossRef] [Green Version]
Jpm 12 00397 g001 550

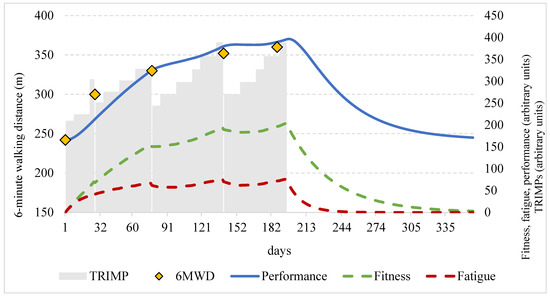

Figure 1. Description of the impulse–response model of a sample subject included in the study considering the 6MWD. Orange diamonds represent measured performance; blue line describes the predicted performance by IR model by subtracting positive training effects (fitness: green dashed line) to negative training effects (fatigue: red dashed line). Daily training impulses (TRIMPs) are also reported as grey columns. All variables represented as functions of time (days) in the horizontal axis.
Figure 1. Description of the impulse–response model of a sample subject included in the study considering the 6MWD. Orange diamonds represent measured performance; blue line describes the predicted performance by IR model by subtracting positive training effects (fitness: green dashed line) to negative training effects (fatigue: red dashed line). Daily training impulses (TRIMPs) are also reported as grey columns. All variables represented as functions of time (days) in the horizontal axis.
Jpm 12 00397 g001
Jpm 12 00397 g002 550

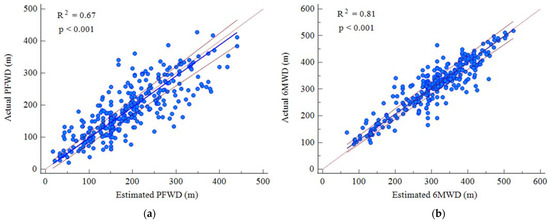

Figure 2. Passing–Bablok regressions between actual and estimated performance for both PFWD (a) and 6MWD (b).
Figure 2. Passing–Bablok regressions between actual and estimated performance for both PFWD (a) and 6MWD (b).
Jpm 12 00397 g002
Table
Table 1. Example of the calculation of the TRIMPs.
Table 1. Example of the calculation of the TRIMPs.
6MWTExercise Program
Habitual walking speed recorded
100 steps/min.		Single training sessionWalk1 minTo be repeated 10 times
Rest1 min
Speed 60 steps/min
  • Intensity = training speed ÷ walking speed = 60 ÷ 100 = 0.60
  • Density = walking minutes ÷ total minutes = 10 ÷ 19 = 0.53
  • Volume = number of steps × total repetitions = 60 × 10 = 600
  • TRIMP = intensity × density × volume = 0.60 × 0.53 × 600 = 191 arbitrary units
Table
Table 2. Baseline characteristics of the patients under study.
Table 2. Baseline characteristics of the patients under study.
PAD Patients
n = 100
Males, n75
Age, years71 ± 9
Risk factors; n
Smoking habit92
Current smokers4
Hypertension81
Hyperlipidemia67
Type 2 diabetes43
Chronic kidney disease11
Family history for cardiovascular disease35
Comorbidities, n
Ischemic heart disease45
Stroke15
Osteoarticular disorders34
Pulmonary diseases11
Neoplastic disesase21
Charlson Comorbidity Index 3 ± 2
Age-adjusted Charlson Index6 ± 2
Peripheral vascular disease
Rutherford stage 14
Rutherford stage 279
Rutherford stage 317
Revascularizations28
Disease duration, years6 ± 5
Bilateral disease75
Ankle-brachial index more impaired limb0.59 ± 0.19
Ankle-brachial index less impaired limb0.82 ± 0.17
Pain-free walking distance (m)114 ± 61
6-min walking distance (m)287 ± 85
Table
Table 3. Actual and estimated values of performance over the four time periods.
Table 3. Actual and estimated values of performance over the four time periods.
T0T1T2T3T4
PFWD (m), actual114 ± 61136 ± 68178 ± 82207 ± 80235 ± 91
PFWD (m), estimated-151 ± 70184 ± 85205 ± 84220 ± 94
6MWD (m), actual287 ± 85290 ± 83316 ± 90315 ± 88320 ± 97
6MWD (m), estimated-286 ± 82306 ± 82325 ± 86330 ± 91
Table
Table 4. Model parameters including baseline performance (p(0)) and constants.
Table 4. Model parameters including baseline performance (p(0)) and constants.
PWFD (m)6MWD (m)
p (0)114 ± 61287 ± 85
k1 (a.u.)0.03 ± 0.060.02 ± 0.03
k2 (a.u.)0.03 ± 0.060.03 ± 0.03
τ1 (days)45 ± 1337 ± 11
τ2 (days)25 ± 1026 ± 9
Table
Table 5. Model parameters for the two parameters in men and women.
Table 5. Model parameters for the two parameters in men and women.
PWFD (m)6MWD (m)
MenWomenMenWomen
k1 (a.u.)0.03 ± 0.050.03 ± 0.060.02 ± 0.030.02 ± 0.03
k2 (a.u.)0.03 ± 0.060.03 ± 0.050.03 ± 0.030.03 ± 0.04
τ1 (days)45 ± 1244 ± 1136 ± 1238 ± 13
τ2 (days)24 ± 1027 ± 925 ± 1026 ± 9
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Lamberti, N.; Piva, G.; Businaro, F.; Caruso, L.; Crepaldi, A.; Lòpez-Soto, P.J.; Manfredini, F. A Fitness-Fatigue Model of Performance in Peripheral Artery Disease: Predicted and Measured Effects of a Pain-Free Exercise Program. J. Pers. Med. 2022, 12, 397. https://doi.org/10.3390/jpm12030397

AMA Style

Lamberti N, Piva G, Businaro F, Caruso L, Crepaldi A, Lòpez-Soto PJ, Manfredini F. A Fitness-Fatigue Model of Performance in Peripheral Artery Disease: Predicted and Measured Effects of a Pain-Free Exercise Program. Journal of Personalized Medicine. 2022; 12(3):397. https://doi.org/10.3390/jpm12030397

Chicago/Turabian Style

Lamberti, Nicola, Giovanni Piva, Federico Businaro, Lorenzo Caruso, Anna Crepaldi, Pablo Jesùs Lòpez-Soto, and Fabio Manfredini. 2022. "A Fitness-Fatigue Model of Performance in Peripheral Artery Disease: Predicted and Measured Effects of a Pain-Free Exercise Program" Journal of Personalized Medicine 12, no. 3: 397. https://doi.org/10.3390/jpm12030397

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
