Systematic Review

Impact of l-Carnitine Supplementation on Liver Enzyme Normalization in Patients with Chronic Liver Disease: A Meta-Analysis of Randomized Trials

by
Hyunwoo Oh
1,
Chan Hyuk Park
2,*,† and
Dae Won Jun
3,*,†
1
Department of Internal Medicine, Uijeongbu Eulji Medical Center, Eulji University School of Medicine, Uijeongbu 11690, Korea
2
Department of Internal Medicine, Hanyang University Guri Hospital, Hanyang University College of Medicine, Guri 11923, Korea
3
Department of Internal Medicine, Hanyang University College of Medicine, Seoul 04763, Korea
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
J. Pers. Med. 2022, 12(7), 1053; https://doi.org/10.3390/jpm12071053
Submission received: 29 May 2022 / Revised: 21 June 2022 / Accepted: 24 June 2022 / Published: 27 June 2022
Browse Figures
Review Reports Versions Notes

Abstract

:
The effectiveness of l-carnitine in chronic liver disease remains controversial. We conducted this meta-analysis to assess the efficacy of various forms of l-carnitine in the treatment of chronic liver disease. Methods: We searched the Cochrane Library, EMBASE, KMBASE, and Medline databases for all relevant studies published until April 2022 that examined the ability of l-carnitine or its derivatives to normalize liver enzymes in patients with chronic liver disease. We performed meta-analyses of the proportion of patients with alanine aminotransferase (ALT) normalization and post-treatment serum aspartate aminotransferase (AST) and ALT levels. A random effects model was used for meta-analyses. Results: Fourteen randomized controlled trials (1217 patients) were included in this meta-analysis. The proportion of patients in whom ALT normalized was higher in the carnitine-orotate treatment group than in the control group (pooled odds ratio (OR), 95% confidence interval (CI) = 4.61 (1.48–14.39)). The proportion of patients in whom ALT normalized was also higher among those who received the carnitine-orotate complex, a combination of carnitine-orotate, biphenyl dimethyl dicarboxylate, and other minor supplementary compounds than in those who did not without significant heterogeneity (pooled OR (95% CI) = 18.88 (7.70–46.27); df = 1; p = 0.51; I2 = 0%). l-carnitine supplementation effectively lowered serum ALT levels compared to controls (pooled mean difference (95% CI) = −11.99 (−22.48 to −1.49)). Conclusions: l-carnitine supplementation significantly lowered ALT and AST levels and normalized ALT levels in patients with chronic liver disease.

1. Introduction

l-carnitine (3-hydroxy-4-N-trimethylammonium butyrate) is an endogenous compound that plays a pivotal role in fatty acid metabolism [1]. l-carnitine supplementation is marketed in the form of acetyl-l-carnitine (analogs of l-carnitine) [2] and carnitine-orotate (l-carnitine and an ion complex salt of orotic acid) [3,4]. Commercially, the carnitine-orotate complex, a combination of carnitine-orotate, biphenyl dimethyl dicarboxylate, and other minor supplementary compounds, is also available [5].
l-carnitine is mainly derived from foods, such as meat and dairy products. It is also synthesized in the human liver and kidneys; in other words, l-carnitine deficiency occurs more frequently in patients with chronic liver disease or liver cirrhosis [2,6]. Carnitine acts as a carrier for fatty acids across the mitochondrial membrane for subsequent β-oxidation and reduces hepatic free fatty acids, causing decreased triglyceride accumulation in the cytoplasm of hepatocytes [7]. Moreover, it plays an important role in reducing oxidative stress and increasing proinflammatory cytokine expression [8]. l-carnitine, acetyl-l-carnitine, and carnitine-orotate supplements have been used as adjuvant therapies in chronic liver disease, including non-alcoholic steatohepatitis, alcoholic fatty liver disease, viral hepatitis, and cirrhosis [9,10,11].
Accordingly, many studies have investigated the effect of l-carnitine on liver enzymes and liver disease, but the results are inconclusive. In a previous meta-analysis, a pooled analysis suggested that l-carnitine supplementation significantly decreased serum liver enzyme levels [12,13]. However, the previous meta-analysis included healthy volunteers as well as patients with chronic liver disease. In addition, previous studies analyzed only l-carnitine, and many randomized controlled trials (RCTs) on various forms of carnitine were omitted. Therefore, this meta-analysis investigated the effects of l-carnitine supplementation, including acetyl-l-carnitine and carnitine-orotate, in patients with chronic liver disease.

2. Materials and Methods

2.1. Search Strategy

We searched the Cochrane Library, EMBASE, KMBASE and Medline databases for all relevant studies published between January 1990 and April 2022 that examined the ability of carnitine to normalize liver enzymes in patients with chronic liver disease. The following search string was used: ((carnitine) OR (l-carnitine) OR (carnitine-orotate) OR (carnitine-orotate) OR (carnitine complex) OR (godex) OR (hepadif) OR (biphenyl dimethyl dicarboxylate) OR (BDD) OR (DDB)) AND ((liver) OR (hepatic) OR (hepatitis) OR (cirrhosis)). The detailed search strategies used for each database are presented below.
Cochrane library
#1: carnitine or L-carnitine or ‘carnitine-orotate’ or ‘carnitine orotate’ or ‘carnitine complex’ or godex or hepadif or ‘biphenyl dimethyl dicarboxylate’ or BDD or DDB;
#2: liver or hepatic or hepatitis or cirrhosis;
#3: #1 and #2 (with publication year from 1990 to 2022, in Trials).
EMBASE (search interface: Ovid)
1: ((carnitine or L-carnitine or carnitine-orotate or carnitine orotate or carnitine complex or godex or hepadif or biphenyl dimethyl dicarboxylate or BDD or DDB) and (liver or hepatic or hepatitis or cirrhosis)).ab,ti;
2: Limit 1 to (embase and yr=“1990–Current”).
KMBASE
(((((((((([ALL=carnitine] OR [ALL=L-carnitine]) OR [ALL=carnitine-orotate]) OR [ALL=carnitine orotate]) OR [ALL=carnitine complex]) OR [ALL=godex]) OR [ALL=hepadif]) OR [ALL=biphenyl dimethyl dicarboxylate]) OR [ALL=BDD]) OR [ALL=DBB]) AND ((([ALL=liver] OR [ALL=hepatic]) OR [ALL=hepatitis]) OR [ALL=cirrhosis])).
MEDLINE (Search interface: PubMed)
(carnitine[tw] OR L-carnitine[tw] OR (carnitine-orotate[tw]) OR (carnitine orotate[tw]) OR (carnitine complex[tw]) OR godex[tw] OR hepadif[tw] OR (biphenyl dimethyl dicarboxylate[tw]) OR BDD[tw] OR DDB[tw]) AND (liver[tw] OR hepatic[tw] OR hepatitis[tw] OR cirrhosis[tw]) AND (“1990/01/01”[Date—Publication]: “3000”[Date—Publication]).

2.2. Inclusion/Exclusion Criteria

The inclusion criteria were as follows: (a) patients: diagnosis of chronic liver disease; (b) intervention: taking the target drugs, including carnitine-orotate, carnitine-orotate complex, and l-carnitine; (c) comparator: no target drugs; (d) outcome: proportion of patients with alanine aminotransferase (ALT) normalization or difference in post-treatment serum aspartate aminotransferase (AST) and ALT levels between the treatment and control groups; and (e) study design: RCT (Table 1). Non-human studies or abstract-only publications were excluded.

2.3. Study Selection

Duplicates from multiple search engines were removed from the literature search results. After the titles and abstracts were reviewed, irrelevant studies were excluded based on the inclusion and exclusion criteria. Thereafter, we reviewed the full text of all the remaining studies. Two investigators (H.O. and C.H.P.) independently assessed the eligibility of each study. Any disagreements were resolved by discussion and consensus. If no agreement was reached, a third investigator (D.W.J.) determined the final eligibility.

2.4. Quality Assessment

Two investigators (H.O. and C.H.P.) independently assessed the methodological quality of the individual studies using the Cochrane Risk of Bias assessment tool for RCTs [14].

2.5. Data Extraction

The data were extracted using a form developed in advance. Two investigators (H.O. and C.H.P.) independently extracted the following information: first author, year of publication, study design, study period, country, baseline characteristics of the study participants, dosage of target drugs, proportion of participants with ALT normalization, post-treatment serum AST and ALT levels, and other major findings of each study. If values for the meta-analysis were not sufficiently reported by the individual studies, we asked the corresponding author for the data.

2.6. Study Endpoints

The primary endpoint of this meta-analysis was the proportion of patients with post-treatment ALT normalization. The secondary endpoint was the mean difference in the post-treatment serum AST and ALT levels between the treatment and control groups.

2.7. Statistical Analysis

As most studies of carnitine-orotate (or the carnitine-orotate complex) investigated the proportion of patients with ALT normalization, pooled odds ratios (ORs) with 95% confidence intervals (CIs) were calculated. A random-effects model was used. For a meta-analysis of studies that reported continuous variable outcomes (e.g., post-treatment serum AST and ALT levels), mean differences (MDs) and 95% CIs between the treatment and control groups were calculated.
We assessed heterogeneity using two methods: Cochran’s Q test, wherein p values < 0.1 were considered statistically significant for heterogeneity, and I2 statistics, wherein values > 50% were suggestive of significant heterogeneity [15]. Based on Cochrane recommendations, publication bias was assessed when ≥10 studies were included [14]. Publication bias was assessed using a funnel plot [16], a radial plot [17], Egger’s test [18], and the AS-Thompson test [19]. We performed sensitivity analyses after excluding studies (1) involving decompensated cirrhosis; and (2) with a high risk of bias. Additionally, we performed a jackknife sensitivity analysis after excluding one different study each time.
All P values were two-tailed, and those <0.05, except on the heterogeneity test, were considered statistically significant. Analyses and reporting were performed in accordance with the Preferred Reporting Items for Systematic Reviews and Meta-Analyses guidelines [20]. All statistical analyses were conducted using Review Manager 5.3 (version 5.3.5; Cochrane Collaboration, Copenhagen, Denmark) and R (version 4.4.4; R Foundation for Statistical Computing, Vienna, Austria).
Details of the protocol for this systematic review were registered on PROSPERO and can be accessed at https://www.crd.york.ac.uk/prospero/display_record.php?ID=CRD42022332856 (accessed on 28 May 2022)[21].

3. Results

3.1. Study Selection and Characteristics

Fourteen studies including 1217 patients were included in this meta-analysis (Figure 1). The characteristics of the included studies are summarized in Table 2. The studies were published during 2000–2016 and included enrollment periods during 2000–2014 [22,23,24,25,26,27,28,29,30,31,32,33,34,35]. Among the 14 studies included, four investigated the efficacy of carnitine-orotate or carnitine-orotate complex and reported the proportion of patients with post-treatment ALT normalization [22,23,24,25]. The other 10 studies assessed the impact of l-carnitine on serum AST and ALT levels [26,27,28,29,30,31,32,33,34,35]. Of the 14 included studies, one involved patients with decompensated cirrhosis [31].
The risk of bias assessment is shown in Figure S1. Five (36%) patients had an unclear risk of bias in the domain of random sequence generation because random sequence generation methods were not clearly described in those studies. The other nine studies (64%) had a low risk of bias for random sequence generation. The risk of allocation concealment was unclear in 13 (93%) studies. All studies were assessed as having a low risk of performance and detection bias because the current study outcomes were less likely to be affected by participant and investigator blinding. Incomplete outcome data and selective reporting were not identified in any RCT. Four studies (27%) were assessed as having a high risk of other biases because baseline AST or ALT levels differed between the treatment and control groups despite randomization [26,31,32,34].

3.2. Impact of Carnitine-Orotate (or Carnitine-Orotate Complex) on ALT Normalization

The impact of carnitine-orotate (or carnitine-orotate complex) on ALT normalization is shown in Figure 2. In studies on carnitine-orotate, the proportion of patients with ALT normalization was higher in the treatment group versus that in the control group (pooled OR (95% CI) = 4.61 (1.48–14.39)). Heterogeneity was not identified (degrees of freedom (df) = 1, p = 0.16, I2 = 49%). In studies of the carnitine-orotate complex, the proportion of patients with ALT normalization was also higher in the treatment versus control group without significant heterogeneity (pooled OR (95% CI) = 18.88 (7.70–46.27); df = 1, p = 0.51, I2 = 0%).
Since two studies on carnitine-orotate analyzed the efficacy of different drug dosages (carnitine-orotate 900 mg vs. 600 mg), we further performed dosage subgroup analyses (Figure S2). When the usual dosage for clinical purposes (carnitine-orotate 900 mg) was used, it effectively normalized ALT levels, as described in the main results (Figure 2). However, the efficacy of lower-dosage carnitine-orotate (600 mg) was not identified in the subgroup analysis (pooled OR (95% CI) = 1.27 (0.66–2.44); df = 1, p = 0.72, I2 = 0%).

3.3. Impact of l-Carnitine (or Acetyl-l-Carnitine) Supplementation on Serum AST and ALT Levels

Since 10 studies on l-carnitine or acetyl-l-carnitine supplementation assessed and reported the main outcomes as continuous variables (i.e., serum AST and ALT levels), the mean difference in post-treatment AST or ALT levels between the treatment and control groups was analyzed (Figure 3). In a meta-analysis of post-treatment AST levels, l-carnitine or acetyl-l-carnitine supplementation effectively lowered serum AST levels compared to the control (pooled MD (95% CI) = −15.84 (−24.56 to −7.13)). The post-treatment serum ALT level was lower in the treatment group than in the control group (pooled MD (95% CI) = −11.99 (−22.48 to −1.49)). Significant heterogeneity was identified in both meta-analyses (AST level: df = 9, p < 0.01, I2 = 94%; ALT level: df = 9, p < 0.01, I2 = 96%). Egger’s test and the AS-Thompson test for publication bias found no significant asymmetry in the funnel plot and radial plot (p > 0.1) (Figure S3).

3.4. Sensitivity Analysis

Two sensitivity analyses were performed. First, we performed a sensitivity analysis of l-carnitine or acetyl-l-carnitine supplementation on serum AST and ALT levels after excluding a study of patients with decompensated cirrhosis [31] (Figure S4). Post-treatment AST levels were also lower in the l-carnitine or acetyl-l-carnitine supplementation group than in the control group (pooled MD (95% CI) = −17.39 (26.90 to −7.88)). The post-treatment ALT levels tended to be lower in the treatment group than in the control group despite no significant difference (pooled MD (95% CI) = −10.25 (−21.60 to 1.10)). Second, in the sensitivity analysis, after the exclusion of four studies showing different baseline characteristics in AST or ALT levels [26,31,32,34] (Figure S5), post-treatment AST and ALT levels were also lower in the l-carnitine or acetyl-l-carnitine supplementation group than in the control group (pooled MD (95% CI): AST level, −25.77 (−32.92 to −18.62); ALT level, −17.14 (–27.89 to −6.38)). In jackknife sensitivity analyses (Figure S6), a significant study that affected the pooled meta-analysis results was not identified. These sensitivity analyses showed the robustness of our meta-analyses.

4. Discussion

The current meta-analysis found that carnitine-orotate and carnitine-orotate complexes taken at the usual dosage significantly affected ALT normalization in patients with chronic liver disease. We also showed that l-carnitine (or acetyl-l-carnitine) supplementation significantly decreased serum AST and ALT levels. Our findings suggest that l-carnitine and its derivatives have beneficial effects in normalizing liver enzymes in patients with chronic liver disease. The novelty of this study lies in the fact that we extracted and analyzed data from studies of patients with chronic liver disease and elevated liver enzyme levels. Previous meta-analyses suggested the efficacy of l-carnitine supplementation for reducing serum liver enzyme levels, similar to our study findings; however, some individual studies in the previous meta-analyses involved healthy volunteers or patients with liver enzyme elevations caused by reasons other than chronic liver disease [12,13]. In addition, clinically useful information can be provided through the analysis of carnitine-orotate complex containing other minor supplements that have not been previously analyzed.
AST and ALT are enzymes that transport the amino groups of aspartate and alanine to ketoglutaric acid. AST is present in the liver and other organs, including the muscle, while ALT is primarily present in the liver; thus, ALT is a more specific marker of hepatocellular injury than AST [36]. We adopted the odds ratio of the ALT normalization rate as an important analysis target. In real-world practice, clinicians aim to normalize ALT in patients with various chronic liver diseases to ensure a satisfactory prognosis [37,38,39,40,41]. In recent studies, elevated liver enzymes were associated with significantly increased liver-related mortality, and normal-range AST and ALT levels were associated with a lower risk of death [42,43]. Therefore, l-carnitine and its derivatives may help improve the prognosis of patients with chronic liver disease and elevated liver enzyme levels.
There are considerable limitations to the present study. First, there was substantial heterogeneity in the included studies, although the current meta-analysis had a limited study population of patients with chronic liver disease. Interstudy heterogeneity was observed due to various disease etiologies, including chronic viral hepatitis B, chronic viral hepatitis C, and non-alcoholic fatty liver disease, as well as different dosages and durations of l-carnitine supplementation. Therefore, further studies are needed to examine the time- and dose-dependent effects of l-carnitine supplementation. Second, it is also important to note that our study findings should not be generalized to patients worldwide since studies on carnitine-orotate were conducted only in Korea and studies on l-carnitine or acetyl-l-carnitine were conducted only in Italy and other countries. In Italy, the majority of studies were conducted by the same research group. In the future, it will be necessary to assess the efficacy of l-carnitine supplementation in various regions and races worldwide. Third, we should be careful when interpreting the effect size since medications other than l-carnitine (e.g., antiviral agents) were administered to the treatment and control groups in 6 of the 14 enrolled studies. Finally, the patient follow-up period of the studies included in this paper is relatively short, within one year. As mentioned above, the relationship between the improvement of ALT and the prognosis of the disease is emphasized, so long-term follow-up studies are needed in the future.

5. Conclusions

In conclusion, the pooled data from RCTs provide evidence of the beneficial effects of l-carnitine supplementation for lowering serum ALT and AST levels. Our findings also showed that carnitine-orotate can be effective in patients with chronic liver diseases with intervention doses of 900 mg/day for ALT normalization.

Supplementary Materials

The following supporting information can be downloaded from https://www.mdpi.com/article/10.3390/jpm12071053/s1,: Figure S1. Traffic light plot for risk of bias in individual studies; Figure S2. Forest plot for ALT normalization between carnitine-orotate and control groups according to the dosage of carnitine-orotate (900 mg vs. 600 mg); Figure S3. Analysis of publication bias. Using Egger’s test (post-treatment AST level: p-value 0.2498, post-treatment ALT level: p-value 0.5642) and AS-Thompson’s test (post-treatment AST level: p-value 0.3925, post-treatment ALT level: p-value 0.675) for publication bias, no significant asymmetry is seen in the funnel plot and radial plot (p > 0.1) for pooled analysis of mean difference; Figure S4. Sensitivity analysis of l-carnitine (or acetyl-l-carnitine) supplementation for post-treatment ALT level after excluding a study involving patients with decompensated cirrhosis [31]; Figure S5. Sensitivity analysis of l-carnitine (or acetyl-l-carnitine) supplementation for post-treatment ALT level after the exclusion of four studies showing different baseline AST or ALT levels between treatment and control groups [26,31,32,34]; Figure S6. Sensitivity analysis of the effect of l-carnitine (or acetyl-l-carnitine) supplementation on post-treatment AST and ALT levels with jackknife sensitivity analysis showing the robustness of meta-analysis.

Author Contributions

Conceptualization, D.W.J.; methodology, C.H.P.; formal analysis, C.H.P.; investigation, H.O. and C.H.P.; data curation, H.O. and C.H.P.; writing—original draft preparation, H.O. and C.H.P.; writing—review and editing, H.O., C.H.P. and D.W.J.; visualization, C.H.P.; supervision, D.W.J.; project administration, D.W.J. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by a research grant from Celltrion Pharm Inc., Incheon 21975, Korea (Grant number CTP-GOD 4.10).

Institutional Review Board Statement

Ethical review and approval were waived for this study because it was a meta-analysis based on previously published studies.

Informed Consent Statement

Not applicable.

Data Availability Statement

All relevant data are included in the study and supplementary information.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Virmani, M.A.; Cirulli, M. The Role of l-Carnitine in Mitochondria, Prevention of Metabolic Inflexibility and Disease Initiation. Int. J. Mol. Sci. 2022, 23, 2717. [Google Scholar] [CrossRef] [PubMed]
  2. Cao, Y.; Wang, Y.X.; Liu, C.J.; Wang, L.X.; Han, Z.W.; Wang, C.B. Comparison of pharmacokinetics of L-carnitine, acetyl-L-carnitine and propionyl-L-carnitine after single oral administration of L-carnitine in healthy volunteers. Clin. Investig. Med. 2009, 32, E13–E19. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. An, J.-H.; Youn, W.; Kiyonga, A.N.; Lim, C.; Park, M.; Suh, Y.-G.; Ryu, H.C.; Kim, J.S.; Park, C.-W.; Jung, K. Kinetics of the Solution-Mediated Polymorphic Transformation of the Novel l-Carnitine Orotate Polymorph, Form-II. Pharmaceutics 2018, 10, 171. [Google Scholar] [CrossRef] [Green Version]
  4. Kim, J.S.R.; Joung, J.G.; Kim, H.M. Crystalline Polymorph of l-Carnitine Orotate, Production Method Therefor, or Use Thereof. WO 2017105090 A1, 14 December 2016. [Google Scholar]
  5. Hong, J.H.; Lee, M.K. Carnitine Orotate Complex Ameliorates Insulin Resistance and Hepatic Steatosis Through Carnitine Acetyltransferase Pathway. Diabetes Metab. J. 2021, 45, 933–947. [Google Scholar] [CrossRef] [PubMed]
  6. Li, N.; Zhao, H. Role of Carnitine in Non-alcoholic Fatty Liver Disease and Other Related Diseases: An Update. Front. Med. 2021, 8, 689042. [Google Scholar] [CrossRef]
  7. Ringseis, R.; Keller, J.; Eder, K. Role of carnitine in the regulation of glucose homeostasis and insulin sensitivity: Evidence from in vivo and in vitro studies with carnitine supplementation and carnitine deficiency. Eur. J. Nutr. 2012, 51, 1–18. [Google Scholar] [CrossRef] [PubMed]
  8. Ribas, G.S.; Vargas, C.R.; Wajner, M. L-carnitine supplementation as a potential antioxidant therapy for inherited neurometabolic disorders. Gene 2014, 533, 469–476. [Google Scholar] [CrossRef]
  9. Hanai, T.; Shiraki, M.; Imai, K.; Suetugu, A.; Takai, K.; Shimizu, M. Usefulness of Carnitine Supplementation for the Complications of Liver Cirrhosis. Nutrients 2020, 12, 1915. [Google Scholar] [CrossRef]
  10. Savic, D.; Hodson, L.; Neubauer, S.; Pavlides, M. The Importance of the Fatty Acid Transporter L-Carnitine in Non-Alcoholic Fatty Liver Disease (NAFLD). Nutrients 2020, 12, 2178. [Google Scholar] [CrossRef]
  11. Xu, Y.; Jiang, W.; Chen, G.; Zhu, W.; Ding, W.; Ge, Z.; Tan, Y.; Ma, T.; Cui, G. L-carnitine treatment of insulin resistance: A systematic review and meta-analysis. Adv. Clin. Exp. Med. 2017, 26, 333–338. [Google Scholar] [CrossRef]
  12. Askarpour, M.; Djafarian, K.; Ghaedi, E.; Sadeghi, O.; Sheikhi, A.; Shab-Bidar, S. Effect of L-Carnitine Supplementation on Liver Enzymes: A Systematic Review and Meta-analysis of Randomized Controlled Trials. Arch. Med. Res. 2020, 51, 82–94. [Google Scholar] [CrossRef] [PubMed]
  13. Pirmadah, F.; Ramezani-Jolfaie, N.; Mohammadi, M.; Talenezhad, N.; Clark, C.C.T.; Salehi-Abargouei, A. Does L-carnitine supplementation affect serum levels of enzymes mainly produced by liver? A systematic review and meta-analysis of randomized controlled clinical trials. Eur. J. Nutr. 2020, 59, 1767–1783. [Google Scholar] [CrossRef] [PubMed]
  14. Higgins, J.P.; Thomas, J.; Chandler, J.; Cumpston, M.; Li, T.; Page, M.J.; Welch, V.A. (Eds.) Cochrane Handbook for Systematic Reviews of Interventions; Version 6.2; Updated February 2021; Cochrane (London SW1Y 4QX, United Kingdom): 2021. Available online: www.training.cochrane.org/handbook (accessed on 22 April 2022).
  15. Higgins, J.P.T.; Thompson, S.G.; Deeks, J.J.; Altman, D.G. Measuring inconsistency in meta-analyses. BMJ 2003, 327, 557–560. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Easterbrook, P.J.; Berlin, J.A.; Gopalan, R.; Matthews, D.R. Publication bias in clinical research. Lancet 1991, 337, 867–872. [Google Scholar] [CrossRef]
  17. Copas, J.; Lozada-Can, C. The radial plot in meta-analysis: Approximations and applications. J. R. Stat. Soc. : Ser. C (Appl. Stat.) 2009, 58, 329–344. [Google Scholar] [CrossRef]
  18. Rücker, G.; Schwarzer, G.; Carpenter, J. Arcsine test for publication bias in meta-analyses with binary outcomes. Stat. Med. 2008, 27, 746–763. [Google Scholar] [CrossRef]
  19. Thompson, S.G.; Sharp, S.J. Explaining heterogeneity in meta-analysis: A comparison of methods. Stat. Med. 1999, 18, 2693–2708. [Google Scholar] [CrossRef]
  20. Liberati, A.; Altman, D.G.; Tetzlaff, J.; Mulrow, C.; Gøtzsche, P.C.; Ioannidis, J.P.; Clarke, M.; Devereaux, P.J.; Kleijnen, J.; Moher, D. The PRISMA statement for reporting systematic reviews and meta-analyses of studies that evaluate health care interventions: Explanation and elaboration. J. Clin. Epidemiol. 2009, 62, e1–e34. [Google Scholar] [CrossRef] [Green Version]
  21. Oh, H.; Park, C.H.; Jun, D.W. Systematic Review with Meta-analysis of Randomized Trials : Impact of L-carnitine Supplementation on Liver Enzyme in Chronic Liver Disease. PROSPERO 2022 CRD42022332856 2022. Available online: https://www.crd.york.ac.uk/prospero/display_record.php?ID=CRD42022332856 (accessed on 28 May 2022).
  22. Kang, J.-S.; Hong, J.-H.; Park, M.-S.; Lee, M.-H.; Lee, J.-B.; Lee, J.-W. A Randomized Controlled, Double-blind Evaluation of the Short-Term(8 weeks) Efficacy and Safety of Godex in Korean Chronic Hepatitis Patients. J. Korean Soc. Clin. Pharmacol. Ther. 2001, 9, 81–96. [Google Scholar] [CrossRef] [Green Version]
  23. Park, M.-S.; Kang, J.-S.; Chon, C.-Y.; Paik, S.-W.; Rim, K.-S.; Kwak, M.-J.; Jeon, Y.-C.; Lee, M.-H. Oral Godex Capsule for Chronic Liver Disease:A Double-blind, Randomized, Multicenter Controlled Trial. J. Korean Soc. Clin. Pharmacol. Ther. 2001, 9, 151–162. [Google Scholar] [CrossRef]
  24. Jun, D.W.; Kim, B.I.; Cho, Y.K.; Kim, H.J.; Kwon, Y.O.; Park, S.Y.; Han, S.Y.; Baek, Y.H.; Jung, Y.J.; Kim, H.Y.; et al. Efficacy and safety of entecavir plus carnitine complex (GODEX®) compared to entecavir monotherapy in patient with ALT elevated chronic hepatitis B: Randomized, multicenter open-label trials. The GOAL study. Clin. Mol. Hepatol. 2013, 19, 165–172. [Google Scholar] [CrossRef] [PubMed]
  25. Bae, J.C.; Lee, W.Y.; Yoon, K.H.; Park, J.Y.; Son, H.S.; Han, K.A.; Lee, K.W.; Woo, J.T.; Ju, Y.C.; Lee, W.J.; et al. Improvement of Nonalcoholic Fatty Liver Disease With Carnitine-Orotate Complex in Type 2 Diabetes (CORONA): A Randomized Controlled Trial. Diabetes Care 2015, 38, 1245–1252. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Uygun, A.; Kadayifçi, A.; Bağci, S.; Erdil, A.; Deveci, S.; Saka, M.; Ateş, Y.; Bulucu, F.; Karaeren, N.; Dağalp, K. L-Carnitine therapy in non-alcoholic steatohepatitis. Turk. J. Gastroenterol. 2000, 11, 196–201. [Google Scholar]
  27. Malaguarnera, M.; Maugeri, D.; Saraceno, B.; Romano, M.; Neri, S.; Rapisarda, R.; Pistone, G. Effects of carnitine on biochemical responses in patients with chronic hepatitis C treated with interferon-α. Clin. Drug Investig. 2002, 22, 443–448. [Google Scholar] [CrossRef]
  28. Malaguarnera, M.; Gargante, M.P.; Cristaldi, E.; Vacante, M.; Risino, C.; Cammalleri, L.; Pennisi, G.; Rampello, L. Acetyl-L-carnitine treatment in minimal hepatic encephalopathy. Dig. Dis. Sci. 2008, 53, 3018–3025. [Google Scholar] [CrossRef]
  29. Romano, M.; Vacante, M.; Cristaldi, E.; Colonna, V.; Gargante, M.P.; Cammalleri, L.; Malaguarnera, M. L-carnitine treatment reduces steatosis in patients with chronic hepatitis C treated with alpha-interferon and ribavirin. Dig. Dis. Sci. 2008, 53, 1114–1121. [Google Scholar] [CrossRef]
  30. Malaguarnera, M.; Gargante, M.P.; Russo, C.; Antic, T.; Vacante, M.; Malaguarnera, M.; Avitabile, T.; Li Volti, G.; Galvano, F. L-carnitine supplementation to diet: A new tool in treatment of nonalcoholic steatohepatitis—A randomized and controlled clinical trial. Am. J. Gastroenterol. 2010, 105, 1338–1345. [Google Scholar] [CrossRef]
  31. Malaguarnera, M.; Vacante, M.; Motta, M.; Giordano, M.; Malaguarnera, G.; Bella, R.; Nunnari, G.; Rampello, L.; Pennisi, G. Acetyl-L-carnitine improves cognitive functions in severe hepatic encephalopathy: A randomized and controlled clinical trial. Metab. Brain Dis. 2011, 26, 281–289. [Google Scholar] [CrossRef]
  32. Malaguarnera, M.; Bella, R.; Vacante, M.; Giordano, M.; Malaguarnera, G.; Gargante, M.P.; Motta, M.; Mistretta, A.; Rampello, L.; Pennisi, G. Acetyl-L-carnitine reduces depression and improves quality of life in patients with minimal hepatic encephalopathy. Scand. J. Gastroenterol. 2011, 46, 750–759. [Google Scholar] [CrossRef]
  33. Malaguarnera, M.; Vacante, M.; Giordano, M.; Motta, M.; Bertino, G.; Pennisi, M.; Neri, S.; Malaguarnera, M.; Li Volti, G.; Galvano, F. L-carnitine supplementation improves hematological pattern in patients affected by HCV treated with Peg interferon-α 2b plus ribavirin. World J. Gastroenterol. 2011, 17, 4414–4420. [Google Scholar] [CrossRef]
  34. Somi, M.H.; Fatahi, E.; Panahi, J.; Havasian, M.R.; Judaki, A. Data from a randomized and controlled trial of LCarnitine prescription for the treatment for Non- Alcoholic Fatty Liver Disease. Bioinformation 2014, 10, 575–579. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Alavinejad, P.; Zakerkish, M.; Hajiani, E.; Hashemi, S.J.; Chobineh, M.; Moghaddam, E.K. Evaluation of L-carnitine efficacy in the treatment of non-alcoholic fatty liver disease among diabetic patients: A randomized double blind pilot study. J. Gastroenterol. Hepatol. Res. 2016, 5, 2191–2195. [Google Scholar] [CrossRef]
  36. Kwo, P.Y.; Cohen, S.M.; Lim, J.K. ACG Clinical Guideline: Evaluation of Abnormal Liver Chemistries. Off. J. Am. Coll. Gastroenterol. 2017, 112, 18–35. [Google Scholar] [CrossRef] [PubMed]
  37. Inoue, J.; Kobayashi, T.; Akahane, T.; Kimura, O.; Sato, K.; Ninomiya, M.; Iwata, T.; Takai, S.; Kisara, N.; Sato, T.; et al. Non-Achievement of Alanine Aminotransferase Normalization Associated with the Risk of Hepatocellular Carcinoma during Nucleos(t)ide Analogue Therapies: A Multicenter Retrospective Study. J. Clin. Med. 2022, 11, 2354. [Google Scholar] [CrossRef]
  38. Kim, S.; Lee, Y.; Bang, S.M.; Bak, H.; Yim, S.Y.; Lee, Y.S.; Yoo, Y.J.; Jung, Y.K.; Kim, J.H.; Seo, Y.S.; et al. Early Normalization of Alanine Aminotransferase during Antiviral Therapy Reduces Risk of Hepatocellular Carcinoma in HBV Patients. J. Clin. Med. 2021, 10, 1840. [Google Scholar] [CrossRef]
  39. Kim, Y.J.; Jang, B.K.; Kim, E.S.; Park, K.S.; Cho, K.B.; Chung, W.J.; Hwang, J.S. Rapid normalization of alanine aminotransferase predicts viral response during combined peginterferon and ribavirin treatment in chronic hepatitis C patients. Korean J. Hepatol. 2012, 18, 41–47. [Google Scholar] [CrossRef]
  40. Sogabe, M.; Okahisa, T.; Kurihara, T.; Takehara, M.; Kagemoto, K.; Okazaki, J.; Kida, Y.; Hirao, A.; Tanaka, H.; Tomonari, T.; et al. Differences among patients with and without nonalcoholic fatty liver disease having elevated alanine aminotransferase levels at various stages of metabolic syndrome. PLoS ONE 2020, 15, e0238388. [Google Scholar] [CrossRef]
  41. Verma, S.; Jensen, D.; Hart, J.; Mohanty, S.R. Predictive value of ALT levels for non-alcoholic steatohepatitis (NASH) and advanced fibrosis in non-alcoholic fatty liver disease (NAFLD). Liver. Int. 2013, 33, 1398–1405. [Google Scholar] [CrossRef]
  42. Hyeon, C.K.; Chung, M.N.; Sun, H.J.; Kwang, H.H.; Kyu Oh, D.; Suh, I. Normal serum aminotransferase concentration and risk of mortality from liver diseases: Prospective cohort study. BMJ 2004, 328, 983. [Google Scholar] [CrossRef] [Green Version]
  43. Lee, T.H.; Kim, W.R.; Benson, J.T.; Therneau, T.M.; Melton, L.J. 3rd. Serum aminotransferase activity and mortality risk in a United States community. Hepatology 2008, 47, 880–887. [Google Scholar] [CrossRef] [PubMed]
Jpm 12 01053 g001 550

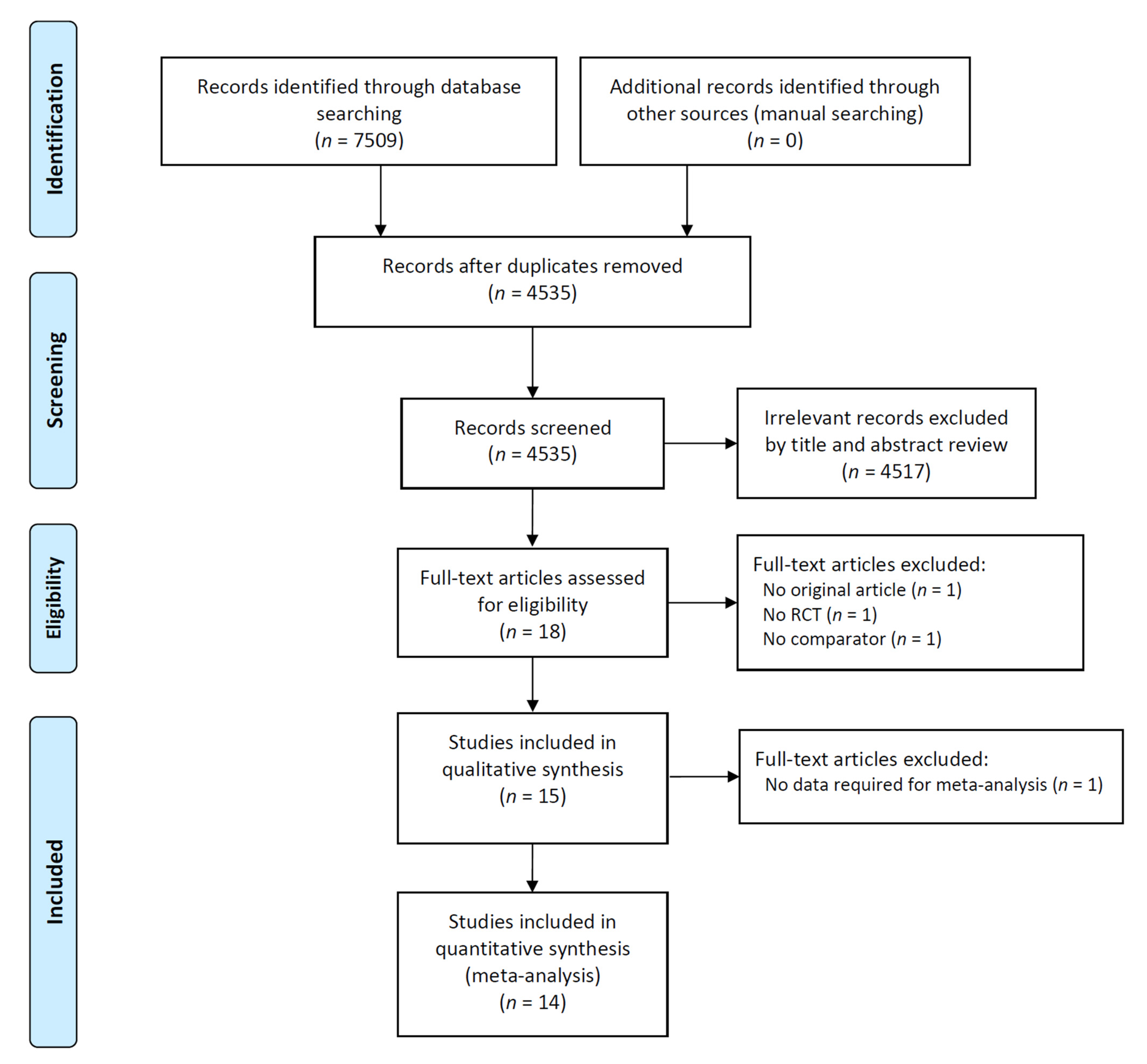

Figure 1. Study flow diagram.
Figure 1. Study flow diagram.
Jpm 12 01053 g001
Jpm 12 01053 g002 550

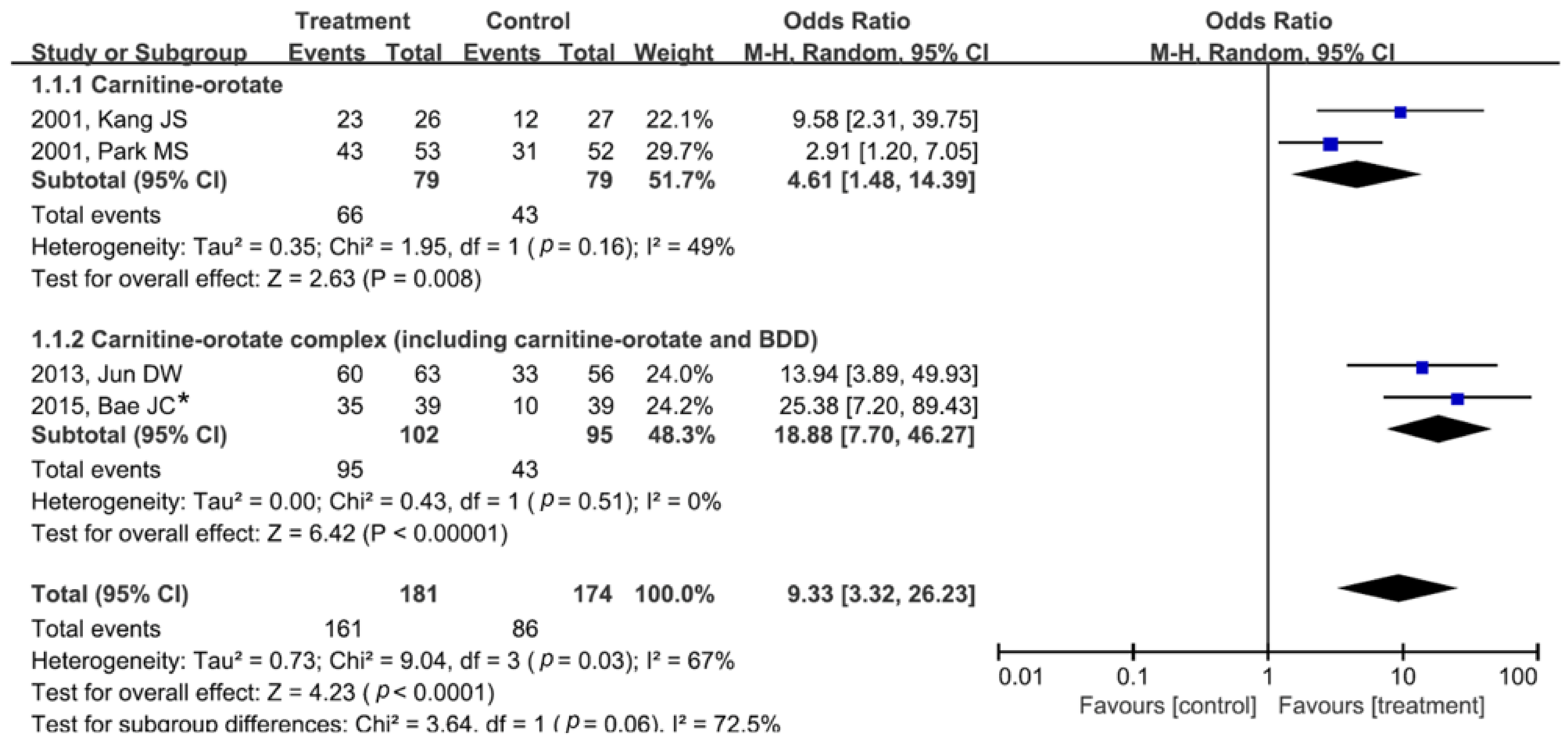

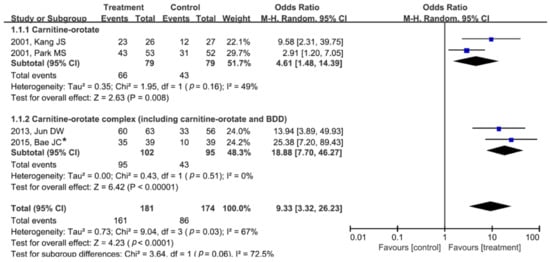

Figure 2. Forest plot of alanine aminotransferase normalization after carnitine-orotate (or carnitine-orotate complex) versus control treatment. The carnitine–orotate complex includes carnitine-orotate, BDD, and other minor supplementary compounds. The dosage of carnitine-orotate in the included studies in this analysis was 900 mg per day, which is the usual dosage for clinical purposes. * The values in this study were provided by the corresponding author. BDD, biphenyl dimethyl dicarboxylate; M-H, Mantel–Haenszel; CI, confidence interval; df, degrees of freedom.
Figure 2. Forest plot of alanine aminotransferase normalization after carnitine-orotate (or carnitine-orotate complex) versus control treatment. The carnitine–orotate complex includes carnitine-orotate, BDD, and other minor supplementary compounds. The dosage of carnitine-orotate in the included studies in this analysis was 900 mg per day, which is the usual dosage for clinical purposes. * The values in this study were provided by the corresponding author. BDD, biphenyl dimethyl dicarboxylate; M-H, Mantel–Haenszel; CI, confidence interval; df, degrees of freedom.
Jpm 12 01053 g002
Jpm 12 01053 g003 550

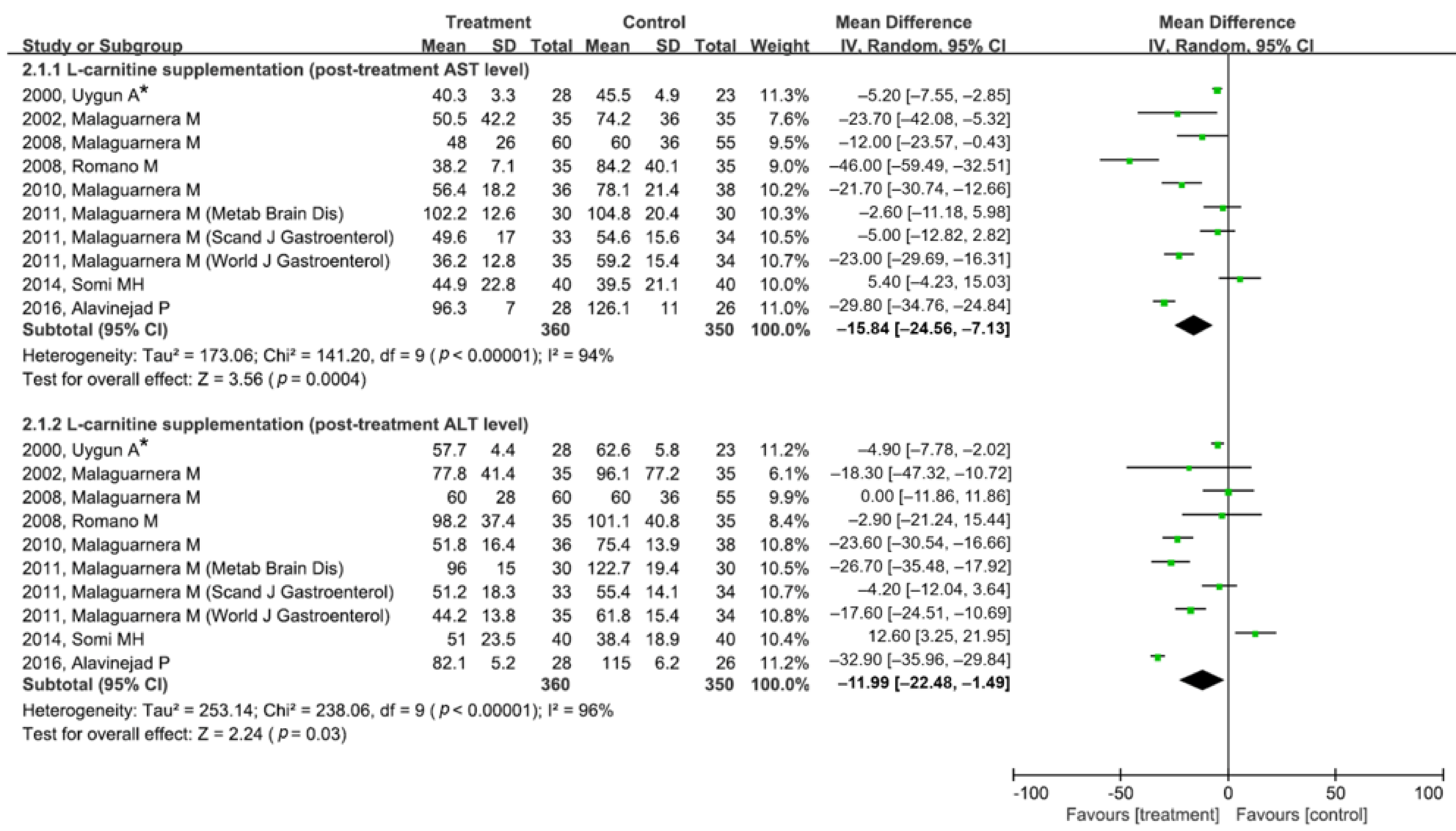

Figure 3. Forest plot of post-treatment serum AST and ALT levels after l-carnitine (or acetyl-l-carnitine) supplementation versus control treatment. Parentheses following the first author’s name indicate the journal in which the study was published. * Multiple doses were investigated in this study. Data from the maximal dosage group (3 g/day) were used in the analysis. ALT, alanine aminotransferase; AST, aspartate aminotransferase; CI, confidence interval; df, degrees of freedom; IV, inverse variance; SD, standard deviation.
Figure 3. Forest plot of post-treatment serum AST and ALT levels after l-carnitine (or acetyl-l-carnitine) supplementation versus control treatment. Parentheses following the first author’s name indicate the journal in which the study was published. * Multiple doses were investigated in this study. Data from the maximal dosage group (3 g/day) were used in the analysis. ALT, alanine aminotransferase; AST, aspartate aminotransferase; CI, confidence interval; df, degrees of freedom; IV, inverse variance; SD, standard deviation.
Jpm 12 01053 g003
Table
Table 1. Inclusion criteria of the present meta-analysis. ALT, alanine aminotransferase; AST, aspartate aminotransferase.
Table 1. Inclusion criteria of the present meta-analysis. ALT, alanine aminotransferase; AST, aspartate aminotransferase.
Inclusion CriteriaDescription
PopulationPatients with chronic liver disease
InterventionTaking the target drugs, including carnitine-orotate, carnitine-orotate complex, and L-carnitine
ComparisonNo target drugs
OutcomesProportion of patients with ALT normalization or difference in post-treatment serum AST and ALT levels
Study designRandomized controlled trial
Table
Table 2. Baseline characteristics of the included studies.
Table 2. Baseline characteristics of the included studies.
Publication YearFirst AuthorStudy DesignStudy PeriodCountryStudy PopulationInclusion of Patients with Decompensated CirrhosisTreatmentControlOther Medication (Both Treatment and Control Groups)Number of ParticipantsAge, Years, Mean ± SDMale Sex, %BMI, kg/m2, Mean ± SDBaseline Laboratory FindingsRisk of Bias
AST, IU/mL,Mean ± SDALT, IU/mL,Mean ± SD
2001Kang JS
[22]		Double-blinded RCT2000KoreaChronic hepatitisNoTreatment A: Carnitine-orotate (900 mg/day)
Treatment B: Carnitine-orotate (600 mg/day)		PlaceboBDD 150 mg/day95Treatment A: 49.0 ± 9.7;
Treatment B: 41.6 ± 11.7;
Control: 44.0 ± 11.6		Treatment A: 63.6;
Treatment B: 63.3;
Control: 71.9		N/AN/AN/AUnclear
2001Park MS
[23]		Double-blinded RCTN/AKoreaChronic hepatitisNoTreatment A: Carnitine-orotate (900 mg/day)
Treatment B: Carnitine-orotate (600 mg/day)		PlaceboBDD 150 mg/day154Treatment A: 44.6 ± 11.5;
Treatment B: 43.2 ± 13.0;
Control: 45.6 ± 13.8		Treatment A: 92.5;
Treatment B: 77.6;
Control: 82.7		N/ANAN/AUnclear
2013Jun DW
[24]		Open-label RCTN/AKoreaChronic hepatitis BNoCarnitine-orotate complex (900 mg/day as carnitine-orotate)No carnitine-orotate complexEntecavir 0.5 mg/day130Treatment: 43.0 ± 9.8;
Control: 44.9 ± 10.0		Treatment: 63.5
Control: 66.1		N/ATreatment: 118.8 ± 70.3;
Control: 111.3 ± 70.2		Treatment: 159.4 ± 67.5;
Control: 160.3 ± 74.9		Unclear
2015Bae JC
[25]		Double-blinded RCT2011–2012KoreaNAFLD with type 2 DMNoCarnitine-orotate complex (900 mg/day as carnitine-orotate)Placebo 78Treatment: 50.6 ± 9.3;
Control: 52.0 ± 9.4		Treatment: 64.1;
Control: 74.4		Treatment: 28.2 ± 2.6;
Control: 26.7 ± 3.7		Treatment: 61.8 ± 25.5;
Control: 51.7 ±22.1		Treatment: 94.9 ± 36.4;
Control: 79.2 ± 27.2		Low
2000Uygun A
[26]		Open-label RCTN/ATurkeyNAFLDN/ATreatment A: l-carnitine 1 g/day;
Treatment B: 2 g/day;
Treatment C: 3 g/day		No l-carnitine 101Treatment A: 43.4 ± 10.8;
Treatment B: 42.5 ± 9.7;
Treatment C: 40.0 ± 9.1;
Control: 42.6 ± 7.3		Treatment A: 79.2;
Treatment B: 61.5;
Treatment C: 75.0;
Control: 69.6		Treatment A: 4.4 ± 2.3;
Treatment B: 26.2 ± 3.1;
Treatment C: 25.4 ± 2.7;
Control: 25.8 ± 2.5		Treatment A: 57.5 ± 3.9;
Treatment B: 47.8 ± 2.1;
Treatment C: 51.0 ± 6.3;
Control: 46.3 ± 6.0		Treatment A: 72.3 ± 5.4;
Treatment B: 71.5 ± 4.6;
Treatment C: 75.1 ± 7.0;
Control: 70.5 ± 7.3		High
2002Malaguarnera M
[27]		Open-label RCTN/AItalyChronic hepatitis CNoL-carnitine 2 g/dayNo L-carnitineIFN-α 3 million IU three times a week70Treatment: 56.8 ± 7.2;
Control: 57.7 ± 6.1		Treatment: 62.9;
Control: 60.0		Treatment: 26 ± 1.9;
Control: 26 ± 2.4		Treatment: 110 ± 86;
Control: 114 ± 79		Treatment: 186 ± 99;
Control: 163 ± 108		Unclear
2008Malaguarnera M
[28]		Double-blinded RCT2000–2003ItalyMinimal hepatic encephalopathyNoAcetyl-L-carnitine 4 g/dayPlacebo 115Treatment: 48 ± 10;
Control: 45 ± 11		Treatment: 55.0;
Control: 63.6		Treatment: 24.8 ± 3.1;
Control: 25.1 ± 3.3		Treatment: 68 ± 31;
Control: 67 ± 32		Treatment: 71 ± 40;
Control: 68 ± 44		Unclear
2008Romano M
[29]		Open-label RCT2000–2003ItalyChronic hepatitis CNoL-carnitine 2 g/dayNo -carnitineIFN-α 3 million IU three times a week + ribavirin 1000 mg70Treatment: 50.1 ± 6.1;
Control: 50.4 ± 5.6		Treatment: 56.7;
Control: 53.3		Treatment: 25.8 ± 3.1;
Control: 25.7 ± 3.2		Treatment: 125.0 ± 46.2;
Control: 116.0 ± 49.3		Treatment: 162.0 ± 49.2;
Control: 156.0 ± 47.4		Unclear
2010Malaguarnera M
[30]		Double-blinded RCT2004–2006ItalyNASHN/AL-carnitine 2 g/dayPlacebo 74Treatment: 47.9 ± 5.4;
Control: 47.8 ± 5.8		Treatment: 55.6;
Control: 52.6		Treatment: 26.6 ± 3.7;
Control: 26.5 ± 3.8		Treatment: 132.8 ± 14.7;
Control: 135.4 ± 15.1		Treatment: 125.7 ± 12.9;
Control: 120.2 ± 12.8		Unclear
2011Malaguarnera M(Metab Brain Dis)a
[31]		Double-blinded RCT2002–2006ItalySevere hepatic encephalopathyYesAcetyl-L-carnitine 4 g/dayPlacebo 60Treatment: range, 37–64;
Control: range, 35–65		Treatment: 46.7;
Control: 50.0		N/ATreatment: 119.2 ± 13.1;
Control: 114.2 ± 24.5		Treatment: 106.7 ± 15.7 b;
Control: 136.3 ± 31.0		High
2011Malaguarnera M(Scand J Gastroenterol)a [32]Double-blinded RCT2002–2005ItalyMinimal hepatic encephalopathyNoAcetyl-L-carnitine 4 g/dayPlacebo 67Treatment: range, 37–65;
Control: range, 34–67		Treatment: 60.6;
Control: 55.9		N/ATreatment: 102.1 ± 15.2 b;
Control: 80.4 ± 19.8		Treatment: 117.4 ± 16.0 b;
Control: 90.2 ± 14.3		Unclear
2011Malaguarnera M(World J Gastroenterol)a [33]Open-label RCT2004–2007ItalyChronic hepatitis CNoL-carnitine 4 g/dayPlaceboPeg-IFN-α 2b 1.5 μg/kg/week + rivavirin 800–1200 mg/day (adjusted to body weight)69Treatment: 47.6 ± 4.9;
Control: 47.1 ± 5.4		Treatment: 62.9;
Control: 58.8		Treatment: 27.1 ± 3.1;
Control: 27.4 ± 2.9		Treatment: 145.0 ± 44.2;
Control: 136.0 ± 41.4		Treatment: 182.1 ± 46.2;
Control: 174.1 ± 42.2		Unclear
2014Somi MH
[34]		Open-label RCT2012–2014IranNAFLDNoL-carnitine 1 g/dayNo L-carnitine 80Treatment: 40.3 ± 7.8;
Control: 41.1 ± 8.3		Treament: 82.5;
Control: 82.5		Treatment: 29.4 ± 3.9;
Control: 28.6 ± 3.2		Treatment: 60.5 ± 28.3;
Control: 52.6 ± 24.4		Treatment: 81.7 ± 40.1 b;
Control: 54.1 ± 17.6		High
2016Alavinejad P
[35]		Double-blinded RCTN/AIranNAFLD with type 2 DMNoL-carnitine 2.25 g/dayPlacebo 54Treatment: 60 ± 5;
Control: 59 ± 9		Treatment: 75.0;
Control: 65.4		Treatment: 28.6 ± 4.6;
Control: 29.5 ± 3.6		Treatment: 122.7 ± 13.6;
Control: 125.3 ± 14.0		Treatment: 124.0 ± 11.3;
Control: 120.0 ± 10.8		Unclear
a Parentheses indicate the journal in which the study was published. b There was a significant difference in baseline values between treatment and control groups. ALT, alanine aminotransferase; AST, aspartate aminotransferase; BDD, biphenyl dimethyl dicarboxylate; BMI, body mass index; DM, diabetes mellitus; DNA, deoxyribonucleic acid; IFN, interferon; IU, international unit; N/A, not available; NAFLD, non-alcoholic fatty liver disease; NASH, non-alcoholic steatohepatitis; RCT, randomized controlled trial; SD, standard deviation.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Oh, H.; Park, C.H.; Jun, D.W. Impact of l-Carnitine Supplementation on Liver Enzyme Normalization in Patients with Chronic Liver Disease: A Meta-Analysis of Randomized Trials. J. Pers. Med. 2022, 12, 1053. https://doi.org/10.3390/jpm12071053

AMA Style

Oh H, Park CH, Jun DW. Impact of l-Carnitine Supplementation on Liver Enzyme Normalization in Patients with Chronic Liver Disease: A Meta-Analysis of Randomized Trials. Journal of Personalized Medicine. 2022; 12(7):1053. https://doi.org/10.3390/jpm12071053

Chicago/Turabian Style

Oh, Hyunwoo, Chan Hyuk Park, and Dae Won Jun. 2022. " Impact of l-Carnitine Supplementation on Liver Enzyme Normalization in Patients with Chronic Liver Disease: A Meta-Analysis of Randomized Trials" Journal of Personalized Medicine 12, no. 7: 1053. https://doi.org/10.3390/jpm12071053

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
