A Novel Strategy for Emergency Treatment of Coronary Perforations by Placing a Drug-Eluting Stent before Sealing off the Leakage with a Covered Stent to Improve Long-Term Outcomes in Patients with Coronary Artery Perforations
Abstract
:1. Introduction
2. Materials and Methods

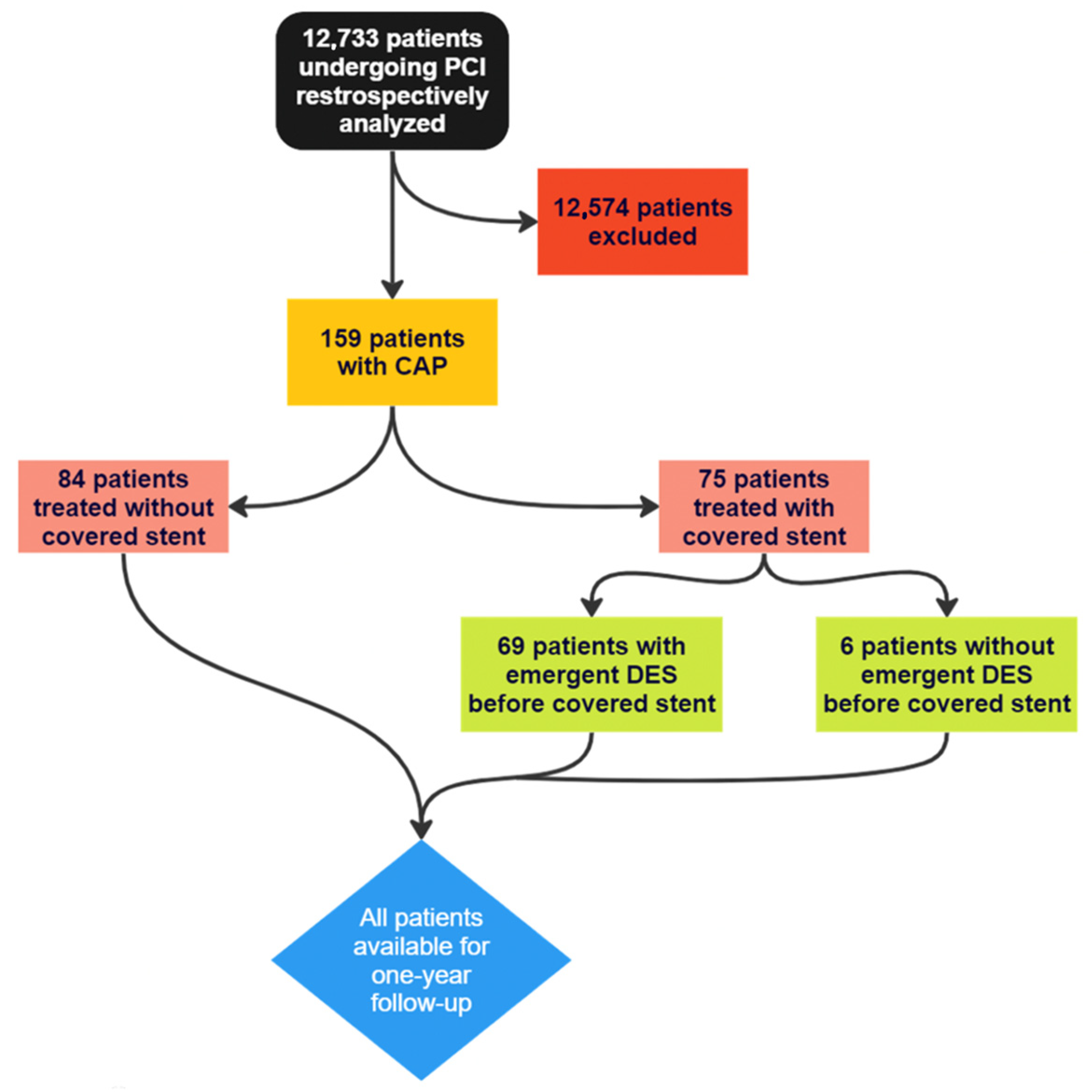

2.1. Study Population
2.2. Definitions
2.3. Statistical Methods
3. Results
Procedural Outcomes at 1 Year of Follow-Up
4. Discussion
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Fasseas, P.; Orford, J.L.; Panetta, C.J.; Bell, M.R.; E Denktas, A.; Lennon, R.J.; Holmes, D.R.; Berger, P.B. Incidence, correlates, management, and clinical outcome of coronary perforation: Analysis of 16,298 procedures. Am. Heart J. 2004, 147, 140–145. [Google Scholar] [CrossRef] [PubMed]
- Kinnaird, T.; Kwok, C.S.; Kontopantelis, E.; Ossei-Gerning, N.; Ludman, P.; deBelder, M.; Anderson, R.; Mamas, M.A. Incidence, Determinants, and Outcomes of Coronary Perforation During Percutaneous Coronary Intervention in the United Kingdom Between 2006 and 2013: An Analysis of 527 121 Cases From the British Cardiovascular Intervention Society Database. Circ. Cardiovasc. Interv. 2016, 9, e003449. [Google Scholar] [CrossRef] [PubMed]
- Guttmann, O.P.; Jones, D.A.; Gulati, A.; Kotecha, T.; Fayed, H.; Patel, D.; Crake, T.; Ozkor, M.; Wragg, A.; Smith, E.J.; et al. Prevalence and outcomes of coronary artery perforation during percutaneous coronary intervention. EuroIntervention 2017, 13, e595–e601. [Google Scholar] [CrossRef]
- Hirai, T.; Nicholson, W.J.; Sapontis, J.; Salisbury, A.C.; Marso, S.P.; Lombardi, W.; Karmpaliotis, D.; Moses, J.; Pershad, A.; Wyman, R.M.; et al. A Detailed Analysis of Perforations During Chronic Total Occlusion Angioplasty. JACC Cardiovasc. Interv. 2019, 12, 1902–1912. [Google Scholar] [CrossRef] [PubMed]
- Tajti, P.; Burke, M.N.; Karmpaliotis, D.; Alaswad, K.; Werner, G.S.; Azzalini, L.; Carlino, M.; Patel, M.; Mashayekhi, K.; Egred, M.; et al. Update in the Percutaneous Management of Coronary Chronic Total Occlusions. JACC Cardiovasc. Interv. 2018, 11, 615–625. [Google Scholar] [CrossRef]
- Harnek, J.; James, S.; Lagerqvist, B. Coronary Artery Perforation and Tamponade-Incidence, Risk Factors, Predictors and Outcomes From 12 Years’ Data of the SCAAR Registry. Circ. J. 2019, 84, 43–53. [Google Scholar] [CrossRef]
- Shaukat, A.; Tajti, P.; Sandoval, Y.; Stanberry, L.; Garberich, R.; Nicholas Burke, M.; Gossl, M.; Henry, T.; Mooney, M.; Sorajja, P.; et al. Incidence, predictors, management and outcomes of coronary perforations. Catheter. Cardiovasc. Interv. 2019, 93, 48–56. [Google Scholar] [CrossRef]
- Shimony, A.; Joseph, L.; Mottillo, S.; Eisenberg, M.J. Coronary artery perforation during percutaneous coronary intervention: A systematic review and meta-analysis. Can. J. Cardiol. 2011, 27, 843–850. [Google Scholar] [CrossRef]
- Lemmert, M.E.; van Bommel, R.J.; Diletti, R.; Wilschut, J.M.; de Jaegere, P.P.; Zijlstra, F.; Daemen, J.; Van Mieghem, N.M. Clinical Characteristics and Management of Coronary Artery Perforations: A Single-Center 11-Year Experience and Practical Overview. J. Am. Heart Assoc. 2017, 6, e007049. [Google Scholar] [CrossRef]
- Ellis, S.G.; Ajluni, S.; Arnold, A.Z.; Popma, J.J.; Bittl, J.A.; Eigler, N.L.; Cowley, M.J.; Raymond, R.E.; Safian, R.D.; Whitlow, P.L. Increased coronary perforation in the new device era. Incidence, classification, management, and outcome. Circulation 1994, 90, 2725–2730. [Google Scholar] [CrossRef]
- Secco, G.G.; Serdoz, R.; Kilic, I.D.; Caiazzo, G.; Mattesini, A.; Parisi, R.; De Luca, G.; Pistis, G.; Marino, P.N.; Di Mario, C. Indications and immediate and long-term results of a novel pericardium covered stent graft: Consecutive 5 year single center experience. Catheter. Cardiovasc. Interv. 2016, 87, 712–719. [Google Scholar] [CrossRef] [PubMed]
- Al-Lamee, R.; Ielasi, A.; Latib, A.; Godino, C.; Ferraro, M.; Mussardo, M.; Arioli, F.; Carlino, M.; Montorfano, M.; Chieffo, A.; et al. Incidence, predictors, management, immediate and long-term outcomes following grade III coronary perforation. JACC Cardiovasc. Interv. 2011, 4, 87–95. [Google Scholar] [CrossRef] [PubMed]
- Ly, H.; Awaida, J.P.; Lesperance, J.; Bilodeau, L. Angiographic and clinical outcomes of polytetrafluoroethylene-covered stent use in significant coronary perforations. Am. J. Cardiol. 2005, 95, 244–246. [Google Scholar] [CrossRef] [PubMed]
- Valgimigli, M.; Bueno, H.; Byrne, R.A.; Collet, J.P.; Costa, F.; Jeppsson, A.; Juni, P.; Kastrati, A.; Kolh, P.; Mauri, L.; et al. 2017 ESC focused update on dual antiplatelet therapy in coronary artery disease developed in collaboration with EACTS: The Task Force for dual antiplatelet therapy in coronary artery disease of the European Society of Cardiology (ESC) and of the European Association for Cardio-Thoracic Surgery (EACTS). Eur. Heart J. 2018, 39, 213–260. [Google Scholar]
- Kawamoto, H.; Tanaka, K.; Ruparelia, N.; Takagi, K.; Yabushita, H.; Watanabe, Y.; Mitomo, S.; Matsumoto, T.; Naganuma, T.; Fujino, Y.; et al. Short-Term and Long-Term Outcomes After Polytetrafluoroethylene-Covered Stent Implantation for the Treatment of Coronary Perforation. Am. J. Cardiol. 2015, 116, 1822–1826. [Google Scholar] [CrossRef]
- Mintz, G.S.; Popma, J.J.; Pichard, A.D.; Kent, K.M.; Satler, L.F.; Chuang, Y.C.; Ditrano, C.J.; Leon, M.B. Patterns of calcification in coronary artery disease. A statistical analysis of intravascular ultrasound and coronary angiography in 1155 lesions. Circulation 1995, 91, 1959–1965. [Google Scholar] [CrossRef]
- Pavani, M.; Cerrato, E.; Latib, A.; Ryan, N.; Calcagno, S.; Rolfo, C.; Ugo, F.; Ielasi, A.; Escaned, J.; Tespili, M.; et al. Acute and long-term outcomes after polytetrafluoroethylene or pericardium covered stenting for grade 3 coronary artery perforations: Insights from G3-CAP registry. Catheter. Cardiovasc. Interv. 2018, 92, 1247–1255. [Google Scholar] [CrossRef]
- Hernandez-Enriquez, M.; Lairez, O.; Campelo-Parada, F.; Lhermusier, T.; Bouisset, F.; Roncalli, J.; Elbaz, M.; Carrie, D.; Boudou, N. Outcomes after use of covered stents to treat coronary artery perforations. Comparison of old and new-generation covered stents. J. Interv. Cardiol. 2018, 31, 617–623. [Google Scholar] [CrossRef]
- Lee, W.C.; Hsueh, S.K.; Fang, C.Y.; Wu, C.J.; Hang, C.L.; Fang, H.Y. Clinical Outcomes Following Covered Stent for the Treatment of Coronary Artery Perforation. J. Interv. Cardiol. 2016, 29, 569–575. [Google Scholar] [CrossRef]
- Nagaraja, V.; Schwarz, K.; Moss, S.; Kwok, C.S.; Gunning, M. Outcomes of patients who undergo percutaneous coronary intervention with covered stents for coronary perforation: A systematic review and pooled analysis of data. Catheter. Cardiovasc. Interv. 2020, 96, 1360–1366. [Google Scholar] [CrossRef]
- Silver, K.H.; Bauman, W.B.; Berkovitz, K.E. Dual-catheter covered stenting: A novel approach to the treatment of large coronary artery perforations. J. Invasive Cardiol. 2003, 15, 348–350. [Google Scholar] [PubMed]
- Gupta, H.; Kaur, N.; Sharma, Y.; Lim, S.T. Modified double guiding catheter ‘Ping Pong’ technique to treat large coronary perforation: A case report. Eur. Heart J. Case Rep. 2021, 5, ytab173. [Google Scholar] [CrossRef] [PubMed]
Overall (n = 159) | Covered Stents (n = 75) | No Covered Stents (n = 84) | p Value | |
---|---|---|---|---|
Age (years) | 72.8 ± 9.7 | 74.3 ± 8.7 | 71.4 ± 10.4 | 0.0581 |
Men | 70.44% (112) | 66.67% (50) | 73.81% (62) | 0.3245 |
BMI (kg/m2) | 26.4 ± 3.6 | 26.3 ± 3.8 | 26.5 ± 3.5 | 0.7756 |
eGFR | 64.7 ± 20.3 | 62.7 ± 20.5 | 66.5 ± 20.1 | 0.2623 |
Class angina (CCS > II) | 60.58% (83) | 65.67% (44) | 55.71% (39) | 0.2332 |
CAD presentation | 0.7197 | |||
| 20.13% (32) | 21.33% | 19.05% | |
| 79.87% (127) | 78.66% | 80.95% | |
Diabetes mellitus | 30.20% (45) | 22.54% (16) | 37.18% (29) | 0.0518 |
Dyslipidemia | 88.36% (129) | 83.10% (59) | 93.33% (70) | 0.0540 |
Hypertension | 90.26% (139) | 97.33% (73) | 83.54% (66) | 0.0039 |
Smoking (current) | 12% (18) | 12.33% (9) | 11.69% (9) | 0.9040 |
LVEF (%) | 0.9555 | |||
| 56.86% (87) | 56.00% (42) | 57.69% (45) | |
| 28.76% (44) | 30.66% (23) | 26.92% (21) | |
| 8.50% (13) | 8.00% (6) | 8.97% (7) | |
| 5.88% (9) | 5.33% (4) | 6.41% (5) | |
History of familiar CAD | 31.78% (41) | 30.65% (19) | 32.84% (22) | 0.7895 |
Prior MI | 30.56% (44) | 37.68% (26) | 24.00% (18) | 0.0750 |
Prior CABG | 20.00% (29) | 26.09% (18) | 14.47% (11) | 0.0808 |
LDL max. | 100.1 ± 39.0 | 97.5 ± 35.6 | 102.5 ± 41.8 | 0.419 |
Overall (n = 159) | Covered Stents (n = 75) | No Covered Stents (n = 84) | p Value | |
---|---|---|---|---|
Target coronary vessel | <0.0001 | |||
| 5.66% (9) | 4.00% (3) | 7.14% (6) | |
| 47.17% (75) | 56.00% (42) | 39.29% (33) | |
| 11.32% (18) | 8.00% (6) | 14.29% (12) | |
| 35.22% (56) | 30.67% (23) | 39.29% (33) | |
| 0.63% (1) | 1.33% (1) | 0.00% (0) | |
Number of treated vessels | 1.4 ± 0.7 | 1.4 ± 0.65 | 1.5 ± 0.7 | 0.3076 |
Lesion length (mm) | 0.3149 | |||
| 10.60% (16) | 8.45% (6) | 12.50% (10) | |
| 32.45% (49) | 28.17% (20) | 36.25% (29) | |
| 56.95% (86) | 63.38% (45) | 51.25% (41) | |
Pre-PCI stenosis, % | 87.1 ± 17.9 | 87.1 ± 18.6 | 87.1 ± 17.2 | 0.9936 |
AHA/ACC classification | 0.0040 * | |||
| 12.58% (20) | 4.00% (3) | 20.24% (17) | |
| 20.13% (32) | 22.66% (17) | 17.86% (15) | |
| 67.30% (107) | 73.33% (55) | 61.90% (52) | |
Ostial lesion | 3.8% (6) | 4.00% (3) | 3.57% (3) | 1.0000 |
Calcification | 0.0084 | |||
| 5.06% (8) | 2.67% (2) | 7.23% (6) | |
| 21.52% (34) | 12.00% (9) | 30.12% (25) | |
| 22.78% (36) | 22.67% (17) | 22.89% (17) | |
| 50.63% (80) | 62.67% (47) | 39.76% (33) | |
Excentric calcification | 66.67% (98) | 64.29% (45) | 68.83% (53) | 0.5593 |
Severe tortuosity | 17.83% (28) | 17.33% (13) | 18.29% (15) | 0.8754 |
Relevant side branch | 29.03% (45) | 27.03% (20) | 30.86% (25) | 0.5991 |
Intra-lesion Angulation | 0.6127 | |||
| 17.72% (28) | 21.33% (16) | 14.46% (12) | |
| 40.51% (64) | 36.00% (27) | 44.58% (37) | |
| 32.91% (52) | 33.33% (25) | 32.53% (27) | |
| 8.86% (14) | 9.33% (7) | 8.43% (7) |
Total (n = 159) | Covered Stents (n = 75) | No Covered Stents (n = 84) | p Value | |
---|---|---|---|---|
Technical success | 89.94% (143) | 93.33% (70) | 86.90% (73) | 0.1786 |
Procedural success | 83.65% (133) | 85.33% (64) | 82.14% (69) | 0.5871 |
Balloon diameter predilatation (mm) | 2.8 ± 1.3 | 3.1 ± 1.8 | 2.5 ± 0.6 | 0.0037 * |
Maximum predilation pressure (atm) | 17.5 ± 6.1 | 18.7 ± 7.6 | 16.5 ± 4.9 | 0.1037 |
Number of stents implanted | 1.6 ± 1.1 | 1.7 ± 1.2 | 1.5 ± 1.2 | 0.2546 |
Diameter of implanted stent (mm) | 3.2 ± 0.6 | 3.31 ± 0.6 | 3.1 ± 0.5 | 0.2376 |
DES implanted before covered stent | 69.0% | 92% | - | 1.0000 |
Diameter of covered stents | 3.4 ± 0.7 | 3.4 ± 0.7 | - | 1.0000 |
Length of covered stents | 23.3 ± 14.2 | 23.34 ± 14.2 | - | 1.0000 |
Balloon diameter postdilatation (mm) | 3.9 ± 0.8 | 4.3 ± 0.5 | 3.4 ± 0.5 | 0.3966 |
Postdilatation pressure (atm) | 19.5 ± 5.1 | 20.1 ± 6.5 | 19.0 ± 3.3 | 0.7127 |
Rotational atherectomy | 18.87% (30) | 26.66% (20) | 11.90% (10) | 0.0176 |
TIMI flow post PCI | 0.1287 | |||
| 11.04% (17) | 6.94% (5) | 14.63% (12) | |
| 88.96% (137) | 93.06% (67) | 85.37% (70) | |
Access site | 0.4636 | |||
| 38.89% (56) | 43.28% (29) | 35.06% (27) | |
| 61.11% (88) | 56.72% (38) | 64.94% (50) | |
Guiding catheter size, Fr | 0.1890 | |||
| 60.53% (92) | 48.57% (34) | 70.73% (58) | |
| 34.21% (52) | 44.29% (31) | 25.61% (21) | |
| 5.26% (8) | 7.14% (5) | 3.66% (3) | |
CTO target vessel | 44.30% (70) | 52.0% (39) | 37.35% (31) | 0.0641 |
CTO technique used | 0.5319 | |||
| 57.14% (40) | 53.85% (21) | 61.29% (19) | |
| 42.86% (30) | 46.15% (18) | 38.71% (12) | |
Procedural time (min) | 101 (71, 163) | 120 (85, 198) | 86 (56.3, 135) | 0.0002 |
Fluoroscopy time (min) | 35 (21, 71) | 47.5 (28.6, 98.8) | 27.0 (18.5, 53.5) | 0.0006 |
Fluoroscopic Dose Area Product (cGy*cm2) | 10,537 (5720, 17,898) | 13,968 (7666, 22,075) | 8210 (4779, 15,553) | 0.0034 |
Contrast volume used (mL) | 300 (190, 400) | 325 (200, 407.5) | 260 (177.5, 380) | 0.0803 |
Ellis classification | 0.0001 | |||
| 7.75% (16) | 4.48% (3) | 10.67% (8) | |
| 34.51% (49) | 38.81% (26) | 30.67% (23) | |
| 33.10% (47) | 55.22% (37) | 13.33% (10) | |
| 24.65% (35) | 1.49% (1) | 45.33% (34) |
Overall (n = 159) | Covered Stents (n = 75) | No Covered Stents (n = 84) | p Value | |
---|---|---|---|---|
Not clear | 30.82% (49) | 8.00% (6) | 51.19% (43) | <0.0001 * |
Wire or microcatheter exit | 23.27% (37) | 14.67% (11) | 30.95% (43) | |
Severe calcification | 23.90% (38) | 44.00% (33) | 5.95% (26) | |
Subintimal stenting | 1.9% (3) | 4.00% (3) | 0.00% (0) | |
Oversized balloon or stent | 10.7% (17) | 17.33% (13) | 4.76% (4) | |
Collateral perforation | 3.14% (5) | 1.33% (1) | 4.76% (4) | |
Tortuosity with calcification | 6.3% (10) | 10.67% (8) | 2.38% (2) |

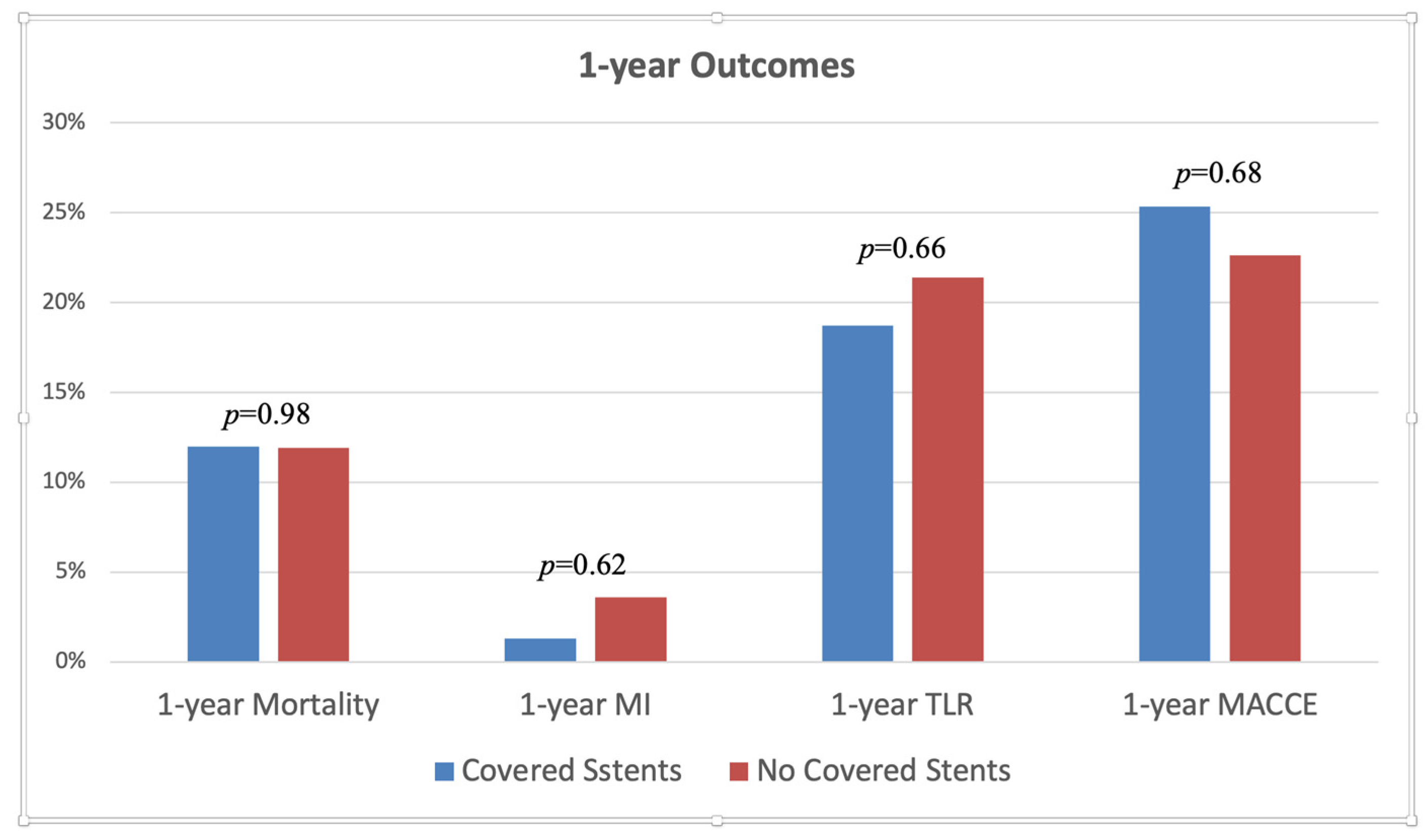

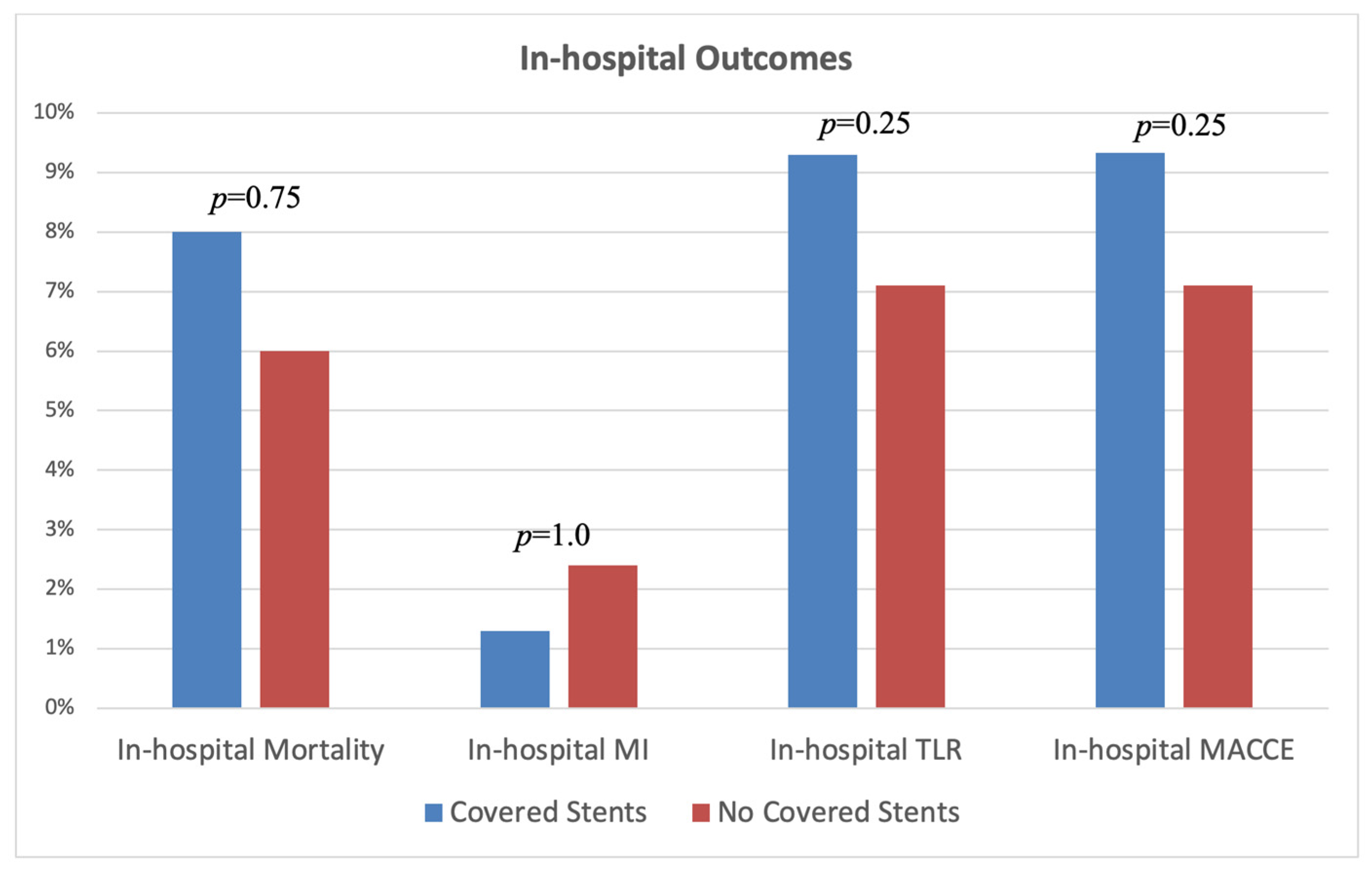

Overall (n = 159) | Covered Stents (n = 75) | No Covered Stents (n = 84) | p Value | |
---|---|---|---|---|
In-hospital MACCE | 8.18% (13) | 9.33% (7) | 7.14% (6) | 0.6148 |
1-year Mortality | 11.95% (19) | 12.00% (9) | 11.90% (10) | 0.9853 |
1-year MI | 2.52% (4) | 1.33% (1) | 3.57% (3) | 0.6227 |
1-year TLR | 20.13% (32) | 18.67% (14) | 21.43% (18) | 0.6646 |
1-year stroke | 1.26% (2) | 2.67% (2) | 0.00% (0) | 0.2209 |
1-year MACCE | 23.90% (38) | 25.33% (19) | 22.62% (19) | 0.6887 |
Pericardiocentesis | 22.58% (35) | 29.33% (22) | 16.25% (13) | 0.0516 |
Myocardial hematoma | 1.96% (3) | 2.74% (2) | 1.25% (1) | 0.6059 |
