High-Throughput Sequencing Reveals That Rotundine Inhibits Colorectal Cancer by Regulating Prognosis-Related Genes

by
Lingyu Huang
1,†,
Tongxiang Zou
1,†,
Wenken Liang
1,
Chune Mo
2,
Jianfen Wei
1,
Yecheng Deng
1,* and
Minglin Ou
2,*
1
Key Laboratory of Ecology of Rare and Endangered Species and Environmental Protection, Ministry of Education of China/College of Life Science, Guangxi Normal University, Guilin 541006, China [email protected] (L.H.)
2
Central Laboratory, Guangxi Health Commission Key Laboratory of Glucose and Lipid Metabolism Disorders, The Second Affiliated Hospital of Guilin Medical University, Guilin 541000, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
J. Pers. Med. 2023, 13(3), 550; https://doi.org/10.3390/jpm13030550
Submission received: 13 February 2023 / Revised: 13 March 2023 / Accepted: 14 March 2023 / Published: 20 March 2023
(This article belongs to the Special Issue Bioinformatics and Medicine)
Browse Figures
Review Reports Versions Notes

Abstract

:
Background: Rotundine is an herbal medicine with anti-cancer effects. However, little is known about the anti-cancer effect of rotundine on colorectal cancer. Therefore, our study aimed to investigate the specific molecular mechanism of rotundine inhibition of colorectal cancer. Methods: MTT and cell scratch assay were performed to investigate the effects of rotundine on the viability, migration, and invasion ability of SW480 cells. Changes in cell apoptosis were analyzed by flow cytometry. DEGs were detected by high-throughput sequencing after the action of rotundine on SW480 cells, and the DEGs were subjected to function enrichment analysis. Bioinformatics analyses were performed to screen out prognosis-related DEGs of COAD. Followed by enrichment analysis of prognosis-related DEGs. Furthermore, prognostic models were constructed, including ROC analysis, risk curve analysis, PCA and t-SNE, Nomo analysis, and Kaplan–Meier prognostic analysis. Results: In this study, we showed that rotundine concentrations of 50 μM, 100 μM, 150 μM, and 200 μM inhibited the proliferation, migration, and invasion of SW480 cells in a time- and concentration-dependent manner. Rotundine does not induce SW480 cell apoptosis. Compared to the control group, high-throughput results showed that there were 385 DEGs in the SW480 group. And DEGs were associated with the Hippo signaling pathway. In addition, 16 of the DEGs were significantly associated with poorer prognosis in COAD, with MEF2B, CCDC187, PSD2, RGS16, PLXDC1, HELB, ASIC3, PLCH2, IGF2BP3, CLHC1, DNHD1, SACS, H1-4, ANKRD36, and ZNF117 being highly expressed in COAD and ARV1 being lowly expressed. Prognosis-related DEGs were mainly enriched in cancer-related pathways and biological functions, such as inositol phosphate metabolism, enterobactin transmembrane transporter activity, and enterobactin transport. Prognostic modeling also showed that these 16 DEGs could be used as predictors of overall survival prognosis in COAD patients. Conclusions: Rotundine inhibits the development and progression of colorectal cancer by regulating the expression of these prognosis-related genes. Our findings could further provide new directions for the treatment of colorectal cancer.

1. Background

According to the International Agency for Research on Cancer, global colorectal cancer incidence will increase by 63% and mortality to 73% by 2024 compared to the 2020 Global Cancer Statistics report [1]. New advances have been made in recent years in the search for new treatments for COAD; however, the incidence of COAD is still on the rise year by year. The current clinical treatment of colorectal cancer is mainly through surgical resection, post-surgical adjuvant therapy, and chemotherapy. However, recurrence and metastasis of surgical treatment is one of the causes of death in colorectal cancer patients. Chemotherapy drugs include western drugs such as 5-fluorouracil, oxaliplatin, capecitabine, and irinotecan [2,3]. However, side effects from chemotherapy are inevitable, for example, nausea, vomiting, diarrhea, and peripheral neurotoxicity. Finding therapeutic targets based on high-throughput sequencing and bioinformatics analysis is gaining importance in the treatment protocols for COAD [4]. The application of advanced high-throughput mRNA sequencing technologies has enabled researchers to fully explore the pathogenesis of cancer.
Rotundine (molecular formula: C21H25NO4), also known as L-tetrahydropalmatine(L-THP), is an alkaloid extracted mainly from the active ingredients of Stephania epigaea Lo and Corydalis yanhusuo. It is included in the Chinese Pharmacopoeia. Rotundine has been reported to be widely used for its analgesic and hypnotic effects [5,6], and its pharmacological effects include anti-inflammatory, anti-virus, and anti-tumor [7]. For example, L-THP inhibits the growth of hepatocellular carcinoma by promoting HepG2 cell autophagy through activation of the AMPK pathway [8]. The majority of breast cancer (BCa) patients were diagnosed as estrogen receptor alpha (ERα) positive. A study by Xiaohong Xia et al. found that L-THP achieved the effect of inhibiting BCa proliferation by blocking the cell cycle and promoting ERα degradation [9]. And Rotundine has been shown to have good results in clinical trials for the treatment of addiction [10,11]. Although rotundine has been studied for its anti-cancer effect. However, the mechanism of action on COAD has not been reported systematically; therefore, it becomes urgent to investigate the mechanism of action of rotundine on COAD.
We learned that the herbal extract rotundine has cancer-inhibitory effects. Therefore, in this study, we used MTT assay and cell scratch assay to detect the effects of rotundine on the proliferation, invasion, and migration of colorectal cancer cells SW480. Further, high-throughput sequencing was used to explore the molecular mechanism of rotundine inhibition in SW480 cells in depth. Finally, bioinformatics analysis was performed in conjunction with TCGA public database to validate the aberrantly expressed mRNAs. These aberrantly expressed mRNAs may serve as potential biomarkers for COAD treatment.

2. Materials and methods

2.1. Materials

Rotundine was purchased from Chengdu Desite Biotechnology (Chengdu, China) with CAS number 10097-84-4 and a purity equal to 99.77%. Following the principle that a DMSO concentration of less than 0.1% is non-toxic to cells, we first dissolved the rotundine powder with DMSO and then added PBS to configure the concentration to 10 mM for storage in –80 °C refrigerator. Before performing the experiments, the 10 mM rotundine solution was diluted into 50 μM, 100 μM, 150 μM, and 200 μM rotundine solutions using RPMI-1640 medium with 10% FBS and 1% penicillin-streptomycin solution.

2.2. Cell Culture

SW480, a human colorectal cancer cell line, was cultured in RPMI-1640 medium with 10% FBS and 1% penicillin–streptomycin solution. Finally, it was placed in a humidified incubator at 37 °C and 5% CO2.

2.3. MTT Assay

In a 96-well plate, 5 × 104 cells were added and incubated in the incubator for 24 h. After the cells were plastered, RPMI-1640 culture medium and rotundine solution were added, respectively. Three replicate wells were made for each group. When the incubation time is reached, add 20 μL MTT solution, shake well, and continue to incubate for 4 h. Carefully aspirate and discard the supernatant, add 150 μL DMSO and place in an enzyme marker with a low-speed shaking for 10 min. Finally, measure the OD value at 490 nm.

2.4. Cell Scratch Assay

In a 6-well plate, 6 × 105 cells were added and incubated in the incubator for 24 h. Draw a straight line perpendicular to the center of the culture wells with a sterile 200 µL pipette tip. Discard the old medium and wash twice with 2 mL of PBS. The control group was added with 3 mL of RPMI-1640 complete medium. To the drug group, add 3 mL each of 50 μM, 100 μM, 150 μM, and 200 μM rotundine base solutions. Scratch repair was observed after every 24 h.

2.5. Apoptosis Assay

Apoptosis of rotundine-treated SW480 was measured with FITC Annexin V Apoptosis Detection Kit I. Rotundine (0, 50, 100, 150, 200 μM) was applied to SW480 cells for 72 h, and then stained by Annexin V-FITC/PI for 15 min and analyzed by BF 700 flow cytometer.

2.6. High-Throughput mRNA Sequencing

We divided the experiment into experimental and control groups; the experimental group was the intervention culture of SW480 cells with 50 μM, 100 μM, 150 μM, and 200 μM rotundine, and the control group was the conventional culture with RPMI-1640. The samples of both groups were then subjected to high-throughput mRNA sequencing according to the protocol provided by the manufacturer. First, RNA was extracted from the samples and mRNA was enriched using Oligo(dT) beads. Next, mRNA was interrupted by adding reagents, then cDNA was synthesized by reverse transcription, end repair, end addition of “A”, and splice ligation were performed on cDNA, and finally, cDNA was amplified by PCR to construct a cDNA library by PCR. Finally, mRNA sequencing is performed by combined probe-anchored polymerization (cPAS).

2.7. Identification of Differentially Expressed Genes

The cutoff values for screening differentially expressed genes (DEGs) were based on |log2FC| ≥ 1 and p < 0.05. DEGs were divided into high and low-expression groups based on log2FC values. Volcano plots represent the distribution results of the two groups. A heat map was used to represent the gene expression profiles of DEGs.

2.8. Enrichment Analysis and Construction of Protein-Protein Interaction(PPI) Network

To explore the relevant signaling pathways and functions of DEGs. We performed KEGG and GO enrichment analyses of DEGs online using Dr. Tom system. Among them, GO enrichment analysis includes biological processes (BP), molecular functions (MF), and cellular composition (CC). In addition, we construct PPI networks to explore the potential connections between DEGs.

2.9. Bioinformatics Analysis Based on TCGA Database

We downloaded 41 normal tissues and 473 COAD tissues from the TCGA public database. Based on the COAD data, we used R language to explore the expression of differentially expressed genes in normal and cancer tissues and overall survival analysis. The aim was to explore the target genes of the inhibitory effect of rotundine on colorectal cancer. We also performed KEGG and GO enrichment analyses on these target genes. Finally, the target genes were then subjected to correlation analysis. The results were presented in the form of correlation network plots.

2.10. Prognostic Model Construction

We used the R package to model survival prognosis based on target genes. The risk scores were then calculated using the “dplyr” package, and the COAD patients in the TCGA dataset were divided into high-risk and low-risk groups. We evaluated the model by plotting risk curves and risk scatter plots, PCA, t-SNE, and Kaplan–Meier plotter using the “ggplot2′” package. In addition, we also plotted ROC curves and Nomo plots based on clinical characteristics and risk scores.

2.11. Statistical Analysis

All differences between the two groups were assessed using the student’s t-test. However, p < 0.05 was considered to be statistically significant.

3. Results

3.1. Effect of Rotundine on Cytotoxicity and Invasive Migration of SW480

MTT assay is widely used in detecting the cytotoxic activity of drugs on cells; therefore, we examined the toxicity of rotundine on SW480 cells by MTT assay. As shown in Figure 1a, rotundine was cytotoxic to SW480 at concentrations of 50 μM, 100 μM, 150 μM, and 200 μM. The proliferation of cells was significantly inhibited after rotundine action on SW480, and the inhibition rate was stronger with increasing rotundine concentration. The results of scratch experiments at 24 h, 48 h, and 72 h also showed that the healing of cell scratches was significantly slower after rotundine intervention in culture compared to the control group (Figure 1b).

3.2. Apoptosis Assay

To further investigate whether rotundine induced SW480 cell apoptosis, Annexin V-FITC/PI staining was performed after rotundine intervention on SW480 cells to observe the apoptosis. In our study, the rate of cell apoptosis was 15.78% in the control group and 9.38%, 10.81%, 7.59%, and 10.5% after the addition of rotundine (50, 100, 150, and 200 μM), respectively (Figure 2). According to these results, it was shown that the addition of rotundine intervention to SW480 culture did not induce cell apoptosis compared to the control group.

3.3. High-Throughput mRNA Sequencing Analysis

To further clarify the mechanism of rotundine regulation of COAD, we used high-throughput sequencing to analyze the mRNAs of the experimental and control group in detail. As shown in Figure 3a, there were 14,640 mRNAs expressed in the two groups. Among them, there were also 470 independent mRNAs in the experimental group and 790 independent mRNAs in the control group. mRNAs were visualized under the criteria of |log2FC| ≥ 1 and p < 0.05 (Table 1 and Table S1). The results are presented as a volcano plot, where red dots indicate 85 up-regulated DEGs, green dots indicate 300 down-regulated DEGs, and gray dots indicate no-DEGs (Figure 3b). In addition, clustering heat map analysis revealed the expression profiles of 385 differentially expressed mRNAs between the experimental groups and control group (Figure 3c).

3.4. Enrichment Analysis and Construction of PPI Network

Gene annotation was performed on 385 DEGs. The first 20 analyses were visualized to elucidate the main biological functions of the DEGs. KEGG enrichment results showed that the main signaling pathways that occurred expression in the experimental and blank groups were the Hippo signaling pathway and intestinal immune network for IgA production (Figure 3d). Additionally, GO enrichment analysis included biological processes (BP), cellular components (CC), and molecular functions (MF). For example, functional enrichment of DEGs resulted in: negative regulation of the execution phase of apoptosis, plasma membrane, and receptor antagonist activity (Figure 3e–g). notably, a potential association of DEGs was found by constructing a PPI network (Figure 3h).

3.5. Gene Expression Analysis of 16 DEGs

As shown in Figure 4, by gene expression analysis, we found 16 DEGs were differentially expressed in normal and COAD tissues, namely myocyte enhancer factor 2B (MEF2B), coiled-coil domain containing 187 (CCDC187), pleckstrin and Sec7 domain containing 2 (PSD2), regulator of G protein signaling 16 (RGS16), plexin domain containing 1 (PLXDC1), ARV1 homolog (ARV1), DNA helicase B (HELB), acid-sensing ion channel subunit 3 (ASIC3), acid-sensing ion channel subunit 3 (PLCH2), insulin-like growth factor 2 mRNA binding protein 3 (IGF2BP3), clathrin heavy chain linker domain containing 1 (CLHC1), dynein heavy chain domain 1 (DNHD1), sacsin molecular chaperone (SACS), H1.4 linker histone (H1-4), ankyrin repeat domain 36 (ANKRD36), and zinc finger protein 117 (ZNF117). In addition, these 16 DEGs satisfied the following conditions: mRNA was down-regulated in SW480 cells after rotundine action compared with the control group, and the mRNA was up-regulated in COAD tissues compared with normal tissues. Conversely, after rotundine action on SW480, mRNA was up-regulated compared to the control group, and the mRNA was down-regulated in COAD tissue compared to normal tissue. Among them, ARV1 expression was up-regulated after rotundine intervention, and the expression of the remaining 15 genes was down-regulated. Therefore, we judged these 16 genes as the targets of rotundine action to inhibit colorectal cancer.

3.6. Overall Survival Prognosis Analysis of 16 DEGs

The relationship between DEGs and survival prognosis was determined by comparing the overall survival rate of DEGs. As shown in Figure 5, the survival prognosis of highly expressed DEGs in COAD was poorer compared to normal tissues. Similarly, low-expressing ARV1 had a poorer survival prognosis in COAD compared to normal tissue. The p-values for the above results were less than 0.05 between both groups, and all were statistically significant.

3.7. KEGG and GO Enrichment Analysis of 16 DEGs

KEGG enrichment results revealed 16 DEGs that may be involved in signaling pathways such as inositol phosphate metabolism, axon regeneration, and inflammatory mediator regulation of TRP channels (Figure 6a). Functional enrichment analysis using GO revealed that GO was significantly enriched in inner dynein arm, enterobactin transmembrane transporter activity, and enterobactin transport (Figure 6b–d).

3.8. Genetic Correlation Analysis of 16 DEGs

It was clearly observed by the correlation network plot and correlation heat map that the genes were closely and positively associated with each other (Figure 6e). Therefore, we suggest that rotundine can simultaneously down-regulate or up-regulate these 16 DEGs to inhibit the proliferative growth of COAD and improve the survival rate of patients.

3.9. Prognostic Model Analysis

Based on the median risk score, patients were divided into a high-risk group and a low-risk group (Figure 7a). Figure 6b shows the survival status and duration of survival of patients in relation to the risk score. As shown by Figure 7b, the number of deaths of patients in the high-risk group increased with increasing time. In addition, the results of PCA and t-SNE further indicate that the COAD cohort can be divided into high-risk and low-risk groups based on the median risk score (Figure 7c,d). The Kaplan–Meier survival analysis showed that patients in the high-risk group had a worse survival prognosis compared with the low-risk group, p < 0.0001 (Figure 7e). To demonstrate the accuracy of this prognostic model, we constructed ROC curves from 1–5 years (Figure 7f). Notably, the AUC values for 1–5 years predicted by our constructed model were all greater than 0.5, namely: 0.68, 0.72, 0.68, 0.71, and 0.72. In addition, to explore the risk assessment and survival probability of COAD patients in-depth, we combined risk scores and clinical factors to build Nomo plots (Figure 7g).

4. Discussion

Currently, the treatment of colorectal cancer is based on surgery and chemotherapy. However, many chemotherapy drugs have side effects such as nausea, vomiting, bone marrow suppression, peripheral neurotoxicity, and diarrhea [2,12]. Several studies have shown great progress in the study of bioactive compounds from natural plants in the treatment of tumors, both from animal model experiments and clinical trial studies [13,14]. Since rotundine relieves patients’ pain in clinical treatment, we believe that rotundine is non-toxic to normal cells or tissues [15,16,17,18]. It is worth noting that rotundine does not induce cells to undergo apoptosis. However, when combined with tamoxifen, rotundine can increase the sensitivity of BCa cells to tamoxifen to promote the apoptosis of death [9]. Therefore, it becomes necessary to search for natural plant active ingredients to treat colorectal cancer.
The MTT assay indirectly reflects cell survival and proliferation by detecting the number of viable cells [19]. In this study, we confirmed that rotundine is a natural plant active ingredients that can inhibit the proliferation and growth of colorectal cancer by MTT assay and cell scratching assay. Moreover, rotundine inhibited colorectal cancer in a time- and concentration-dependent manner. By flow cytometry, we found that rotundine did not induce apoptosis in colorectal cancer cells, similar to the study by Xia et al. who showed that rotundine did not induce apoptosis in breast cancer cells [9]. Therefore, we believe that rotundine exerts its anti-cancer effects by inhibiting the proliferation, migration, and invasion of colorectal cancer cells. Accordingly, the aim of this study was to investigate the specific molecular mechanisms by which rotundine inhibits colorectal cancer cells. By which genes rotundine exerts its inhibitory effect after intervention in colorectal cancer cells compared to cell samples without rotundine intervention. Subsequently, 385 DEGs were identified by high-throughput sequencing analysis of rotundine-treated cells, of which 85 were up-regulated and 300 were down-regulated. KEGG and GO enrichment analysis of DEGs showed that DEGs were mainly involved in signaling pathways such as the Hippo signaling pathway and intestinal immune network for IgA production, and were enriched in the negative regulation of execution phase of apoptosis, plasma membrane, and receptor antagonist activity biological processes. However, the specific functions and pathways need to be determined by further research. PPI networks play a role in biological cell function and signal transduction [20,21,22,23]. In our study, a potential association between DEGs could be identified by PPI network maps. This result further confirms the DEGs interactions and related pathways.
The prognosis of DEGs in COAD can be observed to further identify the targets of Rotundine inhibition in COAD. In the present experiment, we found that MEF2B, CCDC187, PSD2, RGS16, PLXDC1, ARV1, HELB, ASIC3, PLCH2, IGF2BP3, CLHC1, DNHD1, SACS, H1-4, ANKRD36, and ZNF117 all had poor and statistically significant prognosis in COAD tissues. Among these 16 prognosis-related DEGs only ARV1 was lowly expressed in COAD, and the remaining genes were highly expressed. Several research teams have reported aberrant expression of mRNA in COAD. It has been shown that MEF2B is significantly up-regulated in ulcerative colitis and is a biomarker for the treatment of ulcerative colitis [24]. CTB-35F21.1-PSD2 fusion transcripts are highly recurrent in COAD [25]. RGS16 is highly expressed in COAD tissues and has a low overall survival rate [26]. Several studies have shown that high expression of PLXDC1 is one of the factors that make the prognosis of COAD patients poor [27,28,29]. The expression of IGF2BP3 in tissue specimens was found to be a biomarker for the diagnosis of colorectal cancer in endoscopic biopsies [30]. SACS is high heterogeneity of expression in COAD and is a predictor of patient survival prognosis [31]. Doxorubicin inhibits the synthesis of H1-4 through the inhibition of DNA synthesis to achieve the effect of treating colorectal cancer [32]. High expression of ANKRD36 was strongly associated with poor prognosis of COAD [33]. A nonsense mutation in ZNF117 predisposes the induction of COAD [34]. These findings are consistent with our findings. It further confirmed the accuracy of our findings. Therefore, we concluded that these 16 genes could be used as effective biomarkers for the treatment of COAD. In addition, we found a positive correlation between these prognosis-related DEGs.
Notably, these prognosis-related DEGs were associated with inositol phosphate metabolism, axon regeneration, inflammatory mediator regulation of TRP channels, systemic lupus erythematosus, apelin signaling pathway, and other cancer-related pathways are closely related. Cellular metabolic activities have a huge impact on cancer development and progression [35,36]. Moreover, the Inositol phosphate metabolism signaling pathway is associated with inositol pyrophosphate. Inositol pyrophosphate, as a metabolic messenger, is positively correlated with cellular energy homeostasis [37]; these dysregulated genes are also involved in a variety of biological processes, including enterobactin transmembrane transporter activity, enterobactin transport, and inner dynein arm. It has been reported that enterobactin has a strong affinity for iron and deprives iron in cells to attenuate the proliferation of cancer [38,39]. Furthermore, enterobactin can be considered an effective anti-cancer agent. Therefore, we believe that rotundine inhibits the development of colorectal cancer by regulating the transfer of enterobactin. However, more experiments are needed to verify the detailed regulatory pathways. Overall, our results suggest a potential regulatory role of these 16 prognosis-related DEGs in COAD. However, the specific pathway regulatory mechanism remains to be demonstrated by further experiments. Prognostic modeling combined with an online database revealed that the high-risk group had a poorer prognosis than the low-risk group and was significantly different. In addition, combining clinical data of colorectal cancer patients also revealed that these 16 prognosis-related genes were closely associated with age and clinical analysis of colorectal cancer patients.
In this study, 50 μM, 100 μM, 150 μM, and 200 μM rotundine significantly inhibited the growth of colorectal cancer cells in an in vitro study. Bioinformatic analysis was performed and found to be associated with poor prognosis in colorectal cancer patients. Rotundine has been extensively studied in animal and human models. Low doses of rotundine produced no side effects in mice and relieved pain in patients [40]. 40 mg/kg rotundine selectively inhibited OCT2 to reduce renal injury without impairing anti-tumor function [41]. In much Chinese literature, adverse reactions in clinical trials of rotundine include nausea, vomiting, dizziness, chest tightness, and weakness. However, adverse reactions were occasionally found and generally did not result in serious consequences. Therefore, more time and experimental trials are needed to study rotundine in vivo.
In the present study, we constructed a prognostic model associated with 16 prognosis-related DEGs. The value of these 16 genes in determining the prognosis of COAD was further validated by the model. This model was used to explore the risk factors for the prognosis of colorectal cancer patients. Our results suggest that MEF2B, CCDC187, PSD2, RGS16, PLXDC1, ARV1, HELB, ASIC3, PLCH2, IGF2BP3, CLHC1, DNHD1, SACS, H1-4, ANKRD36, and ZNF117 can be used as predictors of overall survival prognosis in patients with COAD.

5. Conclusions

In conclusion, rotundine inhibits proliferation, migration, and invasion of colorectal cancer but does not induce cell apoptosis. High-throughput sequencing and bioinformatics analysis showed that MEF2B, CCDC187, PSD2, RGS16, PLXDC1, ARV1, HELB, ASIC3, PLCH2, IGF2BP3, CLHC1, DNHD1, SACS, H1-4, ANKRD36, and ZNF117 could be the targets of action of rotundine to inhibit colorectal cancer, which may be for further provide new biomarkers for the diagnosis and treatment of colorectal cancer.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/jpm13030550/s1, Table S1: 385 differentially expressed genes (DEGs) obtained by high-throughput sequencing.

Author Contributions

All authors contributed to the study conception and design. Conception and design: Y.D. and M.O.; collection and assembly of data: T.Z., L.H., C.M. and J.W.; development of methodology: W.L. and L.H.; data analysis and interpretation: T.Z. and L.H.; manuscript drafting: L.H.; manuscript revision: M.O., Y.D., T.Z. and L.H. All authors have read and agreed to the published version of the manuscript.

Funding

The authors are very grateful for the financial support from the Science and Technology Plan of Guilin (Declaration No. 20222E394054), Guangxi Medical and health key cultivation discipline construction project, Guangxi Health Commission Key Laboratory of Glucose and Lipid Metabolism Disorders (grant no. 19-xkjs-05).

Institutional Review Board statement

This article does not contain relevant studies on human participants or animals by any of the authors.

Informed Consent Statement

Not applicable.

Data Availability Statement

The datasets in the current paper are available from the corresponding author on reasonable request.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

COAD: colon adenocarcinoma; L-THP, L-tetrahydropalmatine; DEGs, differentially expressed genes; TCGA, The Cancer Genome Atlas; AMPK, adenosine monophosphate-activated protein kinase; BCa, breast cancer; MTT, 3-(4, 5-dimethylthiazol-2-yl)-2, 5-diphenyltetrazolium bromide; RPMI-1640, Roswell Park Memorial Institute; FBS, fatal bovine serun; DMSO, methyl sulfoxide; PBS, phosphate buffered solution; cPAS, combined probe anchored polymerization; KEGG, Kyoto Encyclopedia of Genes and Genomes; GO, gene ontology; BP, biological processes; MF, molecular functions; CC, cellular composition; PPI, protein–protein interaction; ROC, receiver operating characteristic; AUC, area under roc curve; PCA, principal component analysis; t-SNE, T-distribution stochastic neighbor embedding; MEF2B, myocyte enhancer factor 2B; CCDC187, coiled-coil domain containing 187; PSD2, pleckstrin and Sec7 domain containing 2; RGS16, regulator of G protein signaling 16; PLXDC1, plexin domain containing 1; ARV1, ARV1 homolog; HELB, DNA helicase B; ASIC3, acid sensing ion channel subunit 3; PLCH2, acid sensing ion channel subunit 3; IGF2BP3, insulin like growth factor 2 mRNA binding protein 3; CLHC1, clathrin heavy chain linker domain containing 1; DNHD1, dynein heavy chain domain 1; SACS, sacsin molecular chaperone; H1-4, H1.4 linker histone; ANKRD36, ankyrin repeat domain 36; ZNF117, zinc finger protein 117; TRP, transient receptor potential; OCT2, organic cation transporter 2.

References

  1. Morgan, E.; Arnold, M.; Gini, A.; Lorenzoni, V.; Cabasag, C.J.; Laversanne, M.; Vignat, J.; Ferlay, J.; Murphy, N.; Bray, F. Global burden of colorectal cancer in 2020 and 2040: Incidence and mortality estimates from GLOBOCAN. Gut 2023, 72, 338–344. [Google Scholar] [CrossRef] [PubMed]
  2. Hofmann, M.H.; Gerlach, D.; Misale, S.; Petronczki, M.; Kraut, N. Expanding the Reach of Precision Oncology by Drugging All KRAS Mutants. Cancer Discov. 2022, 12, 924–937. [Google Scholar] [CrossRef]
  3. Zhu, G.; Pei, L.; Xia, H.; Tang, Q.; Bi, F. Role of oncogenic KRAS in the prognosis, diagnosis and treatment of colorectal cancer. Mol. Cancer 2021, 20, 143. [Google Scholar] [CrossRef]
  4. Wang, W.; Kandimalla, R.; Huang, H.; Zhu, L.; Li, Y.; Gao, F.; Goel, A.; Wang, X. Molecular subtyping of colorectal cancer: Recent progress, new challenges and emerging opportunities. Semin. Cancer Biol. 2019, 55, 37–52. [Google Scholar] [CrossRef]
  5. Chu, H.-Y.; Jin, G.; Friedman, E.; Zhen, X. Recent development in studies of tetrahydroprotoberberines: Mechanism in antinociception and drug addiction. Cell. Mol. Neurobiol. 2008, 28, 491–499. [Google Scholar] [CrossRef]
  6. Xu, S.X.; Yu, L.P.; Han, Y.R.; Chen, Y.; Jin, G.Z. Effects of tetrahydroprotoberberines on dopamine receptor subtypes in brain. Zhongguo Yao Li Xue Bao 1989, 10, 104–110. [Google Scholar] [PubMed]
  7. Du, Q.; Meng, X.; Wang, S. A Comprehensive Review on the Chemical Properties, Plant Sources, Pharmacological Activities, Pharmacokinetic and Toxicological Characteristics of Tetrahydropalmatine. Front. Pharmacol. 2022, 13, 890078. [Google Scholar] [CrossRef] [PubMed]
  8. Yin, X.; Li, W.; Zhang, J.; Zhao, W.; Cai, H.; Zhang, C.; Liu, Z.; Guo, Y.; Wang, J. AMPK-Mediated Metabolic Switching Is High Effective for Phytochemical Levo-Tetrahydropalmatine (l-THP) to Reduce Hepatocellular Carcinoma Tumor Growth. Metabolites 2021, 11, 811. [Google Scholar] [CrossRef]
  9. Xia, X.; He, J.; Liu, B.; Shao, Z.; Xu, Q.; Hu, T.; Huang, H. Targeting ERalpha degradation by L-Tetrahydropalmatine provides a novel strategy for breast cancer treatment. Int. J. Biol. Sci. 2020, 16, 2192–2204. [Google Scholar] [CrossRef]
  10. Wang, W.; Liu, J.; Zhao, X.; Peng, Y.; Wang, N.; Lee, D.Y.W.; Dai, R. Simultaneous determination of l-tetrahydropalmatine and its active metabolites in rat plasma by a sensitive ultra-high-performance liquid chromatography with tandem mass spectrometry method and its application in a pharmacokinetic study. Biomed. Chromatogr. 2017, 31, e3903. [Google Scholar] [CrossRef]
  11. Yang, Z.; Shao, Y.C.; Li, S.J.; Qi, J.L.; Zhang, M.J.; Hao, W.; Jin, G.Z. Medication of l-tetrahydropalmatine significantly ameliorates opiate craving and increases the abstinence rate in heroin users: A pilot study. Acta Pharmacol. Sin. 2008, 29, 781–788. [Google Scholar] [CrossRef] [Green Version]
  12. Gelibter, A.J.; Caponnetto, S.; Urbano, F.; Emiliani, A.; Scagnoli, S.; Sirgiovanni, G.; Napoli, V.M.; Cortesi, E. Adjuvant chemotherapy in resected colon cancer: When, how and how long? Surg. Oncol. 2019, 30, 100–107. [Google Scholar] [CrossRef]
  13. Goyal, S.; Gupta, N.; Chatterjee, S.; Nimesh, S. Natural Plant Extracts as Potential Therapeutic Agents for the Treatment of Cancer. Curr. Top. Med. Chem. 2017, 17, 96–106. [Google Scholar] [CrossRef]
  14. Khan, T.; Ali, M.; Khan, A.; Nisar, P.; Jan, S.A.; Afridi, S.; Shinwari, Z.K. Anticancer Plants: A Review of the Active Phytochemicals, Applications in Animal Models, and Regulatory Aspects. Biomolecules 2019, 10, 47. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Gong, X.; Yue, K.; Ma, B.; Xing, J.; Gan, Y.; Wang, D.; Jin, G.; Li, C. Levo-tetrahydropalmatine, a natural, mixed dopamine receptor antagonist, inhibits methamphetamine self-administration and methamphetamine-induced reinstatement. Pharmacol. Biochem. Behav. 2016, 144, 67–72. [Google Scholar] [CrossRef] [PubMed]
  16. Du, K.; Wang, Z.; Zhang, H.; Zhang, Y.; Su, H.; Wei, Z.; Zhang, C.; Yun, K.; Cong, B. Levo-tetrahydropalmatine attenuates the acquisition of fentanyl-induced conditioned place preference and the changes in ERK and CREB phosphorylation expression in mice. Neurosci. Lett. 2021, 756, 135984. [Google Scholar] [CrossRef] [PubMed]
  17. Liu, J.; Dai, R.; Damiescu, R.; Efferth, T.; Lee, D.Y. Role of Levo-tetrahydropalmatine and its metabolites for management of chronic pain and opioid use disorders. Phytomedicine 2021, 90, 153594. [Google Scholar] [CrossRef] [PubMed]
  18. Wang, Y.; Zhu, W.; Lu, D.; Zhang, C.; Wang, Y. Tetrahydropalmatine attenuates MSU crystal-induced gouty arthritis by inhibiting ROS-mediated NLRP3 inflammasome activation. Int. Immunopharmacol. 2021, 100, 108107. [Google Scholar] [CrossRef]
  19. Mosmann, T. Rapid colorimetric assay for cellular growth and survival: Application to proliferation and cytotoxicity assays. J. Immunol. Methods 1983, 65, 55–63. [Google Scholar] [CrossRef]
  20. De Las Rivas, J.; Fontanillo, C. Protein-protein interactions essentials: Key concepts to building and analyzing interactome networks. PLoS Comput. Biol. 2010, 6, e1000807. [Google Scholar] [CrossRef] [Green Version]
  21. Mackay, J.P.; Sunde, M.; Lowry, J.A.; Crossley, M.; Matthews, J.M. Protein interactions: Is seeing believing? Trends Biochem. Sci. 2007, 32, 530–531. [Google Scholar] [CrossRef]
  22. Chatr-Aryamontri, A.; Ceol, A.; Licata, L.; Cesareni, G. Protein interactions: Integration leads to belief. Trends Biochem. Sci. 2008, 33, 241–242. [Google Scholar] [CrossRef]
  23. Prieto, C.; Risueño, A.; Fontanillo, C.; De Las Rivas, J. Human gene coexpression landscape: Confident network derived from tissue transcriptomic profiles. PLoS ONE 2008, 3, e3911. [Google Scholar] [CrossRef] [Green Version]
  24. Toiyama, Y.; Mizoguchi, A.; Kimura, K.; Araki, T.; Yoshiyama, S.; Sakaguchi, K.; Miki, C.; Kusunoki, M. Persistence of gene expression changes in noninflamed and inflamed colonic mucosa in ulcerative colitis and their presence in colonic carcinoma. World J. Gastroenterol. 2005, 11, 5151–5155. [Google Scholar] [PubMed]
  25. Nome, T.; Thomassen, G.O.; Bruun, J.; Ahlquist, T.; Bakken, A.C.; Hoff, A.M.; Rognum, T.; Nesbakken, A.; Lorenz, S.; Sun, J.; et al. Common Fusion Transcripts Identified in Colorectal Cancer Cell Lines by High-Throughput RNA Sequencing. Transl. Oncol. 2013, 6, 546–553. [Google Scholar] [CrossRef] [Green Version]
  26. Miyoshi, N.; Ishii, H.; Sekimoto, M.; Doki, Y.; Mori, M. RGS16 is a marker for prognosis in colorectal cancer. Ann. Surg. Oncol. 2009, 16, 3507–3514. [Google Scholar] [CrossRef]
  27. Pietrzyk, L.; Wdowiak, P. Serum TEM5 and TEM7 concentrations correlate with clinicopathologic features and poor prognosis of colorectal cancer patients. Adv. Med. Sci. 2019, 64, 402–408. [Google Scholar] [CrossRef] [PubMed]
  28. Pietrzyk, L. Biomarkers Discovery for Colorectal Cancer: A Review on Tumor Endothelial Markers as Perspective Candidates. Dis. Markers 2016, 2016, 4912405. [Google Scholar] [CrossRef] [Green Version]
  29. Rmali, K.A.; Puntis, M.C.; Jiang, W.G. Prognostic values of tumor endothelial markers in patients with colorectal cancer. World J. Gastroenterol. 2005, 11, 1283–1286. [Google Scholar] [CrossRef] [PubMed]
  30. Wei, Q.; Zhou, H.; Zhong, L.; Shi, L.; Liu, J.; Yang, Q.; Zhao, T. IMP3 expression in biopsy specimens as a diagnostic biomarker for colorectal cancer. Hum. Pathol. 2017, 64, 137–144. [Google Scholar] [CrossRef]
  31. Salehitabar, E.; Mahdevar, M.; Motlagh, A.V.; Forootan, F.S.; Feizbakhshan, S.; Zohrabi, D.; Peymani, M. Identification of genes with high heterogeneity of expression as a predictor of different prognosis and therapeutic responses in colorectal cancer: A challenge and a strategy. Cancer Cell Int. 2022, 22, 276. [Google Scholar] [CrossRef]
  32. Mannironi, C.; D’Incalci, M. Doxorubicin induces the acetylation of histone H1 in a human colon cancer cell line (LoVo/DX) selected for resistance to the drug, but not in the sensitive parental line (LoVo). Biochem. Biophys. Res. Commun. 1988, 155, 1221–1229. [Google Scholar] [CrossRef]
  33. Qi, X.; Lin, Y.; Liu, X.; Chen, J.; Shen, B. Biomarker Discovery for the Carcinogenic Heterogeneity Between Colon and Rectal Cancers Based on lncRNA-Associated ceRNA Network Analysis. Front. Oncol. 2020, 10, 535985. [Google Scholar] [CrossRef]
  34. Juhari, W.K.W.; Noordin, K.B.A.A.; Zakaria, A.D.; Rahman, W.F.W.A.; Mokhter, W.M.M.W.M.; Abu Hassan, M.R.; Sidek, A.S.M.; Zilfalil, B.A. Whole-Genome Profiles of Malay Colorectal Cancer Patients with Intact MMR Proteins. Genes 2021, 12, 1448. [Google Scholar] [CrossRef]
  35. Vander Heiden, M.G.; DeBerardinis, R.J. Understanding the Intersections between Metabolism and Cancer Biology. Cell 2017, 168, 657–669. [Google Scholar] [CrossRef] [Green Version]
  36. Martinez-Reyes, I.; Chandel, N.S. Cancer metabolism: Looking forward. Nat. Rev. Cancer 2021, 21, 669–680. [Google Scholar] [CrossRef] [PubMed]
  37. Shears, S.B. Diphosphoinositol polyphosphates: Metabolic messengers? Mol. Pharmacol. 2009, 76, 236–252. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Saha, P.; Yeoh, B.S.; Xiao, X.; Golonka, R.M.; Kumarasamy, S.; Vijay-Kumar, M. Enterobactin, an iron chelating bacterial siderophore, arrests cancer cell proliferation. Biochem. Pharmacol. 2019, 168, 71–81. [Google Scholar] [CrossRef] [PubMed]
  39. Saha, P.; Yeoh, B.S.; Xiao, X.; Golonka, R.M.; Abokor, A.A.; Wenceslau, C.F.; Shah, Y.M.; Joe, B.; Vijay-Kumar, M. Enterobactin induces the chemokine, interleukin-8, from intestinal epithelia by chelating intracellular iron. Gut Microbes 2020, 12, 1–18. [Google Scholar] [CrossRef]
  40. Zhou, H.-H.; Wu, D.-L.; Gao, L.-Y.; Fang, Y.; Ge, W.-H. L-Tetrahydropalmatine alleviates mechanical hyperalgesia in models of chronic inflammatory and neuropathic pain in mice. Neuroreport 2016, 27, 476–480. [Google Scholar] [CrossRef]
  41. Li, C.; Li, L.; Yi, Y.; Wang, W.; Yuan, J.; Tan, F.; Fang, D.; Zeng, S.; Zhou, H.; Jiang, H. L-tetrahydropalmatine attenuates cisplatin-induced nephrotoxicity via selective inhibition of organic cation transporter 2 without impairing its antitumor efficacy. Biochem. Pharmacol. 2020, 177, 114021. [Google Scholar] [CrossRef] [PubMed]
Jpm 13 00550 g001 550

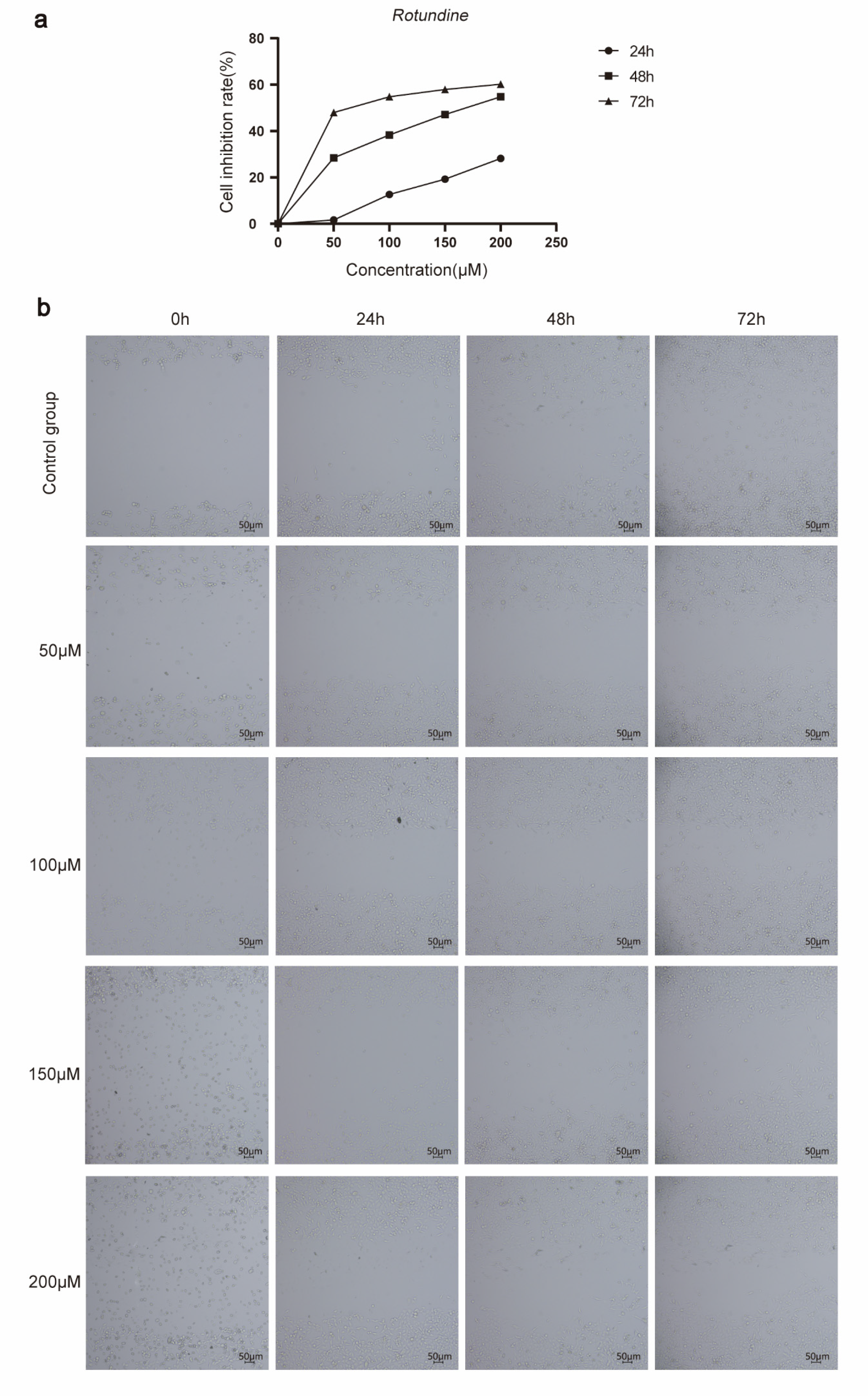

Figure 1. Rotundine intervention in SW480 cells experiments. (a) MTT assay. (b) Cell scratch assay.
Figure 1. Rotundine intervention in SW480 cells experiments. (a) MTT assay. (b) Cell scratch assay.
Jpm 13 00550 g001
Jpm 13 00550 g002 550

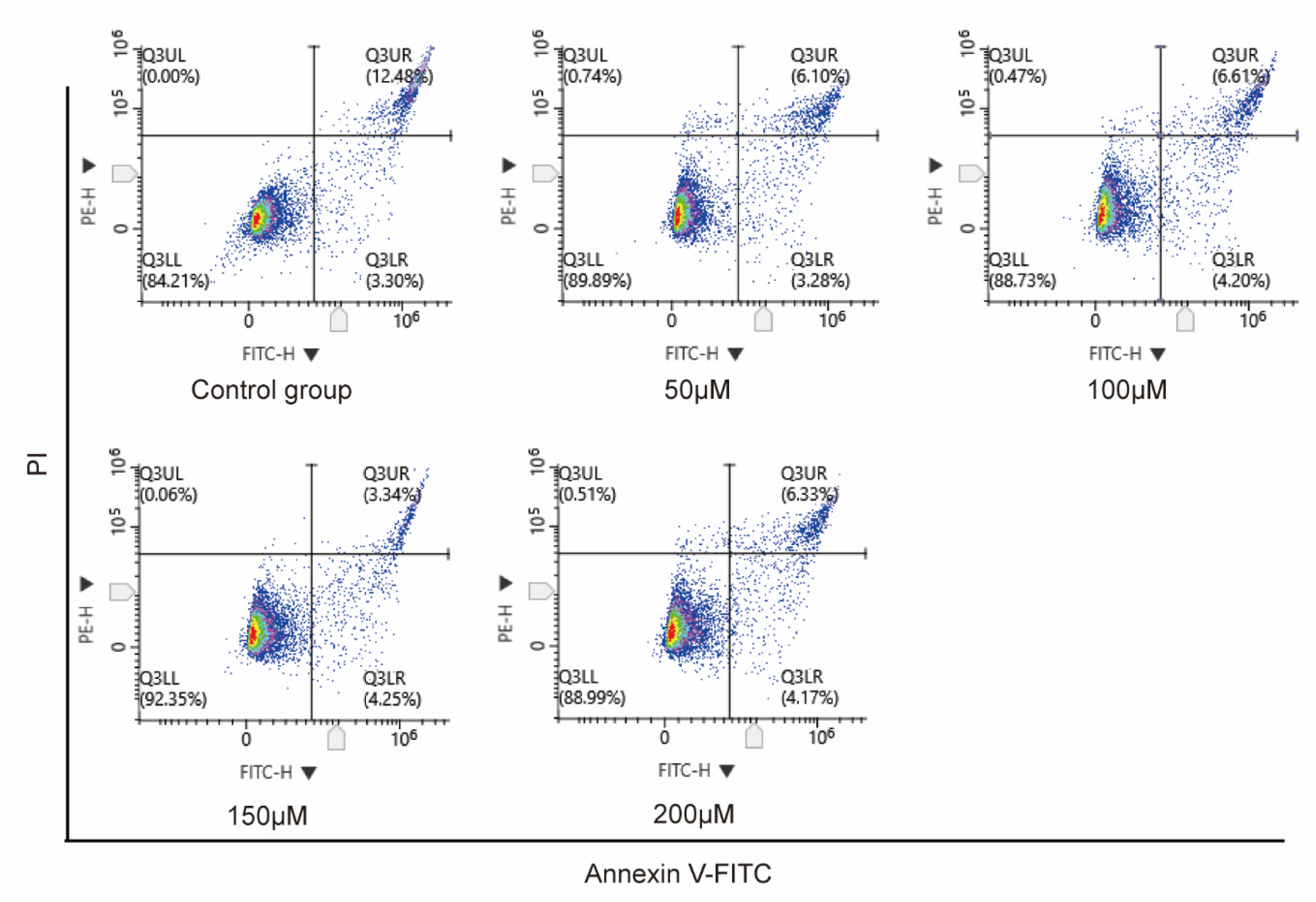

Figure 2. Cell apoptosis. Rotundine (0, 50, 100, 150, and 200 μM) intervention in SW480 was followed by annexin V-FITC/PI staining to assess cell apoptosis.
Figure 2. Cell apoptosis. Rotundine (0, 50, 100, 150, and 200 μM) intervention in SW480 was followed by annexin V-FITC/PI staining to assess cell apoptosis.
Jpm 13 00550 g002
Jpm 13 00550 g003 550

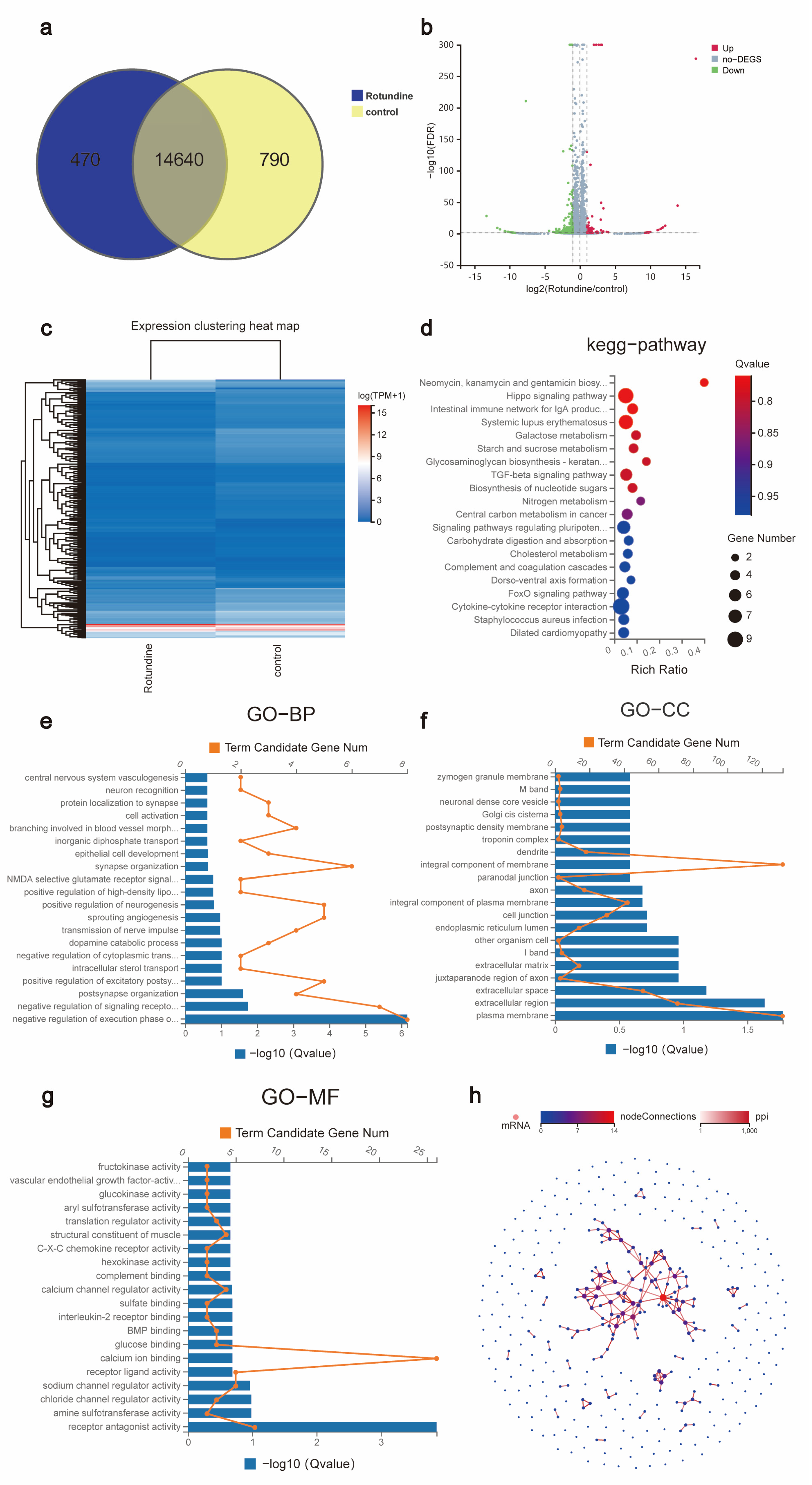

Figure 3. Identification and analysis of DEGs based on high-throughput sequencing. (a) High-throughput sequencing Venn diagram. (b,c) Distribution of DEGs in volcano and heat maps. (d) KEGG enrichment analysis. GO enrichment analysis including BP (e), CC (f), and MF (g). (h) PPI network.
Figure 3. Identification and analysis of DEGs based on high-throughput sequencing. (a) High-throughput sequencing Venn diagram. (b,c) Distribution of DEGs in volcano and heat maps. (d) KEGG enrichment analysis. GO enrichment analysis including BP (e), CC (f), and MF (g). (h) PPI network.
Jpm 13 00550 g003
Jpm 13 00550 g004 550

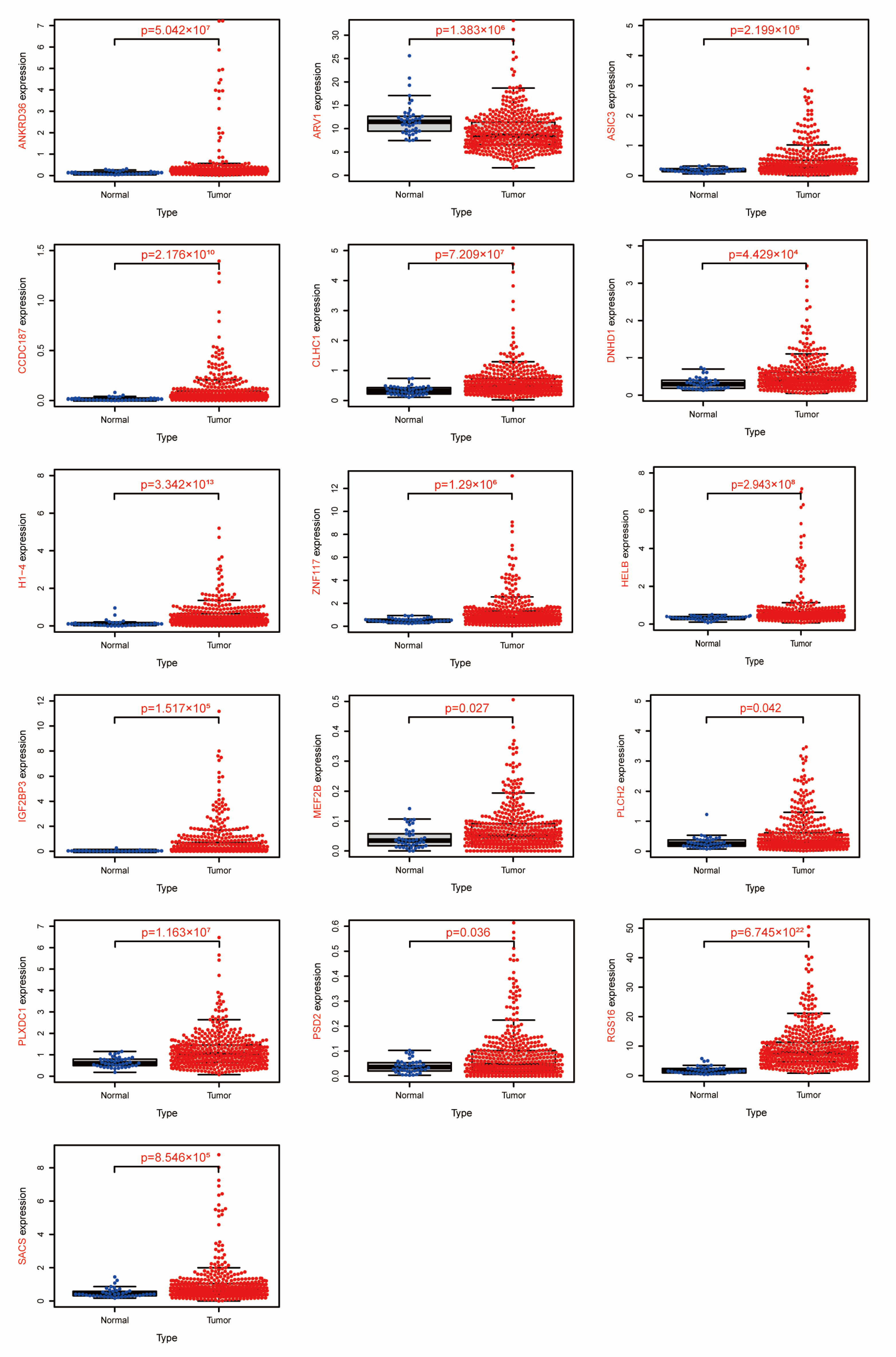

Figure 4. Expression of 16 DEGs in tumor tissues and normal tissues based on the TCGA-COAD cohort. Blue dots represent normal tissue and red represent colorectal cancer tissue.
Figure 4. Expression of 16 DEGs in tumor tissues and normal tissues based on the TCGA-COAD cohort. Blue dots represent normal tissue and red represent colorectal cancer tissue.
Jpm 13 00550 g004
Jpm 13 00550 g005 550

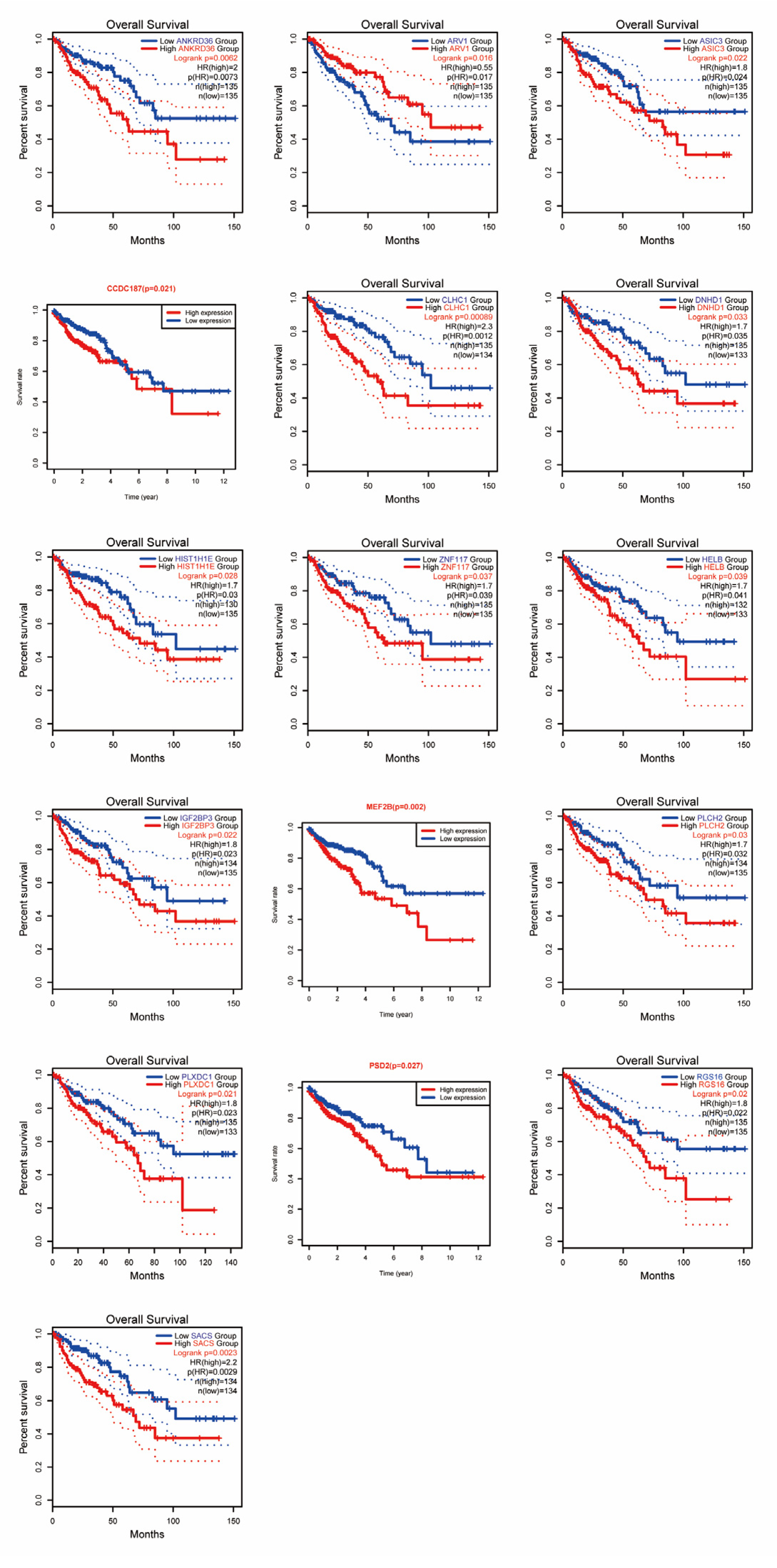

Figure 5. Correlation analysis of 16 DEGs with COAD prognosis.
Figure 5. Correlation analysis of 16 DEGs with COAD prognosis.
Jpm 13 00550 g005
Jpm 13 00550 g006 550

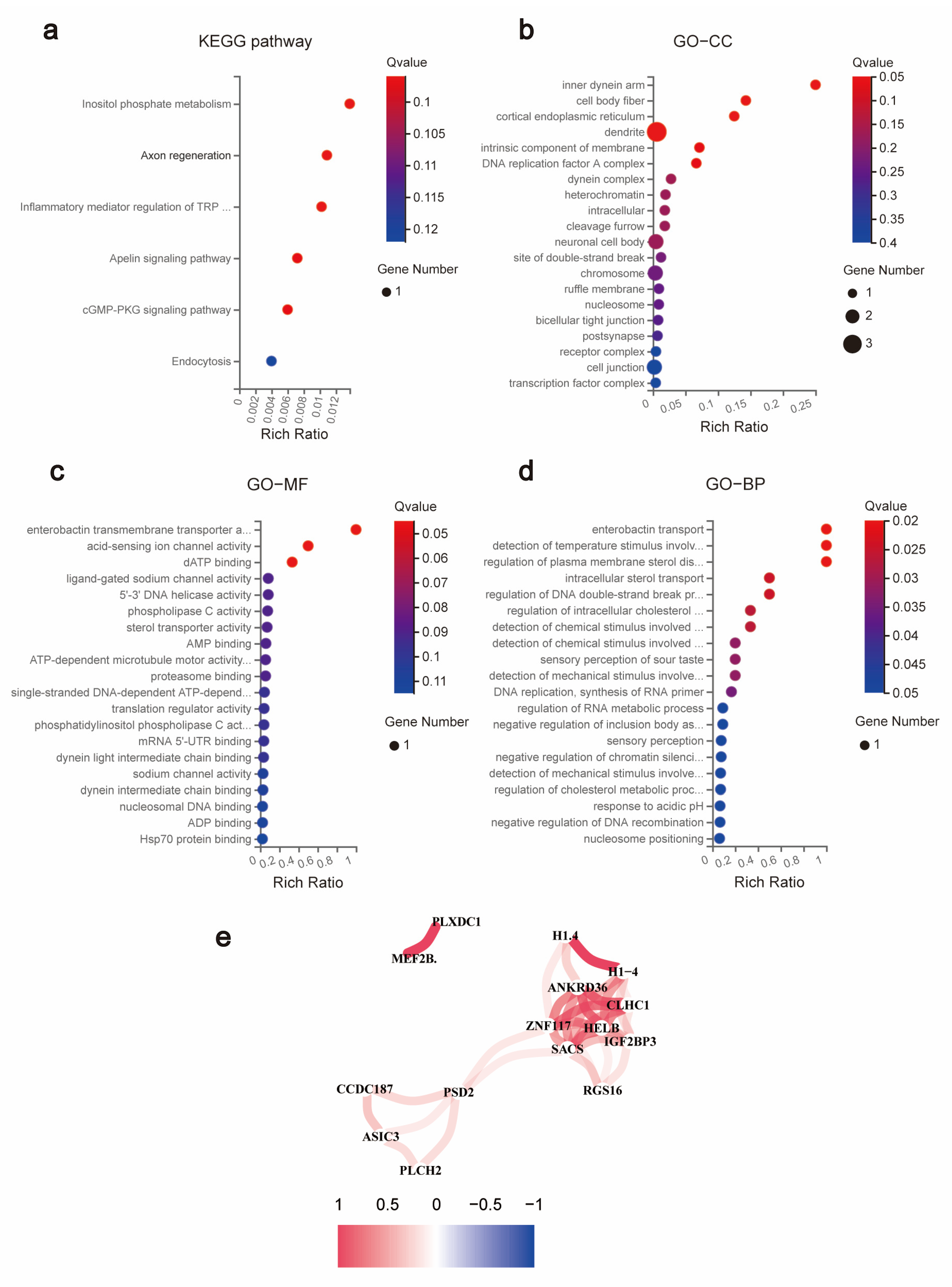

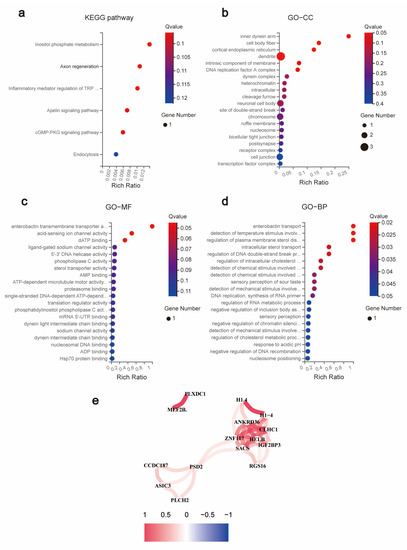

Figure 6. Functional enrichment and correlation analysis of 16 prognosis-related DEGs. (a) KEGG pathway analysis. (b) GO-CC analysis. (c) GO-MF analysis. (d) GO-BP analysis. (e) Correlation analysis.
Figure 6. Functional enrichment and correlation analysis of 16 prognosis-related DEGs. (a) KEGG pathway analysis. (b) GO-CC analysis. (c) GO-MF analysis. (d) GO-BP analysis. (e) Correlation analysis.
Jpm 13 00550 g006
Jpm 13 00550 g007 550

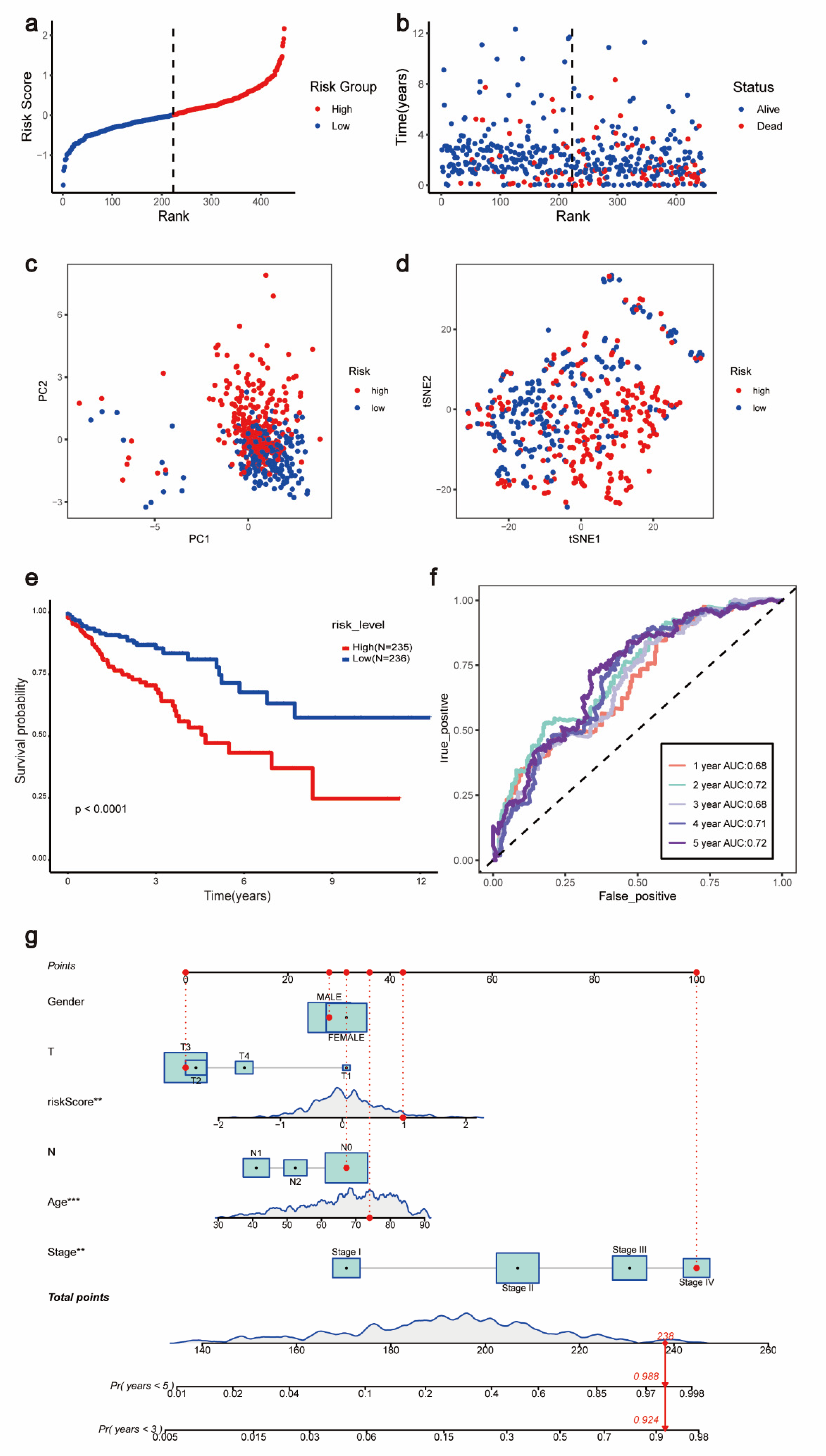

Figure 7. Validation of the prognostic model. The TCGA-COAD cohort was divided into high-risk and low-risk groups based on median risk scores. (a) risk curves. (b) risk scatter plots. (c) PCA. (d) t-SNE. (e) Kaplan–Meier plotter. (f) ROC curves. (g) Nomo plots. **, p < 0.01; ***, p < 0.001.
Figure 7. Validation of the prognostic model. The TCGA-COAD cohort was divided into high-risk and low-risk groups based on median risk scores. (a) risk curves. (b) risk scatter plots. (c) PCA. (d) t-SNE. (e) Kaplan–Meier plotter. (f) ROC curves. (g) Nomo plots. **, p < 0.01; ***, p < 0.001.
Jpm 13 00550 g007
Table
Table 1. The 385 differentially expressed genes (DEGs) obtained by high-throughput sequencing.
Table 1. The 385 differentially expressed genes (DEGs) obtained by high-throughput sequencing.
385 Differentially Expressed Genes (DEGs) Obtained by High-Throughput Sequencing
Gene IDGene SymbolTypelog2 (Rotundine/Control)FDR (Rotundine/Control)
100271849MEF2BmRNA−1.0744765050.005394141
9651PLCH2mRNA−1.7198920812.65 × 10−5
92797HELBmRNA−1.3870231230.008073432
9311ASIC3mRNA−1.553598334.19 × 10−7
84249PSD2mRNA−1.2016338610.005584584
6004RGS16mRNA−1.3325753391.51 × 10−4
64801ARV1mRNA1.6338721014.99 × 10−8
399693CCDC187mRNA−1.2326607570.004063028
57125PLXDC1mRNA−1.1069152040.004030209
10643IGF2BP3mRNA−1.1171971431.14 × 10−133
130162CLHC1mRNA−1.2823997311.86 × 10−5
144132DNHD1mRNA−1.225712789.33 × 10−8
26278SACSmRNA−1.1333620968.77 × 10−63
3008H1-4mRNA−3.0588936899.15 × 10−5
375248ANKRD36mRNA−1.0246271895.93 × 10−11
51351ZNF117mRNA−13.300924497.74 × 10−29
