1. Introduction
Three-dimensional technologies now form the basis of a significant expansion of diagnostic and treatment options in dentistry and oral surgery. These include devices such as the intraoral scanner, imaging techniques such as computed tomography (CT), cone beam-computed tomography (CBCT) and magnetic resonance imaging (MRI), as well as the corresponding treatment planning software and CAD/CAM systems. They pave the way for clinicians to significantly improve patient care while reducing treatment planning time [
1,
2]. These technologies allow the precise three-dimensional reproduction of anatomical structures. However, conventional orthognathic surgery planning is commonly done on computer-assisted two-dimensional surgical simulation systems, which rely on photographs and cephalograms [
3,
4]. Additionally, a facebow and bite records are used in order to adequately register the patients’ bite and jaw position in an articulator. This way, surgical displacements can be simulated using the patients’ cast models, as this is required for surgical splint manufacturing. Additionally, the lateral cephalometric X-ray is still used for planning orthognathic surgery, although this only provides a two-dimensional image and is not true to scale. While these methods are well established, the use of a mechanical articulator and two-dimensional imaging for planning three-dimensional procedures can lead to imprecisions. Planning and execution in orthognathic surgery is currently shifting from 2D to 3D, as more planning is done digitally and focuses on the jaw. In recent decades, however, computed tomography (CT), especially by cone-beam CT (CBCT), has become the gold standard for pre- and postoperative assessments, and CT superimposition is state-of-the-art when it comes to orthognathic surgical planning and evaluation. Positioning is done by moving jaws in all directions according to pitch, roll and jaw parameters, and the jaw needs to be placed correctly in the 3D space [
5,
6]. Swennen et al. introduced three-dimensional (3D) cephalometry with the 3D anatomic cartesian reference system, making the bridge between 2D and 3D assessments [
7]. Geometrical distortions in craniofacial malformations, craniofacial asymmetries, structural overlap and incorrect positioning of the head can affect the accuracy of the two-dimensional assessment [
8,
9].
Gateno et al. [
10], with their model of analysis, maintained what is positive in 2D cephalometry but attempted to overcome its limits. In their report, the authors presented a new three-dimensional cephalometry to compensate for the unreliability of internal reference systems, and render three-dimensional measurements more accurate, allowing for the lack of tools to assess and measure complex 3D anatomy. Today, in orthodontics and orofacial orthopedics, the cephalometric 3D analysis is an important tool. For some of the above problems in two-dimensional design, three-dimensional simulation systems using CBCT data have proven to be a solution. Such 3D cephalometry allows for a more detailed analysis of the craniofacial structure [
11]. With this approach, it is possible not only to detect more easily but also to quantify craniofacial malformations, asymmetries, longitudinal growth and small occlusal changes. The 3D images have been shown to more accurately capture anatomical information and provide more precise quantitative measurements compared to 2D images [
12]. Since most common cephalometric measurements have been shown to be compatible with 3D volumetric images, there is an effort to obtain a standardized reference for the craniofacial structure of normal dentofacial patterns in a population. In a 3D approach, craniofacial and maxillofacial segments can be defined and positioned by translation with respect to the three spatial axes (x, y and z), and adjustments are made by rotation about these axes, representing “roll”, “pitch” and “yaw” [
13,
14]. Whereas the technique of segmentation and movement is technically solved and can be easily performed, the unsolved problem in three-dimensional planning is the lack of a normative database of “norm skulls”, as these skulls can be used as the positioning data of jaw movements. Until now, digital surgical planning in terms of a definitive jaw position has been based more on “eye measurement”. Normative values of 3D cephalometry were obtained for different ethnic groups. Different facial characteristics and average values were found between ethnic groups, which should be taken into account in treatment planning [
15,
16,
17,
18,
19].
Due to recent advances in image processing techniques and the need for accurate craniofacial analysis, a three-dimensional (3D) approach to the cephalo-metric landmarks obtaining 3D computerized tomography (CT) images is gaining preference over the conventional 2D techniques [
20,
21,
22,
23]. Personalized medicine tends to incorporate intrinsic features in the planning of therapy. The question arises whether the overlay of norm skulls can be applicated more precisely to the phenotypic pattern of individual skulls. No one to date has analyzed whether skulls with a normal and balanced facial appearance, skeletal Class I pattern and a proper interincisal relationship with normal occlusion can be subdivided and clustered in groups, so we aimed to investigate 3D landmark positions biostatistically. That is, we wanted to investigate whether an analysis of skull shape based on a limited number of characteristic points would reveal statistically significant differentiable shapes. Our study was conducted with the aim of possibly identifying anatomical variations in a clinical attempt to evaluate treatment efficacy or enhance surgical planning accuracy in orthognathic and malformation surgery.
2. Materials and Methods
Anonymized cone beam-computed tomography (CBCT) of physiological human skulls of 90 Eurasian persons (46 male and 44 female adults) were used for the study. Inclusion criteria were skeletal angle class I pattern, proper interincisal relationship with normal occlusion, absence of an open bite both in the anterior and posterior region and a normal and balanced facial appearance. The study was conducted on all patients fulfilling the inclusion criteria from 2020–2022. The inclusion criteria were determined after a thorough clinical investigation. In addition, the Medical Faculty of the University of Münster provided one male and one female skull, which were scanned with a computed tomography (CT) in the highest resolution, in order to provide a template skull for further investigation in our study. The following parameters were used: CBCT: 576 × 576 pixel, pixel spacing 0.4 × 0.4 mm, slice thickness 0.4 mm; CT: 512 × 512 pixel, pixel spacing 0.36 x 0.36 mm; slice thickness 0.4 mm.
DICOM data were saved and subsequently imported into the open-source software 3D Slicer (version 4.11.2021,
www.slicer.org (accessed on 14 June 2023)). In order to create a virtual model of the facial skull, automatic threshold-based segmentation was performed. Artifacts triggered by prosthetic and conservative restorations were manually corrected in affected slices by using the tools “scissor” and “erase” in coronal view. Pseudo foramina were closed using the “paint” tool. The mesh was exported as an STL file and imported into MeshLab open-source software (version 2022.02,
www.meshlab.net (accessed on 14 June 2023)). The remaining artifacts of the created models were removed. The created data sets were exported to PLY format.
Afterwards, 18 different landmarks (
Table 1,
Figure 1) were tagged on each skull by the same person. The distances between the landmarks (
Table 2) and skeletal proportions (
Table 3) were defined to analyze skeletal phenotype patterns.
2.1. Evaluating Sexual Dimorphism
To analyze the gender-specific characteristics of the skulls, shapes were first defined on the basis of the recorded landmarks. For this purpose, the landmarks were arranged in an arbitrary but fixed order according to
Table 1. Next, they were registered, i.e., oriented and superimposed in a common coordinate system by a best-fit algorithm. This was achieved by means of a Procrustes transformation through translation, rotation and scaling [
23]. During the Procrustes analysis, a mean shape was also calculated for both sexes. Furthermore, the proportions listed in
Table 3 were determined for male and female skulls, respectively. To explore whether there are significant gender-specific differences in skeletal characteristics, the individual proportions of both groups were compared. After a test for normal distribution (Kolmogorov–Smirnov), this was done by
t-tests. The
p-values were adjusted by a Benjamini–Hochberg correction for multiple tests.
For the statistical evaluation of the collected data, as well as for all programming tasks, the statistic software and programming language “R” (version 4.2.2,
www.r-project.org (accessed on 14 June 2023)) was used. Procrustes analysis was carried out with the “R”-package “shapes”.
2.2. Identifying Sub-Phenotypes within the Sex-Specific Groups
For both sexes, a cluster analysis was performed. This machine learning approach groups similar skulls based on their characteristics and provides insight into potential subgroups within the population. Here, the method was used to identify potential sub-phenotypes within female and male skulls based on their proportions. This task was carried out by k-means-clustering with the “R”-package “factoextra”. The number of clusters has to be defined in advance and was set to two, both for practical consideration and in accordance with the outcome of the elbow-criterion for determining the optimal number of classes. The proportions for the sub-group of each sex were compared using pairwise t-test to determine if there are significant differences in skeletal characteristics between sub-phenotypes.
2.3. Creating Template Skulls
To create the template skull, mean shapes were calculated for each of the four groups identified in the previous analyses using generalized Procrustes analysis. Thus, two shape templates were calculated for both male and female skulls. One female and one male skull each were taken from the collection of the Medical Faculty of the University of Münster as source material for the standard skulls to be created. These skulls were scanned using computed tomography, and the images were segmented and converted into polygon models using Mimics (version 23, Materialise NV, Leuven, Belgium) and 3D Slicer software. Finally, for each of the two models, two morphed versions were created with the thin plate spline method (“R” package “Morpho”) by mapping the landmarks identified on them to the landmarks of the four mean-value shapes. This technique allows for a smooth deformation of e.g., 3D polygon objects by interpolation along control points [
24] which are represented here by the landmarks. In the present case, this causes the male and female template skulls to adopt the proportions of one of the two sub-phenotypes.
3. Results
Figure 2 shows the age distributions of the male (mean: 39.4 y) and female (mean: 33.9 y) test persons. For each person, a shape consisting of the 18 landmarks defined in
Table 3 was determined. In
Figure 3, the mean shapes for both sexes, as revealed by a Procrustes transformation, are displayed. The distributions of the individual proportions (
Table 3) were compared for male and female skulls (
Figure 4). Kolmogorov–Smirnov tests showed that all distributions could be assumed normal. Subsequently, male and female proportions were compared using
t-tests. The results (
Table 4) showed that, out of the eight investigated proportion, five were significantly different.
Next, for each sex, a “k-means” cluster analysis of the respective proportions with two clusters was carried out. The statistical comparisons of these clusters are shown in

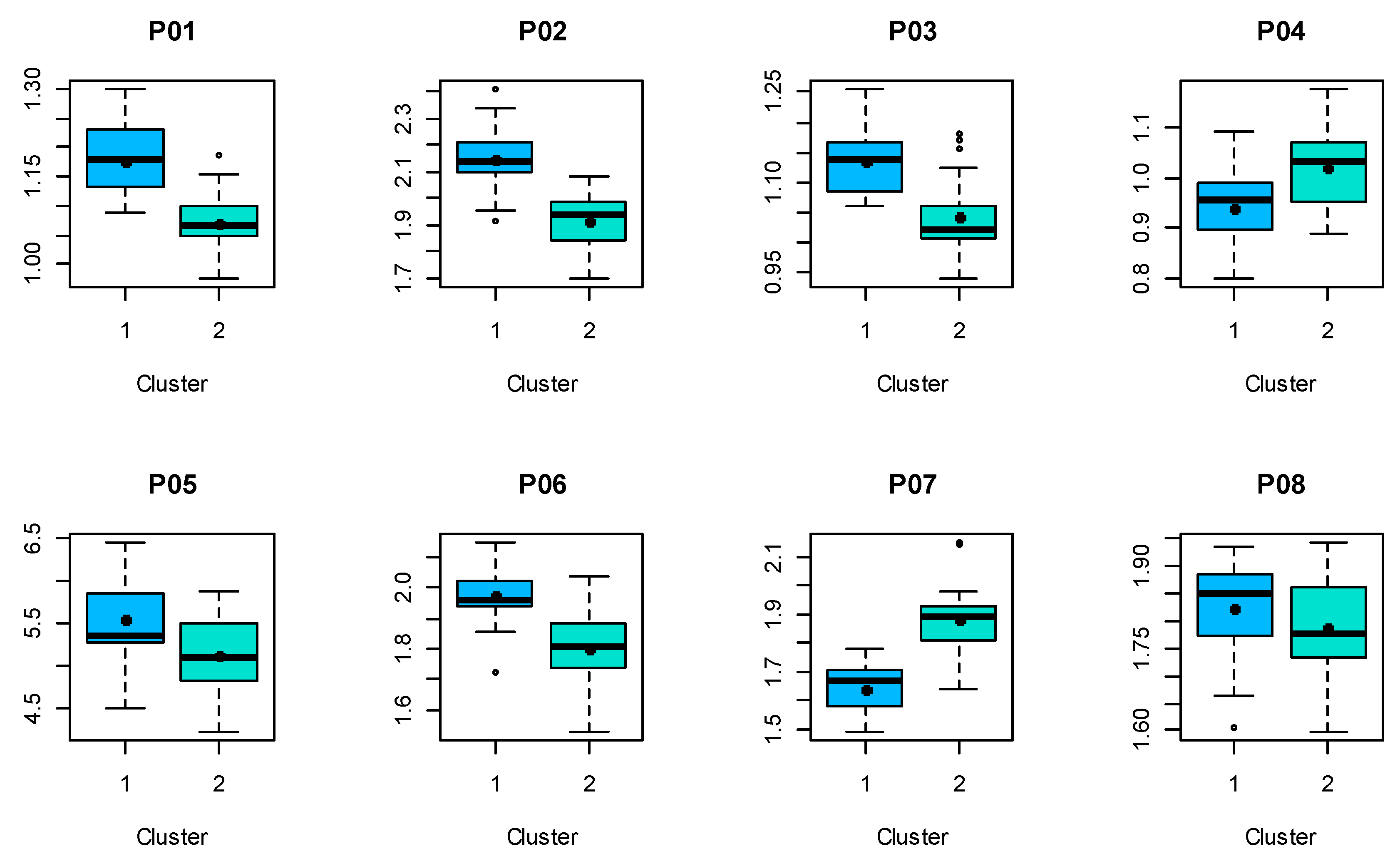

Figure 5 and
Figure 6 for the male and female proportions, respectively. The numerical results of the
t-tests are listed in
Table 5 (male) and
Table 6 (female), revealing that, in case of male shapes, seven out of eight proportions differ significantly, while this is the case for six out of eight in case of female shapes.
Based on these results, four normative skulls were constructed. For this purpose, a male and a female template skull were morphed to fit the mean shapes determined for each cluster. The results are displayed in
Figure 7 and
Figure 8.
4. Discussion
This study aimed to evaluate phenotypical variance in the adult Eurasian population. A special objective of our study was to analyze whether skulls can be distinguished according to parameters like gender or growth pattern subtypes. An overlay of one unaffected norm skull to a diseased one is currently in use to define the final jaw treatment position, so we aimed to improve the overlay strategy by having more individualized facial phenotypes. The present study defines four different norm skulls in the Eurasian population. These norm skulls can be used as templates in orthognathic surgery planning. They define the treatment objectives in surgical planning in Eurasian patients. Landmarks of CBCTs of dysgnathic patients can be implemented in a planning system, and their gender and phenotype makes it possible to match these patients with one of the four norm skulls.
Dental and maxillofacial patient evaluation and treatment planning is based on an individual dental, skeletal and soft tissue assessment. The implementation of new 3D techniques opened new possibilities in craniofacial research and clinics, as the 3D space mirrors the patients’ situation much more realistically then the 2D environment. CT and CBCT scans are important new tools in dentomaxillofacial diagnostics [
25]. The advances in imaging and the elaboration of new software systems have made 3D facial model reconstruction and 3D cephalometric measurement possible, creating a more precise database. The alternative—conventional 2D cephalometric or anthropometric analysis—is limited in all asymmetric patient situations. Different studies show that linear and angular measurements of 3D image models are accurate and reliable when compared with 2D cephalometric analysis [
26,
27]. Therefore, 3D technologies have become the modern method for evaluation of morphology or deformity.
Three-dimensional cephalometric standards are different in specific ethnic groups. Additionally, there is a range of variability in the normal anatomy of the craniofacial region. Some landmarks on the 2D and 3D system can be defined as similar points (especially in the lateral view), but the identification of the points in the 3D environment is more extensive. We defined and digitized all hard and soft tissue landmarks according to the definition of skeletal and Farkas for soft tissue by Swennen et al. [
14,
28]. These landmarks (
Table 1) can be reliably set on skeletal models in 3D CBCT or CT scans. They can be easily defined in the most appropriate planar CT or CBCT slice in the axial, coronal and sagittal views. Accurate landmark identification was achieved both for external (e.g., porion, gonion.) and internal (e.g., sella, basion) surface points. Some internal points are more complex to identify (e.g., the sella point), so the views of axial, coronal and sagittal images were used. However, a superimposition of a template skull with an actual case is most meaningful with regard to the nearest surrounding surfaces of the landmarks. Details on surfaces distant from them should be assessed with restraint.
One of the most commonly used 3D cephalometric analyses is based on the work of Gateno et al. [
10]. This analysis included six different sections and parameters that are all relevant in the surgical planning of jaw movements (symmetry, transverse, vertical, pitch, anteroposterior and shape). This concept of 3D cephalometric analysis was the basis of the presented work. We refined the reference system to evaluate the cranial skeleton in our study. This form of landmark definition and cephalometric analysis is in broad use, so the data in our study are valid for research and clinical application in a Eurasian population.
The statistical significance of the mean shape differences between male and female subjects in this study was a special finding. While a number of studies reported a marked sexual dimorphism in size and shape [
10,
29,
30,
31], no study up to now has shown that the phenotypical differences are statistically significant.
Our analysis revealed significant differences in most parameters between the genders. Studies from other authors in various ethnic groups confirm our findings [
16,
17,
18,
19]. Gender variances in our study were present mainly in linear measurement. We found that some parameters (skeletal and soft tissue vertical height), as well as the upper and lower lip length, were larger in our male samples. Our study confirms the findings of 3D phenotype norms in Hong Kong, as well as in the Korean and Turkish population [
14,
16,
19]. The findings that wider sagittal and transversal midfacial parameters were similar among Chinese in Hong Kong, Beijing and Korea were also seen in our study, contrasting findings from the North Karnataka population [
32]. Males in our study had a more prominent midface, assessed by the coronal plane through sella turcica, a phenotypical characteristic that was also presented by Cheung et al. [
16]. Concerning the lower facial region, a significantly longer mandibular ramus, mandibular body length and a wider gonial width were seen in our male subjects, matching the results of other cephalometric norm studies.
In addition to the gender-related differences, we found also significant differences in subgroups of the male and female Procrustes mean shapes. Our cluster analysis retained four biologically interpretable components. These are based on the orthodontically well-known types of growth pattern (dolichofacial vs. brachyfacial) and the sagittal expression of phenotype (maxillary and mandibular prognathism or mandibular retrognathism).
From a developmental, biological and clinical (surgical) point of view, different craniofacial components can be separated: the skull, the midface (with the skull base separating both) and the mandible [
33]. With the finding of only four skeletal norm phenotypes (two in each gender group) it becomes easier to plan craniofacial and orthognathic surgeries. Whereas separation (segmentation) of facial bones is an individual decision, the treatment goal can be defined through placement of bones in the individual norm skull phenotype.
There are other classification systems that divide phenotypes into three classes, e.g., based on the cephalic index. This index was introduced as a method of roughly typifying different head shapes with more or less arbitrary subdivisions within a continuous range of values that is presumed to have a normal distribution (see, e.g., [
34]). It is based only on one proportion, as it captures the ratio of skull width to skull length in the neurocranial region. The significance of this classification has long been questioned. In a study by Muralidhar et al. [
35], correlations between the cephalic index, the facial index and the interincisal distance were found. In this respect, a correlation between the cephalic index and our clusters could be investigated in a further study. In a recent study it was indicated that a correlation between volumetric proportions of four defined levels of the face and attractiveness might exist [
36]. It could therefore be a reasonable option to check treatment planning based on norm skulls by predicting its volumetric effects.
Our normative skulls are based on a large number of measurement points, in contrast to simple indices such as the cephalic index and the facial index. Here, eight proportions derived from 18 landmarks are used including the viscerocranium. Therefore, it should be easier to fit them to a patient skull using, for example, a Procrustes transformation. The development of a suitable approach to adapt the template to the current patient situation is the subject of an ongoing research project. One possibility under investigation is superposition based on landmarks in regions least affected by planned interventions by means of a Procrustes transformation. In contrast to other studies examining landmarks from CBCT’s [
37,
38], based on our cluster analysis, more precise therapy matching according to membership in one of the subgroups may be possible.
The findings of our study must be interpreted in light of the limitation of our study (age and ethnicity). Different populations and ethnic groups have different facial features and averages, which should be considered in the treatment planning. Limitations of the study are found in the inclusion criteria: no malformed patients were chosen as a distinct control group, no multi-center data were acquired and longitudinal observation data were not captioned, so growth development over time could not be analyzed.
Future areas of research should aim to investigate age-related growth characteristics and the extent of skull deformation in various pathologies (dysgnathic patients and patients with malformative syndromes including craniosynostosis, orofacial clefts and branchial arch diseases).
