1. Introduction
Obstructive sleep apnea (OSA) is a growing health concern involving about one billion people worldwide; it is characterized by episodes of vibration and collapse of upper airways during sleep, resulting in noise production (snoring), airflow decreasing (hypopnea) or cessation (apnea), oxygen desaturations, fragmentation of sleep, and daytime sleepiness [
1]. The first-line treatments that are frequently employed in moderate and severe OSA are continuous positive airway pressure (CPAP) and/or a mandibular advancement device (MAD) [
2,
3]; however, failure in long-term adherence to both treatments was reported in 25–50% of cases [
4]. These factors have led to significant advances in OSA and snoring surgery management over the past few years. In patients who do not tolerate or do not have good results with first lines treatments, OSA surgery is now a viable solution, thanks to newer, less invasive, or morbid treatments that also increase patient compliance [
5]. Among the surgical procedures for OSA treatment, palatopharyngeal surgery is one the most commonly performed [
6]. To preserve pharyngeal function and improve breathing space, oropharyngeal surgery for OSA has progressed from a significant removal of “redundant” soft tissue (resection techniques) to less invasive reconstruction techniques.
To reduce surgical procedures’ invasiveness and increase oropharyngeal stiffness in recent years, Vicini et al. [
7] made popular a new suturing technique known as barbed sutures pharyngoplasty (BP), which allows a knot-free tissue closure and a uniform distribution of tensile closure force [
8].
BP requires more surgical precision from the surgeon, following precise vectors in a submucosal plane during the procedure [
9].
Generally, the surgeon illuminates the operating field with his conventional headlight (photophore), but often this is not enough to achieve an optimal and uniform illumination of the entire surgical area. In addition, due to the depth of the oral cavity and often the narrow mouth of patients, it is difficult for trainees to correctly view all the steps of surgical procedures performed by the first surgeon.
In transoral surgical procedures the surgeon is often forced to assume uncomfortable positions for a long time [
10], with difficult exposure of the operating field and poor sharing of the procedure with assistants and trainees [
11].
A new device called KLARO
TM (

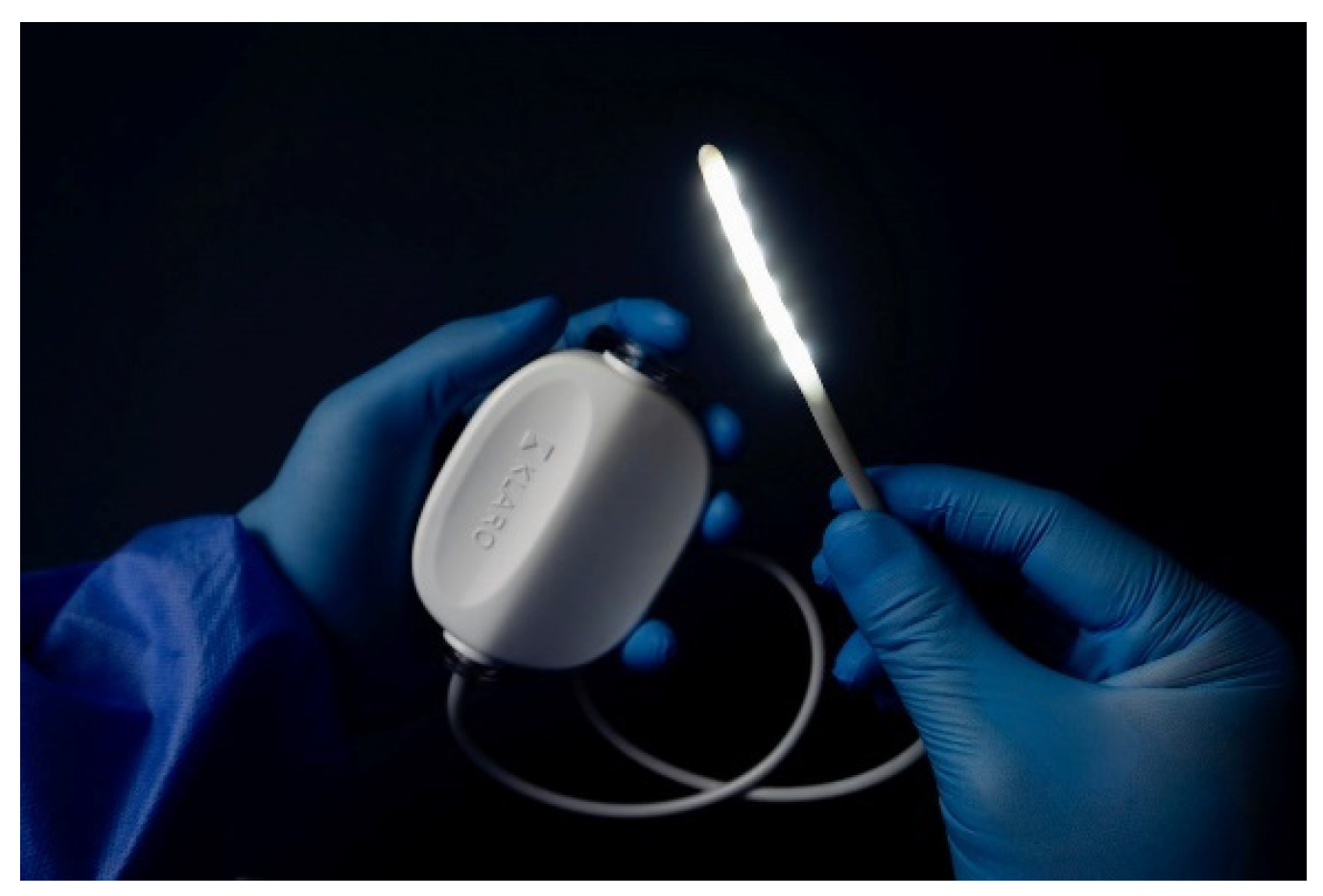

Figure 1) has been recently introduced to the market for the illumination of anatomical cavities during surgical operations. The KLARO
TM (Vivo Surgical Private Limited, Singapore) is a sterile and disposable surgical lighting device for deep cavities.
This work aims to describe our experience using KLAROTM as an additional illumination tool, especially in BP for OSA, to facilitate surgeons’ work and residents’ learning curve.
2. Materials and Methods
2.1. Patients’ Selection
We used the KLARO™ device in 15 consecutives patients (13 males, 2 females; median age 49.1 ± 9.87 years old) affected by moderate-severe obstructive OSA, who underwent BP at the Unit of Integrated Therapies in Otolaryngology at Campus Bio-Medico University Hospital Foundation from January to May 2022.
The inclusion criteria were OSA patients older than 18 years old, with a confirmed circular palatal collapse at drug-induced sleep endoscopy assessment, who refused or did not tolerate nasal CPAP therapy as first-line treatment. Furthermore, all the patients enrolled in the study showed good nasal patency, small tonsils (tonsil size 1 and 2 according to Friedman Staging System), BMI less than 30 kg/m2, and ASA < 2. Patients with age more than 70-year-old, with severe medical comorbidities, Mallampati grade IV were excluded from the study.
2.2. Surgical Procedure
The surgical technique used was Alianza Barbed Pharyngoplasty. It is performed under general anesthesia with orotracheal intubation; the patient is placed in supine position, and a Boyle–Davis mouth gag is used to expose the oropharynx.
It uses barbed absorbable sutures that allow suspending palato-pharyngeal structures to anatomical non-collapsible landmarks (posterior nasal spine, pterigoideal hamulus, pterigomandibular raphe) [
12].
We used two interlaced unidirectional barbed threads (Medtronic V-Loc™ 180, size 2–0 or 3–0, length 30 cm, mounted on taper-pointed 26 mm semicircular needle, absorption in 180 days, tensile strength 65% at 21 days) to obtain a bidirectional suture: each needle is passed in the looped-end of the other suture, then gentle traction is applied to tighten a “flat knot”.
To prevent the two looped ends being left protruding in the oral cavity, a tiny (3 mm) incision in the mucosa over the Posterior Nasal Spine (PNS) is made to sink them in [
8].
2.3. The Illumination Device
The KLARO™ comprises of a fully flexible 4.6 mm diameter LED light strip and a clip-like driver unit. The LED light strip can be safely placed deep inside an open surgical cavity. It is freely bendable and provides variable angles of wide illumination of over 180°. The driver unit can be fastened onto surgical drapes during use. The entire device is a single-use disposable that maintains a working temperature of below 38 °C over a 4 h lifespan, ensuring sterility and zero tissue-burns. KLARO™ is, therefore, appropriate for most open surgery applications.
The KLARO™ is registered and approved in several international territories, including the US FDA, European Union’s (EU) CE Mark, and Singapore’s Health Science Authority (HSA).
2.4. Mounting the KLAROTM Device on Tongue Retractor

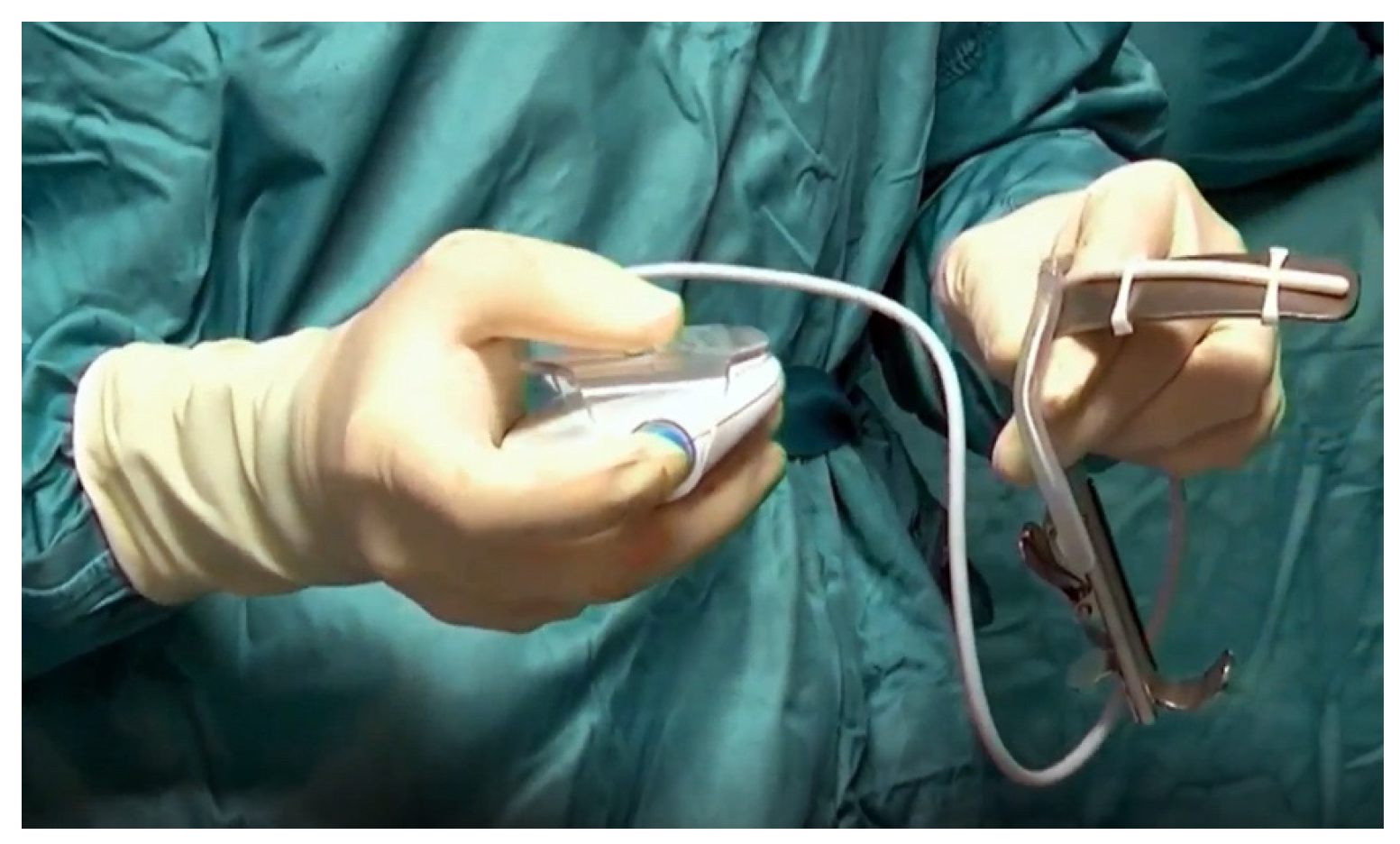

The device is provided with 4 Retractor Loops and 2 Mini Retractor Loops that enable the user to fasten the KLARO™ LED strip easily and quickly onto most surgical retractors in the market (
Figure 2).
2.5. Study Design
On each patient, the procedure was performed by an expert surgeon: on one half of the palate with the headlamp and the other half with KLARO

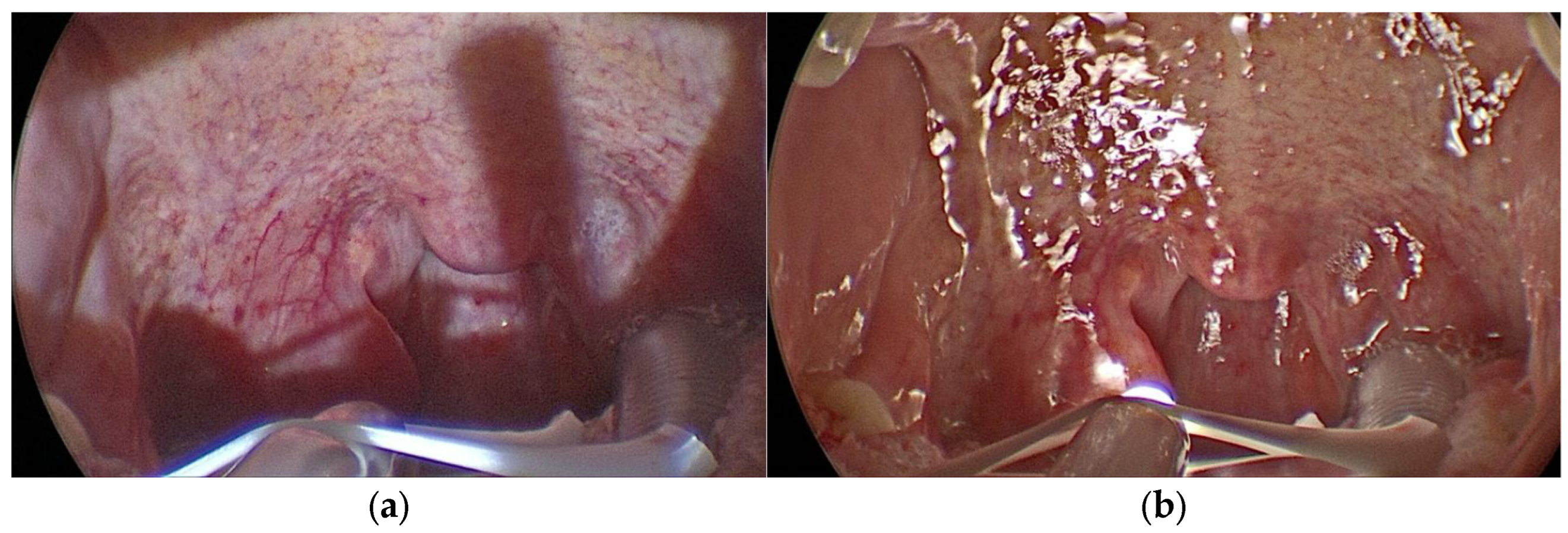

TM illumination system; the residents attended the surgical procedures, which were filmed with a 70° rigid endoscope and transmitted on the screen (
Figure 3a,b).
For the illumination system evaluation, we asked both the first surgeon and residents about the quality of vision of critical structures (Uvula, Posterior Pharyngeal Wall, Palatopharyngeus muscle, penetration and exit point of the needle, and Needle tip), grading it with a score from 1 to 3 (1 = poor vision, 2 = moderate vision, 3 = good vision).
2.6. Statistical Analysis
The comparison between KLAROTM and headlamp was made using a Wilcoxon’s signed rank sum test. Statistical significance was set at a p-value < 0.05, and the data were analyzed using R version 4.1.2 (R Foundation for Statistical Computing, Vienna, Austria).
3. Results
3.1. Intraoperative Quality of Visualization of Anatomical Structures According to the Surgeon: Headlamp vs. KLAROTM
The quality of visualization was statistically significantly better with KLARO
TM versus headlamp identifying the palatopharyngeal muscle fibers at the bottom of the tonsillar fossa, allowing us to perform delicate maneuvers such as entry and exit with the needle at the same point. No significant differences were reported for the visualization of the posterior pharyngeal wall and uvula (
Table 1).
3.2. Intraoperative Quality of Visualization of Anatomical Structures According to the Residents: Headlamp vs. KLAROTM
The quality of visualization on the screen was statistically significantly better with KLARO
TM versus the headlamp to identify the fibers of the palatopharyngeal muscle and to recognize the entrance and exit point of the sutures and the needle tip (
Table 2). The uniformity of vision and the absence of shadows on the screen during the use of KLARO
TM made the image more uniform and enjoyable (
Figure 3a,b). Also, the residents did not report significant differences for the visualization of the posterior pharyngeal wall and uvula.
4. Discussion
Palato-oropharyngeal remodeling surgery has become central in OSA surgical management, and barbed pharyngoplasties are innovative techniques in this field. Barbed pharyngoplasties allow the surgeon to lift and stiffen the soft palate and lateral pharyngeal walls to counter their hyper-collapsibility during sleep while preserving their anatomical and functional integrity.
The main limitations deriving from the execution of BP derive from the knowledge of barbed sutures and the narrow field in which it operates. The oral cavity is a structure that is not always easily attacked surgically, especially in OSA patients characterized by a reduced buccal opening and a hypertrophic tongue. Furthermore, the mouth is a space with reduced light, another factor that can limit the visualization of the structures.
Very often the surgeon illuminates the oral cavity with his conventional headlight (photophore), but often it is not enough to extensively illuminate the surgical site.
The KLAROTM lighting system proved in this preliminary study, it is possible to light up all the structures in the oral cavity, providing a better visualization than conventional methods for both surgeons and observers. All major surgical landmarks can be illuminated and visualized during barbed pharyngoplasty.
The limitations of this study include a small number of participants who used a KLAROTM lighting system to a single snoring and OSA center. This increases the potential of a response bias for quality of visualization of anatomical structure appraisal. We hope that in the future it will be used in other centers that perform barbed pharyngoplasty and for other kinds of oral surgery including oncological surgery. It could be very difficult to perform comparative studies in order to evaluate surgical outcomes and patients’ experiences. Surely, as a future prospective, we will evaluate both of these aspects.
5. Conclusions
The KLAROTM lighting system is a good and comfortable illumination device for oropharyngeal surgery that improves the surgeon’s ergonomics, providing a better visualization for observers learning of surgical procedures; the uniform illumination device allows us to identify the anatomical landmarks performing barbed pharyngoplasty accurately.
The KLAROTM lighting system is easily adaptable to the retractors thanks to its flexibility and adequate hooking systems, even if sometimes, especially in patients with Mallampati IV and/or reduced mouth opening can be cumbersome. Our experience with KLAROTM is focused on barbed pharyngoplasty for OSA, but we encourage the use of KLAROTM in all oral and pharyngeal surgeries, including tonsillectomy and oncological surgery.
Author Contributions
Conceptualization, M.C. and L.S.; methodology, L.S., A.M. and F.I.; formal analysis, L.G. and F.I.; investigation, F.I., A.M., S.D.G., L.S. and L.D.B.; data curation, L.G. and F.I.; writing—original draft preparation, A.M., F.I. and L.S.; writing—review and editing, L.D.B., L.S., A.D.V. and P.B.; visualization, A.D.V., P.B., C.V. and M.C.; supervision, A.D.V., P.B., C.V. and M.C. All authors have read and agreed to the published version of the manuscript.
Funding
This research received no external funding.
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
All data generated or analyzed during this study are included in this published article.
Acknowledgments
The KLAROTM was presented at the 3rd and 4th editions of the “Course on surgical innovations and new technologies in obstructive sleep apnea and snoring in the era of precision medicine” organized by the Unit of Integrated Therapies in Otolaryngology of Fondazione Policlinico Campus Bio-Medico of Rome. It was also used during the live surgeries of the same course.
Conflicts of Interest
The authors declare no conflict of interest.
