Characterization of Sintered Aluminium Reinforced with Ultrafine Tungsten Carbide Particles

by
Omid Emadinia
1,2,*,
Maria Teresa Vieira
3 and
Manuel Fernando Vieira
1,2
1
Department of Metallurgical and Materials Engineering, Faculty of Engineering, University of Porto, Rua Dr. Roberto Frias, 4200-465 Porto, Portugal
2
LAETA/INEGI, Institute of Science and Innovation in Mechanical and Industrial Engineering, Rua Dr. Roberto Frias, 4200-465 Porto, Portugal
3
Centre for Mechanical Engineering, Materials and Processes, Department of Mechanical Engineering, University of Coimbra, Pinhal de Marrocos, 3030-788 Coimbra, Portugal
*
Author to whom correspondence should be addressed.
Metals 2020, 10(11), 1416; https://doi.org/10.3390/met10111416
Submission received: 7 October 2020 / Revised: 19 October 2020 / Accepted: 21 October 2020 / Published: 25 October 2020
(This article belongs to the Special Issue Strengthening Mechanisms in Metallic Materials)

Abstract

:
The strengthening effect on aluminium (Al) by ultrafine particles of tungsten carbide (WC) after compacting and sintering was evaluated. The Al-1 vol.% WC mixture was prepared through a high-speed stirring technique, called assisted sonication. In this study, the effects of compacting, sintering temperature and holding time were evaluated by composite microstructural characterization and by mechanical tests. The characterizations involved electron dispersive spectroscopy and X-ray diffraction techniques for phase identification; electron backscattered diffraction for crystallographic analysis; backscattered electrons and secondary electrons imaging for failure and wear studies. In all composites, hardness was determined; for the hardest composite, the tensile strength, flexural strength and ball scattering wear resistance were also evaluated. The Al-1 vol.% WC composite produced by assisted sonication, densified by cold compacting at 152 MPa and sintered at 640 °C for 2 h at 5 × 10−4 Pa (high vacuum) exhibited the highest hardness, associated with an acceptable ductile behavior. This strengthening was associated with the formation of Al12W and grain refinement.

1. Introduction

Aluminium alloy matrix composites are very appealing for human mobility industries due to their high specific properties, allowing the development of faster, more efficient and inexpensive means of transport. Al alloys and particularly their composites are widely used in automotive and aeronautic structural applications [1,2]. These metallic matrix composites are usually reinforced with ceramics such as oxides, borides, nitrides and carbides [3]. The tungsten carbide (WC), which has high hardness and rigidity and Young’s modulus of 670–700 GPa [4], has attracted some researchers to use this material as a reinforcement of the Al matrix, applying powder metallurgy (PM) [5], accumulative roll bonding [6], stir casting [7] and friction stir processing [8].
Liu et al. [6] commented on the increase in hardness, tensile and wear properties of an AA1060-3 vol.% WC composite (particles with an average size of almost 3 μm), produced by 13 accumulative roll bonding cycles. This mechanical response was associated with an increase in the number of dislocations, without the formation of new phases. Ravikumar et al. [7] highlighted the efficacy of adding 8 wt.% of WC (D50 = 53–75 μm, mixed by stir casting technique) in the yield and tensile strength of the AA6082-WC composite; however, they mentioned a progressive decrease in density, impact strength and ductility of the composite with increasing reinforcement concentration. These authors did not mention the formation of any transformed phase, though they performed X-ray analysis. Huang et al. [8] produced AA5083 composite through friction stir processing to distribute WC particles (with 4 μm average size) in the Al matrix. These authors highlighted the positive effect of increasing WC concentration on hardness, yield and tensile strengths but deteriorating the plastic deformation capacity of the Al matrix. The excellent interfacial bonding between WC reinforcements and the Al matrix, without the formation of reaction products, promotes load transferring as the primary strengthening mechanism; besides, these authors mentioned the formation of nanoparticles that can trigger the pinning effect on dislocation movements (Orowan mechanism) during plastic deformation. Borodianskiy and Zinigrad [9] remarked the influence of WC nanoparticles on grain refinement in pure Al and A356 alloy and the modification effect in the alloy produced by PM and stir casting. These works showed that, as in other metal matrix composites [10], several strengthening mechanisms can be activated in Al-WC composites depending on the characteristics of the reinforcements and processing history, namely, grain refinement, load transferring, dispersion hardening and thermal/modulus mismatch effects.
Powder metallurgy (PM) processes involve a mixing step. Ball milling is the most promising mixing process in order to obtain homogeneous composites [5]. However, the production of Al composites through ball milling, as mixing procedure, should be carried out in an inert or reducing atmosphere to prevent Al oxidation. The milling process is long; its duration strongly influences densification and strengthening and, generally, the more hours of milling, the better the improvement [11].
Razavi and Mobasherpour [12] produced AA7075-WC composites with different WC contents by ball milling for 20 h and hot pressing at 300 MPa and 430 °C for 15 min. Increasing WC amount reduces the relative density and ductility and increases the hardness; the tensile strength reaches the maximum value for a 20 wt.% of WC. Simon et al. [13] mixed Al powders with WC powder particles (D50 = 1 μm) by ball milling and found that the prolongation of the milling time increases the density obtained but decreases the wear resistance and hardness for most composites produced. These authors confirmed the formation of Al12W during sintering at 580 °C in nitrogen for 20 min. Evirgen and Öveçoglu [5] remarked the effectiveness of high-energy ball milling in the hardening and densification of an Al–2Cu–7WC (wt.%) composite produced using elemental powders of Al, Cu and WC, with 10, 30 and 3 μm average particle sizes, respectively. The mixed powders were cold pressed at 220 MPa and sintered at 650 °C for 4 h in an Argon atmosphere. These authors attributed the hardening effect to the formation of the Al12W phase.
This study assesses the effect of processing conditions on the microstructure and mechanical properties of an Al-WC composite produced by powder metallurgy (which involves mixing, compacting and sintering). An innovative aspect of this work is the use of assisted sonification as the mixing method, which allows a significant reduction in time when compared to ball-milling. The use of pure Al allows more precise identification of the hardening mechanisms involved as it avoids possible hardening by solid solution and second phase. The matrix of Al was reinforced with 1 vol.% of ultrafine WC powder particles. This small concentration was used to prevent a considerable increase in density and to benefit the effect of WC particles; the cited works have shown that there is a decrease in the mechanical properties of the composites at high WC concentrations. The optimization of the processing conditions is essential to maximize the properties of the composite and enhance its future application.

2. Materials and Preparation

Alfa Aesar supplied a 99.8 wt.% pure Al powder. This powder consisted of particles with D50 of 10 µm and very irregular morphology, as shown in Figure 1a, due to the gas atomization production process. The Al powder particles were composed of fine polycrystalline grains; Figure 1b shows one of these particles with an average grain size of 0.8 µm. The WC powder, from H.C. Starck Tungsten GmbH, had a purity of 99.8%, a D50 of 0.33 μm and an angular shape (Figure 1c). The mixture of Al powders with 1 vol.% WC (5.5 wt.%) was made using the assisted sonication method. Figure 2a illustrates the three stages of the dispersion procedure, de-agglomerating WC particles in isopropanol using Ultrasonic bath (BANDELIN electronic, Berlin, Germany) for 15 min (Figure 2(a1)), dispersing Al powder particles also in isopropanol (SIGMA-ALDRICH, St. Louis, MO, USA) at 3000 rpm for 5 min (Figure 2(a2)) and then mixing these two dispersions and applying simultaneous dispersing by Ultrasonic bath and 11,000 rpm for 5 min (Figure 2(a3)), after which the mixture was drained and dried in an oven (EHRET, Emmendingen, Germany) at 80 °C for 1 h. Figure 2b shows that the WC particles were dispersed among the Al powder particles.
The Al-1 vol.% WC powders mixture was cold compacted by uniaxial compression, with 76 or 152 MPa, into discs with diameters of 10 mm and 30 mm and height of 3 mm. These discs were sintered under the conditions indicated in Table 1 in a horizontal electric furnace (Termolab, Águeda, Portugal) with an alumina ceramic tube. Similar samples of Al powder were prepared with identical conditions and sintered simultaneously with the composite samples for comparison purposes. From sintered samples, specimens for mechanical tests were prepared by electro-discharge machining.
Microstructural characterization involved optical microscopy (OM), using the Leica DM 4000 M equipment (Leica Microsystems, Wetzlar, Germany) and scanning electron microscopy (SEM), with the FEI-Quanta 400 FEG equipment (FEI Company, Hillsboro, OR, USA), through secondary electrons (SEM/SE) and backscattered electron (SEM/BSE) imaging modes. Electron dispersive spectroscopy (SEM/EDS) (Oxford Instrument, Oxfordshire, UK), as a semi-quantitative analysis, was applied to determine the chemical composition of phases. Crystallographic information was obtained by electron backscatter diffraction technique (SEM/EBSD), using TSL-EDAX EBSD Unit and TSL OIM Analysis 5.2 software (EDAX Inc., Mahwah, NJ, USA). Phase identification was performed by X-ray analysis using PANalytical diffractometer (Malvern Panalytical, Malvern, UK) equipped with a CuKα radiation source (1.540598 Å), carried out with a scanning rate of one second per step, using the X’Pert HighScore Plus software (version 2.2b (2.2.2), Malvern Panalytical, Malvern, UK).
The mechanical characterization involved microhardness measurements to determine the strengthening effect of WC in Al matrix, carried out using Struers Duramin equipment (Struers, Ballerup, Denmark), at a 0.490 N load (HV 0.05). Subsequently, the reinforcement effect analysis was complemented by tensile and flexural strength measurements, failure analysis and wear abrasive resistance evaluation of the hardest composite obtained in this study. The tensile and flexural properties were measured by a Shimadzu Table-Top universal tester equipment (SHIMADZU EUROPA GmbH, Duisburg, Germany); the flexural characteristics measured by a three-point bending test. The wear resistance test was performed using a micro ball cratering method (PLINT TE 66 Micro-Scale Abrasion tester equipment) (Phoenix Tribology Ltd, Berkshire, England), with a mixture of ionized water and 2 vol.% of black silicon carbide (with particles of 99.9% purity and average particle size less than 3 µm).

3. Results and Discussion

3.1. Microstructural Characterization of the Al-1 vol.% WC Composite

Figure 3 shows the effect of the holding time on the porosity of the composite. For a holding time of 1 h, the sintered specimen has much larger and more frequent porosities (black regions in the figure) than the one sintered for 2 h. This difference is explained by the positive effect of time on mass transport mechanisms, such as volume diffusion [14], responsible for eliminating porosity. This figure also shows that 2 h of holding time, even using the lowest compacting pressure, is sufficient to eliminate a significant part of the porosity during sintering. Density analysis, performed by dimensional and weight measurements, revealed a relative density of 65% and 80% for the composite specimens produced with 76 MPa/630 °C/2 h and 76 MPa/640 °C/1 h, confirming the effectiveness of an increase in sintering temperature in composite densification. The compound produced under the most demanding processing conditions, 152 MPa/640 °C/2 h, is the densest, with a relative density of 95%.
Figure 3 also shows the presence of a new phase (light gray particles). EDS maps were made to characterize this new phase, which is more evident in Figure 4. The EDS maps show that the white areas are composed of W and C and represent the initial WC; the gray areas, which in Figure 4 are larger than the WC particles, are rich in Al and W. The presence of C in this phase is practically not detected. These maps confirm the formation of a new phase, consisting of Al and W, formed during sintering and dispersed in the matrix of Al. This phase is probably Al12W, according to the stoichiometry obtained by EDS analysis, which is consistent with other studies [5,13]. The C resulting from this reaction appears to be in the crystal lattice of this new phase or formed as Al4C3 at the interface which has not been detected by SEM techniques, thus further evaluations will be required by high resolution transmission electron microscopy analysis, as future works. The identification of the strengthening mechanisms must consider the formation of Al12W.
Moreover, in Figure 3a no cracks or discontinuities were observed at the interface between the second phase and matrix. This good interface bonding is important in improving the mechanical properties of the Al-W composites by the load transfer mechanism.
An XRD analysis was performed to verify the phases formed during the sintering step. Figure 5 confirms the presence of the phase Al12W in the composite (indexed by reference pattern number 00-008-0331 of ICSD files) and non-transformed WC reinforcement (reference pattern number 00-004-0787 of ICDD and 01-072-0097 of ICSD, respectively). The formation of any other phases, such as Al4C3 or Al4W, was not detected. A similar study revealed that the products resulting from the transformation during sintering depend on the particle size of the powder [15].
EBSD analysis performed on the non-reinforced and reinforced specimens reveal that the strengthening of this composite can also be attributed to the grain refinement mechanism. This effect is clearly seen comparing Figure 6a,b. The densified pure Al has an average grain size of 3.4 μm, smaller than the D50 of the Al powder, which is more than double that of the Al-1 vol.% WC composite (average grain size of 1.5 μm, excluding the second phase particles). The grain distribution charts (Figure 6c,d) show that grains larger than 10 μm are almost absent in the composite microstructure. This refinement has been caused by the presence of ultrafine WC particles and/or by the formation of Al12W that hindered the grain boundary movement process during sintering. Making the grain boundary movement difficult can also have negative aspects because it delays the elimination of pores during sintering. However, this effect can be overcome by increasing the sintering time (see Figure 3).
This EBSD analysis also confirmed the formation of the Al12W phase (green zones in Figure 6b) in the microstructure, for almost 10%.
This microstructural characterization demonstrated that several factors must be considered when analyzing the mechanical response of aluminum reinforced with WC, some of them with the opposite effect. For example, the formation of Al12W is achieved by the partial or total reaction of the WC particles with the Al matrix.

3.2. Mechanical Behaviour of the Al-1 vol.% WC

The strengthening behavior of the Al-1 vol.% WC produced in this study was evaluated by micro hardness measurements. The graph illustrated in Figure 7 shows the hardness evolution as a function of the processing conditions (sintering temperature, holding time and compaction pressure). The increase in sintering temperature by 10 °C (from 630 to 640 °C) promotes an increase in hardness from 23 to 35 HV, i.e., an increase of 52%; however, quadrupling the holding time (from 0.5 to 2 h) caused only a 25% increase in hardness (from 28 to 35 HV). Moreover, doubling the compaction pressure (from 76 to 152 MPa) resulted in an increase in hardness of only 11% (from 35 to 39 HV).
These results highlight the effectiveness of temperature in increasing hardness. This effect cannot be dissociated from the increase in density with processing conditions, as previously reported. Some authors have presented similar results, the growth of hardness with densification being highly affected by the sintering temperature [16].
The mechanical response of the hardest composite was also analyzed using tensile and three-point bending tests. For comparison, non-reinforced Al sintered under the same conditions was also tested. Table 2 shows the mechanical properties of non-reinforced Al and Al-1 vol.% WC composite produced at 152 MPa/640 °C/2 h in high vacuum (5 × 10−4 Pa). From the analysis of the table, the strengthening effect of the addition of WC is evident, promoting an increase in yield strength for 75% and in the ultimate strength for 35%, associated with the increase in hardness by 39% mentioned above. This mechanical tensile behavior of the composite occurs with a comparative reduction in ductility for 3%. The strengthening effect was also detected in bending tests; the flexural strength of the composite is 58% greater than that of unreinforced aluminum. The maximum bend angle has been achieved without fracturing in both specimens; no cracks were visible on the most deformed surfaces.
A failure analysis was performed on the fracture surfaces of the tensile specimens (Figure 8); SEM observations revealed the presence of dimples in samples of non-reinforced Al and Al-1 vol.% WC. These dimples are associated with a ductile fracture with the crack formed from microcavities. In the composite, the formation of those microcavities is facilitated, reducing the ductility, by the decohesion in the particle/matrix interface. As can be seen in Figure 8d, there are areas with particles embedded in the bottom of the dimples of the composite specimen.
The decohesion at the particle/matrix interface (seen in Figure 8d) indicates that the load transfer mechanism becomes less effective with the increase of plastic deformation.
WC particles were expected to increase the wear resistance of the Al-WC composite compared to non-reinforced Al. However, the results of abrasive wear resistance during ball cratering test showed the opposite, as displayed in Figure 9. In this figure, the increase in wear can be observed with the increase in the applied load (Figure 9a) and with the increase in the sliding distance (Figure 9b), always maintaining the non-reinforced Al with a better performance.
Microscopic observations (Figure 10) indicate that the wear mechanism was grooving for both the non-reinforced Al and the Al-WC composite; however, the groove morphology does not look the same. These observations seem to indicate that the particles of the hard phases, WC and Al12W, did not maintain the bond to the aluminum matrix and acted as extra abrasives, contributing to more significant abrasion. Other authors mentioned similar behavior, observing the influence of the insufficient bonding between the matrix and the reinforcements [17].
In summary, the mechanical properties (except abrasive wear resistance) of a pure Al increased with the addition of 1 vol.% of ultra-fine WC powder that was dispersed with the Al powder by the assisted sonication technique. The powders mixture was cold compacted with 152 MPa and densified at 640 °C for 2 h in high vacuum. The comparison of the Al-1 vol.% WC with the non-reinforced Al, both produced under the mentioned processing conditions, shows that the composite is 39% harder and exhibits an increase of 75%, 35% and 58% in yield strength, ultimate strength and flexural strength, respectively. Microstructural characterizations were performed to identify the strengthening mechanism(s) activated in this system. The primary mechanism must be associated with the presence of WC and Al12W particles. The latter particles are coarser, more abundant and result from the reaction of the WC with Al during sintering. The WC and Al12W particles are effective obstacles to the movement of dislocations, explaining the increase in mechanical resistance. Another mechanism associated with this strengthening is the grain refinement resulting from restrictions on the movement of grain boundaries (and powder particles surfaces) caused by these particles. This mechanism has the advantage of not adversely affecting the ductility of the composite. The load transfer mechanism is also important in strengthening the composite, being more effective at the beginning of the plastic deformation where there are still no discontinuities between the particles and the interface.

4. Conclusions

An assisted sonication technique dispersed aluminum powder particles with D50 of 10 μm with 1% by vol. of tungsten carbide powder particles with a D50 of 0.33 μm. This powder mixture was cold compacted and vacuum sintered. The densification of the Al-1 WC composite was obtained by increasing the sintering temperature and the holding time; processing conditions also contributing to the increase in hardness. The hardness of this composite, produced after compacting at 152 MPa and sintering at 640 °C for 2 h in vacuum, increased by 39% compared to non-reinforced Al. The yield strength and ultimate tensile strength of the composite increased by 75% and 35%, respectively, with a reduction in elongation for only 3%. The ductile aspect of the fracture surface, with small dimples, is consistent with this maintenance of elongation. However, this composite did not show resistance to abrasive wear, as assessed by the ball crater test. This mechanical behavior is associated with the WC particles and the Al12W phase formed during sintering. In addition to the presence of these particles, the grain refinement also contributed to the strengthening and ductility of this Al-1 vol.% WC composite.

Author Contributions

Conceptualization, O.E.; formal analysis, O.E.; funding acquisition, M.F.V.; investigation, O.E.; methodology, O.E.; resources, M.F.V.; supervision, M.T.V. and M.F.V.; validation, M.T.V. and M.F.V.; visualization, O.E.; writing—original draft, O.E.; writing—review and editing, M.T.V. and M.F.V. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by Portuguese funds through UIDB/00285/2020, UIDB/50022/2020 and UIDP/50022/2020 projects funded by FCT (Fundação para a Ciência e a Tecnologia), Portuguese public agency.

Acknowledgments

The authors would like to express thanks from CEMUP (Centro de Materiais da Universidade do Porto) for assistance with SEM, the department of Mechanical Engineering at the Faculty of Engineering—University of Porto for providing the Ball cratering test equipment, and also CINFU (Centro de Formação Profissional da Indústria de Fundição) for cutting aluminium specimens.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Williams, J.C.; Starke, E.A. Progress in structural materials for aerospace systems1. Acta Mater. 2003, 51, 5775–5799. [Google Scholar] [CrossRef]
  2. Koli, D.K.; Agnihotri, G.; Purohit, R. Advanced Aluminium Matrix Composites: The Critical Need of Automotive and Aerospace Engineering Fields. Mater. Today Proc. 2015, 2, 3032–3041. [Google Scholar] [CrossRef]
  3. Baron, C.; Springer, H. Properties of particle phases for metal-matrix-composite design. Data Brief 2017, 12, 692–708. [Google Scholar] [CrossRef] [PubMed]
  4. WC Properties. Available online: http://matweb.com/search/datasheet.aspx?MatGUID=e68b647b86104478a32012cbbd5ad3ea (accessed on 21 August 2020).
  5. Evirgen, A.; Öveçoğlu, M.L. Characterization investigations of a mechanically alloyed and sintered Al–2wt%Cu alloy reinforced with WC particles. J. Alloys Compd. 2010, 496, 212–217. [Google Scholar] [CrossRef]
  6. Liu, C.; Wang, Q.; Jia, Y.; Zhang, B.; Jing, R.; Ma, M.; Jing, Q.; Liu, R. Evaluation of mechanical properties of 1060-Al reinforced with WC particles via warm accumulative roll bonding process. Mater. Des. 2013, 43, 367–372. [Google Scholar] [CrossRef]
  7. Ravikumar, K.; Kiran, K.; Sreebalaji, V. Characterization of mechanical properties of aluminium/tungsten carbide composites. Measurement 2017, 102, 142–149. [Google Scholar] [CrossRef]
  8. Huang, G.; Hou, W.; Shen, Y. Evaluation of the microstructure and mechanical properties of WC particle reinforced aluminum matrix composites fabricated by friction stir processing. Mater. Charact. 2018, 138, 26–37. [Google Scholar] [CrossRef]
  9. Borodianskiy, K.; Zinigrad, M. Modification Performance of WC Nanoparticles in Aluminum and an Al-Si Casting Alloy. Met. Mater. Trans. A 2016, 47, 1302–1308. [Google Scholar] [CrossRef]
  10. Casati, R.; Vedani, M. Metal Matrix Composites Reinforced by Nano-Particles—A Review. Metals 2014, 4, 65–83. [Google Scholar] [CrossRef]
  11. Samal, C.; Parihar, J.; Chaira, D. The effect of milling and sintering techniques on mechanical properties of Cu–graphite metal matrix composite prepared by powder metallurgy route. J. Alloys Compd. 2013, 569, 95–101. [Google Scholar] [CrossRef]
  12. Razavi, M.; Mobasherpour, I. Production of aluminum nano-composite reinforced by tungsten carbide particles via mechanical milling and subsequent hot pressing. Int. J. Mater. Res. 2014, 105, 1103–1110. [Google Scholar] [CrossRef]
  13. Simon, A.; Lipusz, D.; Baumli, P.; Balint, P.; Kaptay, G.; Gergely, G.; Sfikas, A.; Lekatou, A.; Karantzalis, A.; Gácsi, Z. Microstructure And Mechanical Properties Of Al-WC Composites. Arch. Met. Mater. 2015, 60, 1517–1521. [Google Scholar] [CrossRef]
  14. German, R. Thermodynamics of sintering. In Sintering of Advanced Materials; Elsevier BV: Amsterdam, The Netherlands, 2010; pp. 3–32. [Google Scholar]
  15. Zhang, H.; Feng, P.; Akhtar, F. Aluminium matrix tungsten aluminide and tungsten reinforced composites by solid-state diffusion mechanism. Sci. Rep. 2017, 7, 12391. [Google Scholar] [CrossRef]
  16. Li, B.; Liu, Y.; Li, J.; Cao, H.; He, L. Effect of sintering process on the microstructures and properties of in situ TiB2–TiC reinforced steel matrix composites produced by spark plasma sintering. J. Mater. Process. Technol. 2010, 210, 91–95. [Google Scholar] [CrossRef]
  17. Doni, Z.; Alves, A.C.; Toptan, F.; Pinto, A.M.P.; Rocha, L.A.; Buciumeanu, M.; Palaghian, L.; Silva, F.S. Tribocorrosion behaviour of hot pressed CoCrMo−Al2O3 composites for biomedical applications. Tribol. Mater. Surf. Interfaces 2014, 8, 201–208. [Google Scholar] [CrossRef] [Green Version]

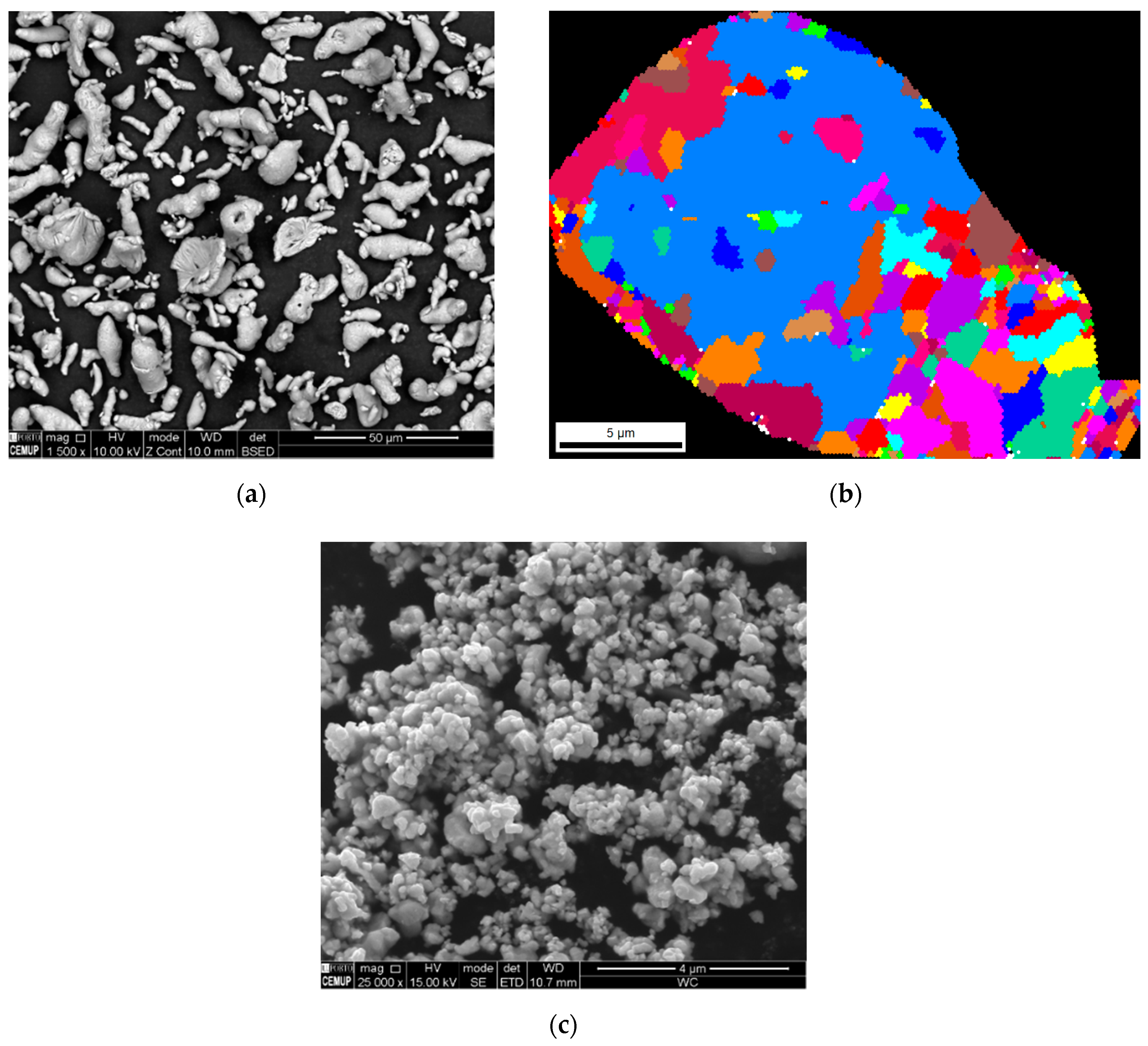

Figure 1. Microscopic characterization of input materials used in this study: (a) The morphology of Al powder (SEM/SE image), (b) EBSD grain colour map from an individual Al particle and (c) the tungsten carbide (WC) particles (SEM/SE image).
Figure 1. Microscopic characterization of input materials used in this study: (a) The morphology of Al powder (SEM/SE image), (b) EBSD grain colour map from an individual Al particle and (c) the tungsten carbide (WC) particles (SEM/SE image).
Metals 10 01416 g001

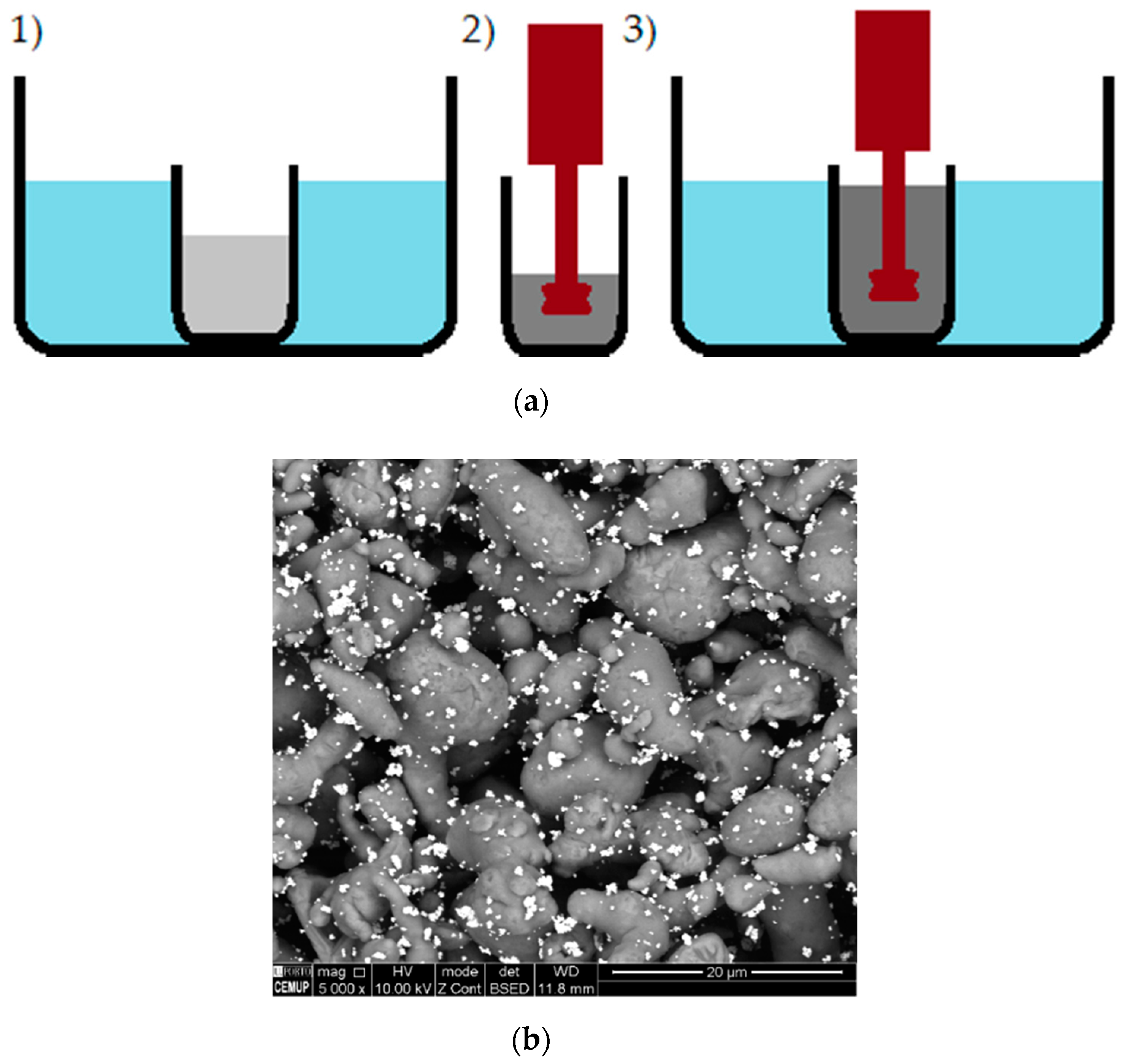

Figure 2. (a) Mixing procedure: Step 1—dispersion of pristine WC in isopropanol for 15 min in an ultrasonication bath; step 2—dispersion of Al powder in isopropanol at 5000 rpm for 5 min; and step 3—mixing of the two dispersions with simultaneous sonication at 11,000 rpm with the mixing vessel is in the ultrasonication bath; (b) SEM/BSE image of the dry Al-1 vol.% WC mixture.
Figure 2. (a) Mixing procedure: Step 1—dispersion of pristine WC in isopropanol for 15 min in an ultrasonication bath; step 2—dispersion of Al powder in isopropanol at 5000 rpm for 5 min; and step 3—mixing of the two dispersions with simultaneous sonication at 11,000 rpm with the mixing vessel is in the ultrasonication bath; (b) SEM/BSE image of the dry Al-1 vol.% WC mixture.
Metals 10 01416 g002

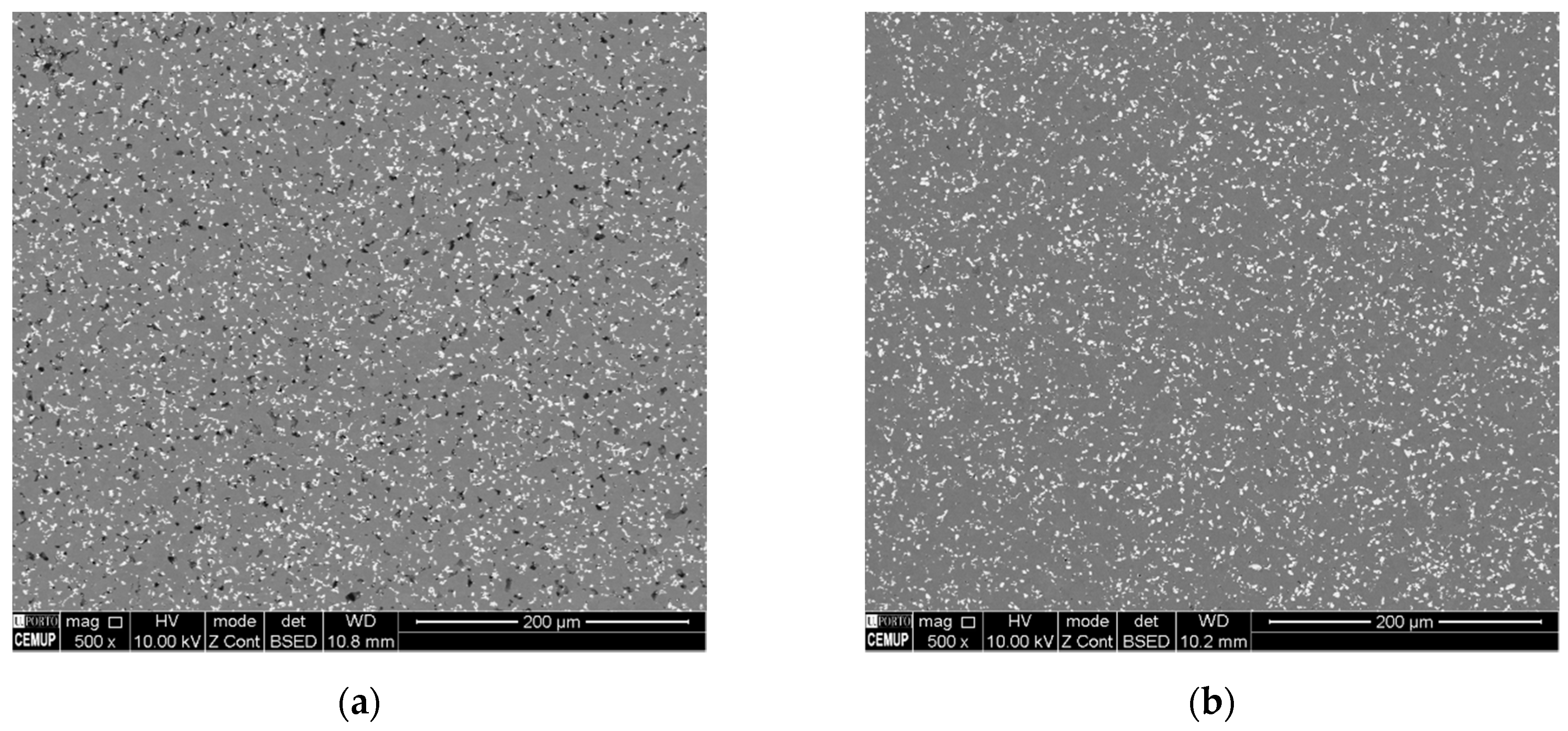

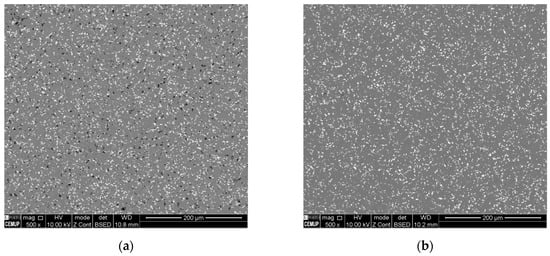

Figure 3. SEM/BSE images of Al-1 WC vol.% composites cold compacted at 76 MPa and sintered at 640 °C in high vacuum (~5 × 10−4 Pa): (a) Pores (black spots) dispersed in the microstructure of the specimen sintered for 1 h, (b) pore-free microstructure of the specimen sintered for 2 h.
Figure 3. SEM/BSE images of Al-1 WC vol.% composites cold compacted at 76 MPa and sintered at 640 °C in high vacuum (~5 × 10−4 Pa): (a) Pores (black spots) dispersed in the microstructure of the specimen sintered for 1 h, (b) pore-free microstructure of the specimen sintered for 2 h.
Metals 10 01416 g003

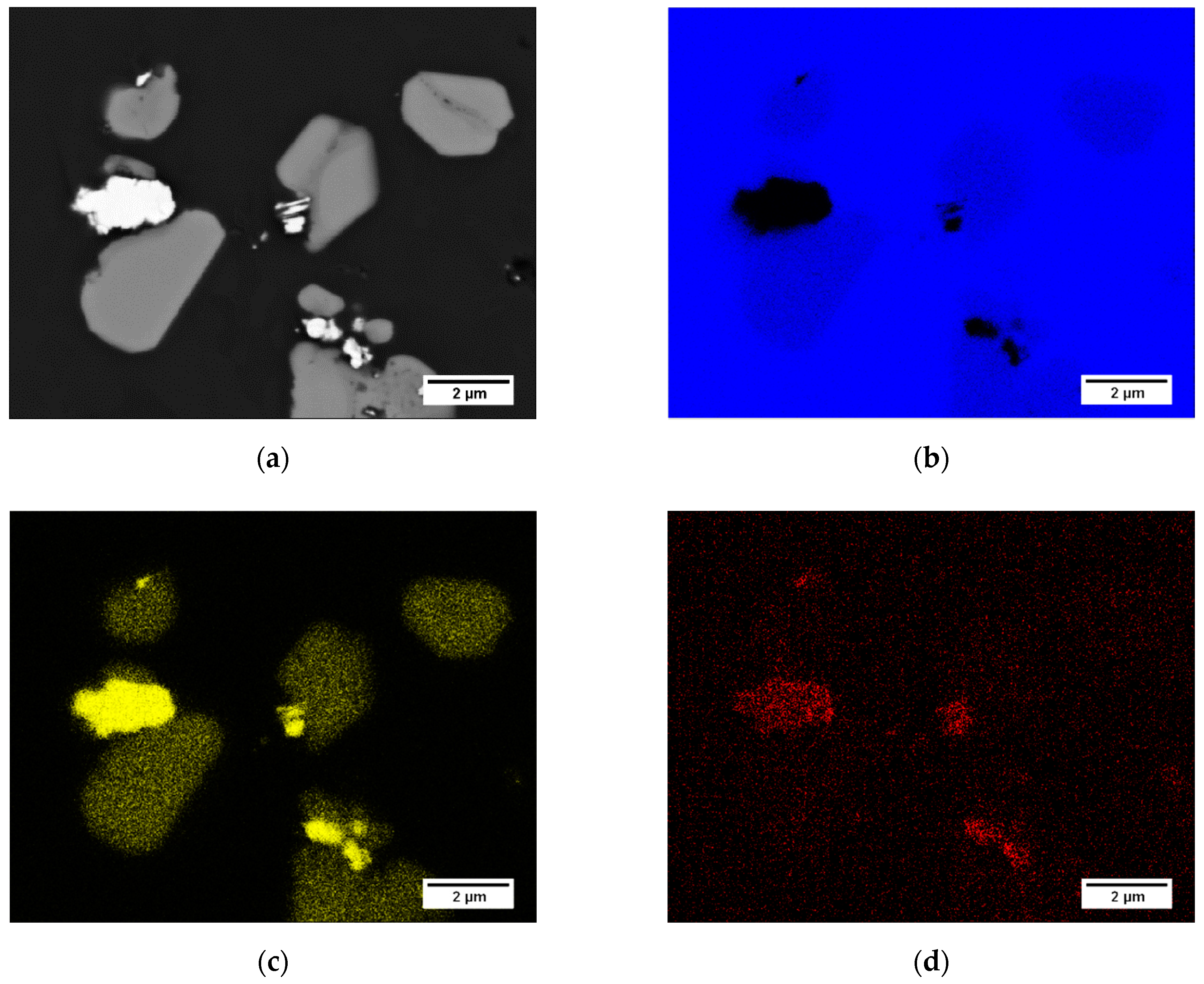

Figure 4. (a) One area of the composite in which the two types of particles are observed (white and light gray particles). EDS map analysis illustrating the distribution in that selected zone of (b) Al, (c) W and (d) C.
Figure 4. (a) One area of the composite in which the two types of particles are observed (white and light gray particles). EDS map analysis illustrating the distribution in that selected zone of (b) Al, (c) W and (d) C.
Metals 10 01416 g004

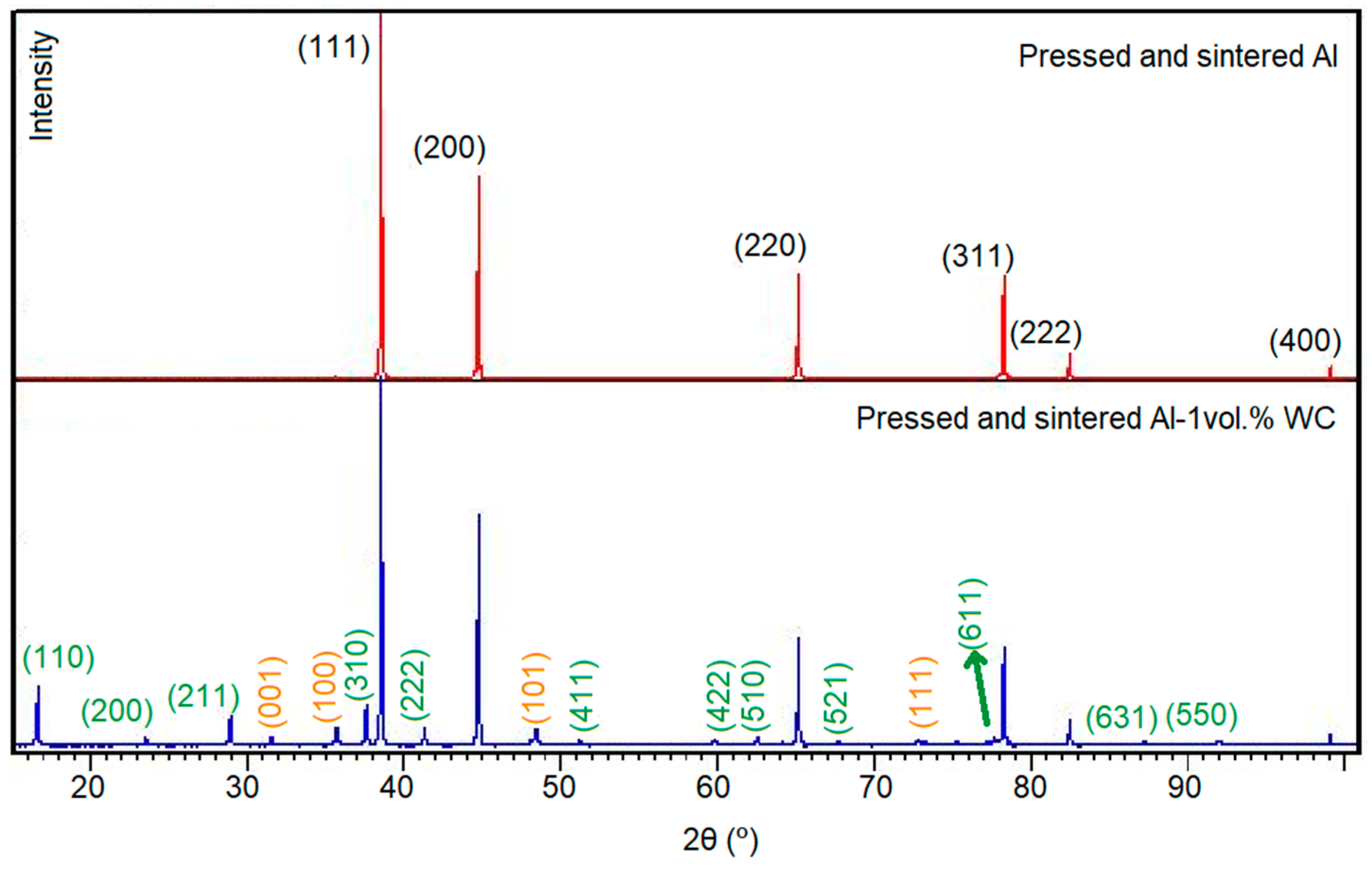

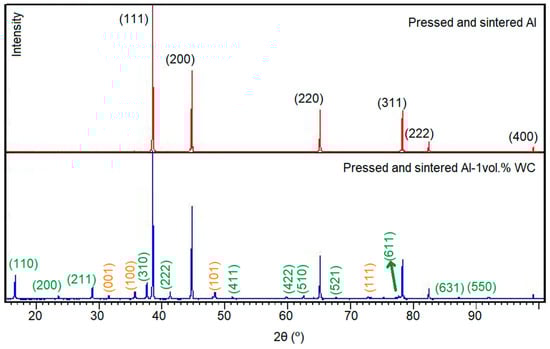

Figure 5. Diffractograms of sintered Al and Al-1 vol.% WC. The composite shows Al, Al12W and WC peaks. The Miller indices (hkl) of the diffraction peaks of Al, Al12W and WC are shown in black, green and brown, respectively.
Figure 5. Diffractograms of sintered Al and Al-1 vol.% WC. The composite shows Al, Al12W and WC peaks. The Miller indices (hkl) of the diffraction peaks of Al, Al12W and WC are shown in black, green and brown, respectively.
Metals 10 01416 g005

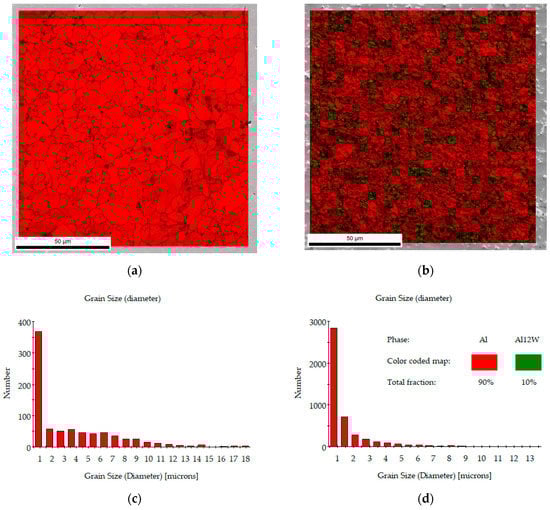

Figure 6. Phase map (EBSD/SEM) of (a) non-reinforced Al and (b) Al-WC composite; grain size distribution of (c) non-reinforced Al and (d) Al-WC composite.
Figure 6. Phase map (EBSD/SEM) of (a) non-reinforced Al and (b) Al-WC composite; grain size distribution of (c) non-reinforced Al and (d) Al-WC composite.
Metals 10 01416 g006

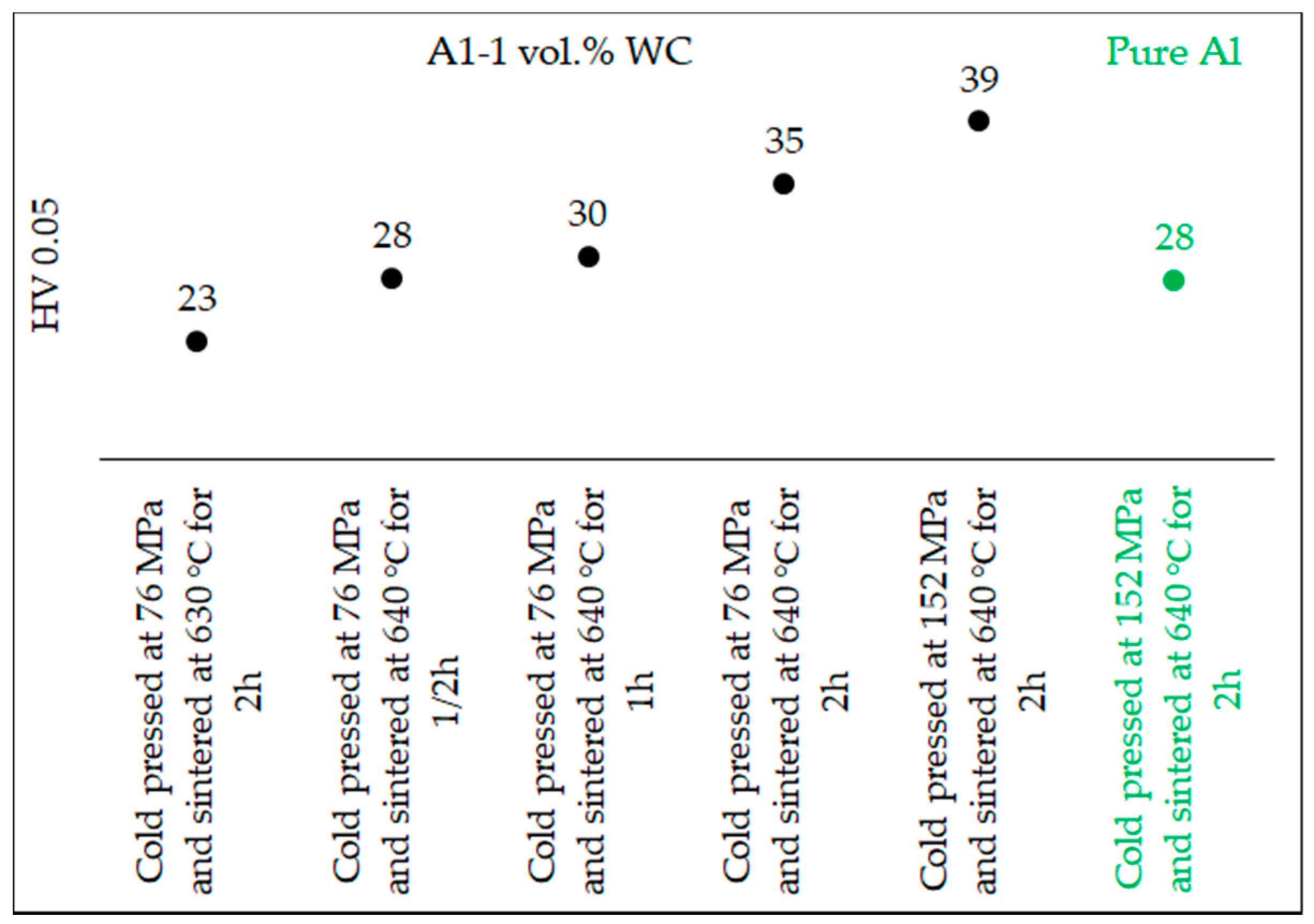

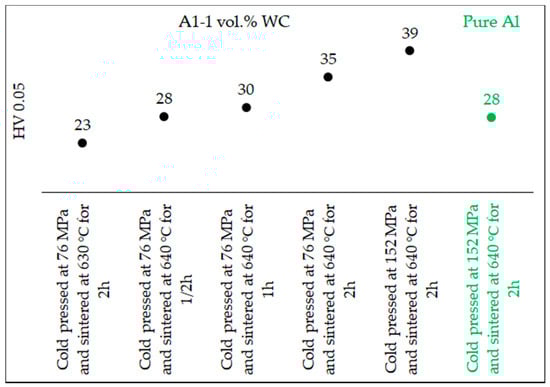

Figure 7. Microhardness values as a function of processing conditions for the Al-WC composite and the non-reinforced Al.
Figure 7. Microhardness values as a function of processing conditions for the Al-WC composite and the non-reinforced Al.
Metals 10 01416 g007

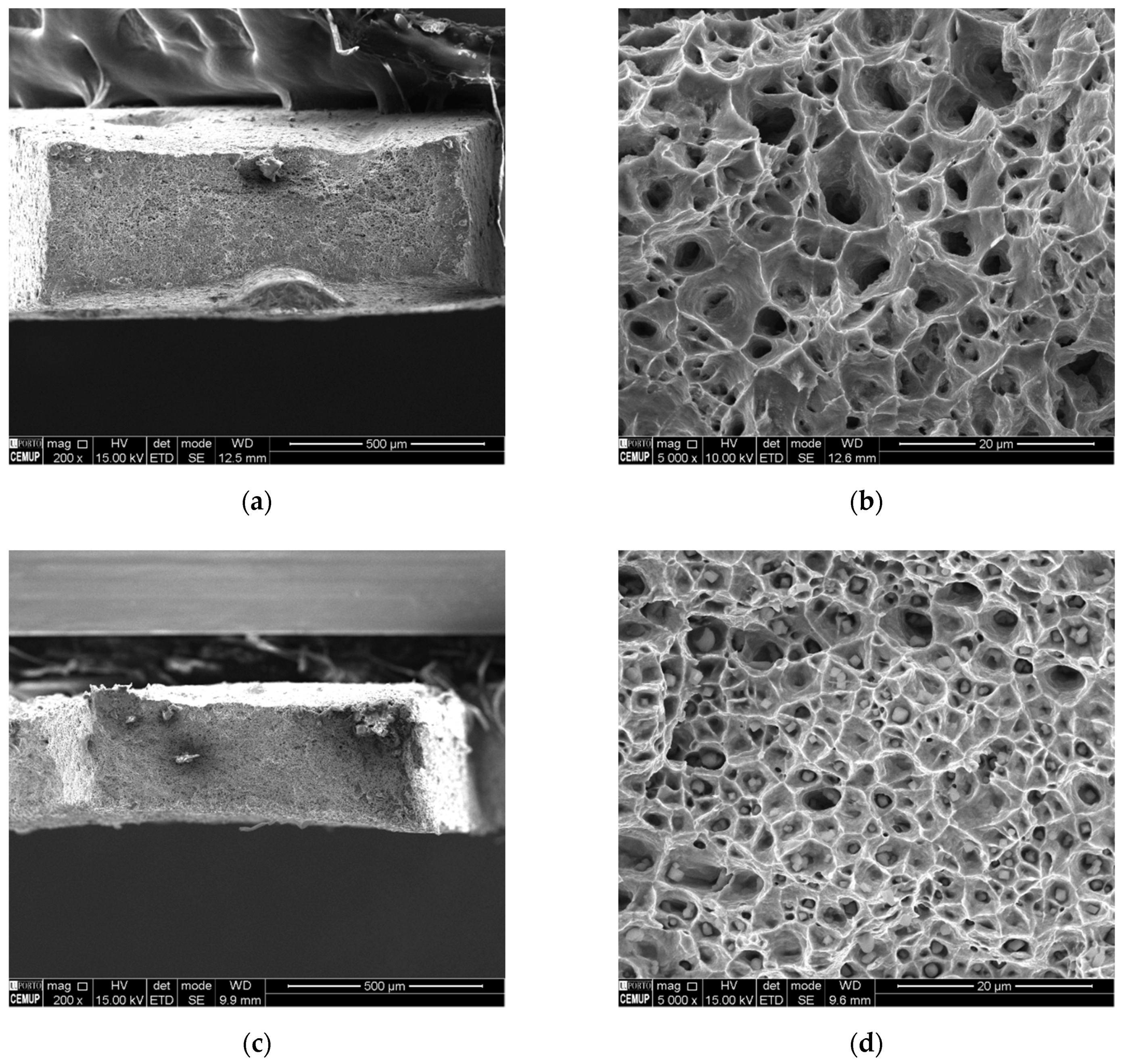

Figure 8. SEM/SE images of fracture surfaces at two magnifications of: (a,b) Non-reinforced Al specimen; (c,d) Al-WC composite.
Figure 8. SEM/SE images of fracture surfaces at two magnifications of: (a,b) Non-reinforced Al specimen; (c,d) Al-WC composite.
Metals 10 01416 g008

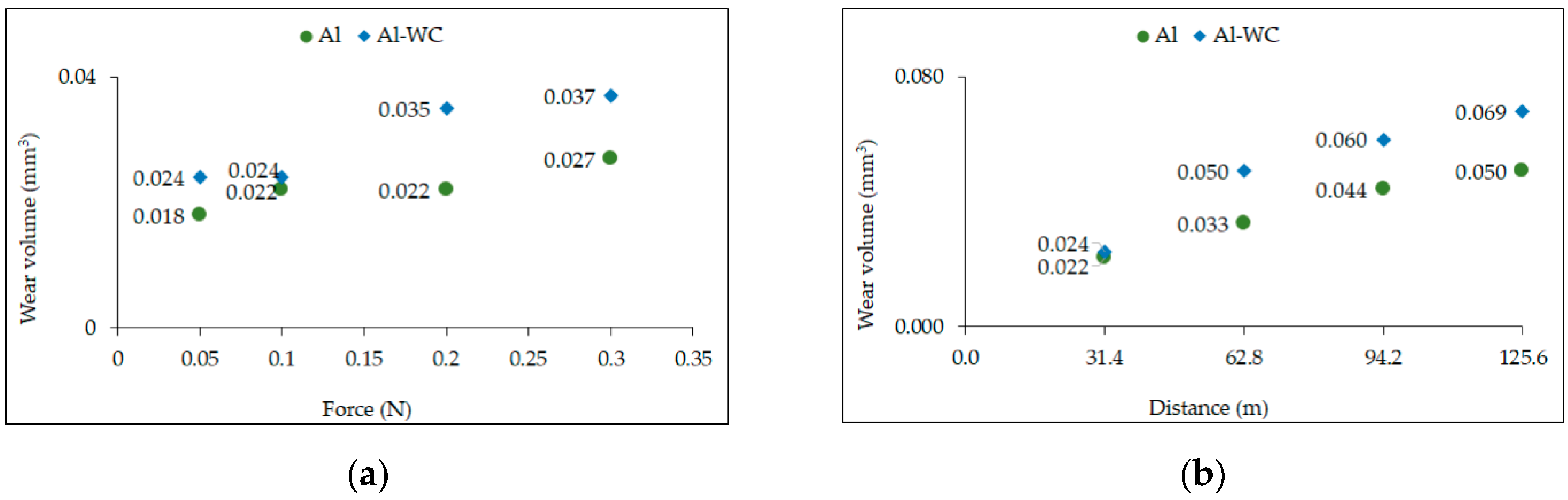

Figure 9. Wear abrasive resistance results, performed on specimens produced with 152 MPa/640 °C/2 h/high vacuum (5 × 10−4 Pa), (a) for different loads with a distance of 31.4 m and (b) for different distances with 0.1 N load.
Figure 9. Wear abrasive resistance results, performed on specimens produced with 152 MPa/640 °C/2 h/high vacuum (5 × 10−4 Pa), (a) for different loads with a distance of 31.4 m and (b) for different distances with 0.1 N load.
Metals 10 01416 g009

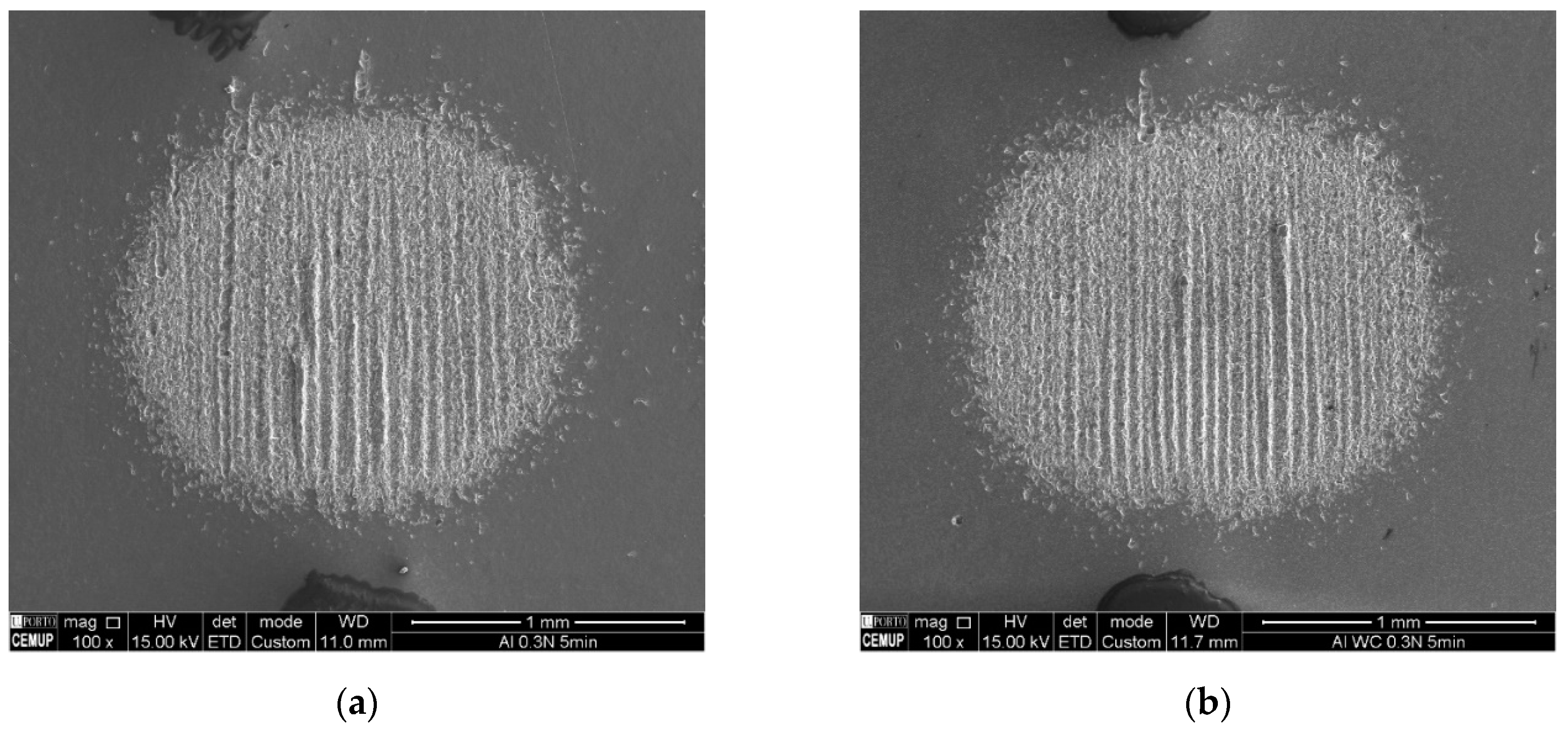

Figure 10. SEM/SE images showing craters and morphology of the grooves on: (a) Non-reinforced Al and (b) Al-WC composite.
Figure 10. SEM/SE images showing craters and morphology of the grooves on: (a) Non-reinforced Al and (b) Al-WC composite.
Metals 10 01416 g010
Table 1. Sintering conditions of non-reinforced Al and of Al-1 WC vol.% composite.
Table 1. Sintering conditions of non-reinforced Al and of Al-1 WC vol.% composite.
Temperature (°C)Holding Time (h)Pressure (Pa)
630 °C2~5 × 10−4
640 °C0.5, 1 and 2
Table 2. Mechanical properties of non-reinforced Al and of Al-1 vol.% WC composite.
Table 2. Mechanical properties of non-reinforced Al and of Al-1 vol.% WC composite.
CompositionYs * (MPa)UTS (MPa)Elongation (%)Flexural Strength (MPa)
Pure Al~6311019336
Al-WC~11014816532
*—determined through the 0.2% offset line on the graph by regression method.
