Identification of Acoustic Characteristic Parameters and Improvement of Sound Absorption Performance for Porous Metal

Abstract

Porous metal is widely used in the fields of sound absorption and noise reduction, and it is a critical procedure to identify acoustic characteristic parameters and to improve sound absorption performances. Based on the constructed theoretical sound absorption model and experimental data, acoustic characteristic parameters of the porous metal were identified through the cuckoo search identification algorithm, and their reliabilities were certified through comparing with these labeled parameters and further experimental validation. By adding the microperforated metal panel in front of the porous metal, a composite sound-absorbing structure was formed, which aimed to improve the sound absorption performance of the original porous metal by optimizing the parameters. Finite element simulation and a standing wave tube measurement were conducted to validate the effectiveness and practicability of the optimal composite sound-absorbing structure. Consistencies among theoretical predictions, simulation results, and experimental data proved the effectiveness of the identification and optimization method. When the target frequency ranges were 100–1000 Hz, 100–2000 Hz, 100–3000 Hz, and 100–4000 Hz. Actual average sound absorption coefficients of the optimal composite structures were 0.5154, 0.6369, 0.6770, and 0.7378, respectively, which exhibited the obvious improvements with a tiny increase in the occupied space and a small addition in weight.

1. Introduction

The sound absorption and noise reduction are mainly applications of the porous metal because it has the advantages of excellent absorption performance, a wide absorption band, outstanding flame resistance, extraordinary light weight, satisfactory cost-effective ratio, and so on [1,2,3,4,5]. Hakamada et al. [1] had produced the porous aluminum with a density of 0.27 g/cm³ by the spacer method, and a sound absorption coefficient near unity was achieved by inserting an air gap back to the sample. The porous copper was prepared by Ru et al. [2] through a novel rosin curing and foaming method, and influences of resin content on the micropore structure and its sound absorption were investigated. The nickel-based superalloy open-cell foam with the controllable porosity (92–98%) and cell size (300–900 µm) was prepared by Zhai et al. [3] the through template replication process, which achieved sound absorption coefficient >0.9 at the frequency >1500 Hz with a thickness of 50 mm. Geometrical and dimensional optimization of the sound-absorbing porous copper with cavity was conducted by Yang et al. [4], which obtained a sound absorption coefficient >0.7 at the frequency range 2000–5000 Hz with a thickness of 28.8 mm. Liu et al. [5] investigated the sound absorption performance of the highly porous titanium foams, and it was concluded that the main sound absorption mechanism was the interference silencing due to the surface reflection at low-frequency range and viscous dissipation at a high-frequency range. Therefore, the porous metal is considered as one of the research focuses on the fields of sound absorption and noise reduction.

Besides these common porous sound-absorbing materials [1,2,3,4,5], some novel sound absorbers have already been developed from the standard porous metal [6,7,8,9,10,11,12,13,14,15]. Bai et al. [6] had attempted to improve sound absorption efficiency of the porous metal by compression, and further promote the sound absorption performance by microperforation [7]. The gradient compressed porous metal had been proposed by Yang et al. [8], which obtained the average sound absorption coefficient of 0.6033 in the 100–6000 Hz range with a total thickness of 11 mm. The thin acoustic absorber of multilayer compressed porous metal with rear cavity was investigated by Shen et al. [9], and its average sound absorption coefficient of the optimal four-layer compressed porous metal with the total thickness of 5 mm reached 0.5105 in the 100–6000 Hz. Otaru et al. [10] proposed and optimized the porous metal with a bottleneck-type structure, which obtained the the optimal sound absorption performance when its porosity was 0.68. Meanwhile, the composite structures consisted of porous metal and the other sound-absorbing materials are treated as an effective method to develop the practical acoustic absorbers for some normal or special applications [11,12,13,14,15]. Lu et al. [11] had investigated influences of the microperforated panel combination on the sound absorption performance of the nickel foam, which indicated that the sound absorption coefficient was controlled by adjusting the thickness of the composite layer and location of the perforated panel. High-performance aluminum foam sandwich was prepared by Peng et al. [12] through the friction stir welding, which could obtain outstanding sound absorption property. Shen et al. [13] had fabricated the low-frequency sound absorber by the combination of porous metal and microperforated panel, which could achieve the average sound absorption coefficients of 0.6296 and 0.7359 in the 100–1800 Hz with limited total thicknesses of 30 mm and 50 mm, respectively. A simple two-dimensional microstructural model of the perforated closed-cell metallic foam was presented by Chevillotte et al. [14,15], which attempted to understand how perforation interacted with the closed-cell foam microstructure and how it modified the sound absorption of the foam. Therefore, porous metal and its derivatives are widely utilized in sound absorption and attract worldwide research enthusiasm.

Normally, no matter for the common porous metal or for composite sound-absorbing structure, the structural parameters must be optimized to achieve the satisfactory sound absorption performance under certain constraint conditions [16,17,18,19,20,21]. Acoustic topology optimization of porous material distribution based on the adjoint variable fast multipole boundary element method was conducted by Zhao et al. [16], and its ability to handle the large-scale problems was validated through numerical examples of acoustic scattering over a single cylinder and multiple cylinders. Zhu et al. [17] investigated the effects of gradient pore structure on the sound absorption performance of the metal fiber porous material, and the sound absorption coefficient was improved due to repeated reflection of the sound wave in the porous media between gradient interfaces. A ten-layer gradient compressed porous metal with a thickness of 20 mm was optimized to obtain an excellent sound absorption performance by Yang et al. [18], and its average sound absorption coefficients could reach 0.3325, 0.5412, 0.7461, and 0.7617 when the frequency ranges were 100–1000 Hz, 100–2000 Hz, 100–4000 Hz, and 100–6000 Hz, respectively. Takezawa et al. [19] proposed new topology optimization by the solid isotropic material with the penalization method for optimizing a sound-absorbing material layout, which obtained the appropriate solutions and generated the optimal result for each selected sample. Parametric optimization and analysis of a metallic porous material were conducted by Barbosa and Lenzi [20], who aimed to reduce the gas pulsation noise in the household refrigerators. Park et al. [21] carried out multistage numerical analysis of the polyurethane foam, and it could be proved that reduction of the mean cell diameter could enhance acoustic damping efficiency in low-frequency ranges. Therefore, parameter optimization is the critical step to develop the novel sound absorber, and it is extremely important to obtain acoustic characteristic parameters of the porous metal.

According to the classical Johnson-Champoux-Allard model [22,23,24], major acoustic characteristic parameters for the porous material were porosity and static flow resistivity. Although the porosity is easy to obtain, it is difficult to accurately measure the static flow resistivity [3,8,25,26,27]. Therefore, identification of the acoustic characteristic parameters, which included the porosity and static flow resistivity, were conducted through the cuckoo search algorithm [28,29] based on the experimental data of the sound absorption coefficient of the porous metal in this study. Afterward, the sound absorption performance of the porous metal was improved through adding the microperforated metal panel in front of it to form a composite sound-absorbing structure. After that, the theoretical sound absorption model of the composite structure was constructed by the transfer matrix method [9,13,30,31,32]. Then, parameters of the composite structures were optimized by the cuckoo search algorithm [8,18,28,29] to achieve maximum average sound absorption coefficient in a certain frequency range. Moreover, the effectiveness and practicability of the optimal composite sound-absorbing structures were verified through the finite element simulation in the virtual acoustic laboratory [33,34,35]. Finally, accuracy and reliability of theoretical sound absorption model, cuckoo search identification and optimization algorithm, and finite element simulation method were testified by the experimental validation, and experimental data of sound absorption coefficients of the porous metal and those of the composite sound-absorbing structures were obtained by the standing wave tube measurement [36,37,38]. By this method, identification of acoustic characteristic parameters and improvement of the sound absorption performance for porous metal were conducted, which aimed to promote its practical application.

2. Identification and Verification

Morphologies of the porous copper used in this research are shown in Figure 1, which was purchased from the Yiyang Foammetal New Material Co., Ltd., Yiyang, Hunan, China. According to the Johnson-Champoux-Allard model [22,23,24], theoretical sound absorption coefficients of the porous metal with a certain thickness could be calculated by confirming its acoustic characteristic parameters. Therefore, the acoustic characteristic parameters, including the porosity and static flow resistivity, would be inversed based on the experimental data of the sound absorption coefficient of the porous metal through the cuckoo search algorithm [28,29]. Afterward, the effectiveness and accuracy of this identification method were verified.

2.1. Theoretical Model of Sound Absorption Coefficient

The sound absorption coefficient of the porous metal ${\alpha }_p$ is obtained by calculating its transfer matrix $T_p$ according to the transfer matrix method [9,13,30,31,32], as shown in Equation (1). Here, $T_{p11}$ and $T_{p21}$ are two components of the transfer matrix $T_p$ of the porous metal, which can be calculated by Equation (2); $\rho$ is density of the air with normal atmospheric temperature, 1.21 kg/m³; c is the acoustic velocity in air, 340 m/s; $\mathrm{Re}\left(\right)$ and $\mathrm{Im}\left(\right)$ represent the real part and imaginary part of the complex number, respectively.

$${\alpha }_p=\frac{4\times \mathrm{Re}\left(\frac{T_{p11}}{T_{p21}}\times \frac{1}{\rho c}\right)}{{\left[1+\mathrm{Re}\left(\frac{T_{p11}}{T_{p21}}\times \frac{1}{\rho c}\right)\right]}^2+{\left[\mathrm{Im}\left(\frac{T_{p11}}{T_{p21}}\times \frac{1}{\rho c}\right)\right]}^2}$$

(1)

$$T_p=\left[\begin{array}{cc}{T}_{p11}& T_{p12}\\ T_{p21}& T_{p22}\end{array}\right]=\left[\begin{array}{cc}\cos \left(k_p{d}_p\right)& j{Z}_p\sin \left(k_p{d}_p\right)\\ j{Z}_p^{-1}\sin \left(k_p{d}_p\right)& \cos \left(k_p{d}_p\right)\end{array}\right]$$

(2)

For the porous metal in Equation (2), $k_p$ is the wave number in it, which can be obtained by Equation (3); $Z_p$ is its characteristic impedance, which can be achieved by Equation (4); $d_p$ is its thickness, which can be measured by the Vernier caliper; $j$ is a symbol of the imaginary number, $j^2=-1$ [22,23,24].

$$k_p=\omega \sqrt{\frac{\rho \left(\omega \right)}{K\left(\omega \right)}}$$

(3)

$$Z_p=\sqrt{\rho \left(\omega \right)\times K\left(\omega \right)}$$

(4)

In Equations (3) and (4), $\omega$ is angular frequency of the sound wave, which is obtained by Equation (5); $\rho \left(\omega \right)$ is complex effective density of the porous metal, which can be achieved by Equation (6); $K\left(\omega \right)$ is complex effective bulk modulus of the porous metal, which can be calculated by Equation (7) [22,23,24].

$$\begin{array}{cc}\omega =2\pi f& f\in \left[f_{\min },f_{\max }\right]\end{array}$$

(5)

$$\rho \left(\omega \right)=\rho \left[1+{\left(3^2+\frac{4\omega \rho }{\sigma \varphi }\right)}^{-0.5}-j\frac{\sigma \varphi }{\omega \rho }{\left(1+\frac{\omega \rho }{4\sigma \varphi }\right)}^{0.5}\right]$$

(6)

$$K\left(\omega \right)=\gamma P_0{\left[\gamma -\left(\gamma -1\right)\left(1-N_u{\left(j\frac{8\omega \rho P_r}{\sigma \varphi }+N_u\right)}^{-1}\right)\right]}^{-1}$$

(7)

In Equation (5), $f$ is the sound frequency, and its range can be symbolled as $\left[f_{\min },f_{\max }\right]$. In Equations (6) and (7), $\rho$ is still density of the air with the normal atmospheric temperature, 1.21 kg/m³; $\sigma$ is static flow resistivity of the porous metal; $\varphi$ is porosity of the porous metal; $\gamma$ is specific heat ratio of the air with the normal atmospheric temperature, 1.40; $P_0$ is static pressure of the air with normal atmospheric temperature, 1.013 × 10⁵ Pa; $N_u$ is the Nusselt number, 4.36; $P_r$ is the Prandtl number, 0.71; $j$ is the still symbol of the imaginary number, $j^2=-1$ [22,23,24].

It could be judged from Equations (1)–(7) that the sound absorption coefficient ${\alpha }_p$ of the porous metal was determined by the acoustic characteristic parameters of static flow resistivity $\sigma$ and porosity $\varphi$ for the certain thickness $d_p$ and the certain frequency $f$. Therefore, the acoustic characteristic parameters $\sigma$ and $\varphi$ would be inversed based on the theoretical model by a series of experimental data, which consisted of the sound absorption coefficient ${\alpha }_p$, thickness $d_p$, and frequency $f$.

2.2. Standing Wave Tube Measurement

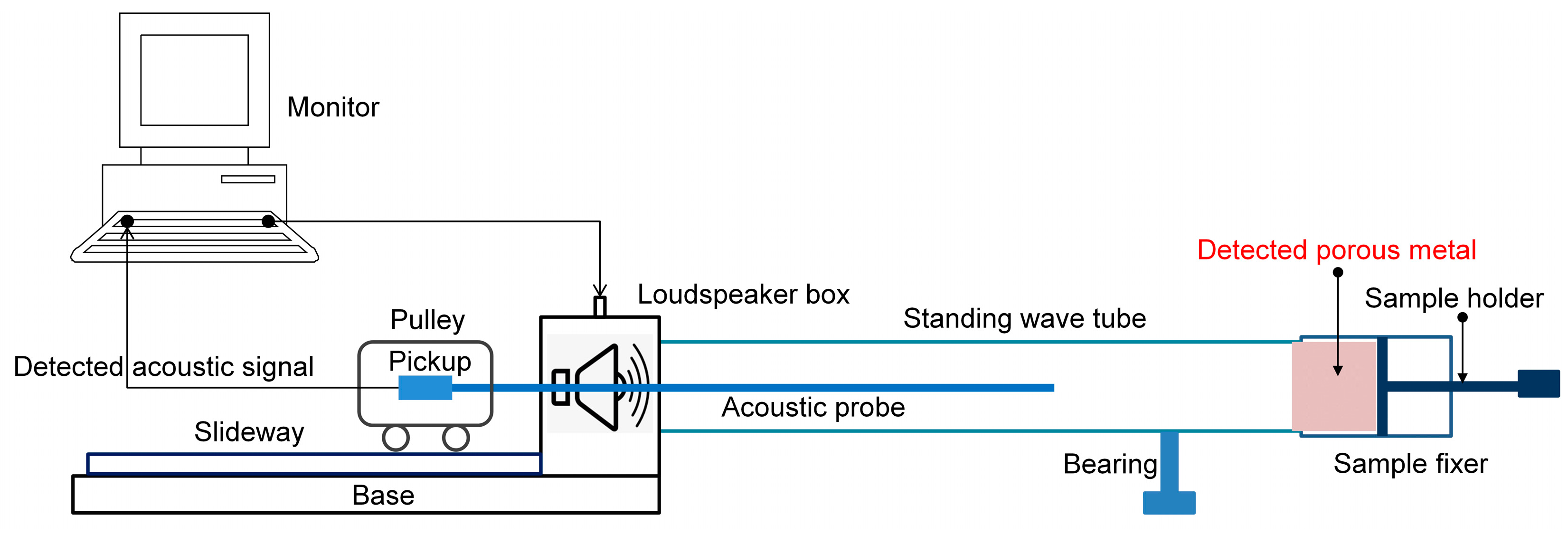

Sound absorption coefficients of the porous metal with thicknesses of 15 mm, 20 mm, 25 mm, and 30 mm, respectively, were obtained by the AWA6128A detector (Hangzhou Aihua Instruments Co., Ltd., Hangzhou, China) according to standing wave tube measurement [36,37,38], and schematic diagram of the measurement is shown in Figure 2. The detected porous metal sample was installed in the sample fixer, and its back surface was supported by the rigid wall of the sample holder. The incident sound wave was generated from the loudspeaker box and input into a standing wave tube, and its frequency was controlled by software on the computer. The reflected sound wave was detected through the acoustic probe on the pulley, and the peak sound level $L_{\max }$ and the corresponding valley sound level $L_{\min }$ for a certain frequency $f$ could be obtained by moving the pulley on the slideway. According to the testing principle of the utilized AWA6128A detector, the corresponding sound absorption coefficient could be calculated through Equation (8) [4]. The investigated frequencies for each sample were in the 100–6000 Hz range with an interval of 50 Hz, which indicated that 476 (119 × 4 = 476) series of experimental data were obtained for further identification. In order to reduce the measuring error in the testing program, each porous metal sample was tested 10 times, and the final experimental data was the average value of these 10 testing data. It had been proved by Duan et al. [39] that undulation of the experimental data could be kept within ±0.2% among the 10 testing data, which certified veracity and repeatability of this experimental measurement.

$${\alpha }_e\left(f\right)=\frac{4\times {10}^{\frac{L_{\max }-L_{\min }}{20}}}{{\left(1+{10}^{\frac{L_{\max }-L_{\min }}{20}}\right)}^2}$$

(8)

2.3. Identification of Acoustic Characteristic Parameters

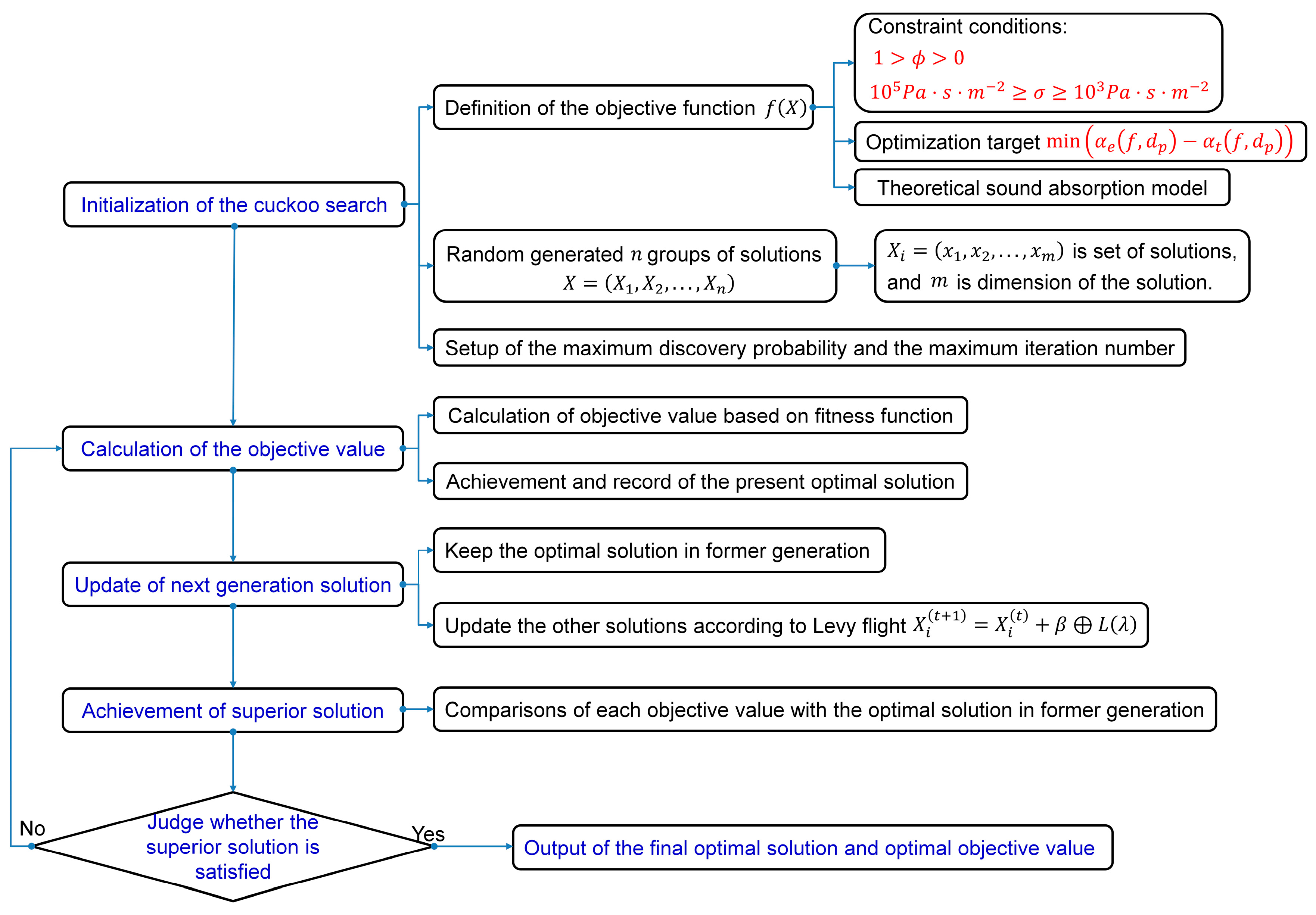

Acoustic characteristic parameters $\sigma$ and $\varphi$ of the porous metal in this study were constant waiting to be determined, which could be identified through the cuckoo search algorithm [28,29] according to the 476 series of experimental data of the sound absorption coefficient $\alpha$, thickness $d_p$, and frequency $f$. The flow chart of the identification of the acoustic characteristic parameters is shown in Figure 3. According to the definition of the porosity, it could be found that its reasonable range was $\left(0,1\right)$, as shown in Equation (9). Meanwhile, normal static flow resistivity of the porous metal was $\left[5000,50000\right]$, so the selected range was $\left[1000,100000\right]$ in this research, as shown in Equation (10). Moreover, the optimization target was to minimize the residual error between the experimental data and the theoretical prediction of the sound absorption coefficient of the porous metal, as shown in Equation (11). By confirmation of the constraint conditions and optimization target, identification of the acoustic characteristic parameters was realized.

$$1>\varphi >0$$

(9)

$$1\times {10}^5 \mathrm{Pa}\cdot \mathrm{s}\cdot {\mathrm{m}}^{-2}\ge \sigma \ge 1\times {10}^3 \mathrm{Pa}\cdot \mathrm{s}\cdot {\mathrm{m}}^{-2}$$

(10)

$$\begin{array}{cc}\min \left({\alpha }_e\left(f,d_p\right)-{\alpha }_t\left(f,d_p\right)\right)& f\in \left[100,6000\right],d_p\end{array}=\left[15,20,25,30\right]$$

(11)

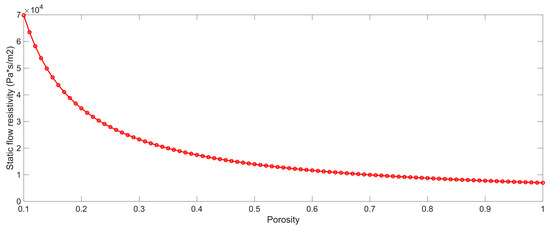

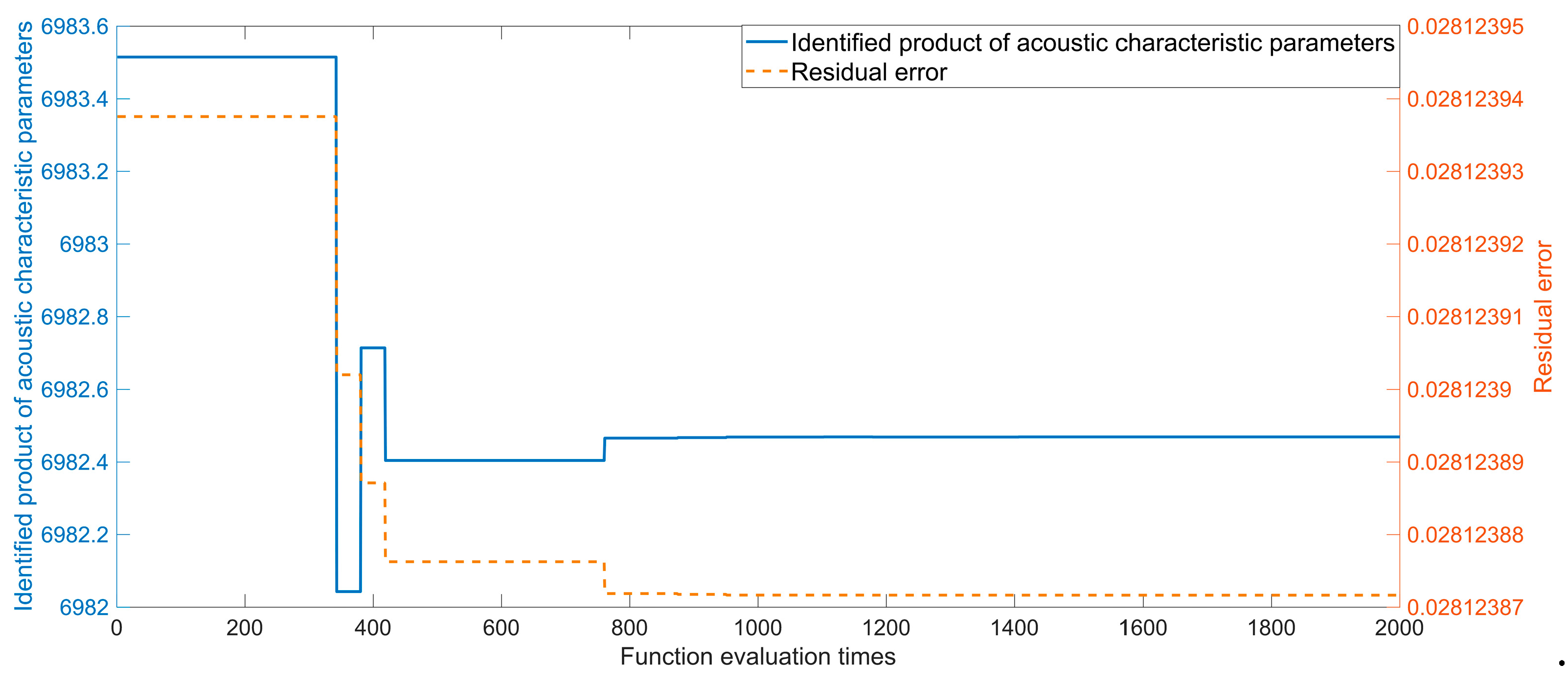

In Equations (6) and (7), it was interesting to note that the static flow resistivity $\sigma$ and porosity $\varphi$ always appeared in the form of a product, which indicated that optimal solutions of the acoustic characteristic parameters were a group instead of only one. Thus, the product of the static flow resistivity and porosity was treated as one parameter, and the optimization result of the cuckoo search identification algorithm is shown in Figure 4. Along with the increase of the function evaluation times from 0 to 2000, it could be observed that the identified product of the acoustic characteristic parameter and the residual error gradually stabilized. The optimal product of static flow resistivity $\sigma$ and porosity $\varphi$ obtained by the cuckoo search algorithm was 6982.5, and the optional acoustic characteristic parameters are shown in Figure 5. With ranges of the porosity from 0.1 to 1, the corresponding static flow resistivity $\sigma$ decreased from 69,825 $\mathrm{Pa}\cdot \mathrm{s}\cdot {\mathrm{m}}^{-2}$ to 6982.5 $\mathrm{Pa}\cdot \mathrm{s}\cdot {\mathrm{m}}^{-2}$. Though the accurate static flow resistivity and porosity were not confirmed by the cuckoo search identification algorithm, the obtained optimal product of the two structural parameters was enough for the further improvement of the sound absorption performance of the porous metal. Moreover, non-uniqueness of the optional acoustic characteristic parameters indicated that different porous metal could exhibit the same sound absorption performance as long as the product of the static flow resistivity and the porosity were equal. Therefore, the excellent sound absorbers with unique properties, such as high fire retardancy, strong corrosion resistance, outstanding light transparency, and so on, could be developed through choosing different kinds of porous material. Furthermore, as mentioned above, the test of porosity of the porous metal was easy to realize relative to that of its static flow resistivity. Therefore, the porosity of the porous metal utilized in this study was measured through the drainage method [40], and its actual value was 0.9136. The static flow resistivity could be calculated, 7642.8 $\mathrm{Pa}\cdot \mathrm{s}\cdot {\mathrm{m}}^{-2}$. The labeled porosity and static flow resistivity provided by the supplier were 0.9 and 7680 $\mathrm{Pa}\cdot \mathrm{s}\cdot {\mathrm{m}}^{-2}$, respectively, which could validate the effectiveness and accuracy of the cuckoo search identification algorithm.

2.4. Verification and Evaluation

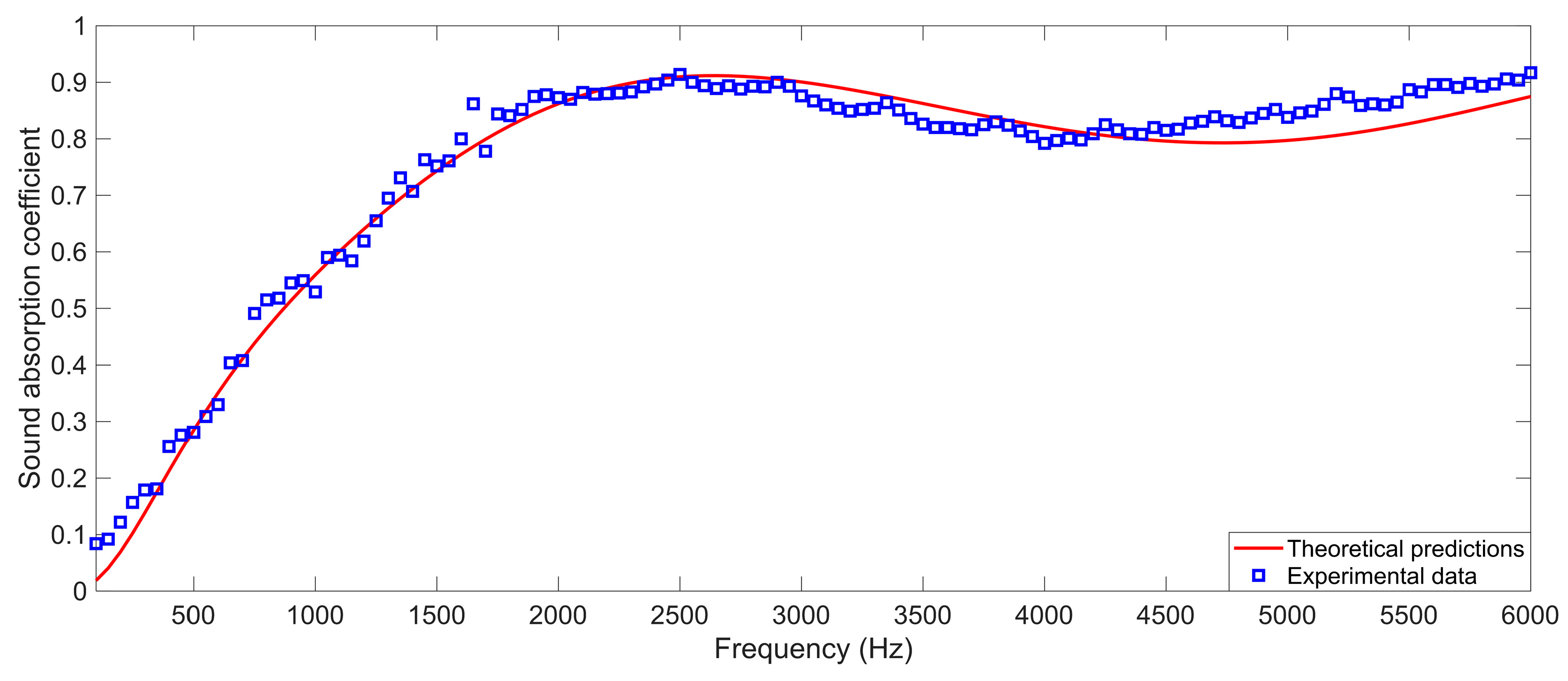

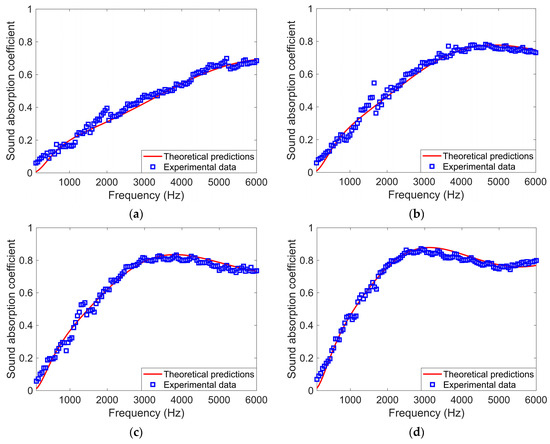

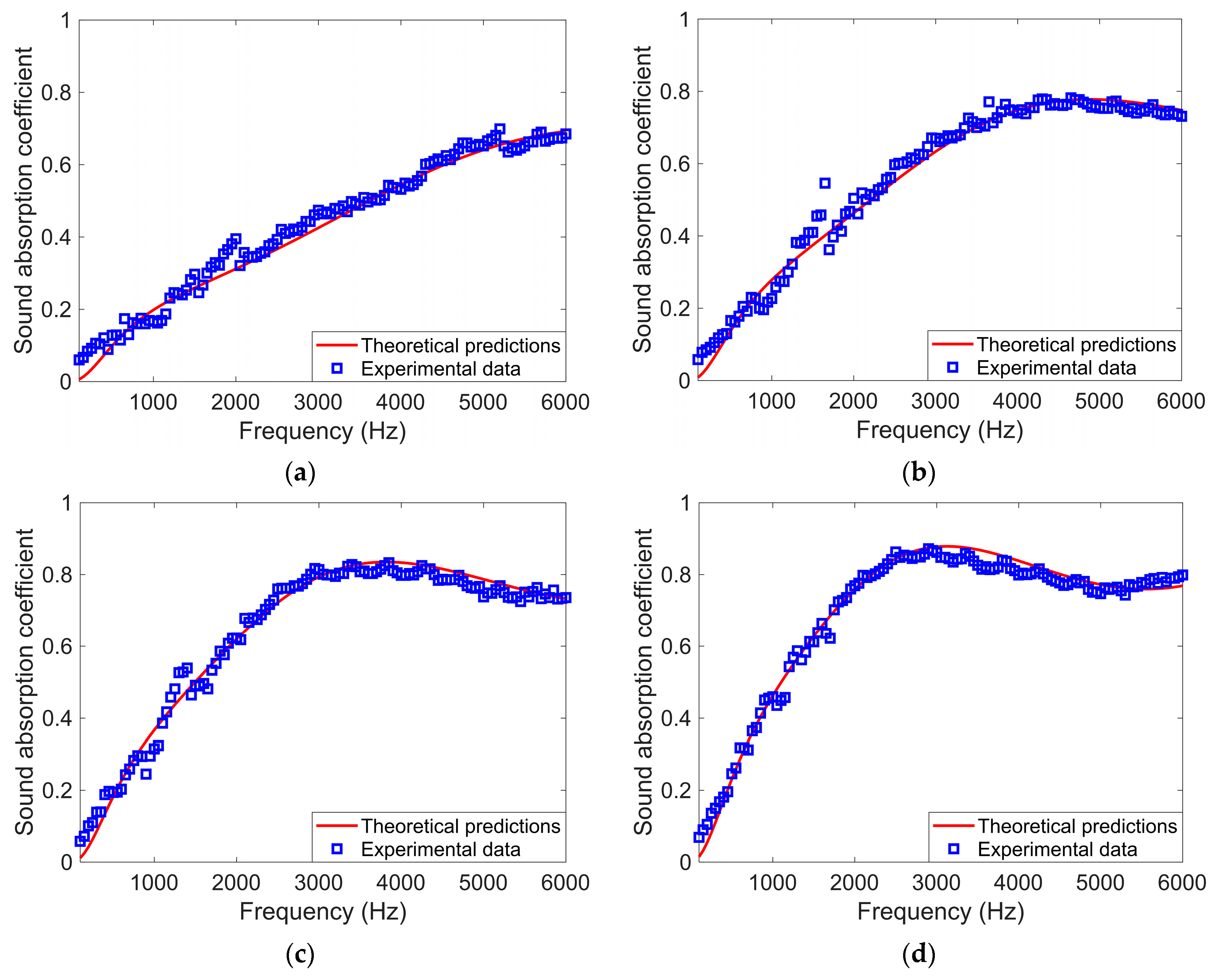

By putting the identified acoustic characteristic parameters into the theoretical model in Equations (1)–(7), the theoretical sound absorption coefficients of the porous metal with different thicknesses could be obtained, and they were compared with the experimental data, as shown in Figure 6. It could be found that the consistency between theoretical prediction and experimental data was excellent. The total departure of the regressive average value $R^2$ was used to quantitatively express the deviation between the theoretical predictions and experimental data, as shown in Equation (12) [6,41]. Here, ${\alpha }_{ei}$ and ${\alpha }_{ti}$ were the experimental data and the theoretical predictions, respectively; $N$ was the number of groups of the compared data. The calculated $R^2$ values were 0.9963, 0.9976, 0.9982, and 0.9988 when thicknesses of the porous metal were 15 mm, 20 mm, 25 mm, and 30 mm, respectively. It is known that the reliability of the model was proportional to the proximity of the $R^2$ values to 1. The model would be considered reliable when the evaluation index $R^2$ was larger than 0.99. Thus, it could further prove the reliability and practicability of the cuckoo search identification algorithm in another way.

$$R^2=1-\frac{{\displaystyle \sum _{i=1}^N{\left({\alpha }_{ei}-{\alpha }_{ti}\right)}^2}}{{\displaystyle \sum _{i=1}^N{\alpha }_{ei}^2}}$$

(12)

Besides the above experimental verifications, sound absorption coefficients of the porous metal with a thickness of 35 mm were theoretical analyzed and experimental measured, and the results are shown in Figure 7, which exhibited their consistency. The calculated $R^2$ value between the theoretical predictions and the experimental data was 0.9982, which indicated that the identification of acoustic characteristic parameters of the porous metal through the cuckoo search algorithm had universality other than for the limited thickness. Moreover, the obtained accurate identified acoustic characteristic parameters would be favorable to improve sound absorption coefficients of the porous metal and promote its practical application.

3. Modeling and Optimization

The sound absorption coefficient of the porous metal could be improved by a adding microperforated metal panel in front of it to form a composite sound-absorbing structure [13], as shown in Figure 8. Besides the acoustic parameters of the porous metal, structural parameters of the microperforated panel, which included thickness of the panel $t$, diameter of the microhole $d$, and distance between the neighboring holes $b$, together determined the corresponding sound absorption performance of the composite sound-absorbing structure.

3.1. Theoretical Sound Absorption Model

According to the transfer matrix method [9,13,30,31,32], the sound absorption coefficient of the composite sound-absorbing structure could be calculated through deriving the transfer matrix of the porous metal and that of the microperforated panel. The transfer matrix of the porous metal $T_p$ had already been obtained by Equation (2), and that of the microperforated panel $T_M$ could be achieved based on Maa’s theory [42,43,44], as shown in Equation (13). Here, $Z_s$ is the acoustic impedance rate of the microperforated metal panel, as shown in Equation (14), which consists of the real part $R$ and imaginary part $X$; $j$ is the still symbol of the imaginary number, $j^2=-1$.

$$T_M=\left[\begin{array}{cc}1& Z_s\\ 0& 1\end{array}\right]$$

(13)

$$Z_s=R+jX$$

(14)

The real part $R$ and imaginary part $X$ of the acoustic impedance rate can be calculated through Equations (15) and (16), respectively. Here, $\mu$ is the viscosity coefficient of the air with the normal atmospheric temperature, 1.506 × 10⁻⁵ m²/s; $v$ is the temperature conduction coefficient of the metal panel, 2.0 × 10⁻⁵ m²/s; $\rho$ is still density of the air, 1.21 kg/m³; $\epsilon$ is the perforating rate, which can be calculated by Equation (17); $k_r$ is the acoustic resistance constant, which can be obtained by Equation (18); $\omega$ is still angular frequency of the sound wave; $k_m$ is the acoustic mass constant, which can be achieved by Equation (19) [42,43,44].

$$R=\frac{32\left(\mu +\upsilon \right)\rho }{\epsilon }\times \frac{t}{d^2}\times k_r$$

(15)

$$X=\frac{t\omega \rho }{\epsilon }\times k_m$$

(16)

$$\epsilon =\frac{\pi }{4}\times {\left(\frac{d}{b}\right)}^2$$

(17)

$$k_r=\sqrt{1+\frac{k^2}{32}}+\frac{\sqrt{2}}{8}\times k\times \frac{d}{t}$$

(18)

$$k_m=1+\frac{1}{\sqrt{\left(9+\frac{k^2}{2}\right)}}+0.85\times \frac{d}{t}$$

(19)

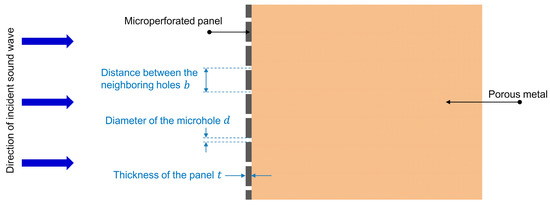

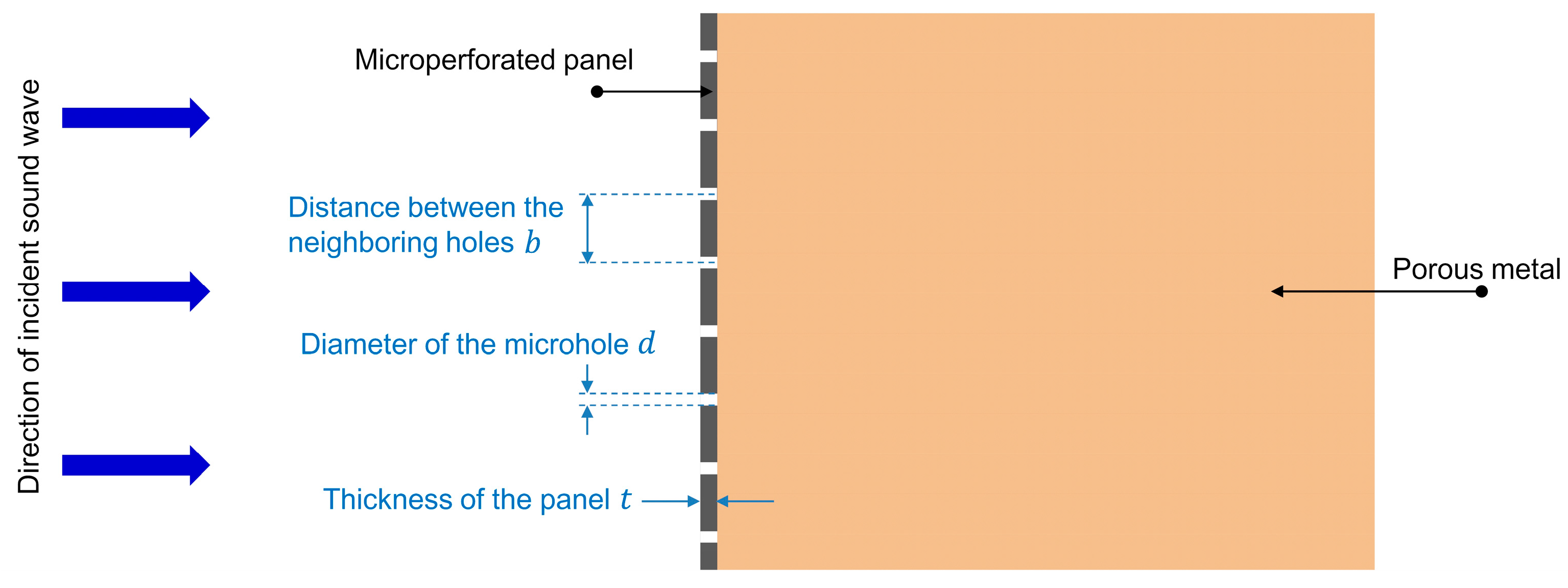

In Equations (17)–(19), the symbols $t$, $d$, and $b$ represent the thickness of the panel, diameter of the microhole, and distance between the neighboring holes, respectively, which are consistent with those in Figure 8; $k$ is the perforated panel constant, which can be derived by Equation (20). By this method, the transfer matrix of the microperforated panel $T_M$ was obtained.

$$k=\sqrt{\frac{\omega }{\mu +\upsilon }}\times \frac{d}{2}$$

(20)

According to the transfer matrix method, the total transfer matrix of the composite sound-absorbing structure $T$ was achieved, as shown in Equation (21). Referring to Equation (1), the sound absorption coefficient of the composite sound-absorbing structure was calculated by Equation (22).

$$T=\left[\begin{array}{cc}{T}_{11}& T_{12}\\ T_{21}& T_{22}\end{array}\right]=T_M\times T_p$$

(21)

$$\alpha =\frac{4\cdot \mathrm{Re}\left(\frac{T_{11}}{T_{21}}\times \frac{1}{\rho c}\right)}{{\left[1+\mathrm{Re}\left(\frac{T_{11}}{T_{21}}\times \frac{1}{\rho c}\right)\right]}^2+{\left[\mathrm{Im}\left(\frac{T_{11}}{T_{21}}\times \frac{1}{\rho c}\right)\right]}^2}$$

(22)

3.2. Parameter Optimization

Taking the original porous metal with thickness of 20 mm for example, in order to obtain the maximum improvement of its sound absorption performance, parameters of the utilized prepositive microperforated panel were optimized through cuckoo search algorithm [8,18,28,29], and average sound absorption coefficient of the composite sound-absorbing structure in certain frequency range was treated as the optimization target, as shown in Equation (23). The investigated frequency ranges $\left[f_{\min },f_{\max }\right]$ in this research were 100–1000 Hz, 100–2000 Hz, 100–3000 Hz, 100–4000 Hz, 100–5000 Hz, and 100–6000 Hz, respectively.

$$\begin{array}{cc}\max \left(average\left(\alpha \left(f\right)\right)\right)& f\in \left[f_{\min },f_{\max }\right]\end{array}$$

(23)

Meanwhile, in order to reduce the influence of the used prepositive microperforated panel to total thickness and weight of the composite sound-absorbing structure, the thickness of the microperforated panel $t$ was set as 0.3 mm. Moreover, according to the definition of the microperforated metal panel [42,43,44] and taking the manufacturing cost into consideration, the diameter of the hole $d$ and distance between the neighboring holes $b$ (square linear distribution) should not be too small, otherwise the microperforation would be too difficult to realize. Meanwhile, these two parameters should be not too big, otherwise the microperforation would be meaningless. Thus, the constraint conditions for these two parameters were summarized in Equations (24) and (25), respectively. By taking the confirmed optimization target (Equation (23)) and constraint conditions (Equations (24) and (25)) into the cuckoo search algorithm [8,18,28,29], optimal parameters of the microperforated panel for the maximum improvement of sound absorption of the porous metal with different target frequency ranges could be obtained, as shown in the

Table 1. Optimal parameters of the microperforated panel for maximum improvement of sound absorption of the porous metal with different target frequency ranges.

Frequency Range (Hz)	Thickness of Panel (mm)	Diameter of the Hole (mm)	Distance of the Neighboring Holes (mm)	Average Sound Absorption Coefficient
100–1000	0.3	0.79	9.61	0.5393
100–2000	0.3	0.37	2.91	0.6533
100–3000	0.3	0.23	1.27	0.7159
100–4000	0.3	0.15	0.58	0.7562
100–5000	0.3	0.08	0.17	0.7830
100–6000	0.3	0.05	0.07	0.7949

. For each cuckoo search optimization program, 2000 generations were iterated to find the optimal parameters, and each generation had 1000 groups of solutions, which indicated that a total of two million optional groups of parameters were examined and the obtained optimal parameters were the best among them. Taking a random group of parameters (d = 0.5 mm, b = 1.5 mm, t = 0.3 mm), for example, it could be calculated that the corresponding average sound absorption coefficients of the composite structures were 0.1888, 0.3751, 0.5167, 0.5810, 0.5917, and 0.5813 when the investigated target frequency ranges were 100–1000 Hz, 100–2000 Hz, 100–3000 Hz, 100–4000 Hz, 100–5000 Hz, and 100–6000 Hz, respectively, which could prove that the obtained optimal parameters in the Table 1 was the best option.

$$1\times {10}^{-5} m\le d\le 1\times {10}^{-3} m$$

(24)

$$1\times {10}^{-5} m\le b\le 2\times {10}^{-2} m$$

(25)

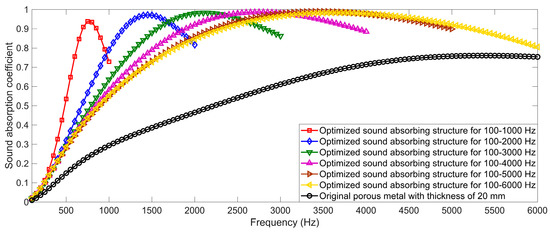

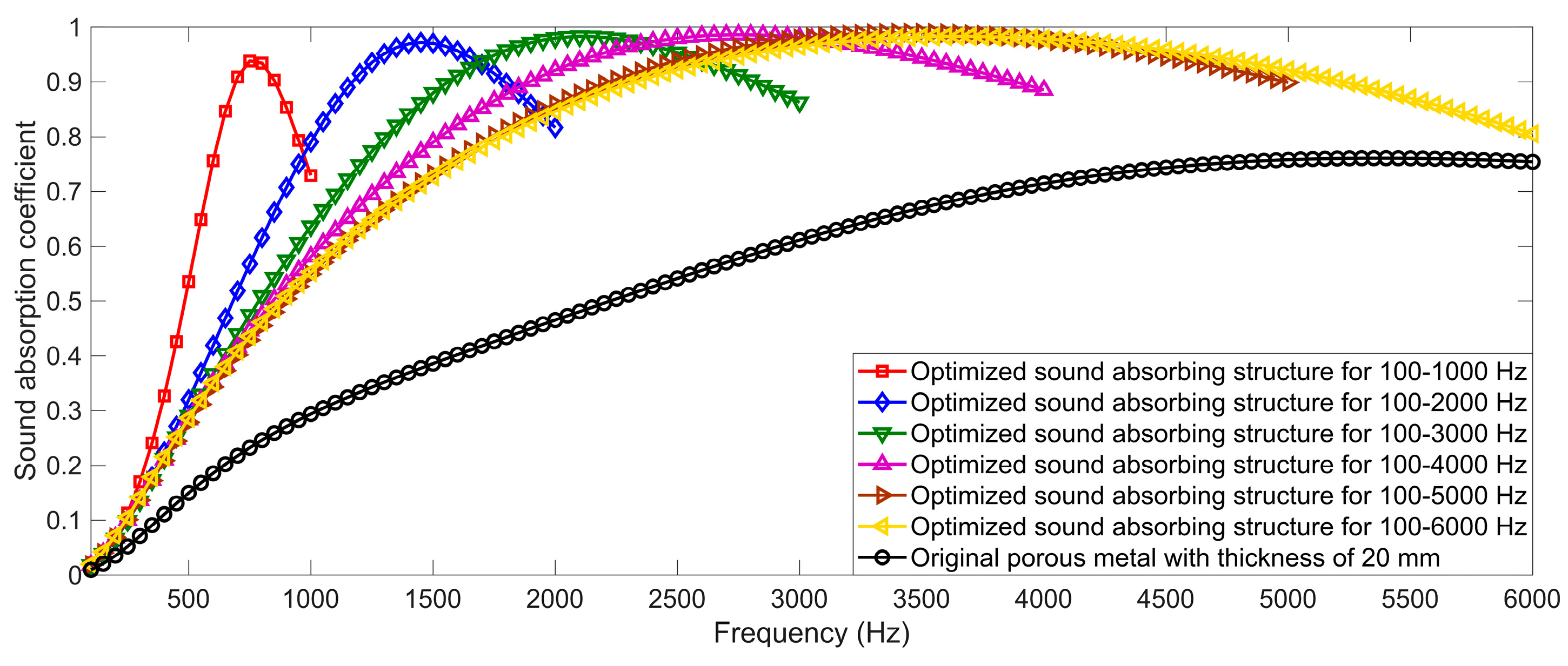

Comparisons of theoretical sound absorption coefficients of the optimized composite sound-absorbing structures and those of the original porous metal with a thickness of 20 mm are shown in Figure 9. Corresponding optimal average sound absorption coefficients of the composite sound-absorbing structure were 0.5393, 0.6533, 0.7159, 0.7562, 0.7830, and 0.7949 when the target frequency ranges were 100–1000 Hz, 100–2000 Hz, 100–3000 Hz, 100–4000 Hz, 100–5000 Hz, and 100–6000 Hz, respectively. In contrast, it could be calculated that the average sound absorption coefficients of the porous metal with a thickness of 20 mm were 0.1575, 0.2791, 0.3804, 0.4644, 0.5250, and 0.5626, respectively, for the variable target frequency ranges, which indicated that they were increased by 240%, 131%, 85%, 61%, 48%, and 41%, respectively, by adding the prepositive microperforated metal panel. It could be easily found that the improvements were remarkable, especially when the target frequency range was in the low-frequency band. The major reason for this phenomenon was that the porous metal had the superiority in the absorption of the mid-high-frequency sound and the microperforated panel would be more effective in absorbing the sound in the low-mid-frequency band [22,23,24,42,43,44]. Thus, it could be concluded that the sound absorption performance of the porous metal would be improved significantly by adding the thin prepositive microperforated metal panel and optimizing parameters of the composite sound-absorbing structure, which was propitious to promote the application of the porous metal in sound absorption.

4. Simulation and Measurement

In order to validate effectiveness and practicability of the optimal composite sound-absorbing structure, finite element simulation in the virtual acoustic laboratory [33,34,35] and standing wave tube measurement [36,37,38] by the AWA6128A detector were conducted successively, which were based on identified acoustic characteristic parameters of the porous metal and optimal parameters of the microperforated panel obtained through the cuckoo search algorithm [8,18,28,29].

4.1. Finite Element Simulation

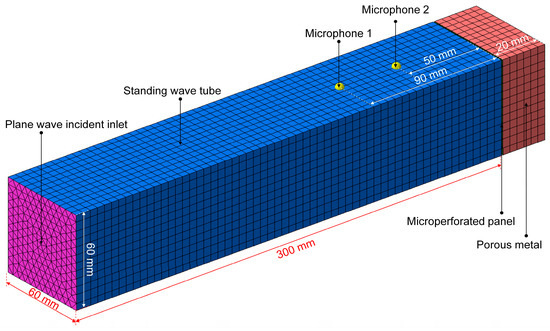

The finite element simulation model of the composite sound-absorbing structure was constructed in the virtual acoustic laboratory [13,33,34,35], as shown in Figure 10, which could simulate the sound absorption coefficient of the sound absorber according to the standing wave tube method. The size of the rectangular standing wave tube was 60 mm × 60 mm × 300 mm, and the plane wave was introduced at its front surface as an incident wave of the acoustic source. Meanwhile, the tested sound absorber was fixed at the back surface of the tube, and two microphones were installed on the tube. For the porous metal in the composite sound-absorbing structure, its sound absorption effect was confirmed by setting its thickness and inputting the identified acoustic characteristic parameters. Moreover, with regard to the prepositive microperforated panel, its sound absorption effect was represented by the transfer admittance relation loaded between the back surface of the standing wave tube and the front surface of the porous metal, as shown in Figure 10, which could be calculated according to optimal structural parameters in Table 1. The sound absorption coefficients of the composite sound-absorbing structures would be calculated by the obtained sound pressures from the two microphones. By setting the simulated frequency ranges, the sound absorption performance of the composite sound-absorbing structure for the variable target frequency range was simulated, which supplied preliminary verification for the identification and optimization.

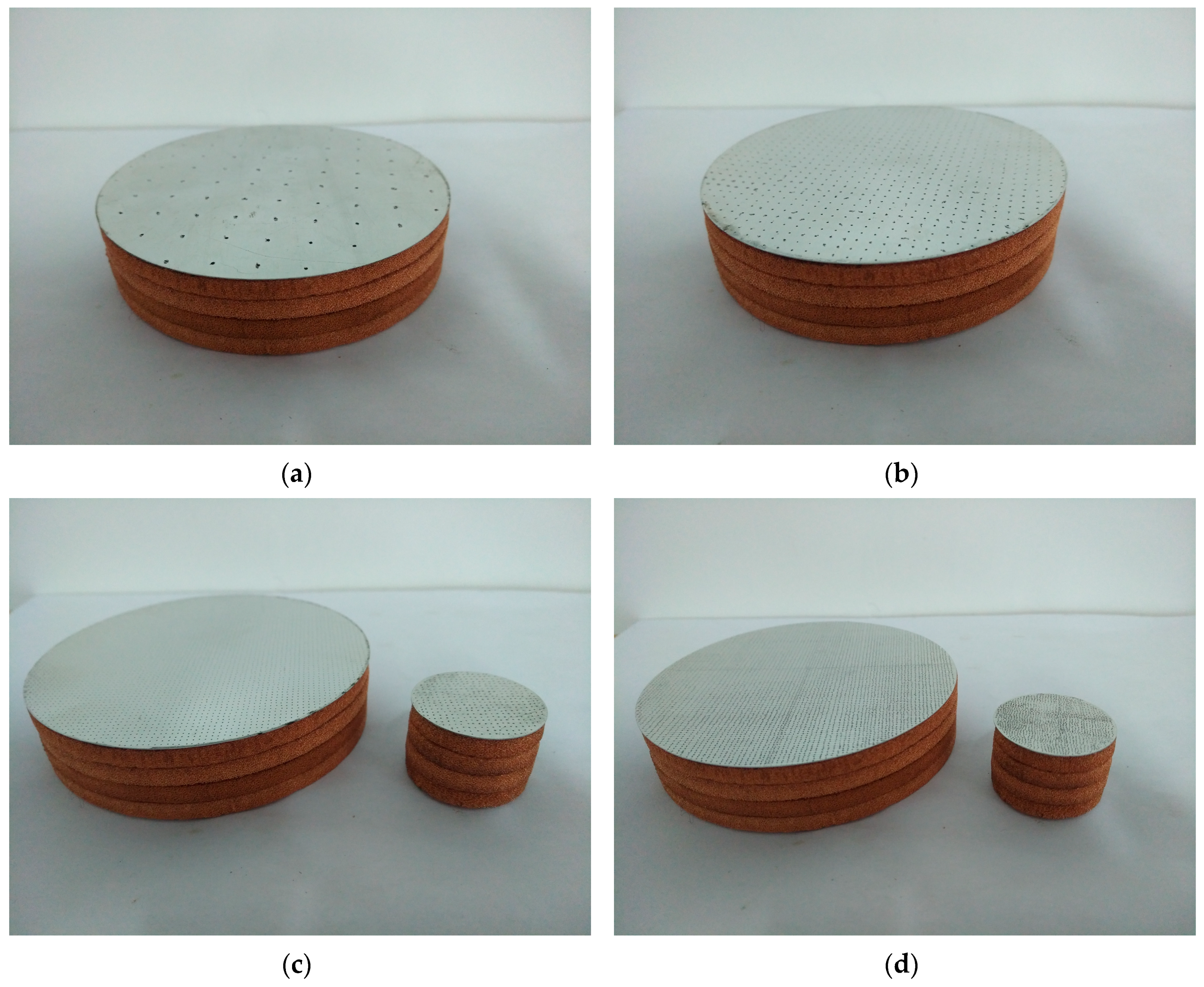

4.2. Experimental Validation

It could be judged from the optimal parameters in the Table 1 that with increase of frequency ranges 100–1000 Hz and 100–6000 Hz, diameter of the microhole $d$ and distance between the neighboring holes $b$ gradually decreased, which indicated that the manufacturing cost would rise notably, because there would be more microholes with smaller size to perforate. Taking the optimal composite sound-absorbing structure for the target frequency range of 100–6000 Hz as an example, the optimal diameter of the hole $d$ was 0.05 mm and optimal distance between the neighboring holes $b$ was 0.07 mm, which indicated that there would be more than 204 (1/0.07 × 1/0.07) microholes to perforate only for the 1 mm × 1 mm square area. The excessive manufacturing cost implied that this improvement was meaningless, except for some extremely special circumstances. There was a similar situation for the optimal composite sound-absorbing structure with the target frequency range of 100–5000 Hz. Therefore, these two prepositive microperforated panels were not prepared in this study. The other four prepositive microperforated metal panels were prepared through the laser beam machining [45], and the assembled composite sound-absorbing structures are shown in Figure 11. Afterward, sound absorption coefficients of the composite sound-absorbing structures were tested by the AWA6128A detector by replacing the detected porous metal by the composite sound-absorbing structures in Figure 2. According to the operating instruction of the AWA6128A detector, sound absorption coefficients in the frequency range 100–2000 Hz were obtained through measuring the bigger sample with a diameter of 96 mm, and those in the 2000–6000 Hz range were achieved by testing the smaller sample with a diameter of 30 mm. In this way, actual sound absorption coefficients of the optimal composite sound-absorbing structures for the 100–1000 Hz, 100–2000 Hz, 100–3000 Hz, and 100–4000 Hz were obtained, which could be compared with theoretical predictions and simulation results. Similar to standing wave tube measurement of the porous metal, each optimal composite sound-absorbing structure was measured 10 times, and the final experimental data was the average value of the 10 testing data, which aimed to reduce the measuring error in the testing program.

5. Results and Discussions

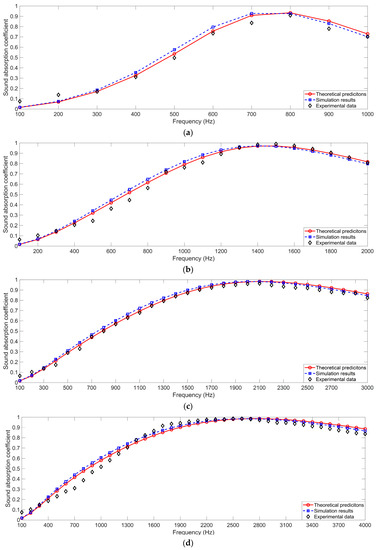

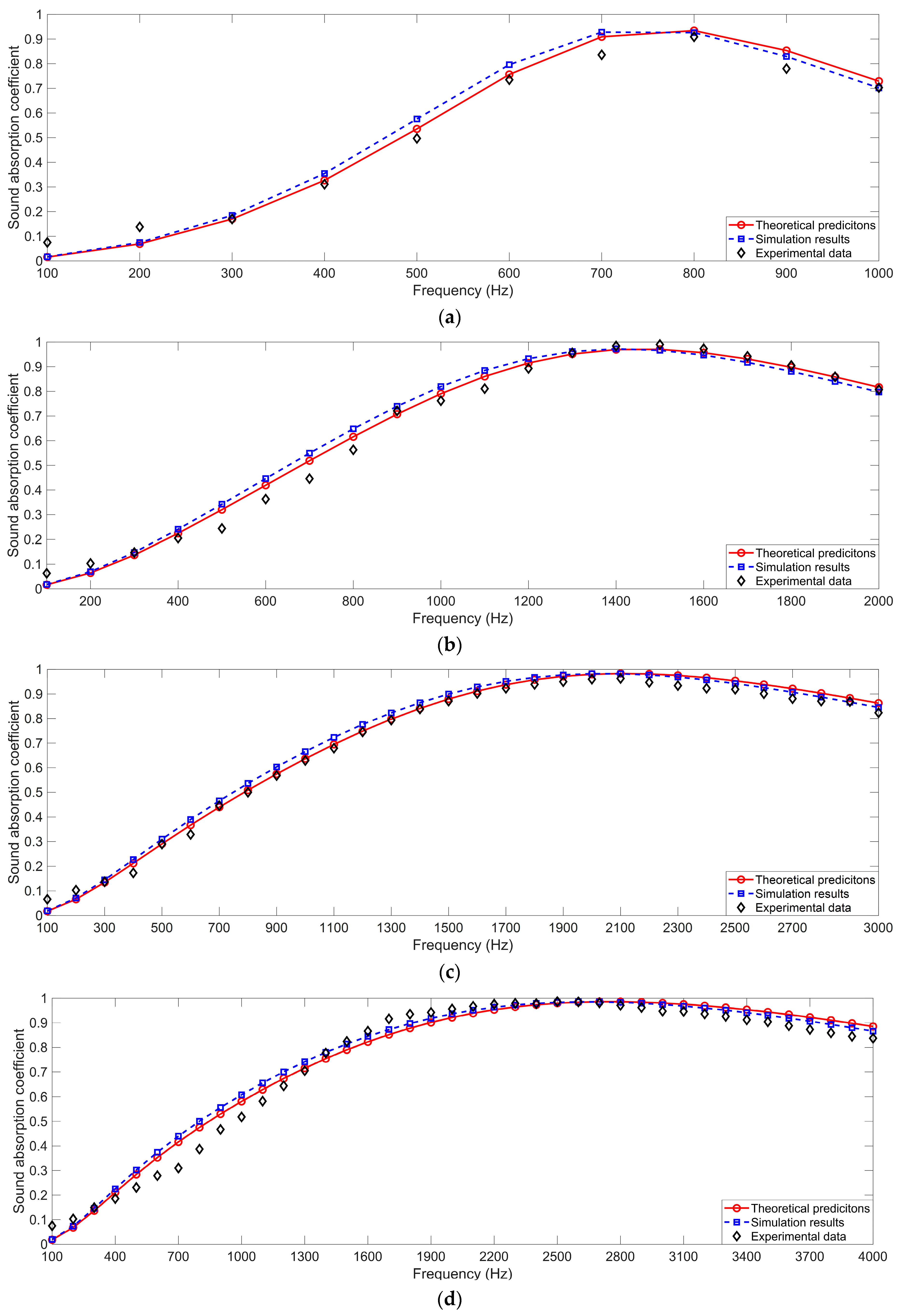

Comparisons among the theoretical predictions, simulation results, and experimental data of sound absorption coefficients of the composite sound-absorbing structures with the variable target frequency ranges are shown in Figure 12. It could be observed that the basic evolution trends of data of sound absorption coefficients in theory, those in simulation, and those in the experiment were consistent, no matter if the target frequency ranges were 100–1000 Hz, 100–2000 Hz, 100–3000 Hz, or 100–4000 Hz. Therefore, it could preliminarily prove that the sound absorption performance of the porous metal was effectively improved by adding the prepositive microperforated metal panel and optimizing its structural parameters.

Average sound absorption coefficients of the composite sound-absorbing structures with the variable target frequency ranges are summarized in

Table 2. Average sound absorption coefficients of the composite sound-absorbing structures.

Investigated Frequency Range	Average Sound Absorption Coefficient
	in Actual	in Theory	in Simulation
100–1000 Hz	0.5393	0.5493	0.5154
100–2000 Hz	0.6533	0.6627	0.6369
100–3000 Hz	0.7159	0.7195	0.6770
100–4000 Hz	0.7562	0.7595	0.7378

. It could be found that the deviation among the average sound absorption coefficient in theory, in simulation, and in actual was smaller than 0.05, which proved the effectiveness and accuracy of the theoretical sound absorption model, cuckoo search optimization algorithm, and finite element simulation method.

The total departure of the regressive average value $R^2$ in Equation (12) was used to express the deviation quantitatively, as shown in

Table 3. Deviations among the theoretical predictions, simulation results, and experimental data.

Investigated Frequency Range	Total Departure of the Regressive Average Value Relative to Experimental Data
	for Theoretical Predictions	for Simulation Results
100–1000 Hz	0.9937	0.9914
100–2000 Hz	0.9974	0.9949
100–3000 Hz	0.9965	0.9943
100–4000 Hz	0.9968	0.9964

, and the experimental data was treated as the reference. It could be observed that all the total departure of the regressive average value $R^2$ was larger than 0.99, and their average value was 0.9951, which provided quantitative evidence to excellent consistencies among the theoretical predictions, simulation results, and experimental data. Meanwhile, it could further exhibit reliability and accuracy of the theoretical modeling, parameter optimization, and finite element simulation.

Comparisons of the actual average sound absorption coefficient of the composite sound-absorbing structures with that of the original porous metal for different target frequency ranges are shown in

Table 4. Actual average sound absorption coefficients of the composite sound-absorbing structures and those of the original porous metals.

Investigated Frequency Range	Actual Average Sound Absorption Coefficients
	for Composite Structure	for Original Porous Metal	Improvement
100–1000 Hz	0.5154	0.1575	227.24%
100–2000 Hz	0.6369	0.2791	128.20%
100–3000 Hz	0.6770	0.3804	77.97%
100–4000 Hz	0.7378	0.4644	58.87%

. The improvements were 227.24%, 128.20%, 77.97%, and 58.87% corresponding to the target frequency ranges of 100–1000 Hz, 100–2000 Hz, 100–3000 Hz, and 100–4000 Hz, respectively. Although the actual improvement was smaller than the corresponding theoretical improvement of 240%, 131%, 85%, and 61%, obvious improvement of the sound absorption performance of the porous metal was realized by adding the prepositive microperforated metal panel with a tiny increase in the occupied space (total thickness increased from 20 mm to 20.3 mm) and few addition in the weight. Thus, the proposed method in this study, which consisted of identification of acoustic characteristic parameters and improvement of sound absorption performance, was valuable and practical.

6. Conclusions

The identification of acoustic characteristic parameters and improvement of the sound absorption performance for the porous metal were conducted in this research. Through the theoretical sound absorption modeling, parameter identification and optimization, finite element simulation analysis, and standing wave tube measurement, the following conclusions were obtained in this study.

(1) Acoustic characteristic parameters of the porous metal were identified through the cuckoo search identification algorithm based on the theoretical sound absorption model and experimental data of its sound absorption coefficients. These identified acoustic characteristic parameters were close to the labeled porosity and static flow resistivity. Meanwhile, through the standing wave tube measurement of sound absorption coefficients of the porous metal with the different thickness, excellent consistencies between the experimental data and theoretical predictions proved the reliability of the cuckoo search algorithm, which provided a foundation for the following improvement.

(2) The sound absorption performance of the porous metal with different target frequency range was improved through adding microperforated metal panel to form a composite sound-absorbing structure, and optimal parameters of the added microperforated metal panel were obtained by the cuckoo search optimization algorithm based on the constructed theoretical model. Average sound absorption coefficients of these optimal composite sound-absorbing structures were 0.5393, 0.6533, 0.7159, 0.7562, 0.7830, and 0.7949 when the target frequency ranges were 100–1000 Hz, 100–2000 Hz, 100–3000 Hz, 100–4000 Hz, 100–5000 Hz, and 100–6000 Hz, respectively, which increased by 240%, 131%, 85%, 61%, 48%, and 41%, respectively, relative to the original porous metal with a thickness of 20 mm. The sound absorption performance of the porous metal was significantly improved.

(3) Finite element simulation analysis in the virtual acoustic laboratory and standing wave tube measurement by the AWA6128A detector were conducted to verify the effectiveness and practicability of the optimal composite sound-absorbing structures. Excellent consistencies among the theoretical predictions, simulation results, and experimental data proved the accuracies and effectiveness of the constructed theoretical sound absorption model, the selected cuckoo search identification and optimization algorithm, and the adopted finite element simulation method.

(4) When the target frequency ranges were 100–1000 Hz, 100–2000 Hz, 100–3000 Hz, and 100–4000 Hz, corresponding actual average sound absorption coefficients of the optimal composite sound-absorbing structures were 0.5154, 0.6369, 0.6770, and 0.7378, respectively, and those of the original porous metal with thickness of 20 mm were 0.1575, 0.2791, 0.3804, and 0.4644, respectively, which exhibited the obvious improvement of the sound absorption performance with a tiny increase in the occupied space and a small addition in weight. Judging from the actual improvements of 227.24%, 128.20%, 77.97%, and 58.87%, respectively, it could be concluded that these improvements were more effective for the low-frequency range, which was consistent with common views that the microperforated panel had superiority in the low-to-middle-frequency sound absorption and the porous metal was good at the middle-to-high-frequency period.

In this study, acoustic characteristic parameters of the porous metal were precisely identified and its sound absorption performances were significantly improved, which would be favorable to promote its practical application in the fields of sound absorption and noise reduction.
