Oxidized and Non-Oxidized Multiwalled Carbon Nanotubes as Materials for Adsorption of Lanthanum(III) Aqueous Solutions

Abstract

The behavior of oxidized and non-oxidized multiwalled carbon nanotubes (MWCNTs) in the adsorption of lanthanum(III) from aqueous solutions is described. Metal uptake is studied as a function of several variables such as the stirring speed of the system, pH of the aqueous solution and metal and nanomaterial concentrations. The experimental results are fitted to various kinetic and isotherm models, the rate law being fitted to the film diffusion and particle diffusion models, when the non-oxidized and the oxidized nanomaterials are used to remove lanthanum from the solution, respectively. Sulfuric acid solutions seem to be appropriate to recover the metal from La-loaded nanomaterials.

1. Introduction

Since the 1960s, the applications of rare earths in daily life have increased until they have come to be elements which are critical in industrial developments and modern technologies, thus in this context, these elements are designated as technology-critical elements [1]. Although rare earths are more abundant than precious metals, their individual extraction is not an easy task for two main reasons; (i) they are dispersed in ores, and (ii) having similar chemical properties, it is difficult to separate them.

Rare earths (REs) are widely used in different sectors such as clean energy, nuclear energy, chemical engineering, consumer electronics, advanced transportation, agriculture, communication, metallurgy and medicine [2,3]. Currently, the REs importance are also increasing due to their use in green carbon technologies, such as rechargeable car batteries, electronic devices, permanent magnets, wind turbines and so on [4].

They are considered by the European Commission as the most critical raw materials group with the highest supply risk [5]. However, in spite of their great applications and the large amounts of RE-waste, their recycling is still poorly developed, i.e., in the EU only 6% of the heavy REs and 7% of the light REs are recovered [6,7].

Among these elements, lanthanum is used in fields such as ceramics, metal alloys, batteries, glass, semiconductors, catalysts, magnetic materials and rechargeable lithium-nickel batteries [8,9] and it is being considered as one of the most critical elements until 2025 [4]. These industrial sectors generate La wastewater together with mining, radioactive waste and the recycling of RE-waste. Particularly, the recycling of electric and hybrid vehicles batteries is a great social and technological challenge, mainly due to the environmental problems associated with their dangerous compounds, heavy metals and the recovery of valuable metals, particularly REs, cerium, lanthanum, neodymium and praseodymium which form part of the anode in the nickel-metal hydride (Ni-MH) cell [6,10], one of the most used [11,12]. Spent Ni-MH batteries contain 36–42% Ni, 3–4% Co and 8–10% mixed metals consisting of La, Ce, Pr and Nd [9]. The rare earth elements (REE) within these batteries could potentially be recycled using hydrometallurgical or pyrometallurgical recycling processes, although these processes are still under research [7]. It is estimated that one third of the REE in a typical waste electrical and electronic equipment (WEEE) waste stream could be manually sorted via the removal of batteries [13]. More recently, other ways to recover REE from batteries have been developed, such as, the use of multifunctional Diphonix resin [11], or via antisolvent precipitation [10]. However, the most used processes still are the chemical ones. The complexity of the treatments and the number of operations are a function of the metals that can be recovered [12]. Including separation technologies, adsorption is one of the most popular methodologies due to its simplicity, flexibility, low cost and high efficiency [14]. In the last decades, the study and the development of new adsorbent methods have been constant, such as clay ore, chelating, carbon nanomaterials, metal organic frameworks (MOFs), halloysite nanotubes and activated carbon [15,16,17,18,19,20,21,22]. Among these, carbon nanomaterials are a great research field due to their metals adsorption properties [10,23,24,25,26,27,28].

Various research has been conducted into La adsorption. Crane et al. [29] studied the behavior of REs and La adsorption onto nanoscale zero valent iron (nZVI) particles in an acid mine drainage medium and different synthetic solutions, the La removal capacity of nZVI was 61.0 mg/g and 410 mg/g of Yb in a solution with an initial concentration of 1000 mg/L LaCl₃ and YbCl₃; Zhao et al. [30] reported the recovery of La(III) ions from leachates of bauxite residue with a polyethylenimine (PEI) modified chitosan adsorbent. PEI addition gives the adsorbent material an excellent buffering capacity at extremely acidic pH, one characteristic of bauxite leachates. This material reaches a separation La(III)–Al(III) factor of 3:1. Kolodynska et al. [8] confirmed that Nd(III), Ce(III) and La(III) in acid nitric solutions leaching from spent Ni-MH cells preferred to bind with ligands that have oxygen as a donor atom such as Amberlita 200C Na and Amberlita 200C H and presented high sorption efficiency, whereas Dowx M 4195 showed low adsorption capacity. Iftekhar et al. [31] reviewed the effect of different parameters that affect La adsorption in various adsorbents, biosorbents, inorganic nano/composites, magnetic, silica, graphene oxides, activated carbon, etc., the article concluded that the adsorbent, mainly hybrid composites materials, which present carboxyl, hydroxyl and amine groups, showed a higher La removal efficiency over a wide pH range with a higher adsorption capacity compared with other adsorbents such as magnetic adsorbents and bioadsorbents. Graphene-based magnetic nanocomposites with high selectivity in the adsorption of lanthanum were synthesized by Alparslna et al. [32]. The efficiency in La adsorption was 93% in optimum conditions (pH 4.0 and 0.01 g of sorbent at 15 min), however the desorption in the studied conditions was practically negligible. Graphitic carbon nitride presented excellent adsorption properties of Eu(III), La(III), Nd(III) and Th(IV) the maximum adsorption capacities respectively were 155.0, 122.3, 132.5 and 185.6 mg/g [33]. Finally, Cardoso et al. [34] also presented a deep review about the adsorption capacity of different kinds of carbon nanomaterials.

Since the global demand of REs is increasing and it is expected to experience a notable growth over time [3], the present investigation concerns the adsorption of lanthanum(III) from aqueous solutions with two commercially available adsorbents, in the form of non-oxidized and oxidized (carboxylic groups) multiwalled carbon nanotubes.

2. Materials and Methods

The adsorbents used in this research (Merk KGaA, Damstadt, Germany) have the characteristics shown in

Table 1. Characteristics of the adsorbents.

Adsorbent	Purity (%)	a Functionalization Grade (%)	BET (m2/g)	Average Diameter (nm)	Density	Length (µm)	Method of Process
MWCNT	>98%	-	263	6-9	2.1	5	CVD
ox-MWCNT	>80%	>8	307	9.5	-	1.5	CVD

^a carboxylic groups; CVD: chemical vapour deposition.

.

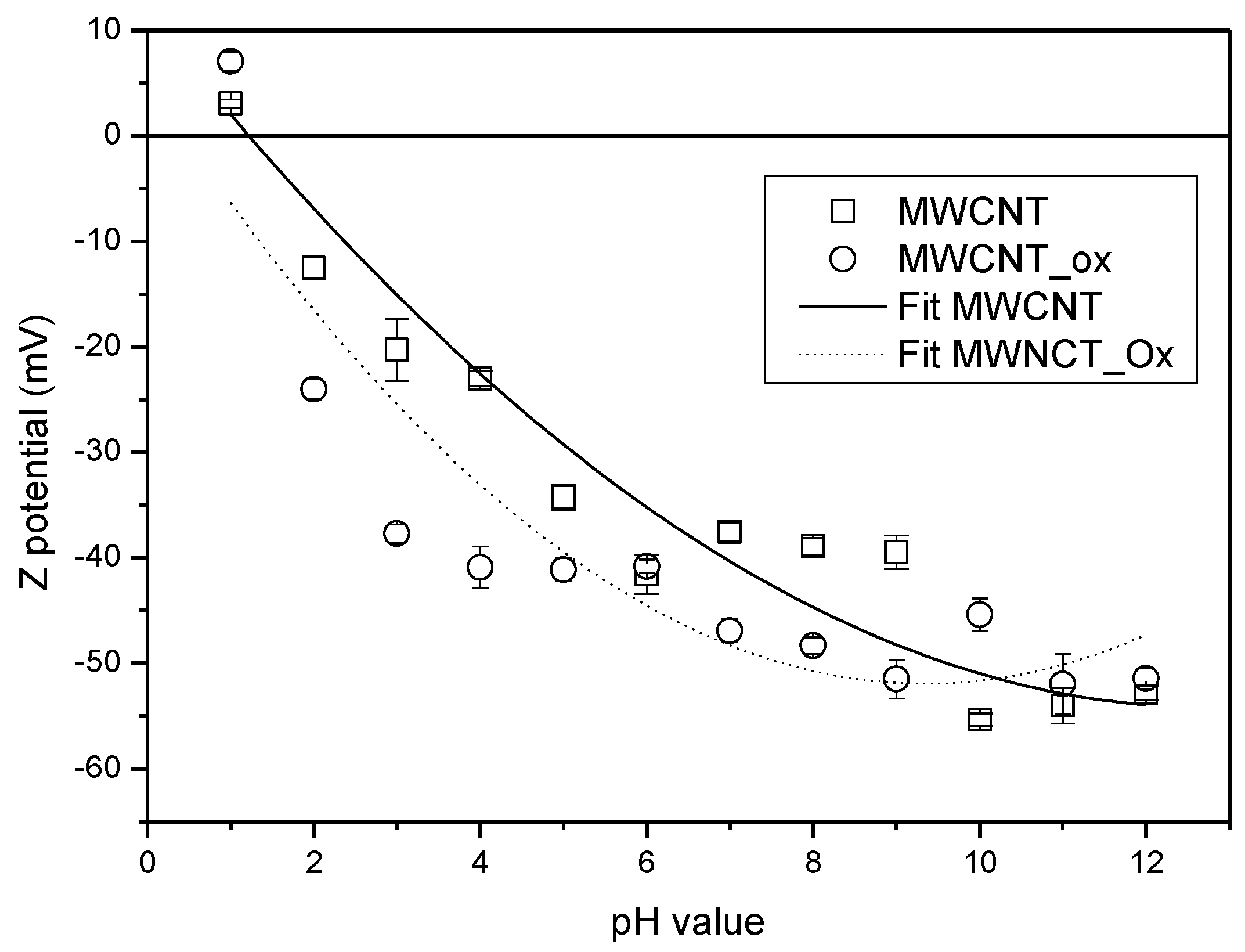

On both adsorbents, the zeta potential was measured using a Zetasizer Malvern Nano ZS (Malvern, UK) at 25 °C. Aqueous suspensions were prepared at pH values between 1 and 13 using solutions of HCl and NaOH, while the carbon dosage was adjusted to 0.1 g L⁻¹. The suspensions were dispersed with a Bandelin Electronic Sonopuls HD 3100 sonicator (Bandelin, Berlín, Germany), using amplitudes of 60% for 150 s. The results from these measurements are shown in Figure 1, indicating that the isoelectronic points (IEP) were 1.22 and 0.26 for the multiwalled carbon nanotubes (MWCNTs) and ox-MWCNTs, respectively.

Lanthanum(III) nitrate (La(NO₃)₃·6H₂O) (Merk KGaA, Darmstadt, Germany) was used as the source for La³⁺ ions. Other reagents were of AR grade.

Batch adsorption experiments were performed in a 0.5 L glass reactor providing mechanical shaking, and the percentage of metal in the solution was determined by monitoring the metal concentration by inductively coupled plasma atomic emission spectroscopy (ICP-OES) using Agilent 5100 (Agilent Technologies, Santa Clara, CA, USA) in the aqueous solution as a function of time:

$$\%=\frac{{\left[La\right]}_{aq,t}}{{\left[La\right]}_{aq,0}} ·100$$

(1)

where the percentage of metal adsorption, onto the corresponding adsorbent, was calculated by the mass balance (Equation (1)). Desorption experiments were carried out on the same basis.

3. Results

3.1. La(III) Uptake by Non-Oxidized Multiwalled Carbon Nanotubes (MWCNTs)

Having non-active groups, lanthanum uptake onto the present nanomaterial can be described by the next equilibrium:

$$\mathrm{L}{\mathrm{a}}_{\mathrm{a}\mathrm{q}}^{3+}\iff \mathrm{L}{\mathrm{a}}_{\mathrm{c}}^{3+}$$

(2)

where La_aq³⁺ and La_c³⁺ represented the lanthanum ions in the aqueous solution and occupying the corresponding adsorptive sites in the carbon nanomaterial, respectively.

In all the adsorption experiments carried out with MWCNTs, a stirring speed of 500 min⁻¹ was used to mix the solution and the adsorbent material. By the use of aqueous solutions containing 0.01 g L⁻¹ La(III) at pH 6 and carbon dosages of 4 g/L, previous experiments showed that the percentage of lanthanum uptake increased with the increase of the stirring speed from 300 min⁻¹ (84% metal adsorption) until reaching a maximum (99% metal adsorption) at the above stirring speed, indicating that a minimum value of the thickness of the aqueous phase boundary layer was reached. The increase of the stirring speed to 1000 min⁻¹ resulted in a slight decrease of the adsorption, i.e., 96% at 750 min⁻¹ and 94% at 1000 min⁻¹, this decrease being attributable to the formation of local equilibria at these higher stirring speeds.

The data derived from experiments at 500 min⁻¹ were used to estimate the kinetics associated to the system, and this investigation revealed that La(III) uptake onto the present MWCNT was best represented by the pseudo-second order kinetic model (r² = 0.989):

$$\frac{t}{{\left[La\right]}_{c,t}}=\frac{1}{k{\left[La\right]}_{c,e}^2}+\frac{1}{{\left[La\right]}_{c,e}} t$$

(3)

where [La]_c,e and [La]_c,t represented the lanthanum concentrations at equilibrium and at the elapsed time, respectively, k represented the rate constant and t the elapsed time. From this fit, it was obtained that [La]_c,e was 2.8 mg/g, which fitted very well with the experimental value of 2.5 mg/g, and k of 0.16 g mg⁻¹ min⁻¹. Furthermore, the fit of the data to the pseudo-second order model should be indicative of chemical activation between the adsorbent and the lanthanum ions [35,36].

3.1.1. Influence of the Aqueous pH

The influence of varying the pH of the aqueous solution on the adsorption of lanthanum by the MWCNTs was evaluated. Adsorbent dosages of 3 g/L were used. The aqueous phase contained 0.01 g/L La(III) at various pH values.

Table 2. Influence of the pH on La(III) uptake. Temperature: 25 °C. Time: 5 h.

pH	% La(III) Uptake
1	15
2	32
3	61
4	80
6	98

shows the results obtained from these experiments. It can be seen that the decrease in the pH value decreased the percentage of metal adsorption onto the carbon material. This could be because the surface charge of MWCNTs turns negative at pH values higher than the pH (IEP) 1.22, see Figure 1.

The results derived from experiments at pH 6 were used to estimate the rate law for the present system, and the results derived from these fits, indicated the La(III) uptake onto the nanomaterial was best associated to the aqueous film diffusion mechanism (r² = 0.988):

$$\ln \left(1-F\right)=-kt$$

(4)

where k is the rate constant, t the elapsed time, and F the fractional approach to the equilibrium, calculated as:

$$F=\frac{{\left[La\right]}_{c,t}}{{\left[La\right]}_{c,e}}$$

(5)

the value of k being estimated as 0.03 min⁻¹. It should be noted here, that the aqueous film diffusion was often associated to adsorption processes obeying the pseudo-second order kinetic model [37].

3.1.2. Effect of Adsorbent Dosage

Figure 2 represents the results obtained for the study of the influence of the adsorbent dosage on lanthanum adsorption. The aqueous solution contained 0.01 g/L La(III) at pH 6 and the adsorbent dosages ranged from 1 to 4 g L⁻¹. The results obtained showed that the increase of the adsorbent dosage increased lanthanum adsorption, however, the effectiveness of this adsorbent for metal adsorption is constant if adsorbent dosages of 3 and 4 g L⁻¹ are used.

3.1.3. Effect of Metal Concentration

The influence of the initial lanthanum concentration on the percentage of adsorption of this metal onto the MWCNTs was investigated. This study was carried out using aqueous solutions that contained various lanthanum concentrations at pH 6 and carbon dosages of 3 g/L. The results are shown in

Table 3. Influence of initial metal concentration on La(III) uptake. Temperature: 25 °C. Time: 5 h.

[La]0, mg/L	% La(III) Uptake	[La]c,e, mg/g
10	98	3.3
20	75	5.0
40	46	6.1
80	20	5.3

, it can be seen that the percentage of metal adsorption decreased with the increase of the initial metal concentration in the aqueous solution, where maximum metal loading onto the nanomaterial was around 5.3 mg g⁻¹.

These results were fitted to the Langmuir and Freundlich models [38,39]; it was found that the best fit was related to the Langmuir Type-1 equation model (r²: 0.992), indicative of a homogeneous surface of the adsorbent covering with a single layer:

$$\frac{{\left[La\right]}_{aq,e}}{{\left[La\right]}_{c,e}}=\frac{1}{k_L{\left[La\right]}_{c,m}}+\frac{1}{{\left[La\right]}_{c,m}}{\left[La\right]}_{aq,e}$$

(6)

in the above expression, [La]_c,e and [La]_aq,e represented the metal concentration in the carbon nanomaterial and in the aqueous solution at equilibrium, respectively, [La]_c,m is the maximum lanthanum concentration in the carbon nanomaterial, and k_L is the Langmuir constant. From the above fit, [La]_c,m was 5.3 mg/g, a value which compares well with the experimental value of 5.5 mg/g, and k_L being 1.4 L/mg. Moreover:

$$R_L=\frac{1}{1+K_{l {\left[La\right]}_{aq,0}}}$$

(7)

it was found that in all the lanthanum concentrations range used in this work, the adsorption process is favorable since R_L < 1 [40].

3.2. La(III) Uptake by Oxidized Multiwalled Carbon Nanotubes (ox-MWCNTs)

The presence of carboxylic groups in the carbon nanomaterial is indicative that La(III) uptake onto this nanomaterial, is not represented by an adsorption process but by a cation exchange process:

$$3(R-COOH{)}_c+L{a}_{aq }^{3+} \leftrightarrow (R-CO{O}^{-} ){ }_3 L{a}_c^{3+}+3H_{aq}^{+}$$

(8)

where the subscripts c and aq represented the equilibrated carbon and aqueous phases, respectively, and R the non-reactive part of the carbon nanomaterial. As it can be seen from the above equation, La(III) uptake onto the oxidized nanomaterial is accompanied by the release of protons to the aqueous solution.

3.2.1. Effect of Stirring Speed

A number of tests were performed in order to establish correct hydrodynamic conditions. The uptake onto the carbon material was studied as a function of the stirring speed applied to the system. Results obtained are shown in

Table 4. Influence of the stirring speed on lanthanum uptake onto ox-MWCNTs. Aqueous phase: 0.01 g/L La(III) at pH 6. Carbon dosage: 1 g/L. Temperature: 25 °C. Time: 5 h.

Stirring Speed (min−1)	% La(III) Uptake
250	70
350	90
500	99
750	97
1000	94

, maximum lanthanum uptake for a stirring speed of 500 min^-1 was obtained, thus, the thickness of the aqueous diffusion layer and the aqueous resistance to mass transfer were minimized. There was also a slight decrease in the metal uptake with the increase of the stirring speed, this effect being explained as above; however, in the present case, the stirring speed had an influence on the time to reach equilibrium, since, in the present experimental conditions, it was attained at 30 min (500 min⁻¹), 3 h (750 min⁻¹) and 5 h (1000 min⁻¹).

The estimation of the kinetic model, responsible for La(III) uptake onto the carbonaceous nanomaterial, indicated that the results at 500 min⁻¹ best fitted to the pseudo-second order kinetic model (r² = 0.995) Equation (3), and from this, [La]_c,e was of 10.9 mg/g, a concentration which is a little higher than the maximum theoretical of 10 mg/g, which could be derived using the present experimental conditions, and higher than the more realistic and experimentally obtained of 9.9 mg/g. From this fit, and using this 9.9 mg/g value, k resulted as 0.68 g/mg min.

3.2.2. Effect of the Aqueous pH

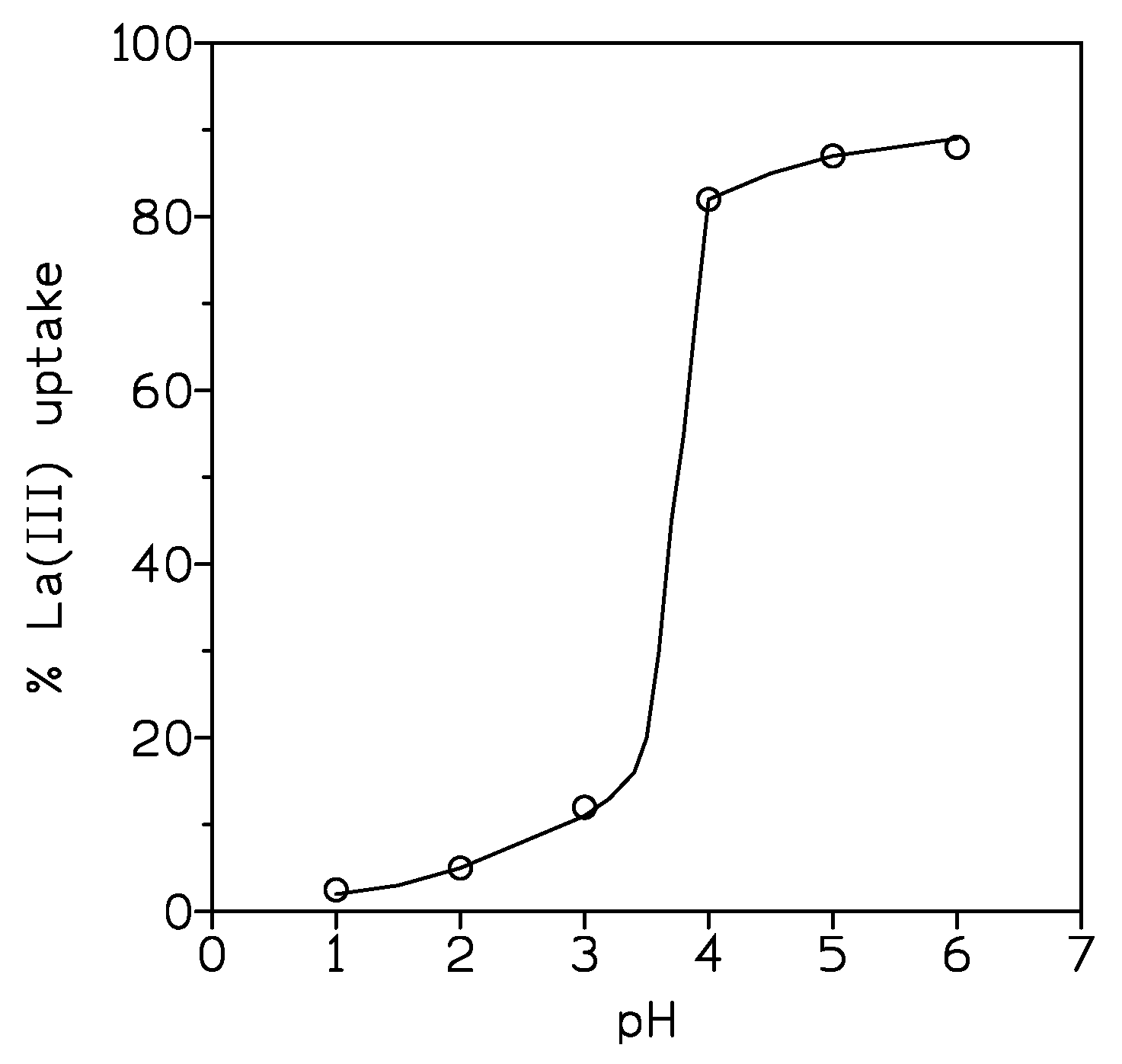

Experiments were carried out using solutions of 0.01 g/L La(III) at various pH values and carbon dosages of 0.5 g/L. Figure 3 shows the results obtained. As expected from Equation (6), it can be seen that the variation of the aqueous pH value had a marked effect on La(III) uptake onto the ox-MWCNTs, decreasing the metal uptake as the pH value was decreasing. From Equation (6):

$$K=\frac{[(R-CO{O}^{-}){ }_{3}L{a}^{3+}]\left[H^{+}\right]{ }^3}{{\left[\left(R-COOH\right)\right]}^3 [L{a}^{3+}]}$$

(9)

and by definition, the metal distribution coefficient is:

$$D=\frac{[(R-CO{O}^{-}){ }_{3 }L{a}^{3+}]}{[L{a}^{3+}]}$$

(10)

substituting the above in Equation (9) and rearranging, the next expression is derived:

$$logD=\log {[R-COOH]}^{ 3}+3pH$$

(11)

thus, by plotting log D versus pH a straight line of slope 3 may be obtained. From the results shown in Figure 3, such a plot confirming a slope of near 3, and that La(III) uptake onto these ox-MWCNTs occurred via the equilibrium shown in Equation (6). It is worth noting here, that the curve had an approximate S-shape, characteristic among others, of cationic exchangers.

The results at pH 6 were used to estimate the rate law for the lanthanum uptake onto these oxidized nanomaterials. The results fitted well with the particle diffusion model (r² = 0.945):

$$\ln {\left(1-F\right)}^2=-kt$$

(12)

and k estimated as 0.06 min⁻¹.

3.2.3. Effect of ox-MWCNTs Dosage

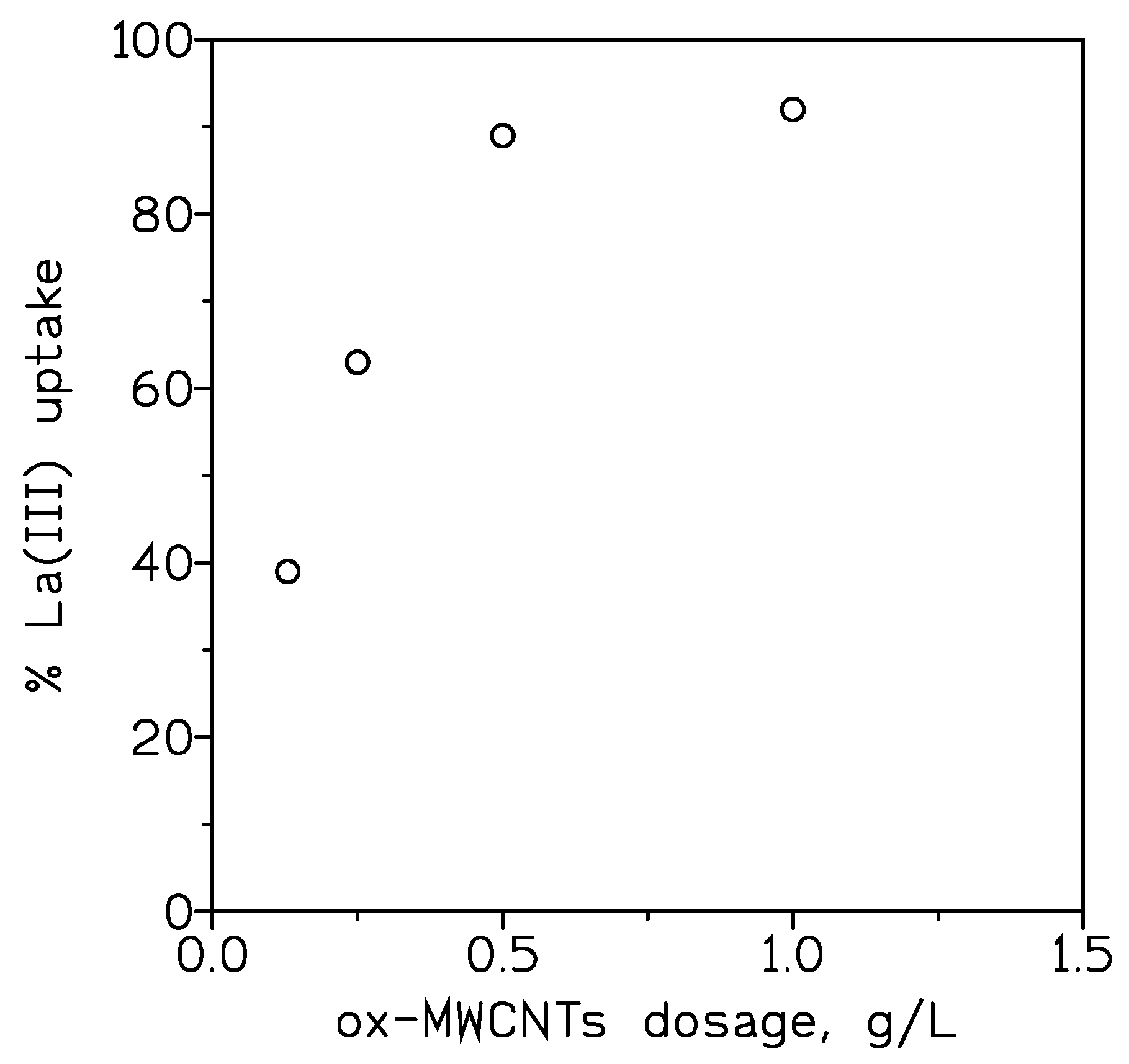

The variation in the percentage of lanthanum adsorption at different adsorbent dosages is shown in Figure 4. The experiments were carried out with carbon dosages in the 0.13 to 1 g/L range and aqueous solutions of 0.01 g/L La(III) at pH 6.

The results obtained showed that increasing the adsorbent dosage increased the percentage of lanthanum adsorption from 0.5 g/L carbon dosage, although the difference in the values is less significant than in the lower adsorbent dosage range.

3.2.4. Effect of Initial Lanthanum Concentration

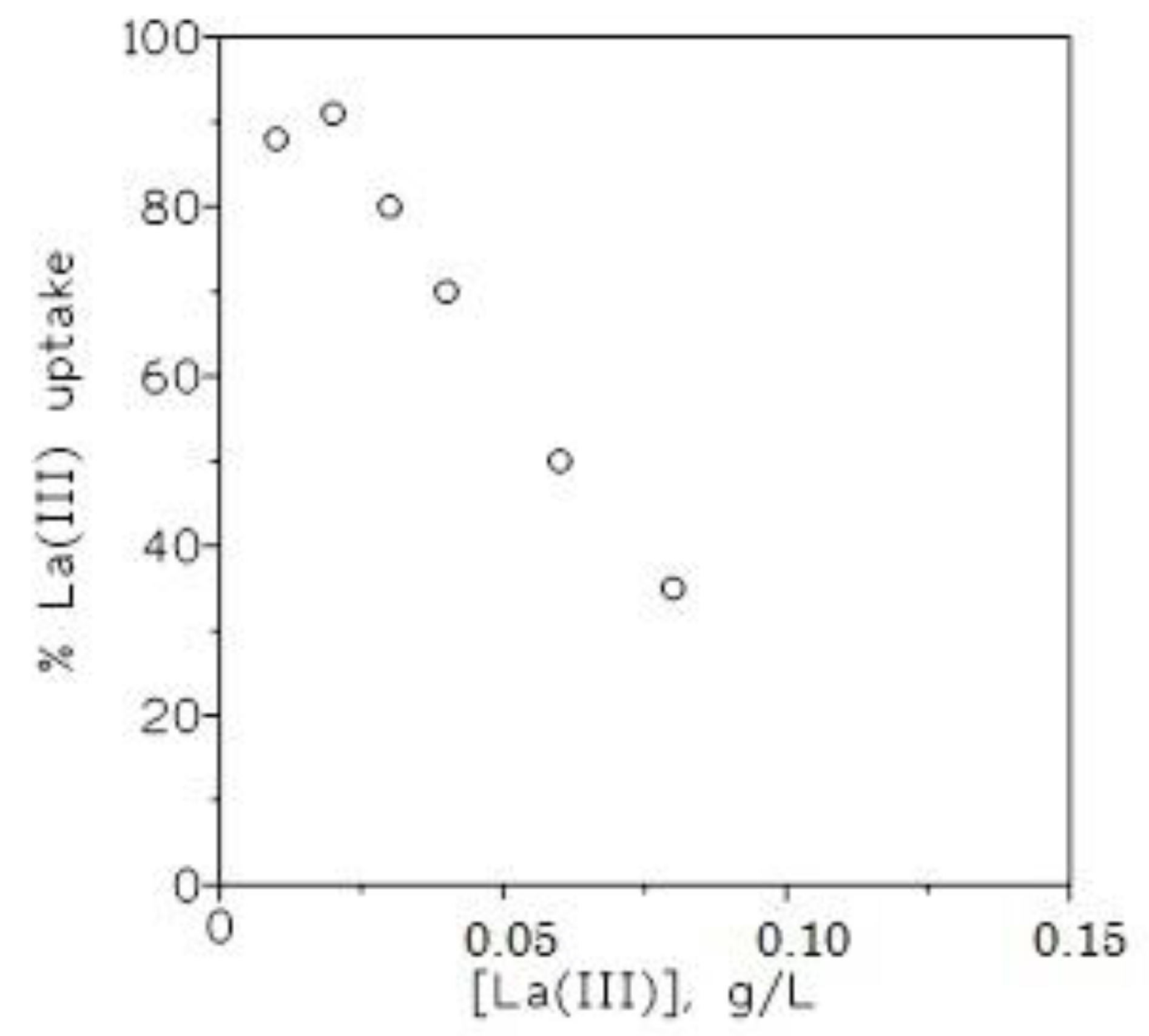

Figure 5 shows the variation in the percentage of lanthanum uptake onto the ox-MWCNTs against the initial concentration of the metal ranging from 0.01 to 0.08 g/L. It can be observed that with the present experimental conditions, the percentage of metal uptake reached a maximum at 0.01–0.02 g/L La(III), and then decreased.

Lanthanum uptake is best represented by the Langmuir Type-1 isotherm (Equation (6)), with [La]_c,m of 59 mg/g, a value very similar to that experimentally obtained of 57 mg/g, and k_L 0.78 L/mg. Considering Equation (7), the estimated value of R_L for the system is 0.11, indicative of a favorable metal uptake process [40].

3.3. Elution

As the results in Section 3.1.1 and Section 3.2.2 show, using both adsorbents, there is a strong influence of the aqueous pH on lanthanum adsorption, thus, it is logical to use acidic solutions to desorb this metal from La-loaded carbon nanomaterials. This series of experiments was carried out, at 25 °C, using 0.1 M H₂SO₄ solutions, and an La-loaded nanomaterial in a 0.4 carbon/solution relationship. The results from these experiments showed that the percentage of lanthanum recovery in the eluate was 79% and 87% for the non-oxidized and the oxidized nanomaterials, respectively. At the same time, the nanomaterial was recovered for further use, in the case of the oxidized nanomaterial by shifting of the equilibrium shown in Equation (6) to the left, as a consequence of the desorption reaction. In the case of non-oxidized MWCNT, the use of a mild acidic solution would probably activate the adsorption sites present in the carbon matrix, without destroying this matrix, though different behavior between initial and eluted carbon material might be observed under continuous use, i.e., columns [41]. The use of HCl or HNO₃ solutions did not improve the desorption results yielded with the use of a sulfuric acid solution.

4. Conclusions

From the experimental data obtained from this investigation, it can be deduced that both oxidized and non-oxidized multiwalled carbon nanotubes, commercially available materials, can be used to recover lanthanum from aqueous solutions.

For both nanomaterials, the adsorption of lanthanum, is influenced by a number of variables, such as metal concentration and adsorbent dosages, the stirring speed applied to the system, and the pH of the aqueous solution.

In both cases, the metal uptake corresponded to the pseudo-second order kinetic model and the Langmuir Type-1 isotherm model, however, they differ in the rate law, as the film diffusion model fitted the uptake when the non-oxidized material is used, against the fitting of the particle diffusion model to the results yielded when the oxidized carbon nanotubes are used to remove lanthanum from the solution. The mechanism by which lanthanum is removed from the solution using both nanomaterials also appeared to be different: an adsorption process in the case of the non-oxidized carbon against a cation exchange process in the case of the oxidized material. This is somewhat reflected in the fact that to obtain the same degree of lanthanum removal from the solution (more than 90%), the material dosage using the oxidized material is three times lower than that of the non-oxidized carbon nanotubes. Lanthanum loaded, onto both nanomaterials, can be desorbed by the use of acid solutions, e.g., sulfuric acid.
