Early-Stage Recovery of Lithium from Tailored Thermal Conditioned Black Mass Part I: Mobilizing Lithium via Supercritical CO₂-Carbonation

Abstract

In the frame of global demand for electrical storage based on lithium-ion batteries (LIBs), their recycling with a focus on the circular economy is a critical topic. In terms of political incentives, the European legislative is currently under revision. Most industrial recycling processes target valuable battery components, such as nickel and cobalt, but do not focus on lithium recovery. Especially in the context of reduced cobalt shares in the battery cathodes, it is important to investigate environmentally friendly and economic and robust recycling processes to ensure lithium mobilization. In this study, the method early-stage lithium recovery (“ESLR”) is studied in detail. Its concept comprises the shifting of lithium recovery to the beginning of the chemo-metallurgical part of the recycling process chain in comparison to the state-of-the-art. In detail, full NCM (Lithium Nickel Manganese Cobalt Oxide)-based electric vehicle cells are thermally treated to recover heat-treated black mass. Then, the heat-treated black mass is subjected to an H₂O-leaching step to examine the share of water-soluble lithium phases. This is compared to a carbonation treatment with supercritical CO₂, where a higher extent of lithium from the heat-treated black mass can be transferred to an aqueous solution than just by H₂O-leaching. Key influencing factors on the lithium yield are the filter cake purification, the lithium separation method, the solid/liquid ratio, the pyrolysis temperature and atmosphere, and the setup of autoclave carbonation, which can be performed in an H₂O-environment or in a dry autoclave environment. The carbonation treatments in this study are reached by an autoclave reactor working with CO₂ in a supercritical state. This enables selective leaching of lithium in H₂O followed by a subsequent thermally induced precipitation as lithium carbonate. In this approach, treatment with supercritical CO₂ in an autoclave reactor leads to lithium yields of up to 79%.

1. Introduction

The need for lithium recovery from LIBs is a crucial topic in terms of increased electromobility since lithium is and will remain a relevant element also in next-generation batteries. Lithium is currently industrially, not recycled. Hydrometallurgical research focuses on recovering lithium at the end of the processes; thus, impurities from process additives are possible, and moreover, reagents like Na₂CO₃ are needed for generating a marketable lithium product. The present study aims to present a method to mobilize lithium without using expensive or environmentally harmful additives: The early-stage lithium recovery (“ESLR”) method. This “ESLR” particularly requires a suitable thermal pretreatment, and other elements can then be integrated into existing metal refining processes. The full “ESLR” process investigated here are shown in Figure 1.

For this research’s purpose, the publication is structured into three parts: first, state-of-the-art processes for LIBs recycling are contrasted to innovative research for lithium phase transformation. Second, our own research results based on experimental studies are presented and subsequently evaluated in terms of lithium yield and purity. Concludingly, the obtained results are discussed by showing their scientific findings and process technology relevance in comparison to the state-of-the-art.

1.1. State-of-the-Art in Recycling Li-ion Batteries

LIBs recycling comprises different modules and sequences, leading to alternative process paths. Statements regarding future-dominant process pathways are afflicted with uncertainties due to location and know-how aspects and also because of the heterogeneous and changing scrap stream compositions [1]. However, the available processes, until the point of having generated marketable products, can be divided into preconditioning and metallurgical extraction [2]. The pretreatment steps, in turn, can be asserted to different sectors: deactivation/discharging [3], mechanical processing as dismantling of EV modules and packs to cell level, comminution and sorting by size or physical properties [4] and finally a thermal treatment [5]. Within the metallurgical techniques, there are mainly hydro- and pyrometallurgical processes available [6]. They both comprise benefits and drawbacks; for example, in hydrometallurgy also ignoble elements, like Fe, Al and C, can be recovered, but on the other hand, the processing goes along with comparatively slow kinetics [6]. Depending on individual core objectives, the cells can be charged into a smelter without any pretreatment [3], but regarding a circular economy approach, it is beneficial to consider pretreatment steps [7] in order to maximize resource efficiency. Besides conventional industrial treatments, different studies are in place to give an overview also on innovative emerging recycling paths [8,9] and also approaches to evaluate the environmental impacts of different paths [10,11,12]. First, the available processes for recycling Li-ion batteries are described, and second, innovative processes for CO₂-promoted lithium phase transformations are shown. Therefore, first, indirect carbonation principles and studies are outlined, second, literature on direct carbonation is presented and third, the role of CO₂ in a supercritical state is pointed out. Goal of this detailed elaboration is a monitoring of gaps in literature regarding efficient lithium recovery from LIBs.

1.1.1. Thermal Preconditioning

Thermal pretreatments can be carried out, for example, as pyrolysis. Here, the cells are deactivated in the absence of oxygen at temperatures of typically 600 °C [13]. Pyrolysis (as well as classical incineration) are thermal pretreatments allowing for a safe cell deactivating and facilitating further downstream recycling without risking a so-called thermal runaway [14,15]. Through chemical cracking and such removal as organic compounds in gaseous form, which originate primarily from binder, electrolyte, and separator, takes place [13,16]. A major advantage of thermal treatments comprises a safe cell deactivating, thus contributing to risk mitigation in the context of fire incidents. This thermal runaway can occur, for example, during scrap transport, storing, but also by mechanical processing due to this mechanical, electrical or thermal abuse [17]. Several studies report the second advantage of thermal pretreatments, namely an improved detaching of black mass from the cell’s current collector foils [7,16,18,19,20,21]. Additionally, suitable mechanical preconditioning concepts are required for efficient downstream processing, especially for hydrometallurgical treatments [3]. A mechanical process consists of comminution and sorting for splitting black mass and other cell components, such as casing and current collector foils. Hence, by subsequent mechanical postprocessing, aluminum and copper foils, along with the metallic casing, either aluminum or steel, can be separated as marketable products from the black mass. Black mass then contains all electrochemical active electrode materials [22]. Due to different battery systems on the market, black mass always has different chemical compositions [22].

The separation into individual fractions by means of sieving or physical separation techniques contributes to higher yields of the valuable components and, finally, increases process recycling efficiency [14]. In this way, copper, aluminum and steel can be integrated into their specific recycling processes. Regarding the extracted black mass, two processing alternatives are in place: hydrometallurgical and pyrometallurgical treatments. In the following, these two methods and their challenges for lithium recycling are compared.

1.1.2. Lithium Behavior in Pyro- and Hydrometallurgical Recycling Steps and Need for Early-Stage Li-Separation

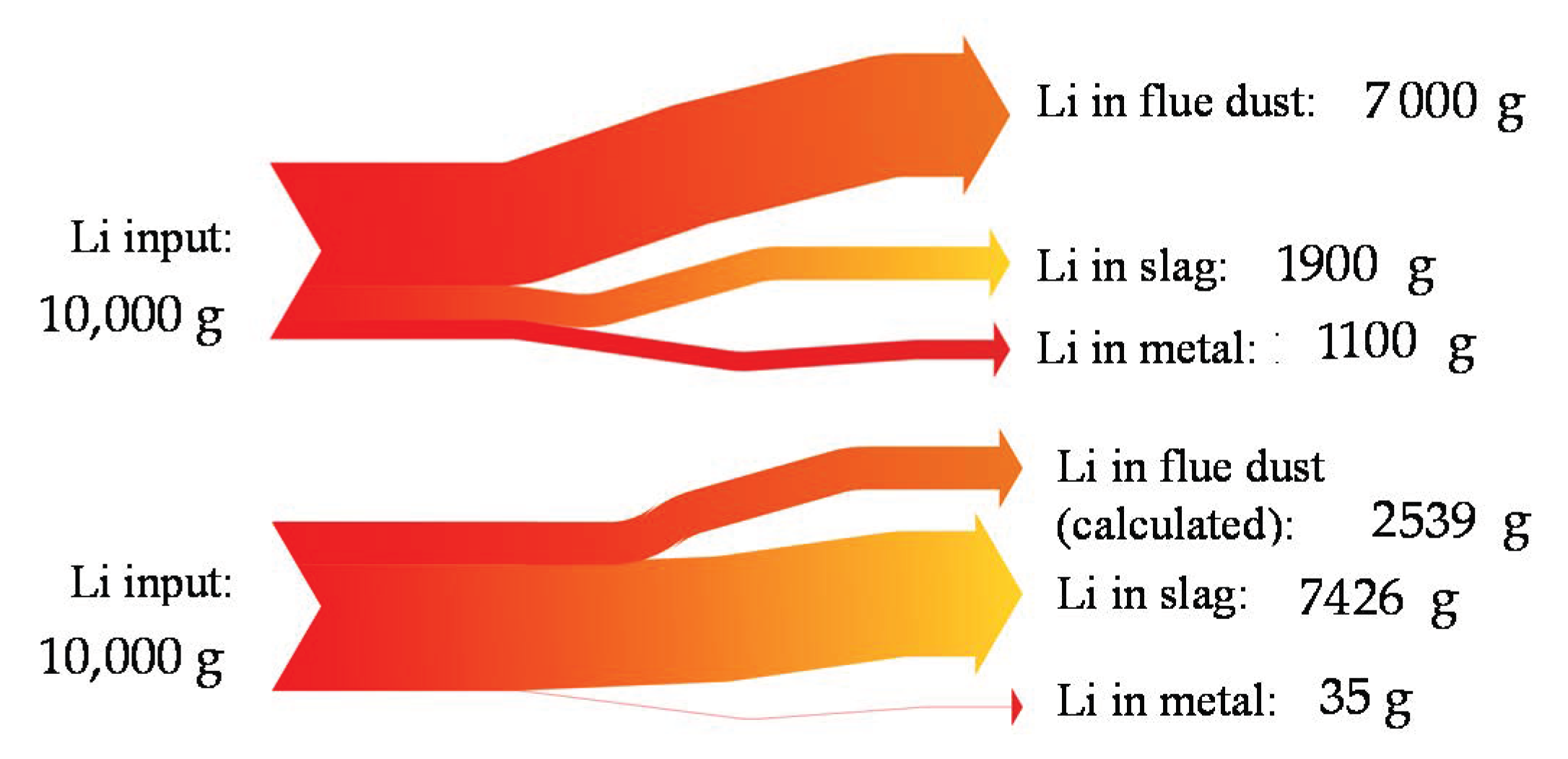

Smelting of possibly pelletized black mass with the addition of SiO₂ as slag additive in an electric arc furnace has shown that lithium accumulates both in slag and flue dust [23]. Due to its ignoble character, extraction via a metal phase is not possible. As can be seen in Figure 2, a negligible proportion of approximately 0.35% of lithium is accounted for in the alloy produced. Depending on the selected slag system and the amount of slag, increased accumulation in the slag or flying dust can be realized (see Figure 2). Since the slag has a solubility limit for lithium oxide, according to Vest [24], the evaporation of lithium takes place when the corresponding concentration is exceeded. Due to re-oxidation processes, lithium oxide is accumulated in the flue dust (see Figure 2 below, according to Vest [24]). When operating at the lab-scale, smaller quantities of slag are generated, leading to a larger proportion of lithium transferred to the flue dust. The two Sankey diagrams in Figure 2 show a broad distribution of lithium between the three phases slag, flue dust and partly alloy, which is valid for both smelting setups. In order to extract lithium from the produced slag, energy-intensive crushing, classifying and hydrometallurgical purifying are required, but the costs for these treatment steps are currently not covered by lithium’s raw material price [3].

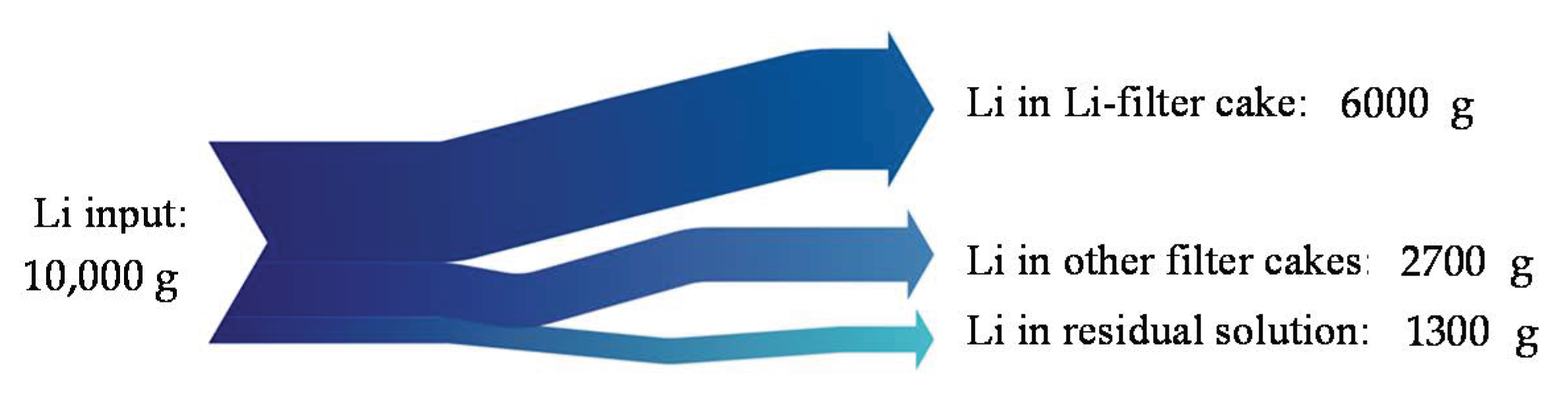

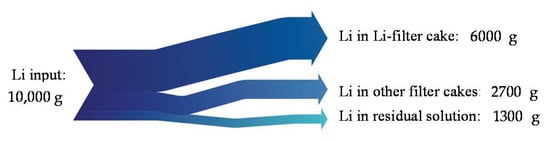

When treating the extracted black mass by hydrometallurgical processing, lithium is not always enriched in one single product fraction, neither, but can be distributed during the multi-step precipitation series in all filter cakes [25]. Firstly, a black mass is typically leached in mineral acid. For this purpose, it is beneficial to conduct the thermal pretreatment as described easing the dissolution process [26]. Here, Shin et al. report the binder’s (polyvinylidene fluoride, PVDF) property of not dissolving in acidic solution and disturbing the filtration process after leaching [27]. Yang et al. have shown a strategy to separately incinerate and then hydrometallurgically treat spent anode material in order to purify the C-fraction from lithium impurities, recovering lithium by means of Na₂CO₃ [28]. When treating the black mass from both cathode and anode, the target products such as copper, iron and aluminum, cobalt, nickel and manganese are cemented or precipitated one after the other. Lithium salt recovery, e.g., as carbonate (Li₂CO₃), is the last process step in the hydrometallurgical process chain, as suggested by Wang et al. [25]. Wang et al. have proven a lithium leaching efficiency of 98.5% [25]. For obtaining Li₂CO₃ in the last process step, a carbonation additive like sodium carbonate is used. During the precipitation stages, as can be seen from the data in Figure 3, approx. 27% of lithium remains in other filter cakes. Thus, the purity of the obtained copper, Fe/Al and Ni-Co products is reduced, and the yield of recovered lithium suffers. Moreover, a share of lithium remains in wastewater leading to a complex circuit with continuous neutralization salt removal, again including lithium losses. This complex processing is up to now industrially only viable by recovering the valuable metals nickel, copper and cobalt [3].

Hence, the process’s bottleneck lies in lithium extraction as a solid product instead of lithium leachability (leaching efficiency). A wide range of hydrometallurgical studies shows high leaching efficiencies using different solvents [29,30,31,32,33,34], for example, by using H₂SO_4, a lithium leaching efficiency of 96.7% [35], and by HCl 99.2% [36]. In [37], leaching in citric acid and precipitating lithium by sodium phosphate leads to a leaching efficiency of 99% Li and a recovery as Li₃PO₄ of 89%. In [38,39,40,41] also a lithium precipitation of solid Li₂CO₃ by Na₂CO₃ is reported, reaching yields of 80% [38], 90% [39] and 99% [40]. In [38], a corresponding purity of 96.97% is reached; in [39], no purity is given; in [40], the lithium filter cake consists of 10.13 wt.% Li. With a molar ratio of Li/Li₂CO₃ = 18.79%, this would mean a Li₂CO₃ content of 53.91%, assuming 10.31 wt.% exists as pure Li₂CO₃. When using cathode black mass only, a recovery of Li as Li₂CO₃ of 98.22% with a purity of 99.9% is reported [41]. This means that reaching both a high Li₂CO₃ purity with a high yield is not straightforward but achievable. Nonetheless, lithium recovery always requires additives, which can be avoided by direct H₂O-leaching. Moreover, the volume of required leaching agents can be lowered by H₂O-leaching before entering conventional hydrometallurgy due to a mass reduction. In this study, H₂O-leaching and using supercritical CO₂ are assessed for environmentally friendly and additive-free lithium recovery.

1.1.3. Liquid–Gas Carbonation (Indirect Carbonation)

The hypothesis of this work is a mobilizing of lithium by an “Early-Stage Li-Recovery”. Different methods may be applied for this phase transformation to Li-carbonate, which are addressed in the following paragraphs. The use of CO₂ for carbonation purposes has been examined for non-lithium materials in numerous studies, e.g., [42,43,44,45], and even treating of battery materials with CO₂ is possible, as shown above by Hu et al. and Zhang et al. [46,47]. Generally, Kunzler et al. investigated the parameters influencing indirect carbonation, which is understood as a reaction between dissolved elements and CO₂. In contrast to that, direct carbonation is defined as a gas–solid reaction for generating carbonates [48]. Kunzler et al. found a correlation between extraction efficiency and grain size of the target metals, solid to liquid ratio, concentration and hence pH value of the leaching agent, and temperature [48].

When aiming for indirect CO₂-driven reactions, Hu et al. have conducted a combination of a reductive thermal treatment and H₂O-leaching in combination with CO₂-gas [46]. Here, only cathode material from NMC (Lithium Nickel Manganese Cobalt Oxide)-cells was mixed with lignite as a reducing agent. According to the maximum reported leaching efficiency of 85% for Li, the optimal thermal-treatment temperature is at 650 °C, and the optimal s/l ratio is 10 mL/g (1:10 (g/mL)). Zhang et al. have developed this study further using the same parameters but also investigating optimal CO₂ flow rate and leaching time, leading to a Li-recovery of 85% [47]. In summary, when treating the cathode mass only and adding reducing agents like lignite or carbon black to the thermal treatment, lithium yields of 85% [46,47]. However, if not applying CO₂ during leaching, the leaching efficiency of lithium is 40% [46,47]. This indicates that the mechanism of indirect carbonation is decisive, but in [46,47], no CO₂ atmosphere was used during the thermal treatment; instead, a solid C-carrier was added.

A similar approach is pursued by Jandová et al., where a lithium-containing solution, not stemming from batteries, is treated with CO₂ [49]. Then, the solution is heated until the lithium concentration reaches 12–13 g/L, and afterward treated with CO₂-gas at a temperature of 40 °C for 2 h to generate LiHCO₃. Lithium hydrogen carbonate provides a higher solubility in comparison to the first, formed Li₂CO₃. Finally, the lithium solution is boiled to produce Li₂CO₃ [46,47,49]. Moreover, an indirect carbonation approach for non-battery materials gives insights into general mechanisms when purging CO₂ into aqueous solutions [45]. Within these aqueous treatments, CO₂ dissolves as [45,50]:

$${\mathrm{CO}}_2{+\mathrm{H}}_2\mathrm{O}\leftrightarrow {\mathrm{H}}_2{\mathrm{CO}}_3\leftrightarrow {\mathrm{H}}^{+}{+\mathrm{HCO}}_3^{-}\leftrightarrow {\mathrm{CO}}_3^{2-}{+2\mathrm{H}}^{+}$$

(1)

The more H-cations are released, the stronger is the resulting acidification [50]. These reactions are to be understood as a function of temperature, pressure and pH [45]. With increasing pH, the dominantly existing phases alternate in the following sequence: ${\mathrm{H}}_2{\mathrm{CO}}_3$, ${\mathrm{HCO}}_3^{-}$ and ${\mathrm{CO}}_3^{2-}$, hence the higher the pH-value, the more H⁺-ions are released, contributing to a lowered pH. Especially, ${\mathrm{CO}}_3^{2-}$ is dominant in a pH-area of 10 onwards, whereas ${\mathrm{HCO}}_3^{-}$ is dominant in an area from 6 to 9, as can be seen in Figure 4:

A reaction between ${\mathrm{HCO}}_3^{-}$/${\mathrm{CO}}_3^{2-}$ and lithium requires the presence of Li⁺ in the solution. In

Table 1. Solubility of selected lithium phases at 20 and 100 °C.

Phase	Solubility at 20 °C	Solubility at 100 °C
LiOH	110 g/L 1	161 g/L 1
LiF	1.2 g/L 1	1.34 g/L 1
LiHCO3	55 g/L 2	57.4 g/L 1
Li2CO3	13.3 g/L 1	7.2 g/L 1

¹ [51], ² [52] at 18 °C.

, possible lithium phases and their solubility is presented. Connected to that, the chemical reaction formula is presented describing the dissolution of lithium phases in an aqueous solution, without and with CO₂-gas purging.

Yi et al. have also reported the conversion from Li₂CO₃ in aqueous solution into LiHCO₃ by CO₂-based carbonation, followed by a chemical purification of the solution and subsequent crystallization of Li₂CO₃ from a LiHCO₃ solution by boiling [53].

If lithium is present as Li₂CO₃, it decomposes according to Equation (2) [54]:

$${\mathrm{Li}}_2{\mathrm{CO}}_3\leftrightarrow {{\mathrm{Li}}^{+}}_{\left(\mathrm{aq}\right)}+{{{\mathrm{CO}}_3}^{2-}}_{\left(\mathrm{aq}\right)}$$

(2)

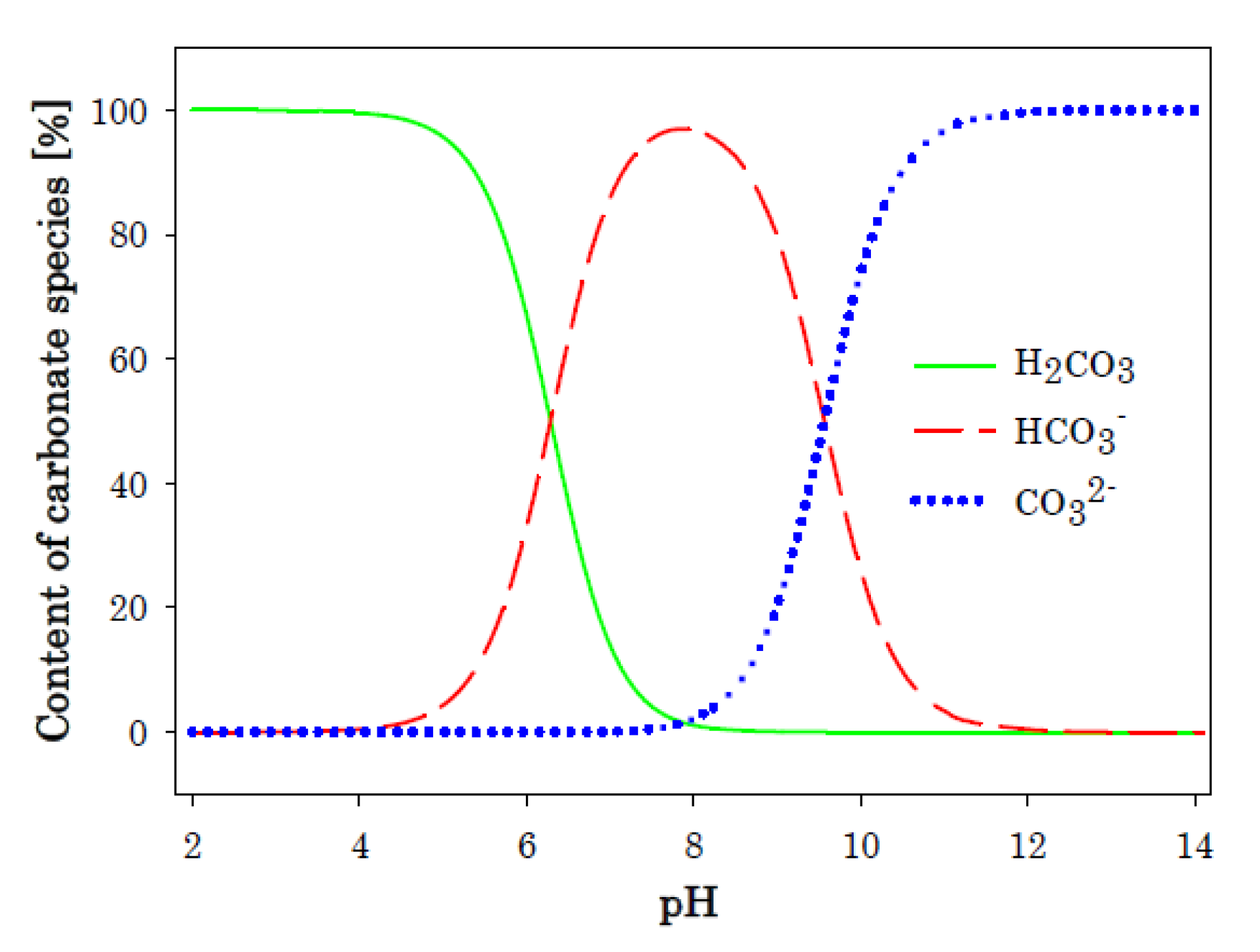

The carbonate ion (CO₃²⁻_(aq)) is the conjugate base of a weak acid (carbonic acid) [55]. Hence, H⁺-ions are attracted at neutral or acidic areas and consumed from H₂O, which generally is present in the ionic form [55,56,57]. This chemical behavior equals the property of Li₂CO₃ to be alkaline (see Equation (7)) [58]. In combination with CO₂-gas, Yi et al. also report the chemical steps between Li₂CO₃ dissolution consuming H⁺-ions from the H₂CO₃-decomposition (see Equation (3)) [53] and precipitation of solid Li₂CO₃ according to Equation (4) to Equation (7) [53]:

$${\mathrm{CO}}_2+{\mathrm{H}}_2\mathrm{O}+{\mathrm{Li}}_2{\mathrm{CO}}_3\leftrightarrow 2{\mathrm{LiHCO}}_3$$

(3)

$${\mathrm{LiHCO}}_3\leftrightarrow {\mathrm{HCO}}_3^{-}+{\mathrm{Li}}^{+}$$

(4)

$${\mathrm{HCO}}_3^{-}\leftrightarrow {\mathrm{CO}}_3^{2-}{+\mathrm{H}}^{+}$$

(5)

$${\mathrm{HCO}}_3^{2-}{+\mathrm{H}}^{+}\leftrightarrow {\mathrm{H}}_2\mathrm{O}+{\mathrm{CO}}_2$$

(6)

$${\mathrm{Li}}_2{\mathrm{CO}}_3\leftrightarrow {\mathrm{Li}}^{\mathrm{+}}+{{\mathrm{CO}}_3}^{2-}$$

(7)

Hereby, the possible recombinations between aqueous CO₂-phases and lithium ions in aqueous phases are shown. These combinations can be transferred to other lithium phases, liberating lithium cations in aqueous solution, too:

If lithium is present as LiF is a black mass, it dissolves in aqueous media according to Equation (8) [59]:

$$\mathrm{LiF}+{\mathrm{H}}_2\mathrm{O}\leftrightarrow \mathrm{HF}+\mathrm{LiOH}$$

(8)

According to the definition of strong acids and bases [60], HF (pK_S = 3.17 [61]) is a strong acid, whereas LiOH (pK_b = −0.36 [62]) is very strong base. As a resulting pH-value for dissolving 0.26 g/L at 25 °C pH = 7–8.5 is reported [63].

If lithium is formed as LiOH in a black mass, it dissociates in an aqueous solution according to Equation (9) [64,65,66]:

$$\mathrm{LiOH}+{\mathrm{H}}_2\mathrm{O}\leftrightarrow {\mathrm{Li}}^{+}+{\mathrm{OH}}^{-}+{\mathrm{H}}_2\mathrm{O}\leftrightarrow \mathrm{LiOH}·{\mathrm{H}}_2\mathrm{O}$$

(9)

the following reaction can take place if CO₂ is applied to the system [67]:

$$2\mathrm{LiOH}·{\mathrm{H}}_2\mathrm{O}+{\mathrm{CO}}_2\leftrightarrow {\mathrm{Li}}_2{\mathrm{CO}}_3+3{\mathrm{H}}_2\mathrm{O}$$

(10)

If lithium is present as Li₂O in a black mass, it dissociates to LiOH in aqueous solutions according to Equation (11) [68]. LiOH_(aq) is generally stable as lithium hydroxide octahydrate (LiOH ∙ 8H₂O) [61].

$${\mathrm{Li}}_2\mathrm{O}+{\mathrm{H}}_2\mathrm{O} \leftrightarrow 2\mathrm{LiOH}$$

(11)

This passage has shown that no study on indirect carbonation by CO₂ using whole LIBs black mass, meaning anode and cathode material, is in place. In contrast to that, in the study, real industrial heat-treated black mass from anode and cathode was used without adding a reducing agent. Moreover, this gives the first-time overview of all possible lithium reactions when considering battery materials, which is crucial to extract hypotheses on ongoing mechanisms.

1.1.4. Solid–Gas Carbonation (Direct Thermal Carbonation)

Direct carbonation describes solid–gas reactions for generating a carbonate phase [48]. In this study, it will be investigated by using SCO₂. There are different studies in literature optimizing a reductive thermal treatment of black mass for mobilizing lithium via subsequent H₂O-leaching [46,47,69,70,71,72,73,74]. It should be recalled that in [46,47], which were already discussed in chapter 1.1.3, a combination of direct carbonation and indirect carbonation was performed: On one hand, a reductive thermal treatment with adding a carbon-reducing agent like lignite or carbon black contributes to the formation of Li₂CO₃, hence direct carbonation. On the other hand, CO₂ was added during leaching or Na₂CO₃ was used after a first filtration, both representing indirect carbonation. Therefore, a classification into studies with direct and indirect carbonation is not always straightforward.

However, in all reported studies [46,47,69,70,71,72,73,74], first, the battery cells are shredded, and, after extracting, a black mass is thermally treated. Battery systems used are LCO-cathode based [69,72,74], LMO-cathode based [71,74], or NMC-cathode based [73,74]. In [73], the only cathode material is used. Most studies focus on a thermal treatment in an inert atmosphere, like a vacuum, Ar or N₂ [69,71,72,74,75] or in the air [70] instead of CO₂. CO₂ was only used in [73]. The performed reductive roasting reportedly also contributes to the carbonation of lithium by precipitating it from the black mass matrix [19,70,72,74,76].

Since the focus of this study is the use of NMC-cathode based black mass, the matching studies are reported in detail: CO₂-gas purging at 600, 700 and 800 °C (direct carbonation) of NMC-cathode material was performed by Wang et al. for 120 min., but lithium yields are not given. Instead, it is stated that 1.735 g lithium of 1.95 g lithium was transferred to a solution after water leaching [73]. However, no optimal temperature for carbonation is given; instead, a spectrum of 650–800 °C is reported, and no discussion on lithium purity is in place. Xiao et al. treated black mass from NMC-cathode based cells. According to the best-case scenario for pyrolysis and H₂O-leaching, 66% of the lithium is recovered. The best-case scenario here implies vacuum pyrolysis at 700 °C for 30 min. in combination with H₂O-leaching for 30 min. and an s/l ratio of 1:40 (g/mL) (25 g/L) [74]. Nevertheless, no details on the procedure of NCM-black mass are given, especially regarding lithium recovery.

Since [73] is the only study in place using CO₂ for direct carbonation, no detailed yields are quoted from the literature.

In terms of chemical reactions involving lithium phases, only a few data are given, mostly based on thermodynamic simulations [76,77,78]. Nonetheless, gas–solid reactions are known, e.g., from CO₂ absorbing for air purification. Here, a reaction between LiOH and CO₂ for generating lithium carbonate is targeted [67].

2 LiOH + CO₂ → Li₂CO₃ + H₂O

(12)

A similar reaction is possible if Li₂O is present [79]:

Li₂O + CO₂ → Li₂CO₃

(13)

The reaction is rather a surface reaction, after which CO₂ diffuses into the inner part of the Li₂O particles. This diffusive process is temperature-supported. For example, at 600 °C, the diffusion takes place 10 times faster than at 500 °C [79]. In addition, once lithium carbonate is formed, it remains stable in the CO₂ atmosphere, even though being in a liquid state, until 1611 °C, before decomposing into Li₂O [80]. This passage has shown that there is a lack of process details in terms of direct carbonation LIBs black mass by CO₂-gas purging. Moreover, the available studies focus on shredding before thermal treatment. In this study, the thermal treatment is performed before a mechanical treatment.

Finally, at this point, no study has reported investigating the influence of solid/gas mechanisms (direct thermal carbonation) in contrast to liquid/gas mechanisms (indirect carbonation) in terms of carbonation either by using supercritical or ambient pressure CO₂ and by keeping the process parameters equal. The present research aims to give answers to this question.

1.1.5. The Role of Supercritical CO₂ (SCCO₂)

When using CO₂ for phase transformations, the combination of the liquid and gaseous phase properties is advantageous. For CO₂, the supercritical state is reached at a temperature of at least 31 °C and a pressure of 73.8 bar [81]. Here, the physical properties of CO₂ can be described by a density according to the liquid state and as viscosity equally to the gaseous state, enabling a high efficiency [82]. Chen et al. report on using supercritical CO₂ (SCCO₂) for carbonating spodumene-based lithium; thus, this study refers to primary lithium production [83]. In their study, also sodium carbonate (Na₂CO₃) is used as a carbonation agent, and CO₂ is added, aiming for a higher carbonate dissolution. It is reported to precipitate as Li₂CO₃ when reducing the liquid volume, according to Equation (14) [83]:

$${2\mathrm{LiHCO}}_{3\left(\mathrm{aq}\right)}\leftrightarrow {\mathrm{Li}}_2{\mathrm{CO}}_{3\left(\mathrm{s}\right)}+\left\{{\mathrm{CO}}_2\right\}+{\mathrm{H}}_2{\mathrm{O}}_{\left(\mathrm{aq}\right)}$$

(14)

Bertau et al. have dealt with a similar research topic: They suggested a treatment of Zinnwaldite, a lithium ore located in Germany, with SCCO₂. It is a promising solution for primary lithium recovery as carbonate [84]. Specific benefits comprise the avoidance of additional chemicals, such as Na₂CO₃, and significant lithium losses, the economic viability due to the low CO₂ price, and the high selectivity by transforming only alkali metal compounds [84]. Moreover, Liu et al. investigated the possibilities of recovering LIB-electrolyte components by means of SCCO₂ [85]. Grützke et al. also aimed for LIB-electrolyte recycling using SCCO₂, but in contrast to Liu et al., who used synthetic electrolyte components, whole end-of-life NMC-cells were discharged, deep-frozen and manually opened to extract the electrolyte by supercritical CO₂ [86,87]. SCCO₂, at, e.g., 40 °C and 80 bar in flow-through mode, is used for extracting the electrolyte along with the CO₂-stream in a cryogenic trap. A patented technique by Sloop describes a treatment of full batteries with SCCO₂, where lithium carbonate from the electrolyte is recovered in the frame of electrolyte removal. The electrolyte removal is reached by dissolving it in the stream of CO₂ [81,88].

Rothermel et al. rather focused on graphite recycling options and the achievable graphite purity by making use of supercritical CO₂-supported electrolyte recovery (SCCO₂) [89]. In 2019, Bertau et al. also reported options to recover lithium from battery black mass [90]. The so-called COOL process, consisting of discharging, mechanical extraction of black mass and a SCCO₂ treatment, obtained lithium carbonate with a purity of >99.5% and yield of 60%, but the yield is referring to primary ore treatments, so no information on lithium from black mass is in place [90]. In this context, another benefit is highlighted: consuming CO₂ instead of producing CO₂ in the context of rising industrial, environmentally harmful CO₂-emissions [90]. However, no details about the best-case treatment parameters and the resulting lithium yields in terms of black mass carbonation are given. An earlier patent by Bertau et al. describes lithium recovery from so-called lithium-containing battery residues by SCCO₂ for obtaining lithium carbonate [91]. For this material, lithium yields of >90% are reported by using electrodialysis and subsequent addition of carbonates like Na₂CO₃ or K₂CO₃, but facts on the corresponding treatment details and parameters are not given. An exemplary process with s/l = 1:40 (g/mL) (50 g/2 L), 4 h at 230 °C and 100 bar is described, reporting on a leaching efficiency of 95%. The lithium extraction via electrodialysis takes place in a Li₂SO₄-solution recovering 98% of the lithium in solution [91]. A lithium yield based on the final, solid product is not given.

This passage has shown that supercritical CO₂ plays a role in lithium recovery from different materials, but for LIB-black mass, there is a lack of knowledge regarding decisive process details. This article focuses on lithium carbonation from black mass by means of supercritical CO₂.

2. Materials and Methods

2.1. Recycling Concept with Integrated Early-Stage Li-Recovery

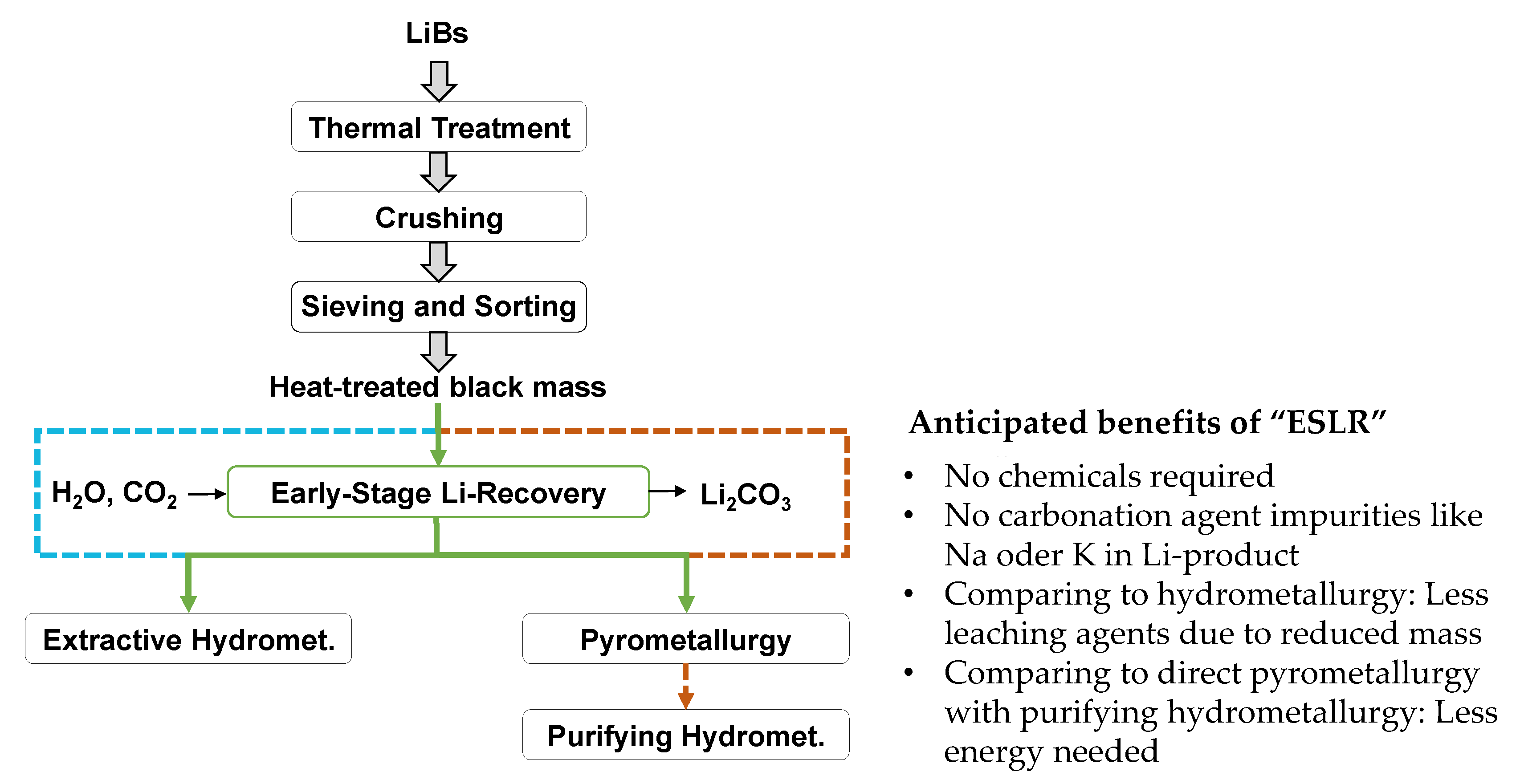

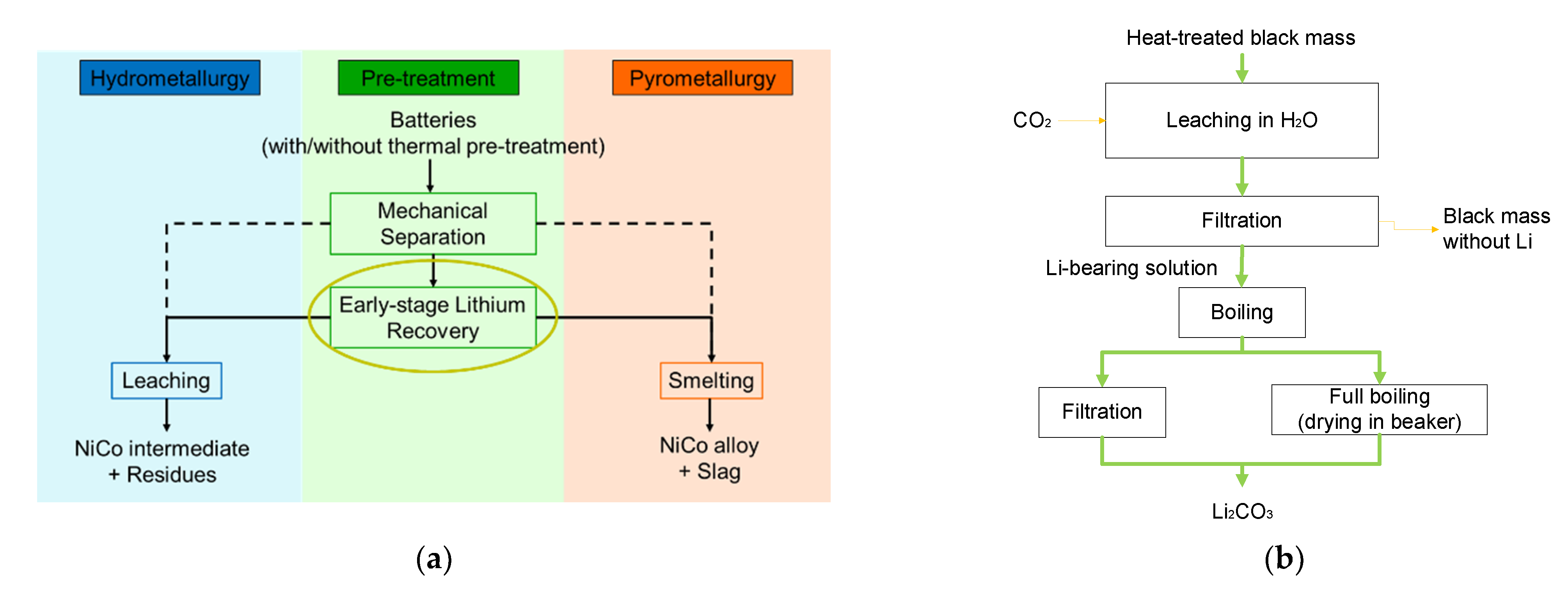

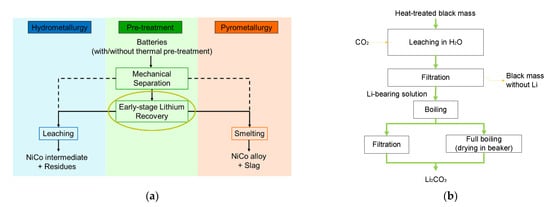

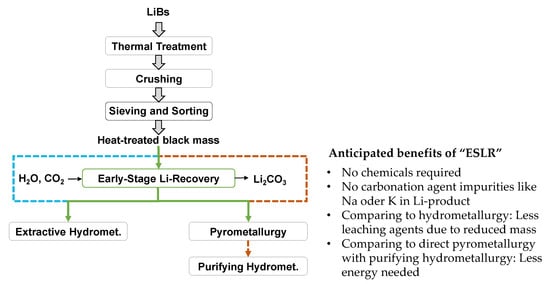

Under the view of the current process-related drawbacks in conventional recycling processes, and especially in terms of the need for lithium recovery, this study suggests the strategy of an early-stage Li-recovery (“ESLR”) process. The method “early-stage” is studied here, describing lithium carbonation before entering acidic leaching or smelting, hence at an earlier position in the recycling chain. This treatment prevents lithium distribution, the further use of additives needed for hydrometallurgical treatments, and costly refining from a slag. The “ESLR” process comprises the following steps, as presented in Figure 5b: After the cells have been deactivated by means of a thermal treatment followed by mechanical processing (shredding and sieving to <1 mm), lithium is enriched in the heat-treated black mass, along with other electrode elements, such as Co, Ni, Mn, and C and partly Al- and Cu foil fragments. This heat-treated black mass is then leached in H₂O- to transform and extract the lithium phases and, thus, separated them from the other electrode elements.

As mentioned in Section 1, this phase transformation can be realized by treatment with supercritical CO₂ as indirect or direct carbonation. Lithium in the heat-treated black mass is converted into water-soluble lithium hydrogen carbonate (LiHCO₃) and lithium carbonate (Li₂CO₃). Indirect carbonation and H₂O-leaching occur simultaneously because the heat-treated black mass is fed in the reactor along with deionized water. In direct carbonation, the heat-treated black mass is subjected to neutral leaching in deionized H₂O after the phase transformation of lithium compounds. In both cases, lithium dissolves into an aqueous solution, and the Li-reduced, heat-treated black mass is separated by a first filtration. The first filtration’s products comprise:

• A filter cake with mainly carbon, nickel, cobalt, manganese, aluminum and copper fragments and a share of lithium (→ C-filter cake);
• A lithium-bearing filtrate (solution)

The Li-containing filtrate must finally be boiled since lithium’s solubility decreases from 13.3 g/L at 20 °C to 7.2 g/L by heating to 100 °C [25]. Moreover, thus, the carbonate precipitation is supported. Either a second filtration step separates the solid carbonate (filter cake) from the residual solution, or the solution is further boiled and is left in the air to dry the carbonate.

2.2. Material Characterization

The black mass used in the present study to validate the “ESLR” process has been generated by thermal treatment of whole NCM-traction cells. Therefore, a real industrial heat-treated black mass was obtained by thermal treatment at different atmospheres: Ar, 95% Ar + 5% O₂ and CO₂. For Ar-pyrolysis, the temperatures targeted are 509 °C and 603 °C. For Ar + O₂-pyrolysis, the temperature targeted is 501 °C. For CO₂-pyrolysis, the targeted temperature is 466 °C. These atmospheres have been generated by dynamic pyrolysis in a sealed reactor. It should be noted that due to the experimental setup, not all thermal treatment temperatures have been identical. The thermally treated cells were then subjected to a shredding and sieving process for extracting the heat-treated black mass. The composition of the heat-treated black mass is shown below (see

Table 2. Chemical composition of the heat-treated black mass used for the autoclave trials pyrolyzed in Ar-atmosphere.

Al	Co	Cu	F	Fe	Li	Mn	P	C	Ni
wt.%
2.10	11.7	0.88	4.10	0.00	3.69	8.91	0.44	33.9	11.5

):

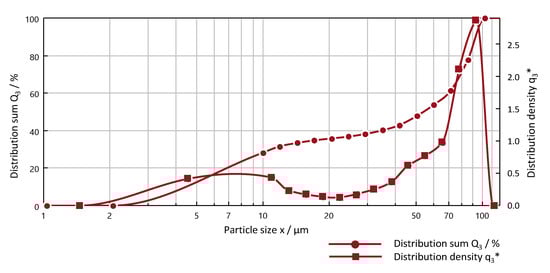

Dynamic particle analysis with QICPIC/L02 (Sympatec GmbH, Clausthal-Zellerfeld, Germany) of the heat-treated black mass reveals that according to the distribution sum (Q₃), the d_99.3 -value is 101.74 µm. This means that 99.3% of the heat-treated black mass has a grain size smaller than 101.74 µm (see Figure 6). Here, the material’s distribution density (q₃*), see Equation (15), can also be extracted, reaching a global maximum at ~95 µm. According to DIN ISO 9276-1, the distribution density is defined as the first derivation of the distribution sum:

$${\mathrm{q}}_3*=\mathrm{q}{\mathrm{r}}_{}(x)=\raisebox{1ex}{${\mathrm{dQ}}_{\mathrm{r}}\left(x\right)$}\!\left/ \!\raisebox{-1ex}{$\mathrm{d}x$}\right.$$

(15)

Furthermore, the distribution sum of the particles represents the number of all particles and not their volume share in the powder. Hence, there are many small particles in the heat-treated black mass, but in contrast to that, the volume of big particles (>101.74 µm) could take up more than 99.3%. Moreover, the largest particle detected in the heat-treated black mass comprises a diameter (EQPC) of 653.74 µm with a FERET_MAX value of even 748.13 µm. EQPC is defined as

$$x\mathrm{EQPC}=\sqrt[2]{\raisebox{1ex}{$\mathrm{A}$}\!\left/ \!\raisebox{-1ex}{$\mathsf{\pi }$}\right.}$$

(16)

Hence, it describes the diameter of a circle whose projection surface (shadow) is identical to the particle. FERET_MAX, on the other hand, detects the maximum diameter of a particle by analyzing it from 20 different perspectives between 0 and 180°. This value deviates from the EQPC, especially in terms of irregularly shaped particles; hence, FERET_MAX takes bigger values, especially when being distinct from a circular form. The maximum detectable particle size with this method comprises 1252 µm.

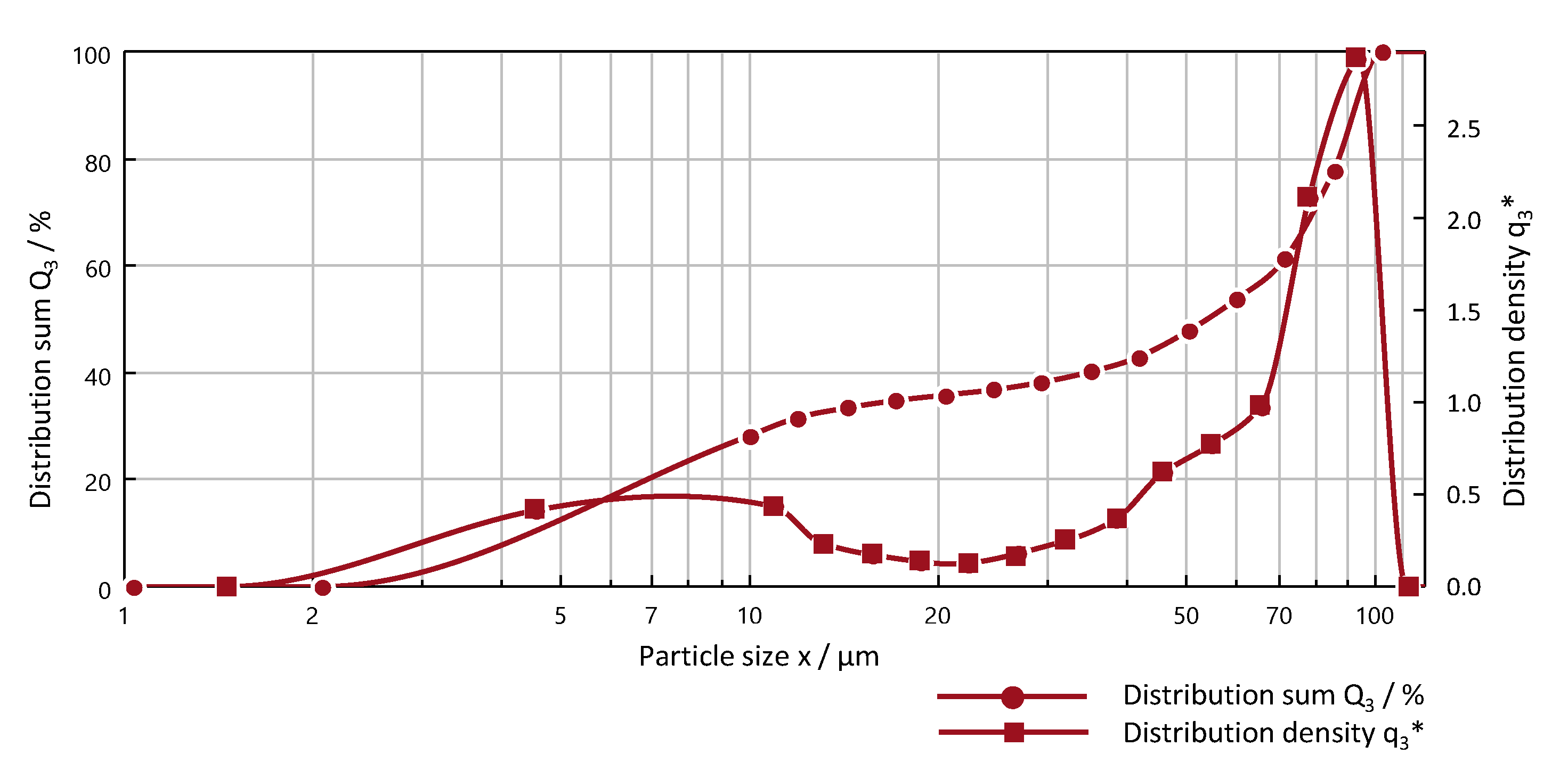

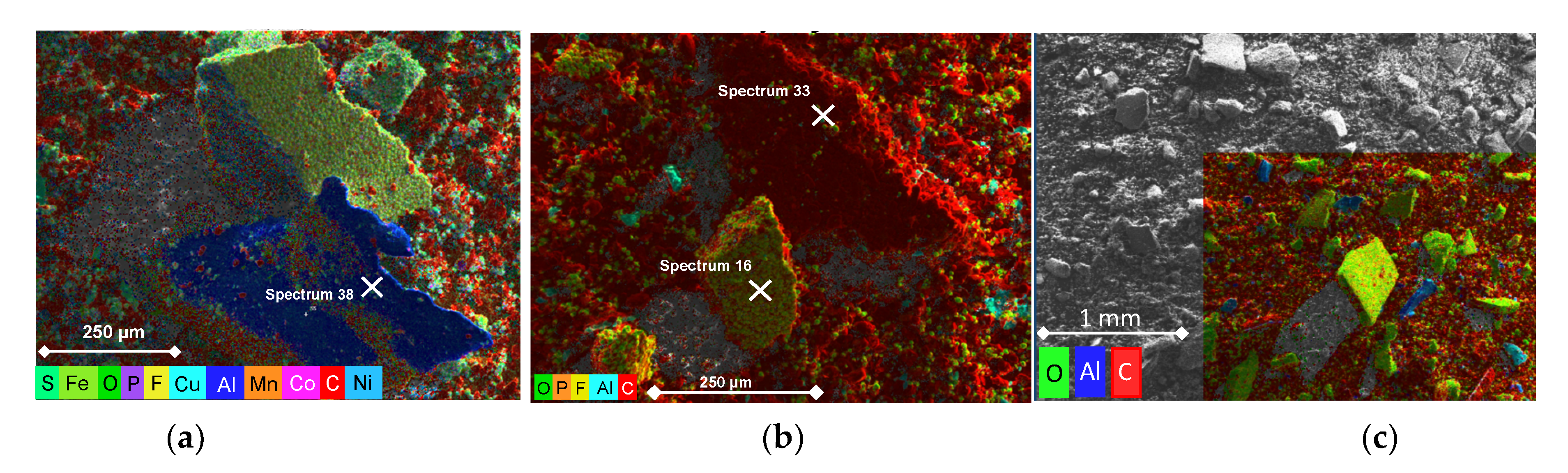

More details on the quantitative grain size detected are shown in Figure 7 and can be extracted from the chemical composition of the particles. EDS analyses were carried out for elemental mapping, as well as for point analysis on the black powder, using a ZeissGemini-FE-SEM, equipped with an Oxford UltimMax170 detector (Carl Zeiss AG, Oberkochen, Germany). In Figure 7a,b, the results of the elemental mapping (EDX-layered image) are depicted. Here, the appearance of metallic Al-flakes is shown in Figure 7a; second, a heat-treated black mass particle and a graphite particle are shown in Figure 7b. Moreover, third, Figure 7c is a 1 mm-scale distance shot showing the heterogeneity of the heat-treated black mass in terms of metallic aluminum fragments, heat-treated black mass particles and graphite powder. It should be noted that lithium cannot be displayed by this method. In addition, Figure 7c reveals that the liberation of heat-treated black mass from the aluminum current collectors could be realized since the particles do not show direct physical contact.

The following

Table 3. Chemical composition of the heat-treated black mass spectra taken by EDS-analysis. Only elements > 1 wt.% are shown quantitatively.

Element	C	O	F	P	Mn	Co	Ni	Al
Unit	wt.%
Spectrum 38	31.9	7.35	<1 wt.%	<1 wt.%	<1 wt.%	<1 wt.%	<1 wt.%	58.28
Spectrum 16	32.83	12.1	21.9	1.81	8.59	11.38	10.62	<1 wt.%
Spectrum 33	46.46	33.51	1.47	<1 wt.%	<1 wt.%	<1 wt.%	<1 wt.%	17.95

shows the chemical composition of the taken spectra. Here, the chemical composition of the Al-flake can be seen by Spectrum 38. However, there are some oxide-graphite-mix particles visible, which results in the chemical composition of just 58.28 wt.%. Moreover, spectrum 16 shows that the dominant particle composition is a Ni-Mn-Co-Oxide, hence, heat-treated black mass particles. Spectrum 33 reflects a graphite particle (C = 46.46 wt.%), which also shows a high amount of oxygen. This may be explained by lithium oxides, hydroxides or carbonates, which cannot be shown here. This theory can be supported by the lithium intercalation in the graphite matrix due to charging.

These findings are essential to understand the properties of NCM-heat-treated black mass: An important result is the revelation of the material’s heterogeneity. Hence, each sample taken shows different chemical compositions. Considering the colorful mixture of relatively big Al-particles, cathode material particles and smaller graphite/soot particles, this statement is supported. Moreover, it can be seen that the Al-foils are liberated from the cathode material. Hence, a thermal pretreatment removes binders and therefore loosens adhesions. This enhances the subsequent leaching efficiency, as indicated before. Moreover, it is shown that fluorine enriches the cathode material particles.

2.3. Neutral Leaching Reference Tests in Deionized H₂O

Neutral leaching comprises reference trials to evaluate the carbonation success. It was performed in a 1 L glassware beaker filled with deionized water. Here, 20 g of the heat-treated black mass is inserted and magnetically stirred at 350 rpm for the defined leaching time. After H₂O-leaching, a first filtration obtains a C-filter cake and a Li-bearing solution, then boiled to recover lithium as L_i2CO₃ (→ Li-filter cake). Neutral leaching is performed at room temperature to increase lithium dissolution. Lithium contents in both filter cakes and solutions are measured by ICP-OES (inductively coupled plasma optical emission spectrometry). Li is the crucial indicator for carbonation success, and hence, lithium yields are calculated as follows:

$${ƞ}_{\mathrm{Li}}=\frac{{\mathrm{Li}}_{{\mathrm{Li}}_2{\mathrm{CO}}_{3-\mathrm{fc}}}\left(\mathrm{g}\right)}{{\mathrm{Li}}_{\mathrm{total}}\left(\mathrm{g}\right)}$$

(17)

where Li_total is the lithium mass in the input, and Li-_Li2CO3-fc is the lithium mass in the lithium carbonate filter cake. Since the input material shows deviations in terms of its chemical composition, the Li_total value does not equal the share of the original input analysis. For this reason, the lithium values in the input are calculated as follows:

$${\mathrm{Li}}_{\mathrm{total}}{\left(\mathrm{g}\right)=\mathrm{Li}}_{\mathrm{C}-\mathrm{fc}}{\left(\mathrm{g}\right)+\mathrm{Li}}_{\mathrm{solution}}\left(\mathrm{g}\right)$$

(18)

Here, C-fc represents the carbon filter cake, also indicated as “heat-treated black mass without lithium,” and “Li_solution” corresponds to “Li-bearing solution”. This calculation is to be contrasted to the leaching efficiency (LE). When calculating ${ƞ}_{\mathrm{Li}}$ based on Li_solution [g], the yields in this study were ~10% higher. For example, in one trial with a yield of 79% based on Equation (17), the LE was 88%. The reason for this inaccuracy cannot be determined at this point, but since the deviation was systematic, the authors decided to use the lower values for conservative result interpretation.

2.4. Carbonation by Supercritical CO₂

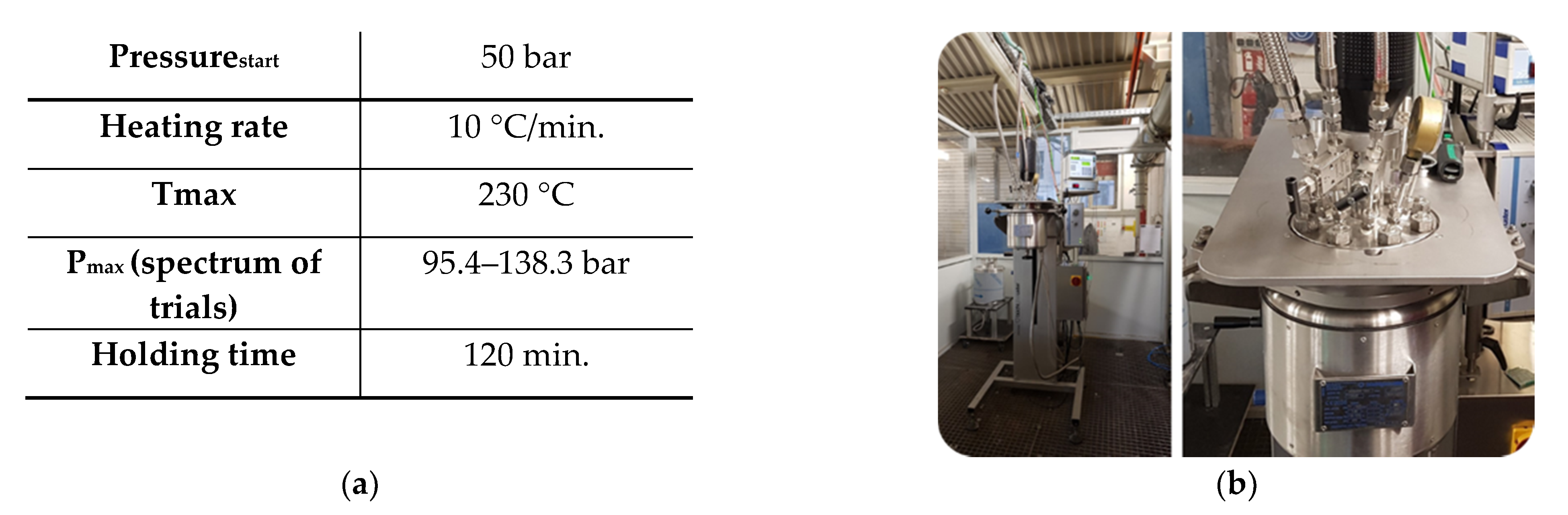

The unit operation used is a batch 1 l Büchi autoclave reactor operated with deionized water (indirect carbonation) or without any liquid (direct carbonation). The maximum operating temperature is 250 °C, and the maximum applicable pressure is 200 bar. After sealing, a stirrer constantly mixes the powder (50 g heat-treated black mass per trial (T0–T9) and 20 g heat-treated black mass per trial (T10–T22) or the suspension in the reactor. The gas flows into the reactor occurs via a valve into H₂O if the trial is conducted with an aqueous medium. As soon as the supercritical conditions are reached, a processing time of 120 min is started. The defined holding time of 120 min can be attributed to preliminary studies using autoclave-induced carbonation [92]. The general parameters for the autoclave trials can be seen in Figure 8a. Moreover, Figure 8b shows pictures of the unit operation.

After leaching, either during autoclave treatment, if H₂O is used in the autoclave or after the autoclave, if no H₂O is used in the autoclave, a first filtration is performed. The experimental procedure is identical to the procedure described in Section 2.3: Boiling is performed to reduce the volume of liquid and to precipitate Li from the solution. Lithium is obtained in the form of solid Li₂CO₃ in a subsequent (second) filtration step or by full boiling until obtaining a solid Li₂CO₃ product within the beaker. The (second) filtration step is performed as follows: The Li-bearing solution is boiled until reaching 100 mL and then is filtrated, obtaining Li₂CO₃. The Li₂CO₃-filter cake is then washed with pure ethanol since lithium carbonate does not show solubility in ethanol. It is dried for at least 24 h and then weighed. The full boiling (indicated as “drying in a beaker”) is performed as follows: The Li-bearing solution is boiled until no liquid is left, why the weight of the empty beaker is to be measured before and after performing full boiling. In addition, weighing is done after a drying time of at least 24 h, too. The difference in weight equals the solid carbonate obtained.

An overview of the experimental series described in Section 2.3 and Section 2.4 is given in

Table 4. Parameter matrix for combining pyrolysis conditions with autoclave conditions in this study. Reference trials represent H₂O-leaching without autoclave or CO₂-incorporation.

		Pyrolysis Conditions
		Ar-Atmosphere	95 % Ar + 5 % O2-Atmosphere	CO2-Atmosphere
Autoclave conditions	H2O-leaching (reference trials)	1.A	1.O	1.C
	SCCO2 + H2O	2.A	2.O	2.C
	Ar + H2O	3.A	n/a	n/a
	CO2 + dry autoclave	4.A	n/a	n/a

. Parameter set 1.A, 1.O and 1.C (reference trials) represents H₂O-leaching without CO₂ addition. Hereby, insights into the mass of water-soluble Li-phases already present in the heat-treated black mass are provided. Enhanced leaching efficiencies are obtained by combining neutral leaching with CO₂-carbonation. (see experimental series 2.A, 2.O and 2.C). Moreover, carbonation trials were conducted in the autoclave as well by using argon (Ar) as process gas aiming for the same excess pressures as needed for the supercritical state (73.8 bar) (see Table 4, Parameter set 3.A). Ar as inert gas can deliver knowledge on the main mechanism for ongoing phase transformations: Either the presence of CO₂ or the extreme pressure. Parameter set 4.A detects the influence of an autoclave setup without H₂O and with CO₂ to find out whether gas–solid or gas–liquid reactions dominate in carbonation.

The labels of the trials are to be understood as follows: “number.letter”, where the number stands for an experimental series: 1 = neutral leaching in H₂O without an autoclave, 2 = autoclave operated with SCCO₂ + H₂O, 3 = autoclave operated with Ar + H₂O, 4 = autoclave operated with SCCO₂ and without H₂O. The letter stands for the pyrolysis atmosphere: A = Ar-pyrolysis, O = 95 vol % Ar + 5 vol % O₂-pyrolysis, C = CO₂-pyrolysis. In this study, only experimental series 1 and 2 take different pyrolysis atmospheres into account. Hence, the fields of experimental series 3.O/3.C and 4.O/4.C are not experimentally conducted yet (n/a).

3. Results

In this Section, the results of the trial series 1.A—4.A, 1.O/2.O and 1.C/2.C are discussed by lithium yields. Moreover, Sankey diagrams of the lithium distribution and bar charts on the impurities of the lithium filter cake are shown for trials 1.A.1 and T2 (2.A). The evaluation calculations are performed, as described in Section 2.3.

3.1. Neutral Leaching in Deionized H₂O

For a profound understanding of water-soluble lithium phases already present in the heat-treated black mass, the following results can be obtained. In total, 40 experiments were conducted in experimental series 1.A, 1.O, and 1.C. The amount per parameter set comprises one trial, except for trials 1.A.2-1.A.4, 1.A.5-1.A.7, 1.A.28 and 1.A.40. Since the results are in good accordance, the other trials have not been repeated. All trials have in common that when charging heat-treated black mass in H₂O, the pH value of the solution has become alkaline (pH = 11–12).

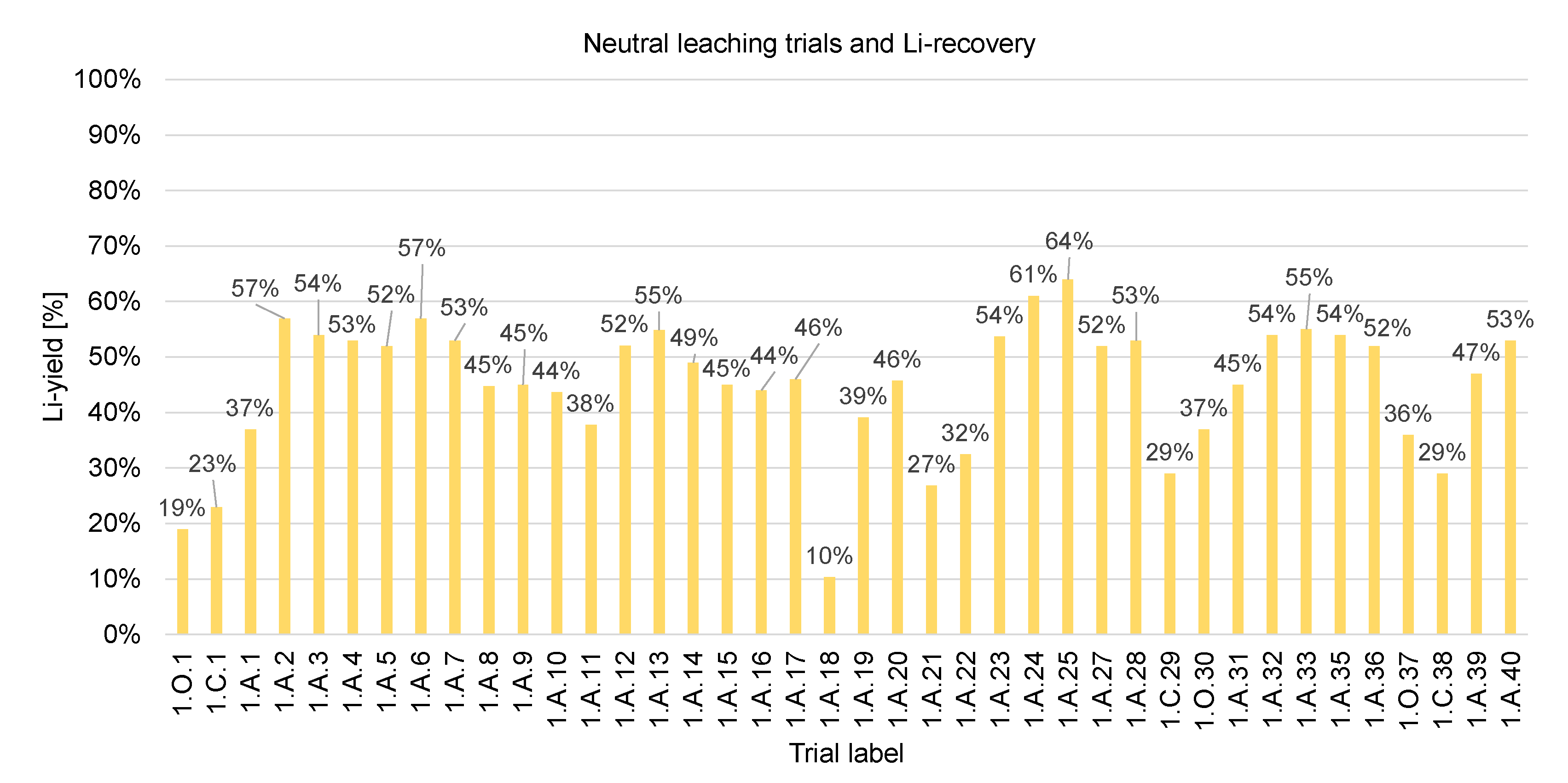

Figure 9 accordingly reveals how lithium yields from leaching heat-treated black mass in H₂O (neutral leaching) depend on six main parameters:

• Washing of C-filter cake with deionized water: if this parameter is performed, it is important to keep the washing volume constant. In this study, 200 mL of deionized water are used;
• Filtration of Li-filter cake or full boiling: full boiling describes the removal of H₂O in the laboratory beaker. Filtration stands for filtering the precipitating Li₂CO₃ at a minimum liquid volume. Hence, there are losses in the residual filtrate. Filtration is conventionally used after acidic leaching to avoid a co-precipitation of acid components and chemical additives;
• Leaching time: 5, 30, 90 and 120 min;
• Particle size of heat-treated black mass: <1 mm vs. <90 µm. The particles <90 µm are obtained by additional grinding of the heat-treated black mass;
• Solid/liquid ratio (g/mL): 1:10, 1:15, 1:22.5 and 1:30;
• Pyrolysis temperature: 501 vs. 603 °C in Ar-pyrolysis

Here, a variation of the selected parameters has an impact on the lithium yield. To evaluate the key influencing factors, representative trials are extracted and shown in detail. For efficiency reasons, only the results of experimental series 1.A are depicted for the evaluation according to the parameters selected. In terms of these influencing factors, the following conclusions are possible:

1.

Washing of C-filter cake with deionized water:

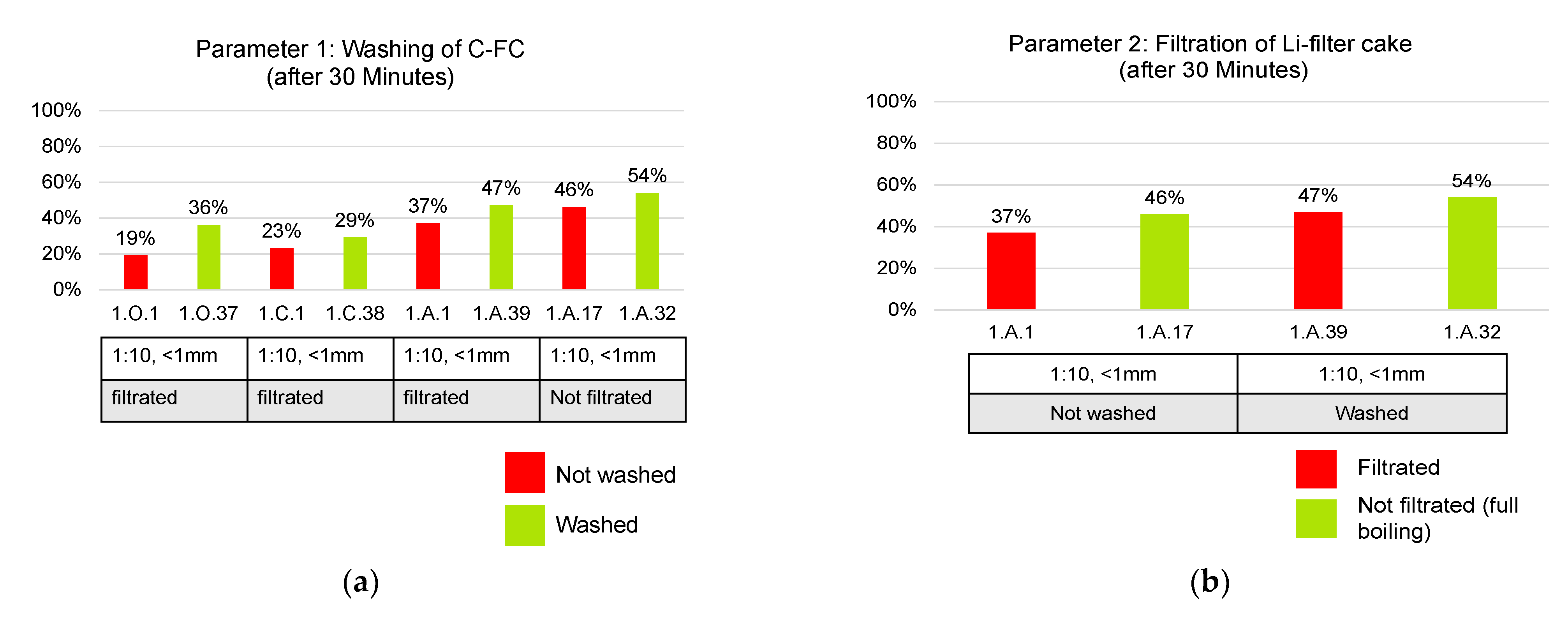

The detailed observation of trials whose parameter combination was equal apart from the washing of the C-filter cake shows that washing is highly beneficial. During the filtration of the C-filter cake, there are physical depositions of the Li-bearing solution left in the C-filter cake. Hence, washing with deionized water liberates the C-filter cake from remaining lithium ions (see Figure 10a).

2.

Filtration of Li-filter cake or full boiling:

Filtration is, according to Figure 10b, not an adequate tool when applying neutral leaching in H₂O. However, this analysis only focuses on lithium distribution. Hence, no information on filter cake impurities, e.g., F is given here.

3.

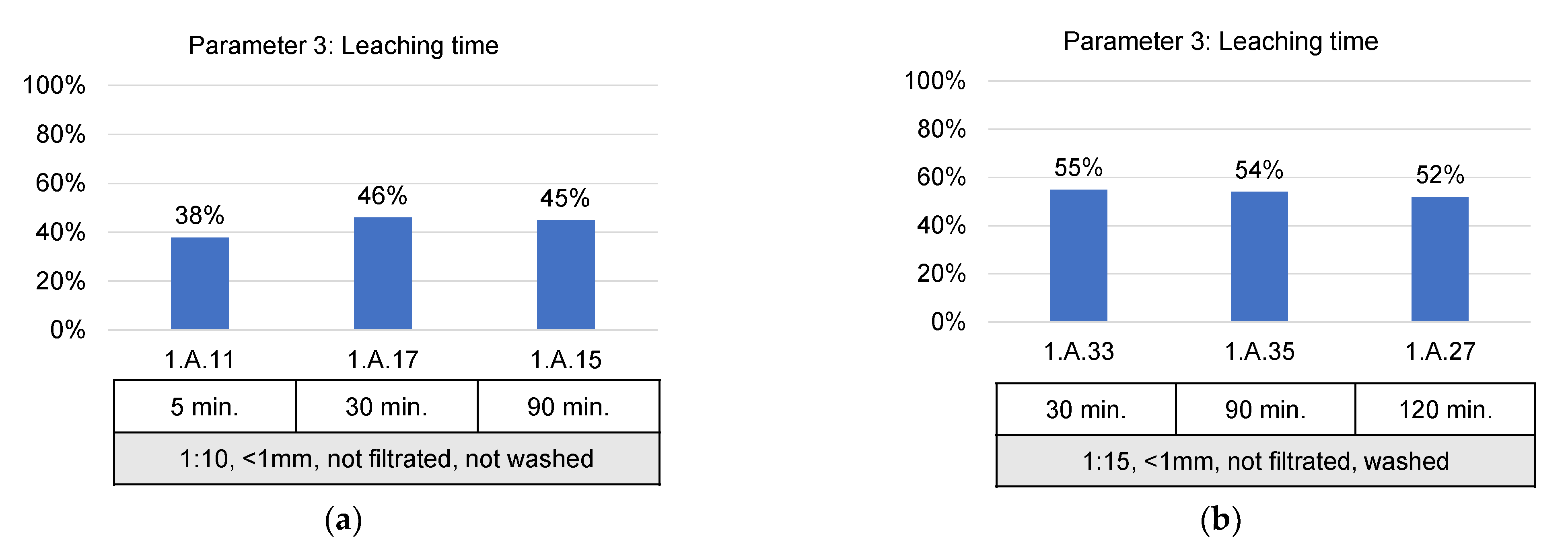

Leaching time:

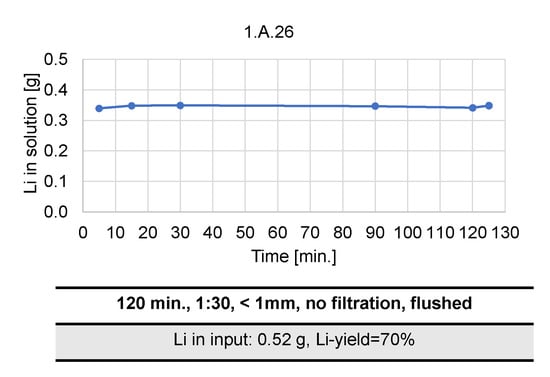

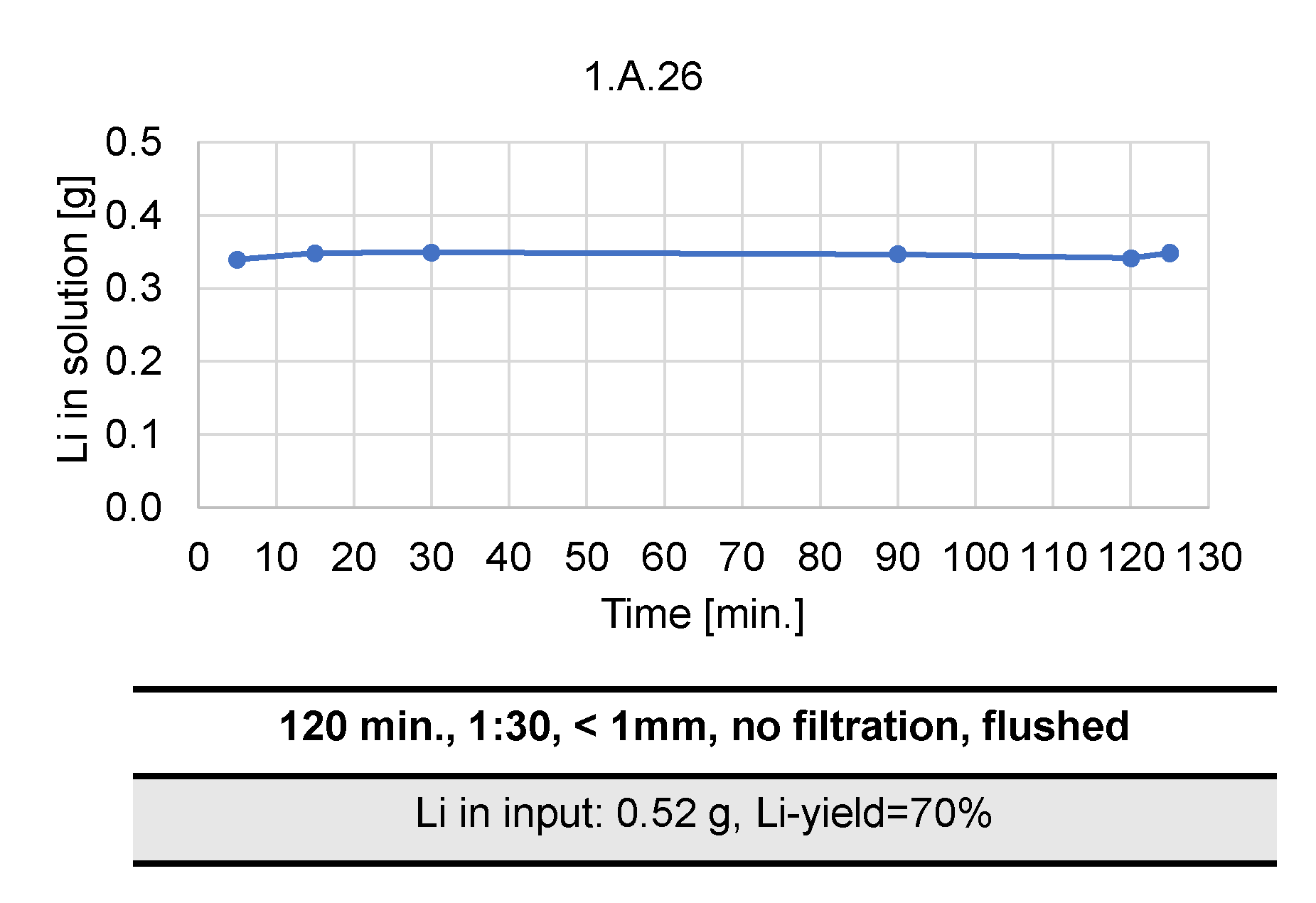

The optimal leaching time cannot be extracted from the performed trials, as can be seen in the range between 5 and 90 min (see Figure 11a) and between 30 and 120 min (see Figure 11b). Here, no significant improvement of dissolved lithium is achieved when comparing trials with constant parameters except for the leaching time.

Reduced lithium shares over time can be explained by slight deviations in the chemical composition. Hence, deviations in lithium yields are also possible, also due to different lithium phases in the heat-treated black mass. Therefore, a kinetic trial can be found in Figure 12. It can be seen that lithium compounds in the heat-treated black mass of the Ar-pyrolyzed battery cells dissolve as ions instantly. Although the lithium yield can be found below Figure 12, it cannot be directly transferred to the other neutral leaching trials since the amount of heat-treated black mass, and therefore the lithium-bearing input is reduced each time a sample is taken. Samples were taken from the leaching liquor by using a particle filter, why redirecting the lost particles to the liquid was not possible. In an upscale setup, this mass reduction would show a lower impact. The calculation of lithium yields is based on a reduced leaching liquor volume by sample extraction. The last sample is taken, at 125 min, shows increased lithium mass, which can be explained by analytical deviations.

4.

Particle size of heat-treated black mass:

As already reported, 99.3% of black mass particles have a grain size below 101.74 µm. In order to reduce the grain size of the few particles above this threshold, the heat-treated black mass was ground in a planetary mill. The aim of this approach was to detect the correlation between smaller grain size and an eased liberation of lithium compounds in neutral leaching. In Figure 13a, no difference with or without grinding is detected. In Figure 13b, this trend shows slightly irregular behavior when comparing trial 1.A.19 to trial 1.A.20. However, in no parameter combination and hence, trial pair compared, grinding to <90 µm has shown an improved lithium yield. This can be explained by the grain size distribution shown before: The majority of the particles shows grain sizes below 100 µm.

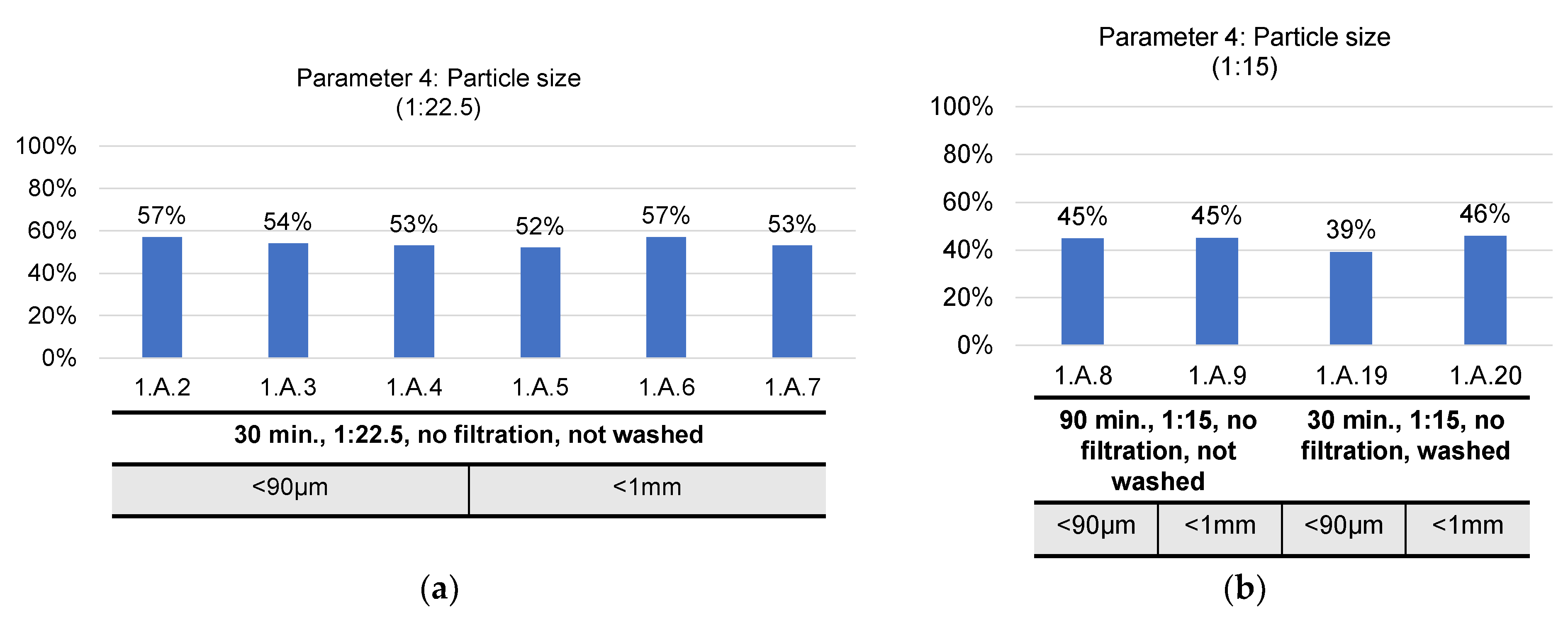

Comparing trials 1.A.2-1.A.4 with trials 1.A.5-1.A.7 and trial 1.A.8 with trial 1.A.20 reveals that the grain size of the heat-treated black mass does not influence lithium yields. This is particularly interesting for residual lithiation in the anode. It proves that the degree of liberation of lithium is not enhanced by grain size reduction to <90 µm.

5.

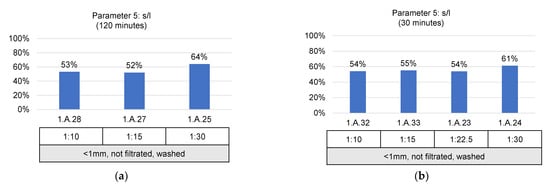

Solid/liquid ratio (g/mL):

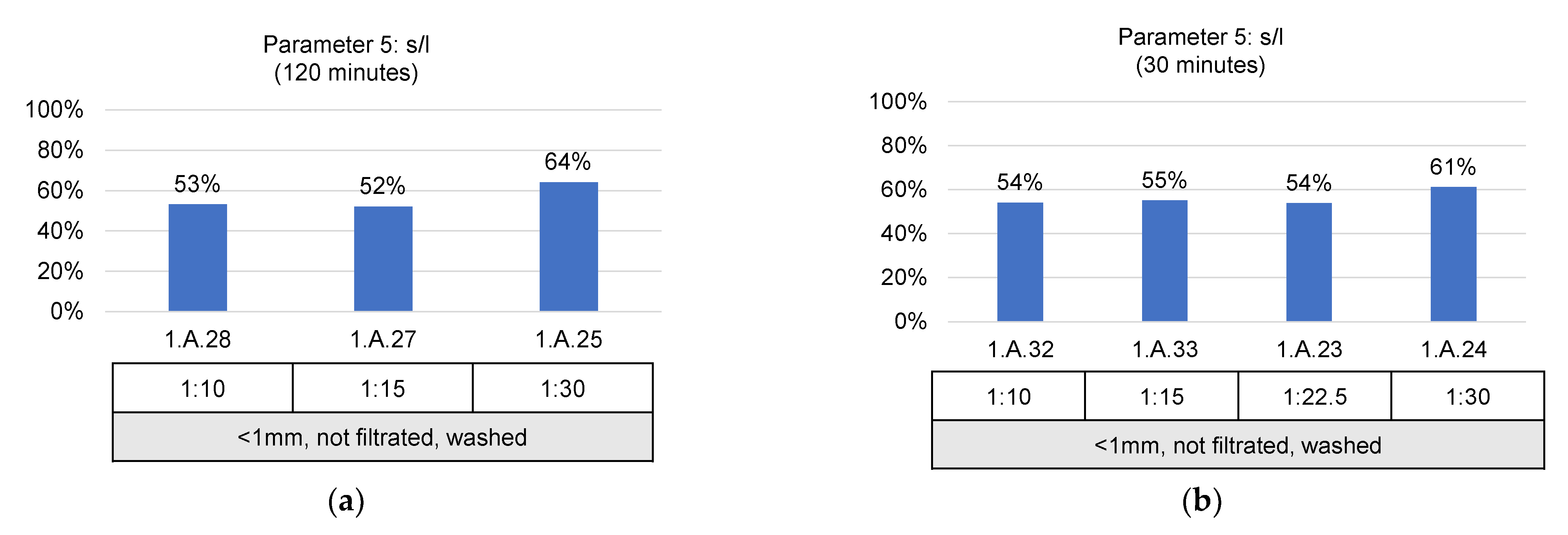

At a constant grain size and leaching time, higher lithium yields are obtained at a solid/liquid ratio of 1:30 in comparison to 1:10 and 1:15 (see Figure 14a). In addition, an improved lithium recovery is possible when comparing a solid/liquid ratio of 1:30 and 1:22.5 (see Figure 14b). Although the leaching time has not shown an impact, the highest yield is reached with a solid/liquid ratio of 1:30 for 120 min. (see trial 1.A.25). When considering the solubility product of lithium carbonate in the water at 20 °C (13.3 g/L), and a lithium share of 3.7 wt%, a liquid volume of 294 mL is required for full dissolution, assuming an inserted heat-treated black mass weight of 20 g. Thus, if all lithium is present as lithium carbonate, a solid/liquid ratio of 1:15 g/mL is needed. Since the input material (heat-treated black mass) shows deviations in lithium shares and phases, the findings of a 1:30 solid/liquid ratio are supported. This means that an excess of H₂O is needed for high lithium dissolution. In Figure 14, examples of the solid/liquid ratio’s impact on lithium yields are given. More trial comparisons would be 1.A.11 with a yield of 38% at a ratio of 1:10, and 1.A.10 with a yield of 44% at a ratio of 1:15. There are also trial combinations where an increase of the solid/liquid ratio leads to equal lithium yields (e.g., 1.A.15 with 1.A.9, leading to 45% lithium yield), but generally, yields of >60% can be reached only when having 20 g/600 mL (1:30).

6.

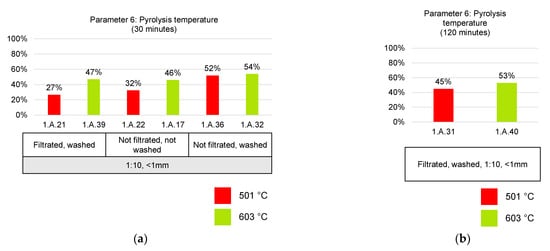

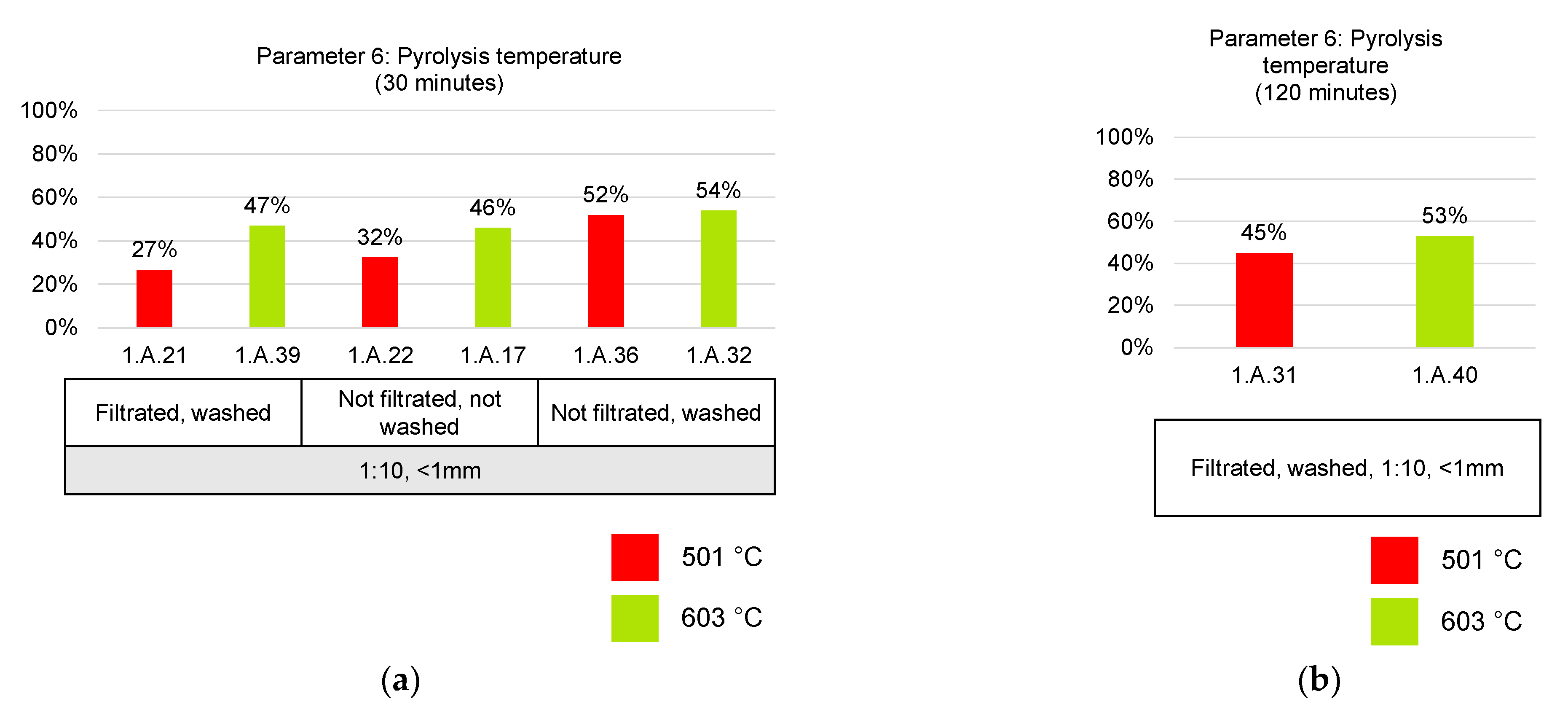

Pyrolysis temperature:

The pyrolysis temperature plays an important role in lithium recovery, as can be seen in Figure 15. Here, the difference between a 501 and a 603 °C pyrolyzed material is pointed out. Reaching higher temperatures leads to different phase transformations within the battery cells. The impact on lithium leaching efficiency and lithium yield as solid lithium carbonate is proven by different scenarios:

Here, both grain size and leaching time do not show a significant impact on the yield. The solid/liquid ratio, along with the washing of the C-filter cake and the solid–liquid-separation method (filtration vs. full boiling), seems to play an important role in this context. Up to 64% of lithium can be recovered as lithium carbonate. In addition, the parameter pyrolysis temperature has an impact on the lithium yield. Lithium yields by leaching heat-treated black mass without preliminary pyrolysis were not satisfying; hence, these first trials are not shown in this manuscript. It must be recalled that the pyrolysis trials at Ar-atmosphere were operated at higher temperatures than the CO₂ and Ar + O₂ pyrolysis trials.

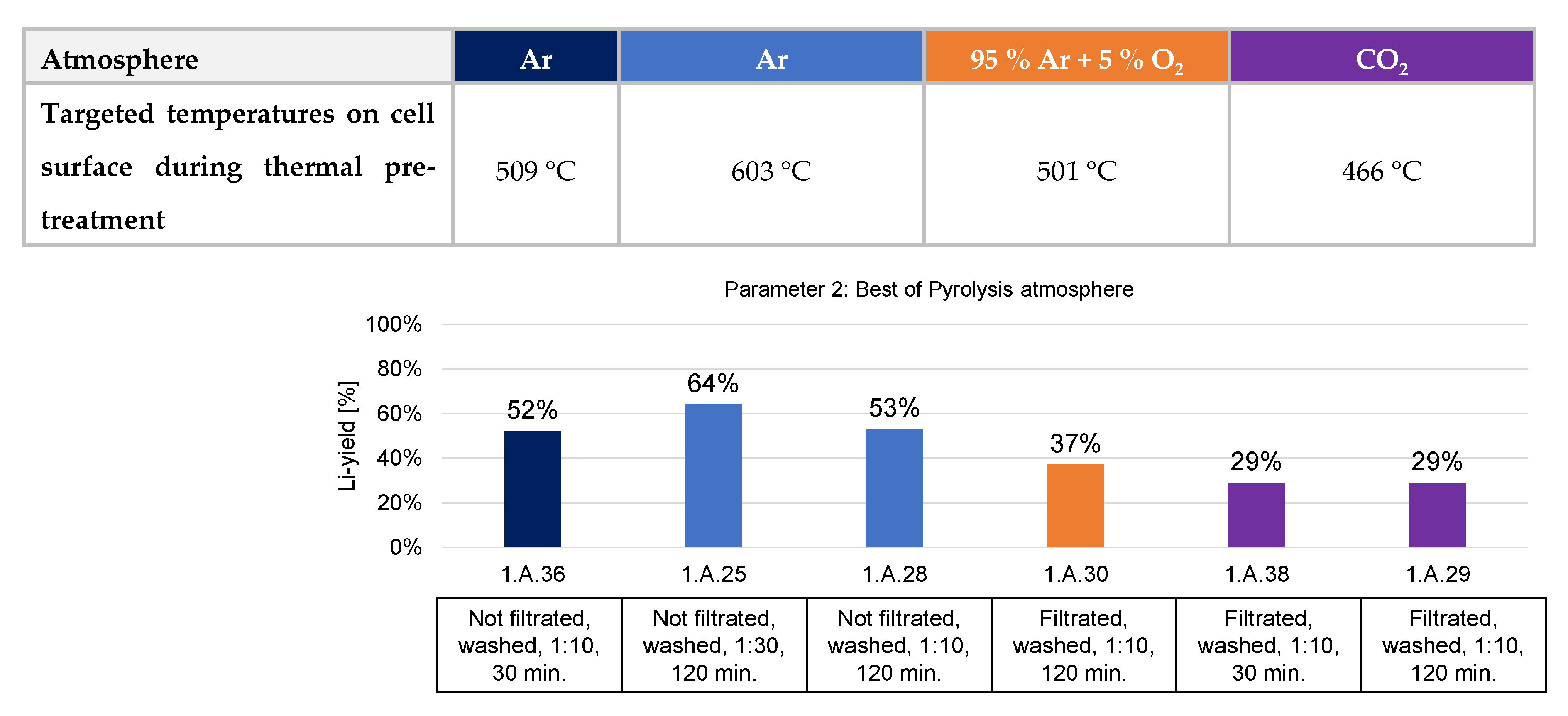

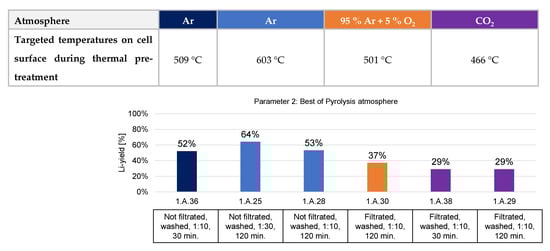

For evaluating autoclave trials in terms of lithium mobilization, the lithium yields from neutral leaching are to be contrasted to the lithium yields from autoclave trials using the same parameters (see Figure 16). Since the autoclave trials were operated at a holding time of 120 min, the following diagram points out the achievable maximum lithium yields dependent on the pyrolysis temperature/atmosphere and solid/liquid ratio examined in the autoclave trials. Hereby, a direct comparison between neutral leaching (experimental series 1.A, 1.O and 1.C) and autoclave carbonation (2.A) can be performed.

Since the focus of this study was the Ar-pyrolyzed material since showing the best neutral leaching results, only for this material the solid/liquid ratios were examined in the autoclave trials (1:10, 1:15, 1:30) (series 2.A, 2.O and 2.C). The CO₂- and Ar + O₂ -the pyrolyzed black mass was only treated in the autoclave carbonation set up with a solid/liquid ratio of 1:10 (2.O and 2.C). Hence, Figure 17 sums up the maximum yields of neutral leaching dependent on the pyrolysis parameters examined so far:

3.2. Carbonation by Supercritical CO₂

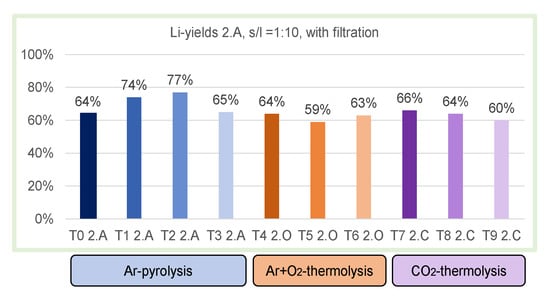

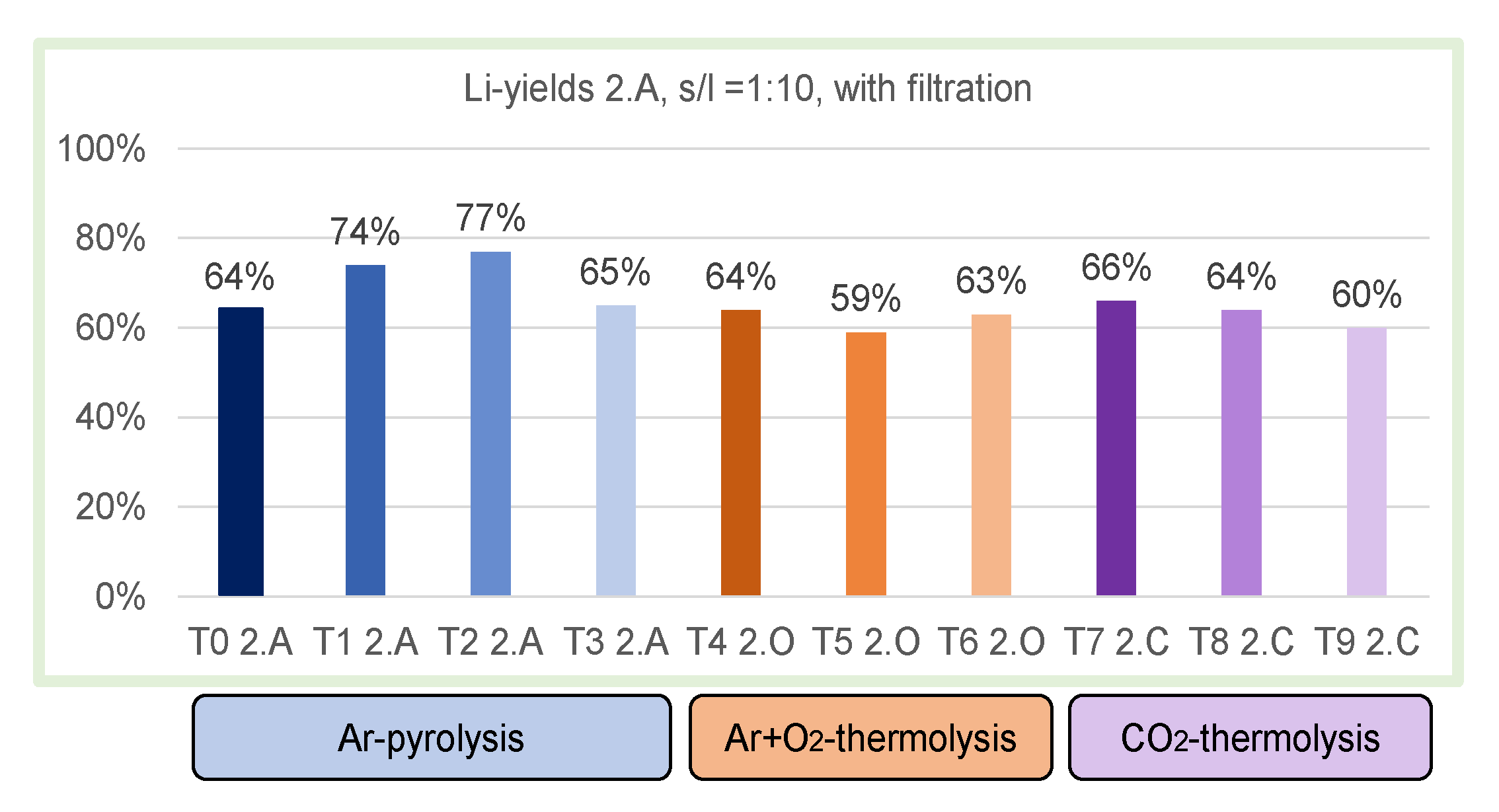

Finally, the obtained lithium yields when using autoclave treatments with an s/l ratio of 1:10 for lithium carbonation can be derived from Figure 17.

Hence, a direct comparison between the atmospheres of the thermal treatments shows the following results: The 509 °C Ar-pyrolysis, that the autoclave can make a 12% difference in lithium yield. In comparison to the 603 °C Ar-pyrolysis, this difference can reach up to 24% with the correct parameter combination (120 min.). For the Ar + O₂-pyrolysis, which is here indicated as thermolysis since comprising O₂ in the atmosphere, the increased lithium yield comprises up to 27%. For the CO₂-pyrolysis, the obtained difference in lithium yield comprises up to 37%. This indicates higher lithium yields for reductive pyrolysis atmosphere (CO₂ vs. Ar-atmosphere at ~500 °C) and a stronger impact of autoclave carbonation when dealing with a not fully decomposed heat-treated black mass. This correlation needs further investigations in the future.

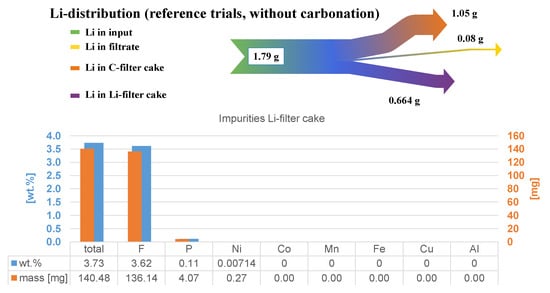

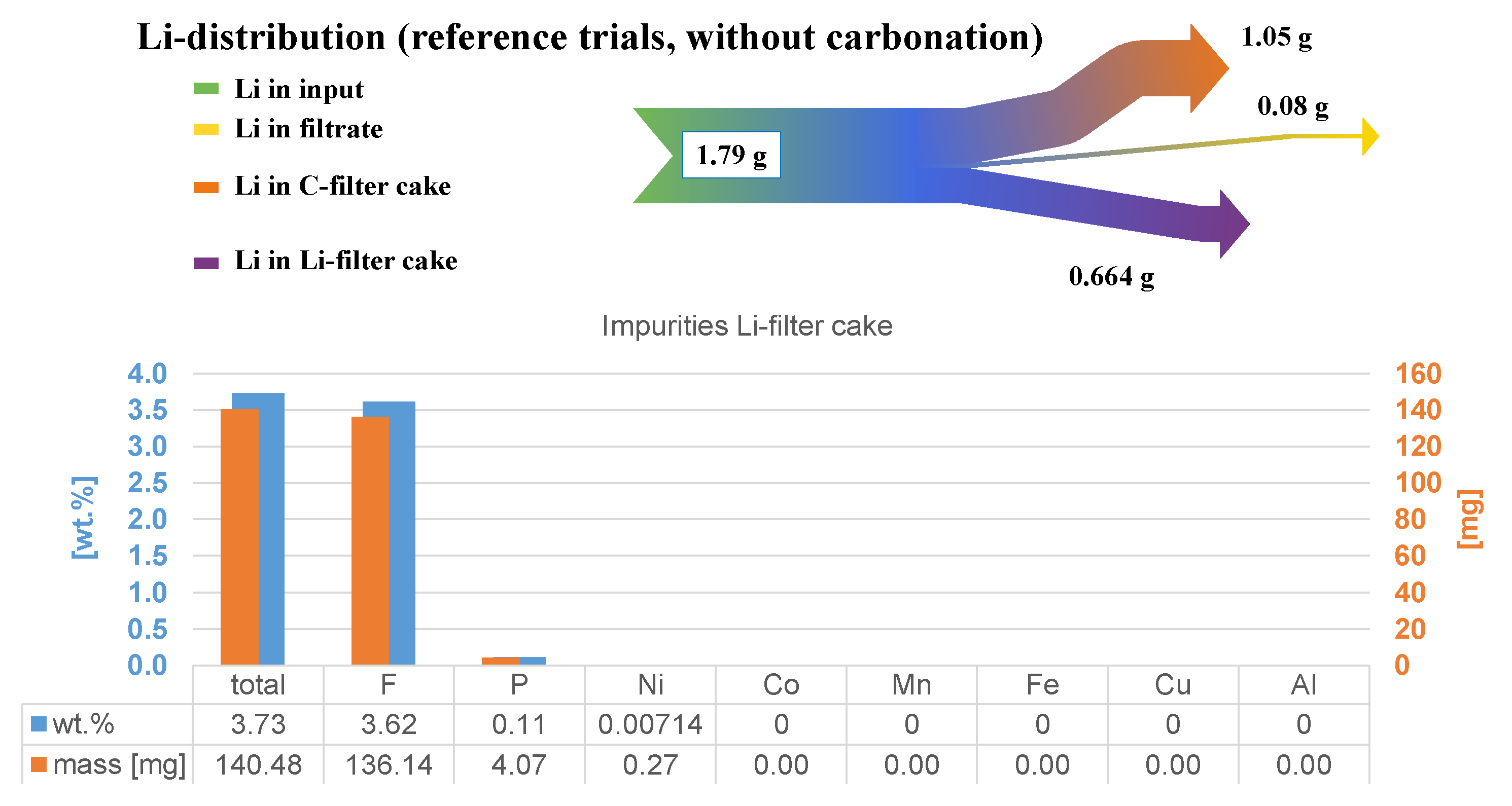

The elemental lithium distribution and the lithium carbonate impurities are shown exemplarily for the trial series 1.A with a solid/liquid ratio of 1:10. In Figure 18, the largest part of lithium remains in the heat-treated black mass after leaching. Moreover, the main impurity of the recovered lithium carbonate is fluorine, followed by phosphorous. This can be explained by the presence of LiF in the heat-treated black mass. It should be noted that the value “Li in filtrate” does only occur within neutral leaching and autoclave trials T0–T9 and T21 and T22, which have conducted a filtration.

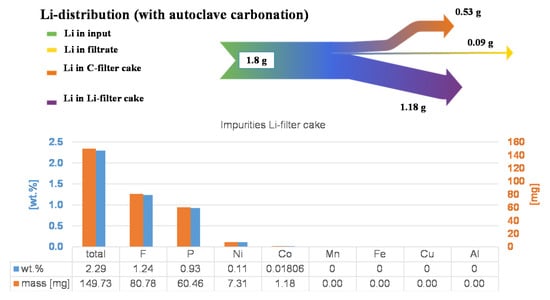

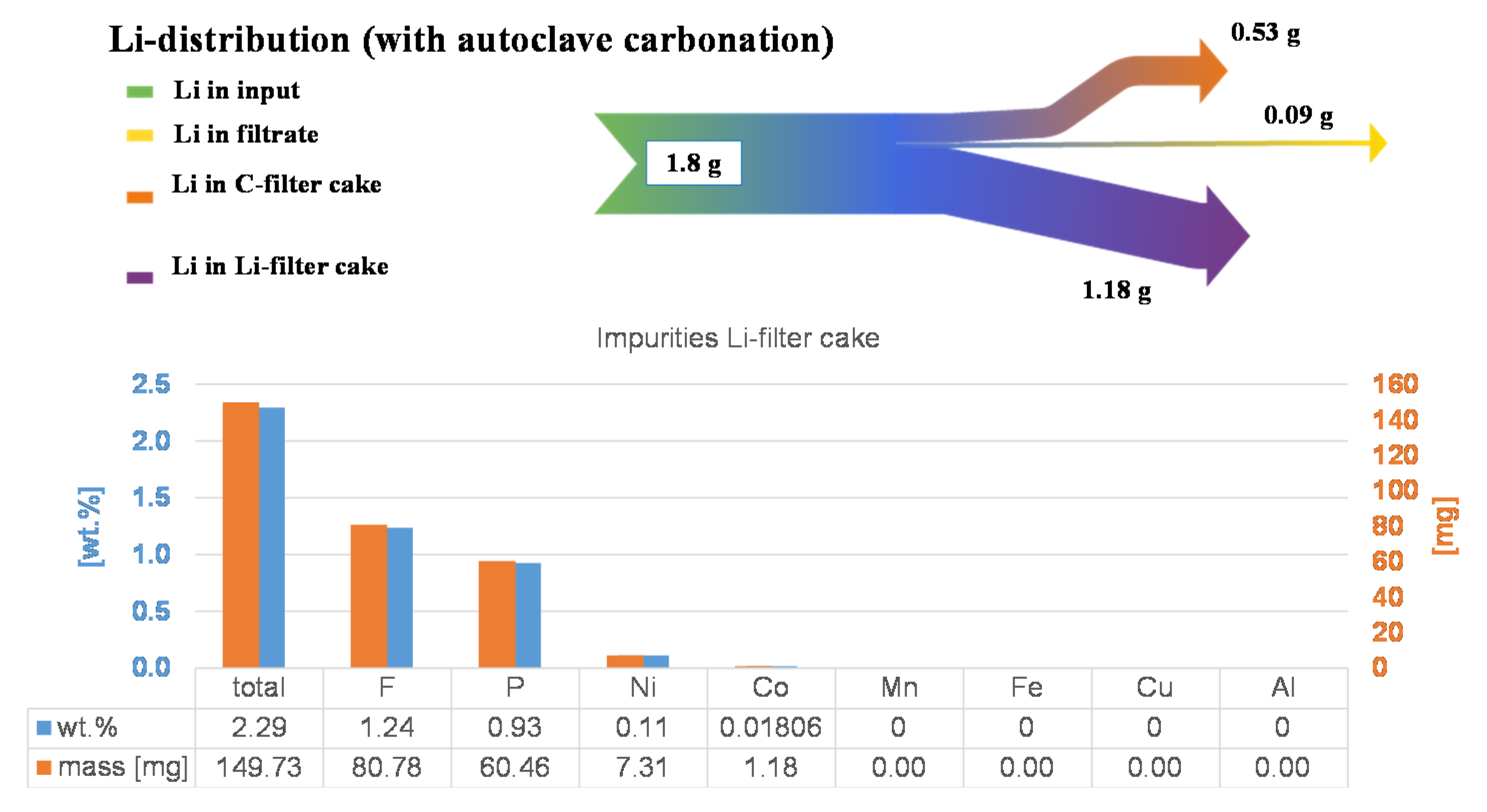

Figure 19 shows the improvement in Li distribution when applying autoclave carbonation. Trials series 2.A was selected since the neutral leaching trials of Ar-pyrolyzed active mass at 600 °C has shown the best yields. Trial series 2.A represents Ar-pyrolysis, with a CO₂ + H₂O autoclave-reaction, and also a solid/liquid ratio of 1:10 in the autoclave. In this case, the share in the residual heat-treated black mass filter cake is significantly lower, which is a proof-of-concept of the carbonation mechanism within the autoclave.

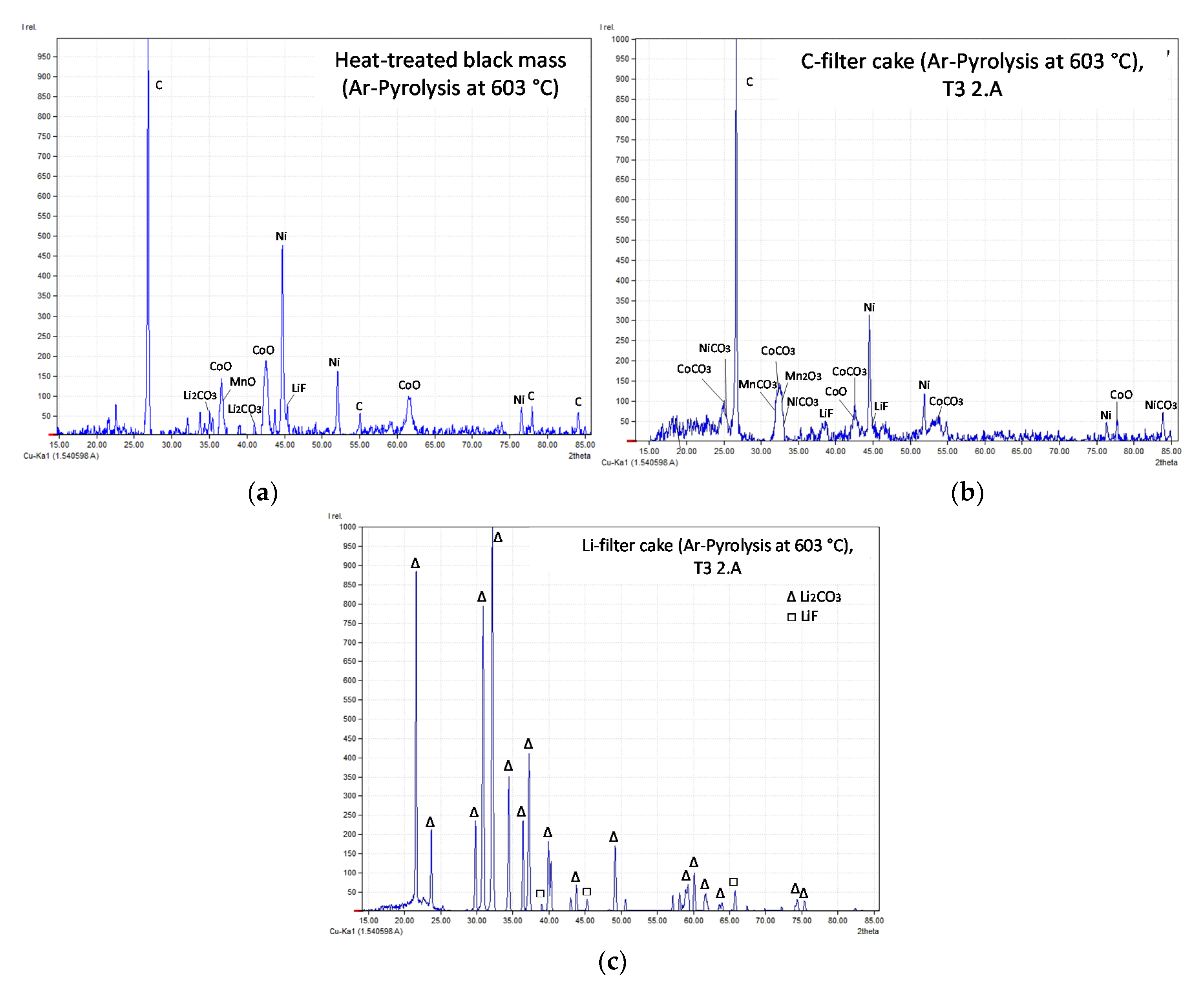

Hence, impurities in the range of 2–4 wt.% can be derived. An XRD-evaluation gives more information on the arising phases within the heat-treated black mass, the C-filter cake and the lithium carbonate filter cake (see Figure 20). This is represented here exemplarily by the 603 °C-Ar-pyrolyzed samples, thus for trial series 2.A, also with a solid/liquid ratio of 1:10. One main finding is the removal of Li₂CO₃, present in the heat-treated black mass, from the C-filter cake. This is an indicator for the removal of water-soluble compounds. In contrast to Figure 20, XRD-evaluations of CO₂-pyrolyzed black mass at 466 °C and Ar + O₂-pyrolyzed black mass at 501 °C also detect LiNiMnO- and the NiO, which stands for an incomplete decomposition of transition metal oxides.

Small amounts of fluorine can be found in the Li-filter cake in the form of LiF. It can be seen that especially fluorine removal is crucial for reaching high lithium carbonate purities fluorine. Figure 20 shows the diffractogram of the heat-treated black mass and the C-and Li-filter cakes (T3 2.A.). X-ray diffraction was performed at room temperature using a STADI P (STOE Darmstadt) powder diffractometer using an IPPSD detector and monochromatic Cu-Kα1 radiation (λ = 1.54059 Å; flat sample; 1.5 ≤ 2θ ≤ 116° step rate 0.015° in 2θ) with a measuring time of 2 h.

LiF was still present in the C-filter cake; hence, the solid/liquid ratio was optimized. In order to prove influencing factors on the lithium yield by an adjusted solid/liquid ratio, the parameter 1:15 (solubility of 13.3 g/L lithium carbonate at 20 °C) and 1:30 (solubility of 7.2 g/L lithium carbonate at 100 °C) were tested. Moreover, to prove the mechanism of autoclave carbonation, two parameters were examined additionally: autoclave carbonation by Ar-excess pressure (3.A) and direct and dry autoclave carbonation by CO₂-excess pressure (4.A). Again, since the Ar-pyrolyzed black mass has shown the highest yields in terms of neutral leaching and in terms of autoclave carbonation, only Ar-pyrolyzed black mass is chosen for the parameter improvements.

Table 5. Detailed list of parameters examined for autoclave trials T10–T13 (3.A), T14–T16, T18, T19, T21 and T22 (2.A), and T17 and T20 (4.A) with a solid/liquid ratio of 1:15 and 1:30. In T17/20 s/l ratio refers to leaching after autoclave treatment.

	Solid/Liquid Ratio (s/l) (g/mL)	H2O in Autoclave	Autoclave Gas	Washing C-Filter Cake with H2O
T10	1:15	yes	Ar	no
T11	1:15	yes	Ar	no
T12	1:15	yes	Ar	no
T13	1:15	yes	Ar	no
T14	1:15	yes	CO2	no
T15	1:15	yes	CO2	yes
T16	1:15	yes	CO2	no
T17	1:30	no	CO2	no
T18	1:30	yes	CO2	yes
T19	1:30	yes	CO2	yes
T20	1:30	no	CO2	yes
T21	1:15	yes	CO2	no
T22	1:30	yes	CO2	no

sums up the parameters for the second autoclave carbonation with solid/liquid ratios of 1:15 and 1:30.

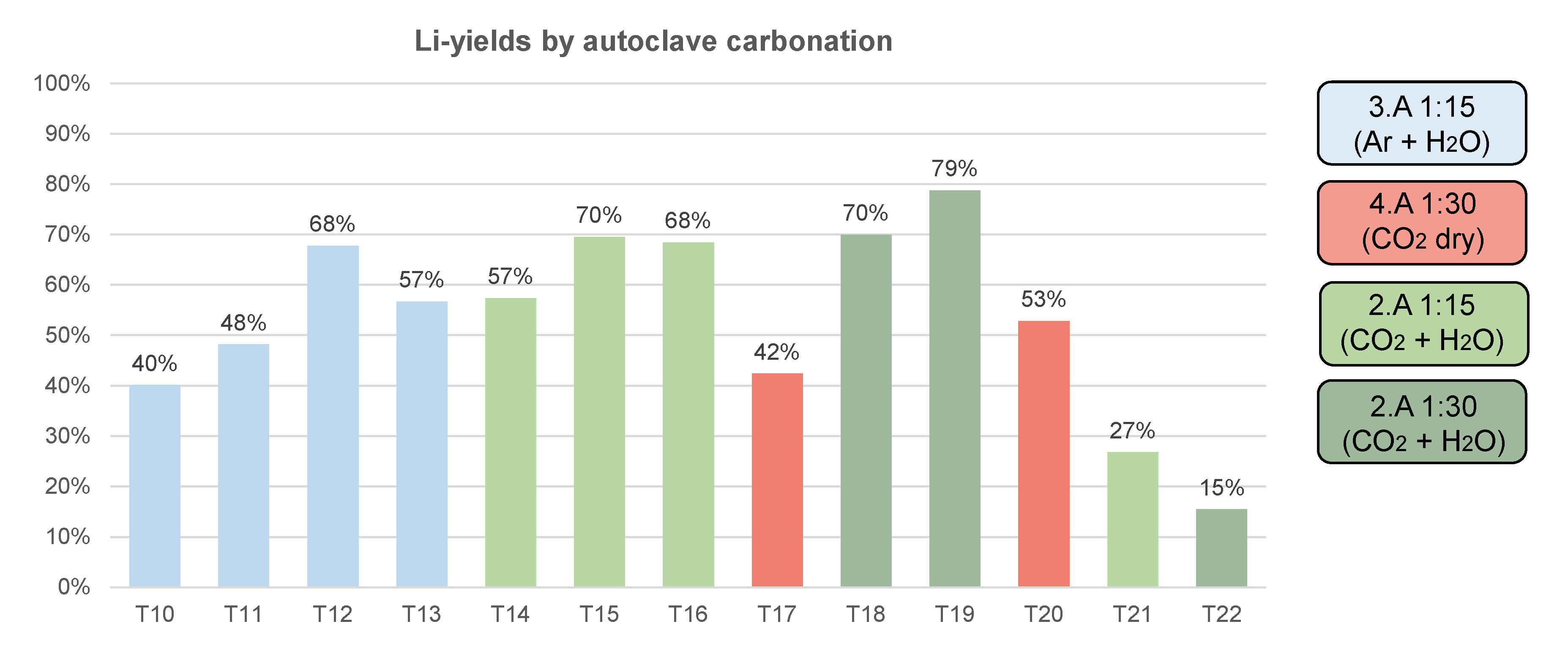

The following illustration (see Figure 21) shows the results of autoclave carbonation with solid/liquid ratios of 1:15 and 1:30:

Thus, the only process window leading to satisfying yields of 79% is an s/l ratio of 1:30 in combination with CO₂ carbonation in an aquatic medium. The underlying mechanism seems to be indirect carbonation.

This can be supported by the detected pH value of all trials. Whereas 1.A.1—1.A.40, T10–T13, and T20 (without CO₂ purging in the liquid) showed a pH value of 11–12 after charging heat-treated black mass in H₂O, the trials T0–T9. T14–T16, T18/T19 and T21/T22 (with CO₂ purging in the liquid) showed a pH value of 7–8 after charging heat-treated black mass in H₂O. Hence, CO₂ was dissolved in the liquid. The generally higher yields in T10–T20 can also be attributed to the avoidance of a second filtration step for recovering lithium. Instead, the solution was boiled until reaching a slurry-state and then was dried in a beaker. Hereby, lithium losses in the residual filtrate are avoided. In addition, when comparing T17 to T20, the advantage of a longer leaching time and washing of the carbon filter cake with deionized H₂O is shown. The washing of the carbon filter cake generally leads to higher yields since dissolved lithium remaining in the filter cakes in the solution can leave the system just by washing. However, comparing T15 to T14 and T16 in terms of C-filter cake washing reveals a rather small impact on the lithium yields (max. 2%). When comparing T21 to T14 and to T16, it can be seen that filtrating of the lithium solution is not expedient. This can be explained by the residual lithium dissolution in the filtrate. The comparison between T22 and T18–T19 confirms this relation. T21 and T22 show very low yields. Although the lithium filter cake was filtrated instead of full boiling and the C-filter cake was not washed, their lithium yield shows disproportionally low yields, which can only be explained by heterogeneity in the heat-treated black mass.

4. Discussion

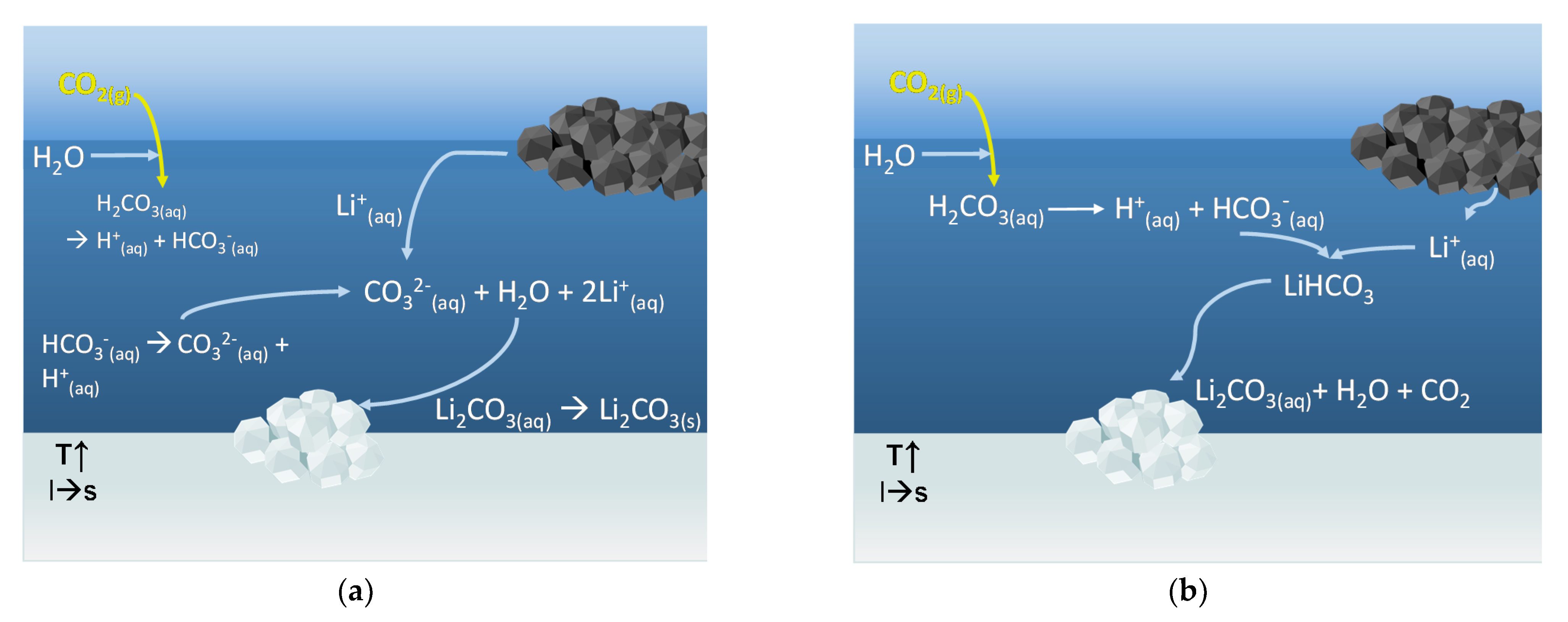

This study proves the concept of indirect carbonation for treating lithium-ion battery heat-treated black mass with supercritical CO₂. The involvement of supercritical CO₂ in terms of lithium carbonate generation is supported by yields comparing Ar-excess pressure and CO₂-excess pressure. Moreover, indirect carbonation is shown by comparing a dry autoclave process to a liquid-based autoclave process. The lower pH-value of pH = 7–8 when applying CO₂ in comparison to H₂O-leaching (pH = 11–12) can lead to the following statements:

• When leaching heat-treated black mass in H₂O, the solution is basic. This can be attributed to the dissolution of basic phases in the liquid. → LiF and Li₂CO₃ could be detected in the heat-treated black mass by XRD; both phases are slightly soluble and therefore are responsible for the elevated pH-value. Although LiOH and Li₂O could not be detected via XRD-analysis in the heat-treated black mass, they may be present in small amounts since the SEI-layers consist of Li₂CO₃, LiF, LiOH and Li₂O [93]. However, it was shown that LiF decomposes to HF and LiOH in aqueous solutions, which indicates Li⁺ + OH⁻ in the solution.
• When leaching heat-treated black mass in H₂O and adding CO₂-gas, the pH value of the solution decreases to 7–8. Mechanisms are in place, which can be attributed to CO₂ and which are leading to a higher lithium leaching efficiency. In the following, hypotheses for the underlying mechanisms are stated:
  • The formation of carbonic acid and thus the formation of CO₃²⁻ and HCO₃⁻ as acidic leaching agents. CO₂ is added to a basic solution; it reacts acidic by the release of H⁺ ions. This pH-value decrease can be responsible for a higher leaching efficiency by creating quasi-acidic leaching conditions similar to conventional hydrometallurgy.
  • Recombination of Li⁺, stemming from non-lithium carbonate phases like LiF, with present CO₃²⁻ or HCO₃⁻. This would entail the following suggested equations (see Equations (19) and (20), schematically shown in Figure 22):

    Li⁺ + CO₃²⁻ → Li₂CO₃

    (19)

    Li⁺ + HCO₃⁻ → LiHCO₃

    (20)
  • A combination of both mentioned mechanisms. In this way, the dissolution of lithium phases in the heat-treated black mass is promoted by CO₂, more lithium ions can be formed to Li₂CO₃, and this effect is also promoted by the increased operating temperatures and arising excess pressure.

5. Conclusions

The presented “ESLR” process, consisting of thermal treatment, mechanical comminution and a sorting step, followed by a subsequent carbonation process, results in the following scientific findings:

Carbonation by supercritical CO₂ shows an increased lithium yield of around 15%. This value stems from the difference between a maximum lithium yield in neutral leaching of 64% and a maximum lithium yield in autoclave carbonation of 79%. When expressing the yield as leaching efficiency, 88% were reached. The different pyrolysis atmospheres and temperatures show a direct influence on the lithium yield. Further key influencing factors for both H₂O-leaching with and without CO₂ are solid/liquid ratio, filter cake washing and the lithium extraction method (filtration vs. full boiling). It can be concluded that the “ESLR” process shows benefits in comparison to simple H₂O-leaching and that the mechanism for indirect carbonation is beneficial. Moreover, the “ESLR” process is a separate step to ease Ni/Co/Mn recovery and to enhance the degree of lithium mobilization. Hence, the resulting lithium-reduced filter cake (C-filter cake) can be integrated into existing hydro- or pyrometallurgical steps.

The process of technology relevance is shown by the following specific benefits in contrast to the state-of-the-art:

• Conventional lithium carbonation, e.g., by Na₂CO₃, is avoided, and no further chemicals are required, making lithium recovery more environmentally friendly;
• Subsequent treating the C-filter cake hydrometallurgically for metal extraction (Ni, Co,…) requires fewer leaching agents because the input mass is reduced, and hence, fewer additives for pH-adjustments are needed;
• Moreover, in comparison to conventional hydrometallurgical lithium recovery, the liquid volume can be fully evaporated (filtration vs. full boiling). Hereby, no lithium remains in the solution. This is possible since no enhancement of salinity is caused in “ESLR”;
• Lithium losses in various byproducts of chemical solution purification and metal winning steps are avoided;
• Costly lithium extraction from a pyrometallurgy treatment and hydrometallurgical purifying of slags is also avoided.

In contrast to other studies, the sequence of thermal and mechanical treatment is inverted. In this study, battery cells are first thermally treated and then shredded to extract heat-treated black mass. This procedure is safer due to the avoidance of ignition during shredding.

Comparing lithium yields by H₂O-leaching in this study to literature, the following statements can be given: In [74], 66% of lithium from NMC black mass are obtained by shredding, then thermal treating and H₂O-leaching. Here, the authors rather focus on LMO-cells and report on one trial, only reaching 66% [74]. However, in this paper, 64% could be recovered by thermal treatment with subsequent shredding and H₂O-leaching at a thermal treatment by 100 °C lower than Xiao et al. and without costly vacuum operations. In comparison to [46,47], where 40% of lithium could be recovered by shredding, thermal treatment and H₂O-leaching of cathode black mass, the yield in this study are up to 24% higher.

A comparison of lithium yields by H₂O-leaching in combination with CO₂ (indirect carbonation) is not straightforward since there is no study in place using the whole black mass from NMC-cells for this process. However, by using cathode black mass with lignite, 85% is reached, whereas, in this study, 79% are reached. This difference might be attributable to the neglection of anode material and/or the use of lignite instead in [46,47]. In comparison to [90], the yields in this study are 19% higher (60% vs. 79%), but yield and matching parameters are given based on a lithium ore treatment. Only the transferability to black mass is mentioned. However, this study also uses heat-treated black mass in contrast to [90]. In comparison to [91], and avoidance of electrodialysis in a Li₂SO₄-solution and of carbonation reagents could be reached.

A comparison of lithium yields by a thermal CO₂-treatment with subsequent H₂O-leaching (direct carbonation) is hardly possible since the autoclave process in this study worked at T_max = 230 °C, whereas literature focuses on elevated temperatures (~650–800 °C [73]) with CO₂ as purging instead of excess pressure; moreover, no yield calculation is given [73].

In this study, a proof-of-concept regarding the indirect carbonation using supercritical CO₂ in an autoclave could be shown.

The most important follow-up research comprises a further enhancement of lithium yields to a value of >90%, which is necessary to make the “ESLR” a competitive process option. Then, CO₂-driven carbonation without supercritical CO_2, but by CO₂-gas purging instead. This is crucial because the combination of thermal pretreatment and an autoclave treatment comprise high energy requirements. However, as reported in Section 1.1.1, thermal conditioning is also beneficial for hydrometallurgical treatment. Hence, the connected energy demands cannot particularly and only be counted for the “ESLR” process. First trials with CO₂-gas instead of SCCO₂ have shown lithium yields around 70%. Hereby, insights into the role of excess pressure (73.8 bar) and high temperatures (150 °C) are possible. Moreover, this setup would imply economic benefits due to the avoidance of high-pressure operations. This will be one topic of “Early-Stage Recovery of Lithium from Tailored Thermal Conditioned Black Mass Part II: Mobilizing Lithium via gaseous CO₂-Carbonation”. Moreover, a refining of the C-filter cake by flotation or acidic leaching should be tested. Upscaling is planned for future research to test possible scale effects due to losses on equipment surfaces, for example, on beakers after boiling the lithium filtrate. In addition, a suitable development for removing fluorine from the heat-treated black mass, filtrates and filter cakes would be an important tool for hazardous-free processing, which would not harm the used equipment by developing HF-gas. Moreover, experimental series 3.O/3.C and 4.O/4.C are to be performed. Moreover, the heat-treated black mass-producing pyrolysis was conducted with a holding time of 60 min. This may be optimized as well to find the perfect match in terms of temperature and holding time.
