Structure and Mechanical Properties of the 18Ni300 Maraging Steel Produced by Spark Plasma Sintering

Abstract

In this work, a new approach for compaction of the gas-atomized 18Ni300 maraging steel at two different temperatures of 1050 °C and 1150 °C using a progressive SPS technology is studied. Moreover, the influence of two heat treatments combining solution annealing and aging (SAT) and simply aging treatment (AT) on the microstructure and mechanical properties is investigated. It is found that samples compacted at 1050 °C had higher porosity compared to the almost non-porous material produced at 1150 °C. In addition, the difference of 100 °C for the compaction temperature successfully reduces the porosity from 0.86% down to 0.08%. Additionally, we discovered that the higher the compaction temperature, the higher the amount of retained γ-Fe which positively affects the ductility of the samples. The subsequential heat treatment results in precipitation strengthening via the Ni₃Mo precipitates. Microhardness of the SPS1050 and SPS1150 samples increase from 303 ± 13 HV0.1 and 360 ± 5 HV0.1 to 563 ± 31 HV0.1 and 606 ± 17 HV0.1, respectively. The sample compacted at 1150 °C shows the highest ultimate tensile strengths reaching up to 1940 ± 6 MPa, while also showing 4% ductility.

1. Introduction

Maraging steels are ultra-high-strength martensitic steels with a very low carbon content (generally ≤0.03 wt.%). At the same time, these steel types are highly alloyed with Ni, Co, Mo [1,2] reaching high ultimate strengths and high hardnesses. Further, the steels are ductile, tough, and also are easily weldable [3,4]. The main reason for such good mechanical properties of the maraging steels is the precipitation hardening during heat treatment, allowing to form a few types of nano-sized precipitates (Ni₃(Mo, Ti), Fe₂Mo) homogeneously dispersed within the material volume [5,6,7]. Due to their admirable properties, these steels have a wide range of applications, e.g., can be used for tooling components, aerospace and hydrospace industry, as well as for motor racing applications [4,8,9,10]. Considering the good weldability, maraging steels are suitable for production not only via classical methods but also by way of modern processes, such as additive manufacturing [4,9,11,12] and powder metallurgy [13,14].

Spark plasma sintering (SPS) is one of the progressive powder metallurgy methods which started to develop in 1906 [15]. The first device for commercial use was manufactured in 1965 (Japan) [16]. Between years 2001 and 2004, four types of SPS machines with different systems (multi-heat, tunnel, rotary table, and shuttle) were registered for specific industrial applications by Tokita [17,18,19,20]. Nowadays, a wide range of materials including polymers [21], ceramics [22], and different types of metal alloys [14,23,24,25,26,27] are compacted via SPS technology. The method can be briefly described as a rapid heating process with a heating rate of up to hundreds °C/min due to a controlled flow of current throughout the compacted powder or the die itself. At the same time, external uniaxial pressure is applied to the sample and the whole process is typically finished within a few minutes, which suppresses diffusion-related effects in the material including microstructural coarsening, phase transformations, and others [28].

The main advantages of SPS against conventional powder metallurgy methods are (1) higher heating rate; (2) lower sintering temperatures; (3) shorter holding time [15]; (4) almost nonporous structure of the compacts; and (5) suppression of the microstructural changes during SPS method [29,30]. However, the process itself allows the creation of bulk materials with only a simple geometry. That fact can be considered as one of two disadvantages compared to the selective laser melting (SLM) technology. The second one is that materials produced by the SLM method have a very fine cell structure.

There is a lot of studies involved in describing the maraging steel produced by additive manufacturing [3,4,5,9,10,11]. However, up to these days, there are only a few scientific reports that have described the influence of sintering conditions on the properties of maraging steels. In the work [13], Antsiferov et al. have studied maraging steel produced by powder metallurgy method. In the work of others [31,32,33], the authors have studied how sintering of maraging steel depends on different types of supplements. Only Menapace et al. [14] focused their research on the 18Ni300 maraging steel produced by the more modern technology of spark plasma sintering.

In this work, the influence of different SPS settings on the microstructure and mechanical properties of high-strength 18Ni300 maraging steel was studied. Particularly, two different consolidation temperatures of 1050 °C and 1150 °C and two different consequential heat treatments were used as variables.

2. Materials and Methods

The 18Ni300 (also denoted as EN 1.2709) maraging steel powder which was used for compaction via SPS technology was purchased from Sichuan Hermus. The powder particle morphology was observed using a scanning electron microscope (TESCAN VEGA 3 LMU, Brno, Czech Republic). The powder particle distribution was measured using Ferret’s diameter technique in the ImageJ software. The results of the X-ray fluorescence analysis (XRF, ARL 9400 XP, Thermo ARL, Ecublens, Switzerland) are shown in

Table 1. Chemical composition of the 18Ni300 alloy.

Element	Fe	Ni	Co	Mo	Ti	C	Al	Cr	Si, Mn
[Wt.%]	Bal.	19.3	9.2	5.1	0.7	≤0.03	0.05	0.05	≤0.1

. These results are in a good match with the chemical composition given in the ASTM A579/579M-17A prescription as well as the work of others [5,10,34].

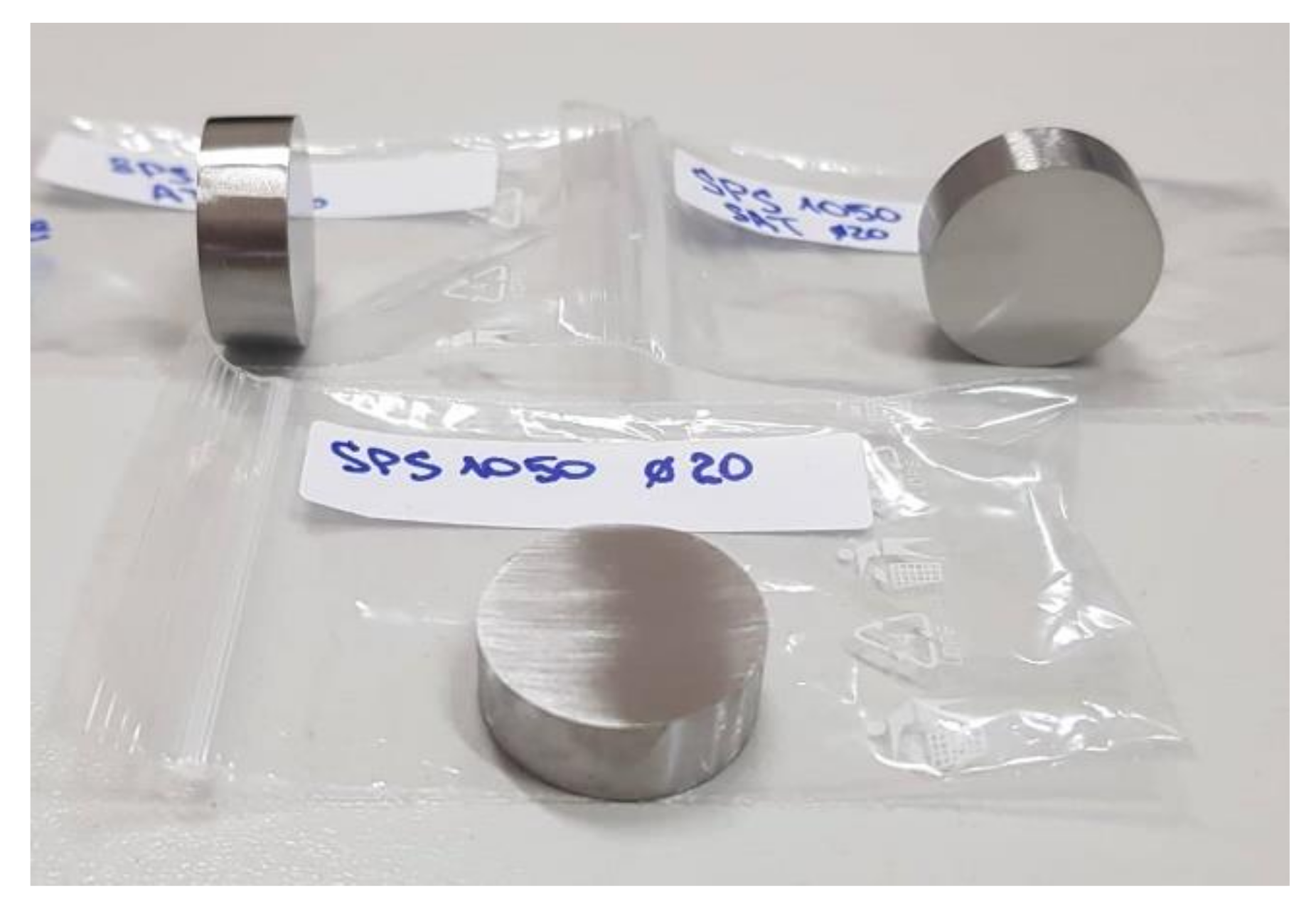

The powder material has been compacted using FCT Systeme HP D 10 spark plasma sintering device (SPS, FCT Systeme, HP-D 10, Rauenstein, Germany) using a pressure of 80 MPa, a heating rate of 100 °C/min until reaching the compaction temperature either of 1050 or 1150 °C with a dwell time of 10 min. After the compaction, the heating was turned off and the sample was cooled down with the maximal cooling speed of the device. For each compaction, 20 g of the powder was used, producing rounded samples with 20 mm in diameter and 8 mm in height (Figure 1). The sample’s surface porosity was determined using the threshold method to color each pore and to calculate their area fraction.

Consequentially, two different heat treatments were applied for both samples. The first consisted of solution annealing (820 °C for 1 h, air cooling) and aging treatment (490 °C for 6 h, air-cooling), while the second one was composed of only aging treatment using the same conditions. Thus, these samples investigated in this work will be referred accordingly to chosen conditions of thermal treatment as is shown in

Table 2. Designation of studied samples compacted by SPS at two temperatures of 1050 and 1150 °C, accordingly, to the chosen heat treatment done in an electric resistance furnace.

	Condition of Chosen Heat Treatment		Sample Designation
Heat treatment mode	Solution annealing: 820 °C/1 h, air cooling	Aging: 490 °C/6 h, air cooling	SPS 1050 SAT	SPS 1150 SAT
	-	Aging: 490 °C/6 h, air cooling	SPS 1050 AT	SPS 1150 AT

.

The metallographic cross-sections were prepared accordingly to the conditions mentioned in our previous work [5]. Microstructural development as a result of different thermal treatments was documented using the above-mentioned SEM and by a transmission electron microscope (TEM, JEOL 2200 FS, Akishima, Japan) equipped by energy dispersive spectrometer (EDS, Oxford Instruments, 80 mm², High Wycombe, UK). The phase composition of the studied material was determined by the X-ray diffraction spectroscopy (XRD, PANalytical X’Pert Pro, Almelo, The Netherlands) using Co-Kα source (λ = 0.17929 nm). These measurements were done in a 2θ range of 6–110° with a step size of 0.039° and duration of 175.185 s/step.

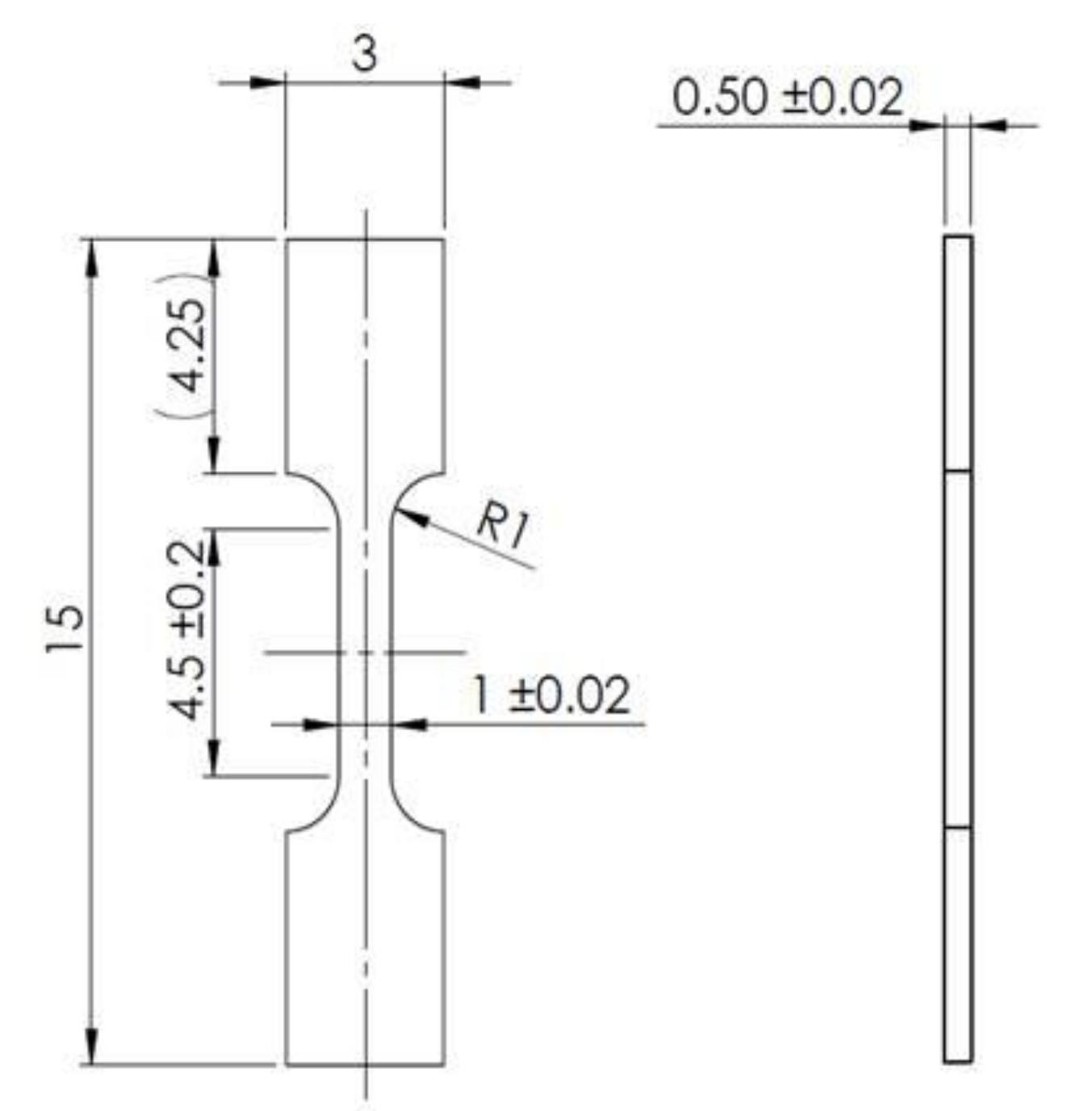

The Vickers microhardness of the material was measured using a FUTURE TECH FM-700 (FUTURE-TECH CORP., Kawasaki-City, Japan) with a load of 100 g and a dwell time of 10 s. To provide sufficient data sets, ten measurements were made on each sample. The tensile properties of the prepared compacts were determined using miniaturized dog bone-like specimens (see Figure 2) used for micro-tensile testing (MTT). For the testing, three specimens were cut in the perpendicular direction to the compaction force used during SPS.

3. Results and Discussion

3.1. Characterization of the 18Ni300 Maraging Steel Powder

In this work, a novel approach for the compaction of the gas-atomized 18Ni300 maraging steel has been investigated for the first time. The SPS compaction method was used as an alternative to producing bulk semi-samples, which mechanical properties may outperform those prepared by additive manufacturing.

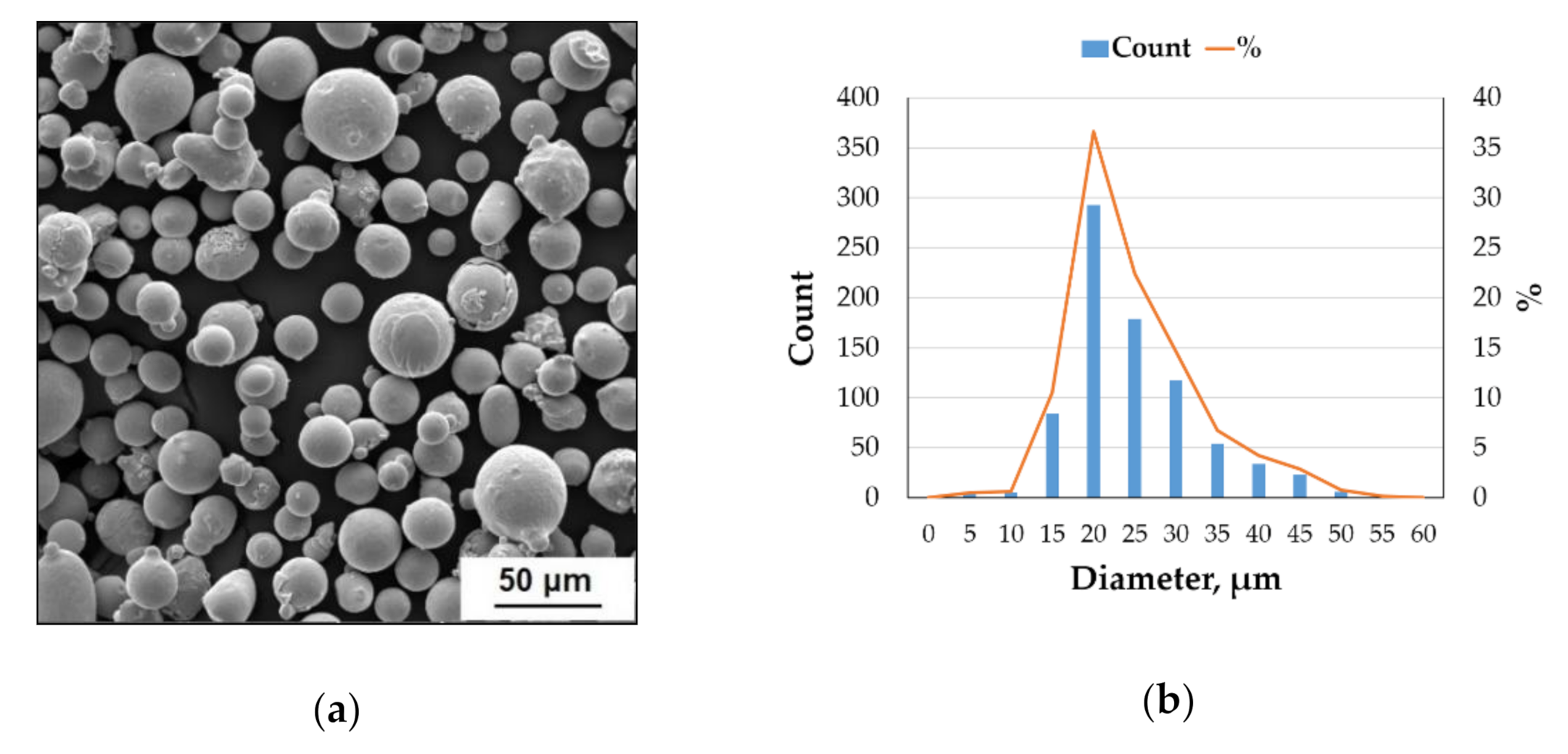

Figure 3a shows the morphology of the 18Ni300 powder particles. It is observed that most particles had a spherical shape and various diameters. Considering its theoretical application, the shape and size of the powder are very important factors for powder metallurgy technology, e.g., for additive manufacturing, etc. Spherical powder particles with different sizes are beneficial due to their tendency to fill different voids formed between the larger particles. As a result, compressed and sintered samples have lower porosity and thus better mechanical properties. The results of the powder size distribution shown in Figure 3b confirmed that the largest fraction of the powder particles have had diameters around 20 μm. Furthermore, they were accompanied by particles with diameters around 15 μm and also in the range of 25–30 μm, whose fractions corresponded up to 9.9% and 33.4%, respectively. Further, a rather smaller percentage of significantly smaller particles was also observed, which is beneficial due to their ability to fill any voids formed between larger particles. Considering these results, the particle size distribution within the used powder met the requirements to prepare nearly fully dense compacts via SPS compaction.

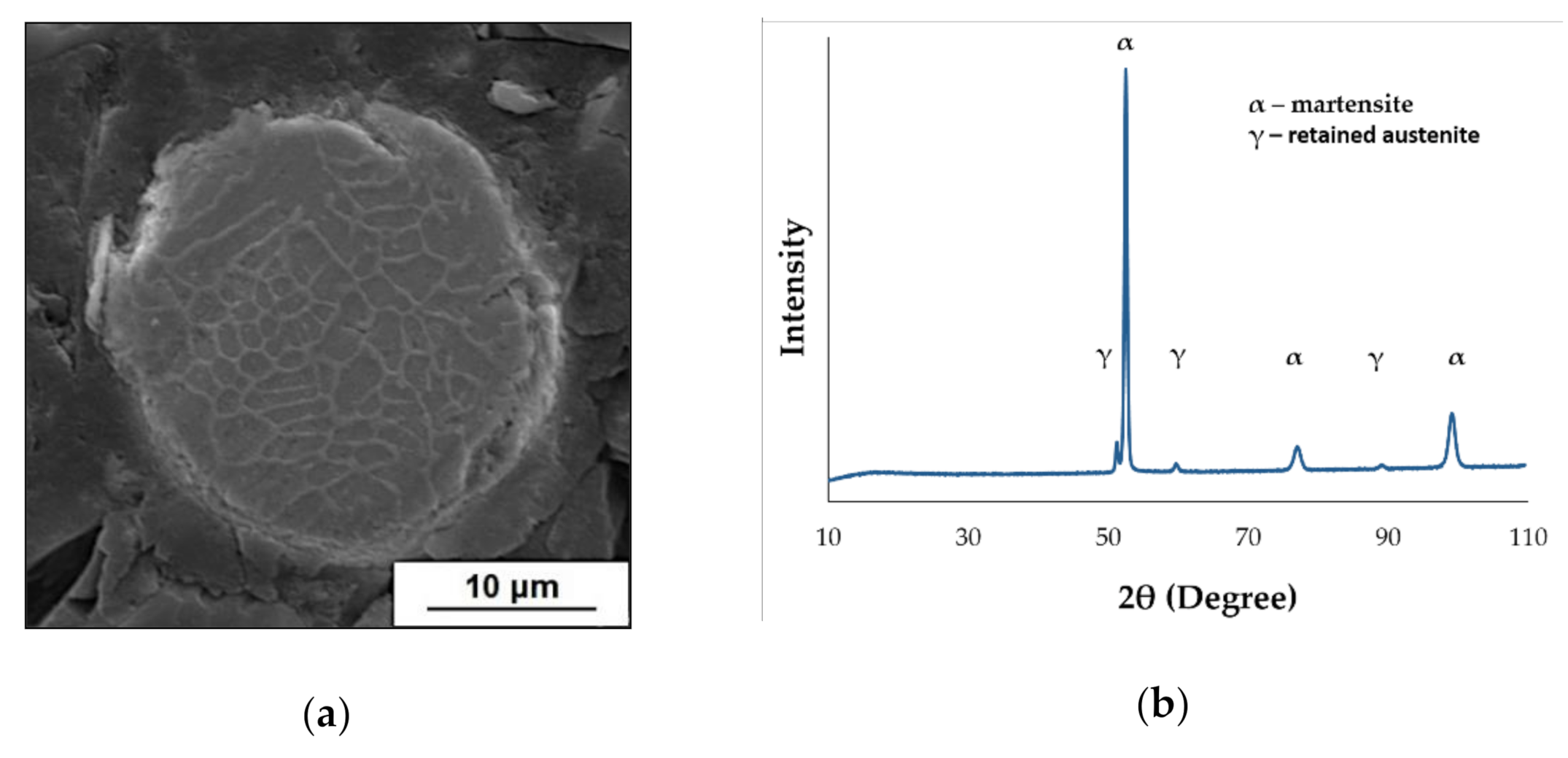

The SEM micrograph of a powder particle is shown in Figure 4a, while the phase composition determined by the XRD analysis is shown in Figure 4b.

The microstructure of the powder consists of various cells which are typical structural components of metal powders produced by gas atomization. It is caused due to the high cooling rate during powder production. Present phases were identified as martensite (α-phase) and as retained austenite (γ-phase). The presence of a small amount of residual austenite has been also reported in the work of others [5,8] and is related to the preparation technique chosen for the powder production. This is because, during the rapid cooling, the residual austenite does not undergo the phase transformation into martensite.

3.2. Microstructure Characterization of the Consolidated 18Ni300 Maraging Steel

Figure 5 shows the microstructures of investigated material as a result of different temperatures used during the compaction via SPS. It was found that the porosity of the compacts decreased from 0.86% down to 0.08% as the SPS compaction temperature changed from 1050 to 1150 °C.

The microstructure of the sample compacted at lower temperature showed the presence of visible pores that are marked with red arrows in Figure 5a. Among that, deformed powder boundaries (marked with yellow arrows) between each powder particle can be also clearly distinguishable. This means that a temperature of 1050 °C was partially sufficient to allow increased plastic deformation of the material due to activation of dislocation movements. However, the temperature was not high enough to provide a fully dense material due to the limited welding of present voids within the material. It is observed that the initially observed cellular structure (Figure 4) has changed into an almost fully martensite structure as was confirmed by the XRD analysis (shown below).

Figure 5b shows the microstructure of the sample consolidated at 1150 °C that is similar to the previous one (Figure 5a) except a few differences. Both of the compact samples were composed of coarse martensite laths, but the sample compacted at 1150 °C showed almost zero porosity. This suggests that the compaction temperature was enough to allow easier bonding of each particle, their mutual deformation, and decrease of the porosity.

3.3. Microstructure after Heat Treatment

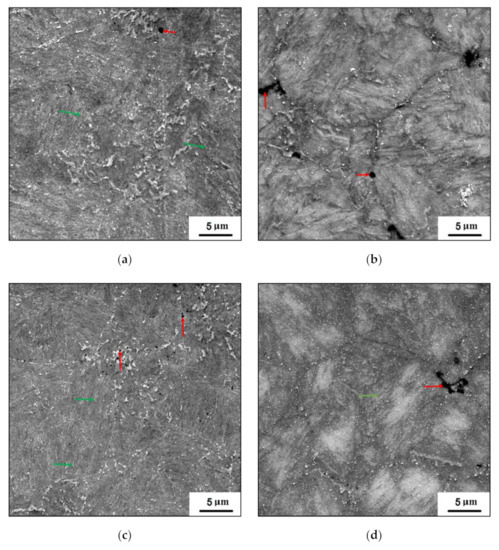

The SEM micrographs of the studied compacts, which underwent two heat treatment modes, combining solution annealing with aging treatment (SAT) or only simply aging treatment (AT), are shown in Figure 6. Similar to the as-compacted samples whose microstructures are shown in Figure 5, any of the chosen heat treatments did not affect the presence of pores, which are marked by red arrows. On the other hand, the SAT treatment application caused a transformation of coarse martensite grains into a fine needle-like microstructure, which is marked by green arrows (Figure 6). It can be seen (Figure 6a,c) that the martensite laths are much finer after SAT treatment compared to an almost unchanged microstructure after AT treatment (Figure 6b,d). This phenomenon can be described by the fact that the material was initially heated to a temperature of 820 °C, allowing it to form austenite [5,34]. This was followed by air cooling to form martensite. This cooling was slightly faster than compared to the cooling speed typically achieved by the SPS device. Then it was followed by aging at 490 °C, allowing precipitation of nanosized intermetallic phases responsible for precipitation hardening of the maraging steel. Obviously, the combination of an SPS compaction followed by a two-step heat treatment yielded better results, showing a much more refined microstructure containing finer needle-like martensite laths.

Compared to our previous work [5], which focused on the identical steel produced by SLM technology, the SAT heat treatment mode had the opposite effect on the microstructure development. In the case of the 3D-printed material, the microstructure after the SAT treatment transformed into coarser martensitic laths, while the same heat treatment is done in the case of SPS samples’ microstructures being significantly refined. However, the AT treatment did not affect the microstructure of the SPS samples, showing identical behavior as was already reported in the case of the 3D-printed materials [5].

3.4. Phase Composition of the Maraging Steel

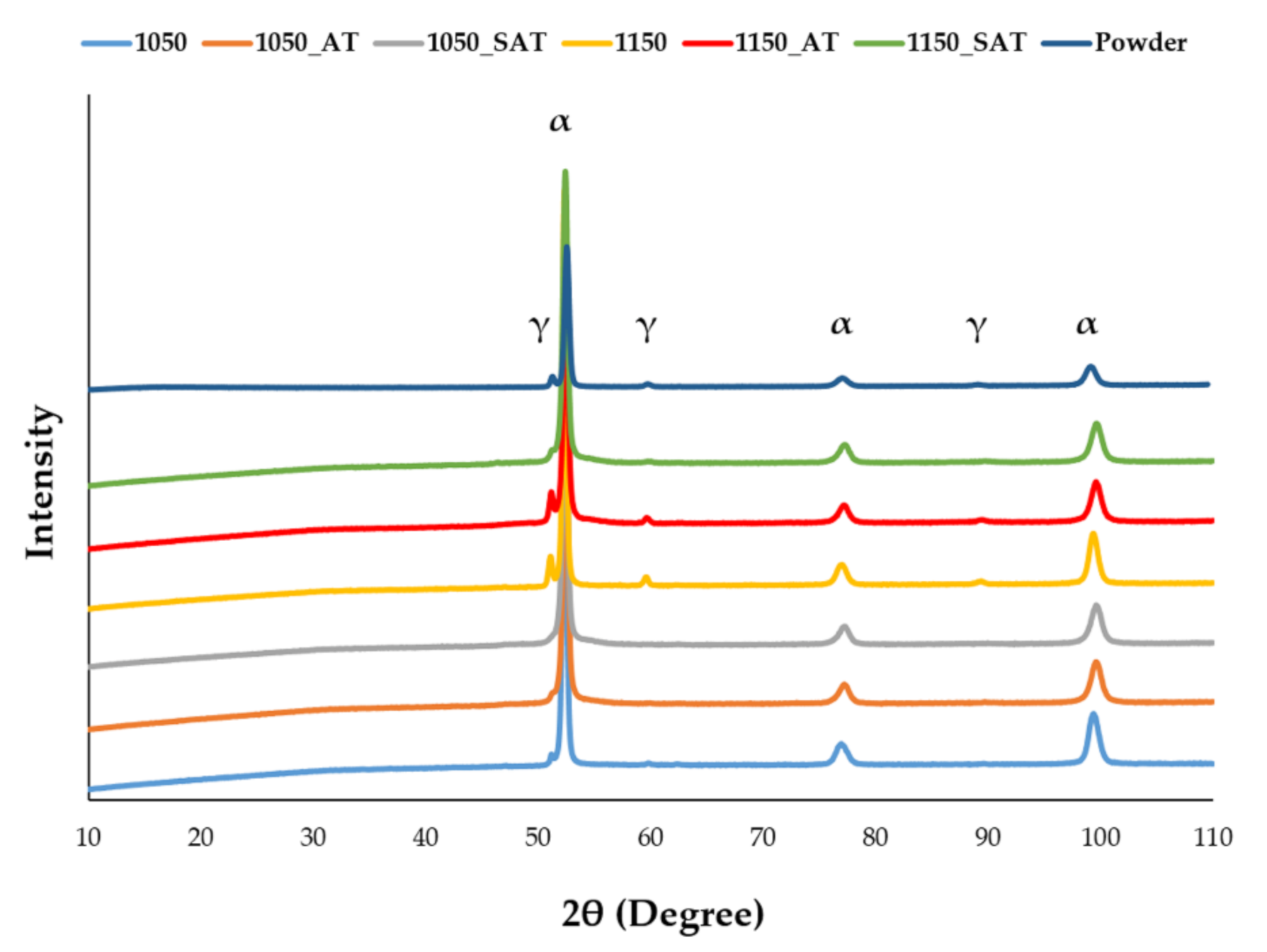

The phase composition of the 18Ni300 maraging steel as a result of the SPS compaction temperature and subsequent heat treatment were studied as is shown in Figure 7. One can see that only one sample (SPS 1050 SAT) was showing only three peaks identified as α-phase (martensite). On the other hand, the rest of the materials showed the presence of additional peaks, confirming the presence of the dominating α-phase (martensite) and small peaks of the γ-phase (retained austenite).

The percentage content of the phases is summarized in

Table 3. Phase composition (vol.%) of the 18Ni300 maraging steel under different conditions with the FWHM values for the most intensive peaks from the α-Fe phase.

Sample	α-Fe, %	FWHM [°2Th.]	γ-Fe, %
Powder	88	0.554	12
SPS 1050	95	0.384	5
SPS 1050 SAT	100	0.515	0
SPS 1050 AT	97	0.515	3
SPS 1150	82	0.307	18
SPS 1150 SAT	95	0.562	5
SPS 1150 AT	84	0.563	16

. As for the temperature of the SPS process, the amount of retained austenite in samples produced at 1150 °C is higher than in the samples produced at 1050 °C. As it has been already shown, higher compaction temperature, among the different phase compositions, also significantly reduced the residual porosity. Additionally, the full width at half maximum (FWHM) values confirmed the coarsening of the major α-Fe phase when compacted at both SPS temperatures. On the other hand, the γ-Fe of the 1150 °C sample showed an increase in the volume content as compaction temperature increased. The consequential heat treatment resulted in microstructural refinement of the α-Fe, which was confirmed by the FWHM values.

The consequential heat treatment resulted in microstructural refinement of the α-Fe, which was confirmed by the FWHM values.

It can be seen from Table 3 that the SAT mode allows forming almost 100% martensite in both the SPS 1050 SAT and SPS 1150 SAT samples. From this point of view, the cooling speed of the SPS itself is responsible for differences within the phases’ compositions and foremostly their volume fractions, thus the consequential SAT heat treatment is necessary to increase the amount of martensite while reducing the content of retained austenite. The γ-phase amount is higher after the AT mode than in the case of combined solution annealing and aging treatment (SAT), which corresponds to the work of Tan et al. [34]. After the AT treatment, a 100% α-phase material cannot be achieved because of the inevitable transformation of martensite into a more stable inverted γ-phase. These results are consistent with the results described in [5], where 100% α-phase was formed only when the SAT regime was applied.

3.5. Mechanical Properties

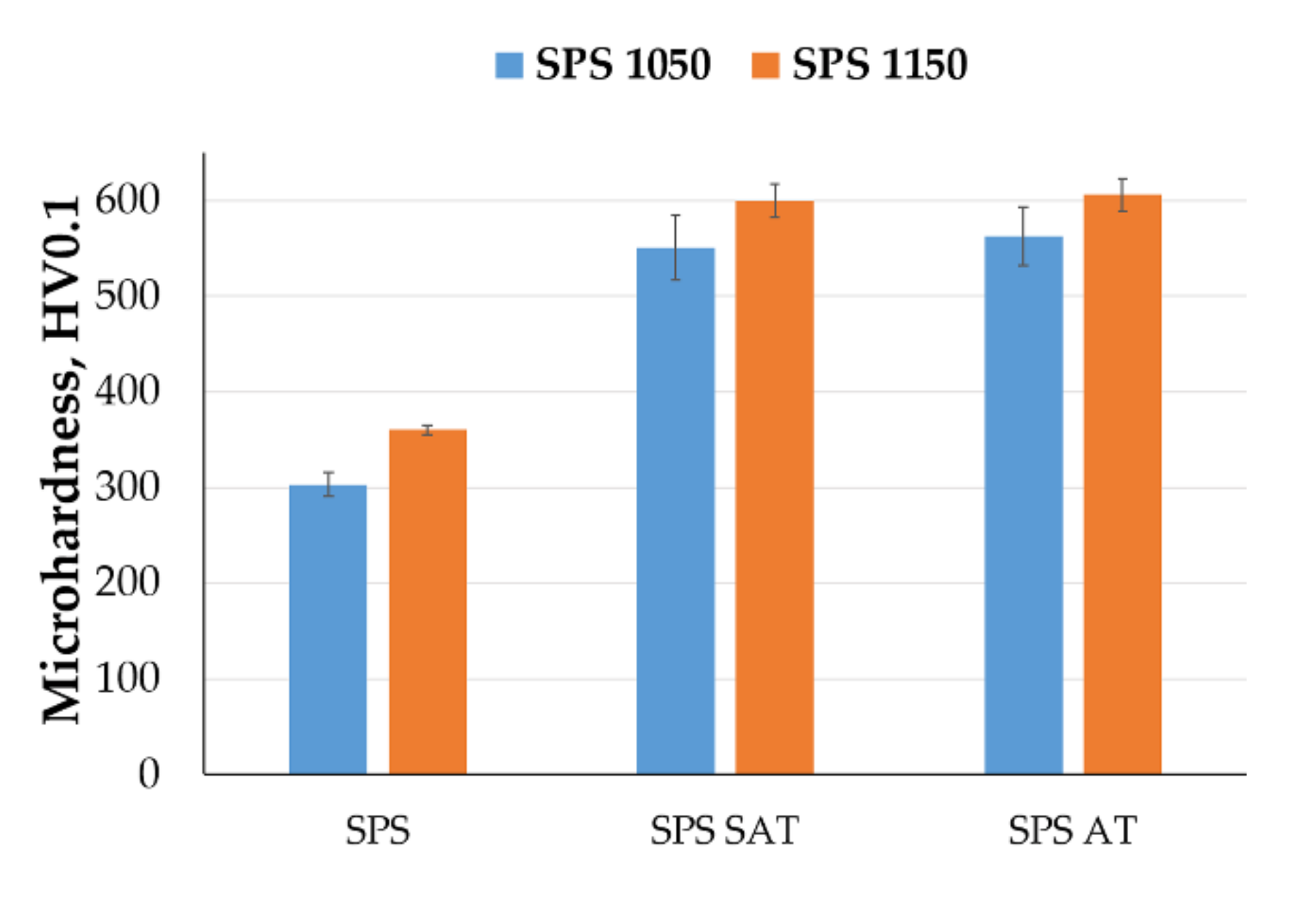

The mechanical properties of the materials were investigated to describe the microhardness, ultimate tensile strength (UTS), and elongation of 18Ni300 steel. Figure 8 shows the effect of the heat treatment regime on the microhardness of various samples either produced via SPS or after consequential heat treatment. The samples compacted at 1150 °C were showing higher hardness and lower standard deviation values to that of samples compacted at 1050 °C. Such a result was achieved due to a significantly lower residual porosity of the first of the aforementioned samples. Additionally, both the heat treatments (including SAT and AT) increased the HV0.1, reaching almost comparable values regardless of the chosen treatment mode, which was caused by the formation of precipitates within the material matrix (see the following paragraph).

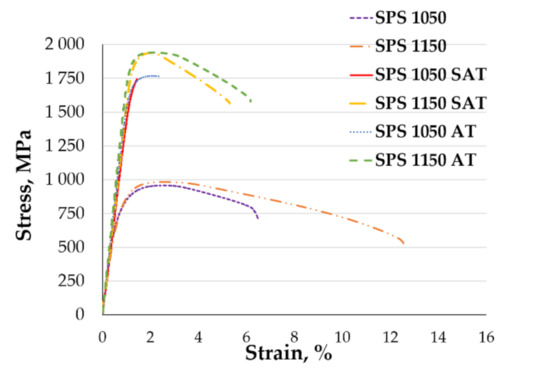

The influence of the compaction temperature and consequential heat treatment on the tensile strength properties is shown in Figure 9. It is clearly visible that both the temperature of the SPS process and the heat treatment mode have a huge effect on the material properties. In terms of consolidation temperatures, the samples compacted at 1150 °C showed slightly higher tensile strength values compared to samples compacted at 1050 °C. Additionally, the SPS 1150 samples had much higher elongation values in each state than the SPS 1050 samples. This can be explained by the fact that the higher consolidation temperature contributed to the production of a denser material with better interparticle cohesion. Besides, the higher the compaction temperature, the higher the content of retained γ-Fe was observed. This behavior can be explained by the initial appearance of the gas-atomized powders with a cellular structure composed of α-Fe pools surrounded by the γ-Fe (see Figure 4a). As was discovered in our previous work [5], the γ-Fe was enriched foremostly by Ni and Mo. Such a morphology and difference in chemical composition were responsible for the formation of two types of γ-Fe, one arising from the α-Fe having a lower content of the alloying elements while the second one was enriched especially by Ni. Since the diffusivity of elements increases with the temperature, the higher the SPS compaction temperature, the more intensive the distribution of the Ni within the material stabilizing the larger volume of retained γ-Fe after the sample is cooled down. Moreover, the higher content of residual austenite and lower amount of deleterious porosity as well as the grain coarsening also contributed to the higher elongation of the SPS 1150 sample. Additional heat treatment resulted in a tremendous increase in the mechanical properties due to the precipitation hardening and partial reduction of the γ-Fe content. Compared to the results from our previous work [5], while maintaining almost identical UTS values, the ductility of samples compacted at 1150 °C was higher, compared to the additively manufactured materials with identical chemical composition. This difference was caused by a higher amount of retained γ-Fe.

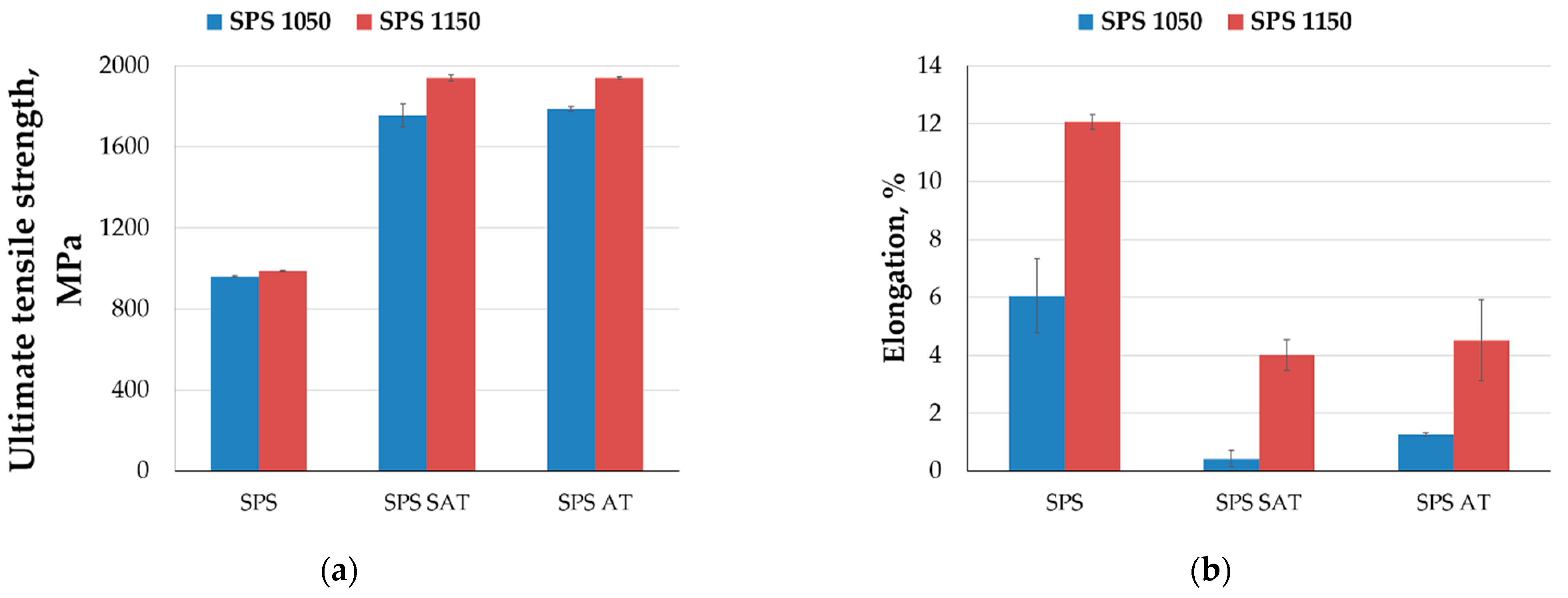

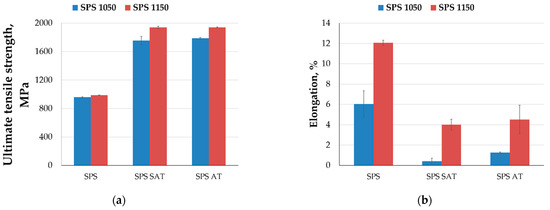

It is obvious (Figure 10a) that the UTS values follow the same trend already seen in the case of microhardness development (see Figure 8). However, the effect of the same conditions on the elongation of the studied material was different (Figure 10b). It was observed that the steel had the highest values of elongation in the SPS state, which reflects the presence of low-carbon soft α-martensite phase (compare Table 3 and Figure 10b). After heat treatment, the values decreased from ~12% to ~4% and from ~6% to ~1% in the SPS 1150 and SPS 1050 samples, respectively. The ductility decrease can be associated with the aging procedure during which precipitates are formed within the material, causing precipitation strengthening. Present precipitates effectively hinder the dislocation movement throughout the material that is associated with the ductility decrease.

The results of the mechanical testing of the 18Ni300 maraging steel produced by SPS technology showed that the temperature of process 1150 °C is more suitable for producing the steel than 1050 °C. The mechanical properties of the SPS 1150 samples are slightly lower compared to the properties of the same steel produced by wrought metallurgy [35]. However, microhardness and UTS of the consolidated materials are comparable to the maraging steel produced by selective laser melting [5].

3.6. TEM-Analysis

Based on the microstructure and mechanical property changes of the 18Ni300 maraging steel, which depends on the SPS process temperature and heat treatment mode, two samples were selected for TEM-analysis: SPS 1150 and SPS 1150 SAT.

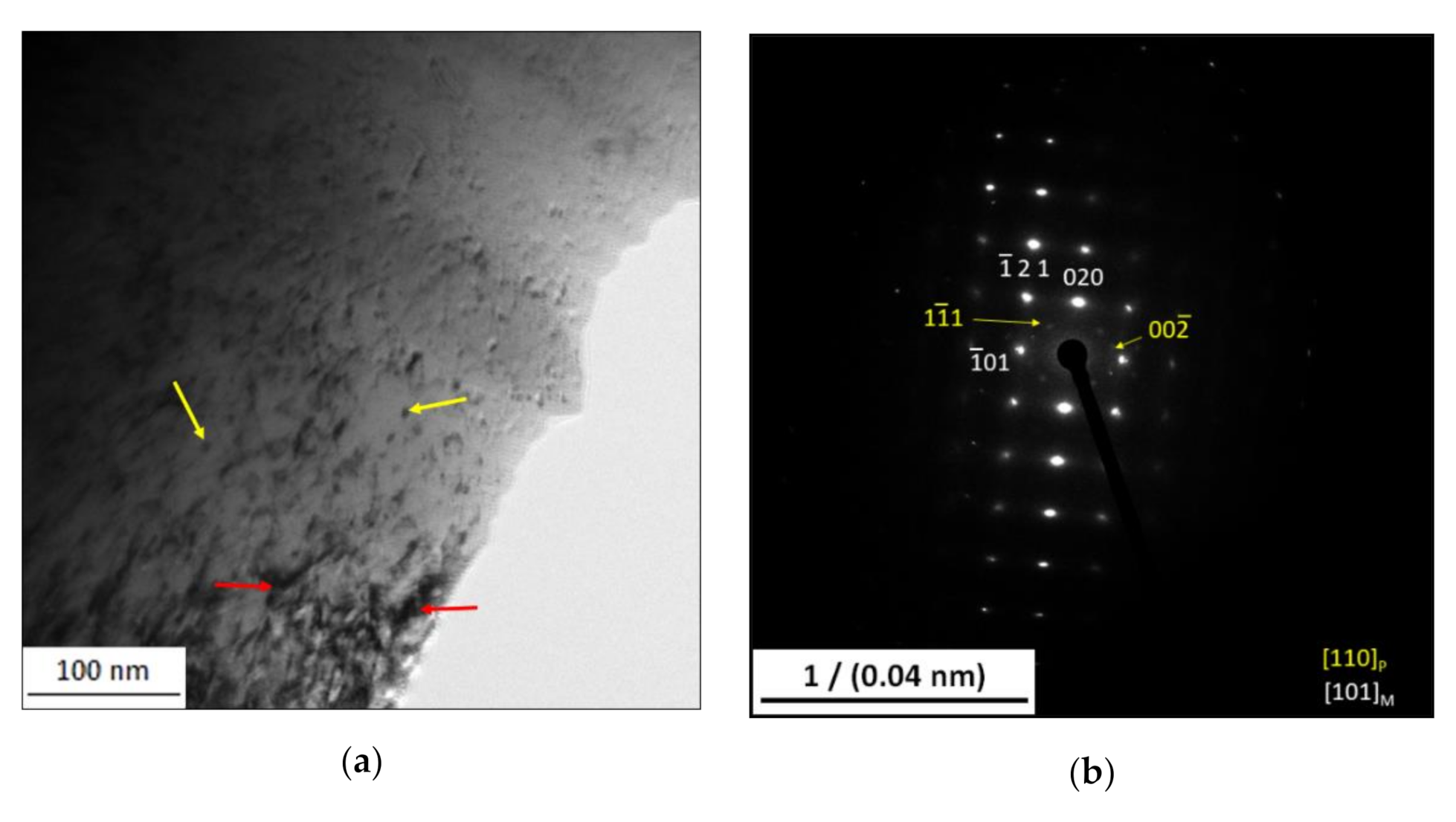

Figure 11a,c show detailed TEM micrographs of both consolidated (SPS 1150) and heat-treated (SPS 1150 SAT) samples. It can be seen that in the case of the SPS 1150 sample, lattice defects, which are usually dislocation clusters, are present in the structure (marked by red arrows). In the case of the SPS 1150 SAT sample, a part of a grain boundary is shown by a green arrow. By comparing the TEM images, in both states of the 18Ni300 maraging steel produced by the SPS method, precipitates of Ni₃Mo phase were found (marked by yellow arrows). However, it is observed that in the as-consolidated sample (labeled as SPS 1150), the amount of precipitate is very low. The shape of these precipitates appears to be spherical, but more likely, it is caused by the observation axis. The formation of these precipitates is caused due to slow cooling of the material during the manufacturing process. The presence of Ni₃Mo precipitates was confirmed by the SAED pattern (Figure 11b), which, in addition to the diffraction spots that point to the matrix in the zonal axis [101], are signs of the occurrence of precipitates in the zonal axis [110]. Tan et al. [34] state that precipitates can also be present in the as-printed material without additional heat treatment, and it is caused by rapid solidification and reheating of the melting tracks during the SLM process. As for the heat-treated material (SPS 1150 SAT), the precipitates exhibit a characteristic rod-like shape and are homogeneously distributed within the material. In the SAED pattern, these precipitates are also considered as elongated diffraction points (Figure 11d), and occurred in the axis $[2\overline{1}2]$ of the zone when the matrix was observed in the zonal axis $[\overline{2}\overline{1}\overline{1}]$.

The SPS compaction of the 18Ni300 maraging steel proved itself as a promising method for obtaining low-porosity semi-products, which, while lacking the final dimensions, may offer another advantage, mainly the increased ductility. Furthermore, the results indicate that the amount of retained γ-Fe may be successfully managed by the compaction temperature that affects the diffusivity of alloying elements, thus increasing/decreasing the volume fraction of this phase after the compaction and even consequential thermal treatment.

4. Conclusions

The present work demonstrates a novel approach for the compaction strategy for the maraging steels using an SPS to produce almost non-porous material. It was found that the 18Ni300 maraging steel consolidated at 1150 °C had a lower value of porosity compared to that produced at 1050 °C (0.08% and 0.86%, respectively). It was proved that the pore content had a favorable effect on mechanical properties in the case of the SPS 1150 material having higher microhardness, UTS, and ductility. Additionally, SAT heat treatment caused microstructural refinement as well as the change in phase proportions (decreasing the γ-Fe amount from 18% to 5%). Additionally, the formation of nanostructured Ni₃Mo precipitates resulted in a significant strengthening, reaching a hardness of 606 ± 17 HV0.1 and UTS of 1940 ± 6 MPa, respectively. The material showed 4% ductility, a value larger compared to the same material prepared in our previous work [5]. The UTS of the SPS 1150 samples was slightly lower compared to those which were produced by wrought metallurgy [35] but was comparable to the material produced by selective laser melting [5].
