Effect of Scanning Strategy in the L-PBF Process of 18Ni300 Maraging Steel

Abstract

Maraging steels are good candidates for the laser powder bed fusion process (L-PBF), also known as Selective Laser Melting, due to excellent weldability and resistance to quench cracking. Powders physical and chemical characteristics dominate the final microstructure and properties of the printed parts, that are also heavily influenced by the process parameters. In this study, the effects of the scanning strategies on dimensions, average surface roughness, density and material hardness were evaluated, keeping the powder type and the volumetric energy density (Andrew number) constant. The effects of the scanning strategy on these properties are far less understood than on other important ones, like residual stresses and distortion, strongly affected by the scanning strategy. In this study, parallel stripes, chessboard and hexagonal pattern strategies were studied, keeping the Andrew number constant but varying the interlayer rotation. In general, the hexagonal strategy underperformed compared to the chessboard and the stripes ones.

1. Introduction

1.1. Effect of Energy Input in L-PBF Processing

Maraging steels are good candidates for the laser powder bed fusion (L-PBF) process because of the excellent weldability, resulting from the lack of interstitial alloy elements, and the resistance to quench cracking, resulting from the low carbon content. The microstructure of the L-PBF produced parts depends on the powder chemical composition and properties, but it is mainly related to the values of the process parameters used to print.

In the model of the L-PBF process, the laser acts as a moving Gauss heat source, leading to multi-mode heat and mass transfer [1]. There are many models to define the amount of energy delivered by the laser to the powder bed, trying to characterize the process conditions [2].

Linear Energy Density: Wang et al. [3] combined laser power P and scan speed v into linear energy density:

$${\mathrm{E}}_{\mathrm{LED}}=\frac{P}{v}(\mathrm{for}\mathrm{a}\mathrm{fixed}\mathrm{laser}\mathrm{beam}\mathrm{size})$$

(1)

Surface Energy Density: Campanelli et al. [4] combined power P, scan speed v and laser beam diameter σ in the definition of surface energy density:

$${\mathrm{E}}_{\mathrm{SED}1}=\frac{P}{v\sigma }$$

(2)

Increasing the surface energy density resulted in a broader and deeper melt pool. Casalino et al. [5] correlated relative density, ultimate tensile strength, hardness and average surface roughness Ra. Their main conclusion was that mechanical properties increase with an increased surface energy density, as the relative density follows the same relationship. Bai et al. [6] observed similar relationships replacing the laser beam diameter with scanning hatch spacing δ:

$${\mathrm{E}}_{\mathrm{SED}2}=\frac{4P}{v\delta }$$

(3)

Volumetric Energy Density: Nowadays, the most used model is the volumetric energy density (or Andrew number) [7,8]:

$${\mathrm{E}}_{\mathrm{VED}}=\frac{P}{v\delta h}$$

(4)

This equation does not include factors as powder absorptivity, heat of fusion, heat accumulation, laser spot size and other relevant parameters and provides a simplistic approach considering only the power P, scan speed v, hatch spacing δ, and layer thickness h.

1.2. The Shortcomings of Andrew Number as a Sufficient Measure for Process Control

Interestingly, Cacace et al. [2] confirmed that under steady-state conditions, volumetric energy density (${\mathrm{E}}_{\mathrm{VED}}$) alone determines density and tensile properties. Scipioni Bertoli et al. [9] concluded that ${\mathrm{E}}_{\mathrm{VED}}$ is a valid design parameter but limited to a narrow band of applicability, being not capable to capture the complex physics of the melt pool. ${\mathrm{E}}_{\mathrm{VED}}$ is a thermodynamic quantity, not able to capture effects related to Marangoni flow, hydrodynamic instabilities and recoil pressure that drive heat and mass transport in different portions of the melt pool, defining the final morphology [9].

There have been several more efforts to characterize additive manufacturing using a simplistic approach by Ciurana et al. [10] and De Souza et al. [11], with slight differences. Suzuki et al. [12] studied the relationship between laser power and scan speed as inputs, and relative density, melt pool depth and Vickers hardness as outputs. Other topics have also been studied, including build orientation and resulting anisotropy in properties [13].

Kempen et al. [14] and Campanelli et al. [15] concluded that the optimal Andrew Number for L-PBF processing of maraging steel 18Ni300 was 92.59 J/mm³. Furthermore, it has been concluded that the manufacturing time is influenced by laser speed and layer thickness, with the layer thickness having a more significant impact on the manufacturing time than the laser speed [16].

In order to effectively produce components using additive manufacturing, the process must be performed in a stable and repeatable fashion to obtain predictable results. Suzuki et al. [12], producing many samples keeping the volumetric energy density constant, proved that constant ${\mathrm{E}}_{\mathrm{VED}}$ is a necessary but not sufficient condition.

The physical phenomenon of heat absorption of the powder bed is complex and challenging to model, so different powder batches could lead to different results. Gusarov et al. [17] studied this problem and created a step-by-step model, generalizing the conditions at every step, starting with Mie scattering [18]. The powder bed consists of metal particles, so there are reflection and refraction. Because of the opaque nature of the particles, radiation must be concentrated in the pores, so the particle size and shape and powder bed density are critical parameters [17]. The laser power affects the energy input into the powder bed and the different energy density measures could struggle to describe the phenomenon, highlighting the limits of Andrew number [12].

Different scanning strategies lead to different thermal gradient, affecting mechanical properties, microstructure, residual stresses and overall quality of the L-PBF produced parts [19,20,21,22,23]. In particular, a large temperature gradient can result in high residual stresses, which can cause low mechanical properties, like strength, ductility and fatigue life [24].

In addition, many defects can be controlled and reduced using a suitable scanning strategy [25,26]. The scanning strategy comprehends scanning directions, scanning sequence, scanning vector rotation angle, scanning vector length, scanning time and hatch space. The most common scanning strategies are uni-directional, bi-directional, island (chessboard), cross-directional and helix. It is possible to develop any strategy, even random or fractal, or use any combination of the previous ones. There are also re-scanning strategies, generally used to refine microstructure, improve mechanical properties and reduce surface roughness, defects and pores [27,28,29,30,31,32,33,34].

The length of the scanning vector is related to the scanning strategy and affects the mechanical properties of the printed parts. For example, uni-directional and bi-directional strategies usually involve a long scanning vector, while chessboard and helix present a shorter scan vector. It is important to notice that long scanning lines cause excessive stresses in the part, resulting in a lower final quality. Moreover, when the scan vector length is over 3 mm, the scanning strategy becomes less critical considering residual stresses, while distribution and orientation of the scan vectors become more critical at the macro-scale [35].

Mutua et al. [36] studied the effect of overlap on the produced parts. Keeping all the other parameters constant, the absorbed energy per unit volume increases with decreasing pitch. In fact, a too small pitch implies too much energy, which may deteriorate surface quality and decrease relative density [36]. Low relative density (98.3%) was obtained with a 75% overlap because a large overlap rate causes multiple remelting of scan tracks.

Moreover, some powder particles may vaporize, favouring the formation of keyholes or pores [36]. In addition, insufficient fusion causes the formation of distinct scan tracks with visible gaps.

Another effect to be considered is the balling effect, which can lead to some spherical powder particles on the surface. Therefore, overlapping remelting and timing of the scan paths probably have significant influence and they are determined by the scan strategy. Bhardwaj et al. [37] obtained higher density and better surface finish using the cross-directional scanning strategy, compared to the bi-directional one. A bi-directional strategy leads to a quite low temperature gradient: after the first vector, the following one impacts a higher temperature region, compared to the uni-directional strategy [38].

Guo et al. [39] and Wang et al. [40] concluded that parts fabricated with the island scanning path had better mechanical properties than those using the uni-directional strategy. Each island can be considered as a radiating unit with multiple radiation directions, resulting in an overall smaller temperature gradient [41]. Lu et al. [42] studied island scanning strategies with different dimensions and they found out that amount and size of pores decreased significantly with an increasing island size. The island scanning strategy presents a short scanning vector so the scanning time interval between two adjacent scanning vectors is reduced, resulting in a smaller temperature gradient [43] and lower residual stresses of the printed part [44].

Furthermore, Yan et al. [45] showed that the overall stresses using the island scanning strategy were smaller than those related to the uni-directional strategy, while Zaeh [23] concluded that the part produced using the island strategy had the lowest level of stress compared to both uni- and bi-directional scanning strategies. Parry et al. [38] state that long scan vectors should be avoided in the printing process from a residual stress standpoint. However, it cannot be simply concluded that the island size and the length of the scanning vectors are negatively related to quality and performance of the final parts. In fact, too small islands could exhibit more pores due to excessive un-melted powder.

The conclusion from literature must be that the length of the scanning vector should be within a reasonable range and there is an optimum length for each scanning strategy.

In industrial applications, the build time can exceed several days. The parts could reach the size of the build chamber, which for modern industrial systems varies between 0.01 and 0.06 m³. Considering a volume of 10⁻⁶ m³, the total length of the scanned tracks could easily reach 3 km. Hence, there is a high probability of defect formation within the process [46]. The scanning strategy primarily affects the distribution of heat and temperature. Generally, shorter scan vectors are beneficial to reduce residual stresses and improve mechanical properties [23,39,40,47]. Island, helix and fractal scanning strategies usually have a shorter scan vector. Scanning direction and sequences are also important [48] and the right choice could reduce heat accumulation and temperature gradient. Sometimes, remelting is beneficial to obtain fine microstructure, good mechanical properties and reduced residual stresses [49,50,51,52].

Unlike most previous publications, this study aims to investigate the effect of the scanning strategy, keeping all the other parameters constant. The effects related to the volumetric energy density (Andrew number) have been thoroughly studied, while the effects of the scanning strategy of the printing process are still not completely understood.

2. Experimental

2.1. Materials

Samples of 18Ni300 Maraging steel were built using gas atomized powders produced by Höganäs (Amperprint^® 1556.074), whose nominal and certified chemical compositions (wt.%) are reported in

Table 1. Nominal and certified composition (wt.%) of the 18Ni300 maraging steel powders produced by Höganäs (Amperprint^® 1556.074).

Ni.	Co	Mo	Ti	Al	C	Mn	N	O	P	S	Si
17.0–19.0	8.5–10.0	4.50–5.20	0.50–1.00	0.05–0.15	<0.03	<0.15	<0.02	<0.035	<0.010	<0.010	<0.10
18.5	9	4.84	0.64	0.07	<0.01	0.03	0	0.034	0.005	0.002	<0.01

.

Based on previous investigations carried out by the authors, powders were characterized by a mean diameter of the particle equal to D₅₀ = 12 µm and the diameter corresponding to 95% cumulative particle size distribution was D₉₅ = 21 µm. The powders were characterized by an apparent density equal to 3.50 g/cm³ (ASTM B 212) and flowability in the range 15–25 s/50 g (ASTM B 213), as reported in the datasheet from Höganäs.

2.2. Process Planning and Variation

Four different prints were run using the same powders and the same L-PBF machine (ProX DMP 300, 3DSystems, Rock Hill, SC, USA). Inside the sealed printing chamber, nitrogen gas flew from right to left and the oxygen level was kept below 1000 ppm.

The build plate was made of ferritic stainless steel (AFNOR Z8C17) with a relatively rough surface, being finished by grinding. The plate was cleaned using 99.5% alcohol and oriented with the grinding direction perpendicular to the powder spreading direction to improve spreading and bonding. The software 3DXpert (3DSystems, Rock Hill, SC, USA) was used to set up the prints. The plate was not preheated and the specimens were vertically oriented on it (Z-orientation).

The process parameters adopted for L-PBF printing are shown in

Table 2. Process parameters adopted for the L-PBF prints.

Entity, (Unit)	Value
Energy density, E (J/mm3)	89
Laser power, P (W)	160
Layer thickness, t (mm)	0.04
Scan speed, v (mm/s)	variable
Hatch spacing, h (mm)	variable
Inter-layer rotation, angle (°)	variable

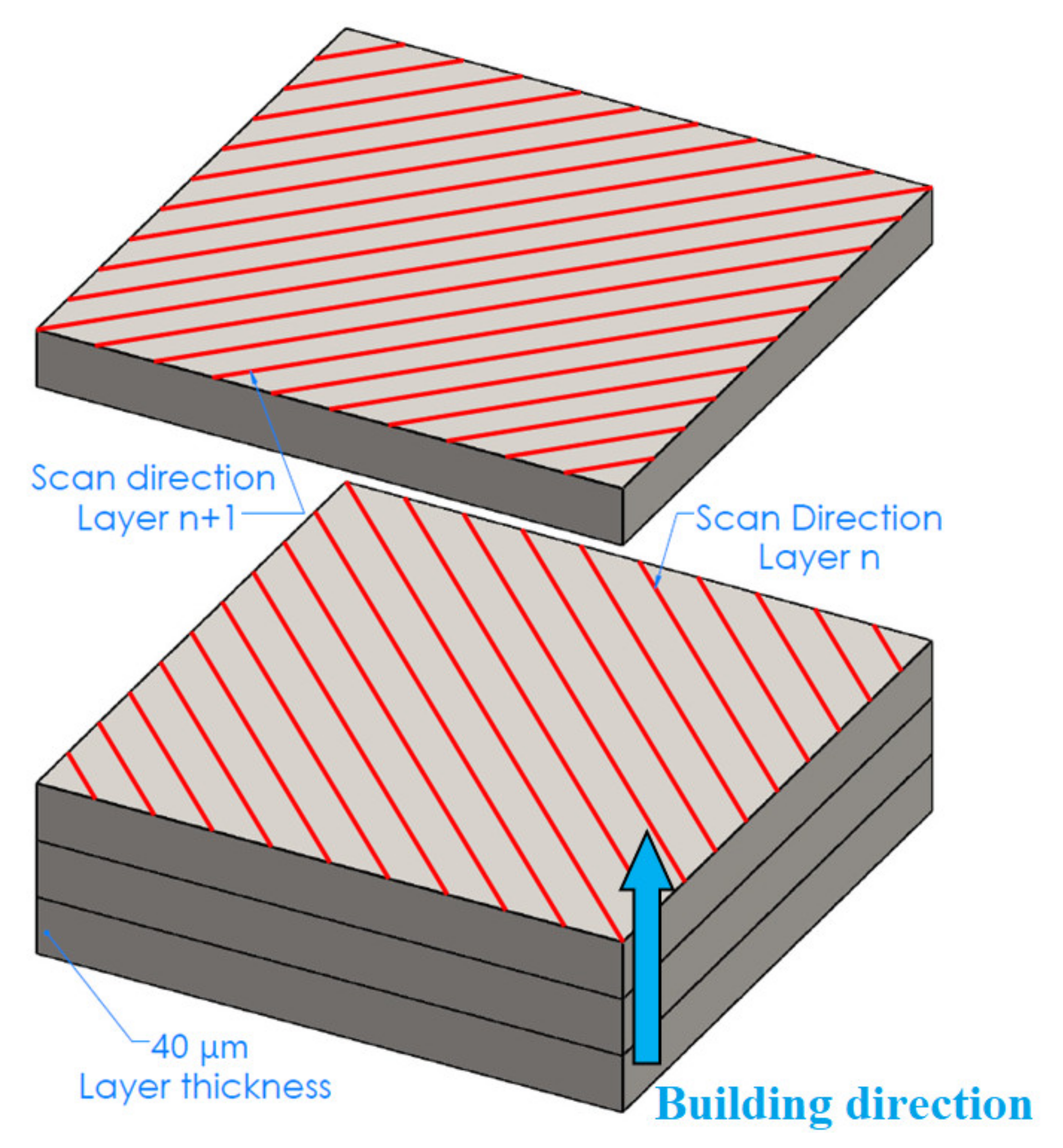

. The layer thickness ($\mathsf{\delta }$) was set equal to 40 µm while the rotation angle between adjacent layers was variable, as schematically shown in Figure 1. The energy density (E) and the laser power (P) were kept constant and equal to ${\mathrm{E}}_{\mathrm{VED}}$ = 89 J/mm³ and P = 160 W respectively, based on the results of previous optimization and investigations. Scanning speed (v) and hatch spacing (h) were changed in a dependent way to keep constant the energy density. Three scanning strategies, schematically shown in Figure 2, were considered: parallel stripes (a), chessboard (b) and hexagonal (outside-in verse) (c). The stripes scanning pattern is conventional and straightforward, the chessboard pattern involves two types of regions with 90° symmetry and the hexagonal pattern has a 60° symmetry. Regarding the hexagonal strategy, the outside-in method was chosen because it could theoretically lead to compressive and beneficial residual stresses in the as-built specimens [53].

The continuous numerical variables are (A) v scan speed (mm/s), (B) h hatch spacing (mm) and (C) inter-layer rotation (°) while the discrete variable is (D) scan pattern, considering the values S for the parallel stripes, C for the chessboard and H for hexagonal patterns. ANOVA Analysis outputs will display the deviation from a Reference Point in actual values or coded factors varying from −1 to 1, based on the experimental window:

$${\mathrm{x}}^{\prime }=\frac{\left(x-x_{half-interval}\right)}{\left(x_{max}-x_{half-interval}\right)}$$

(5)

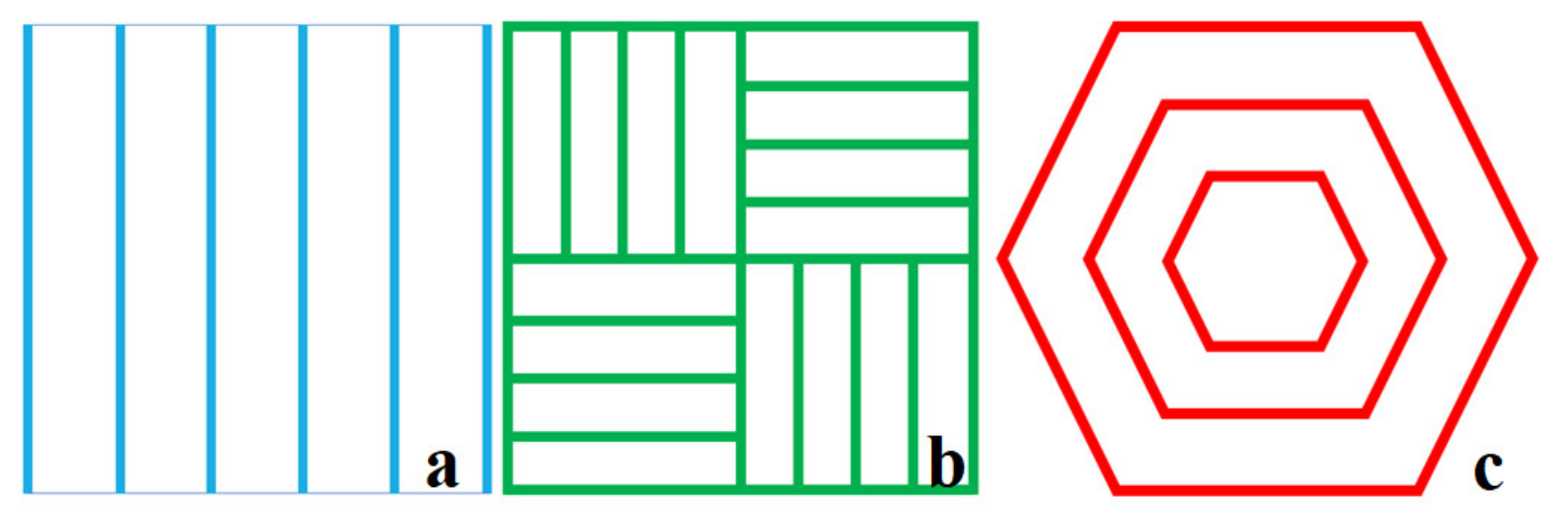

As previously stated, four prints were made, keeping the Andrew number constant. In the first three prints, the specimens, whose shape and dimensions are shown in Figure 3, were grouped in twenty-seven sets related to different parameters combinations, according to

Table 3. Process parameters combinations used for prints 1, 2, and 3.

Stripes				Chessboard				Hexagonal
set	v (mm/s)	h (mm)	Angle (°)	set	v (mm/s)	h (mm)	Angle (°)	set	v (mm/s)	h (mm)	Angle (°)
Strip1	995	0.045	45	Chess1	995	0.045	45	Hex1	995	0.045	45
Strip2	746	0.060	45	Chess2	746	0.060	45	Hex2	746	0.060	45
Strip3	597	0.075	45	Chess3	597	0.075	45	Hex3	597	0.075	45
Strip4	995	0.045	67	Chess4	995	0.045	67	Hex4	995	0.045	67
Strip5	746	0.060	67	Chess5	746	0.060	67	Hex5	746	0.060	67
Strip6	597	0.075	67	Chess6	597	0.075	67	Hex6	597	0.075	67
Strip7	995	0.045	90	Chess7	995	0.045	90	Hex7	995	0.045	90
Strip8	746	0.060	90	Chess8	746	0.060	90	Hex8	746	0.060	90
Strip9	597	0.075	90	Chess9	597	0.075	90	Hex9	597	0.075	90

. Each set was composed of eight similar specimens and the total number of specimens on the plate was 216 for each print. The fourth print was made with a reduced set of samples ad there were interruptions during the printing process due to base plate distortion. All the results reported in this study refer to the first three prints.

The supports between the specimens and the plate were fully solid, with two orthogonal diametral through-all extruded cuts. In print 1, the height of the supports was 4 mm and the extruded cuts were 1 mm wide. In print 2 and 3, the height of the supports was 10 mm and the extruded cuts were 1.8 mm wide.

2.3. Characterization

The results were processed using the software DesignExpert™ v 12.0.12.0 (Stat-Ease inc., Minneapolis, MN, USA) to carry out an ANOVA analysis using a Two Factor Interaction (2FI) model. Four input variables were considered: laser speed, hatch spacing, inter-layer rotation between adjacent layers as continuous numeric variables and scan strategy as a categoric variable.

2.3.1. Sample Dimension

The external diameter was measured using a micrometer screw gauge (Mitutoyo, Kawasaki, Japan). Three measurements were carried out on each specimen, rotating the sample every time around the longitudinal axis.

2.3.2. Average Surface Roughness Ra

The average surface roughness (Ra) of the as-built specimens was checked using the Surftronic 3+ stylus profilometer (Taylor Hobson Ltd., Leicester, UK). The length evaluated for the test was 4 mm along the building direction and the precision of the instrument was ±0.2 µm. Because of the cylindrical geometry of the specimens, modelling clay has been used to constrain the samples and fasten them to the table. Three measurements were performed on each specimen, rotating the sample every time around the longitudinal axis.

2.3.3. Density

The density value of each specimen was measured with a Kern ABS-A02 digital precision scale (Kern & Sohn Gmbh, Balingen, Germany) using Archimedes’ method, consisting in weighing the sample in air and subsequently in demineralized water (ASTM B 962). Three measurements were carried out on each specimen.

2.3.4. Microscopy

Metallographic samples were prepared to study the pore structure and to measure the nano-hardness. They were cut from the as-built L-PBF specimens perpendicularly to the building direction (transverse cross-section). Standard metallographic procedures were used for grinding and polishing. The samples were then observed with the Olympus GX71™ (Olympus Pte Ltd., Kawasaki, Japan) optical microscope.

2.3.5. Nano Hardness

The Micro Materials NanoTest Vantage equipment (Micro Materials, Wrexham, UK) and a Berkovich triangular pyramid indenter were used to perform nano-hardness tests. Matrixes of 12 × 12 and 20 × 20 indentations were defined, with 7 µm distance between every indentation and the load was set to 25 mN.

3. Results

3.1. External Diameter

Figure 4 shows the effect of the scanning strategy on the external diameter of the as-built specimens, comparing the average and standard deviation values for each printed set. It is worth noting that all the diameters were larger than the targeted 10 mm, starting value of the y-axis, and the hexagonal strategy always led to the largest ones. A tendency for the smallest deviation for the chessboard strategy can also be seen.

3.2. Average Surface Roughness Ra

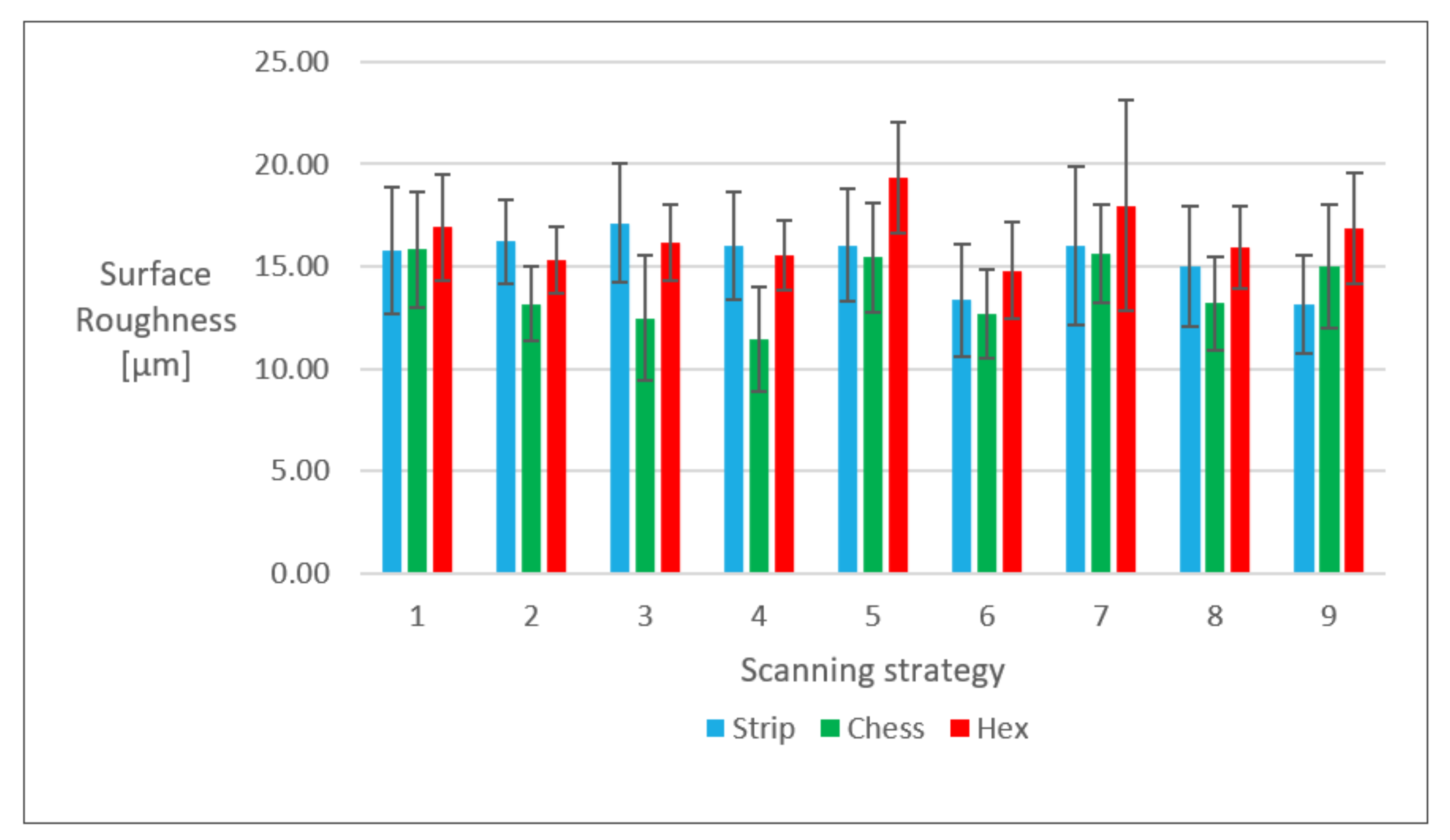

The average value and standard deviation of average surface roughness Ra, measured on the lateral surface, are shown in Figure 5, highlighting the effect of the scanning strategy. It is possible to notice that the hexagonal strategy almost always led to the highest average surface roughness values, while the chessboard strategy almost always led to the lowest average surface roughness.

3.3. Density

Figure 6 shows the average value and standard deviation of density for each specimen set, produced with different scanning strategies. It is possible to notice that the hexagonal strategy always led to the lowest value, while the chessboard strategy usually led to the highest density. The difference in porosity content can also be noticed with naked eyes (Figure 7) and it becomes even more evident observing the optical micrographs (Figure 8).

3.4. Nano-Hardness

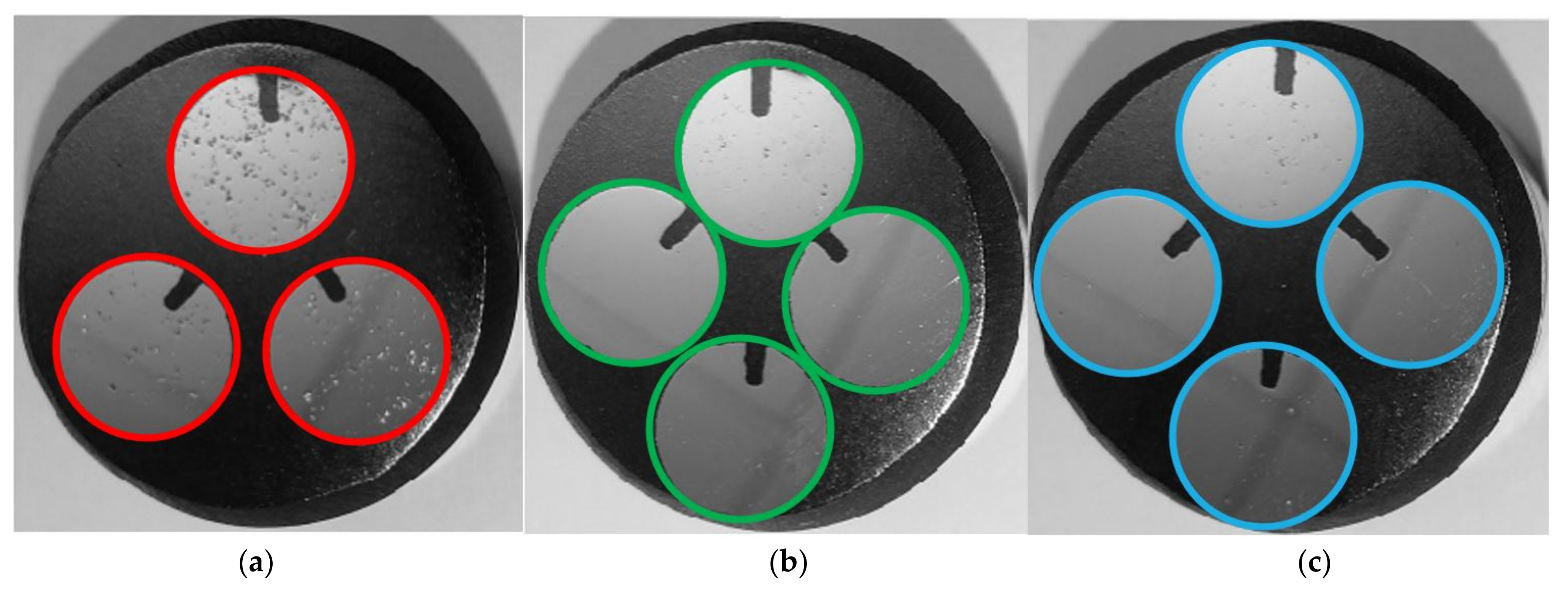

Matrixes of 12 × 12 and 20 × 20 indentations were carried out on the transverse cross-section of the mounted samples (Figure 7), using a Berkovich triangular pyramid indenter. The distance between every indentation was set to 7 µm and the load was set to 25 mN. Figure 9 shows the values of nano-hardness for each set, relatively to the different scanning strategies. It is not possible to easily distinguish a trend or define which strategy performed better.

4. Discussion

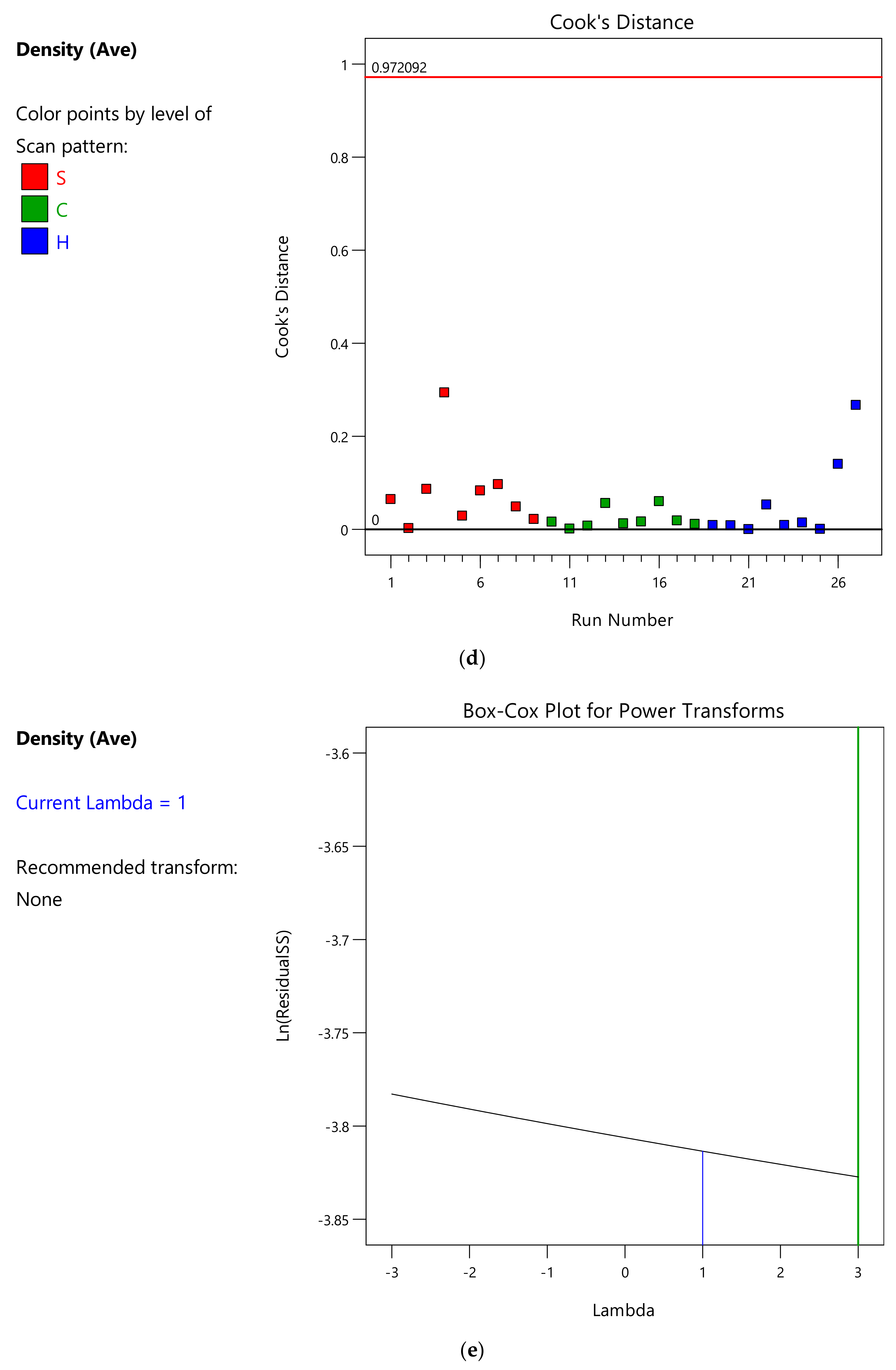

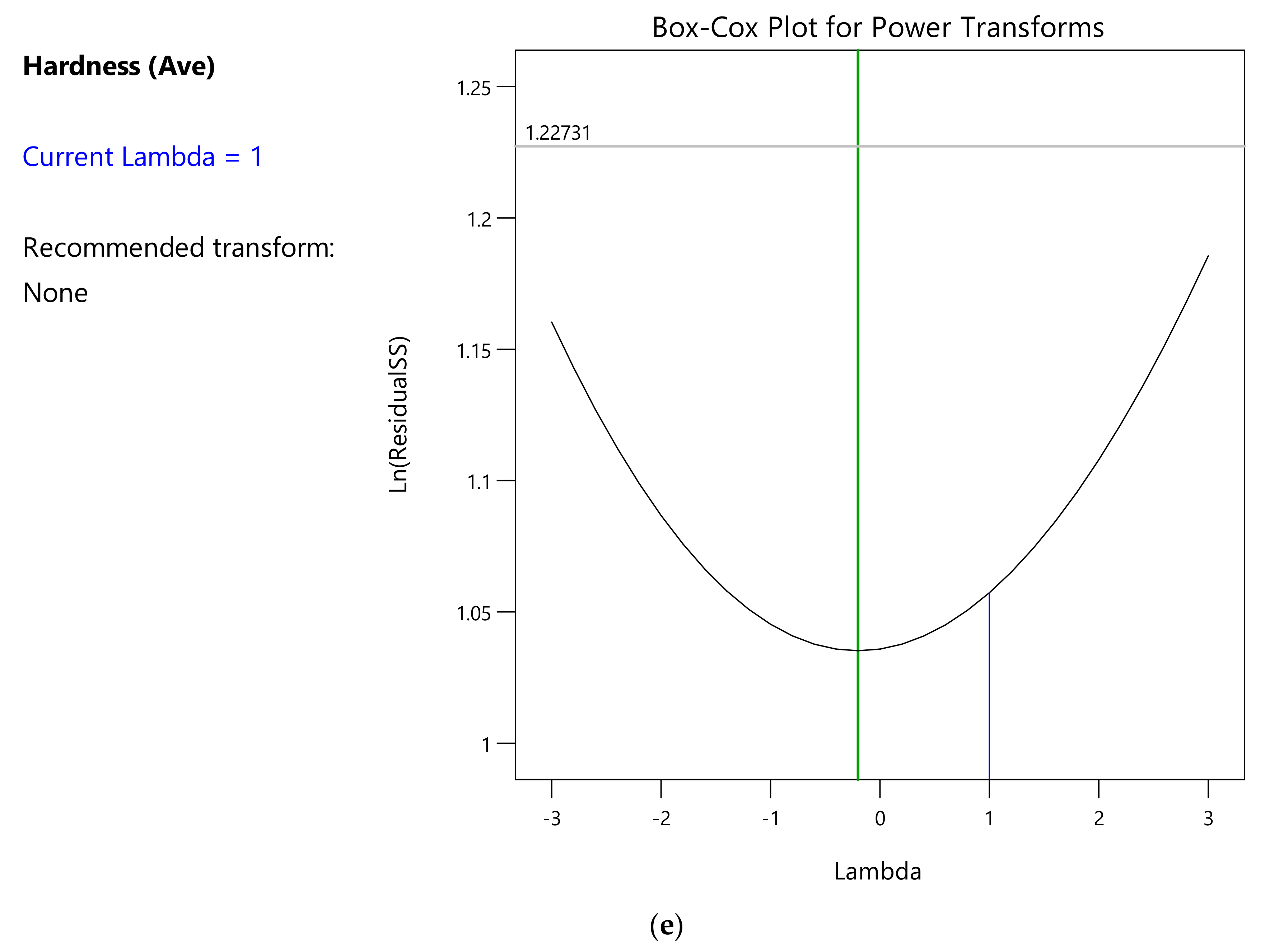

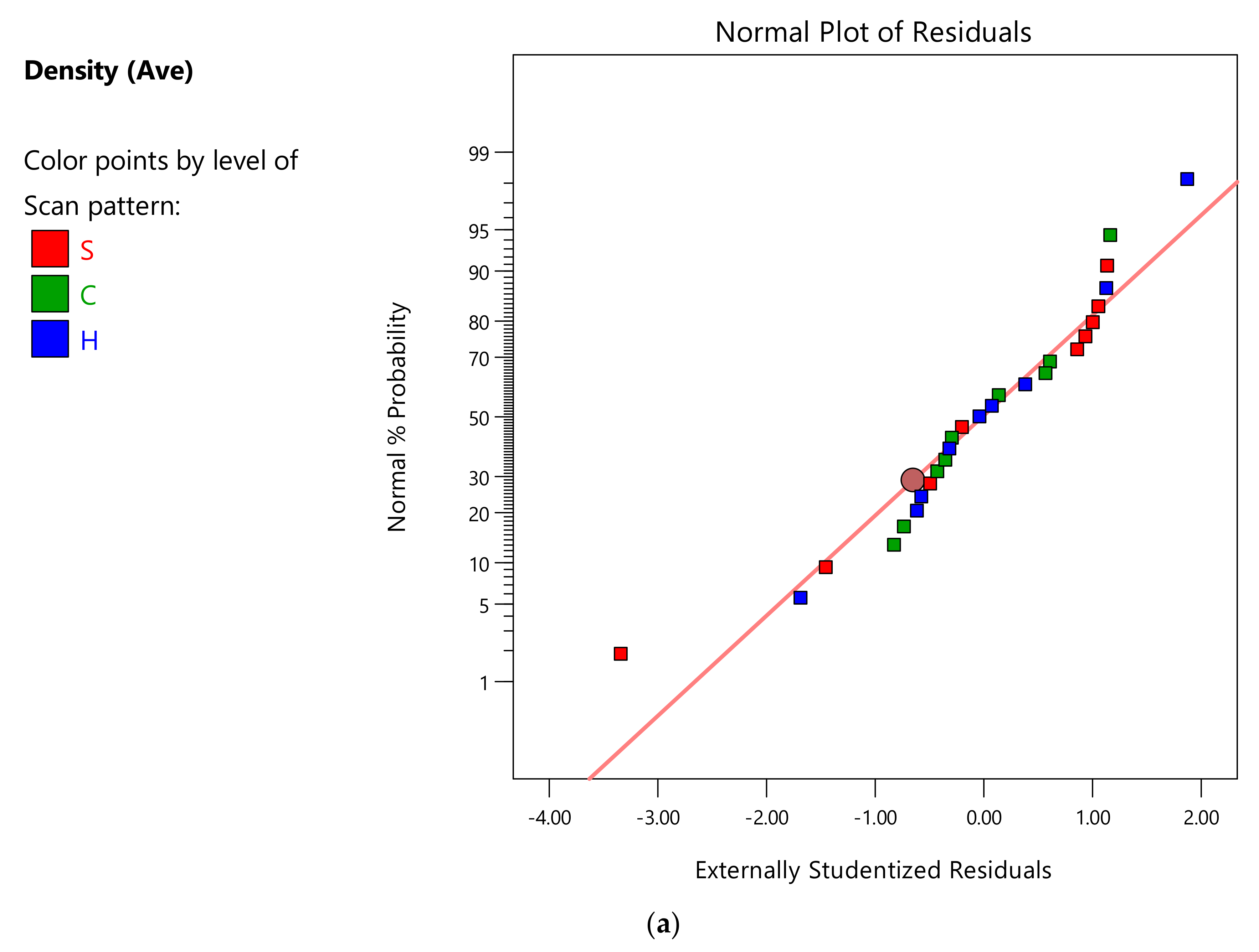

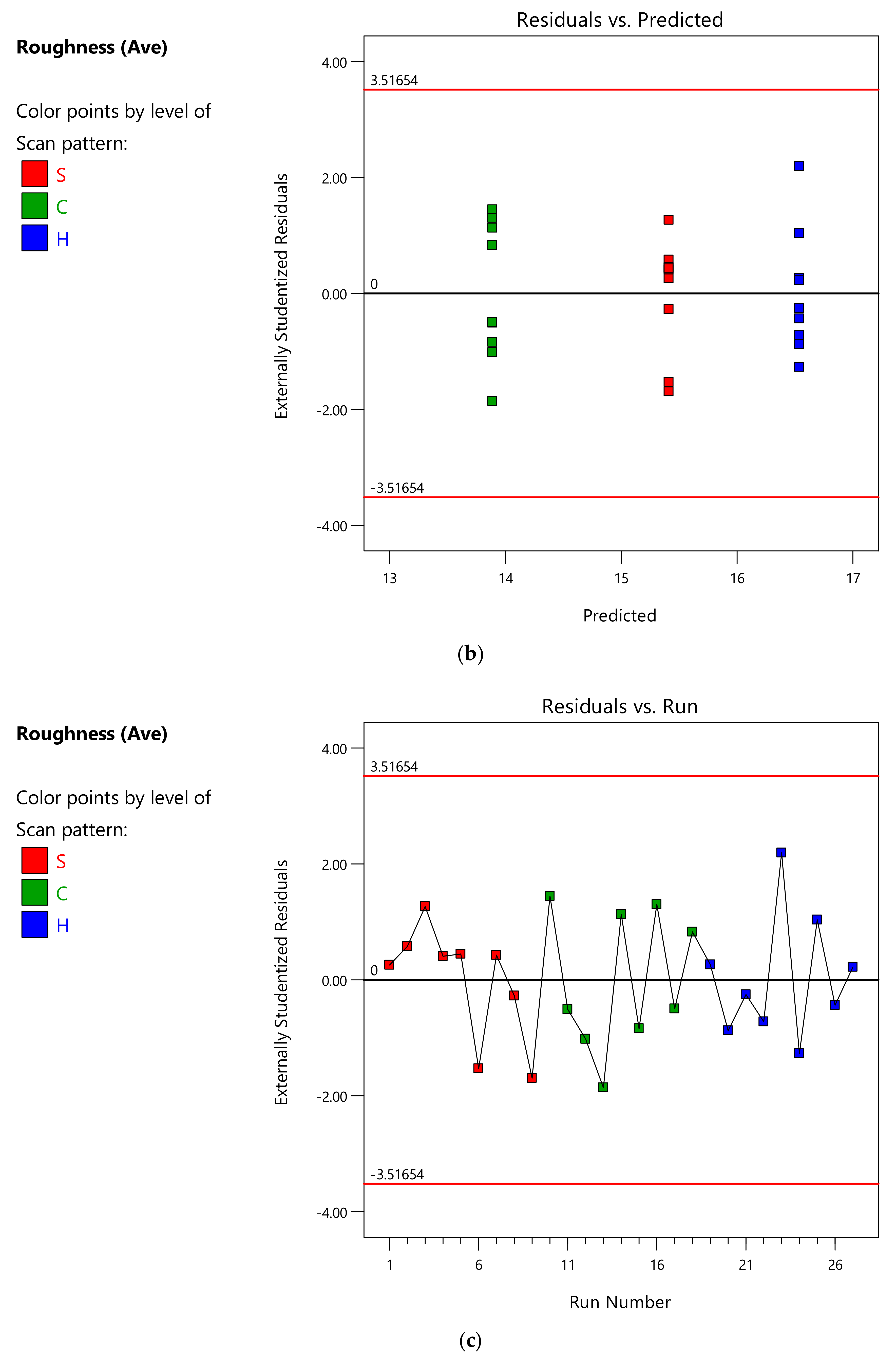

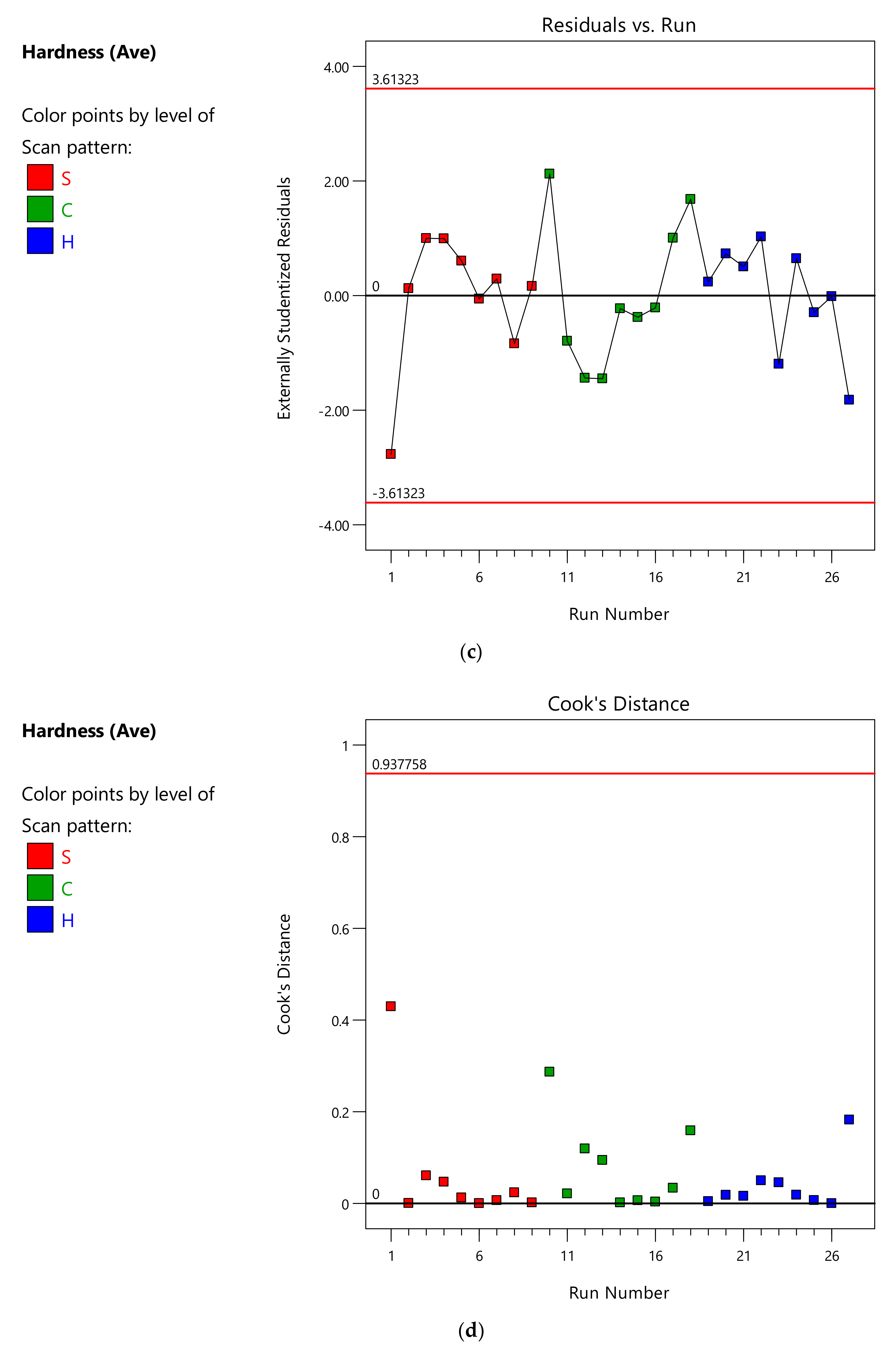

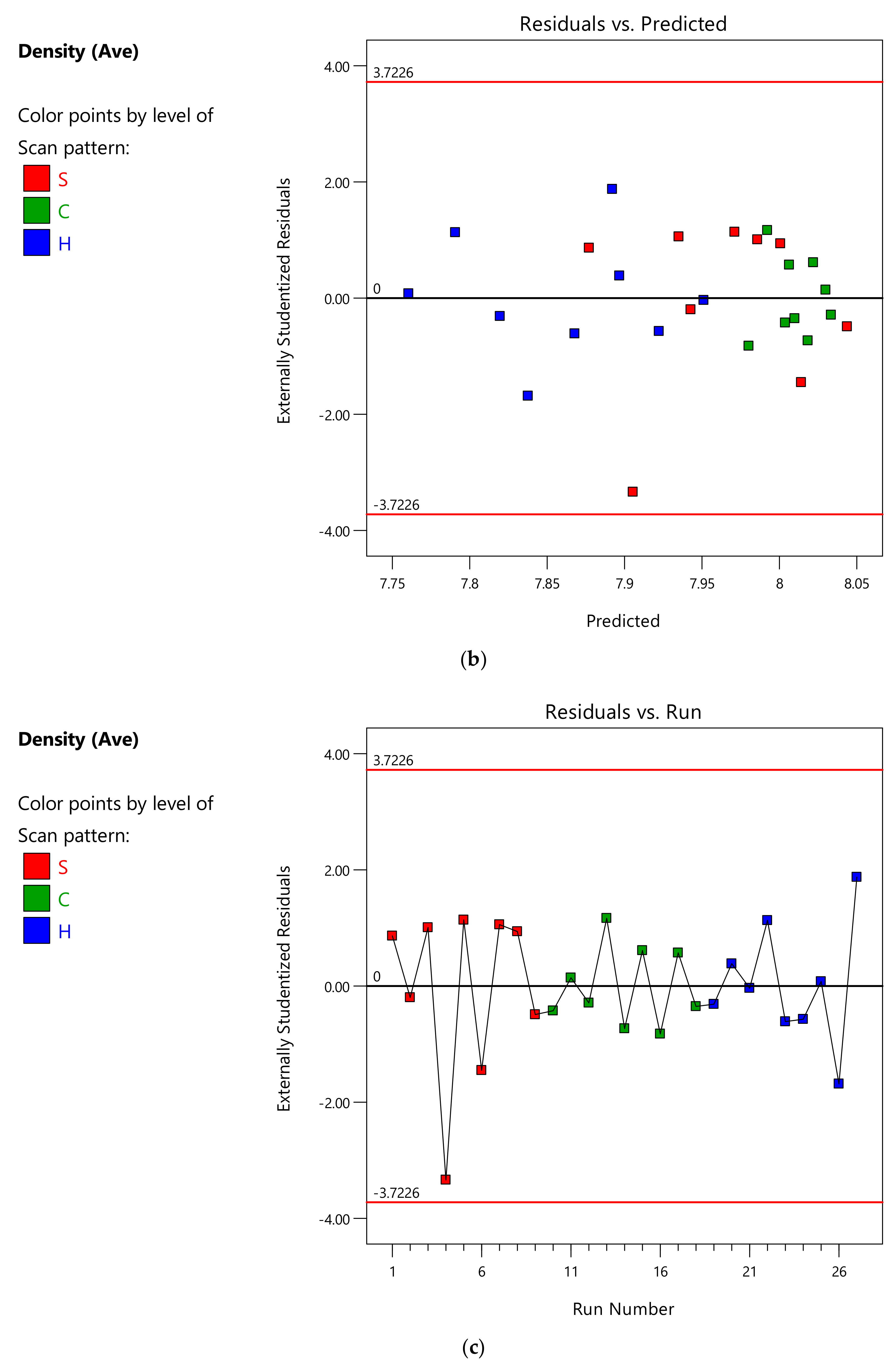

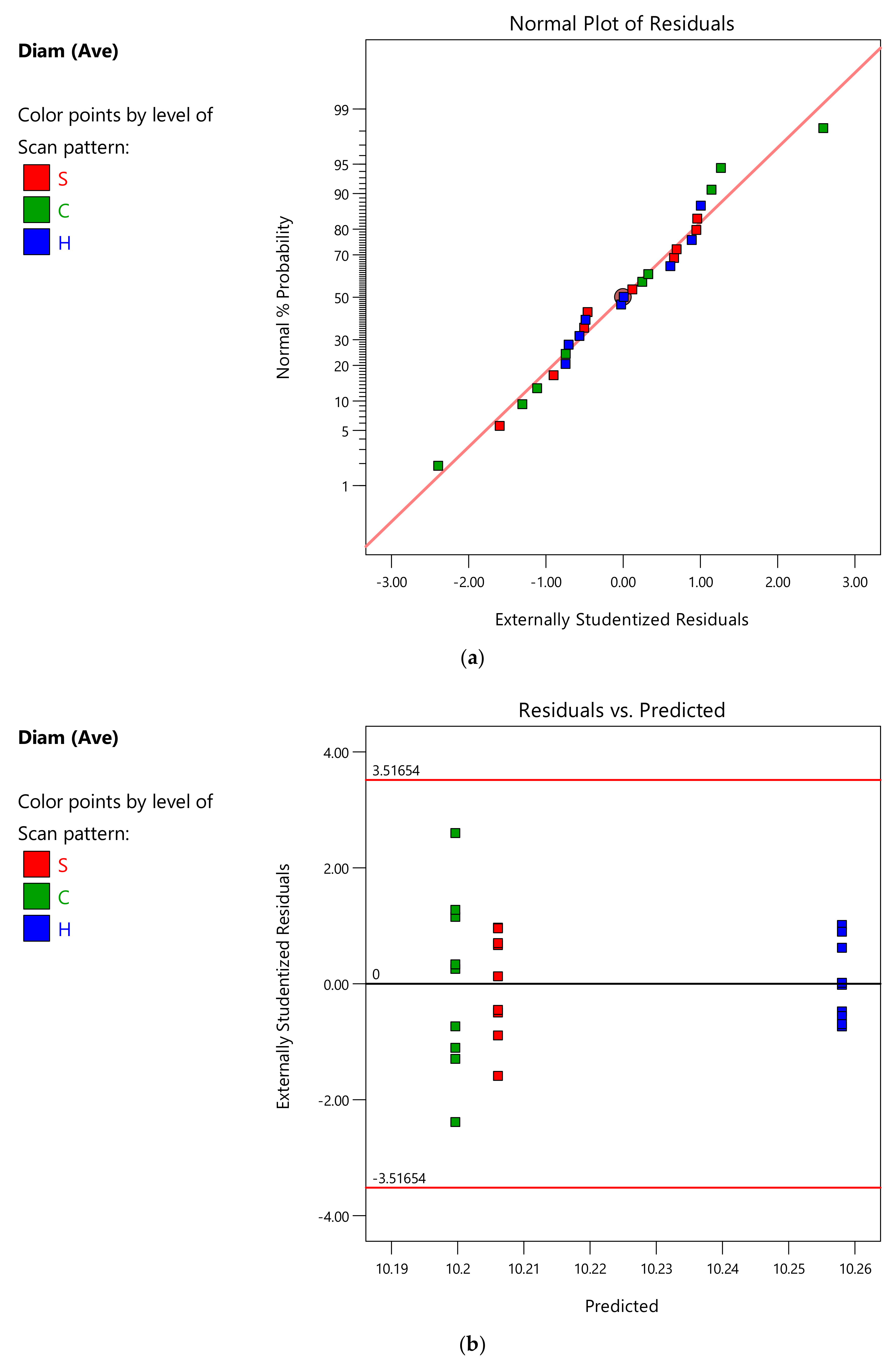

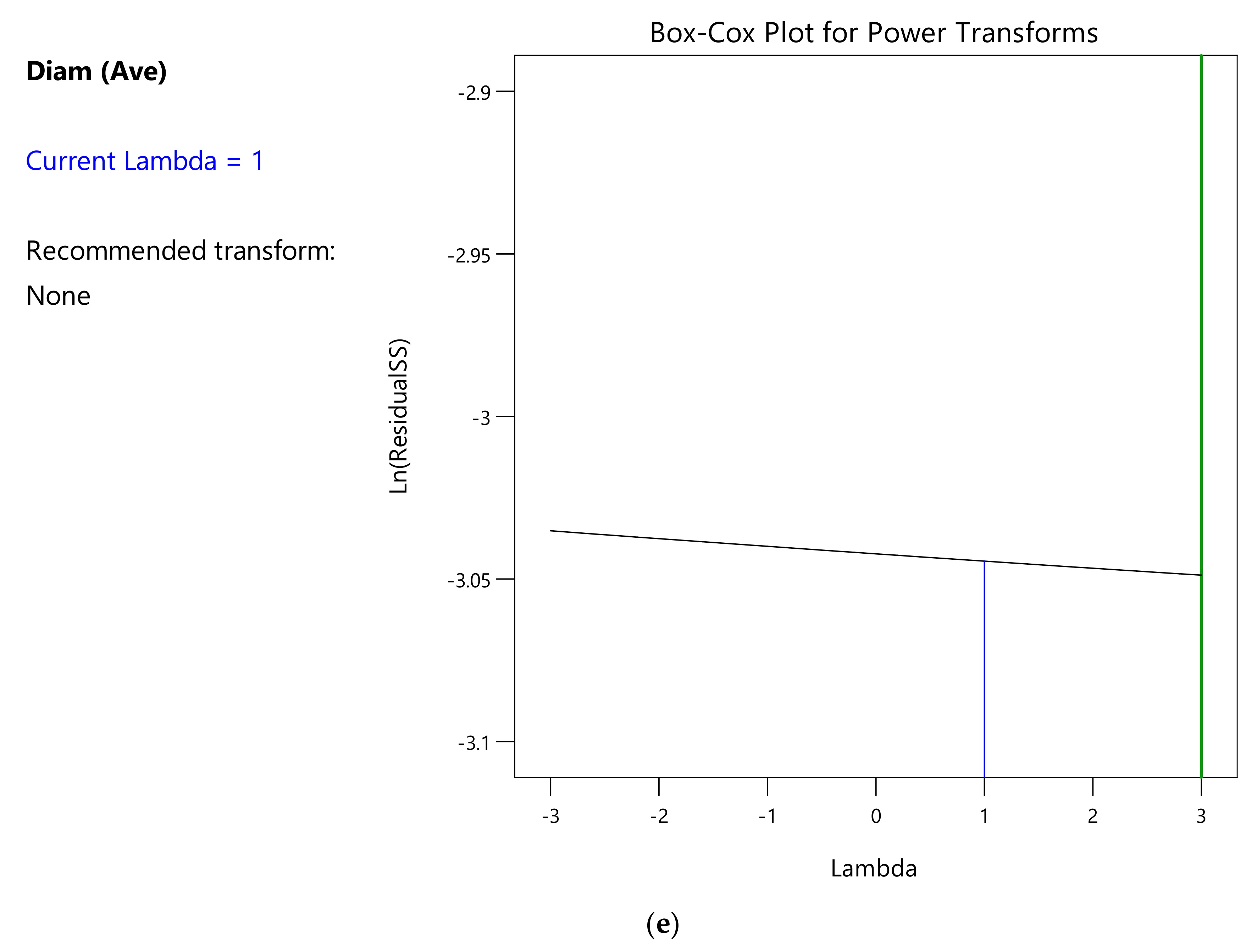

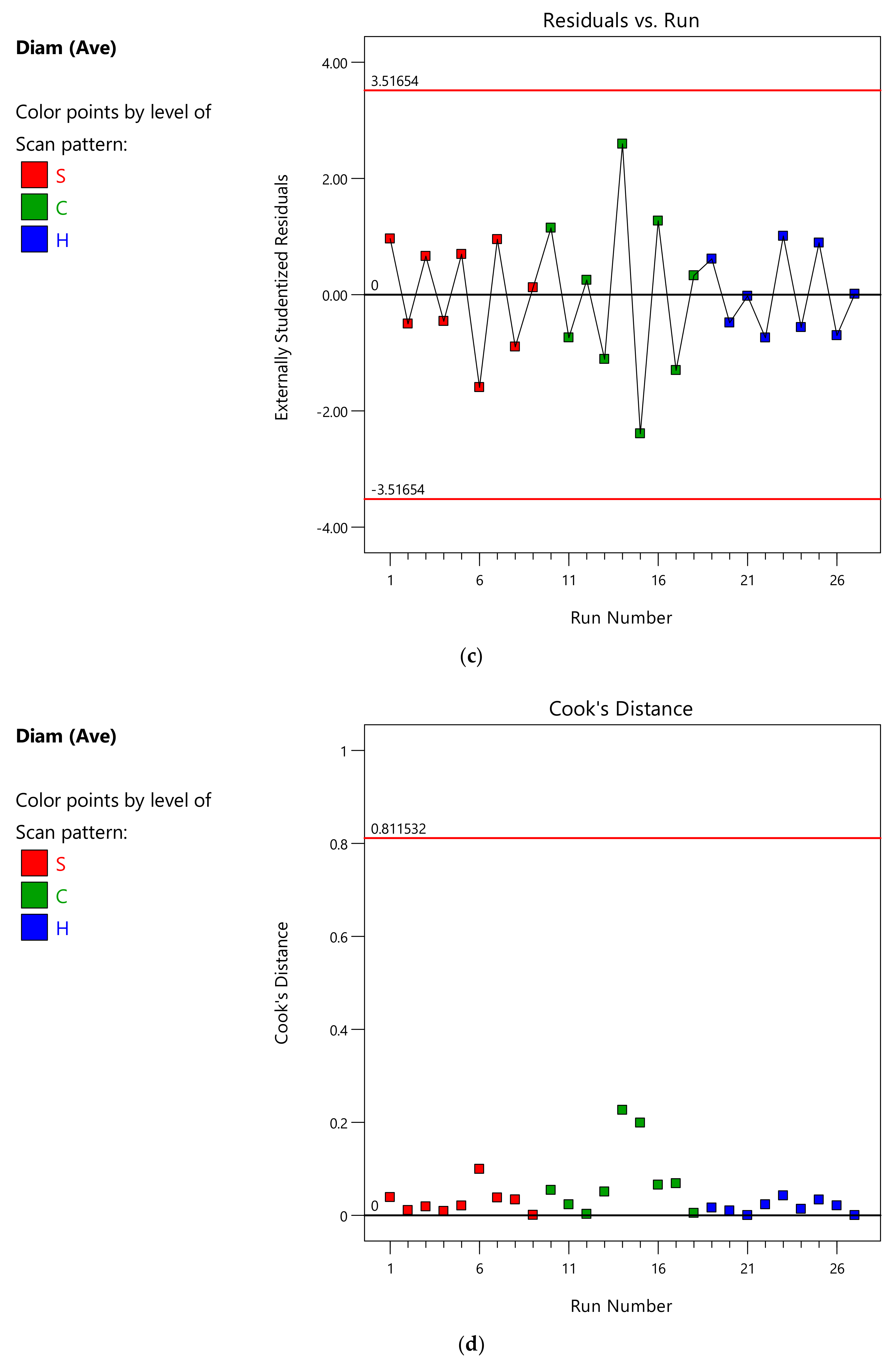

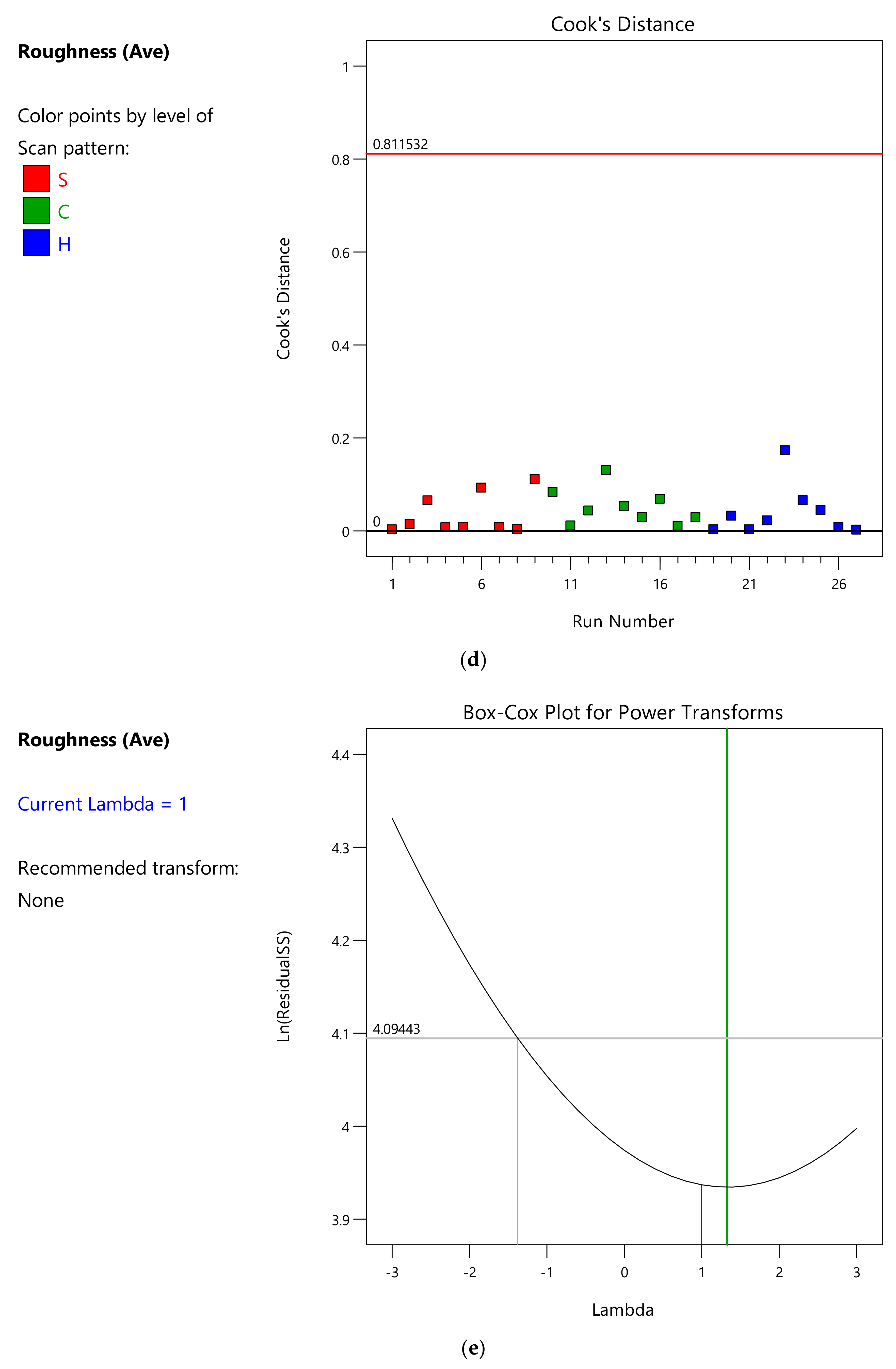

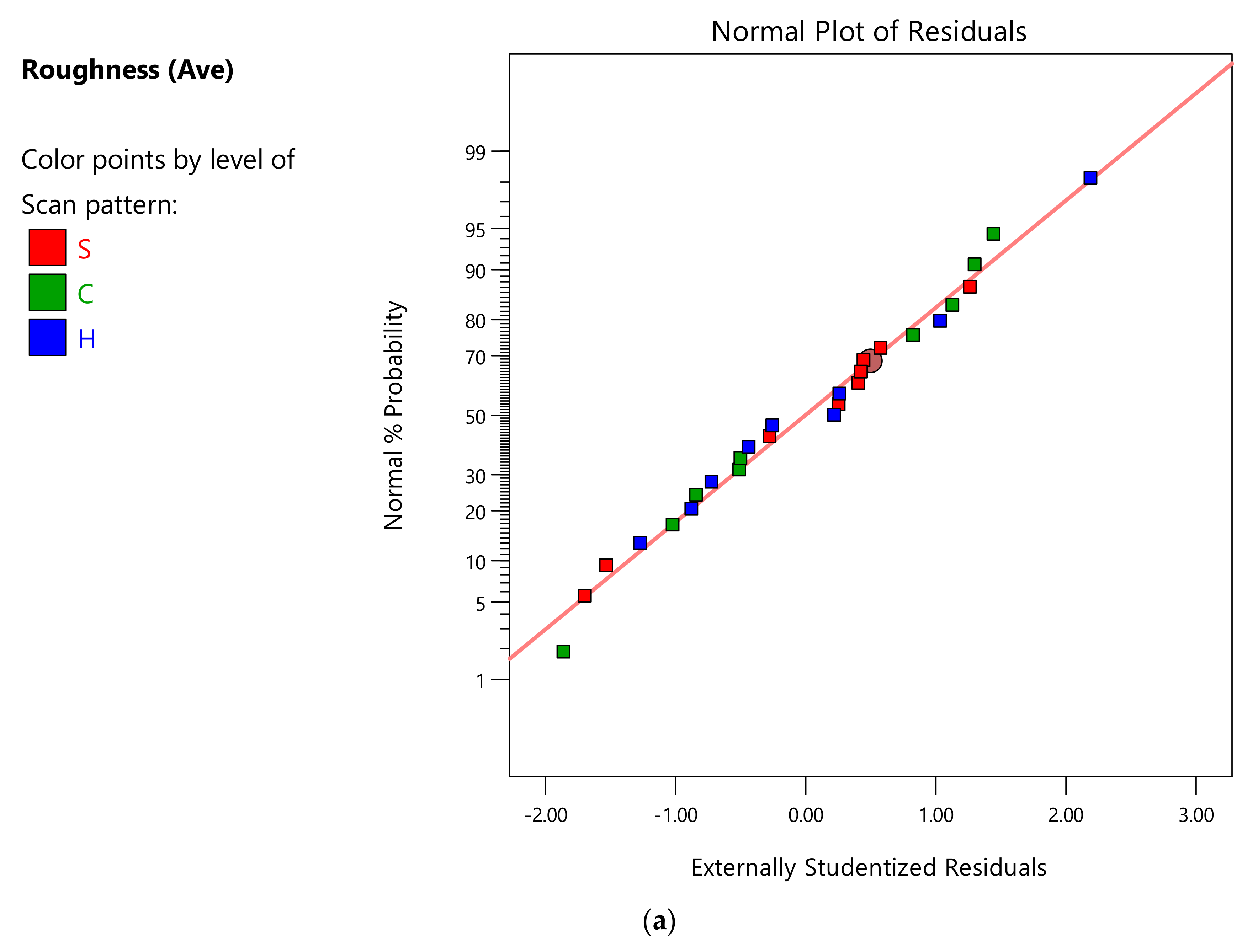

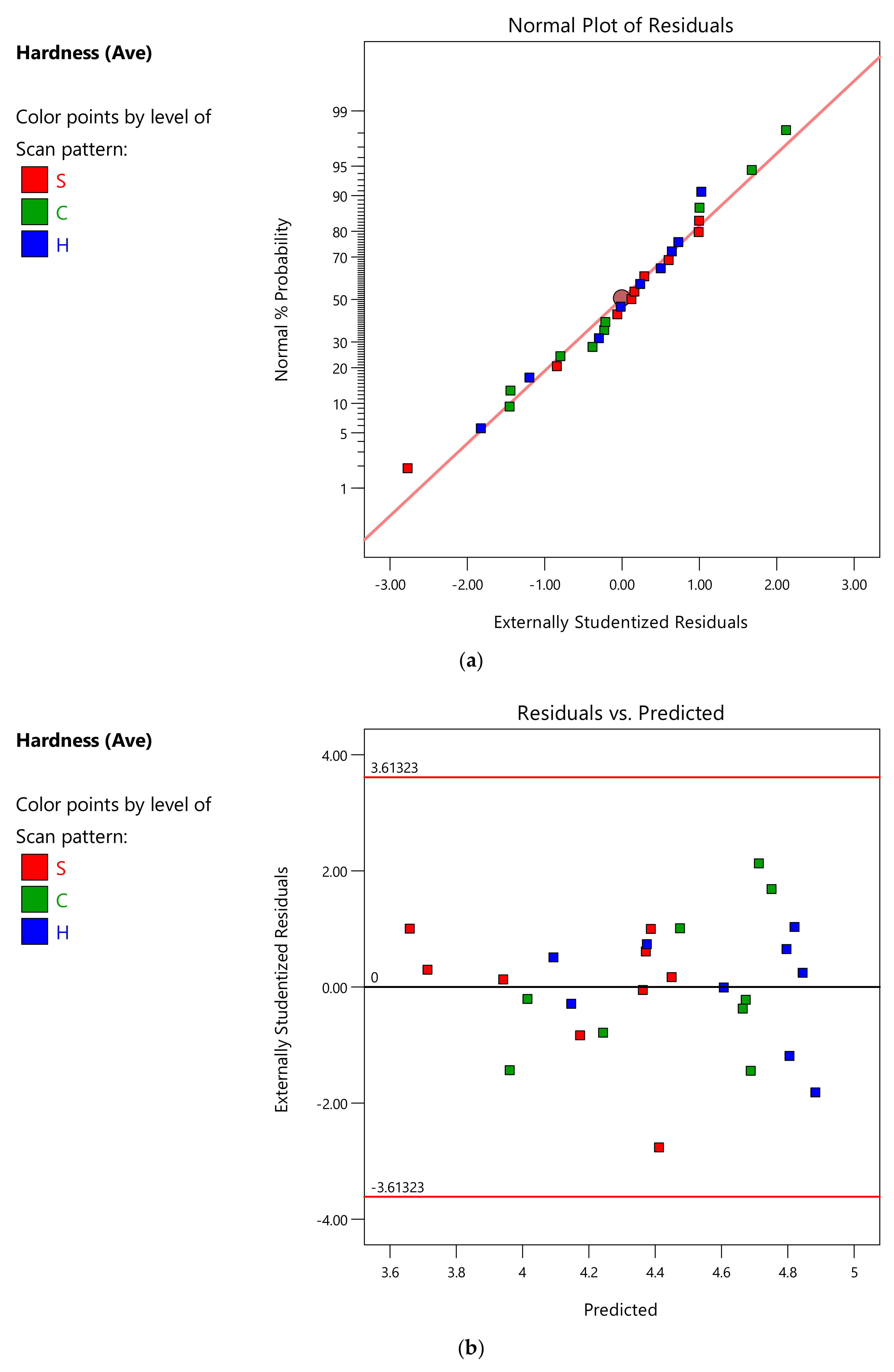

Regression analysis and analysis of variance were performed on the results of the tests. The details of the analyses and the associated quality assertion are found in Appendix A.

As previously reported, the volumetric energy density was kept constant for all the 18Ni300 specimens of all the prints. In particular:

$$\mathrm{E}=\frac{P}{\delta hv}=\mathrm{const}=89\frac{\mathrm{J}}{{\mathrm{mm}}^3}$$

(6)

where P is the laser power (W), δ is the layer thickness (mm), h is the hatch spacing (mm) and v is the scan speed (mm/s). P and δ were set as constant, as shown in Table 2, so h and v were proportionally changed to maintain the volumetric energy density constant. Defocus was not considered, even though it is an important process parameter. Regarding the hexagonal strategy, the outside-in method was chosen because it could theoretically lead to compressive and beneficial residual stress in the as-built specimens [53].

4.1. External Diameter

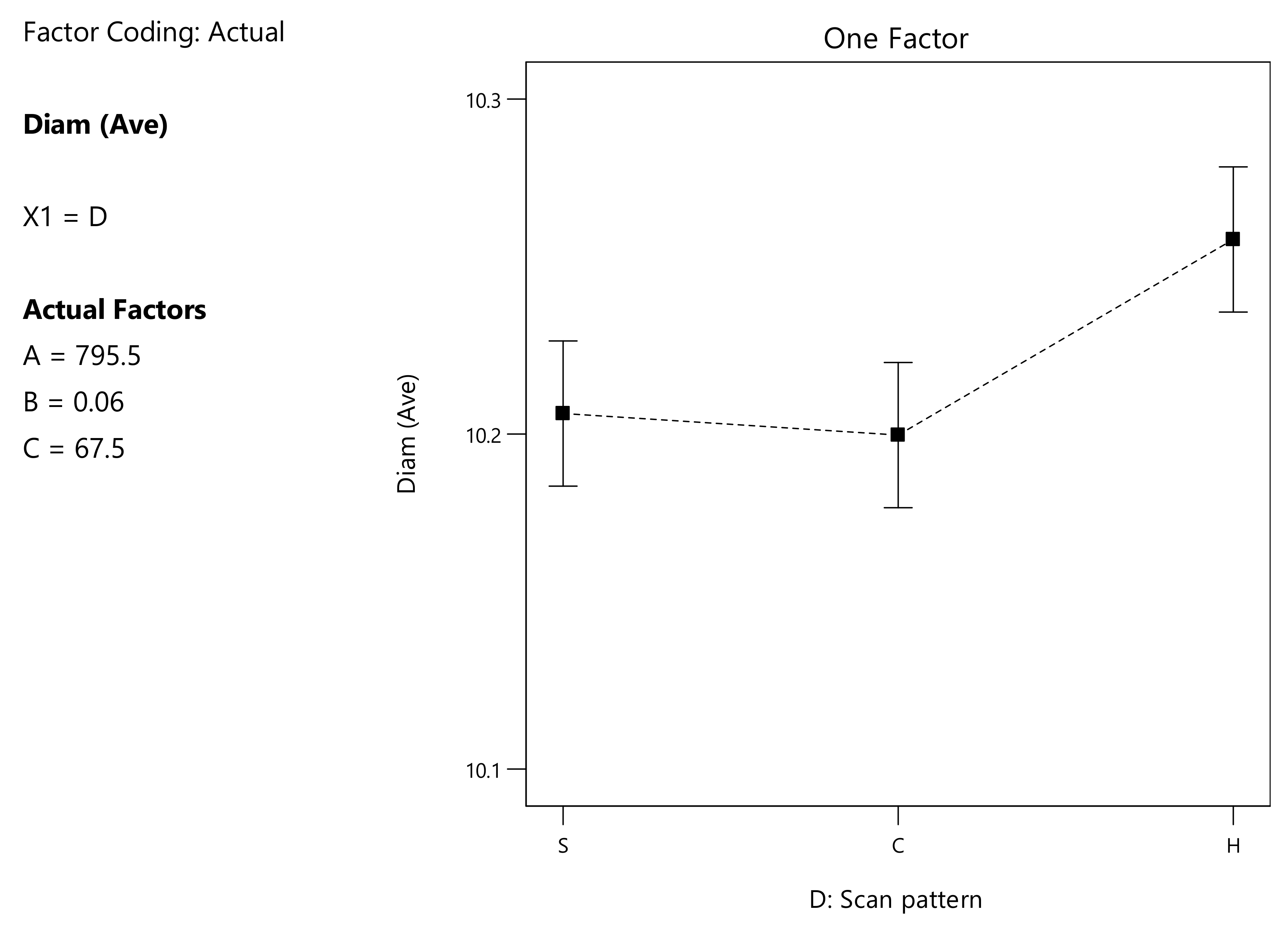

First, it should be noted that there were only oversized dimensions and the stripes and chessboard strategies led to similar deviation values, as shown in Figure 10. The hexagonal pattern showed a greater deviation: 0.26 mm compared to approximately 0.2 mm of stripes and chessboard strategies.

4.2. Average Surface Roughness Ra

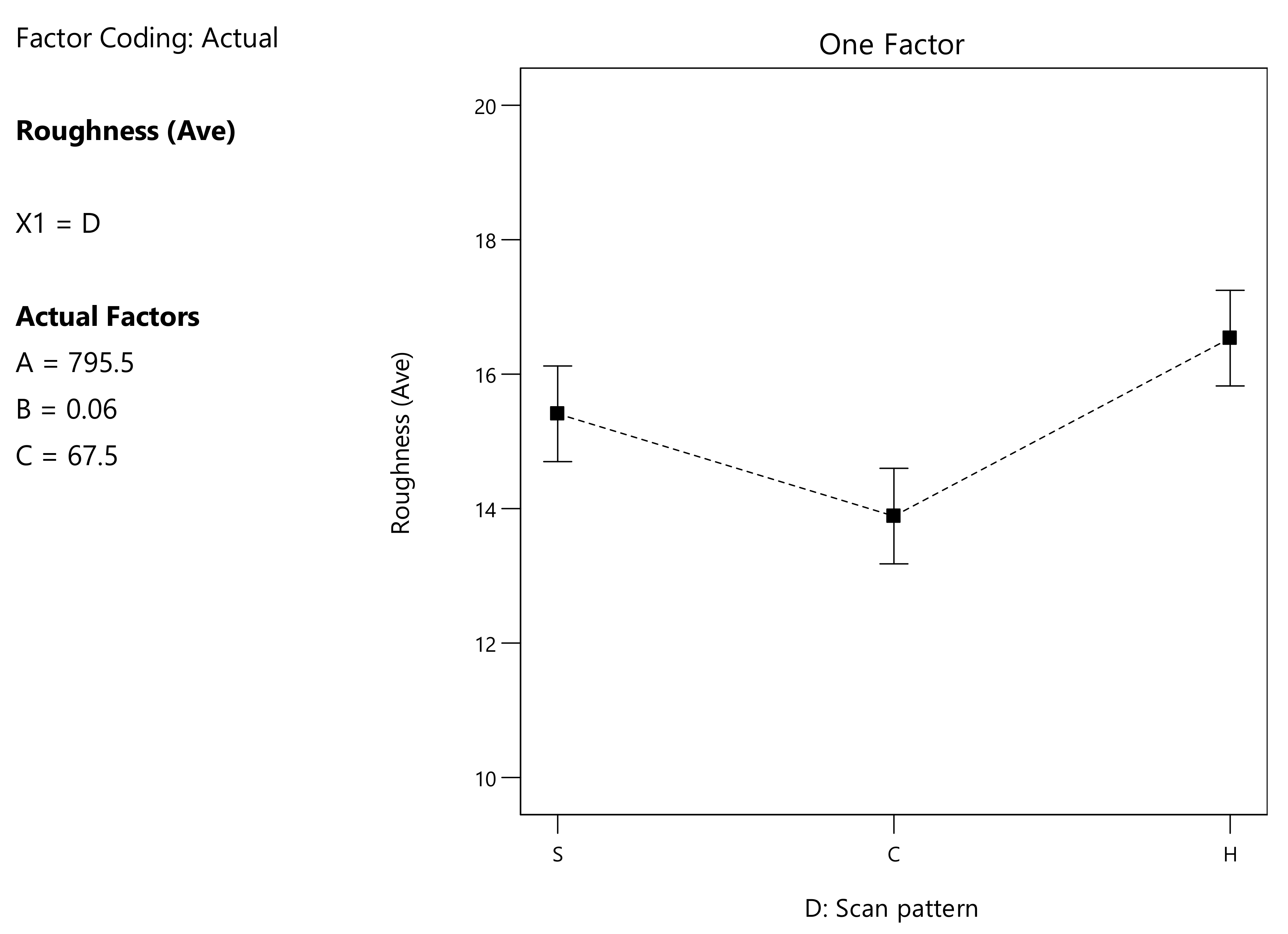

Figure 11 shows significant variations in average surface roughness Ra, with the chessboard strategy showing the lowest values and the hexagonal pattern the highest ones. Moreover, the hexagonal pattern showed the highest deviation values. Considering that the density was lower for the hexagonal pattern, there could be a connection between the rough surface and the melting process, resulting in a more porous structure.

4.3. Density

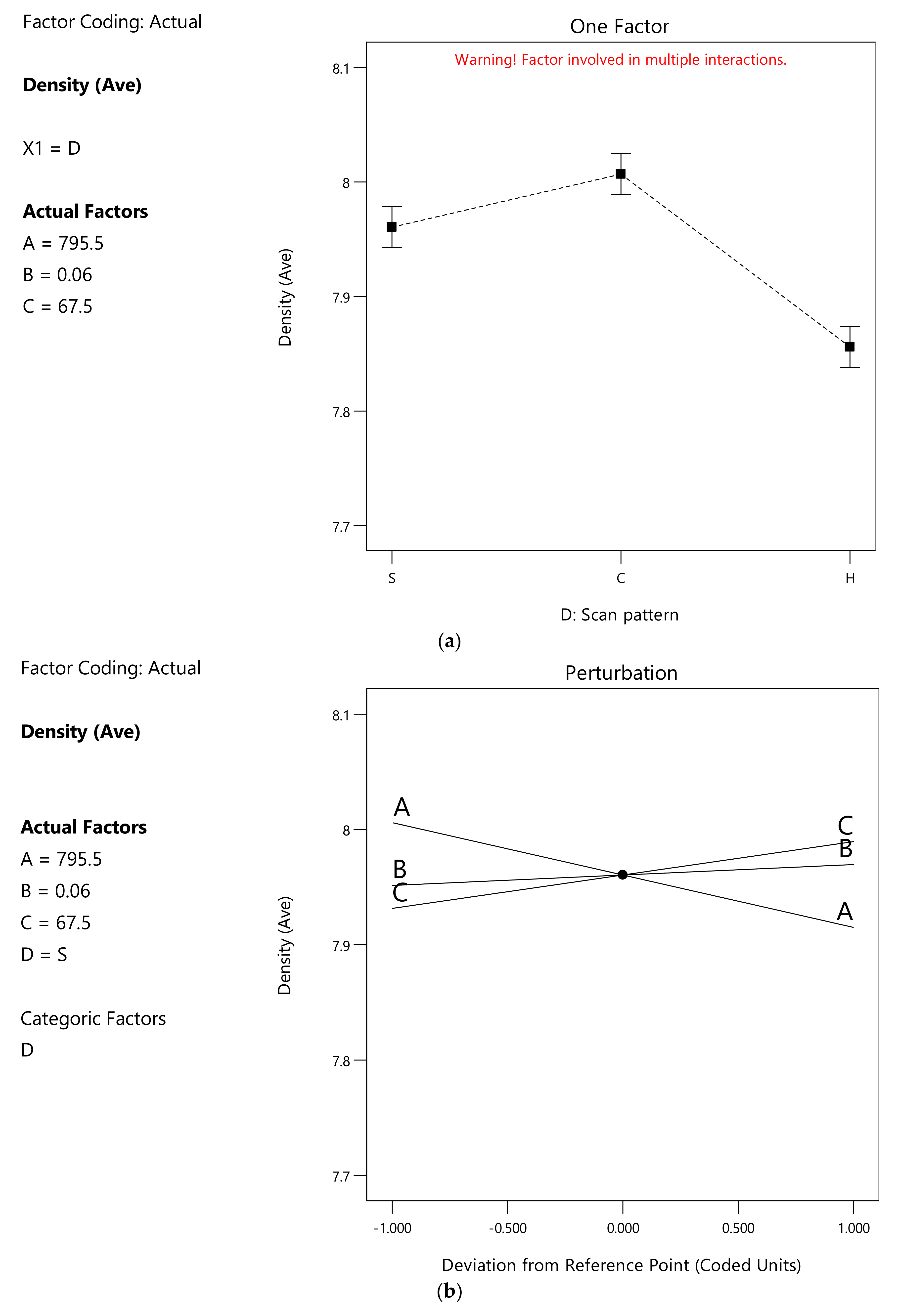

The variations in density follow the same pattern observed analyzing dimensions and average surface roughness Ra. The chessboard strategy led to the lowest average surface roughness Ra and the highest density. On the other hand, the hexagonal pattern led to the highest average surface roughness Ra, the lowest density and the largest external diameters (Figure 12a). It is possible to state that the location on the plate had no significant influence on the outcomes. These experiments were also done simultaneously, so there was no influence of the powder batch, being the same for all the printed parts.

Therefore, it is possible to affirm that the scanning strategy changes the nature of interaction due to the different thermal history and the structure of the substrate (already printed part), leading to an average surface roughness Ra that may affect the application of the subsequent powder layer.

In the density model, the interaction between the scan strategy, the hatch spacing and the interlayer rotation were considered statistically significant. The influence of the parameters on the density for the stripes pattern is shown in Figure 12b. The density increases with increasing hatch spacing (B) and interlayer rotation (C). Considering the constant Andrew number and the same build height, there is a linear dependence between hatch spacing and scan speed, but scan speed was not statistically significant. Figure 12c shows the influence of the parameters on the density considering the chessboard pattern. The density decreases while increasing the hatch spacing (B) and interlayer rotation (C), highlighting an opposite behavior compared to the stripes strategy. Figure 12d shows the influence of the parameters on the density considering the hexagonal pattern. It is possible to appreciate that hatch spacing and interlayer rotation have opposite effects on density: an increase in hatch spacing (B) increases density while an increase in interlayer rotation (C) results in a density decrease.

The nature of this interaction could not be thoroughly explained and additional investigation would be required.

4.4. Nano-Hardness

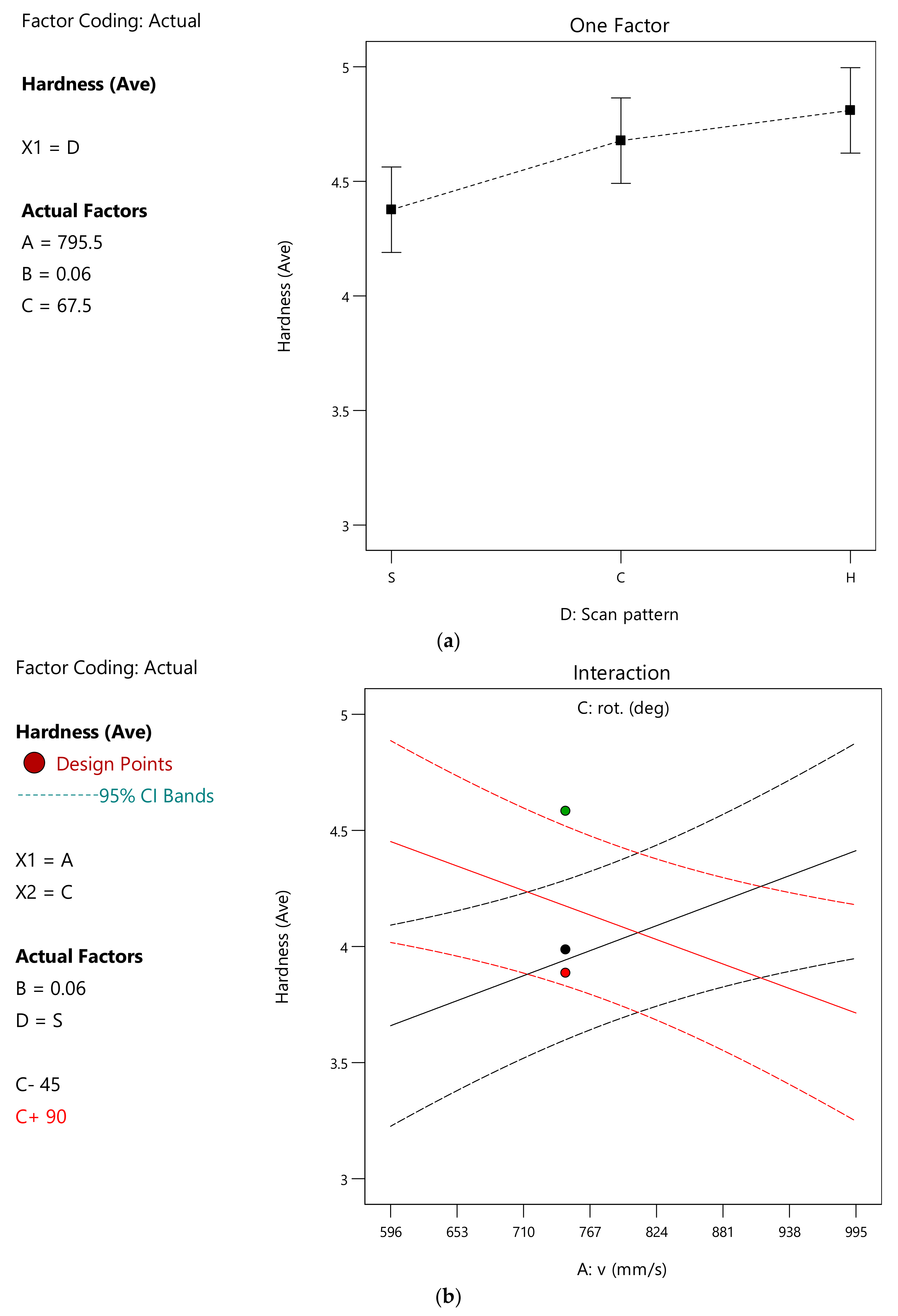

The scanning pattern seems to influence the average hardness but it is only a tendency with significant uncertainty. Figure 13a shows the tendency for the hexagonal pattern to lead to the highest hardness, followed by the chessboard and the stripes strategies. This may be due to the balance between the martensite formation and the retained and reverted austenite that may form due to the different thermal histories [54]. This also suggests that the hexagonal pattern cools slightly more and is reheated to a slightly lower temperature for a shorter time, which is consistent with the slightly higher porosity and lower density. These observations also suggest that there is a significant sensitivity to the thermal history.

Moreover, considering the stripes strategy scanning each square from left to right, a rotation of the scanning pattern would shift the scan into an area scanned earlier or later, depending on the rotation degrees. Figure 13b shows the interaction between the scanning speed and the interlayer rotation: the −45° rotation gives an increasing hardness with an increasing scanning speed, whereas for the +90° rotation there is the opposite correlation.

Considering Figure 5, Figure 6 and Figure 9, it is possible to notice that the hexagonal scanning strategy always performed worse than the other two. A possible reason why the hexagonal strategy induced bigger external diameter, higher average surface roughness Ra and higher porosity could be an increased spatter effect. This increased spatter could be induced by the longer path needed to scan the area related to the single specimen. With the hexagonal strategy, the time elapsed between the scan of adjacent tracks was slightly longer than with the other two strategies, leading to variations in the local thermal distribution, affecting the final quality of the part and inducing lack of fusion porosities. This observation is also supported by the tendency towards a higher hardness, implying lower amounts of retained and reverted austenite because the already scanned track would tend to be lower in temperature than the counterparts related to the other strategies. When the laser scanned the adjacent track, more heat was required to heat the surroundings, leading to an increased spatter effect. Moreover, the spatter led to the shadow effect, preventing the proper melting of the powders below the spattered particles.

5. Conclusions

This work aimed to investigate the effect of scanning strategy and the main process parameters on the 18Ni300 maraging steel parts produced through the L-PBF process.

The volumetric energy density (Andrew number), the laser power and the layer thickness were kept constant so scan speed and hatch spacing changed in a dependent way. In addition, the rotation between adjacent layers and the scan strategy were changed. The main objective was to study the interaction between the process parameters and the chosen scan strategy, considering the parallel stripes, the chessboard and the hexagonal ones, to better understand Andrew number shortcomings as a sufficient materials quality index.

In general, the hexagonal strategy underperformed compared to the chessboard and the stripes ones. In fact, the hexagonal strategy led to lower density, higher average surface roughness Ra and larger diameter. One possible cause of this could be that the hexagonal pattern involves a longer time lapse between the scan of two adjacent tracks compared to the other two strategies. So, the previously scanned tracks would be cooler than their counterparts of other strategies. The hardness of the material produced using the hexagonal pattern was also higher, supporting the idea of a higher cooling rate because of the increased time, on average, between each scan track. Unfortunately, increased spatter is an outcome. Spatter would cause shadowing, preventing proper melting of the powders below the spattered particles, obtaining greater average surface roughness Ra and lower density.

In particular, there are two effects due to the increased spatter: the optical shadowing and the increase of the local thickness of the layer. Both are preventing the proper penetration of the laser through the underlying layer and some particles surfaces could be prevented from heating by shadows of other particles or by the particles themselves, with detrimental effects. Moreover, the melting of the shadowed particle would be not simultaneous, affecting the final quality of the part. Melting larger particle clusters requires time, so an increased scan speed resulted for all scan strategies in a decreased density, providing further evidence to the hypothesis.

It is important to understand that short scanning vector length and the scanning time interval between two adjacent scanning vectors change the in-plane temperature gradient but, considering the volume of the part and its overall thermal history, the scanning pattern and its rotation will have significant effects. Parry et al. [38] state that long scan vectors should be avoided. This was implicitly seen in the hardness data and the sensitivity to the scan directions in Figure 13b with longer scan vectors resulted in higher hardness values which can be attributed to the associated higher cooling rates.

The sensitivity to the thermal history was furthermore highlighted by the influence of the interlayer rotation. Changing the interlayer rotation from 45° to 90° resulted in an opposite effect of scan speed on hardness: scanning perpendicularly to the previous layer caused a hardness reduction, while a diagonal scan caused a hardness increase.

Another important topic related to the patterns involving parallel scan lines in the layer (hexagonal and stripes patterns) is that the increased hatch spacing had a positive influence on density. On the other hand, the chessboard pattern was dominated by the islands, so the same effect was not seen and an increased hatch spacing resulted in a reduced density. This could be related to the findings by Lu et al. [42], where the amount and size of pores decreased significantly with increasing the island size. The reason for this is still not fully understood and requires further investigation.
