1. Introduction
The development of high entropy alloys (HEAs), which typically consisted of five or more principal elements with (near) the equiatomic ratio, has opened the door to a vast range of feasible compositions to fabricate novel materials with superior properties [
1,
2,
3]. While HEAs being solid solution alloys, recently, several high entropy intermetallic compounds (HEIMCs) have been fabricated, bridging the conventional HEAs and the emerging non-metallic high entropy materials [
4,
5,
6]. The synthesis of single-phase HEIMCs was first reported by Mishra et al. [
7] in 2018, where they synthesized hexenary TiZrVCrNiFex (x = 0.5, 1.0, 1.5) intermetallic compounds (IMCs) having C14 Laves phase.
All of the as-cast and rapidly quenched alloys possess the C14 Laves phase, which was stable up to 800 °C. It was found that Zr and Ti atoms occupy the A site, while the other four constituent elements (V, Cr, Ni, and Fe) fill the B site in the lattice, creating a pseudobinary AB2-type structure. They successfully demonstrated that the stability of the Laves phase HEIMC well correlated with the thermodynamic calculations following Miedema’s approach and the structural parameter descriptors such as mixing enthalpy, configurational entropy, electronegativity, atomic size mismatch, and valence electron concentration. Unfortunately, the authors just investigated the structural properties of these HEIMCs and did not report any data about their mechanical or functional properties. The second work on HEIMCs was reported in 2019, in which Zhou et al. [
6] proposed a new criterion for forming B2 single-phase HEIMCs and developed several multicomponent B2 single-phase aluminides such as (Co
1/4Fe
1/4Ni
1/4Mn
1/4)Al, (Co
1/4Fe
1/4Ni
1/4Cu
1/4)Al, and (Fe
1/5Co
1/5Ni
1/5Mn
1/5Cu
1/5)Al. Typically, IMCs exhibit superior thermal stability and high-temperature strength compared to the solid solution alloys [
8]. These criteria may likely be synergized in HEIMCs owing to the intrinsic features of the entropy stabilized phases, as recently realized by Yao et al. [
5] in (Fe
1/4Co
1/4Ni
1/4Cu
1/4) (Ti
1/3Zr
1/3Hf
1/3) HEIMC with a single B2 structure. This HEIMC demonstrated exceptional high-temperature strength exhibiting yield strengths of 905 MPa at 800 °C and 705 MPa at 900 °C.
In addition to the single-phase HEIMC, it is also demonstrated that HEIMC could be utilized as nanoparticles for strengthening in metallic systems. For example, Yang et al. [
9] developed a route to break the strength–ductility trade-off by the in situ creation L12-HEIMC nanoparticles for coherent strengthening in the FeCoNi-base fcc HEA systems. The L12-type HEIMC with a composition (Ni
43.3Co
23.7Fe
8)
3 (Ti
14.4Al
8.6Fe
2) was successfully developed, which had a significant effect on the mechanical properties of the alloy. They developed an alloy with superior strengths of 1.5 GPa and ductility as high as 50% in tension at room temperature. This superior behavior was attributed to the noticeable dislocation activities and deformation-induced microbands and the ensuing multistage work-hardening characteristic of the material. It should also be noted that several works have been published on the reinforcing of HEAs with conventional intermetallic compounds (not HEIMCs) [
10,
11].
Tsai et al. [
12] noted the complexity of the creation of intermetallic (IM) phases in HEAs and used a statistical approach to provide a fundamental understanding of the IM phases formed in HEAs. Their results showed that the five most common IM structures in the 142 HEAs examined are the Laves, σ, B2, L1
2, and L2
1 phases. With regard to structural inheritance, all IM phases contained in the alloys represent existing structures in the binary/ternary subsystems of the respective alloys. They concluded that the complexity of composition in HEAs induces additional complexity in the formation of the IM structure.
While still being in their infancy, HEIMCs have been synthesized by conventional arc melting or mechanical alloying. However, additive manufacturing (AM) presents a unique opportunity to fabricate complicated parts and coatings [
13,
14]. Especially, laser cladding is a well-developed AM technique to deposit coatings from a wide range of materials. The manufacturing of HEAs using AM was previously demonstrated [
13]. However, to the best of our knowledge, the possibility of AM of entropy stabilized IMCs has not been demonstrated. In the absence of any report on the AM of entropy stabilized IMCs, this work demonstrates the possibility of in-situ obtaining medium-entropy IMCs (MEIMCs) as a strengthening phase in a multicomponent alloy coating using direct laser cladding.
2. Materials and Methods
To create the coating, a mechanical mixture of pure metal powders (GTV GmbH, Luckenbach, Germany) (spherical particles with sizes of about 50 micrometers) was used. After several tests, and considering the Fe-induced dilution effect from the substrate, we adjusted the chemical composition of the starting powders to obtain a desirable amount of MEIMC in the Fe-based matrix. The following composition was used to fabricate the coatings (at.%): 50 Al, 10 Cu, 10 Co, 2.5 Ni, 25 Fe, and 2.5 Mn. Low-alloyed steel used as a substrate had the composition (wt.%): 0.34% C, 0.38% Si, 0.68% Mn, 1.47% Cr, 1.53% Ni, 0.25% Mo, 0.017% S, <0.035% P, and bal. Fe. The substrate material was used in the annealed state.

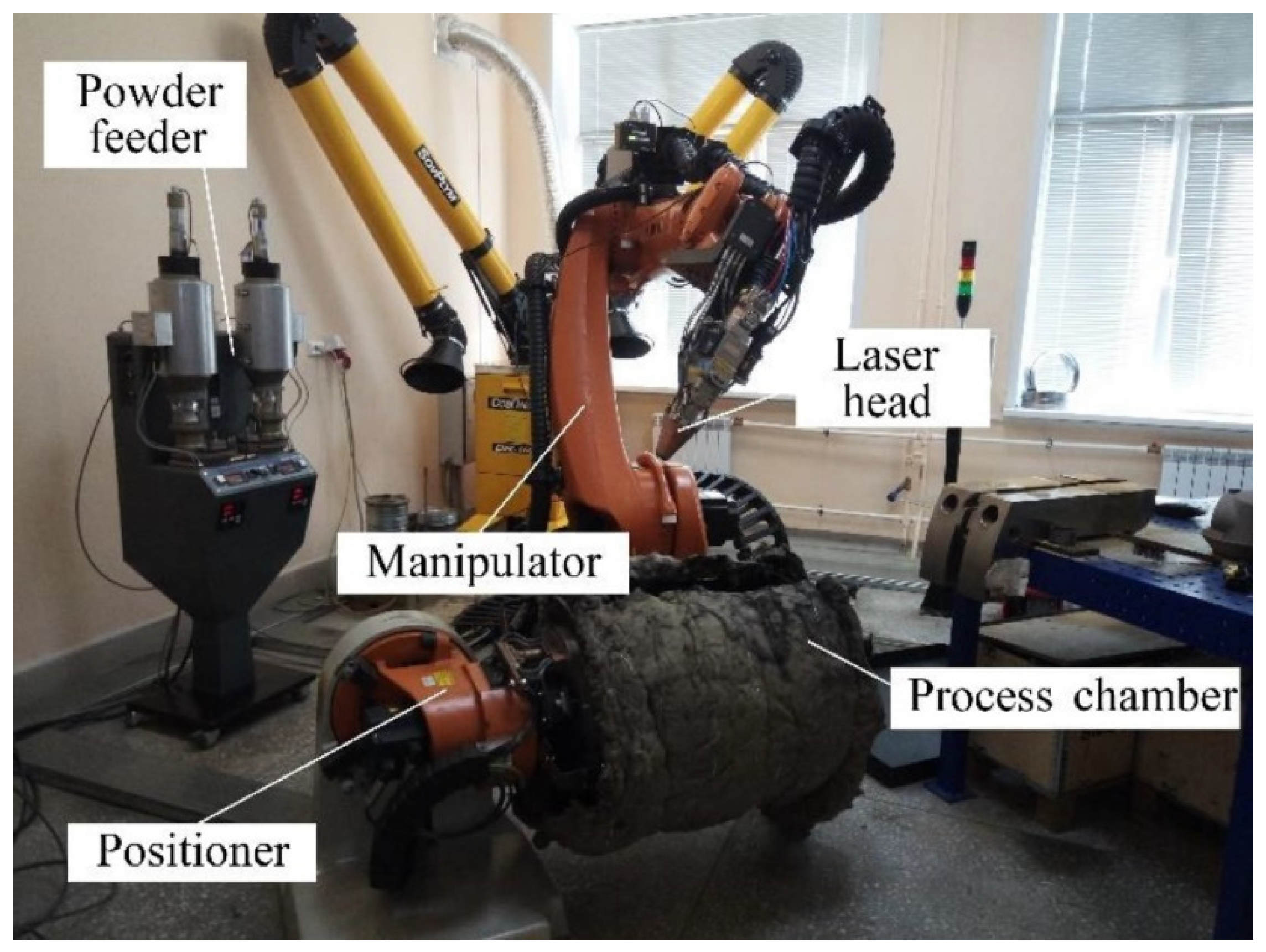

To form the coating, a laser metal-cladding unit FL-Clad-R-4 was used (IPG IRE-Polus, IPG Photonics Corporation, Fryazino, Russia). The main parts of the unit can be represented as follows (
Figure 1): (1) 4 kW laser head with an ytterbium fiber-optics laser with wavelength 1065–1075 nm (LS-4), the heating mode is continuous; (2) KUKA R-120 six-axis robot-equipped manipulator combined with KUKA DKP-400 double-axis positioning element; (3) TWIN-10-CR-2 powder feeder with a four-axis powder feed module; (4) process chamber–a metal cylinder with the diameter of 600 mm and the length of 1100 mm. The trajectory of the laser path was linear. Surfaced strips of coating partially overlapped each other. The overlap width was about 1.2 mm. The coating was carried out under shielding gas (argon). Two experiments were carried out, fundamentally differing in the powder feed rate of 6 g/min and 9 g/min. The technological parameters of the processes are given in
Table 1.

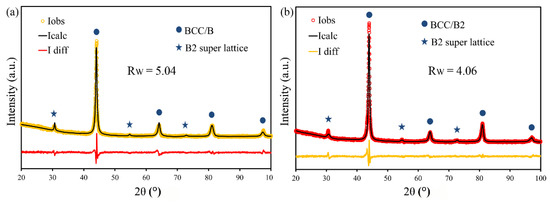

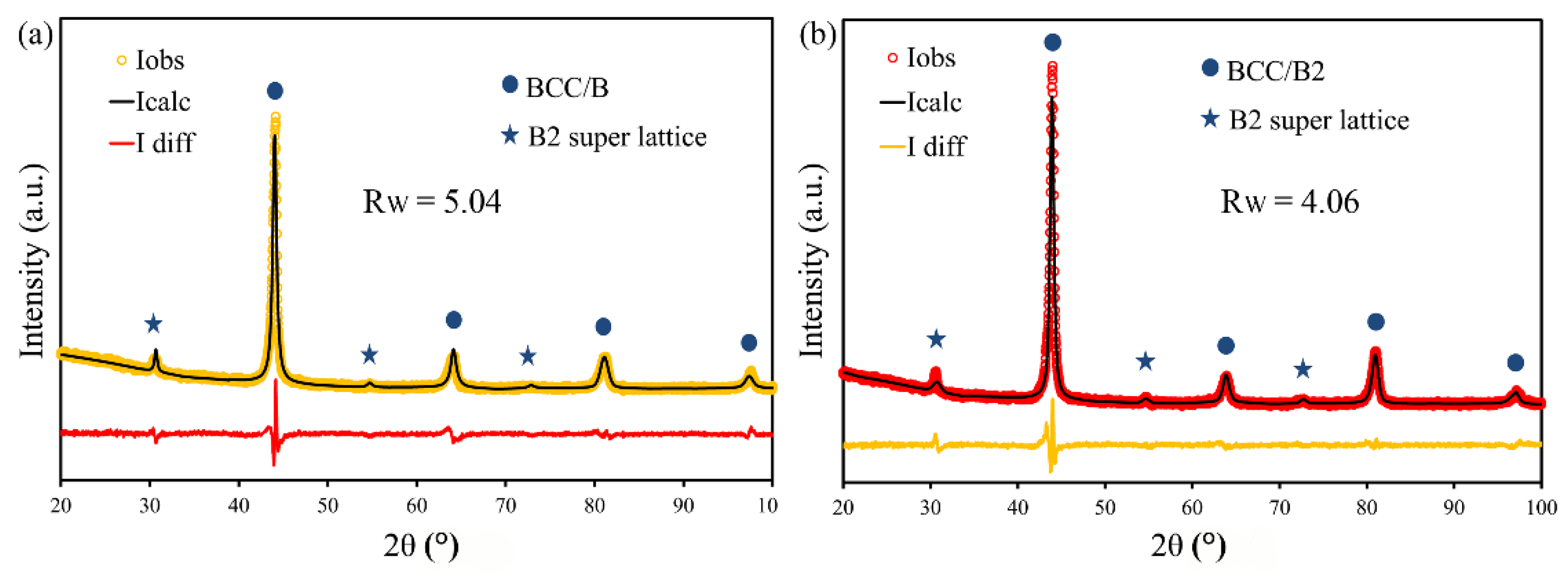

X-ray diffraction (XRD) was performed on a Rigaku Ultima IV X-ray diffractometer (Rigaku, Tokyo, Japan) using Cu–Kα radiation (λ = 0.154 06 Å) to reveal crystal structures of the coating. The microstructure was studied on cross-sections of the samples using an Axio Observer D1.m inverted optical metallographic microscope (Carl Zeiss Microscopy GmbH, Jena, Germany) equipped with Thixomet Pro software and hardware complex (Thixomet Pro, Thixomet Company, St. Petersburg, Russia) for image analysis and grain size calculation. The microstructure of the samples was also studied using a JEOL JSM-7001F scanning electron microscope (SEM) (JEOL, Tokyo, Japan) with Oxford Instruments energy dispersive x-ray spectrometer (EDS) (Oxford Instruments, Abingdon, UK) for quantitative and qualitative X-ray microanalysis (XRMA). For microstructural studies, the samples were etched in Kalling’s solution (5 g of copper chloride, 100 mL of hydrochloric acid (density 1.19), 100 mL of ethyl alcohol, 100 mL of distilled water). The microhardness was measured on cross-sections in the direction from the surface (coating) to the substrate using an FM-800 microhardness tester (Future-Tech Corp, Kawasaki, Japan). A load of 300 g for 10 s dwell time was employed. The distance of indenter from the edge of the section was not less than 1.5 times of the printed diagonals’ diameter, and the distance between the adjacent measurement points was not less than two diagonals of the indenter prints.
4. Discussion
A relatively large number of works have been devoted to the use of laser cladding for fabricating HEA coatings [
16,
17,
18,
19]. These works demonstrated the possibility of obtaining HEA coatings of various compositions by additive manufacturing. However, the in situ formation of entropy stabilized IMCs by additive manufacturing has not been demonstrated before this work. In this work, we demonstrated for the first time that entropy-stabilized IMCs can be formed in situ during laser cladding with proper adjustment of the chemical composition of the precursor powders. By highly alloying with the Al addition and proper feeding rate, we successfully induced high-density B2 intermetallic particles in a Fe-base multicomponent alloy coating using laser cladding.
A mixture of Al-Co-Cu-Fe-Mn-Ni powders typically crystallizes in a single FCC structure at low Al contents, a duplex FCC + BCC structure at intermediate Al contents, and finally a single BCC structure at high Al concentrations [
20]. The formation of a B2 intermetallic phase could only be triggered at the sufficiently high Al contents, which satisfy the criteria of AB composition. In this study, the coatings fabricated by direct laser cladding with different feeding rates exhibited different amounts of evolved IMCs and, consequently, different microstructural features. When the feeding rate was low (6 g/min), a small amount of B2-IMCs was evolved, and the microstructure consisted of elongated BCC columnar grains. The content of IMCs significantly increased when the feeding rate was increased to 9 g/min. This high content of IMCs hindered grain growth and a fine, equiaxed grain structure prevailed. For both samples, the IMCs formed inside and along the grain boundaries of the BCC phase. The difference is observed in the quantitative ratio of these phases and the final chemical composition of the resulting coating. At a low powder feed rate (6 g/min), the bcc phase predominates in the structure (its content was about 66.2%,), while by increasing the feeding rate to 9 g/min, the bcc phase decreases to about 40%. Therefore, there is a clear correlation between the grain size in the coating and the amount of the intermetallic phase. The amount of B2 phase in the sample is directly correlated with the amount of the IMC-forming elements (mainly Al, Cu, Co, and Fe) in the molten bath. More IMC-forming elements are incorporated into the molten bath at higher feeding rates, which evolves higher amounts of IMCs. It is obvious that the formation of the intermetallic and BCC phases occurs almost simultaneously.
The lattice parameters of both BCC and B2 phases in sample-9 are almost identical to that of sample-6 (
Table 2). The lattice parameter of BCC phases are higher than the lattice parameter of Fe (2.87 Å [
21]), which may be attributed to the substitution of Al, Cu, and Co elements with higher atomic radius than Fe in the BCC structure. This coupled with the EDS analysis suggesting that the BCC phase is a Fe-rich multicomponent solid solution. Similarly, the lattice parameter of B2 phase in both alloys is higher than the lattice parameter of binary aluminides [
4] and close to those reported for multicomponent aluminides [
4,
6].
Here, the chemical composition of BCC and B2 phases could not be precisely determined considering the size of IMCs and the interaction volume of electrons with the sample in EDS. We could detect clear elemental segregation only for Al, while Fe exhibited a slight enrichment in the matrix, and other elements were uniformly distributed in the alloy. These Al-rich precipitates were clearly an entropy-stabilized B2 intermetallic phase. Based on the XRD and EDS analysis, the resulting intermetallic phase could be qualitatively designated based on the binary FeAl as (Fe
0.55Co
0.18Cu
0.22Ni
0.03Mn
0.02)Al MEIMC. The higher amount of Fe compared to the initial composition could be attributed to the dilution effect of the steel substrate. It is known that dilution has a detrimental effect on the chemical and mechanical properties of the materials, while a minimum dilution is required for adequate metallurgical bonding [
22,
23]. However, our results indicate that the dilution effect (Fe-rich) may also be used for in situ fabrication of MEIMC-reinforced composites. In this MEIMC, the Fe sublattice is substituted with several transition elements that randomly distribute over the Fe sublattice. Therefore, it can be assumed that Al atoms occupy the body-centered positions, and Fe, Co, Cu, Ni, and Mn randomly fill the Fe sites of the B2-FeAl prototype structure based on their available ratio.
The comparison of our results with the literature confirms that the chemical composition and the crystallization conditions of a high-entropy system play a decisive role in the formation of the final structures. A most prominent route may be to obtain not a single-phase HEIMC, but a composite material reinforced with HEIMC/MEIMC.

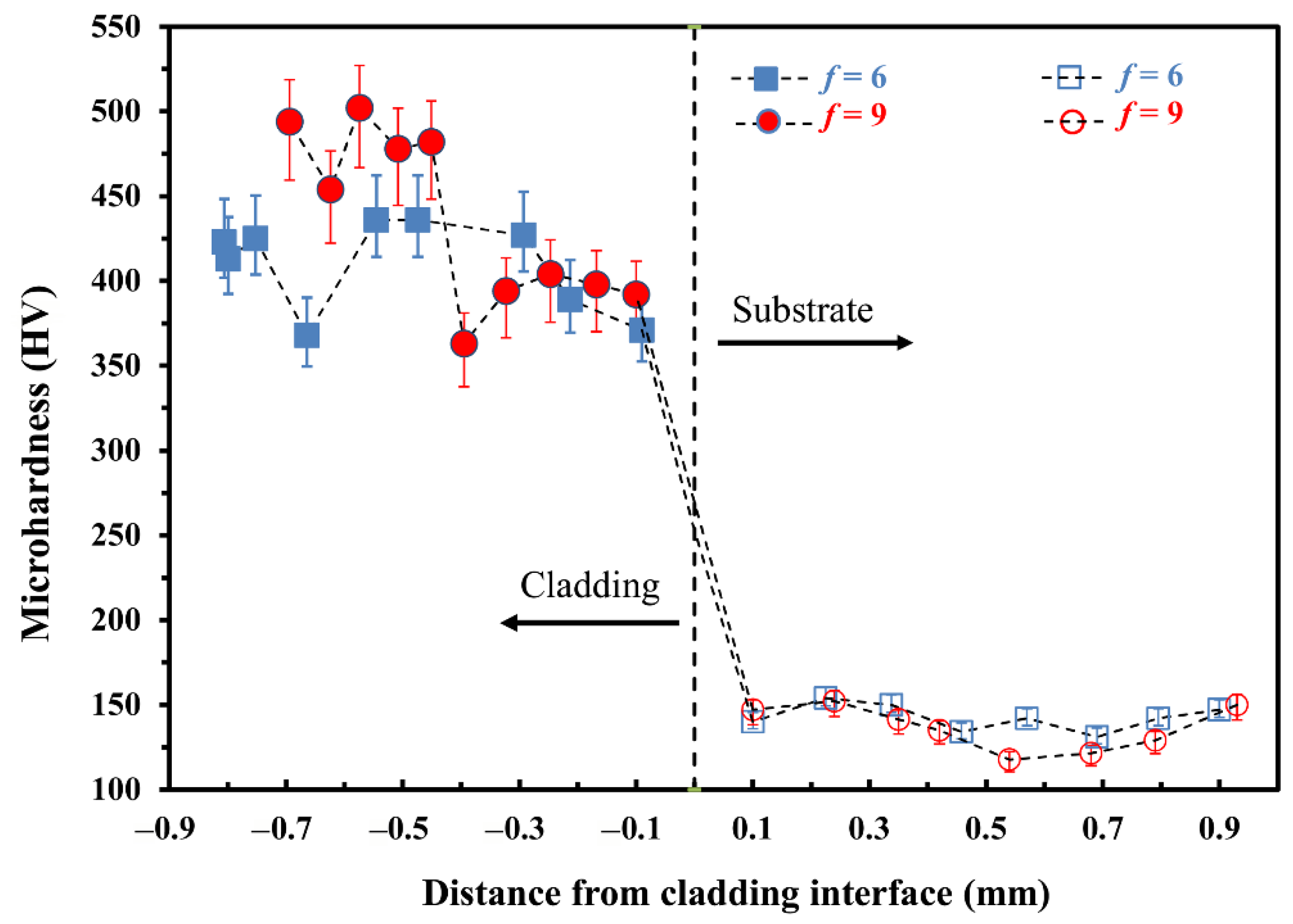

With regard to the microhardness results, the MEIMC-reinforced coatings exhibited comparable values to those of BCC HEAs fabricated by laser cladding [
24,
25]. In our samples, the hardness of the deposited coatings varies from 400 to 500 HV and correlates with the grain size of the coating. Considering the susceptibility of HEAs for cracking during additive manufacturing, we propose HEIMC/MEIMC-reinforced alloys as a more practical alternative system to fabricate high-performance coatings for different applications.
Author Contributions
Conceptualization, A.O.M., N.A.S. and M.N.S.; methodology, E.A.T. and D.V.M.; validation, A.O.M., N.A.S. and E.A.T.; formal analysis, A.O.M.; investigation, A.O.M., Y.S.L. and D.V.M.; writing—original draft preparation, A.O.M.; writing—review and editing, A.O.M., N.A.S.; project administration, E.A.T. and M.N.S. All authors have read and agreed to the published version of the manuscript.
Funding
The research was funded by RFBR and Chelyabinsk Region, project number 20-43-740020.
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
The raw/processed data required to reproduce these findings are available from the corresponding author upon reasonable request.
Conflicts of Interest
The authors declare no conflict of interest.
