Characterization of Waste Amidoxime Chelating Resin and Its Reutilization Performance in Adsorption of Pb(II), Cu(II), Cd(II) and Zn(II) Ions

by
Chunhui Zheng
1,
Chunlin He
1,2,*,
Yingjie Yang
1,
Toyohisa Fujita
1,2,
Guifang Wang
1,2 and
Wenchao Yang
1,2
1
School of Resources, Environment and Materials, Guangxi University, Nanning 530004, China
2
Guangxi Key Laboratory of Processing for Non-Ferrous Metal and Featured Materials, Nanning 530004, China
*
Author to whom correspondence should be addressed.
Metals 2022, 12(1), 149; https://doi.org/10.3390/met12010149
Submission received: 10 December 2021 / Revised: 4 January 2022 / Accepted: 10 January 2022 / Published: 13 January 2022
Browse Figures
Versions Notes

Abstract

:
The continuous expansion of the market demand and scale of commercial amidoxime chelating resins has caused large amounts of resin to be discarded around the world. In this study, the waste amidoxime chelating resin was reutilized as an adsorbent for the removal and recovery of Pb(II), Cu(II), Cd(II) and Zn(II) ions from aqueous solutions. The physical morphology and chemical composition of the waste amidoxime chelating resin (WAC-resin) from the factory was characterized by the elemental analyzer, X-ray photoelectron spectroscopy and Fourier-transform infrared spectroscopy. The influence of the initial metal ions concentration, contact time, temperature and the solution pH on the adsorption performance of the metal ions was explored by batch experiments. It was shown that the optimal pH was 4. Kinetic studies revealed that adsorption process corresponded with the pseudo-second-order kinetic model and the adsorption isotherm was consistent with the Langmuir model. At room temperature, the adsorption capacities of WAC-resin for Pb2+, Cu2+, Zn2+ and Cd2+ reached 114.6, 93.4, 24.4 and 20.7 mg/g, respectively.

1. Introduction

The rapid development of the metal mining and electronics industries has caused serious environmental pollution concerns, especially the discharge of wastewater containing heavy toxic metals [1] such as Pb, Zn, Cd, Ni, Cu, Cr, Co, etc. The amidoxime chelating resin containing both an amino (–NH2) and an oximido (=N–OH) at the same carbon atom is of broad interest, due to the fact that it can coordinate with a wide range of metal ions [2,3]. It has been of extensive application for wastewater treatment and separation and enrichment of metals, such as the removal of metal cations [4,5,6], extraction of uranium from seawater [7,8], recovery of rare earth metals from Bayer solution [9,10], etc.
Global synthetic resin consumption was about 255 million tons in 2020. However, after service, due to the reduction of its specific surface area, the destruction of functional groups and the shrinkage of spherical particles, these resins are discarded as waste. If these waste resins are not effectively treated, they will take up a lot of space, and the harmful substances leached from the waste resin will also pollute the environment. At present, the main treatment method of these waste resins is to be incinerated in Solid Waste Treatment Company for 2000 RMB/t, which will produce CO2, CO, SO2, NO and NO2 gases, leading to serious environmental impacts [11]. For example, in the Guangxi branch of Chalco, the amidoxime chelating resins for adsorption gallium from Bayer solution were discarded after being reused 50–60 times a month, and 225 tons of waste resin are produced and shelved each year [12]. This is extremely incompatible with the advocacy of recycling resources and carbon neutrality.
Therefore, there is an urgent need to reutilizing such hard-to-degrade waste resins. Some studies have utilized other types of waste resin to prepare carbon adsorbents [13,14] via high-temperature pyrolysis for adsorbing organic substances (naphthalene, benzene, toluene and phenol) [15,16,17,18], heavy metal ions [19] and also for carbon capture and storage [20]. In addition, the high-yield and low-cost waste resins may also be precursor materials of composite adsorbents, such as the solvent impregnated resin for separating and purifying rare earth metals [21].
In this work, the physical structure and chemical functional groups of the waste amidoxime chelating resin (WAC-resin) were characterized through various technologies which will provide a research foundation for the synthesis of new composite materials based on waste resin in the future. Then, in order to extend the service life of commercial amidoxime chelating resins, another part of our research was to investigate the effectiveness of waste resin as an adsorbent to remove and recover various metals from a synthetic aqueous solution containing lead, copper, zinc and cadmium ions. The adsorption mechanism between existing functional groups of the WAC-resin and metal ions was investigated by instrumental and kinetic analyses. This study was considered as a vital step toward further studies on reusing the WAC-resin to synthesis composite materials and to investigate reusability performance of the WAC-resin in heavy-metals recovery from real wastewater.

2. Materials, Equipment and Methods

2.1. Materials

The raw material used for the experiments was the WAC-resin which was provided from the Guangxi branch of Chalco, with a particle diameter range of 0.2–0.6 mm. The WAC-resin was successively rinsed with hydrochloric acid and ultrapure water to remove the organic and inorganic impurities of polymeric beads, followed by drying under vacuum at 323 K and sieving to 40 mesh. Reagents used in this research, such as lead nitrate (Pb(NO3)2), copper nitrate trihydrate (Cu(NO3)2·3H2O), cadmium nitrate tetrahydrate (Cd(NO3)2·4H2O) and zinc nitrate hexahydrate (Zn(NO3)2·6H2O) were of reagent grade and purchased from Aladdin. Deionized water was used in all experiments.

2.2. Equipment

The pristine clean amidoxime chelating resin (PAC-resin); the WAC-resin; and the WAC-resin loaded with lead, copper, zinc and cadmium ions (WAC-resin-MIs) were characterized by various techniques. In detail, the surface morphology and corresponding element distribution were analyzed by scanning electron microscopy with energy-dispersive spectroscopy (SEM–EDS, Phenom Pro 800-07334, Eindhoven, The Netherlands). The C, N, O and H content of the resin beads was also estimated by using an element analyzer (Vario EL cube, Hanau, Germany). The functional groups of samples were identified by employing Fourier-transform infrared spectroscopy (FTIR, THS-108, Thermo Scientific, Waltham, MA, USA). Furthermore, to analyze the adsorption mechanism of the WAC-resin, broken resin powders were characterized by X-ray photoelectron spectroscopy (XPS, ESCALAB 250XI+, Thermo Scientific, Waltham, MA, USA). Moreover, the zeta potential of the suspension (100 mg/L) containing nonmetallic particles of the WAC-resin (200 mesh) was determined by using a high-sensitivity zeta potential analyzer (NanoBrook Omni, New York, NY, USA) for exploring the surface charge as a function of pH.

2.3. Batch Adsorption

The influence of the initial metal ions concentration, contact time, temperature and the solution pH on the adsorption percentage of various metal ions was explored by batch experiments. The metal ions solution was prepared by dissolving four analytical-grade reagents in ultrapure water, namely Pb(NO3)2, Cu(NO3)2·3H2O, Cd(NO3)2·4H2O and Zn(NO3)2·6H2O. Except that the concentration ranges of initial metal ions concentration and adsorption isotherm experiments are 20–200 and 50–7000 mg/L, respectively, the concentration of pH, temperature and kinetics experiments were all 100 mg/L. To study the effect of pH on the adsorption percentage of Pb(II), Cu(II), Cd(II) and Zn(II) ions and zeta potential of the WAC-resin, solutions with pH values ranging from 1.0 to 5.0 were prepared by adding diluted HNO3 and NaOH solutions. The variation of the adsorption capacity with a contact time from 5 min to 24 h and temperature from 298 to 333 K was investigated. The WAC-resin (0.1 g) was dispersed to metal ions stock solution (25 mL), and the various adsorption experiments were conducted in a thermostatic water-bath oscillator, with a stirring speed of 140 rpm. After the adsorption reaction reached equilibration, the solution was separated from the WAC-resin, and the ion concentration was analyzed by inductively coupled plasma emission spectrometry (ICPS-7510, Kyoto, Japan). The adsorption efficiency, E (%), and adsorption capacity, Q (mg/g), were calculated by using Equations (1) and (2), respectively, as follows:
E = ( C 0 − C e ) / C 0 × 100 %
Q = ( C 0 − C e ) × V / m
where C0 and Ce (mg/mL) represent the initial and final concentrations of Pb2+, Cu2+, Cd2+ and Zn2+ in the aqueous media, respectively. V (mL) signifies the solution volume, and m (g) denotes the weight of the dry waste resin.

2.4. Elution

The hydrochloric acid solution was employed as the elution agent to avoid precipitation between the alkaline solution and lead and copper ions. After the adsorption experiment reached equilibrium under optimal conditions, the WAC-resin loaded with Pb(II) and Cu(II) was collected and washed by using water and then immersed in the 3% hydrochloric acid solution (liquid–solid ratio: 50 mL/g), with an elution duration from 5 to 60 min and temperature ranging from 298 to 323 K, respectively.

3. Characterization of the WAC-Resin

3.1. Physical Structure

The pictures and SEM images (×600) of the PAC-resin and WAC-resin beads are shown in Figure 1a,b. Both samples possessed smooth spherical morphologies with a diameter of approximately 0.4 mm. The difference was that, after magnifying them to the same higher magnification (×5.00 k), the surface of the white PAC-resin was extremely loose and porous, and there was no adhesion of other substances. However, due to the large number of holes being blocked after adsorption reaction occurred, the surface morphology of the WAC-resin presented obvious change, becoming tighter and showing many rough gullies.
In addition, the color of the WAC-resin-MIs is brown-green, and its SEM images (×600) exhibited regular spherical shape (Figure 2a). Under higher magnification (×3.00 k), the rougher surface of the WAC-resin-MIs and tiny particles attached may be ascribed to the adsorption action (Figure 2b). The results of the energy-dispersive spectroscopy of the WAC-resin-MIs further confirmed that lead (Pb) and copper (Cu) were predominantly detected on the surface of the WAC-resin, including a small amount of cadmium (Cd) and zinc (Zn). This indicates that the WAC-resin can effectively adsorb Pb(II) and Cu(II) from aqueous solutions.

3.2. Chemical Composition Analysis

Firstly, the relative contents of carbon, nitrogen, oxygen and hydrogen in the PAC-resin and the WAC-resin according to the element analyzer are presented in Table 1. The results showed that relative oxygen content increased from 57.86% to 88.29% after the PAC-resin converting to the WAC-resin, while the relative nitrogen content was decreased from 23.96% to a very low value of 8.24%. Previous works in the literature have reported that, at the same time as the amidoxime functionalized active fiber adsorbing Au(III), its amidoxime groups were gradually oxidized into the carboxyl groups [22,23]. Therefore, the changes in the relative contents of nitrogen and oxygen of the PAC-resin and WAC-resin may also be due to that the coordination between the amidoxime groups of the PAC-resin and gallium element accompanied by oxidation-reduction reaction. This may lead to the WAC-resin being rich in the oxygen-containing functional groups.
To further evaluate the chemical composition of the WAC-resin, we measured the X-ray photoelectron spectroscopy of the PAC-resin and WAC-resin, as shown in Figure 3a. The XPS spectra provide the principal information concerning the chemical environment, including the composition and binding state of the outermost atomic layers on the solid surface [24,25]. In addition, the FTIR spectra can identify the remaining functional groups and the organic components’ conversion of the materials. The FTIR spectra are recorded and presented in Figure 3b.
The major peaks of C 1s, N 1s and O 1s were noted to appear in the survey XPS spectra. Compared with that of the PAC-resin (Figure 3a(a1)), the N 1s peak in the XPS spectrum of the WAC-resin (Figure 3a(a2)) was significantly weakened, whereas the O 1s peak was strengthened, which was consistent with the low nitrogen and high oxygen levels of Table 2. The FTIR spectra can also validate the above deduction about the oxidation of the amidoxime groups into carboxyl groups by the observed shifting of peaks. As can be observed, the characteristic adsorption peaks in the FTIR spectrum of PAC-resin (Figure 3b(b1)) at 1650, 1109 and 935 cm−1 were assigned to the stretching vibrations of the C=N, C–N and N–O bonds [22], respectively. However, in that of the WAC-resin (Figure 3b(b2)), these bands shifted to a higher wavenumber and were noted to weaken significantly. Simultaneously, two new bands appeared at 1697 and 1195 cm−1 corresponding to the stretching vibrations of the C=O and C–O bonds of the carboxyl groups [26,27], respectively. Overall, it can be concluded that the WAC-resin is rich in oxygen-containing functional groups due to the oxidation of the oxime groups into the carboxyl groups [22]. Studies have shown that there is a strong chemical interaction between carboxyl groups and metals ions of solution, such as lead, copper, cadmium and zinc ions [25,28,29,30], so the WAC-resin bearing carboxyl group is expected to adsorb these metal ions from aqueous solution.

4. Adsorption Properties of the WAC-Resin

4.1. Effect of pH

As the overall charge on the surface of adsorbents usually varies with the pH, the effect of the initial pH value on the adsorption properties and zeta potential [31] was studied in the range 1.0–5.0 (to prevent the formation of the hydroxide precipitates) (Figure 4).
When the pH value was controlled between 1.0 and 4.0, it was noticed that the removal efficiency of all the metal ions increased (pH from 1.5 to 3.0) and then stabilized (pH from 3.0 to 4.0) (Figure 4a). As observed from Figure 4b, the zeta potential of the WAC-resin decreased from about 6 to −36 mV, and the point of zero charge pH was close to 2 (Figure 4b). In the range of pH 1.0–2.4, the value of the zeta potential was positive, and the protonation of the active sites inhibited the positive metal cations, thereby declining the adsorption effect [32]. As the pH value exceeded 3.0, the surface of the WAC-resin possessed an overall negative, which made it attract the positively charged metal ions entering the pores by electrostatic interaction [33]. As expected, in the pH range of 3–4, the adsorption increased to reach an optimal extent, so further experiments were carried out at a pH value of 4. In contrast, the adsorption percentage of lead and copper ions was above 80% and 90%, respectively, which was higher than that of zinc and cadmium. Compared with Cd2+ and Zn2+, the Cu2+ with a smaller radius usually corresponds to a higher charge density and can compete with H+ or H3O+ in solution for negatively charged binding sites of the adsorbent [34]. For Pb2+ with high electronegativity, its competitive advantage is not only related to the electrostatic interaction, but also the coordination with groups [35].

4.2. Effect of Temperature

The adsorption analysis was conducted at a pH value of 4 in the temperature range 298–333 K, and the results are presented in Figure 4c. A small increment in the removal percentage of zinc and cadmium was observed with elevated temperature, which demonstrated that the adsorption process of the zinc and cadmium ions was endothermic. This was because the resin was swelled under high-temperature conditions, which promoted the entry of the metal ions, thereby enhancing the adsorption efficiency. However, it is noted that the high adsorption percentage of lead and copper ions remained unchanged with increasing temperature. Next, 298 K was chosen as the optimal adsorption temperature.

4.3. Effect of Contact Time on Adsorption Kinetics

To determine the adsorption speed of the solute molecules on the adsorbent, the batch-adsorption experiments were conducted as a function of the reaction duration (5 min to 24 h) (Figure 4d). The adsorption capacity of all the metal ions increased with the extension of the reaction time, and the adsorption equilibrium was reached within 300 min.
The pseudo-first-order-kinetic model [36] and pseudo-second-order-kinetic model [37] were applied to the further analysis given as Equations (3) and (4), respectively:
ln ( Q e − Q t ) = ln Q e − k 1 t
t / Q t = 1 / k 2 Q e 2 + t / Q e
where k1 (min−1) and k2 (g/mg/min) are the kinetic rate constants. Qt and Qe (mg/g) represent the extent of metal ions adsorbed per unit adsorbent at time t and equilibrium state respectively. The detailed parameters for the two models are depicted in Table 3. Compared to that of pseudo-first-order model, the value of correlation coefficients (R2) obtained from the pseudo-second-order model is larger and closer to 1. In addition, the calculated Qe value is also in better agreement with the experimental results. It can be concluded that the adsorption of Pb2+, Cu2+, Zn2+ and Cd2+ onto the WAC-resin obeys the pseudo-second-order kinetic model.

4.4. Effect of Initial Concentration on Adsorption Isotherm

The initial metal ions concentration is a vital factor affecting the adsorption process. It can be seen from Figure 5 that the equilibrium adsorption capacity of lead, copper, zinc and cadmium ions increased with the initial concentration of metal ions, improving from 20 to 200 mg/L.
This is because the driving force for metal ions entering from the solution to the adsorbent will increase correspondingly with the increase of initial concentration. The adsorption amount of lead and copper was 36.5 and 21.8 mg/g, respectively, under the condition of 200 mg/L and 120 min, which showed that the adsorption speed of the WAC-resin towards lead was faster than that of copper under high concentration conditions. However, for cadmium and zinc, under the condition of high initial concentration of metal ions, the adsorption capacity was still relatively low, remaining at about 12mg/g in Figure 5c,d.
The results of adsorption isotherm experiments (Figure 6) at room temperature and pH 4 demonstrated that 1 g of WAC-resin could adsorb up to 114.6, 93.4, 20.7 and 24.4 mg Pb(II), Cu(II), Cd(II) and Zn(II), respectively. The WAC-resin exhibited an excellent adsorption affinity towards lead (II) and copper (II), with the complete sequence observed to be Pb(II) > Cu(II) > Zn(II) > Cd(II).
The adsorption isotherms can be fitted by the commonly used Langmuir [38] and Freundlich [39] isotherm models expressed as Equations (5) and (6), respectively:
C e / Q e = C e / Q m + 1 / K L Q m
ln Q e = ln K f + ln C e / n
where Qe and Qm represent the equilibrium and maximum adsorption capacities (mg/g), respectively. Ce is the equilibrium metal ions concentration (mg/L), KL and Kf are the Langmuir and Freundlich constants separately, and 1/n is the Freundlich heterogeneity factor. The Langmuir model is noted to fit the adsorption isotherm data more effectively than the Freundlich model, based on the calculations of the R2 values (Table 4). This suggests that the metal-ions adsorption on the WAC-resin surface is an entirely homogeneous process and follows a monolayer adsorption mechanism. In addition, the theoretical maximum adsorption capacities of Pb(II), Cu(II), Cd(II) and Zn(II) were estimated to be 115.47, 93.80, 20.63 and 26.55 mg/g, respectively, which were close to the actual values. In this study, the low-cost WAC-resin exhibits better adsorption properties for Pb2+ and Cu2+ in terms of the adsorption capacity compared with that of the adsorbents reported previously (Table 5). This reveals that the easily available and cheap WAC-resin may be an excellent adsorbent for treating Pb2+ and Cu2+ from the real wastewater samples.

4.5. Adsorption Mechanism

First, compared with the XPS spectrum of the WAC-resin (Figure 7a(a1)), two new peaks corresponding to Pb 4f and Cu 2p could be detected in that of the WAC-resin-MIs (Figure 7a(a2)). Meanwhile, the intensity and binding energy of the O 1s peak decreased due to the interaction between the oxygen atoms and metal ions. Further, in the FTIR spectrum of the WAC-resin-MIs (Figure 7b(b2)), the tensile vibration band of the C=O group shifted from 1697 to 1716 cm−1 and the C–O stretching vibrations shifted from 1195 to 1219 cm−1. At the same time, the peak band corresponding to the O–H stretching in the range of 3000–3600 cm−1 was broadened [39]. In summary, the changes observed above are led by the chemical coordination between the –COOH groups of the WAC-resin and metal ions [30].
Furthermore, to further demonstrate the adsorption mechanism, the high-resolution XPS of the O 1s region is presented in Figure 7c. The O 1s spectrum of the WAC-resin contained two components with the binding energies at 531.75 eV for C=O and 533.3 eV corresponding to the C–OH groups [26]. After the adsorption of the metal ions, the binding energy shifted to 531.58 and 532.86 eV, respectively, which was attributed to the high electronegativity of the oxygen atoms. In summary, based on the all change of these parameters of EDS, XPS and FTIR, the oxygen-containing bands of the carboxyl groups in the WAC-resin make the main contribution in interacting strongly with the lead and copper ions. Finally, in the Pb 4f and Cu 2p3/2 photoelectrons (Figure 7d), Pb2+ and Cu2+ ions adsorbed on the WAC-resin also were displayed. The conversion process from the PAC-resin into the WAC-resin and adsorption behavior of the metal ions on the WAC-resin is clearly depicted in Figure 7e.

4.6. Effect of Temperature and Time on Elution

The elution experiment was performed with the WAC-resin treated in the solution containing lead and copper ions as the elution object. The effect of time and temperature on the elution behavior of Pb(II) and Cu(II) is presented in Figure 8a,b, respectively, based on the optimal adsorption conditions (pH of 4, at room temperature and 7 h). It could be observed that the elution duration had a significant effect on the elution percentage of lead and copper and that both reach more than 90% when it is completely eluted after 1 h. With the increase of temperature, the elution percentage of lead and copper could maintain about 90%, indicating that the temperature had an insignificant effect on elution.

5. Conclusions

The extremely cheap and readily available waste-amidoxime chelating resin was characterized through various instrumental techniques, and we found that its reutilization performance in removing and recovering Pb2+ and Cu2+ from aqueous solutions at pH 4 and room temperature is effective. The theoretical analyses confirmed that a majority of the amidoxime groups of the pristine amidoxime chelating resin were destroyed and oxidized to the carboxyl groups. For the adsorption mechanism of metal ions onto the WAC-resin, the –COOH groups played a leading role in the chemical coordination with the Pb2+ and Cu2+ ions during adsorption. Finally, the adsorbed Pb2+ and Cu2+ ions could be eluted and recover by the hydrochloric acid solution. Therefore, this research can provide a research foundation and a direction for the WAC-resin treating real wastewater, extend the service life of commercial WAC-resin and recover the metal resources.

Author Contributions

Methodology, test analysis and writing—original draft preparation, C.Z.; review, editing, project administration and funding acquisition, C.H.; data curation and conceptualization, Y.Y.; supervision, T.F.; supervision, G.W.; investigation, W.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Natural Science Foundation of China, grant number 51804084, Science and Technology Major Project of Guangxi Province, grant number 17204100.

Data Availability Statement

The raw/processed data required to reproduce these findings cannot be shared at this time, as the data also form part of an ongoing study.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Regmi, P.; Moscoso, J.; Kumar, S.; Cao, X.; Mao, J.; Schafran, G. Removal of copper and cadmium from aqueous solution using switchgrass biochar produced via hydrothermal carbonization process. J. Environ. Manag. 2012, 109, 61–69. [Google Scholar] [CrossRef] [PubMed]
  2. Vukovic, S.; Watson, L.A.; Kang, S.O.; Custelcean, R.; Hay, B.P. How amidoximate binds the uranyl cation. Inorg. Chem. 2012, 51, 3855–3859. [Google Scholar] [CrossRef] [PubMed]
  3. Long, H.; Zhao, Z.; Chai, Y.; Li, X.; Hua, Z.; Xiao, Y.; Yang, Y. Binding mechanism of amidoxime functional group on chelating resins toward gallium(III) in Bayer liquor. Ind. Eng. Chem. Res. 2015, 54, 8025–8030. [Google Scholar] [CrossRef]
  4. Saeed, K.; Haider, S.; Oh, T.J.; Park, S.Y. Preparation of amidoxime-modified polyacrylonitrile (PAN-oxime) nanofibers and their applications to metal ions adsorption. J. Membr. Sci. 2008, 322, 400–405. [Google Scholar] [CrossRef]
  5. Nilchi, A.; Rafiee, R.; Babalou, A.A. Adsorption behavior of metal ions by amidoxime chelating resins. Macromol. Symp. 2010, 274, 101–108. [Google Scholar] [CrossRef]
  6. Shaaban, A.F.; Fadel, D.A.; Elkomy, M.A.; Elbahy, S.M. Synthesis of a new chelating resin bearing amidoxime group for adsorption of Cu(II), Ni(II) and Pb(II) by batch and fixed-bed column methods. J. Environ. Chem. Eng. 2014, 2, 632–641. [Google Scholar] [CrossRef]
  7. Egawa, H.; Nakayama, M.; Nonaka, T.; Yamamoto, H.; Uemura, K. Recovery of uranium from seawater V. Preparation and properties of the macroreticular chelating resins containing amidoxime and other functional groups. J. Appl. Polym. Sci. 2010, 34, 1557–1575. [Google Scholar] [CrossRef]
  8. Wen, S.W.; Sun, Y.; Liu, R.L.; Chen, L. Supramolecularly poly(amidoxime)-loaded macroporous resin for fast uranium recovery from seawater and uranium-containing wastewater. ACS Appl. Mater. Interfaces 2021, 13, 3246–3258. [Google Scholar] [CrossRef]
  9. Zhuo, Z.; Li, X.; Chai, Y.; Hua, Z. Adsorption performances and mechanisms of amidoxime resin toward gallium(III) and vanadium(V) from Bayer liquor. ACS Sustain. Chem. Eng. 2016, 4, 53–59. [Google Scholar] [CrossRef]
  10. Lu, F.; Xiao, T.; Jian, L.; Ning, Z.; Chen, H. Resources and extraction of gallium: A review. Hydrometallurgy 2017, 174, 105–115. [Google Scholar] [CrossRef]
  11. Feng, Y.S.; Mu, J.; Chen, S.H.; Huang, Z.Y.; Yu, Z.M. The influence of urea formaldehyde resins on pyrolysis characteristics and products of wood-based panels. BioResources 2012, 7, 4600–4613. [Google Scholar] [CrossRef] [Green Version]
  12. Zheng, Q.; He, C.L.; Meng, J.J.; Fujita, T.; Zheng, C.H.; Dai, W.; Wei, Y.Z. Behaviors of adsorption and elution on amidoxime resin for gallium, vanadium, and aluminium ions in alkaline aqueous solution. Solvent Extr. Ion Exc. 2020, 39, 373–398. [Google Scholar] [CrossRef]
  13. Gun’Ko, V.; Leboda, R.; Skubiszewska-ZięBa, J.; Charmas, B.; Oleszczuk, P. Carbon adsorbents from waste ion-exchange resins. Carbon 2005, 43, 1143–1150. [Google Scholar] [CrossRef]
  14. Teng, H.; Wang, S.C. Preparation of porous carbons from phenol–formaldehyde resins with chemical and physical activation. Carbon 2000, 38, 817–824. [Google Scholar] [CrossRef]
  15. Bratek, K.; Bratek, W.; Kułażyński, M. Carbon adsorbents from waste ion-exchange resin. Carbon 2002, 40, 2213–2220. [Google Scholar] [CrossRef]
  16. Chao, L.; Lu, J.D.; Li, A.; Hu, D.; Liu, F.; Zhang, Q. Adsorption of naphthalene onto the carbon adsorbent from waste ion exchange resin: Equilibrium and kinetic characteristics. J. Hazard. Mater. 2008, 150, 656–661. [Google Scholar] [CrossRef]
  17. Shi, Q.; Li, A.; Zhou, Q.; Shuang, C.; Li, Y.; Ma, Y. Utilization of waste cation exchange resin to prepare carbon/iron composites for the adsorption of contaminants in water. J. Ind. Eng. Chem. 2014, 20, 4256–4260. [Google Scholar] [CrossRef]
  18. Shi, Q.; Li, A.; Zhu, Z.; Liu, B. Adsorption of naphthalene onto a high-surface-area carbon from waste ion exchange resin. J. Environ. Sci. 2013, 25, 188–194. [Google Scholar] [CrossRef]
  19. Bratek, W.; Bratek, K.; Kułażyński, M. The utilization of waste ion exchange resin in environmental protection. Fuel Process. Technol. 2002, 77–78, 431–436. [Google Scholar] [CrossRef]
  20. Wei, M.; Yu, Q.; Mu, T.; Hou, L.; Zuo, Z.; Peng, J. Preparation and characterization of waste ion-exchange resin-based activated carbon for CO2 capture. Adsorption 2016, 22, 385–396. [Google Scholar] [CrossRef]
  21. Sun, Q.; Yang, L.-M.; Zhang, L.; Huang, S.-T.; Xu, Z. Extraction and separation of Fe(III) from heavy metal wastewater using P204 solvent impregnated resin. Rare Metals 2016, 37, 894–903. [Google Scholar] [CrossRef]
  22. Lin, W.; Yun, L.; Zeng, H. Extraction of gold from Au(III) ion containing solution by a reactive fiber. J. Appl. Polym. Sci. 1993, 49, 1635–1638. [Google Scholar] [CrossRef]
  23. Lin, W.; Fu, R.; Yun, L.; Zeng, H. Preparation of amidoxime group-containing chelating fibers and their gold absorption properties. II. A preliminary investigation of the absorption behavior of Au3+ onto chelating fibers containing amidoxime groups. React. Polym. 1994, 22, 1–8. [Google Scholar] [CrossRef]
  24. Fan, Q.H.; Tan, X.L.; Li, J.X.; Wang, X.K.; Wu, W.S.; Montavon, G. Sorption of Eu(III) on attapulgite studied by batch, XPS and EXAFS techniques. Environ. Sci. Technol. 2009, 43, 5776. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Santosa, S.J.; Sundari, S.; Sudiono, S.; Rahmanto, W.H. A New Type of Adsorbent Based on the Immobilization of Humic Acid on Chitin and Its Application to Adsorb Cu(II). e-J. Surf. Sci. Nanotechnol. 2006, 4, 46–52. [Google Scholar] [CrossRef] [Green Version]
  26. Melegy, A. Adsorption of lead (II) and zinc (II) from aqueous solution by bituminous coal. Geotech. Geol. Eng. 2010, 28, 549–558. [Google Scholar] [CrossRef]
  27. Salman, M.; Athar, M.; Farooq, U.; Rauf, S.; Habiba, U. A new approach to modification of an agro-based raw material for Pb(II) adsorption. Korean J. Chem. Eng. 2014, 31, 467–474. [Google Scholar] [CrossRef]
  28. Alam, M.S.; Gorman-Lewis, D.; Ning, C.; Flynn, S.L.; Yong, S.O.; Konhauser, K.O.; Alessi, D.S. Thermodynamic analysis of Nickel(II) and Zinc(II) adsorption to biochar. Environ. Sci. Technol. 2018, 52, 6246–6255. [Google Scholar] [CrossRef]
  29. Marchetti, V.; Clément, A.; Gérardin, P.; Loubinoux, B. Synthesis and use of esterified sawdusts bearing carboxyl group for removal of cadmium(II) from water. Wood Sci. Technol. 2000, 34, 167–173. [Google Scholar] [CrossRef]
  30. Vergili, I.; Gülzada, S.; Kaya, Y.; Özçelep, Z.; Çavuş, S.; Gülten, G.R. Study of the removal of Pb(II) using a weak acidic cation resin: Kinetics, thermodynamics, equilibrium, and breakthrough curves. Ind. Eng. Chem. Res. 2013, 52, 9227–9238. [Google Scholar] [CrossRef]
  31. Yoon, I.H.; Meng, X.; Chao, W.; Kim, K.W.; Bang, S.; Choe, E.; Lippincott, L. Perchlorate adsorption and desorption on activated carbon and anion exchange resin. J. Hazard. Mater. 2009, 164, 87–94. [Google Scholar] [CrossRef]
  32. Lao, C.; Zeledón, Z.; Gamisans, X.; Solé, M. Sorption of Cd(II) and Pb(II) from aqueous solutions by a low-rank coal (leonardite). Sep. Purif. Technol. 2005, 45, 79–85. [Google Scholar] [CrossRef]
  33. Jiao, Z.H.; Meng, Y.G.; He, C.L.; Yin, X.B.; Wang, X.P. One-pot synthesis of silicon-based zirconium phosphate for the enhanced adsorption of Sr (II) from the contaminated wastewater. Microporous Mesoporous Mater. 2021, 318, 111016. [Google Scholar] [CrossRef]
  34. Majumdar, S.S.; Das, S.K.; Chakravarty, R.; Saha, T.; Guha, A.K. A study on lead adsorption by Mucor rouxii biomass. Desalination 2010, 251, 96–102. [Google Scholar] [CrossRef]
  35. Elaigwu, S.E.; Rocher, V.; Kyriakou, G.; Greenway, G.M. Removal of Pb2+ and Cd2+ from aqueous solution using chars from pyrolysis and microwave-assisted hydrothermal carbonization of Prosopis africana shell. J. Ind. Eng. Chem. 2014, 20, 3467–3473. [Google Scholar] [CrossRef]
  36. Chi, F.T.; Hu, S.; Xiong, J.; Wang, X.L. Adsorption behavior of uranium on polyvinyl alcohol-g-amidoxime: Physicochemical properties, kinetic and thermodynamic aspects. Sci. China-Chem. 2013, 56, 1495–1503. [Google Scholar] [CrossRef]
  37. Lu, X.; He, S.N.; Zhang, D.X.; Reda, A.T.; Liu, C.; Feng, J.; Zhi, Y. Synthesis and characterization of amidoxime modified calix[8]arene for adsorption of U(VI) in low concentration uranium solutions. RSC Adv. 2016, 6, 101087–101097. [Google Scholar] [CrossRef]
  38. Meng, Q.; Liu, J.; Jiang, Y.; Teng, Q. Branched polyethyleneimine-functionalized polystyrene resin: Preparation and adsorption of Cu2+. J. Chem. Eng. Data 2019, 64, 2618–2626. [Google Scholar] [CrossRef]
  39. Kongsuwan, A.; Patnukao, P.; Pavasant, P. Binary component sorption of Cu(II) and Pb(II) with activated carbon from Eucalyptus camaldulensis Dehn bark. J. Ind. Eng. Chem. 2009, 15, 465–470. [Google Scholar] [CrossRef]
  40. Quek, S.Y.; Wase, D.; Forster, C.F. The use of sago waste for the sorption of lead and copper. Water SA 1998, 24, 251–256. [Google Scholar] [CrossRef]
  41. Deng, S.; Bai, R.; Chen, J.P. Aminated polyacrylonitrile fibers for lead and copper removal. Langmuir 2003, 19, 5058–5064. [Google Scholar] [CrossRef]
  42. Dupont, L.; Guillon, E.; Bouanda, J.; Dumonceau, J.; Aplincourt, M. EXAFS and XANES Studies of Retention of Copper and Lead by a Lignocellulosic Biomaterial. Environ. Sci. Technol. 2002, 36, 5062. [Google Scholar] [CrossRef] [PubMed]
  43. Faur-Brasquet, C.; Reddad, Z.; Kadirvelu, K.; Cloirec, P.L. Modeling the adsorption of metal ions (Cu2+, Ni2+, Pb2+) onto ACCs using surface complexation models. Appl. Surf. Sci. 2002, 196, 356–365. [Google Scholar] [CrossRef]
  44. Kenawy, I.M.; Hafez, M.; Ismail, M.A.; Hashem, M.A. Adsorption of Cu(II), Cd(II), Hg(II), Pb(II) and Zn(II) from aqueous single metal solutions by guanyl-modified cellulose. Int. J. Biol. Macromol. 2017, 107, 1538–1549. [Google Scholar] [CrossRef]
  45. Ramana, D.; Reddy, D.; Yu, J.S.; Seshaiah, K. Pigeon peas hulls waste as potential adsorbent for removal of Pb(II) and Ni(II) from water. Chem. Eng. J. 2012, 197, 24–33. [Google Scholar] [CrossRef]
  46. Chwastowski, J.; Staroń, P. Influence of Saccharomyces cerevisiae yeast cells immobilized on Cocos nucifera fibers for the adsorption of Pb(II) ions. Colloid Surf. A 2022, 632, 127735. [Google Scholar] [CrossRef]
  47. Li, X.; Li, B.H.; Wu, S.; Li, J.B.; Xu, Q.T.; Yang, Z.Q.; Liu, Y.Q.; Wang, S.H.; Chen, D.S. Silica-Based 2-aminomethylpyridine functionalized adsorbent for hydrometallurgical extraction of low-grade copper ore. Ind. Eng. Chem. Res. 2012, 51, 15224–15232. [Google Scholar] [CrossRef]
  48. Zhao, X.; Song, N.; Jia, Q.; Zhou, W. Studies on the sorption of cadmium(II), zinc(II), and copper(II) with PTFE selective resin containing primary amine N1923 and Cyanex923. Ind. Eng. Chem. Res. 2011, 50, 4625–4630. [Google Scholar] [CrossRef]
Metals 12 00149 g001 550

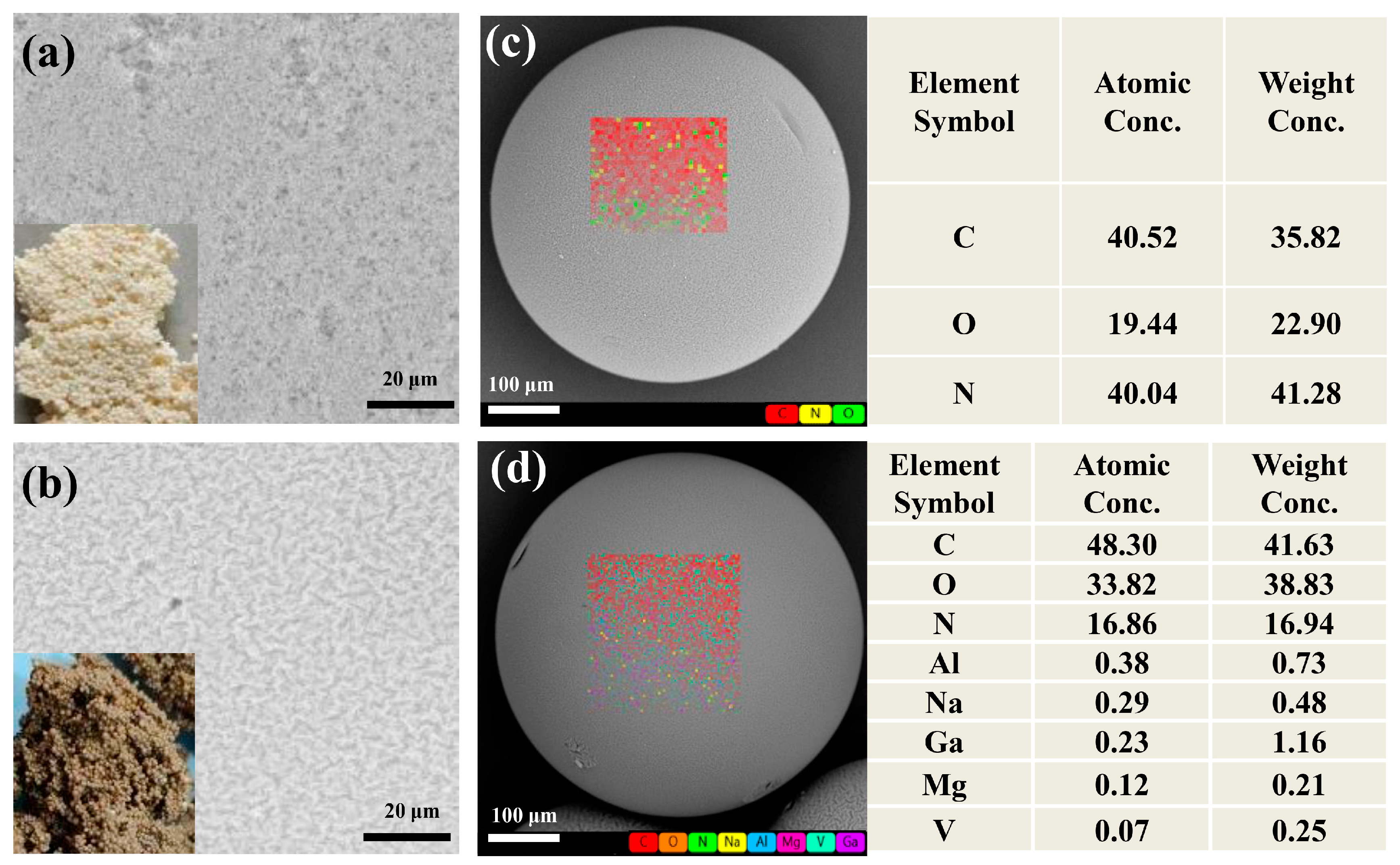

Figure 1. Pictures and SEM images of (a) PAC-resin and (b) WAC-resin; and EDS of (c) PAC-resin and (d) WAC-resin.
Figure 1. Pictures and SEM images of (a) PAC-resin and (b) WAC-resin; and EDS of (c) PAC-resin and (d) WAC-resin.
Metals 12 00149 g001
Metals 12 00149 g002 550
Figure 2. SEM image (a) and EDS result (b) of the WAC-resin-MIs.
Figure 2. SEM image (a) and EDS result (b) of the WAC-resin-MIs.
Metals 12 00149 g002
Metals 12 00149 g003 550

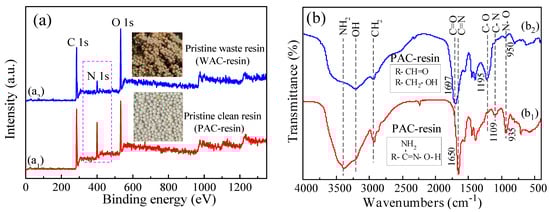

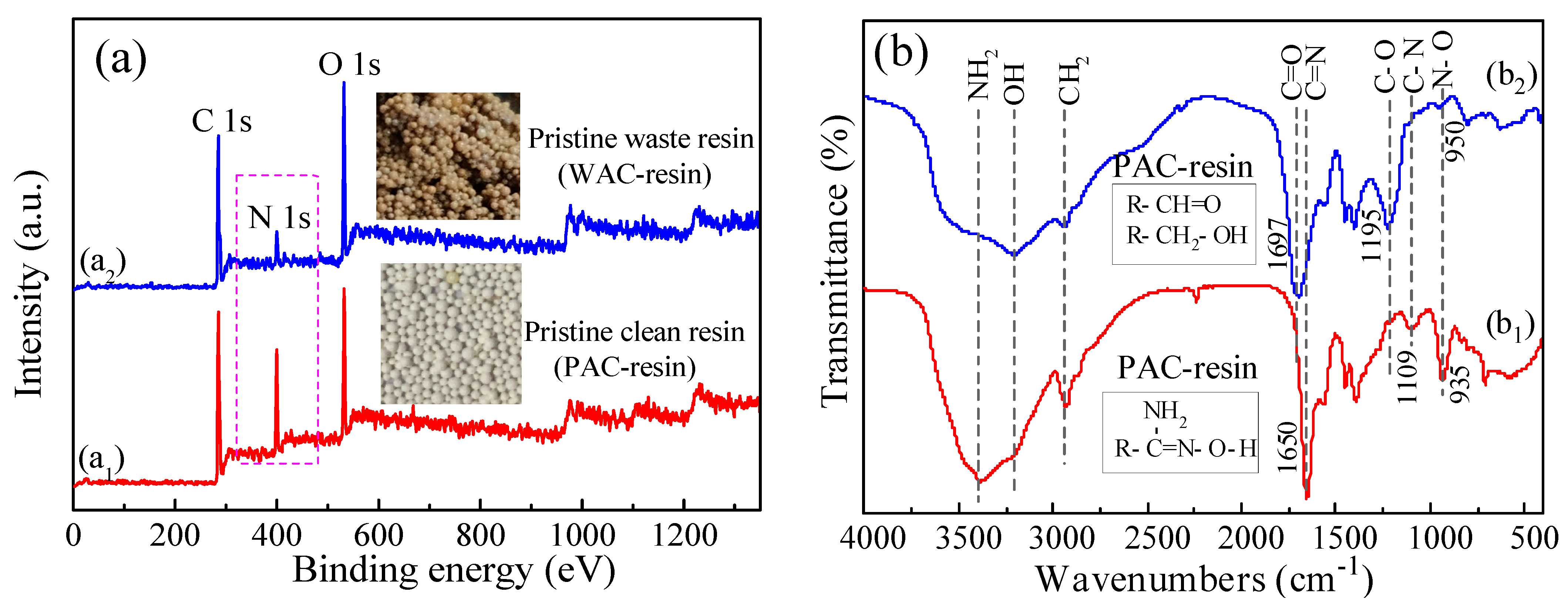

Figure 3. (a) XPS survey spectra and (b) FTIR spectra of the PAC-resin and WAC-resin.
Figure 3. (a) XPS survey spectra and (b) FTIR spectra of the PAC-resin and WAC-resin.
Metals 12 00149 g003
Metals 12 00149 g004 550

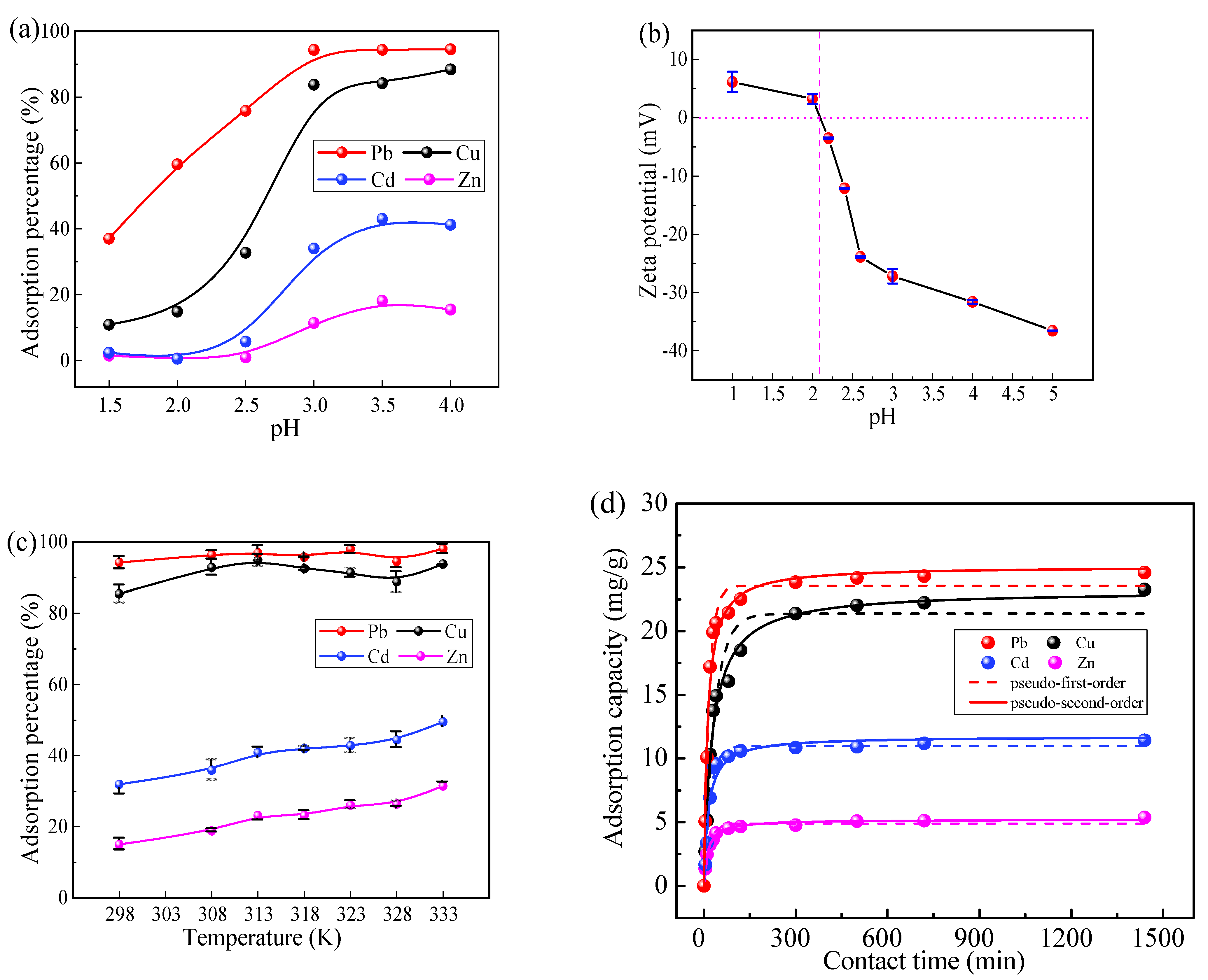

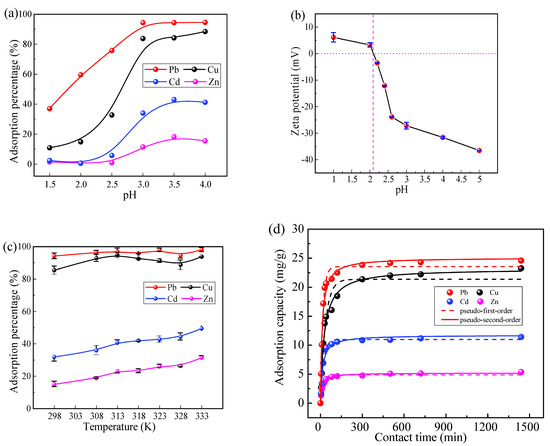

Figure 4. (a) Effect of pH on the adsorption percentage of Pb(II), Cu(II), Cd(II) and Zn(II) ions onto the WAC-resin; (b) zeta potential of the WAC-resin as the function of pH; (c) effect of temperature; and (d) effect of contact time (liquid–solid ratio: 250 mL/g, and initial concentration: 100 mg/L).
Figure 4. (a) Effect of pH on the adsorption percentage of Pb(II), Cu(II), Cd(II) and Zn(II) ions onto the WAC-resin; (b) zeta potential of the WAC-resin as the function of pH; (c) effect of temperature; and (d) effect of contact time (liquid–solid ratio: 250 mL/g, and initial concentration: 100 mg/L).
Metals 12 00149 g004
Metals 12 00149 g005 550

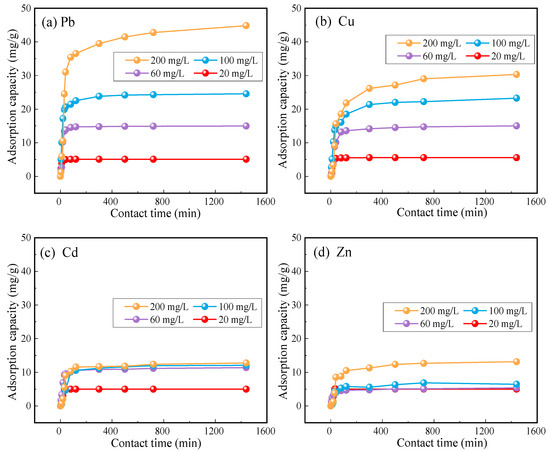

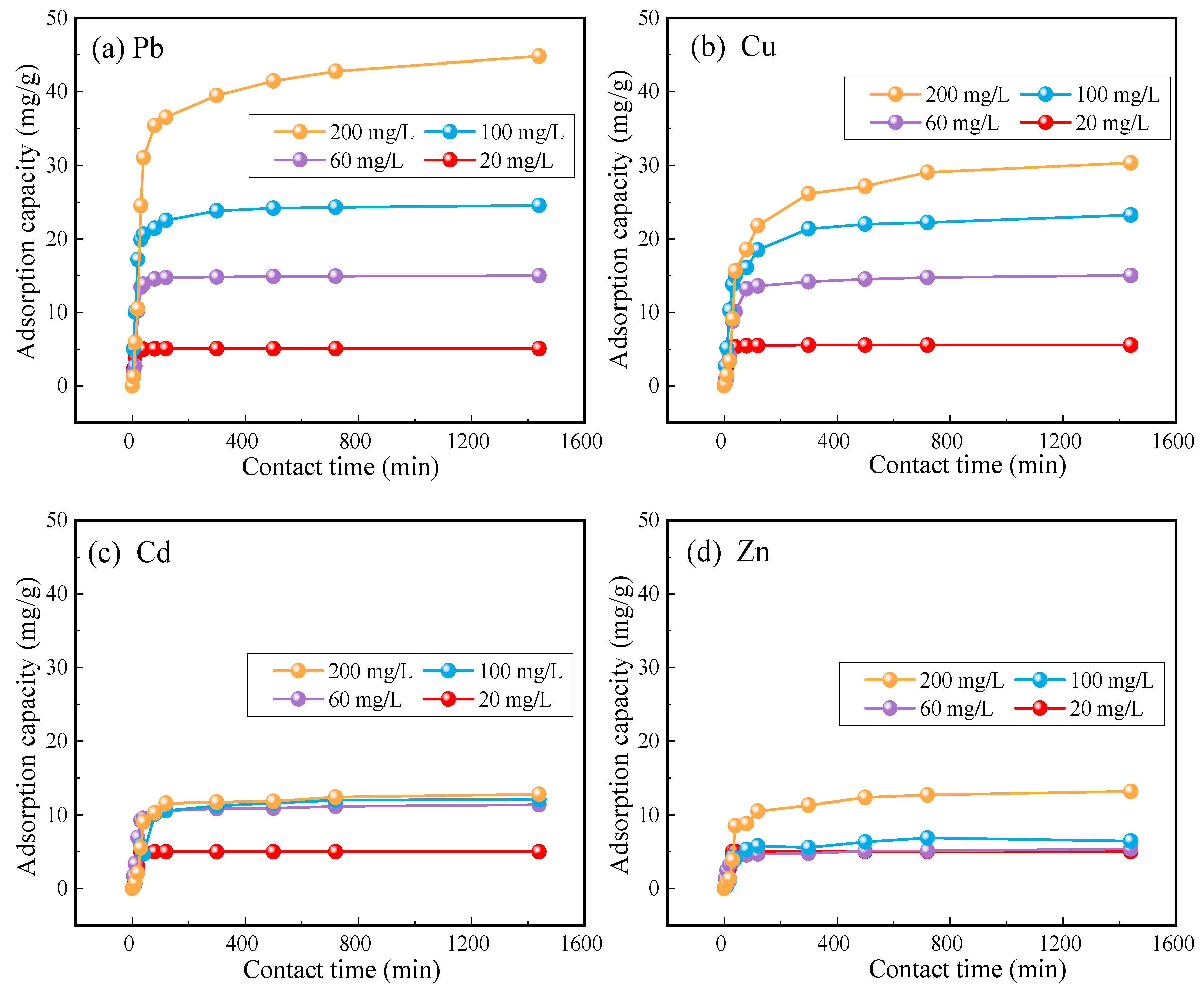

Figure 5. Effect of initial metal ions concentration on the adsorption capacity of (a) Pb(II), (b) Cu(II), (c) Cd(II) and (d) Zn(II) onto the WAC-resin (liquid–solid ratio = 250 mL/g, room temperature, pH = 4 and time = 12 h).
Figure 5. Effect of initial metal ions concentration on the adsorption capacity of (a) Pb(II), (b) Cu(II), (c) Cd(II) and (d) Zn(II) onto the WAC-resin (liquid–solid ratio = 250 mL/g, room temperature, pH = 4 and time = 12 h).
Metals 12 00149 g005
Metals 12 00149 g006 550

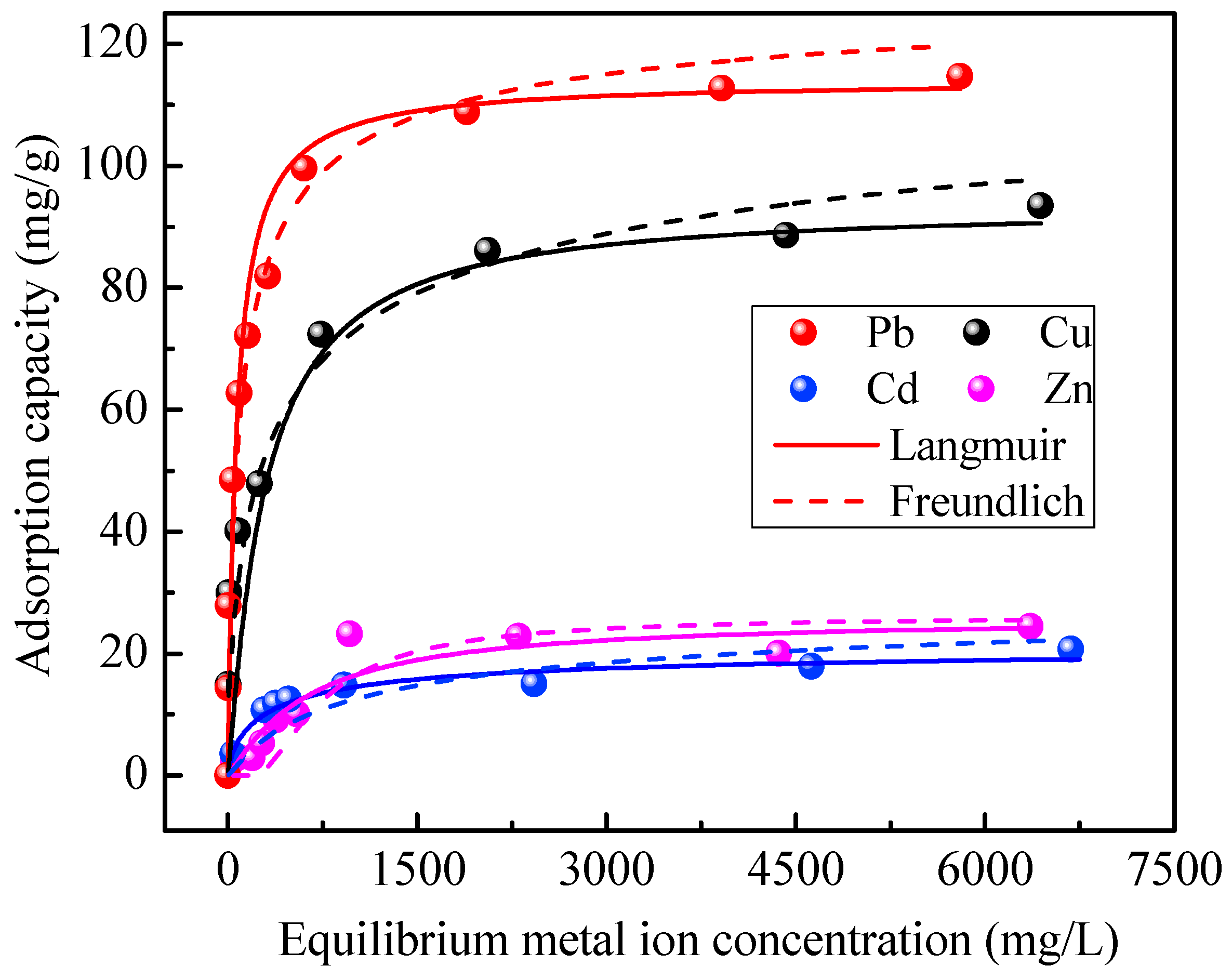

Figure 6. Adsorption isotherms of Pb(II), Cu(II), Cd(II) and Zn(II) onto the WAC-resin (liquid–solid ratio = 300 mL/g, time = 12 h, pH = 4 and room temperature).
Figure 6. Adsorption isotherms of Pb(II), Cu(II), Cd(II) and Zn(II) onto the WAC-resin (liquid–solid ratio = 300 mL/g, time = 12 h, pH = 4 and room temperature).
Metals 12 00149 g006
Metals 12 00149 g007a 550Metals 12 00149 g007b 550

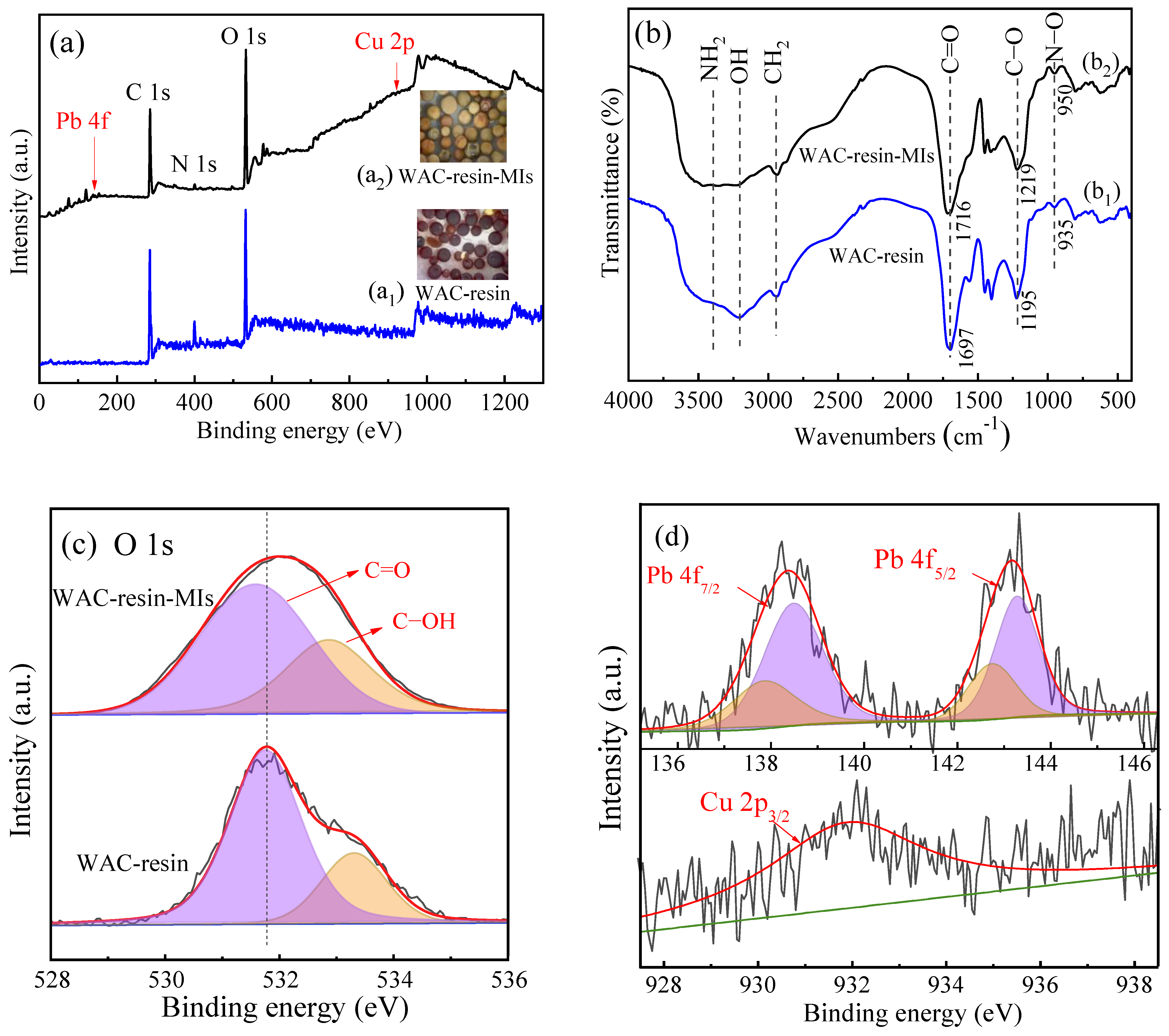

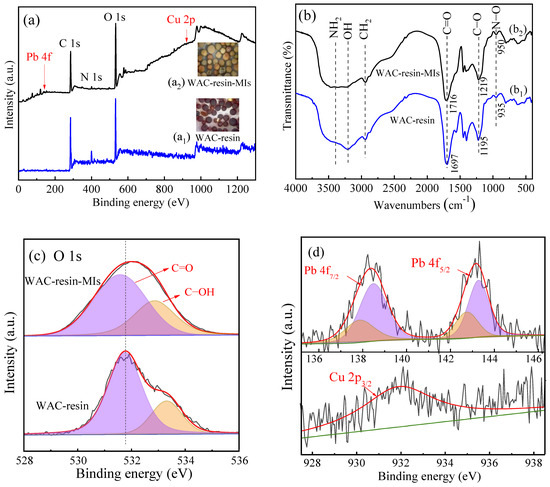

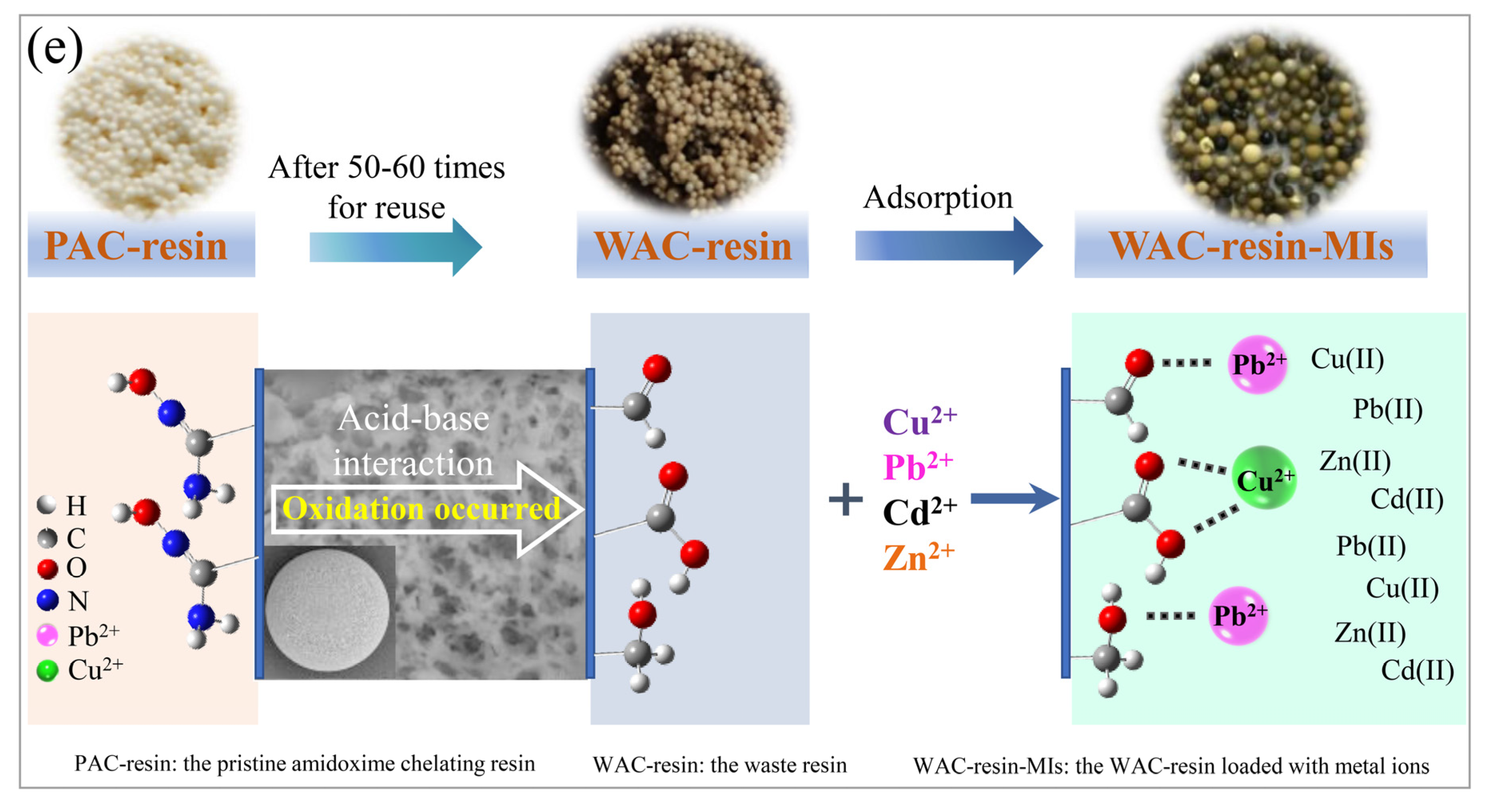

Figure 7. (a) XPS survey spectra and (b) FTIR spectra of the WAC-resin and WAC-resin-MIs; (c) the high-resolution XPS spectra of the O 1s region, (d) Pb 4f region and Cu 2p region; and (e) schematic diagram of the adsorption behavior of Pb(II) and Cu(II) onto the WAC-resin.
Figure 7. (a) XPS survey spectra and (b) FTIR spectra of the WAC-resin and WAC-resin-MIs; (c) the high-resolution XPS spectra of the O 1s region, (d) Pb 4f region and Cu 2p region; and (e) schematic diagram of the adsorption behavior of Pb(II) and Cu(II) onto the WAC-resin.
Metals 12 00149 g007aMetals 12 00149 g007b
Metals 12 00149 g008 550

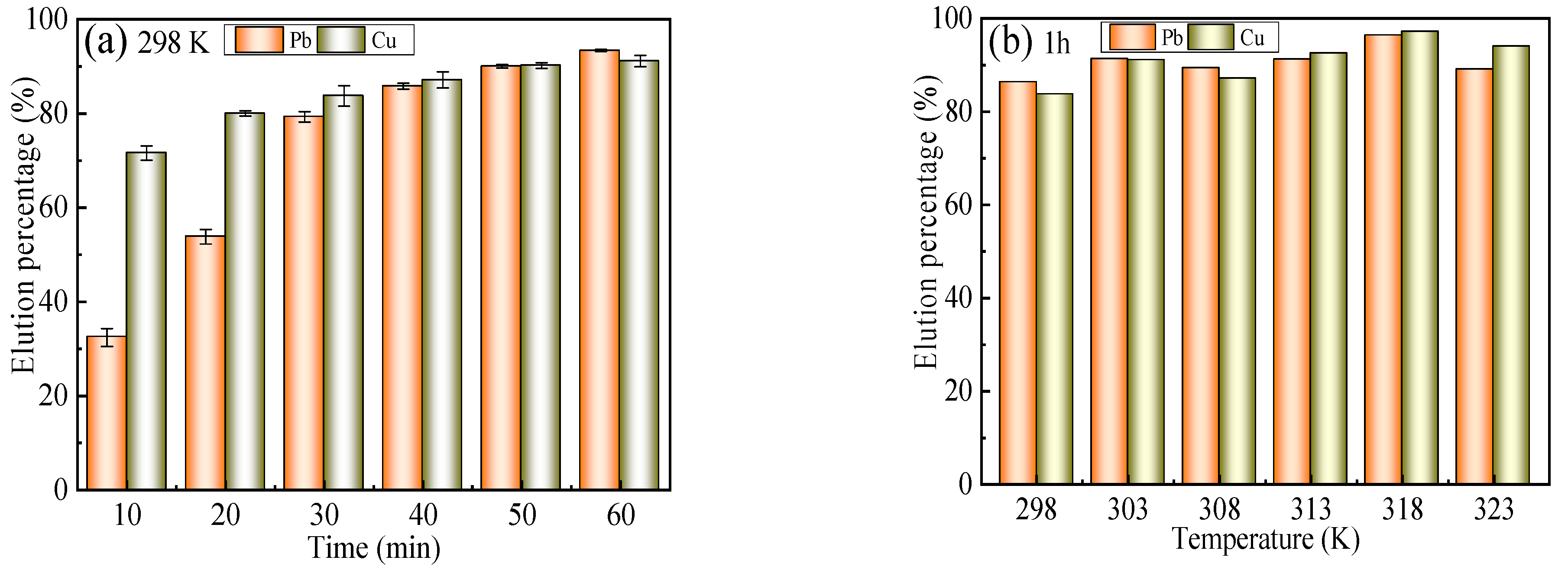

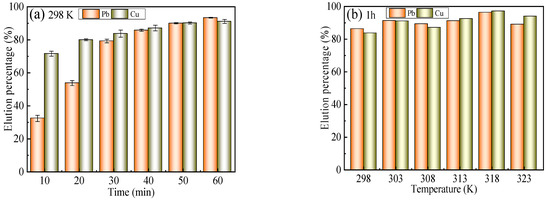

Figure 8. Variation of elution percentage of Pb(II) and Cu(II) with (a) time and (b) temperature (elution agent: 3% HCl, liquid–solid ratio: 50 mL/g, initial concentration: 100 mg/L).
Figure 8. Variation of elution percentage of Pb(II) and Cu(II) with (a) time and (b) temperature (elution agent: 3% HCl, liquid–solid ratio: 50 mL/g, initial concentration: 100 mg/L).
Metals 12 00149 g008
Table
Table 1. Elemental compositions of the PAC-resin and WAC-resin measured by element analyzer.
Table 1. Elemental compositions of the PAC-resin and WAC-resin measured by element analyzer.
ElementPAC-ResinWAC-Resin
Carbon (%)46.0746.04
Oxygen (%)57.8688.29
Nitrogen (%)23.968.240
Hydrogen (%)3.0475.373
Table
Table 2. C, N and O content and binding energies of the PAC-resin and WAC-resin measured by XPS (at%).
Table 2. C, N and O content and binding energies of the PAC-resin and WAC-resin measured by XPS (at%).
PAC-ResinWAC-Resin
Binding Energy (eV)at%Binding Energy (eV)at%
C 1s284.8057.05284.8841.4
N 1s399.6822.71399.8115.4
O 1s532.4120.24531.7942.4
Table
Table 3. Fitting parameters of the pseudo-first-order and pseudo-second-order kinetic models.
Table 3. Fitting parameters of the pseudo-first-order and pseudo-second-order kinetic models.
Metal IonspHT (K)Pseudo-First-Order Rate EquationPseudo-Second-Order Rate Equation
k1 (min−1)Qe (mg/g)R2k2 (g/mg/min)Qe (mg/g)R2
Pb(II)42980.00655.1810.98500.003424.760.9999
Cu(II)0.006311.860.96430.001323.640.9997
Cd(II)0.01972.8620.89930.00975.380.9993
Zn(II)0.01033.4800.99790.005311.510.9997
Table
Table 4. Detailed fitting parameters of the adsorption isotherms for the Langmuir and Freundlich models.
Table 4. Detailed fitting parameters of the adsorption isotherms for the Langmuir and Freundlich models.
Metal IonspHT (K)Langmuir Isotherm ModelFreundlich Isotherm Model
Qm (mg/g)KLR2KfnR2
Pb(II)4298115.47340.01380.999617.45074.06850.8988
Cu(II)93.80860.00730.998314.50944.45040.9591
Cd(II)20.63130.00270.98551.69073.37740.8668
Zn(II)26.55340.00130.95630.31601.89520.8670
Table
Table 5. Comparison of adsorption capacities of the WAC-resin and other adsorbents for Pb2+ and Cu2+.
Table 5. Comparison of adsorption capacities of the WAC-resin and other adsorbents for Pb2+ and Cu2+.
AdsorbentsAdsorption Capacities (mg/g)References
Pb2+Cu2+
Waste amidoxime chelating resin115.493.8This work
Sago waste109.712.7[40]
Aminated polyacrylonitrile fibers76.131.4[41]
Lignocellulosic biomaterial62.115.8[42]
Activated carbon30.411.1[43]
Guanyl-modified cellulose52.083.0[44]
Weak acidic cation resin58.1-[30]
Pigeon peas hulls20.8-[45]
Chars from Prosopis Africana shell45.3-[35]
Cocos nucifera fibers73.6-[46]
Biochar produced from switchgrass-31.9[1]
Silica-based adsorbent-44.5[47]
PTFE selective resin-39.8[48]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Zheng, C.; He, C.; Yang, Y.; Fujita, T.; Wang, G.; Yang, W. Characterization of Waste Amidoxime Chelating Resin and Its Reutilization Performance in Adsorption of Pb(II), Cu(II), Cd(II) and Zn(II) Ions. Metals 2022, 12, 149. https://doi.org/10.3390/met12010149

AMA Style

Zheng C, He C, Yang Y, Fujita T, Wang G, Yang W. Characterization of Waste Amidoxime Chelating Resin and Its Reutilization Performance in Adsorption of Pb(II), Cu(II), Cd(II) and Zn(II) Ions. Metals. 2022; 12(1):149. https://doi.org/10.3390/met12010149

Chicago/Turabian Style

Zheng, Chunhui, Chunlin He, Yingjie Yang, Toyohisa Fujita, Guifang Wang, and Wenchao Yang. 2022. "Characterization of Waste Amidoxime Chelating Resin and Its Reutilization Performance in Adsorption of Pb(II), Cu(II), Cd(II) and Zn(II) Ions" Metals 12, no. 1: 149. https://doi.org/10.3390/met12010149

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
