Thermodynamic Characterization and Equation of State for Solid and Liquid Lead

Abstract

A high-temperature equation of state (EoS) for the fcc phase of solid lead and liquid lead was developed herein using experimental data on thermodynamic properties, volumetric thermal expansion, compressibility, temperature-dependent bulk modulus, and sound velocity from ultrasonic measurements and melting curve. The whole totality of experimental data was optimized using the temperature-dependent Murnaghan EoS over a pressure range of 0–130 kbar. The temperature dependences of thermodynamic and thermophysical parameters were described herein using an expanded Einstein model. The resultant EoS describes well the whole set of available experimental data within measurement uncertainties of individual parameters.

1. Introduction

Thermodynamic and thermophysical properties of lead are a subject matter of numerous experimental and theoretical studies. The experimental data available involve measurements of enthalpy, heat capacity, and thermal expansion at normal pressure over a wide temperature range. For solid lead, the temperature effect on adiabatic bulk modulus and the pressure effect on its density have been explored. For liquid lead, numerous measurements of its density and sound velocity as a function of temperature have been carried out. Information on the phase diagram in the vicinity of high pressures and temperatures has also been made public. A variety of equations of state (EoS) have been suggested for different phase modifications of solid lead and describe their behaviors satisfactorily over a wide range of pressure- and temperature-related variations. However, a similar wide-range equation of state for liquid lead is lacking so far, which would predict liquid lead properties over a pressure range of practical importance, at least up to 100 kbar, when the temperature changes from the melting to the boiling point [1].

Apart from thermodynamic properties, only two parameters have been measured for liquid metals by now: the temperature dependence of volume (thermal expansion) and sound velocity from which adiabatic and isothermal bulk compression moduli can be estimated. Based on these data, it is impossible to build a strict equation of state, as the liquid phase compressibility is unknown. However, if the pressure dependence of melting temperature is used as additional data, there occurs one more limitation on the liquid phase properties because the chemical potentials of the solid and liquid phases are equal at the point of melting. In such a case, there appears a possibility to find the equation of state for liquid metals through the means of a simultaneous solution of the system of thermodynamic and thermophysical equations for solid and liquid phases at a time. To check this possibility, we chose lead whose properties have been studied in sufficient detail for both solid and liquid phases.

The present study aimed to perform complete thermodynamic and thermophysical characterization of the solid and liquid phases of lead, given the latest experimental data, and construct a wide-range equation of state for liquid lead using the findings. Since only properties of the face-centered cubic (fcc) structure of solid lead have been studied in sufficient detail to date, and only individual parameters have been measured for the hexagonal close-packed (hcp) and body-centered cubic (bcc) phases, the present study is confined to examining the fcc solid phase and molten lead.

2. Physicochemical Model

The thermodynamic parameters were optimized herein taking into account the recommendations reported [2], on the basis of the expanded Einstein model using multiple functions similar to those described in [3]. An analogous model was used to describe the thermal expansion of solid lead. As is shown [4], such a functional form with a different number of terms approximates well experimental data for a wide array of crystal materials.

2.1. Thermodynamic Functions

Different types of functions were employed to describe the thermodynamic properties of solid and liquid lead in the standard state because temperature-dependent variations in the heat capacity of these phases are dramatically different. For solid lead, a three-term Einstein equation was used with a correction power extra term in order to consider anharmonic effects. Thermodynamic functions of solid lead at zero pressure were adopted in the following form:

$$H_T-H_0={\displaystyle \sum _{i=1}^3\frac{Y_i{\theta }_i}{\exp \left({\theta }_i/T_i\right)-1}}+h{T}^m$$

(1)

$$C_P=\frac{d{H}_T}{dT}={\displaystyle \sum _{i=1}^3{\left(\frac{{\theta }_i}{T}\right)}^2\frac{Y_i\exp \left({\theta }_i/T\right)}{{\left[\exp \left({\theta }_i/T\right)-1\right]}^2}}+mh{T}^{m-1}$$

(2)

$$S=\Delta S_0+{\displaystyle \sum _{i=1}^3{Y}_i\left\{\frac{{\theta }_i}{T}\frac{\exp \left({\theta }_i/T\right)}{\exp \left({\theta }_i/T\right)-1}-\ln \left[\exp \left({\theta }_i/T\right)-1\right]\right\}}+\frac{m}{m-1}h{T}^{m-1}$$

(3)

where T is the temperature, Н is the enthalpy, C_P is the heat capacity, S is the entropy, Y_i, θ_i, A and m are the constants, and ΔS₀ is the integration constant.

The variation in the heat capacity of liquid lead with temperature has a complex nature. Starting from the melting point, the heat capacity declines, reaches its minimum, and then begins to rise slowly. Several equations have been proposed for the approximation of heat capacity. For instance, Sobolev et al. [5] suggested the following relationship over a temperature range of 600–2000 K:

$$C_P={\left(\frac{dH}{dT}\right)}_{P^{\circ }}=a+bT+c{T}^2+d{T}^{-2}$$

(4)

Arblaster [6] used a quadratic equation with a temperature range divided into two intervals from 600.612 to 1500 K and from 1500 to 2400 K as follows:

$$C_P=a-bT+c{T}^2$$

(5)

In the present study, the thermodynamic functions for liquid lead were adopted in the following form:

$$H_T-H_0=a{T}^2+b{T}^{1.5}+cT+d{T}^{0.5}+e$$

(6)

$$C_P={\left(\frac{dH}{dT}\right)}_P=2aT+1.5b{T}^{0.5}+c+0.5\frac{d}{T^{0.5}}$$

(7)

$$S=2aT+3b{T}^{0.5}+c\ln T-d{T}^{-0.5}+c_0$$

(8)

where a, b, c, d, e, and c₀ are the constants.

The molar Gibbs energy (chemical potential μ°) at standard pressure P° = 0.1 MPa is determined by the common relation:

$$G_m\equiv {\mu }^{\circ }=\left[H_T-H_0\right]-TS$$

(9)

2.2. Description of Molar Volume

The Tait equation was used to describe the pressure-dependent molar volume of solid and liquid lead [7,8]. This equation provides a good approximation of density data for solid and liquid substances at pressures of up to a few GPa [8]. Hansen [9] employed this equation to approximate densities of liquid metals (Pb, Hg, Sn, Bi) depending on melting points at temperatures of up to 923 K under comparatively low pressures, not above 3 kbar. Here, we adopted the following high-temperature form of the Tait equation [7,9]:

$$P=\frac{B_T}{n_0+1}\left\{\exp \left[\left(n_0+1\right)\left(1-\frac{V}{V_T}\right)\right]-1\right\}$$

(10)

where P is the pressure, V is the volume, V_T and В_T are the molar volume and isothermal bulk modulus at zero pressure and temperature T, respectively, and n₀ is the derivative of the bulk modulus with respect to pressure. The temperature effect on molar volume V was described via the temperature dependences V_T and B_T.

The isothermal bulk modulus for both solid and liquid lead was adopted as an inverse quadratic relationship similar to that in Dinsdale’s study [10].

$$B_T=\frac{B_0}{1+B_{1}T+B_2{T}^2}$$

(11)

where B₀ is the bulk modulus at P = 0, and T = 0.

The temperature-dependent molar volume of solid and liquid lead was described herein by different equations. To describe the thermal expansion of solid lead over a wide temperature range, a relationship similar to that for enthalpy was adopted [1]:

$$\ln \left(\frac{V_T^S}{V_0^S}\right)={\displaystyle \sum _{i=1}^3\frac{X_i{\mathrm{\Theta }}_i}{\exp \left({\mathrm{\Theta }}_i/T_i\right)-1}}+g{T}^k$$

(12)

where V_T^S is the molar volume at zero pressure and temperature T, V₀^S is the molar volume at P = 0 and T = 0, and X_i, Θ_i, g, and k are the constants.

The following equation was used for the molar volume of liquid lead:

$$V_T^L=\frac{V_0^L}{1+A_{1}T+A_2{T}^2+A_3{T}^3}$$

(13)

where V₀^L is the “hypothetical” molar volume of liquid lead at zero pressure and zero temperature; A₁, A₂, and A₃ are the constants.

The melting point of lead (T_m) was assumed equal to 600.612 ± 0.001 K in line with the recommendations [11] that rely on precision measurements of lead with a 99.9999% purity [12].

2.3. Melting Curve

The chemical potentials (molar Gibbs energy) of solid (μ^S) and liquid (μ^L) phases in the melting curve must be equal [13].

$${\mu }^S={\mu }^L$$

(14)

The relationship between the chemical potential of condensed substances and pressure is determined by the adopted equation of state via the following expression [13]:

$$\Delta \mu ={\displaystyle \underset{P^{\circ }}{\overset{P}{\int }}VdP}$$

(15)

This pressure correction can be estimated by integration of Equation (10). The melting point at each pressure is determined by a simultaneous solution of Equations (9), (14) and (15) for solid and liquid phases.

3. Selected Experimental Data

3.1. Thermodynamic Properties

The thermodynamic properties of lead were discussed in several reference books and review papers (

Table 1. Reference sources and review sources of data on heat capacity of solid and liquid lead (C_P, J·mol⁻¹·K⁻¹).

ΔT (K)	Solid		Liquid	Refs.
	CP (298.15)	CP (Tm)	CP (Tm)
298.15–1800	26.61	29.40	30.58	[14] (Robie, 1978)
100–3600	26.650	29.742	30.627	[15] (Glushko, 1982)
298–2000	26.652	29.414	30.627	[16] (Pankratz, 1984)
298.15–2019	26.835	29.410	30.671	[17] (Barin, 1995)
298–1800	26.65	29.74	30.63	[18] (Robie, 1995)
0–3000	26.836	29.414	30.627	[19] (Chase, 1998)
600.6–1500	–	–	30.62	[20] (Sobolev, 2007)
600.6–2000	–	–	30.7	[5] (Sobolev, 2008)
600.6–2000	–	–	30.621	[1] (Sobolev, 2010)
0.5–2400	26.492	30.062	30.817	[6] (Arblaster, 2012)

). Isobaric heat capacities (C_P) over a temperature range from 100 K to the melting point of lead reported in different literature sources are well consistent with each other and differ by less than 1%. The difference in other thermodynamic functions within this temperature range is considerably smaller. The most complete and detailed overview of the literature data on thermodynamic properties of solid lead was reported in Arblaster’s study [6] that was taken as a basis herein.

The data, presented in the reference books and review papers, on the heat capacity of liquid lead (Table 1) over a temperature range between the melting point and 1400 K are in relatively good agreement with each other. A considerable difference is, however, observed at higher temperatures, which is explained by the lack of sufficiently accurate experimental data at higher temperatures.

In Chase’s reference book [19], the heat capacity values for liquid lead were derived by graphical extrapolation of the data [21] to its boiling point. For the estimation of thermodynamic functions, Arblaster [6] used theoretical calculation results [22] based on which the 1500 K value was considered as the temperature of minimum heat capacity. The heat capacities reported in [6] at temperatures above 1500 K differ considerably from those reported in other studies and seem to be overestimated. For instance, the difference attains 12–16% at 2400 K, compared with the data reported in [15,19]. Here, we used Glushko’s data [15] to optimize the thermodynamic properties of liquid lead.

3.2. Thermodynamic Properties of Solid Lead

In constructing the equation of state for solid lead, the measured data on thermal expansion, isothermal compressibility, and adiabatic bulk modulus were employed. The isothermal bulk modulus included in the equation of state is estimated by the following common relation [1]:

$$B_T={\left(\frac{1}{B_S}+\frac{TV{\alpha }^2}{C_P}\right)}^{-1}$$

(16)

where B_S is the adiabatic bulk modulus, and α is the volumetric thermal expansion coefficient.

3.2.1. Molar Volume

As some studies report relative values of the sample length or volume rather than the absolute ones, a baseline value of the molar volume of lead at standard temperature should be found. Data on volumetric properties of lead at room temperature are listed in

Table 2. Lattice parameter (a), density and molar volume of lead with a face-centered cubic (fcc) lattice at room temperature.

a (Å)	ρ (g/cm3)	Vm (cm3/mol)	Refs.
4.9499	11.348	18.270	[24] (Owen, 1933)
4.9497	11.349	18.263	[25] (Lu, 1941)
4.9511	11.340	18.272	[26] (Klug, 1946)
4.95032	11.3448	18.2718	[27] (Straumanis, 1949)
4.9505	11.344	18.266	[28] (Swanson, 1953)
4.9509	11.341	18.270	[29] (Feder, 1958)
4.9508	11.342	18.269	[30] (Takahashi, 1969)
4.9505	11.342	18.268	[31] (Kramer, 1972)
4.9507	11.342	18.268	[32] (Vold, 1977)
4.9510	11.340	18.271	[33] (Mao, 1990)
4.9502	11.346	18.262	[34] (Vohra, 1990)
4.9503	11.345	18.271	[35] (Khairulin, 1992)
4.9510	11.34	18.272	[36] (Trunin, 2001)
4.9510	11.340	18.272	[37] (Bogoslovskaya, 2002)
4.9502	11.346	18.262	[38] (Lubarda, 2003)
4.9510	11.3400	18.272	[39] (Rothman, 2005)
4.9510	11.3400	18.272	[40] (Stankus, 2006)
4.9513	11.338	18.275	[41] (Strassle, 2014)
4.9507	11.341	18.269	Average

Note: The highlighted data are derived from the cited literature; the other data were obtained by recalculation.

. In the case in which volumetric properties of lead are represented by unit cell density or parameter in the original literature source, they were used to calculate the molar volume. For comparative purposes, the said parameters are quoted for all the literature sources. All data were reduced to the same temperature of 298.15 K and, if necessary, recalculated from kX units into Å in line with Arblaster’s study [23]. The average molar volume calculated from the data given in Table 2 was 18.269 ± 0.004 cm³/mol.

3.2.2. Thermal Expansion

The data on the thermal expansion of solid lead can be found in several reference books [42,43,44]. Here, we used the measured data from earlier studies [45,46,47,48,49,50,51] overviewed by Touloukian et al. [45] and from more recent studies [36,41], and these data were co-processed altogether. The measurement results reported [52] were disregarded because these are significantly distinct from those of the other authors, which is probably due to a low initial lead density of 11.2566 g/cm³ at 293 K (Table 2).

3.2.3. Isothermal Compressibility

The isothermal compressibility of solid lead was examined in a series of studies [33,34,41,42,53,54,55,56,57,58,59]. Bridgman measured the compressibility of solid lead at pressures ranging from 5 to 25 kg/cm² [54] and from 10 to 100 kg/cm² [53]. The compressibility data of lead at room temperature and pressures of up to 45 kbar and 100 kbar were reported by Vaidya et al. [56] and Gray [42], respectively. Some studies investigated the compressibility of lead at several temperatures: at 293 and 396 K (0–30 kbar) [55], and at 298 (0.3–87.4 kbar) and 80 K (0.6–89 kbar) [41]. A series of studies were concerned with examining phase transitions of solid lead under isothermal compression. Mao et al. [33,57] explored the phase transition of lead from the face-centered cubic (fcc) structure to the hexagonal close-packed (hcp) system at a pressure of 140 kbar and further to the body-centered cubic (bcc) arrangement at pressures above 1000 kbar. Vohra et al. [34] quantified compressibility and phase transitions of lead at pressures of up to 272 GPa. The experimental findings were processed separately for all of the three phases. Kuznetsov et al. [59] constructed a P,T phase diagram for lead using synchrotron XRD measurement data at pressures of up to 40 GPa and temperatures of up to 800 K in the vicinity involving the fcc-to-hcp phase transition. Liu et al. [60] theoretically investigated the phase transitions of lead at high pressure using the first-principles, pseudopotential total-energy method.

3.2.4. Adiabatic Bulk Modulus

The adiabatic bulk modulus of solid lead was estimated herein from the measurements reported in the studies [32,61,62] in which elastic moduli of lead were quantified at temperatures ranging from 300 to 600 K [32], from 3.2 to 300 K [61], and at 195 and 296 K [62].

3.3. Liquid Lead

There are no directly measured data on isothermal compressibility and bulk modulus of liquid lead in the literature. Therefore, the measurement results of thermal expansion and sound velocity were used herein. The adiabatic bulk modulus was estimated by the following equation [1]:

$$B_S\equiv -V{\left(\frac{dP}{dV}\right)}_S=\rho u_S^2$$

(17)

where ρ is the density and u_S is the sound velocity. The isothermal bulk modulus as part of the equation of state was calculated by Equation (16).

3.3.1. Thermal Expansion

There exist a vast number of studies (more than 45) on measuring the temperature-dependent density of liquid lead. Some of those were analyzed in the review papers [1,63,64] and are not presented herein. In all of the reviews, the temperature-dependent density of liquid lead was approximated by linear function as follows:

• $\rho$ = 11,420 − 1.242·T [63];
• $\rho$ = 11,441 − 1.2795·T [1];
• $\rho$ = 11,400 − 1.239·T [64].

However, most of the studies were left out of account in the aforesaid reviews and hence disregarded in constructing the approximate relationships. The disregarded studies are listed in

Table 3. Supplementary experimental data on density of liquid lead.

ΔT (K)	Purity (%)	Form a	Δρ b	Refs.
623.15–923.15	–	T	–	[65] (Flinn, 1971)
657.15–824.15	99.999	E	~0.5	[66] (Schwaneke, 1978)
600–1100	99.999	P, E	±0.5	[67] (Saar, 1987)
615; 1160	–	D	–	[68] (Mentz-Stern, 1989)
616.15–1286.15	99.9	T	±0.1	[69] (Hansen, 1989)
613.15–1213.15	–	P, E	0.5	[70] (Tsuchiya, 1990)
616.15–1286.15	99.9	T, E	±0.1	[71] (Hansen, 1990)
600.7–1600	99.992	T	0.3–0.5	[35] (Khairulin, 1992)
604–1044	99.99	P, E	0.05	[72] (Wang, 2003)
623.1–773.1	99.9985	T, E	0.2	[73] (Alchagirov, 2003)
604.7–745.5	99.99	T, E	0.1	[74] (Alchagirov, 2003)
604.4–1702.6	99.99	T, E	0.4	[52] (Stankus, 2004)
573–773	–	E	0.1	[75] (Kurshev, 2005)
600.1–1500	99.9985	T, E	0.2–0.3	[76] (Stankus, 2007)
600.55–773.15	99.998	T, E	0.2	[77] (Alchagirov, 2007)
600.7–1100	99.99	E	0.3–0.5	[78] (Khairulin, 2008)
600.6–1173	99.999	P, E	0.1	[79] (Kanchukoev, 2009)
604–1703	99.9996	E	0.2	[80] (Popel, 2011)
874–1274	99.9985	T, E, P	0.76	[81] (Shevchenko, 2011)
874–1274	99.9985	T, E, P	0.760	[82] (Chentsov, 2012)
600.6–1100	99.9999	E, P	1	[83] (Kashezhev, 2012)
601–1100	99.99	E	0.3	[84] (Khairulin, 2013)
600.6–1100	–	E	–	[85] (Kambolov, 2014)

^a Form of data: D—individual measurements; E—equation; P—plot; T—table. ^b Reported error (%).

.

For the calculation of thermal expansion of liquid lead, the present study used experimental data from primary sources outlined in review papers [1,20,63,64], and these were supplemented with measurement results from studies listed in Table 3 and from Hansen’s study [9]. Hansen [9] performed volumetric measurements of liquid lead over a temperature range of 669–921 K at elevated pressures of up to 3 kbar, with an error of ±0.2%.

3.3.2. Sound Velocity

There is a considerable number of studies on measuring the sound velocity in liquid lead particles. Most of the studies were discussed in review papers [1,20,63,86]. For simultaneous processing, we used data from studies outlined in the aforementioned reviews, supplemented with measurement results from the other reports [65,70,81,87,88,89,90]. All the measurements of the sound velocity in liquid lead samples were performed at temperatures of at most ~1400 K. Hixson et al. [91] measured the density-dependent sound velocity in solid and liquid lead samples at a pressure of 0.13 kbar. As an optical pyrometer was not available, the samples’ temperatures were not measured; instead, temperatures were calculated through approximation of the data reported [92]. Therefore, the data from the study in [92] were not employed for optimization.

3.4. Melting Curve

The fcc−hcp phase transition pressure for the solid phase of lead at room temperature is 134 ± 6 kbar, as recommended in [93]. Given the data reported in the study by Kuznetsov et al. [59], who investigated the phase diagram of lead at pressures below 400 kbar and temperatures below 800 K, the pressure of the fcc−hcp−liquid triple point was assumed to be equal to 130 kbar. Therefore, it is this pressure to which all the parameters of the fcc phase of solid lead were optimized.

The melting curve of lead has experimentally been examined at pressures of up to 5 kbar [94], 14 kbar [95], 60 kbar [96,97], 79 kbar [98], 120 kbar [99], and 800 kbar [100]. McDaniel et al. [94] and Dewaele et al. [100] approximated the measured data via Simons’ equation. The melting curve of lead has also been studied theoretically at pressures below 1000 kbar [101,102].

4. Calculation Procedure

The error function representing a weighted root-mean-squared deviation was adopted as an optimization criterion as follows:

$$R=\sqrt{\frac{1}{N}\left[{\displaystyle \sum _{i=1}^N{w}_D^2{\left(\frac{D_i^c-D_i^m}{D_i^m}\right)}^2}\right]}$$

where N is the total number of experimental points; D_i is the values of different parameters (enthalpy, heat capacity, molar volume, etc.); w_i is the weighting coefficients of these parameters. Superscripts c and m denote the calculated and measured properties, respectively. The weighting coefficients were evaluated based on relative errors in the measurement of different parameters.

The function was minimized via the Nelder–Mead simplex method for multidimensional minimization [103].

5. Results

The parameters obtained by optimization for the fcc phase of solid lead are listed in

Table 4. Summation of optimized parameters of EoS for the fcc phase of solid lead.

Equation, Parameter		Value
Thermodynamic functions (1)–(3)	Υ1	0.612185
	Υ2	16.0473
	Υ3	9.08323
	θ1, K	17.6535
	θ2, K	50.0926
	θ3, K	119.641
	ΔS0, J·mol−1·K−1	0.035200
	h, K–m	4.85078 × 10−7
	m	3.31693
Equation of state (10)	n0	5.25202
Bulk modulus (11)	B0, kbar	489.03
	B1, K	3.8676 × 10−4
	B2, K	6.3173 × 10−7
Thermal expansion (12)	V0S, cm3/mol	17.8754
	X1	6.3894 × 10−5
	X2	2.1486 × 10−5
	X3	1.1473 × 10−4
	Θ1, K	71.1214
	Θ2, K	1949.26
	Θ3, K	4117.35
	g, K–k	2.0082 × 10−6
	k	1.36326

.

Table 5. Summation of optimized parameters of EoS for liquid lead.

Equation, Parameter		Value
Thermodynamic functions (6)–(9)	a, J·mol−1·K−2	6.23666 × 10−3
	b, J·mol−1·K−1.5	−0.751793
	c, J·mol−1·K−1	58.1052
	d, J·mol−1·K−0.5	−354.600
	e, J·mol−1	2843.67
	c0, J·mol−1·K−1	245.951
Equation of state (10)	n0	5.59745
Bulk modulus (11)	B0, kbar	451.01
	B1, K	5.8382 × 10−4
	B2, K	4.1329 × 10−7
Thermal expansion (13)	V0L, cm3/mol	18.2152
	A1, K−1	−1.0094 × 10−4
	A2, K−2	−4.6828 × 10−9
	A3, K−3	5.6664 × 10−13

shows parameters for liquid lead. At the melting temperature, the calculated isothermal bulk moduli for solid and liquid lead are 335.03 kbar and 300.77 kbar, respectively. The lower bulk moduli value for liquid lead evinces its high compressibility, as one should expect.

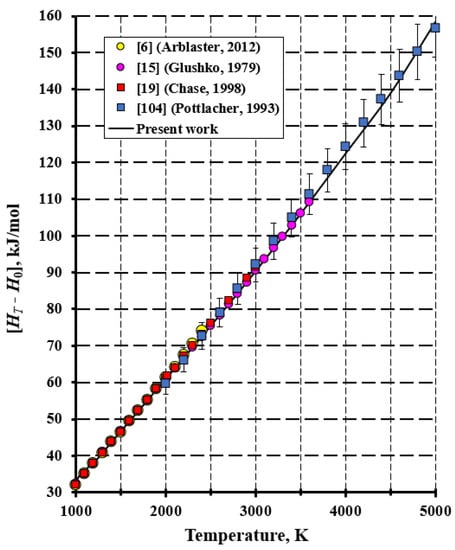

Comparisons between the calculated and measured data are given in Figure 1, Figure 2, Figure 3, Figure 4, Figure 5, Figure 6, Figure 7, Figure 8, Figure 9 and Figure 10.

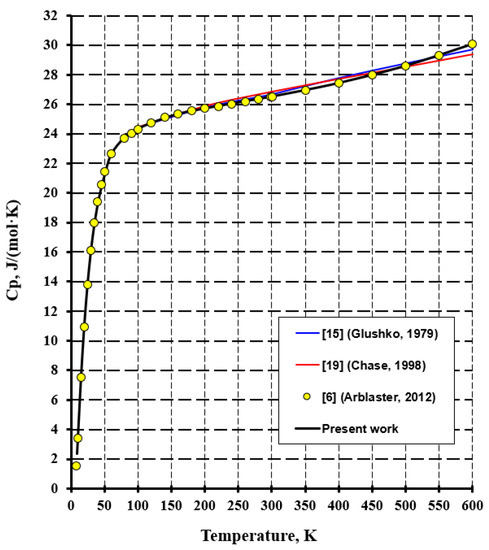

Figure 1 displays a calculated heat capacity of the fcc phase of lead when compared with the data from other sources. For solid lead, the relationship derived herein provides a good approximation of the data from the study [6] and is close to the reference data [15,19]. The enthalpy of liquid lead plotted against temperature, as depicted in Figure 2, also reproduces well the data from the studies [6,15,19]. It should be noted that the resultant relationship is on a par with the enthalpy measurement results obtained by the resistive pulse-heating technique over a temperature range of 2000–5000 K [104].

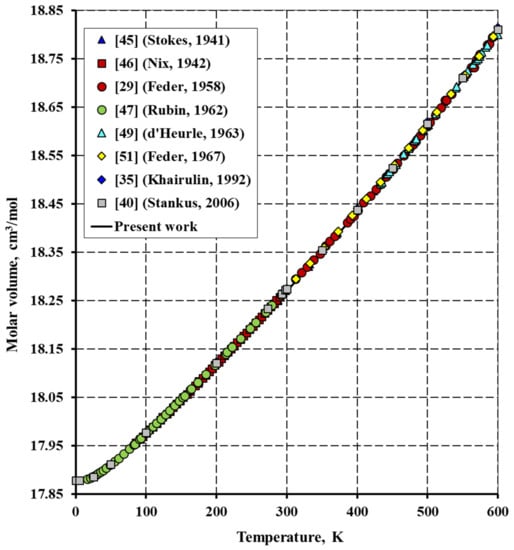

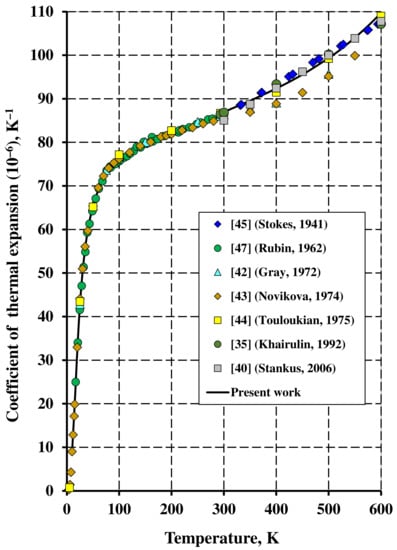

The molar volume and volumetric thermal expansion coefficient (VTEC) of solid lead plotted against temperature are illustrated in Figure 3 and Figure 4. The total number of experimental points was 290 for molar volume and 69 for VTEC. For the molar volume, the mean absolute deviation of calculation from the experiment was 0.0017 cm³/mol, the mean relative deviation was 0.009%, and the root-mean-square deviation (RMS) was 0.012%. The calculated molar volume of lead at 298.15 K was 18.2670 cm³/mol, which is in good agreement with the baseline value (Table 2). The deviations were significantly higher for VTEC, which is due to greater errors in this measure: the mean relative deviation increased two orders of magnitude to 0.92%.

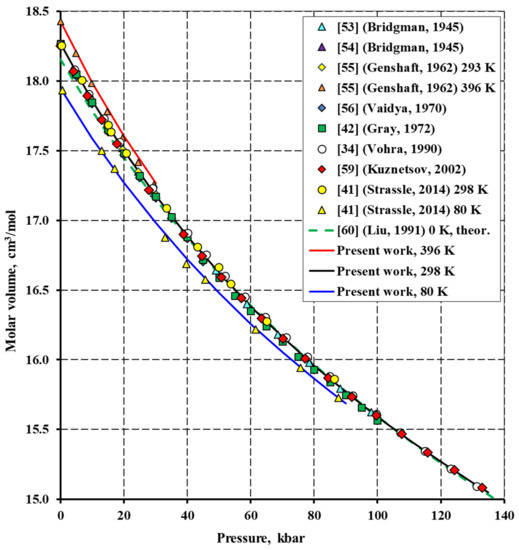

Figure 5 displays the molar volume of fcc−Pb plotted against pressure at temperatures of 80, 298, and 396 K. The root-mean-square deviation of the calculated and measured data were 0.14% (80 K), 0.10% (298 K), and 0.14% (396 K).

Table 6. Parameters of EoS for the fcc phase of lead.

V0 *1 (cm3/mol)	B0 (kbar)	n0	EoS *2	Refs.
18.256	399.82	6.76	Mur	[56] (Vaidya, 1970)
–	431	4.6 ± 0.3	Mur	[57] (Mao, 1977-1978)
18.271	399	6.13 (10)	Vinet	[33] (Mao, 1990)
18.263	432.0	4.87	BM3	[34] (Vohra, 1990)
18.156	462	4.6	BM3	[60] (Liu, 1991)
18.265	420	6.1	H11	[58] (Schulte, 1995)
	480	4 ± 1	H12
18.251	405	5.74	BM3	[59] (Kuznetsov, 2002)
18.2748	410.1	5.72	BM3	[41] (Strassle, 2014)
	412.5	5.72	Vinet
	411.3	5.72	HoAp1
18.2670	417.5	5.25	Tait	Present work

*¹ at 298 K; *² Mur: Murnaghan EoS; Vinet: Rydberg–Vinet EoS; BM3: third-order Birch–Murnaghan EoS; H11, H12, HoAp1: modifications of Holzapfel EoS.

compares the EoS parameters obtained herein with the literature data.

The differences in bulk compression moduli and their derivatives with respect to pressure for different EoS listed in Table 6 are explained by the conceptually different forms of the equations used, as well as by experimental error (scatter in the data), quantity, and range of the processed data. The greater the data quantity and accuracy, and the wider the pressure range, the more precise the approximation formula for EoS. For instance, a study [56] performed measurements up to 45 kbar, while another study [33] performed measurements ranging from 44.2 to 139 kbar. In the study by [41], measurements and calculations were performed over a range from 0.3 to 87.4 kbar, and the calculated error of the bulk modulus was estimated to be ±20 kbar. In this case, different bulk modulus values were obtained even when the same data were treated by different EoS. For instance, in the study [58], the data approximation by different EoS resulted in bulk modulus values that differed by 14%, while the bulk modulus derivative differed by 50%. Therefore, it is more likely that the EoS derived in the present study allows the compressibility of the fcc phase to be described more precisely over a wider pressure range.

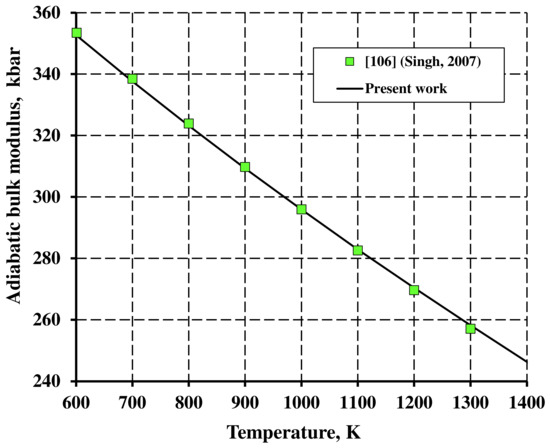

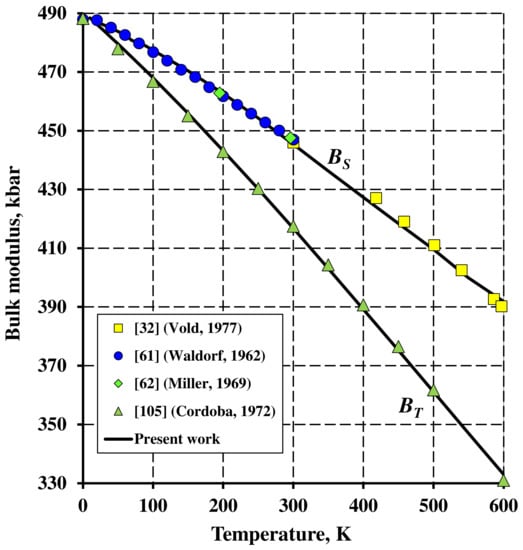

Figure 6 illustrates the bulk compression modulus of solid lead plotted against temperature. The dependence obtained in the present study reproduces well the experimental data and is consistent with the isothermal bulk modulus reported [105].

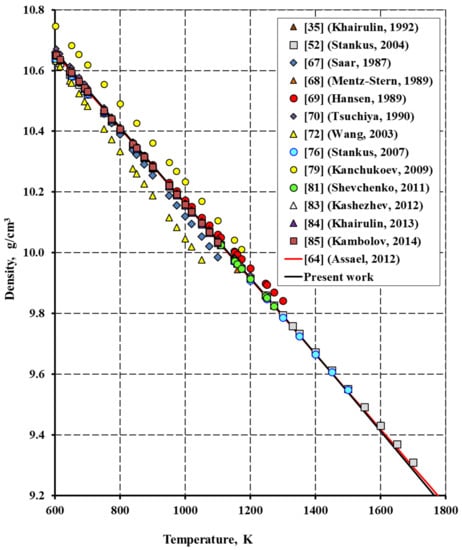

Figure 7 shows the temperature-dependent density of liquid lead when compared with the experimental data from the studies listed in Table 3. It should be noted that the dependence derived herein by optimization of the measured data from 46 studies over a temperature range between lead melting point and 1600 K almost coincides with that recommended by Assael et al. [64]. The calculated density of liquid lead at its melting point is 10.655 g/cm³ (the present work), and 10.656 g/cm³ as reported [64]. The densities at 1600 K are 9.412 and 9.418 g/cm³, respectively.

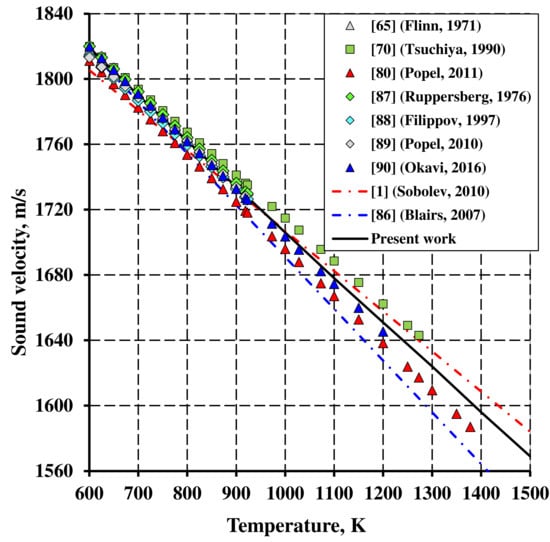

The temperature dependence of the sound velocity in liquid lead obtained herein by optimization of the measured data from 31 studies somewhat differed from the resulting equations adduced in the review papers by [1,86] (Figure 8). It should, however, be noted that the calculated temperature-dependent adiabatic bulk modulus of liquid lead depicted in Figure 9 almost matches the data reported in [106].

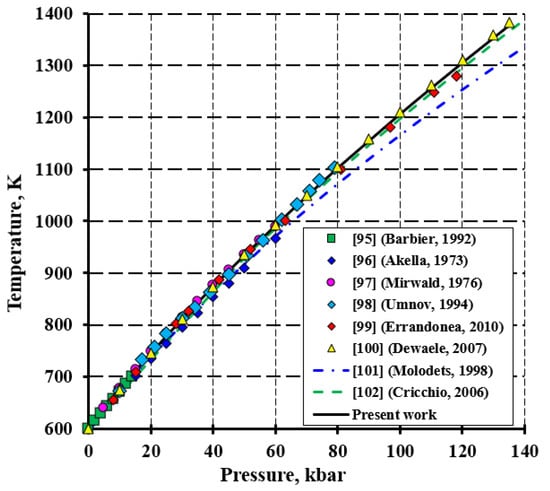

Figure 10 displays the melting point of lead plotted against pressures of up to 140 kbar when compared with the experimental and calculated data. The calculated melting curve reproduces well the measured data and differs negligibly from the reported one [102].

6. Conclusions

The findings presented in this study demonstrate that the model used herein can describe the experimental data available for the fcc phase of solid lead and molten lead over a wide range of pressures and temperatures within experimental uncertainty. Nevertheless, all thermodynamic and thermophysical parameters of solid and liquid lead are mutually agreeable over a pressure range of up to 130 kbar and a temperature range of up to 1400 K, which is due to the melting curve included in the simultaneous co-optimization. The constructed wide-range EoS for liquid lead can be used as the basis for estimation and refinement of properties of the other solid lead phases.
