Next Article in Journal
Role of Al in the Solution Strengthening of Mg–Al Binary Alloys
Previous Article in Journal
Influence of Dwell Time and Pressure on SPS Process with Titanium Aluminides


Search for Articles:
Title / Keyword
Author / Affiliation / Email
Journal
Article Type


Advanced Search

Section
Special Issue
Volume
Issue
Number
Page

Journals
Metals
Volume 12
Issue 1
10.3390/met12010085
metals-logo
Submit to this Journal Review for this Journal Propose a Special Issue
► Article Menu

Article Menu

share Share announcement Help format_quote Cite question_answer Discuss in SciProfiles thumb_up
...
Endorse textsms
...
Comment
first_page
settings
Order Article Reprints
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Review

Designing Advanced Biomedical Biodegradable Mg Alloys: A Review

by
Murtatha M. Jamel
1,*,
Mostafa M. Jamel
2 and
Hugo F. Lopez
1
1
Department of Materials Science and Engineering, University of Wisconsin-Milwaukee, Milwaukee, WI 53211, USA
2
Independent Researcher, Chicago, IL 60607, USA
*
Author to whom correspondence should be addressed.
Metals 2022, 12(1), 85; https://doi.org/10.3390/met12010085
Submission received: 10 October 2021 / Revised: 12 December 2021 / Accepted: 17 December 2021 / Published: 4 January 2022
Browse Figures
Versions Notes

Abstract

:
The increased demand for alloys that can serve as implantation devices with outstanding bio-properties has led to the development of numerous biomedical Mg-based alloys. These alloys have been extensively investigated for their performance in living tissue with mixed results. Hence, there are still major concerns regarding the use of magnesium alloys for such applications. Among the issues raised are elevated corrosion rates, hydrogen generation, and the maintenance of mechanical integrity for designated healing times. In addition, toxicity can arise from the addition of alloying elements that are intended to improve the mechanical integrity and corrosion resistance of Mg alloys. The current work reviews the recent advances in the development of Mg alloys for applications as bio-absorbable materials in living organic environments. In particular, it attempts to develop a roadmap of effective factors that can be utilized when designing Mg alloys. Among the factors reviewed are the effects of alloying additions and processing methods on the exhibited mechanical properties and corrosion rates in simulated bio-fluids used in biomedical applications.

1. Introduction

It is known that magnesium (Mg) exhibits good biocompatibility in the human body with high allowable daily dosages (240–420 mg/day) and no systemic toxicity or infection effects. Additionally, the density of Mg and its alloys (1.73–1.85 g/cm3) is close to that of the cortical bone (1.75 g/cm3). Moreover, the Mg elastic modulus (41–45 GPa) is closer to natural bone (3–20 GPa) when compared with other metals, such as tin. Tin has a Young modulus of approximately 49.9 GPa; however, because of its toxicity and high density, it cannot be used as a biomaterial. Other metals, such as titanium alloys (TiAl6V4), with an elastic modulus of around 110 GPa and a density of around 4.5 g/cm3, are used as biomaterials. However, the larger difference in Young modulus and the resulting difference in stiffness deteriorate the problem of stress shielding and bone resorption. Comparatively speaking, using Mg reduces bone stress shielding within the human body [1,2]. Other approaches have been used to address this challenge, such as the use of different biocompatible materials, and a combination of metals has also been considered for applications in this field [3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26]. Nonetheless, using Mg and its alloys remains the easiest approach.
It was reported that Mg possesses an elastic modulus comparable to other metallic materials but with a lower density, and, hence, it has the highest specific strength [27]. The magnesium crystal structure is hexagonal close packed (HCP). Thus, it is not a very ductile metal, as its slip planes do not intersect with each other.
In addition to its effect on mechanical properties, the effect of planes and crystal orientation is also present in the corrosion properties of Mg. Even though the Mg corrosion potential is −2.37 V, different crystal planes show different corrosion properties of the exposed grain. Depending on the medium used, open-circuit corrosion is the greatest near the orientation of {0001}. Especially in Cl containing corrosion media, this could be attributed to the thickness of the oxide layer, which is the thinnest on (0001). Furthermore, open-circuit corrosion for certain crystallographic planes correlates with the surface energy of these faces [28]. For example, as-cast magnesium exhibits a fast degradation rate of 2.89 mm/year in 0.9% NaCl solution [1,2,29].
The yield strength, ultimate tensile strength (UTS), and elongation are 27.5 MPa, 97.5 MPa, and 7.31%, respectively [30]. Moreover, the lack of enough slip systems in Mg makes its formability at room temperature rather poor as a result of slip localization and the buildup stresses at grain boundaries [31]. However, the low density of Mg combined with its high specific strength, high damping capacity, good biocompatibility, and reduced stress shielding makes Mg and its alloys ideal candidates for biomedical applications. Nevertheless, further work on Mg/Mg alloys is needed to improve their performance in living organic fluids, including their mechanical integrity. Efficient degradation of these alloys should be able to combine rate alloy dissolution with no deterioration of their mechanical integrity, which is in agreement with the time required for bone healing in orthopedic applications [32]. Figure 1 shows the microstructure of pure magnesium.
Alloy corrosion plays a significant role in defining effective metals and alloys for multiple applications, such as in the biomedical, automotive, aerospace, and electronics sectors. Numerous corrosion studies have been carried out on diverse metals and alloys aimed at monitoring, testing, and improving their corrosion performance in aggressive environments [1,33,34,35,36,37]. In general, the corrosion process can be identified as the degradation of a metal via an electrochemical reaction with the environment. Pure magnesium has a high corrosion rate, which is attributed to the low Pilling–Bedworth ratio (~0.81) of the passive film in the presence of moisture. In addition, the lack of film regeneration coupled with the high Mg electronegativity [31] accounts for the high metal corrosivity. Moreover, the oxidation reaction of Mg with the cathodic reaction in water leads to the generation of hydrogen gas. Equations (1)–(4) describe the anodic and cathodic reactions, including the reaction products, as well as the overall Mg reactions in water. Note that the dissolution of magnesium is described by the anodic reaction (Equation (1)) and hydrogen evolution by the cathodic reaction (Equation (2)), whereas the formation of the passive film is described by Equation (3) [38,39,40].
Oxidation reaction: Mg → Mg2+ + 2e−, (Eo = −2.363 V)
Reduction reaction: 2H2O + 2e− → H2(g) + 2(OH−), (Eo = +0.826 V)
Product formation: Mg2+ + 2(OH−) → Mg(OH)2
Overall reaction: Mg + 2H2O = Mg(OH)2 + H2(g), (Eo = −1.065 V)

2. Corrosion

As for other structural materials, the very important limitation of Mg-based alloys as a biodegradable material is their accelerated corrosion. Corrosion is accompanied by the generation of hydrogen gas, which, in extreme cases, can create detrimental health risks (in in vivo conditions) in the form of gas embolism. Here, hydrogen gas can penetrate the bloodstream [41,42,43]. Therefore, various corrosion tests should be used to verify the suitability of different materials in biomedical material applications, for example, mass loss, pH monitoring (observation of pH level change), and electrochemical measurements. As expected, various corrosion products may occur. In the next section, different products are addressed.

2.1. Corrosion Products

The composition of the passive layer in Mg alloys is, depending on the environment, predominantly composed of magnesium oxide, magnesium carbonate, and hydroxyapatite (magnesium appetite). However, the incubation time for the formation of the passive film is strongly dependent on the type of environment and alloying additions. Nevertheless, it was proposed that the passive layer is a result of the interaction between Mg ions with solution ions. Additionally, other chemical entities are present. For example, biological incubation solutions, such as simulated body fluid (SBF) and Hank’s solution, contain calcium, carbonate, and phosphate ions.
Among the reactions that account for the passive films developed in Mg and Mg alloys [33,34] are the following:
Mg2+ + Ca2+ + (PO4)3− = Ca3Mg3(PO4)4
Mg2+ + (CO3)2− = MgCO3
It is worth mentioning that carbonates, (CO3)2− Equation (6), promote Mg dissolution and rapid surface passivation. This happens due to the precipitation of magnesium carbonate, as well as the fact that sulfate ions are more aggressive than chloride ions in the case of general corrosion [35].
Although the charge of both the anodic and cathode reactions is similar, hydrogen gas generation does not describe the actual corrosion rate, as part of the hydrogen is dissolved in the biological/corrosion environment. Alternatively, not all of the Mg dissolves, and some of the species give rise to insoluble corrosion products. Various corrosion tests are used to evaluate the corrosion process, because an individual corrosion test is insufficient to provide enough information on the corrosion behavior of Mg alloys.
Depending on the environment, there is a certain tolerance limit to hydrogen generated due to corrosion. In particular, the biological environment might be able to tolerate slow hydrogen gas generation. The tolerance limit depends on the solubility and diffusivity of the hydrogen gas in the biological environment, as hydrogen has high solubility in fat tissue and fast diffusivity through the skin [1,36,37].

2.2. Effect of Impurities

There are various reasons as to why certain alloying elements are added to Mg. Firstly, alloying elements are added to enhance the mechanical properties of Mg alloys. By doing this, it can meet the weight support requirements. Secondly, they are added to control the corrosion rate of the alloy in a way that the alloy would corrode at a certain rate that corresponds to the healing time of the wound. Accordingly, the appropriate corrosion rate should be determined by the healing rate of the wound.
The corrosion rate depends on the balance in the reaction at the anode and cathode formed by Mg/Mg alloy couples in any given environment. Any imbalance in the dynamics between these two couples—healing vs. corrosion—leads to a breakdown that is represented by mechanical failure due to excessive corrosion or to a very slow corrosion that requires surgery to remove the alloy.
In any case, it has been observed that Mg tends to corrode non-uniformly because of impurities and second phases. While reaction kinetics increase in the presence of alloying/impurity traces of small overpotential elements, such as iron and nickel, they decrease in the presence of elements with large overpotentials, such as zinc. In the case of Mg and its alloys, common impurities are highly noble and act as local cathodes to the base metal (Mg), which acts as an anode. The bigger the difference in nobility between Mg and the other elements is the more severe the corrosion. The severity of corrosion is also partly controlled by the relative surface area between phases. For a specific ratio, there is a certain tolerance limit that, when exceeded, might lead to accelerated corrosion dynamics. Thus, exceeding the tolerance limit of impurities is highly detrimental to the corrosion resistance of magnesium. It is so detrimental that the existence of certain impurities can significantly increase the corrosion rate up to 100 times. This increase in corrosion rate correlates with increases in the hydrogen evolution reaction. This, in turn, limits the safety of the materials used for biomedical applications. Nonetheless, in different biomaterials, different impurity types lead to different evolution rates. This is governed by the type of the impurity, the material, and the materials’ degree of purity. Accordingly, different impurities have different maximum allowable levels. For example, iron impurities should not exceed 45 ppm in high purity Mg or 280 ppm in low purity Mg [1,33,37,38,39]. In summary, depending on the purity of Mg, the tolerance limit of impurities in Mg-based alloys must not exceed the range of 30–50 ppm for iron, 20–50 ppm for nickel, and 100–300 ppm for copper [39].

2.3. Corrosion Environments

The type of the biological corrosion fluid plays a significant role in the corrosion process of biomedical alloys for implant devices. Various studies have concluded that the corrosion rate depends on the type of the corrosion media and the duration of testing. Therefore, different solutions have been used to test the corrosion behavior of magnesium and its alloys, such as Hank’s balanced salt solution (HBSS), simulated body fluid (SBF), Dulbecco’s modified Eagle’s medium (D-MEM), Kokubo solution, phosphate-buffered saline (PBS), artificial plasma (AP), Nor’s solution (NS), and NaCl solutions, in different concentrations [1,33,37,44]. Considering these different studies, it has been found that testing the same type of alloy in different solutions and biological environments results in different degradation rates. For instance, a corrosion rate of AZ31 as cast was around 2 mm/year in SBF but less than 0.7 mm/year in in vivo tests. This can be ascribed to different reasons related to the identity of the solution. For example, in vivo environments are generally less aggressive than the other corrosion solutions [33,35,45].
Zeng et al. [35] studied the influence of glucose on the corrosion rate of pure magnesium in saline and Hank’s solutions at 37 °C. It is known that the effect of glucose in increasing or decreasing the corrosion rate depends on the type of corrosion media. On one hand, increasing glucose content in saline solution decreases both corrosion resistance and pH. This happens due to the formation of gluconic acid from the existing glucose. After the formation of gluconic acid, the acid attacks the metal oxide and attracts chloride ions to cluster on the interface between the metal surface and saline solution. Then, these chloride ions destabilize the surface layer, and by doing this, they cause pitting corrosion. On the other hand, the corrosion rate is decreased by the addition of glucose as a result of the formation of calcium phosphate.
Another important factor that plays a role in the corrosion behavior is the change in pH value. During the corrosion of magnesium, the pH value tends to shift toward more alkalinity. This is due to the generation of hydrogen, which promotes an increase in the pH number. The shift in the basicity degree is also due to the combined effect of anodic and cathodic reactions, where the reaction of anodic products (Mg2+ ions) with water deposits H2 gas and hydroxyl (OH−) ions into the solution. The neutral products of the anodic reaction (Mg2+ cations) cannot counterbalance that shift. As a result, the pH might shift up to more than 10 in non-buffered solutions (3% NaCl). The extent of shifting depends on the type and presence of alloying elements. Moreover, the increase in the pH number at the interface between the alloy and the environment can enhance the formation of more stable and protective films. Generally, the formed layers consist of Mg (OH)2 and CaP [36,37,46,47]. The reduction in the corrosion rate at increasing pHs can be explained by the Pourbaix diagram for Mg, where increasing the pH induces the passivation of Mg and leads to enhanced corrosion resistance.

3. Mg Alloying Systems

Different mechanisms have been investigated in order to improve the mechanical and corrosion properties of Mg and its alloys. These methods can be classified into five main groups: (a) the intentional addition of alloying elements, (b) processing methods, (c) applying coatings, (d) solidification, and (e) heat treatments [1,29,46,48,49,50,51]. Adding alloying elements can be divided into four categories in magnesium alloys: commercial Mg alloys, Mg alloys containing rare-earth elements (REEs), Mg alloys with nontoxic elements, and Mg alloys containing a mixture of different alloying systems [37,45,52]. In any case, the preferred atomic size of alloying elements is in the range of ±15% of the atomic diameter of magnesium (0.320 nm) [1].
Published works on the performance of Mg alloys suggest that Mg alloys are potentially viable bio-absorbable materials for implant applications. However, the experimental outcome is controversial, as some of these alloys can exhibit poor biocompatibility due to increased toxicity within the living environment. Recently, Mg alloys have been fabricated in the forms of stents, screws, pins, and devices for orthopedic applications. The required time to maintain the achieved mechanical stability is estimated to be 12–18 weeks for bone implantations, 6–12 months for stents, and 12–24 months for vessels. Chen et al. [1] reviewed the recent developments of Mg alloys for bioabsorbable medical implants. The study highlighted the different biomedical applications of Mg and the importance of considering the required healing time for each medical application. Witte et al. [45,53] studied the biological inflammatory response of a magnesium alloy (AZ91D), the hydrogen gas generation, and the corrosion process. After the alloy was implanted into the distal femur condyle of rabbits for six months, there was no significant inflammation. Accordingly, the response was normal due to the immune system reaction of the host. The study also stated that during the first two months, gas cavities developed, and then during the third month, they dissipated, which is in agreement with other results [33]. Furthermore, it was found that the magnesium alloy (AZ91D) stimulated the formation of new bone and increased its density. However, traces of Al were found in the blood, kidneys, liver, and other organisms. Additionally, Al species were spotted with residual insoluble corrosion byproducts [33]. Overall, although Mg-Al-based and Mg-REE-based alloys have good mechanical properties and corrosion resistances, they have very poor biocompatibility and hepatoxicity [2,54].
Fan et al. [55] examined the effect of adding 1.35 wt% cerium (Ce) on grain size refining in a Mg-2Zn-0.5Mn-1Ca. This addition reduced grain size from 125 to 65 µm. Additionally, it was found that Ce addition negatively influenced the corrosion resistance of the alloy, displaying the worst performance. In terms of phases distribution and continuity, Ce addition disturbed the formation of Ca2Mg6Zn3 compounds and formed two disconnected phases of Mg2Ca and Mg12CeZn. Yang et al. [53] studied the effect of adding different amounts of the rare-earth element dysprosium (Dy) to Mg on the microstructure, mechanical properties, and corrosion rate. Four alloys of the Mg-Dy alloy system with a concentration of 5, 10, 15, and 20 wt% Dy were investigated. The effect of heat treatments on the properties of these alloys was also considered. In this case, the alloys were heated at 520 °C for 24 h and then quenched in water.
The study concluded that increasing the content of Dy leads to an increase in the tensile yield strength and UTS. The addition of 10 wt% Dy led to a noticeable improvement in UTS, from 77 MPa to 130 MPa. Further addition of Dy showed only a slight increase in the UTS of the alloys and a slight increase in ductility from 4.5 to 5.5 wt% with additions of up to 5 wt% Dy. However, further additions of Dy from 15 to 20 wt% resulted in a drop in alloy ductility. In terms of corrosion, the best corrosion resistance was reported for the 10 wt% Dy alloy. It was of the order of 3 mm/year in a 0.9 wt% NaCl solution. Heat treatment led to alloy softening, but it significantly improved corrosion resistance. Microstructurally, in this alloy, the distribution of Dy became homogeneous, which enhanced the formation of filiform films instead of pitting corrosion. Nonetheless, it was noticed that the overall impurity present in these alloys exceeded the tolerance limit [56].
Gu et al. [57] characterized the effect of adding various contents of strontium (Sr) with 1–4 wt% on the strength, cytotoxicity, and corrosion resistance (in vivo and in vitro). The study found that the yield strength, UTS, and degradation rate were increased with an increase in the content of Sr up to 2 wt% despite the continuous reduction in ductility with the addition of Sr. Overall, the Mg-Sr alloying system showed very poor biocompatibility with high toxicity.
Bornapour et al. [58] studied the cytotoxicity and corrosion process (in Hank’s solution and in vivo) of Mg-xSr (x = 0.3–2.5 wt%) alloys. The alloys were used as stents and implanted in dogs’ femoral arteries. The results showed that Mg-0.5Sr exhibited the lowest degradation rates with no indications of any toxicity. Nevertheless, pitting corrosion was observed on the surface of Mg-0.5Sr combined with a high evolution of hydrogen gas in the early stages.
Mg alloys containing Ca have also been developed, as Ca has a solubility of 1.34 wt% in Mg, and it is a non-toxic element with a high allowable daily intake [2]. Different percentages of Ca have been added to Mg and their properties disclosed. Zijian Li et al. [46] investigated the effect of adding different amounts of Ca (1–3 wt%) on the mechanical properties and corrosion rates of a commercially pure Mg. In their work, as-cast, hot-rolled, and hot-extruded alloys were prepared and both the mechanical and corrosion properties were determined. Corrosion testing was carried out in vitro (for up to three months) and in SBF for up to 250 h. In this work, Mg-Ca pins were implanted in the femoral and cortical bones of eighteen adult rabbits. It was concluded that increasing Ca content reduces the yield strength, UTS, and ductility (as shown in Table 1). However, the corrosion rate was enhanced, as well as the presence of corrosion byproducts. A further limited enhancement in corrosion rate occurred due to passivation, as a protective layer was formed on the top of the surface. However, this layer had poor coherency. This layer contained high concentrations of carbon, oxygen, magnesium, phosphorus, and chloride. Furthermore, hot extrusion and hot rolling significantly improved corrosion resistance and mechanical strength. Overall, Mg-1Ca exhibited the best mechanical properties, corrosion resistance (2.28 mg/mm2/year), and biocompatibility when compared with other alloys [47]. However, adding higher amounts of Ca to Mg alloys can reduces corrosion resistance in certain solutions. For examples, exposing high-Ca Mg-alloys to SBF forms massive corrosion byproducts [59].
The Mg-Si alloy system shows the presence of α-Mg and the intermetallic compound Mg2Si (Chinese Script) at a rather low Si content (0.003 wt%). The intermetallic compound (Mg2Si) is rather brittle and highly detrimental when present in coarse sizes. In this alloy system, the optimum mechanical properties of Mg-Si alloys are reported at Si levels of 0.8 wt% Si, with a yield strength, UTS, and ductility of 52 MPa, 152 MPa, and 9.5%, respectively [1]. Gu et al. [60] examined the mechanical properties and corrosion performance in in vitro solution and the biocompatibility of several binary alloying systems of magnesium with additions of 1 wt% of each alloying element (Zn, Mn, Al, Ag, In, Si, Sn, Y, and Zr). The as-cast Mg binary systems of Zn, Si, Al, Sn, and Zr had better mechanical properties when compared with pure Mg. Moreover, the corrosion performance of Mg was reduced when adding Zn, Mn, Al, In, and Zr. In contrast, the evolution of hydrogen was significantly reduced with the addition of Zn. The Mg-Zn system exhibited acceptable biocompatibility and cell viability to fibroblasts, toxicity to osteoblasts, and blood vessel viabilities.
Another study reviewed a wide range of magnesium-based alloys and the effect of adding different alloying elements on their mechanical properties. It was found that the highest yield strength and ductility can be achieved using Mg-REE-based and Mg-Zn-based alloys among other Mg-Al-based, Mg-Si-based, and Mg-Zr-based alloys as reviewed in [1]. The effect of adding small amounts of Mn promotes significant grain refinement in the Mg-Al system. Its effect is rather important, as it hinders the effect of impurities by forming harmless phases. This enhances the corrosion resistance of Mg alloy systems. Additionally, it has been found that adding Mn moderately increases the yield strength while reducing the UTS and elongation [3,5,16,17,18,19,20,22,52,61,62]. Zinc additions improve mechanical and corrosion performance while reducing hydrogen evolution. However, at high concentrations (≥5%), Zn leads to poor corrosion resistance and mechanical strength, including reduced biocompatibility [6,7,8,9,10,11,12,13,14,15,23,61,63,64].
Yuen et al. [65] studied the theoretical limits of using magnesium alloys as biodegradable materials in biomedical applications. From their work, it was concluded that Al as an alloying element in Mg-based alloys has the lowest tolerance limit with amounts of ≤1 g per year; by contrast, the tolerance limit for other elements exceeded 10 g per year.
Zinc (Zn) has a good solubility (6.2 wt%) in Mg and has been implemented to improve alloy mechanical properties. Zn is nontoxic with a recommended daily dosage of 8–11 mg/day for adults [1,2,66]. Mg-Zn-based alloys possess good mechanical strength and corrosion resistance. The alloy microstructure consists of the α-Mg matrix and the γ-MgZn phase. This alloying system exhibits the highest strength (216.8 MPa) and ductility (15.8%) when Zn additions of 4 wt% Zn are employed. The addition of other alloying elements, such as Mn, Si, Ca, and REEs, has been considered. It was found that Ca additions of up to 0.5% slightly improve mechanical properties; however, further Ca additions are detrimental to alloy properties [1].
The addition of Mn to Mg-Zn-based alloys improves alloy corrosion resistance due to its ability to counteract the detrimental effect of impurities, such as Fe, Ni, and Cu, by transferring them to non-active intermetallic compounds. Reduced corrosion rates in a Mg-2Zn-0.2Mn alloy exposed to Hank’s solution have been reported to be of the order of 0.03 mm/year. In this case, a protective layer was formed on the surface of the alloy, in addition to stimulating multiple enzyme systems [2,33,46].
Cha et al. [67] investigated the impact of Ca and Zn additions on the corrosion behavior of as-cast and extruded Mg. It was found that adding Zn in amounts of over 1 wt% to Mg-Ca alloys led to microstructural refinement, improved corrosion resistance, and reduced galvanic effects. In particular, additions of 3 wt% Zn provided the highest alloy corrosion performance. The study concluded that refining the microstructure through extrusion led to a reduction in hydrogen generation in in vivo studies.
Zhang et al. [68] tested the effect of alloying with various Zn contents (1–6 wt%) on the strength, corrosion behavior, microstructure, and cytotoxicity of a Mg-1Ca alloy. Alloying with Zn causes changes in the microstructure and mechanical properties. It promotes grain refinement and alters the main mechanical properties. For example, alloying with up to 4 wt% increased the yield strength by 70%, UTS by 40%, and, finally, its ductility (percent elongation) by 60%. Nevertheless, this study conducted an in vitro corrosion test in Hank’s solution at 37 °C ± 0.5 with a pH of 7.2–7.4. Mg-1Ca-xZn alloys with Zn contents of up to 3 wt% exhibited a lower corrosion rate than that observed in the Mg-1Ca alloy. It was found that these additions of Zn of up to 3 wt% did not cause toxicity. Table 1 summarizes the mechanical properties of this alloying system.
Ibrahim et al. [69] investigated the effect of heat treatment on the mechanical strength, microstructure, and corrosion resistance of a Mg-1.2Zn-0.5Ca alloy. In the as-cast alloy, the microstructure consists of an α-Mg matrix with small spherical eutectic secondary constituents embedded in the matrix and lamellar eutectoids along the grain boundaries. Although the grain size was slightly elongated, overall, the heat treatment promoted a considerable improvement in the mechanical and corrosion properties. Apparently, diffusional mechanisms involving Zn and Ca away from the secondary constituents and into the matrix lead to a reduction in alloy micro-galvanic effects. Thus, the reduction in the volume fraction of the secondary phases through the implemented heat treatment was associated with the improved alloy performance.
Li et al. [2] have investigated Mg-Zn-based alloys and their performance after adding different alloying elements in various concentrations. It was found that the yield strength and UTS increased by 64 and 33% when increasing the Zn content from 1 to 6 wt%, while the elongation was slightly reduced (by 11%). The addition of Mn enhanced the alloy corrosion resistance by eliminating the harmful effect of impurities. Similarly, adding 4 wt% Zn to Mg-0.2 Ca led to a high alloy strength and corrosion resistance. In the case of Mg-Si-based alloys, adding 1.6 wt% Zn to Mg-0.6Si refined the brittle and coarse Chinese script morphology, thus improving alloy strength while reducing the corrosion rate. This work also considers the role of alloying elements, such as Zr and Y, in Mg alloys. The addition of Zr to Mg-Zn alloys, such as Mg-5.4Zn-0.55Zr, increases the corrosion rate. However, alloying with Zr is less detrimental than alloying with Y, as in Mg-5.6Zn-0.55Zr-0.9Y. Although the corrosion rate in the both former alloys was higher than that of pure Mg, these alloys exhibited improved strength. The study concluded that the development of an appreciable volume fraction of various secondary phases might account for the exhibited performance of these alloys. As for grain refinement, this mechanism is rather effective in improving mechanical properties and corrosion behavior. In the former, the effectiveness of the grain refinement is governed by Hall–Petch (Equation (7)), where the high strengthening coefficient of Mg alloys (280–320 MPa·µm1/2) suggests a high potential of using this mechanism to improve alloy strength [1,70,71].
σ = σ0 + kd−1/2
where σ is the yield stress (YS), σ0 is the material constant, d is the average grain diameter, and k is the strengthening coefficient.
In the same study [2], the exhibited mechanical properties of the different alloying systems fabricated using various processing methods have shown that as-cast Mg-Mn-Zn alloys exhibit better strength and ductility (200 MPa and 15%, respectively) when compared with other alloy systems (Mg-Ca, Mg-Si, Mg-Sr, Mg-Ca-Si, and Mg-Zn-Ca) [2]. This is in agreement with the required properties for applications in bone inserts, which are in the range of 200 MPa UTS, 10% ductility, and with a corrosion rate of less than 0.5 mm/year [1,72].
Brooks and Ehrensberger [73] examined the corrosion behavior of Mg alloys in cell culture media after adding Zn, Ca, and Sr. The alloys Mg-1.34Ca, Mg-2Sr, Mg-1.34Ca-3Zn, and Mg-1.34Ca-3Zn-0.2Sr were heat treated after casting and then extruded and rolled. Additions of 3% Zn to Mg-1.34Ca led to the highest alloy corrosion resistance, followed by the Mg-1.34Ca-3Zn-0.2Sr alloy. The study concluded that the addition of Zn improves the corrosion resistance while reducing the volume fraction of the secondary phases. The addition of Zn to Mg-Ca alloys produced similar results. Sun et al. [74] tested the mechanical properties and corrosion resistance (in C-SBF) of an as-cast and as-extruded Mg-4.0Zn-0.2Ca alloy, finding that Zn and Ca led to improved mechanical properties and corrosion behavior; in addition, the alloying system displayed good biocompatibility. The exhibited properties of the as-cast alloy were further improved through extrusion. It was found that the extrusion process refined and homogenized the alloy microstructure consisting of α-Mg, 2Ca-6Mg-3Zn3, and 2Ca-5Mg-13Zn by refining the grain size [75] which normally leads to better mechanical properties [70].
The effect of cooling rates on the exhibited properties of three different Mg-Zn-Ca alloys was investigated by Xu et al. [76]. These alloys, namely, Mg-10Zn-1Ca, Mg-20Zn-1Ca, and Mg-6Zn-1Ca, were made in the shape of studs by powder metallurgy. Then, they were melted in a mild steel crucible under a controlled environment and subsequently poured into graphite molds and solidified at ∼40 °C/min, in air at ∼100 °C/min, and in liquid nitrogen at ∼3000 °C/min. It was found that rapidly solidified alloys developed a fine grain structure and a connected network of supersaturated secondary phases around the grains (mainly α-Mg). The work suggested that a well-distributed network of supersaturated secondary phases can act as an effective coating that inhibits corrosion propagation and, thus, protects the matrix. In contrast, at low cooling rates, the alloy microstructure consisted of coarse grain sizes, large secondary phases, and significant impurity segregation. Moreover, it was found that the corrosion resistance of the corrosion-quenched alloys containing small amounts of Zn (6%) was superior to that found in alloys with high Zn content [76].
Lisitsyn et al. [77,78] and Ben-Hamu [79] studied the effect of adding 0.2–0.4 wt% Ca and/or 0.5–2 wt% Si on the corrosion rate (in 3.5 wt% NaCl solution saturated with Mg(OH)2) and microstructure of an extruded Mg-0.5Mn-6Zn alloy. It was found that the addition of Si induced grain refinement and promoted the development of Chinese script intermetallics. These intermetallics were reduced to a polygonal shape by adding Ca or 1 wt% Si. The addition of 1 wt% Si led to an increase in corrosion rates (0.5 and 1 wt% Si) followed by a slight reduction at 2 wt% Si. However, corrosion resistance was improved when the Chinese script was refined by adding 1–2 wt% Si or Ca in 0.5 wt% Si alloying. In this alloying system, four secondary intermetallic phases (MgZn2, Mn5Si3, Mg2Si, and CaMgSi) were identified.
In the case of quaternary alloys, Zhang et al. [80] investigated the microstructure, mechanical properties, and corrosion behavior of Mg–Zn–Mn–Ca. Three as-cast alloys were prepared with the following compositions: Mg–1.8Zn–1.1Mn–0.3Ca; Mg–2Zn–1.2Mn–0.5Ca; and Mg–1.5Zn–1.1Mn–1Ca. It was found that the grain size of the Mg–1.8Zn–1.1Mn–0.3Ca alloy was considerably reduced from 175 to 63 µm by increasing the content of Zn and Ca by 0.2 wt%. Moreover, this addition resulted in the formation of a Mg primary phase with a secondary eutectic phase (α-Mg + 2Ca-6Mg-3Zn). The former gave rise to increased yield strength, UTS, and elongation, which increased by 20, 16, and 20%, respectively. However, a further increase in Ca to 1 wt% and a reduction in Zn content down to 1.5 wt% significantly lowered the alloy strength and ductility. This can be attributed to the formation of an additional secondary brittle phase (Mg2Ca). Overall, the best mechanical and corrosion performance (in Hank’s solution at 37 °C) was reported for Mg–2Zn–1.2Mn–0.5Ca. Table 1 summarizes the mechanical properties of this alloying system.
Bakhsheshi-Rad et al. [30] investigated the binary and quaternary alloying systems Mg-xCa (x = 2 and 4 wt%) and Mg-2Ca-0.5Mn-xZn (x = 2, 4, and 7 wt%). The study tested their mechanical properties, microstructure, and corrosion resistance in Kokubo SBF for 240 h for both alloying systems. It was found that adding 2 wt% Ca to pure Mg reduced the grain size down to 92 µm and reduced the ductility by 58%, while the yield strength, UTS, compression strength, and hardness increased by 72, 18, 27, and 49%, respectively. Although the corrosion rate in cell culture media magnesium was reduced by adding 2 wt% Ca (from 8.47 to 6.89 mm/year), further Ca additions increased the volume fraction of the secondary phase (Mg2Ca) along the grain boundaries, which, in turn, deteriorated both the mechanical properties and corrosion resistance. Alternatively, Mg-2Ca-0.5Mn-4Zn exhibited the highest mechanical properties among all the examined alloys due to its small grain size structure of 59 µm and through solid solution strengthening and the presence of the secondary phases Mg2Ca and Ca2Mg6Zn3. In particular, the YS, UTS, ductility, compression strength, and hardness significantly increased in comparison to pure Mg (by 202, 94, 20, 85, and 139%, respectively) [30]. In an Mg-2Ca-0.5Mn-4Zn alloy, the microstructures of Mg-Ca and Mg-Ca-Mn-Zn alloying systems are characterized by the presence of a lamellar eutectic structure of α-Mg + Ca2Mg6Zn3 + Mg2Ca at the grain boundaries. This alloy exhibited the second lowest corrosion rate and hydrogen generation after the Mg-2Ca-0.5Mn-2Zn alloy. Moreover, in Mg-2Ca-0.5Mn-4Zn and Mg-2Ca-0.5Mn-2Zn, the degradation rates were reduced to 2.27 and 1.78 mm/year, respectively [30]. This study also found that Zn has a maximum solubility of 1.6 wt% in Mg–Zn alloys at room temperature. It is worth mentioning that Zn in Mg is a better refinement agent compared with Ca since it possesses a high growth restricting factor (Q) according to Equation (8). Another difference is the steeper slope of the liquidus line, where for Mg-Zn, its value is m = 6.04 °C/wt%, which is larger than the one for the slope in the Mg-Ca alloy system with a slope value of m = 2.12 °C/wt% [30].
Q = m Co (k − 1)
where Q is the growth restricting factor, m is the slope of the liquidus line, Co is the solute bulk concentration, and k is the solute equilibrium partition coefficient [30].
The solubility limits of Zn and Mn in Mg are 6.2 and 2.2 wt%, respectively. It was reported that the equilibrium phases in the Mg-Zn and Mg-Mn alloy systems have the presence of five intermetallic compounds: Mg51Zn20, Mg21Zn25, Mg4Zn7, MgZn2, and Mg2Zn11 [81]. Figure 2 and Figure 3 show examples of Mg-Zn-Mn alloying systems.
From previous works, Agarwal et al. [82] reviewed the corrosion performance, biocompatibility, and surface modification of Mg alloys. They concluded that the presence of Zn and Mn contributed to an increased corrosion resistance. Moreover, the use of polymeric coatings was highly effective in enhancing the corrosion performance of Mg [82,83]. Yin et al. [49] considered adding 1 wt% Mn to Mg with various amounts of Zn (1–3 wt%) followed by alloy extrusion. This reduces grain size from 12 to 4 µm. Additionally, increase in Zn, of 3 wt%, added to the Mg-1Mn-1Zn alloy system led to the best corrosion behavior [84]. Moreover, Mg alloys’ performance and behavior can also be further enhanced and altered. Different studies have shown that heat treatment and various processing methods, such as extrusion, in general, promotes improved mechanical properties and corrosion resistance by means of developing a highly homogeneous and more refined microstructure [49,85,86].
Table
Table 1. Examples of the mechanical properties and grain size of Mg-based alloys.
Table 1. Examples of the mechanical properties and grain size of Mg-based alloys.
CompositionY S (MPa)UTS (MPa)Ductility (%)Grain Size (µm)Reference
Cortical Bone104.9–114.335–2831.07–2.10-[54]
Pure Mg20.9 ± 2.386.8 ± 2.513 ± 1.4-[64]
Mg-1Ca40731.87-[47]
Mg-2Ca37501.55-[47]
Mg-3Ca15400.6-[47]
Mg-1Zn2514018-[29]
Mg-6Zn7021016-[29]
Pure Mg27.597.57.31-[30]
Mg-2Ca47.3115.23.05-[30]
Mg-4Ca34.577.42.10-[30]
Mg-2Ca-0.5Mn-2Zn78.3168.57.84-[30]
Mg-2Ca-0.5Mn-4Zn83.1189.28.71-[30]
Mg-2Ca-0.5Mn-7Zn45.4140.74.15-[30]
Pure Mg20.9 ± 2.386.8 ± 2.513 ± 1.4-[64]
Mg-1Ca39105 ± 44.1 ± 0.5-[64]
Mg-1Ca-1Zn45125 ± 55.7 ± 1.0-[64]
Mg-1Ca-2Zn52143 ± 57.3 ± 1.5-[64]
Mg-1Ca-3Zn57160 ± 108.3 ± 1.0-[64]
Mg-1Ca-4Zn63182 ± 59.1 ± 2.5-[64]
Mg-1Ca-5Zn65173 ± 58.2 ± 0.5-[64]
Mg-1Ca-6Zn67145 ± 54.5 ± 0.5-[64]
Mg-1.2Zn-0.5Ca60 ± 3.1121.3 ± 5.23.2 ± 0.13-[69]
Mg-1.8Zn-1.1Mn-0.3Ca601627.5175 ± 15[80]
Mg-2Zn-1.2Mn-0.5Ca72188963 ± 7[80]
Mg-1.5Zn-1.1Mn-1Ca801382.851 ± 5[80]
Mg-4.0Zn-0.2Ca60 ± 1.5185 ± 1512.5 ± 1.5100–130[74]
Mg-1Mn-1Zn-0.3Al44174~12200–400[77]
Mg-1Mn-2Zn-<0.3Al~59~185~11-[77]
Mg-1Mn-3Zn-<0.3Al~68~216~15.550–80[77]
Mg-0.9Mn-0.2Al23.0 ± 4.389.2 ± 7.66.7 ± 1.0700–900[79]
Mg-0.9Mn-1Zn-0.2Al43.6 ± 5.4174.5 ± 1.512.1 ± 1.1-[79]
Mg-0.9Mn-2Zn-0.2Al58.6 ± 5.7182.4 ± 6.811.0 ± 1.0-[79]
Mg-0.9Mn-3Zn-0.2Al65.6 ± 0.7218.0 ± 6.015.5 ± 2.050–80[79]
Mg-0.9Mn-4Zn-0.2Al65.3 ± 2.1199.6 ± 8.311.5 ± 1.8-[79]
Mg-0.9Mn-5Zn-0.2Al62.2 ± 1.3194.6 ± 7.510.5 ± 1.6-[79]

4. Conclusions

This work is a review of the alloying elements in Mg alloys in biomedical applications. Different alloying elements are considered, such as Zn, Ca, and Mn. In addition to their effects, the effects of different processing methods, such as extrusion and heat treatment, of binary, ternary, and quaternary Mg-based alloys on grain refinement and mechanical properties are addressed. It was found that the addition of various alloying elements alters the base alloy properties both positively and negatively. These modifications extended from mechanical, microstructural, and corrosion properties. The resulting properties enabled several of these alloys to be used as bioabsorbable implants, such as those for bone replacement. Nonetheless, to explore the full potential of these approaches, alloy brittleness, excessive corrosion, and potential toxicity are among the issues and risk factors that need to be addressed and controlled. Therefore, this work also discussed the role played by various elements in the exhibited corrosion resistance of different Mg-based alloys. Moreover, it can be concluded that Zn as an alloying element is highly effective in promoting alloy strength and biocompatibility.

Author Contributions

Main author: M.M.J. (Murtatha M. Jamel), supervised by H.F.L.; review and editing: M.M.J. (Mostafa M. Jamel). All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

I would like to express my appreciation to the University of Wisconsin-Milwaukee; the H.H. Harris Foundation; the Minerals, Metals & Materials Society (TMS); the American Institute of Mining, Metallurgical, Petroleum Engineers (AIME); the Foundry Educational Foundation (FEF)-Northeastern Wisconsin-George J. Barker Memorial; the American Foundry Society (AFS); and the Association for Iron & Steel Technology (AIST) for honoring and supporting me with their awards.

Conflicts of Interest

The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results. The authors declare no conflict of interest.

References

  1. Chen, Y.; Xu, Z.; Smith, C.; Sankar, J. Recent advances on the development of magnesium alloys for biodegradable implants. Acta Biomater. 2014, 10, 4561–4573. [Google Scholar] [CrossRef]
  2. Li, N.; Zheng, Y. Novel Magnesium Alloys Developed for Biomedical Application. J. Mater. Sci. Technol. 2013, 29, 489–502. [Google Scholar] [CrossRef]
  3. Stulikova, I.; Smola, B. Mechanical properties and phase composition of potential biodegradable Mg–Zn–Mn–base alloys with addition of rare earth elements. Mater. Charact. 2010, 61, 952–958. [Google Scholar] [CrossRef]
  4. El-Mahallawy, N.; Palkowski, H.; Klingner, A.; Diaa, A.; Shoeib, M. Effect of 1.0 wt. % Zn addition on the microstructure, mechanical properties, and bio-corrosion behaviour of micro alloyed Mg-0.24Sn-0.04Mn alloy as biodegradable material. Mater. Today Commun. 2020, 24, 100999. [Google Scholar] [CrossRef]
  5. Rosalbino, F.; De Negri, S.; Scavino, G.; Saccone, A. Microstructure and in vitro degradation performance of Mg–Zn–Mn alloys for biomedical application. J. Biomed. Mater. Res. Part A 2013, 101, 704–711. [Google Scholar] [CrossRef]
  6. Hänzi, A.C.; Gerber, I.; Schinhammer, M.; Löffler, J.F.; Uggowitzer, P.J. On the in vitro and in vivo degradation performance and biological response of new biodegradable Mg–Y–Zn alloys. Acta Biomater. 2010, 6, 1824–1833. [Google Scholar] [CrossRef]
  7. Gu, X.; Zheng, Y.; Zhong, S.; Xi, T.; Wang, J.; Wang, W. Corrosion of, and cellular responses to Mg–Zn–Ca bulk metallic glasses. Biomaterials 2010, 31, 1093–1103. [Google Scholar] [CrossRef]
  8. Li, T.; He, Y.; Zhang, H.; Wang, X. Microstructure, mechanical property and in vitro biocorrosion behavior of single-phase biodegradable Mg–1.5Zn–0.6Zr alloy. J. Magnes. Alloy. 2014, 2, 181–189. [Google Scholar] [CrossRef] [Green Version]
  9. Song, Y.; Han, E.; Dong, K.; Shan, D.; Yim, C.D.; You, B.S. Effect of hydrogen on the corrosion behavior of the Mg–xZn alloys. J. Magnes. Alloy. 2014, 2, 208–213. [Google Scholar] [CrossRef] [Green Version]
  10. Song, Y.; Han, E.-H.; Shan, D.; Yim, C.D.; You, B.S. The effect of Zn concentration on the corrosion behavior of Mg–xZn alloys. Corros. Sci. 2012, 65, 322–330. [Google Scholar] [CrossRef]
  11. Song, Y.; Han, E.; Shan, D.; Yim, C.D.; You, B.S. The role of second phases in the corrosion behavior of Mg–5Zn alloy. Corros. Sci. 2012, 60, 238–245. [Google Scholar] [CrossRef]
  12. Zhang, E.; Yang, L.; Xu, J.; Chen, H. Microstructure, mechanical properties and bio-corrosion properties of Mg–Si(–Ca, Zn) alloy for biomedical application. Acta Biomater. 2010, 6, 1756–1762. [Google Scholar] [CrossRef] [PubMed]
  13. Liu, X.; Shan, D.; Song, Y.; Han, E. Influence of yttrium element on the corrosion behaviors of Mg–Y binary magnesium alloy. J. Magnes. Alloy. 2017, 5, 26–34. [Google Scholar] [CrossRef]
  14. Bi, G.; Li, Y.; Zang, S.; Zhang, J.; Ma, Y.; Hao, Y. Microstructure, mechanical and corrosion properties of Mg–2Dy–xZn (x=0, 0.1, 0.5 and 1 at.%) alloys. J. Magnes. Alloy. 2014, 2, 64–71. [Google Scholar] [CrossRef]
  15. Li, D.; Wang, Q.; Ding, W. Effects of Ho on the microstructure and mechanical properties of Mg-Zn-Ho-Zr magnesium alloys. Rare Met. 2011, 30, 131–136. [Google Scholar] [CrossRef]
  16. Sajuri, Z.B.; Miyashita, Y.; Hosokai, Y.; Mutoh, Y. Effects of Mn content and texture on fatigue properties of as-cast and extruded AZ61 magnesium alloys. Int. J. Mech. Sci. 2006, 48, 198–209. [Google Scholar] [CrossRef]
  17. Lugo, M.; Jordon, J.B.; Solanki, K.N.; Hector, L.G.; Bernard, J.D.; Luo, A.A.; Horstemeyer, M.F. Role of different material processing methods on the fatigue behavior of an AZ31 magnesium alloy. Int. J. Fatigue 2013, 52, 131–143. [Google Scholar] [CrossRef]
  18. Azeem, M.A.; Tewari, A.; Ramamurty, U. Effect of recrystallization and grain growth on the mechanical properties of an extruded AZ21 Mg alloy. Mater. Sci. Eng. A 2010, 527, 898–903. [Google Scholar] [CrossRef]
  19. Khan, S.A.; Miyashita, Y.; Mutoh, Y.; Sajuri, Z.B. Influence of Mn content on mechanical properties and fatigue behavior of extruded Mg alloys. Mater. Sci. Eng. A 2006, 420, 315–321. [Google Scholar] [CrossRef]
  20. Nam, N.D.; Mathesh, M.; Forsyth, M.; Jo, D.S. Effect of manganese additions on the corrosion behavior of an extruded Mg–5Al based alloy. J. Alloys Compd. 2012, 542, 199–206. [Google Scholar] [CrossRef]
  21. Crosby, W.H.; Likhite, V.V.; O’Brien, J.E.; Forman, D. Serum Iron Levels in Ostensibly Normal People. JAMA 1974, 227, 310–312. [Google Scholar] [CrossRef]
  22. Hou, L.; Li, Z.; Pan, Y.; Du, L.; Li, X.; Zheng, Y.; Li, L. In vitro and in vivo studies on biodegradable magnesium alloy. Prog. Nat. Sci. Mater. Int. 2014, 24, 466–471. [Google Scholar] [CrossRef] [Green Version]
  23. Haghshenas, M. Mechanical characteristics of biodegradable magnesium matrix composites: A review. J. Magnes. Alloys 2017, 5, 189–201. [Google Scholar] [CrossRef]
  24. Liu, X.; Sun, J.; Zhou, F.; Yang, Y.; Chang, R.; Qiu, K.; Pu, Z.; Li, L.; Zheng, Y. Micro-alloying with Mn in Zn–Mg alloy for future biodegradable metals application. Mater. Des. 2016, 94, 95–104. [Google Scholar] [CrossRef]
  25. Li, H.; Zheng, Y.; Qin, L. Progress of biodegradable metals. Prog. Nat. Sci. Mater. Int. 2014, 24, 414–422. [Google Scholar] [CrossRef] [Green Version]
  26. Peron, M.; Torgersen, J.; Berto, F. Mg and Its Alloys for Biomedical Applications: Exploring Corrosion and Its Interplay with Mechanical Failure. Metals 2017, 7, 252. [Google Scholar] [CrossRef] [Green Version]
  27. Moosbrugger, C. Engineering Properties of Magnesium Alloys; ASM: Materials Park, OH, USA, 2017; Chapters 1 and 3. [Google Scholar]
  28. Bland, L.G.; Gusieva, K.; Scully, J.R. Effect of crystallographic orientation on the corrosion of magnesium: Comparison of film forming and bare crystal facets using electrochemical impedance and Raman spectroscopy. Electrochim. Acta 2017, 227, 136–151. [Google Scholar] [CrossRef] [Green Version]
  29. Ren, Y.B.; Wang, H.; Huang, J.J.; Zhang, B.C.; Yang, K. Study of biodegradation of pure magnesium. In Key Engineering Materials. Trans Tech Publ. Ltd. 2007, 342, 601–604. [Google Scholar]
  30. Bakhsheshi-Rad, H.; Idris, M.; Abdul-Kadir, M.; Ourdjini, A.; Medraj, M.; Daroonparvar, M.; Hamzah, E. Mechanical and bio-corrosion properties of quaternary Mg-Ca-Mn-Zn alloys compared with binary Mg-Ca alloys. Mater. Des. 2014, 53, 283–292. [Google Scholar] [CrossRef]
  31. Guo, K.W. A Review of Magnesium/Magnesium Alloys Corrosion and its Protection. Recent Pat. Corros. Sci. 2010, 2, 13–21. [Google Scholar] [CrossRef] [Green Version]
  32. Radha, R.; Sreekanth, D. Insight of magnesium alloys and composites for orthopedic implant applications—A review. J. Magnes. Alloy. 2017, 5, 286–312. [Google Scholar] [CrossRef]
  33. Atrens, A.; Liu, M.; Abidin, Z.; Ishida, N. Corrosion mechanism applicable to biodegradable magnesium implants. Mater. Sci. Eng. B 2011, 176, 1609–1636. [Google Scholar] [CrossRef]
  34. Pathak, S.S.; Mendon, S.k.; Blanton, M.D.; Rawlins, J.W. Magnesium-Based Sacrificial Anode Cathodic Protection Coatings (Mg-Rich Primers) for Aluminum Alloys. Metals 2012, 2, 353–376. [Google Scholar] [CrossRef]
  35. Zeng, R.; Li, X.; Li, S.; Zhang, F.; Han, E. In vitro degradation of pure Mg in response to glucose. Sci. Rep. 2015, 5, 13026. [Google Scholar] [CrossRef]
  36. Kirkland, N.T.; Birbilis, N.; Staiger, M.P. Assessing the corrosion of biodegradable magnesium implants: A critical review of current methodologies and their limitations. Acta Biomater. 2011, 8, 925–936. [Google Scholar] [CrossRef]
  37. Virtanen, S. Biodegradable Mg and Mg alloys: Corrosion and biocompatibility. Mater. Sci. Eng. B 2011, 176, 1600–1608. [Google Scholar] [CrossRef]
  38. Vetter, K.J. Electrochemical Kinetics. Theoretical and Experimental Aspects; Scripta Technica: Berlin, Germany, 1961. [Google Scholar]
  39. Pourbaix, M. Atlas of Electrochemical Equilibria in Aqueous Solutions; NACE International: Houston, TX, USA, 1966. [Google Scholar]
  40. Poinern, G.E.J.; Brundavanam, S.; Fawcett, D. Biomedical Magnesium Alloys: A Review of Material Properties, Surface Modifications and Potential as a Biodegradable Orthopaedic Implant. Am. J. Biomed. Eng. 2014, 2, 218–240. [Google Scholar] [CrossRef] [Green Version]
  41. Elkaiam, L.; Hakimi, O.; Aghion, E. Stress corrosion and corrosion fatigue of biodegradable Mg-Zn-Nd-Y-Zr alloy in in-vitro conditions. Metals 2020, 10, 791. [Google Scholar] [CrossRef]
  42. Avior, O.; Ben Ghedalia-Peled, N.; Ron, T.; Vago, R.; Aghion, E. The Effect of Ca on In Vitro Behavior of Biodegradable Zn-Fe Alloy in Simulated Physiological Environments. Metals 2020, 10, 1624. [Google Scholar] [CrossRef]
  43. Perets, T.; Ghedalia-Peled, N.B.; Vago, R.; Goldman, J.; Shirizly, A.; Aghion, E. In vitro behavior of bioactive hybrid implant composed of additively manufactured titanium alloy lattice infiltrated with Mg-based alloy. Mater. Sci. Eng. C 2021, 129, 112418. [Google Scholar] [CrossRef] [PubMed]
  44. Clarke, E.G.; Hickman, J. An investigation into the correlation between the electrical potentials of metals and their behaviour in biological fluids. J. Bone Jt. Surg. 1953, 35, 467–473. [Google Scholar] [CrossRef] [PubMed]
  45. Witte, F.; Ulrich, H.; Rudert, M.; Willbold, E. Biodegradable magnesium scaffolds: Part 1: Appropriate inflammatory response. J. Biomed. Mater. Res. Part A 2007, 81, 748–756. [Google Scholar] [CrossRef] [PubMed]
  46. ASM International. ASM Specialty Handbook: Magnesium and Magnesium Alloys; Avedesian, M., Bake, H., Eds.; ASM: Materials Park, OH, USA, 1999; pp. 15, 51, 131–144, 170, 194–200. [Google Scholar]
  47. Li, Z.; Gu, X.; Lou, S.; Zheng, Y. The development of binary Mg–Ca alloys for use as biodegradable materials within bone. Biomaterials 2008, 29, 1329–1344. [Google Scholar] [CrossRef]
  48. Witte, F. Reprint of: The history of biodegradable magnesium implants. Acta Biomater. 2015, 23, S28–S40. [Google Scholar] [CrossRef] [PubMed]
  49. Yin, D.; Zhang, E.; Zeng, S. Effect of Zn on mechanical property and corrosion property of extruded Mg-Zn-Mn alloy. Trans. Nonferrous Met. Soc. China 2008, 18, 763–768. [Google Scholar] [CrossRef]
  50. Guo, G.; Song, D.; Jiang, J.; Ma, A.B.; Zhang, L.W.; Li, C. Effect of Synthesizing Temperature on Microstructure and Electrochemical Property of the Hydrothermal Conversion Coating on Mg-2Zn-0.5Mn-Ca-Ce Alloy. Metals 2016, 6, 44. [Google Scholar] [CrossRef] [Green Version]
  51. Hornberger, H.; Virtanen, S.; Boccaccini, A.R. Biomedical coatings on magnesium alloys—A review. Acta Biomater. 2012, 8, 2442–2455. [Google Scholar] [CrossRef]
  52. Ding, Y.; Wen, C.; Hodgson, P.; Li, Y. Effects of alloying elements on the corrosion behavior and biocompatibility of biodegradable magnesium alloys: A review. J. Mater. Chem. B 2014, 2, 1912–1933. [Google Scholar] [CrossRef]
  53. Witte, F.; Ulrich, H.; Palm, C.; Willbold, E. Biodegradable magnesium scaffolds: Part II: Peri-implant bone remodeling. J. Biomed. Mater. Res. Part A 2007, 81, 757–765. [Google Scholar] [CrossRef]
  54. Gu, X.; Zheng, Y. A review on magnesium alloys as biodegradable materials. Front. Mater. Sci. 2010, 4, 111–115. [Google Scholar] [CrossRef]
  55. Zhang, F.; Aibin, M.A.; Song, D.; Jiang, J.; Lu, F.; Zhang, L.; Yang, D.; Chen, J. Improving in-vitro biocorrosion resistance of Mg-Zn-Mn-Ca alloy in Hank’s solution through addition of cerium. J. Rare Earths 2015, 33, 93–101. [Google Scholar] [CrossRef]
  56. Yang, L.; Huang, Y.; Peng, Q.; Feyerabend, F.; Kainer, K.U.; Willumeit, R.; Hort, N. Mechanical and corrosion properties of binary Mg–Dy alloys for medical applications. Mater. Sci. Eng. B 2011, 176, 1827–1834. [Google Scholar] [CrossRef]
  57. Gu, X.N.; Xie, X.H.; Li, N.; Zheng, Y.F.; Qin, L. In vitro and in vivo studies on a Mg–Sr binary alloy system developed as a new kind of biodegradable metal. Acta Biomater. 2012, 8, 2360–2374. [Google Scholar] [CrossRef]
  58. Bornapour, M.; Muja, N.; Shum-Tim, D.; Cerruti, M.; Pekguleryuz, M. Biocompatibility and biodegradability of Mg-Sr alloys: The formation of Sr-substituted hydroxyapatite. Acta Biomater. 2013, 9, 5319–5330. [Google Scholar] [CrossRef] [PubMed]
  59. Kirkland, N.T.; Lespagnol, J.; Birbilis, N.; Staiger, M.P. A survey of bio-corrosion rates of magnesium alloys. Corros. Sci. 2010, 52, 287–291. [Google Scholar] [CrossRef]
  60. Gu, X.; Zheng, Y.; Cheng, Y.; Zhong, S.; Xi, T. In vitro corrosion and biocompatibility of binary magnesium alloys. Biomaterials 2009, 30, 84–498. [Google Scholar] [CrossRef]
  61. Song, G. Control of biodegradation of biocompatable magnesium alloys. Corros. Sci. 2007, 49, 1696–1701. [Google Scholar] [CrossRef]
  62. Guan, R.; Cipriano, A.F.; Zhao, Z.; Lock, J.; Tie, D.; Zhao, T.; Cui, T.; Liu, H. Development and evaluation of a magnesium–zinc–strontium alloy for biomedical applications—Alloy processing, microstructure, mechanical properties, and biodegradation. Mater. Sci. Eng. C 2013, 33, 3661–3669. [Google Scholar] [CrossRef] [PubMed]
  63. Zhang, S.; Li, J.; Song, Y.; Zhao, C.; Zhang, X.; Xie, C.; Zhang, Y.; Tao, H.; He, Y.; Jiang, Y.; et al. In vitro degradation, hemolysis and MC3T3-E1 cell adhesion of biodegradable Mg–Zn alloy. Mater. Sci. Eng. C 2009, 29, 1907–1912. [Google Scholar] [CrossRef]
  64. Zhang, S.; Zhang, X.; Zhao, C.; Li, J.; Song, Y.; Xie, C.; Tao, H.; Zhang, Y.; He, Y.; Jiang, Y.; et al. Research on an Mg–Zn alloy as a degradable biomaterial. Acta Biomater. 2010, 6, 626–640. [Google Scholar] [CrossRef]
  65. Yuen, C.K.; Ip, W.Y. Theoretical risk assessment of magnesium alloys as degradable biomedical implants. Acta Biomater. 2010, 6, 1808–1812. [Google Scholar] [CrossRef] [Green Version]
  66. Trumbo, P.; Schlicker, S.; Yates, A.A.; Poos, M. Dietary Reference Intakes for Energy, Carbohydrate, Fiber, Fat, Fatty Acids, Cholesterol, Protein and Amino Acids. J. Am. Diet. Assoc. 2002, 102, 1621–1630. [Google Scholar] [CrossRef]
  67. Cha, P.; Han, H.; Yang, G.; Kim, Y.; Hong, K.; Lee, S.; Jung, J.; Ahn, J.; Kim, Y.; Cho, S.; et al. Biodegradability engineering of biodegradable Mg alloys: Tailoring the electrochemical properties and microstructure of constituent phases. Sci. Rep. 2013, 3, 2367. [Google Scholar] [CrossRef] [Green Version]
  68. Zhang, B.; Hou, Y.; Wang, X.; Wang, Y.; Geng, L. Mechanical properties, degradation performance and cytotoxicity of Mg–Zn–Ca biomedical alloys with different compositions. Mater. Sci. Eng. C 2011, 31, 1667. [Google Scholar] [CrossRef]
  69. Ibrahim, H.; Klarner, A.D.; Poorganji, B.; Dean, D.; Luo, A.A.; Elahinia, M. Microstructural, mechanical and corrosion characteristic of heat-treated Mg-1.2Zn-0.5Ca (wt%) alloy for use as resorbable bone fixation material. J. Mech. Behav. Biomed. Mater. 2017, 69, 203–212. [Google Scholar] [CrossRef]
  70. Chandrasekaran, D. Grain Size and Solid Solution Strengthening in Metals. Ph.D. Thesis, Stockholm University, Stockholm, Sweden, 2003; pp. 13, 49. [Google Scholar]
  71. Callister, W.D., Jr. Materials Science and Engineering—An Introduction, 8th ed.; Wiley: Hoboken, NJ, USA, 2010; pp. 212–225. [Google Scholar]
  72. Erinc, M.; Sillekens, W.H.; Mannens, R.G.T.M.; Werkhoven, R.J. Applicability of Existing Magnesium Alloys as Biomedical Implant Materials; TMS (The Minerals, Metals & Materials Society): Pittsburgh, PA, USA, 2009. [Google Scholar]
  73. Brooks, E.K.; Ehrensberger, M.T. Bio-Corrosion of Magnesium Alloys for Orthopaedic Applications. J. Funct. Biomater. 2017, 8, 38. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  74. Sun, Y.; Zhang, B.; Wang, Y.; Geng, L.; Jiao, X. Preparation and characterization of a new biomedical Mg–Zn–Ca alloy. Mater. Des. 2012, 34, 58–64. [Google Scholar] [CrossRef]
  75. Gao, J.H.; Guan, S.K.; Ren, Z.W.; Sun, Y.F.; Zhu, S.J.; Wang, B. Homogeneous corrosion of high pressure torsion treated Mg–Zn–Ca alloy in simulated body fluid. Mater. Lett. 2011, 65, 691–693. [Google Scholar] [CrossRef]
  76. Xu, Z.; Smith, C.; Chen, S.; Sankar, J. Development and microstructural characterizations of Mg–Zn–Ca alloys for biomedical applications. Mater. Sci. Eng. B 2011, 176, 1660–1665. [Google Scholar] [CrossRef]
  77. Lisitsyn, V.; Ben-Hamu, G.; Eliezer, D.; Shin, K.S. The role of Ca microalloying on the microstructure and corrosion behavior of Mg–6Zn–Mn–(0.5–2)Si alloys. Corros. Sci. 2009, 51, 776–784. [Google Scholar] [CrossRef]
  78. Lisitsyn, V.; Ben-Hamu, G.; Eliezer, D.; Shin, K.S. Some particularities of the corrosion behaviour of Mg–Zn–Mn–Si–Ca alloys in alkaline chloride solutions. Corros. Sci. 2010, 52, 2280–2290. [Google Scholar] [CrossRef]
  79. Ben-Hamu, G.; Eliezer, D.; Shin, K.S. The role of Mg 2Si on the corrosion behavior of wrought Mg–Zn–Mn alloy. Intermetallics 2008, 16, 860–867. [Google Scholar] [CrossRef]
  80. Zhang, E.; Yang, L.; Xu, J.; Chen, H. Microstructure, mechanical properties and bio-corrosion properties of Mg–Zn–Mn–Ca alloy for biomedical application. Mater. Sci. Eng. A 2008, 497, 111–118. [Google Scholar] [CrossRef]
  81. Mezbahul-Islam, M.; Mostafa, A.O.; Medraj, M. Essential Magnesium Alloys Binary Phase Diagrams and Their Thermochemical Data. J. Mater. 2014, 2014, 704283. [Google Scholar] [CrossRef] [Green Version]
  82. Agarwal, S.; Curtin, J.; Duffy, B.; Jaiswal, S. Biodegradable magnesium alloys for orthopaedic applications: A review on corrosion, biocompatibility and surface modifications. Mater. Sci. Eng. C 2016, 68, 948–963. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  83. Li, X.; Liu, X.; Wu, S.; Yeung, K.W.K.; Zheng, Y.; Chu, P.K. Design of magnesium alloys with controllable degradation for biomedical implants: From bulk to surface. Acta Biomater. 2016, 45, 2–30. [Google Scholar] [CrossRef] [PubMed]
  84. Dongsong, Y.; Erlin, Z.; Songyan, Z. Effect of Zn content on microstructure, mechanical properties and fracture behavior of Mg-Mn alloy. China Foundry 2009, 6, 43–47. [Google Scholar]
  85. Zhang, D.; Shi, G.; Dai, Q.; Yuan, W.; Duan, H. Microstructures and mechanical properties of high strength Mg-Zn-Mn alloy. Trans. Nonferrous Met. Soc. China 2008, 18, s59–s63. [Google Scholar] [CrossRef]
  86. Zhang, D.; Shi, G.; Zhao, X.; Qi, F. Microstructure evolution and mechanical properties of Mg- x%Zn-1%Mn (x=4, 5, 6, 7, 8, 9) wrought magnesium alloys. Trans. Nonferrous Met. Soc. China 2011, 21, 15–25. [Google Scholar] [CrossRef]
Metals 12 00085 g001 550

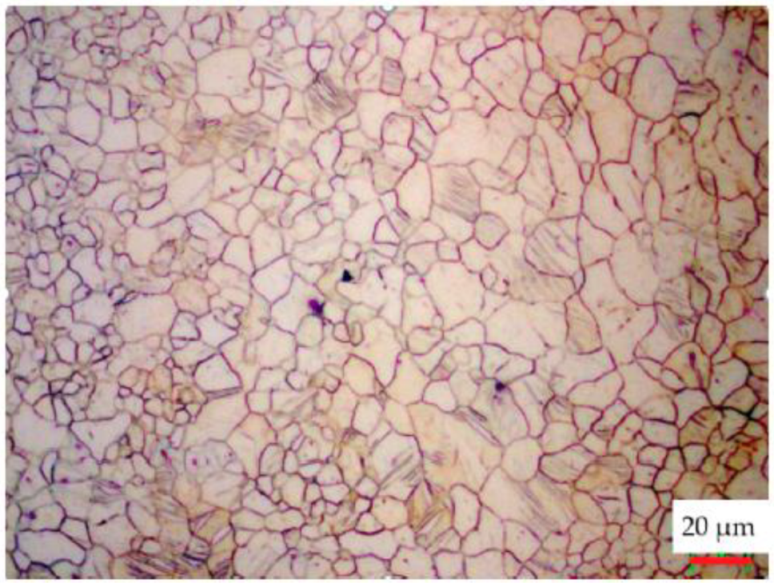

Figure 1. Microscope image of pure magnesium microstructure quenched in liquid CO2 at 500×.
Figure 1. Microscope image of pure magnesium microstructure quenched in liquid CO2 at 500×.
Metals 12 00085 g001
Metals 12 00085 g002 550

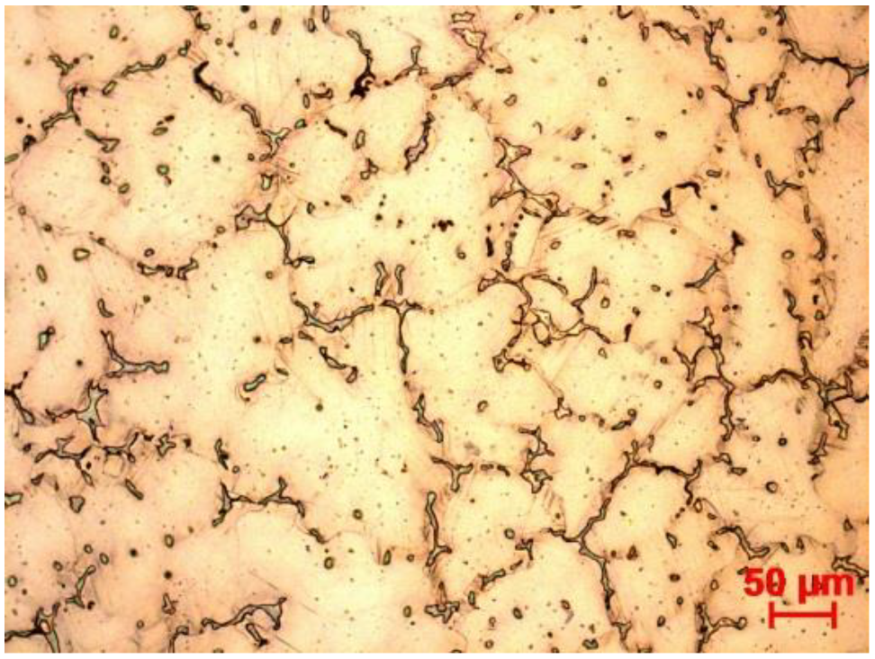

Figure 2. The microstructure of quenched Mg-1Mn-2Zn alloying systems at 200×.
Figure 2. The microstructure of quenched Mg-1Mn-2Zn alloying systems at 200×.
Metals 12 00085 g002
Metals 12 00085 g003 550

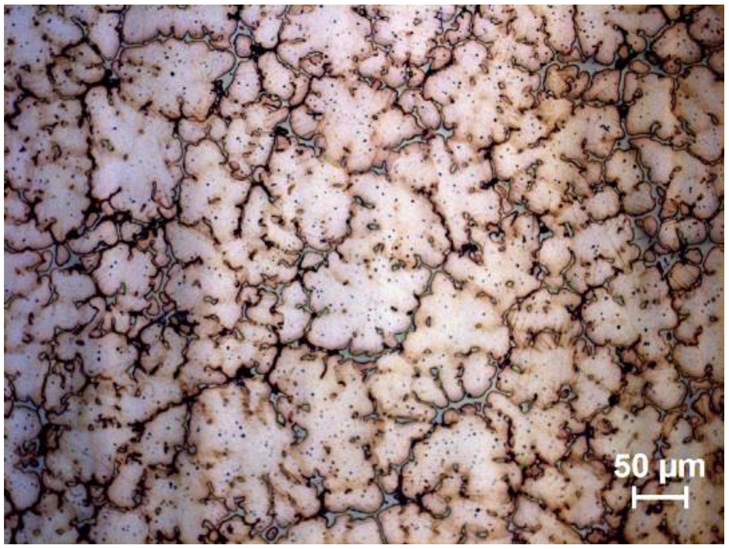

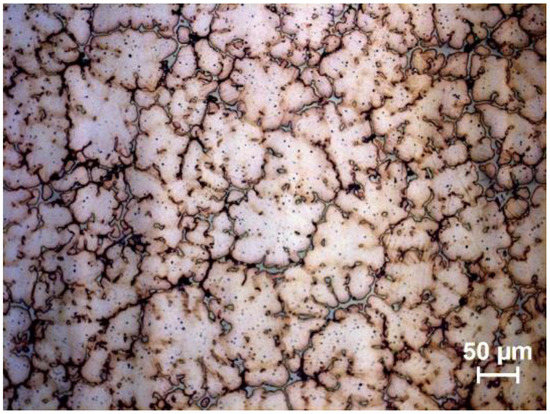

Figure 3. The microstructure of quenched Mg-1Mn-4Zn alloying systems at 200×.
Figure 3. The microstructure of quenched Mg-1Mn-4Zn alloying systems at 200×.
Metals 12 00085 g003
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Jamel, M.M.; Jamel, M.M.; Lopez, H.F. Designing Advanced Biomedical Biodegradable Mg Alloys: A Review. Metals 2022, 12, 85. https://doi.org/10.3390/met12010085

AMA Style

Jamel MM, Jamel MM, Lopez HF. Designing Advanced Biomedical Biodegradable Mg Alloys: A Review. Metals. 2022; 12(1):85. https://doi.org/10.3390/met12010085

Chicago/Turabian Style

Jamel, Murtatha M., Mostafa M. Jamel, and Hugo F. Lopez. 2022. "Designing Advanced Biomedical Biodegradable Mg Alloys: A Review" Metals 12, no. 1: 85. https://doi.org/10.3390/met12010085

APA Style

Jamel, M. M., Jamel, M. M., & Lopez, H. F. (2022). Designing Advanced Biomedical Biodegradable Mg Alloys: A Review. Metals, 12(1), 85. https://doi.org/10.3390/met12010085

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
