Dynamic Interaction between Dislocation and Irradiation-Induced Defects in Stainless Steels during Tensile Deformation

Abstract

A series of in-situ transmission electron microscopy (TEM) observations during tensile deformation were conducted on the ion-irradiated stainless steel. The jerky motion of dislocations appeared, and dislocations were pinned and depinned at the defects through the in-situ TEM observation. The jump distance traveled by dislocation was measured and discussed as the mean interval of defects interacting with the dislocation motion. Microstructural information of irradiation defects such as obstacle interval was obtained by TEM and atom probe tomography (APT), and the type of pinning site was identified. It was found that Frank loops and black dots were irradiation defects that strongly interacted with dislocations. It was suggested that solute atom clusters act as weak obstacles for dislocations in the dynamic interaction behavior with dislocation motion.

1. Introduction

Austenitic stainless steels, which are used as structural materials in nuclear reactors, are hardened by neutron irradiation in the nuclear reactors. Irradiation of approximately 1 dpa significantly accelerates irradiation hardening and greatly reduces their ductility [1]. In this process, the irradiation defects formed by neutron irradiation make dislocation motion pinned and inhibit their motion through the process of dislocation bowing out. Unpinning dislocation forms a dislocation channel with sweeping out the defects and leads to a large loss of ductility, which is known to be the cause of irradiation-assisted stress corrosion cracking; this poses an issue from the perspective of structural integrity maintenance in high-aged nuclear power reactors [2]. Three types of irradiation defects, Frank loops (FLs), black dots (BDs), and solute clusters (SCs), were identified as the primary defects in stainless steels under the operating conditions of light-water reactors [3]. Understanding the contribution of each irradiation defect to irradiation hardening is essential for evaluating the amount of irradiation hardening increase. In considering the hardening contribution of each defect, ion irradiation is a useful tool for introducing the defect in the materials compared with neutron irradiation, even though knowledge about the correlation of microstructure and mechanical properties between neutron irradiation and ion irradiation is not enough to obtain a comprehensive understanding.

The analyses of mechanical property changes and behavior before and after ion irradiation have been performed as local probes using specific techniques such as continuous stiffness measurement by nano-indentation [4], pillar compression method, pillar splitting method, micro-cantilever method [5], and in situ TEM tensile test [6]. These new technologies provided us a grasp of the correlation between mechanical behavior and microstructural changes during local deformation in failure and represented the usefulness in the evaluation of mechanical properties in the range from micro- to macro-scale. Further, the in-situ TEM observation during tensile deformation can provide microscopic information that cannot be obtained using conventional TEM work by direct observation of the dislocation interaction with defect clusters [7,8]. Nogiwa reported that in-situ TEM observations of dislocation gliding through copper precipitates in thermally aged or irradiated Fe-Cu alloys under stress, and it succeeded in discovering the obstacles strength on copper precipitate, which was invisible in the conventional TEM observations [9]. However, this technique is not widely used for invisible cluster evaluation because of the high level of skills and experience required for the observation and sample preparation.

In this study, the in-situ TEM observations during tensile deformation were conducted on the Fe ion-irradiated stainless steels. Mobile dislocations were treated as probes for investigating the dislocation interaction with irradiation-induced defect clusters during the observations, and the obstacle interval was estimated by focusing on their interaction with the irradiated defects as pinning/depinning behavior of mobile dislocations.

2. Materials and Methods

2.1. Sample Materials and Pre-Irradiation Preparation

Austenitic stainless steel (SUS316L steel: Fe bal., Cr 18 wt%, Ni 14 wt%, Mo 2.5 wt%, Mn 1.5 wt%, Si 0.4 wt%, C 0.016 wt%, P 0.02 wt%, S 0.002 wt%) was used as the sample material. Specimens were punched out as a piece with dimensions of 11.5 mm × 2.2 mm × 0.2 mm (length, width, and thickness, respectively), with holes on both ends for fastening in the tensile strength test. Solid solution heat treatment was performed for 2 h at 1100 °C in a vacuum atmosphere and air cooling to remove molding distortions and coarsen crystal grains. The sample surface was electrolytically polished to make it smooth using a jet electrolytic-polishing device, TenuPol5 (Struers, Copenhagen, Denmark).

2.2. Ion Irradiation

Iron ion irradiation was performed using the tandem accelerator at the Dual-Beam Facility for Energy Science and Technology (DuET), Institute of Advanced Energy, Kyoto University (Kyoto, Japan) [10]. A damage distribution was formed in the depth direction during ion irradiation, and the maximum damage amount and damage peak depth were calculated using the Monte Carlo simulation code, SRIM2008.1 [11]. Figure 1 shows an example of the damage distribution by ion irradiation and the ion implementation distribution in a Fe-14Cr-16Ni alloy. The self-ion Fe³⁺ was used, which reduces the chemical effect of projectile ion in ion implantation on stainless steel because the maximum amount of Fe ion implantation in the matrix was less than 0.5%.

Table 1. Fe ion-irradiation conditions.

No	Projectile Ion	Ion Energy	Irr. Temp.	Irradiation Period	Peak Damage
1	Fe3+	6.4 MeV	300 °C	120 min	7.1 dpa
2	Fe3+	6.4 MeV	200 °C	300 min	22.5 dpa

lists the irradiation conditions employed.

2.3. Post-Irradiation Preparation

The Fe ion-irradiated 316 L steel sample was thinned to a level that allows TEM observations while keeping limited areas with irradiation defects. Two types of electropolishing were employed. The first step was section polishing, in which the irradiated surface was polished to the layer directly above the irradiation damage peak. An electrolytic bath system was used for section polishing, and removal from a depth of 1.5 µm to the surface was performed using an electrolytic-polishing solution of methanol and sulfuric acid (1:5) at a temperature of 3 °C; the polishing current was adjusted at 1 A currency. A wrapped area of nail enamel was introduced at the edge of the irradiated surface, and the level difference at the boundary of the wrapped area and polished surfaces was measured using scanning electron microscopy (SEM) to determine the amount of the depth removed from the surface. The time required to remove a depth of 1.5 μm was 0.6 s. Next, electropolishing was performed on the opposite side of the irradiated surface of the sample, and a hole was burrowed at the center of the sample to prepare it such that the irradiated area would remain only at the thin-film portion that surrounds the hole. Tensile tests in a column in TEM were performed on the thin-film region containing irradiation defects.

2.4. In-Situ TEM Observation Experiments during Tensile Deformation

The in-situ TEM observation during tensile deformation was conducted using the JEM-1300NEF high-voltage electron microscope and GATAN672 short-axis tilting heated tensile holder at the Ultramicroscopy Research Center, Kyushu University (Fukuoka, Japan) [12]. The acceleration voltage of 1250 kV was quite high, offering several advantages such as the capability to observe thick materials and enhanced image quality due to the reduction in background intensity. The examination was conducted at 50 °C lower than the irradiation temperature. The sample was pulled in the longitudinal direction to generate a dislocation motion by causing plastic deformation around the hole, and the time-sequential change of microstructure during tensile deformation was observed and recorded on a PC with a frame rate of 10 fps. The tensile holder was a single-axis holder, and the crystallographic configuration of the obtained image was limited. To remove the electron irradiation damage, the electron beam was expanded to observe the microstructure. During the observation, it was performed while confirming that no damage evolution was caused by electron irradiation. In the case of the unirradiated sample, the dislocations were moving smoothly without any trapping and pinning motion in the matrix through the in-situ TEM observation during the tensile test.

To obtain information on the FLs and BDs, which are irradiation defects that can be observed using a conventional TEM, the samples were cut out from the tensile specimen after the tensile test, and its TEM observation was performed using a double-axial tilting holder, EM-31630 in the conventional TEM (JEM-2100TM, University of Fukui, Fukui, Japan).

In order to extract an APT sample, damage distribution in the ion-irradiated specimen was confirmed by a cross-sectional TEM observation. Figure 2 shows a cross-sectional depth observation photograph of sample 2 extracted and formed using an FIB. A region of accumulated irradiation defects was observed at a depth of 2.3 μm from the surface. An APT specimen was extracted at a depth of 1500–1700 nm by the FIB sampling method.

To obtain information on SCs, APT observations using the LEAP3000XHR (Imago Inc., Madison, WI, USA) were performed on irradiation sample 1. An APT observation was carried out at the RI facility in the “Fugen” site in JAEA Tsuruga [13]. The microstructural data obtained from previous work were used for irradiation sample 2 [14].

3. Results

3.1. Results of the Tensile In-Situ TEM Observation

The motion of edge-on extended dislocation/fault showing a dislocation line on the surface, which was parallel to the electron beam direction in the sample, was observed in the irradiated sample 1 (see Figure 3). In the irradiated sample 2, the dislocation line exhibited a sliding motion on a slip plane that was not parallel to the electron beam direction (see Figure 4). Both the dislocation motion was observed dynamically and moved on {111} type of slip plane. The diffraction pattern was also recorded to investigate the electron injection direction in the video. The slip plane and dislocation line direction were determined through the electron diffraction analysis.

Figure 3 shows a TEM image acquired from the observation footage of the edge-on extended dislocation formation. The direction of the extension of the two extended dislocations was $\left[0\overline{1}1\right]$. From the footage, the dislocations were found to have a jerky motion in the formation. The reason for the interruptions in the dislocation motion was that the irradiation defect acted as an obstacle against the dislocation motion. The distance traveled by the dislocation was measured, and the data were processed based on the image correction of the sliding direction and observation results of the dislocation motion at different positions. As a result, the jump distance traveled by dislocation was determined to be approximately 50 nm.

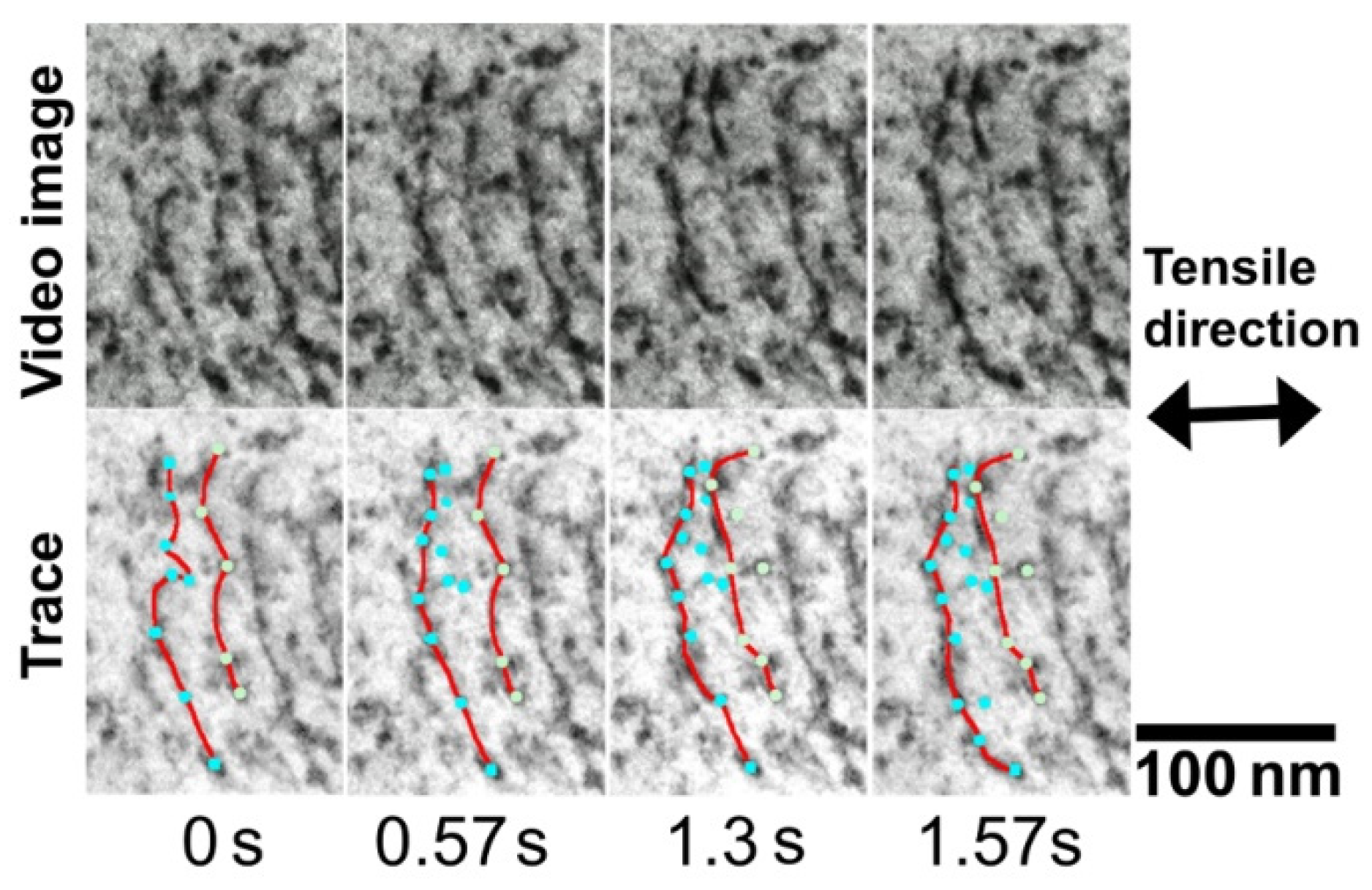

The observation image of the dislocation motion in sample 1 indicated linear motion, as shown in Figure 3. Another image of dislocation motion in sample 2 indicated dislocation line pinning on irradiation defects along with motion with gradual overhanging. Figure 4 shows the time-sequential images of dislocation motion, which is pinning /depinning at the defects. The upper part of video images are the corrected images of dislocation motion in which the image is normal to the slop plane. In the bottom part, the red line indicates the two dislocations, and the blue and green dots indicate pinning points where dislocations stopped interacting with defects. The mean interval of the first dislocation among the pinning points was set as the obstacle interval, which was approximately 31 nm.

3.2. Post-Tensile TEM Observation Results

The number and mean diameters of the defects were measured for FL images formed using the relrod method [15], which enables FL defect-specific observation, and BD images formed using the bright field (BF) and weak-beam dark-field (WBDF) methods, which enable BD defect-specific observation. Meanwhile, the sample thickness in the observation range was determined using equal-thickness fringes or K-M fringes. From the above data, the volume number densities of the FL and BD defects were measured, and the results are presented in

Table 2. Mean diameters and volume number densities of FLs and BDs.

Sample	Frank Loop		Black Dot
	Mean Diameter	Density (Counts)	Mean Diameter	Density (Counts)
1	6.3 ± 2.7 nm	4.3 × 1022/m3 (226)	3.2 ± 1.9 nm	5.8 × 1022/m3 (545)
2	8.4 ± 3.1 nm	3.7 × 1022/m3 (22)	2.7 ± 1.4 nm	2.7 × 1023/m3 (200)

.

3.3. The Solute Atomic Cluster from APT

The atomic mass of the APT observation performed on irradiated sample 1 indicated that the solute atoms of Si were clustered. Figure 5 shows colored maps of the clusters, focusing on Si and Ni.

Table 3. Mean diameters and volume number densities of solute atom clusters. * The data of sample 2 are from Ref. [14].

Sample	Mean Diameter	Density (Count Number)
1	2.6 ± 0.6 nm	4.3 × 1023/m3 (55)
2 *	2.2 ± 0.4 nm	2.1 × 1024/m3 (108)

lists the calculated volume number densities and mean diameters. The APT observation could not be performed on irradiation sample 2; therefore, data from literature reporting results of similar conditions [14] were used for sample 2. Table 3 presents the results accordingly.

4. Discussion

Figure 6 shows a histogram of the mean obstacle interval obtained from the mean jump distance by the pinning/depinning of dislocations observed in irradiation sample 1. Cases with wide dislocation jump distances indicated large jumps during tensile application and hence were considered jumps that occurred during large stress loading. In addition, jumps of 100 nm or less were adopted as the obstacle interval distance by pinning/depinning to determine the obstacle interval of the irradiation defects confirmed during dynamic observation.

The distributed-barrier hardening (DBH) model has conventionally been used to show the correlation between the irradiation microstructure and hardness, and the following equation holds in the DBH model between the volume number density N_v and diameter d of defects and increased applied stress ∆σ [16,17].

$$∆{\sigma }_c=\mathrm{M}\mathsf{\alpha }\mu b\sqrt{N_{v}d}$$

(1)

where M is the Taylor factor, α is the obstacle strength, μ is the shear modulus, and b is the magnitude of the Burgers vector. The square sum of the deformation stress increments for each irradiated defect yielded Δσ. The obstacle strength is generally determined by the type of defect, and previous studies reported that α = 0.4 for FLs, α = 0.2 for fine BDs, and α = 0.02 to 0.11 for solute atom clusters [14,18,19,20]. From the literature survey, the ease of pinning of dislocations caused by defects is in the order FL > BD >> SC. Since three defect clusters were observed in this work and some defects interacted with mobile dislocation, we verified which defects interacted with the dislocations. The three possible pinning combinations that can be observed via dynamic observation are: (1) FLs only, (2) FLs and BDs, and (3) all defects as FLs, BDs, and SCs.

In addition, irradiation defects that act as obstacles are randomly distributed in three dimensions [21]. In this case, obstacle interval L₀ was approximated by the following equation [9]:

$$L_0=1/\sqrt{d{N}_v}$$

(2)

where N_v represents the obstacle volume density and d is the diameter. For the obstacle interval with a mix of multiple defects, the number density was used for each sum, and the mean diameter was used with the weighted average considering the number density.

The obstacle interval obtained from the dynamic observation of edge-in dislocation channel formation and the obstacle interval calculated by Equation (2) using the results of post-tensile TEM and APT observations were compared for irradiation sample 1 as shown in Figure 7. The results indicate that the combination of FLs and BDs exhibits the closest obstacle interval, suggesting that the irradiation defects confirmed by dynamic observation of the edge-on dislocation channel formation are FLs and BDs.

Next, the jump distance obtained from the dynamic observation of dislocation motions in irradiation sample 2, obtained from Equation (2), and obtained from previous literature were compared in Figure 7. Comparing the jump distance obtained by the in-situ observation and obstacle interval for a combination of various defects, the obstacle interval of a combination of FL and BD showed a suitable coincidence with the jump distance. From the experimental results, it is suggested that FLs and BDs function as obstacles, and it is unlikely that the SC act as a pinning site against dislocations motion; thus, the strength of SCs as obstacles was quite low.

Applying the DBH model as an SC hardening model, assuming distributed reinforcement with strength equivalent to FL or BD, would be inappropriate. Therefore, an appropriate DBH model for SCs in cases where both strong and weak obstacles coexist should be applied for FLs and BDs as strong obstacles and SCs as weak obstacles, which can be hardened owing to their high number density [16,17]. From the results of this work, a model with coexisting strong and weak obstacles is recommended as the irradiation hardening model of irradiated stainless steels. Even though the order of obstacle strength, α, was reported as FL > BD >> SC as mentioned from the statistically microstructural analysis, it is evident that this correlation between the type of defects and hardening contribution was verified and confirmed by the dynamic behavior of dislocation interaction, using the probes for dislocation interaction with defects in the in-situ TEM observation during the tensile test.

Conclusively, dynamic TEM observation for dislocation interaction with defects indicated directly that BDs and FLs function as pinning and trapping sites as mobile dislocations and contribute to irradiation hardening. The solute atomic clusters were not found to function as pinning sites through the dynamic TEM observation experiment but were considered to contribute to irradiation hardening by their dense distribution of fine defects.

5. Conclusions

A series of in-situ TEM observations during tensile deformation was conducted on the Fe ion-irradiated stainless steels. Mobile dislocations were treated as probes for investigating the dislocation interaction with irradiation-induced defect clusters during the observations, and the jump distance was estimated by focusing on their interaction with the irradiated defects as pinning/depinning behavior of mobile dislocations.

A structural material in nuclear reactors, SUS316L steel was irradiated with self-ion irradiation to induce irradiation defects in the material, and the in-situ TEM observation during tensile deformation was employed as an experimental approach to investigate the dislocation interaction with irradiation-induced defect clusters.

The number density and mean diameter of black dot, Frank loop, and solute atom cluster were measured by APT and conventional TEM observations, and the obstacle interval of each defect was obtained. The jump distance traveled by dislocations in the in-situ TEM observations was measured from video analysis of a series of time-sequential images for dislocation motion pinned/depinned during tensile tests.

Comparing the jump distance obtained by the in-situ observation and obstacle interval for a combination of various defects, the obstacle interval of a combination of FL and BD showed a suitable coincidence with the jump distance. It is suggested that FLs and BDs function as obstacles, and it is unlikely that the SC act as a pinning site against dislocations motion; thus, the strength of SCs as obstacles was quite low. The solute atomic clusters were not found to function as pinning sites through the dynamic TEM observation experiment but were considered to contribute to irradiation hardening by their dense distribution of fine defects.
